◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPR ▶ 51241 - NPR CNG(THAILAND) ▶ 3 - Brakes, Brake System ▶ 3-52 - BRAKE PIPING; OIL,FRONT ▶
3-52 — BRAKE PIPING; OIL,FRONT (#34047) — 9 parça

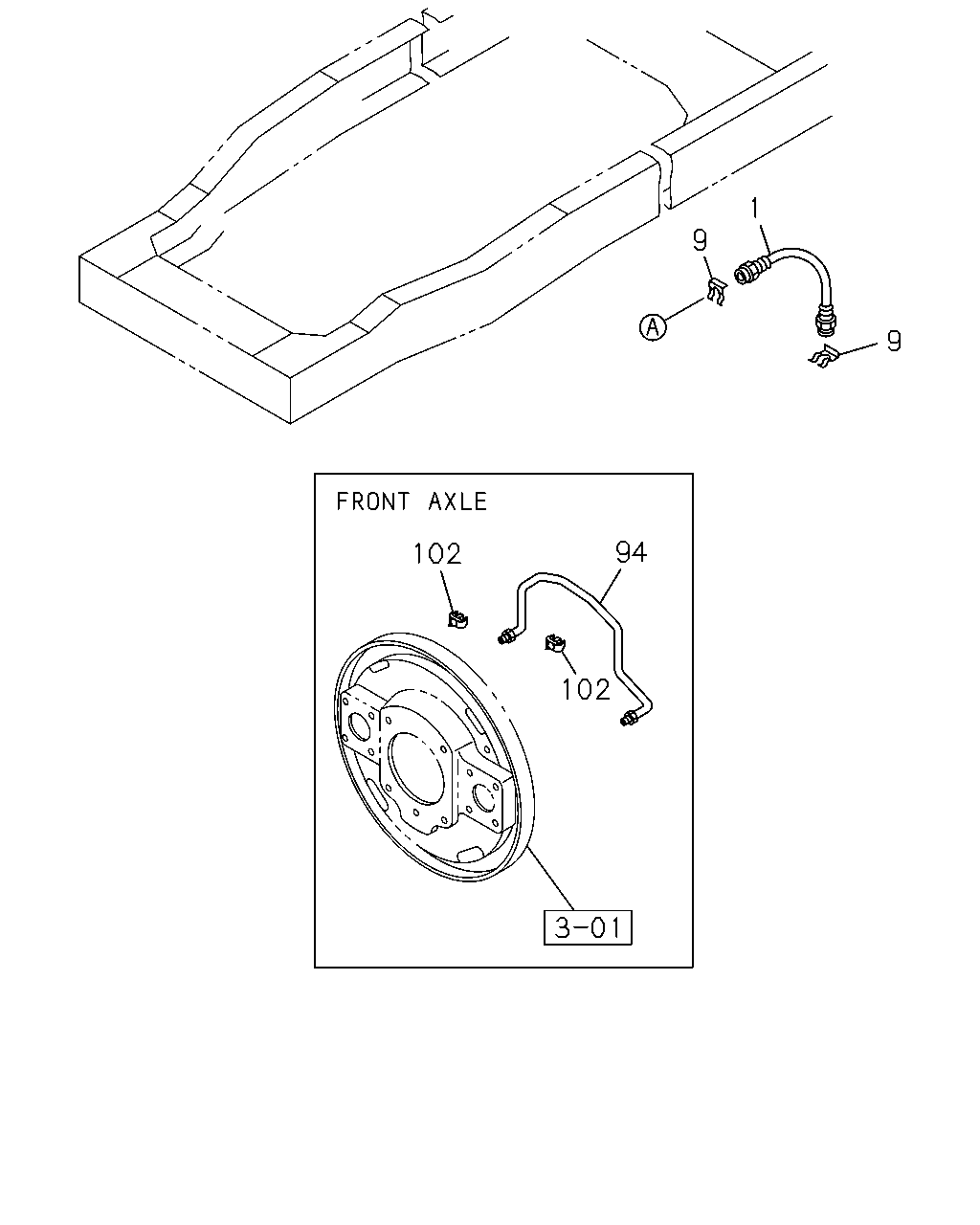

çizim 123381
1 9 9 94 102 102
BalonParca AdiParca NoAdetTipApplied Date
1 HOSE; FLEX,FRT BRK 8-97039-543-1 02 1 0901-
9 CLIP; FLEX HOSE,FRT BRK 8-97360-054-0 04 1 0901-
94 PIPE; BRK,W/C TO W/C
THA 		8-97940-705-0 02 1 0901-
102 CLIP; PIPE 8-97022-086-0 02 1 0901-

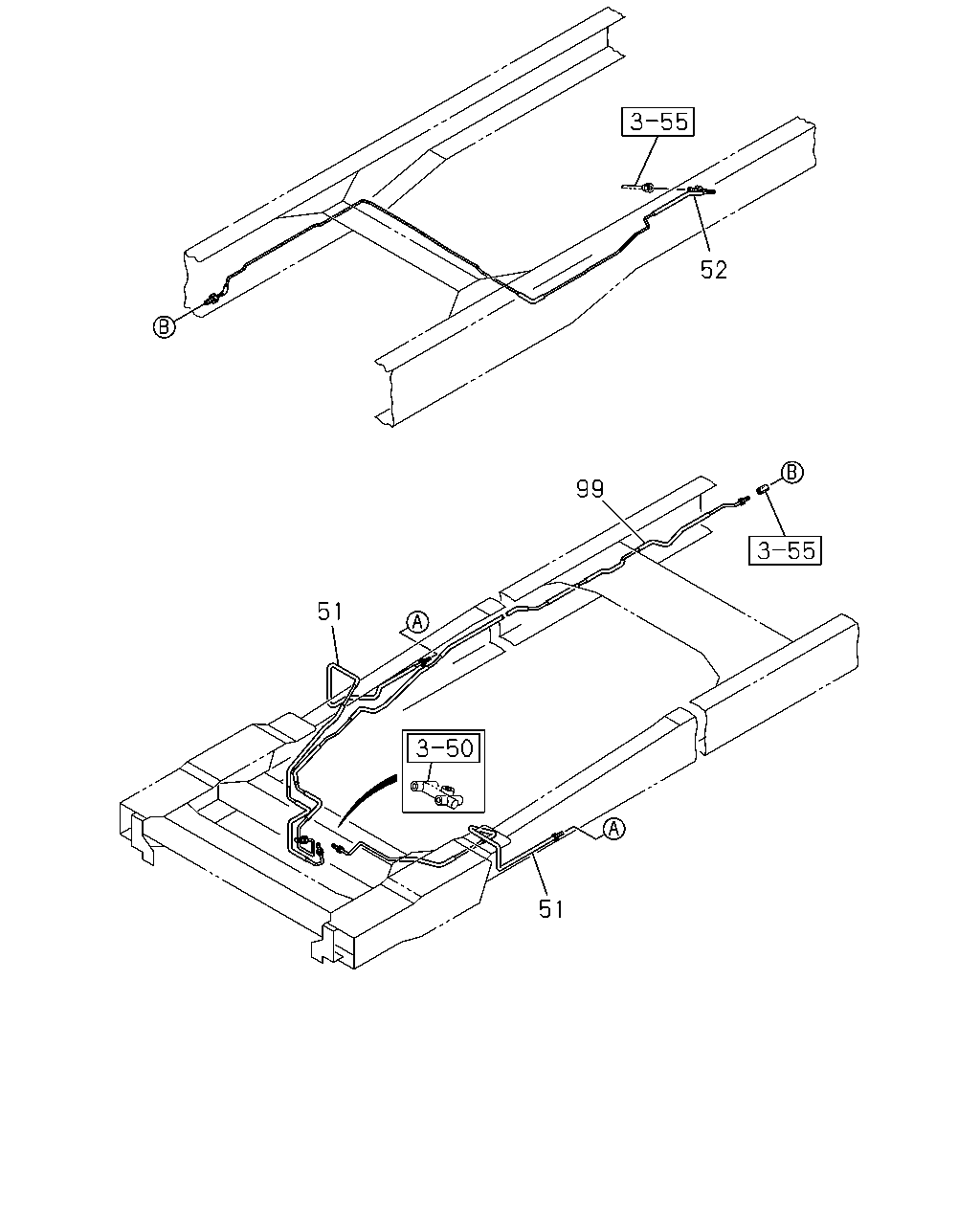

çizim 123386
52 99 51 51
BalonParca AdiParca NoAdetTipApplied Date
51 PIPE; BRK
FRAME STRAIGHT TYPE<7KJ> 5/6WAY TO FRONT THA 		8-98065-765-1 01 1 0901-
51 PIPE; BRK
FRAME STRAIGHT TYPE<7KJ> 5/6WAY TO FRONT THA 		8-98065-766-1 01 1 0901-
52 PIPE; BRK
WHEEL BASE 3400MM<34W> FRAME STRAIGHT TYPE<7KJ> 2WAY TO REAR THA 		8-98057-262-0 01 1 0901-
52 PIPE; BRK
WHEEL BASE 3800MM<38W> FRAME STRAIGHT TYPE<7KJ> 2WAY TO REAR THA 		8-98057-263-0 01 1 0901-
99 PIPE ASM; 4/5/6 WAY
FRAME STRAIGHT TYPE<7KJ> 		8-98111-763-0 01 1 0901-
