Isuzu WW
▶
TRUCKS
▶
NPR
▶
51241 - NPR CNG(THAILAND)
▶
3 - Brakes, Brake System
▶
3-50 - BRAKE PIPING; OIL,MASTER CYLINDER
▶
3-50 — BRAKE PIPING; OIL,MASTER CYLINDER
(#34046) — 15 parça
◀

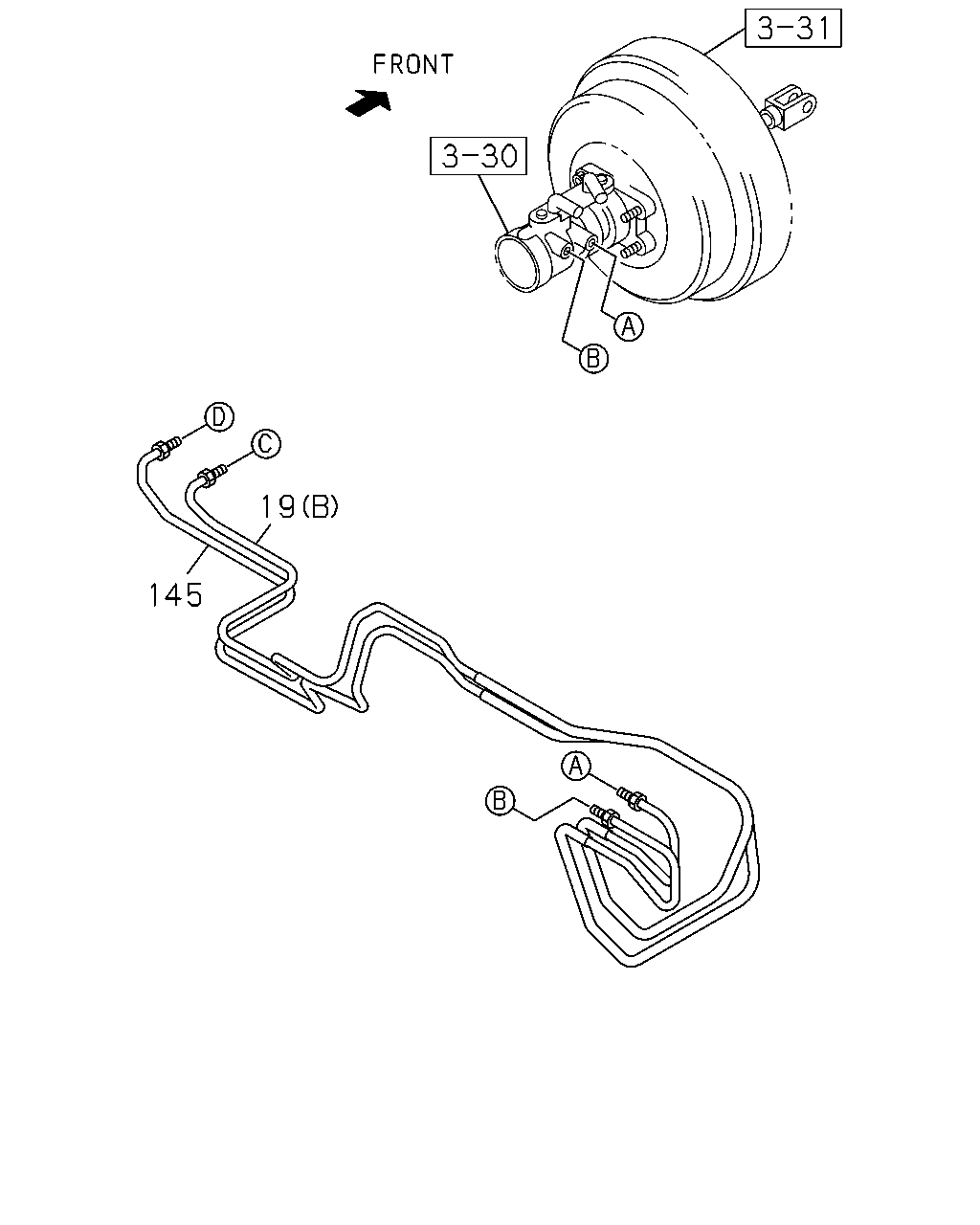

[350A] NO.1 (3 parça)

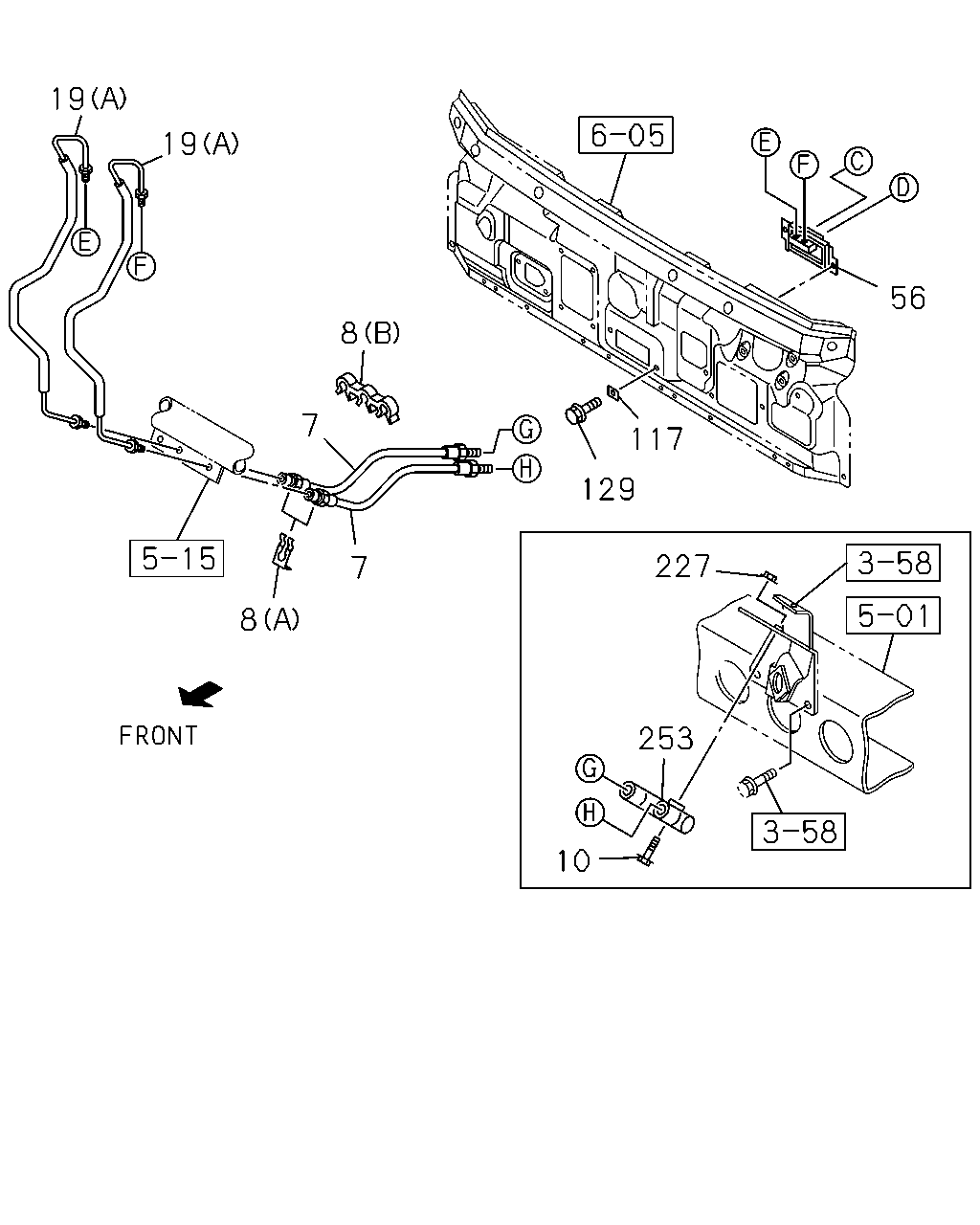

[350A] NO.2 (12 parça)
▶
19
145
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
19
PIPE; BRK,M/CYL TO UNION
FRAME STRAIGHT TYPE<7KJ> (A) THA
8-97389-366-1
02
1
0901-
19
PIPE; BRK,M/CYL TO UNION
(B) THA
8-97389-337-3
01
1
0901-
145
PIPE; BRK,METERING VLV TO UNION
THA
8-97389-295-3
01
1
0901-
19
19
56
8
7
117
129
227
7
8
253
10
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
7
HOSE; FLEX,PIPE TO 5 WAY JOINT
8-98029-865-0
02
1
0901-
8
CLIP; FLEX HOSE,CABLE SIDE
(B)
8-97076-471-0
01
1
0901-
8
CLIP; FLEX HOSE,CABLE SIDE
(A)
8-97365-304-0
02
1
0901-
10
BOLT; JOINT
FRAME STRAIGHT TYPE<7KJ> M6X40 FLANGE
0-28650-640-0
01
1
0901-
19
PIPE; BRK,M/CYL TO UNION
FRAME STRAIGHT TYPE<7KJ> (A) THA
8-97389-366-1
02
1
0901-
19
PIPE; BRK,M/CYL TO UNION
(B) THA
8-97389-337-3
01
1
0901-
56
BRACKET; UNION,BRK
8-97389-281-1
01
1
0901-1005
56
BRACKET; UNION,BRK
8-98154-264-1
01
1
1006-
117
SEAL; UNION,BRK PIPE JOINT
8-97856-616-0
02
1
0901-
129
BOLT; BRKT
M6X20 W/LK&PL WASHER
8-98081-030-0
02
1
0901-
227
NUT; JOINT
FRAME STRAIGHT TYPE<7KJ> M8 FLANGE THA
0-91180-108-0
02
1
0901-
253
JOINT
FRAME STRAIGHT TYPE<7KJ>
5-47456-009-1
01
1
0901-
