Isuzu WW
▶
TRUCKS
▶
NPR
▶
51241 - NPR CNG(THAILAND)
▶
3 - Brakes, Brake System
▶
3-11 - PARKING BRAKE CONTROL
▶
3-11 — PARKING BRAKE CONTROL
(#34042) — 57 parça
◀
[311A] FIXING PARTS(NO.2) (20 parça)
[311A] STEM AND CABLE (17 parça)
[311A] FIXING PARTS(NO.1) (20 parça)
▶
238
237
241
181
235
91
8
225
85
237
235
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
8
GUIDE; PARKING BRK
FRAME STRAIGHT TYPE<7KJ> (A)
8-98096-374-0
01
1
0901-
8
GUIDE; PARKING BRK
FRAME STRAIGHT TYPE<7KJ> (B)
8-98110-964-0
01
1
0901-
85
CLIP; BRKT
FRAME STRAIGHT TYPE<7KJ> ID=14.5 L=20
1-09701-012-0
01
1
0901-
91
CLIP; PARKING BRK CABLE
FRAME STRAIGHT TYPE<7KJ> (B)
8-97036-333-1
01
1
0901-
91
CLIP; PARKING BRK CABLE
(B)
8-97036-333-1
02
1
0901-
91
CLIP; PARKING BRK CABLE
(A)
8-98023-622-0
01
1
0901-
91
CLIP; PARKING BRK CABLE
EXC. FRAME STRAIGHT TYPE<7KJ> (C)
8-97036-332-1
01
1
0901-
181
BOLT; BRKT
FRAME STRAIGHT TYPE<7KJ> M8X25 FLANGE THA
0-28650-825-0
01
1
0901-
181
BOLT; BRKT
FRAME STRAIGHT TYPE<7KJ> M8X25 FLANGE THA
0-28650-825-0
02
1
0901-
181
BOLT; BRKT
M8X16 FLANGE THA
0-28050-816-0
01
1
0901-
225
NUT; CABLE CLIP
FRAME STRAIGHT TYPE<7KJ> M8 FLANGE THA
0-91180-108-0
02
1
0901-
225
NUT; CABLE CLIP
FRAME STRAIGHT TYPE<7KJ> M8 FLANGE THA
0-91180-108-0
01
1
0901-
235
BRACKET; CONT CABLE TO FRAME
FRAME STRAIGHT TYPE<7KJ> (A)
8-98105-435-0
01
1
0901-0909
235
BRACKET; CONT CABLE TO FRAME
FRAME STRAIGHT TYPE<7KJ> (A)
8-98106-986-1
01
1
0910-
235
BRACKET; CONT CABLE TO FRAME
FRAME STRAIGHT TYPE<7KJ> (B)
8-98108-803-0
01
1
0901-
237
NUT; BRKT TO FRAME
FRAME STRAIGHT TYPE<7KJ> M10 FLANGE THA
0-91180-110-0
01
1
0901-
238
BOLT; CLIP TO BRKT
FRAME STRAIGHT TYPE<7KJ> M8X25 FLANGE THA
0-28650-825-0
03
1
0901-
238
BOLT; CLIP TO BRKT
FRAME STRAIGHT TYPE<7KJ> M10X30 FLANGE THA
0-28651-030-0
01
1
0901-0902
241
NUT; BRKT
FRAME STRAIGHT TYPE<7KJ> M8 FLANGE THA
0-91180-108-0
01
1
0901-
241
NUT; BRKT
FRAME STRAIGHT TYPE<7KJ> M8 FLANGE THA
0-91180-108-0
02
1
0901-

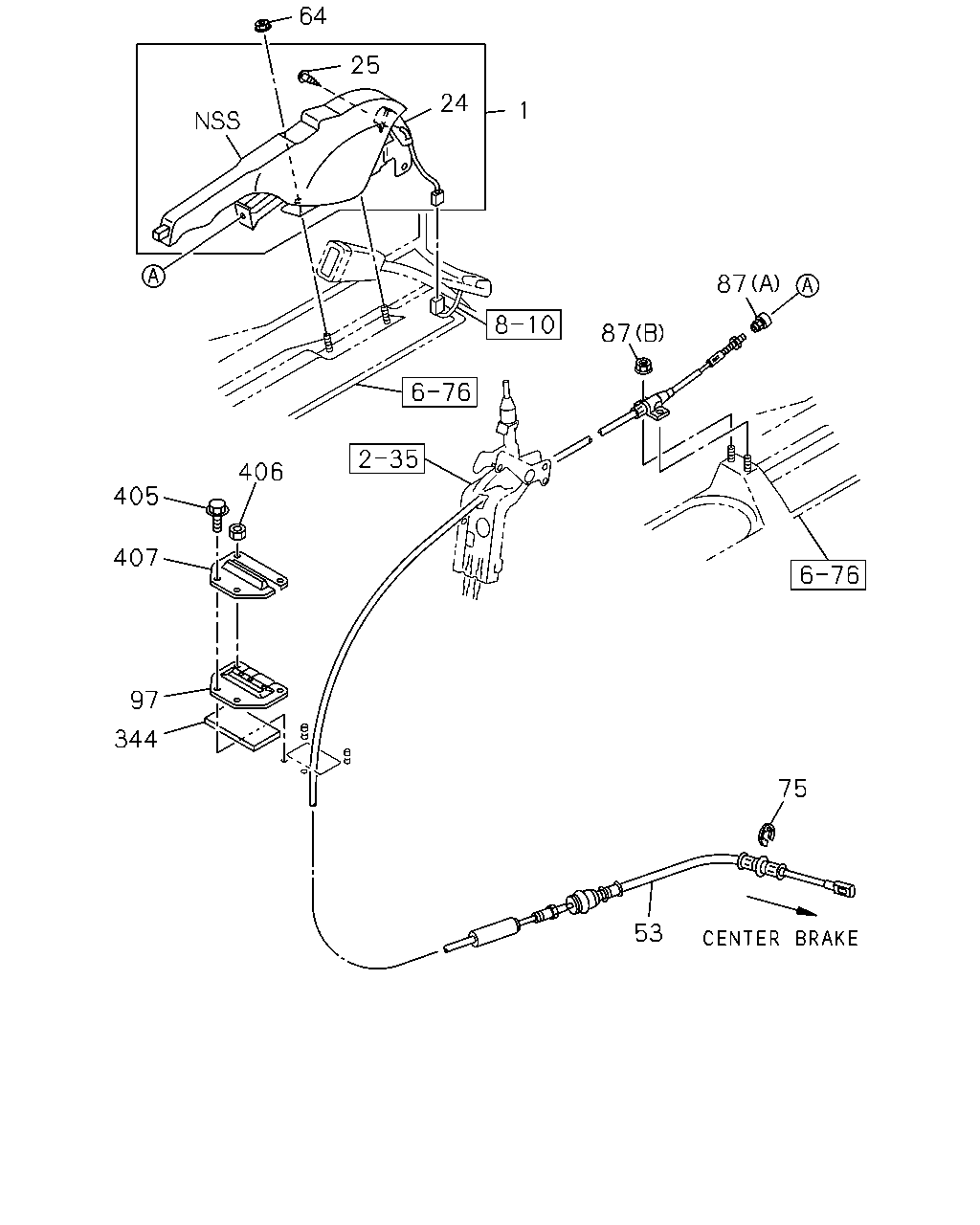

64
25
24
1
87
8
87
406
405
407
97
344
75
53
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
STEM ASM; PARKING BRK
GRAY
8-97405-353-0
01
1
0901-1303
1
STEM ASM; PARKING BRK
GRAY
8-97426-513-0
01
1
1304-
8
GUIDE; PARKING BRK
FRAME STRAIGHT TYPE<7KJ> (A)
8-98096-374-0
01
1
0901-
8
GUIDE; PARKING BRK
FRAME STRAIGHT TYPE<7KJ> (B)
8-98110-964-0
01
1
0901-
24
SWITCH ASM; PARK BRK
8-97995-828-1
01
1
0901-1303
24
SWITCH ASM; PARK BRK
8-98238-611-0
01
1
1304-
25
SCREW; SW,PARKING BRK
8-98152-463-0
01
1
0901-
53
CABLE; PARK BRK,FRT LWR
FRAME STRAIGHT TYPE<7KJ>
8-98041-315-3
01
1
0901-
64
NUT; PARKING BRK
M8 LOCK NUT FLANGE
0-91380-008-0
02
1
0901-
75
RING; SNAP,HAND BRK CABLE
FRAME STRAIGHT TYPE<7KJ> ID=12
0-91805-512-0
01
1
0901-
87
NUT
FRAME STRAIGHT TYPE<7KJ> (A) M6
8-98034-313-1
01
1
0901-
87
NUT
FRAME STRAIGHT TYPE<7KJ> (B) M8 FLANGE THA
0-91180-108-0
02
1
0901-
97
GROMMET; PARKING BRK CABLE
8-97065-212-1
01
1
0901-
344
GASKET; DASH LWR
8-97096-753-0
01
1
0901-
405
BOLT; GROMMET
M6X20 FLANGE
0-28450-620-0
02
1
0901-
406
NUT; GROMMET
M6 FLANGE THA
0-91180-106-0
02
1
0901-
407
RETAINER; GROMMET
1-33657-674-0
01
1
0901-

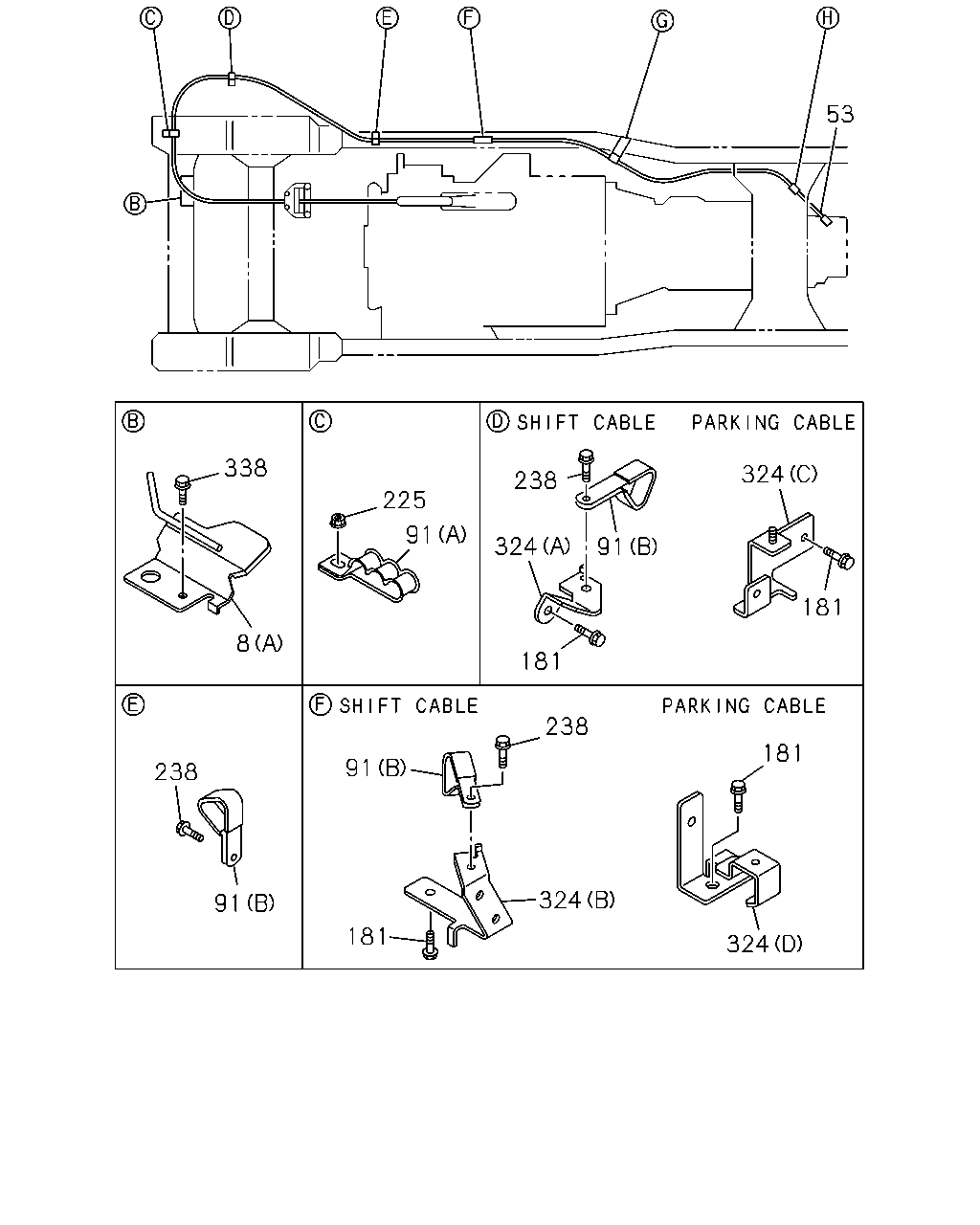

53
338
324
238
225
91
324
91
181
8
181
238
181
91
238
324
91
181
324
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
8
GUIDE; PARKING BRK
FRAME STRAIGHT TYPE<7KJ> (A)
8-98096-374-0
01
1
0901-
8
GUIDE; PARKING BRK
FRAME STRAIGHT TYPE<7KJ> (B)
8-98110-964-0
01
1
0901-
53
CABLE; PARK BRK,FRT LWR
FRAME STRAIGHT TYPE<7KJ>
8-98041-315-3
01
1
0901-
91
CLIP; PARKING BRK CABLE
FRAME STRAIGHT TYPE<7KJ> (B)
8-97036-333-1
01
1
0901-
91
CLIP; PARKING BRK CABLE
(B)
8-97036-333-1
02
1
0901-
91
CLIP; PARKING BRK CABLE
(A)
8-98023-622-0
01
1
0901-
91
CLIP; PARKING BRK CABLE
EXC. FRAME STRAIGHT TYPE<7KJ> (C)
8-97036-332-1
01
1
0901-
181
BOLT; BRKT
FRAME STRAIGHT TYPE<7KJ> M8X25 FLANGE THA
0-28650-825-0
01
1
0901-
181
BOLT; BRKT
FRAME STRAIGHT TYPE<7KJ> M8X25 FLANGE THA
0-28650-825-0
02
1
0901-
181
BOLT; BRKT
M8X16 FLANGE THA
0-28050-816-0
01
1
0901-
225
NUT; CABLE CLIP
FRAME STRAIGHT TYPE<7KJ> M8 FLANGE THA
0-91180-108-0
02
1
0901-
225
NUT; CABLE CLIP
FRAME STRAIGHT TYPE<7KJ> M8 FLANGE THA
0-91180-108-0
01
1
0901-
238
BOLT; CLIP TO BRKT
FRAME STRAIGHT TYPE<7KJ> M8X25 FLANGE THA
0-28650-825-0
03
1
0901-
238
BOLT; CLIP TO BRKT
FRAME STRAIGHT TYPE<7KJ> M10X30 FLANGE THA
0-28651-030-0
01
1
0901-0902
324
BRACKET
FRAME STRAIGHT TYPE<7KJ> (B)
8-98034-185-1
01
1
0901-
324
BRACKET
FRAME STRAIGHT TYPE<7KJ> (C)
8-98099-516-0
01
1
0901-1508
324
BRACKET
FRAME STRAIGHT TYPE<7KJ> (C)
8-98216-763-1
01
1
1509-
324
BRACKET
FRAME STRAIGHT TYPE<7KJ> (D)
8-98111-394-1
01
1
0901-
324
BRACKET
(A)
8-98034-115-0
01
1
0901-
338
SCREW; GUIDE
FRAME STRAIGHT TYPE<7KJ> M8X35 FLANGE
8-98046-876-0
01
1
0901-
