5-01 — FRAME AND OTHER PARTS (#3404) — 186 parça

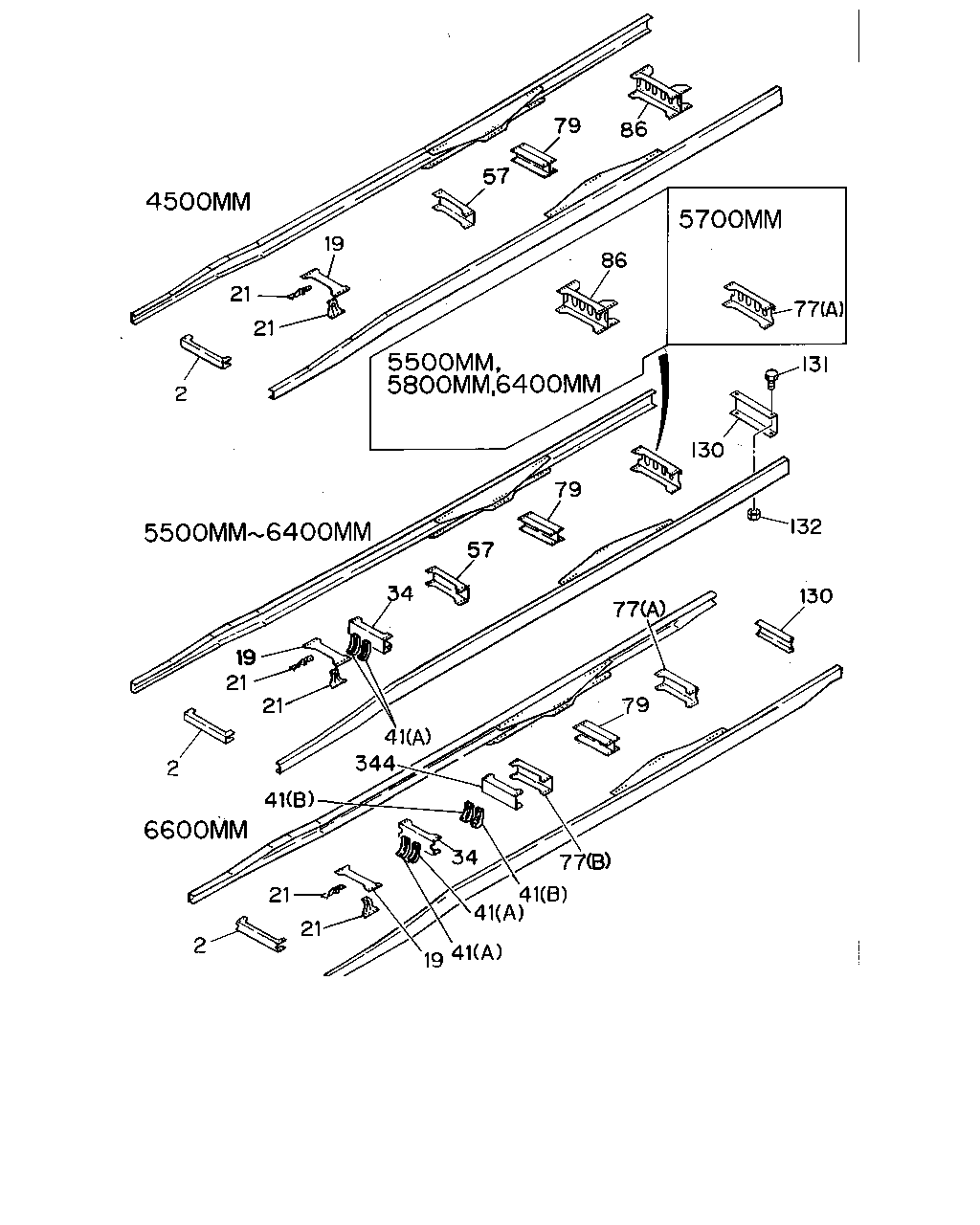

86 79 57 19 21 2 21 86 77 131 130 79 57 34 19 21 21 2 2 21 21 19 41 41 41 77 34 344 41 41 77 79 130 132

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
2	MEMBER; CROSS,1ST	1-53181-350-0	01	1	9002-9302	●	●	●	●	●	●
2	MEMBER; CROSS,1ST	1-53181-517-2	01	1	9303-9404	●	●	●	●	●	●
2	MEMBER; CROSS,1ST	1-53181-694-0	01	1	9405-	●	●	●	●	●	●
19	MEMBER; CROSS,2ND	1-53174-155-0	01	1	9002-9404	●	●	●	●	●	●
19	MEMBER; CROSS,2ND	1-53174-231-1	01	1	9405-	●	●	●	●	●	●
21	GUSSET; 2ND CROSS	1-53164-198-0	01	1	9002-	●	●		●	●
21	GUSSET; 2ND CROSS	1-53164-197-0	01	1	9002-	●	●		●	●
21	GUSSET; 2ND CROSS	1-53164-183-0	02	1	9002-9301			●
21	GUSSET; 2ND CROSS	1-53164-183-0	02	1	9302-9306			●			●
21	GUSSET; 2ND CROSS	1-53164-183-0	02	1	9307-			●
21	GUSSET; 2ND CROSS	1-53164-115-2	02	1	9002-9301						●
21	GUSSET; 2ND CROSS	1-53164-115-2	02	1	9307-						●
34	MEMBER; CROSS,3RD	1-53171-875-1	01	1	9002-9404		●		●	●
34	MEMBER; CROSS,3RD	1-53181-645-1	01	1	9405-		●		●	●
34	MEMBER; CROSS,3RD	1-53171-673-3	01	1	9002-9404			●			●
34	MEMBER; CROSS,3RD	1-53181-640-1	01	1	9405-			●			●
41	BRACKET; CENTER BRG,FRAME SIDE 6RB1 STD ENG(07L) (A) L=290	1-53271-322-1	02	1	9002-		●		●
41	BRACKET; CENTER BRG,FRAME SIDE (A) L=345	1-53271-266-2	02	1	9307-			●
41	BRACKET; CENTER BRG,FRAME SIDE (A) L=305	1-53271-262-2	02	1	9002-9306			●			●
41	BRACKET; CENTER BRG,FRAME SIDE 10PD1 STD ENG(40L) (A) L=265	1-53271-287-1	02	1	9002-				●
41	BRACKET; CENTER BRG,FRAME SIDE (A) L=275	1-53271-308-1	02	1	9307-					●
41	BRACKET; CENTER BRG,FRAME SIDE (B) L=330	1-53271-265-2	02	1	9002-						●
41	BRACKET; CENTER BRG,FRAME SIDE (A) L=305	1-53271-262-2	02	1	9307-						●
57	MEMBER; CROSS,RR SUSP FRT MIXER TRUCK<RA2>	1-53171-685-2	01	1	9002-	●
57	MEMBER; CROSS,RR SUSP FRT	1-53171-685-2	01	1	9002-		●		●	●
77	MEMBER; CROSS,TRUNNION RR (A)	1-53171-866-3	01	1	9002-9404			●			●
77	MEMBER; CROSS,TRUNNION RR (A)	1-53181-689-0	01	1	9405-			●			●
77	MEMBER; CROSS,TRUNNION RR (B)	1-53171-636-3	01	1	9002-9404						●
77	MEMBER; CROSS,TRUNNION RR (B)	1-53181-693-0	01	1	9405-						●
79	MEMBER; CROSS,TRUNNION ASM	1-53181-374-0	01	1	9002-	●	●		●	●
79	MEMBER; CROSS,TRUNNION ASM	1-53181-153-0	01	1	9002-9306			●
79	MEMBER; CROSS,TRUNNION ASM	1-53181-153-0	01	1	9307-9406			●			●
79	MEMBER; CROSS,TRUNNION ASM	1-53181-657-1	01	1	9407-			●			●
79	MEMBER; CROSS,TRUNNION ASM	1-53153-869-0	01	1	9002-9306						●
86	MEMBER; CROSS,RR SUSP RR	1-53181-134-0	01	1	9002-	●	●		●	●
130	MEMBER; CROSS,END	1-53171-876-2	01	1	9002-		●		●	●
130	MEMBER; CROSS,END	1-53171-638-3	01	1	9002-9204			●			●
130	MEMBER; CROSS,END	1-53181-391-2	01	1	9205-9404			●			●
130	MEMBER; CROSS,END	1-53181-537-0	01	1	9405-			●			●
131	BOLT; END C/MBR M14X40	9-92061-440-0	02	1	9002-		●			●
131	BOLT; END C/MBR M14X60	9-92061-460-0	02	1	9002-		●			●
132	NUT; END C/MBR M14	9-99110-514-0	04	1	9002-		●			●
344	MEMBER; CROSS,4TH	1-53171-673-3	01	1	9002-9404						●
344	MEMBER; CROSS,4TH	1-53181-640-1	01	1	9405-						●

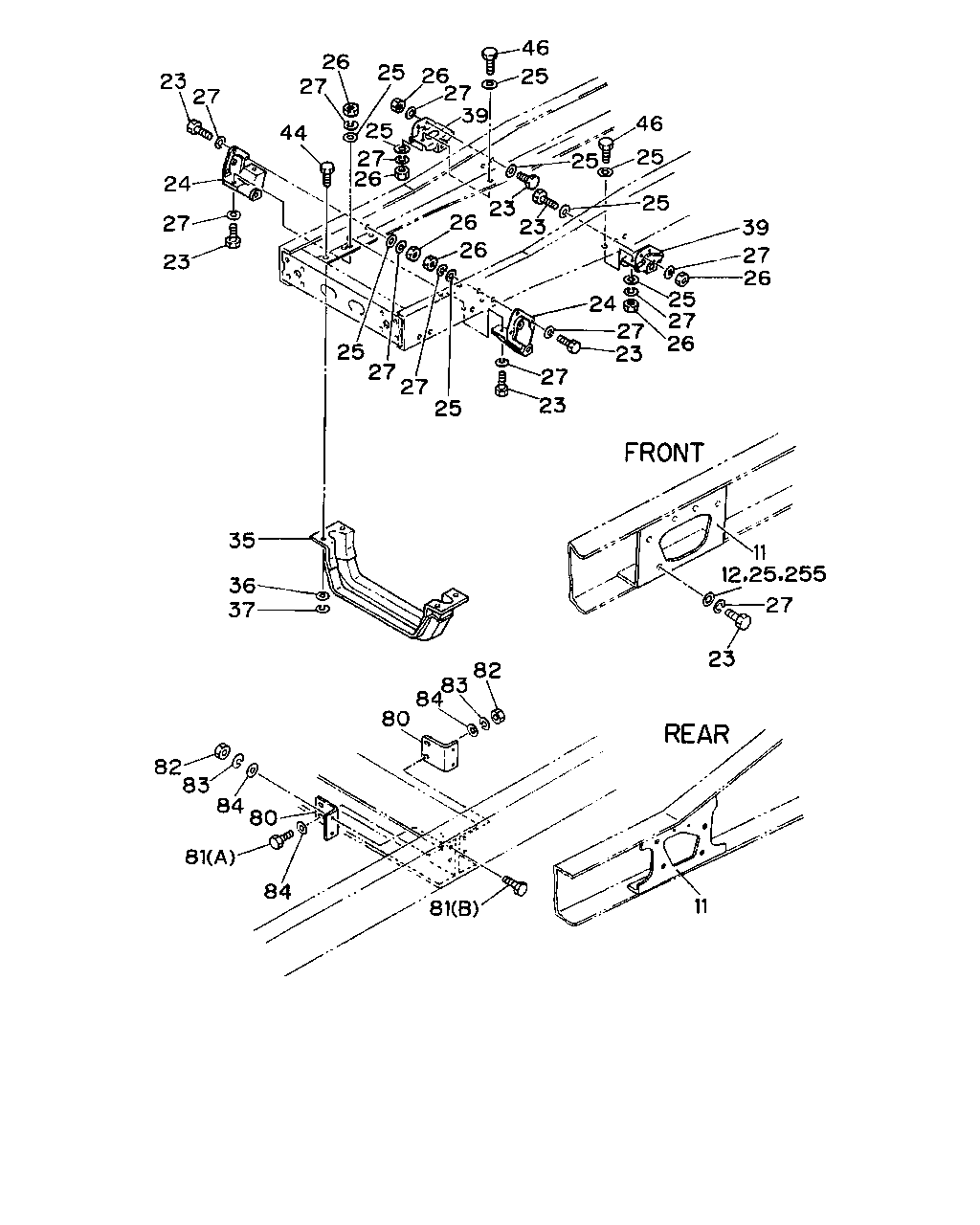

23 24 27 27 23 44 27 26 26 27 25 25 26 25 46 39 27 26 23 23 25 46 25 25 39 27 26 26 27 25 24 27 23 23 27 25 27 27 25 26 35 36 37 82 83 84 80 81 84 81 80 82 83 84 11 23 27 255 25 12 11

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
11	BRACKET; ENG MTG 12PD1 C ENG(43L) REAR	1-53219-561-0	01	1	9307-9404	●
11	BRACKET; ENG MTG 12PD1 C ENG(43L) REAR	1-53219-349-1	01	1	9405-	●
11	BRACKET; ENG MTG 12PD1 C ENG(43L) REAR	1-53219-560-0	01	1	9307-9404	●
11	BRACKET; ENG MTG 12PD1 C ENG(43L) REAR	1-53219-348-1	01	1	9405-	●
11	BRACKET; ENG MTG 6RB1 STD ENG(07L) MIXER TRUCK<RA2> REAR	1-53219-211-2	01	1	9002-9306	●
11	BRACKET; ENG MTG 12PD1 C ENG(43L) FRONT	1-53219-458-0	01	1	9307-	●
11	BRACKET; ENG MTG 6RB1 STD ENG(07L) MIXER TRUCK<RA2> REAR	1-53219-210-3	01	1	9002-9306	●
11	BRACKET; ENG MTG 12PD1 C ENG(43L) FRONT	1-53219-457-0	01	1	9307-	●
11	BRACKET; ENG MTG 6RB1 STD ENG(07L) FRONT	1-53219-321-1	01	1	9002-9306	●	●		●	●
11	BRACKET; ENG MTG 6RB1 STD ENG(07L) FRONT	1-53219-321-1	01	1	9307-	●	●		●
11	BRACKET; ENG MTG 6RB1 STD ENG(07L) FRONT	1-53219-320-1	01	1	9002-9306	●	●		●	●
11	BRACKET; ENG MTG 6RB1 STD ENG(07L) FRONT	1-53219-320-1	01	1	9307-	●	●		●
11	BRACKET; ENG MTG 6RB1 STD ENG(07L) EXC. MIXER TRUCK<RA2> REAR	1-53219-209-1	01	1	9002-9306	●	●		●	●
11	BRACKET; ENG MTG 6RB1 STD ENG(07L) REAR	1-53219-209-1	01	1	9307-	●	●		●
11	BRACKET; ENG MTG 6RB1 STD ENG(07L) EXC. MIXER TRUCK<RA2> REAR	1-53219-208-1	01	1	9002-9306	●	●		●	●
11	BRACKET; ENG MTG 6RB1 STD ENG(07L) REAR	1-53219-208-1	01	1	9307-	●	●		●
11	BRACKET; ENG MTG 10PD1 STD ENG(40L) FRONT	1-53219-428-0	01	1	9307-	●		●	●	●	●
11	BRACKET; ENG MTG 10PD1 STD ENG(40L) FRONT	1-53219-427-0	01	1	9307-	●		●	●	●	●
11	BRACKET; ENG MTG 10PD1 STD ENG(40L) FRONT	1-53219-282-0	01	1	9002-9304	●		●	●		●
11	BRACKET; ENG MTG 10PD1 STD ENG(40L) FRONT	1-53219-281-0	01	1	9002-9306	●		●	●		●
11	BRACKET; ENG MTG 10PD1 STD ENG(40L) FRONT	1-53219-282-0	01	1	9305-9306	●		●	●		●
11	BRACKET; ENG MTG 10PD1 STD ENG(40L) REAR	1-53219-494-1	01	1	9002-9306	●			●
11	BRACKET; ENG MTG 10PD1 STD ENG(40L) REAR	1-53219-493-2	01	1	9002-9306	●			●
11	BRACKET; ENG MTG 10PD1 STD ENG(40L) REAR	1-53219-494-1	01	1	9307-	●			●	●
11	BRACKET; ENG MTG 10PD1 STD ENG(40L) REAR	1-53219-493-2	01	1	9307-	●			●	●
11	BRACKET; ENG MTG REAR	1-53219-361-1	01	1	9002-9306			●			●
11	BRACKET; ENG MTG REAR	1-53219-360-1	01	1	9002-			●			●
11	BRACKET; ENG MTG REAR	1-53219-361-1	01	1	9307-			●			●
12	WASHER; PL,BRKT,ENG MTG 6RB1 STD ENG(07L) ID=15	9-09651-069-0	08	1	9002-	●	●		●	●
23	BOLT; BRKT,SPR MIXER TRUCK<RA2> 6RB1 STD ENG(07L) M14X55	9-91066-455-0	02	1	9002-9105	●
23	BOLT; BRKT,SPR M14X55	9-91066-455-0	02	1	9002-9105			●			●
23	BOLT; BRKT,SPR 12PD1 C ENG(43L) M14X50	9-91066-450-0	08	1	9307-	●
23	BOLT; BRKT,SPR 6RB1 STD ENG(07L) EXC. MIXER TRUCK<RA2> M14X55	9-91066-455-0	04	1	9002-9105	●
23	BOLT; BRKT,SPR 6RB1 STD ENG(07L) M14X55	9-91066-455-0	04	1	9002-9105		●		●	●
23	BOLT; BRKT,SPR 6RB1 STD ENG(07L) EXC. MIXER TRUCK<RA2> M14X45	9-92061-445-0	04	1	9002-9105	●
23	BOLT; BRKT,SPR 6RB1 STD ENG(07L) M14X45	9-92061-445-0	04	1	9002-9105		●		●	●
23	BOLT; BRKT,SPR M16X55	9-91066-655-0	04	1	9002-	●	●	●	●	●	●
23	BOLT; BRKT,SPR M14X45	9-92061-445-0	06	1	9002-9105	●	●	●	●	●	●
23	BOLT; BRKT,SPR MIXER TRUCK<RA2> 6RB1 STD ENG(07L) M14X45	9-92061-445-0	06	1	9002-9105	●
23	BOLT; BRKT,SPR M14X45	9-92061-445-0	06	1	9002-9105			●			●
23	BOLT; BRKT,SPR M14X45	9-92061-445-0	06	1	9106-9306	●	●	●	●	●	●
23	BOLT; BRKT,SPR M14X45	9-92061-445-0	08	1	9307-	●	●	●	●	●	●
23	BOLT; BRKT,SPR 10PD1 STD ENG(40L) M14X50	9-91066-450-0	06	1	9002-9105	●			●
23	BOLT; BRKT,SPR 10PD1 STD ENG(40L) M14X60	9-91066-460-0	02	1	9002-9105	●			●
23	BOLT; BRKT,SPR 10PD1 STD ENG(40L) M14X50	9-92061-450-0	06	1	9305-9306				●
23	BOLT; BRKT,SPR 10PD1 STD ENG(40L) M16X50	9-92061-650-0	04	1	9305-9306				●
24	BRACKET; FRT SPR,FRT	1-53351-123-5	01	1	9002-9306	●	●	●	●	●	●
24	BRACKET; FRT SPR,FRT	1-53351-122-5	01	1	9002-9306	●	●	●	●	●	●
24	BRACKET; FRT SPR,FRT	1-53351-201-0	01	1	9307-9407	●	●	●	●	●	●
24	BRACKET; FRT SPR,FRT	1-53351-220-0	01	1	9408-	●	●	●	●	●	●
24	BRACKET; FRT SPR,FRT	1-53351-202-0	01	1	9307-9407	●	●	●	●	●	●
24	BRACKET; FRT SPR,FRT	1-53351-219-0	01	1	9408-	●	●	●	●	●	●
25	WASHER; PL,BRKT 6RB1 STD ENG(07L),10PD1 STD ENG(40L) ID=15	9-09651-069-0	24	1	9307-	●
25	WASHER; PL,BRKT ID=15	9-09651-069-0	24	1	9307-		●		●
25	WASHER; PL,BRKT 6RB1 STD ENG(07L) ID=16.2	1-09503-223-0	08	1	9002-	●	●		●	●
25	WASHER; PL,BRKT 6RB1 STD ENG(07L) ID=15	9-09651-069-0	12	1	9002-9105	●	●		●	●
25	WASHER; PL,BRKT 6RB1 STD ENG(07L) EXC. MIXER TRUCK<RA2> ID=15	9-09651-069-0	20	1	9106-9205	●	●		●	●
25	WASHER; PL,BRKT 6RB1 STD ENG(07L) ID=15	9-09651-069-0	08	1	9002-9105	●	●		●	●
25	WASHER; PL,BRKT 10PD1 STD ENG(40L) ID=15	9-09651-069-0	18	1	9106-9106	●			●
25	WASHER; PL,BRKT 10PD1 STD ENG(40L),12PD1 C ENG(43L) ID=16.2	1-09503-223-0	04	1	9307-	●		●	●	●	●
25	WASHER; PL,BRKT 10PD1 STD ENG(40L) ID=16.2	1-09503-223-0	04	1	9002-9306	●		●	●		●
25	WASHER; PL,BRKT 10PD1 STD ENG(40L) ID=15	9-09651-069-0	06	1	9002-9105	●		●	●		●
25	WASHER; PL,BRKT ID=15	9-09651-069-0	16	1	9106-9205			●			●
25	WASHER; PL,BRKT 6RB1 STD ENG(07L) EXC. MIXER TRUCK<RA2> ID=15	9-09651-069-0	20	1	9206-9306	●
25	WASHER; PL,BRKT 6RB1 STD ENG(07L) ID=15	9-09651-069-0	20	1	9206-9306		●		●	●
25	WASHER; PL,BRKT ID=15	9-09651-069-0	20	1	9206-9306			●			●
25	WASHER; PL,BRKT 10PD1 STD ENG(40L) ID=15	9-09651-069-0	16	1	9002-9105	●			●
25	WASHER; PL,BRKT ID=15	9-09651-069-0	16	1	9002-9105			●			●
25	WASHER; PL,BRKT 6RB1 STD ENG(07L) MIXER TRUCK<RA2> ID=15	9-09651-069-0	22	1	9106-9106	●
25	WASHER; PL,BRKT 10PD1 STD ENG(40L) ID=15	9-09651-069-0	22	1	9107-9304	●			●
25	WASHER; PL,BRKT 6RB1 STD ENG(07L) MIXER TRUCK<RA2> ID=15	9-09651-069-0	22	1	9107-9304	●
25	WASHER; PL,BRKT ID=15	9-09651-069-0	22	1	9305-9306	●
25	WASHER; PL,BRKT 10PD1 STD ENG(40L) ID=15	9-09651-069-0	22	1	9305-9306				●
25	WASHER; PL,BRKT 12PD1 C ENG(43L) ID=15	9-09651-069-0	16	1	9307-	●
25	WASHER; PL,BRKT ID=15	9-09651-069-0	16	1	9307-					●
25	WASHER; PL,BRKT ID=15	9-09651-069-0	22	1	9307-			●			●
26	NUT; BRKT,SPR 6RB1 STD ENG(07L) M14	9-99110-514-0	08	1	9307-	●
26	NUT; BRKT,SPR M14	9-99110-514-0	08	1	9307-		●		●	●
26	NUT; BRKT,SPR 6RB1 STD ENG(07L) MIXER TRUCK<RA2> M14	9-99110-514-0	08	1	9206-9306	●
26	NUT; BRKT,SPR M14	9-99110-514-0	06	1	9002-9105	●	●	●	●	●	●
26	NUT; BRKT,SPR 6RB1 STD ENG(07L) MIXER TRUCK<RA2> M14	9-99110-514-0	08	1	9106-9205	●
26	NUT; BRKT,SPR M14	9-99110-514-0	08	1	9106-9205			●			●
26	NUT; BRKT,SPR M14	9-99110-514-0	12	1	9206-9306			●			●
26	NUT; BRKT,SPR 10PD1 STD ENG(40L) M14	9-99110-514-0	16	1	9307-	●			●
26	NUT; BRKT,SPR 6RB1 STD ENG(07L) M16	9-99110-516-0	04	1	9307-	●	●		●
26	NUT; BRKT,SPR 6RB1 STD ENG(07L) M16	9-99110-516-0	04	1	9002-9306	●	●		●	●
26	NUT; BRKT,SPR M16	9-99110-516-0	04	1	9002-9306			●			●
26	NUT; BRKT,SPR 10PD1 STD ENG(40L) M16	9-99110-516-0	02	1	9307-	●		●	●	●	●
26	NUT; BRKT,SPR 10PD1 STD ENG(40L) M14	9-99110-514-0	08	1	9002-9105	●			●
26	NUT; BRKT,SPR M14	9-99110-514-0	08	1	9002-9105			●			●
26	NUT; BRKT,SPR 6RB1 STD ENG(07L) EXC. MIXER TRUCK<RA2> M14	9-99110-514-0	06	1	9106-9306	●	●		●	●
26	NUT; BRKT,SPR 10PD1 STD ENG(40L) M16	9-99110-516-0	02	1	9002-9306	●			●
26	NUT; BRKT,SPR 10PD1 STD ENG(40L) M14	9-99110-514-0	14	1	9106-9306	●			●
26	NUT; BRKT,SPR M14	9-99110-514-0	14	1	9307-			●			●
27	WASHER; LK,BRKT,FRT SPR ID=14.2	9-09150-614-0	08	1	9002-9105	●	●	●	●	●	●
27	WASHER; LK,BRKT,FRT SPR ID=14.2	9-09150-614-0	06	1	9002-9105	●	●	●	●	●	●
27	WASHER; LK,BRKT,FRT SPR ID=14.2	9-09150-614-0	14	1	9106-9306	●	●	●	●	●	●
27	WASHER; LK,BRKT,FRT SPR ID=14.2	9-09150-614-0	16	1	9307-	●	●	●	●	●	●
27	WASHER; LK,BRKT,FRT SPR ID=16.2	9-09150-616-0	04	1	9002-	●	●	●	●	●	●
35	MEMBER; UNDER 10PD1 STD ENG(40L)	1-53174-173-1	01	1	9002-9306	●			●
35	MEMBER; UNDER	1-53174-173-1	01	1	9002-9306			●			●
35	MEMBER; UNDER 10PD1 STD ENG(40L),12PD1 C ENG(43L)	1-53174-194-1	01	1	9307-	●			●
35	MEMBER; UNDER	1-53174-194-1	01	1	9307-			●		●	●
35	MEMBER; UNDER 6RB1 STD ENG(07L)	1-53174-174-1	01	1	9002-9306	●			●
35	MEMBER; UNDER	1-53174-174-1	01	1	9002-9306		●			●
35	MEMBER; UNDER 6RB1 STD ENG(07L)	1-53174-174-2	01	1	9307-	●			●
35	MEMBER; UNDER	1-53174-174-2	01	1	9307-		●
36	WASHER; PL,UNDER MBR ID=17	9-09164-516-0	04	1	9002-	●	●	●	●	●	●
37	WASHER; LK,UNDER MBR ID=16.2	9-09150-816-0	04	1	9002-	●	●	●	●	●	●
39	BRACKET; FRT SPR,RR	1-53352-072-5	01	1	9002-9407	●	●	●	●	●	●
39	BRACKET; FRT SPR,RR	1-53352-153-0	01	1	9408-	●	●	●	●	●	●
39	BRACKET; FRT SPR,RR	1-53352-071-5	01	1	9002-9407	●	●	●	●	●	●
39	BRACKET; FRT SPR,RR	1-53352-152-0	01	1	9408-	●	●	●	●	●	●
44	BOLT; UNDER MBR M16X50	9-92061-650-0	04	1	9002-	●	●	●	●	●	●
46	BOLT; BRKT FIX 10PD1 STD ENG(40L) M14X50	9-91066-450-0	06	1	9307-	●
46	BOLT; BRKT FIX 10PD1 STD ENG(40L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M14X50	9-91066-450-0	06	1	9307-				●
46	BOLT; BRKT FIX 10PD1 STD ENG(40L) M14X60	9-91066-460-0	02	1	9307-	●
46	BOLT; BRKT FIX 10PD1 STD ENG(40L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M14X60	9-91066-460-0	02	1	9307-				●
46	BOLT; BRKT FIX 12PD1 C ENG(43L) M14X50	9-91066-450-0	04	1	9307-	●
46	BOLT; BRKT FIX 12PD1 C ENG(43L) M14X60	9-91066-460-0	04	1	9307-	●
46	BOLT; BRKT FIX 6RB1 STD ENG(07L) M14X55	9-91066-455-0	04	1	9307-	●
46	BOLT; BRKT FIX M14X55	9-91066-455-0	04	1	9307-		●		●	●
46	BOLT; BRKT FIX 6RB1 STD ENG(07L) M14X45	9-92061-445-0	04	1	9307-	●
46	BOLT; BRKT FIX M14X45	9-92061-445-0	04	1	9307-		●		●	●
46	BOLT; BRKT FIX 6RB1 STD ENG(07L) MIXER TRUCK<RA2> M14X55	9-91066-455-0	02	1	9106-9306	●
46	BOLT; BRKT FIX M14X55	9-91066-455-0	02	1	9106-9306			●			●
46	BOLT; BRKT FIX 6RB1 STD ENG(07L) MIXER TRUCK<RA2> M14X45	9-92061-445-0	06	1	9106-9306	●
46	BOLT; BRKT FIX M14X45	9-92061-445-0	06	1	9106-9306			●			●
46	BOLT; BRKT FIX 6RB1 STD ENG(07L) EXC. MIXER TRUCK<RA2> M14X55	9-91066-455-0	04	1	9106-9306	●	●		●	●
46	BOLT; BRKT FIX 6RB1 STD ENG(07L) EXC. MIXER TRUCK<RA2> M14X45	9-92061-445-0	04	1	9106-9306	●	●		●	●
46	BOLT; BRKT FIX 10PD1 STD ENG(40L) M14X50	9-91066-450-0	06	1	9106-9304	●			●
46	BOLT; BRKT FIX 10PD1 STD ENG(40L) M14X60	9-91066-460-0	02	1	9106-9306	●			●
46	BOLT; BRKT FIX 10PD1 STD ENG(40L) M14X50	9-91066-450-0	06	1	9305-9306	●			●
46	BOLT; BRKT FIX M14X55	9-91066-455-0	02	1	9307-			●			●
46	BOLT; BRKT FIX M14X45	9-92061-445-0	06	1	9307-			●			●
80	BRACKET; C/MBR	1-53167-288-0	04	1	9002-	●	●		●	●
81	BOLT; BRKT (A) M14X55	9-91066-455-0	04	1	9002-	●	●		●	●
81	BOLT; BRKT (B) M14X45	9-92061-445-0	08	1	9002-	●	●		●	●
82	NUT; BRKT M14	9-99110-514-0	12	1	9002-	●	●		●	●
83	WASHER; LK,BRKT ID=14.2	9-09150-614-0	12	1	9002-	●	●		●	●
84	WASHER; PL,BRKT ID=15 OD=26	9-09164-514-0	16	1	9002-	●	●		●	●
255	WASHER; PL,BRKT ID=15	9-09651-069-0	08	1	9405-	●	●	●	●	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.

Isuzu EPC — test · veri: yerel (eski sürüm)
