Isuzu WW
▶
TRUCKS
▶
NPR
▶
51241 - NPR CNG(THAILAND)
▶
3 - Brakes, Brake System
▶
3-01 - FRONT WHEEL BRAKE
▶

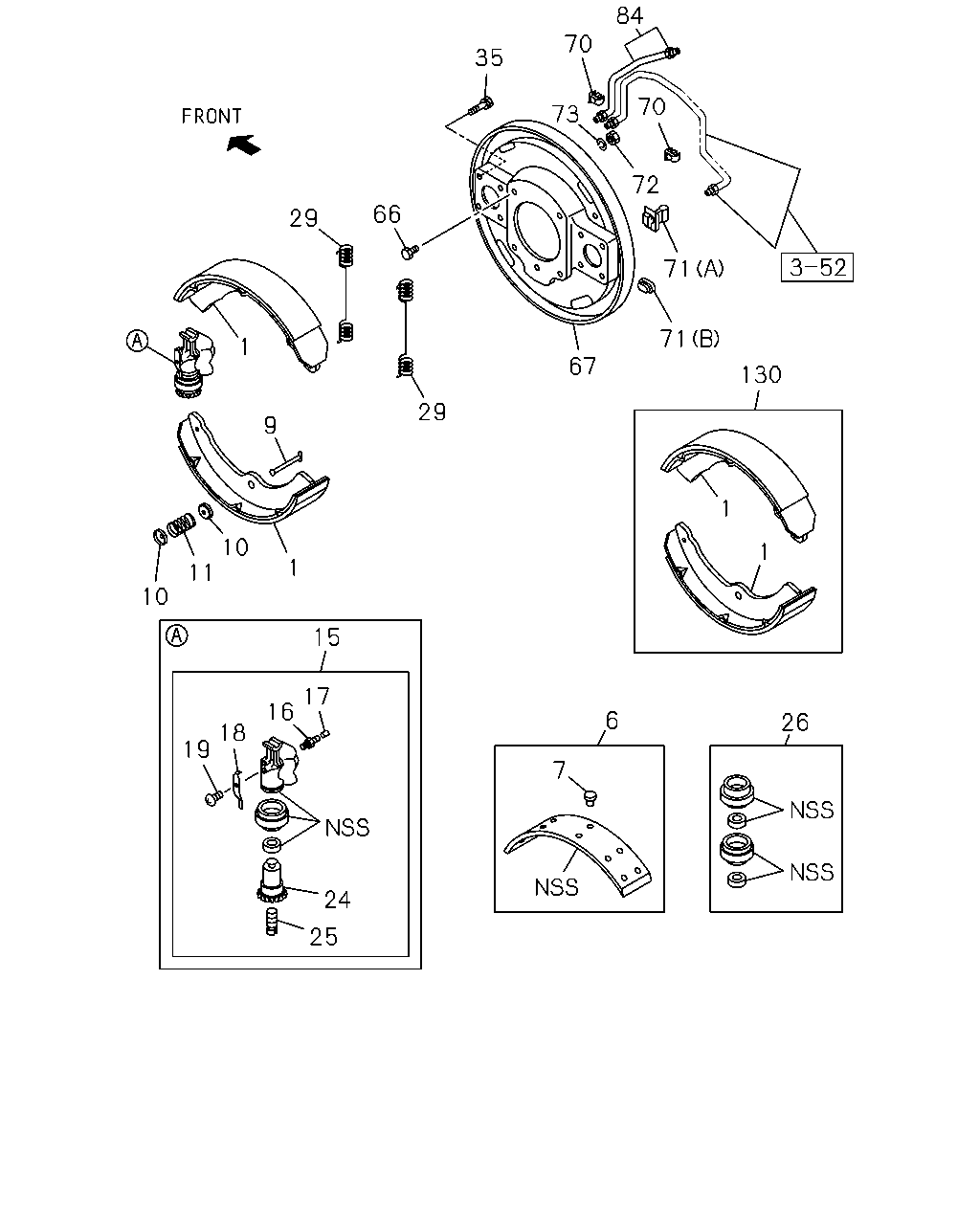

3-01 — FRONT WHEEL BRAKE
(#34038) — 31 parça
84
70
35
70
73
72
66
29
71
71
1
67
130
29
9
1
10
1
1
11
10
15
17
16
6
26
18
19
7
24
25
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
SHOE; BRK,FRT
8-97188-455-0
04
1
0901-
6
LINING KIT; FRT BRK
5-87831-692-0
01
1
0901-
6
LINING KIT; FRT BRK
BEST VALUE PARTS
5-87610-119-0
01
1
0901-
7
RIVET; LINING,FRT BRK
1-09732-029-0
64
1
0901-
9
PIN; SHOE HOLDER
8-97122-870-0
04
1
0901-
10
CUP; SHOE HOLDING
9-47165-096-0
08
1
0901-
11
SPRING; SHOE HOLDING
5-09580-101-1
04
1
0901-
15
CYLINDER; WHEEL,FRT BRK
REAR
8-97144-795-0
01
1
0901-
15
CYLINDER; WHEEL,FRT BRK
REAR
8-97144-796-0
01
1
0901-
15
CYLINDER; WHEEL,FRT BRK
FRONT
8-97144-797-0
01
1
0901-
15
CYLINDER; WHEEL,FRT BRK
FRONT
8-97144-798-0
01
1
0901-
16
SCREW; BLEEDER,FRT BRK
8-98050-477-0
02
1
0901-
17
CAP; BLEEDER,FRT WHEEL CYL
8-98050-479-0
02
1
0901-
18
STOPPER; ADJ SCREW
8-94128-486-0
04
1
0901-
19
SCREW; STOPPER SETTING
8-94128-727-0
04
1
0901-
24
PISTON; FRT WHEEL CYL
8-94414-700-1
04
1
0901-
25
SCREW; ADJ,FRT WHEEL CYL
8-94414-702-0
04
1
0901-
26
CUP SET; FRT WHEEL CYL
5-87831-598-0
01
1
0901-
29
SPRING; RETURN,FRT BRK SHOE
8-97122-869-0
04
1
0901-
35
BOLT; FRT WHEEL CYL
8-97081-305-0
16
1
0901-
66
BOLT; OIL SHIELD COVER
M14X40
8-98007-879-0
08
1
0901-
67
PLATE; BACK,FRT BRK
8-97122-858-0
01
1
0901-
67
PLATE; BACK,FRT BRK
8-97122-859-0
01
1
0901-
70
CLIP; PIPE HOLD
8-97022-086-0
02
1
0901-
71
GROMMET; CHECK HOLE
(A)
8-97044-742-1
04
1
0901-
71
GROMMET; CHECK HOLE
(B)
8-97017-507-0
02
1
0901-
72
NUT; OIL SHIELD COVER
M14 THA
0-91110-514-0
08
1
0901-
73
WASHER; LK,OIL SHIELD COVER
ID=14.2
0-91510-814-0
08
1
0901-
84
PIPE; BRK,WHEEL CYL TO HOSE
THA
8-97940-703-0
01
1
0901-
84
PIPE; BRK,WHEEL CYL TO HOSE
THA
8-97940-704-0
01
1
0901-
130
SHOE KIT; BRK,FRT
5-87831-693-0
01
1
0901-
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
