2-81 — POWER TAKE OFF; TRANSMISSION SIDE (#34037) — 59 parça

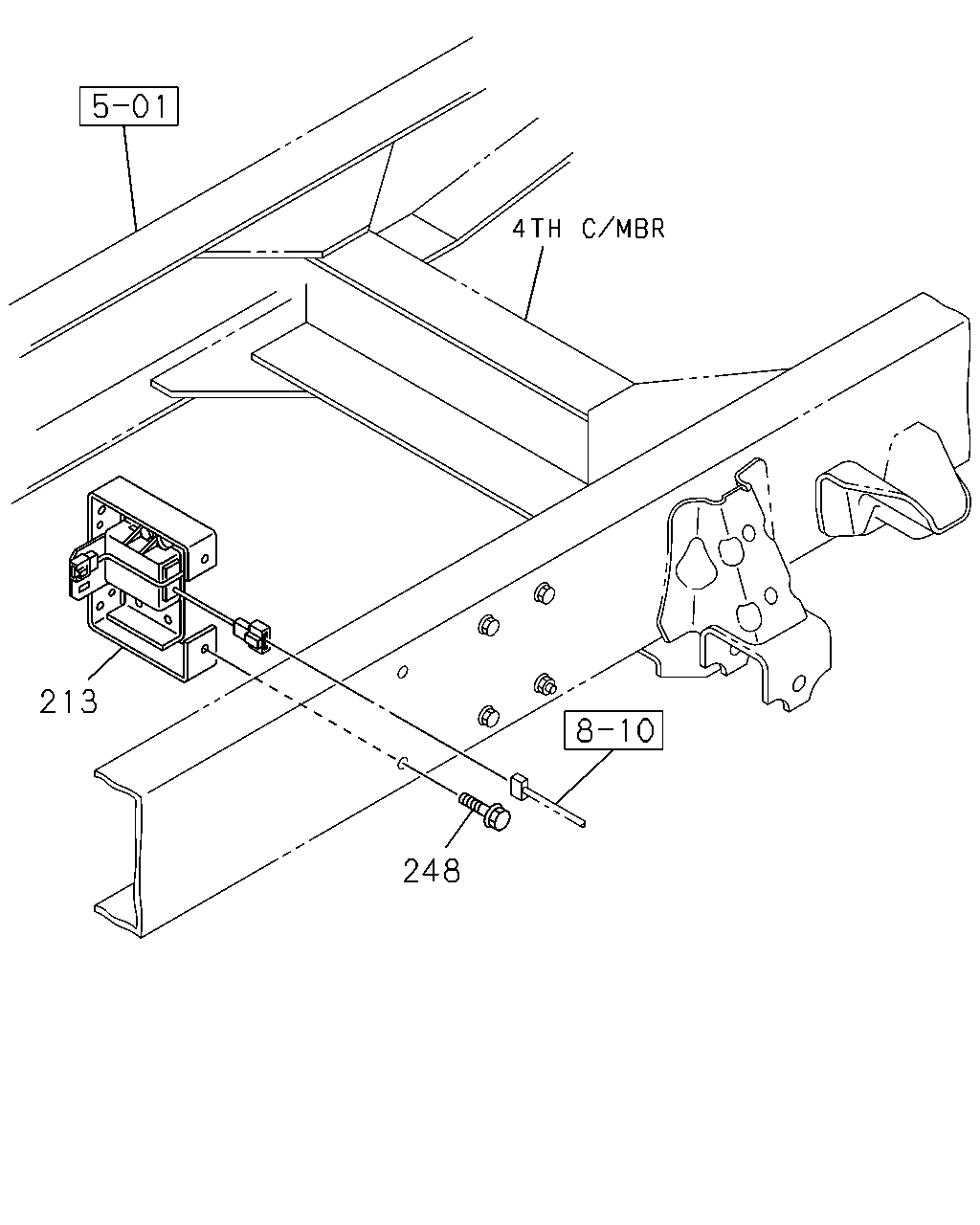

çizim 123361
213 248
BalonParca AdiParca NoAdetTipApplied Date
213 CONTROL UNIT; PTO
POWER TAKE OFF CONTROL ELECTRIC<7GR> 		8-98039-755-2 01 1 0901-
248 BOLT; PTO CONT
POWER TAKE OFF CONTROL ELECTRIC<7GR> M10X30 FLANGE THA 		0-28651-030-0 02 1 0901-

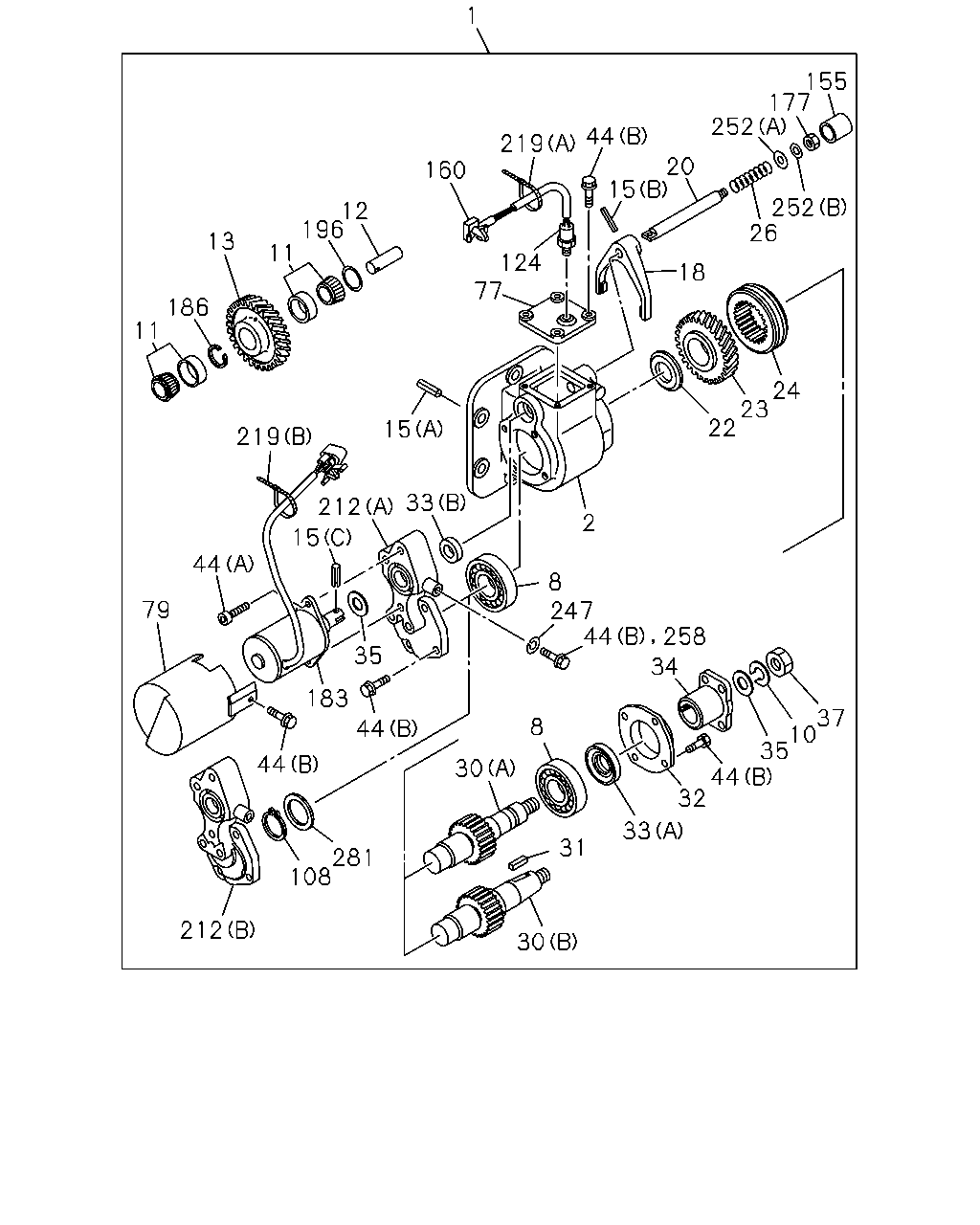

çizim 123384
177 155 1 252 44 252 26 18 15 20 24 23 22 2 8 34 258 44 247 37 10 35 44 32 33 31 30 30 8 44 183 281 108 212 44 35 15 212 33 15 219 44 79 11 186 160 219 124 77 12 196 11 13
BalonParca AdiParca NoAdetTipApplied Date
1 POWER TAKE OFF ASM; TRANS SIDE
PTO TRANSMISSION SIDE<V66> POWER TAKE OFF CONTROL ELECTRIC<7GR> IDENTIFICATION=YT 		8-98136-477-1 01 1 0901-1210
1 POWER TAKE OFF ASM; TRANS SIDE
PTO TRANSMISSION SIDE<V66> POWER TAKE OFF CONTROL ELECTRIC<7GR> IDENTIFICATION=YT 		8-98223-522-1 01 1 1211-1305
1 POWER TAKE OFF ASM; TRANS SIDE
PTO TRANSMISSION SIDE<V66> POWER TAKE OFF CONTROL ELECTRIC<7GR> IDENTIFICATION=YT 		8-98233-785-1 01 1 1306-
2 CASE; GEAR,TRANS SIDE PTO
PTO TRANSMISSION SIDE<V66> POWER TAKE OFF CONTROL ELECTRIC<7GR> 		8-97308-692-2 01 1 0901-1409
2 CASE; GEAR,TRANS SIDE PTO
PTO TRANSMISSION SIDE<V66> POWER TAKE OFF CONTROL ELECTRIC<7GR> 		8-98282-383-0 01 1 1410-
8 BEARING; OUTPUT SHAFT,TRANS SIDE PTO
PTO TRANSMISSION SIDE<V66> POWER TAKE OFF CONTROL ELECTRIC<7GR> ID=25 OD=62 		8-94343-031-1 02 1 0901-
10 WASHER; OUTPUT SHAFT COVER,SIDE PTO
PTO TRANSMISSION SIDE<V66> POWER TAKE OFF CONTROL ELECTRIC<7GR> ID=14.2 		0-91510-814-0 01 1 0901-
11 BEARING; IDLE GEAR,TRANS SIDE PTO
PTO TRANSMISSION SIDE<V66> POWER TAKE OFF CONTROL ELECTRIC<7GR> NSK 		8-97106-734-0 02 1 0901-
12 SHAFT; IDLE GEAR,TRANS SIDE PTO
PTO TRANSMISSION SIDE<V66> POWER TAKE OFF CONTROL ELECTRIC<7GR> 		9-38211-606-0 01 1 0901-
13 GEAR; IDLE,TRANS SIDE PTO
PTO TRANSMISSION SIDE<V66> POWER TAKE OFF CONTROL ELECTRIC<7GR> Z=31 		8-97308-700-0 01 1 0901-
15 PIN; SPR,TRANS SIDE PTO
PTO TRANSMISSION SIDE<V66> POWER TAKE OFF CONTROL ELECTRIC<7GR> (B) L=25 OD=5 		8-94135-771-0 01 1 0901-
15 PIN; SPR,TRANS SIDE PTO
PTO TRANSMISSION SIDE<V66> POWER TAKE OFF CONTROL ELECTRIC<7GR> (C) L=14 		8-97175-890-0 01 1 0901-
15 PIN; SPR,TRANS SIDE PTO
PTO TRANSMISSION SIDE<V66> POWER TAKE OFF CONTROL ELECTRIC<7GR> (A) L=16 		9-09878-613-0 01 1 0901-
18 ARM; GEAR SHIFT,TRANS SIDE PTO
PTO TRANSMISSION SIDE<V66> POWER TAKE OFF CONTROL ELECTRIC<7GR> 		8-98088-695-0 01 1 0901-
20 ROD; GEAR SHIFTER,TRANS SIDE PTO
PTO TRANSMISSION SIDE<V66> POWER TAKE OFF CONTROL ELECTRIC<7GR> 		8-97308-709-1 01 1 0901-
22 COLLAR; DIST,OUTPUT SHAFT,TRANS SIDE P
PTO TRANSMISSION SIDE<V66> POWER TAKE OFF CONTROL ELECTRIC<7GR> 		9-38245-603-1 01 1 0901-
23 GEAR; OUTPUT,TRANS SIDE PTO
PTO TRANSMISSION SIDE<V66> POWER TAKE OFF CONTROL ELECTRIC<7GR> Z=27 		8-98120-609-0 01 1 0901-
24 SLEEVE; DOG CLU,TRANS SIDE PTO
PTO TRANSMISSION SIDE<V66> POWER TAKE OFF CONTROL ELECTRIC<7GR> 		8-97231-316-1 01 1 0901-
26 SPRING; SHIFTER ROD,TRANS SIDE PTO
PTO TRANSMISSION SIDE<V66> POWER TAKE OFF CONTROL ELECTRIC<7GR> 		8-97175-987-0 01 1 0901-
30 SHAFT; OUTPUT,TRANS SIDE PTO
PTO TRANSMISSION SIDE<V66> POWER TAKE OFF CONTROL ELECTRIC<7GR> (A) 		8-97118-183-1 01 1 0901-1210
30 SHAFT; OUTPUT,TRANS SIDE PTO
PTO TRANSMISSION SIDE<V66> POWER TAKE OFF CONTROL ELECTRIC<7GR> (B) 		8-98223-518-0 01 1 1211-1305
30 SHAFT; OUTPUT,TRANS SIDE PTO
PTO TRANSMISSION SIDE<V66> POWER TAKE OFF CONTROL ELECTRIC<7GR> (B) 		8-98233-777-0 01 1 1306-
31 KEY; OUTPUT SHAFT,TRANS SIDE PTO
PTO TRANSMISSION SIDE<V66> POWER TAKE OFF CONTROL ELECTRIC<7GR> L=25 		8-98068-088-0 01 1 1211-
32 COVER; RR,OUTPUT SHAFT,TRANS SIDE PTO
PTO TRANSMISSION SIDE<V66> POWER TAKE OFF CONTROL ELECTRIC<7GR> 		8-97305-794-0 01 1 0901-
33 SEAL; OIL,OUTPUT SHAFT,TRANS SIDE PTO
PTO TRANSMISSION SIDE<V66> POWER TAKE OFF CONTROL ELECTRIC<7GR> (A) 		1-38159-007-0 01 1 0901-
33 SEAL; OIL,OUTPUT SHAFT,TRANS SIDE PTO
PTO TRANSMISSION SIDE<V66> POWER TAKE OFF CONTROL ELECTRIC<7GR> (B) 		8-98028-789-0 01 1 0901-
34 FLANGE; OUTPUT SHAFT,TRANS SIDE PTO
PTO TRANSMISSION SIDE<V66> POWER TAKE OFF CONTROL ELECTRIC<7GR> 		8-98046-624-0 01 1 0901-1210
34 FLANGE; OUTPUT SHAFT,TRANS SIDE PTO
PTO TRANSMISSION SIDE<V66> POWER TAKE OFF CONTROL ELECTRIC<7GR> 		8-98223-519-0 01 1 1211-
35 WASHER; PL,FLANGE FIX,TRANS SIDE PTO
PTO TRANSMISSION SIDE<V66> POWER TAKE OFF CONTROL ELECTRIC<7GR> ID=15 		0-91610-514-0 02 1 0901-
37 NUT; FLANGE FIX,TRANS SIDE PTO
PTO TRANSMISSION SIDE<V66> POWER TAKE OFF CONTROL ELECTRIC<7GR> M14 		0-91111-514-0 01 1 0901-
44 BOLT; COVER,TRANS SIDE PTO
PTO TRANSMISSION SIDE<V66> POWER TAKE OFF CONTROL ELECTRIC<7GR> (B) M8X20 FLANGE THA 		0-28050-820-0 12 1 0901-1002
44 BOLT; COVER,TRANS SIDE PTO
PTO TRANSMISSION SIDE<V66> POWER TAKE OFF CONTROL ELECTRIC<7GR> (B) M8X20 FLANGE THA 		0-28050-820-0 15 1 1003-
44 BOLT; COVER,TRANS SIDE PTO
PTO TRANSMISSION SIDE<V66> POWER TAKE OFF CONTROL ELECTRIC<7GR> (A) M8X16 HEX SOCKET 		0-58330-816-0 03 1 0901-
77 COVER; OUTPUT,RR,TRANS SIDE PTO
PTO TRANSMISSION SIDE<V66> POWER TAKE OFF CONTROL ELECTRIC<7GR> 		8-97308-719-0 01 1 0901-
79 COVER; DUST,TRANS SIDE PTO
PTO TRANSMISSION SIDE<V66> POWER TAKE OFF CONTROL ELECTRIC<7GR> 		8-97308-728-0 01 1 1003-
108 RING; SNAP,OUTPUT SHAFT,TRANS SIDE PTO
PTO TRANSMISSION SIDE<V66> POWER TAKE OFF CONTROL ELECTRIC<7GR> ID=23.2 		9-09180-025-0 01 1 1306-
124 SWITCH; PTO
PTO TRANSMISSION SIDE<V66> POWER TAKE OFF CONTROL ELECTRIC<7GR> 		8-98031-760-1 01 1 0901-
155 PLUG; SHIFTER ROD
PTO TRANSMISSION SIDE<V66> POWER TAKE OFF CONTROL ELECTRIC<7GR> 		8-98037-770-0 01 1 0901-
160 CLIP; PTO A/T SIDE
PTO TRANSMISSION SIDE<V66> POWER TAKE OFF CONTROL ELECTRIC<7GR> L=15 		8-94315-436-1 01 1 0901-
177 NUT; SHIFT ROD
PTO TRANSMISSION SIDE<V66> POWER TAKE OFF CONTROL ELECTRIC<7GR> M8 THA 		0-91110-508-0 01 1 0901-
183 SOLENOID ASM; PTO
PTO TRANSMISSION SIDE<V66> POWER TAKE OFF CONTROL ELECTRIC<7GR> 		8-98136-076-1 01 1 0901-
186 RING; SNAP,IDLE GEAR,TRANS SIDE PTO
PTO TRANSMISSION SIDE<V66> POWER TAKE OFF CONTROL ELECTRIC<7GR> 		8-97106-730-0 01 1 0901-
196 PIECE; THRUST
PTO TRANSMISSION SIDE<V66> POWER TAKE OFF CONTROL ELECTRIC<7GR> T=1.50 		8-97106-724-0 02 1 0901-
196 PIECE; THRUST
PTO TRANSMISSION SIDE<V66> POWER TAKE OFF CONTROL ELECTRIC<7GR> T=1.60 		8-97106-725-0 02 1 0901-
196 PIECE; THRUST
PTO TRANSMISSION SIDE<V66> POWER TAKE OFF CONTROL ELECTRIC<7GR> T=1.65 		8-97106-726-0 02 1 0901-
196 PIECE; THRUST
PTO TRANSMISSION SIDE<V66> POWER TAKE OFF CONTROL ELECTRIC<7GR> T=1.70 		8-97106-727-0 02 1 0901-
196 PIECE; THRUST
PTO TRANSMISSION SIDE<V66> POWER TAKE OFF CONTROL ELECTRIC<7GR> T=1.80 		8-97106-728-0 02 1 0901-
196 PIECE; THRUST
PTO TRANSMISSION SIDE<V66> POWER TAKE OFF CONTROL ELECTRIC<7GR> T=1.85 		8-97106-729-0 02 1 0901-
212 ADAPTER; SOLENOID
PTO TRANSMISSION SIDE<V66> POWER TAKE OFF CONTROL ELECTRIC<7GR> (A) 		8-97308-739-0 01 1 0901-1305
212 ADAPTER; SOLENOID
PTO TRANSMISSION SIDE<V66> POWER TAKE OFF CONTROL ELECTRIC<7GR> (B) 		8-98233-779-0 01 1 1306-
219 CLIP; CABLE
PTO TRANSMISSION SIDE<V66> POWER TAKE OFF CONTROL ELECTRIC<7GR> (A) 		8-97221-218-0 02 1 0901-
219 CLIP; CABLE
PTO TRANSMISSION SIDE<V66> POWER TAKE OFF CONTROL ELECTRIC<7GR> (B) 		8-98091-152-0 01 1 0901-1002
247 WASHER
PTO TRANSMISSION SIDE<V66> POWER TAKE OFF CONTROL ELECTRIC<7GR> ID=8.2 THA 		0-91510-808-0 01 1 0901-1002
252 WASHER; PL,SHIFTER ROD
PTO TRANSMISSION SIDE<V66> POWER TAKE OFF CONTROL ELECTRIC<7GR> (B) ID=8.4 OD=16 THA 		0-91610-508-0 01 1 0901-
252 WASHER; PL,SHIFTER ROD
PTO TRANSMISSION SIDE<V66> POWER TAKE OFF CONTROL ELECTRIC<7GR> (A) 		8-97308-737-1 01 1 0901-
258 BOLT
PTO TRANSMISSION SIDE<V66> POWER TAKE OFF CONTROL ELECTRIC<7GR> M8 		8-98038-424-0 01 1 0901-1002
281 SHIM; OUTPUT SHAFT
PTO TRANSMISSION SIDE<V66> POWER TAKE OFF CONTROL ELECTRIC<7GR> T=1.85 		8-97106-729-0 01 1 1306-
