2-26 — MANUAL TRANSMISSION GEAR (#34033) — 85 parça
çizim 123363
118 115 506 508 423 528 527 408 529 408 268 408 510 300 93 507 511 507 325 135 480 108 314 132
BalonParca AdiParca NoAdetTipApplied Date
93 RING; SNAP,COUNTER FRT BRG
ID=30.7 T=1.9 		8-97254-734-0 01 1 0901-
93 RING; SNAP,COUNTER FRT BRG
ID=30.7 T=2.1 		8-97254-740-0 01 1 0901-
93 RING; SNAP,COUNTER FRT BRG
ID=30.7 T=2.3 		8-97254-742-0 01 1 0901-
108 SHAFT; COUNTER
Z=47-39-33-20 		8-97380-627-1 01 1 0901-
115 BEARING; NEEDLE,6TH,COUNTER
OD=49.8 		8-98286-084-0 01 1 1411-
115 BEARING; NEEDLE,6TH,COUNTER
OD=49.75 		8-97253-113-0 01 1 0901-
118 GEAR; 6TH,COUNTER
Z=50 		8-97386-580-0 01 1 0901-
132 SHAFT; REV 8-97252-655-0 01 1 0901-
135 GEAR; REV IDLER
Z=25 		8-98031-869-1 01 1 0901-
268 PLATE; ANTI LASH,COUNTER 8-97252-684-1 01 1 0901-
300 RING; SNAP,COUNTER SHAFT,RR END
ID=30.7 T=1.7 		8-97254-727-0 01 1 0901-
300 RING; SNAP,COUNTER SHAFT,RR END
ID=30.7 T=1.8 		8-97254-728-0 01 1 0901-
300 RING; SNAP,COUNTER SHAFT,RR END
ID=30.7 T=1.9 		8-97254-734-0 01 1 0901-
300 RING; SNAP,COUNTER SHAFT,RR END
ID=30.7 T=1.6 		8-97365-617-0 01 1 0901-
314 BEARING; NEEDLE,REV GEAR
NSK 		8-97253-114-0 01 1 0901-
325 SHIM; COUNTER SHAFT BRG
ID=62.7 T=2.29 		8-97252-666-0 01 1 0901-
325 SHIM; COUNTER SHAFT BRG
ID=62.7 T=2.35 		8-97252-667-0 01 1 0901-
325 SHIM; COUNTER SHAFT BRG
ID=62.7 T=2.41 		8-97252-668-0 01 1 0901-
325 SHIM; COUNTER SHAFT BRG
ID=62.7 T=2.47 		8-97252-669-0 01 1 0901-
325 SHIM; COUNTER SHAFT BRG
ID=62.7 T=2.53 		8-97252-670-0 01 1 0901-
325 SHIM; COUNTER SHAFT BRG
ID=62.7 T=2.59 		8-97252-671-0 01 1 0901-
325 SHIM; COUNTER SHAFT BRG
ID=62.7 T=2.65 		8-97252-672-0 01 1 0901-
325 SHIM; COUNTER SHAFT BRG
ID=62.7 T=2.71 		8-97252-673-0 01 1 0901-
325 SHIM; COUNTER SHAFT BRG
ID=62.7 T=2.77 		8-97252-674-0 01 1 0901-
325 SHIM; COUNTER SHAFT BRG
ID=62.7 T=2.83 		8-97252-675-0 01 1 0901-
325 SHIM; COUNTER SHAFT BRG
ID=62.7 T=2.89 		8-97257-622-0 01 1 0901-
325 SHIM; COUNTER SHAFT BRG
ID=62.7 T=2.11 		8-97306-188-0 01 1 0901-
325 SHIM; COUNTER SHAFT BRG
ID=62.7 T=2.17 		8-97306-189-0 01 1 0901-
325 SHIM; COUNTER SHAFT BRG
ID=62.7 T=2.23 		8-97306-190-0 01 1 0901-
408 SPRING
(B) 		8-94148-196-0 03 1 0901-
408 SPRING
(A) 		8-97366-040-1 04 1 0901-
423 SLEEVE & HUB ASM; 6TH 8-97367-022-0 01 1 0901-
480 WASHER; THRUST,6TH 8-97253-123-1 01 1 0901-
506 COLLAR; 6TH,COUNTER 8-97253-121-1 01 1 0901-
507 BEARING; COUNTER SHAFT,FRT & RR 8-97253-107-0 02 1 0901-
508 RING; BLOCK,6TH
Z=45 		8-97309-532-0 01 1 0901-
510 PIN; STRAIGHT,ANTI LASH 9-08160-825-0 03 1 0901-
511 RING; SNAP,ANTI LASH PLATE 8-97254-767-0 01 1 0901-
527 INSERT; 6TH 8-94448-202-2 03 1 0901-
528 SLEEVE; 6TH
Z=45 		8-94421-871-1 01 1 0901-
529 PLATE; STOPPER,6TH 8-97248-952-0 01 1 0901-

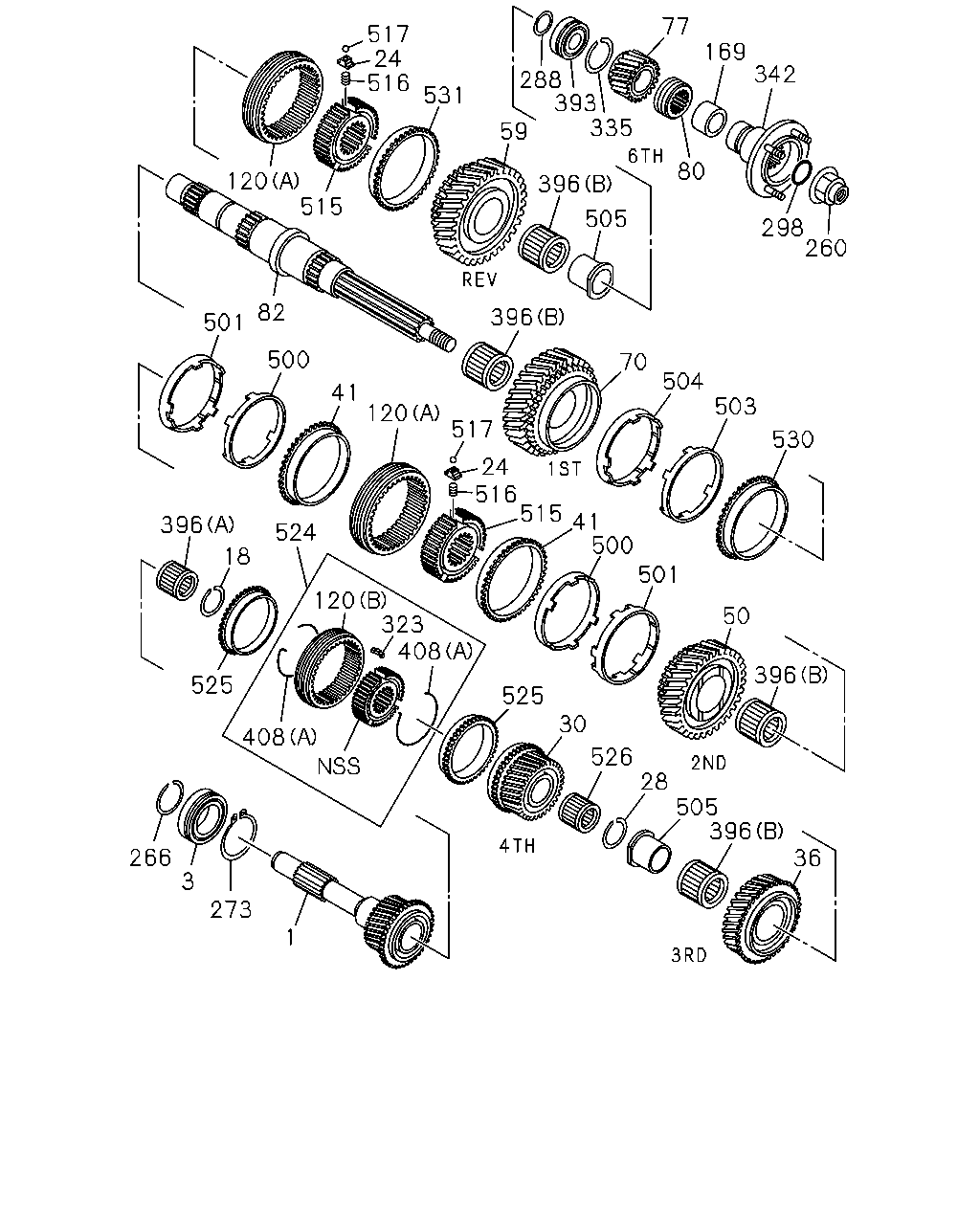

çizim 123377
77 517 24 516 169 342 288 393 335 531 59 80 120 515 396 505 298 260 82 396 501 500 70 504 41 503 120 517 530 24 516 515 41 500 396 524 18 501 120 323 408 50 396 525 525 30 408 526 28 505 396 36 266 3 273 1
BalonParca AdiParca NoAdetTipApplied Date
1 SHAFT; TOP GEAR,TRANS
Z=26 		8-98021-266-0 01 1 0901-
3 BEARING; TOP GEAR SHAFT
NSK 		8-97253-098-1 01 1 0901-
18 RING; SNAP,CLU HUB
ID=30.7 T=1.8 		8-97254-728-0 01 1 0901-
24 BLOCK; INDEX,SYN 8-97241-313-1 06 1 0901-
28 RING; SNAP,3RD GEAR
ID=46.5 T=1.8 		8-97254-743-0 01 1 0901-
30 GEAR; 4TH,MAINSHAFT
Z=28 		8-97241-230-0 01 1 0901-
36 GEAR; 3RD,MAINSHAFT
Z=34 		8-97241-234-0 01 1 0901-
41 RING; BLOCK,2ND & 3RD
Z=45 		8-97241-306-1 02 1 0901-
50 GEAR; 2ND,MAINSHAFT
Z=38 		8-97241-237-1 01 1 0901-
59 GEAR; REV MAINSHAFT
Z=41 		8-97241-244-0 01 1 0901-
70 GEAR; 1ST,MAINSHAFT
Z=43 		8-97350-010-0 01 1 0901-
77 GEAR; 6TH,MAINSHAFT
Z=21 		8-97386-582-0 01 1 0901-
80 GEAR; SPD DRIVE
Z=4 		8-97253-556-0 01 1 0901-
82 SHAFT; MAIN,TRANS
Z=28-42-42-21 		8-97253-116-3 01 1 0901-
120 SLEEVE
(B) Z=45 		8-94421-871-1 01 1 0901-
120 SLEEVE
(A) Z=45 		8-97241-296-1 02 1 0901-1311
120 SLEEVE
(A) Z=45 		8-98258-279-0 02 1 1312-
169 COLLAR; MAINSHAFT 8-97252-937-1 01 1 0901-
260 NUT; MAINSHAFT END
M27 H=25 		8-97360-410-0 01 1 0901-
266 RING; SNAP,BRG INNER 8-97286-916-0 01 1 0901-
273 RING; SNAP,BRG OUTER 8-97254-610-0 01 1 0901-
288 SPACER; BRG,MAINSHAFT 8-97252-942-0 01 1 0901-
298 GASKET; MAINSHAFT
ALSO INCLUDED IN GASKET SET(M/T). ID=30.6 T=5.7 		8-98028-226-0 01 1 0901-
323 INSERT 8-94448-202-2 03 1 0901-
335 RING; SNAP,BEARING 8-97254-722-0 01 1 0901-
342 FLANGE; OUTPUT 8-98031-640-0 01 1 0901-
393 BEARING; MAINSHAFT END 8-97253-105-1 01 1 0901-
396 BEARING; NEEDLE,MAINSHAFT
(A) 		8-97253-102-1 01 1 0901-
396 BEARING; NEEDLE,MAINSHAFT
(B) 		8-97253-110-0 04 1 0901-
408 SPRING
(B) 		8-94148-196-0 03 1 0901-
408 SPRING
(A) 		8-97366-040-1 04 1 0901-
500 RING; OUTSIDE,3RD & 2ND 8-97241-309-1 02 1 0901-
501 RING; INSIDE,3RD & 2ND 8-97241-312-1 02 1 0901-
503 RING; OUTSIDE,LOW & REV 8-97241-309-1 01 1 0901-
504 RING; INSIDE,LOW & REV 8-97241-312-1 01 1 0901-
505 COLLAR; 3RD & REV 8-97253-119-2 02 1 0901-
515 HUB; CLU,1ST & REV,2ND & 3RD 8-97241-298-3 02 1 0901-
516 SPRING; SYNCHRO,INDEX 8-97254-835-0 06 1 0901-
517 BALL; SYNCHRO,INDEX 8-97252-935-0 06 1 0901-
524 SLEEVE & HUB ASM; TOP-4TH,OD 8-97366-526-0 01 1 0901-
525 RING; BLOCK,TOP & 4TH,OD
Z=45 		8-97309-532-0 02 1 0901-
526 BEARING; NEEDLE,4TH & 5TH 8-97253-112-0 01 1 0901-
530 RING; BLOCK,LOW
Z=45 		8-97241-306-1 01 1 0901-
531 RING; BLOCK,REV
Z=45 		8-97368-343-0 01 1 0901-
