◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPR ▶ 51241 - NPR CNG(THAILAND) ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-25 - SPEEDOMETER DRIVEN GEAR ▶
2-25 — SPEEDOMETER DRIVEN GEAR (#34032) — 20 parça

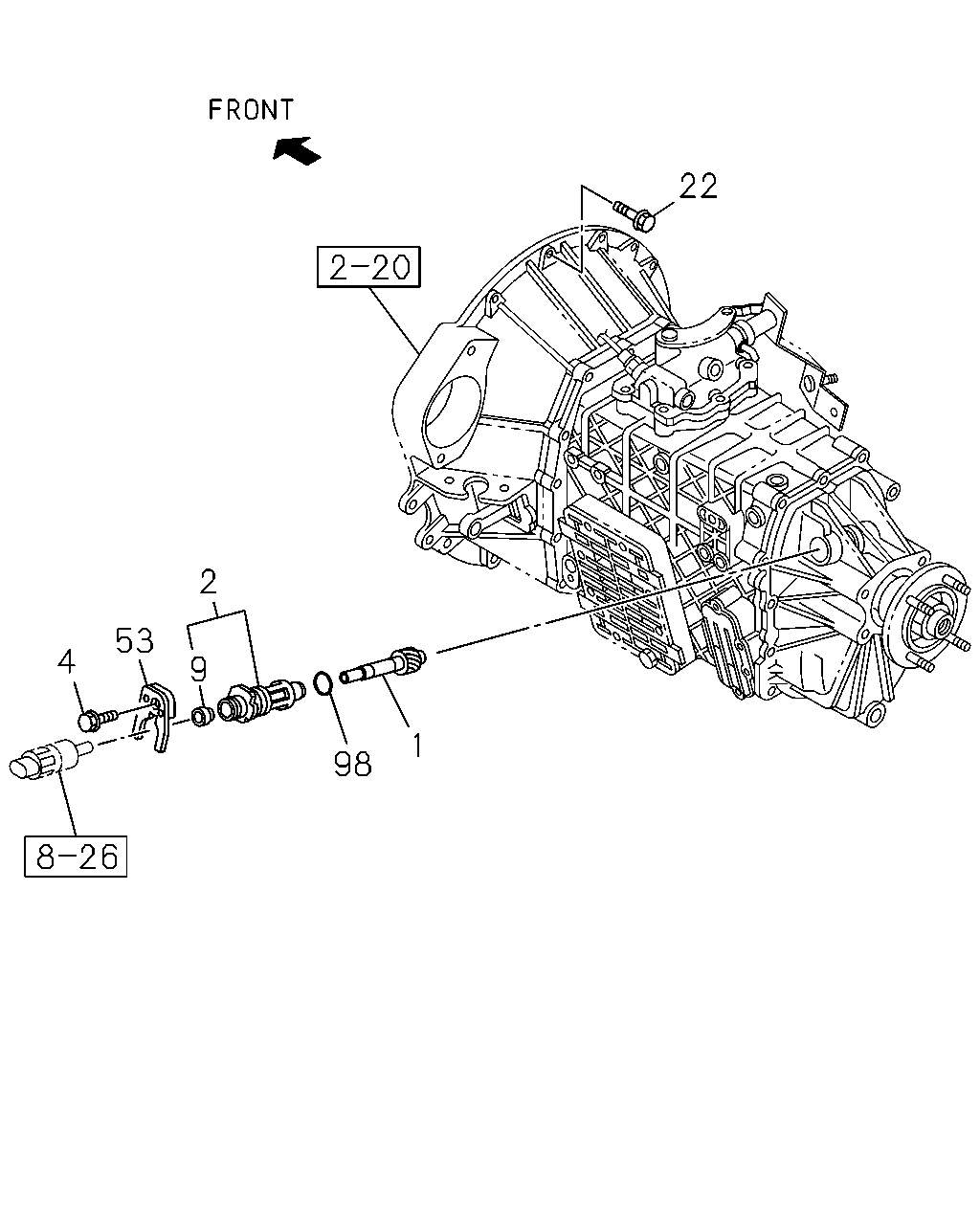

çizim 123362
22 2 53 4 9 1 98
BalonParca AdiParca NoAdetTipApplied Date
1 GEAR; DRIVEN,SPD
FINAL GEAR RATIO 41/8<RU1>,FINAL GEAR RATIO 43/8<R40> FRT&RR 7.5R-16-14 DISC 6GSX16-127 EXP SPEC<CVN>, FRT&RR 7.5-16-10 6GSX16-127 6-WHL/NUT DYNAMIC<97V> Z=13 		8-97253-562-1 01 1 0904-
1 GEAR; DRIVEN,SPD
FINAL GEAR RATIO 41/8<RU1>,FINAL GEAR RATIO 43/8<R40> Z=13 		8-97253-562-1 01 1 0901-0902
1 GEAR; DRIVEN,SPD
FINAL GEAR RATIO 43/9<S2J> Z=12 		8-97253-563-1 01 1 0901-0902
1 GEAR; DRIVEN,SPD
FINAL GEAR RATIO 43/9<S2J> FRT&RR 7.5-16-10 6GSX16-127 6-WHL/NUT DYNAMIC<97V> Z=12 		8-97253-563-1 01 1 0903-0903
1 GEAR; DRIVEN,SPD
FINAL GEAR RATIO 43/9<S2J> FRT&RR 7.5R-16-14 DISC 6GSX16-127 EXP SPEC<CVN>, FRT&RR 7.5-16-10 6GSX16-127 6-WHL/NUT DYNAMIC<97V> Z=12 		8-97253-563-1 01 1 0904-
2 BUSHING; DRIVEN GEAR,SPEEDOMETER
MARK "12,13,14,15" 		8-97253-125-0 01 1 0901-0902
2 BUSHING; DRIVEN GEAR,SPEEDOMETER
FINAL GEAR RATIO 43/9<S2J> FRT&RR 7.5-16-10 6GSX16-127 6-WHL/NUT DYNAMIC<97V> MARK "12,13,14,15" 		8-97253-125-0 01 1 0903-0903
2 BUSHING; DRIVEN GEAR,SPEEDOMETER
FRT&RR 7.5R-16-14 DISC 6GSX16-127 EXP SPEC<CVN>, FRT&RR 7.5-16-10 6GSX16-127 6-WHL/NUT DYNAMIC<97V> MARK "12,13,14,15" 		8-97253-125-0 01 1 0904-
4 BOLT; RET,DRIVEN GEAR
M8X20 FLANGE THA 		0-28650-820-0 01 1 0901-
9 SEAL; OIL,DRIVEN GEAR
NOK 		8-97131-328-1 01 1 0901-0902
9 SEAL; OIL,DRIVEN GEAR
FINAL GEAR RATIO 43/9<S2J> FRT&RR 7.5-16-10 6GSX16-127 6-WHL/NUT DYNAMIC<97V> NOK 		8-97131-328-1 01 1 0903-0903
9 SEAL; OIL,DRIVEN GEAR
FRT&RR 7.5R-16-14 DISC 6GSX16-127 EXP SPEC<CVN>, FRT&RR 7.5-16-10 6GSX16-127 6-WHL/NUT DYNAMIC<97V> NOK 		8-97131-328-1 01 1 0904-
22 BOLT; TRANS CASE TO ENG
M10X35 FLANGE 		0-28151-035-0 03 1 0901-
22 BOLT; TRANS CASE TO ENG
M10X55 FLANGE 		8-97365-449-0 02 1 0901-
22 BOLT; TRANS CASE TO ENG
M10X30 FLANGE 		0-28151-030-0 02 1 0901-
22 BOLT; TRANS CASE TO ENG
M10X30 FLANGE 		0-28151-030-0 02 1 0901-
53 PLATE; LOCK,DRIVEN GEAR 8-98046-217-0 01 1 0901-
98 SEAL; OIL,BUSH 9-09561-324-0 01 1 0901-0902
98 SEAL; OIL,BUSH
FINAL GEAR RATIO 43/9<S2J> FRT&RR 7.5-16-10 6GSX16-127 6-WHL/NUT DYNAMIC<97V> 		9-09561-324-0 01 1 0903-0903
98 SEAL; OIL,BUSH
FRT&RR 7.5R-16-14 DISC 6GSX16-127 EXP SPEC<CVN>, FRT&RR 7.5-16-10 6GSX16-127 6-WHL/NUT DYNAMIC<97V> 		9-09561-324-0 01 1 0904-
