◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CXM ▶ 10669 - CXM/CXZ LHD ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-80 - ROAD WHEEL ▶
4-80 — ROAD WHEEL (#3403) — 37 parça

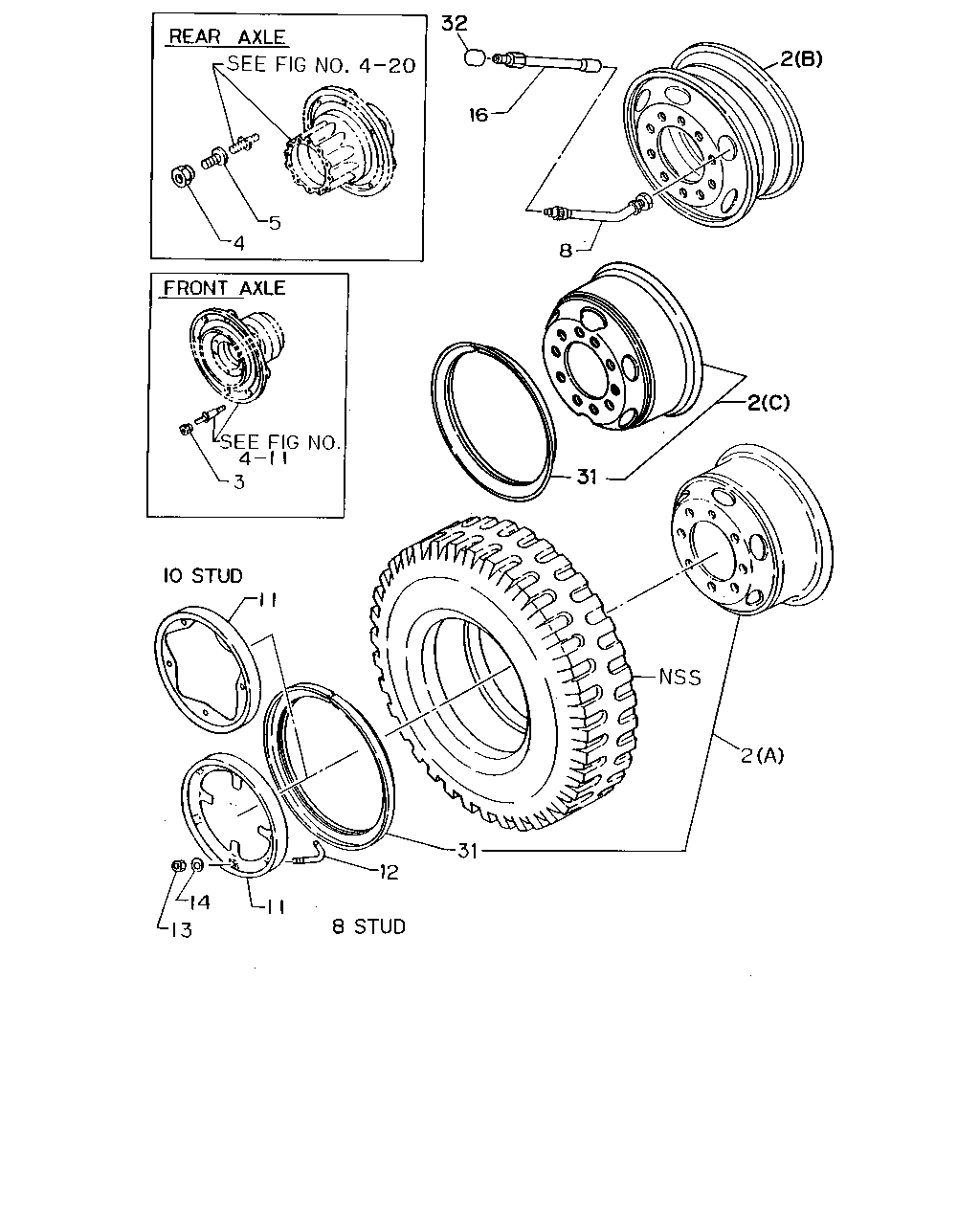

çizim 36291
32 16 8 2 2 31 2 31 12 11 13 11 14 3 4 5
BalonParca AdiParca NoAdetTipApplied Date A B C
2 WHEEL; DISC
DISC WHEEL SPARE<N79>,SPARE TIRE & DISC WHEEL RR<R46> DISC WHEEL 10STUD 7.50VX20 165-12<Q64> (C) SPARE 		1-42350-137-1 01 1 9002-9406 ● ● ●
2 WHEEL; DISC
DISC WHEEL SPARE<N79>,SPARE TIRE & DISC WHEEL RR<R46> DISC WHEEL 10STUD 7.50VX20 165-12<Q64> (C) SPARE 		1-42350-496-0 01 1 9407- ● ● ●
2 WHEEL; DISC
DISC WHEEL SPARE<N79>,SPARE TIRE & DISC WHEEL RR<R46> DISC WHEEL 8STUD 7.50VX20 165-13<Q62> (A) SPARE 		1-42350-134-2 01 1 9002-9204 ● ● ●
2 WHEEL; DISC
DISC WHEEL SPARE<N79>,SPARE TIRE & DISC WHEEL RR<R46> DISC WHEEL 8STUD 7.50VX20 165-13<Q62> (A) SPARE 		1-42350-420-0 01 1 9205- ● ● ●
2 WHEEL; DISC
DISC WHEEL 10STUD 7.50VX20 165-12<Q64> (C) 		1-42350-137-1 10 1 9002-9406 ● ● ●
2 WHEEL; DISC
DISC WHEEL 10STUD 7.50VX20 165-12<Q64> (C) 		1-42350-496-0 10 1 9407- ● ● ●
2 WHEEL; DISC
DISC WHEEL 10STUD 8.25X22.5 165-13<QM8> (B) 		1-42350-333-0 10 1 9002-9003 ● ● ●
2 WHEEL; DISC
DISC WHEEL 10STUD 8.25X22.5 165-13<QM8> (B) 		1-42350-333-0 10 1 9002-9312 ● ● ●
2 WHEEL; DISC
DISC WHEEL 10STUD 8.25X22.5 165-13<QM8> (B) 		1-42350-471-0 10 1 9401- ● ● ●
2 WHEEL; DISC
DISC WHEEL 10STUD 8.25X22.5 165-13<QM8> DISC WHEEL SPARE<N79>,SPARE TIRE & DISC WHEEL RR<R46> (B) SPARE 		1-42350-333-0 01 1 9002-9312 ● ● ●
2 WHEEL; DISC
DISC WHEEL 10STUD 8.25X22.5 165-13<QM8> DISC WHEEL SPARE<N79>,SPARE TIRE & DISC WHEEL RR<R46> (B) SPARE 		1-42350-471-0 01 1 9401- ● ● ●
2 WHEEL; DISC
DISC WHEEL 8STUD 7.50VX20 165-13<Q62> (A) 		1-42350-134-2 10 1 9002-9204 ● ● ●
2 WHEEL; DISC
DISC WHEEL 8STUD 7.50VX20 165-13<Q62> (A) 		1-42350-420-0 10 1 9205- ● ● ●
3 NUT; WHEEL,FRT AXLE
DISC WHEEL 8STUD 7.50VX20 165-13<Q62> M24 LH THREAD 		1-42334-022-0 08 1 9002- ● ● ●
3 NUT; WHEEL,FRT AXLE
DISC WHEEL 8STUD 7.50VX20 165-13<Q62> M24 		1-42333-022-0 08 1 9002- ● ● ●
3 NUT; WHEEL,FRT AXLE
EXC. DISC WHEEL 8STUD 7.50VX20 165-13<Q62> M22 		1-42333-031-0 20 1 9002-9110 ● ● ●
3 NUT; WHEEL,FRT AXLE
EXC. DISC WHEEL 8STUD 7.50VX20 165-13<Q62> M22 		1-42333-040-0 20 1 9111- ● ● ●
4 NUT; WHEEL,RR AXLE
DISC WHEEL 8STUD 7.50VX20 165-13<Q62> M30 LH THREAD 		1-42334-023-0 16 1 9002- ● ● ●
4 NUT; WHEEL,RR AXLE
DISC WHEEL 8STUD 7.50VX20 165-13<Q62> M30 		1-42333-023-0 16 1 9002- ● ● ●
4 NUT; WHEEL,RR AXLE
EXC. DISC WHEEL 8STUD 7.50VX20 165-13<Q62> M22 		1-42333-031-0 40 1 9002-9110 ● ● ●
4 NUT; WHEEL,RR AXLE
EXC. DISC WHEEL 8STUD 7.50VX20 165-13<Q62> M22 		1-42333-040-0 40 1 9111- ● ● ●
5 NUT; WHEEL,INNER,RR AXLE
DISC WHEEL 8STUD 7.50VX20 165-13<Q62> OUTER M30,INNER M20 RH THREAD 		1-42335-005-0 16 1 9002- ● ● ●
5 NUT; WHEEL,INNER,RR AXLE
DISC WHEEL 8STUD 7.50VX20 165-13<Q62> OUTER M30,INNER M20 LH THREAD 		1-42336-005-0 16 1 9002- ● ● ●
8 VALVE; TIRE
DISC WHEEL SPARE<N79>,SPARE TIRE & DISC WHEEL RR<R46> DISC WHEEL 10STUD 8.25X22.5 165-13<QM8> SPARE 		1-42370-020-3 01 1 9002- ● ● ●
8 VALVE; TIRE
DISC WHEEL 10STUD 8.25X22.5 165-13<QM8> 		1-42370-020-3 10 1 9002- ● ● ●
11 STEP; DISC WHEEL SIDE
DISC WHEEL 8STUD 7.50VX20 165-13<Q62> EXC. DISC WHEEL STEP DELETE<SBH> 		1-43139-002-2 02 1 9002-9211 ● ● ●
11 STEP; DISC WHEEL SIDE
DISC WHEEL 8STUD 7.50VX20 165-13<Q62> EXC. DISC WHEEL STEP DELETE<SBH> 		1-43139-028-0 02 1 9212- ● ● ●
11 STEP; DISC WHEEL SIDE
EXC. DISC WHEEL 8STUD 7.50VX20 165-13<Q62>,DISC WHEEL STEP DELETE<SBH> 		1-43139-012-2 02 1 9002- ● ● ●
12 U-BOLT; STEP DISC
DISC WHEEL 8STUD 7.50VX20 165-13<Q62> EXC. DISC WHEEL STEP DELETE<SBH> L=44 		9-43139-023-1 06 1 9002- ● ● ●
13 NUT; STEP DISC
DISC WHEEL 8STUD 7.50VX20 165-13<Q62> EXC. DISC WHEEL STEP DELETE<SBH> M10 		9-09110-510-0 06 1 9002- ● ● ●
14 WASHER; LK,STEP DISC
DISC WHEEL 8STUD 7.50VX20 165-13<Q62> EXC. DISC WHEEL STEP DELETE<SBH> ID=10.2 		9-09150-510-0 06 1 9002- ● ● ●
16 HOLDER; TIRE VALVE,DISC WHEEL
EXC. DISC WHEEL 8STUD 7.50VX20 165-13<Q62> L=170 		1-42370-024-0 04 1 9002-9504 ● ● ●
16 HOLDER; TIRE VALVE,DISC WHEEL
L=170 		1-42370-024-0 04 1 9505- ● ● ●
31 RING; SIDE,DISC WHEEL
DISC WHEEL 8STUD 7.50VX20 165-13<Q62>,DISC WHEEL 10STUD 7.50VX20 165-12<Q64> DISC WHEEL SPARE<N79>,SPARE TIRE & DISC WHEEL RR<R46> SPARE 		1-42355-004-1 01 1 9002- ● ● ●
31 RING; SIDE,DISC WHEEL
DISC WHEEL 8STUD 7.50VX20 165-13<Q62>,DISC WHEEL 10STUD 7.50VX20 165-12<Q64> 		1-42355-004-1 10 1 9002- ● ● ●
32 CAP; VALVE
SPARE TIRE & DISC WHEEL RR<R46> 		1-42374-001-0 11 1 9304- ● ● ●
32 CAP; VALVE
EXC. SPARE TIRE & DISC WHEEL RR<R46> 		1-42374-001-0 10 1 9304- ● ● ●
