◀ 🏠 ▶ Isuzu WW ▶ AUV ▶ TBR ▶ 51128 - TBR-LHD ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-03 - RADIATOR GRILLE ▶
6-03 — RADIATOR GRILLE (#34028) — 34 parça
çizim 13540
92 89 26 1
BalonParca AdiParca NoAdetTipApplied Date
1 GRILLE; RAD
BODY COLOR ALPINE WHITE(617) GRADE XL(RBA) EXC. FACE LIFT MODEL<TX7> DARK GRAY PHI 		8-97959-490-1 01 1 0610-
1 GRILLE; RAD
BODY COLOR ALPINE WHITE(617),BODY COLOR ALPINE WHITE/LT.SILVER(661) FACE LIFT MODEL<TX7> EXC. BRIGHT RAD GRILLE<V22> WHITE PHI 		8-97399-601-2 01 1 0610-
1 GRILLE; RAD
BODY COLOR ALPINE WHITE(617),BODY COLOR ALPINE WHITE/LT.SILVER(661) FACE LIFT MODEL<TX7> BRIGHT RAD GRILLE<V22> WHITE PHI 		8-97399-609-2 01 1 0610-
1 GRILLE; RAD
BODY COLOR ASTRAL SILVER MET/KAISER SILVERMET(662) FACE LIFT MODEL<TX7> EXC. BRIGHT RAD GRILLE<V22> SILVER PHI 		8-97399-602-2 01 1 0610-
1 GRILLE; RAD
BODY COLOR ASTRAL SILVER MET/KAISER SILVERMET(662) FACE LIFT MODEL<TX7> BRIGHT RAD GRILLE<V22> SILVER PHI 		8-97399-610-2 01 1 0610-
26 WASHER; PL
FACE LIFT MODEL<TX7> ID=8.4 OD=18 		0-91610-608-0 02 1 0610-
26 WASHER; PL
EXC. FACE LIFT MODEL<TX7> ID=8.4 OD=18 		0-91610-608-0 03 1 0610-
89 BOLT; RAD GRILLE
FACE LIFT MODEL<TX7> M6X16 FLANGE 		8-97804-671-1 02 1 0610-
89 BOLT; RAD GRILLE
EXC. FACE LIFT MODEL<TX7> M6X16 FLANGE 		8-97804-671-1 03 1 0610-
92 STOPPER; RAD GRILLE 8-97182-223-0 03 1 0610-

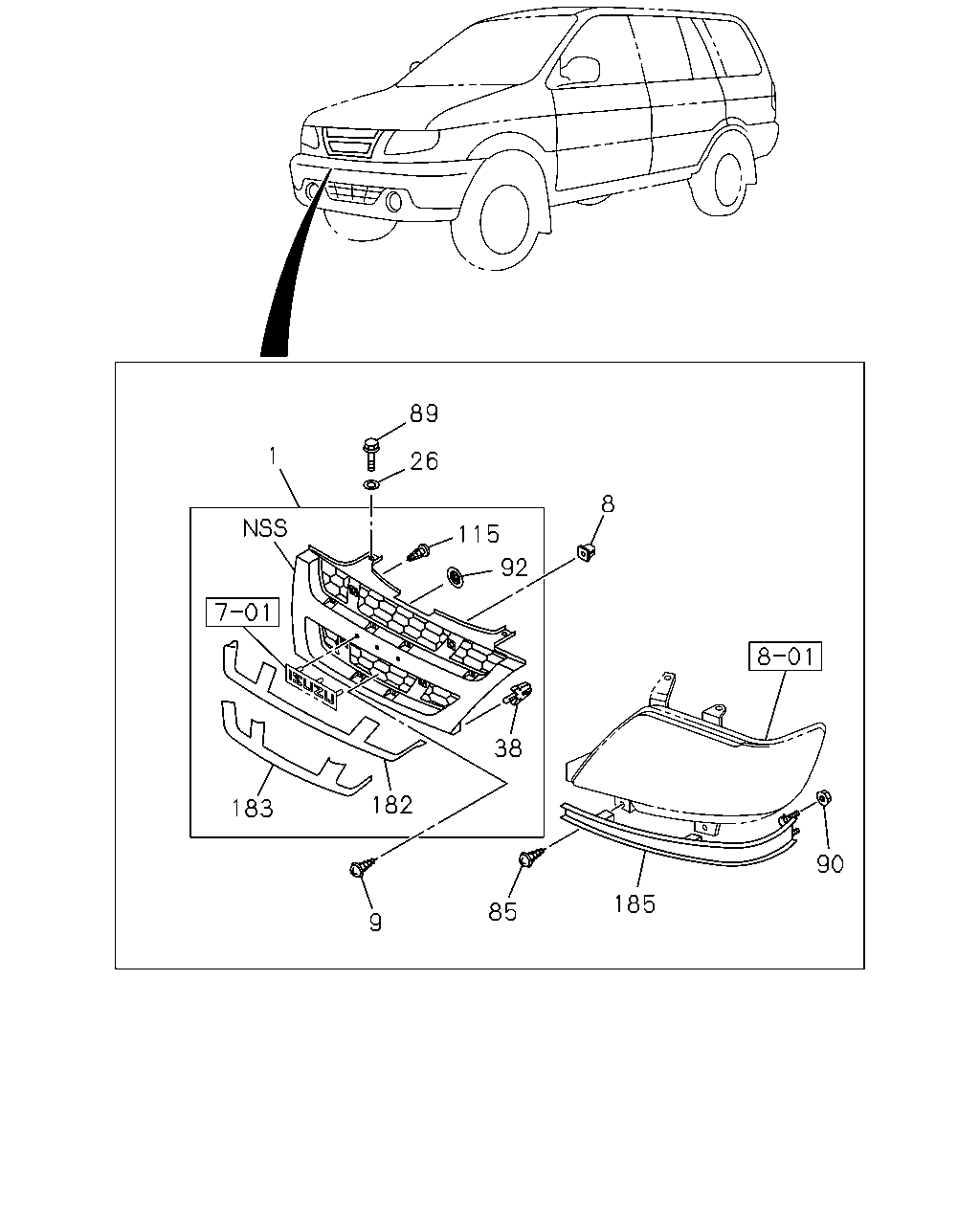

çizim 56526
89 1 26 8 115 92 38 182 183 90 185 85 9
BalonParca AdiParca NoAdetTipApplied Date
1 GRILLE; RAD
BODY COLOR ALPINE WHITE(617) GRADE XL(RBA) EXC. FACE LIFT MODEL<TX7> DARK GRAY PHI 		8-97959-490-1 01 1 0610-
1 GRILLE; RAD
BODY COLOR ALPINE WHITE(617),BODY COLOR ALPINE WHITE/LT.SILVER(661) FACE LIFT MODEL<TX7> EXC. BRIGHT RAD GRILLE<V22> WHITE PHI 		8-97399-601-2 01 1 0610-
1 GRILLE; RAD
BODY COLOR ALPINE WHITE(617),BODY COLOR ALPINE WHITE/LT.SILVER(661) FACE LIFT MODEL<TX7> BRIGHT RAD GRILLE<V22> WHITE PHI 		8-97399-609-2 01 1 0610-
1 GRILLE; RAD
BODY COLOR ASTRAL SILVER MET/KAISER SILVERMET(662) FACE LIFT MODEL<TX7> EXC. BRIGHT RAD GRILLE<V22> SILVER PHI 		8-97399-602-2 01 1 0610-
1 GRILLE; RAD
BODY COLOR ASTRAL SILVER MET/KAISER SILVERMET(662) FACE LIFT MODEL<TX7> BRIGHT RAD GRILLE<V22> SILVER PHI 		8-97399-610-2 01 1 0610-
8 GROMMET; SCREW,RAD GRILLE
FACE LIFT MODEL<TX7> D=7X7 L=7.5 		8-94291-927-0 01 1 0610-
9 SCREW; RAD GRILLE
FACE LIFT MODEL<TX7> M5X16 		8-94380-268-0 01 1 0610-
26 WASHER; PL
FACE LIFT MODEL<TX7> ID=8.4 OD=18 		0-91610-608-0 02 1 0610-
26 WASHER; PL
EXC. FACE LIFT MODEL<TX7> ID=8.4 OD=18 		0-91610-608-0 03 1 0610-
38 CLIP; GRILLE
FACE LIFT MODEL<TX7> BLACK 		8-94218-027-0 02 1 0610-
85 SCREW; RAD GRILLE SIDE
FACE LIFT MODEL<TX7> M5X16 		8-94380-268-0 04 1 0610-
89 BOLT; RAD GRILLE
FACE LIFT MODEL<TX7> M6X16 FLANGE 		8-97804-671-1 02 1 0610-
89 BOLT; RAD GRILLE
EXC. FACE LIFT MODEL<TX7> M6X16 FLANGE 		8-97804-671-1 03 1 0610-
90 NUT; RAD GRILLE
FACE LIFT MODEL<TX7> M6 FLANGE 		0-91180-106-0 02 1 0610-
92 STOPPER; RAD GRILLE 8-97182-223-0 03 1 0610-
115 SCREW; FRT GRILLE
FACE LIFT MODEL<TX7> IDN 		8-97944-140-0 14 1 0610-
182 MOLDING; RAD GRILLE,UPR
FACE LIFT MODEL<TX7> BRIGHT RAD GRILLE<V22> CHROMIUM PLATE IDN 		8-97943-977-0 01 1 0610-
183 MOLDING; RAD GRILLE,LWR
BODY COLOR ALPINE WHITE(617),BODY COLOR ALPINE WHITE/LT.SILVER(661) FACE LIFT MODEL<TX7> EXC. BRIGHT RAD GRILLE<V22> THA 		8-97399-653-0 01 1 0610-
183 MOLDING; RAD GRILLE,LWR
BODY COLOR ASTRAL SILVER MET/KAISER SILVERMET(662) FACE LIFT MODEL<TX7> EXC. BRIGHT RAD GRILLE<V22> THA 		8-97399-656-0 01 1 0610-
183 MOLDING; RAD GRILLE,LWR
FACE LIFT MODEL<TX7> BRIGHT RAD GRILLE<V22> CHROMIUM PLATE IDN 		8-97943-979-0 01 1 0610-
185 MOLDING; RAD GRILLE,SIDE
BODY COLOR ALPINE WHITE(617),BODY COLOR ALPINE WHITE/LT.SILVER(661) FACE LIFT MODEL<TX7> BLACK THA 		8-97944-035-2 01 1 0610-
185 MOLDING; RAD GRILLE,SIDE
BODY COLOR ALPINE WHITE(617),BODY COLOR ALPINE WHITE/LT.SILVER(661) FACE LIFT MODEL<TX7> BLACK THA 		8-97944-034-2 01 1 0610-
185 MOLDING; RAD GRILLE,SIDE
BODY COLOR ASTRAL SILVER MET/KAISER SILVERMET(662) FACE LIFT MODEL<TX7> BLACK THA 		8-97944-035-2 01 1 0610-
185 MOLDING; RAD GRILLE,SIDE
BODY COLOR ASTRAL SILVER MET/KAISER SILVERMET(662) FACE LIFT MODEL<TX7> BLACK THA 		8-97944-034-2 01 1 0610-
