6-01 — FRONT BUMPER (#34027) — 82 parça

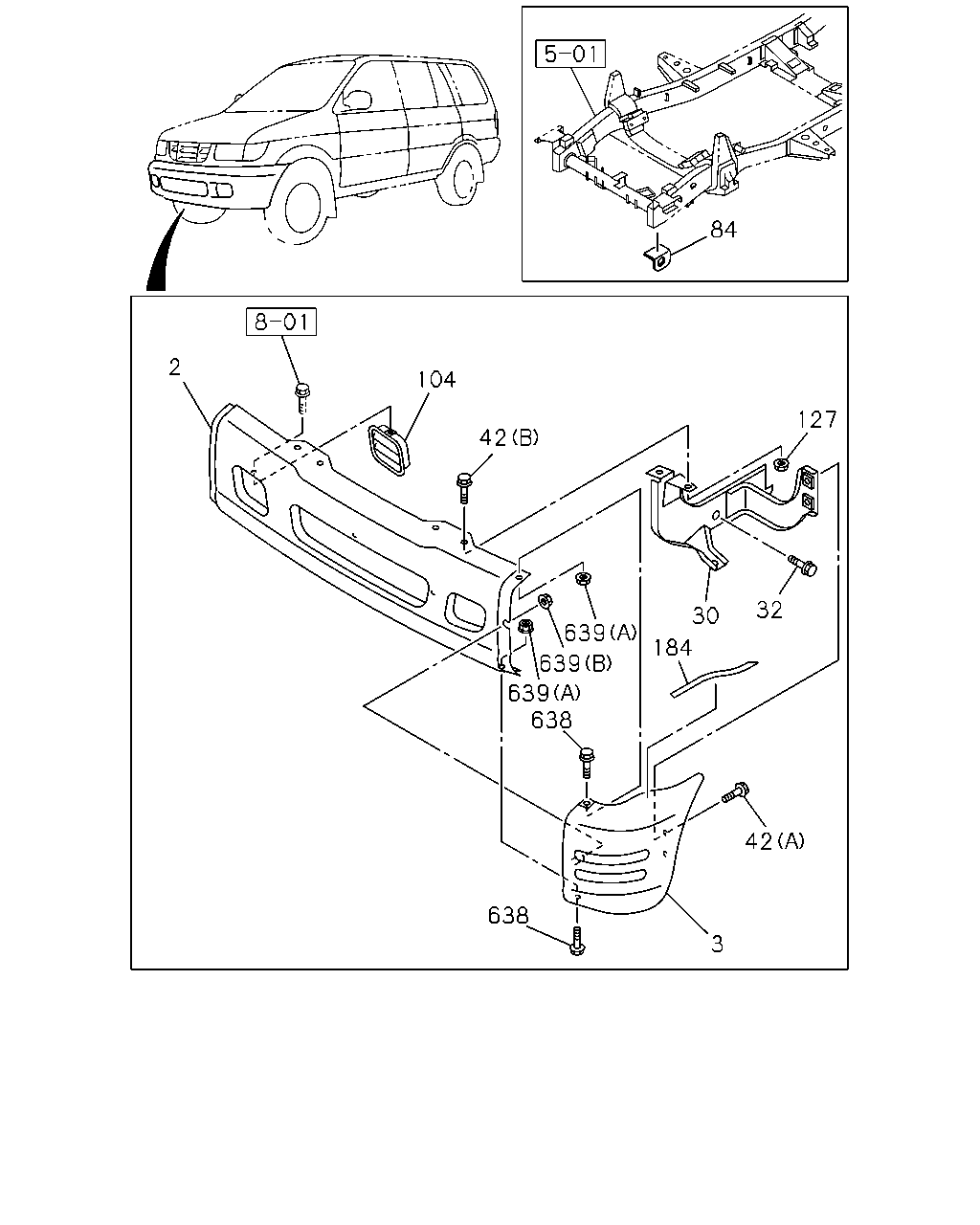

84 2 104 127 42 32 30 639 184 639 639 638 42 638 3

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	BUMPER; FRT,CENTER GRADE XL(RBA) EXC. FACE LIFT MODEL<TX7> PHI	8-97976-892-0	01	1	0610-
3	BUMPER; FRT,SIDE GRADE XL(RBA) EXC. FACE LIFT MODEL<TX7> PHI	8-97976-895-0	01	1	0610-
3	BUMPER; FRT,SIDE GRADE XL(RBA) EXC. FACE LIFT MODEL<TX7> PHI	8-97976-894-0	01	1	0610-
30	BRACKET; FRT BUMPER GRADE XL(RBA) EXC. FACE LIFT MODEL<TX7> IDN	8-97955-583-2	01	1	0610-
30	BRACKET; FRT BUMPER GRADE XL(RBA) EXC. FACE LIFT MODEL<TX7> IDN	8-97955-582-2	01	1	0610-
30	BRACKET; FRT BUMPER GRADE XL(RBA),GRADE XT(RBB),GRADE XTI(RBD) FACE LIFT MODEL<TX7> PHI	8-97944-017-2	01	1	0610-
30	BRACKET; FRT BUMPER GRADE XL(RBA),GRADE XT(RBB),GRADE XTI(RBD) FACE LIFT MODEL<TX7> PHI	8-97944-016-2	01	1	0610-
30	BRACKET; FRT BUMPER GRADE XUV/SPORTIVO(RBG) FACE LIFT MODEL<TX7> PHI	8-97944-019-2	01	1	0610-
30	BRACKET; FRT BUMPER GRADE XUV/SPORTIVO(RBG) FACE LIFT MODEL<TX7> PHI	8-97944-018-2	01	1	0610-
32	BOLT; BRKT,BUMPER M12X30 FLANGE	0-28661-230-0	04	1	0610-
42	BOLT; BUMPER (A) M8X20 FLANGE	0-28650-820-0	04	1	0610-
42	BOLT; BUMPER FACE LIFT MODEL<TX7> (A) M8X20 FLANGE	0-28650-820-0	03	1	0610-
42	BOLT; BUMPER FACE LIFT MODEL<TX7> (B) M8X20 DACRO-COATING	8-94241-821-0	06	1	0610-
42	BOLT; BUMPER FACE LIFT MODEL<TX7> (C) M6X12 FLANGE	8-97351-109-0	06	1	0610-
42	BOLT; BUMPER EXC. FACE LIFT MODEL<TX7> (B) M8X20 DACRO-COATING	8-94241-821-0	08	1	0610-
84	HOOK M/T MSG 5 SPEED(M75) FACE LIFT MODEL<TX7> PHI	8-97977-725-0	01	1	0610-0610
84	HOOK FACE LIFT MODEL<TX7> PHI	8-97977-725-0	01	1	0611-
84	HOOK M/T MSG 5 SPEED(M75) EXC. FACE LIFT MODEL<TX7> PHI	8-97977-478-0	01	1	0610-0610
84	HOOK EXC. FACE LIFT MODEL<TX7> PHI	8-97977-478-0	01	1	0611-
104	COVER; HOLE,FOG LAMP EXC. FACE LIFT MODEL<TX7>,FOG LAMP<T96> IDN	8-97956-714-1	01	1	0610-
104	COVER; HOLE,FOG LAMP EXC. FACE LIFT MODEL<TX7>,FOG LAMP<T96> IDN	8-97956-713-1	01	1	0610-
127	NUT; FRT BUMPER FACE LIFT MODEL<TX7> M8 FLANGE	5-09440-005-0	06	1	0610-0805
127	NUT; FRT BUMPER FACE LIFT MODEL<TX7> M8 FLANGE	8-97581-233-0	06	1	0806-
127	NUT; FRT BUMPER EXC. FACE LIFT MODEL<TX7> M8 FLANGE	5-09440-005-0	08	1	0610-0805
127	NUT; FRT BUMPER EXC. FACE LIFT MODEL<TX7> M8 FLANGE	8-97581-233-0	08	1	0806-
184	TAPE; FRONT BUMPER GRADE XL(RBA) EXC. FACE LIFT MODEL<TX7> PHI	8-97958-888-0	01	1	0610-
184	TAPE; FRONT BUMPER GRADE XL(RBA) EXC. FACE LIFT MODEL<TX7> PHI	8-97958-887-0	01	1	0610-
184	TAPE; FRONT BUMPER GRADE XL(RBA),GRADE XT(RBB),GRADE XTI(RBD) FACE LIFT MODEL<TX7> PHI	8-97562-554-0	01	1	0610-
184	TAPE; FRONT BUMPER GRADE XL(RBA),GRADE XT(RBB),GRADE XTI(RBD) FACE LIFT MODEL<TX7> PHI	8-97562-553-0	01	1	0610-
184	TAPE; FRONT BUMPER GRADE XUV/SPORTIVO(RBG) FACE LIFT MODEL<TX7> PHI	8-97562-557-0	01	1	0610-
184	TAPE; FRONT BUMPER GRADE XUV/SPORTIVO(RBG) FACE LIFT MODEL<TX7> PHI	8-97562-556-0	01	1	0610-
638	BOLT; CTR TO SIDE,FRT BUMPER GRADE XL(RBA) EXC. FACE LIFT MODEL<TX7> M8X20 DACRO-COATING	8-94241-821-0	08	1	0610-
639	NUT; CTR TO SIDE,FRT BUMPER GRADE XL(RBA) EXC. FACE LIFT MODEL<TX7> (A) M8 FLANGE	5-09440-005-0	08	1	0610-0805
639	NUT; CTR TO SIDE,FRT BUMPER GRADE XL(RBA) EXC. FACE LIFT MODEL<TX7> (A) M8 FLANGE	8-97581-233-0	08	1	0806-
639	NUT; CTR TO SIDE,FRT BUMPER GRADE XL(RBA) EXC. FACE LIFT MODEL<TX7> (B) M8 W/LK WASHER	8-97065-435-0	04	1	0610-

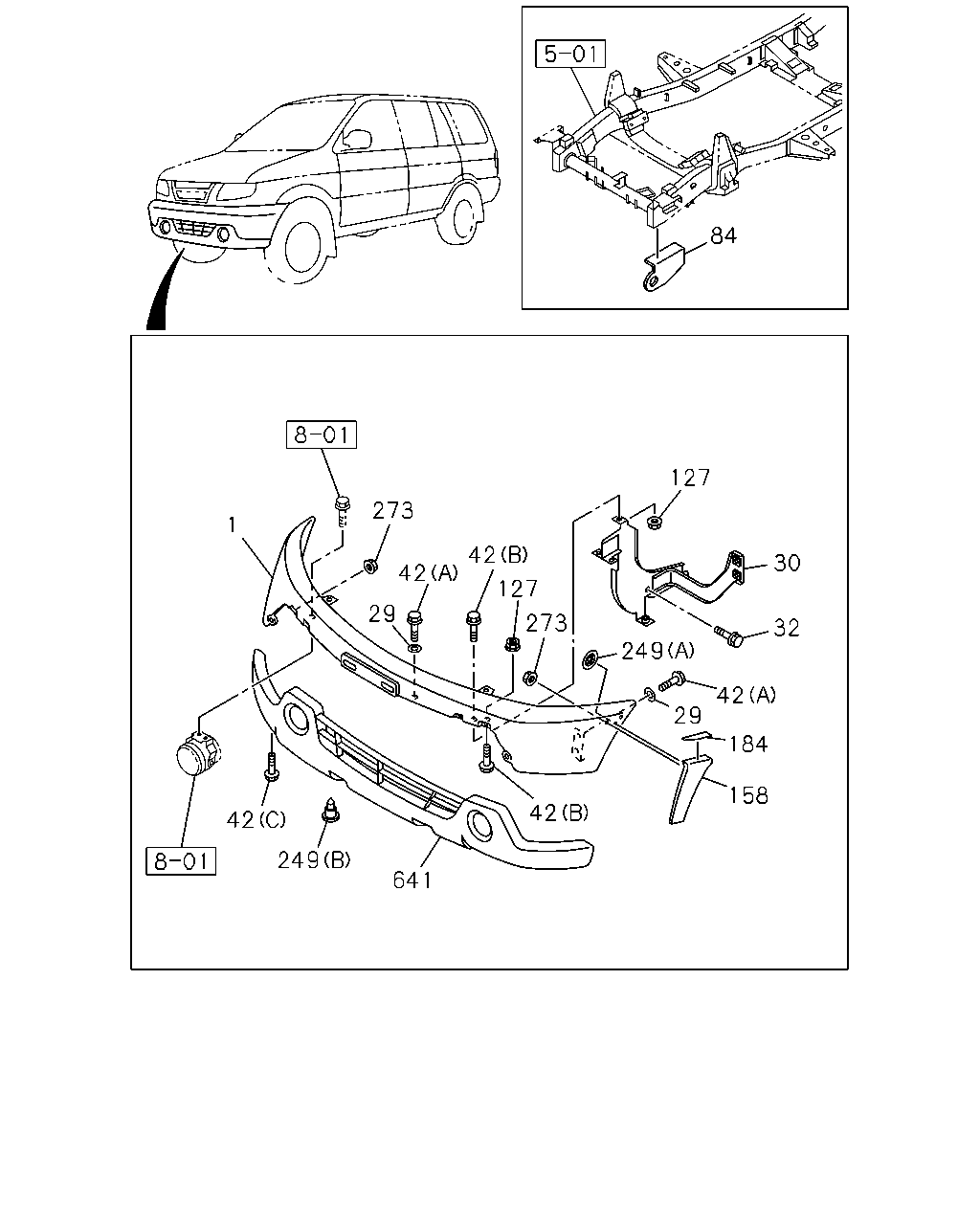

84 127 273 1 42 30 42 127 29 273 32 249 42 29 184 158 42 42 249 641

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	BUMPER ASM; FRT BODY COLOR ALPINE WHITE(617) GRADE XL(RBA) FACE LIFT MODEL<TX7> PLEASE PAINT TO MATCH BODY COLOR PHI	8-97943-990-3	01	1	0610-
1	BUMPER ASM; FRT BODY COLOR ASTRAL SILVER MET/KAISER SILVERMET(662) GRADE XTI(RBD) FACE LIFT MODEL<TX7> PLEASE PAINT TO MATCH BODY COLOR PHI	8-97943-990-3	01	1	0610-
1	BUMPER ASM; FRT BODY COLOR ALPINE WHITE(617) GRADE XT(RBB),GRADE XTI(RBD) FACE LIFT MODEL<TX7> PLEASE PAINT TO MATCH BODY COLOR PHI	8-97943-990-3	01	1	0610-
1	BUMPER ASM; FRT BODY COLOR ALPINE WHITE(617) GRADE XUV/SPORTIVO(RBG) FACE LIFT MODEL<TX7> PLEASE PAINT TO MATCH BODY COLOR PHI	8-97943-991-3	01	1	0610-
1	BUMPER ASM; FRT BODY COLOR ALPINE WHITE/LT.SILVER(661) GRADE XTI(RBD) FACE LIFT MODEL<TX7> PLEASE PAINT TO MATCH BODY COLOR PHI	8-97943-990-3	01	1	0610-
29	WASHER; FRT BUMPER FACE LIFT MODEL<TX7> ID=8.4 OD=22	0-91610-708-0	04	1	0610-
30	BRACKET; FRT BUMPER GRADE XL(RBA) EXC. FACE LIFT MODEL<TX7> IDN	8-97955-583-2	01	1	0610-
30	BRACKET; FRT BUMPER GRADE XL(RBA) EXC. FACE LIFT MODEL<TX7> IDN	8-97955-582-2	01	1	0610-
30	BRACKET; FRT BUMPER GRADE XL(RBA),GRADE XT(RBB),GRADE XTI(RBD) FACE LIFT MODEL<TX7> PHI	8-97944-017-2	01	1	0610-
30	BRACKET; FRT BUMPER GRADE XL(RBA),GRADE XT(RBB),GRADE XTI(RBD) FACE LIFT MODEL<TX7> PHI	8-97944-016-2	01	1	0610-
30	BRACKET; FRT BUMPER GRADE XUV/SPORTIVO(RBG) FACE LIFT MODEL<TX7> PHI	8-97944-019-2	01	1	0610-
30	BRACKET; FRT BUMPER GRADE XUV/SPORTIVO(RBG) FACE LIFT MODEL<TX7> PHI	8-97944-018-2	01	1	0610-
32	BOLT; BRKT,BUMPER M12X30 FLANGE	0-28661-230-0	04	1	0610-
42	BOLT; BUMPER (A) M8X20 FLANGE	0-28650-820-0	04	1	0610-
42	BOLT; BUMPER FACE LIFT MODEL<TX7> (A) M8X20 FLANGE	0-28650-820-0	03	1	0610-
42	BOLT; BUMPER FACE LIFT MODEL<TX7> (B) M8X20 DACRO-COATING	8-94241-821-0	06	1	0610-
42	BOLT; BUMPER FACE LIFT MODEL<TX7> (C) M6X12 FLANGE	8-97351-109-0	06	1	0610-
42	BOLT; BUMPER EXC. FACE LIFT MODEL<TX7> (B) M8X20 DACRO-COATING	8-94241-821-0	08	1	0610-
84	HOOK M/T MSG 5 SPEED(M75) FACE LIFT MODEL<TX7> PHI	8-97977-725-0	01	1	0610-0610
84	HOOK FACE LIFT MODEL<TX7> PHI	8-97977-725-0	01	1	0611-
84	HOOK M/T MSG 5 SPEED(M75) EXC. FACE LIFT MODEL<TX7> PHI	8-97977-478-0	01	1	0610-0610
84	HOOK EXC. FACE LIFT MODEL<TX7> PHI	8-97977-478-0	01	1	0611-
127	NUT; FRT BUMPER FACE LIFT MODEL<TX7> M8 FLANGE	5-09440-005-0	06	1	0610-0805
127	NUT; FRT BUMPER FACE LIFT MODEL<TX7> M8 FLANGE	8-97581-233-0	06	1	0806-
127	NUT; FRT BUMPER EXC. FACE LIFT MODEL<TX7> M8 FLANGE	5-09440-005-0	08	1	0610-0805
127	NUT; FRT BUMPER EXC. FACE LIFT MODEL<TX7> M8 FLANGE	8-97581-233-0	08	1	0806-
158	EXTENSION; FRT BUMPER BODY COLOR ALPINE WHITE(617) GRADE XL(RBA) FACE LIFT MODEL<TX7> TAI	8-97943-994-0	01	1	0610-
158	EXTENSION; FRT BUMPER BODY COLOR ASTRAL SILVER MET/KAISER SILVERMET(662) GRADE XTI(RBD) FACE LIFT MODEL<TX7> TAI	8-97943-994-0	01	1	0610-
158	EXTENSION; FRT BUMPER BODY COLOR ALPINE WHITE(617) GRADE XL(RBA) FACE LIFT MODEL<TX7> TAI	8-97943-993-0	01	1	0610-
158	EXTENSION; FRT BUMPER BODY COLOR ASTRAL SILVER MET/KAISER SILVERMET(662) GRADE XTI(RBD) FACE LIFT MODEL<TX7> TAI	8-97943-993-0	01	1	0610-
158	EXTENSION; FRT BUMPER BODY COLOR ALPINE WHITE(617) GRADE XT(RBB),GRADE XTI(RBD) FACE LIFT MODEL<TX7> TAI	8-97943-994-0	01	1	0610-
158	EXTENSION; FRT BUMPER BODY COLOR ALPINE WHITE(617) GRADE XT(RBB),GRADE XTI(RBD) FACE LIFT MODEL<TX7> TAI	8-97943-993-0	01	1	0610-
158	EXTENSION; FRT BUMPER BODY COLOR ALPINE WHITE(617) GRADE XUV/SPORTIVO(RBG) FACE LIFT MODEL<TX7> TAI	8-97943-996-0	01	1	0610-
158	EXTENSION; FRT BUMPER BODY COLOR ALPINE WHITE(617) GRADE XUV/SPORTIVO(RBG) FACE LIFT MODEL<TX7> TAI	8-97943-995-0	01	1	0610-
158	EXTENSION; FRT BUMPER BODY COLOR ALPINE WHITE/LT.SILVER(661) GRADE XTI(RBD) FACE LIFT MODEL<TX7> TAI	8-97943-994-0	01	1	0610-
158	EXTENSION; FRT BUMPER BODY COLOR ALPINE WHITE/LT.SILVER(661) GRADE XTI(RBD) FACE LIFT MODEL<TX7> TAI	8-97943-993-0	01	1	0610-
184	TAPE; FRONT BUMPER GRADE XL(RBA) EXC. FACE LIFT MODEL<TX7> PHI	8-97958-888-0	01	1	0610-
184	TAPE; FRONT BUMPER GRADE XL(RBA) EXC. FACE LIFT MODEL<TX7> PHI	8-97958-887-0	01	1	0610-
184	TAPE; FRONT BUMPER GRADE XL(RBA),GRADE XT(RBB),GRADE XTI(RBD) FACE LIFT MODEL<TX7> PHI	8-97562-554-0	01	1	0610-
184	TAPE; FRONT BUMPER GRADE XL(RBA),GRADE XT(RBB),GRADE XTI(RBD) FACE LIFT MODEL<TX7> PHI	8-97562-553-0	01	1	0610-
184	TAPE; FRONT BUMPER GRADE XUV/SPORTIVO(RBG) FACE LIFT MODEL<TX7> PHI	8-97562-557-0	01	1	0610-
184	TAPE; FRONT BUMPER GRADE XUV/SPORTIVO(RBG) FACE LIFT MODEL<TX7> PHI	8-97562-556-0	01	1	0610-
249	RETAINER; BEAM LWR FACE LIFT MODEL<TX7> (B) THA	8-97301-188-0	02	1	0610-
249	RETAINER; BEAM LWR GRADE XL(RBA),GRADE XT(RBB),GRADE XTI(RBD) FACE LIFT MODEL<TX7> (A)	8-97182-223-0	02	1	0610-
273	NUT; BUMPER TO EXT FACE LIFT MODEL<TX7> M6 FLANGE	0-91180-106-0	06	1	0610-
273	NUT; BUMPER TO EXT GRADE XUV/SPORTIVO(RBG) FACE LIFT MODEL<TX7> M6 FLANGE	0-91180-106-0	04	1	0610-
641	BUMPER; FRT,LWR FACE LIFT MODEL<TX7> IDN	8-97944-041-0	01	1	0610-
