◀ 🏠 ▶ Isuzu WW ▶ AUV ▶ TBR ▶ 51128 - TBR-LHD ▶ 5 - Frame, Cab Mounting ▶ 5-10 - CAB MOUNTING; FRAME SIDE ▶
5-10 — CAB MOUNTING; FRAME SIDE (#34023) — 78 parça

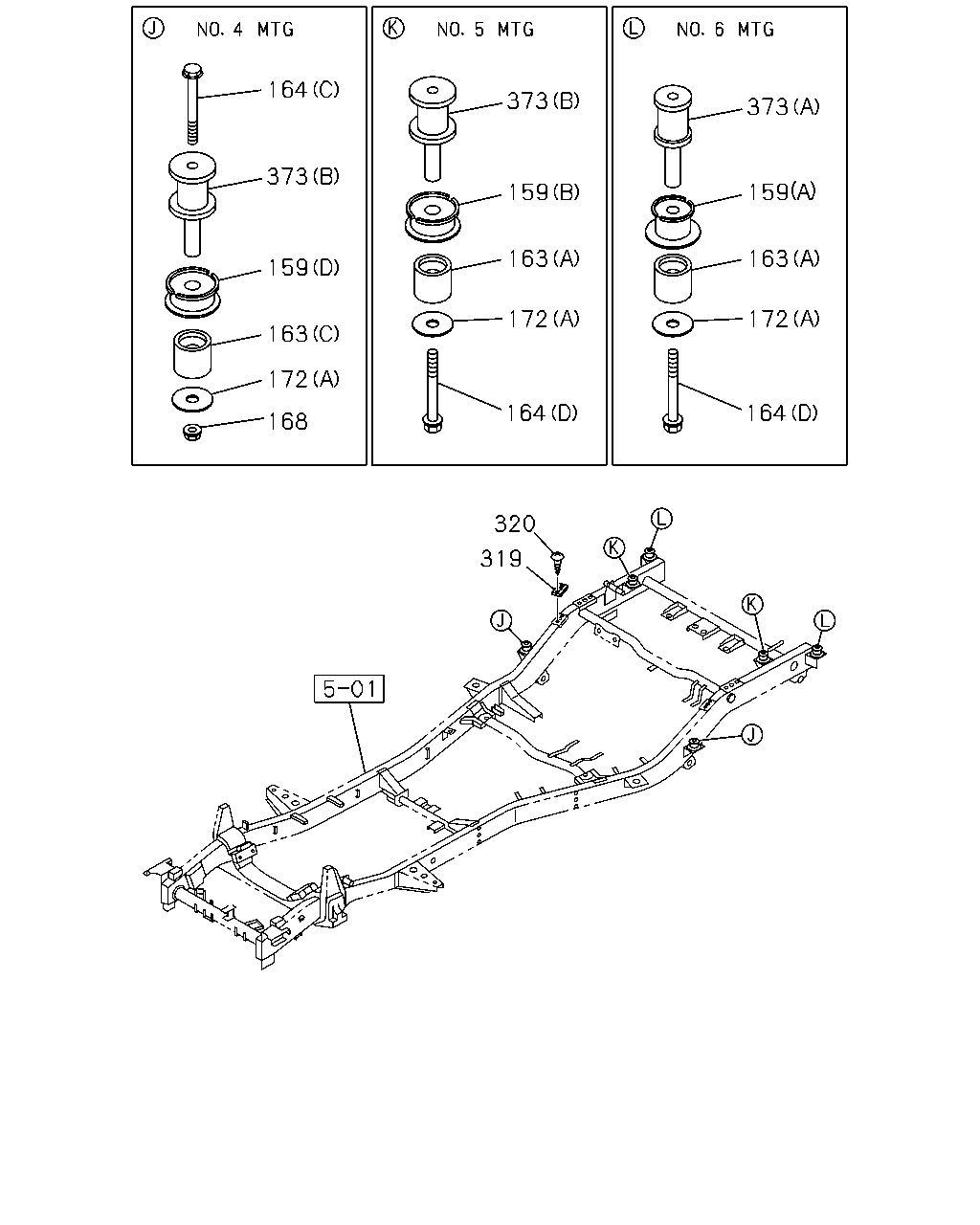

çizim 57218
164 373 373 373 159 159 163 163 159 172 172 163 172 164 164 168 320 319
BalonParca AdiParca NoAdetTipApplied Date
159 RUBBER; CUSHION,CAB MTG
(A) NO.1,NO.6 MTG IDN 		8-94368-398-0 04 1 0610-
159 RUBBER; CUSHION,CAB MTG
(B) NO.3,NO.5 MTG IDN 		8-94368-400-0 04 1 0610-
159 RUBBER; CUSHION,CAB MTG
(C) NO.2 MTG IDN 		8-97957-471-0 02 1 0610-
159 RUBBER; CUSHION,CAB MTG
(D) NO.4 MTG IDN 		8-97957-473-0 02 1 0610-
163 RUBBER; CUSHION,BODY MTG,REBOUND
(A) NO.1,NO.3,NO.5,NO.6 MTG IDN 		8-94368-399-0 08 1 0610-
163 RUBBER; CUSHION,BODY MTG,REBOUND
(B) NO.2 MTG IDN 		8-97957-472-0 02 1 0610-
163 RUBBER; CUSHION,BODY MTG,REBOUND
(C) NO.4 MTG IDN 		8-97957-474-0 02 1 0610-
164 BOLT; CUSHION RUBBER,CAB MTG
GRADE XL(RBA),GRADE XT(RBB),GRADE XTI(RBD) (B) NO.5,NO.6 MTG M10X102 		8-97091-599-0 04 1 0610-
164 BOLT; CUSHION RUBBER,CAB MTG
GRADE XL(RBA),GRADE XT(RBB),GRADE XTI(RBD) (A) NO.1,NO.2,NO.3,NO.4 MTG M10X120 		8-97134-968-0 08 1 0610-0610
164 BOLT; CUSHION RUBBER,CAB MTG
GRADE XL(RBA),GRADE XT(RBB),GRADE XTI(RBD) (A) NO.1,NO.2,NO.3,NO.4 MTG M10X120 		8-98051-536-0 08 1 0610-
164 BOLT; CUSHION RUBBER,CAB MTG
GRADE XUV/SPORTIVO(RBG) (C) NO.1,NO.2,NO.3,NO.4 MTG M10X180 FLANGE 		8-97287-269-1 08 1 0610-
164 BOLT; CUSHION RUBBER,CAB MTG
GRADE XUV/SPORTIVO(RBG) (D) NO.5,NO.6 MTG M10X158 W/LK WASHER 		8-97287-270-0 04 1 0610-
168 NUT; CUSHION RUBBER,BODY MTG
M10 FLANGE 		0-91180-210-0 08 1 0610-
172 WASHER; BODY MTG RUBBER
(A) ID=11 OD=48 T=2.9 IDN 		8-94223-170-0 06 1 0610-
172 WASHER; BODY MTG RUBBER
GRADE XL(RBA),GRADE XT(RBB),GRADE XTI(RBD) (A) ID=11 OD=48 T=2.9 IDN 		8-94223-170-0 10 1 0610-
172 WASHER; BODY MTG RUBBER
GRADE XL(RBA),GRADE XT(RBB),GRADE XTI(RBD) (B) ID=11 OD=62 T=2.9 IDN 		8-97037-993-0 06 1 0610-
172 WASHER; BODY MTG RUBBER
GRADE XUV/SPORTIVO(RBG) (A) ID=11 OD=48 T=2.9 IDN 		8-94223-170-0 04 1 0610-
319 GASKET; BODY MTG BOLT
IDN 		8-94180-225-0 04 1 0610-
320 SCREW; BODY MTG GASKET
M6X10 		9-09829-194-0 08 1 0610-
373 SPACER; CAB STAY
GRADE XUV/SPORTIVO(RBG) (A) NO.1,NO.2,NO.6 MTG 		8-97264-514-3 06 1 0610-
373 SPACER; CAB STAY
GRADE XUV/SPORTIVO(RBG) (B) NO.3,NO.4,NO.5 MTG 		8-97264-515-3 06 1 0610-

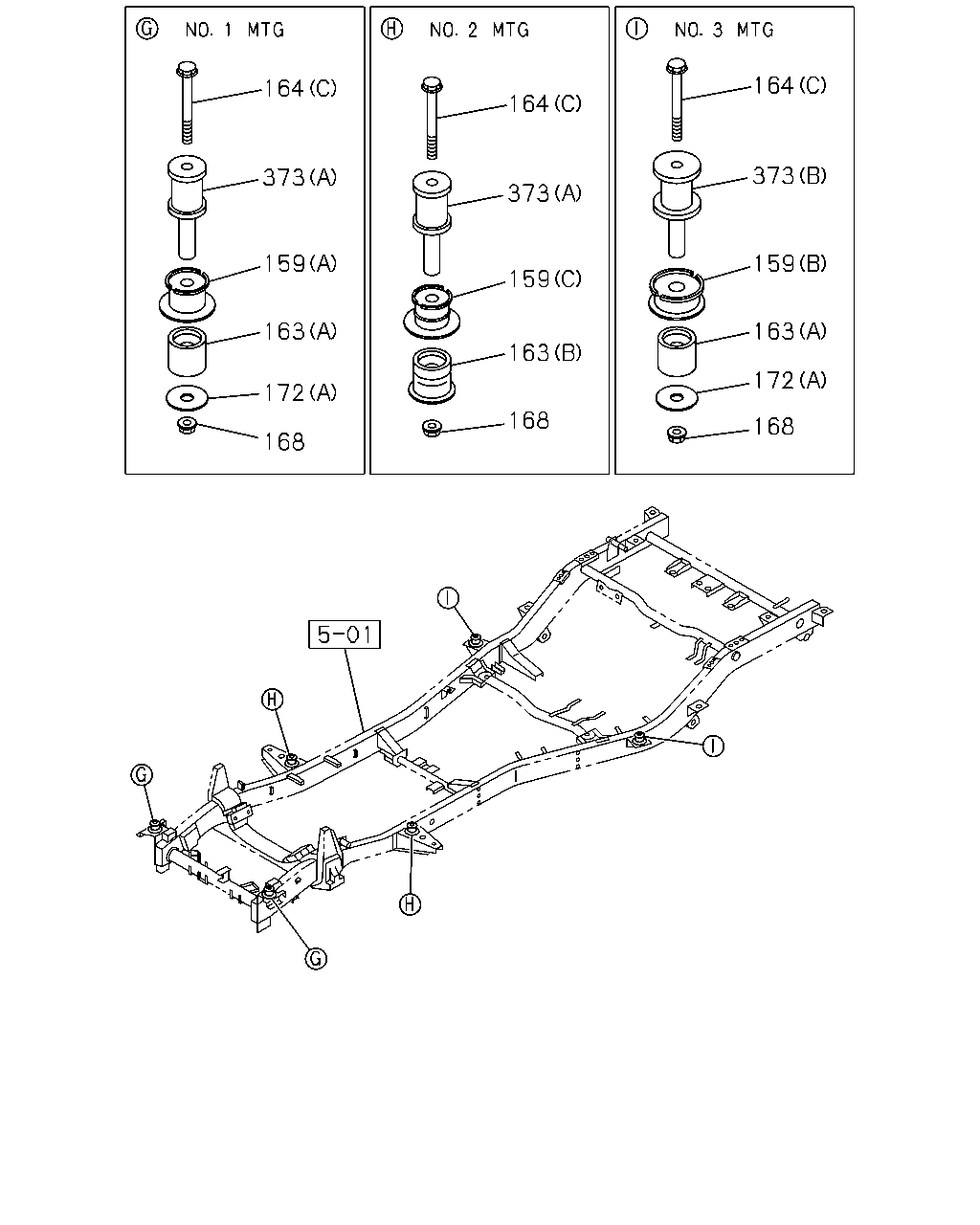

çizim 57368
164 164 164 373 373 373 159 159 159 163 163 163 172 172 168 168 168
BalonParca AdiParca NoAdetTipApplied Date
159 RUBBER; CUSHION,CAB MTG
(A) NO.1,NO.6 MTG IDN 		8-94368-398-0 04 1 0610-
159 RUBBER; CUSHION,CAB MTG
(B) NO.3,NO.5 MTG IDN 		8-94368-400-0 04 1 0610-
159 RUBBER; CUSHION,CAB MTG
(C) NO.2 MTG IDN 		8-97957-471-0 02 1 0610-
159 RUBBER; CUSHION,CAB MTG
(D) NO.4 MTG IDN 		8-97957-473-0 02 1 0610-
163 RUBBER; CUSHION,BODY MTG,REBOUND
(A) NO.1,NO.3,NO.5,NO.6 MTG IDN 		8-94368-399-0 08 1 0610-
163 RUBBER; CUSHION,BODY MTG,REBOUND
(B) NO.2 MTG IDN 		8-97957-472-0 02 1 0610-
163 RUBBER; CUSHION,BODY MTG,REBOUND
(C) NO.4 MTG IDN 		8-97957-474-0 02 1 0610-
164 BOLT; CUSHION RUBBER,CAB MTG
GRADE XL(RBA),GRADE XT(RBB),GRADE XTI(RBD) (B) NO.5,NO.6 MTG M10X102 		8-97091-599-0 04 1 0610-
164 BOLT; CUSHION RUBBER,CAB MTG
GRADE XL(RBA),GRADE XT(RBB),GRADE XTI(RBD) (A) NO.1,NO.2,NO.3,NO.4 MTG M10X120 		8-97134-968-0 08 1 0610-0610
164 BOLT; CUSHION RUBBER,CAB MTG
GRADE XL(RBA),GRADE XT(RBB),GRADE XTI(RBD) (A) NO.1,NO.2,NO.3,NO.4 MTG M10X120 		8-98051-536-0 08 1 0610-
164 BOLT; CUSHION RUBBER,CAB MTG
GRADE XUV/SPORTIVO(RBG) (C) NO.1,NO.2,NO.3,NO.4 MTG M10X180 FLANGE 		8-97287-269-1 08 1 0610-
164 BOLT; CUSHION RUBBER,CAB MTG
GRADE XUV/SPORTIVO(RBG) (D) NO.5,NO.6 MTG M10X158 W/LK WASHER 		8-97287-270-0 04 1 0610-
168 NUT; CUSHION RUBBER,BODY MTG
M10 FLANGE 		0-91180-210-0 08 1 0610-
172 WASHER; BODY MTG RUBBER
(A) ID=11 OD=48 T=2.9 IDN 		8-94223-170-0 06 1 0610-
172 WASHER; BODY MTG RUBBER
GRADE XL(RBA),GRADE XT(RBB),GRADE XTI(RBD) (A) ID=11 OD=48 T=2.9 IDN 		8-94223-170-0 10 1 0610-
172 WASHER; BODY MTG RUBBER
GRADE XL(RBA),GRADE XT(RBB),GRADE XTI(RBD) (B) ID=11 OD=62 T=2.9 IDN 		8-97037-993-0 06 1 0610-
172 WASHER; BODY MTG RUBBER
GRADE XUV/SPORTIVO(RBG) (A) ID=11 OD=48 T=2.9 IDN 		8-94223-170-0 04 1 0610-
373 SPACER; CAB STAY
GRADE XUV/SPORTIVO(RBG) (A) NO.1,NO.2,NO.6 MTG 		8-97264-514-3 06 1 0610-
373 SPACER; CAB STAY
GRADE XUV/SPORTIVO(RBG) (B) NO.3,NO.4,NO.5 MTG 		8-97264-515-3 06 1 0610-

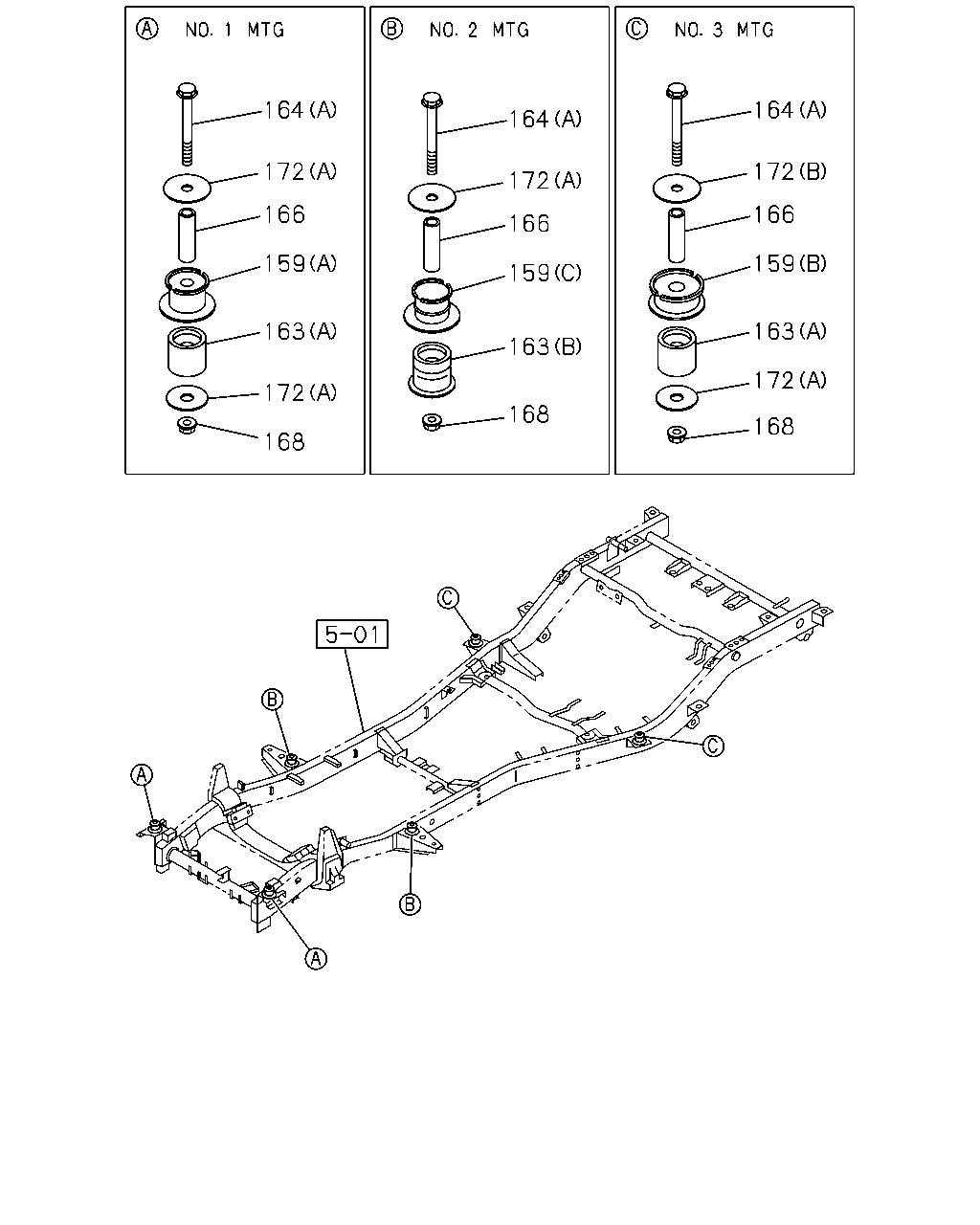

çizim 57370
164 164 164 172 172 172 166 166 166 159 159 159 163 163 163 172 172 168 168 168
BalonParca AdiParca NoAdetTipApplied Date
159 RUBBER; CUSHION,CAB MTG
(A) NO.1,NO.6 MTG IDN 		8-94368-398-0 04 1 0610-
159 RUBBER; CUSHION,CAB MTG
(B) NO.3,NO.5 MTG IDN 		8-94368-400-0 04 1 0610-
159 RUBBER; CUSHION,CAB MTG
(C) NO.2 MTG IDN 		8-97957-471-0 02 1 0610-
159 RUBBER; CUSHION,CAB MTG
(D) NO.4 MTG IDN 		8-97957-473-0 02 1 0610-
163 RUBBER; CUSHION,BODY MTG,REBOUND
(A) NO.1,NO.3,NO.5,NO.6 MTG IDN 		8-94368-399-0 08 1 0610-
163 RUBBER; CUSHION,BODY MTG,REBOUND
(B) NO.2 MTG IDN 		8-97957-472-0 02 1 0610-
163 RUBBER; CUSHION,BODY MTG,REBOUND
(C) NO.4 MTG IDN 		8-97957-474-0 02 1 0610-
164 BOLT; CUSHION RUBBER,CAB MTG
GRADE XL(RBA),GRADE XT(RBB),GRADE XTI(RBD) (B) NO.5,NO.6 MTG M10X102 		8-97091-599-0 04 1 0610-
164 BOLT; CUSHION RUBBER,CAB MTG
GRADE XL(RBA),GRADE XT(RBB),GRADE XTI(RBD) (A) NO.1,NO.2,NO.3,NO.4 MTG M10X120 		8-97134-968-0 08 1 0610-0610
164 BOLT; CUSHION RUBBER,CAB MTG
GRADE XL(RBA),GRADE XT(RBB),GRADE XTI(RBD) (A) NO.1,NO.2,NO.3,NO.4 MTG M10X120 		8-98051-536-0 08 1 0610-
164 BOLT; CUSHION RUBBER,CAB MTG
GRADE XUV/SPORTIVO(RBG) (C) NO.1,NO.2,NO.3,NO.4 MTG M10X180 FLANGE 		8-97287-269-1 08 1 0610-
164 BOLT; CUSHION RUBBER,CAB MTG
GRADE XUV/SPORTIVO(RBG) (D) NO.5,NO.6 MTG M10X158 W/LK WASHER 		8-97287-270-0 04 1 0610-
166 PIECE; DIST,BODY MTG RUBBER
GRADE XL(RBA),GRADE XT(RBB),GRADE XTI(RBD) L=70 		8-97148-478-0 12 1 0610-
168 NUT; CUSHION RUBBER,BODY MTG
M10 FLANGE 		0-91180-210-0 08 1 0610-
172 WASHER; BODY MTG RUBBER
(A) ID=11 OD=48 T=2.9 IDN 		8-94223-170-0 06 1 0610-
172 WASHER; BODY MTG RUBBER
GRADE XL(RBA),GRADE XT(RBB),GRADE XTI(RBD) (A) ID=11 OD=48 T=2.9 IDN 		8-94223-170-0 10 1 0610-
172 WASHER; BODY MTG RUBBER
GRADE XL(RBA),GRADE XT(RBB),GRADE XTI(RBD) (B) ID=11 OD=62 T=2.9 IDN 		8-97037-993-0 06 1 0610-
172 WASHER; BODY MTG RUBBER
GRADE XUV/SPORTIVO(RBG) (A) ID=11 OD=48 T=2.9 IDN 		8-94223-170-0 04 1 0610-

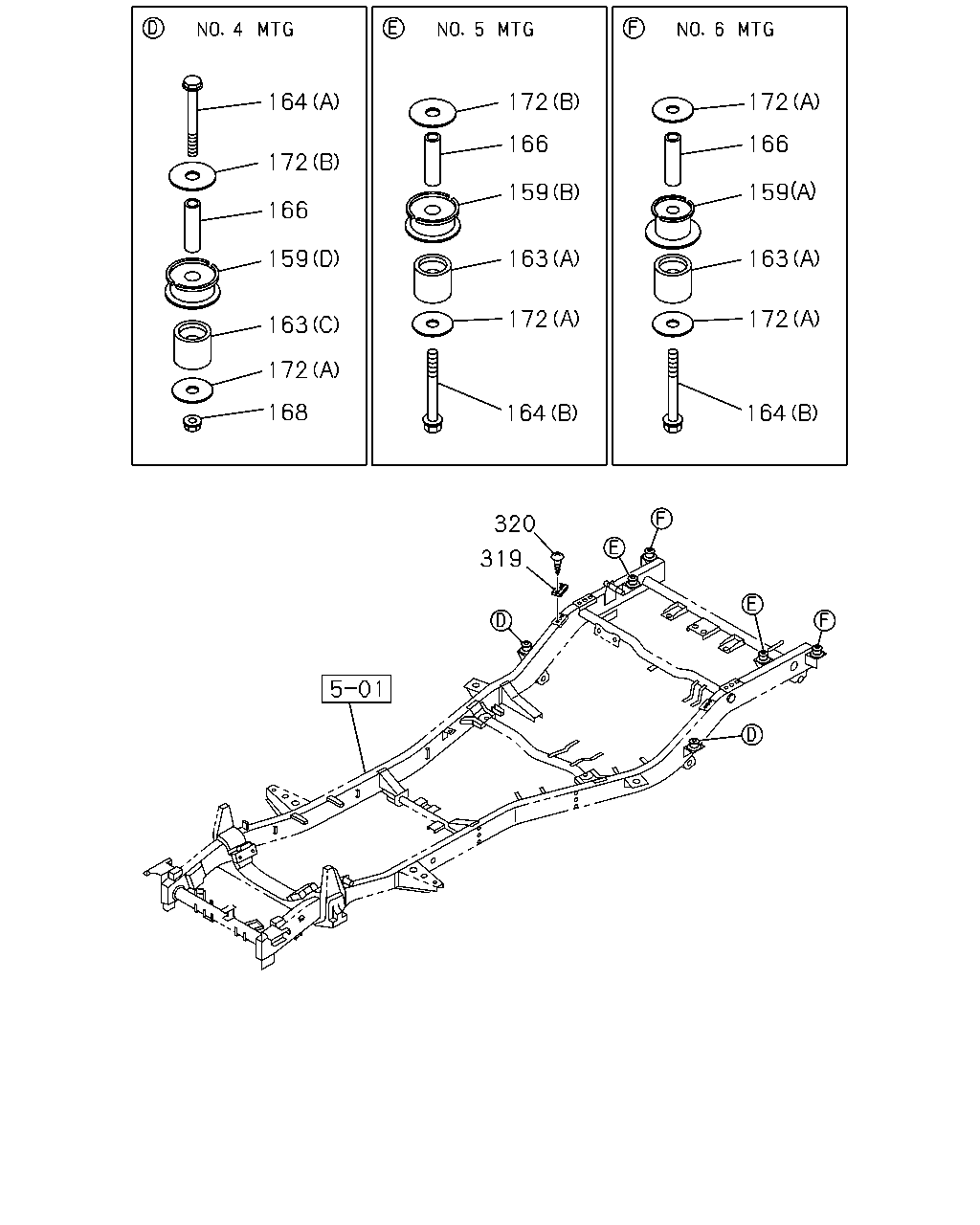

çizim 57399
164 172 172 166 166 172 159 159 166 159 163 163 172 172 163 172 168 164 164 320 319
BalonParca AdiParca NoAdetTipApplied Date
159 RUBBER; CUSHION,CAB MTG
(A) NO.1,NO.6 MTG IDN 		8-94368-398-0 04 1 0610-
159 RUBBER; CUSHION,CAB MTG
(B) NO.3,NO.5 MTG IDN 		8-94368-400-0 04 1 0610-
159 RUBBER; CUSHION,CAB MTG
(C) NO.2 MTG IDN 		8-97957-471-0 02 1 0610-
159 RUBBER; CUSHION,CAB MTG
(D) NO.4 MTG IDN 		8-97957-473-0 02 1 0610-
163 RUBBER; CUSHION,BODY MTG,REBOUND
(A) NO.1,NO.3,NO.5,NO.6 MTG IDN 		8-94368-399-0 08 1 0610-
163 RUBBER; CUSHION,BODY MTG,REBOUND
(B) NO.2 MTG IDN 		8-97957-472-0 02 1 0610-
163 RUBBER; CUSHION,BODY MTG,REBOUND
(C) NO.4 MTG IDN 		8-97957-474-0 02 1 0610-
164 BOLT; CUSHION RUBBER,CAB MTG
GRADE XL(RBA),GRADE XT(RBB),GRADE XTI(RBD) (B) NO.5,NO.6 MTG M10X102 		8-97091-599-0 04 1 0610-
164 BOLT; CUSHION RUBBER,CAB MTG
GRADE XL(RBA),GRADE XT(RBB),GRADE XTI(RBD) (A) NO.1,NO.2,NO.3,NO.4 MTG M10X120 		8-97134-968-0 08 1 0610-0610
164 BOLT; CUSHION RUBBER,CAB MTG
GRADE XL(RBA),GRADE XT(RBB),GRADE XTI(RBD) (A) NO.1,NO.2,NO.3,NO.4 MTG M10X120 		8-98051-536-0 08 1 0610-
164 BOLT; CUSHION RUBBER,CAB MTG
GRADE XUV/SPORTIVO(RBG) (C) NO.1,NO.2,NO.3,NO.4 MTG M10X180 FLANGE 		8-97287-269-1 08 1 0610-
164 BOLT; CUSHION RUBBER,CAB MTG
GRADE XUV/SPORTIVO(RBG) (D) NO.5,NO.6 MTG M10X158 W/LK WASHER 		8-97287-270-0 04 1 0610-
166 PIECE; DIST,BODY MTG RUBBER
GRADE XL(RBA),GRADE XT(RBB),GRADE XTI(RBD) L=70 		8-97148-478-0 12 1 0610-
168 NUT; CUSHION RUBBER,BODY MTG
M10 FLANGE 		0-91180-210-0 08 1 0610-
172 WASHER; BODY MTG RUBBER
(A) ID=11 OD=48 T=2.9 IDN 		8-94223-170-0 06 1 0610-
172 WASHER; BODY MTG RUBBER
GRADE XL(RBA),GRADE XT(RBB),GRADE XTI(RBD) (A) ID=11 OD=48 T=2.9 IDN 		8-94223-170-0 10 1 0610-
172 WASHER; BODY MTG RUBBER
GRADE XL(RBA),GRADE XT(RBB),GRADE XTI(RBD) (B) ID=11 OD=62 T=2.9 IDN 		8-97037-993-0 06 1 0610-
172 WASHER; BODY MTG RUBBER
GRADE XUV/SPORTIVO(RBG) (A) ID=11 OD=48 T=2.9 IDN 		8-94223-170-0 04 1 0610-
319 GASKET; BODY MTG BOLT
IDN 		8-94180-225-0 04 1 0610-
320 SCREW; BODY MTG GASKET
M6X10 		9-09829-194-0 08 1 0610-
