◀ 🏠 ▶ Isuzu WW ▶ AUV ▶ TBR ▶ 51128 - TBR-LHD ▶ 5 - Frame, Cab Mounting ▶ 5-01 - FRAME AND OTHER PARTS ▶
5-01 — FRAME AND OTHER PARTS (#34022) — 53 parça

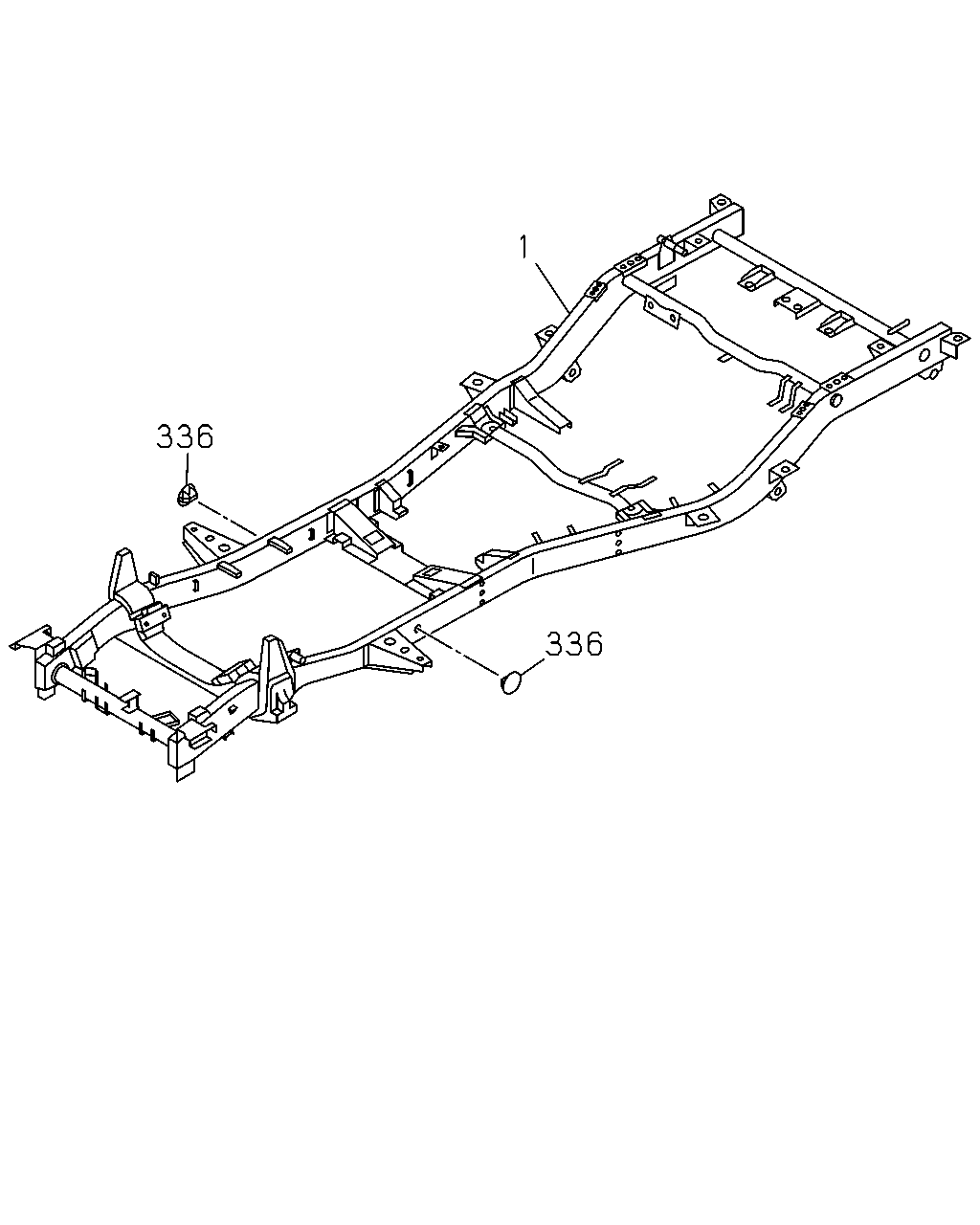

çizim 13025
1 336 336
BalonParca AdiParca NoAdetTipApplied Date
1 FRAME ASM
A/T AISIN(RMD) FACE LIFT MODEL<TX7> PARKING BRAKE FLOOR<7XW> PHI 		8-97977-383-1 01 1 0611-
1 FRAME ASM
A/T AISIN(RMD) FACE LIFT MODEL<TX7> EXC. PARKING BRAKE FLOOR<7XW> PHI 		8-97977-377-1 01 1 0611-
1 FRAME ASM
A/T AISIN(RMD) EXC. FACE LIFT MODEL<TX7>,PARKING BRAKE FLOOR<7XW> PHI 		8-97976-961-7 01 1 0611-
1 FRAME ASM
A/T AISIN(RMD) PARKING BRAKE FLOOR<7XW> EXC. FACE LIFT MODEL<TX7> PHI 		8-97977-381-1 01 1 0611-
1 FRAME ASM
M/T MSG 5 SPEED(M75) FACE LIFT MODEL<TX7> PARKING BRAKE FLOOR<7XW> PHI 		8-97977-382-1 01 1 0610-
1 FRAME ASM
M/T MSG 5 SPEED(M75) FACE LIFT MODEL<TX7> EXC. PARKING BRAKE FLOOR<7XW> PHI 		8-97977-376-1 01 1 0610-
1 FRAME ASM
M/T MSG 5 SPEED(M75) EXC. FACE LIFT MODEL<TX7>,PARKING BRAKE FLOOR<7XW> PHI 		8-97976-960-7 01 1 0610-
1 FRAME ASM
M/T MSG 5 SPEED(M75) PARKING BRAKE FLOOR<7XW> EXC. FACE LIFT MODEL<TX7> PHI 		8-97977-380-1 01 1 0610-
336 PLUG; HOLE
OD=40 BLACK 		8-97806-918-0 02 1 0610-

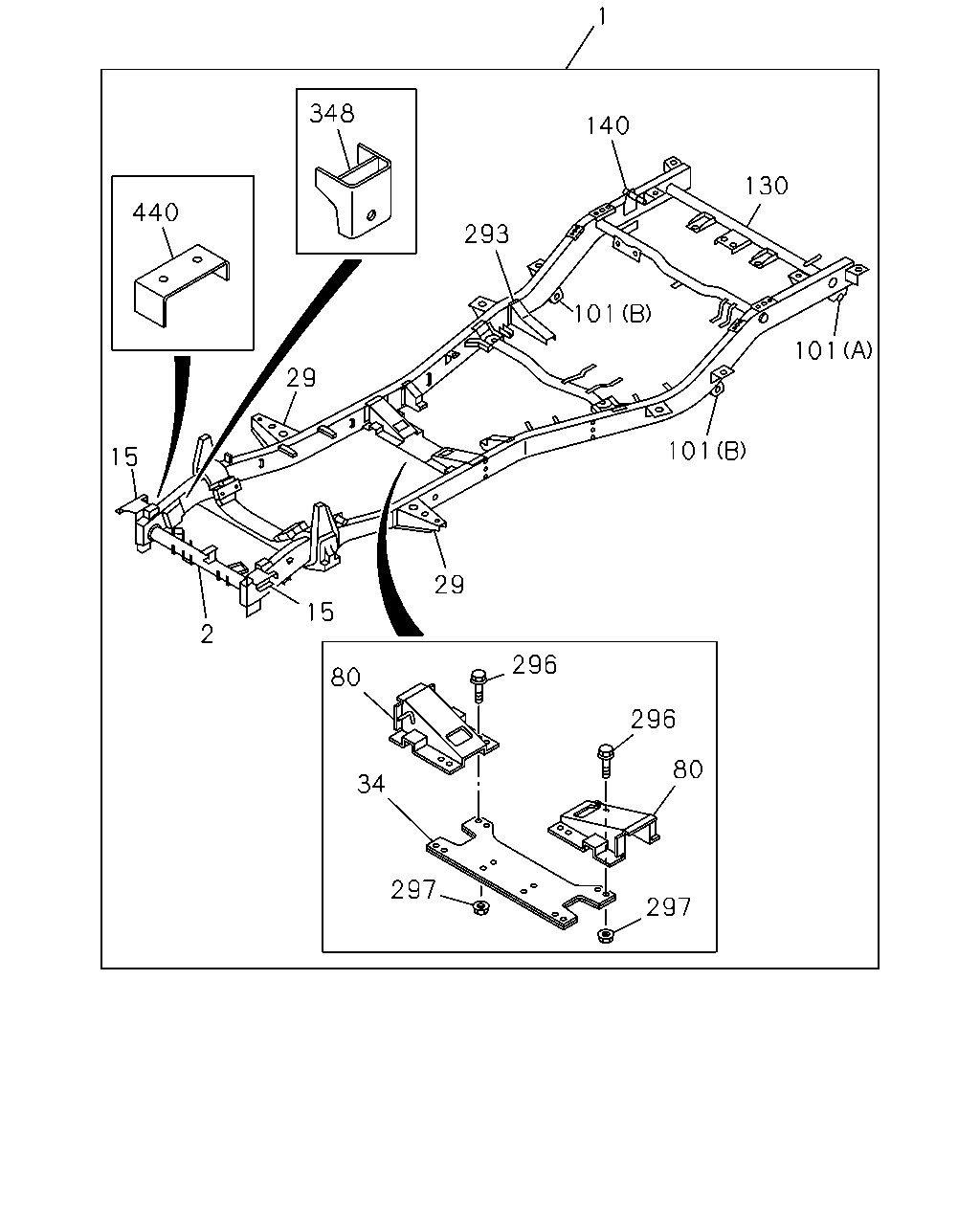

çizim 57366
1 348 140 130 440 293 101 101 29 101 15 29 15 2 296 80 296 80 34 297 297
BalonParca AdiParca NoAdetTipApplied Date
1 FRAME ASM
A/T AISIN(RMD) FACE LIFT MODEL<TX7> PARKING BRAKE FLOOR<7XW> PHI 		8-97977-383-1 01 1 0611-
1 FRAME ASM
A/T AISIN(RMD) FACE LIFT MODEL<TX7> EXC. PARKING BRAKE FLOOR<7XW> PHI 		8-97977-377-1 01 1 0611-
1 FRAME ASM
A/T AISIN(RMD) EXC. FACE LIFT MODEL<TX7>,PARKING BRAKE FLOOR<7XW> PHI 		8-97976-961-7 01 1 0611-
1 FRAME ASM
A/T AISIN(RMD) PARKING BRAKE FLOOR<7XW> EXC. FACE LIFT MODEL<TX7> PHI 		8-97977-381-1 01 1 0611-
1 FRAME ASM
M/T MSG 5 SPEED(M75) FACE LIFT MODEL<TX7> PARKING BRAKE FLOOR<7XW> PHI 		8-97977-382-1 01 1 0610-
1 FRAME ASM
M/T MSG 5 SPEED(M75) FACE LIFT MODEL<TX7> EXC. PARKING BRAKE FLOOR<7XW> PHI 		8-97977-376-1 01 1 0610-
1 FRAME ASM
M/T MSG 5 SPEED(M75) EXC. FACE LIFT MODEL<TX7>,PARKING BRAKE FLOOR<7XW> PHI 		8-97976-960-7 01 1 0610-
1 FRAME ASM
M/T MSG 5 SPEED(M75) PARKING BRAKE FLOOR<7XW> EXC. FACE LIFT MODEL<TX7> PHI 		8-97977-380-1 01 1 0610-
2 MEMBER; CROSS,1ST
M/T MSG 5 SPEED(M75) PHI 		8-97977-318-0 01 1 0610-0610
2 MEMBER; CROSS,1ST
PHI 		8-97977-318-0 01 1 0611-
15 BRACKET; BODY MTG,FRT
M/T MSG 5 SPEED(M75) PHI 		8-97977-555-0 01 1 0610-0610
15 BRACKET; BODY MTG,FRT
PHI 		8-97977-555-0 01 1 0611-
15 BRACKET; BODY MTG,FRT
M/T MSG 5 SPEED(M75) PHI 		8-97977-554-0 01 1 0610-0610
15 BRACKET; BODY MTG,FRT
PHI 		8-97977-554-0 01 1 0611-
29 BRACKET; CAB MTG
M/T MSG 5 SPEED(M75) PHI 		8-97977-720-0 02 1 0610-0610
29 BRACKET; CAB MTG
PHI 		8-97977-720-0 02 1 0611-
34 MEMBER; CROSS,3RD
M/T MSG 5 SPEED(M75) IDN 		8-97956-156-3 01 1 0610-0610
34 MEMBER; CROSS,3RD
IDN 		8-97956-156-3 01 1 0611-
80 BRACKET; C/MBR
M/T MSG 5 SPEED(M75) PHI 		8-97956-171-1 01 1 0610-0610
80 BRACKET; C/MBR
PHI 		8-97956-171-1 01 1 0611-
80 BRACKET; C/MBR
M/T MSG 5 SPEED(M75) PHI 		8-97957-989-1 01 1 0610-0610
80 BRACKET; C/MBR
PHI 		8-97957-989-1 01 1 0611-
101 BRACKET; RR SPR,FRT
M/T MSG 5 SPEED(M75) (A) IDN 		8-97956-591-0 02 1 0610-0610
101 BRACKET; RR SPR,FRT
(A) IDN 		8-97956-591-0 02 1 0611-
101 BRACKET; RR SPR,FRT
M/T MSG 5 SPEED(M75) (B) PHI 		8-97976-963-0 01 1 0610-0610
101 BRACKET; RR SPR,FRT
(B) PHI 		8-97976-963-0 01 1 0611-
101 BRACKET; RR SPR,FRT
M/T MSG 5 SPEED(M75) (B) PHI 		8-97976-962-0 01 1 0610-0610
101 BRACKET; RR SPR,FRT
(B) PHI 		8-97976-962-0 01 1 0611-
130 MEMBER; CROSS,END
M/T MSG 5 SPEED(M75) IDN 		8-97956-168-2 01 1 0610-0610
130 MEMBER; CROSS,END
IDN 		8-97956-168-2 01 1 0611-
140 BRACKET; S/ABS,RR
M/T MSG 5 SPEED(M75) PHI 		8-97977-546-0 01 1 0610-0610
140 BRACKET; S/ABS,RR
PHI 		8-97977-546-0 01 1 0611-
140 BRACKET; S/ABS,RR
M/T MSG 5 SPEED(M75) PHI 		8-97977-545-0 01 1 0610-0610
140 BRACKET; S/ABS,RR
PHI 		8-97977-545-0 01 1 0611-
293 BRACKET; FUEL TANK,FRT
M/T MSG 5 SPEED(M75) PHI 		8-97977-548-0 01 1 0610-0610
293 BRACKET; FUEL TANK,FRT
PHI 		8-97977-548-0 01 1 0611-
296 BOLT; 3RD C/MBR
M/T MSG 5 SPEED(M75) M10X25 FLANGE 		0-28651-025-0 08 1 0610-0610
296 BOLT; 3RD C/MBR
M10X25 FLANGE 		0-28651-025-0 08 1 0611-
297 NUT; 3RD C/MBR
M/T MSG 5 SPEED(M75) M10 FLANGE 		0-91180-210-0 08 1 0610-0610
297 NUT; 3RD C/MBR
M10 FLANGE 		0-91180-210-0 08 1 0611-
348 BRACKET; STRG STOPPER
M/T MSG 5 SPEED(M75) IDN 		8-97956-111-2 02 1 0610-0610
348 BRACKET; STRG STOPPER
IDN 		8-97956-111-2 02 1 0611-
440 BRACKET; HOSE
M/T MSG 5 SPEED(M75) PHI 		8-97977-564-0 01 1 0610-0610
440 BRACKET; HOSE
PHI 		8-97977-564-0 01 1 0611-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
