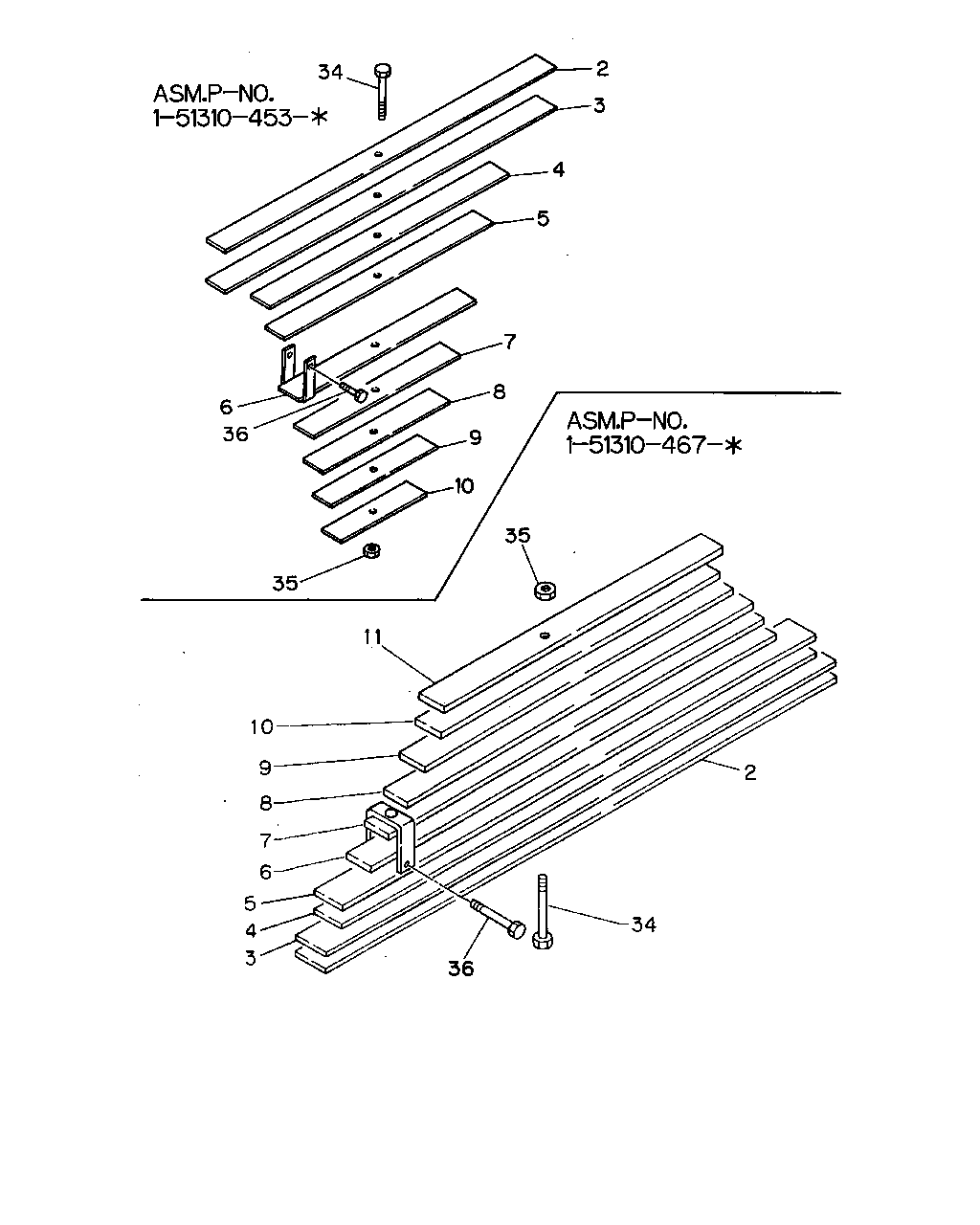

4-65 — REAR LEAF SPRING (#3402) — 71 parça

2 3 4 5 7 8 9 6 10 36 35 35 11 10 9 8 7 6 5 4 3 36 34 2

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	SPRING; LEAF,NO 1,RR MAIN ASM PART: A = 1-51310-453-1	1-51311-162-0	01	1	-
2	SPRING; LEAF,NO 1,RR MAIN ASM PART: B = 1-51310-467-3	1-51311-467-1	01	1	-
2	SPRING; LEAF,NO 1,RR MAIN ASM PART: C = 1-51310-975-0	1-51311-975-0	01	1	-
3	SPRING; LEAF,NO 2,RR MAIN ASM PART: A = 1-51310-453-1	1-51312-162-0	01	1	-
3	SPRING; LEAF,NO 2,RR MAIN ASM PART: B = 1-51310-467-3	1-51312-467-3	01	1	-
3	SPRING; LEAF,NO 2,RR MAIN ASM PART: C = 1-51310-975-0	1-51312-975-0	01	1	-
4	SPRING; LEAF,NO 3,RR MAIN ASM PART: A = 1-51310-453-1	1-51313-162-0	01	1	-
4	SPRING; LEAF,NO 3,RR MAIN ASM PART: B = 1-51310-467-3	1-51313-467-1	01	1	-
4	SPRING; LEAF,NO 3,RR MAIN ASM PART: C = 1-51310-975-0	1-51313-975-0	01	1	-
5	SPRING; LEAF,NO 4,RR MAIN ASM PART: A = 1-51310-453-1	1-51314-162-0	01	1	-
5	SPRING; LEAF,NO 4,RR MAIN ASM PART: B = 1-51310-467-3	1-51314-467-0	01	1	-
5	SPRING; LEAF,NO 4,RR MAIN ASM PART: C = 1-51310-975-0	1-51314-975-0	01	1	-
6	SPRING; LEAF,NO 5,RR MAIN ASM PART: A = 1-51310-453-1	1-51315-453-1	01	1	-
6	SPRING; LEAF,NO 5,RR MAIN ASM PART: B = 1-51310-467-3	1-51315-467-0	01	1	-
6	SPRING; LEAF,NO 5,RR MAIN ASM PART: C = 1-51310-975-0	1-51315-975-0	01	1	-
7	SPRING; LEAF,NO 6,RR MAIN ASM PART: A = 1-51310-453-1	1-51316-162-0	01	1	-
7	SPRING; LEAF,NO 6,RR MAIN W/CLIP ASM PART: B = 1-51310-467-3	1-51316-467-2	01	1	-
7	SPRING; LEAF,NO 6,RR MAIN W/CLIP ASM PART: C = 1-51310-975-0	1-51316-975-0	01	1	-
8	SPRING; LEAF,NO 7,RR MAIN ASM PART: A = 1-51310-453-1	1-51317-162-0	01	1	-
8	SPRING; LEAF,NO 7,RR MAIN ASM PART: B = 1-51310-467-3	1-51317-467-0	01	1	-
8	SPRING; LEAF,NO 7,RR MAIN ASM PART: C = 1-51310-975-0	1-51317-975-0	01	1	-
9	SPRING; LEAF,NO 8,RR MAIN ASM PART: A = 1-51310-453-1	1-51318-162-0	01	1	-
9	SPRING; LEAF,NO 8,RR MAIN ASM PART: B = 1-51310-467-3	1-51318-467-0	01	1	-
9	SPRING; LEAF,NO 8,RR MAIN ASM PART: C = 1-51310-975-0	1-51318-975-0	01	1	-
10	SPRING; LEAF,NO 9,RR MAIN ASM PART: A = 1-51310-453-1	1-51319-162-0	01	1	-
10	SPRING; LEAF,NO 9,RR MAIN ASM PART: B = 1-51310-467-3	1-51319-467-0	01	1	-
10	SPRING; LEAF,NO 9,RR MAIN ASM PART: C = 1-51310-975-0	1-51319-975-0	01	1	-
11	SPRING; LEAF,NO 10,RR MAIN ASM PART: B = 1-51310-467-3	1-51321-467-0	01	1	-
11	SPRING; LEAF,NO 10,RR MAIN ASM PART: C = 1-51310-975-0	1-51321-975-0	01	1	-
34	BOLT; CENTER,LEAF SPR,RR MAIN L=205 ASM PART: A = 1-51310-453-1	1-51356-120-0	01	1	-
34	BOLT; CENTER,LEAF SPR,RR MAIN L=150 ASM PART: B = 1-51310-467-3	1-51356-134-0	01	1	-
34	BOLT; CENTER,LEAF SPR,RR MAIN L=235 ASM PART: C = 1-51310-975-0	1-51356-321-0	01	1	-
35	NUT; CENTER BOLT,LEAF SPR,RR M16 ASM PART: C = 1-51310-975-0	1-09400-054-0	01	1	-
35	NUT; CENTER BOLT,LEAF SPR,RR M16 ASM PART: A = 1-51310-453-1, B = 1-51310-467-3	1-09400-062-0	01	1	-
36	BOLT; CLIP,LEAF SPR,RR ASM PART: A = 1-51310-453-1, B = 1-51310-467-3, C = 1-51310-975-0	1-09000-326-0	01	1	-

34 2 8 9 10 11 12 35 36 7 6 5 4 3

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	SPRING; LEAF,NO 1,RR MAIN ASM PART: A = 1-51310-453-1	1-51311-162-0	01	1	-
2	SPRING; LEAF,NO 1,RR MAIN ASM PART: B = 1-51310-467-3	1-51311-467-1	01	1	-
2	SPRING; LEAF,NO 1,RR MAIN ASM PART: C = 1-51310-975-0	1-51311-975-0	01	1	-
3	SPRING; LEAF,NO 2,RR MAIN ASM PART: A = 1-51310-453-1	1-51312-162-0	01	1	-
3	SPRING; LEAF,NO 2,RR MAIN ASM PART: B = 1-51310-467-3	1-51312-467-3	01	1	-
3	SPRING; LEAF,NO 2,RR MAIN ASM PART: C = 1-51310-975-0	1-51312-975-0	01	1	-
4	SPRING; LEAF,NO 3,RR MAIN ASM PART: A = 1-51310-453-1	1-51313-162-0	01	1	-
4	SPRING; LEAF,NO 3,RR MAIN ASM PART: B = 1-51310-467-3	1-51313-467-1	01	1	-
4	SPRING; LEAF,NO 3,RR MAIN ASM PART: C = 1-51310-975-0	1-51313-975-0	01	1	-
5	SPRING; LEAF,NO 4,RR MAIN ASM PART: A = 1-51310-453-1	1-51314-162-0	01	1	-
5	SPRING; LEAF,NO 4,RR MAIN ASM PART: B = 1-51310-467-3	1-51314-467-0	01	1	-
5	SPRING; LEAF,NO 4,RR MAIN ASM PART: C = 1-51310-975-0	1-51314-975-0	01	1	-
6	SPRING; LEAF,NO 5,RR MAIN ASM PART: A = 1-51310-453-1	1-51315-453-1	01	1	-
6	SPRING; LEAF,NO 5,RR MAIN ASM PART: B = 1-51310-467-3	1-51315-467-0	01	1	-
6	SPRING; LEAF,NO 5,RR MAIN ASM PART: C = 1-51310-975-0	1-51315-975-0	01	1	-
7	SPRING; LEAF,NO 6,RR MAIN ASM PART: A = 1-51310-453-1	1-51316-162-0	01	1	-
7	SPRING; LEAF,NO 6,RR MAIN W/CLIP ASM PART: B = 1-51310-467-3	1-51316-467-2	01	1	-
7	SPRING; LEAF,NO 6,RR MAIN W/CLIP ASM PART: C = 1-51310-975-0	1-51316-975-0	01	1	-
8	SPRING; LEAF,NO 7,RR MAIN ASM PART: A = 1-51310-453-1	1-51317-162-0	01	1	-
8	SPRING; LEAF,NO 7,RR MAIN ASM PART: B = 1-51310-467-3	1-51317-467-0	01	1	-
8	SPRING; LEAF,NO 7,RR MAIN ASM PART: C = 1-51310-975-0	1-51317-975-0	01	1	-
9	SPRING; LEAF,NO 8,RR MAIN ASM PART: A = 1-51310-453-1	1-51318-162-0	01	1	-
9	SPRING; LEAF,NO 8,RR MAIN ASM PART: B = 1-51310-467-3	1-51318-467-0	01	1	-
9	SPRING; LEAF,NO 8,RR MAIN ASM PART: C = 1-51310-975-0	1-51318-975-0	01	1	-
10	SPRING; LEAF,NO 9,RR MAIN ASM PART: A = 1-51310-453-1	1-51319-162-0	01	1	-
10	SPRING; LEAF,NO 9,RR MAIN ASM PART: B = 1-51310-467-3	1-51319-467-0	01	1	-
10	SPRING; LEAF,NO 9,RR MAIN ASM PART: C = 1-51310-975-0	1-51319-975-0	01	1	-
11	SPRING; LEAF,NO 10,RR MAIN ASM PART: B = 1-51310-467-3	1-51321-467-0	01	1	-
11	SPRING; LEAF,NO 10,RR MAIN ASM PART: C = 1-51310-975-0	1-51321-975-0	01	1	-
12	SPRING; LEAF,NO 11,RR MAIN ASM PART: C = 1-51310-975-0	1-51322-975-0	01	1	-
34	BOLT; CENTER,LEAF SPR,RR MAIN L=205 ASM PART: A = 1-51310-453-1	1-51356-120-0	01	1	-
34	BOLT; CENTER,LEAF SPR,RR MAIN L=150 ASM PART: B = 1-51310-467-3	1-51356-134-0	01	1	-
34	BOLT; CENTER,LEAF SPR,RR MAIN L=235 ASM PART: C = 1-51310-975-0	1-51356-321-0	01	1	-
35	NUT; CENTER BOLT,LEAF SPR,RR M16 ASM PART: C = 1-51310-975-0	1-09400-054-0	01	1	-
35	NUT; CENTER BOLT,LEAF SPR,RR M16 ASM PART: A = 1-51310-453-1, B = 1-51310-467-3	1-09400-062-0	01	1	-
36	BOLT; CLIP,LEAF SPR,RR ASM PART: A = 1-51310-453-1, B = 1-51310-467-3, C = 1-51310-975-0	1-09000-326-0	01	1	-
