51128 - TBR-LHD
▶
4 - Propeller Shaft, Axles, Steering, Suspension
▶

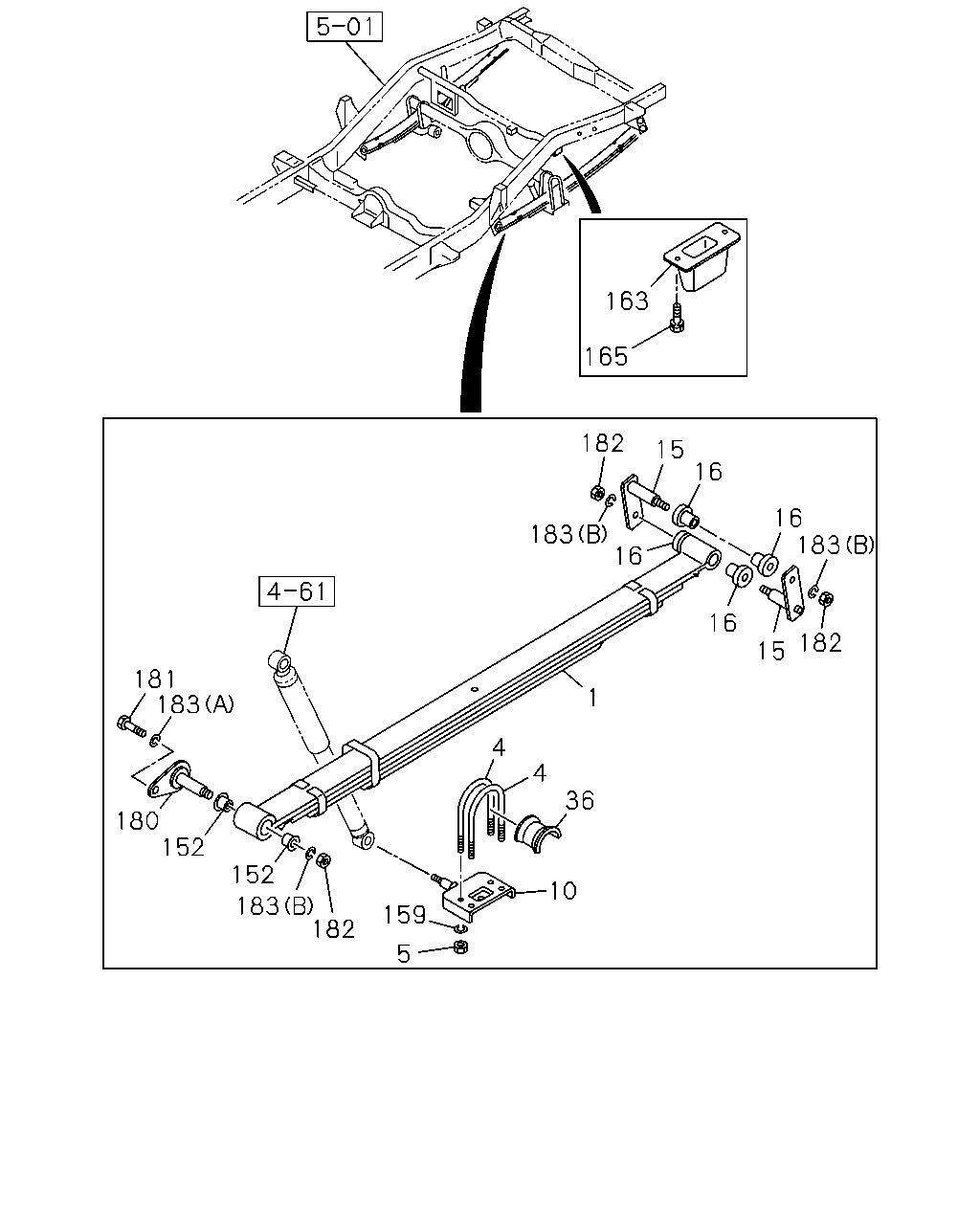

4-60 - REAR SUSPENSION
▶
4-60 — REAR SUSPENSION
(#34018) — 18 parça
163
165
182
15
16
16
183
183
16
16
182
15
181
183
1
4
4
36
180
152
152
10
183
182
159
5
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. NHK IDN
8-97562-414-0
02
1
0610-
1
SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. MITSUBISHI STEEL IDN
8-97562-523-0
02
1
0610-
4
U-BOLT; RR SPR
L=160
8-94318-381-2
04
1
0610-
5
NUT; U-BOLT,RR SPR
M14
0-91110-514-0
08
1
0610-
10
CLAMP; LWR,RR SPR
8-94454-646-0
02
1
0610-
15
SHACKLE; RR SPR
8-94223-167-2
04
1
0610-
16
BUSHING; SHACKLE,RR SPR
8-94234-319-0
08
1
0610-
16
BUSHING; SHACKLE,RR SPR
BEST VALUE PARTS
5-87610-161-0
08
1
0610-
36
SEAT; HELPER RUBBER,RR SPR
8-94454-478-0
02
1
0610-
152
BUSHING; FRT EYE,RR SPRING
8-94223-168-0
04
1
0610-
159
WASHER; LK,RR SPR
ID=14.2
0-91510-614-0
08
1
0610-
163
RUBBER; HELPER,RR SPR
8-97377-907-0
02
1
0610-
165
BOLT; HELPER RUBBER
M10X20 W/LK WASHER
0-50541-020-0
04
1
0610-
180
PIN; RR SPR
8-94223-350-2
02
1
0610-
181
BOLT; SPR & SHACKLE
M8X20
0-20850-820-0
02
1
0610-
182
NUT; PIN,RR SPR
M14
0-91110-514-0
06
1
0610-
183
WASHER; LK,PIN,RR SPR
(A) ID=8.2
0-91510-508-0
02
1
0610-
183
WASHER; LK,PIN,RR SPR
(B) ID=14.2
0-91510-614-0
06
1
0610-
