◀ 🏠 ▶ Isuzu WW ▶ AUV ▶ TBR ▶ 51128 - TBR-LHD ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-36 - POWER STEERING CONTROL; ENGINE SIDE ▶

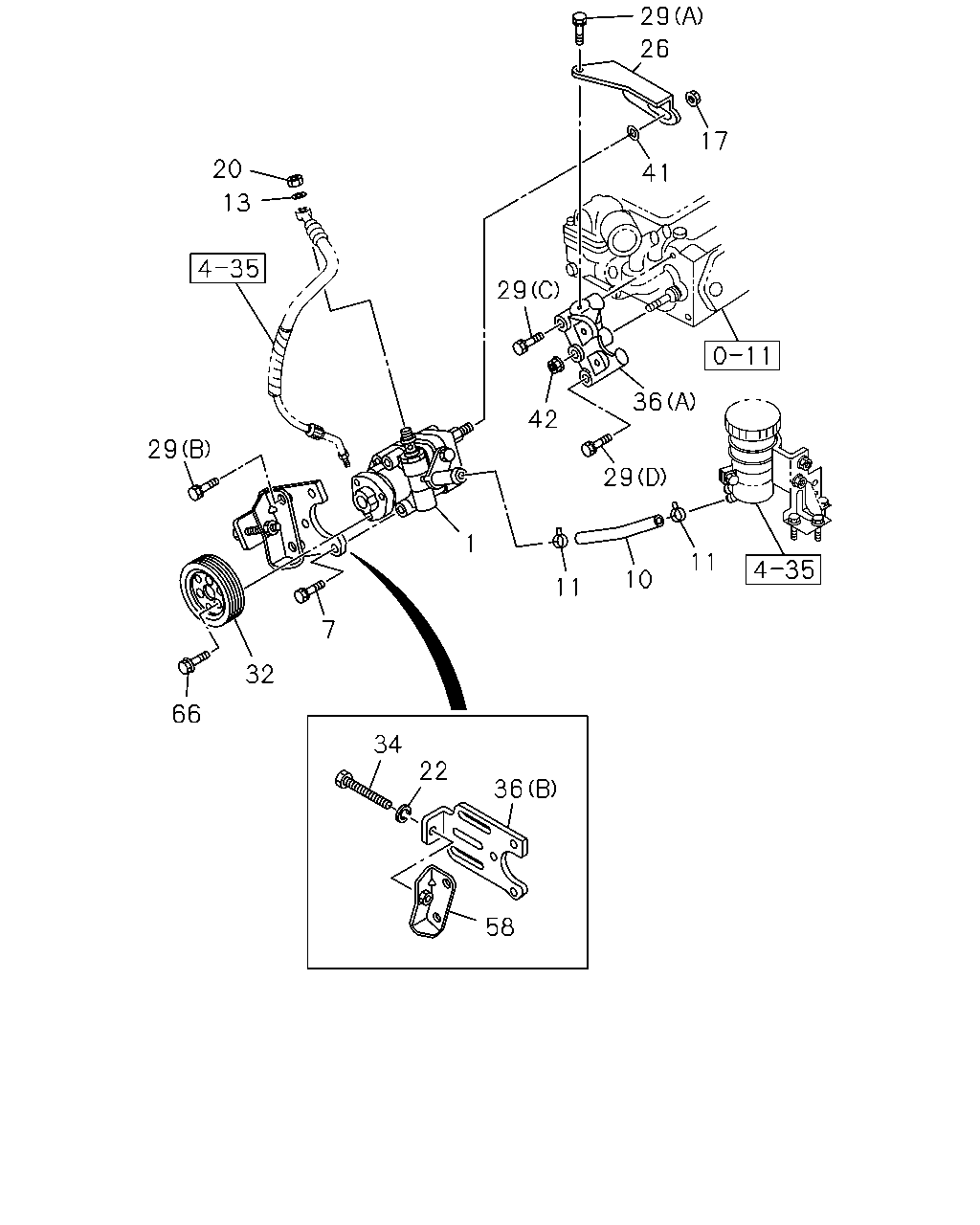

4-36 — POWER STEERING CONTROL; ENGINE SIDE (#34014) — 63 parça
çizim 58844
29 26 17 20 41 13 29 36 42 29 29 1 11 10 11 7 32 66 34 22 36 58
BalonParca AdiParca NoAdetTipApplied Date
1 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. M/T MSG 5 SPEED(M75) THA 		8-97942-188-0 01 1 0610-0610
1 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. A/T AISIN(RMD) TACHOMETER<U16> THA 		8-97942-188-0 01 1 0611-0710
1 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. M/T MSG 5 SPEED(M75) THA 		8-97942-188-0 01 1 0611-0710
1 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. A/T AISIN(RMD) TACHOMETER<U16> PHI 		8-97946-606-0 01 1 0711-0711
1 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. M/T MSG 5 SPEED(M75) PHI 		8-97946-606-0 01 1 0711-0711
1 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. A/T AISIN(RMD) TACHOMETER<U16> PHI 		8-97946-697-0 01 1 0711-
1 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. M/T MSG 5 SPEED(M75) PHI 		8-97946-697-0 01 1 0711-
7 BOLT; OIL PUMP,P/S
M/T MSG 5 SPEED(M75) M10X28 W/LK WASHER THA 		8-97943-080-0 03 1 0610-0610
7 BOLT; OIL PUMP,P/S
A/T AISIN(RMD) TACHOMETER<U16> M10X28 W/LK WASHER THA 		8-97943-080-0 03 1 0611-0906
7 BOLT; OIL PUMP,P/S
M/T MSG 5 SPEED(M75) M10X28 W/LK WASHER THA 		8-97943-080-0 03 1 0611-0906
7 BOLT; OIL PUMP,P/S
A/T AISIN(RMD) TACHOMETER<U16> M10X28 W/LK WASHER PHI 		8-98136-233-0 03 1 0907-
7 BOLT; OIL PUMP,P/S
M/T MSG 5 SPEED(M75) M10X28 W/LK WASHER PHI 		8-98136-233-0 03 1 0907-
10 HOSE; FLEX,P/S OIL PUMP,INL 8-97247-447-2 01 1 0610-
11 CLIP; FLEX HOSE
ID=21 		8-94242-034-0 02 1 0610-
13 WASHER; LK,FLEX HOSE,P/S
ID=12.2 		0-91510-512-0 01 1 0610-
17 NUT; POWER STRG PUMP
M/T MSG 5 SPEED(M75) M8 FLANGE 		0-91180-208-0 01 1 0610-0610
17 NUT; POWER STRG PUMP
A/T AISIN(RMD) TACHOMETER<U16> M8 FLANGE 		0-91180-208-0 01 1 0611-
17 NUT; POWER STRG PUMP
M/T MSG 5 SPEED(M75) M8 FLANGE 		0-91180-208-0 01 1 0611-
20 NUT; HOSE TO PUMP
M12 		0-91111-512-0 01 1 0610-
22 WASHER; LK,OIL PUMP,P/S
M/T MSG 5 SPEED(M75) ID=10.2 		0-91510-510-0 01 1 0610-0610
22 WASHER; LK,OIL PUMP,P/S
A/T AISIN(RMD) TACHOMETER<U16> ID=10.2 		0-91510-510-0 01 1 0611-
22 WASHER; LK,OIL PUMP,P/S
M/T MSG 5 SPEED(M75) ID=10.2 		0-91510-510-0 01 1 0611-
26 BRACKET; P/S PUMP,RR
M/T MSG 5 SPEED(M75) PHI 		8-97562-168-0 01 1 0610-0610
26 BRACKET; P/S PUMP,RR
A/T AISIN(RMD) TACHOMETER<U16> PHI 		8-97562-168-0 01 1 0611-
26 BRACKET; P/S PUMP,RR
M/T MSG 5 SPEED(M75) PHI 		8-97562-168-0 01 1 0611-
29 BOLT; BRKT,POWER STRG
M/T MSG 5 SPEED(M75) (A) M8X16 FLANGE 		0-28050-816-0 01 1 0610-0610
29 BOLT; BRKT,POWER STRG
A/T AISIN(RMD) TACHOMETER<U16> (A) M8X16 FLANGE 		0-28050-816-0 01 1 0611-
29 BOLT; BRKT,POWER STRG
M/T MSG 5 SPEED(M75) (A) M8X16 FLANGE 		0-28050-816-0 01 1 0611-
29 BOLT; BRKT,POWER STRG
M/T MSG 5 SPEED(M75) (B) M10X25 FLANGE 		0-28051-025-0 02 1 0610-0610
29 BOLT; BRKT,POWER STRG
A/T AISIN(RMD) TACHOMETER<U16> (B) M10X25 FLANGE 		0-28051-025-0 02 1 0611-
29 BOLT; BRKT,POWER STRG
M/T MSG 5 SPEED(M75) (B) M10X25 FLANGE 		0-28051-025-0 02 1 0611-
29 BOLT; BRKT,POWER STRG
M/T MSG 5 SPEED(M75) (C) M10X60 W/LK WASHER 		0-50041-060-0 01 1 0610-0610
29 BOLT; BRKT,POWER STRG
A/T AISIN(RMD) TACHOMETER<U16> (C) M10X60 W/LK WASHER 		0-50041-060-0 01 1 0611-0909
29 BOLT; BRKT,POWER STRG
M/T MSG 5 SPEED(M75) (C) M10X60 W/LK WASHER 		0-50041-060-0 01 1 0611-0909
29 BOLT; BRKT,POWER STRG
A/T AISIN(RMD) TACHOMETER<U16> (C) M10X60 W/LK WASHER 		0-50541-060-0 01 1 0910-
29 BOLT; BRKT,POWER STRG
M/T MSG 5 SPEED(M75) (C) M10X60 W/LK WASHER 		0-50541-060-0 01 1 0910-
29 BOLT; BRKT,POWER STRG
M/T MSG 5 SPEED(M75) (D) M8X60 W/LK WASHER 		0-50540-860-0 01 1 0610-0610
29 BOLT; BRKT,POWER STRG
A/T AISIN(RMD) TACHOMETER<U16> (D) M8X60 W/LK WASHER 		0-50540-860-0 01 1 0611-
29 BOLT; BRKT,POWER STRG
M/T MSG 5 SPEED(M75) (D) M8X60 W/LK WASHER 		0-50540-860-0 01 1 0611-
32 PULLEY; IDLER,P/S
M/T MSG 5 SPEED(M75) THA 		8-97942-187-0 01 1 0610-0610
32 PULLEY; IDLER,P/S
A/T AISIN(RMD) TACHOMETER<U16> THA 		8-97942-187-0 01 1 0611-
32 PULLEY; IDLER,P/S
M/T MSG 5 SPEED(M75) THA 		8-97942-187-0 01 1 0611-
34 BOLT; ADJ PLATE
M/T MSG 5 SPEED(M75) M10X70 		0-20801-070-0 01 1 0610-0610
34 BOLT; ADJ PLATE
A/T AISIN(RMD) TACHOMETER<U16> M10X70 		0-20801-070-0 01 1 0611-
34 BOLT; ADJ PLATE
M/T MSG 5 SPEED(M75) M10X70 		0-20801-070-0 01 1 0611-
36 BRACKET; PLATE,P/S PUMP
M/T MSG 5 SPEED(M75) (B) PHI 		8-97562-169-0 01 1 0610-0610
36 BRACKET; PLATE,P/S PUMP
A/T AISIN(RMD) TACHOMETER<U16> (B) PHI 		8-97562-169-0 01 1 0611-
36 BRACKET; PLATE,P/S PUMP
M/T MSG 5 SPEED(M75) (B) PHI 		8-97562-169-0 01 1 0611-
36 BRACKET; PLATE,P/S PUMP
M/T MSG 5 SPEED(M75) (A) THA 		8-97941-414-0 01 1 0610-0610
36 BRACKET; PLATE,P/S PUMP
A/T AISIN(RMD) TACHOMETER<U16> (A) THA 		8-97941-414-0 01 1 0611-
36 BRACKET; PLATE,P/S PUMP
M/T MSG 5 SPEED(M75) (A) THA 		8-97941-414-0 01 1 0611-
41 WASHER; PL,BRKT
M/T MSG 5 SPEED(M75) ID=8.5 OD=22 T=4 		9-09851-649-0 01 1 0610-0610
41 WASHER; PL,BRKT
A/T AISIN(RMD) TACHOMETER<U16> ID=8.5 OD=22 T=4 		9-09851-649-0 01 1 0611-
41 WASHER; PL,BRKT
M/T MSG 5 SPEED(M75) ID=8.5 OD=22 T=4 		9-09851-649-0 01 1 0611-
42 NUT; ADJ PLATE
M/T MSG 5 SPEED(M75) M8 FLANGE 		0-91180-208-0 01 1 0610-0610
42 NUT; ADJ PLATE
A/T AISIN(RMD) TACHOMETER<U16> M8 FLANGE 		0-91180-208-0 01 1 0611-
42 NUT; ADJ PLATE
M/T MSG 5 SPEED(M75) M8 FLANGE 		0-91180-208-0 01 1 0611-
58 SLIDER; BELT ADJ,P/S OIL PUMP
M/T MSG 5 SPEED(M75) 		8-94479-122-0 01 1 0610-0610
58 SLIDER; BELT ADJ,P/S OIL PUMP
A/T AISIN(RMD) TACHOMETER<U16> 		8-94479-122-0 01 1 0611-
58 SLIDER; BELT ADJ,P/S OIL PUMP
M/T MSG 5 SPEED(M75) 		8-94479-122-0 01 1 0611-
66 BOLT; PULLEY
M/T MSG 5 SPEED(M75) M8X12 FLANGE 		0-28050-812-0 03 1 0610-0610
66 BOLT; PULLEY
A/T AISIN(RMD) TACHOMETER<U16> M8X12 FLANGE 		0-28050-812-0 03 1 0611-
66 BOLT; PULLEY
M/T MSG 5 SPEED(M75) M8X12 FLANGE 		0-28050-812-0 03 1 0611-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
