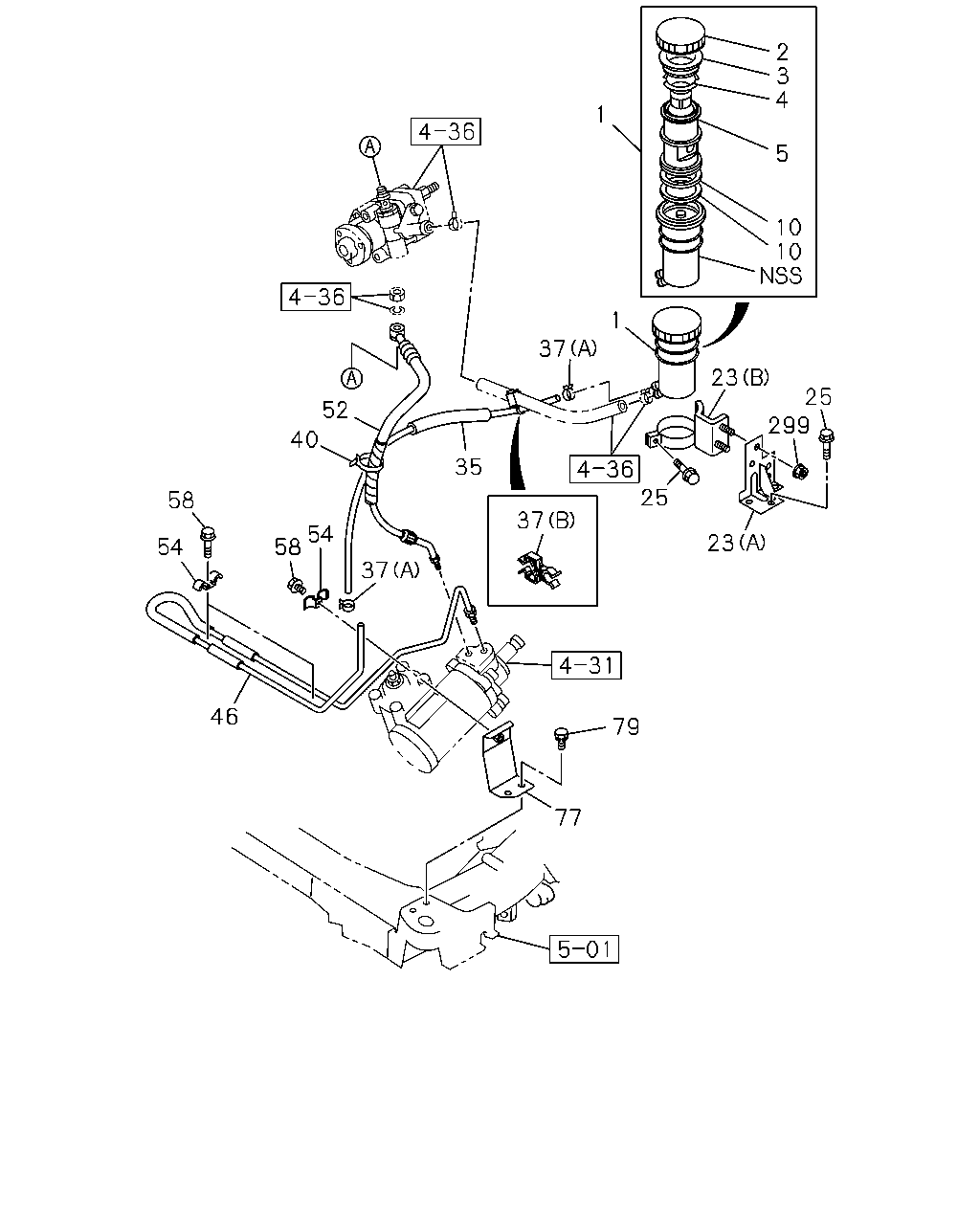

4-35 — POWER STEERING CONTROL; CHASSIS SIDE
(#34013) — 22 parça
2
3
4
1
5
10
10
1
37
23
25
299
52
40
35
25
58
37
54
58
23
54
37
46
79
77
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
TANK ASM; OIL,P/S
8-94105-282-8
01
1
0610-
2
CAP; OIL TANK,P/S
5-21241-001-2
01
1
0610-
3
GASKET; OIL TANK,P/S
8-94246-510-0
01
1
0610-
4
FILTER; OIL TANK,P/S
8-94204-441-1
01
1
0610-
5
STRAINER; OIL TANK,P/S
8-97351-631-0
01
1
0610-
10
SEAL; OIL TANK,P/S
8-94405-457-0
02
1
0610-
23
BRACKET; OIL TANK,P/S
(A) IDN
8-97957-742-2
01
1
0610-1204
23
BRACKET; OIL TANK,P/S
(A) PHI
8-97977-984-0
01
1
1205-
23
BRACKET; OIL TANK,P/S
(B) IDN
8-97957-744-0
01
1
0610-
25
BOLT; OIL TANK BRKT
M6X16 FLANGE
0-28450-616-0
04
1
0610-
35
HOSE; RETURN,P/S TANK
GRADE XL(RBA),GRADE XT(RBB),GRADE XTI(RBD)
8-97301-586-0
01
1
0610-
35
HOSE; RETURN,P/S TANK
GRADE XUV/SPORTIVO(RBG)
8-97253-407-2
01
1
0610-
37
CLIP; HOSE,P/S
(A) ID=16
8-94238-568-0
02
1
0610-
37
CLIP; HOSE,P/S
(B) D=14.5 /22
8-94317-707-0
01
1
0610-
40
CLIP; BAND
L=200
8-94464-835-0
01
1
0610-
46
PIPE; OIL,P/S UNIT TO OIL TANK
PHI
8-97975-963-0
01
1
0610-
52
HOSE; FLEX,P/S CONT VLV
8-97147-645-0
01
1
0610-
54
CLIP; OIL PIPE
8-94222-795-1
03
1
0610-
58
BOLT; CLIP
M6X16 FLANGE
0-28450-616-0
02
1
0610-
77
BRACKET; POWER STEERING HOSE
PHI
8-97975-513-0
01
1
0610-
79
BOLT; BRKT
M6X16 FLANGE
0-28450-616-0
02
1
0610-
299
NUT; OIL TANK BRKT
M6 FLANGE
5-09440-004-0
02
1
0610-
