◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVM ▶ 11105 - FVM(RHD) ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-65 - REAR LEAF SPRING ▶
4-65 — REAR LEAF SPRING (#34012) — 46 parça

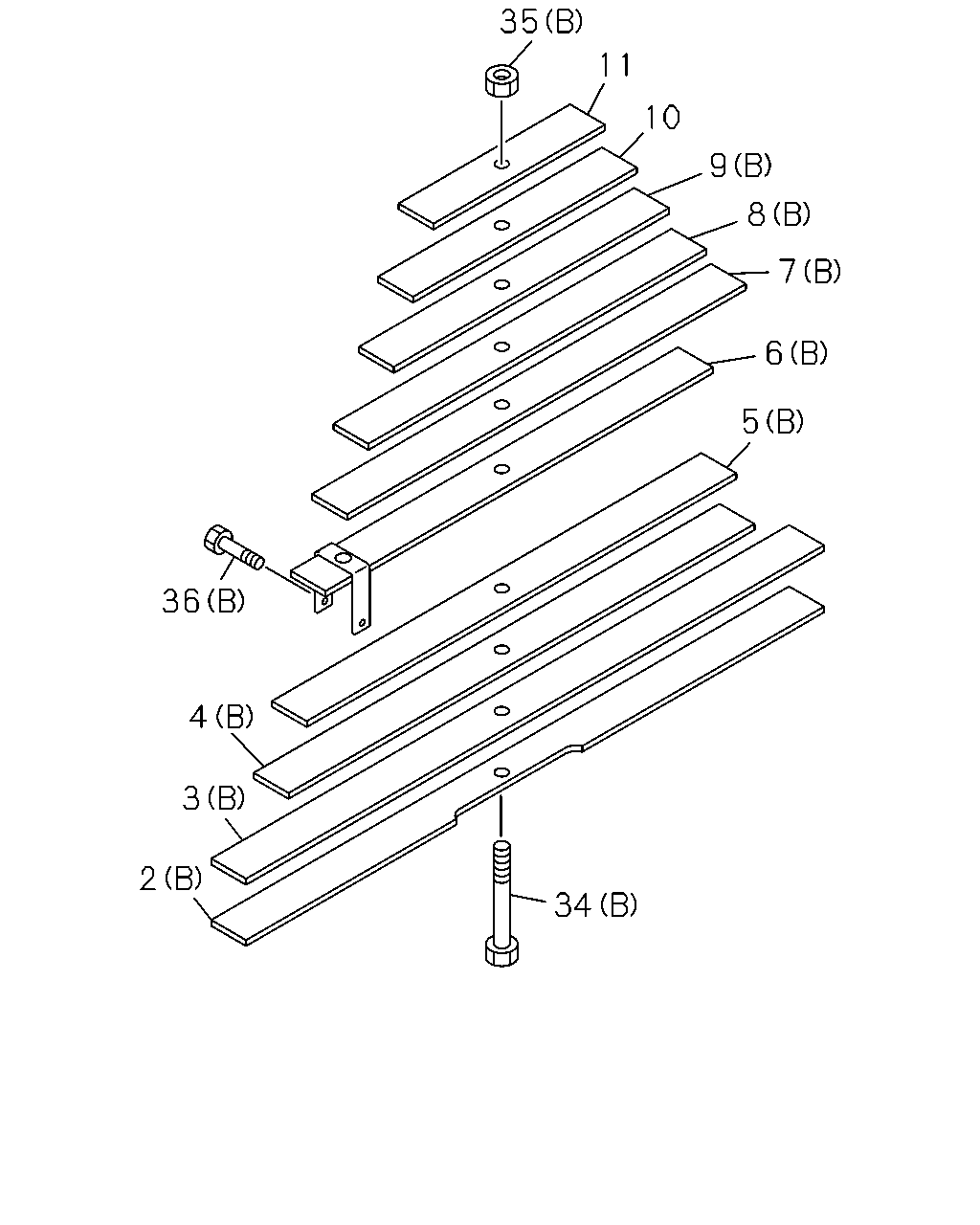

çizim 179198
35 11 10 9 8 7 6 5 36 4 3 2 34
BalonParca AdiParca NoAdetTipApplied Date
2 SPRING; LEAF,NO 1,RR MAIN
(A) ASM PART: A = 1-51310-880-0 		1-51311-880-0 01 1 -
2 SPRING; LEAF,NO 1,RR MAIN
(B) ASM PART: B = 8-98017-567-1 		8-98040-768-1 01 1 -
3 SPRING; LEAF,NO 2,RR MAIN
(A) ASM PART: A = 1-51310-880-0 		1-51312-880-0 01 1 -
3 SPRING; LEAF,NO 2,RR MAIN
(B) ASM PART: B = 8-98017-567-1 		8-98040-769-1 01 1 -
4 SPRING; LEAF,NO 3,RR MAIN
(A) ASM PART: A = 1-51310-880-0 		1-51313-880-0 01 1 -
4 SPRING; LEAF,NO 3,RR MAIN
(B) ASM PART: B = 8-98017-567-1 		8-98040-770-1 01 1 -
5 SPRING; LEAF,NO 4,RR MAIN
(A) ASM PART: A = 1-51310-880-0 		1-51314-880-0 01 1 -
5 SPRING; LEAF,NO 4,RR MAIN
(B) ASM PART: B = 8-98017-567-1 		8-98040-771-1 01 1 -
6 SPRING; LEAF,NO 5,RR MAIN
(A) ASM PART: A = 1-51310-880-0 		1-51315-880-0 01 1 -
6 SPRING; LEAF,NO 5,RR MAIN
(B) ASM PART: B = 8-98017-567-1 		8-98040-772-1 01 1 -
7 SPRING; LEAF,NO 6,RR MAIN
(A) ASM PART: A = 1-51310-880-0 		1-51316-880-0 01 1 -
7 SPRING; LEAF,NO 6,RR MAIN
(B) ASM PART: B = 8-98017-567-1 		8-98040-773-1 01 1 -
8 SPRING; LEAF,NO 7,RR MAIN
(A) ASM PART: A = 1-51310-880-0 		1-51317-880-0 01 1 -
8 SPRING; LEAF,NO 7,RR MAIN
(B) ASM PART: B = 8-98017-567-1 		8-98040-774-1 01 1 -
9 SPRING; LEAF,NO 8,RR MAIN
(A) ASM PART: A = 1-51310-880-0 		1-51318-880-0 01 1 -
9 SPRING; LEAF,NO 8,RR MAIN
(B) ASM PART: B = 8-98017-567-1 		8-98040-775-1 01 1 -
10 SPRING; LEAF,NO 9,RR MAIN
ASM PART: B = 8-98017-567-1 		8-98040-776-1 01 1 -
11 SPRING; LEAF,NO 10,RR MAIN
ASM PART: B = 8-98017-567-1 		8-98040-777-1 01 1 -
34 BOLT; CENTER,LEAF SPR,RR MAIN
(B), L=200 ASM PART: B = 8-98017-567-1 		1-51356-270-0 01 1 -
34 BOLT; CENTER,LEAF SPR,RR MAIN
(A), L=180 ASM PART: A = 1-51310-880-0 		1-51356-284-0 01 1 -
35 NUT; CENTER BOLT,LEAF SPR,RR
(B), M16 ASM PART: B = 8-98017-567-1 		1-09400-054-0 01 1 -
35 NUT; CENTER BOLT,LEAF SPR,RR
(A), M16 ASM PART: A = 1-51310-880-0 		1-09400-061-0 01 1 -
36 BOLT; CLIP,LEAF SPR,RR
(B) ASM PART: B = 8-98017-567-1 		1-09000-326-0 01 1 -
36 BOLT; CLIP,LEAF SPR,RR
(A) ASM PART: A = 1-51310-880-0 		1-09000-494-0 01 1 -

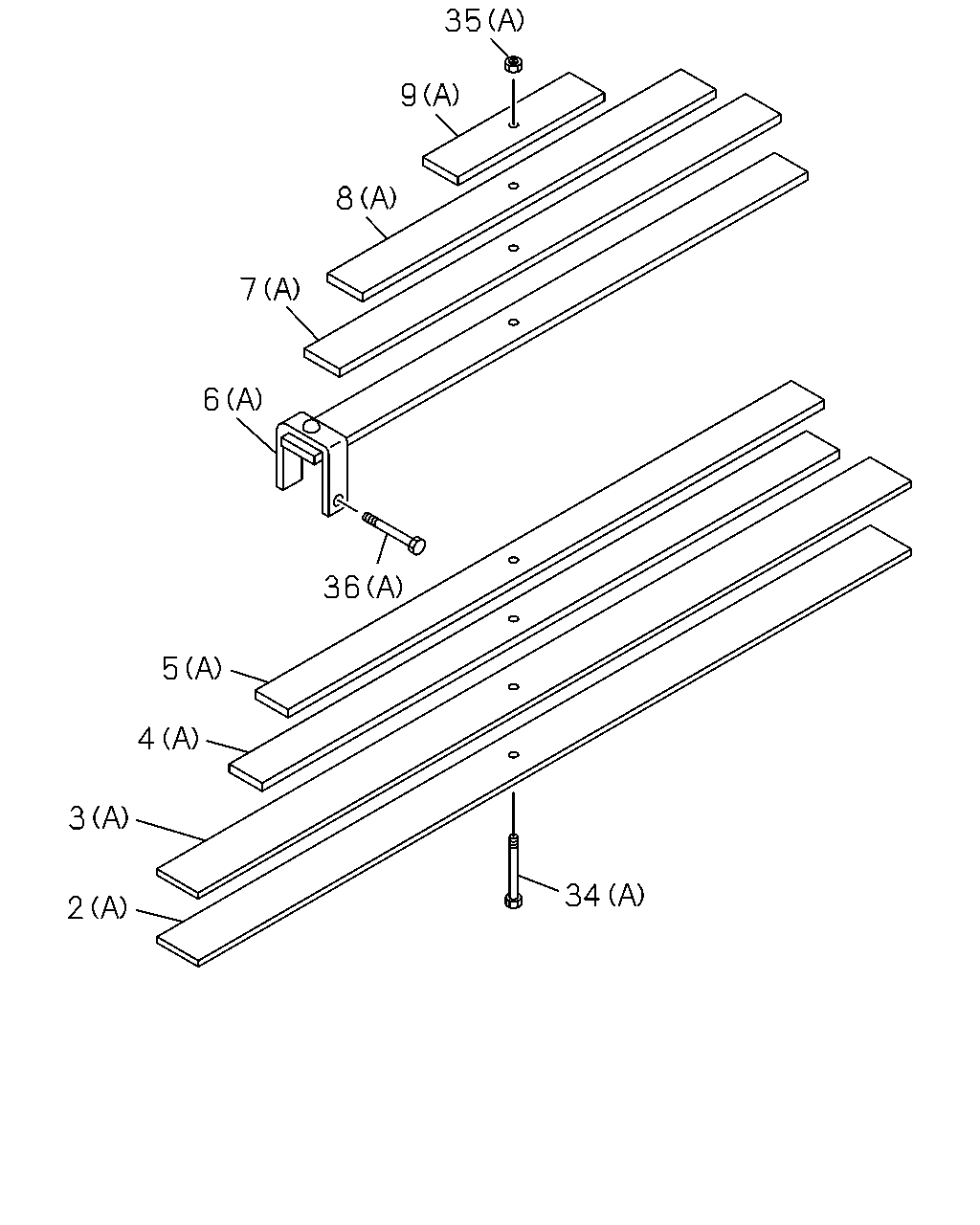

çizim 179394
35 9 8 7 6 36 5 4 3 34 2
BalonParca AdiParca NoAdetTipApplied Date
2 SPRING; LEAF,NO 1,RR MAIN
(A) ASM PART: A = 1-51310-880-0 		1-51311-880-0 01 1 -
2 SPRING; LEAF,NO 1,RR MAIN
(B) ASM PART: B = 8-98017-567-1 		8-98040-768-1 01 1 -
3 SPRING; LEAF,NO 2,RR MAIN
(A) ASM PART: A = 1-51310-880-0 		1-51312-880-0 01 1 -
3 SPRING; LEAF,NO 2,RR MAIN
(B) ASM PART: B = 8-98017-567-1 		8-98040-769-1 01 1 -
4 SPRING; LEAF,NO 3,RR MAIN
(A) ASM PART: A = 1-51310-880-0 		1-51313-880-0 01 1 -
4 SPRING; LEAF,NO 3,RR MAIN
(B) ASM PART: B = 8-98017-567-1 		8-98040-770-1 01 1 -
5 SPRING; LEAF,NO 4,RR MAIN
(A) ASM PART: A = 1-51310-880-0 		1-51314-880-0 01 1 -
5 SPRING; LEAF,NO 4,RR MAIN
(B) ASM PART: B = 8-98017-567-1 		8-98040-771-1 01 1 -
6 SPRING; LEAF,NO 5,RR MAIN
(A) ASM PART: A = 1-51310-880-0 		1-51315-880-0 01 1 -
6 SPRING; LEAF,NO 5,RR MAIN
(B) ASM PART: B = 8-98017-567-1 		8-98040-772-1 01 1 -
7 SPRING; LEAF,NO 6,RR MAIN
(A) ASM PART: A = 1-51310-880-0 		1-51316-880-0 01 1 -
7 SPRING; LEAF,NO 6,RR MAIN
(B) ASM PART: B = 8-98017-567-1 		8-98040-773-1 01 1 -
8 SPRING; LEAF,NO 7,RR MAIN
(A) ASM PART: A = 1-51310-880-0 		1-51317-880-0 01 1 -
8 SPRING; LEAF,NO 7,RR MAIN
(B) ASM PART: B = 8-98017-567-1 		8-98040-774-1 01 1 -
9 SPRING; LEAF,NO 8,RR MAIN
(A) ASM PART: A = 1-51310-880-0 		1-51318-880-0 01 1 -
9 SPRING; LEAF,NO 8,RR MAIN
(B) ASM PART: B = 8-98017-567-1 		8-98040-775-1 01 1 -
34 BOLT; CENTER,LEAF SPR,RR MAIN
(B), L=200 ASM PART: B = 8-98017-567-1 		1-51356-270-0 01 1 -
34 BOLT; CENTER,LEAF SPR,RR MAIN
(A), L=180 ASM PART: A = 1-51310-880-0 		1-51356-284-0 01 1 -
35 NUT; CENTER BOLT,LEAF SPR,RR
(B), M16 ASM PART: B = 8-98017-567-1 		1-09400-054-0 01 1 -
35 NUT; CENTER BOLT,LEAF SPR,RR
(A), M16 ASM PART: A = 1-51310-880-0 		1-09400-061-0 01 1 -
36 BOLT; CLIP,LEAF SPR,RR
(B) ASM PART: B = 8-98017-567-1 		1-09000-326-0 01 1 -
36 BOLT; CLIP,LEAF SPR,RR
(A) ASM PART: A = 1-51310-880-0 		1-09000-494-0 01 1 -
