Sayfa 4-60 - Isuzu EPC

4-60 — REAR SUSPENSION (#3401) — 230 parça

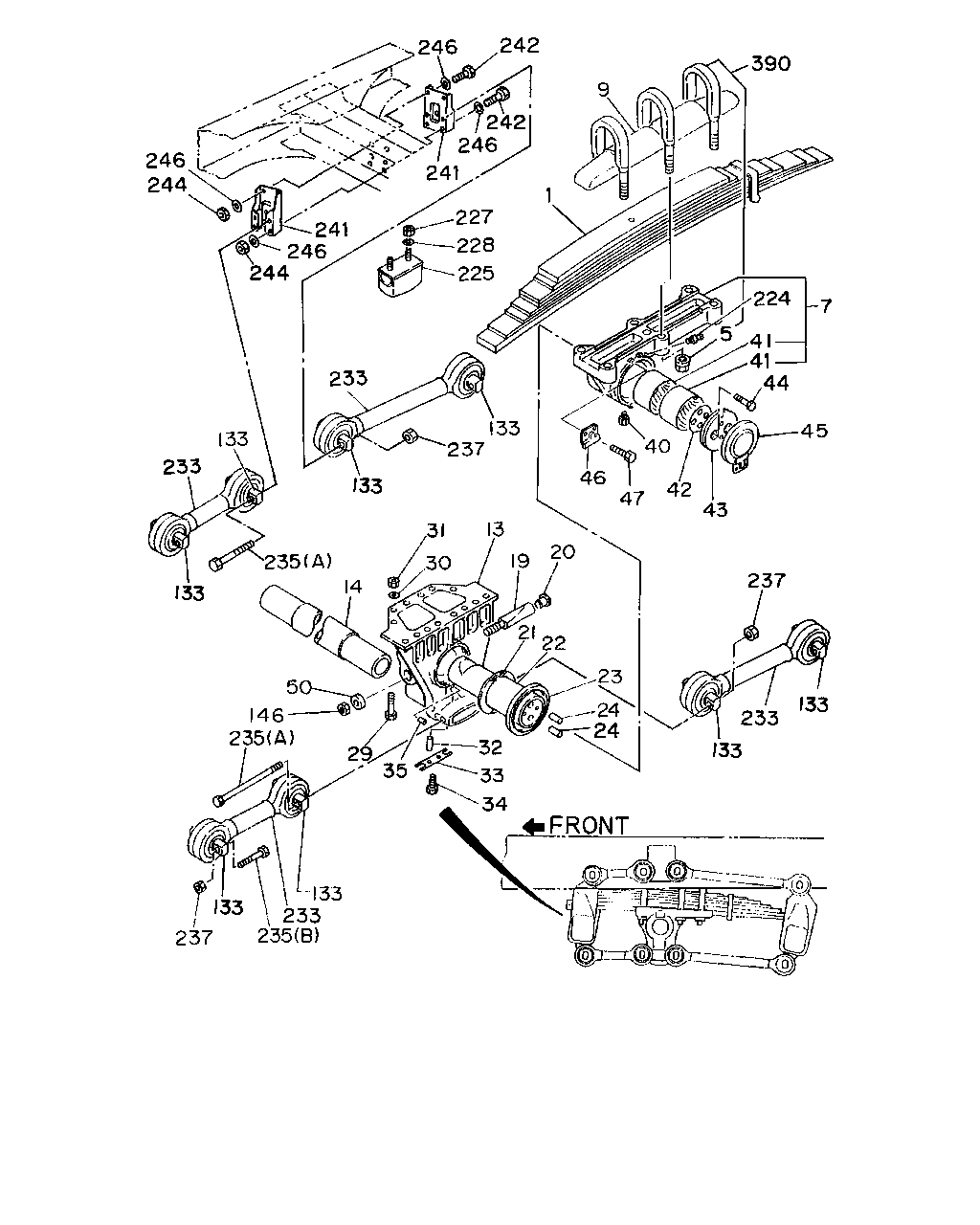

246 244 244 246 241 246 242 242 241 246 227 228 225 233 133 233 133 235 133 237 133 14 50 146 235 237 235 133 233 29 133 35 34 32 24 24 22 23 133 233 133 237 21 20 19 30 31 46 47 40 43 43 45 44 41 41 5 224 7 390 9 1 13 33

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. 10-LEAF	1-51310-467-3	02	1	9002-	●
1	SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. TAIWAN EQUIPMENT(WW5) 11-LEAF	1-51310-975-0	02	1	9307-		●
1	SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. EXC. TAIWAN EQUIPMENT(WW5)	1-51310-453-1	02	1	9307-		●
1	SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT.	1-51310-453-1	02	1	9307-			●
1	SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT.	1-51310-453-1	02	1	9002-9306		●	●
5	NUT; U-BOLT,RR SPR M24 FLANGE	1-09440-001-1	12	1	9002-	●
5	NUT; U-BOLT,RR SPR M27 FLANGE	9-09844-662-1	08	1	9002-		●	●
7	SEAT; SPR,LWR	1-51385-057-0	01	1	9002-9306	●
7	SEAT; SPR,LWR	1-51385-056-0	01	1	9002-9306	●
7	SEAT; SPR,LWR	1-51385-079-0	01	1	9307-	●
7	SEAT; SPR,LWR	1-51385-078-0	01	1	9307-	●
7	SEAT; SPR,LWR	1-51385-060-2	02	1	9002-9208		●	●
7	SEAT; SPR,LWR	1-51385-091-0	02	1	9209-		●	●
9	PAD; U BOLT,RR SPR	1-51372-035-2	02	1	9002-9107	●
9	PAD; U BOLT,RR SPR	1-51372-061-0	02	1	9108-	●
9	PAD; U BOLT,RR SPR	1-51372-019-1	02	1	9002-		●	●
13	BRACKET; TRUNNION SHAFT	1-53361-032-6	02	1	9002-9407	●	●	●
13	BRACKET; TRUNNION SHAFT	1-53361-065-0	02	1	9408-	●	●	●
14	PIPE; TRUNNION BRKT	1-51389-032-0	01	1	9002-	●	●	●
19	BOLT; KEY,SHAFT	1-51389-018-2	02	1	9002-	●	●	●
20	GROMMET; KEY BOLT	1-09333-057-0	02	1	9002-	●	●	●
21	WASHER; THRUST,TRUNNION SHAFT	1-51389-058-0	02	1	9002-	●	●	●
22	SHAFT; TRUNNION,RR SUSP	1-51381-022-2	02	1	9002-	●	●	●
23	SEAL; OIL,TRUNNION SHAFT	1-51389-005-0	02	1	9002-	●	●	●
24	PIN; SIDE PLATE TO SHAFT	1-09740-009-0	04	1	9002-	●	●	●
29	BOLT; BRKT TO FRAME M18X75	1-09000-221-1	24	1	9002-	●	●
29	BOLT; BRKT TO FRAME M18X55	9-92061-855-0	04	1	9002-	●	●	●
29	BOLT; BRKT TO FRAME M18X80	1-09000-428-1	24	1	9002-			●
30	WASHER; PL,TRUNNION BRKT ID=19	1-09503-162-0	28	1	9002-	●	●	●
31	NUT; TRUNNION BRKT M18	9-99110-518-0	28	1	9002-	●	●	●
32	PIN; STRAIGHT	1-09740-027-0	04	1	9002-	●	●	●
33	PLATE; LK KNOCK PIN	1-53369-032-1	02	1	9002-	●	●	●
34	BOLT; LOCK PLATE M10X20	9-01961-020-0	02	1	9002-9204	●	●	●
34	BOLT; LOCK PLATE M10X20 W/LK&PL WASHER	0-50141-020-0	02	1	9205-	●	●	●
35	PIN; TRUNNION SHAFT	1-09749-030-1	04	1	9002-	●	●	●
40	VALVE; GREASE ESCAPE	9-51389-010-0	02	1	9002-	●	●	●
41	BUSHING; TRUNNION SHAFT	1-51386-004-0	04	1	9002-	●	●	●
43	PLATE; SIDE,TRUNNION SHAFT	1-51382-010-4	02	1	9002-	●	●	●
44	BOLT; SIDE PLATE TO SHAFT M18X48.5 FLANGE	1-09044-038-2	04	1	9002-	●	●	●
45	COVER; SPR SEAT	1-51387-013-2	02	1	9002-	●	●	●
46	BRACKET; COVER	1-51387-015-2	02	1	9002-	●	●	●
47	BOLT; COVER TO SEAT M8X12 W/LK WASHER	9-01900-812-0	08	1	9002-9204	●	●	●
47	BOLT; COVER TO SEAT M8X12 W/LK WASHER	0-50040-812-0	08	1	9205-9302	●	●	●
47	BOLT; COVER TO SEAT M8X12 FLANGE	0-28080-812-0	08	1	9303-	●	●	●
50	WASHER; PL,TRUNNION SHAFT	1-09503-071-0	02	1	9002-	●	●	●
133	BUSHING; RUBBER,TORQUE ROD SAITAMA KIKI OD=105	1-51519-066-2	12	1	9002-9210	●	●	●
133	BUSHING; RUBBER,TORQUE ROD FUKOKU GOMU OD=105	1-51519-113-0	12	1	9002-	●	●	●
146	NUT; KEY BOLT M24	9-99110-524-0	02	1	9002-	●	●	●
224	NIPPLE; GREASE,SPR SEAT PT1/8 STRAIGHT	9-09031-010-0	02	1	9002-	●	●	●
225	RUBBER; CUSHION,RR SPR	1-53366-028-1	02	1	9002-	●
225	RUBBER; CUSHION,RR SPR BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. MIXER TRUCK<RA2> FORWARD RH REARWARD LH	1-53366-045-0	02	1	9403-		●
225	RUBBER; CUSHION,RR SPR BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. MIXER TRUCK<RA2> FORWARD LH REARWARD RH	1-53366-046-0	02	1	9403-		●
225	RUBBER; CUSHION,RR SPR FORWARD LH REARWARD RH	1-53366-072-1	02	1	9002-9402		●	●
225	RUBBER; CUSHION,RR SPR BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) MIXER TRUCK<RA2> FORWARD LH REARWARD RH	1-53366-072-1	02	1	9403-		●
225	RUBBER; CUSHION,RR SPR FORWARD LH REARWARD RH	1-53366-072-1	02	1	9403-			●
225	RUBBER; CUSHION,RR SPR FORWARD RH REARWARD LH	1-53366-073-1	02	1	9002-9402		●	●
225	RUBBER; CUSHION,RR SPR BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) MIXER TRUCK<RA2> FORWARD RH REARWARD LH	1-53366-073-1	02	1	9403-		●
225	RUBBER; CUSHION,RR SPR FORWARD RH REARWARD LH	1-53366-073-1	02	1	9403-			●
227	NUT; CUSHION RUBBER M12	9-99110-412-0	04	1	9002-9304	●
227	NUT; CUSHION RUBBER M12	9-99110-512-0	08	1	9305-		●	●
227	NUT; CUSHION RUBBER M12	9-99110-412-0	08	1	9002-9304		●	●
227	NUT; CUSHION RUBBER M12	9-99110-512-0	04	1	9305-	●
228	WASHER; LK,CUSHION RUBBER ID=12.2	9-09150-512-0	04	1	9002-	●
228	WASHER; LK,CUSHION RUBBER ID=12.2	9-09150-512-0	08	1	9002-		●	●
233	ROD ASM; TORQUE,RR SUSP FORWARD UPPER L=347	1-51511-310-1	01	1	9002-9205	●
233	ROD ASM; TORQUE,RR SUSP FORWARD L=347	1-51511-574-0	03	1	9206-9210	●
233	ROD ASM; TORQUE,RR SUSP REARWARD UPPER L=689	1-51511-311-2	01	1	9002-9205	●
233	ROD ASM; TORQUE,RR SUSP REARWARD L=689	1-51511-576-0	03	1	9206-9210	●
233	ROD ASM; TORQUE,RR SUSP FORWARD LOWER L=347	1-51511-372-2	02	1	9002-9205	●
233	ROD ASM; TORQUE,RR SUSP REARWARD LOWER L=689	1-51511-373-2	02	1	9002-9205	●
233	ROD ASM; TORQUE,RR SUSP FORWARD L=347	1-51511-574-0	03	1	9211-9508	●
233	ROD ASM; TORQUE,RR SUSP FORWARD L=355	1-51511-648-0	03	1	9509-	●
233	ROD ASM; TORQUE,RR SUSP REARWARD L=689	1-51511-576-0	03	1	9211-9508	●
233	ROD ASM; TORQUE,RR SUSP REARWARD L=695	1-51511-663-0	03	1	9509-	●
233	ROD ASM; TORQUE,RR SUSP FORWARD LOWER L=522	1-51511-386-2	02	1	9002-9205		●	●
233	ROD ASM; TORQUE,RR SUSP FORWARD LOWER L=522	1-51511-578-1	02	1	9206-9206		●	●
233	ROD ASM; TORQUE,RR SUSP REARWARD LOWER L=481	1-51511-387-2	02	1	9002-9205		●	●
233	ROD ASM; TORQUE,RR SUSP REARWARD LOWER L=481	1-51511-577-0	02	1	9206-9508		●	●
233	ROD ASM; TORQUE,RR SUSP REARWARD LOWER L=480	1-51511-677-0	02	1	9509-		●	●
233	ROD ASM; TORQUE,RR SUSP FORWARD LOWER L=522	1-51511-578-1	02	1	9207-9508		●	●
233	ROD ASM; TORQUE,RR SUSP FORWARD LOWER L=520	1-51511-605-0	02	1	9509-		●	●
233	ROD ASM; TORQUE,RR SUSP 10PD1 STD ENG(40L) REARWARD UPPER L=593	1-51511-435-0	01	1	9002-9108		●	●
233	ROD ASM; TORQUE,RR SUSP 10PD1 STD ENG(40L) REARWARD UPPER L=593	1-51511-338-2	01	1	9109-9205		●	●
233	ROD ASM; TORQUE,RR SUSP 10PD1 STD ENG(40L),12PD1 C ENG(43L) REARWARD UPPER L=593	1-51511-579-1	01	1	9206-9508		●	●
233	ROD ASM; TORQUE,RR SUSP 10PD1 STD ENG(40L),12PD1 C ENG(43L) REARWARD UPPER L=590	1-51511-673-0	01	1	9509-		●	●
233	ROD ASM; TORQUE,RR SUSP 10PD1 STD ENG(40L) FORWARD UPPER L=481	1-51511-451-0	01	1	9002-9009		●	●
233	ROD ASM; TORQUE,RR SUSP 10PD1 STD ENG(40L) FORWARD UPPER L=481	1-51511-387-2	01	1	9010-9205		●	●
233	ROD ASM; TORQUE,RR SUSP 10PD1 STD ENG(40L),12PD1 C ENG(43L) FORWARD UPPER L=481	1-51511-577-0	01	1	9206-9508		●	●
233	ROD ASM; TORQUE,RR SUSP 10PD1 STD ENG(40L),12PD1 C ENG(43L) FORWARD UPPER L=480	1-51511-677-0	01	1	9509-		●	●
233	ROD ASM; TORQUE,RR SUSP 6RB1 STD ENG(07L) FORWARD UPPER L=491	1-51511-397-0	01	1	9002-9205		●	●
233	ROD ASM; TORQUE,RR SUSP 6RB1 STD ENG(07L) FORWARD UPPER L=491	1-51511-585-0	01	1	9206-9210		●	●
233	ROD ASM; TORQUE,RR SUSP 6RB1 STD ENG(07L) FORWARD UPPER L=491	1-51511-397-0	01	1	9211-9212		●	●
233	ROD ASM; TORQUE,RR SUSP 6RB1 STD ENG(07L) FORWARD UPPER L=491	1-51511-585-0	01	1	9301-9508		●	●
233	ROD ASM; TORQUE,RR SUSP 6RB1 STD ENG(07L) FORWARD UPPER L=490	1-51511-668-0	01	1	9509-		●	●
233	ROD ASM; TORQUE,RR SUSP 6RB1 STD ENG(07L) REARWARD UPPER L=605	1-51511-434-0	01	1	9002-9205		●	●
233	ROD ASM; TORQUE,RR SUSP 6RB1 STD ENG(07L) REARWARD UPPER L=605	1-51511-586-0	01	1	9206-9210		●	●
233	ROD ASM; TORQUE,RR SUSP 6RB1 STD ENG(07L) REARWARD UPPER L=605	1-51511-434-0	01	1	9211-9212		●	●
233	ROD ASM; TORQUE,RR SUSP 6RB1 STD ENG(07L) REARWARD UPPER L=605	1-51511-586-0	01	1	9301-9508		●	●
233	ROD ASM; TORQUE,RR SUSP 6RB1 STD ENG(07L) REARWARD UPPER L=605	1-51511-686-0	01	1	9509-		●	●
235	BOLT; TORQUE ROD (A)	1-09000-078-1	06	1	9002-	●	●	●
235	BOLT; TORQUE ROD (B)	1-09000-266-1	12	1	9002-9011	●	●	●
235	BOLT; TORQUE ROD (B)	1-09000-568-0	12	1	9012-	●	●	●
237	NUT; TORQUE ROD M18	1-09464-011-0	18	1	9002-	●	●	●
241	BRACKET; TORQUE ROD	1-53363-031-2	02	1	9002-	●	●	●
242	BOLT; BRKT TO FRAME M14X205	1-09000-147-0	02	1	9002-	●	●	●
242	BOLT; BRKT TO FRAME M14X50	9-91066-450-0	02	1	9002-	●	●	●
244	NUT; BRKT M14	9-99110-514-0	04	1	9002-	●	●	●
246	WASHER; TORQUE ROD ID=15	9-09651-069-0	08	1	9002-9105	●	●	●
390	U-BOLT SET; RR SPRING L=310	1-87870-165-2	06	1	9002-9307	●
390	U-BOLT SET; RR SPRING L=305	1-87870-374-0	06	1	9308-	●
390	U-BOLT SET; RR SPRING TAIWAN EQUIPMENT(WW5) L=370	1-87870-217-2	04	1	9307-		●
390	U-BOLT SET; RR SPRING EXC. TAIWAN EQUIPMENT(WW5) L=340	1-87870-146-0	04	1	9307-		●
390	U-BOLT SET; RR SPRING L=340	1-87870-146-0	04	1	9307-			●

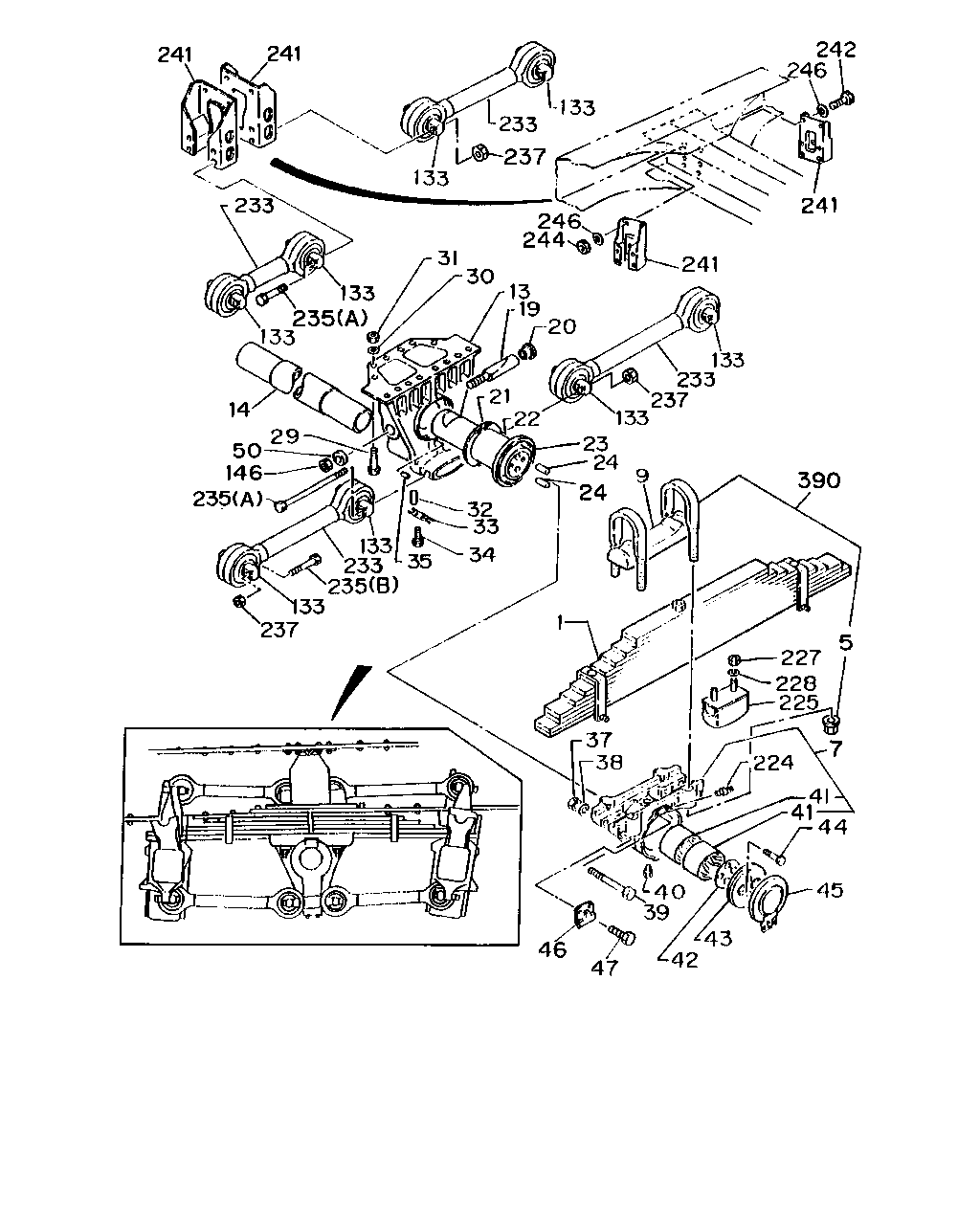

241 241 233 133 235 133 14 146 235 50 29 237 233 133 133 235 34 33 35 32 133 31 30 21 24 24 23 22 13 19 20 133 237 233 133 241 244 246 237 233 133 242 241 246 390 5 227 228 225 7 224 9 1 37 38 40 46 47 39 42 43 45 44 41 41

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. 10-LEAF	1-51310-467-3	02	1	9002-	●
1	SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. TAIWAN EQUIPMENT(WW5) 11-LEAF	1-51310-975-0	02	1	9307-		●
1	SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. EXC. TAIWAN EQUIPMENT(WW5)	1-51310-453-1	02	1	9307-		●
1	SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT.	1-51310-453-1	02	1	9307-			●
1	SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT.	1-51310-453-1	02	1	9002-9306		●	●
5	NUT; U-BOLT,RR SPR M24 FLANGE	1-09440-001-1	12	1	9002-	●
5	NUT; U-BOLT,RR SPR M27 FLANGE	9-09844-662-1	08	1	9002-		●	●
7	SEAT; SPR,LWR	1-51385-057-0	01	1	9002-9306	●
7	SEAT; SPR,LWR	1-51385-056-0	01	1	9002-9306	●
7	SEAT; SPR,LWR	1-51385-079-0	01	1	9307-	●
7	SEAT; SPR,LWR	1-51385-078-0	01	1	9307-	●
7	SEAT; SPR,LWR	1-51385-060-2	02	1	9002-9208		●	●
7	SEAT; SPR,LWR	1-51385-091-0	02	1	9209-		●	●
9	PAD; U BOLT,RR SPR	1-51372-035-2	02	1	9002-9107	●
9	PAD; U BOLT,RR SPR	1-51372-061-0	02	1	9108-	●
9	PAD; U BOLT,RR SPR	1-51372-019-1	02	1	9002-		●	●
13	BRACKET; TRUNNION SHAFT	1-53361-032-6	02	1	9002-9407	●	●	●
13	BRACKET; TRUNNION SHAFT	1-53361-065-0	02	1	9408-	●	●	●
14	PIPE; TRUNNION BRKT	1-51389-032-0	01	1	9002-	●	●	●
19	BOLT; KEY,SHAFT	1-51389-018-2	02	1	9002-	●	●	●
20	GROMMET; KEY BOLT	1-09333-057-0	02	1	9002-	●	●	●
21	WASHER; THRUST,TRUNNION SHAFT	1-51389-058-0	02	1	9002-	●	●	●
22	SHAFT; TRUNNION,RR SUSP	1-51381-022-2	02	1	9002-	●	●	●
23	SEAL; OIL,TRUNNION SHAFT	1-51389-005-0	02	1	9002-	●	●	●
24	PIN; SIDE PLATE TO SHAFT	1-09740-009-0	04	1	9002-	●	●	●
29	BOLT; BRKT TO FRAME M18X75	1-09000-221-1	24	1	9002-	●	●
29	BOLT; BRKT TO FRAME M18X55	9-92061-855-0	04	1	9002-	●	●	●
29	BOLT; BRKT TO FRAME M18X80	1-09000-428-1	24	1	9002-			●
30	WASHER; PL,TRUNNION BRKT ID=19	1-09503-162-0	28	1	9002-	●	●	●
31	NUT; TRUNNION BRKT M18	9-99110-518-0	28	1	9002-	●	●	●
32	PIN; STRAIGHT	1-09740-027-0	04	1	9002-	●	●	●
33	PLATE; LK KNOCK PIN	1-53369-032-1	02	1	9002-	●	●	●
34	BOLT; LOCK PLATE M10X20	9-01961-020-0	02	1	9002-9204	●	●	●
34	BOLT; LOCK PLATE M10X20 W/LK&PL WASHER	0-50141-020-0	02	1	9205-	●	●	●
35	PIN; TRUNNION SHAFT	1-09749-030-1	04	1	9002-	●	●	●
37	NUT; SPR SETTING M22	9-09110-522-0	04	1	9002-		●	●
38	WASHER; LK,SPR SETTING ID=22.5	9-09150-622-0	04	1	9002-		●	●
39	BOLT; SPR SETTING M22X155	9-09801-290-1	04	1	9002-		●	●
40	VALVE; GREASE ESCAPE	9-51389-010-0	02	1	9002-	●	●	●
41	BUSHING; TRUNNION SHAFT	1-51386-004-0	04	1	9002-	●	●	●
42	SHIM; SIDE PLATE TO SHAFT	1-51389-033-1	12	1	9002-	●	●	●
43	PLATE; SIDE,TRUNNION SHAFT	1-51382-010-4	02	1	9002-	●	●	●
44	BOLT; SIDE PLATE TO SHAFT M18X48.5 FLANGE	1-09044-038-2	04	1	9002-	●	●	●
45	COVER; SPR SEAT	1-51387-013-2	02	1	9002-	●	●	●
46	BRACKET; COVER	1-51387-015-2	02	1	9002-	●	●	●
47	BOLT; COVER TO SEAT M8X12 W/LK WASHER	9-01900-812-0	08	1	9002-9204	●	●	●
47	BOLT; COVER TO SEAT M8X12 W/LK WASHER	0-50040-812-0	08	1	9205-9302	●	●	●
47	BOLT; COVER TO SEAT M8X12 FLANGE	0-28080-812-0	08	1	9303-	●	●	●
50	WASHER; PL,TRUNNION SHAFT	1-09503-071-0	02	1	9002-	●	●	●
133	BUSHING; RUBBER,TORQUE ROD SAITAMA KIKI OD=105	1-51519-066-2	12	1	9002-9210	●	●	●
133	BUSHING; RUBBER,TORQUE ROD FUKOKU GOMU OD=105	1-51519-113-0	12	1	9002-	●	●	●
146	NUT; KEY BOLT M24	9-99110-524-0	02	1	9002-	●	●	●
224	NIPPLE; GREASE,SPR SEAT PT1/8 STRAIGHT	9-09031-010-0	02	1	9002-	●	●	●
225	RUBBER; CUSHION,RR SPR	1-53366-028-1	02	1	9002-	●
225	RUBBER; CUSHION,RR SPR BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. MIXER TRUCK<RA2> FORWARD RH REARWARD LH	1-53366-045-0	02	1	9403-		●
225	RUBBER; CUSHION,RR SPR BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. MIXER TRUCK<RA2> FORWARD LH REARWARD RH	1-53366-046-0	02	1	9403-		●
225	RUBBER; CUSHION,RR SPR FORWARD LH REARWARD RH	1-53366-072-1	02	1	9002-9402		●	●
225	RUBBER; CUSHION,RR SPR BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) MIXER TRUCK<RA2> FORWARD LH REARWARD RH	1-53366-072-1	02	1	9403-		●
225	RUBBER; CUSHION,RR SPR FORWARD LH REARWARD RH	1-53366-072-1	02	1	9403-			●
225	RUBBER; CUSHION,RR SPR FORWARD RH REARWARD LH	1-53366-073-1	02	1	9002-9402		●	●
225	RUBBER; CUSHION,RR SPR BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) MIXER TRUCK<RA2> FORWARD RH REARWARD LH	1-53366-073-1	02	1	9403-		●
225	RUBBER; CUSHION,RR SPR FORWARD RH REARWARD LH	1-53366-073-1	02	1	9403-			●
227	NUT; CUSHION RUBBER M12	9-99110-412-0	04	1	9002-9304	●
227	NUT; CUSHION RUBBER M12	9-99110-512-0	08	1	9305-		●	●
227	NUT; CUSHION RUBBER M12	9-99110-412-0	08	1	9002-9304		●	●
227	NUT; CUSHION RUBBER M12	9-99110-512-0	04	1	9305-	●
228	WASHER; LK,CUSHION RUBBER ID=12.2	9-09150-512-0	04	1	9002-	●
228	WASHER; LK,CUSHION RUBBER ID=12.2	9-09150-512-0	08	1	9002-		●	●
233	ROD ASM; TORQUE,RR SUSP FORWARD UPPER L=347	1-51511-310-1	01	1	9002-9205	●
233	ROD ASM; TORQUE,RR SUSP FORWARD L=347	1-51511-574-0	03	1	9206-9210	●
233	ROD ASM; TORQUE,RR SUSP REARWARD UPPER L=689	1-51511-311-2	01	1	9002-9205	●
233	ROD ASM; TORQUE,RR SUSP REARWARD L=689	1-51511-576-0	03	1	9206-9210	●
233	ROD ASM; TORQUE,RR SUSP FORWARD LOWER L=347	1-51511-372-2	02	1	9002-9205	●
233	ROD ASM; TORQUE,RR SUSP REARWARD LOWER L=689	1-51511-373-2	02	1	9002-9205	●
233	ROD ASM; TORQUE,RR SUSP FORWARD L=347	1-51511-574-0	03	1	9211-9508	●
233	ROD ASM; TORQUE,RR SUSP FORWARD L=355	1-51511-648-0	03	1	9509-	●
233	ROD ASM; TORQUE,RR SUSP REARWARD L=689	1-51511-576-0	03	1	9211-9508	●
233	ROD ASM; TORQUE,RR SUSP REARWARD L=695	1-51511-663-0	03	1	9509-	●
233	ROD ASM; TORQUE,RR SUSP FORWARD LOWER L=522	1-51511-386-2	02	1	9002-9205		●	●
233	ROD ASM; TORQUE,RR SUSP FORWARD LOWER L=522	1-51511-578-1	02	1	9206-9206		●	●
233	ROD ASM; TORQUE,RR SUSP REARWARD LOWER L=481	1-51511-387-2	02	1	9002-9205		●	●
233	ROD ASM; TORQUE,RR SUSP REARWARD LOWER L=481	1-51511-577-0	02	1	9206-9508		●	●
233	ROD ASM; TORQUE,RR SUSP REARWARD LOWER L=480	1-51511-677-0	02	1	9509-		●	●
233	ROD ASM; TORQUE,RR SUSP FORWARD LOWER L=522	1-51511-578-1	02	1	9207-9508		●	●
233	ROD ASM; TORQUE,RR SUSP FORWARD LOWER L=520	1-51511-605-0	02	1	9509-		●	●
233	ROD ASM; TORQUE,RR SUSP 10PD1 STD ENG(40L) REARWARD UPPER L=593	1-51511-435-0	01	1	9002-9108		●	●
233	ROD ASM; TORQUE,RR SUSP 10PD1 STD ENG(40L) REARWARD UPPER L=593	1-51511-338-2	01	1	9109-9205		●	●
233	ROD ASM; TORQUE,RR SUSP 10PD1 STD ENG(40L),12PD1 C ENG(43L) REARWARD UPPER L=593	1-51511-579-1	01	1	9206-9508		●	●
233	ROD ASM; TORQUE,RR SUSP 10PD1 STD ENG(40L),12PD1 C ENG(43L) REARWARD UPPER L=590	1-51511-673-0	01	1	9509-		●	●
233	ROD ASM; TORQUE,RR SUSP 10PD1 STD ENG(40L) FORWARD UPPER L=481	1-51511-451-0	01	1	9002-9009		●	●
233	ROD ASM; TORQUE,RR SUSP 10PD1 STD ENG(40L) FORWARD UPPER L=481	1-51511-387-2	01	1	9010-9205		●	●
233	ROD ASM; TORQUE,RR SUSP 10PD1 STD ENG(40L),12PD1 C ENG(43L) FORWARD UPPER L=481	1-51511-577-0	01	1	9206-9508		●	●
233	ROD ASM; TORQUE,RR SUSP 10PD1 STD ENG(40L),12PD1 C ENG(43L) FORWARD UPPER L=480	1-51511-677-0	01	1	9509-		●	●
233	ROD ASM; TORQUE,RR SUSP 6RB1 STD ENG(07L) FORWARD UPPER L=491	1-51511-397-0	01	1	9002-9205		●	●
233	ROD ASM; TORQUE,RR SUSP 6RB1 STD ENG(07L) FORWARD UPPER L=491	1-51511-585-0	01	1	9206-9210		●	●
233	ROD ASM; TORQUE,RR SUSP 6RB1 STD ENG(07L) FORWARD UPPER L=491	1-51511-397-0	01	1	9211-9212		●	●
233	ROD ASM; TORQUE,RR SUSP 6RB1 STD ENG(07L) FORWARD UPPER L=491	1-51511-585-0	01	1	9301-9508		●	●
233	ROD ASM; TORQUE,RR SUSP 6RB1 STD ENG(07L) FORWARD UPPER L=490	1-51511-668-0	01	1	9509-		●	●
233	ROD ASM; TORQUE,RR SUSP 6RB1 STD ENG(07L) REARWARD UPPER L=605	1-51511-434-0	01	1	9002-9205		●	●
233	ROD ASM; TORQUE,RR SUSP 6RB1 STD ENG(07L) REARWARD UPPER L=605	1-51511-586-0	01	1	9206-9210		●	●
233	ROD ASM; TORQUE,RR SUSP 6RB1 STD ENG(07L) REARWARD UPPER L=605	1-51511-434-0	01	1	9211-9212		●	●
233	ROD ASM; TORQUE,RR SUSP 6RB1 STD ENG(07L) REARWARD UPPER L=605	1-51511-586-0	01	1	9301-9508		●	●
233	ROD ASM; TORQUE,RR SUSP 6RB1 STD ENG(07L) REARWARD UPPER L=605	1-51511-686-0	01	1	9509-		●	●
235	BOLT; TORQUE ROD (A)	1-09000-078-1	06	1	9002-	●	●	●
235	BOLT; TORQUE ROD (B)	1-09000-266-1	12	1	9002-9011	●	●	●
235	BOLT; TORQUE ROD (B)	1-09000-568-0	12	1	9012-	●	●	●
237	NUT; TORQUE ROD M18	1-09464-011-0	18	1	9002-	●	●	●
241	BRACKET; TORQUE ROD	1-53363-031-2	02	1	9002-	●	●	●
242	BOLT; BRKT TO FRAME M14X205	1-09000-147-0	02	1	9002-	●	●	●
242	BOLT; BRKT TO FRAME M14X50	9-91066-450-0	02	1	9002-	●	●	●
244	NUT; BRKT M14	9-99110-514-0	04	1	9002-	●	●	●
246	WASHER; TORQUE ROD ID=15	9-09651-069-0	08	1	9002-9105	●	●	●
390	U-BOLT SET; RR SPRING L=310	1-87870-165-2	06	1	9002-9307	●
390	U-BOLT SET; RR SPRING L=305	1-87870-374-0	06	1	9308-	●
390	U-BOLT SET; RR SPRING TAIWAN EQUIPMENT(WW5) L=370	1-87870-217-2	04	1	9307-		●
390	U-BOLT SET; RR SPRING EXC. TAIWAN EQUIPMENT(WW5) L=340	1-87870-146-0	04	1	9307-		●
390	U-BOLT SET; RR SPRING L=340	1-87870-146-0	04	1	9307-			●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
