◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVM ▶ 11105 - FVM(RHD) ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-55 - FRONT LEAF SPRING ▶
4-55 — FRONT LEAF SPRING (#34009) — 40 parça

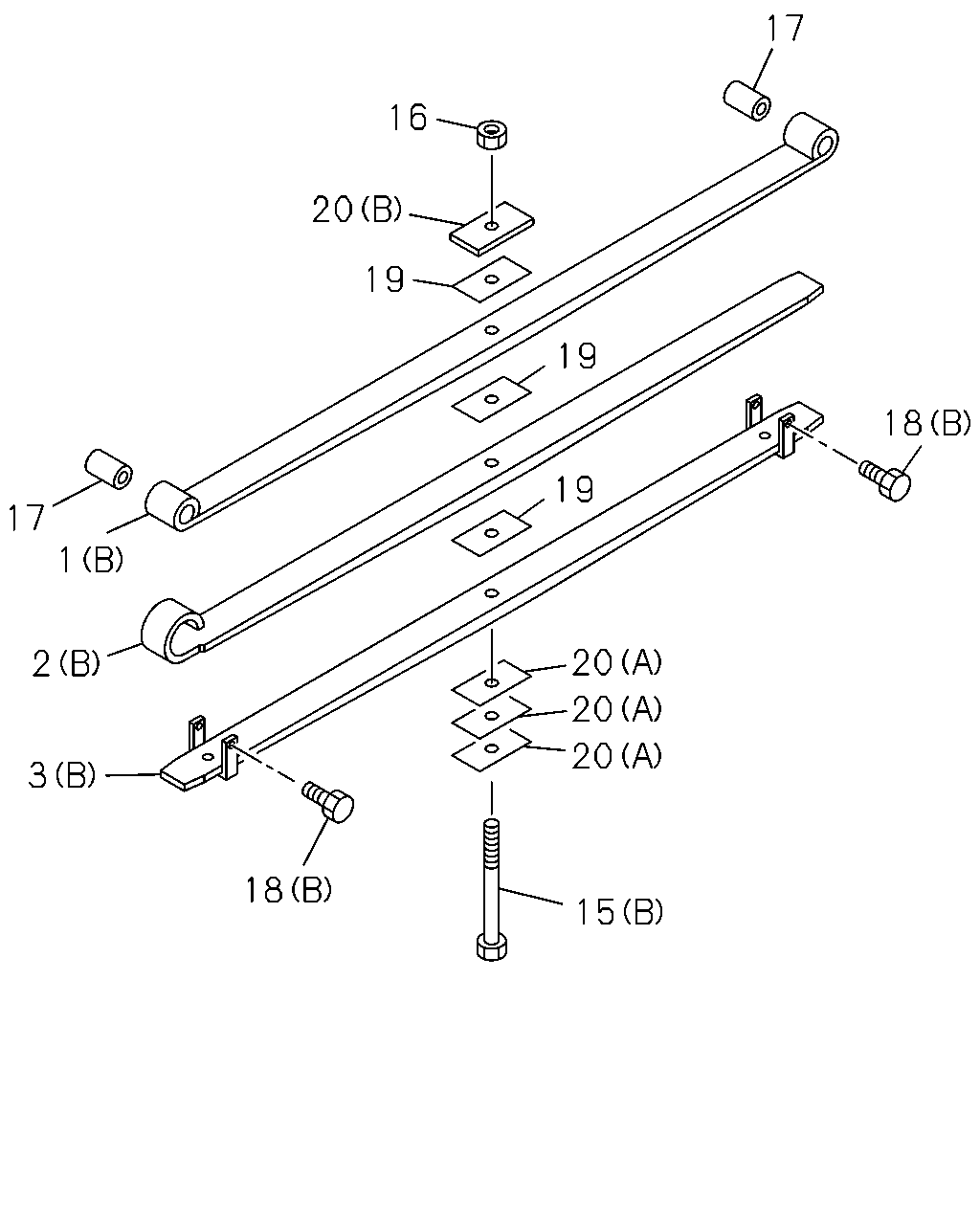

çizim 179367
17 16 20 19 19 18 19 17 1 20 2 20 20 3 18 15
BalonParca AdiParca NoAdetTipApplied Date
1 SPRING; LEAF,NO 1,FRT
(A) ASM PART: A = 8-98029-096-0 		8-98031-827-0 01 1 -
1 SPRING; LEAF,NO 1,FRT
(B) ASM PART: B = 8-98069-483-0 		8-98073-686-0 01 1 -
2 SPRING; LEAF,NO 2,FRT
(A) ASM PART: A = 8-98029-096-0 		8-98031-828-0 01 1 -
2 SPRING; LEAF,NO 2,FRT
(B) ASM PART: B = 8-98069-483-0 		8-98073-687-0 01 1 -
3 SPRING; LEAF,NO 3,FRT
(A) ASM PART: A = 8-98029-096-0 		8-98031-829-0 01 1 -
3 SPRING; LEAF,NO 3,FRT
(B) ASM PART: B = 8-98069-483-0 		8-98073-688-0 01 1 -
15 BOLT; CENTER,LEAF SPR,FRT
(A), L=145 ASM PART: A = 8-98029-096-0 		1-51156-298-0 01 1 -
15 BOLT; CENTER,LEAF SPR,FRT
(B), L=130 ASM PART: B = 8-98069-483-0 		8-98048-521-0 01 1 -
16 NUT; CENTER BOLT,LEAF SPR,FRT
M16 ASM PART: A = 8-98029-096-0, B = 8-98069-483-0 		1-09400-054-0 01 1 -
17 BUSHING; LEAF SPR,FRT
OD=38 ASM PART: A = 8-98029-096-0, B = 8-98069-483-0 		1-51351-009-0 02 1 -
18 BOLT; CLIP,LEAF SPR,FRT
(A), M10X99 ASM PART: A = 8-98029-096-0 		1-09000-328-0 02 1 -
18 BOLT; CLIP,LEAF SPR,FRT
(B), M10X103 ASM PART: B = 8-98069-483-0 		1-09000-536-0 02 1 -
19 SPACER; LEAF SPRING,FRT
T=1 ASM PART: B = 8-98069-483-0 		1-51177-071-0 03 1 -
19 SPACER; LEAF SPRING,FRT
T=1 ASM PART: A = 8-98029-096-0 		1-51177-071-0 06 1 -
20 SEAT; LEAF SPR,FRT
(A), T=9 ASM PART: B = 8-98069-483-0 		1-51177-114-0 03 1 -
20 SEAT; LEAF SPR,FRT
(B), T=14 ASM PART: B = 8-98069-483-0 		1-51177-127-0 01 1 -
20 SEAT; LEAF SPR,FRT
(C), T=10 ASM PART: A = 8-98029-096-0 		1-51177-161-0 01 1 -
20 SEAT; LEAF SPR,FRT
(D), T=8 ASM PART: A = 8-98029-096-0 		1-51177-178-0 01 1 -

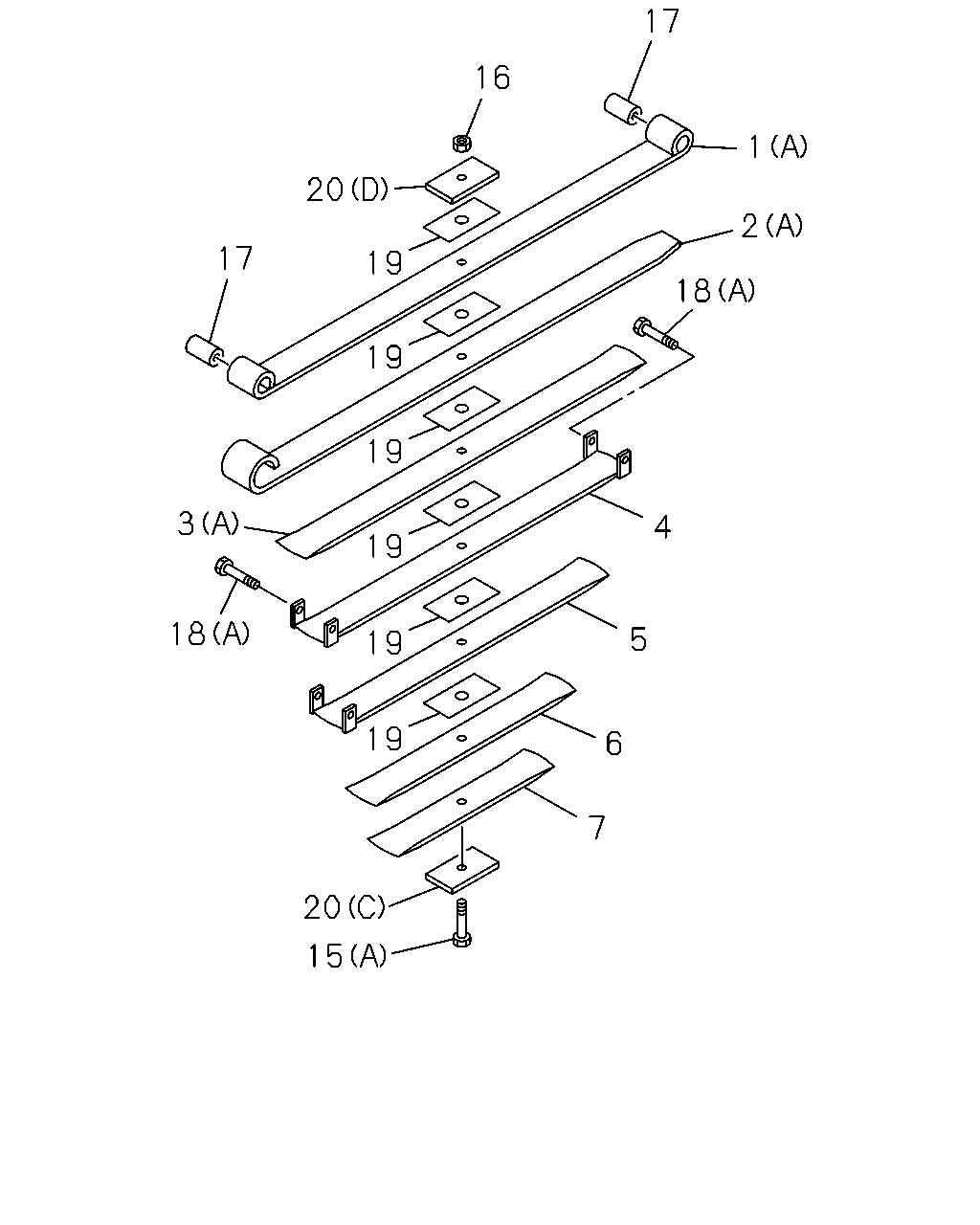

çizim 179457
17 16 1 20 2 17 19 18 19 19 3 4 19 18 5 19 19 6 7 20 15
BalonParca AdiParca NoAdetTipApplied Date
1 SPRING; LEAF,NO 1,FRT
(A) ASM PART: A = 8-98029-096-0 		8-98031-827-0 01 1 -
1 SPRING; LEAF,NO 1,FRT
(B) ASM PART: B = 8-98069-483-0 		8-98073-686-0 01 1 -
2 SPRING; LEAF,NO 2,FRT
(A) ASM PART: A = 8-98029-096-0 		8-98031-828-0 01 1 -
2 SPRING; LEAF,NO 2,FRT
(B) ASM PART: B = 8-98069-483-0 		8-98073-687-0 01 1 -
3 SPRING; LEAF,NO 3,FRT
(A) ASM PART: A = 8-98029-096-0 		8-98031-829-0 01 1 -
3 SPRING; LEAF,NO 3,FRT
(B) ASM PART: B = 8-98069-483-0 		8-98073-688-0 01 1 -
4 SPRING; LEAF,NO 4,FRT
ASM PART: A = 8-98029-096-0 		8-98031-830-0 01 1 -
5 SPRING; LEAF,NO 5,FRT
ASM PART: A = 8-98029-096-0 		8-98031-831-0 01 1 -
6 SPRING; LEAF,NO 6,FRT
ASM PART: A = 8-98029-096-0 		8-98031-832-0 01 1 -
7 SPRING; LEAF,NO 7,FRT
ASM PART: A = 8-98029-096-0 		8-98031-833-0 01 1 -
15 BOLT; CENTER,LEAF SPR,FRT
(A), L=145 ASM PART: A = 8-98029-096-0 		1-51156-298-0 01 1 -
15 BOLT; CENTER,LEAF SPR,FRT
(B), L=130 ASM PART: B = 8-98069-483-0 		8-98048-521-0 01 1 -
16 NUT; CENTER BOLT,LEAF SPR,FRT
M16 ASM PART: A = 8-98029-096-0, B = 8-98069-483-0 		1-09400-054-0 01 1 -
17 BUSHING; LEAF SPR,FRT
OD=38 ASM PART: A = 8-98029-096-0, B = 8-98069-483-0 		1-51351-009-0 02 1 -
18 BOLT; CLIP,LEAF SPR,FRT
(A), M10X99 ASM PART: A = 8-98029-096-0 		1-09000-328-0 02 1 -
18 BOLT; CLIP,LEAF SPR,FRT
(B), M10X103 ASM PART: B = 8-98069-483-0 		1-09000-536-0 02 1 -
19 SPACER; LEAF SPRING,FRT
T=1 ASM PART: B = 8-98069-483-0 		1-51177-071-0 03 1 -
19 SPACER; LEAF SPRING,FRT
T=1 ASM PART: A = 8-98029-096-0 		1-51177-071-0 06 1 -
20 SEAT; LEAF SPR,FRT
(A), T=9 ASM PART: B = 8-98069-483-0 		1-51177-114-0 03 1 -
20 SEAT; LEAF SPR,FRT
(B), T=14 ASM PART: B = 8-98069-483-0 		1-51177-127-0 01 1 -
20 SEAT; LEAF SPR,FRT
(C), T=10 ASM PART: A = 8-98029-096-0 		1-51177-161-0 01 1 -
20 SEAT; LEAF SPR,FRT
(D), T=8 ASM PART: A = 8-98029-096-0 		1-51177-178-0 01 1 -
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
