4-35 — POWER STEERING CONTROL; CHASSIS SIDE (#34004) — 68 parça

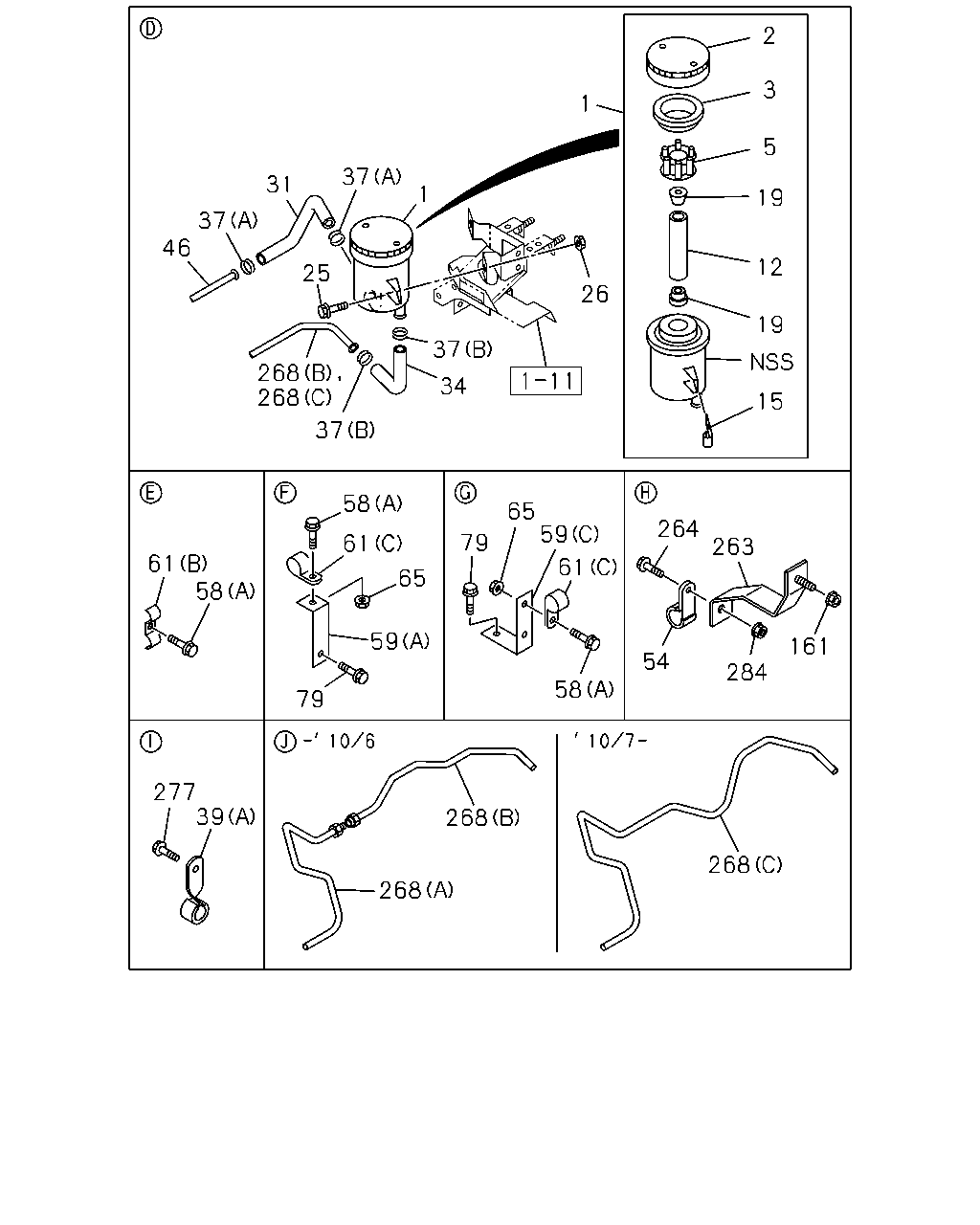

2 3 1 5 37 31 1 19 37 46 12 25 26 19 37 268 268 34 15 37 58 65 59 264 79 61 263 61 58 61 65 59 161 54 284 58 79 277 39 268 268 268

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	TANK ASM; OIL,P/S	1-21210-238-1	01	1	0710-1006	●	●
1	TANK ASM; OIL,P/S	8-98166-928-0	01	1	1007-	●	●
2	CAP; OIL TANK,P/S	1-21241-004-4	01	1	0710-1006	●	●
2	CAP; OIL TANK,P/S	8-98166-876-0	01	1	1007-	●	●
3	GASKET; OIL TANK,P/S	1-21249-003-1	01	1	0710-	●	●
5	STRAINER; OIL TANK,P/S	1-21235-007-1	01	1	0710-	●	●
12	FILTER; MICROBON,OIL TANK,P/S	1-21235-011-0	01	1	0710-	●	●
15	PLATE; FILTER,OIL TANK	1-21249-016-0	02	1	0710-	●	●
19	SEAT; OIL TANK	1-21249-004-0	02	1	0710-	●	●
25	BOLT; OIL TANK BRKT M8X25 FLANGE	0-28650-825-0	02	1	0710-	●	●
26	NUT; OIL TANK TO BRKT M8 FLANGE	0-91180-108-0	02	1	0710-	●	●
31	HOSE; P/S OIL TANK,INL	8-98092-730-0	01	1	0710-	●	●
34	HOSE; P/S OIL TANK,OUTLET	8-98021-827-0	01	1	0710-	●	●
37	CLIP; HOSE,P/S (A) ID=26	1-09704-082-0	02	1	0710-	●	●
37	CLIP; HOSE,P/S (B) ID=32	1-09704-085-0	02	1	0710-	●	●
39	CLIP; FLEX HOSE (A) ID=19 L=58	1-09700-733-1	01	1	0710-	●	●
39	CLIP; FLEX HOSE (B) ID=40	8-94226-553-0	01	1	0710-	●	●
46	PIPE; OIL,P/S UNIT TO OIL TANK EXC. CAB SUSPENSION FULL FLOATING<W16> L=2775	8-98092-721-0	01	1	0809-		●
46	PIPE; OIL,P/S UNIT TO OIL TANK L=2696	8-98096-303-0	01	1	0710-0808	●	●
46	PIPE; OIL,P/S UNIT TO OIL TANK L=2696	8-98096-303-0	01	1	0809-	●
46	PIPE; OIL,P/S UNIT TO OIL TANK CAB SUSPENSION FULL FLOATING<W16> L=2696	8-98096-303-0	01	1	0809-		●
54	CLIP; OIL PIPE ID=19 L=20	0-95235-836-0	01	1	0710-	●	●
58	BOLT; CLIP (A) M8X20 FLANGE	0-28650-820-0	02	1	0711-	●	●
58	BOLT; CLIP (A) M8X16 FLANGE	0-28050-816-0	04	1	0710-0710	●	●
58	BOLT; CLIP (A) M8X16 FLANGE	0-28050-816-0	02	1	0711-	●	●
58	BOLT; CLIP (B) M8X40 FLANGE	0-28650-840-0	01	1	0710-	●	●
59	BRACKET; CLIP,OIL PIPE (C)	8-98083-607-0	01	1	0710-	●	●
59	BRACKET; CLIP,OIL PIPE (B)	1-47475-427-1	01	1	0710-	●	●
59	BRACKET; CLIP,OIL PIPE (A) L=95	1-82699-085-0	01	1	0710-	●	●
61	CLIP; OIL PIPE (C) ID=16 L=20	0-95235-536-0	02	1	0710-	●	●
61	CLIP; OIL PIPE (A) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	01	1	0710-	●	●
61	CLIP; OIL PIPE (B) ID=19 & 16 L=25 & 20	1-09700-806-1	02	1	0710-	●	●
65	NUT; BRKT M8 FLANGE	0-91180-108-0	02	1	0710-	●	●
79	BOLT; BRKT M8X30 FLANGE	0-28650-830-0	01	1	1108-	●	●
79	BOLT; BRKT M8X25 FLANGE	0-28650-825-0	02	1	0710-1107	●	●
79	BOLT; BRKT M8X25 FLANGE	0-28650-825-0	01	1	1108-	●	●
161	NUT; P/S PIPE M8 FLANGE	0-91180-108-0	01	1	0710-	●	●
263	BRACKET; P/S PIPE	8-98096-820-1	01	1	0710-	●	●
264	BOLT; PIPE BRKT M8X20 FLANGE	0-28650-820-0	01	1	0710-	●	●
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE (A)	8-98097-499-0	01	1	0710-1006	●	●
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE (B)	8-98092-722-0	01	1	0710-1006	●	●
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE (C)	8-98154-047-0	01	1	1007-	●	●
277	BOLT; HOSE CLIP M8X16 FLANGE	0-28050-816-0	02	1	0710-	●	●
284	NUT; PIPE M8 FLANGE	0-91180-108-0	01	1	0710-	●	●

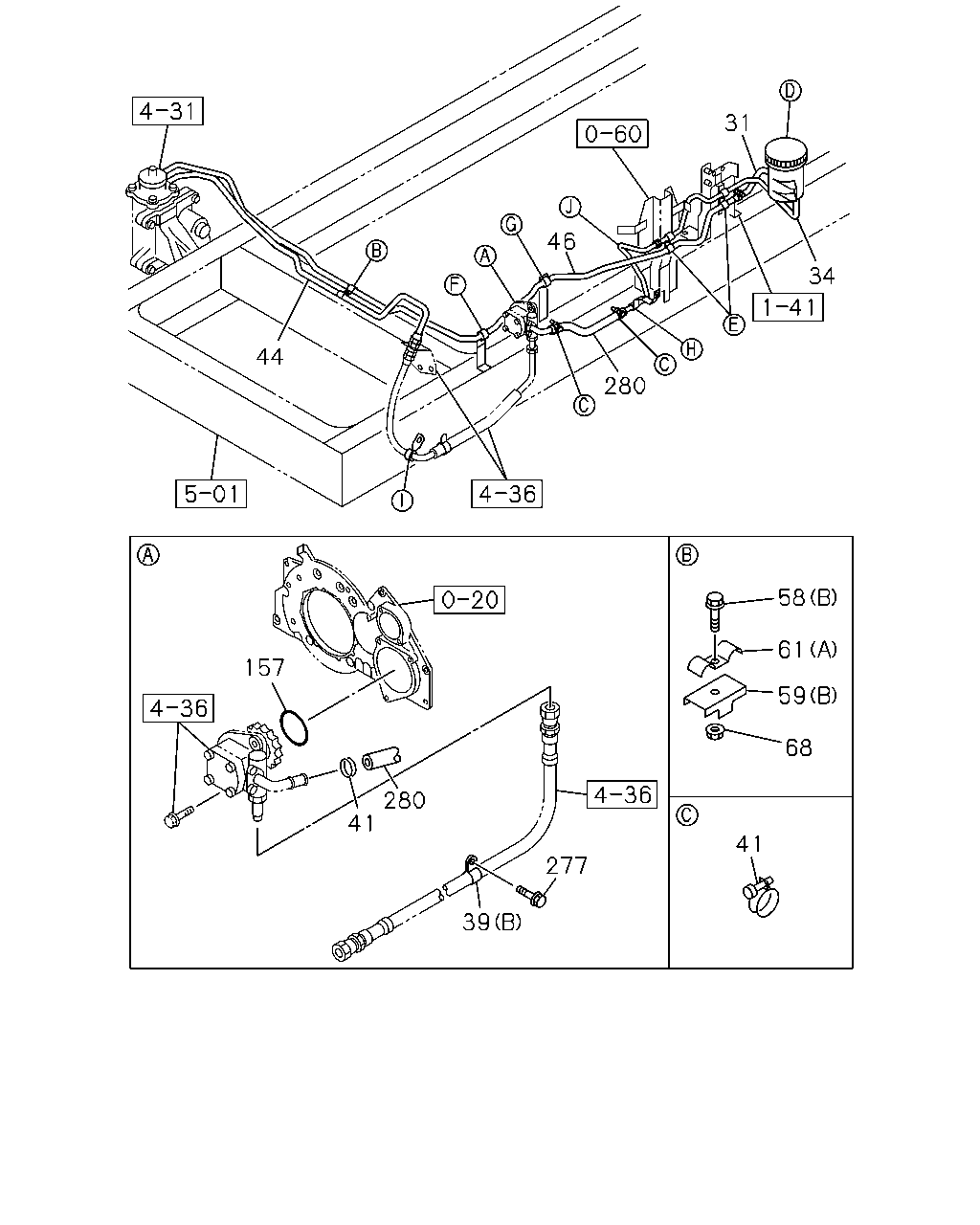

31 46 34 44 280 58 61 157 59 68 280 41 41 277 39

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
31	HOSE; P/S OIL TANK,INL	8-98092-730-0	01	1	0710-	●	●
34	HOSE; P/S OIL TANK,OUTLET	8-98021-827-0	01	1	0710-	●	●
39	CLIP; FLEX HOSE (A) ID=19 L=58	1-09700-733-1	01	1	0710-	●	●
39	CLIP; FLEX HOSE (B) ID=40	8-94226-553-0	01	1	0710-	●	●
41	CLIP; HOSE,P/S ID=32	1-09704-085-0	02	1	0710-	●	●
44	PIPE; OIL,P/S UNIT TO NIPPLE	8-98075-632-1	01	1	0710-	●	●
46	PIPE; OIL,P/S UNIT TO OIL TANK EXC. CAB SUSPENSION FULL FLOATING<W16> L=2775	8-98092-721-0	01	1	0809-		●
46	PIPE; OIL,P/S UNIT TO OIL TANK L=2696	8-98096-303-0	01	1	0710-0808	●	●
46	PIPE; OIL,P/S UNIT TO OIL TANK L=2696	8-98096-303-0	01	1	0809-	●
46	PIPE; OIL,P/S UNIT TO OIL TANK CAB SUSPENSION FULL FLOATING<W16> L=2696	8-98096-303-0	01	1	0809-		●
58	BOLT; CLIP (A) M8X20 FLANGE	0-28650-820-0	02	1	0711-	●	●
58	BOLT; CLIP (A) M8X16 FLANGE	0-28050-816-0	04	1	0710-0710	●	●
58	BOLT; CLIP (A) M8X16 FLANGE	0-28050-816-0	02	1	0711-	●	●
58	BOLT; CLIP (B) M8X40 FLANGE	0-28650-840-0	01	1	0710-	●	●
59	BRACKET; CLIP,OIL PIPE (C)	8-98083-607-0	01	1	0710-	●	●
59	BRACKET; CLIP,OIL PIPE (B)	1-47475-427-1	01	1	0710-	●	●
59	BRACKET; CLIP,OIL PIPE (A) L=95	1-82699-085-0	01	1	0710-	●	●
61	CLIP; OIL PIPE (C) ID=16 L=20	0-95235-536-0	02	1	0710-	●	●
61	CLIP; OIL PIPE (A) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	01	1	0710-	●	●
61	CLIP; OIL PIPE (B) ID=19 & 16 L=25 & 20	1-09700-806-1	02	1	0710-	●	●
68	NUT; CLIP,OIL PIPE M8 FLANGE	0-91180-108-0	01	1	0710-	●	●
157	GASKET; P/S PUMP ALSO INCLUDED IN GASKET SET(ENGINE). ID=96.4	1-09623-467-0	01	1	0710-	●	●
277	BOLT; HOSE CLIP M8X16 FLANGE	0-28050-816-0	02	1	0710-	●	●
280	HOSE; P/S OIL PUMP,INL	8-98090-818-0	01	1	0710-	●	●
