◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CXM ▶ 10669 - CXM/CXZ LHD ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-55 - FRONT LEAF SPRING ▶
4-55 — FRONT LEAF SPRING (#3400) — 78 parça

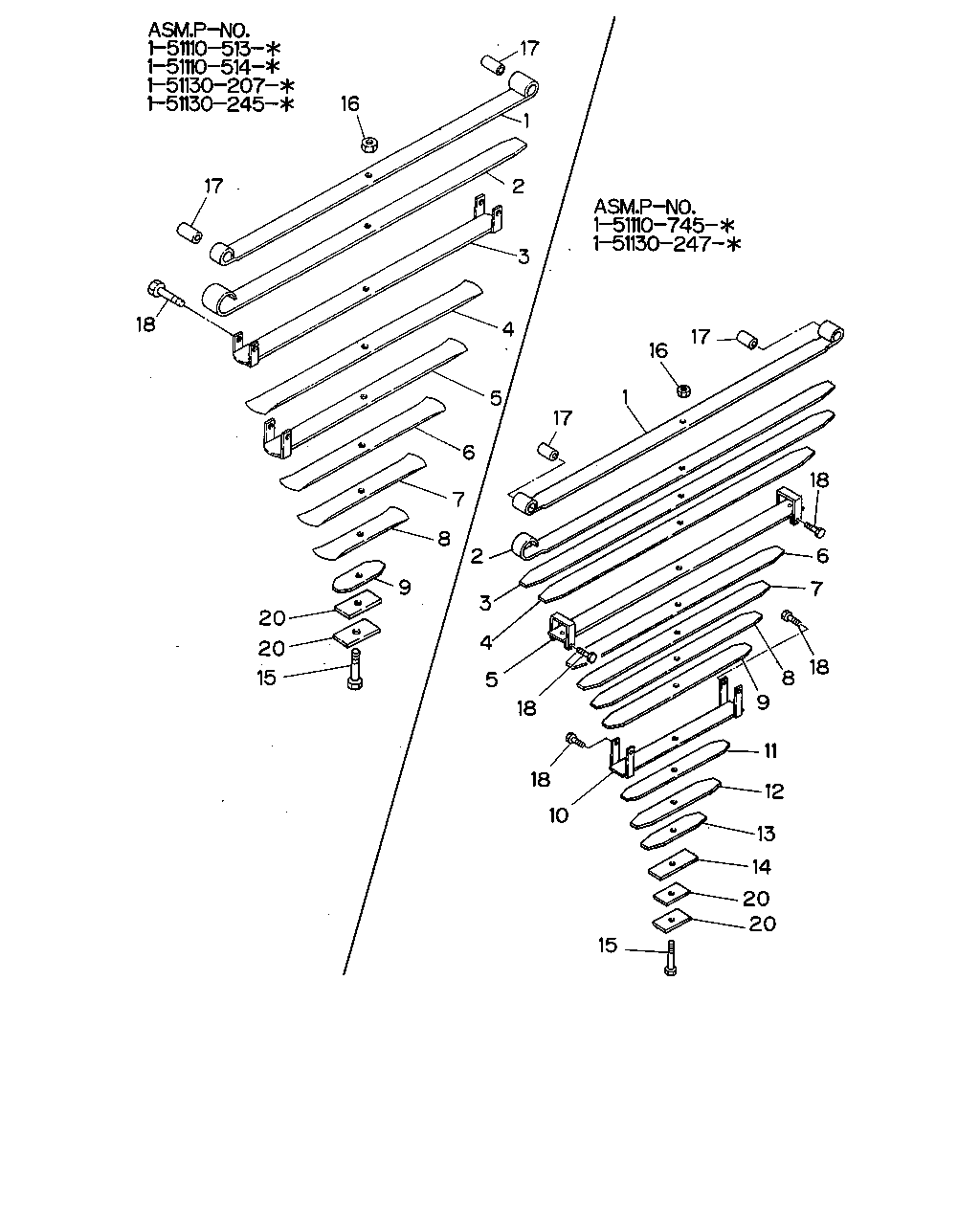

çizim 4309
17 16 17 18 1 2 3 4 5 6 7 9 8 15 20 20 17 2 3 4 5 18 18 10 15 20 14 20 13 12 9 11 8 18 7 6 18 17 1 16
BalonParca AdiParca NoAdetTipApplied Date
1 SPRING; LEAF,NO 1,FRT
ASM PART: C = 1-51110-745-1 		1-51110-745-1 01 1 -
1 SPRING; LEAF,NO 1,FRT
ASM PART: A = 1-51110-513-1 		1-51111-513-1 01 1 -
1 SPRING; LEAF,NO 1,FRT
ASM PART: B = 1-51110-514-1 		1-51111-514-0 01 1 -
1 SPRING; LEAF,NO 1,FRT
ASM PART: D = 1-51130-207-0 		1-51131-207-0 01 1 -
1 SPRING; LEAF,NO 1,FRT
ASM PART: E = 1-51130-245-0 		1-51131-245-0 01 1 -
1 SPRING; LEAF,NO 1,FRT
ASM PART: F = 1-51130-247-0 		1-51131-247-0 01 1 -
2 SPRING; LEAF,NO 2,FRT
ASM PART: A = 1-51110-513-1 		1-51112-513-1 01 1 -
2 SPRING; LEAF,NO 2,FRT
ASM PART: B = 1-51110-514-1 		1-51112-514-0 01 1 -
2 SPRING; LEAF,NO 2,FRT
ASM PART: C = 1-51110-745-1 		1-51112-745-0 01 1 -
2 SPRING; LEAF,NO 2,FRT
ASM PART: D = 1-51130-207-0 		1-51132-207-0 01 1 -
2 SPRING; LEAF,NO 2,FRT
ASM PART: E = 1-51130-245-0 		1-51132-245-0 01 1 -
2 SPRING; LEAF,NO 2,FRT
ASM PART: F = 1-51130-247-0 		1-51132-247-0 01 1 -
3 SPRING; LEAF,NO 3,FRT
ASM PART: A = 1-51110-513-1 		1-51113-513-1 01 1 -
3 SPRING; LEAF,NO 3,FRT
ASM PART: B = 1-51110-514-1 		1-51113-514-0 01 1 -
3 SPRING; LEAF,NO 3,FRT
ASM PART: C = 1-51110-745-1 		1-51113-745-0 01 1 -
3 SPRING; LEAF,NO 3,FRT
ASM PART: D = 1-51130-207-0 		1-51133-207-0 01 1 -
3 SPRING; LEAF,NO 3,FRT
ASM PART: E = 1-51130-245-0 		1-51133-245-0 01 1 -
3 SPRING; LEAF,NO 3,FRT
ASM PART: F = 1-51130-247-0 		1-51133-247-0 01 1 -
4 SPRING; LEAF,NO 4,FRT
ASM PART: A = 1-51110-513-1 		1-51114-513-1 01 1 -
4 SPRING; LEAF,NO 4,FRT
ASM PART: B = 1-51110-514-1 		1-51114-514-0 01 1 -
4 SPRING; LEAF,NO 4,FRT
ASM PART: C = 1-51110-745-1 		1-51114-745-0 01 1 -
4 SPRING; LEAF,NO 4,FRT
ASM PART: D = 1-51130-207-0 		1-51134-207-0 01 1 -
4 SPRING; LEAF,NO 4,FRT
ASM PART: E = 1-51130-245-0 		1-51134-245-0 01 1 -
4 SPRING; LEAF,NO 4,FRT
ASM PART: F = 1-51130-247-0 		1-51134-247-0 01 1 -
5 SPRING; LEAF,NO 5,FRT
ASM PART: A = 1-51110-513-1 		1-51115-513-1 01 1 -
5 SPRING; LEAF,NO 5,FRT
ASM PART: B = 1-51110-514-1 		1-51115-514-0 01 1 -
5 SPRING; LEAF,NO 5,FRT
ASM PART: C = 1-51110-745-1 		1-51115-745-0 01 1 -
5 SPRING; LEAF,NO 5,FRT
ASM PART: D = 1-51130-207-0 		1-51135-207-0 01 1 -
5 SPRING; LEAF,NO 5,FRT
ASM PART: E = 1-51130-245-0 		1-51135-245-0 01 1 -
5 SPRING; LEAF,NO 5,FRT
ASM PART: F = 1-51130-247-0 		1-51135-247-0 01 1 -
6 SPRING; LEAF,NO 6,FRT
ASM PART: A = 1-51110-513-1 		1-51116-513-1 01 1 -
6 SPRING; LEAF,NO 6,FRT
ASM PART: B = 1-51110-514-1 		1-51116-514-0 01 1 -
6 SPRING; LEAF,NO 6,FRT
ASM PART: C = 1-51110-745-1 		1-51116-745-0 01 1 -
6 SPRING; LEAF,NO 6,FRT
ASM PART: D = 1-51130-207-0 		1-51136-207-0 01 1 -
6 SPRING; LEAF,NO 6,FRT
ASM PART: E = 1-51130-245-0 		1-51136-245-0 01 1 -
6 SPRING; LEAF,NO 6,FRT
ASM PART: F = 1-51130-247-0 		1-51136-247-0 01 1 -
7 SPRING; LEAF,NO 7,FRT
ASM PART: A = 1-51110-513-1 		1-51117-513-1 01 1 -
7 SPRING; LEAF,NO 7,FRT
ASM PART: B = 1-51110-514-1 		1-51117-514-0 01 1 -
7 SPRING; LEAF,NO 7,FRT
ASM PART: C = 1-51110-745-1 		1-51117-745-0 01 1 -
7 SPRING; LEAF,NO 7,FRT
ASM PART: D = 1-51130-207-0 		1-51137-207-0 01 1 -
7 SPRING; LEAF,NO 7,FRT
ASM PART: E = 1-51130-245-0 		1-51137-245-0 01 1 -
7 SPRING; LEAF,NO 7,FRT
ASM PART: F = 1-51130-247-0 		1-51137-247-0 01 1 -
8 SPRING; LEAF,NO 8,FRT
ASM PART: A = 1-51110-513-1 		1-51118-513-1 01 1 -
8 SPRING; LEAF,NO 8,FRT
ASM PART: B = 1-51110-514-1 		1-51118-514-0 01 1 -
8 SPRING; LEAF,NO 8,FRT
ASM PART: C = 1-51110-745-1 		1-51118-745-0 01 1 -
8 SPRING; LEAF,NO 8,FRT
ASM PART: D = 1-51130-207-0 		1-51138-207-0 01 1 -
8 SPRING; LEAF,NO 8,FRT
ASM PART: E = 1-51130-245-0 		1-51138-245-0 01 1 -
8 SPRING; LEAF,NO 8,FRT
ASM PART: F = 1-51130-247-0 		1-51138-247-0 01 1 -
9 SPRING; LEAF,NO 9,FRT
ASM PART: A = 1-51110-513-1 		1-51119-513-1 01 1 -
9 SPRING; LEAF,NO 9,FRT
ASM PART: B = 1-51110-514-1 		1-51119-514-1 01 1 -
9 SPRING; LEAF,NO 9,FRT
ASM PART: C = 1-51110-745-1 		1-51119-745-0 01 1 -
9 SPRING; LEAF,NO 9,FRT
ASM PART: D = 1-51130-207-0 		1-51139-207-0 01 1 -
9 SPRING; LEAF,NO 9,FRT
ASM PART: E = 1-51130-245-0 		1-51139-245-0 01 1 -
9 SPRING; LEAF,NO 9,FRT
ASM PART: F = 1-51130-247-0 		1-51139-247-0 01 1 -
10 SPRING; LEAF,NO 10,FRT
ASM PART: C = 1-51110-745-1 		1-51121-745-0 01 1 -
10 SPRING; LEAF,NO 10,FRT
ASM PART: F = 1-51130-247-0 		1-51141-247-0 01 1 -
11 SPRING; LEAF,NO 11,FRT
ASM PART: C = 1-51110-745-1 		1-51122-745-0 01 1 -
11 SPRING; LEAF,NO 11,FRT
ASM PART: F = 1-51130-247-0 		1-51142-247-0 01 1 -
12 SPRING; LEAF,NO 12,FRT
ASM PART: C = 1-51110-745-1 		1-51123-745-0 01 1 -
12 SPRING; LEAF,NO 12,FRT
ASM PART: F = 1-51130-247-0 		1-51143-247-0 01 1 -
13 SPRING; LEAF,NO 13,FRT
ASM PART: C = 1-51110-745-1 		1-51124-745-0 01 1 -
13 SPRING; LEAF,NO 13,FRT
ASM PART: F = 1-51130-247-0 		1-51144-247-0 01 1 -
14 SPRING; LEAF,NO 14,FRT
ASM PART: C = 1-51110-745-1 		1-51125-745-0 01 1 -
14 SPRING; LEAF,NO 14,FRT
ASM PART: F = 1-51130-247-0 		1-51145-247-0 01 1 -
15 BOLT; CENTER,LEAF SPR,FRT
L=135 ASM PART: A = 1-51110-513-1 		1-51156-054-0 01 1 -
15 BOLT; CENTER,LEAF SPR,FRT
L=140 ASM PART: B = 1-51110-514-1 		1-51156-068-0 01 1 -
15 BOLT; CENTER,LEAF SPR,FRT
L=170 ASM PART: C = 1-51110-745-1 		1-51156-193-0 01 1 -
15 BOLT; CENTER,LEAF SPR,FRT
L=160 ASM PART: D = 1-51130-207-0 		1-51156-356-0 01 1 -
15 BOLT; CENTER,LEAF SPR,FRT
L=170 ASM PART: E = 1-51130-245-0 		1-51156-357-0 01 1 -
15 BOLT; CENTER,LEAF SPR,FRT
L=195 ASM PART: F = 1-51130-247-0 		1-51156-358-0 01 1 -
16 NUT; CENTER BOLT,LEAF SPR,FRT
ASM PART: C = 1-51110-745-1, D = 1-51130-207-0, E = 1-51130-245-0, F = 1-51130-247-0 		1-09400-054-0 01 1 -
16 NUT; CENTER BOLT,LEAF SPR,FRT
ASM PART: A = 1-51110-513-1, B = 1-51110-514-1 		9-99110-116-0 01 1 -
17 BUSHING; LEAF SPR,FRT
OD=38 ASM PART: A = 1-51110-513-1, B = 1-51110-514-1, C = 1-51110-745-1, D = 1-51130-207-0, E = 1-51130-245-0, F = 1-51130-247-0 		1-51351-009-0 02 1 -
18 BOLT; CLIP,LEAF SPR,FRT
M10X97 ASM PART: A = 1-51110-513-1, B = 1-51110-514-1, D = 1-51130-207-0, E = 1-51130-245-0 		1-09000-294-0 03 1 -
18 BOLT; CLIP,LEAF SPR,FRT
M10X99 ASM PART: C = 1-51110-745-1, F = 1-51130-247-0 		1-09000-328-0 04 1 -
20 SEAT; LEAF SPR,FRT
T=12 ASM PART: D = 1-51130-207-0 		1-51177-033-0 02 1 -
20 SEAT; LEAF SPR,FRT
T=12 ASM PART: E = 1-51130-245-0 		1-51177-069-0 02 1 -
20 SEAT; LEAF SPR,FRT
T=12 ASM PART: F = 1-51130-247-0 		1-51177-107-0 02 1 -
