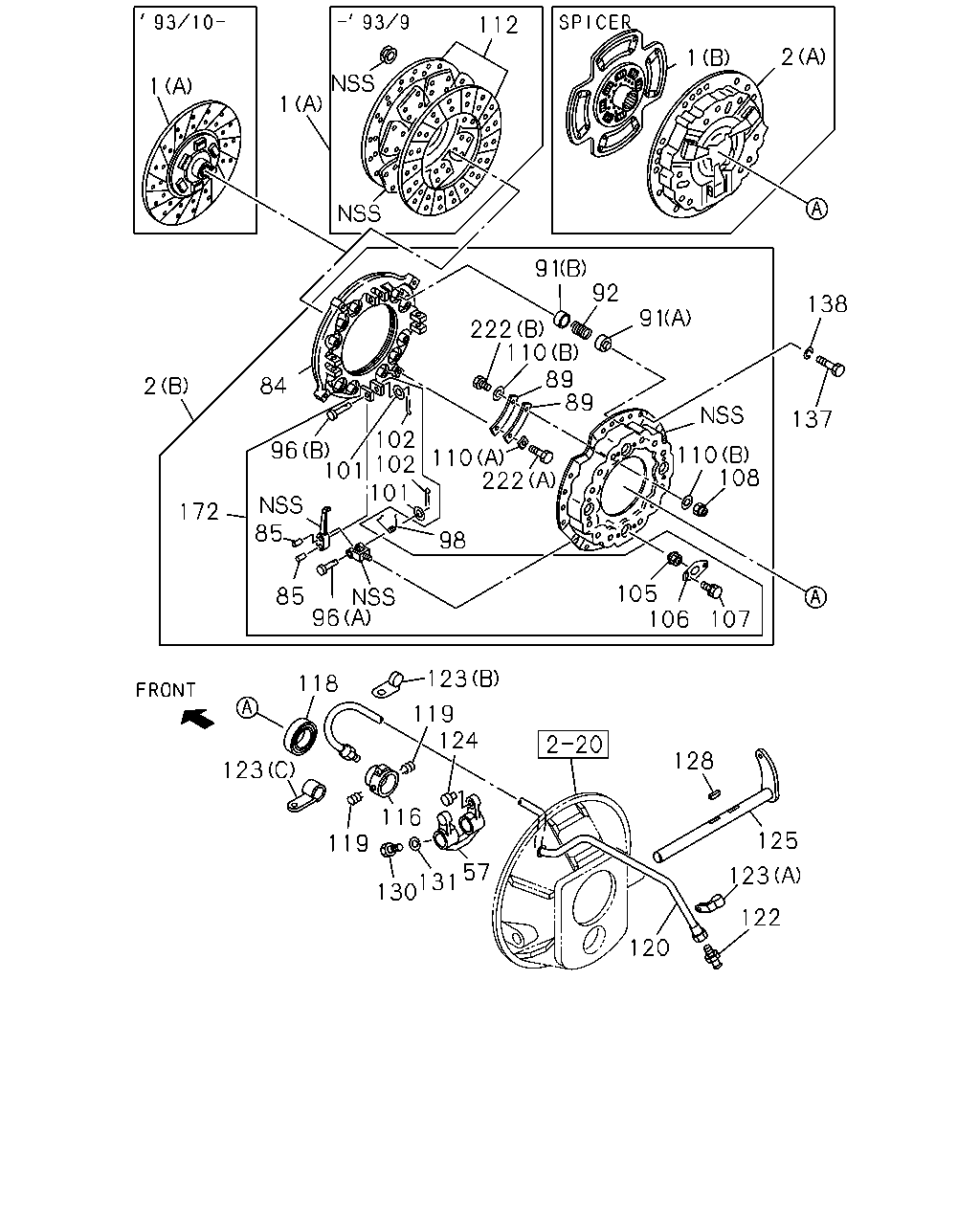

2-01 — CLUTCH (#340) — 69 parça

112 2 1 1 1 91 92 138 91 222 110 89 89 84 2 137 110 108 110 222 102 102 101 96 101 85 172 98 85 96 105 106 107 123 118 119 124 128 123 116 125 119 57 131 130 123 122 120

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	DISC; CLUTCH 14" CLUTCH(WF6) (A) 14"	1-31240-515-0	01	1	9202-9309	●	●	●
1	DISC; CLUTCH 14" CLUTCH(WF6) (A) 14"	1-31240-671-0	01	1	9310-	●	●	●
1	DISC; CLUTCH 14"SPICER CLUTCH(SFF) (B) 14"	1-31240-433-0	01	1	9202-	●	●	●
2	PLATE ASM; PRESSURE,CLU 14" CLUTCH(WF6) (B)	1-31220-168-1	01	1	9202-	●	●	●
2	PLATE ASM; PRESSURE,CLU 14"SPICER CLUTCH(SFF) (A)	1-31220-274-0	01	1	9202-9304	●	●	●
2	PLATE ASM; PRESSURE,CLU 14"SPICER CLUTCH(SFF) (A)	1-31220-284-0	01	1	9305-	●	●	●
57	FORK; SHIFT,CLU	1-31341-028-0	01	1	9202-	●
57	FORK; SHIFT,CLU	1-31340-056-0	01	1	9202-		●	●
84	PLATE; PRESSURE 14" CLUTCH(WF6)	1-31221-044-0	01	1	9202-	●	●	●
85	BUSHING; RELEASE LEVER 14" CLUTCH(WF6)	9-31239-116-0	08	1	9202-	●	●	●
89	PLATE; STRAP 14" CLUTCH(WF6)	1-31229-001-0	08	1	9202-	●	●	●
91	SEAT; SPR 14" CLUTCH(WF6) (A) ID=37 H=25	1-31219-012-0	12	1	9202-	●	●	●
91	SEAT; SPR 14" CLUTCH(WF6) (B) ID=37 H=15	1-31219-013-0	12	1	9202-	●	●	●
92	SPRING; CLU 14" CLUTCH(WF6)	1-09580-234-0	12	1	9202-	●	●	●
96	PIN; RELEASE LEVER 14" CLUTCH(WF6) (A) L=49.0	1-31232-005-0	04	1	9202-	●	●	●
96	PIN; RELEASE LEVER 14" CLUTCH(WF6) (B) L=57.0	1-31232-008-0	04	1	9202-	●	●	●
98	SPRING; RETURN 14" CLUTCH(WF6)	1-31233-003-0	04	1	9202-	●	●	●
101	WASHER; RELEASE LEVER 14" CLUTCH(WF6)	9-31239-039-0	08	1	9202-	●	●	●
102	PIN; SPLIT,RELEASE LEVER 14" CLUTCH(WF6) OD=2.7 L=22	9-08113-022-0	08	1	9202-	●	●	●
105	NUT; SUPPORT 14" CLUTCH(WF6)	9-31235-061-0	04	1	9202-	●	●	●
106	PLATE; LK,LEVER SUPPORT 14" CLUTCH(WF6)	1-31239-019-0	04	1	9202-	●	●	●
107	BOLT; LK PLATE 14" CLUTCH(WF6) M8X12.7 W/LK&PL WASHER	1-31239-020-0	08	1	9202-	●	●	●
108	NUT; STRAP 14" CLUTCH(WF6)	1-09449-036-0	04	1	9202-	●	●	●
110	WASHER; SPECIAL,STRAP 14" CLUTCH(WF6) (B) T=3.2	1-09503-095-0	08	1	9202-	●	●	●
110	WASHER; SPECIAL,STRAP 14" CLUTCH(WF6) (A) T=1.2	1-31229-009-0	04	1	9202-	●	●	●
112	FACING; FRICTION 14" CLUTCH(WF6)	1-31246-088-0	02	1	9202-9309	●	●	●
116	BLOCK; SHIFT,CLU	1-31321-054-0	01	1	9202-	●
116	BLOCK; SHIFT,CLU 14" CLUTCH(WF6)	1-31321-052-2	01	1	9202-		●	●
116	BLOCK; SHIFT,CLU 14"SPICER CLUTCH(SFF)	1-31321-070-2	01	1	9202-		●	●
118	BEARING; CLU RELEASE	1-09820-008-0	01	1	9202-	●	●	●
119	SPRING; SHIFT FORK	1-31329-015-0	01	1	9202-	●
119	SPRING; SHIFT FORK	1-31329-014-0	01	1	9202-	●
119	SPRING; SHIFT FORK	1-09585-054-0	01	1	9202-		●	●
119	SPRING; SHIFT FORK	1-09585-053-0	01	1	9202-		●	●
120	HOSE; FLEX,SHIFT BLOCK,CLU L=615	1-09364-717-0	01	1	9202-	●
120	HOSE; FLEX,SHIFT BLOCK,CLU L=315	9-09919-042-0	01	1	9202-		●	●
122	NIPPLE; GREASE,FLEX HOSE,SHIFT BLOCK PT1/8 STRAIGHT	9-09031-010-0	01	1	9202-	●	●	●
123	CLIP; FLEX HOSE,SHIFT BLOCK (C) ID=13 L=20	1-09701-138-1	01	1	9202-	●
123	CLIP; FLEX HOSE,SHIFT BLOCK (A) ID=15.5	1-09700-814-1	01	1	9202-	●	●	●
123	CLIP; FLEX HOSE,SHIFT BLOCK (B) ID=22	1-09700-644-1	01	1	9202-		●	●
124	BEARING; CAM,SHIFT FORK	1-31349-004-1	02	1	9202-		●	●
125	SHAFT; CLU	1-31342-265-0	01	1	9202-	●
125	SHAFT; CLU 14" CLUTCH(WF6)	1-31342-169-1	01	1	9202-		●	●
125	SHAFT; CLU 14"SPICER CLUTCH(SFF)	1-31342-248-0	01	1	9202-		●	●
128	KEY; FEATHER,CLU SHAFT	9-09867-008-0	02	1	9202-	●	●	●
130	SCREW; SHIFT FORK M8X14	9-06120-814-0	01	1	9202-	●	●	●
131	WASHER; LK,SHIFT FORK ID=8.2	9-09150-508-0	01	1	9202-	●	●	●
137	BOLT; CLU COVER 14" CLUTCH(WF6) M10X22	0-23801-022-0	12	1	9202-9504	●	●	●
137	BOLT; CLU COVER 14" CLUTCH(WF6) M10X20 FLANGE	0-28181-020-0	12	1	9505-	●	●	●
137	BOLT; CLU COVER 14"SPICER CLUTCH(SFF) M8X20	9-02060-820-0	12	1	9202-	●	●	●
138	WASHER; LK,CLU COVER 14" CLUTCH(WF6) ID=10.2	9-09150-510-0	12	1	9202-9504	●	●	●
138	WASHER; LK,CLU COVER 14"SPICER CLUTCH(SFF) ID=8.2	9-09150-508-0	12	1	9202-	●	●	●
172	LEVER KIT; RELEASE,CLU 14" CLUTCH(WF6)	1-87830-620-0	01	1	9202-	●	●	●
222	BOLT; STRAP 14" CLUTCH(WF6) (A) M10X23.2	1-09040-042-0	04	1	9202-	●	●	●
222	BOLT; STRAP 14" CLUTCH(WF6) (B) M10X26 HEX SOCKET	1-09040-043-0	04	1	9202-	●	●	●

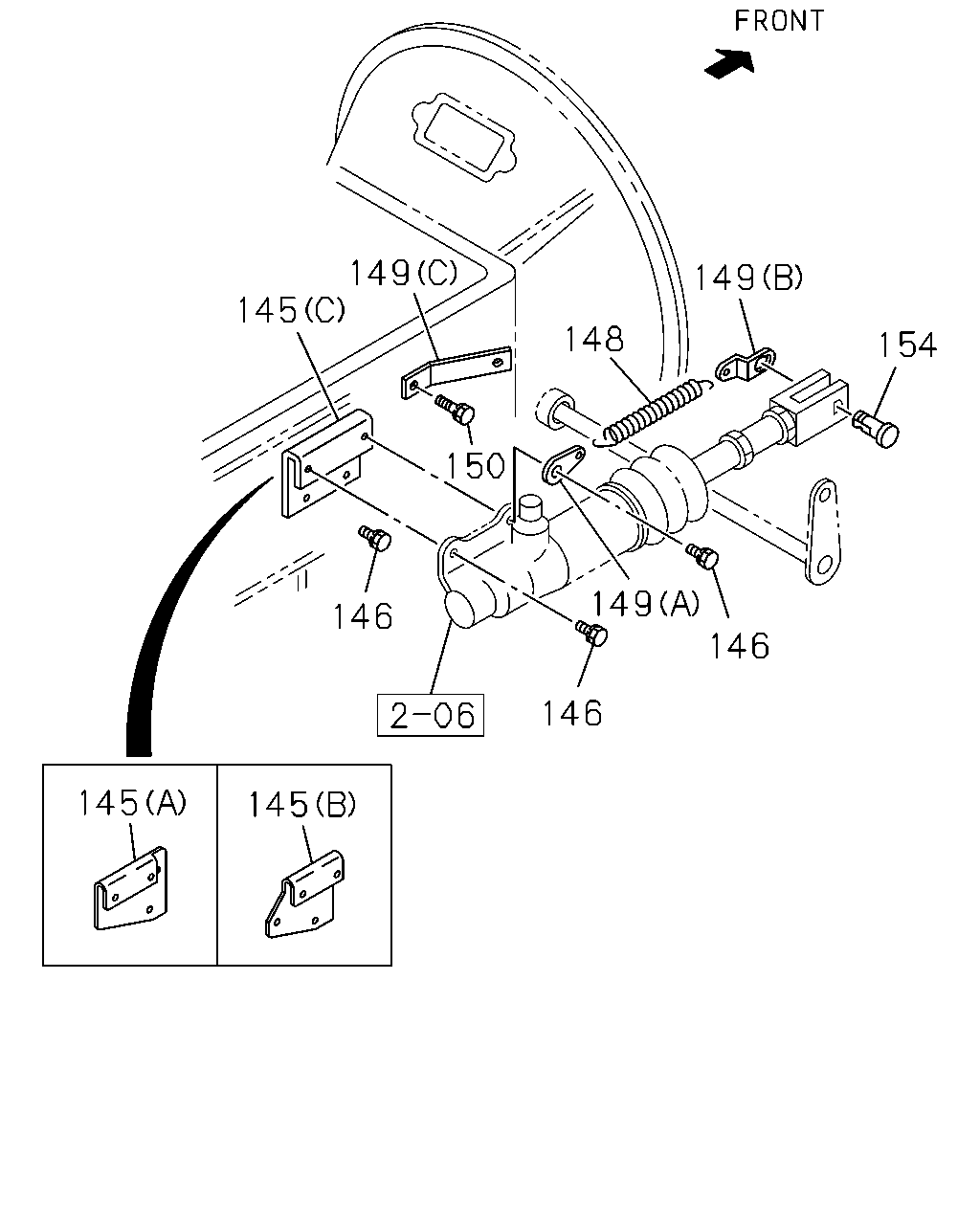

149 145 149 148 154 150 149 146 146 146 145 145

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
145	BRACKET; SLAVE CYL,OIL CLU (C)	1-47579-007-0	01	1	9202-	●
145	BRACKET; SLAVE CYL,OIL CLU 14" CLUTCH(WF6) (B)	1-47579-044-0	01	1	9202-9206		●	●
145	BRACKET; SLAVE CYL,OIL CLU 14" CLUTCH(WF6) (B)	1-47579-051-0	01	1	9207-		●	●
145	BRACKET; SLAVE CYL,OIL CLU 14"SPICER CLUTCH(SFF) (A)	1-47579-038-0	01	1	9202-		●	●
146	BOLT; SLAVE CYL TO TRANS CASE M10X25 W/LK WASHER	0-50051-025-0	04	1	9202-9205	●	●	●
146	BOLT; SLAVE CYL TO TRANS CASE M10X25 FLANGE	0-28181-025-0	04	1	9206-	●	●	●
148	SPRING; CLU RETURN	1-09583-249-0	01	1	9202-	●	●	●
149	EYE; SPRING,RETURN SPRING (C)	1-31426-017-0	01	1	9202-	●
149	EYE; SPRING,RETURN SPRING (B)	1-31426-019-1	01	1	9202-	●	●	●
149	EYE; SPRING,RETURN SPRING (A)	1-47324-005-1	01	1	9202-		●	●
150	BOLT; SPRING EYE M10X25 W/LK WASHER	0-50051-025-0	01	1	9202-9205	●
150	BOLT; SPRING EYE M10X18 FLANGE	0-28181-018-0	01	1	9206-	●
154	PIN; JAW JOINT	1-31424-001-1	01	1	9202-9312	●	●	●
154	PIN; JAW JOINT	1-31424-009-0	01	1	9401-	●	●	●
