Sayfa 4-25A - Isuzu EPC

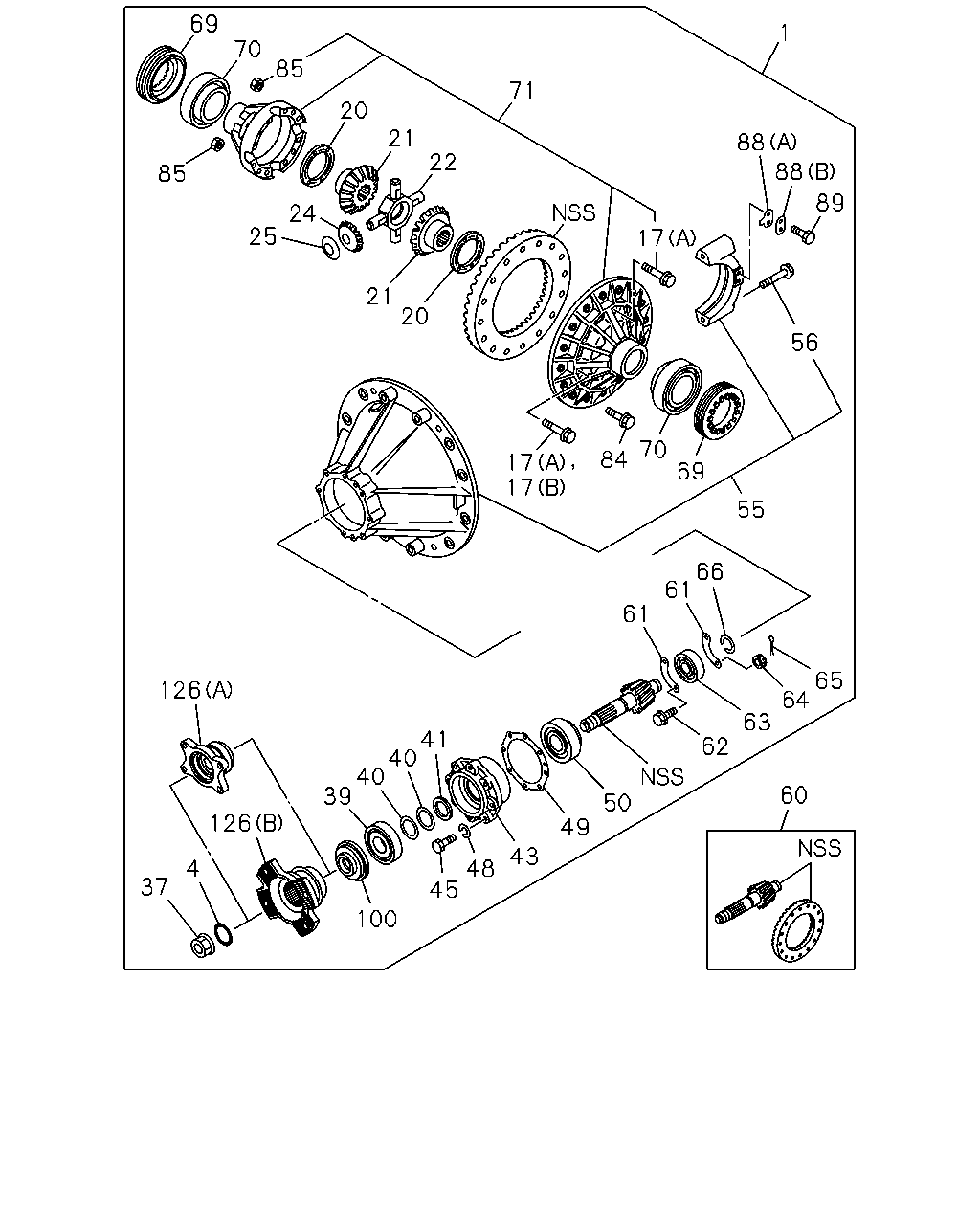

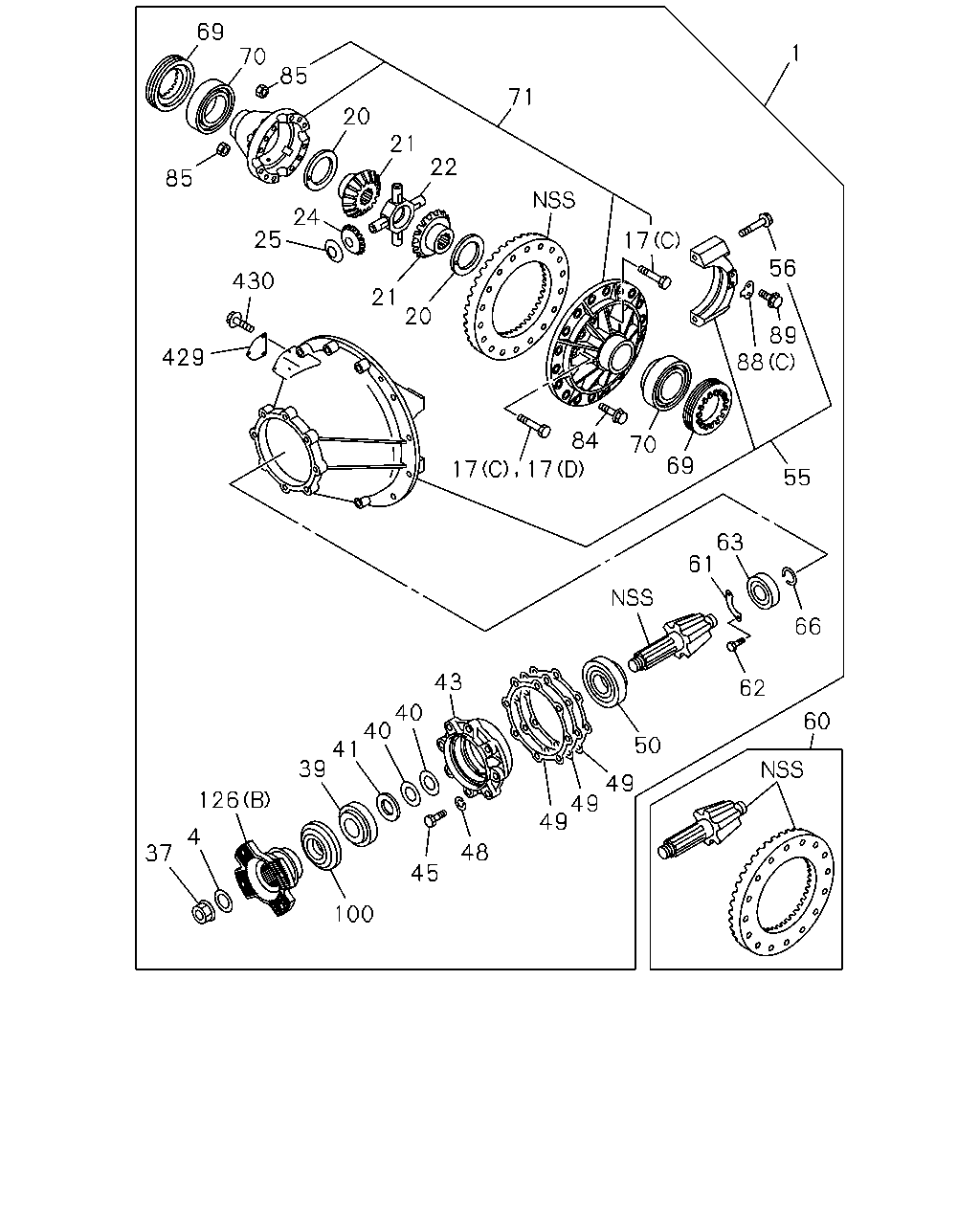

4-25A — REAR FINAL DRIVE (#33999) — 427 parça

69 1 70 85 71 20 21 88 22 88 85 89 24 25 17 21 20 56 70 84 17 17 69 55 66 61 61 65 64 126 63 41 40 40 39 62 50 60 126 49 43 4 48 45 37 100

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
1	DRIVE ASM; FINAL,RR 41/6	1-41002-800-0	01	1	1007-	●
1	DRIVE ASM; FINAL,RR ZF6S1000 M/T(Y5D) 45/7	1-41001-381-0	01	1	0810-		●
1	DRIVE ASM; FINAL,RR ZF6S1000 M/T(Y5D) 43/7	1-41001-382-0	01	1	0810-			●
1	DRIVE ASM; FINAL,RR 37/6	1-41002-391-0	01	1	0809-				●
1	DRIVE ASM; FINAL,RR 40/6	1-41002-660-0	01	1	0809-					●
1	DRIVE ASM; FINAL,RR 45/7	1-41002-601-0	01	1	0710-0809		●
1	DRIVE ASM; FINAL,RR ZF9S1110 M/T(Y5E) 45/7	1-41002-601-0	01	1	0810-		●
1	DRIVE ASM; FINAL,RR 43/7	1-41002-375-0	01	1	0710-0809			●
1	DRIVE ASM; FINAL,RR ZF9S1110 M/T(Y5E) 43/7	1-41002-375-0	01	1	0810-			●
4	GASKET; FLANGE,FINAL PINION ID=57	1-09623-386-0	01	1	0710-0808		●	●
4	GASKET; FLANGE,FINAL PINION ID=57	1-09623-386-0	01	1	0809-1006		●	●	●	●
4	GASKET; FLANGE,FINAL PINION ID=57	1-09623-386-0	01	1	1007-	●	●	●	●	●
17	BOLT; DIFF CAGE SETTING (C) M16X141 FLANGE	1-09070-013-0	08	1	0809-				●	●
17	BOLT; DIFF CAGE SETTING (D) M16X105 FLANGE	1-09070-014-0	04	1	0809-				●	●
17	BOLT; DIFF CAGE SETTING (B) M16X125	1-09070-007-0	04	1	0710-1006		●	●
17	BOLT; DIFF CAGE SETTING (B) M16X125	1-09070-007-0	04	1	1007-	●	●	●
17	BOLT; DIFF CAGE SETTING (A) M16X113	1-09070-018-0	08	1	0710-1006		●	●
17	BOLT; DIFF CAGE SETTING (A) M16X113	1-09070-018-0	08	1	1007-	●	●	●
20	WASHER; THRUST,SIDE GEAR T=2.8	1-41562-270-1	AR	1	0809-				●	●
20	WASHER; THRUST,SIDE GEAR T=2.9	1-41562-271-1	AR	1	0809-				●	●
20	WASHER; THRUST,SIDE GEAR T=3.0	1-41562-272-1	AR	1	0809-				●	●
20	WASHER; THRUST,SIDE GEAR T=3.1	1-41562-273-1	AR	1	0809-				●	●
20	WASHER; THRUST,SIDE GEAR T=3.2	1-41562-274-1	AR	1	0809-				●	●
20	WASHER; THRUST,SIDE GEAR T=3.3	1-41562-275-1	AR	1	0809-				●	●
20	WASHER; THRUST,SIDE GEAR T=3.4	1-41562-276-1	AR	1	0809-				●	●
20	WASHER; THRUST,SIDE GEAR T=2.8	1-41562-112-0	AR	1	0710-1006		●	●
20	WASHER; THRUST,SIDE GEAR T=2.8	1-41562-112-0	AR	1	1007-	●	●	●
20	WASHER; THRUST,SIDE GEAR T=2.9	1-41562-113-0	AR	1	0710-1006		●	●
20	WASHER; THRUST,SIDE GEAR T=2.9	1-41562-113-0	AR	1	1007-	●	●	●
20	WASHER; THRUST,SIDE GEAR T=3.0	1-41562-114-0	AR	1	0710-1006		●	●
20	WASHER; THRUST,SIDE GEAR T=3.0	1-41562-114-0	AR	1	1007-	●	●	●
20	WASHER; THRUST,SIDE GEAR T=3.1	1-41562-115-0	AR	1	0710-1006		●	●
20	WASHER; THRUST,SIDE GEAR T=3.1	1-41562-115-0	AR	1	1007-	●	●	●
20	WASHER; THRUST,SIDE GEAR T=3.2	1-41562-116-0	AR	1	0710-1006		●	●
20	WASHER; THRUST,SIDE GEAR T=3.2	1-41562-116-0	AR	1	1007-	●	●	●
20	WASHER; THRUST,SIDE GEAR T=3.3	1-41562-117-0	AR	1	0710-1006		●	●
20	WASHER; THRUST,SIDE GEAR T=3.3	1-41562-117-0	AR	1	1007-	●	●	●
20	WASHER; THRUST,SIDE GEAR T=3.4	1-41562-118-0	AR	1	0710-1006		●	●
20	WASHER; THRUST,SIDE GEAR T=3.4	1-41562-118-0	AR	1	1007-	●	●	●
21	GEAR; SIDE,DIFF Z=16	1-41561-142-0	02	1	0809-0911				●	●
21	GEAR; SIDE,DIFF Z=16	1-41561-167-0	02	1	0912-				●	●
21	GEAR; SIDE,DIFF Z=16	1-41561-139-0	02	1	0710-0905		●	●
21	GEAR; SIDE,DIFF Z=16	1-41561-151-0	02	1	0906-1006		●	●
21	GEAR; SIDE,DIFF Z=16	1-41561-151-0	02	1	1007-	●	●	●
22	SPIDER; DIFF PINION OD=35	1-41521-052-0	01	1	0809-				●	●
22	SPIDER; DIFF PINION OD=35	1-41521-037-2	01	1	0710-1006		●	●
22	SPIDER; DIFF PINION OD=35	1-41521-037-2	01	1	1007-	●	●	●
24	GEAR; PINION,DIFF Z=10	1-41551-045-0	04	1	0809-0911				●	●
24	GEAR; PINION,DIFF Z=10	1-41551-054-0	04	1	0912-				●	●
24	GEAR; PINION,DIFF Z=10	1-41551-044-0	04	1	0710-0905		●	●
24	GEAR; PINION,DIFF Z=10	1-41551-053-0	04	1	0906-1006		●	●
24	GEAR; PINION,DIFF Z=10	1-41551-053-0	04	1	1007-	●	●	●
25	WASHER; THRUST,PINION T=1.6	1-41552-003-0	04	1	0809-				●	●
25	WASHER; THRUST,PINION T=1.6	1-41552-017-0	04	1	0710-1006		●	●
25	WASHER; THRUST,PINION T=1.6	1-41552-017-0	04	1	1007-	●	●	●
37	NUT; DRIVING PINION M46 FLANGE	1-09449-071-0	01	1	0710-0808		●	●
37	NUT; DRIVING PINION M46 FLANGE	1-09449-071-0	01	1	0809-1006		●	●	●	●
37	NUT; DRIVING PINION M46 FLANGE	1-09449-071-0	01	1	1007-	●	●	●	●	●
39	BEARING; FINAL PINION NSK	1-09812-075-0	01	1	0710-0808		●	●
39	BEARING; FINAL PINION NSK	1-09812-075-0	01	1	0809-1006		●	●	●	●
39	BEARING; FINAL PINION NSK	1-09812-075-0	01	1	1007-	●	●	●	●	●
39	BEARING; FINAL PINION JTEKT	1-09812-076-1	01	1	0710-0808		●	●
39	BEARING; FINAL PINION JTEKT	1-09812-076-1	01	1	0809-1006		●	●	●	●
39	BEARING; FINAL PINION JTEKT	1-09812-076-1	01	1	1007-	●	●	●	●	●
40	SHIM; FINAL PINION T=3.25	1-41229-245-0	AR	1	0710-0808		●	●
40	SHIM; FINAL PINION T=3.25	1-41229-245-0	AR	1	0809-1006		●	●	●	●
40	SHIM; FINAL PINION T=3.25	1-41229-245-0	AR	1	1007-	●	●	●	●	●
40	SHIM; FINAL PINION T=3.26	1-41229-246-0	AR	1	0710-0808		●	●
40	SHIM; FINAL PINION T=3.26	1-41229-246-0	AR	1	0809-1006		●	●	●	●
40	SHIM; FINAL PINION T=3.26	1-41229-246-0	AR	1	1007-	●	●	●	●	●
40	SHIM; FINAL PINION T=3.27	1-41229-247-0	AR	1	0710-0808		●	●
40	SHIM; FINAL PINION T=3.27	1-41229-247-0	AR	1	0809-1006		●	●	●	●
40	SHIM; FINAL PINION T=3.27	1-41229-247-0	AR	1	1007-	●	●	●	●	●
40	SHIM; FINAL PINION T=3.28	1-41229-248-0	AR	1	0710-0808		●	●
40	SHIM; FINAL PINION T=3.28	1-41229-248-0	AR	1	0809-1006		●	●	●	●
40	SHIM; FINAL PINION T=3.28	1-41229-248-0	AR	1	1007-	●	●	●	●	●
40	SHIM; FINAL PINION T=3.29	1-41229-249-0	AR	1	0710-0808		●	●
40	SHIM; FINAL PINION T=3.29	1-41229-249-0	AR	1	0809-1006		●	●	●	●
40	SHIM; FINAL PINION T=3.29	1-41229-249-0	AR	1	1007-	●	●	●	●	●
40	SHIM; FINAL PINION T=3.30	1-41229-250-0	AR	1	0710-0808		●	●
40	SHIM; FINAL PINION T=3.30	1-41229-250-0	AR	1	0809-1006		●	●	●	●
40	SHIM; FINAL PINION T=3.30	1-41229-250-0	AR	1	1007-	●	●	●	●	●
40	SHIM; FINAL PINION T=3.31	1-41229-251-0	AR	1	0710-0808		●	●
40	SHIM; FINAL PINION T=3.31	1-41229-251-0	AR	1	0809-1006		●	●	●	●
40	SHIM; FINAL PINION T=3.31	1-41229-251-0	AR	1	1007-	●	●	●	●	●
40	SHIM; FINAL PINION T=3.32	1-41229-252-0	AR	1	0710-0808		●	●
40	SHIM; FINAL PINION T=3.32	1-41229-252-0	AR	1	0809-1006		●	●	●	●
40	SHIM; FINAL PINION T=3.32	1-41229-252-0	AR	1	1007-	●	●	●	●	●
40	SHIM; FINAL PINION T=3.33	1-41229-253-0	AR	1	0710-0808		●	●
40	SHIM; FINAL PINION T=3.33	1-41229-253-0	AR	1	0809-1006		●	●	●	●
40	SHIM; FINAL PINION T=3.33	1-41229-253-0	AR	1	1007-	●	●	●	●	●
40	SHIM; FINAL PINION T=3.34	1-41229-254-0	AR	1	0710-0808		●	●
40	SHIM; FINAL PINION T=3.34	1-41229-254-0	AR	1	0809-1006		●	●	●	●
40	SHIM; FINAL PINION T=3.34	1-41229-254-0	AR	1	1007-	●	●	●	●	●
40	SHIM; FINAL PINION T=3.35	1-41229-255-0	AR	1	0710-0808		●	●
40	SHIM; FINAL PINION T=3.35	1-41229-255-0	AR	1	0809-1006		●	●	●	●
40	SHIM; FINAL PINION T=3.35	1-41229-255-0	AR	1	1007-	●	●	●	●	●
41	SPACER; FINAL DRIVE PINION BRG T=7.60	1-41229-237-0	AR	1	0710-0808		●	●
41	SPACER; FINAL DRIVE PINION BRG T=7.60	1-41229-237-0	AR	1	0809-1006		●	●	●	●
41	SPACER; FINAL DRIVE PINION BRG T=7.60	1-41229-237-0	AR	1	1007-	●	●	●	●	●
41	SPACER; FINAL DRIVE PINION BRG T=7.80	1-41229-238-0	AR	1	0710-0808		●	●
41	SPACER; FINAL DRIVE PINION BRG T=7.80	1-41229-238-0	AR	1	0809-1006		●	●	●	●
41	SPACER; FINAL DRIVE PINION BRG T=7.80	1-41229-238-0	AR	1	1007-	●	●	●	●	●
41	SPACER; FINAL DRIVE PINION BRG T=8.00	1-41229-239-0	AR	1	0710-0808		●	●
41	SPACER; FINAL DRIVE PINION BRG T=8.00	1-41229-239-0	AR	1	0809-1006		●	●	●	●
41	SPACER; FINAL DRIVE PINION BRG T=8.00	1-41229-239-0	AR	1	1007-	●	●	●	●	●
41	SPACER; FINAL DRIVE PINION BRG T=8.20	1-41229-240-0	AR	1	0710-0808		●	●
41	SPACER; FINAL DRIVE PINION BRG T=8.20	1-41229-240-0	AR	1	0809-1006		●	●	●	●
41	SPACER; FINAL DRIVE PINION BRG T=8.20	1-41229-240-0	AR	1	1007-	●	●	●	●	●
41	SPACER; FINAL DRIVE PINION BRG T=8.40	1-41229-241-0	AR	1	0710-0808		●	●
41	SPACER; FINAL DRIVE PINION BRG T=8.40	1-41229-241-0	AR	1	0809-1006		●	●	●	●
41	SPACER; FINAL DRIVE PINION BRG T=8.40	1-41229-241-0	AR	1	1007-	●	●	●	●	●
41	SPACER; FINAL DRIVE PINION BRG T=8.60	1-41229-242-0	AR	1	0710-0808		●	●
41	SPACER; FINAL DRIVE PINION BRG T=8.60	1-41229-242-0	AR	1	0809-1006		●	●	●	●
41	SPACER; FINAL DRIVE PINION BRG T=8.60	1-41229-242-0	AR	1	1007-	●	●	●	●	●
41	SPACER; FINAL DRIVE PINION BRG T=8.80	1-41229-243-0	AR	1	0710-0808		●	●
41	SPACER; FINAL DRIVE PINION BRG T=8.80	1-41229-243-0	AR	1	0809-1006		●	●	●	●
41	SPACER; FINAL DRIVE PINION BRG T=8.80	1-41229-243-0	AR	1	1007-	●	●	●	●	●
41	SPACER; FINAL DRIVE PINION BRG T=9.00	1-41229-244-0	AR	1	0710-0808		●	●
41	SPACER; FINAL DRIVE PINION BRG T=9.00	1-41229-244-0	AR	1	0809-1006		●	●	●	●
41	SPACER; FINAL DRIVE PINION BRG T=9.00	1-41229-244-0	AR	1	1007-	●	●	●	●	●
43	CAGE; FINAL PINION T=82	1-41151-057-0	01	1	0809-				●	●
43	CAGE; FINAL PINION T=81	1-41151-030-0	01	1	0710-1006		●	●
43	CAGE; FINAL PINION T=81	1-41151-030-0	01	1	1007-	●	●	●
45	BOLT; FINAL PINION CAGE M16X55	0-16806-655-0	08	1	0710-0808		●	●
45	BOLT; FINAL PINION CAGE M16X55	0-16806-655-0	08	1	0809-1006		●	●	●	●
45	BOLT; FINAL PINION CAGE M16X55	0-16806-655-0	08	1	1007-	●	●	●	●	●
48	WASHER; LK,FINAL PINION ID=16.2	0-91510-516-0	08	1	0710-0808		●	●
48	WASHER; LK,FINAL PINION ID=16.2	0-91510-516-0	08	1	0809-1006		●	●	●	●
48	WASHER; LK,FINAL PINION ID=16.2	0-91510-516-0	08	1	1007-	●	●	●	●	●
49	SHIM; FINAL PINION CAGE T=0.50	1-41154-077-0	AR	1	0809-				●	●
49	SHIM; FINAL PINION CAGE T=1.000	1-41154-078-0	AR	1	0809-				●	●
49	SHIM; FINAL PINION CAGE T=0.30	1-41154-079-0	AR	1	0809-				●	●
49	SHIM; FINAL PINION CAGE T=0.40	1-41154-080-0	AR	1	0809-				●	●
49	SHIM; FINAL PINION CAGE T=0.50	1-41154-024-0	AR	1	0710-1006		●	●
49	SHIM; FINAL PINION CAGE T=0.50	1-41154-024-0	AR	1	1007-	●	●	●
49	SHIM; FINAL PINION CAGE T=1.00	1-41154-025-0	AR	1	0710-1006		●	●
49	SHIM; FINAL PINION CAGE T=1.00	1-41154-025-0	AR	1	1007-	●	●	●
49	SHIM; FINAL PINION CAGE T=0.30	1-41154-057-0	AR	1	0710-1006		●	●
49	SHIM; FINAL PINION CAGE T=0.30	1-41154-057-0	AR	1	1007-	●	●	●
49	SHIM; FINAL PINION CAGE T=0.40	1-41154-058-0	AR	1	0710-1006		●	●
49	SHIM; FINAL PINION CAGE T=0.40	1-41154-058-0	AR	1	1007-	●	●	●
50	BEARING; FINAL PINION NSK	1-09812-073-1	01	1	0710-0808		●	●
50	BEARING; FINAL PINION NSK	1-09812-073-1	01	1	0809-1006		●	●	●	●
50	BEARING; FINAL PINION NSK	1-09812-073-1	01	1	1007-	●	●	●	●	●
50	BEARING; FINAL PINION JTEKT	1-09812-074-1	01	1	0710-0808		●	●
50	BEARING; FINAL PINION JTEKT	1-09812-074-2	01	1	0809-1006		●	●	●	●
50	BEARING; FINAL PINION JTEKT	1-09812-074-3	01	1	1007-	●	●	●	●	●
55	CARRIER; DIFF	1-41110-117-1	01	1	0809-				●	●
55	CARRIER; DIFF	1-41110-109-0	01	1	0710-1006		●	●
55	CARRIER; DIFF	1-41110-109-0	01	1	1007-	●	●	●
56	BOLT; BRG CAP M20X125 FLANGE	1-09070-015-0	04	1	0809-				●	●
56	BOLT; BRG CAP M20X112	1-09070-042-0	04	1	0710-1006		●	●
56	BOLT; BRG CAP M20X112	1-09070-042-0	04	1	1007-	●	●	●
60	GEAR SET; FINAL DRIVE,RR 41/6	1-41210-601-0	01	1	1007-	●
60	GEAR SET; FINAL DRIVE,RR 37/6	1-41210-614-0	01	1	0809-				●
60	GEAR SET; FINAL DRIVE,RR 40/6	1-41210-613-0	01	1	0809-					●
60	GEAR SET; FINAL DRIVE,RR 45/7	1-41210-602-0	01	1	0710-		●
60	GEAR SET; FINAL DRIVE,RR 43/7	1-41210-603-0	01	1	0710-			●
61	RETAINER; PILOT BRG,PINION T=3.2	1-41227-008-0	01	1	0809-				●	●
61	RETAINER; PILOT BRG,PINION T=3.2	1-41227-012-0	02	1	0710-1006		●	●
61	RETAINER; PILOT BRG,PINION T=3.2	1-41227-012-0	02	1	1007-	●	●	●
62	BOLT; RET M8X16	0-20850-816-0	02	1	0809-				●	●
62	BOLT; RET M8X40 W/PIN HOLE	1-09042-038-1	02	1	0710-1006		●	●
62	BOLT; RET M8X40 W/PIN HOLE	1-09042-038-1	02	1	1007-	●	●	●
63	BEARING; PINION PILOT NSK	1-09810-152-0	01	1	0809-				●	●
63	BEARING; PINION PILOT JTEKT	1-09810-153-0	01	1	0809-				●	●
63	BEARING; PINION PILOT JTEKT	1-09810-182-0	01	1	0710-1006		●	●
63	BEARING; PINION PILOT JTEKT	1-09810-182-0	01	1	1007-	●	●	●
63	BEARING; PINION PILOT NSK	1-09810-183-0	01	1	0710-1006		●	●
63	BEARING; PINION PILOT NSK	1-09810-183-0	01	1	1007-	●	●	●
64	NUT; RET M8 SLOTTED	0-91117-508-0	02	1	0710-1006		●	●
64	NUT; RET M8 SLOTTED	0-91117-508-0	02	1	1007-	●	●	●
65	PIN; SPLIT,RET	9-08112-012-0	02	1	0710-0805		●	●
65	PIN; SPLIT,RET	0-81122-012-0	02	1	0806-1006		●	●
65	PIN; SPLIT,RET	0-81122-012-0	02	1	1007-	●	●	●
66	RING; SNAP,PILOT BRG OD=45.9	1-09588-061-0	01	1	0809-				●	●
66	RING; SNAP,PILOT BRG OD=37.2	1-09588-086-1	01	1	0710-1006		●	●
66	RING; SNAP,PILOT BRG OD=37.2	1-09588-086-2	01	1	1007-	●	●	●
69	NUT; ADJ,DIFF CAGE	1-41121-050-0	01	1	0809-				●	●
69	NUT; ADJ,DIFF CAGE	1-41121-051-0	01	1	0809-				●	●
69	NUT; ADJ,DIFF CAGE M155 H=26	1-41121-001-0	01	1	0710-1006		●	●
69	NUT; ADJ,DIFF CAGE M155 H=26	1-41121-001-0	01	1	1007-	●	●	●
69	NUT; ADJ,DIFF CAGE M155 H=30	1-41121-002-0	01	1	0710-1006		●	●
69	NUT; ADJ,DIFF CAGE M155 H=30	1-41121-002-0	01	1	1007-	●	●	●
70	BEARING; DIFF CAGE JTEKT ID=110 OD=170 T=38	1-09812-226-0	02	1	0809-				●	●
70	BEARING; DIFF CAGE JTEKT ID=92 OD=152 T=40	1-09812-225-0	02	1	0710-1006		●	●
70	BEARING; DIFF CAGE JTEKT ID=92 OD=152 T=40	1-09812-225-0	02	1	1007-	●	●	●
71	CAGE ASM; DIFF,FINAL DRIVE	1-41510-253-0	01	1	0809-				●	●
71	CAGE ASM; DIFF,FINAL DRIVE	1-41510-141-0	01	1	0710-1006		●	●
71	CAGE ASM; DIFF,FINAL DRIVE	1-41510-141-0	01	1	1007-	●	●	●
84	BOLT; FINAL DRIVE GEAR M18X38 FLANGE	1-09009-049-1	18	1	0809-				●	●
84	BOLT; FINAL DRIVE GEAR M18X38 FLANGE	1-09009-049-1	16	1	0710-1006		●	●
84	BOLT; FINAL DRIVE GEAR M18X38 FLANGE	1-09009-049-1	16	1	1007-	●	●	●
85	NUT; DIFF CAGE SETTING M16	0-91110-516-0	12	1	0710-0808		●	●
85	NUT; DIFF CAGE SETTING M16	0-91110-516-0	12	1	0809-1006		●	●	●	●
85	NUT; DIFF CAGE SETTING M16	0-91110-516-0	12	1	1007-	●	●	●	●	●
88	PLATE; LK,ADJ NUT (C) T=3.2	1-41124-026-0	02	1	0809-				●	●
88	PLATE; LK,ADJ NUT (A) T=3.2	1-41124-006-0	02	1	0710-1006		●	●
88	PLATE; LK,ADJ NUT (A) T=3.2	1-41124-006-0	02	1	1007-	●	●	●
88	PLATE; LK,ADJ NUT (B) T=1.0	9-41124-005-0	02	1	0710-1006		●	●
88	PLATE; LK,ADJ NUT (B) T=1.0	9-41124-005-0	02	1	1007-	●	●	●
89	BOLT; LK PLATE M10X20 FLANGE	0-28751-020-0	04	1	0809-				●	●
89	BOLT; LK PLATE M8X16	0-20850-816-0	04	1	0710-1006		●	●
89	BOLT; LK PLATE M8X16	0-20850-816-0	04	1	1007-	●	●	●
100	SEAL; OIL,FINAL PINION NOK	1-09625-322-0	01	1	0710-0808		●	●
100	SEAL; OIL,FINAL PINION NOK	1-09625-322-0	01	1	0809-1006		●	●	●	●
100	SEAL; OIL,FINAL PINION NOK	1-09625-322-0	01	1	1007-	●	●	●	●	●
126	COUPLING; DRIVING PINION ZF6S1000 M/T(Y5D) (A)	1-37245-265-2	01	1	0810-		●	●
126	COUPLING; DRIVING PINION (B)	1-37245-343-0	01	1	0710-0808		●	●
126	COUPLING; DRIVING PINION (B)	1-37245-343-0	01	1	0809-0809		●	●	●	●
126	COUPLING; DRIVING PINION ZF9S1110 M/T(Y5E) (B)	1-37245-343-0	01	1	0810-1006		●	●
126	COUPLING; DRIVING PINION (B)	1-37245-343-0	01	1	0810-1006				●	●
126	COUPLING; DRIVING PINION ZF9S1110 M/T(Y5E) (B)	1-37245-343-0	01	1	1007-		●	●
126	COUPLING; DRIVING PINION (B)	1-37245-343-0	01	1	1007-	●			●	●

69 1 70 85 71 20 21 22 85 24 25 17 56 430 21 20 89 88 429 84 70 69 17 17 55 63 61 66 43 62 40 40 41 39 60 50 49 49 49 126 4 48 37 45 100

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
1	DRIVE ASM; FINAL,RR 41/6	1-41002-800-0	01	1	1007-	●
1	DRIVE ASM; FINAL,RR ZF6S1000 M/T(Y5D) 45/7	1-41001-381-0	01	1	0810-		●
1	DRIVE ASM; FINAL,RR ZF6S1000 M/T(Y5D) 43/7	1-41001-382-0	01	1	0810-			●
1	DRIVE ASM; FINAL,RR 37/6	1-41002-391-0	01	1	0809-				●
1	DRIVE ASM; FINAL,RR 40/6	1-41002-660-0	01	1	0809-					●
1	DRIVE ASM; FINAL,RR 45/7	1-41002-601-0	01	1	0710-0809		●
1	DRIVE ASM; FINAL,RR ZF9S1110 M/T(Y5E) 45/7	1-41002-601-0	01	1	0810-		●
1	DRIVE ASM; FINAL,RR 43/7	1-41002-375-0	01	1	0710-0809			●
1	DRIVE ASM; FINAL,RR ZF9S1110 M/T(Y5E) 43/7	1-41002-375-0	01	1	0810-			●
4	GASKET; FLANGE,FINAL PINION ID=57	1-09623-386-0	01	1	0710-0808		●	●
4	GASKET; FLANGE,FINAL PINION ID=57	1-09623-386-0	01	1	0809-1006		●	●	●	●
4	GASKET; FLANGE,FINAL PINION ID=57	1-09623-386-0	01	1	1007-	●	●	●	●	●
17	BOLT; DIFF CAGE SETTING (C) M16X141 FLANGE	1-09070-013-0	08	1	0809-				●	●
17	BOLT; DIFF CAGE SETTING (D) M16X105 FLANGE	1-09070-014-0	04	1	0809-				●	●
17	BOLT; DIFF CAGE SETTING (B) M16X125	1-09070-007-0	04	1	0710-1006		●	●
17	BOLT; DIFF CAGE SETTING (B) M16X125	1-09070-007-0	04	1	1007-	●	●	●
17	BOLT; DIFF CAGE SETTING (A) M16X113	1-09070-018-0	08	1	0710-1006		●	●
17	BOLT; DIFF CAGE SETTING (A) M16X113	1-09070-018-0	08	1	1007-	●	●	●
20	WASHER; THRUST,SIDE GEAR T=2.8	1-41562-270-1	AR	1	0809-				●	●
20	WASHER; THRUST,SIDE GEAR T=2.9	1-41562-271-1	AR	1	0809-				●	●
20	WASHER; THRUST,SIDE GEAR T=3.0	1-41562-272-1	AR	1	0809-				●	●
20	WASHER; THRUST,SIDE GEAR T=3.1	1-41562-273-1	AR	1	0809-				●	●
20	WASHER; THRUST,SIDE GEAR T=3.2	1-41562-274-1	AR	1	0809-				●	●
20	WASHER; THRUST,SIDE GEAR T=3.3	1-41562-275-1	AR	1	0809-				●	●
20	WASHER; THRUST,SIDE GEAR T=3.4	1-41562-276-1	AR	1	0809-				●	●
20	WASHER; THRUST,SIDE GEAR T=2.8	1-41562-112-0	AR	1	0710-1006		●	●
20	WASHER; THRUST,SIDE GEAR T=2.8	1-41562-112-0	AR	1	1007-	●	●	●
20	WASHER; THRUST,SIDE GEAR T=2.9	1-41562-113-0	AR	1	0710-1006		●	●
20	WASHER; THRUST,SIDE GEAR T=2.9	1-41562-113-0	AR	1	1007-	●	●	●
20	WASHER; THRUST,SIDE GEAR T=3.0	1-41562-114-0	AR	1	0710-1006		●	●
20	WASHER; THRUST,SIDE GEAR T=3.0	1-41562-114-0	AR	1	1007-	●	●	●
20	WASHER; THRUST,SIDE GEAR T=3.1	1-41562-115-0	AR	1	0710-1006		●	●
20	WASHER; THRUST,SIDE GEAR T=3.1	1-41562-115-0	AR	1	1007-	●	●	●
20	WASHER; THRUST,SIDE GEAR T=3.2	1-41562-116-0	AR	1	0710-1006		●	●
20	WASHER; THRUST,SIDE GEAR T=3.2	1-41562-116-0	AR	1	1007-	●	●	●
20	WASHER; THRUST,SIDE GEAR T=3.3	1-41562-117-0	AR	1	0710-1006		●	●
20	WASHER; THRUST,SIDE GEAR T=3.3	1-41562-117-0	AR	1	1007-	●	●	●
20	WASHER; THRUST,SIDE GEAR T=3.4	1-41562-118-0	AR	1	0710-1006		●	●
20	WASHER; THRUST,SIDE GEAR T=3.4	1-41562-118-0	AR	1	1007-	●	●	●
21	GEAR; SIDE,DIFF Z=16	1-41561-142-0	02	1	0809-0911				●	●
21	GEAR; SIDE,DIFF Z=16	1-41561-167-0	02	1	0912-				●	●
21	GEAR; SIDE,DIFF Z=16	1-41561-139-0	02	1	0710-0905		●	●
21	GEAR; SIDE,DIFF Z=16	1-41561-151-0	02	1	0906-1006		●	●
21	GEAR; SIDE,DIFF Z=16	1-41561-151-0	02	1	1007-	●	●	●
22	SPIDER; DIFF PINION OD=35	1-41521-052-0	01	1	0809-				●	●
22	SPIDER; DIFF PINION OD=35	1-41521-037-2	01	1	0710-1006		●	●
22	SPIDER; DIFF PINION OD=35	1-41521-037-2	01	1	1007-	●	●	●
24	GEAR; PINION,DIFF Z=10	1-41551-045-0	04	1	0809-0911				●	●
24	GEAR; PINION,DIFF Z=10	1-41551-054-0	04	1	0912-				●	●
24	GEAR; PINION,DIFF Z=10	1-41551-044-0	04	1	0710-0905		●	●
24	GEAR; PINION,DIFF Z=10	1-41551-053-0	04	1	0906-1006		●	●
24	GEAR; PINION,DIFF Z=10	1-41551-053-0	04	1	1007-	●	●	●
25	WASHER; THRUST,PINION T=1.6	1-41552-003-0	04	1	0809-				●	●
25	WASHER; THRUST,PINION T=1.6	1-41552-017-0	04	1	0710-1006		●	●
25	WASHER; THRUST,PINION T=1.6	1-41552-017-0	04	1	1007-	●	●	●
37	NUT; DRIVING PINION M46 FLANGE	1-09449-071-0	01	1	0710-0808		●	●
37	NUT; DRIVING PINION M46 FLANGE	1-09449-071-0	01	1	0809-1006		●	●	●	●
37	NUT; DRIVING PINION M46 FLANGE	1-09449-071-0	01	1	1007-	●	●	●	●	●
39	BEARING; FINAL PINION NSK	1-09812-075-0	01	1	0710-0808		●	●
39	BEARING; FINAL PINION NSK	1-09812-075-0	01	1	0809-1006		●	●	●	●
39	BEARING; FINAL PINION NSK	1-09812-075-0	01	1	1007-	●	●	●	●	●
39	BEARING; FINAL PINION JTEKT	1-09812-076-1	01	1	0710-0808		●	●
39	BEARING; FINAL PINION JTEKT	1-09812-076-1	01	1	0809-1006		●	●	●	●
39	BEARING; FINAL PINION JTEKT	1-09812-076-1	01	1	1007-	●	●	●	●	●
40	SHIM; FINAL PINION T=3.25	1-41229-245-0	AR	1	0710-0808		●	●
40	SHIM; FINAL PINION T=3.25	1-41229-245-0	AR	1	0809-1006		●	●	●	●
40	SHIM; FINAL PINION T=3.25	1-41229-245-0	AR	1	1007-	●	●	●	●	●
40	SHIM; FINAL PINION T=3.26	1-41229-246-0	AR	1	0710-0808		●	●
40	SHIM; FINAL PINION T=3.26	1-41229-246-0	AR	1	0809-1006		●	●	●	●
40	SHIM; FINAL PINION T=3.26	1-41229-246-0	AR	1	1007-	●	●	●	●	●
40	SHIM; FINAL PINION T=3.27	1-41229-247-0	AR	1	0710-0808		●	●
40	SHIM; FINAL PINION T=3.27	1-41229-247-0	AR	1	0809-1006		●	●	●	●
40	SHIM; FINAL PINION T=3.27	1-41229-247-0	AR	1	1007-	●	●	●	●	●
40	SHIM; FINAL PINION T=3.28	1-41229-248-0	AR	1	0710-0808		●	●
40	SHIM; FINAL PINION T=3.28	1-41229-248-0	AR	1	0809-1006		●	●	●	●
40	SHIM; FINAL PINION T=3.28	1-41229-248-0	AR	1	1007-	●	●	●	●	●
40	SHIM; FINAL PINION T=3.29	1-41229-249-0	AR	1	0710-0808		●	●
40	SHIM; FINAL PINION T=3.29	1-41229-249-0	AR	1	0809-1006		●	●	●	●
40	SHIM; FINAL PINION T=3.29	1-41229-249-0	AR	1	1007-	●	●	●	●	●
40	SHIM; FINAL PINION T=3.30	1-41229-250-0	AR	1	0710-0808		●	●
40	SHIM; FINAL PINION T=3.30	1-41229-250-0	AR	1	0809-1006		●	●	●	●
40	SHIM; FINAL PINION T=3.30	1-41229-250-0	AR	1	1007-	●	●	●	●	●
40	SHIM; FINAL PINION T=3.31	1-41229-251-0	AR	1	0710-0808		●	●
40	SHIM; FINAL PINION T=3.31	1-41229-251-0	AR	1	0809-1006		●	●	●	●
40	SHIM; FINAL PINION T=3.31	1-41229-251-0	AR	1	1007-	●	●	●	●	●
40	SHIM; FINAL PINION T=3.32	1-41229-252-0	AR	1	0710-0808		●	●
40	SHIM; FINAL PINION T=3.32	1-41229-252-0	AR	1	0809-1006		●	●	●	●
40	SHIM; FINAL PINION T=3.32	1-41229-252-0	AR	1	1007-	●	●	●	●	●
40	SHIM; FINAL PINION T=3.33	1-41229-253-0	AR	1	0710-0808		●	●
40	SHIM; FINAL PINION T=3.33	1-41229-253-0	AR	1	0809-1006		●	●	●	●
40	SHIM; FINAL PINION T=3.33	1-41229-253-0	AR	1	1007-	●	●	●	●	●
40	SHIM; FINAL PINION T=3.34	1-41229-254-0	AR	1	0710-0808		●	●
40	SHIM; FINAL PINION T=3.34	1-41229-254-0	AR	1	0809-1006		●	●	●	●
40	SHIM; FINAL PINION T=3.34	1-41229-254-0	AR	1	1007-	●	●	●	●	●
40	SHIM; FINAL PINION T=3.35	1-41229-255-0	AR	1	0710-0808		●	●
40	SHIM; FINAL PINION T=3.35	1-41229-255-0	AR	1	0809-1006		●	●	●	●
40	SHIM; FINAL PINION T=3.35	1-41229-255-0	AR	1	1007-	●	●	●	●	●
41	SPACER; FINAL DRIVE PINION BRG T=7.60	1-41229-237-0	AR	1	0710-0808		●	●
41	SPACER; FINAL DRIVE PINION BRG T=7.60	1-41229-237-0	AR	1	0809-1006		●	●	●	●
41	SPACER; FINAL DRIVE PINION BRG T=7.60	1-41229-237-0	AR	1	1007-	●	●	●	●	●
41	SPACER; FINAL DRIVE PINION BRG T=7.80	1-41229-238-0	AR	1	0710-0808		●	●
41	SPACER; FINAL DRIVE PINION BRG T=7.80	1-41229-238-0	AR	1	0809-1006		●	●	●	●
41	SPACER; FINAL DRIVE PINION BRG T=7.80	1-41229-238-0	AR	1	1007-	●	●	●	●	●
41	SPACER; FINAL DRIVE PINION BRG T=8.00	1-41229-239-0	AR	1	0710-0808		●	●
41	SPACER; FINAL DRIVE PINION BRG T=8.00	1-41229-239-0	AR	1	0809-1006		●	●	●	●
41	SPACER; FINAL DRIVE PINION BRG T=8.00	1-41229-239-0	AR	1	1007-	●	●	●	●	●
41	SPACER; FINAL DRIVE PINION BRG T=8.20	1-41229-240-0	AR	1	0710-0808		●	●
41	SPACER; FINAL DRIVE PINION BRG T=8.20	1-41229-240-0	AR	1	0809-1006		●	●	●	●
41	SPACER; FINAL DRIVE PINION BRG T=8.20	1-41229-240-0	AR	1	1007-	●	●	●	●	●
41	SPACER; FINAL DRIVE PINION BRG T=8.40	1-41229-241-0	AR	1	0710-0808		●	●
41	SPACER; FINAL DRIVE PINION BRG T=8.40	1-41229-241-0	AR	1	0809-1006		●	●	●	●
41	SPACER; FINAL DRIVE PINION BRG T=8.40	1-41229-241-0	AR	1	1007-	●	●	●	●	●
41	SPACER; FINAL DRIVE PINION BRG T=8.60	1-41229-242-0	AR	1	0710-0808		●	●
41	SPACER; FINAL DRIVE PINION BRG T=8.60	1-41229-242-0	AR	1	0809-1006		●	●	●	●
41	SPACER; FINAL DRIVE PINION BRG T=8.60	1-41229-242-0	AR	1	1007-	●	●	●	●	●
41	SPACER; FINAL DRIVE PINION BRG T=8.80	1-41229-243-0	AR	1	0710-0808		●	●
41	SPACER; FINAL DRIVE PINION BRG T=8.80	1-41229-243-0	AR	1	0809-1006		●	●	●	●
41	SPACER; FINAL DRIVE PINION BRG T=8.80	1-41229-243-0	AR	1	1007-	●	●	●	●	●
41	SPACER; FINAL DRIVE PINION BRG T=9.00	1-41229-244-0	AR	1	0710-0808		●	●
41	SPACER; FINAL DRIVE PINION BRG T=9.00	1-41229-244-0	AR	1	0809-1006		●	●	●	●
41	SPACER; FINAL DRIVE PINION BRG T=9.00	1-41229-244-0	AR	1	1007-	●	●	●	●	●
43	CAGE; FINAL PINION T=82	1-41151-057-0	01	1	0809-				●	●
43	CAGE; FINAL PINION T=81	1-41151-030-0	01	1	0710-1006		●	●
43	CAGE; FINAL PINION T=81	1-41151-030-0	01	1	1007-	●	●	●
45	BOLT; FINAL PINION CAGE M16X55	0-16806-655-0	08	1	0710-0808		●	●
45	BOLT; FINAL PINION CAGE M16X55	0-16806-655-0	08	1	0809-1006		●	●	●	●
45	BOLT; FINAL PINION CAGE M16X55	0-16806-655-0	08	1	1007-	●	●	●	●	●
48	WASHER; LK,FINAL PINION ID=16.2	0-91510-516-0	08	1	0710-0808		●	●
48	WASHER; LK,FINAL PINION ID=16.2	0-91510-516-0	08	1	0809-1006		●	●	●	●
48	WASHER; LK,FINAL PINION ID=16.2	0-91510-516-0	08	1	1007-	●	●	●	●	●
49	SHIM; FINAL PINION CAGE T=0.50	1-41154-077-0	AR	1	0809-				●	●
49	SHIM; FINAL PINION CAGE T=1.000	1-41154-078-0	AR	1	0809-				●	●
49	SHIM; FINAL PINION CAGE T=0.30	1-41154-079-0	AR	1	0809-				●	●
49	SHIM; FINAL PINION CAGE T=0.40	1-41154-080-0	AR	1	0809-				●	●
49	SHIM; FINAL PINION CAGE T=0.50	1-41154-024-0	AR	1	0710-1006		●	●
49	SHIM; FINAL PINION CAGE T=0.50	1-41154-024-0	AR	1	1007-	●	●	●
49	SHIM; FINAL PINION CAGE T=1.00	1-41154-025-0	AR	1	0710-1006		●	●
49	SHIM; FINAL PINION CAGE T=1.00	1-41154-025-0	AR	1	1007-	●	●	●
49	SHIM; FINAL PINION CAGE T=0.30	1-41154-057-0	AR	1	0710-1006		●	●
49	SHIM; FINAL PINION CAGE T=0.30	1-41154-057-0	AR	1	1007-	●	●	●
49	SHIM; FINAL PINION CAGE T=0.40	1-41154-058-0	AR	1	0710-1006		●	●
49	SHIM; FINAL PINION CAGE T=0.40	1-41154-058-0	AR	1	1007-	●	●	●
50	BEARING; FINAL PINION NSK	1-09812-073-1	01	1	0710-0808		●	●
50	BEARING; FINAL PINION NSK	1-09812-073-1	01	1	0809-1006		●	●	●	●
50	BEARING; FINAL PINION NSK	1-09812-073-1	01	1	1007-	●	●	●	●	●
50	BEARING; FINAL PINION JTEKT	1-09812-074-1	01	1	0710-0808		●	●
50	BEARING; FINAL PINION JTEKT	1-09812-074-2	01	1	0809-1006		●	●	●	●
50	BEARING; FINAL PINION JTEKT	1-09812-074-3	01	1	1007-	●	●	●	●	●
55	CARRIER; DIFF	1-41110-117-1	01	1	0809-				●	●
55	CARRIER; DIFF	1-41110-109-0	01	1	0710-1006		●	●
55	CARRIER; DIFF	1-41110-109-0	01	1	1007-	●	●	●
56	BOLT; BRG CAP M20X125 FLANGE	1-09070-015-0	04	1	0809-				●	●
56	BOLT; BRG CAP M20X112	1-09070-042-0	04	1	0710-1006		●	●
56	BOLT; BRG CAP M20X112	1-09070-042-0	04	1	1007-	●	●	●
60	GEAR SET; FINAL DRIVE,RR 41/6	1-41210-601-0	01	1	1007-	●
60	GEAR SET; FINAL DRIVE,RR 37/6	1-41210-614-0	01	1	0809-				●
60	GEAR SET; FINAL DRIVE,RR 40/6	1-41210-613-0	01	1	0809-					●
60	GEAR SET; FINAL DRIVE,RR 45/7	1-41210-602-0	01	1	0710-		●
60	GEAR SET; FINAL DRIVE,RR 43/7	1-41210-603-0	01	1	0710-			●
61	RETAINER; PILOT BRG,PINION T=3.2	1-41227-008-0	01	1	0809-				●	●
61	RETAINER; PILOT BRG,PINION T=3.2	1-41227-012-0	02	1	0710-1006		●	●
61	RETAINER; PILOT BRG,PINION T=3.2	1-41227-012-0	02	1	1007-	●	●	●
62	BOLT; RET M8X16	0-20850-816-0	02	1	0809-				●	●
62	BOLT; RET M8X40 W/PIN HOLE	1-09042-038-1	02	1	0710-1006		●	●
62	BOLT; RET M8X40 W/PIN HOLE	1-09042-038-1	02	1	1007-	●	●	●
63	BEARING; PINION PILOT NSK	1-09810-152-0	01	1	0809-				●	●
63	BEARING; PINION PILOT JTEKT	1-09810-153-0	01	1	0809-				●	●
63	BEARING; PINION PILOT JTEKT	1-09810-182-0	01	1	0710-1006		●	●
63	BEARING; PINION PILOT JTEKT	1-09810-182-0	01	1	1007-	●	●	●
63	BEARING; PINION PILOT NSK	1-09810-183-0	01	1	0710-1006		●	●
63	BEARING; PINION PILOT NSK	1-09810-183-0	01	1	1007-	●	●	●
66	RING; SNAP,PILOT BRG OD=45.9	1-09588-061-0	01	1	0809-				●	●
66	RING; SNAP,PILOT BRG OD=37.2	1-09588-086-1	01	1	0710-1006		●	●
66	RING; SNAP,PILOT BRG OD=37.2	1-09588-086-2	01	1	1007-	●	●	●
69	NUT; ADJ,DIFF CAGE	1-41121-050-0	01	1	0809-				●	●
69	NUT; ADJ,DIFF CAGE	1-41121-051-0	01	1	0809-				●	●
69	NUT; ADJ,DIFF CAGE M155 H=26	1-41121-001-0	01	1	0710-1006		●	●
69	NUT; ADJ,DIFF CAGE M155 H=26	1-41121-001-0	01	1	1007-	●	●	●
69	NUT; ADJ,DIFF CAGE M155 H=30	1-41121-002-0	01	1	0710-1006		●	●
69	NUT; ADJ,DIFF CAGE M155 H=30	1-41121-002-0	01	1	1007-	●	●	●
70	BEARING; DIFF CAGE JTEKT ID=110 OD=170 T=38	1-09812-226-0	02	1	0809-				●	●
70	BEARING; DIFF CAGE JTEKT ID=92 OD=152 T=40	1-09812-225-0	02	1	0710-1006		●	●
70	BEARING; DIFF CAGE JTEKT ID=92 OD=152 T=40	1-09812-225-0	02	1	1007-	●	●	●
71	CAGE ASM; DIFF,FINAL DRIVE	1-41510-253-0	01	1	0809-				●	●
71	CAGE ASM; DIFF,FINAL DRIVE	1-41510-141-0	01	1	0710-1006		●	●
71	CAGE ASM; DIFF,FINAL DRIVE	1-41510-141-0	01	1	1007-	●	●	●
84	BOLT; FINAL DRIVE GEAR M18X38 FLANGE	1-09009-049-1	18	1	0809-				●	●
84	BOLT; FINAL DRIVE GEAR M18X38 FLANGE	1-09009-049-1	16	1	0710-1006		●	●
84	BOLT; FINAL DRIVE GEAR M18X38 FLANGE	1-09009-049-1	16	1	1007-	●	●	●
85	NUT; DIFF CAGE SETTING M16	0-91110-516-0	12	1	0710-0808		●	●
85	NUT; DIFF CAGE SETTING M16	0-91110-516-0	12	1	0809-1006		●	●	●	●
85	NUT; DIFF CAGE SETTING M16	0-91110-516-0	12	1	1007-	●	●	●	●	●
88	PLATE; LK,ADJ NUT (C) T=3.2	1-41124-026-0	02	1	0809-				●	●
88	PLATE; LK,ADJ NUT (A) T=3.2	1-41124-006-0	02	1	0710-1006		●	●
88	PLATE; LK,ADJ NUT (A) T=3.2	1-41124-006-0	02	1	1007-	●	●	●
88	PLATE; LK,ADJ NUT (B) T=1.0	9-41124-005-0	02	1	0710-1006		●	●
88	PLATE; LK,ADJ NUT (B) T=1.0	9-41124-005-0	02	1	1007-	●	●	●
89	BOLT; LK PLATE M10X20 FLANGE	0-28751-020-0	04	1	0809-				●	●
89	BOLT; LK PLATE M8X16	0-20850-816-0	04	1	0710-1006		●	●
89	BOLT; LK PLATE M8X16	0-20850-816-0	04	1	1007-	●	●	●
100	SEAL; OIL,FINAL PINION NOK	1-09625-322-0	01	1	0710-0808		●	●
100	SEAL; OIL,FINAL PINION NOK	1-09625-322-0	01	1	0809-1006		●	●	●	●
100	SEAL; OIL,FINAL PINION NOK	1-09625-322-0	01	1	1007-	●	●	●	●	●
126	COUPLING; DRIVING PINION ZF6S1000 M/T(Y5D) (A)	1-37245-265-2	01	1	0810-		●	●
126	COUPLING; DRIVING PINION (B)	1-37245-343-0	01	1	0710-0808		●	●
126	COUPLING; DRIVING PINION (B)	1-37245-343-0	01	1	0809-0809		●	●	●	●
126	COUPLING; DRIVING PINION ZF9S1110 M/T(Y5E) (B)	1-37245-343-0	01	1	0810-1006		●	●
126	COUPLING; DRIVING PINION (B)	1-37245-343-0	01	1	0810-1006				●	●
126	COUPLING; DRIVING PINION ZF9S1110 M/T(Y5E) (B)	1-37245-343-0	01	1	1007-		●	●
126	COUPLING; DRIVING PINION (B)	1-37245-343-0	01	1	1007-	●			●	●
429	PLATE; DUMMY	1-41279-014-0	01	1	0809-				●	●
430	BOLT; PLATE,DUMMY M8X20 FLANGE	0-28650-820-0	03	1	0809-				●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
