Sayfa 4-20 - Isuzu EPC

4-20 — REAR AXLE CASE AND SHAFT (#33998) — 545 parça

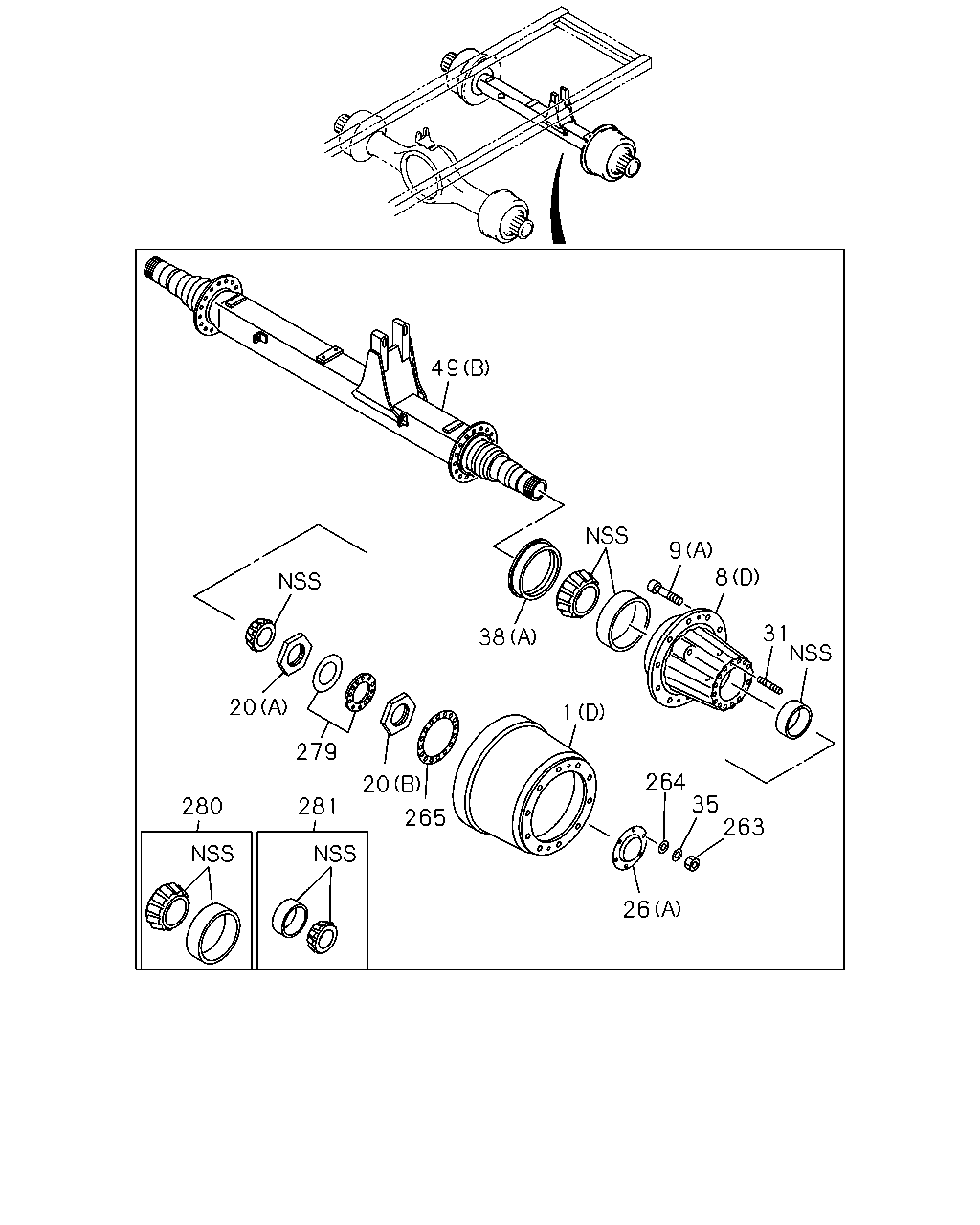

49 38 9 8 31 264 35 263 26 265 20 279 20 281 280 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	DRUM; BRK,RR (A)	1-42315-419-0	02	1	0710-1204	●
1	DRUM; BRK,RR (A)	1-42315-419-0	02	1	0710-1204	●
1	DRUM; BRK,RR (D)	1-42315-422-0	02	1	1205-	●
1	DRUM; BRK,RR (D)	1-42315-422-0	02	1	1205-	●
1	DRUM; BRK,RR EXC. AUSTRALIA EQUIPMENT(B13) (C)	1-42315-377-2	02	1	0809-		●
1	DRUM; BRK,RR EXC. AUSTRALIA EQUIPMENT(B13) (C)	1-42315-377-2	02	1	0809-		●
1	DRUM; BRK,RR (B)	1-42315-383-0	02	1	0710-0808		●
1	DRUM; BRK,RR (B)	1-42315-383-0	02	1	0710-0808		●
1	DRUM; BRK,RR AUSTRALIA EQUIPMENT(B13) (B)	1-42315-383-0	02	1	0809-		●
1	DRUM; BRK,RR AUSTRALIA EQUIPMENT(B13) (B)	1-42315-383-0	02	1	0809-		●
8	HUB; RR AXLE (B)	1-42311-155-0	02	1	0710-1204	●
8	HUB; RR AXLE (D)	1-42311-164-0	02	1	1205-	●
8	HUB; RR AXLE (D)	1-42311-164-0	02	1	1205-	●
8	HUB; RR AXLE (A)	1-42311-085-0	02	1	0710-0808		●
8	HUB; RR AXLE EXC. ANTI LOCK BRAKE<JE5> (A)	1-42311-085-0	02	1	0809-		●
8	HUB; RR AXLE (A)	1-42311-085-0	02	1	0809-		●
8	HUB; RR AXLE (C)	1-42311-094-0	02	1	0710-0808		●
8	HUB; RR AXLE ANTI LOCK BRAKE<JE5> (C)	1-42311-094-0	02	1	0809-		●
9	PIN; WHEEL,RR AXLE EXC. AUSTRALIA EQUIPMENT(B13) (C) M22X93 RH THREAD	1-42337-066-2	20	1	0809-		●
9	PIN; WHEEL,RR AXLE EXC. AUSTRALIA EQUIPMENT(B13) (C) M22X93 RH THREAD	1-42337-066-2	20	1	0809-		●
9	PIN; WHEEL,RR AXLE (A)	1-42339-033-0	20	1	0710-	●
9	PIN; WHEEL,RR AXLE (A)	1-42339-033-0	20	1	0710-	●
9	PIN; WHEEL,RR AXLE (B) M22X59.8,M22X53.5 RH THREAD	1-42337-069-1	20	1	0710-0808		●
9	PIN; WHEEL,RR AXLE (B) M22X59.8,M22X53.5 RH THREAD	1-42337-069-1	20	1	0710-0808		●
9	PIN; WHEEL,RR AXLE AUSTRALIA EQUIPMENT(B13) (B) M22X59.8,M22X53.5 RH THREAD	1-42337-069-1	20	1	0809-		●
9	PIN; WHEEL,RR AXLE AUSTRALIA EQUIPMENT(B13) (B) M22X59.8,M22X53.5 RH THREAD	1-42337-069-1	20	1	0809-		●
20	NUT; BRG,RR HUB (A)	1-42129-065-0	02	1	0710-	●
20	NUT; BRG,RR HUB (A)	1-42129-065-0	02	1	0710-	●
20	NUT; BRG,RR HUB (B)	1-42129-067-0	02	1	0710-	●
20	NUT; BRG,RR HUB (B)	1-42129-067-0	02	1	0710-	●
20	NUT; BRG,RR HUB (C) M88	9-09843-062-2	02	1	0710-		●
20	NUT; BRG,RR HUB (C) M88	9-09843-062-2	02	1	0710-		●
26	CAP; HUB,RR AXLE (A)	1-42313-026-0	02	1	0710-	●
26	CAP; HUB,RR AXLE (B)	1-42313-011-1	02	1	0710-		●
31	STUD; AXLE SHAFT TO HUB	1-42319-171-0	16	1	0710-	●
35	WASHER; LK,HUB CAP	1-42179-003-0	16	1	0710-	●
38	SEAL; OIL,RR HUB,INNER (A)	1-42319-172-0	02	1	0710-	●
38	SEAL; OIL,RR HUB,INNER (A)	1-42319-172-0	02	1	0710-	●
38	SEAL; OIL,RR HUB,INNER (B) NOK	1-09625-265-0	02	1	0710-		●
38	SEAL; OIL,RR HUB,INNER (B) NOK	1-09625-265-0	02	1	0710-		●
38	SEAL; OIL,RR HUB,INNER (B) TKK	1-09625-350-0	02	1	0710-		●
38	SEAL; OIL,RR HUB,INNER (B) TKK	1-09625-350-0	02	1	0710-		●
49	CASE; RR AXLE FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y) ANTI LOCK BRAKE<JE5> EXC. AUSTRALIA EQUIPMENT(B13) (C)	8-98024-653-0	01	1	0809-0809		●
49	CASE; RR AXLE ZF6S1000 M/T(Y5D) ANTI LOCK BRAKE<JE5> (C)	8-98024-653-1	01	1	0810-		●
49	CASE; RR AXLE EXC. AUSTRALIA EQUIPMENT(B13) (D)	8-98076-233-2	01	1	0809-		●
49	CASE; RR AXLE FINAL GEAR 37/6 18.5"(W3F),FINAL GEAR 40/6 18.5"(W3G) (C)	8-98024-651-0	01	1	0809-		●
49	CASE; RR AXLE FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y) EXC. AUSTRALIA EQUIPMENT(B13),ANTI LOCK BRAKE<JE5> (C)	8-98024-652-1	01	1	0809-		●
49	CASE; RR AXLE (A)	1-42190-729-0	01	1	0710-1107	●
49	CASE; RR AXLE (A)	1-42190-743-0	01	1	1108-1306	●
49	CASE; RR AXLE (A)	1-42190-754-0	01	1	1307-	●
49	CASE; RR AXLE (B)	1-42190-727-0	01	1	0710-	●
49	CASE; RR AXLE (D)	8-98023-187-2	01	1	0710-0808		●
49	CASE; RR AXLE AUSTRALIA EQUIPMENT(B13) (D)	8-98023-187-2	01	1	0809-		●
49	CASE; RR AXLE (C)	8-98024-650-0	01	1	0710-0808		●
49	CASE; RR AXLE AUSTRALIA EQUIPMENT(B13) (C)	8-98024-650-0	01	1	0809-0809		●
49	CASE; RR AXLE ZF9S1110 M/T(Y5E) ANTI LOCK BRAKE<JE5> (C)	8-98024-650-1	01	1	0810-		●
263	NUT; HUB CAP	1-42179-005-0	16	1	0710-	●
264	SPACER; HUB CAP	1-42319-202-0	16	1	0710-	●
265	GASKET; HUB CAP	1-42175-013-0	02	1	0710-	●
279	RING & WASHER; LK,BRG NUT	1-42179-022-0	02	1	0710-	●
279	RING & WASHER; LK,BRG NUT	1-42179-022-0	02	1	0710-	●
280	BEARING SET; HUB,INNER	1-85573-012-0	02	1	0710-	●
280	BEARING SET; HUB,INNER	1-85573-012-0	02	1	0710-	●
281	BEARING SET; HUB,OUTER	1-85573-013-0	02	1	0710-	●
281	BEARING SET; HUB,OUTER	1-85573-013-0	02	1	0710-	●

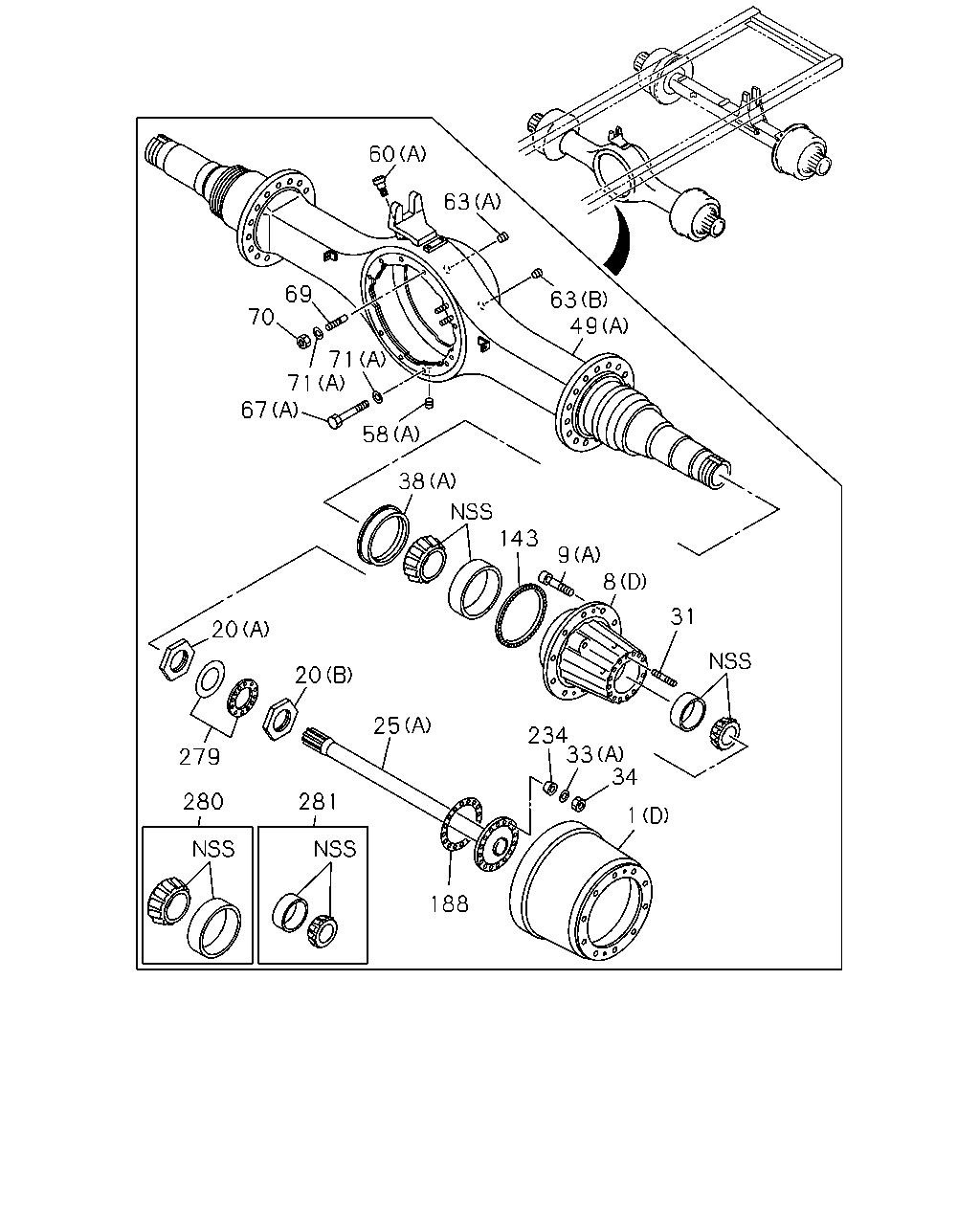

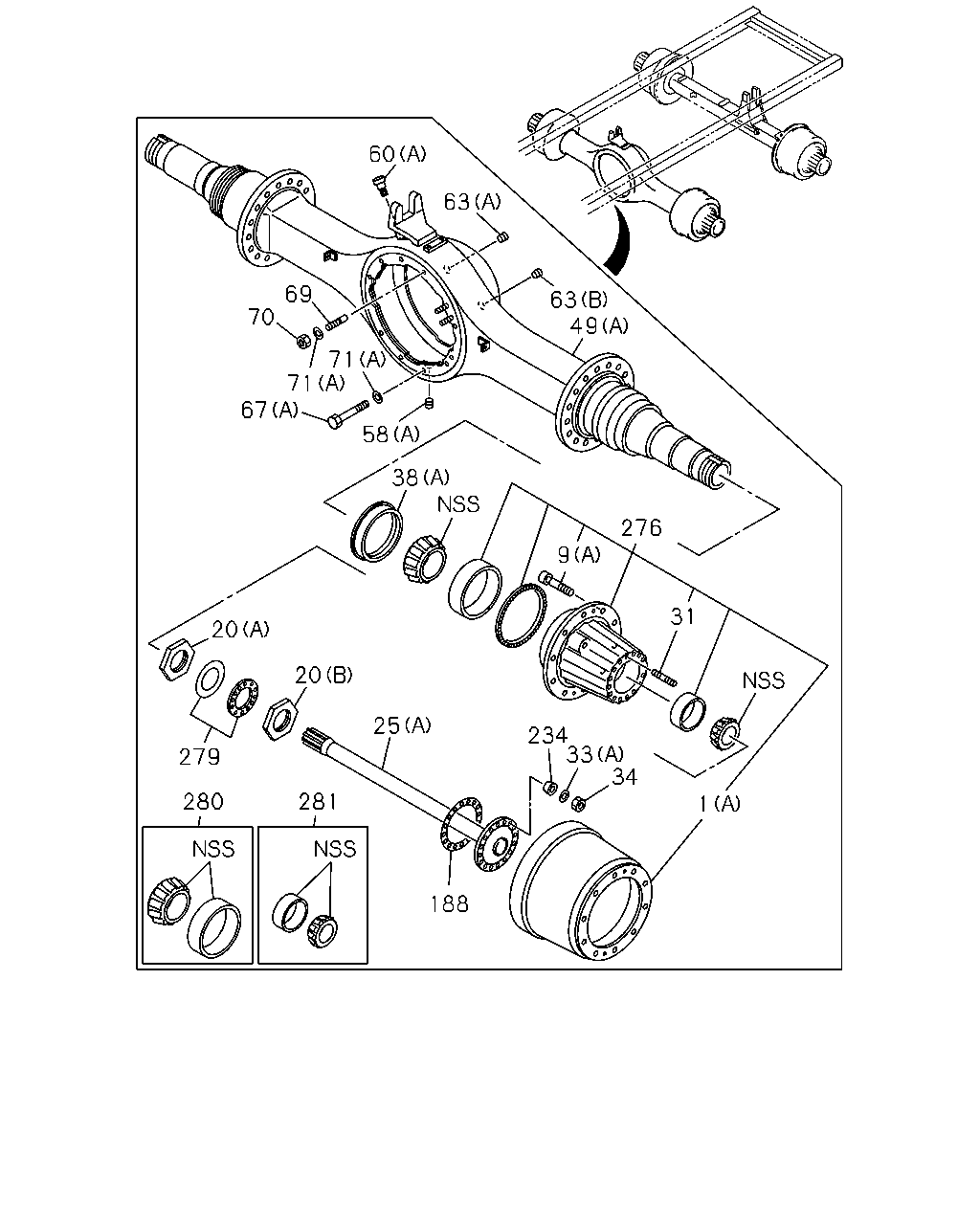

60 69 63 63 71 70 71 67 49 58 38 276 9 20 20 31 25 279 280 281 188 234 33 34 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	DRUM; BRK,RR (A)	1-42315-419-0	02	1	0710-1204	●
1	DRUM; BRK,RR (A)	1-42315-419-0	02	1	0710-1204	●
1	DRUM; BRK,RR (D)	1-42315-422-0	02	1	1205-	●
1	DRUM; BRK,RR (D)	1-42315-422-0	02	1	1205-	●
1	DRUM; BRK,RR EXC. AUSTRALIA EQUIPMENT(B13) (C)	1-42315-377-2	02	1	0809-		●
1	DRUM; BRK,RR EXC. AUSTRALIA EQUIPMENT(B13) (C)	1-42315-377-2	02	1	0809-		●
1	DRUM; BRK,RR (B)	1-42315-383-0	02	1	0710-0808		●
1	DRUM; BRK,RR (B)	1-42315-383-0	02	1	0710-0808		●
1	DRUM; BRK,RR AUSTRALIA EQUIPMENT(B13) (B)	1-42315-383-0	02	1	0809-		●
1	DRUM; BRK,RR AUSTRALIA EQUIPMENT(B13) (B)	1-42315-383-0	02	1	0809-		●
9	PIN; WHEEL,RR AXLE EXC. AUSTRALIA EQUIPMENT(B13) (C) M22X93 RH THREAD	1-42337-066-2	20	1	0809-		●
9	PIN; WHEEL,RR AXLE EXC. AUSTRALIA EQUIPMENT(B13) (C) M22X93 RH THREAD	1-42337-066-2	20	1	0809-		●
9	PIN; WHEEL,RR AXLE (A)	1-42339-033-0	20	1	0710-	●
9	PIN; WHEEL,RR AXLE (A)	1-42339-033-0	20	1	0710-	●
9	PIN; WHEEL,RR AXLE (B) M22X59.8,M22X53.5 RH THREAD	1-42337-069-1	20	1	0710-0808		●
9	PIN; WHEEL,RR AXLE (B) M22X59.8,M22X53.5 RH THREAD	1-42337-069-1	20	1	0710-0808		●
9	PIN; WHEEL,RR AXLE AUSTRALIA EQUIPMENT(B13) (B) M22X59.8,M22X53.5 RH THREAD	1-42337-069-1	20	1	0809-		●
9	PIN; WHEEL,RR AXLE AUSTRALIA EQUIPMENT(B13) (B) M22X59.8,M22X53.5 RH THREAD	1-42337-069-1	20	1	0809-		●
20	NUT; BRG,RR HUB (A)	1-42129-065-0	02	1	0710-	●
20	NUT; BRG,RR HUB (A)	1-42129-065-0	02	1	0710-	●
20	NUT; BRG,RR HUB (B)	1-42129-067-0	02	1	0710-	●
20	NUT; BRG,RR HUB (B)	1-42129-067-0	02	1	0710-	●
20	NUT; BRG,RR HUB (C) M88	9-09843-062-2	02	1	0710-		●
20	NUT; BRG,RR HUB (C) M88	9-09843-062-2	02	1	0710-		●
25	SHAFT; AXLE,RR FINAL GEAR 37/6 18.5"(W3F),FINAL GEAR 40/6 18.5"(W3G) (B) L=1054	1-42171-355-0	02	1	0809-0910		●
25	SHAFT; AXLE,RR FINAL GEAR 37/6 18.5"(W3F),FINAL GEAR 40/6 18.5"(W3G) (B) L=1050	8-98146-168-0	02	1	0911-		●
25	SHAFT; AXLE,RR (A) L=951	1-42171-557-0	01	1	0710-	●
25	SHAFT; AXLE,RR (A) L=1120	1-42171-558-0	01	1	0710-	●
25	SHAFT; AXLE,RR (B) L=1054	1-42171-375-0	02	1	0710-0808		●
25	SHAFT; AXLE,RR FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y) (B) L=1054	1-42171-375-0	02	1	0809-0910		●
25	SHAFT; AXLE,RR FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y) (B) L=1050	8-98146-164-0	02	1	0911-		●
31	STUD; AXLE SHAFT TO HUB	1-42319-171-0	16	1	0710-	●
33	WASHER; AXLE SHAFT (A)	1-42179-003-0	16	1	0710-	●
33	WASHER; AXLE SHAFT (B) ID=14.2	0-91510-814-0	20	1	0710-		●
34	NUT; AXLE SHAFT	1-42179-005-0	16	1	0710-	●
38	SEAL; OIL,RR HUB,INNER (A)	1-42319-172-0	02	1	0710-	●
38	SEAL; OIL,RR HUB,INNER (A)	1-42319-172-0	02	1	0710-	●
38	SEAL; OIL,RR HUB,INNER (B) NOK	1-09625-265-0	02	1	0710-		●
38	SEAL; OIL,RR HUB,INNER (B) NOK	1-09625-265-0	02	1	0710-		●
38	SEAL; OIL,RR HUB,INNER (B) TKK	1-09625-350-0	02	1	0710-		●
38	SEAL; OIL,RR HUB,INNER (B) TKK	1-09625-350-0	02	1	0710-		●
49	CASE; RR AXLE FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y) ANTI LOCK BRAKE<JE5> EXC. AUSTRALIA EQUIPMENT(B13) (C)	8-98024-653-0	01	1	0809-0809		●
49	CASE; RR AXLE ZF6S1000 M/T(Y5D) ANTI LOCK BRAKE<JE5> (C)	8-98024-653-1	01	1	0810-		●
49	CASE; RR AXLE EXC. AUSTRALIA EQUIPMENT(B13) (D)	8-98076-233-2	01	1	0809-		●
49	CASE; RR AXLE FINAL GEAR 37/6 18.5"(W3F),FINAL GEAR 40/6 18.5"(W3G) (C)	8-98024-651-0	01	1	0809-		●
49	CASE; RR AXLE FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y) EXC. AUSTRALIA EQUIPMENT(B13),ANTI LOCK BRAKE<JE5> (C)	8-98024-652-1	01	1	0809-		●
49	CASE; RR AXLE (A)	1-42190-729-0	01	1	0710-1107	●
49	CASE; RR AXLE (A)	1-42190-743-0	01	1	1108-1306	●
49	CASE; RR AXLE (A)	1-42190-754-0	01	1	1307-	●
49	CASE; RR AXLE (B)	1-42190-727-0	01	1	0710-	●
49	CASE; RR AXLE (D)	8-98023-187-2	01	1	0710-0808		●
49	CASE; RR AXLE AUSTRALIA EQUIPMENT(B13) (D)	8-98023-187-2	01	1	0809-		●
49	CASE; RR AXLE (C)	8-98024-650-0	01	1	0710-0808		●
49	CASE; RR AXLE AUSTRALIA EQUIPMENT(B13) (C)	8-98024-650-0	01	1	0809-0809		●
49	CASE; RR AXLE ZF9S1110 M/T(Y5E) ANTI LOCK BRAKE<JE5> (C)	8-98024-650-1	01	1	0810-		●
58	PLUG; DRAIN,AXLE CASE (A)	1-42129-054-0	01	1	0710-	●
58	PLUG; DRAIN,AXLE CASE (B) M24X17 FLANGE	1-09604-023-0	01	1	0710-		●
60	BREATHER; RR AXLE CASE (A)	1-09893-032-0	01	1	1401-	●
60	BREATHER; RR AXLE CASE (B)	1-09893-003-0	01	1	0710-		●
60	BREATHER; RR AXLE CASE (A)	1-09893-028-0	01	1	0710-1312	●
60	BREATHER; RR AXLE CASE (A)	1-09893-028-0	01	1	0710-1312	●
60	BREATHER; RR AXLE CASE (A)	1-09893-028-0	01	1	1401-	●
63	PLUG; OIL FILLER,AXLE CASE (A)	1-42119-135-0	02	1	0710-	●
63	PLUG; OIL FILLER,AXLE CASE (B)	1-42129-054-0	01	1	0710-	●
63	PLUG; OIL FILLER,AXLE CASE (C) M24X17 FLANGE	1-09604-022-0	01	1	0710-		●
67	BOLT; FINAL DRIVE SETTING FINAL GEAR 37/6 18.5"(W3F),FINAL GEAR 40/6 18.5"(W3G) (B) M16X70	0-10956-670-0	06	1	0809-		●
67	BOLT; FINAL DRIVE SETTING FINAL GEAR 37/6 18.5"(W3F),FINAL GEAR 40/6 18.5"(W3G) (B) M16X40	0-20951-640-0	06	1	0809-		●
67	BOLT; FINAL DRIVE SETTING (A)	1-42119-136-0	08	1	0710-	●
67	BOLT; FINAL DRIVE SETTING (B) M16X70	0-10956-670-0	04	1	0710-0808		●
67	BOLT; FINAL DRIVE SETTING FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y) (B) M16X70	0-10956-670-0	04	1	0809-		●
67	BOLT; FINAL DRIVE SETTING (B) M16X40	0-20951-640-0	08	1	0710-0808		●
67	BOLT; FINAL DRIVE SETTING FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y) (B) M16X40	0-20951-640-0	08	1	0809-		●
69	STUD; AXLE CASE L=120.65	1-42119-184-0	04	1	0710-	●
70	NUT; CARRIER	1-42179-005-0	04	1	0710-	●
71	WASHER; LK,FINAL DRIVE SETTING (A)	1-41229-168-0	12	1	0710-	●
71	WASHER; LK,FINAL DRIVE SETTING (B) ID=16.2	0-91510-816-0	12	1	0710-		●
188	GASKET; AXLE SHAFT	1-42175-013-0	02	1	0710-	●
234	DOWEL; AXLE SHAFT	1-42319-162-0	16	1	0710-	●
276	HUB & DRUM ASM	1-42311-158-0	02	1	0710-1204	●
279	RING & WASHER; LK,BRG NUT	1-42179-022-0	02	1	0710-	●
279	RING & WASHER; LK,BRG NUT	1-42179-022-0	02	1	0710-	●
280	BEARING SET; HUB,INNER	1-85573-012-0	02	1	0710-	●
280	BEARING SET; HUB,INNER	1-85573-012-0	02	1	0710-	●
281	BEARING SET; HUB,OUTER	1-85573-013-0	02	1	0710-	●
281	BEARING SET; HUB,OUTER	1-85573-013-0	02	1	0710-	●

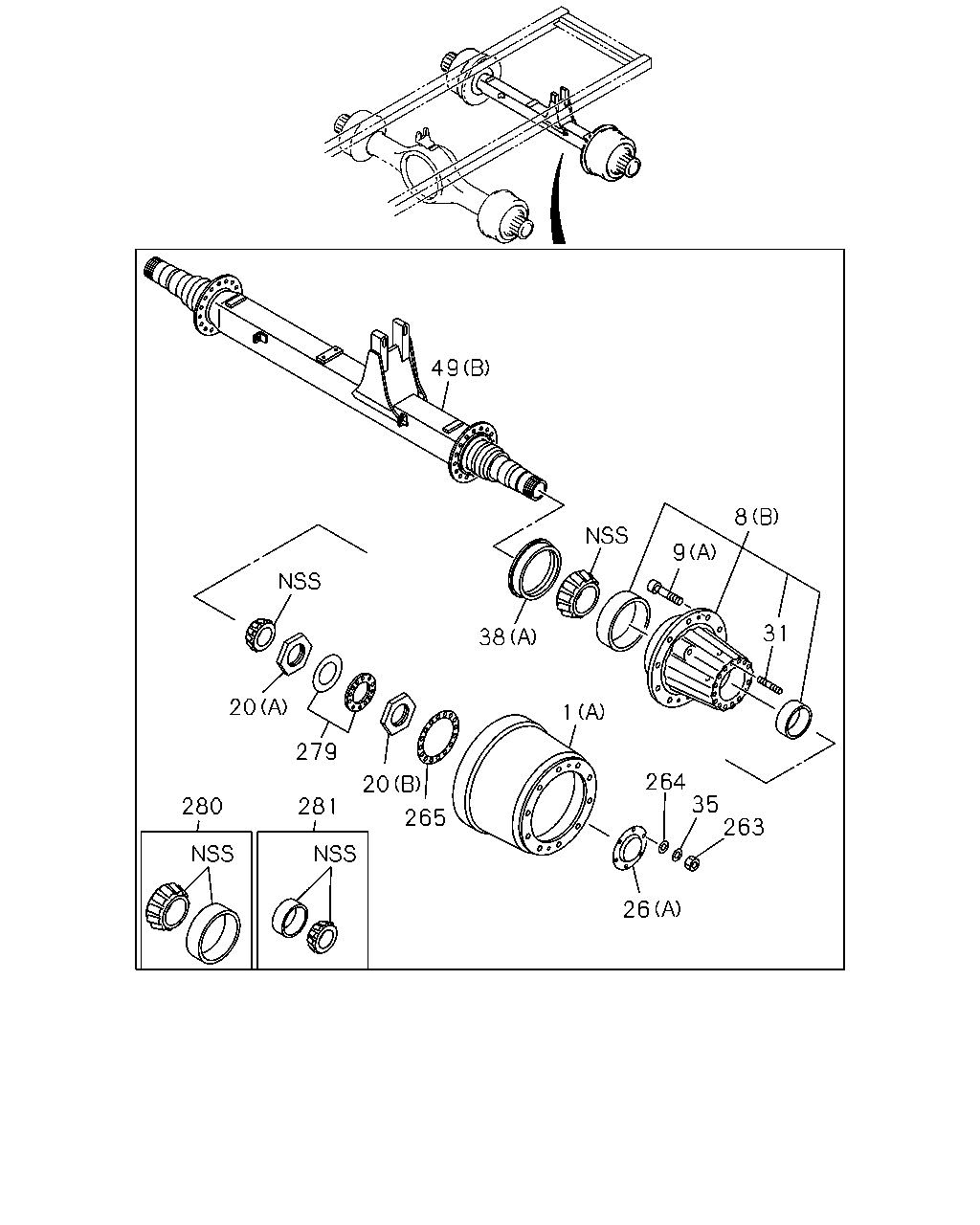

49 38 8 9 31 264 1 35 263 26 265 20 279 20 280 281

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	DRUM; BRK,RR (A)	1-42315-419-0	02	1	0710-1204	●
1	DRUM; BRK,RR (A)	1-42315-419-0	02	1	0710-1204	●
1	DRUM; BRK,RR (D)	1-42315-422-0	02	1	1205-	●
1	DRUM; BRK,RR (D)	1-42315-422-0	02	1	1205-	●
1	DRUM; BRK,RR EXC. AUSTRALIA EQUIPMENT(B13) (C)	1-42315-377-2	02	1	0809-		●
1	DRUM; BRK,RR EXC. AUSTRALIA EQUIPMENT(B13) (C)	1-42315-377-2	02	1	0809-		●
1	DRUM; BRK,RR (B)	1-42315-383-0	02	1	0710-0808		●
1	DRUM; BRK,RR (B)	1-42315-383-0	02	1	0710-0808		●
1	DRUM; BRK,RR AUSTRALIA EQUIPMENT(B13) (B)	1-42315-383-0	02	1	0809-		●
1	DRUM; BRK,RR AUSTRALIA EQUIPMENT(B13) (B)	1-42315-383-0	02	1	0809-		●
8	HUB; RR AXLE (B)	1-42311-155-0	02	1	0710-1204	●
8	HUB; RR AXLE (D)	1-42311-164-0	02	1	1205-	●
8	HUB; RR AXLE (D)	1-42311-164-0	02	1	1205-	●
8	HUB; RR AXLE (A)	1-42311-085-0	02	1	0710-0808		●
8	HUB; RR AXLE EXC. ANTI LOCK BRAKE<JE5> (A)	1-42311-085-0	02	1	0809-		●
8	HUB; RR AXLE (A)	1-42311-085-0	02	1	0809-		●
8	HUB; RR AXLE (C)	1-42311-094-0	02	1	0710-0808		●
8	HUB; RR AXLE ANTI LOCK BRAKE<JE5> (C)	1-42311-094-0	02	1	0809-		●
9	PIN; WHEEL,RR AXLE EXC. AUSTRALIA EQUIPMENT(B13) (C) M22X93 RH THREAD	1-42337-066-2	20	1	0809-		●
9	PIN; WHEEL,RR AXLE EXC. AUSTRALIA EQUIPMENT(B13) (C) M22X93 RH THREAD	1-42337-066-2	20	1	0809-		●
9	PIN; WHEEL,RR AXLE (A)	1-42339-033-0	20	1	0710-	●
9	PIN; WHEEL,RR AXLE (A)	1-42339-033-0	20	1	0710-	●
9	PIN; WHEEL,RR AXLE (B) M22X59.8,M22X53.5 RH THREAD	1-42337-069-1	20	1	0710-0808		●
9	PIN; WHEEL,RR AXLE (B) M22X59.8,M22X53.5 RH THREAD	1-42337-069-1	20	1	0710-0808		●
9	PIN; WHEEL,RR AXLE AUSTRALIA EQUIPMENT(B13) (B) M22X59.8,M22X53.5 RH THREAD	1-42337-069-1	20	1	0809-		●
9	PIN; WHEEL,RR AXLE AUSTRALIA EQUIPMENT(B13) (B) M22X59.8,M22X53.5 RH THREAD	1-42337-069-1	20	1	0809-		●
20	NUT; BRG,RR HUB (A)	1-42129-065-0	02	1	0710-	●
20	NUT; BRG,RR HUB (A)	1-42129-065-0	02	1	0710-	●
20	NUT; BRG,RR HUB (B)	1-42129-067-0	02	1	0710-	●
20	NUT; BRG,RR HUB (B)	1-42129-067-0	02	1	0710-	●
20	NUT; BRG,RR HUB (C) M88	9-09843-062-2	02	1	0710-		●
20	NUT; BRG,RR HUB (C) M88	9-09843-062-2	02	1	0710-		●
26	CAP; HUB,RR AXLE (A)	1-42313-026-0	02	1	0710-	●
26	CAP; HUB,RR AXLE (B)	1-42313-011-1	02	1	0710-		●
31	STUD; AXLE SHAFT TO HUB	1-42319-171-0	16	1	0710-	●
35	WASHER; LK,HUB CAP	1-42179-003-0	16	1	0710-	●
38	SEAL; OIL,RR HUB,INNER (A)	1-42319-172-0	02	1	0710-	●
38	SEAL; OIL,RR HUB,INNER (A)	1-42319-172-0	02	1	0710-	●
38	SEAL; OIL,RR HUB,INNER (B) NOK	1-09625-265-0	02	1	0710-		●
38	SEAL; OIL,RR HUB,INNER (B) NOK	1-09625-265-0	02	1	0710-		●
38	SEAL; OIL,RR HUB,INNER (B) TKK	1-09625-350-0	02	1	0710-		●
38	SEAL; OIL,RR HUB,INNER (B) TKK	1-09625-350-0	02	1	0710-		●
49	CASE; RR AXLE FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y) ANTI LOCK BRAKE<JE5> EXC. AUSTRALIA EQUIPMENT(B13) (C)	8-98024-653-0	01	1	0809-0809		●
49	CASE; RR AXLE ZF6S1000 M/T(Y5D) ANTI LOCK BRAKE<JE5> (C)	8-98024-653-1	01	1	0810-		●
49	CASE; RR AXLE EXC. AUSTRALIA EQUIPMENT(B13) (D)	8-98076-233-2	01	1	0809-		●
49	CASE; RR AXLE FINAL GEAR 37/6 18.5"(W3F),FINAL GEAR 40/6 18.5"(W3G) (C)	8-98024-651-0	01	1	0809-		●
49	CASE; RR AXLE FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y) EXC. AUSTRALIA EQUIPMENT(B13),ANTI LOCK BRAKE<JE5> (C)	8-98024-652-1	01	1	0809-		●
49	CASE; RR AXLE (A)	1-42190-729-0	01	1	0710-1107	●
49	CASE; RR AXLE (A)	1-42190-743-0	01	1	1108-1306	●
49	CASE; RR AXLE (A)	1-42190-754-0	01	1	1307-	●
49	CASE; RR AXLE (B)	1-42190-727-0	01	1	0710-	●
49	CASE; RR AXLE (D)	8-98023-187-2	01	1	0710-0808		●
49	CASE; RR AXLE AUSTRALIA EQUIPMENT(B13) (D)	8-98023-187-2	01	1	0809-		●
49	CASE; RR AXLE (C)	8-98024-650-0	01	1	0710-0808		●
49	CASE; RR AXLE AUSTRALIA EQUIPMENT(B13) (C)	8-98024-650-0	01	1	0809-0809		●
49	CASE; RR AXLE ZF9S1110 M/T(Y5E) ANTI LOCK BRAKE<JE5> (C)	8-98024-650-1	01	1	0810-		●
263	NUT; HUB CAP	1-42179-005-0	16	1	0710-	●
264	SPACER; HUB CAP	1-42319-202-0	16	1	0710-	●
265	GASKET; HUB CAP	1-42175-013-0	02	1	0710-	●
279	RING & WASHER; LK,BRG NUT	1-42179-022-0	02	1	0710-	●
279	RING & WASHER; LK,BRG NUT	1-42179-022-0	02	1	0710-	●
280	BEARING SET; HUB,INNER	1-85573-012-0	02	1	0710-	●
280	BEARING SET; HUB,INNER	1-85573-012-0	02	1	0710-	●
281	BEARING SET; HUB,OUTER	1-85573-013-0	02	1	0710-	●
281	BEARING SET; HUB,OUTER	1-85573-013-0	02	1	0710-	●

60 63 63 69 49 71 70 38 58 71 67 143 31 8 9 1 34 33 234 25 281 188 280 279 20 20

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	DRUM; BRK,RR (A)	1-42315-419-0	02	1	0710-1204	●
1	DRUM; BRK,RR (A)	1-42315-419-0	02	1	0710-1204	●
1	DRUM; BRK,RR (D)	1-42315-422-0	02	1	1205-	●
1	DRUM; BRK,RR (D)	1-42315-422-0	02	1	1205-	●
1	DRUM; BRK,RR EXC. AUSTRALIA EQUIPMENT(B13) (C)	1-42315-377-2	02	1	0809-		●
1	DRUM; BRK,RR EXC. AUSTRALIA EQUIPMENT(B13) (C)	1-42315-377-2	02	1	0809-		●
1	DRUM; BRK,RR (B)	1-42315-383-0	02	1	0710-0808		●
1	DRUM; BRK,RR (B)	1-42315-383-0	02	1	0710-0808		●
1	DRUM; BRK,RR AUSTRALIA EQUIPMENT(B13) (B)	1-42315-383-0	02	1	0809-		●
1	DRUM; BRK,RR AUSTRALIA EQUIPMENT(B13) (B)	1-42315-383-0	02	1	0809-		●
8	HUB; RR AXLE (B)	1-42311-155-0	02	1	0710-1204	●
8	HUB; RR AXLE (D)	1-42311-164-0	02	1	1205-	●
8	HUB; RR AXLE (D)	1-42311-164-0	02	1	1205-	●
8	HUB; RR AXLE (A)	1-42311-085-0	02	1	0710-0808		●
8	HUB; RR AXLE EXC. ANTI LOCK BRAKE<JE5> (A)	1-42311-085-0	02	1	0809-		●
8	HUB; RR AXLE (A)	1-42311-085-0	02	1	0809-		●
8	HUB; RR AXLE (C)	1-42311-094-0	02	1	0710-0808		●
8	HUB; RR AXLE ANTI LOCK BRAKE<JE5> (C)	1-42311-094-0	02	1	0809-		●
9	PIN; WHEEL,RR AXLE EXC. AUSTRALIA EQUIPMENT(B13) (C) M22X93 RH THREAD	1-42337-066-2	20	1	0809-		●
9	PIN; WHEEL,RR AXLE EXC. AUSTRALIA EQUIPMENT(B13) (C) M22X93 RH THREAD	1-42337-066-2	20	1	0809-		●
9	PIN; WHEEL,RR AXLE (A)	1-42339-033-0	20	1	0710-	●
9	PIN; WHEEL,RR AXLE (A)	1-42339-033-0	20	1	0710-	●
9	PIN; WHEEL,RR AXLE (B) M22X59.8,M22X53.5 RH THREAD	1-42337-069-1	20	1	0710-0808		●
9	PIN; WHEEL,RR AXLE (B) M22X59.8,M22X53.5 RH THREAD	1-42337-069-1	20	1	0710-0808		●
9	PIN; WHEEL,RR AXLE AUSTRALIA EQUIPMENT(B13) (B) M22X59.8,M22X53.5 RH THREAD	1-42337-069-1	20	1	0809-		●
9	PIN; WHEEL,RR AXLE AUSTRALIA EQUIPMENT(B13) (B) M22X59.8,M22X53.5 RH THREAD	1-42337-069-1	20	1	0809-		●
20	NUT; BRG,RR HUB (A)	1-42129-065-0	02	1	0710-	●
20	NUT; BRG,RR HUB (A)	1-42129-065-0	02	1	0710-	●
20	NUT; BRG,RR HUB (B)	1-42129-067-0	02	1	0710-	●
20	NUT; BRG,RR HUB (B)	1-42129-067-0	02	1	0710-	●
20	NUT; BRG,RR HUB (C) M88	9-09843-062-2	02	1	0710-		●
20	NUT; BRG,RR HUB (C) M88	9-09843-062-2	02	1	0710-		●
25	SHAFT; AXLE,RR FINAL GEAR 37/6 18.5"(W3F),FINAL GEAR 40/6 18.5"(W3G) (B) L=1054	1-42171-355-0	02	1	0809-0910		●
25	SHAFT; AXLE,RR FINAL GEAR 37/6 18.5"(W3F),FINAL GEAR 40/6 18.5"(W3G) (B) L=1050	8-98146-168-0	02	1	0911-		●
25	SHAFT; AXLE,RR (A) L=951	1-42171-557-0	01	1	0710-	●
25	SHAFT; AXLE,RR (A) L=1120	1-42171-558-0	01	1	0710-	●
25	SHAFT; AXLE,RR (B) L=1054	1-42171-375-0	02	1	0710-0808		●
25	SHAFT; AXLE,RR FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y) (B) L=1054	1-42171-375-0	02	1	0809-0910		●
25	SHAFT; AXLE,RR FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y) (B) L=1050	8-98146-164-0	02	1	0911-		●
31	STUD; AXLE SHAFT TO HUB	1-42319-171-0	16	1	0710-	●
33	WASHER; AXLE SHAFT (A)	1-42179-003-0	16	1	0710-	●
33	WASHER; AXLE SHAFT (B) ID=14.2	0-91510-814-0	20	1	0710-		●
34	NUT; AXLE SHAFT	1-42179-005-0	16	1	0710-	●
38	SEAL; OIL,RR HUB,INNER (A)	1-42319-172-0	02	1	0710-	●
38	SEAL; OIL,RR HUB,INNER (A)	1-42319-172-0	02	1	0710-	●
38	SEAL; OIL,RR HUB,INNER (B) NOK	1-09625-265-0	02	1	0710-		●
38	SEAL; OIL,RR HUB,INNER (B) NOK	1-09625-265-0	02	1	0710-		●
38	SEAL; OIL,RR HUB,INNER (B) TKK	1-09625-350-0	02	1	0710-		●
38	SEAL; OIL,RR HUB,INNER (B) TKK	1-09625-350-0	02	1	0710-		●
49	CASE; RR AXLE FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y) ANTI LOCK BRAKE<JE5> EXC. AUSTRALIA EQUIPMENT(B13) (C)	8-98024-653-0	01	1	0809-0809		●
49	CASE; RR AXLE ZF6S1000 M/T(Y5D) ANTI LOCK BRAKE<JE5> (C)	8-98024-653-1	01	1	0810-		●
49	CASE; RR AXLE EXC. AUSTRALIA EQUIPMENT(B13) (D)	8-98076-233-2	01	1	0809-		●
49	CASE; RR AXLE FINAL GEAR 37/6 18.5"(W3F),FINAL GEAR 40/6 18.5"(W3G) (C)	8-98024-651-0	01	1	0809-		●
49	CASE; RR AXLE FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y) EXC. AUSTRALIA EQUIPMENT(B13),ANTI LOCK BRAKE<JE5> (C)	8-98024-652-1	01	1	0809-		●
49	CASE; RR AXLE (A)	1-42190-729-0	01	1	0710-1107	●
49	CASE; RR AXLE (A)	1-42190-743-0	01	1	1108-1306	●
49	CASE; RR AXLE (A)	1-42190-754-0	01	1	1307-	●
49	CASE; RR AXLE (B)	1-42190-727-0	01	1	0710-	●
49	CASE; RR AXLE (D)	8-98023-187-2	01	1	0710-0808		●
49	CASE; RR AXLE AUSTRALIA EQUIPMENT(B13) (D)	8-98023-187-2	01	1	0809-		●
49	CASE; RR AXLE (C)	8-98024-650-0	01	1	0710-0808		●
49	CASE; RR AXLE AUSTRALIA EQUIPMENT(B13) (C)	8-98024-650-0	01	1	0809-0809		●
49	CASE; RR AXLE ZF9S1110 M/T(Y5E) ANTI LOCK BRAKE<JE5> (C)	8-98024-650-1	01	1	0810-		●
58	PLUG; DRAIN,AXLE CASE (A)	1-42129-054-0	01	1	0710-	●
58	PLUG; DRAIN,AXLE CASE (B) M24X17 FLANGE	1-09604-023-0	01	1	0710-		●
60	BREATHER; RR AXLE CASE (A)	1-09893-032-0	01	1	1401-	●
60	BREATHER; RR AXLE CASE (B)	1-09893-003-0	01	1	0710-		●
60	BREATHER; RR AXLE CASE (A)	1-09893-028-0	01	1	0710-1312	●
60	BREATHER; RR AXLE CASE (A)	1-09893-028-0	01	1	0710-1312	●
60	BREATHER; RR AXLE CASE (A)	1-09893-028-0	01	1	1401-	●
63	PLUG; OIL FILLER,AXLE CASE (A)	1-42119-135-0	02	1	0710-	●
63	PLUG; OIL FILLER,AXLE CASE (B)	1-42129-054-0	01	1	0710-	●
63	PLUG; OIL FILLER,AXLE CASE (C) M24X17 FLANGE	1-09604-022-0	01	1	0710-		●
67	BOLT; FINAL DRIVE SETTING FINAL GEAR 37/6 18.5"(W3F),FINAL GEAR 40/6 18.5"(W3G) (B) M16X70	0-10956-670-0	06	1	0809-		●
67	BOLT; FINAL DRIVE SETTING FINAL GEAR 37/6 18.5"(W3F),FINAL GEAR 40/6 18.5"(W3G) (B) M16X40	0-20951-640-0	06	1	0809-		●
67	BOLT; FINAL DRIVE SETTING (A)	1-42119-136-0	08	1	0710-	●
67	BOLT; FINAL DRIVE SETTING (B) M16X70	0-10956-670-0	04	1	0710-0808		●
67	BOLT; FINAL DRIVE SETTING FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y) (B) M16X70	0-10956-670-0	04	1	0809-		●
67	BOLT; FINAL DRIVE SETTING (B) M16X40	0-20951-640-0	08	1	0710-0808		●
67	BOLT; FINAL DRIVE SETTING FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y) (B) M16X40	0-20951-640-0	08	1	0809-		●
69	STUD; AXLE CASE L=120.65	1-42119-184-0	04	1	0710-	●
70	NUT; CARRIER	1-42179-005-0	04	1	0710-	●
71	WASHER; LK,FINAL DRIVE SETTING (A)	1-41229-168-0	12	1	0710-	●
71	WASHER; LK,FINAL DRIVE SETTING (B) ID=16.2	0-91510-816-0	12	1	0710-		●
143	RING; EXCITER	1-42319-224-0	02	1	1205-	●
143	RING; EXCITER	1-42319-173-0	02	1	0710-0808		●
143	RING; EXCITER ANTI LOCK BRAKE<JE5>	1-42319-173-0	02	1	0809-		●
188	GASKET; AXLE SHAFT	1-42175-013-0	02	1	0710-	●
234	DOWEL; AXLE SHAFT	1-42319-162-0	16	1	0710-	●
279	RING & WASHER; LK,BRG NUT	1-42179-022-0	02	1	0710-	●
279	RING & WASHER; LK,BRG NUT	1-42179-022-0	02	1	0710-	●
280	BEARING SET; HUB,INNER	1-85573-012-0	02	1	0710-	●
280	BEARING SET; HUB,INNER	1-85573-012-0	02	1	0710-	●
281	BEARING SET; HUB,OUTER	1-85573-013-0	02	1	0710-	●
281	BEARING SET; HUB,OUTER	1-85573-013-0	02	1	0710-	●

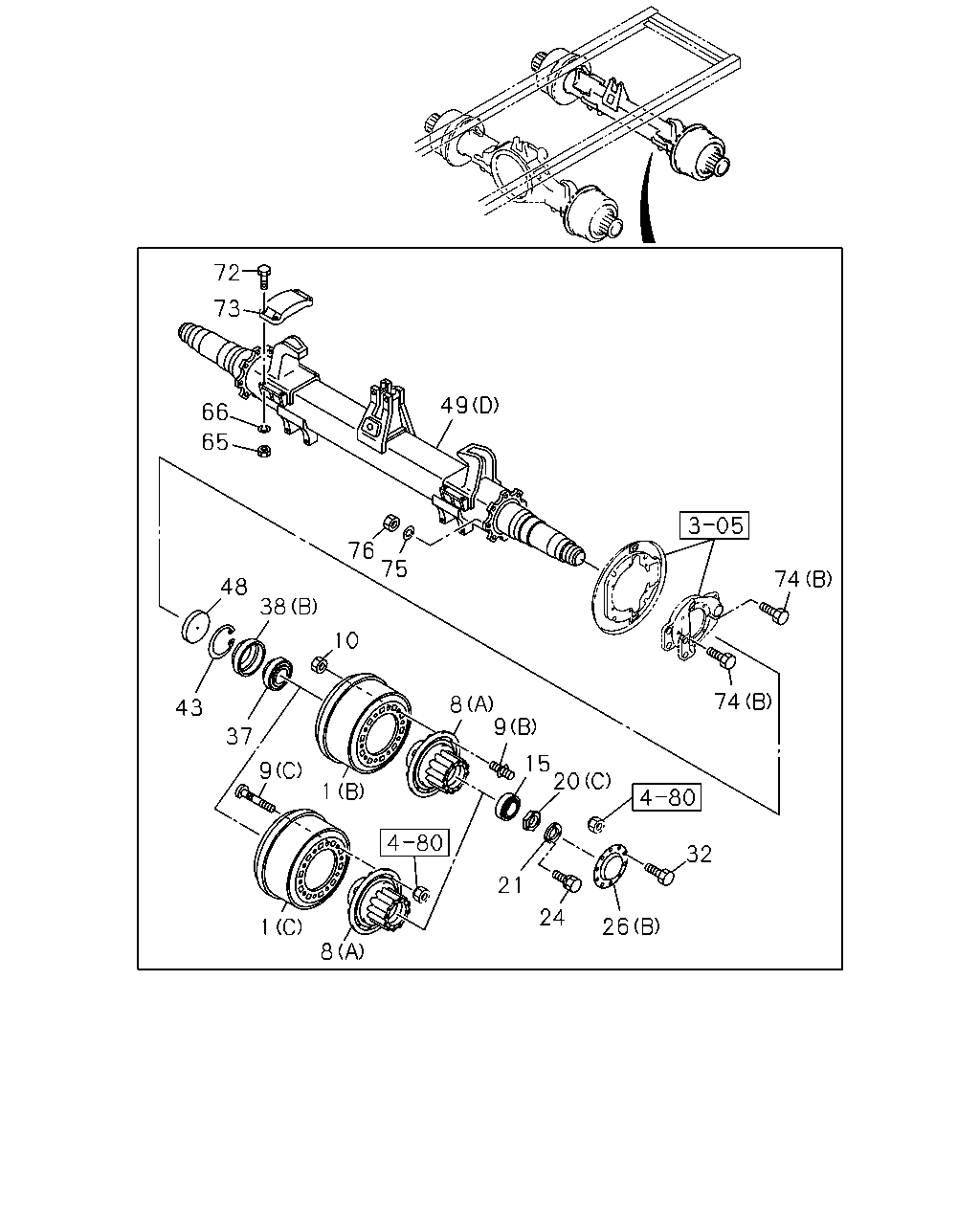

72 49 73 66 74 74 75 76 65 48 38 10 8 9 15 20 32 26 24 21 1 9 37 43 1 8

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	DRUM; BRK,RR (A)	1-42315-419-0	02	1	0710-1204	●
1	DRUM; BRK,RR (A)	1-42315-419-0	02	1	0710-1204	●
1	DRUM; BRK,RR (D)	1-42315-422-0	02	1	1205-	●
1	DRUM; BRK,RR (D)	1-42315-422-0	02	1	1205-	●
1	DRUM; BRK,RR EXC. AUSTRALIA EQUIPMENT(B13) (C)	1-42315-377-2	02	1	0809-		●
1	DRUM; BRK,RR EXC. AUSTRALIA EQUIPMENT(B13) (C)	1-42315-377-2	02	1	0809-		●
1	DRUM; BRK,RR (B)	1-42315-383-0	02	1	0710-0808		●
1	DRUM; BRK,RR (B)	1-42315-383-0	02	1	0710-0808		●
1	DRUM; BRK,RR AUSTRALIA EQUIPMENT(B13) (B)	1-42315-383-0	02	1	0809-		●
1	DRUM; BRK,RR AUSTRALIA EQUIPMENT(B13) (B)	1-42315-383-0	02	1	0809-		●
8	HUB; RR AXLE (B)	1-42311-155-0	02	1	0710-1204	●
8	HUB; RR AXLE (D)	1-42311-164-0	02	1	1205-	●
8	HUB; RR AXLE (D)	1-42311-164-0	02	1	1205-	●
8	HUB; RR AXLE (A)	1-42311-085-0	02	1	0710-0808		●
8	HUB; RR AXLE EXC. ANTI LOCK BRAKE<JE5> (A)	1-42311-085-0	02	1	0809-		●
8	HUB; RR AXLE (A)	1-42311-085-0	02	1	0809-		●
8	HUB; RR AXLE (C)	1-42311-094-0	02	1	0710-0808		●
8	HUB; RR AXLE ANTI LOCK BRAKE<JE5> (C)	1-42311-094-0	02	1	0809-		●
9	PIN; WHEEL,RR AXLE EXC. AUSTRALIA EQUIPMENT(B13) (C) M22X93 RH THREAD	1-42337-066-2	20	1	0809-		●
9	PIN; WHEEL,RR AXLE EXC. AUSTRALIA EQUIPMENT(B13) (C) M22X93 RH THREAD	1-42337-066-2	20	1	0809-		●
9	PIN; WHEEL,RR AXLE (A)	1-42339-033-0	20	1	0710-	●
9	PIN; WHEEL,RR AXLE (A)	1-42339-033-0	20	1	0710-	●
9	PIN; WHEEL,RR AXLE (B) M22X59.8,M22X53.5 RH THREAD	1-42337-069-1	20	1	0710-0808		●
9	PIN; WHEEL,RR AXLE (B) M22X59.8,M22X53.5 RH THREAD	1-42337-069-1	20	1	0710-0808		●
9	PIN; WHEEL,RR AXLE AUSTRALIA EQUIPMENT(B13) (B) M22X59.8,M22X53.5 RH THREAD	1-42337-069-1	20	1	0809-		●
9	PIN; WHEEL,RR AXLE AUSTRALIA EQUIPMENT(B13) (B) M22X59.8,M22X53.5 RH THREAD	1-42337-069-1	20	1	0809-		●
10	NUT; WHEEL PIN,RR AXLE M22	1-09400-071-0	20	1	0710-0808		●
10	NUT; WHEEL PIN,RR AXLE M22	1-09400-071-0	20	1	0710-0808		●
10	NUT; WHEEL PIN,RR AXLE AUSTRALIA EQUIPMENT(B13) M22	1-09400-071-0	20	1	0809-		●
10	NUT; WHEEL PIN,RR AXLE AUSTRALIA EQUIPMENT(B13) M22	1-09400-071-0	20	1	0809-		●
15	BEARING; HUB OUTER,RR AXLE SKF	1-09812-256-0	02	1	1209-		●
15	BEARING; HUB OUTER,RR AXLE SKF	1-09812-256-0	02	1	1209-		●
15	BEARING; HUB OUTER,RR AXLE BEST VALUE PARTS	1-87610-136-0	02	1	1209-		●
15	BEARING; HUB OUTER,RR AXLE BEST VALUE PARTS	1-87610-136-0	02	1	1209-		●
15	BEARING; HUB OUTER,RR AXLE JTEKT	1-09812-232-0	02	1	0710-		●
15	BEARING; HUB OUTER,RR AXLE JTEKT	1-09812-232-0	02	1	0710-		●
20	NUT; BRG,RR HUB (A)	1-42129-065-0	02	1	0710-	●
20	NUT; BRG,RR HUB (A)	1-42129-065-0	02	1	0710-	●
20	NUT; BRG,RR HUB (B)	1-42129-067-0	02	1	0710-	●
20	NUT; BRG,RR HUB (B)	1-42129-067-0	02	1	0710-	●
20	NUT; BRG,RR HUB (C) M88	9-09843-062-2	02	1	0710-		●
20	NUT; BRG,RR HUB (C) M88	9-09843-062-2	02	1	0710-		●
21	WASHER; LK,BRG NUT ID=88	9-09854-112-0	02	1	0710-		●
21	WASHER; LK,BRG NUT ID=88	9-09854-112-0	02	1	0710-		●
24	BOLT; LK WASHER M6X16 FLANGE	0-28650-616-0	06	1	0710-		●
24	BOLT; LK WASHER M6X16 FLANGE	0-28650-616-0	06	1	0710-		●
26	CAP; HUB,RR AXLE (A)	1-42313-026-0	02	1	0710-	●
26	CAP; HUB,RR AXLE (B)	1-42313-011-1	02	1	0710-		●
32	BOLT; HUB CAP M14X35 FLANGE	0-28651-435-0	20	1	0710-		●
37	BEARING; HUB INNER,RR AXLE BEST VALUE PARTS	1-87610-138-0	02	1	0710-1208		●
37	BEARING; HUB INNER,RR AXLE BEST VALUE PARTS	1-87610-138-0	02	1	0710-1208		●
37	BEARING; HUB INNER,RR AXLE BEST VALUE PARTS	1-87610-138-0	04	1	1209-		●
37	BEARING; HUB INNER,RR AXLE BEST VALUE PARTS	1-87610-138-0	04	1	1209-		●
37	BEARING; HUB INNER,RR AXLE SKF	1-09812-257-0	02	1	1209-		●
37	BEARING; HUB INNER,RR AXLE SKF	1-09812-257-0	02	1	1209-		●
37	BEARING; HUB INNER,RR AXLE JTEKT	1-09812-233-0	02	1	0710-		●
37	BEARING; HUB INNER,RR AXLE JTEKT	1-09812-233-0	02	1	0710-		●
38	SEAL; OIL,RR HUB,INNER (A)	1-42319-172-0	02	1	0710-	●
38	SEAL; OIL,RR HUB,INNER (A)	1-42319-172-0	02	1	0710-	●
38	SEAL; OIL,RR HUB,INNER (B) NOK	1-09625-265-0	02	1	0710-		●
38	SEAL; OIL,RR HUB,INNER (B) NOK	1-09625-265-0	02	1	0710-		●
38	SEAL; OIL,RR HUB,INNER (B) TKK	1-09625-350-0	02	1	0710-		●
38	SEAL; OIL,RR HUB,INNER (B) TKK	1-09625-350-0	02	1	0710-		●
43	RING; SNAP,HUB SEAL,RR AXLE OD=179	1-09587-057-0	02	1	0710-		●
43	RING; SNAP,HUB SEAL,RR AXLE OD=179	1-09587-057-0	02	1	0710-		●
48	COVER; END	1-42119-035-1	02	1	0710-		●
49	CASE; RR AXLE FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y) ANTI LOCK BRAKE<JE5> EXC. AUSTRALIA EQUIPMENT(B13) (C)	8-98024-653-0	01	1	0809-0809		●
49	CASE; RR AXLE ZF6S1000 M/T(Y5D) ANTI LOCK BRAKE<JE5> (C)	8-98024-653-1	01	1	0810-		●
49	CASE; RR AXLE EXC. AUSTRALIA EQUIPMENT(B13) (D)	8-98076-233-2	01	1	0809-		●
49	CASE; RR AXLE FINAL GEAR 37/6 18.5"(W3F),FINAL GEAR 40/6 18.5"(W3G) (C)	8-98024-651-0	01	1	0809-		●
49	CASE; RR AXLE FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y) EXC. AUSTRALIA EQUIPMENT(B13),ANTI LOCK BRAKE<JE5> (C)	8-98024-652-1	01	1	0809-		●
49	CASE; RR AXLE (A)	1-42190-729-0	01	1	0710-1107	●
49	CASE; RR AXLE (A)	1-42190-743-0	01	1	1108-1306	●
49	CASE; RR AXLE (A)	1-42190-754-0	01	1	1307-	●
49	CASE; RR AXLE (B)	1-42190-727-0	01	1	0710-	●
49	CASE; RR AXLE (D)	8-98023-187-2	01	1	0710-0808		●
49	CASE; RR AXLE AUSTRALIA EQUIPMENT(B13) (D)	8-98023-187-2	01	1	0809-		●
49	CASE; RR AXLE (C)	8-98024-650-0	01	1	0710-0808		●
49	CASE; RR AXLE AUSTRALIA EQUIPMENT(B13) (C)	8-98024-650-0	01	1	0809-0809		●
49	CASE; RR AXLE ZF9S1110 M/T(Y5E) ANTI LOCK BRAKE<JE5> (C)	8-98024-650-1	01	1	0810-		●
65	NUT M14	0-91110-514-0	08	1	0710-		●
65	NUT M14	0-91110-514-0	08	1	0710-		●
66	WASHER; LK ID=14.2	0-91510-814-0	08	1	0710-		●
66	WASHER; LK ID=14.2	0-91510-814-0	08	1	0710-		●
72	BOLT; PAD FIX M14X45	9-92061-445-0	08	1	0710-0805		●
72	BOLT; PAD FIX M14X45	9-92061-445-0	08	1	0710-0805		●
72	BOLT; PAD FIX M14X40	0-20951-440-0	08	1	0806-		●
72	BOLT; PAD FIX M14X40	0-20951-440-0	08	1	0806-		●
73	PAD; RR SPR CONTACT	1-42124-101-0	02	1	0710-		●
73	PAD; RR SPR CONTACT	1-42124-101-0	02	1	0710-		●
74	BOLT; RR BRK ASM SETTING (B) M14X50	1-09040-066-0	16	1	0710-0808		●
74	BOLT; RR BRK ASM SETTING EXC. ANTI LOCK BRAKE<JE5> (B) M14X50	1-09040-066-0	16	1	0809-		●
74	BOLT; RR BRK ASM SETTING (B) M14X50	1-09040-066-0	16	1	0809-		●
74	BOLT; RR BRK ASM SETTING (B) M14X50	1-09040-066-0	12	1	0710-0808		●
74	BOLT; RR BRK ASM SETTING ANTI LOCK BRAKE<JE5> (B) M14X50	1-09040-066-0	12	1	0809-		●
74	BOLT; RR BRK ASM SETTING (A) M14X80	9-92621-480-0	04	1	0710-0808		●
74	BOLT; RR BRK ASM SETTING ANTI LOCK BRAKE<JE5> (A) M14X80	9-92621-480-0	04	1	0809-1504		●
74	BOLT; RR BRK ASM SETTING ANTI LOCK BRAKE<JE5> (A) M14X60	1-09040-084-0	04	1	1505-		●
75	WASHER; LK,RR BRK ASM SETTING ID=14.2	0-91510-814-0	16	1	0710-		●
75	WASHER; LK,RR BRK ASM SETTING ID=14.2	0-91510-814-0	16	1	0710-		●
76	NUT; RR BRK ASM SETTING M14	0-91110-514-0	16	1	0710-		●
76	NUT; RR BRK ASM SETTING M14	0-91110-514-0	16	1	0710-		●

74 75 76 49 63 64 60 73 72 59 58 8 9 15 20 16 33 30 25 24 21 143 1 9 37 43 38 10 71 66 67 65 1 8 74

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	DRUM; BRK,RR (A)	1-42315-419-0	02	1	0710-1204	●
1	DRUM; BRK,RR (A)	1-42315-419-0	02	1	0710-1204	●
1	DRUM; BRK,RR (D)	1-42315-422-0	02	1	1205-	●
1	DRUM; BRK,RR (D)	1-42315-422-0	02	1	1205-	●
1	DRUM; BRK,RR EXC. AUSTRALIA EQUIPMENT(B13) (C)	1-42315-377-2	02	1	0809-		●
1	DRUM; BRK,RR EXC. AUSTRALIA EQUIPMENT(B13) (C)	1-42315-377-2	02	1	0809-		●
1	DRUM; BRK,RR (B)	1-42315-383-0	02	1	0710-0808		●
1	DRUM; BRK,RR (B)	1-42315-383-0	02	1	0710-0808		●
1	DRUM; BRK,RR AUSTRALIA EQUIPMENT(B13) (B)	1-42315-383-0	02	1	0809-		●
1	DRUM; BRK,RR AUSTRALIA EQUIPMENT(B13) (B)	1-42315-383-0	02	1	0809-		●
8	HUB; RR AXLE (B)	1-42311-155-0	02	1	0710-1204	●
8	HUB; RR AXLE (D)	1-42311-164-0	02	1	1205-	●
8	HUB; RR AXLE (D)	1-42311-164-0	02	1	1205-	●
8	HUB; RR AXLE (A)	1-42311-085-0	02	1	0710-0808		●
8	HUB; RR AXLE EXC. ANTI LOCK BRAKE<JE5> (A)	1-42311-085-0	02	1	0809-		●
8	HUB; RR AXLE (A)	1-42311-085-0	02	1	0809-		●
8	HUB; RR AXLE (C)	1-42311-094-0	02	1	0710-0808		●
8	HUB; RR AXLE ANTI LOCK BRAKE<JE5> (C)	1-42311-094-0	02	1	0809-		●
9	PIN; WHEEL,RR AXLE EXC. AUSTRALIA EQUIPMENT(B13) (C) M22X93 RH THREAD	1-42337-066-2	20	1	0809-		●
9	PIN; WHEEL,RR AXLE EXC. AUSTRALIA EQUIPMENT(B13) (C) M22X93 RH THREAD	1-42337-066-2	20	1	0809-		●
9	PIN; WHEEL,RR AXLE (A)	1-42339-033-0	20	1	0710-	●
9	PIN; WHEEL,RR AXLE (A)	1-42339-033-0	20	1	0710-	●
9	PIN; WHEEL,RR AXLE (B) M22X59.8,M22X53.5 RH THREAD	1-42337-069-1	20	1	0710-0808		●
9	PIN; WHEEL,RR AXLE (B) M22X59.8,M22X53.5 RH THREAD	1-42337-069-1	20	1	0710-0808		●
9	PIN; WHEEL,RR AXLE AUSTRALIA EQUIPMENT(B13) (B) M22X59.8,M22X53.5 RH THREAD	1-42337-069-1	20	1	0809-		●
9	PIN; WHEEL,RR AXLE AUSTRALIA EQUIPMENT(B13) (B) M22X59.8,M22X53.5 RH THREAD	1-42337-069-1	20	1	0809-		●
10	NUT; WHEEL PIN,RR AXLE M22	1-09400-071-0	20	1	0710-0808		●
10	NUT; WHEEL PIN,RR AXLE M22	1-09400-071-0	20	1	0710-0808		●
10	NUT; WHEEL PIN,RR AXLE AUSTRALIA EQUIPMENT(B13) M22	1-09400-071-0	20	1	0809-		●
10	NUT; WHEEL PIN,RR AXLE AUSTRALIA EQUIPMENT(B13) M22	1-09400-071-0	20	1	0809-		●
15	BEARING; HUB OUTER,RR AXLE SKF	1-09812-256-0	02	1	1209-		●
15	BEARING; HUB OUTER,RR AXLE SKF	1-09812-256-0	02	1	1209-		●
15	BEARING; HUB OUTER,RR AXLE BEST VALUE PARTS	1-87610-136-0	02	1	1209-		●
15	BEARING; HUB OUTER,RR AXLE BEST VALUE PARTS	1-87610-136-0	02	1	1209-		●
15	BEARING; HUB OUTER,RR AXLE JTEKT	1-09812-232-0	02	1	0710-		●
15	BEARING; HUB OUTER,RR AXLE JTEKT	1-09812-232-0	02	1	0710-		●
16	SEAL; OIL,RR HUB,OUTER TKK	1-09625-444-0	02	1	0710-		●
20	NUT; BRG,RR HUB (A)	1-42129-065-0	02	1	0710-	●
20	NUT; BRG,RR HUB (A)	1-42129-065-0	02	1	0710-	●
20	NUT; BRG,RR HUB (B)	1-42129-067-0	02	1	0710-	●
20	NUT; BRG,RR HUB (B)	1-42129-067-0	02	1	0710-	●
20	NUT; BRG,RR HUB (C) M88	9-09843-062-2	02	1	0710-		●
20	NUT; BRG,RR HUB (C) M88	9-09843-062-2	02	1	0710-		●
21	WASHER; LK,BRG NUT ID=88	9-09854-112-0	02	1	0710-		●
21	WASHER; LK,BRG NUT ID=88	9-09854-112-0	02	1	0710-		●
24	BOLT; LK WASHER M6X16 FLANGE	0-28650-616-0	06	1	0710-		●
24	BOLT; LK WASHER M6X16 FLANGE	0-28650-616-0	06	1	0710-		●
25	SHAFT; AXLE,RR FINAL GEAR 37/6 18.5"(W3F),FINAL GEAR 40/6 18.5"(W3G) (B) L=1054	1-42171-355-0	02	1	0809-0910		●
25	SHAFT; AXLE,RR FINAL GEAR 37/6 18.5"(W3F),FINAL GEAR 40/6 18.5"(W3G) (B) L=1050	8-98146-168-0	02	1	0911-		●
25	SHAFT; AXLE,RR (A) L=951	1-42171-557-0	01	1	0710-	●
25	SHAFT; AXLE,RR (A) L=1120	1-42171-558-0	01	1	0710-	●
25	SHAFT; AXLE,RR (B) L=1054	1-42171-375-0	02	1	0710-0808		●
25	SHAFT; AXLE,RR FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y) (B) L=1054	1-42171-375-0	02	1	0809-0910		●
25	SHAFT; AXLE,RR FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y) (B) L=1050	8-98146-164-0	02	1	0911-		●
30	BOLT; HUB TO AXLE SHAFT M14X58	1-09000-582-0	20	1	0710-		●
33	WASHER; AXLE SHAFT (A)	1-42179-003-0	16	1	0710-	●
33	WASHER; AXLE SHAFT (B) ID=14.2	0-91510-814-0	20	1	0710-		●
37	BEARING; HUB INNER,RR AXLE BEST VALUE PARTS	1-87610-138-0	02	1	0710-1208		●
37	BEARING; HUB INNER,RR AXLE BEST VALUE PARTS	1-87610-138-0	02	1	0710-1208		●
37	BEARING; HUB INNER,RR AXLE BEST VALUE PARTS	1-87610-138-0	04	1	1209-		●
37	BEARING; HUB INNER,RR AXLE BEST VALUE PARTS	1-87610-138-0	04	1	1209-		●
37	BEARING; HUB INNER,RR AXLE SKF	1-09812-257-0	02	1	1209-		●
37	BEARING; HUB INNER,RR AXLE SKF	1-09812-257-0	02	1	1209-		●
37	BEARING; HUB INNER,RR AXLE JTEKT	1-09812-233-0	02	1	0710-		●
37	BEARING; HUB INNER,RR AXLE JTEKT	1-09812-233-0	02	1	0710-		●
38	SEAL; OIL,RR HUB,INNER (A)	1-42319-172-0	02	1	0710-	●
38	SEAL; OIL,RR HUB,INNER (A)	1-42319-172-0	02	1	0710-	●
38	SEAL; OIL,RR HUB,INNER (B) NOK	1-09625-265-0	02	1	0710-		●
38	SEAL; OIL,RR HUB,INNER (B) NOK	1-09625-265-0	02	1	0710-		●
38	SEAL; OIL,RR HUB,INNER (B) TKK	1-09625-350-0	02	1	0710-		●
38	SEAL; OIL,RR HUB,INNER (B) TKK	1-09625-350-0	02	1	0710-		●
43	RING; SNAP,HUB SEAL,RR AXLE OD=179	1-09587-057-0	02	1	0710-		●
43	RING; SNAP,HUB SEAL,RR AXLE OD=179	1-09587-057-0	02	1	0710-		●
49	CASE; RR AXLE FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y) ANTI LOCK BRAKE<JE5> EXC. AUSTRALIA EQUIPMENT(B13) (C)	8-98024-653-0	01	1	0809-0809		●
49	CASE; RR AXLE ZF6S1000 M/T(Y5D) ANTI LOCK BRAKE<JE5> (C)	8-98024-653-1	01	1	0810-		●
49	CASE; RR AXLE EXC. AUSTRALIA EQUIPMENT(B13) (D)	8-98076-233-2	01	1	0809-		●
49	CASE; RR AXLE FINAL GEAR 37/6 18.5"(W3F),FINAL GEAR 40/6 18.5"(W3G) (C)	8-98024-651-0	01	1	0809-		●
49	CASE; RR AXLE FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y) EXC. AUSTRALIA EQUIPMENT(B13),ANTI LOCK BRAKE<JE5> (C)	8-98024-652-1	01	1	0809-		●
49	CASE; RR AXLE (A)	1-42190-729-0	01	1	0710-1107	●
49	CASE; RR AXLE (A)	1-42190-743-0	01	1	1108-1306	●
49	CASE; RR AXLE (A)	1-42190-754-0	01	1	1307-	●
49	CASE; RR AXLE (B)	1-42190-727-0	01	1	0710-	●
49	CASE; RR AXLE (D)	8-98023-187-2	01	1	0710-0808		●
49	CASE; RR AXLE AUSTRALIA EQUIPMENT(B13) (D)	8-98023-187-2	01	1	0809-		●
49	CASE; RR AXLE (C)	8-98024-650-0	01	1	0710-0808		●
49	CASE; RR AXLE AUSTRALIA EQUIPMENT(B13) (C)	8-98024-650-0	01	1	0809-0809		●
49	CASE; RR AXLE ZF9S1110 M/T(Y5E) ANTI LOCK BRAKE<JE5> (C)	8-98024-650-1	01	1	0810-		●
58	PLUG; DRAIN,AXLE CASE (A)	1-42129-054-0	01	1	0710-	●
58	PLUG; DRAIN,AXLE CASE (B) M24X17 FLANGE	1-09604-023-0	01	1	0710-		●
59	GASKET; DRAIN PLUG ID=26.8	9-09920-605-0	01	1	0710-		●
60	BREATHER; RR AXLE CASE (A)	1-09893-032-0	01	1	1401-	●
60	BREATHER; RR AXLE CASE (B)	1-09893-003-0	01	1	0710-		●
60	BREATHER; RR AXLE CASE (A)	1-09893-028-0	01	1	0710-1312	●
60	BREATHER; RR AXLE CASE (A)	1-09893-028-0	01	1	0710-1312	●
60	BREATHER; RR AXLE CASE (A)	1-09893-028-0	01	1	1401-	●
63	PLUG; OIL FILLER,AXLE CASE (A)	1-42119-135-0	02	1	0710-	●
63	PLUG; OIL FILLER,AXLE CASE (B)	1-42129-054-0	01	1	0710-	●
63	PLUG; OIL FILLER,AXLE CASE (C) M24X17 FLANGE	1-09604-022-0	01	1	0710-		●
64	GASKET; OIL FILLER,AXLE CASE ID=26.8	9-09920-605-0	01	1	0710-		●
65	NUT M14	0-91110-514-0	08	1	0710-		●
65	NUT M14	0-91110-514-0	08	1	0710-		●
66	WASHER; LK ID=14.2	0-91510-814-0	08	1	0710-		●
66	WASHER; LK ID=14.2	0-91510-814-0	08	1	0710-		●
67	BOLT; FINAL DRIVE SETTING FINAL GEAR 37/6 18.5"(W3F),FINAL GEAR 40/6 18.5"(W3G) (B) M16X70	0-10956-670-0	06	1	0809-		●
67	BOLT; FINAL DRIVE SETTING FINAL GEAR 37/6 18.5"(W3F),FINAL GEAR 40/6 18.5"(W3G) (B) M16X40	0-20951-640-0	06	1	0809-		●
67	BOLT; FINAL DRIVE SETTING (A)	1-42119-136-0	08	1	0710-	●
67	BOLT; FINAL DRIVE SETTING (B) M16X70	0-10956-670-0	04	1	0710-0808		●
67	BOLT; FINAL DRIVE SETTING FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y) (B) M16X70	0-10956-670-0	04	1	0809-		●
67	BOLT; FINAL DRIVE SETTING (B) M16X40	0-20951-640-0	08	1	0710-0808		●
67	BOLT; FINAL DRIVE SETTING FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y) (B) M16X40	0-20951-640-0	08	1	0809-		●
71	WASHER; LK,FINAL DRIVE SETTING (A)	1-41229-168-0	12	1	0710-	●
71	WASHER; LK,FINAL DRIVE SETTING (B) ID=16.2	0-91510-816-0	12	1	0710-		●
72	BOLT; PAD FIX M14X45	9-92061-445-0	08	1	0710-0805		●
72	BOLT; PAD FIX M14X45	9-92061-445-0	08	1	0710-0805		●
72	BOLT; PAD FIX M14X40	0-20951-440-0	08	1	0806-		●
72	BOLT; PAD FIX M14X40	0-20951-440-0	08	1	0806-		●
73	PAD; RR SPR CONTACT	1-42124-101-0	02	1	0710-		●
73	PAD; RR SPR CONTACT	1-42124-101-0	02	1	0710-		●
74	BOLT; RR BRK ASM SETTING (B) M14X50	1-09040-066-0	16	1	0710-0808		●
74	BOLT; RR BRK ASM SETTING EXC. ANTI LOCK BRAKE<JE5> (B) M14X50	1-09040-066-0	16	1	0809-		●
74	BOLT; RR BRK ASM SETTING (B) M14X50	1-09040-066-0	16	1	0809-		●
74	BOLT; RR BRK ASM SETTING (B) M14X50	1-09040-066-0	12	1	0710-0808		●
74	BOLT; RR BRK ASM SETTING ANTI LOCK BRAKE<JE5> (B) M14X50	1-09040-066-0	12	1	0809-		●
74	BOLT; RR BRK ASM SETTING (A) M14X80	9-92621-480-0	04	1	0710-0808		●
74	BOLT; RR BRK ASM SETTING ANTI LOCK BRAKE<JE5> (A) M14X80	9-92621-480-0	04	1	0809-1504		●
74	BOLT; RR BRK ASM SETTING ANTI LOCK BRAKE<JE5> (A) M14X60	1-09040-084-0	04	1	1505-		●
75	WASHER; LK,RR BRK ASM SETTING ID=14.2	0-91510-814-0	16	1	0710-		●
75	WASHER; LK,RR BRK ASM SETTING ID=14.2	0-91510-814-0	16	1	0710-		●
76	NUT; RR BRK ASM SETTING M14	0-91110-514-0	16	1	0710-		●
76	NUT; RR BRK ASM SETTING M14	0-91110-514-0	16	1	0710-		●
143	RING; EXCITER	1-42319-224-0	02	1	1205-	●
143	RING; EXCITER	1-42319-173-0	02	1	0710-0808		●
143	RING; EXCITER ANTI LOCK BRAKE<JE5>	1-42319-173-0	02	1	0809-		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
