◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVM ▶ 11105 - FVM(RHD) ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-11 - FRONT HUB AND DRUM OR ROTOR ▶
4-11 — FRONT HUB AND DRUM OR ROTOR (#33997) — 126 parça

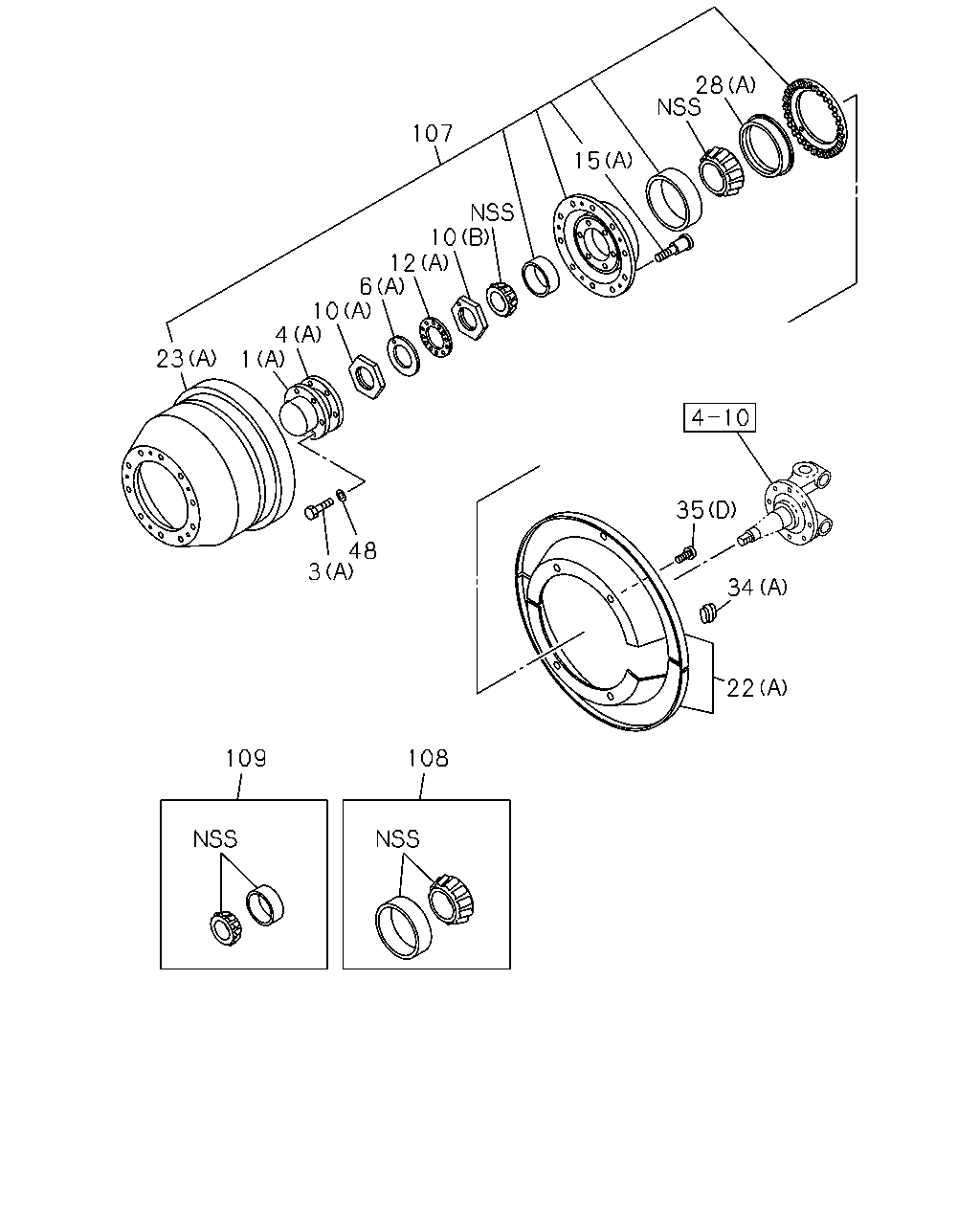

çizim 179333
107 15 28 10 12 6 10 4 23 3 108 109 48 35 34 22 1
BalonParca AdiParca NoAdetTipApplied Date A B
1 CAP; HUB,FRT AXLE
(A) 		1-42313-028-0 02 1 0710-1507 ●
1 CAP; HUB,FRT AXLE
(A) 		8-98329-296-0 02 1 1508- ●
1 CAP; HUB,FRT AXLE
(B) OD=156 		9-42313-123-2 02 1 0710- ●
3 BOLT; HUB CAP,FRT WHEEL
(A) 		1-42319-189-0 12 1 0710- ●
3 BOLT; HUB CAP,FRT WHEEL
(B) M8X12 FLANGE 		0-28050-812-0 12 1 0710- ●
4 GASKET; HUB CAP,FRT WHEEL
(A) 		1-42319-186-0 02 1 0710-1507 ●
4 GASKET; HUB CAP,FRT WHEEL
(A) 		8-98329-302-0 02 1 1508- ●
4 GASKET; HUB CAP,FRT WHEEL
(B) 		1-42319-185-2 02 1 0710- ●
6 WASHER; LK,FRT HUB
(A) 		1-42329-018-0 02 1 0710- ●
6 WASHER; LK,FRT HUB
(B) ID=48 		8-98084-561-0 02 1 0710- ●
10 NUT; FRT HUB BRG
(A) 		1-42329-016-0 02 1 0710- ●
10 NUT; FRT HUB BRG
(B) 		1-42329-017-0 02 1 0710- ●
10 NUT; FRT HUB BRG
(C) M48 		1-09840-012-5 02 1 0710- ●
12 WASHER; LK,FRT HUB BRG
(A) 		1-42329-015-0 02 1 0710- ●
12 WASHER; LK,FRT HUB BRG
(B) ID=48 		1-09533-016-0 02 1 0710-0911 ●
12 WASHER; LK,FRT HUB BRG
(B) ID=48 		8-98156-755-0 02 1 0912- ●
15 PIN; WHEEL,FRT AXLE
(A) 		1-42337-063-0 20 1 0710- ●
15 PIN; WHEEL,FRT AXLE
(B) M22X42.8,M22X55.5 RH THREAD 		1-42337-067-1 20 1 0710- ●
22 COVER SET; FRT BRK DRUM
(A) 		1-47151-708-0 02 1 0710- ●
22 COVER SET; FRT BRK DRUM
(B) 		1-87831-225-0 02 1 0710- ●
23 DRUM; BRK,FRT
(A) 		1-42315-378-0 02 1 0710-1204 ●
23 DRUM; BRK,FRT
(C) 		1-42315-420-0 02 1 1205- ●
23 DRUM; BRK,FRT
(B) 		1-42315-365-0 02 1 0710- ●
28 SEAL; OIL,FRT HUB
(A) 		1-09625-636-0 02 1 0710- ●
28 SEAL; OIL,FRT HUB
(B) OD=140 		1-09625-041-0 02 1 0710- ●
34 COVER; CHECK HOLE,DRUM COVER
(A) 		1-87050-011-0 04 1 0710- ●
34 COVER; CHECK HOLE,DRUM COVER
(B) 		1-09333-151-0 04 1 0710- ●
35 BOLT; DRUM COVER
(D) 		1-47159-176-0 12 1 0710- ●
35 BOLT; DRUM COVER
(C) M18X65 		1-09000-583-0 04 1 0710-0805 ●
35 BOLT; DRUM COVER
(C) M18X65 		1-09000-789-0 04 1 0806- ●
35 BOLT; DRUM COVER
(A) M10X12 		1-47159-187-0 12 1 0710- ●
35 BOLT; DRUM COVER
(B) M18X45 		9-92061-845-0 08 1 0710-0805 ●
35 BOLT; DRUM COVER
(B) M18X45 		1-09000-790-0 08 1 0806- ●
48 WASHER; LK,HUB CAP,FRT WHEEL 1-42319-190-0 12 1 0710-1507 ●
48 WASHER; LK,HUB CAP,FRT WHEEL 1-41519-055-0 12 1 1508- ●
107 HUB & DRUM ASM 1-42311-152-0 02 1 0710-1204 ●
108 BEARING SET; HUB,INNER 1-85573-010-0 02 1 0710- ●
109 BEARING SET; HUB,OUTER 1-85573-011-0 02 1 0710- ●

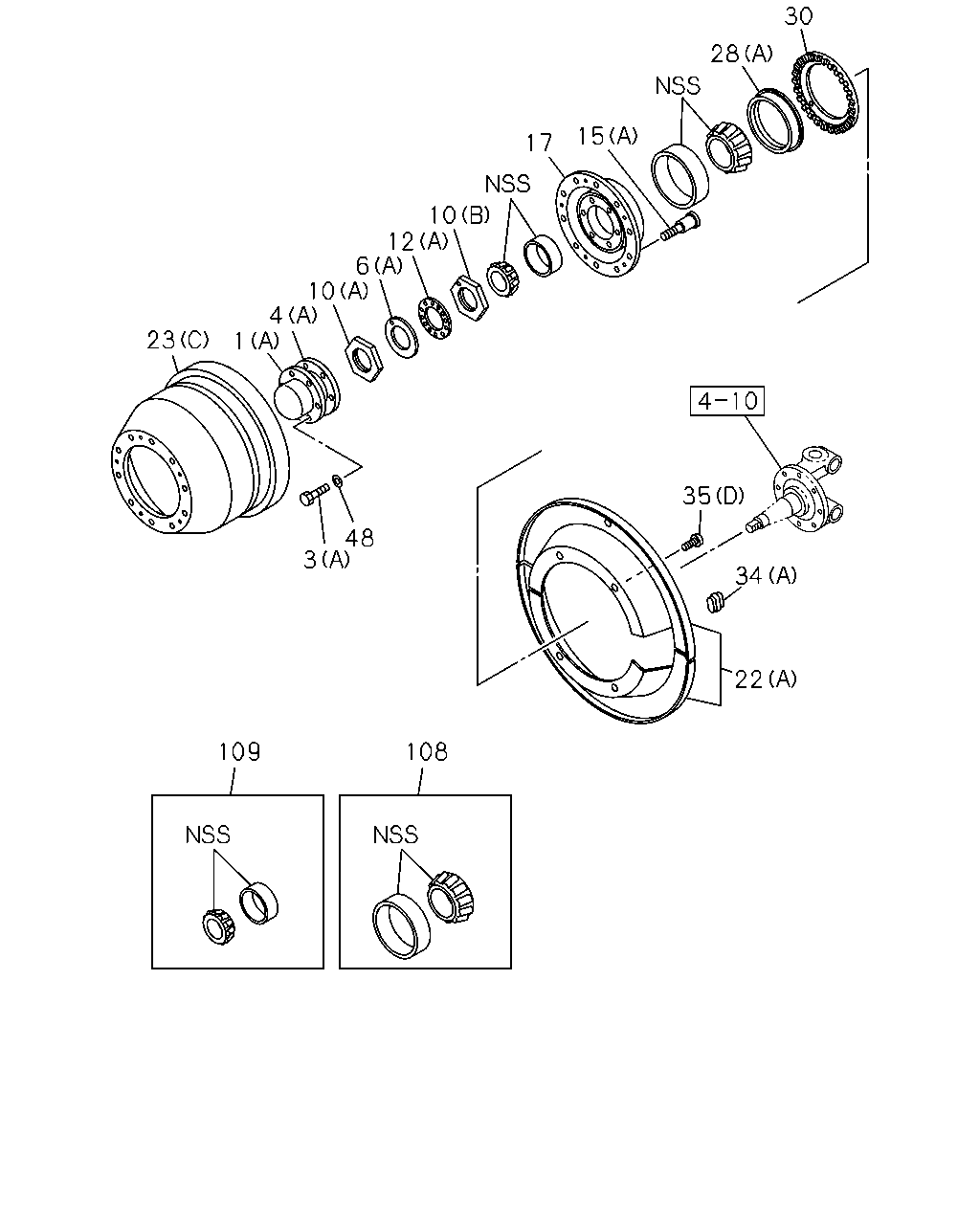

çizim 179431
23 1 10 4 6 12 10 17 15 28 30 35 34 22 108 109 3 48
BalonParca AdiParca NoAdetTipApplied Date A B
1 CAP; HUB,FRT AXLE
(A) 		1-42313-028-0 02 1 0710-1507 ●
1 CAP; HUB,FRT AXLE
(A) 		8-98329-296-0 02 1 1508- ●
1 CAP; HUB,FRT AXLE
(B) OD=156 		9-42313-123-2 02 1 0710- ●
3 BOLT; HUB CAP,FRT WHEEL
(A) 		1-42319-189-0 12 1 0710- ●
3 BOLT; HUB CAP,FRT WHEEL
(B) M8X12 FLANGE 		0-28050-812-0 12 1 0710- ●
4 GASKET; HUB CAP,FRT WHEEL
(A) 		1-42319-186-0 02 1 0710-1507 ●
4 GASKET; HUB CAP,FRT WHEEL
(A) 		8-98329-302-0 02 1 1508- ●
4 GASKET; HUB CAP,FRT WHEEL
(B) 		1-42319-185-2 02 1 0710- ●
6 WASHER; LK,FRT HUB
(A) 		1-42329-018-0 02 1 0710- ●
6 WASHER; LK,FRT HUB
(B) ID=48 		8-98084-561-0 02 1 0710- ●
10 NUT; FRT HUB BRG
(A) 		1-42329-016-0 02 1 0710- ●
10 NUT; FRT HUB BRG
(B) 		1-42329-017-0 02 1 0710- ●
10 NUT; FRT HUB BRG
(C) M48 		1-09840-012-5 02 1 0710- ●
12 WASHER; LK,FRT HUB BRG
(A) 		1-42329-015-0 02 1 0710- ●
12 WASHER; LK,FRT HUB BRG
(B) ID=48 		1-09533-016-0 02 1 0710-0911 ●
12 WASHER; LK,FRT HUB BRG
(B) ID=48 		8-98156-755-0 02 1 0912- ●
15 PIN; WHEEL,FRT AXLE
(A) 		1-42337-063-0 20 1 0710- ●
15 PIN; WHEEL,FRT AXLE
(B) M22X42.8,M22X55.5 RH THREAD 		1-42337-067-1 20 1 0710- ●
17 HUB; FRT AXLE 1-42311-163-0 02 1 1205- ●
17 HUB; FRT AXLE 1-42312-160-0 02 1 0710- ●
22 COVER SET; FRT BRK DRUM
(A) 		1-47151-708-0 02 1 0710- ●
22 COVER SET; FRT BRK DRUM
(B) 		1-87831-225-0 02 1 0710- ●
23 DRUM; BRK,FRT
(A) 		1-42315-378-0 02 1 0710-1204 ●
23 DRUM; BRK,FRT
(C) 		1-42315-420-0 02 1 1205- ●
23 DRUM; BRK,FRT
(B) 		1-42315-365-0 02 1 0710- ●
28 SEAL; OIL,FRT HUB
(A) 		1-09625-636-0 02 1 0710- ●
28 SEAL; OIL,FRT HUB
(B) OD=140 		1-09625-041-0 02 1 0710- ●
30 RING; EXCITER,FRT HUB 1-42319-223-0 02 1 1205- ●
30 RING; EXCITER,FRT HUB 1-42319-203-0 02 1 0710-0808 ●
30 RING; EXCITER,FRT HUB
ANTI LOCK BRAKE<JE5> 		1-42319-203-0 02 1 0809- ●
34 COVER; CHECK HOLE,DRUM COVER
(A) 		1-87050-011-0 04 1 0710- ●
34 COVER; CHECK HOLE,DRUM COVER
(B) 		1-09333-151-0 04 1 0710- ●
35 BOLT; DRUM COVER
(D) 		1-47159-176-0 12 1 0710- ●
35 BOLT; DRUM COVER
(C) M18X65 		1-09000-583-0 04 1 0710-0805 ●
35 BOLT; DRUM COVER
(C) M18X65 		1-09000-789-0 04 1 0806- ●
35 BOLT; DRUM COVER
(A) M10X12 		1-47159-187-0 12 1 0710- ●
35 BOLT; DRUM COVER
(B) M18X45 		9-92061-845-0 08 1 0710-0805 ●
35 BOLT; DRUM COVER
(B) M18X45 		1-09000-790-0 08 1 0806- ●
48 WASHER; LK,HUB CAP,FRT WHEEL 1-42319-190-0 12 1 0710-1507 ●
48 WASHER; LK,HUB CAP,FRT WHEEL 1-41519-055-0 12 1 1508- ●
108 BEARING SET; HUB,INNER 1-85573-010-0 02 1 0710- ●
109 BEARING SET; HUB,OUTER 1-85573-011-0 02 1 0710- ●
çizim 292063
1 4 5 3 6 10 12 13 30 19 20 21 23 27 28 17 15 33 35 35 33 34 34 35 22
BalonParca AdiParca NoAdetTipApplied Date A B
1 CAP; HUB,FRT AXLE
(A) 		1-42313-028-0 02 1 0710-1507 ●
1 CAP; HUB,FRT AXLE
(A) 		8-98329-296-0 02 1 1508- ●
1 CAP; HUB,FRT AXLE
(B) OD=156 		9-42313-123-2 02 1 0710- ●
3 BOLT; HUB CAP,FRT WHEEL
(A) 		1-42319-189-0 12 1 0710- ●
3 BOLT; HUB CAP,FRT WHEEL
(B) M8X12 FLANGE 		0-28050-812-0 12 1 0710- ●
4 GASKET; HUB CAP,FRT WHEEL
(A) 		1-42319-186-0 02 1 0710-1507 ●
4 GASKET; HUB CAP,FRT WHEEL
(A) 		8-98329-302-0 02 1 1508- ●
4 GASKET; HUB CAP,FRT WHEEL
(B) 		1-42319-185-2 02 1 0710- ●
5 BOLT; LK WASHER
M6X16 HEX SOCKET 		8-98084-271-0 04 1 0710-1201 ●
5 BOLT; LK WASHER
M6X16 HEX SOCKET 		8-98200-943-0 04 1 1202- ●
6 WASHER; LK,FRT HUB
(A) 		1-42329-018-0 02 1 0710- ●
6 WASHER; LK,FRT HUB
(B) ID=48 		8-98084-561-0 02 1 0710- ●
10 NUT; FRT HUB BRG
(A) 		1-42329-016-0 02 1 0710- ●
10 NUT; FRT HUB BRG
(B) 		1-42329-017-0 02 1 0710- ●
10 NUT; FRT HUB BRG
(C) M48 		1-09840-012-5 02 1 0710- ●
12 WASHER; LK,FRT HUB BRG
(A) 		1-42329-015-0 02 1 0710- ●
12 WASHER; LK,FRT HUB BRG
(B) ID=48 		1-09533-016-0 02 1 0710-0911 ●
12 WASHER; LK,FRT HUB BRG
(B) ID=48 		8-98156-755-0 02 1 0912- ●
13 BEARING; HUB OUTER,FRT AXLE
JTEKT 		1-09812-234-0 02 1 0710- ●
15 PIN; WHEEL,FRT AXLE
(A) 		1-42337-063-0 20 1 0710- ●
15 PIN; WHEEL,FRT AXLE
(B) M22X42.8,M22X55.5 RH THREAD 		1-42337-067-1 20 1 0710- ●
17 HUB; FRT AXLE 1-42311-163-0 02 1 1205- ●
17 HUB; FRT AXLE 1-42312-160-0 02 1 0710- ●
19 BEARING; HUB INNER,FRT AXLE
JTEKT 		1-09812-231-0 02 1 0710- ●
20 COVER; HUB BRG INNER 1-42319-039-0 02 1 0710- ●
21 RING; SNAP,HUB 1-09587-017-0 02 1 0710- ●
22 COVER SET; FRT BRK DRUM
(A) 		1-47151-708-0 02 1 0710- ●
22 COVER SET; FRT BRK DRUM
(B) 		1-87831-225-0 02 1 0710- ●
23 DRUM; BRK,FRT
(A) 		1-42315-378-0 02 1 0710-1204 ●
23 DRUM; BRK,FRT
(C) 		1-42315-420-0 02 1 1205- ●
23 DRUM; BRK,FRT
(B) 		1-42315-365-0 02 1 0710- ●
27 NUT; WHEEL PIN,FRT AXLE
M22 		1-09400-071-0 20 1 0710- ●
28 SEAL; OIL,FRT HUB
(A) 		1-09625-636-0 02 1 0710- ●
28 SEAL; OIL,FRT HUB
(B) OD=140 		1-09625-041-0 02 1 0710- ●
30 RING; EXCITER,FRT HUB 1-42319-223-0 02 1 1205- ●
30 RING; EXCITER,FRT HUB 1-42319-203-0 02 1 0710-0808 ●
30 RING; EXCITER,FRT HUB
ANTI LOCK BRAKE<JE5> 		1-42319-203-0 02 1 0809- ●
33 WASHER; LK,DRUM COVER
ID=18.2 		0-91510-818-0 12 1 0710- ●
34 COVER; CHECK HOLE,DRUM COVER
(A) 		1-87050-011-0 04 1 0710- ●
34 COVER; CHECK HOLE,DRUM COVER
(B) 		1-09333-151-0 04 1 0710- ●
35 BOLT; DRUM COVER
(D) 		1-47159-176-0 12 1 0710- ●
35 BOLT; DRUM COVER
(C) M18X65 		1-09000-583-0 04 1 0710-0805 ●
35 BOLT; DRUM COVER
(C) M18X65 		1-09000-789-0 04 1 0806- ●
35 BOLT; DRUM COVER
(A) M10X12 		1-47159-187-0 12 1 0710- ●
35 BOLT; DRUM COVER
(B) M18X45 		9-92061-845-0 08 1 0710-0805 ●
35 BOLT; DRUM COVER
(B) M18X45 		1-09000-790-0 08 1 0806- ●
