Sayfa 4-10 - Isuzu EPC

4-10 — FRONT AXLE (#33996) — 327 parça

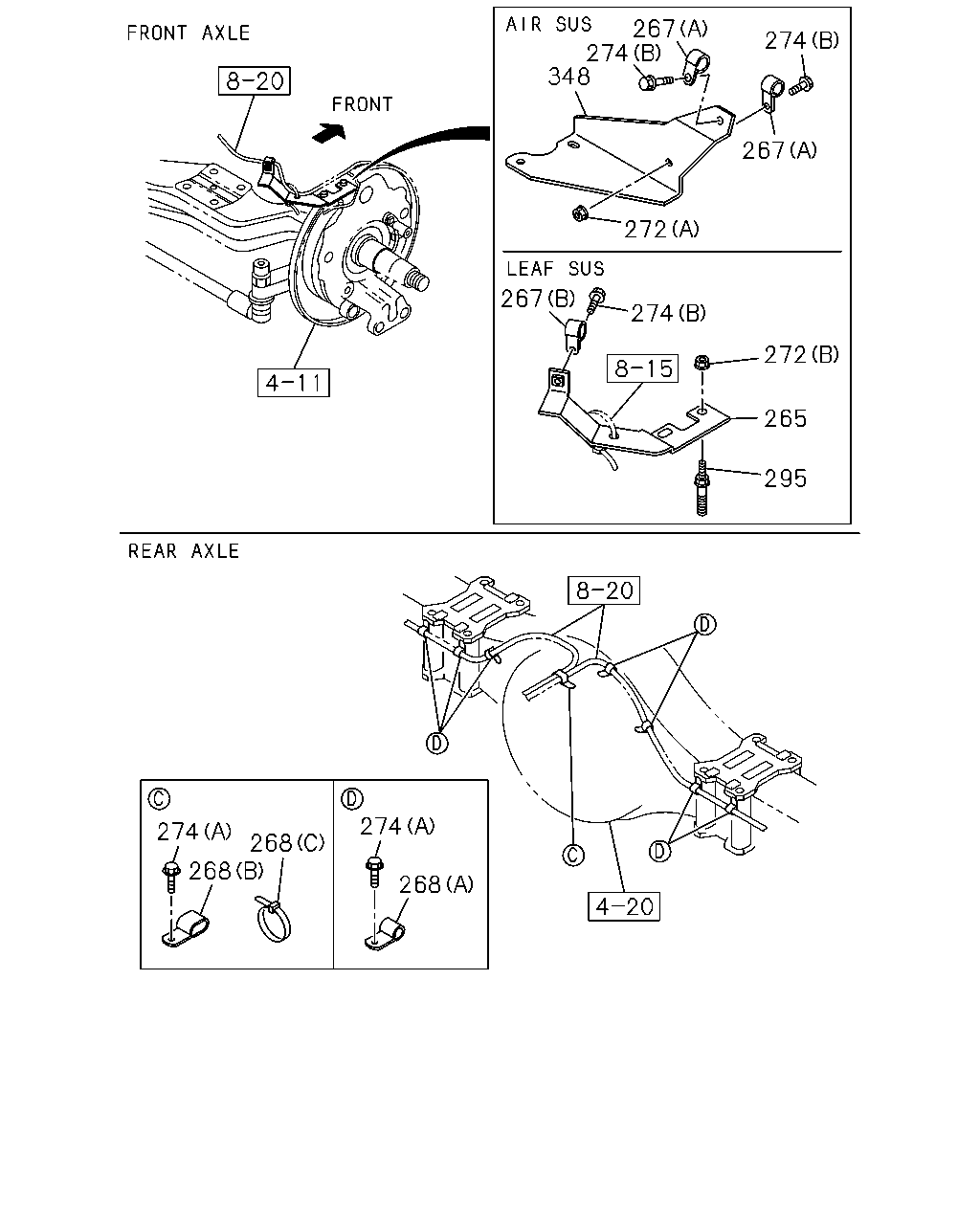

267 274 348 274 267 272 267 274 272 265 295 274 274 268 268 268

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
265	BRACKET; CLIP I BEAM	8-98073-525-0	01	1	0710-0808	●
265	BRACKET; CLIP I BEAM ANTI LOCK BRAKE<JE5>	8-98073-525-0	01	1	0809-	●
265	BRACKET; CLIP I BEAM	8-98073-526-0	01	1	0710-0808	●
265	BRACKET; CLIP I BEAM ANTI LOCK BRAKE<JE5>	8-98073-526-0	01	1	0809-	●
267	CLIP; HARNESS (A) ID=11 L=16	0-95235-025-0	06	1	0710-		●
267	CLIP; HARNESS (B) ID=11 L=20	0-95235-035-0	02	1	0710-0808	●
267	CLIP; HARNESS ANTI LOCK BRAKE<JE5> (B) ID=11 L=20	0-95235-035-0	02	1	0809-	●
268	CLIP; HARNESS ANTI LOCK BRAKE<JE5> (B) ID=11 L=20	0-95235-035-0	04	1	0810-	●
268	CLIP; HARNESS (B) ID=11X2 L=16	0-95325-025-0	02	1	0710-		●
268	CLIP; HARNESS (A) ID=11 L=20	0-95235-035-0	07	1	0710-0808	●	●
268	CLIP; HARNESS (A) ID=11 L=20	0-95235-035-0	07	1	0809-0809		●
268	CLIP; HARNESS ANTI LOCK BRAKE<JE5> (A) ID=11 L=20	0-95235-035-0	07	1	0809-0809	●
268	CLIP; HARNESS (A) ID=11 L=20	0-95235-035-0	07	1	0810-		●
268	CLIP; HARNESS (B) ID=11X2 L=20	0-95325-035-0	01	1	0710-0808	●
268	CLIP; HARNESS ANTI LOCK BRAKE<JE5> (B) ID=11X2 L=20	0-95325-035-0	01	1	0809-0809	●
268	CLIP; HARNESS ZF9S1110 M/T(Y5E) ANTI LOCK BRAKE<JE5> (C) L=140	5-09707-031-1	01	1	0810-	●
272	NUT; CLIP (A) M8 FLANGE	0-91180-108-0	02	1	0710-		●
272	NUT; CLIP (B) M10 FLANGE	0-91180-110-0	04	1	0710-0808	●
272	NUT; CLIP ANTI LOCK BRAKE<JE5> (B) M10 FLANGE	0-91180-110-0	04	1	0809-	●
274	BOLT; CLIP ZF9S1110 M/T(Y5E) ANTI LOCK BRAKE<JE5> (A) M8X10 FLANGE	0-28050-810-0	08	1	0810-	●
274	BOLT; CLIP (A) M8X10 FLANGE	0-28050-810-0	08	1	0710-0808	●
274	BOLT; CLIP ANTI LOCK BRAKE<JE5> (A) M8X10 FLANGE	0-28050-810-0	08	1	0809-0809	●
274	BOLT; CLIP ZF6S1000 M/T(Y5D) ANTI LOCK BRAKE<JE5> (A) M8X10 FLANGE	0-28050-810-0	04	1	0810-	●
274	BOLT; CLIP (A) M8X10 FLANGE	0-28050-810-0	09	1	0710-		●
274	BOLT; CLIP (B) M8X16 FLANGE	0-28050-816-0	04	1	0710-		●
274	BOLT; CLIP (B) M8X16 FLANGE	0-28050-816-0	02	1	0710-0808	●
274	BOLT; CLIP ANTI LOCK BRAKE<JE5> (B) M8X16 FLANGE	0-28050-816-0	02	1	0809-	●
295	STUD; COVER,KING PIN M10X20,M10X26 L=56	8-98010-334-0	04	1	0710-	●
348	BRACKET; CLIP	8-98034-793-0	01	1	0710-		●
348	BRACKET; CLIP	8-98034-794-0	01	1	0710-		●

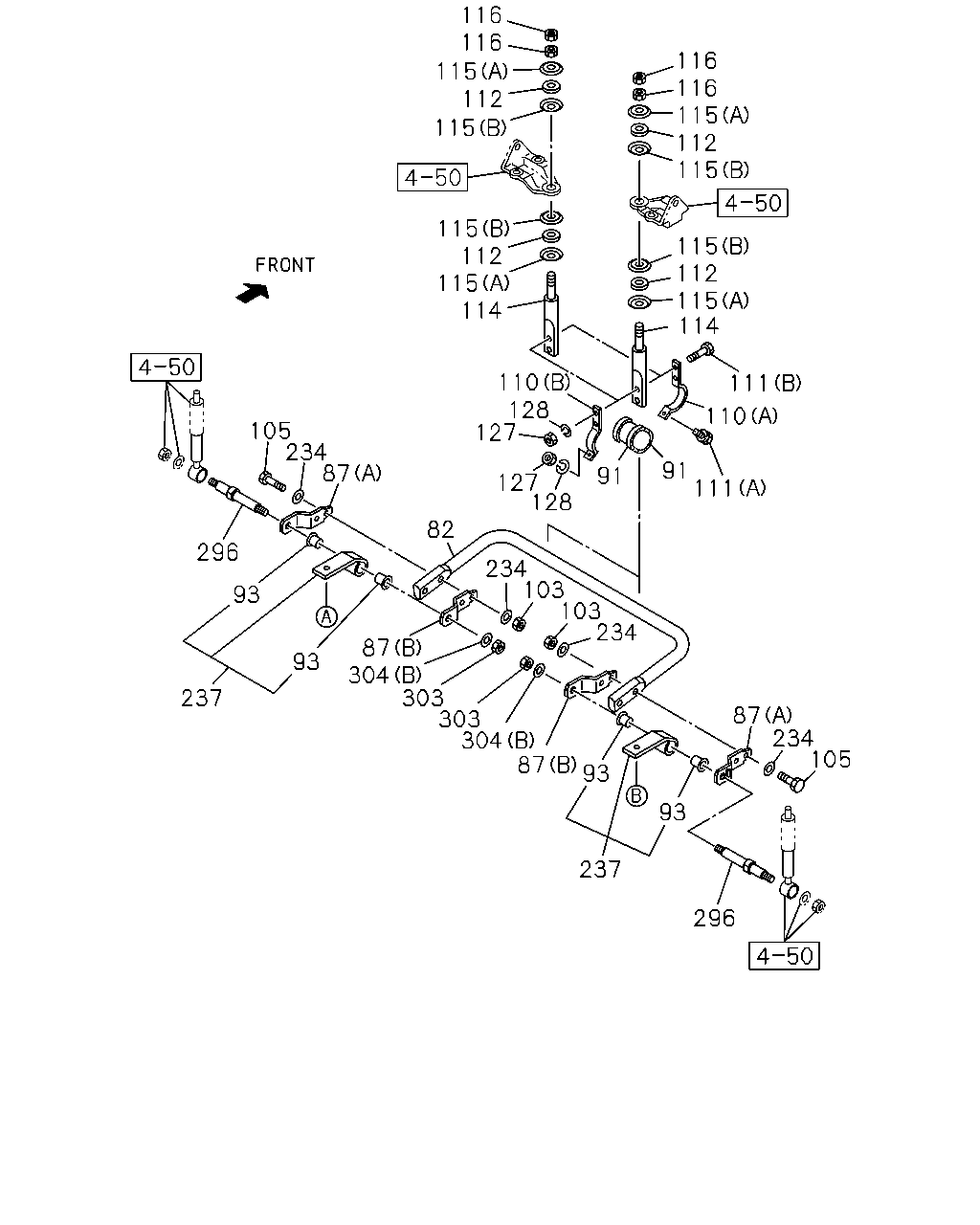

116 116 116 116 115 112 115 115 112 115 115 112 115 114 115 112 115 114 110 128 127 111 110 105 234 87 91 91 127 128 111 82 296 234 103 103 234 93 87 304 303 303 304 87 93 93 237 87 234 105 93 237 296

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
82	BAR; STAB,FRT SUSP FRONT STABILIZER SHAFT<F59>	8-98012-961-1	01	1	0710-	●	●
87	BRACKET; STABILIZER FRONT STABILIZER SHAFT<F59> (A)	8-98012-958-0	02	1	0710-	●	●
87	BRACKET; STABILIZER FRONT STABILIZER SHAFT<F59> (B)	8-98012-959-0	02	1	0710-	●	●
91	BUSHING; RUBBER,STAB BAR FRONT STABILIZER SHAFT<F59>	1-51779-079-1	04	1	0710-	●	●
93	BUSHING; STABILIZER FRONT STABILIZER SHAFT<F59>	1-51689-015-3	04	1	0710-	●	●
103	NUT; BRKT FIX FRONT STABILIZER SHAFT<F59> M14	0-91110-514-0	04	1	0710-	●	●
105	BOLT; BRKT FIX FRONT STABILIZER SHAFT<F59> M14X70	0-10956-470-0	04	1	0710-	●	●
110	CLAMP; STAB TO ROD FRONT STABILIZER SHAFT<F59> (A)	1-51789-027-2	02	1	0710-	●	●
110	CLAMP; STAB TO ROD FRONT STABILIZER SHAFT<F59> (B)	1-51789-028-1	02	1	0710-	●	●
111	BOLT; CLAMP TO ROD FRONT STABILIZER SHAFT<F59> (A) M12X30	0-20851-230-0	02	1	0710-	●	●
111	BOLT; CLAMP TO ROD FRONT STABILIZER SHAFT<F59> (B) M12X50	0-20851-250-0	04	1	0710-	●	●
112	BUSHING; ROD FRONT STABILIZER SHAFT<F59>	9-51631-050-0	04	1	0710-	●	●
114	ROD; STAB BAR FRONT STABILIZER SHAFT<F59>	1-51773-065-0	02	1	0710-	●	●
115	WASHER; CENTER,STAB TO FRAME FRONT STABILIZER SHAFT<F59> (B) ID=16.8	1-51631-022-0	04	1	0710-	●	●
115	WASHER; CENTER,STAB TO FRAME FRONT STABILIZER SHAFT<F59> (A) ID=14.5	9-51631-051-0	04	1	0710-	●	●
116	NUT; LK,STAB TO FRAME FRONT STABILIZER SHAFT<F59> M14	0-91111-514-0	04	1	0710-	●	●
127	NUT; CLAMP FRONT STABILIZER SHAFT<F59> M12	0-91110-512-0	06	1	0710-	●	●
128	WASHER; LK,CLAMP FRONT STABILIZER SHAFT<F59> ID=12.2	0-91510-812-0	06	1	0710-	●	●
234	WASHER; STAB FRONT STABILIZER SHAFT<F59> ID=15	8-98010-627-1	08	1	0710-	●	●
237	SUPPORT; STAB BAR FRONT STABILIZER SHAFT<F59>	1-51681-662-0	02	1	0710-	●	●
296	PIN; STAB FRONT STABILIZER SHAFT<F59>	8-98022-874-1	02	1	0710-	●	●
303	NUT; PIN FRONT STABILIZER SHAFT<F59> M20	0-91110-520-0	02	1	0710-	●	●
304	WASHER; PL (C) ID=12.5	0-91614-512-0	02	1	0710-1009	●
304	WASHER; PL (C) ID=12.5	0-91614-512-0	04	1	1010-	●
304	WASHER; PL FRONT STABILIZER SHAFT<F59> (B) ID=21	9-09164-520-0	02	1	0710-	●	●
304	WASHER; PL (A)	1-43149-011-0	02	1	0710-		●

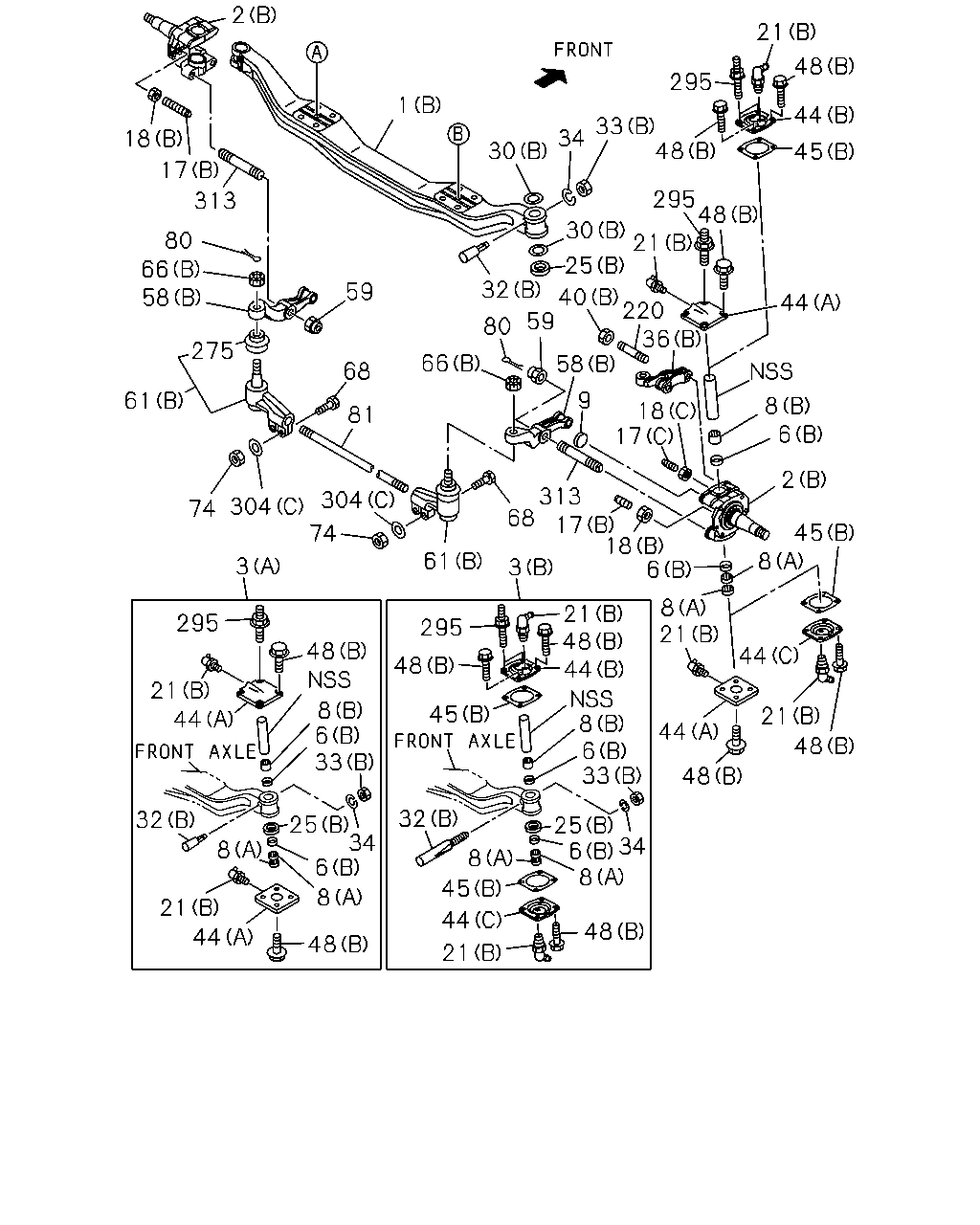

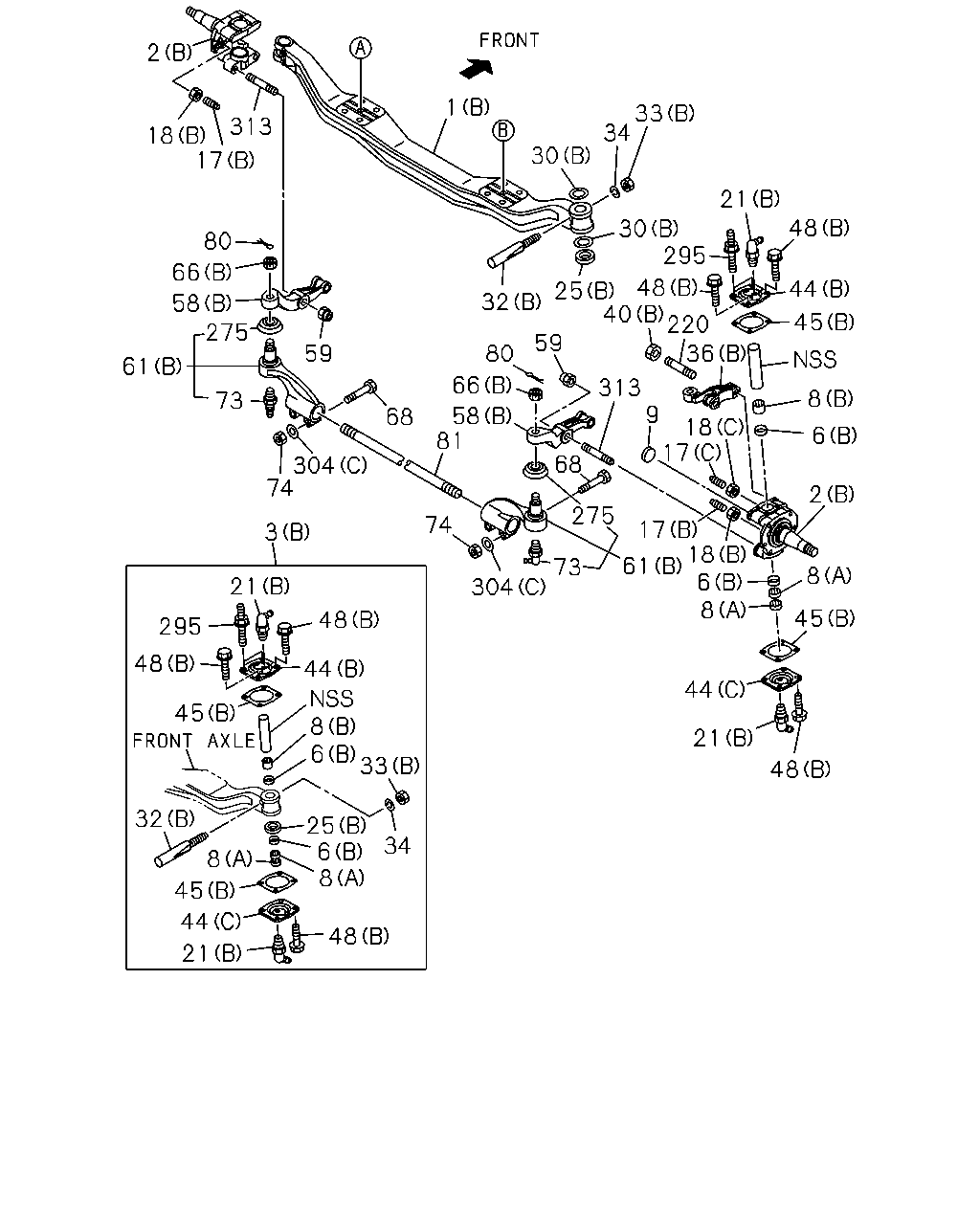

21 48 295 1 44 33 48 34 18 30 45 17 295 48 30 21 25 313 80 32 66 58 59 40 220 59 36 44 80 275 66 58 68 18 17 9 61 8 6 81 313 68 17 18 6 304 304 74 74 45 61 8 3 3 8 21 21 48 44 295 295 48 44 48 21 8 6 33 8 6 33 45 21 44 44 48 48 32 32 25 34 6 25 34 6 8 8 8 45 8 21 44 48 44 48 21

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	AXLE; FRT VIN MODEL YEAR 2011<VZB> (B)	8-98170-180-2	01	1	1012-	●
1	AXLE; FRT (A)	1-43111-161-0	01	1	0710-		●
1	AXLE; FRT (B)	8-98061-842-2	01	1	0710-1011	●
1	AXLE; FRT EXC. VIN MODEL YEAR 2011<VZB> (B)	8-98061-842-3	01	1	1012-	●
3	KING PIN SET VIN MODEL YEAR 2011<VZB> (B)	1-87831-410-2	02	1	1012-	●
3	KING PIN SET (A)	1-87831-301-1	02	1	0710-0801	●
3	KING PIN SET (B)	1-87831-349-1	02	1	0802-1011	●
3	KING PIN SET EXC. VIN MODEL YEAR 2011<VZB> (B)	1-87831-349-2	02	1	1012-	●
6	SEAL; KING PIN (A)	1-09625-634-0	04	1	0710-		●
6	SEAL; KING PIN (B)	9-09926-024-0	04	1	0710-	●
8	BEARING; NEEDLE,KING PIN (A) NTN	9-00096-242-0	04	1	0710-	●
8	BEARING; NEEDLE,KING PIN (B) NTN	9-00096-243-0	02	1	0710-	●
9	PLUG; KNUCKLE EXC. ANTI LOCK BRAKE<JE5> OD=22	1-09600-011-2	02	1	0809-	●
17	BOLT; STOPPER KNUCKLE (A)	1-43149-014-0	02	1	0710-		●
17	BOLT; STOPPER KNUCKLE (C) M18X53	1-09009-066-0	01	1	0710-	●
17	BOLT; STOPPER KNUCKLE (B) M18X43	1-09009-190-0	02	1	0710-	●
18	NUT; STOPPER BOLT,KNUCKLE (A)	1-43149-013-0	02	1	0710-		●
18	NUT; STOPPER BOLT,KNUCKLE (B) M18	0-91110-518-0	02	1	0710-	●
18	NUT; STOPPER BOLT,KNUCKLE (C) OCTAGON M18	1-09469-011-1	01	1	0710-	●
21	NIPPLE; GREASE,KING PIN (A)	1-48259-253-0	04	1	0710-		●
21	NIPPLE; GREASE,KING PIN (B) PT1/8 ELBOW 67.5 DEGREES	0-90301-510-0	04	1	0710-	●
25	BEARING; THRUST,KING PIN (A)	1-43173-004-0	02	1	0710-		●
25	BEARING; THRUST,KING PIN (B) NSK	1-09829-043-2	02	1	0710-	●
30	WASHER; THRUST,KING PIN (A) T=0.015"	1-43171-338-0	AR	1	0710-		●
30	WASHER; THRUST,KING PIN (A) T=0.010"	1-43171-339-0	AR	1	0710-		●
30	WASHER; THRUST,KING PIN (A) T=0.005"	1-43171-340-0	AR	1	0710-		●
30	WASHER; THRUST,KING PIN (B) T=4.875 -4.900	1-43171-185-0	AR	1	0710-	●
30	WASHER; THRUST,KING PIN (B) T=4.900 -4.925	1-43171-186-0	AR	1	0710-	●
30	WASHER; THRUST,KING PIN (B) T=4.925 -4.950	1-43171-187-0	AR	1	0710-	●
30	WASHER; THRUST,KING PIN (B) T=4.950 -4.975	1-43171-188-0	AR	1	0710-	●
30	WASHER; THRUST,KING PIN (B) T=4.975 -5.000	1-43171-189-0	AR	1	0710-	●
30	WASHER; THRUST,KING PIN (B) T=5.000 -5.025	1-43171-190-0	AR	1	0710-	●
30	WASHER; THRUST,KING PIN (B) T=5.025 -5.050	1-43171-191-0	AR	1	0710-	●
30	WASHER; THRUST,KING PIN (B) T=5.050 -5.075	1-43171-192-0	AR	1	0710-	●
30	WASHER; THRUST,KING PIN (B) T=5.075 -5.100	1-43171-193-0	AR	1	0710-	●
30	WASHER; THRUST,KING PIN (B) T=5.100 -5.125	1-43171-194-0	AR	1	0710-	●
30	WASHER; THRUST,KING PIN (B) T=5.125 -5.150	1-43171-195-0	AR	1	0710-	●
30	WASHER; THRUST,KING PIN (B) T=5.150 -5.175	1-43171-196-0	AR	1	0710-	●
30	WASHER; THRUST,KING PIN (B) T=5.175 -5.200	1-43171-197-0	AR	1	0710-	●
30	WASHER; THRUST,KING PIN (B) T=5.200 -5.225	1-43171-198-0	AR	1	0710-	●
30	WASHER; THRUST,KING PIN (B) T=5.225 -5.250	1-43171-199-0	AR	1	0710-	●
32	BOLT; KEY,KING PIN (A) L=98.4	1-43116-014-0	02	1	0710-		●
32	BOLT; KEY,KING PIN (A) L=3.25"	1-43116-006-0	02	1	0710-		●
32	BOLT; KEY,KING PIN (B)	1-43116-002-2	02	1	0710-	●
33	NUT; KEY BOLT (A)	1-43119-002-0	04	1	0710-		●
33	NUT; KEY BOLT (B) M10	0-91110-510-0	02	1	0710-	●
34	WASHER; LK,KEY BOLT VIN MODEL YEAR 2011<VZB> ID=10.2	0-91510-810-0	02	1	1012-1302	●
34	WASHER; LK,KEY BOLT ID=10.2	0-91510-510-0	02	1	0710-1011	●
34	WASHER; LK,KEY BOLT EXC. VIN MODEL YEAR 2011<VZB> ID=10.2	0-91510-510-0	02	1	1012-1302	●
34	WASHER; LK,KEY BOLT ID=10.2	0-91510-510-0	02	1	1303-	●
36	ARM; KNUCKLE (A)	1-43133-087-0	01	1	0710-		●
36	ARM; KNUCKLE (B)	1-43133-073-3	01	1	0710-	●
40	NUT; KNUCKLE ARM (A)	1-43139-059-0	01	1	0710-		●
40	NUT; KNUCKLE ARM (B) M22	1-09449-084-0	02	1	0710-	●
44	COVER; KING PIN (C)	8-98100-655-0	02	1	0802-	●
44	COVER; KING PIN (A)	1-43175-025-0	04	1	0710-0801	●
44	COVER; KING PIN (B)	8-98100-654-0	02	1	0802-	●
45	GASKET; KING PIN COVER (B)	8-98100-656-1	04	1	0802-	●
45	GASKET; KING PIN COVER (A)	1-43139-044-0	04	1	0710-		●
48	BOLT; COVER (A)	1-43139-045-0	12	1	0710-		●
48	BOLT; COVER (B) M10X25 FLANGE	0-28751-025-0	12	1	0710-	●
58	ARM; TIE ROD (A)	1-43134-061-0	01	1	0710-		●
58	ARM; TIE ROD (A)	1-43135-066-0	01	1	0710-		●
58	ARM; TIE ROD (B)	1-43134-049-4	01	1	0710-	●
58	ARM; TIE ROD (B)	1-43135-049-4	01	1	0710-	●
59	NUT; TIE ROD ARM M22	1-09449-084-0	04	1	0710-	●
61	ROD END; TIE ROD (A)	1-43155-058-0	01	1	0710-		●
61	ROD END; TIE ROD (A)	1-43156-058-0	01	1	0710-		●
61	ROD END; TIE ROD (B)	8-98054-851-0	01	1	0710-1009	●
61	ROD END; TIE ROD (B)	8-98096-753-0	01	1	1010-1306	●
61	ROD END; TIE ROD (B)	8-98228-106-0	01	1	1307-	●
61	ROD END; TIE ROD (B)	8-98054-853-0	01	1	0710-1009	●
61	ROD END; TIE ROD (B)	8-98096-754-0	01	1	1010-1306	●
61	ROD END; TIE ROD (B)	8-98228-107-0	01	1	1307-	●
66	NUT; TIE ROD END (A)	1-43139-052-0	02	1	0710-		●
66	NUT; TIE ROD END (B) M24 SLOTTED	1-09442-020-0	02	1	0710-0805	●
66	NUT; TIE ROD END (B) M24	1-09442-032-0	02	1	0806-	●
68	BOLT; TIE ROD END M12X65	8-98053-922-0	02	1	0710-1009	●
68	BOLT; TIE ROD END M12X65	8-98053-922-0	04	1	1010-	●
74	NUT; TIE ROD END M12	0-91110-512-0	04	1	0710-	●
80	PIN; SPLIT,ROD END OD=4.6 L=35	0-81125-035-0	02	1	0710-	●
81	ROD; TIE	1-43151-157-0	01	1	0710-1009	●
81	ROD; TIE	8-98171-947-0	01	1	1010-	●
220	STUD; KNUCKLE ARM M22X145	1-09300-127-1	02	1	0710-	●
275	BOOT; ROD END,TIE	1-43159-107-0	02	1	0710-1009	●
275	BOOT; ROD END,TIE	1-43159-131-0	02	1	1010-1306	●
275	BOOT; ROD END,TIE	8-98229-116-0	02	1	1307-	●
295	STUD; COVER,KING PIN M10X20,M10X26 L=56	8-98010-334-0	04	1	0710-	●
304	WASHER; PL (C) ID=12.5	0-91614-512-0	02	1	0710-1009	●
304	WASHER; PL (C) ID=12.5	0-91614-512-0	04	1	1010-	●
304	WASHER; PL FRONT STABILIZER SHAFT<F59> (B) ID=21	9-09164-520-0	02	1	0710-	●	●
304	WASHER; PL (A)	1-43149-011-0	02	1	0710-		●
313	STUD; TIE ROD ARM M22X145	1-09300-127-1	04	1	0710-	●

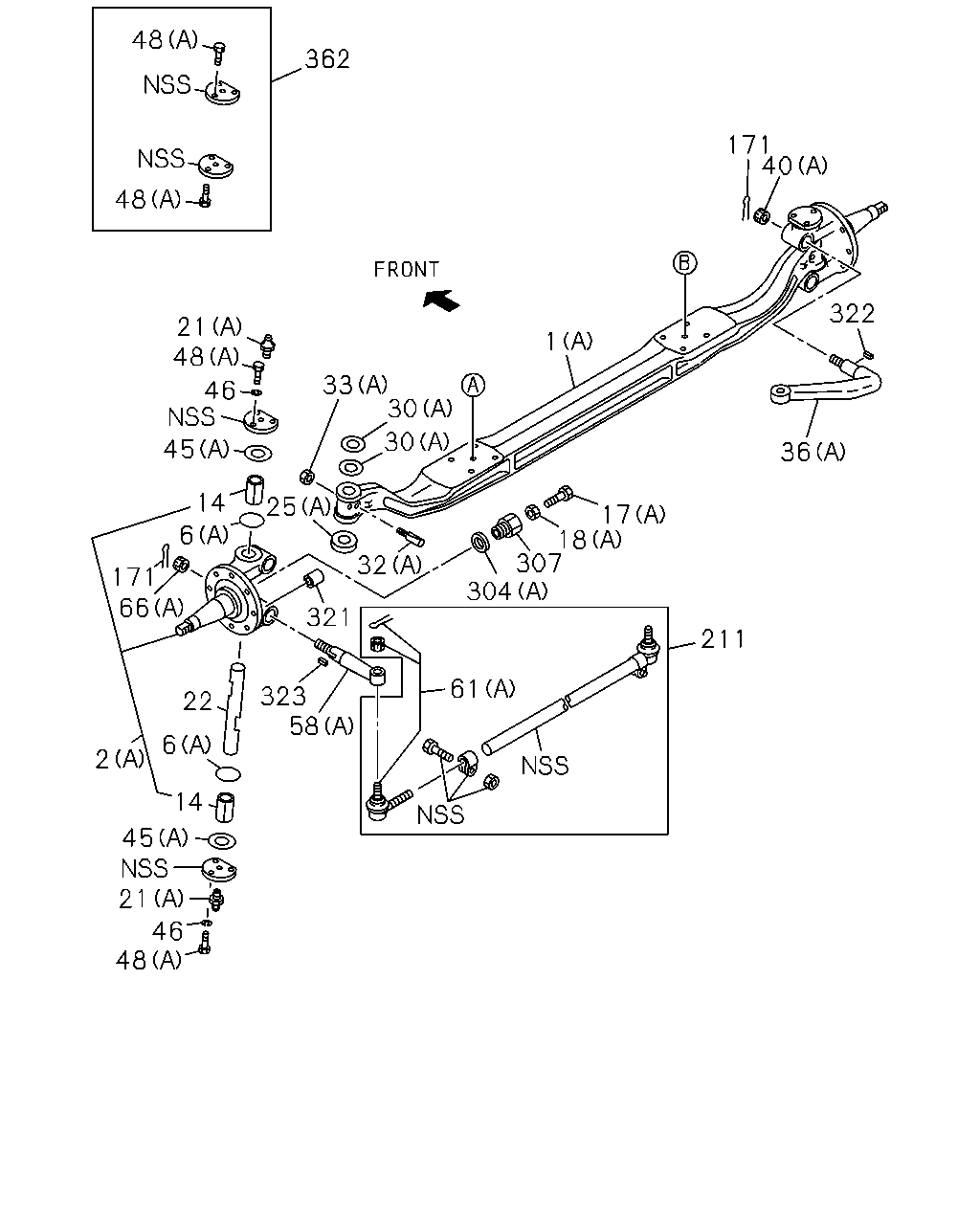

48 362 171 40 48 322 21 48 1 33 30 46 30 45 36 14 25 17 18 307 304 6 32 171 66 321 211 61 323 58 22 6 2 14 45 21 46 48

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	AXLE; FRT VIN MODEL YEAR 2011<VZB> (B)	8-98170-180-2	01	1	1012-	●
1	AXLE; FRT (A)	1-43111-161-0	01	1	0710-		●
1	AXLE; FRT (B)	8-98061-842-2	01	1	0710-1011	●
1	AXLE; FRT EXC. VIN MODEL YEAR 2011<VZB> (B)	8-98061-842-3	01	1	1012-	●
2	KNUCKLE; FRT AXLE (A)	1-43131-108-0	01	1	0710-		●
2	KNUCKLE; FRT AXLE (A)	1-43132-107-0	01	1	0710-		●
2	KNUCKLE; FRT AXLE (B)	1-43131-118-1	01	1	0710-	●
2	KNUCKLE; FRT AXLE (B)	1-43132-101-1	01	1	0710-	●
6	SEAL; KING PIN (A)	1-09625-634-0	04	1	0710-		●
6	SEAL; KING PIN (B)	9-09926-024-0	04	1	0710-	●
14	BUSHING; KING PIN	1-43149-015-0	04	1	0710-		●
17	BOLT; STOPPER KNUCKLE (A)	1-43149-014-0	02	1	0710-		●
17	BOLT; STOPPER KNUCKLE (C) M18X53	1-09009-066-0	01	1	0710-	●
17	BOLT; STOPPER KNUCKLE (B) M18X43	1-09009-190-0	02	1	0710-	●
18	NUT; STOPPER BOLT,KNUCKLE (A)	1-43149-013-0	02	1	0710-		●
18	NUT; STOPPER BOLT,KNUCKLE (B) M18	0-91110-518-0	02	1	0710-	●
18	NUT; STOPPER BOLT,KNUCKLE (C) OCTAGON M18	1-09469-011-1	01	1	0710-	●
21	NIPPLE; GREASE,KING PIN (A)	1-48259-253-0	04	1	0710-		●
21	NIPPLE; GREASE,KING PIN (B) PT1/8 ELBOW 67.5 DEGREES	0-90301-510-0	04	1	0710-	●
22	PIN; KING,FRT AXLE	1-43161-016-0	02	1	0710-		●
25	BEARING; THRUST,KING PIN (A)	1-43173-004-0	02	1	0710-		●
25	BEARING; THRUST,KING PIN (B) NSK	1-09829-043-2	02	1	0710-	●
30	WASHER; THRUST,KING PIN (A) T=0.015"	1-43171-338-0	AR	1	0710-		●
30	WASHER; THRUST,KING PIN (A) T=0.010"	1-43171-339-0	AR	1	0710-		●
30	WASHER; THRUST,KING PIN (A) T=0.005"	1-43171-340-0	AR	1	0710-		●
30	WASHER; THRUST,KING PIN (B) T=4.875 -4.900	1-43171-185-0	AR	1	0710-	●
30	WASHER; THRUST,KING PIN (B) T=4.900 -4.925	1-43171-186-0	AR	1	0710-	●
30	WASHER; THRUST,KING PIN (B) T=4.925 -4.950	1-43171-187-0	AR	1	0710-	●
30	WASHER; THRUST,KING PIN (B) T=4.950 -4.975	1-43171-188-0	AR	1	0710-	●
30	WASHER; THRUST,KING PIN (B) T=4.975 -5.000	1-43171-189-0	AR	1	0710-	●
30	WASHER; THRUST,KING PIN (B) T=5.000 -5.025	1-43171-190-0	AR	1	0710-	●
30	WASHER; THRUST,KING PIN (B) T=5.025 -5.050	1-43171-191-0	AR	1	0710-	●
30	WASHER; THRUST,KING PIN (B) T=5.050 -5.075	1-43171-192-0	AR	1	0710-	●
30	WASHER; THRUST,KING PIN (B) T=5.075 -5.100	1-43171-193-0	AR	1	0710-	●
30	WASHER; THRUST,KING PIN (B) T=5.100 -5.125	1-43171-194-0	AR	1	0710-	●
30	WASHER; THRUST,KING PIN (B) T=5.125 -5.150	1-43171-195-0	AR	1	0710-	●
30	WASHER; THRUST,KING PIN (B) T=5.150 -5.175	1-43171-196-0	AR	1	0710-	●
30	WASHER; THRUST,KING PIN (B) T=5.175 -5.200	1-43171-197-0	AR	1	0710-	●
30	WASHER; THRUST,KING PIN (B) T=5.200 -5.225	1-43171-198-0	AR	1	0710-	●
30	WASHER; THRUST,KING PIN (B) T=5.225 -5.250	1-43171-199-0	AR	1	0710-	●
32	BOLT; KEY,KING PIN (A) L=98.4	1-43116-014-0	02	1	0710-		●
32	BOLT; KEY,KING PIN (A) L=3.25"	1-43116-006-0	02	1	0710-		●
32	BOLT; KEY,KING PIN (B)	1-43116-002-2	02	1	0710-	●
33	NUT; KEY BOLT (A)	1-43119-002-0	04	1	0710-		●
33	NUT; KEY BOLT (B) M10	0-91110-510-0	02	1	0710-	●
36	ARM; KNUCKLE (A)	1-43133-087-0	01	1	0710-		●
36	ARM; KNUCKLE (B)	1-43133-073-3	01	1	0710-	●
40	NUT; KNUCKLE ARM (A)	1-43139-059-0	01	1	0710-		●
40	NUT; KNUCKLE ARM (B) M22	1-09449-084-0	02	1	0710-	●
45	GASKET; KING PIN COVER (B)	8-98100-656-1	04	1	0802-	●
45	GASKET; KING PIN COVER (A)	1-43139-044-0	04	1	0710-		●
46	WASHER; LK,COVER	1-41519-055-0	12	1	0710-		●
48	BOLT; COVER (A)	1-43139-045-0	12	1	0710-		●
48	BOLT; COVER (B) M10X25 FLANGE	0-28751-025-0	12	1	0710-	●
58	ARM; TIE ROD (A)	1-43134-061-0	01	1	0710-		●
58	ARM; TIE ROD (A)	1-43135-066-0	01	1	0710-		●
58	ARM; TIE ROD (B)	1-43134-049-4	01	1	0710-	●
58	ARM; TIE ROD (B)	1-43135-049-4	01	1	0710-	●
61	ROD END; TIE ROD (A)	1-43155-058-0	01	1	0710-		●
61	ROD END; TIE ROD (A)	1-43156-058-0	01	1	0710-		●
61	ROD END; TIE ROD (B)	8-98054-851-0	01	1	0710-1009	●
61	ROD END; TIE ROD (B)	8-98096-753-0	01	1	1010-1306	●
61	ROD END; TIE ROD (B)	8-98228-106-0	01	1	1307-	●
61	ROD END; TIE ROD (B)	8-98054-853-0	01	1	0710-1009	●
61	ROD END; TIE ROD (B)	8-98096-754-0	01	1	1010-1306	●
61	ROD END; TIE ROD (B)	8-98228-107-0	01	1	1307-	●
66	NUT; TIE ROD END (A)	1-43139-052-0	02	1	0710-		●
66	NUT; TIE ROD END (B) M24 SLOTTED	1-09442-020-0	02	1	0710-0805	●
66	NUT; TIE ROD END (B) M24	1-09442-032-0	02	1	0806-	●
171	PIN; SPLIT,STRG ARM	1-43139-048-0	03	1	0710-		●
211	ROD ASM; STEERING TIE ROD	1-43150-861-0	01	1	0710-		●
304	WASHER; PL (C) ID=12.5	0-91614-512-0	02	1	0710-1009	●
304	WASHER; PL (C) ID=12.5	0-91614-512-0	04	1	1010-	●
304	WASHER; PL FRONT STABILIZER SHAFT<F59> (B) ID=21	9-09164-520-0	02	1	0710-	●	●
304	WASHER; PL (A)	1-43149-011-0	02	1	0710-		●
307	STOPPER; STEERING,RR	1-43149-012-0	02	1	0710-		●
321	BUSHING; KNUCKLE	1-42319-213-0	02	1	0710-		●
322	KEY; KNUCKLE ARM	1-43139-046-0	01	1	0710-		●
323	KEY; TIE ROD ARM	1-43139-046-0	02	1	0710-		●
362	COVER SET; KING PIN	1-43175-027-0	02	1	0710-		●

2 1 33 34 313 18 17 30 21 48 30 295 80 66 25 48 40 220 36 44 32 58 275 45 59 59 80 61 66 313 9 8 73 18 17 58 81 68 6 68 304 74 2 275 74 17 18 61 6 8 3 73 304 8 21 45 48 295 48 44 45 44 8 6 33 21 48 32 25 6 8 34 8 45 44 48 21

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	AXLE; FRT VIN MODEL YEAR 2011<VZB> (B)	8-98170-180-2	01	1	1012-	●
1	AXLE; FRT (A)	1-43111-161-0	01	1	0710-		●
1	AXLE; FRT (B)	8-98061-842-2	01	1	0710-1011	●
1	AXLE; FRT EXC. VIN MODEL YEAR 2011<VZB> (B)	8-98061-842-3	01	1	1012-	●
2	KNUCKLE; FRT AXLE (A)	1-43131-108-0	01	1	0710-		●
2	KNUCKLE; FRT AXLE (A)	1-43132-107-0	01	1	0710-		●
2	KNUCKLE; FRT AXLE (B)	1-43131-118-1	01	1	0710-	●
2	KNUCKLE; FRT AXLE (B)	1-43132-101-1	01	1	0710-	●
3	KING PIN SET VIN MODEL YEAR 2011<VZB> (B)	1-87831-410-2	02	1	1012-	●
3	KING PIN SET (A)	1-87831-301-1	02	1	0710-0801	●
3	KING PIN SET (B)	1-87831-349-1	02	1	0802-1011	●
3	KING PIN SET EXC. VIN MODEL YEAR 2011<VZB> (B)	1-87831-349-2	02	1	1012-	●
6	SEAL; KING PIN (A)	1-09625-634-0	04	1	0710-		●
6	SEAL; KING PIN (B)	9-09926-024-0	04	1	0710-	●
8	BEARING; NEEDLE,KING PIN (A) NTN	9-00096-242-0	04	1	0710-	●
8	BEARING; NEEDLE,KING PIN (B) NTN	9-00096-243-0	02	1	0710-	●
9	PLUG; KNUCKLE EXC. ANTI LOCK BRAKE<JE5> OD=22	1-09600-011-2	02	1	0809-	●
17	BOLT; STOPPER KNUCKLE (A)	1-43149-014-0	02	1	0710-		●
17	BOLT; STOPPER KNUCKLE (C) M18X53	1-09009-066-0	01	1	0710-	●
17	BOLT; STOPPER KNUCKLE (B) M18X43	1-09009-190-0	02	1	0710-	●
18	NUT; STOPPER BOLT,KNUCKLE (A)	1-43149-013-0	02	1	0710-		●
18	NUT; STOPPER BOLT,KNUCKLE (B) M18	0-91110-518-0	02	1	0710-	●
18	NUT; STOPPER BOLT,KNUCKLE (C) OCTAGON M18	1-09469-011-1	01	1	0710-	●
21	NIPPLE; GREASE,KING PIN (A)	1-48259-253-0	04	1	0710-		●
21	NIPPLE; GREASE,KING PIN (B) PT1/8 ELBOW 67.5 DEGREES	0-90301-510-0	04	1	0710-	●
25	BEARING; THRUST,KING PIN (A)	1-43173-004-0	02	1	0710-		●
25	BEARING; THRUST,KING PIN (B) NSK	1-09829-043-2	02	1	0710-	●
30	WASHER; THRUST,KING PIN (A) T=0.015"	1-43171-338-0	AR	1	0710-		●
30	WASHER; THRUST,KING PIN (A) T=0.010"	1-43171-339-0	AR	1	0710-		●
30	WASHER; THRUST,KING PIN (A) T=0.005"	1-43171-340-0	AR	1	0710-		●
30	WASHER; THRUST,KING PIN (B) T=4.875 -4.900	1-43171-185-0	AR	1	0710-	●
30	WASHER; THRUST,KING PIN (B) T=4.900 -4.925	1-43171-186-0	AR	1	0710-	●
30	WASHER; THRUST,KING PIN (B) T=4.925 -4.950	1-43171-187-0	AR	1	0710-	●
30	WASHER; THRUST,KING PIN (B) T=4.950 -4.975	1-43171-188-0	AR	1	0710-	●
30	WASHER; THRUST,KING PIN (B) T=4.975 -5.000	1-43171-189-0	AR	1	0710-	●
30	WASHER; THRUST,KING PIN (B) T=5.000 -5.025	1-43171-190-0	AR	1	0710-	●
30	WASHER; THRUST,KING PIN (B) T=5.025 -5.050	1-43171-191-0	AR	1	0710-	●
30	WASHER; THRUST,KING PIN (B) T=5.050 -5.075	1-43171-192-0	AR	1	0710-	●
30	WASHER; THRUST,KING PIN (B) T=5.075 -5.100	1-43171-193-0	AR	1	0710-	●
30	WASHER; THRUST,KING PIN (B) T=5.100 -5.125	1-43171-194-0	AR	1	0710-	●
30	WASHER; THRUST,KING PIN (B) T=5.125 -5.150	1-43171-195-0	AR	1	0710-	●
30	WASHER; THRUST,KING PIN (B) T=5.150 -5.175	1-43171-196-0	AR	1	0710-	●
30	WASHER; THRUST,KING PIN (B) T=5.175 -5.200	1-43171-197-0	AR	1	0710-	●
30	WASHER; THRUST,KING PIN (B) T=5.200 -5.225	1-43171-198-0	AR	1	0710-	●
30	WASHER; THRUST,KING PIN (B) T=5.225 -5.250	1-43171-199-0	AR	1	0710-	●
32	BOLT; KEY,KING PIN (A) L=98.4	1-43116-014-0	02	1	0710-		●
32	BOLT; KEY,KING PIN (A) L=3.25"	1-43116-006-0	02	1	0710-		●
32	BOLT; KEY,KING PIN (B)	1-43116-002-2	02	1	0710-	●
33	NUT; KEY BOLT (A)	1-43119-002-0	04	1	0710-		●
33	NUT; KEY BOLT (B) M10	0-91110-510-0	02	1	0710-	●
34	WASHER; LK,KEY BOLT VIN MODEL YEAR 2011<VZB> ID=10.2	0-91510-810-0	02	1	1012-1302	●
34	WASHER; LK,KEY BOLT ID=10.2	0-91510-510-0	02	1	0710-1011	●
34	WASHER; LK,KEY BOLT EXC. VIN MODEL YEAR 2011<VZB> ID=10.2	0-91510-510-0	02	1	1012-1302	●
34	WASHER; LK,KEY BOLT ID=10.2	0-91510-510-0	02	1	1303-	●
36	ARM; KNUCKLE (A)	1-43133-087-0	01	1	0710-		●
36	ARM; KNUCKLE (B)	1-43133-073-3	01	1	0710-	●
40	NUT; KNUCKLE ARM (A)	1-43139-059-0	01	1	0710-		●
40	NUT; KNUCKLE ARM (B) M22	1-09449-084-0	02	1	0710-	●
44	COVER; KING PIN (C)	8-98100-655-0	02	1	0802-	●
44	COVER; KING PIN (A)	1-43175-025-0	04	1	0710-0801	●
44	COVER; KING PIN (B)	8-98100-654-0	02	1	0802-	●
45	GASKET; KING PIN COVER (B)	8-98100-656-1	04	1	0802-	●
45	GASKET; KING PIN COVER (A)	1-43139-044-0	04	1	0710-		●
48	BOLT; COVER (A)	1-43139-045-0	12	1	0710-		●
48	BOLT; COVER (B) M10X25 FLANGE	0-28751-025-0	12	1	0710-	●
58	ARM; TIE ROD (A)	1-43134-061-0	01	1	0710-		●
58	ARM; TIE ROD (A)	1-43135-066-0	01	1	0710-		●
58	ARM; TIE ROD (B)	1-43134-049-4	01	1	0710-	●
58	ARM; TIE ROD (B)	1-43135-049-4	01	1	0710-	●
59	NUT; TIE ROD ARM M22	1-09449-084-0	04	1	0710-	●
61	ROD END; TIE ROD (A)	1-43155-058-0	01	1	0710-		●
61	ROD END; TIE ROD (A)	1-43156-058-0	01	1	0710-		●
61	ROD END; TIE ROD (B)	8-98054-851-0	01	1	0710-1009	●
61	ROD END; TIE ROD (B)	8-98096-753-0	01	1	1010-1306	●
61	ROD END; TIE ROD (B)	8-98228-106-0	01	1	1307-	●
61	ROD END; TIE ROD (B)	8-98054-853-0	01	1	0710-1009	●
61	ROD END; TIE ROD (B)	8-98096-754-0	01	1	1010-1306	●
61	ROD END; TIE ROD (B)	8-98228-107-0	01	1	1307-	●
66	NUT; TIE ROD END (A)	1-43139-052-0	02	1	0710-		●
66	NUT; TIE ROD END (B) M24 SLOTTED	1-09442-020-0	02	1	0710-0805	●
66	NUT; TIE ROD END (B) M24	1-09442-032-0	02	1	0806-	●
68	BOLT; TIE ROD END M12X65	8-98053-922-0	02	1	0710-1009	●
68	BOLT; TIE ROD END M12X65	8-98053-922-0	04	1	1010-	●
73	NIPPLE; GREASE,TIE ROD END	1-43159-133-0	02	1	1010-	●
74	NUT; TIE ROD END M12	0-91110-512-0	04	1	0710-	●
80	PIN; SPLIT,ROD END OD=4.6 L=35	0-81125-035-0	02	1	0710-	●
81	ROD; TIE	1-43151-157-0	01	1	0710-1009	●
81	ROD; TIE	8-98171-947-0	01	1	1010-	●
220	STUD; KNUCKLE ARM M22X145	1-09300-127-1	02	1	0710-	●
275	BOOT; ROD END,TIE	1-43159-107-0	02	1	0710-1009	●
275	BOOT; ROD END,TIE	1-43159-131-0	02	1	1010-1306	●
275	BOOT; ROD END,TIE	8-98229-116-0	02	1	1307-	●
295	STUD; COVER,KING PIN M10X20,M10X26 L=56	8-98010-334-0	04	1	0710-	●
304	WASHER; PL (C) ID=12.5	0-91614-512-0	02	1	0710-1009	●
304	WASHER; PL (C) ID=12.5	0-91614-512-0	04	1	1010-	●
304	WASHER; PL FRONT STABILIZER SHAFT<F59> (B) ID=21	9-09164-520-0	02	1	0710-	●	●
304	WASHER; PL (A)	1-43149-011-0	02	1	0710-		●
313	STUD; TIE ROD ARM M22X145	1-09300-127-1	04	1	0710-	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
