◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVM ▶ 11105 - FVM(RHD) ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-01 - PROPELLER SHAFT ▶

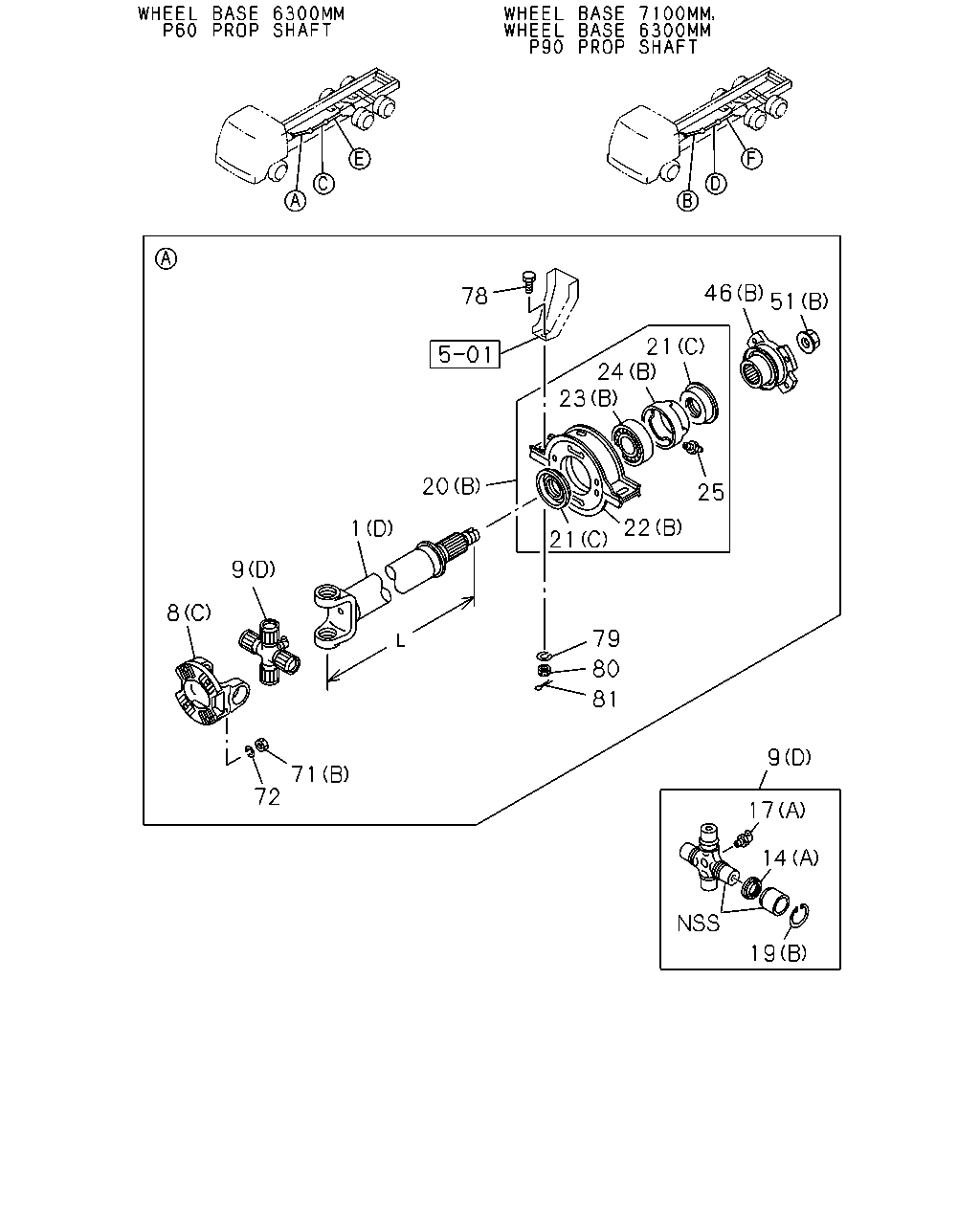

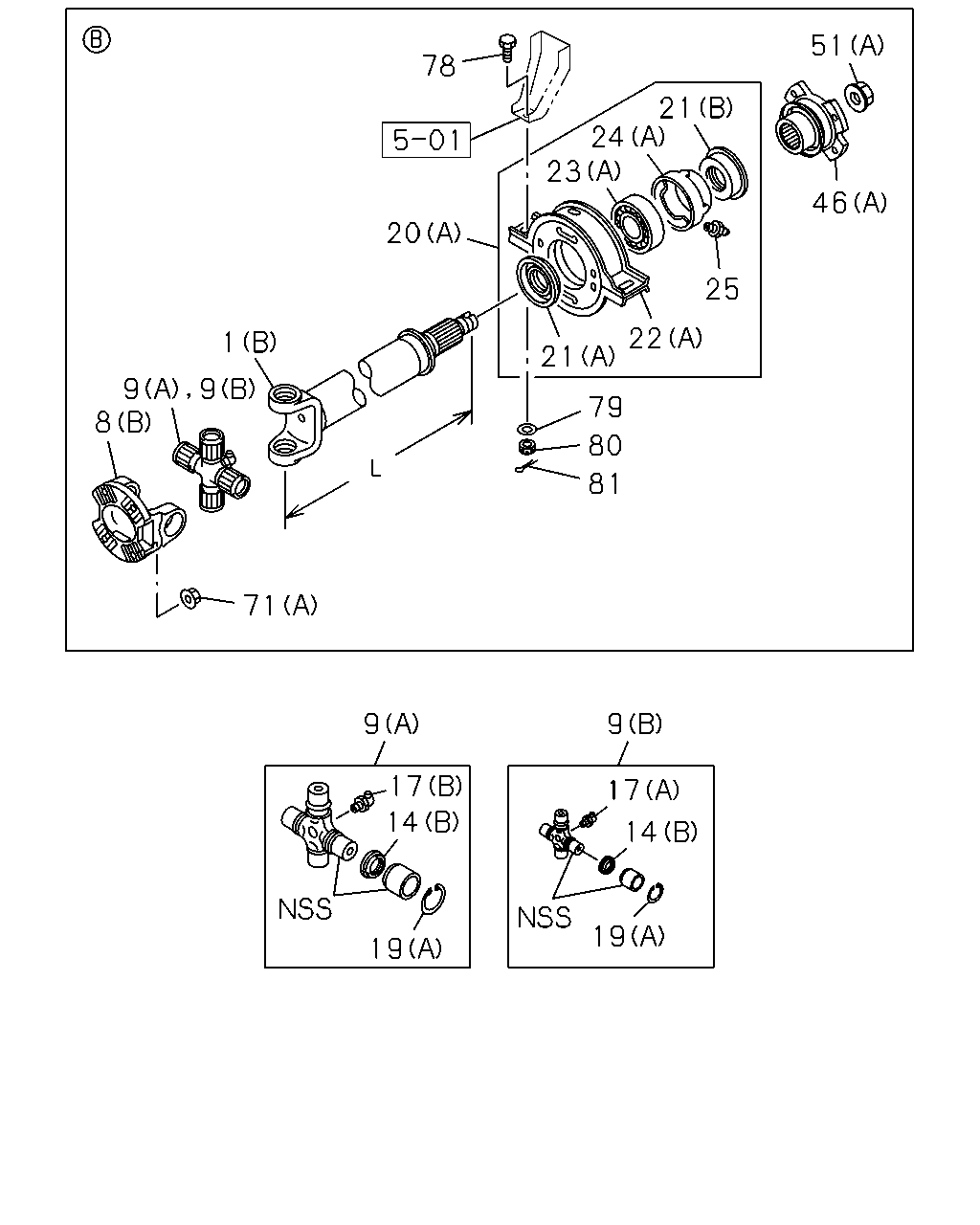

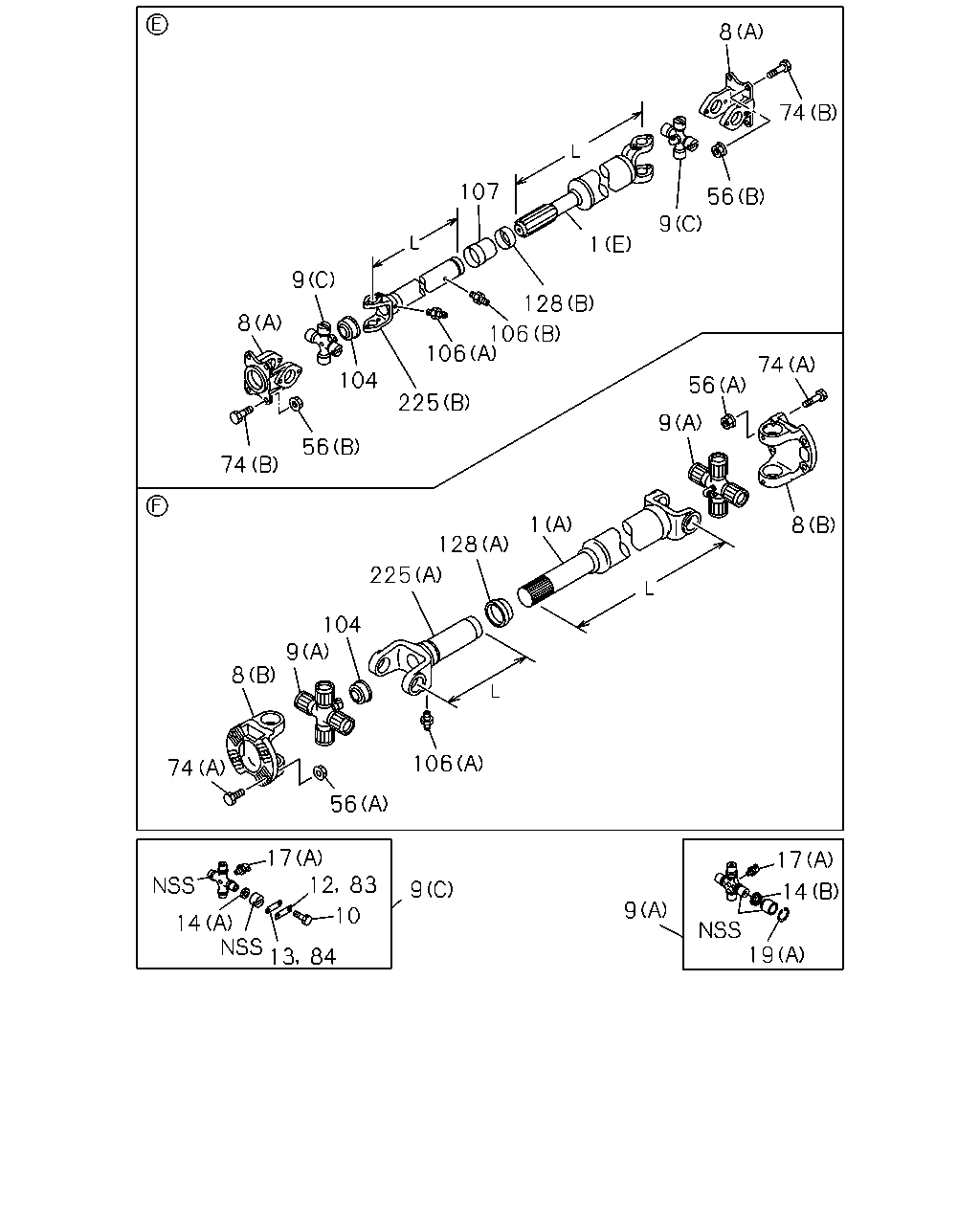

4-01 — PROPELLER SHAFT (#33995) — 592 parça

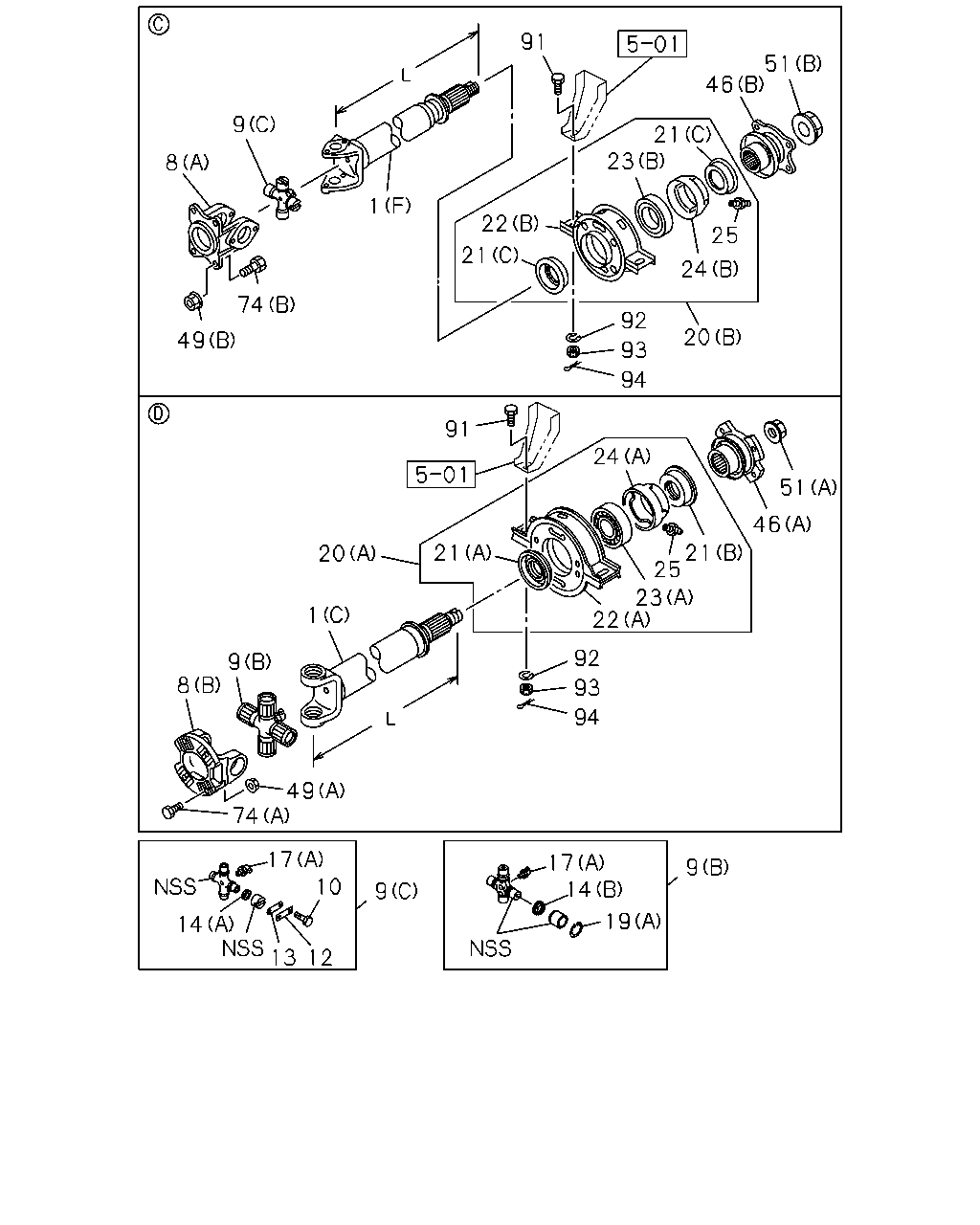

çizim 179174
91 51 46 9 21 23 8 1 22 25 21 24 74 92 20 49 93 94 91 24 51 46 21 25 21 20 23 22 1 92 9 8 93 94 49 74 17 10 17 14 9 9 19 14 13 12
BalonParca AdiParca NoAdetTipApplied Date A B C
1 SHAFT; PROP
EURO2 SPECIFICATION<NT2> (A) L=799 		1-37125-348-1 01 1 1002- ●
1 SHAFT; PROP
EURO2 SPECIFICATION<NT2> (C) L=1350 		8-98159-901-1 01 1 1002- ●
1 SHAFT; PROP
EURO2 SPECIFICATION<NT2> (B) L=1103 		1-37152-927-1 01 1 1002- ●
1 SHAFT; PROP
P90 PROP SHAFT(C5T) FINAL GEAR 37/6 18.5"(W3F),FINAL GEAR 40/6 18.5"(W3G) (A) L=1014 		8-98130-328-1 01 1 0809- ●
1 SHAFT; PROP
P90 PROP SHAFT(C5T) (B) L=725 		8-98091-479-1 01 1 0809- ●
1 SHAFT; PROP
P60 PROP SHAFT(C2M) (E) L=994 		8-98091-269-0 01 1 0809- ●
1 SHAFT; PROP
P60 PROP SHAFT(C2M) (F) L=824 		8-98091-295-0 01 1 0809- ●
1 SHAFT; PROP
P90 PROP SHAFT(C5T) (C) L=820 		8-98091-468-1 01 1 0809- ●
1 SHAFT; PROP
P90 PROP SHAFT(C5T) FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y) (A) L=1039 		1-37124-615-1 01 1 0809- ●
1 SHAFT; PROP
P60 PROP SHAFT(C2M) (D) L=911 		1-37152-590-0 01 1 0809- ●
1 SHAFT; PROP
(C) L=1215 		8-98092-404-0 01 1 0710-1001 ●
1 SHAFT; PROP
EURO4 SPECIFICATION<NT4> (C) L=1215 		8-98092-404-1 01 1 1002- ●
1 SHAFT; PROP
(B) L=1090 		8-98092-523-0 01 1 0710-1001 ●
1 SHAFT; PROP
EURO4 SPECIFICATION<NT4> (B) L=1090 		8-98092-523-1 01 1 1002- ●
1 SHAFT; PROP
(A) L=1039 		8-98092-527-0 01 1 0710-1001 ●
1 SHAFT; PROP
EURO4 SPECIFICATION<NT4> (A) L=1039 		8-98092-527-1 01 1 1002- ●
8 YOKE; FLANGE,PROP SHAFT
P60 PROP SHAFT(C2M) (A) 		1-37211-072-1 03 1 0809- ●
8 YOKE; FLANGE,PROP SHAFT
P90 PROP SHAFT(C5T) (B) 		1-37211-079-1 02 1 0809- ●
8 YOKE; FLANGE,PROP SHAFT
P60 PROP SHAFT(C2M) (C) 		8-98092-073-0 01 1 0809- ●
8 YOKE; FLANGE,PROP SHAFT
(B) 		1-37211-079-1 01 1 0710-0808 ●
8 YOKE; FLANGE,PROP SHAFT
(B) 		1-37211-079-1 01 1 0809- ●
8 YOKE; FLANGE,PROP SHAFT
P90 PROP SHAFT(C5T) (B) 		1-37211-079-1 01 1 0809- ●
8 YOKE; FLANGE,PROP SHAFT
P90 PROP SHAFT(C5T) (B) 		1-37211-079-1 01 1 0809- ●
8 YOKE; FLANGE,PROP SHAFT
(B) 		1-37211-079-1 03 1 0710- ●
9 JOURNAL ASM; PROP SHAFT
P60 PROP SHAFT(C2M) (C) 2ND 		1-37300-095-1 AR 1 0809- ●
9 JOURNAL ASM; PROP SHAFT
P60 PROP SHAFT(C2M) (C) END 		1-37300-094-1 AR 1 0809- ●
9 JOURNAL ASM; PROP SHAFT
P60 PROP SHAFT(C2M) (D) 		1-37300-108-0 01 1 0809- ●
9 JOURNAL ASM; PROP SHAFT
(A) 1ST 		1-37300-110-0 01 1 0710-0808 ●
9 JOURNAL ASM; PROP SHAFT
(A) 1ST 		1-37300-110-0 01 1 0809-1001 ●
9 JOURNAL ASM; PROP SHAFT
P90 PROP SHAFT(C5T) (A) 1ST 		1-37300-110-0 01 1 0809-1001 ●
9 JOURNAL ASM; PROP SHAFT
EURO4 SPECIFICATION<NT4> (A) 1ST 		1-37300-110-0 01 1 1002-1505 ●
9 JOURNAL ASM; PROP SHAFT
P90 PROP SHAFT(C5T) (A) 1ST 		1-37300-110-0 01 1 1002-1505 ●
9 JOURNAL ASM; PROP SHAFT 1-37300-110-0 01 1 1506- ●
9 JOURNAL ASM; PROP SHAFT
P90 PROP SHAFT(C5T) 		1-37300-110-0 01 1 1506- ●
9 JOURNAL ASM; PROP SHAFT
P90 PROP SHAFT(C5T) 		1-37300-110-0 01 1 1506- ●
9 JOURNAL ASM; PROP SHAFT
(A) END 		1-37300-110-0 02 1 0710-0808 ●
9 JOURNAL ASM; PROP SHAFT
(A) END 		1-37300-110-0 02 1 0809-1505 ●
9 JOURNAL ASM; PROP SHAFT
P90 PROP SHAFT(C5T) (A) END 		1-37300-110-0 02 1 0809-1505 ●
9 JOURNAL ASM; PROP SHAFT 1-37300-110-0 03 1 1506- ●
9 JOURNAL ASM; PROP SHAFT
(B) 2ND 		1-37300-111-0 01 1 0710-0808 ●
9 JOURNAL ASM; PROP SHAFT
(B) 2ND 		1-37300-111-0 01 1 0809-1001 ●
9 JOURNAL ASM; PROP SHAFT
P90 PROP SHAFT(C5T) (B) 2ND 		1-37300-111-0 01 1 0809-1001 ●
9 JOURNAL ASM; PROP SHAFT
(B) 2ND AND EURO2 1ST 		1-37300-111-0 01 1 1002-1505 ●
9 JOURNAL ASM; PROP SHAFT
EURO2 SPECIFICATION<NT2> (B) 2ND AND EURO2 1ST 		1-37300-111-0 01 1 1002-1505 ●
9 JOURNAL ASM; PROP SHAFT
P90 PROP SHAFT(C5T) (B) 2ND AND EURO2 1ST 		1-37300-111-0 01 1 1002-1505 ●
9 JOURNAL ASM; PROP SHAFT
P90 PROP SHAFT(C5T) 		1-37300-110-0 02 1 1506- ●
10 BOLT; UJT
P60 PROP SHAFT(C2M) M10X20 		0-20951-020-0 24 1 0809- ●
12 PLATE; LK,FRT UJT,PROP SHAFT
P60 PROP SHAFT(C2M) 		1-37356-010-0 08 1 0809- ●
13 COVER; FRT UJT,PROP SHAFT
P60 PROP SHAFT(C2M) T=6 		1-37355-022-0 08 1 0809- ●
14 COVER; DUST,SPIDER
P90 PROP SHAFT(C5T) (B) 		1-37249-131-0 08 1 0809- ●
14 COVER; DUST,SPIDER
P60 PROP SHAFT(C2M) (A) 		9-37352-023-0 12 1 0809- ●
14 COVER; DUST,SPIDER
P60 PROP SHAFT(C2M) (A) 		9-37352-023-0 04 1 0809- ●
14 COVER; DUST,SPIDER
(B) 		1-37249-131-0 04 1 0710-0808 ●
14 COVER; DUST,SPIDER
(B) 		1-37249-131-0 04 1 0809- ●
14 COVER; DUST,SPIDER
P90 PROP SHAFT(C5T) (B) 		1-37249-131-0 04 1 0809- ●
14 COVER; DUST,SPIDER
P90 PROP SHAFT(C5T) (B) 		1-37249-131-0 04 1 0809- ●
14 COVER; DUST,SPIDER
(B) 		1-37249-131-0 12 1 0710- ●
17 NIPPLE; GREASE,PROP SHAFT
(A) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 02 1 0809- ●
17 NIPPLE; GREASE,PROP SHAFT
(A) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 01 1 0809-1001 ●
17 NIPPLE; GREASE,PROP SHAFT
EURO2 SPECIFICATION<NT2> (A) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 01 1 1002-1505 ●
17 NIPPLE; GREASE,PROP SHAFT
(A) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 01 1 1002-1505 ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 01 1 1506- ● ●
17 NIPPLE; GREASE,PROP SHAFT
P90 PROP SHAFT(C5T) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 01 1 1506- ●
17 NIPPLE; GREASE,PROP SHAFT
(A) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 03 1 0710- ●
17 NIPPLE; GREASE,PROP SHAFT
(B) PT1/8 ELBOW 		0-90301-610-0 01 1 0710-0808 ●
17 NIPPLE; GREASE,PROP SHAFT
(B) PT1/8 ELBOW 		0-90301-610-0 01 1 0809-1001 ● ●
17 NIPPLE; GREASE,PROP SHAFT
EURO4 SPECIFICATION<NT4> (B) PT1/8 ELBOW 		0-90301-610-0 01 1 1002-1505 ●
17 NIPPLE; GREASE,PROP SHAFT
(B) PT1/8 ELBOW 		0-90301-610-0 01 1 1002-1505 ●
17 NIPPLE; GREASE,PROP SHAFT
P60 PROP SHAFT(C2M) PT1/8 ELBOW 		0-90301-610-0 01 1 1506- ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
P90 PROP SHAFT(C5T) (A) T=2.2 		1-09587-102-1 08 1 0809- ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
P60 PROP SHAFT(C2M) (B) 		1-09587-101-1 04 1 0809- ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
(A) T=2.2 		1-09587-102-1 04 1 0710-0808 ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
(A) T=2.2 		1-09587-102-1 04 1 0809- ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
P90 PROP SHAFT(C5T) (A) T=2.2 		1-09587-102-1 04 1 0809- ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
P90 PROP SHAFT(C5T) (A) T=2.2 		1-09587-102-1 04 1 0809- ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
(A) T=2.2 		1-09587-102-1 12 1 0710- ●
20 BEARING ASM; CTR,PROP SHAFT
P60 PROP SHAFT(C2M) (B) 		1-37510-093-3 01 1 0809- ●
20 BEARING ASM; CTR,PROP SHAFT
P60 PROP SHAFT(C2M) (B) 		1-37510-093-3 01 1 0809- ●
20 BEARING ASM; CTR,PROP SHAFT
(A) ID=60 		1-37510-115-0 01 1 0710-0808 ●
20 BEARING ASM; CTR,PROP SHAFT
(A) ID=60 		1-37510-115-0 01 1 0710-0808 ●
20 BEARING ASM; CTR,PROP SHAFT
(A) ID=60 		1-37510-115-0 01 1 0809- ●
20 BEARING ASM; CTR,PROP SHAFT
(A) ID=60 		1-37510-115-0 01 1 0809- ●
20 BEARING ASM; CTR,PROP SHAFT
P90 PROP SHAFT(C5T) (A) ID=60 		1-37510-115-0 01 1 0809- ●
20 BEARING ASM; CTR,PROP SHAFT
P90 PROP SHAFT(C5T) (A) ID=60 		1-37510-115-0 01 1 0809- ●
21 SEAL; OIL,CENTER BRG
P60 PROP SHAFT(C2M) (C) D=120 		1-09625-126-0 02 1 0809- ●
21 SEAL; OIL,CENTER BRG
P60 PROP SHAFT(C2M) (C) D=120 		1-09625-126-0 02 1 0809- ●
21 SEAL; OIL,CENTER BRG
(A) D=120 		1-09625-127-0 01 1 0710-0808 ●
21 SEAL; OIL,CENTER BRG
(A) D=120 		1-09625-127-0 01 1 0710-0808 ●
21 SEAL; OIL,CENTER BRG
(A) D=120 		1-09625-127-0 01 1 0809- ●
21 SEAL; OIL,CENTER BRG
(A) D=120 		1-09625-127-0 01 1 0809- ●
21 SEAL; OIL,CENTER BRG
P90 PROP SHAFT(C5T) (A) D=120 		1-09625-127-0 01 1 0809- ●
21 SEAL; OIL,CENTER BRG
P90 PROP SHAFT(C5T) (A) D=120 		1-09625-127-0 01 1 0809- ●
21 SEAL; OIL,CENTER BRG
(B) 		1-09625-621-0 01 1 0710-0808 ●
21 SEAL; OIL,CENTER BRG
(B) 		1-09625-621-0 01 1 0710-0808 ●
21 SEAL; OIL,CENTER BRG
(B) 		1-09625-621-0 01 1 0809- ●
21 SEAL; OIL,CENTER BRG
(B) 		1-09625-621-0 01 1 0809- ●
21 SEAL; OIL,CENTER BRG
P90 PROP SHAFT(C5T) (B) 		1-09625-621-0 01 1 0809- ●
21 SEAL; OIL,CENTER BRG
P90 PROP SHAFT(C5T) (B) 		1-09625-621-0 01 1 0809- ●
22 RUBBER; CUSHION,CENTER BRG,1ST
P60 PROP SHAFT(C2M) (B) 		1-37516-047-2 01 1 0809- ●
22 RUBBER; CUSHION,CENTER BRG,1ST
P60 PROP SHAFT(C2M) (B) 		1-37516-047-2 01 1 0809- ●
22 RUBBER; CUSHION,CENTER BRG,1ST
(A) 		1-37516-048-2 01 1 0710-0808 ●
22 RUBBER; CUSHION,CENTER BRG,1ST
(A) 		1-37516-048-2 01 1 0710-0808 ●
22 RUBBER; CUSHION,CENTER BRG,1ST
(A) 		1-37516-048-2 01 1 0809- ●
22 RUBBER; CUSHION,CENTER BRG,1ST
(A) 		1-37516-048-2 01 1 0809- ●
22 RUBBER; CUSHION,CENTER BRG,1ST
P90 PROP SHAFT(C5T) (A) 		1-37516-048-2 01 1 0809- ●
22 RUBBER; CUSHION,CENTER BRG,1ST
P90 PROP SHAFT(C5T) (A) 		1-37516-048-2 01 1 0809- ●
23 BEARING; CENTER,PROP SHAFT
P60 PROP SHAFT(C2M) (B) 		9-00090-292-0 01 1 0809- ●
23 BEARING; CENTER,PROP SHAFT
P60 PROP SHAFT(C2M) (B) 		9-00090-292-0 01 1 0809- ●
23 BEARING; CENTER,PROP SHAFT
(A) 		9-00090-256-0 01 1 0710-0808 ●
23 BEARING; CENTER,PROP SHAFT
(A) 		9-00090-256-0 01 1 0710-0808 ●
23 BEARING; CENTER,PROP SHAFT
(A) 		9-00090-256-0 01 1 0809- ●
23 BEARING; CENTER,PROP SHAFT
(A) 		9-00090-256-0 01 1 0809- ●
23 BEARING; CENTER,PROP SHAFT
P90 PROP SHAFT(C5T) (A) 		9-00090-256-0 01 1 0809- ●
23 BEARING; CENTER,PROP SHAFT
P90 PROP SHAFT(C5T) (A) 		9-00090-256-0 01 1 0809- ●
24 RETAINER; CENTER BRG,1ST
P60 PROP SHAFT(C2M) (B) 		1-37529-039-0 01 1 0809- ●
24 RETAINER; CENTER BRG,1ST
P60 PROP SHAFT(C2M) (B) 		1-37529-039-0 01 1 0809- ●
24 RETAINER; CENTER BRG,1ST
(A) 		1-37529-109-0 01 1 0710-0808 ●
24 RETAINER; CENTER BRG,1ST
(A) 		1-37529-109-0 01 1 0710-0808 ●
24 RETAINER; CENTER BRG,1ST
(A) 		1-37529-109-0 01 1 0809- ●
24 RETAINER; CENTER BRG,1ST
(A) 		1-37529-109-0 01 1 0809- ●
24 RETAINER; CENTER BRG,1ST
P90 PROP SHAFT(C5T) (A) 		1-37529-109-0 01 1 0809- ●
24 RETAINER; CENTER BRG,1ST
P90 PROP SHAFT(C5T) (A) 		1-37529-109-0 01 1 0809- ●
25 NIPPLE; GREASE,CENTER BRG
MT6 STRAIGHT 		1-09380-006-0 01 1 0710-0808 ●
25 NIPPLE; GREASE,CENTER BRG
MT6 STRAIGHT 		1-09380-006-0 01 1 0710-0808 ●
25 NIPPLE; GREASE,CENTER BRG
MT6 STRAIGHT 		1-09380-006-0 01 1 0809- ● ●
25 NIPPLE; GREASE,CENTER BRG
MT6 STRAIGHT 		1-09380-006-0 01 1 0809- ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
P60 PROP SHAFT(C2M) (B) 		1-37245-283-1 01 1 0809- ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
P60 PROP SHAFT(C2M) (B) 		1-37245-283-1 01 1 0809- ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
(A) 		1-37245-348-0 01 1 0710-0808 ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
(A) 		1-37245-348-0 01 1 0710-0808 ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
(A) 		1-37245-348-0 01 1 0809- ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
(A) 		1-37245-348-0 01 1 0809- ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
P90 PROP SHAFT(C5T) (A) 		1-37245-348-0 01 1 0809- ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
P90 PROP SHAFT(C5T) (A) 		1-37245-348-0 01 1 0809- ●
49 NUT; YOKE
P60 PROP SHAFT(C2M) (B) M16 FLANGE 		1-09449-065-0 04 1 0809- ●
49 NUT; YOKE
(A) M14 FLANGE 		1-09440-048-0 04 1 0710-0805 ●
49 NUT; YOKE
(A) M14 FLANGE 		8-97365-444-0 04 1 0806-0808 ●
49 NUT; YOKE
(A) M14 FLANGE 		8-97365-444-0 04 1 0809- ●
49 NUT; YOKE
P90 PROP SHAFT(C5T) (A) M14 FLANGE 		8-97365-444-0 04 1 0809- ●
51 NUT; FLANGE,SPLINED
P60 PROP SHAFT(C2M) (B) M33 FLANGE 		1-09449-051-0 01 1 0809- ●
51 NUT; FLANGE,SPLINED
P60 PROP SHAFT(C2M) (B) M33 FLANGE 		1-09449-051-0 01 1 0809- ●
51 NUT; FLANGE,SPLINED
(A) M39 FLANGE 		1-09440-046-0 01 1 0710-0808 ●
51 NUT; FLANGE,SPLINED
(A) M39 FLANGE 		1-09440-046-0 01 1 0710-0808 ●
51 NUT; FLANGE,SPLINED
(A) M39 FLANGE 		1-09440-046-0 01 1 0809- ●
51 NUT; FLANGE,SPLINED
(A) M39 FLANGE 		1-09440-046-0 01 1 0809- ●
51 NUT; FLANGE,SPLINED
P90 PROP SHAFT(C5T) (A) M39 FLANGE 		1-09440-046-0 01 1 0809- ●
51 NUT; FLANGE,SPLINED
P90 PROP SHAFT(C5T) (A) M39 FLANGE 		1-09440-046-0 01 1 0809- ●
74 BOLT; YOKE,TRANS
P60 PROP SHAFT(C2M) (B) M16X48 		1-09000-383-0 08 1 0809- ●
74 BOLT; YOKE,TRANS
P60 PROP SHAFT(C2M) (B) M16X48 		1-09000-383-0 04 1 0809- ●
74 BOLT; YOKE,TRANS
ZF9S1110 M/T(Y5E) (A) M14X50 		1-09000-645-0 04 1 0710-0808 ●
74 BOLT; YOKE,TRANS
(A) M14X50 		1-09000-645-0 04 1 0809-0810 ●
74 BOLT; YOKE,TRANS
P90 PROP SHAFT(C5T) (A) M14X50 		1-09000-645-0 04 1 0809-0810 ●
74 BOLT; YOKE,TRANS
(A) M14X50 		1-09000-645-0 08 1 0811-1103 ●
74 BOLT; YOKE,TRANS
P90 PROP SHAFT(C5T) (A) M14X50 		1-09000-645-0 08 1 0811-1103 ●
74 BOLT; YOKE,TRANS
P90 PROP SHAFT(C5T) (A) M14X50 		1-09000-645-0 08 1 1104- ●
74 BOLT; YOKE,TRANS
ZF9S1110 M/T(Y5E) (A) M14X50 		1-09000-645-0 08 1 0710-0808 ● ● ●
74 BOLT; YOKE,TRANS
(A) M14X50 		1-09000-645-0 08 1 0809-0810 ●
74 BOLT; YOKE,TRANS
P90 PROP SHAFT(C5T) (A) M14X50 		1-09000-645-0 08 1 0809-0810 ●
74 BOLT; YOKE,TRANS
(A) M14X50 		1-09000-645-0 04 1 0811-1103 ●
74 BOLT; YOKE,TRANS
P90 PROP SHAFT(C5T) (A) M14X50 		1-09000-645-0 04 1 0811-1103 ●
74 BOLT; YOKE,TRANS
(A) M14X50 		1-09000-645-0 04 1 1104- ●
74 BOLT; YOKE,TRANS
(A) M14X50 		1-09000-645-0 04 1 1104- ●
74 BOLT; YOKE,TRANS
P90 PROP SHAFT(C5T) (A) M14X50 		1-09000-645-0 04 1 1104- ●
91 BOLT; HOLDER SET,CTR BRG
M16X45 		1-09042-030-0 02 1 0710-0808 ●
91 BOLT; HOLDER SET,CTR BRG
M16X45 		1-09042-030-0 02 1 0809- ● ●
92 WASHER; LK,HOLDER SET,CTR BRG
ID=17 		1-09503-241-1 02 1 0710-0808 ●
92 WASHER; LK,HOLDER SET,CTR BRG
ID=17 		1-09503-241-1 02 1 0809- ● ●
93 NUT; HOLDER SET,CTR BRG
M16 SLOTTED 		0-91116-516-0 02 1 0710-0808 ●
93 NUT; HOLDER SET,CTR BRG
M16 SLOTTED 		0-91116-516-0 02 1 0809-1204 ● ●
93 NUT; HOLDER SET,CTR BRG
M16 SLOTTED 		8-98049-689-0 02 1 1205- ● ●
94 PIN; SPLIT,HOLDER SET CTR BRG
OD=3.7 L=25 		0-81124-025-0 02 1 0710-0808 ●
94 PIN; SPLIT,HOLDER SET CTR BRG
OD=3.7 L=25 		0-81124-025-0 02 1 0809- ● ●
çizim 179192
8 74 107 56 9 1 9 128 8 106 106 74 104 56 225 9 56 74 1 8 128 225 104 9 8 106 74 56 17 12 17 83 9 14 9 10 14 13 19 84
BalonParca AdiParca NoAdetTipApplied Date A B C
1 SHAFT; PROP
EURO2 SPECIFICATION<NT2> (A) L=799 		1-37125-348-1 01 1 1002- ●
1 SHAFT; PROP
EURO2 SPECIFICATION<NT2> (C) L=1350 		8-98159-901-1 01 1 1002- ●
1 SHAFT; PROP
EURO2 SPECIFICATION<NT2> (B) L=1103 		1-37152-927-1 01 1 1002- ●
1 SHAFT; PROP
P90 PROP SHAFT(C5T) FINAL GEAR 37/6 18.5"(W3F),FINAL GEAR 40/6 18.5"(W3G) (A) L=1014 		8-98130-328-1 01 1 0809- ●
1 SHAFT; PROP
P90 PROP SHAFT(C5T) (B) L=725 		8-98091-479-1 01 1 0809- ●
1 SHAFT; PROP
P60 PROP SHAFT(C2M) (E) L=994 		8-98091-269-0 01 1 0809- ●
1 SHAFT; PROP
P60 PROP SHAFT(C2M) (F) L=824 		8-98091-295-0 01 1 0809- ●
1 SHAFT; PROP
P90 PROP SHAFT(C5T) (C) L=820 		8-98091-468-1 01 1 0809- ●
1 SHAFT; PROP
P90 PROP SHAFT(C5T) FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y) (A) L=1039 		1-37124-615-1 01 1 0809- ●
1 SHAFT; PROP
P60 PROP SHAFT(C2M) (D) L=911 		1-37152-590-0 01 1 0809- ●
1 SHAFT; PROP
(C) L=1215 		8-98092-404-0 01 1 0710-1001 ●
1 SHAFT; PROP
EURO4 SPECIFICATION<NT4> (C) L=1215 		8-98092-404-1 01 1 1002- ●
1 SHAFT; PROP
(B) L=1090 		8-98092-523-0 01 1 0710-1001 ●
1 SHAFT; PROP
EURO4 SPECIFICATION<NT4> (B) L=1090 		8-98092-523-1 01 1 1002- ●
1 SHAFT; PROP
(A) L=1039 		8-98092-527-0 01 1 0710-1001 ●
1 SHAFT; PROP
EURO4 SPECIFICATION<NT4> (A) L=1039 		8-98092-527-1 01 1 1002- ●
8 YOKE; FLANGE,PROP SHAFT
P60 PROP SHAFT(C2M) (A) 		1-37211-072-1 03 1 0809- ●
8 YOKE; FLANGE,PROP SHAFT
P90 PROP SHAFT(C5T) (B) 		1-37211-079-1 02 1 0809- ●
8 YOKE; FLANGE,PROP SHAFT
P60 PROP SHAFT(C2M) (C) 		8-98092-073-0 01 1 0809- ●
8 YOKE; FLANGE,PROP SHAFT
(B) 		1-37211-079-1 01 1 0710-0808 ●
8 YOKE; FLANGE,PROP SHAFT
(B) 		1-37211-079-1 01 1 0809- ●
8 YOKE; FLANGE,PROP SHAFT
P90 PROP SHAFT(C5T) (B) 		1-37211-079-1 01 1 0809- ●
8 YOKE; FLANGE,PROP SHAFT
P90 PROP SHAFT(C5T) (B) 		1-37211-079-1 01 1 0809- ●
8 YOKE; FLANGE,PROP SHAFT
(B) 		1-37211-079-1 03 1 0710- ●
9 JOURNAL ASM; PROP SHAFT
P60 PROP SHAFT(C2M) (C) 2ND 		1-37300-095-1 AR 1 0809- ●
9 JOURNAL ASM; PROP SHAFT
P60 PROP SHAFT(C2M) (C) END 		1-37300-094-1 AR 1 0809- ●
9 JOURNAL ASM; PROP SHAFT
P60 PROP SHAFT(C2M) (D) 		1-37300-108-0 01 1 0809- ●
9 JOURNAL ASM; PROP SHAFT
(A) 1ST 		1-37300-110-0 01 1 0710-0808 ●
9 JOURNAL ASM; PROP SHAFT
(A) 1ST 		1-37300-110-0 01 1 0809-1001 ●
9 JOURNAL ASM; PROP SHAFT
P90 PROP SHAFT(C5T) (A) 1ST 		1-37300-110-0 01 1 0809-1001 ●
9 JOURNAL ASM; PROP SHAFT
EURO4 SPECIFICATION<NT4> (A) 1ST 		1-37300-110-0 01 1 1002-1505 ●
9 JOURNAL ASM; PROP SHAFT
P90 PROP SHAFT(C5T) (A) 1ST 		1-37300-110-0 01 1 1002-1505 ●
9 JOURNAL ASM; PROP SHAFT 1-37300-110-0 01 1 1506- ●
9 JOURNAL ASM; PROP SHAFT
P90 PROP SHAFT(C5T) 		1-37300-110-0 01 1 1506- ●
9 JOURNAL ASM; PROP SHAFT
P90 PROP SHAFT(C5T) 		1-37300-110-0 01 1 1506- ●
9 JOURNAL ASM; PROP SHAFT
(A) END 		1-37300-110-0 02 1 0710-0808 ●
9 JOURNAL ASM; PROP SHAFT
(A) END 		1-37300-110-0 02 1 0809-1505 ●
9 JOURNAL ASM; PROP SHAFT
P90 PROP SHAFT(C5T) (A) END 		1-37300-110-0 02 1 0809-1505 ●
9 JOURNAL ASM; PROP SHAFT 1-37300-110-0 03 1 1506- ●
9 JOURNAL ASM; PROP SHAFT
(B) 2ND 		1-37300-111-0 01 1 0710-0808 ●
9 JOURNAL ASM; PROP SHAFT
(B) 2ND 		1-37300-111-0 01 1 0809-1001 ●
9 JOURNAL ASM; PROP SHAFT
P90 PROP SHAFT(C5T) (B) 2ND 		1-37300-111-0 01 1 0809-1001 ●
9 JOURNAL ASM; PROP SHAFT
(B) 2ND AND EURO2 1ST 		1-37300-111-0 01 1 1002-1505 ●
9 JOURNAL ASM; PROP SHAFT
EURO2 SPECIFICATION<NT2> (B) 2ND AND EURO2 1ST 		1-37300-111-0 01 1 1002-1505 ●
9 JOURNAL ASM; PROP SHAFT
P90 PROP SHAFT(C5T) (B) 2ND AND EURO2 1ST 		1-37300-111-0 01 1 1002-1505 ●
9 JOURNAL ASM; PROP SHAFT
P90 PROP SHAFT(C5T) 		1-37300-110-0 02 1 1506- ●
10 BOLT; UJT
P60 PROP SHAFT(C2M) M10X20 		0-20951-020-0 24 1 0809- ●
12 PLATE; LK,FRT UJT,PROP SHAFT
P60 PROP SHAFT(C2M) 		1-37356-010-0 08 1 0809- ●
13 COVER; FRT UJT,PROP SHAFT
P60 PROP SHAFT(C2M) T=6 		1-37355-022-0 08 1 0809- ●
14 COVER; DUST,SPIDER
P90 PROP SHAFT(C5T) (B) 		1-37249-131-0 08 1 0809- ●
14 COVER; DUST,SPIDER
P60 PROP SHAFT(C2M) (A) 		9-37352-023-0 12 1 0809- ●
14 COVER; DUST,SPIDER
P60 PROP SHAFT(C2M) (A) 		9-37352-023-0 04 1 0809- ●
14 COVER; DUST,SPIDER
(B) 		1-37249-131-0 04 1 0710-0808 ●
14 COVER; DUST,SPIDER
(B) 		1-37249-131-0 04 1 0809- ●
14 COVER; DUST,SPIDER
P90 PROP SHAFT(C5T) (B) 		1-37249-131-0 04 1 0809- ●
14 COVER; DUST,SPIDER
P90 PROP SHAFT(C5T) (B) 		1-37249-131-0 04 1 0809- ●
14 COVER; DUST,SPIDER
(B) 		1-37249-131-0 12 1 0710- ●
17 NIPPLE; GREASE,PROP SHAFT
(A) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 02 1 0809- ●
17 NIPPLE; GREASE,PROP SHAFT
(A) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 01 1 0809-1001 ●
17 NIPPLE; GREASE,PROP SHAFT
EURO2 SPECIFICATION<NT2> (A) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 01 1 1002-1505 ●
17 NIPPLE; GREASE,PROP SHAFT
(A) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 01 1 1002-1505 ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 01 1 1506- ● ●
17 NIPPLE; GREASE,PROP SHAFT
P90 PROP SHAFT(C5T) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 01 1 1506- ●
17 NIPPLE; GREASE,PROP SHAFT
(A) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 03 1 0710- ●
17 NIPPLE; GREASE,PROP SHAFT
(B) PT1/8 ELBOW 		0-90301-610-0 01 1 0710-0808 ●
17 NIPPLE; GREASE,PROP SHAFT
(B) PT1/8 ELBOW 		0-90301-610-0 01 1 0809-1001 ● ●
17 NIPPLE; GREASE,PROP SHAFT
EURO4 SPECIFICATION<NT4> (B) PT1/8 ELBOW 		0-90301-610-0 01 1 1002-1505 ●
17 NIPPLE; GREASE,PROP SHAFT
(B) PT1/8 ELBOW 		0-90301-610-0 01 1 1002-1505 ●
17 NIPPLE; GREASE,PROP SHAFT
P60 PROP SHAFT(C2M) PT1/8 ELBOW 		0-90301-610-0 01 1 1506- ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
P90 PROP SHAFT(C5T) (A) T=2.2 		1-09587-102-1 08 1 0809- ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
P60 PROP SHAFT(C2M) (B) 		1-09587-101-1 04 1 0809- ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
(A) T=2.2 		1-09587-102-1 04 1 0710-0808 ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
(A) T=2.2 		1-09587-102-1 04 1 0809- ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
P90 PROP SHAFT(C5T) (A) T=2.2 		1-09587-102-1 04 1 0809- ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
P90 PROP SHAFT(C5T) (A) T=2.2 		1-09587-102-1 04 1 0809- ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
(A) T=2.2 		1-09587-102-1 12 1 0710- ●
56 NUT; YOKE
P60 PROP SHAFT(C2M) (B) M16 FLANGE 		1-09449-065-0 08 1 0809- ●
56 NUT; YOKE
(A) M14 FLANGE 		1-09440-048-0 08 1 0710-0805 ●
56 NUT; YOKE
(A) M14 FLANGE 		8-97365-444-0 08 1 0806-0808 ●
56 NUT; YOKE
(A) M14 FLANGE 		8-97365-444-0 08 1 0809- ●
56 NUT; YOKE
P90 PROP SHAFT(C5T) (A) M14 FLANGE 		8-97365-444-0 08 1 0809- ●
74 BOLT; YOKE,TRANS
P60 PROP SHAFT(C2M) (B) M16X48 		1-09000-383-0 08 1 0809- ●
74 BOLT; YOKE,TRANS
P60 PROP SHAFT(C2M) (B) M16X48 		1-09000-383-0 04 1 0809- ●
74 BOLT; YOKE,TRANS
ZF9S1110 M/T(Y5E) (A) M14X50 		1-09000-645-0 04 1 0710-0808 ●
74 BOLT; YOKE,TRANS
(A) M14X50 		1-09000-645-0 04 1 0809-0810 ●
74 BOLT; YOKE,TRANS
P90 PROP SHAFT(C5T) (A) M14X50 		1-09000-645-0 04 1 0809-0810 ●
74 BOLT; YOKE,TRANS
(A) M14X50 		1-09000-645-0 08 1 0811-1103 ●
74 BOLT; YOKE,TRANS
P90 PROP SHAFT(C5T) (A) M14X50 		1-09000-645-0 08 1 0811-1103 ●
74 BOLT; YOKE,TRANS
P90 PROP SHAFT(C5T) (A) M14X50 		1-09000-645-0 08 1 1104- ●
74 BOLT; YOKE,TRANS
ZF9S1110 M/T(Y5E) (A) M14X50 		1-09000-645-0 08 1 0710-0808 ● ● ●
74 BOLT; YOKE,TRANS
(A) M14X50 		1-09000-645-0 08 1 0809-0810 ●
74 BOLT; YOKE,TRANS
P90 PROP SHAFT(C5T) (A) M14X50 		1-09000-645-0 08 1 0809-0810 ●
74 BOLT; YOKE,TRANS
(A) M14X50 		1-09000-645-0 04 1 0811-1103 ●
74 BOLT; YOKE,TRANS
P90 PROP SHAFT(C5T) (A) M14X50 		1-09000-645-0 04 1 0811-1103 ●
74 BOLT; YOKE,TRANS
(A) M14X50 		1-09000-645-0 04 1 1104- ●
74 BOLT; YOKE,TRANS
(A) M14X50 		1-09000-645-0 04 1 1104- ●
74 BOLT; YOKE,TRANS
P90 PROP SHAFT(C5T) (A) M14X50 		1-09000-645-0 04 1 1104- ●
83 PLATE; LK,UJT,PROP SHAFT
P60 PROP SHAFT(C2M) 		1-37356-010-0 04 1 0809- ●
84 COVER; UJT,PROP SHAFT
P60 PROP SHAFT(C2M) T=6 		1-37355-022-0 04 1 0809- ●
104 PLUG; SLEEVE YOKE 1-09600-067-0 01 1 0710-0808 ●
104 PLUG; SLEEVE YOKE 1-09600-067-0 01 1 0809- ● ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
P60 PROP SHAFT(C2M) (B) MT6 STRAIGHT 		1-09380-006-0 01 1 0809- ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
(A) PT1/8 STRAIGHT 		0-90301-410-0 01 1 0710-0808 ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
(A) PT1/8 STRAIGHT 		0-90301-410-0 01 1 0809- ● ●
107 COVER; RET,SLEEVE
P60 PROP SHAFT(C2M) 		1-37249-137-1 01 1 0809- ●
128 SEAL; SLEEVE
P60 PROP SHAFT(C2M) (B) 		1-37247-021-0 01 1 0809- ●
128 SEAL; SLEEVE
(A) 		1-37247-019-0 01 1 0710-0808 ●
128 SEAL; SLEEVE
(A) 		1-37247-019-0 01 1 0809- ●
128 SEAL; SLEEVE
P90 PROP SHAFT(C5T) (A) 		1-37247-019-0 01 1 0809- ●
225 YOKE; SLEEVE,PROP SHAFT
P60 PROP SHAFT(C2M) (B) L=332 		1-37241-109-1 01 1 0809- ●
225 YOKE; SLEEVE,PROP SHAFT
(A) L=330 		1-37241-124-0 01 1 0710-0808 ●
225 YOKE; SLEEVE,PROP SHAFT
(A) L=330 		1-37241-124-0 01 1 0809- ●
225 YOKE; SLEEVE,PROP SHAFT
P90 PROP SHAFT(C5T) (A) L=330 		1-37241-124-0 01 1 0809- ●
çizim 179314
51 78 21 24 23 46 20 25 22 1 21 9 8 9 79 80 81 71 9 9 17 14 17 14 19 19
BalonParca AdiParca NoAdetTipApplied Date A B C
1 SHAFT; PROP
EURO2 SPECIFICATION<NT2> (A) L=799 		1-37125-348-1 01 1 1002- ●
1 SHAFT; PROP
EURO2 SPECIFICATION<NT2> (C) L=1350 		8-98159-901-1 01 1 1002- ●
1 SHAFT; PROP
EURO2 SPECIFICATION<NT2> (B) L=1103 		1-37152-927-1 01 1 1002- ●
1 SHAFT; PROP
P90 PROP SHAFT(C5T) FINAL GEAR 37/6 18.5"(W3F),FINAL GEAR 40/6 18.5"(W3G) (A) L=1014 		8-98130-328-1 01 1 0809- ●
1 SHAFT; PROP
P90 PROP SHAFT(C5T) (B) L=725 		8-98091-479-1 01 1 0809- ●
1 SHAFT; PROP
P60 PROP SHAFT(C2M) (E) L=994 		8-98091-269-0 01 1 0809- ●
1 SHAFT; PROP
P60 PROP SHAFT(C2M) (F) L=824 		8-98091-295-0 01 1 0809- ●
1 SHAFT; PROP
P90 PROP SHAFT(C5T) (C) L=820 		8-98091-468-1 01 1 0809- ●
1 SHAFT; PROP
P90 PROP SHAFT(C5T) FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y) (A) L=1039 		1-37124-615-1 01 1 0809- ●
1 SHAFT; PROP
P60 PROP SHAFT(C2M) (D) L=911 		1-37152-590-0 01 1 0809- ●
1 SHAFT; PROP
(C) L=1215 		8-98092-404-0 01 1 0710-1001 ●
1 SHAFT; PROP
EURO4 SPECIFICATION<NT4> (C) L=1215 		8-98092-404-1 01 1 1002- ●
1 SHAFT; PROP
(B) L=1090 		8-98092-523-0 01 1 0710-1001 ●
1 SHAFT; PROP
EURO4 SPECIFICATION<NT4> (B) L=1090 		8-98092-523-1 01 1 1002- ●
1 SHAFT; PROP
(A) L=1039 		8-98092-527-0 01 1 0710-1001 ●
1 SHAFT; PROP
EURO4 SPECIFICATION<NT4> (A) L=1039 		8-98092-527-1 01 1 1002- ●
8 YOKE; FLANGE,PROP SHAFT
P60 PROP SHAFT(C2M) (A) 		1-37211-072-1 03 1 0809- ●
8 YOKE; FLANGE,PROP SHAFT
P90 PROP SHAFT(C5T) (B) 		1-37211-079-1 02 1 0809- ●
8 YOKE; FLANGE,PROP SHAFT
P60 PROP SHAFT(C2M) (C) 		8-98092-073-0 01 1 0809- ●
8 YOKE; FLANGE,PROP SHAFT
(B) 		1-37211-079-1 01 1 0710-0808 ●
8 YOKE; FLANGE,PROP SHAFT
(B) 		1-37211-079-1 01 1 0809- ●
8 YOKE; FLANGE,PROP SHAFT
P90 PROP SHAFT(C5T) (B) 		1-37211-079-1 01 1 0809- ●
8 YOKE; FLANGE,PROP SHAFT
P90 PROP SHAFT(C5T) (B) 		1-37211-079-1 01 1 0809- ●
8 YOKE; FLANGE,PROP SHAFT
(B) 		1-37211-079-1 03 1 0710- ●
9 JOURNAL ASM; PROP SHAFT
P60 PROP SHAFT(C2M) (C) 2ND 		1-37300-095-1 AR 1 0809- ●
9 JOURNAL ASM; PROP SHAFT
P60 PROP SHAFT(C2M) (C) END 		1-37300-094-1 AR 1 0809- ●
9 JOURNAL ASM; PROP SHAFT
P60 PROP SHAFT(C2M) (D) 		1-37300-108-0 01 1 0809- ●
9 JOURNAL ASM; PROP SHAFT
(A) 1ST 		1-37300-110-0 01 1 0710-0808 ●
9 JOURNAL ASM; PROP SHAFT
(A) 1ST 		1-37300-110-0 01 1 0809-1001 ●
9 JOURNAL ASM; PROP SHAFT
P90 PROP SHAFT(C5T) (A) 1ST 		1-37300-110-0 01 1 0809-1001 ●
9 JOURNAL ASM; PROP SHAFT
EURO4 SPECIFICATION<NT4> (A) 1ST 		1-37300-110-0 01 1 1002-1505 ●
9 JOURNAL ASM; PROP SHAFT
P90 PROP SHAFT(C5T) (A) 1ST 		1-37300-110-0 01 1 1002-1505 ●
9 JOURNAL ASM; PROP SHAFT 1-37300-110-0 01 1 1506- ●
9 JOURNAL ASM; PROP SHAFT
P90 PROP SHAFT(C5T) 		1-37300-110-0 01 1 1506- ●
9 JOURNAL ASM; PROP SHAFT
P90 PROP SHAFT(C5T) 		1-37300-110-0 01 1 1506- ●
9 JOURNAL ASM; PROP SHAFT
(A) END 		1-37300-110-0 02 1 0710-0808 ●
9 JOURNAL ASM; PROP SHAFT
(A) END 		1-37300-110-0 02 1 0809-1505 ●
9 JOURNAL ASM; PROP SHAFT
P90 PROP SHAFT(C5T) (A) END 		1-37300-110-0 02 1 0809-1505 ●
9 JOURNAL ASM; PROP SHAFT 1-37300-110-0 03 1 1506- ●
9 JOURNAL ASM; PROP SHAFT
(B) 2ND 		1-37300-111-0 01 1 0710-0808 ●
9 JOURNAL ASM; PROP SHAFT
(B) 2ND 		1-37300-111-0 01 1 0809-1001 ●
9 JOURNAL ASM; PROP SHAFT
P90 PROP SHAFT(C5T) (B) 2ND 		1-37300-111-0 01 1 0809-1001 ●
9 JOURNAL ASM; PROP SHAFT
(B) 2ND AND EURO2 1ST 		1-37300-111-0 01 1 1002-1505 ●
9 JOURNAL ASM; PROP SHAFT
EURO2 SPECIFICATION<NT2> (B) 2ND AND EURO2 1ST 		1-37300-111-0 01 1 1002-1505 ●
9 JOURNAL ASM; PROP SHAFT
P90 PROP SHAFT(C5T) (B) 2ND AND EURO2 1ST 		1-37300-111-0 01 1 1002-1505 ●
9 JOURNAL ASM; PROP SHAFT
P90 PROP SHAFT(C5T) 		1-37300-110-0 02 1 1506- ●
14 COVER; DUST,SPIDER
P90 PROP SHAFT(C5T) (B) 		1-37249-131-0 08 1 0809- ●
14 COVER; DUST,SPIDER
P60 PROP SHAFT(C2M) (A) 		9-37352-023-0 12 1 0809- ●
14 COVER; DUST,SPIDER
P60 PROP SHAFT(C2M) (A) 		9-37352-023-0 04 1 0809- ●
14 COVER; DUST,SPIDER
(B) 		1-37249-131-0 04 1 0710-0808 ●
14 COVER; DUST,SPIDER
(B) 		1-37249-131-0 04 1 0809- ●
14 COVER; DUST,SPIDER
P90 PROP SHAFT(C5T) (B) 		1-37249-131-0 04 1 0809- ●
14 COVER; DUST,SPIDER
P90 PROP SHAFT(C5T) (B) 		1-37249-131-0 04 1 0809- ●
14 COVER; DUST,SPIDER
(B) 		1-37249-131-0 12 1 0710- ●
17 NIPPLE; GREASE,PROP SHAFT
(A) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 02 1 0809- ●
17 NIPPLE; GREASE,PROP SHAFT
(A) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 01 1 0809-1001 ●
17 NIPPLE; GREASE,PROP SHAFT
EURO2 SPECIFICATION<NT2> (A) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 01 1 1002-1505 ●
17 NIPPLE; GREASE,PROP SHAFT
(A) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 01 1 1002-1505 ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 01 1 1506- ● ●
17 NIPPLE; GREASE,PROP SHAFT
P90 PROP SHAFT(C5T) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 01 1 1506- ●
17 NIPPLE; GREASE,PROP SHAFT
(A) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 03 1 0710- ●
17 NIPPLE; GREASE,PROP SHAFT
(B) PT1/8 ELBOW 		0-90301-610-0 01 1 0710-0808 ●
17 NIPPLE; GREASE,PROP SHAFT
(B) PT1/8 ELBOW 		0-90301-610-0 01 1 0809-1001 ● ●
17 NIPPLE; GREASE,PROP SHAFT
EURO4 SPECIFICATION<NT4> (B) PT1/8 ELBOW 		0-90301-610-0 01 1 1002-1505 ●
17 NIPPLE; GREASE,PROP SHAFT
(B) PT1/8 ELBOW 		0-90301-610-0 01 1 1002-1505 ●
17 NIPPLE; GREASE,PROP SHAFT
P60 PROP SHAFT(C2M) PT1/8 ELBOW 		0-90301-610-0 01 1 1506- ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
P90 PROP SHAFT(C5T) (A) T=2.2 		1-09587-102-1 08 1 0809- ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
P60 PROP SHAFT(C2M) (B) 		1-09587-101-1 04 1 0809- ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
(A) T=2.2 		1-09587-102-1 04 1 0710-0808 ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
(A) T=2.2 		1-09587-102-1 04 1 0809- ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
P90 PROP SHAFT(C5T) (A) T=2.2 		1-09587-102-1 04 1 0809- ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
P90 PROP SHAFT(C5T) (A) T=2.2 		1-09587-102-1 04 1 0809- ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
(A) T=2.2 		1-09587-102-1 12 1 0710- ●
20 BEARING ASM; CTR,PROP SHAFT
P60 PROP SHAFT(C2M) (B) 		1-37510-093-3 01 1 0809- ●
20 BEARING ASM; CTR,PROP SHAFT
P60 PROP SHAFT(C2M) (B) 		1-37510-093-3 01 1 0809- ●
20 BEARING ASM; CTR,PROP SHAFT
(A) ID=60 		1-37510-115-0 01 1 0710-0808 ●
20 BEARING ASM; CTR,PROP SHAFT
(A) ID=60 		1-37510-115-0 01 1 0710-0808 ●
20 BEARING ASM; CTR,PROP SHAFT
(A) ID=60 		1-37510-115-0 01 1 0809- ●
20 BEARING ASM; CTR,PROP SHAFT
(A) ID=60 		1-37510-115-0 01 1 0809- ●
20 BEARING ASM; CTR,PROP SHAFT
P90 PROP SHAFT(C5T) (A) ID=60 		1-37510-115-0 01 1 0809- ●
20 BEARING ASM; CTR,PROP SHAFT
P90 PROP SHAFT(C5T) (A) ID=60 		1-37510-115-0 01 1 0809- ●
21 SEAL; OIL,CENTER BRG
P60 PROP SHAFT(C2M) (C) D=120 		1-09625-126-0 02 1 0809- ●
21 SEAL; OIL,CENTER BRG
P60 PROP SHAFT(C2M) (C) D=120 		1-09625-126-0 02 1 0809- ●
21 SEAL; OIL,CENTER BRG
(A) D=120 		1-09625-127-0 01 1 0710-0808 ●
21 SEAL; OIL,CENTER BRG
(A) D=120 		1-09625-127-0 01 1 0710-0808 ●
21 SEAL; OIL,CENTER BRG
(A) D=120 		1-09625-127-0 01 1 0809- ●
21 SEAL; OIL,CENTER BRG
(A) D=120 		1-09625-127-0 01 1 0809- ●
21 SEAL; OIL,CENTER BRG
P90 PROP SHAFT(C5T) (A) D=120 		1-09625-127-0 01 1 0809- ●
21 SEAL; OIL,CENTER BRG
P90 PROP SHAFT(C5T) (A) D=120 		1-09625-127-0 01 1 0809- ●
21 SEAL; OIL,CENTER BRG
(B) 		1-09625-621-0 01 1 0710-0808 ●
21 SEAL; OIL,CENTER BRG
(B) 		1-09625-621-0 01 1 0710-0808 ●
21 SEAL; OIL,CENTER BRG
(B) 		1-09625-621-0 01 1 0809- ●
21 SEAL; OIL,CENTER BRG
(B) 		1-09625-621-0 01 1 0809- ●
21 SEAL; OIL,CENTER BRG
P90 PROP SHAFT(C5T) (B) 		1-09625-621-0 01 1 0809- ●
21 SEAL; OIL,CENTER BRG
P90 PROP SHAFT(C5T) (B) 		1-09625-621-0 01 1 0809- ●
22 RUBBER; CUSHION,CENTER BRG,1ST
P60 PROP SHAFT(C2M) (B) 		1-37516-047-2 01 1 0809- ●
22 RUBBER; CUSHION,CENTER BRG,1ST
P60 PROP SHAFT(C2M) (B) 		1-37516-047-2 01 1 0809- ●
22 RUBBER; CUSHION,CENTER BRG,1ST
(A) 		1-37516-048-2 01 1 0710-0808 ●
22 RUBBER; CUSHION,CENTER BRG,1ST
(A) 		1-37516-048-2 01 1 0710-0808 ●
22 RUBBER; CUSHION,CENTER BRG,1ST
(A) 		1-37516-048-2 01 1 0809- ●
22 RUBBER; CUSHION,CENTER BRG,1ST
(A) 		1-37516-048-2 01 1 0809- ●
22 RUBBER; CUSHION,CENTER BRG,1ST
P90 PROP SHAFT(C5T) (A) 		1-37516-048-2 01 1 0809- ●
22 RUBBER; CUSHION,CENTER BRG,1ST
P90 PROP SHAFT(C5T) (A) 		1-37516-048-2 01 1 0809- ●
23 BEARING; CENTER,PROP SHAFT
P60 PROP SHAFT(C2M) (B) 		9-00090-292-0 01 1 0809- ●
23 BEARING; CENTER,PROP SHAFT
P60 PROP SHAFT(C2M) (B) 		9-00090-292-0 01 1 0809- ●
23 BEARING; CENTER,PROP SHAFT
(A) 		9-00090-256-0 01 1 0710-0808 ●
23 BEARING; CENTER,PROP SHAFT
(A) 		9-00090-256-0 01 1 0710-0808 ●
23 BEARING; CENTER,PROP SHAFT
(A) 		9-00090-256-0 01 1 0809- ●
23 BEARING; CENTER,PROP SHAFT
(A) 		9-00090-256-0 01 1 0809- ●
23 BEARING; CENTER,PROP SHAFT
P90 PROP SHAFT(C5T) (A) 		9-00090-256-0 01 1 0809- ●
23 BEARING; CENTER,PROP SHAFT
P90 PROP SHAFT(C5T) (A) 		9-00090-256-0 01 1 0809- ●
24 RETAINER; CENTER BRG,1ST
P60 PROP SHAFT(C2M) (B) 		1-37529-039-0 01 1 0809- ●
24 RETAINER; CENTER BRG,1ST
P60 PROP SHAFT(C2M) (B) 		1-37529-039-0 01 1 0809- ●
24 RETAINER; CENTER BRG,1ST
(A) 		1-37529-109-0 01 1 0710-0808 ●
24 RETAINER; CENTER BRG,1ST
(A) 		1-37529-109-0 01 1 0710-0808 ●
24 RETAINER; CENTER BRG,1ST
(A) 		1-37529-109-0 01 1 0809- ●
24 RETAINER; CENTER BRG,1ST
(A) 		1-37529-109-0 01 1 0809- ●
24 RETAINER; CENTER BRG,1ST
P90 PROP SHAFT(C5T) (A) 		1-37529-109-0 01 1 0809- ●
24 RETAINER; CENTER BRG,1ST
P90 PROP SHAFT(C5T) (A) 		1-37529-109-0 01 1 0809- ●
25 NIPPLE; GREASE,CENTER BRG
MT6 STRAIGHT 		1-09380-006-0 01 1 0710-0808 ●
25 NIPPLE; GREASE,CENTER BRG
MT6 STRAIGHT 		1-09380-006-0 01 1 0710-0808 ●
25 NIPPLE; GREASE,CENTER BRG
MT6 STRAIGHT 		1-09380-006-0 01 1 0809- ● ●
25 NIPPLE; GREASE,CENTER BRG
MT6 STRAIGHT 		1-09380-006-0 01 1 0809- ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
P60 PROP SHAFT(C2M) (B) 		1-37245-283-1 01 1 0809- ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
P60 PROP SHAFT(C2M) (B) 		1-37245-283-1 01 1 0809- ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
(A) 		1-37245-348-0 01 1 0710-0808 ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
(A) 		1-37245-348-0 01 1 0710-0808 ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
(A) 		1-37245-348-0 01 1 0809- ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
(A) 		1-37245-348-0 01 1 0809- ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
P90 PROP SHAFT(C5T) (A) 		1-37245-348-0 01 1 0809- ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
P90 PROP SHAFT(C5T) (A) 		1-37245-348-0 01 1 0809- ●
51 NUT; FLANGE,SPLINED
P60 PROP SHAFT(C2M) (B) M33 FLANGE 		1-09449-051-0 01 1 0809- ●
51 NUT; FLANGE,SPLINED
P60 PROP SHAFT(C2M) (B) M33 FLANGE 		1-09449-051-0 01 1 0809- ●
51 NUT; FLANGE,SPLINED
(A) M39 FLANGE 		1-09440-046-0 01 1 0710-0808 ●
51 NUT; FLANGE,SPLINED
(A) M39 FLANGE 		1-09440-046-0 01 1 0710-0808 ●
51 NUT; FLANGE,SPLINED
(A) M39 FLANGE 		1-09440-046-0 01 1 0809- ●
51 NUT; FLANGE,SPLINED
(A) M39 FLANGE 		1-09440-046-0 01 1 0809- ●
51 NUT; FLANGE,SPLINED
P90 PROP SHAFT(C5T) (A) M39 FLANGE 		1-09440-046-0 01 1 0809- ●
51 NUT; FLANGE,SPLINED
P90 PROP SHAFT(C5T) (A) M39 FLANGE 		1-09440-046-0 01 1 0809- ●
71 NUT; YOKE
P60 PROP SHAFT(C2M) (B) M12 		0-91110-512-0 04 1 0809- ●
71 NUT; YOKE
(A) M14 FLANGE 		1-09440-048-0 04 1 0710-0805 ●
71 NUT; YOKE
(A) M14 FLANGE 		8-97365-444-0 04 1 0806-0808 ●
71 NUT; YOKE
(A) M14 FLANGE 		8-97365-444-0 04 1 0809- ●
71 NUT; YOKE
P90 PROP SHAFT(C5T) (A) M14 FLANGE 		8-97365-444-0 04 1 0809- ●
78 BOLT; HOLDER SET,CENTER BRG,1ST PROP
M16X45 		1-09042-030-0 02 1 0710-0808 ●
78 BOLT; HOLDER SET,CENTER BRG,1ST PROP
M16X45 		1-09042-030-0 02 1 0809- ● ●
79 WASHER; PL,HOLDER SET,CENTER BRG
ID=17 		1-09503-241-1 02 1 0710-0808 ●
79 WASHER; PL,HOLDER SET,CENTER BRG
ID=17 		1-09503-241-1 02 1 0809- ● ●
80 NUT; HOLDER SET,CENTER BRG,1ST PROP
M16 SLOTTED 		0-91116-516-0 02 1 0710-0808 ●
80 NUT; HOLDER SET,CENTER BRG,1ST PROP
M16 SLOTTED 		0-91116-516-0 02 1 0809-1204 ● ●
80 NUT; HOLDER SET,CENTER BRG,1ST PROP
M16 SLOTTED 		8-98049-689-0 02 1 1205- ● ●
81 PIN; SPLIT,HOLDER SET,CENTER BRG
OD=3.7 L=25 		0-81124-025-0 02 1 0710-0808 ●
81 PIN; SPLIT,HOLDER SET,CENTER BRG
OD=3.7 L=25 		0-81124-025-0 02 1 0809- ● ●
çizim 179322
46 51 78 21 24 23 20 25 22 1 21 9 8 79 80 81 9 71 72 17 14 19
BalonParca AdiParca NoAdetTipApplied Date A B C
1 SHAFT; PROP
EURO2 SPECIFICATION<NT2> (A) L=799 		1-37125-348-1 01 1 1002- ●
1 SHAFT; PROP
EURO2 SPECIFICATION<NT2> (C) L=1350 		8-98159-901-1 01 1 1002- ●
1 SHAFT; PROP
EURO2 SPECIFICATION<NT2> (B) L=1103 		1-37152-927-1 01 1 1002- ●
1 SHAFT; PROP
P90 PROP SHAFT(C5T) FINAL GEAR 37/6 18.5"(W3F),FINAL GEAR 40/6 18.5"(W3G) (A) L=1014 		8-98130-328-1 01 1 0809- ●
1 SHAFT; PROP
P90 PROP SHAFT(C5T) (B) L=725 		8-98091-479-1 01 1 0809- ●
1 SHAFT; PROP
P60 PROP SHAFT(C2M) (E) L=994 		8-98091-269-0 01 1 0809- ●
1 SHAFT; PROP
P60 PROP SHAFT(C2M) (F) L=824 		8-98091-295-0 01 1 0809- ●
1 SHAFT; PROP
P90 PROP SHAFT(C5T) (C) L=820 		8-98091-468-1 01 1 0809- ●
1 SHAFT; PROP
P90 PROP SHAFT(C5T) FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y) (A) L=1039 		1-37124-615-1 01 1 0809- ●
1 SHAFT; PROP
P60 PROP SHAFT(C2M) (D) L=911 		1-37152-590-0 01 1 0809- ●
1 SHAFT; PROP
(C) L=1215 		8-98092-404-0 01 1 0710-1001 ●
1 SHAFT; PROP
EURO4 SPECIFICATION<NT4> (C) L=1215 		8-98092-404-1 01 1 1002- ●
1 SHAFT; PROP
(B) L=1090 		8-98092-523-0 01 1 0710-1001 ●
1 SHAFT; PROP
EURO4 SPECIFICATION<NT4> (B) L=1090 		8-98092-523-1 01 1 1002- ●
1 SHAFT; PROP
(A) L=1039 		8-98092-527-0 01 1 0710-1001 ●
1 SHAFT; PROP
EURO4 SPECIFICATION<NT4> (A) L=1039 		8-98092-527-1 01 1 1002- ●
8 YOKE; FLANGE,PROP SHAFT
P60 PROP SHAFT(C2M) (A) 		1-37211-072-1 03 1 0809- ●
8 YOKE; FLANGE,PROP SHAFT
P90 PROP SHAFT(C5T) (B) 		1-37211-079-1 02 1 0809- ●
8 YOKE; FLANGE,PROP SHAFT
P60 PROP SHAFT(C2M) (C) 		8-98092-073-0 01 1 0809- ●
8 YOKE; FLANGE,PROP SHAFT
(B) 		1-37211-079-1 01 1 0710-0808 ●
8 YOKE; FLANGE,PROP SHAFT
(B) 		1-37211-079-1 01 1 0809- ●
8 YOKE; FLANGE,PROP SHAFT
P90 PROP SHAFT(C5T) (B) 		1-37211-079-1 01 1 0809- ●
8 YOKE; FLANGE,PROP SHAFT
P90 PROP SHAFT(C5T) (B) 		1-37211-079-1 01 1 0809- ●
8 YOKE; FLANGE,PROP SHAFT
(B) 		1-37211-079-1 03 1 0710- ●
9 JOURNAL ASM; PROP SHAFT
P60 PROP SHAFT(C2M) (C) 2ND 		1-37300-095-1 AR 1 0809- ●
9 JOURNAL ASM; PROP SHAFT
P60 PROP SHAFT(C2M) (C) END 		1-37300-094-1 AR 1 0809- ●
9 JOURNAL ASM; PROP SHAFT
P60 PROP SHAFT(C2M) (D) 		1-37300-108-0 01 1 0809- ●
9 JOURNAL ASM; PROP SHAFT
(A) 1ST 		1-37300-110-0 01 1 0710-0808 ●
9 JOURNAL ASM; PROP SHAFT
(A) 1ST 		1-37300-110-0 01 1 0809-1001 ●
9 JOURNAL ASM; PROP SHAFT
P90 PROP SHAFT(C5T) (A) 1ST 		1-37300-110-0 01 1 0809-1001 ●
9 JOURNAL ASM; PROP SHAFT
EURO4 SPECIFICATION<NT4> (A) 1ST 		1-37300-110-0 01 1 1002-1505 ●
9 JOURNAL ASM; PROP SHAFT
P90 PROP SHAFT(C5T) (A) 1ST 		1-37300-110-0 01 1 1002-1505 ●
9 JOURNAL ASM; PROP SHAFT 1-37300-110-0 01 1 1506- ●
9 JOURNAL ASM; PROP SHAFT
P90 PROP SHAFT(C5T) 		1-37300-110-0 01 1 1506- ●
9 JOURNAL ASM; PROP SHAFT
P90 PROP SHAFT(C5T) 		1-37300-110-0 01 1 1506- ●
9 JOURNAL ASM; PROP SHAFT
(A) END 		1-37300-110-0 02 1 0710-0808 ●
9 JOURNAL ASM; PROP SHAFT
(A) END 		1-37300-110-0 02 1 0809-1505 ●
9 JOURNAL ASM; PROP SHAFT
P90 PROP SHAFT(C5T) (A) END 		1-37300-110-0 02 1 0809-1505 ●
9 JOURNAL ASM; PROP SHAFT 1-37300-110-0 03 1 1506- ●
9 JOURNAL ASM; PROP SHAFT
(B) 2ND 		1-37300-111-0 01 1 0710-0808 ●
9 JOURNAL ASM; PROP SHAFT
(B) 2ND 		1-37300-111-0 01 1 0809-1001 ●
9 JOURNAL ASM; PROP SHAFT
P90 PROP SHAFT(C5T) (B) 2ND 		1-37300-111-0 01 1 0809-1001 ●
9 JOURNAL ASM; PROP SHAFT
(B) 2ND AND EURO2 1ST 		1-37300-111-0 01 1 1002-1505 ●
9 JOURNAL ASM; PROP SHAFT
EURO2 SPECIFICATION<NT2> (B) 2ND AND EURO2 1ST 		1-37300-111-0 01 1 1002-1505 ●
9 JOURNAL ASM; PROP SHAFT
P90 PROP SHAFT(C5T) (B) 2ND AND EURO2 1ST 		1-37300-111-0 01 1 1002-1505 ●
9 JOURNAL ASM; PROP SHAFT
P90 PROP SHAFT(C5T) 		1-37300-110-0 02 1 1506- ●
14 COVER; DUST,SPIDER
P90 PROP SHAFT(C5T) (B) 		1-37249-131-0 08 1 0809- ●
14 COVER; DUST,SPIDER
P60 PROP SHAFT(C2M) (A) 		9-37352-023-0 12 1 0809- ●
14 COVER; DUST,SPIDER
P60 PROP SHAFT(C2M) (A) 		9-37352-023-0 04 1 0809- ●
14 COVER; DUST,SPIDER
(B) 		1-37249-131-0 04 1 0710-0808 ●
14 COVER; DUST,SPIDER
(B) 		1-37249-131-0 04 1 0809- ●
14 COVER; DUST,SPIDER
P90 PROP SHAFT(C5T) (B) 		1-37249-131-0 04 1 0809- ●
14 COVER; DUST,SPIDER
P90 PROP SHAFT(C5T) (B) 		1-37249-131-0 04 1 0809- ●
14 COVER; DUST,SPIDER
(B) 		1-37249-131-0 12 1 0710- ●
17 NIPPLE; GREASE,PROP SHAFT
(A) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 02 1 0809- ●
17 NIPPLE; GREASE,PROP SHAFT
(A) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 01 1 0809-1001 ●
17 NIPPLE; GREASE,PROP SHAFT
EURO2 SPECIFICATION<NT2> (A) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 01 1 1002-1505 ●
17 NIPPLE; GREASE,PROP SHAFT
(A) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 01 1 1002-1505 ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 01 1 1506- ● ●
17 NIPPLE; GREASE,PROP SHAFT
P90 PROP SHAFT(C5T) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 01 1 1506- ●
17 NIPPLE; GREASE,PROP SHAFT
(A) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 03 1 0710- ●
17 NIPPLE; GREASE,PROP SHAFT
(B) PT1/8 ELBOW 		0-90301-610-0 01 1 0710-0808 ●
17 NIPPLE; GREASE,PROP SHAFT
(B) PT1/8 ELBOW 		0-90301-610-0 01 1 0809-1001 ● ●
17 NIPPLE; GREASE,PROP SHAFT
EURO4 SPECIFICATION<NT4> (B) PT1/8 ELBOW 		0-90301-610-0 01 1 1002-1505 ●
17 NIPPLE; GREASE,PROP SHAFT
(B) PT1/8 ELBOW 		0-90301-610-0 01 1 1002-1505 ●
17 NIPPLE; GREASE,PROP SHAFT
P60 PROP SHAFT(C2M) PT1/8 ELBOW 		0-90301-610-0 01 1 1506- ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
P90 PROP SHAFT(C5T) (A) T=2.2 		1-09587-102-1 08 1 0809- ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
P60 PROP SHAFT(C2M) (B) 		1-09587-101-1 04 1 0809- ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
(A) T=2.2 		1-09587-102-1 04 1 0710-0808 ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
(A) T=2.2 		1-09587-102-1 04 1 0809- ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
P90 PROP SHAFT(C5T) (A) T=2.2 		1-09587-102-1 04 1 0809- ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
P90 PROP SHAFT(C5T) (A) T=2.2 		1-09587-102-1 04 1 0809- ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
(A) T=2.2 		1-09587-102-1 12 1 0710- ●
20 BEARING ASM; CTR,PROP SHAFT
P60 PROP SHAFT(C2M) (B) 		1-37510-093-3 01 1 0809- ●
20 BEARING ASM; CTR,PROP SHAFT
P60 PROP SHAFT(C2M) (B) 		1-37510-093-3 01 1 0809- ●
20 BEARING ASM; CTR,PROP SHAFT
(A) ID=60 		1-37510-115-0 01 1 0710-0808 ●
20 BEARING ASM; CTR,PROP SHAFT
(A) ID=60 		1-37510-115-0 01 1 0710-0808 ●
20 BEARING ASM; CTR,PROP SHAFT
(A) ID=60 		1-37510-115-0 01 1 0809- ●
20 BEARING ASM; CTR,PROP SHAFT
(A) ID=60 		1-37510-115-0 01 1 0809- ●
20 BEARING ASM; CTR,PROP SHAFT
P90 PROP SHAFT(C5T) (A) ID=60 		1-37510-115-0 01 1 0809- ●
20 BEARING ASM; CTR,PROP SHAFT
P90 PROP SHAFT(C5T) (A) ID=60 		1-37510-115-0 01 1 0809- ●
21 SEAL; OIL,CENTER BRG
P60 PROP SHAFT(C2M) (C) D=120 		1-09625-126-0 02 1 0809- ●
21 SEAL; OIL,CENTER BRG
P60 PROP SHAFT(C2M) (C) D=120 		1-09625-126-0 02 1 0809- ●
21 SEAL; OIL,CENTER BRG
(A) D=120 		1-09625-127-0 01 1 0710-0808 ●
21 SEAL; OIL,CENTER BRG
(A) D=120 		1-09625-127-0 01 1 0710-0808 ●
21 SEAL; OIL,CENTER BRG
(A) D=120 		1-09625-127-0 01 1 0809- ●
21 SEAL; OIL,CENTER BRG
(A) D=120 		1-09625-127-0 01 1 0809- ●
21 SEAL; OIL,CENTER BRG
P90 PROP SHAFT(C5T) (A) D=120 		1-09625-127-0 01 1 0809- ●
21 SEAL; OIL,CENTER BRG
P90 PROP SHAFT(C5T) (A) D=120 		1-09625-127-0 01 1 0809- ●
21 SEAL; OIL,CENTER BRG
(B) 		1-09625-621-0 01 1 0710-0808 ●
21 SEAL; OIL,CENTER BRG
(B) 		1-09625-621-0 01 1 0710-0808 ●
21 SEAL; OIL,CENTER BRG
(B) 		1-09625-621-0 01 1 0809- ●
21 SEAL; OIL,CENTER BRG
(B) 		1-09625-621-0 01 1 0809- ●
21 SEAL; OIL,CENTER BRG
P90 PROP SHAFT(C5T) (B) 		1-09625-621-0 01 1 0809- ●
21 SEAL; OIL,CENTER BRG
P90 PROP SHAFT(C5T) (B) 		1-09625-621-0 01 1 0809- ●
22 RUBBER; CUSHION,CENTER BRG,1ST
P60 PROP SHAFT(C2M) (B) 		1-37516-047-2 01 1 0809- ●
22 RUBBER; CUSHION,CENTER BRG,1ST
P60 PROP SHAFT(C2M) (B) 		1-37516-047-2 01 1 0809- ●
22 RUBBER; CUSHION,CENTER BRG,1ST
(A) 		1-37516-048-2 01 1 0710-0808 ●
22 RUBBER; CUSHION,CENTER BRG,1ST
(A) 		1-37516-048-2 01 1 0710-0808 ●
22 RUBBER; CUSHION,CENTER BRG,1ST
(A) 		1-37516-048-2 01 1 0809- ●
22 RUBBER; CUSHION,CENTER BRG,1ST
(A) 		1-37516-048-2 01 1 0809- ●
22 RUBBER; CUSHION,CENTER BRG,1ST
P90 PROP SHAFT(C5T) (A) 		1-37516-048-2 01 1 0809- ●
22 RUBBER; CUSHION,CENTER BRG,1ST
P90 PROP SHAFT(C5T) (A) 		1-37516-048-2 01 1 0809- ●
23 BEARING; CENTER,PROP SHAFT
P60 PROP SHAFT(C2M) (B) 		9-00090-292-0 01 1 0809- ●
23 BEARING; CENTER,PROP SHAFT
P60 PROP SHAFT(C2M) (B) 		9-00090-292-0 01 1 0809- ●
23 BEARING; CENTER,PROP SHAFT
(A) 		9-00090-256-0 01 1 0710-0808 ●
23 BEARING; CENTER,PROP SHAFT
(A) 		9-00090-256-0 01 1 0710-0808 ●
23 BEARING; CENTER,PROP SHAFT
(A) 		9-00090-256-0 01 1 0809- ●
23 BEARING; CENTER,PROP SHAFT
(A) 		9-00090-256-0 01 1 0809- ●
23 BEARING; CENTER,PROP SHAFT
P90 PROP SHAFT(C5T) (A) 		9-00090-256-0 01 1 0809- ●
23 BEARING; CENTER,PROP SHAFT
P90 PROP SHAFT(C5T) (A) 		9-00090-256-0 01 1 0809- ●
24 RETAINER; CENTER BRG,1ST
P60 PROP SHAFT(C2M) (B) 		1-37529-039-0 01 1 0809- ●
24 RETAINER; CENTER BRG,1ST
P60 PROP SHAFT(C2M) (B) 		1-37529-039-0 01 1 0809- ●
24 RETAINER; CENTER BRG,1ST
(A) 		1-37529-109-0 01 1 0710-0808 ●
24 RETAINER; CENTER BRG,1ST
(A) 		1-37529-109-0 01 1 0710-0808 ●
24 RETAINER; CENTER BRG,1ST
(A) 		1-37529-109-0 01 1 0809- ●
24 RETAINER; CENTER BRG,1ST
(A) 		1-37529-109-0 01 1 0809- ●
24 RETAINER; CENTER BRG,1ST
P90 PROP SHAFT(C5T) (A) 		1-37529-109-0 01 1 0809- ●
24 RETAINER; CENTER BRG,1ST
P90 PROP SHAFT(C5T) (A) 		1-37529-109-0 01 1 0809- ●
25 NIPPLE; GREASE,CENTER BRG
MT6 STRAIGHT 		1-09380-006-0 01 1 0710-0808 ●
25 NIPPLE; GREASE,CENTER BRG
MT6 STRAIGHT 		1-09380-006-0 01 1 0710-0808 ●
25 NIPPLE; GREASE,CENTER BRG
MT6 STRAIGHT 		1-09380-006-0 01 1 0809- ● ●
25 NIPPLE; GREASE,CENTER BRG
MT6 STRAIGHT 		1-09380-006-0 01 1 0809- ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
P60 PROP SHAFT(C2M) (B) 		1-37245-283-1 01 1 0809- ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
P60 PROP SHAFT(C2M) (B) 		1-37245-283-1 01 1 0809- ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
(A) 		1-37245-348-0 01 1 0710-0808 ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
(A) 		1-37245-348-0 01 1 0710-0808 ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
(A) 		1-37245-348-0 01 1 0809- ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
(A) 		1-37245-348-0 01 1 0809- ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
P90 PROP SHAFT(C5T) (A) 		1-37245-348-0 01 1 0809- ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
P90 PROP SHAFT(C5T) (A) 		1-37245-348-0 01 1 0809- ●
51 NUT; FLANGE,SPLINED
P60 PROP SHAFT(C2M) (B) M33 FLANGE 		1-09449-051-0 01 1 0809- ●
51 NUT; FLANGE,SPLINED
P60 PROP SHAFT(C2M) (B) M33 FLANGE 		1-09449-051-0 01 1 0809- ●
51 NUT; FLANGE,SPLINED
(A) M39 FLANGE 		1-09440-046-0 01 1 0710-0808 ●
51 NUT; FLANGE,SPLINED
(A) M39 FLANGE 		1-09440-046-0 01 1 0710-0808 ●
51 NUT; FLANGE,SPLINED
(A) M39 FLANGE 		1-09440-046-0 01 1 0809- ●
51 NUT; FLANGE,SPLINED
(A) M39 FLANGE 		1-09440-046-0 01 1 0809- ●
51 NUT; FLANGE,SPLINED
P90 PROP SHAFT(C5T) (A) M39 FLANGE 		1-09440-046-0 01 1 0809- ●
51 NUT; FLANGE,SPLINED
P90 PROP SHAFT(C5T) (A) M39 FLANGE 		1-09440-046-0 01 1 0809- ●
71 NUT; YOKE
P60 PROP SHAFT(C2M) (B) M12 		0-91110-512-0 04 1 0809- ●
71 NUT; YOKE
(A) M14 FLANGE 		1-09440-048-0 04 1 0710-0805 ●
71 NUT; YOKE
(A) M14 FLANGE 		8-97365-444-0 04 1 0806-0808 ●
71 NUT; YOKE
(A) M14 FLANGE 		8-97365-444-0 04 1 0809- ●
71 NUT; YOKE
P90 PROP SHAFT(C5T) (A) M14 FLANGE 		8-97365-444-0 04 1 0809- ●
72 WASHER; LK,YOKE
P60 PROP SHAFT(C2M) ID=12.2 		0-91510-612-0 04 1 0809- ●
78 BOLT; HOLDER SET,CENTER BRG,1ST PROP
M16X45 		1-09042-030-0 02 1 0710-0808 ●
78 BOLT; HOLDER SET,CENTER BRG,1ST PROP
M16X45 		1-09042-030-0 02 1 0809- ● ●
79 WASHER; PL,HOLDER SET,CENTER BRG
ID=17 		1-09503-241-1 02 1 0710-0808 ●
79 WASHER; PL,HOLDER SET,CENTER BRG
ID=17 		1-09503-241-1 02 1 0809- ● ●
80 NUT; HOLDER SET,CENTER BRG,1ST PROP
M16 SLOTTED 		0-91116-516-0 02 1 0710-0808 ●
80 NUT; HOLDER SET,CENTER BRG,1ST PROP
M16 SLOTTED 		0-91116-516-0 02 1 0809-1204 ● ●
80 NUT; HOLDER SET,CENTER BRG,1ST PROP
M16 SLOTTED 		8-98049-689-0 02 1 1205- ● ●
81 PIN; SPLIT,HOLDER SET,CENTER BRG
OD=3.7 L=25 		0-81124-025-0 02 1 0710-0808 ●
81 PIN; SPLIT,HOLDER SET,CENTER BRG
OD=3.7 L=25 		0-81124-025-0 02 1 0809- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
