3-78 — FIXING PARTS; AIR PIPING (#33994) — 407 parça

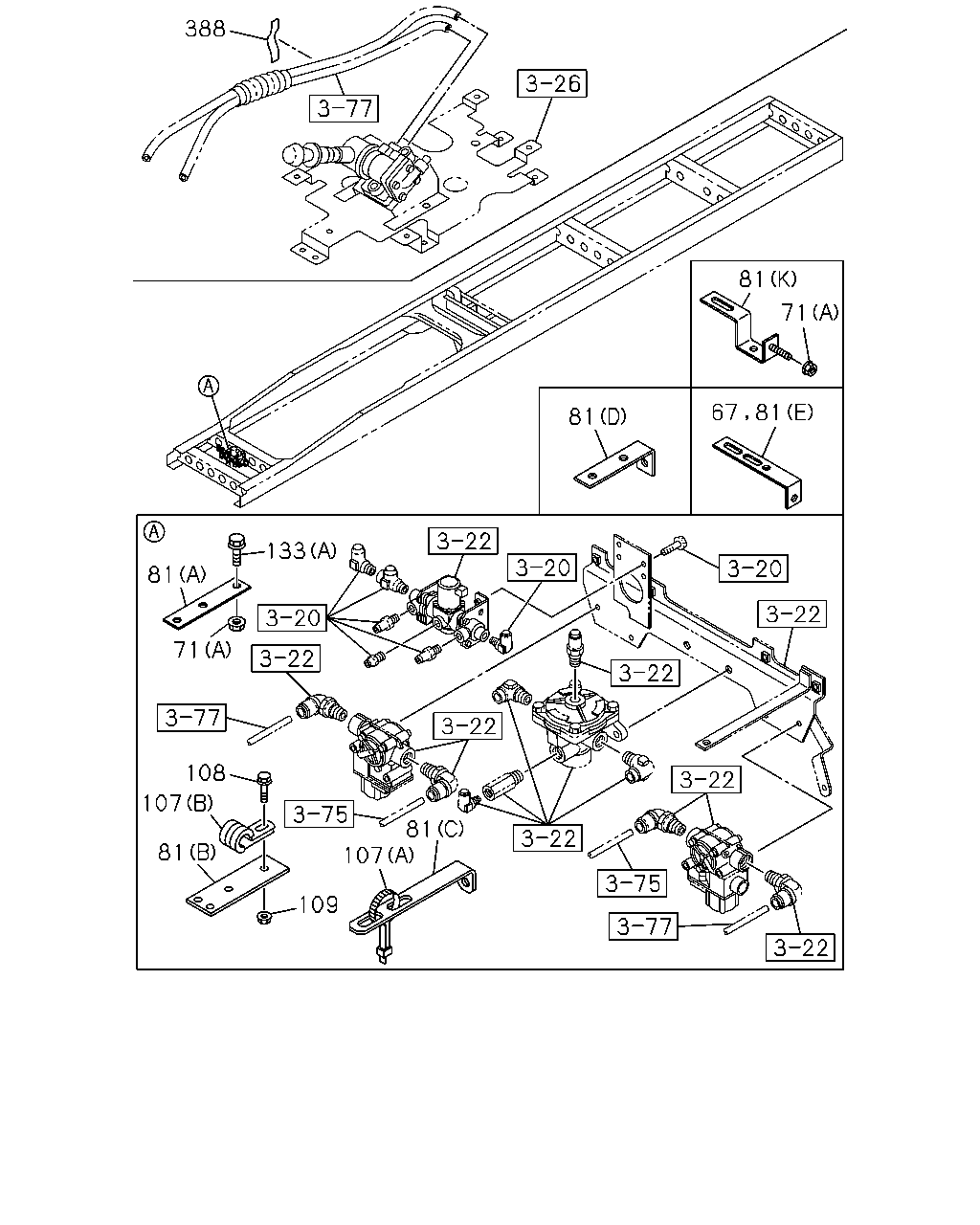

çizim 179073
388 81 71 81 133 81 71 108 107 81 81 107 109 67 81
BalonParca AdiParca NoAdetTipApplied Date A B
67 BRACKET; CLIP
WHEEL BASE 7100MM(71W) L=100 H=30 		1-47477-645-2 02 1 0801- ●
71 NUT; BRKT
(B) M10 FLANGE 		0-91180-210-0 01 1 1106- ● ●
71 NUT; BRKT
(A) M8 FLANGE 		0-91180-108-0 08 1 0812- ● ●
71 NUT; BRKT
(A) M8 FLANGE 		0-91180-108-0 01 1 0801-0907 ● ●
71 NUT; BRKT
(A) M8 FLANGE 		0-91180-108-0 01 1 0710-0710 ● ●
71 NUT; BRKT
(B) M10 FLANGE 		0-91180-210-0 01 1 0710-0907 ●
71 NUT; BRKT
(A) M8 FLANGE 		0-91180-108-0 02 1 0908- ●
71 NUT; BRKT
(A) M8 FLANGE 		0-91180-108-0 13 1 0710-0907 ● ●
71 NUT; BRKT
(A) M8 FLANGE 		0-91180-108-0 01 1 0908- ●
81 BRACKET; CLIP
(M) 		8-98186-380-0 01 1 1106- ● ●
81 BRACKET; CLIP
(J) L=65 		1-47477-713-0 01 1 0710-0902 ● ●
81 BRACKET; CLIP
(J) L=65 B=25 		8-98135-584-0 01 1 0903- ● ●
81 BRACKET; CLIP
(D) L=60 H=30 		1-47477-716-1 02 1 0710- ● ●
81 BRACKET; CLIP
(F) 		1-47479-693-0 01 1 0710-0809 ● ●
81 BRACKET; CLIP
(F) 		1-47479-693-0 01 1 0710-0809 ●
81 BRACKET; CLIP
(F) 		1-47479-693-0 01 1 0810-0907 ● ●
81 BRACKET; CLIP
(G) 		8-98021-994-1 01 1 0710-0710 ●
81 BRACKET; CLIP
(I) 		1-82699-527-1 01 1 0710-0711 ●
81 BRACKET; CLIP
(F) 		1-47479-693-0 02 1 0712- ●
81 BRACKET; CLIP
(E) L=100 H=30 		1-47477-645-2 04 1 0710-0806 ● ●
81 BRACKET; CLIP
(E) L=100 H=30 		1-47477-645-2 04 1 0807-0812 ● ●
81 BRACKET; CLIP
(K) 		8-98129-212-0 04 1 0901-1012 ● ●
81 BRACKET; CLIP
(L) 		8-98177-873-0 04 1 1101- ● ●
81 BRACKET; CLIP
(A) L=170 		1-47479-380-0 01 1 0710- ● ●
81 BRACKET; CLIP
(B) 		8-98031-420-2 01 1 0710- ● ●
81 BRACKET; CLIP
(H) 		8-98047-730-0 02 1 0710-0710 ● ●
81 BRACKET; CLIP
(C) L=150 H=30 		1-47477-629-2 01 1 0710- ●
107 CLIP; NYLON TUBE
WHEEL BASE 5000MM(50W) (A) L=350 		1-09707-183-0 21 1 0809-0907 ●
107 CLIP; NYLON TUBE
WHEEL BASE 5000MM(50W) (A) L=350 		1-09707-183-0 42 1 0908- ●
107 CLIP; NYLON TUBE
WHEEL BASE 6300MM(63W) (A) L=350 		1-09707-183-0 45 1 0809- ●
107 CLIP; NYLON TUBE
(A) L=350 		1-09707-183-0 01 1 0801-0801 ●
107 CLIP; NYLON TUBE
(A) L=350 		1-09707-183-0 01 1 0801-0907 ●
107 CLIP; NYLON TUBE
(A) L=350 		1-09707-183-0 01 1 0801-0907 ●
107 CLIP; NYLON TUBE
WHEEL BASE 7100MM(71W) (A) L=350 		1-09707-183-0 47 1 0710-0907 ●
107 CLIP; NYLON TUBE
WHEEL BASE 7100MM(71W) (A) L=350 		1-09707-183-0 49 1 0908- ● ●
107 CLIP; NYLON TUBE
(A) L=350 		1-09707-183-0 02 1 0710-0801 ● ●
107 CLIP; NYLON TUBE
(A) L=350 		1-09707-183-0 03 1 0802-0811 ● ●
107 CLIP; NYLON TUBE
(A) L=350 		1-09707-183-0 20 1 0710-0802 ● ●
107 CLIP; NYLON TUBE
(A) L=350 		1-09707-183-0 25 1 0803-0907 ● ●
107 CLIP; NYLON TUBE
H.S.A SYSTEM<6EP> (B) ID=35 L=33 		1-09700-945-0 01 1 0710- ● ●
107 CLIP; NYLON TUBE
EXC. H.S.A SYSTEM<6EP> (B) ID=39 L=33 		8-98009-359-0 01 1 0710- ● ●
108 BOLT; TUBE CLIP
M8X20 FLANGE 		0-28650-820-0 01 1 0710- ● ●
109 NUT; TUBE CLIP
M8 FLANGE 		0-91180-108-0 01 1 0710-0711 ● ●
133 BOLT; BRKT
(B) M8X30 FLANGE 		0-28650-830-0 02 1 0812-0907 ● ●
133 BOLT; BRKT
(B) M8X30 FLANGE 		0-28650-830-0 02 1 0908- ● ●
133 BOLT; BRKT
ZF9S1110 M/T(Y5E) (B) M8X30 FLANGE 		0-28650-830-0 02 1 0908- ●
133 BOLT; BRKT
(A) M8X25 FLANGE 		0-28650-825-0 02 1 0812- ● ●
133 BOLT; BRKT
(B) M8X30 FLANGE 		0-28650-830-0 01 1 0710-0907 ●
133 BOLT; BRKT
(B) M8X30 FLANGE 		0-28650-830-0 01 1 0908- ●
133 BOLT; BRKT
(A) M8X25 FLANGE 		0-28650-825-0 02 1 0710-0712 ● ●
133 BOLT; BRKT
(A) M8X25 FLANGE 		0-28650-825-0 01 1 0801-0907 ● ●
133 BOLT; BRKT
(B) M8X30 FLANGE 		0-28650-830-0 05 1 0710-0907 ●
133 BOLT; BRKT
(B) M8X35 FLANGE 		0-28650-835-0 02 1 0908- ●
133 BOLT; BRKT
(A) M8X25 FLANGE 		0-28650-825-0 06 1 0710-0802 ● ●
133 BOLT; BRKT
(B) M8X30 FLANGE 		0-28650-830-0 06 1 0803-0811 ● ●
133 BOLT; BRKT
(B) M8X20 FLANGE 		0-28650-820-0 02 1 0812- ● ●
388 SEAL
100X40 		1-72498-022-1 03 1 0710- ● ●
çizim 179156
34 127 16 322 16 21 297 126 20 376 81 81 269 269 16 22 74 76 107 128 269 286 320 375 74 269 287 318
BalonParca AdiParca NoAdetTipApplied Date A B
16 BRACKET; PIPE CLIP
EXC. ANTI LOCK BRAKE<JE5> (K) L=150 H=30 		1-47477-629-2 01 1 0809-0903 ●
16 BRACKET; PIPE CLIP
(I) 		1-47478-589-0 01 1 0710-0710 ●
16 BRACKET; PIPE CLIP
(J) 		1-47479-249-0 01 1 0710-0710 ●
16 BRACKET; PIPE CLIP
(J) 		1-47479-249-0 01 1 0710- ●
16 BRACKET; PIPE CLIP
(J) 		1-47479-249-0 01 1 0710- ●
16 BRACKET; PIPE CLIP
(H) 		1-47478-588-0 01 1 0710- ●
16 BRACKET; PIPE CLIP
(H) 		1-47478-588-0 01 1 0710- ●
16 BRACKET; PIPE CLIP
(F) 		1-34656-009-0 02 1 0710-0712 ●
16 BRACKET; PIPE CLIP
(F) 		1-34656-009-0 04 1 0801- ●
16 BRACKET; PIPE CLIP
(G) 		1-47479-598-0 02 1 0710-0712 ●
16 BRACKET; PIPE CLIP
(A) 		1-47475-868-0 01 1 0710- ●
16 BRACKET; PIPE CLIP
(B) 		1-47479-546-0 02 1 0710- ●
16 BRACKET; PIPE CLIP
(C) 		1-47479-720-0 02 1 0710- ●
16 BRACKET; PIPE CLIP
(D) 		1-47479-815-0 01 1 0710- ●
16 BRACKET; PIPE CLIP
(E) 		1-47479-901-0 02 1 0710-0712 ●
16 BRACKET; PIPE CLIP
(E) 		1-47479-901-0 01 1 0801-0808 ●
16 BRACKET; PIPE CLIP
EURO2 SPECIFICATION<NT2> (E) 		1-47479-901-0 01 1 0809-0912 ●
16 BRACKET; PIPE CLIP
(E) 		1-47479-901-0 01 1 0809-0912 ●
16 BRACKET; PIPE CLIP
(E) 		1-47479-901-0 01 1 1001- ●
20 BOLT; CLIP
(A) M8X20 FLANGE 		0-28650-820-0 01 1 0908- ●
20 BOLT; CLIP
(A) M8X20 FLANGE 		0-28650-820-0 03 1 0710-0907 ●
20 BOLT; CLIP
(A) M8X20 FLANGE 		0-28650-820-0 03 1 0710-0907 ●
20 BOLT; CLIP
(A) M8X20 FLANGE 		0-28650-820-0 03 1 0908-0908 ●
20 BOLT; CLIP
(A) M8X20 FLANGE 		0-28650-820-0 03 1 0908- ●
20 BOLT; CLIP
(A) M8X20 FLANGE 		0-28650-820-0 03 1 0908- ●
20 BOLT; CLIP
(B) M8X10 FLANGE 		0-28050-810-0 02 1 0710-0712 ●
20 BOLT; CLIP
(B) M8X10 FLANGE 		0-28050-810-0 03 1 0801-0907 ●
20 BOLT; CLIP
(B) M8X10 FLANGE 		0-28050-810-0 02 1 0908- ●
20 BOLT; CLIP
(A) M8X20 FLANGE 		0-28650-820-0 01 1 0710-0907 ● ●
20 BOLT; CLIP
(A) M8X20 FLANGE 		0-28650-820-0 04 1 0908-0908 ●
20 BOLT; CLIP
EURO4 SPECIFICATION<NT4> (B) M8X10 FLANGE 		0-28050-810-0 01 1 0908-0912 ●
20 BOLT; CLIP
(B) M8X10 FLANGE 		0-28050-810-0 01 1 1001- ●
21 NUT; CLIP
M8 FLANGE 		0-91180-108-0 01 1 0801-0907 ●
21 NUT; CLIP
M8 FLANGE 		0-91180-108-0 03 1 0908- ●
21 NUT; CLIP
M8 		0-91110-508-0 01 1 0710-0907 ●
21 NUT; CLIP
M8 		0-91110-508-0 01 1 0908- ●
21 NUT; CLIP
M8 		0-91110-508-0 01 1 0908- ●
21 NUT; CLIP
M8 FLANGE 		0-91180-108-0 02 1 0710-0710 ● ●
21 NUT; CLIP
M8 FLANGE 		0-91180-108-0 02 1 0710-0710 ●
21 NUT; CLIP
M8 FLANGE 		0-91180-108-0 02 1 0710-0907 ●
21 NUT; CLIP
M8 FLANGE 		0-91180-108-0 02 1 0908-0912 ●
21 NUT; CLIP
M8 FLANGE 		0-91180-108-0 02 1 0908-0912 ●
21 NUT; CLIP
EURO2 SPECIFICATION<NT2> M8 FLANGE 		0-91180-108-0 02 1 0908-0912 ●
21 NUT; CLIP
M8 FLANGE 		0-91180-108-0 02 1 1001- ●
21 NUT; CLIP
M8 FLANGE 		0-91180-108-0 02 1 1001- ●
21 NUT; CLIP
M8 FLANGE 		0-91180-108-0 03 1 0710-0710 ●
21 NUT; CLIP
M8 FLANGE 		0-91180-108-0 03 1 0710-0712 ● ●
21 NUT; CLIP
M8 FLANGE 		0-91180-108-0 03 1 0710-0712 ●
21 NUT; CLIP
M8 FLANGE 		0-91180-108-0 03 1 0801-0907 ● ●
21 NUT; CLIP
EURO4 SPECIFICATION<NT4> M8 FLANGE 		0-91180-108-0 01 1 0908-0912 ●
21 NUT; CLIP
M8 FLANGE 		0-91180-108-0 01 1 1001- ●
22 BRACKET; CLIP
WHEEL BASE 5000MM(50W) EURO2 SPECIFICATION<NT2> L=150 H=30 		1-47477-629-2 01 1 0809-0903 ●
22 BRACKET; CLIP
WHEEL BASE 6300MM(63W) EURO2 SPECIFICATION<NT2> L=225 		1-47477-646-3 01 1 0809- ●
22 BRACKET; CLIP
L=100 H=30 		1-47477-645-2 01 1 0710-0808 ● ●
22 BRACKET; CLIP
L=100 H=30 		1-47477-645-2 01 1 0809-0910 ●
22 BRACKET; CLIP
EURO4 SPECIFICATION<NT4> BRAKE REGULATION ADR(TDU) L=100 H=30 		1-47477-645-2 01 1 0809-0910 ●
34 NUT; BRKT
M8 FLANGE 		0-91180-108-0 01 1 0908-0908 ● ●
34 NUT; BRKT
WHEEL BASE 6300MM(63W) EURO2 SPECIFICATION<NT2> M8 FLANGE 		0-91180-108-0 01 1 0908-0908 ●
34 NUT; BRKT
WHEEL BASE 6300MM(63W) EURO2 SPECIFICATION<NT2> M8 FLANGE 		0-91180-108-0 01 1 0909- ●
34 NUT; BRKT
M8 FLANGE 		0-91180-108-0 01 1 0710-0907 ● ●
34 NUT; BRKT
M8 FLANGE 		0-91180-108-0 02 1 0908- ●
74 CLIP; NYLON TUBE
WHEEL BASE 5000MM(50W) EURO2 SPECIFICATION<NT2> (A) L=350 		1-09707-183-0 07 1 1010- ●
74 CLIP; NYLON TUBE
(A) L=350 		1-09707-183-0 03 1 0812- ● ●
74 CLIP; NYLON TUBE
WHEEL BASE 6300MM(63W) EURO2 SPECIFICATION<NT2> (A) L=350 		1-09707-183-0 10 1 0809-0907 ●
74 CLIP; NYLON TUBE
(A) L=350 		1-09707-183-0 01 1 0908-0911 ●
74 CLIP; NYLON TUBE
(A) L=350 		1-09707-183-0 01 1 0912- ● ●
74 CLIP; NYLON TUBE
AUSTRALIA EQUIPMENT(B13) (A) L=350 		1-09707-183-0 01 1 0912- ●
74 CLIP; NYLON TUBE
WHEEL BASE 7100MM(71W) (A) L=350 		1-09707-183-0 01 1 0712-0712 ● ●
74 CLIP; NYLON TUBE
WHEEL BASE 7100MM(71W) (A) L=350 		1-09707-183-0 01 1 0801-0811 ● ●
74 CLIP; NYLON TUBE
WHEEL BASE 7100MM(71W) (A) L=350 		1-09707-183-0 01 1 0801-0811 ●
74 CLIP; NYLON TUBE
(A) L=350 		1-09707-183-0 01 1 0812-0907 ●
74 CLIP; NYLON TUBE
WHEEL BASE 7100MM(71W) (A) L=350 		1-09707-183-0 01 1 0812-0907 ●
74 CLIP; NYLON TUBE
BRAKE REGULATION ADR(TDU) (A) L=350 		1-09707-183-0 01 1 0812-0907 ●
74 CLIP; NYLON TUBE
WHEEL BASE 7100MM(71W) (A) L=350 		1-09707-183-0 11 1 0908- ● ●
74 CLIP; NYLON TUBE
(A) L=350 		1-09707-183-0 07 1 0710-0907 ● ●
74 CLIP; NYLON TUBE
WHEEL BASE 6300MM(63W) (A) L=350 		1-09707-183-0 04 1 0908- ●
74 CLIP; NYLON TUBE
(B) ID=12 & 15 		1-09709-281-1 01 1 0710-0903 ● ●
74 CLIP; NYLON TUBE
(B) ID=12 & 15 		1-09709-281-1 01 1 0904-1008 ●
74 CLIP; NYLON TUBE
EXC. EURO2 SPECIFICATION<NT2> (B) ID=12 & 15 		1-09709-281-1 01 1 0904-1008 ●
74 CLIP; NYLON TUBE
(B) ID=12 & 15 		1-09709-281-1 01 1 1009- ●
74 CLIP; NYLON TUBE
EXC. TURBO - CONVENTIONAL<Q5T> (B) ID=12 & 15 		1-09709-281-1 01 1 1009- ●
76 CLIP; NYLON TUBE
H.S.A SYSTEM<6EP> EXC. ANTI LOCK BRAKE<JE5>,RIGID SEAT WO/ARM REST<TAZ> L=350 		1-09707-183-0 01 1 0812- ●
81 BRACKET; CLIP
(M) 		8-98186-380-0 01 1 1106- ● ●
81 BRACKET; CLIP
(J) L=65 		1-47477-713-0 01 1 0710-0902 ● ●
81 BRACKET; CLIP
(J) L=65 B=25 		8-98135-584-0 01 1 0903- ● ●
81 BRACKET; CLIP
(D) L=60 H=30 		1-47477-716-1 02 1 0710- ● ●
81 BRACKET; CLIP
(F) 		1-47479-693-0 01 1 0710-0809 ● ●
81 BRACKET; CLIP
(F) 		1-47479-693-0 01 1 0710-0809 ●
81 BRACKET; CLIP
(F) 		1-47479-693-0 01 1 0810-0907 ● ●
81 BRACKET; CLIP
(G) 		8-98021-994-1 01 1 0710-0710 ●
81 BRACKET; CLIP
(I) 		1-82699-527-1 01 1 0710-0711 ●
81 BRACKET; CLIP
(F) 		1-47479-693-0 02 1 0712- ●
81 BRACKET; CLIP
(E) L=100 H=30 		1-47477-645-2 04 1 0710-0806 ● ●
81 BRACKET; CLIP
(E) L=100 H=30 		1-47477-645-2 04 1 0807-0812 ● ●
81 BRACKET; CLIP
(K) 		8-98129-212-0 04 1 0901-1012 ● ●
81 BRACKET; CLIP
(L) 		8-98177-873-0 04 1 1101- ● ●
81 BRACKET; CLIP
(A) L=170 		1-47479-380-0 01 1 0710- ● ●
81 BRACKET; CLIP
(B) 		8-98031-420-2 01 1 0710- ● ●
81 BRACKET; CLIP
(H) 		8-98047-730-0 02 1 0710-0710 ● ●
81 BRACKET; CLIP
(C) L=150 H=30 		1-47477-629-2 01 1 0710- ●
107 CLIP; NYLON TUBE
WHEEL BASE 5000MM(50W) (A) L=350 		1-09707-183-0 21 1 0809-0907 ●
107 CLIP; NYLON TUBE
WHEEL BASE 5000MM(50W) (A) L=350 		1-09707-183-0 42 1 0908- ●
107 CLIP; NYLON TUBE
WHEEL BASE 6300MM(63W) (A) L=350 		1-09707-183-0 45 1 0809- ●
107 CLIP; NYLON TUBE
(A) L=350 		1-09707-183-0 01 1 0801-0801 ●
107 CLIP; NYLON TUBE
(A) L=350 		1-09707-183-0 01 1 0801-0907 ●
107 CLIP; NYLON TUBE
(A) L=350 		1-09707-183-0 01 1 0801-0907 ●
107 CLIP; NYLON TUBE
WHEEL BASE 7100MM(71W) (A) L=350 		1-09707-183-0 47 1 0710-0907 ●
107 CLIP; NYLON TUBE
WHEEL BASE 7100MM(71W) (A) L=350 		1-09707-183-0 49 1 0908- ● ●
107 CLIP; NYLON TUBE
(A) L=350 		1-09707-183-0 02 1 0710-0801 ● ●
107 CLIP; NYLON TUBE
(A) L=350 		1-09707-183-0 03 1 0802-0811 ● ●
107 CLIP; NYLON TUBE
(A) L=350 		1-09707-183-0 20 1 0710-0802 ● ●
107 CLIP; NYLON TUBE
(A) L=350 		1-09707-183-0 25 1 0803-0907 ● ●
107 CLIP; NYLON TUBE
H.S.A SYSTEM<6EP> (B) ID=35 L=33 		1-09700-945-0 01 1 0710- ● ●
107 CLIP; NYLON TUBE
EXC. H.S.A SYSTEM<6EP> (B) ID=39 L=33 		8-98009-359-0 01 1 0710- ● ●
126 BOLT; CLIP BRKT
EXC. ANTI LOCK BRAKE<JE5> (A) M8X30 FLANGE 		0-28650-830-0 02 1 0809-0903 ●
126 BOLT; CLIP BRKT
(A) M8X35 FLANGE 		0-28650-835-0 04 1 0710-0710 ●
126 BOLT; CLIP BRKT
(A) M8X35 FLANGE 		0-28650-835-0 02 1 0710- ●
126 BOLT; CLIP BRKT
(A) M8X35 FLANGE 		0-28650-835-0 02 1 0710- ●
126 BOLT; CLIP BRKT
(A) M8X25 FLANGE 		0-28650-825-0 01 1 0710-0907 ●
126 BOLT; CLIP BRKT
(A) M8X25 FLANGE 		0-28650-825-0 01 1 0710-0907 ●
126 BOLT; CLIP BRKT
(A) M8X20 FLANGE 		0-28650-820-0 02 1 0908- ●
126 BOLT; CLIP BRKT
(A) M8X20 FLANGE 		0-28650-820-0 02 1 0908- ●
126 BOLT; CLIP BRKT
(A) M8X10 FLANGE 		0-28050-810-0 04 1 0710-0712 ●
126 BOLT; CLIP BRKT
(A) M8X10 FLANGE 		0-28050-810-0 02 1 0801-0907 ●
126 BOLT; CLIP BRKT
(A) M8X10 FLANGE 		0-28050-810-0 02 1 0908-0912 ●
126 BOLT; CLIP BRKT
EURO2 SPECIFICATION<NT2> (A) M8X10 FLANGE 		0-28050-810-0 02 1 0908-0912 ●
126 BOLT; CLIP BRKT
(A) M8X10 FLANGE 		0-28050-810-0 02 1 1001- ●
126 BOLT; CLIP BRKT
(A) M8X25 FLANGE 		0-28650-825-0 04 1 0710- ●
126 BOLT; CLIP BRKT
(A) M8X30 FLANGE 		0-28650-830-0 01 1 0710-0808 ●
126 BOLT; CLIP BRKT
ANTI LOCK BRAKE<JE5> (A) M8X30 FLANGE 		0-28650-830-0 01 1 0809-0903 ●
126 BOLT; CLIP BRKT
(A) M8X30 FLANGE 		0-28650-830-0 01 1 0904- ●
126 BOLT; CLIP BRKT
(B) M10X35 FLANGE 		0-28651-035-0 01 1 0710- ●
127 NUT; CLIP BRKT
(A) M8 FLANGE 		0-91180-108-0 04 1 0710-0710 ●
127 NUT; CLIP BRKT
(A) M8 FLANGE 		0-91180-108-0 02 1 0710-0808 ●
127 NUT; CLIP BRKT
(A) M8 FLANGE 		0-91180-108-0 02 1 0710-0808 ●
127 NUT; CLIP BRKT
(A) M8 FLANGE 		0-91180-108-0 02 1 0809-0903 ●
127 NUT; CLIP BRKT
(A) M8 FLANGE 		0-91180-108-0 02 1 0809-0903 ●
127 NUT; CLIP BRKT
EXC. ANTI LOCK BRAKE<JE5> (A) M8 FLANGE 		0-91180-108-0 02 1 0809-0903 ●
127 NUT; CLIP BRKT
(A) M8 FLANGE 		0-91180-108-0 02 1 0904- ●
127 NUT; CLIP BRKT
(A) M8 FLANGE 		0-91180-108-0 02 1 0904- ●
127 NUT; CLIP BRKT
(A) M8 FLANGE 		0-91180-108-0 01 1 0710-0808 ●
127 NUT; CLIP BRKT
ANTI LOCK BRAKE<JE5> (A) M8 FLANGE 		0-91180-108-0 01 1 0809-0903 ●
127 NUT; CLIP BRKT
(A) M8 FLANGE 		0-91180-108-0 01 1 0904- ●
127 NUT; CLIP BRKT
(B) M10 FLANGE 		0-91180-210-0 01 1 0710- ●
128 CLIP; NYLON TUBE
L=350 		1-09707-183-0 01 1 0908- ●
269 CLIP; BAND,NYLON TUBE
AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> VIN MODEL YEAR 2011<VZB> (E) ID=12 & 15 		1-09709-281-1 01 1 1012- ●
269 CLIP; BAND,NYLON TUBE
TURBO - CONVENTIONAL<Q5T> VIN MODEL YEAR 2011<VZB> EXC. AIR DRYER<PS7> (E) ID=15 & 15 		1-09709-282-1 01 1 1012- ●
269 CLIP; BAND,NYLON TUBE
(A) L=350 		1-09707-183-0 01 1 0908- ●
269 CLIP; BAND,NYLON TUBE
(A) L=350 		1-09707-183-0 01 1 0710-0712 ●
269 CLIP; BAND,NYLON TUBE
(A) L=350 		1-09707-183-0 02 1 0801- ●
269 CLIP; BAND,NYLON TUBE
(B) ID=26 L=27 		1-09701-006-0 06 1 0710-0710 ●
269 CLIP; BAND,NYLON TUBE
(B) ID=28 L=40 		1-09701-261-0 03 1 0710-0802 ●
269 CLIP; BAND,NYLON TUBE
(B) ID=28 L=40 		1-09701-261-0 03 1 0710-0802 ●
269 CLIP; BAND,NYLON TUBE
(B) ID=28 L=40 		1-09701-261-0 06 1 0803- ●
269 CLIP; BAND,NYLON TUBE
(C) ID=11X2 L=20 		0-95325-035-0 02 1 0710- ●
269 CLIP; BAND,NYLON TUBE
(B) ID=35 L=33 		1-09700-945-0 06 1 0710-0710 ●
269 CLIP; BAND,NYLON TUBE
(D) ID=39 L=33 		8-98009-359-0 06 1 0710- ●
286 CLIP; NYLON TUBE
EURO2 SPECIFICATION<NT2> VIN MODEL YEAR 2011<VZB> L=350 		1-09707-183-0 01 1 1012- ●
287 CLIP; AIR PIPE
AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> VIN MODEL YEAR 2011<VZB> ID=6.35 & 12 		1-09709-275-1 01 1 1012-1012 ●
287 CLIP; AIR PIPE
TURBO - CONVENTIONAL<Q5T> VIN MODEL YEAR 2011<VZB> ID=6.35 & 6.35 		1-09709-273-1 01 1 1012-1012 ●
287 CLIP; AIR PIPE
TURBO - CONVENTIONAL<Q5T> VIN MODEL YEAR 2011<VZB> EXC. AIR DRYER<PS7> ID=6.35 & 15 		1-09709-276-1 01 1 1012-1012 ●
297 NUT; BRKT
ZF9S1110 M/T(Y5E) M8 FLANGE 		0-91180-108-0 02 1 0710-0808 ● ●
297 NUT; BRKT
ZF9S1110 M/T(Y5E) M8 FLANGE 		0-91180-108-0 02 1 0809- ●
297 NUT; BRKT
ASSISTOR SHIFT CONTROL<WX8> M8 FLANGE 		0-91180-108-0 02 1 0809- ●
318 CLIP; AIR PIPE
EURO2 SPECIFICATION<NT2> EXC. AIR DRYER<PS7> ID=6.35 & 15 		1-09709-276-1 02 1 0906-1008 ●
318 CLIP; AIR PIPE
TURBO - CONVENTIONAL<Q5T> EXC. AIR DRYER<PS7> ID=6.35 & 15 		1-09709-276-1 02 1 1009- ●
318 CLIP; AIR PIPE
EURO2 SPECIFICATION<NT2> ID=6.35 & 15 		1-09709-276-1 03 1 0809-0905 ●
318 CLIP; AIR PIPE
EURO2 SPECIFICATION<NT2> AIR DRYER<PS7> ID=6.35 & 15 		1-09709-276-1 03 1 0906-1008 ●
318 CLIP; AIR PIPE
AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> ID=6.35 & 15 		1-09709-276-1 03 1 1009- ●
320 CLIP; BAND,FLEX FIX
EURO2 SPECIFICATION<NT2> L=250 		5-09707-030-1 01 1 0809-1008 ●
320 CLIP; BAND,FLEX FIX
TURBO - CONVENTIONAL<Q5T> L=250 		5-09707-030-1 01 1 1009- ●
322 BRACKET; CLIP
ZF9S1110 M/T(Y5E) 		1-47479-598-0 02 1 0710-0808 ● ●
322 BRACKET; CLIP
ZF9S1110 M/T(Y5E) 		1-47479-598-0 02 1 0809- ●
322 BRACKET; CLIP
ASSISTOR SHIFT CONTROL<WX8> 		1-47479-598-0 02 1 0809- ●
375 CLIP; AIR PIPE
L=350 		1-09707-183-0 01 1 0712-0808 ● ●
375 CLIP; AIR PIPE
L=350 		1-09707-183-0 01 1 0809-0811 ●
375 CLIP; AIR PIPE
AUSTRALIA EQUIPMENT(B13) L=350 		1-09707-183-0 01 1 0809-0811 ●
375 CLIP; AIR PIPE
ZF9S1110 M/T(Y5E) L=350 		1-09707-183-0 02 1 0710-0811 ● ●
375 CLIP; AIR PIPE
ZF9S1110 M/T(Y5E) L=350 		1-09707-183-0 01 1 0812-0906 ●
375 CLIP; AIR PIPE
ASSISTOR SHIFT CONTROL<WX8> L=350 		1-09707-183-0 01 1 0812-0906 ●
375 CLIP; AIR PIPE
L=350 		1-09707-183-0 01 1 0907-1008 ● ●
375 CLIP; AIR PIPE
ZF9S1110 M/T(Y5E) L=350 		1-09707-183-0 01 1 0907-1008 ●
375 CLIP; AIR PIPE
ASSISTOR SHIFT CONTROL<WX8> L=350 		1-09707-183-0 01 1 0907-1008 ●
375 CLIP; AIR PIPE
ZF9S1110 M/T(Y5E) L=350 		1-09707-183-0 01 1 1009-1011 ●
375 CLIP; AIR PIPE
L=350 		1-09707-183-0 01 1 1009-1011 ●
375 CLIP; AIR PIPE
ASSISTOR SHIFT CONTROL<WX8> L=350 		1-09707-183-0 01 1 1009-1011 ●
375 CLIP; AIR PIPE
EURO2 SPECIFICATION<NT2>,EURO4 SPECIFICATION<NT4> L=350 		1-09707-183-0 01 1 1009-1011 ●
375 CLIP; AIR PIPE
ZF9S1110 M/T(Y5E) L=350 		1-09707-183-0 01 1 1012- ●
375 CLIP; AIR PIPE
L=350 		1-09707-183-0 01 1 1012- ●
375 CLIP; AIR PIPE
ASSISTOR SHIFT CONTROL<WX8> L=350 		1-09707-183-0 01 1 1012- ●
375 CLIP; AIR PIPE
ZF6S1000 M/T(Y5D) EURO2 SPECIFICATION<NT2> VIN MODEL YEAR 2011<VZB> ASSISTOR SHIFT CONTROL<WX8> EXC. BRAKE REGULATION ADR(TDU) L=350 		1-09707-183-0 01 1 1012- ●
375 CLIP; AIR PIPE
ZF9S1110 M/T(Y5E) EURO2 SPECIFICATION<NT2> VIN MODEL YEAR 2011<VZB> EXC. BRAKE REGULATION ADR(TDU) L=350 		1-09707-183-0 01 1 1012- ●
375 CLIP; AIR PIPE
EURO2 SPECIFICATION<NT2> EXC. VIN MODEL YEAR 2011<VZB> L=350 		1-09707-183-0 01 1 1012- ●
375 CLIP; AIR PIPE
EURO4 SPECIFICATION<NT4> L=350 		1-09707-183-0 01 1 1012- ●
376 BOLT; BRKT
ZF9S1110 M/T(Y5E) M8X30 FLANGE 		0-28650-830-0 02 1 0710-0808 ● ●
376 BOLT; BRKT
ZF9S1110 M/T(Y5E) M8X30 FLANGE 		0-28650-830-0 02 1 0809- ●
376 BOLT; BRKT
ASSISTOR SHIFT CONTROL<WX8> M8X30 FLANGE 		0-28650-830-0 02 1 0809- ●

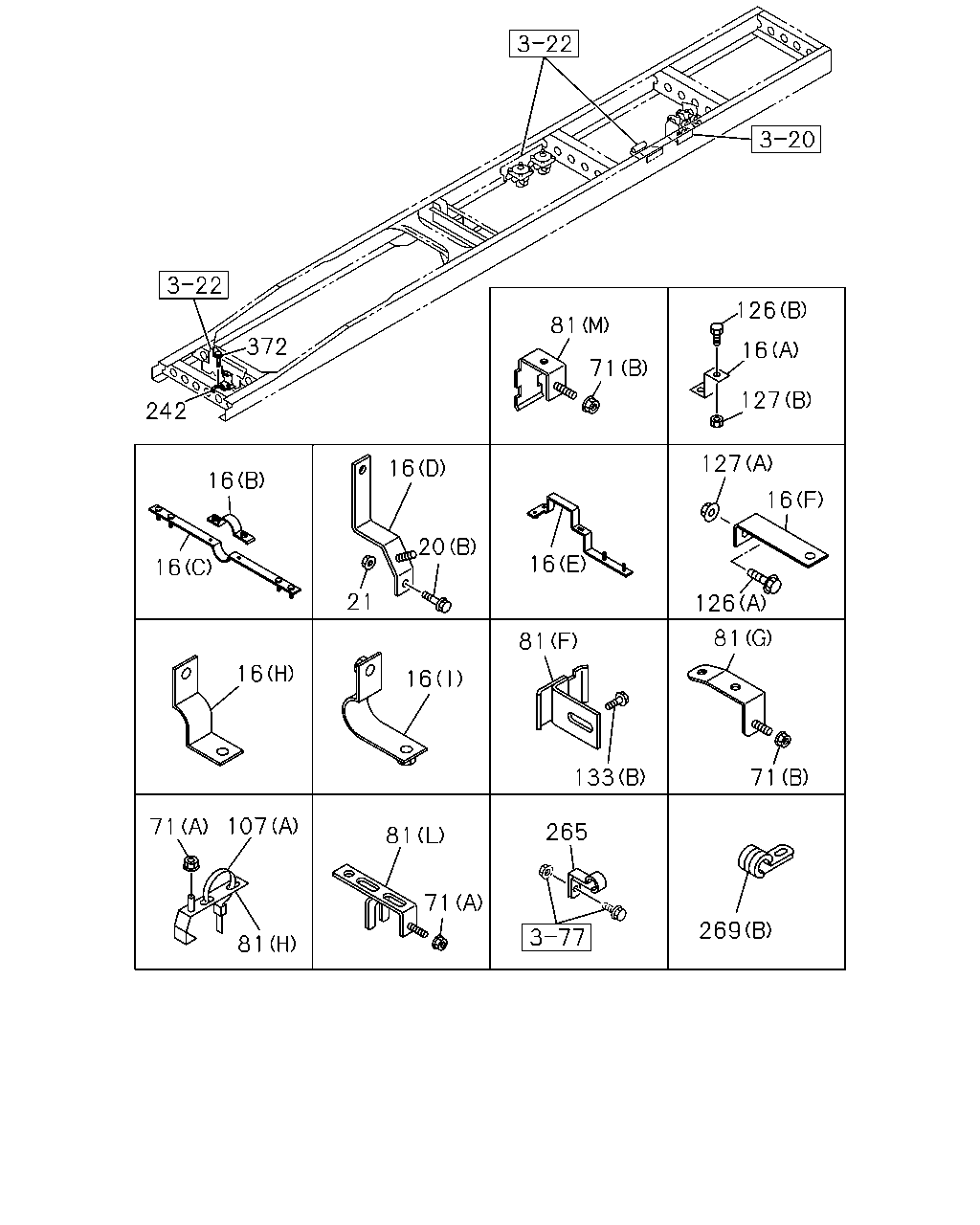

çizim 179343
126 81 372 16 71 127 242 127 16 16 16 20 16 16 21 126 81 81 16 16 133 71 107 71 265 81 71 269 81
BalonParca AdiParca NoAdetTipApplied Date A B
16 BRACKET; PIPE CLIP
EXC. ANTI LOCK BRAKE<JE5> (K) L=150 H=30 		1-47477-629-2 01 1 0809-0903 ●
16 BRACKET; PIPE CLIP
(I) 		1-47478-589-0 01 1 0710-0710 ●
16 BRACKET; PIPE CLIP
(J) 		1-47479-249-0 01 1 0710-0710 ●
16 BRACKET; PIPE CLIP
(J) 		1-47479-249-0 01 1 0710- ●
16 BRACKET; PIPE CLIP
(J) 		1-47479-249-0 01 1 0710- ●
16 BRACKET; PIPE CLIP
(H) 		1-47478-588-0 01 1 0710- ●
16 BRACKET; PIPE CLIP
(H) 		1-47478-588-0 01 1 0710- ●
16 BRACKET; PIPE CLIP
(F) 		1-34656-009-0 02 1 0710-0712 ●
16 BRACKET; PIPE CLIP
(F) 		1-34656-009-0 04 1 0801- ●
16 BRACKET; PIPE CLIP
(G) 		1-47479-598-0 02 1 0710-0712 ●
16 BRACKET; PIPE CLIP
(A) 		1-47475-868-0 01 1 0710- ●
16 BRACKET; PIPE CLIP
(B) 		1-47479-546-0 02 1 0710- ●
16 BRACKET; PIPE CLIP
(C) 		1-47479-720-0 02 1 0710- ●
16 BRACKET; PIPE CLIP
(D) 		1-47479-815-0 01 1 0710- ●
16 BRACKET; PIPE CLIP
(E) 		1-47479-901-0 02 1 0710-0712 ●
16 BRACKET; PIPE CLIP
(E) 		1-47479-901-0 01 1 0801-0808 ●
16 BRACKET; PIPE CLIP
EURO2 SPECIFICATION<NT2> (E) 		1-47479-901-0 01 1 0809-0912 ●
16 BRACKET; PIPE CLIP
(E) 		1-47479-901-0 01 1 0809-0912 ●
16 BRACKET; PIPE CLIP
(E) 		1-47479-901-0 01 1 1001- ●
20 BOLT; CLIP
(A) M8X20 FLANGE 		0-28650-820-0 01 1 0908- ●
20 BOLT; CLIP
(A) M8X20 FLANGE 		0-28650-820-0 03 1 0710-0907 ●
20 BOLT; CLIP
(A) M8X20 FLANGE 		0-28650-820-0 03 1 0710-0907 ●
20 BOLT; CLIP
(A) M8X20 FLANGE 		0-28650-820-0 03 1 0908-0908 ●
20 BOLT; CLIP
(A) M8X20 FLANGE 		0-28650-820-0 03 1 0908- ●
20 BOLT; CLIP
(A) M8X20 FLANGE 		0-28650-820-0 03 1 0908- ●
20 BOLT; CLIP
(B) M8X10 FLANGE 		0-28050-810-0 02 1 0710-0712 ●
20 BOLT; CLIP
(B) M8X10 FLANGE 		0-28050-810-0 03 1 0801-0907 ●
20 BOLT; CLIP
(B) M8X10 FLANGE 		0-28050-810-0 02 1 0908- ●
20 BOLT; CLIP
(A) M8X20 FLANGE 		0-28650-820-0 01 1 0710-0907 ● ●
20 BOLT; CLIP
(A) M8X20 FLANGE 		0-28650-820-0 04 1 0908-0908 ●
20 BOLT; CLIP
EURO4 SPECIFICATION<NT4> (B) M8X10 FLANGE 		0-28050-810-0 01 1 0908-0912 ●
20 BOLT; CLIP
(B) M8X10 FLANGE 		0-28050-810-0 01 1 1001- ●
21 NUT; CLIP
M8 FLANGE 		0-91180-108-0 01 1 0801-0907 ●
21 NUT; CLIP
M8 FLANGE 		0-91180-108-0 03 1 0908- ●
21 NUT; CLIP
M8 		0-91110-508-0 01 1 0710-0907 ●
21 NUT; CLIP
M8 		0-91110-508-0 01 1 0908- ●
21 NUT; CLIP
M8 		0-91110-508-0 01 1 0908- ●
21 NUT; CLIP
M8 FLANGE 		0-91180-108-0 02 1 0710-0710 ● ●
21 NUT; CLIP
M8 FLANGE 		0-91180-108-0 02 1 0710-0710 ●
21 NUT; CLIP
M8 FLANGE 		0-91180-108-0 02 1 0710-0907 ●
21 NUT; CLIP
M8 FLANGE 		0-91180-108-0 02 1 0908-0912 ●
21 NUT; CLIP
M8 FLANGE 		0-91180-108-0 02 1 0908-0912 ●
21 NUT; CLIP
EURO2 SPECIFICATION<NT2> M8 FLANGE 		0-91180-108-0 02 1 0908-0912 ●
21 NUT; CLIP
M8 FLANGE 		0-91180-108-0 02 1 1001- ●
21 NUT; CLIP
M8 FLANGE 		0-91180-108-0 02 1 1001- ●
21 NUT; CLIP
M8 FLANGE 		0-91180-108-0 03 1 0710-0710 ●
21 NUT; CLIP
M8 FLANGE 		0-91180-108-0 03 1 0710-0712 ● ●
21 NUT; CLIP
M8 FLANGE 		0-91180-108-0 03 1 0710-0712 ●
21 NUT; CLIP
M8 FLANGE 		0-91180-108-0 03 1 0801-0907 ● ●
21 NUT; CLIP
EURO4 SPECIFICATION<NT4> M8 FLANGE 		0-91180-108-0 01 1 0908-0912 ●
21 NUT; CLIP
M8 FLANGE 		0-91180-108-0 01 1 1001- ●
71 NUT; BRKT
(B) M10 FLANGE 		0-91180-210-0 01 1 1106- ● ●
71 NUT; BRKT
(A) M8 FLANGE 		0-91180-108-0 08 1 0812- ● ●
71 NUT; BRKT
(A) M8 FLANGE 		0-91180-108-0 01 1 0801-0907 ● ●
71 NUT; BRKT
(A) M8 FLANGE 		0-91180-108-0 01 1 0710-0710 ● ●
71 NUT; BRKT
(B) M10 FLANGE 		0-91180-210-0 01 1 0710-0907 ●
71 NUT; BRKT
(A) M8 FLANGE 		0-91180-108-0 02 1 0908- ●
71 NUT; BRKT
(A) M8 FLANGE 		0-91180-108-0 13 1 0710-0907 ● ●
71 NUT; BRKT
(A) M8 FLANGE 		0-91180-108-0 01 1 0908- ●
81 BRACKET; CLIP
(M) 		8-98186-380-0 01 1 1106- ● ●
81 BRACKET; CLIP
(J) L=65 		1-47477-713-0 01 1 0710-0902 ● ●
81 BRACKET; CLIP
(J) L=65 B=25 		8-98135-584-0 01 1 0903- ● ●
81 BRACKET; CLIP
(D) L=60 H=30 		1-47477-716-1 02 1 0710- ● ●
81 BRACKET; CLIP
(F) 		1-47479-693-0 01 1 0710-0809 ● ●
81 BRACKET; CLIP
(F) 		1-47479-693-0 01 1 0710-0809 ●
81 BRACKET; CLIP
(F) 		1-47479-693-0 01 1 0810-0907 ● ●
81 BRACKET; CLIP
(G) 		8-98021-994-1 01 1 0710-0710 ●
81 BRACKET; CLIP
(I) 		1-82699-527-1 01 1 0710-0711 ●
81 BRACKET; CLIP
(F) 		1-47479-693-0 02 1 0712- ●
81 BRACKET; CLIP
(E) L=100 H=30 		1-47477-645-2 04 1 0710-0806 ● ●
81 BRACKET; CLIP
(E) L=100 H=30 		1-47477-645-2 04 1 0807-0812 ● ●
81 BRACKET; CLIP
(K) 		8-98129-212-0 04 1 0901-1012 ● ●
81 BRACKET; CLIP
(L) 		8-98177-873-0 04 1 1101- ● ●
81 BRACKET; CLIP
(A) L=170 		1-47479-380-0 01 1 0710- ● ●
81 BRACKET; CLIP
(B) 		8-98031-420-2 01 1 0710- ● ●
81 BRACKET; CLIP
(H) 		8-98047-730-0 02 1 0710-0710 ● ●
81 BRACKET; CLIP
(C) L=150 H=30 		1-47477-629-2 01 1 0710- ●
107 CLIP; NYLON TUBE
WHEEL BASE 5000MM(50W) (A) L=350 		1-09707-183-0 21 1 0809-0907 ●
107 CLIP; NYLON TUBE
WHEEL BASE 5000MM(50W) (A) L=350 		1-09707-183-0 42 1 0908- ●
107 CLIP; NYLON TUBE
WHEEL BASE 6300MM(63W) (A) L=350 		1-09707-183-0 45 1 0809- ●
107 CLIP; NYLON TUBE
(A) L=350 		1-09707-183-0 01 1 0801-0801 ●
107 CLIP; NYLON TUBE
(A) L=350 		1-09707-183-0 01 1 0801-0907 ●
107 CLIP; NYLON TUBE
(A) L=350 		1-09707-183-0 01 1 0801-0907 ●
107 CLIP; NYLON TUBE
WHEEL BASE 7100MM(71W) (A) L=350 		1-09707-183-0 47 1 0710-0907 ●
107 CLIP; NYLON TUBE
WHEEL BASE 7100MM(71W) (A) L=350 		1-09707-183-0 49 1 0908- ● ●
107 CLIP; NYLON TUBE
(A) L=350 		1-09707-183-0 02 1 0710-0801 ● ●
107 CLIP; NYLON TUBE
(A) L=350 		1-09707-183-0 03 1 0802-0811 ● ●
107 CLIP; NYLON TUBE
(A) L=350 		1-09707-183-0 20 1 0710-0802 ● ●
107 CLIP; NYLON TUBE
(A) L=350 		1-09707-183-0 25 1 0803-0907 ● ●
107 CLIP; NYLON TUBE
H.S.A SYSTEM<6EP> (B) ID=35 L=33 		1-09700-945-0 01 1 0710- ● ●
107 CLIP; NYLON TUBE
EXC. H.S.A SYSTEM<6EP> (B) ID=39 L=33 		8-98009-359-0 01 1 0710- ● ●
126 BOLT; CLIP BRKT
EXC. ANTI LOCK BRAKE<JE5> (A) M8X30 FLANGE 		0-28650-830-0 02 1 0809-0903 ●
126 BOLT; CLIP BRKT
(A) M8X35 FLANGE 		0-28650-835-0 04 1 0710-0710 ●
126 BOLT; CLIP BRKT
(A) M8X35 FLANGE 		0-28650-835-0 02 1 0710- ●
126 BOLT; CLIP BRKT
(A) M8X35 FLANGE 		0-28650-835-0 02 1 0710- ●
126 BOLT; CLIP BRKT
(A) M8X25 FLANGE 		0-28650-825-0 01 1 0710-0907 ●
126 BOLT; CLIP BRKT
(A) M8X25 FLANGE 		0-28650-825-0 01 1 0710-0907 ●
126 BOLT; CLIP BRKT
(A) M8X20 FLANGE 		0-28650-820-0 02 1 0908- ●
126 BOLT; CLIP BRKT
(A) M8X20 FLANGE 		0-28650-820-0 02 1 0908- ●
126 BOLT; CLIP BRKT
(A) M8X10 FLANGE 		0-28050-810-0 04 1 0710-0712 ●
126 BOLT; CLIP BRKT
(A) M8X10 FLANGE 		0-28050-810-0 02 1 0801-0907 ●
126 BOLT; CLIP BRKT
(A) M8X10 FLANGE 		0-28050-810-0 02 1 0908-0912 ●
126 BOLT; CLIP BRKT
EURO2 SPECIFICATION<NT2> (A) M8X10 FLANGE 		0-28050-810-0 02 1 0908-0912 ●
126 BOLT; CLIP BRKT
(A) M8X10 FLANGE 		0-28050-810-0 02 1 1001- ●
126 BOLT; CLIP BRKT
(A) M8X25 FLANGE 		0-28650-825-0 04 1 0710- ●
126 BOLT; CLIP BRKT
(A) M8X30 FLANGE 		0-28650-830-0 01 1 0710-0808 ●
126 BOLT; CLIP BRKT
ANTI LOCK BRAKE<JE5> (A) M8X30 FLANGE 		0-28650-830-0 01 1 0809-0903 ●
126 BOLT; CLIP BRKT
(A) M8X30 FLANGE 		0-28650-830-0 01 1 0904- ●
126 BOLT; CLIP BRKT
(B) M10X35 FLANGE 		0-28651-035-0 01 1 0710- ●
127 NUT; CLIP BRKT
(A) M8 FLANGE 		0-91180-108-0 04 1 0710-0710 ●
127 NUT; CLIP BRKT
(A) M8 FLANGE 		0-91180-108-0 02 1 0710-0808 ●
127 NUT; CLIP BRKT
(A) M8 FLANGE 		0-91180-108-0 02 1 0710-0808 ●
127 NUT; CLIP BRKT
(A) M8 FLANGE 		0-91180-108-0 02 1 0809-0903 ●
127 NUT; CLIP BRKT
(A) M8 FLANGE 		0-91180-108-0 02 1 0809-0903 ●
127 NUT; CLIP BRKT
EXC. ANTI LOCK BRAKE<JE5> (A) M8 FLANGE 		0-91180-108-0 02 1 0809-0903 ●
127 NUT; CLIP BRKT
(A) M8 FLANGE 		0-91180-108-0 02 1 0904- ●
127 NUT; CLIP BRKT
(A) M8 FLANGE 		0-91180-108-0 02 1 0904- ●
127 NUT; CLIP BRKT
(A) M8 FLANGE 		0-91180-108-0 01 1 0710-0808 ●
127 NUT; CLIP BRKT
ANTI LOCK BRAKE<JE5> (A) M8 FLANGE 		0-91180-108-0 01 1 0809-0903 ●
127 NUT; CLIP BRKT
(A) M8 FLANGE 		0-91180-108-0 01 1 0904- ●
127 NUT; CLIP BRKT
(B) M10 FLANGE 		0-91180-210-0 01 1 0710- ●
133 BOLT; BRKT
(B) M8X30 FLANGE 		0-28650-830-0 02 1 0812-0907 ● ●
133 BOLT; BRKT
(B) M8X30 FLANGE 		0-28650-830-0 02 1 0908- ● ●
133 BOLT; BRKT
ZF9S1110 M/T(Y5E) (B) M8X30 FLANGE 		0-28650-830-0 02 1 0908- ●
133 BOLT; BRKT
(A) M8X25 FLANGE 		0-28650-825-0 02 1 0812- ● ●
133 BOLT; BRKT
(B) M8X30 FLANGE 		0-28650-830-0 01 1 0710-0907 ●
133 BOLT; BRKT
(B) M8X30 FLANGE 		0-28650-830-0 01 1 0908- ●
133 BOLT; BRKT
(A) M8X25 FLANGE 		0-28650-825-0 02 1 0710-0712 ● ●
133 BOLT; BRKT
(A) M8X25 FLANGE 		0-28650-825-0 01 1 0801-0907 ● ●
133 BOLT; BRKT
(B) M8X30 FLANGE 		0-28650-830-0 05 1 0710-0907 ●
133 BOLT; BRKT
(B) M8X35 FLANGE 		0-28650-835-0 02 1 0908- ●
133 BOLT; BRKT
(A) M8X25 FLANGE 		0-28650-825-0 06 1 0710-0802 ● ●
133 BOLT; BRKT
(B) M8X30 FLANGE 		0-28650-830-0 06 1 0803-0811 ● ●
133 BOLT; BRKT
(B) M8X20 FLANGE 		0-28650-820-0 02 1 0812- ● ●
242 BRACKET; PIPE CLIP
CAB SUSPENSION SEMI FLOATING<SDK>,CAB SUSPENSION RIGID<W71> 		8-98106-046-0 01 1 0809- ●
242 BRACKET; PIPE CLIP 8-98074-610-0 01 1 0710-0808 ● ●
242 BRACKET; PIPE CLIP 8-98074-610-0 01 1 0809- ●
242 BRACKET; PIPE CLIP
CAB SUSPENSION FULL FLOATING<W16> 		8-98074-610-0 01 1 0809- ●
265 CLIP; NYLON TUBE
ID=21 H=25.5 L=26 		8-94176-806-0 01 1 0710- ● ●
269 CLIP; BAND,NYLON TUBE
AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> VIN MODEL YEAR 2011<VZB> (E) ID=12 & 15 		1-09709-281-1 01 1 1012- ●
269 CLIP; BAND,NYLON TUBE
TURBO - CONVENTIONAL<Q5T> VIN MODEL YEAR 2011<VZB> EXC. AIR DRYER<PS7> (E) ID=15 & 15 		1-09709-282-1 01 1 1012- ●
269 CLIP; BAND,NYLON TUBE
(A) L=350 		1-09707-183-0 01 1 0908- ●
269 CLIP; BAND,NYLON TUBE
(A) L=350 		1-09707-183-0 01 1 0710-0712 ●
269 CLIP; BAND,NYLON TUBE
(A) L=350 		1-09707-183-0 02 1 0801- ●
269 CLIP; BAND,NYLON TUBE
(B) ID=26 L=27 		1-09701-006-0 06 1 0710-0710 ●
269 CLIP; BAND,NYLON TUBE
(B) ID=28 L=40 		1-09701-261-0 03 1 0710-0802 ●
269 CLIP; BAND,NYLON TUBE
(B) ID=28 L=40 		1-09701-261-0 03 1 0710-0802 ●
269 CLIP; BAND,NYLON TUBE
(B) ID=28 L=40 		1-09701-261-0 06 1 0803- ●
269 CLIP; BAND,NYLON TUBE
(C) ID=11X2 L=20 		0-95325-035-0 02 1 0710- ●
269 CLIP; BAND,NYLON TUBE
(B) ID=35 L=33 		1-09700-945-0 06 1 0710-0710 ●
269 CLIP; BAND,NYLON TUBE
(D) ID=39 L=33 		8-98009-359-0 06 1 0710- ●
372 BOLT; CLIP BRKT
M8X20 FLANGE 		0-28650-820-0 02 1 0710-0712 ● ●
372 BOLT; CLIP BRKT
M8X25 FLANGE 		0-28650-825-0 02 1 0801- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
