3-75 — BRAKE PIPING; AIR,FRONT (#33992) — 78 parça

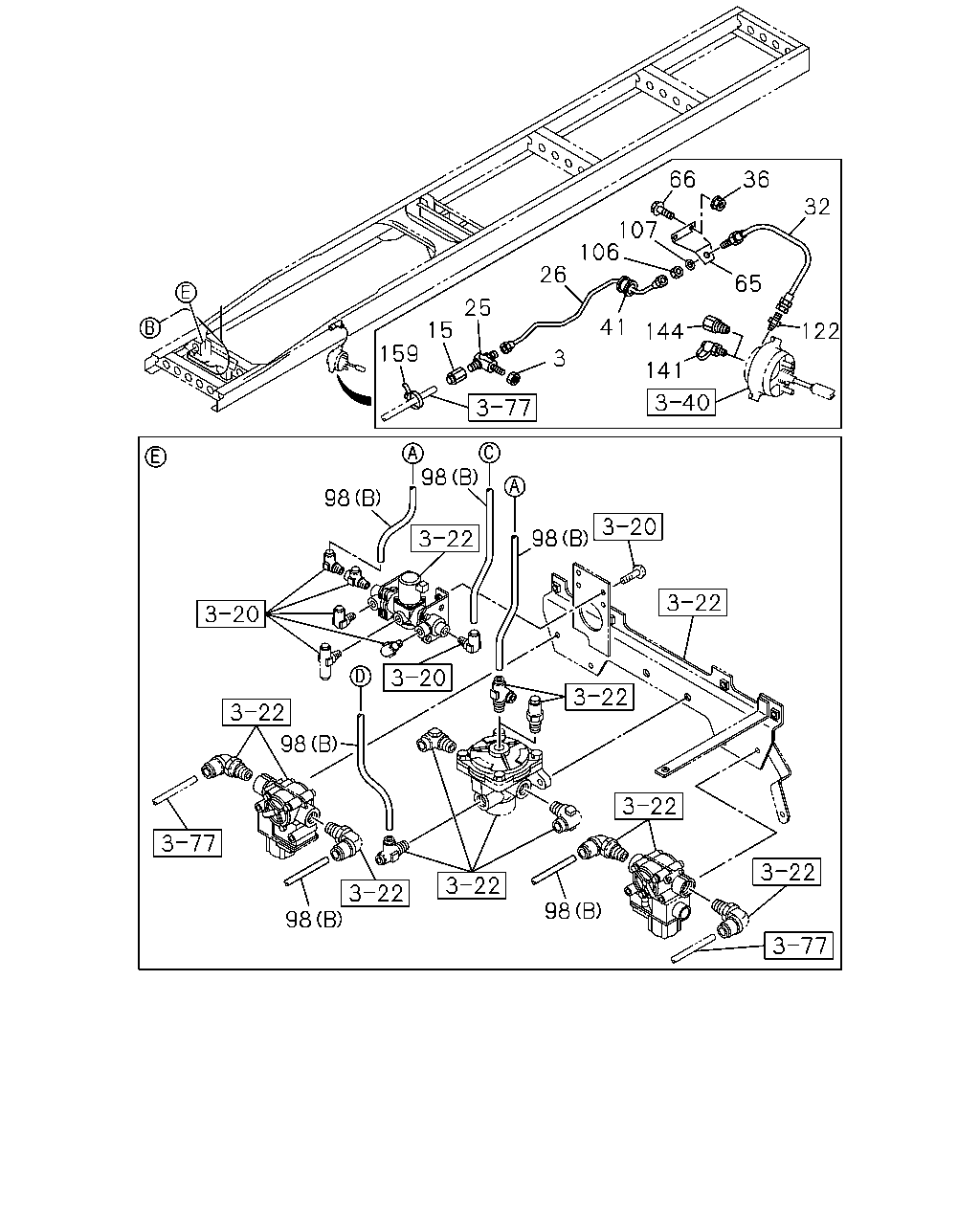

66 36 32 107 106 26 65 25 41 15 122 144 159 3 141 98 98 98 98 98 98

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
3	NUT; PIPE UNION M12	0-91111-512-0	02	1	0710-	●	●
15	CONNECTOR; AIR PIPE DIN12 & M16 STRAIGHT	1-09660-876-0	02	1	0710-	●	●
25	UNION; AIR PIPE M16	1-09654-148-1	02	1	0710-	●	●
26	PIPE; AIR,UNION TO FLEX HOSE L=659	8-98091-273-0	01	1	0710-0806	●	●
26	PIPE; AIR,UNION TO FLEX HOSE L=657	8-98126-150-1	01	1	0807-	●	●
26	PIPE; AIR,UNION TO FLEX HOSE L=500	8-98091-274-1	01	1	0710-	●	●
32	HOSE; FLEX,FRT	8-98090-844-0	02	1	0710-	●	●
36	NUT; HOSE BRKT M8 FLANGE	0-91180-108-0	04	1	0710-	●	●
41	GROMMET; AIR PIPE ID=28 OD=35 T=25	1-09332-011-1	02	1	0710-	●	●
65	BRACKET; FLEX HOSE	1-47476-210-0	01	1	0710-	●	●
65	BRACKET; FLEX HOSE	1-47476-211-0	01	1	0710-	●	●
66	BOLT; HOSE BRKT M8X25 FLANGE	0-28650-825-0	04	1	0710-	●	●
98	TUBE; NYLON CAB SUSPENSION SEMI FLOATING<SDK>,CAB SUSPENSION RIGID<W71> (A)	8-98091-308-0	01	1	0809-		●
98	TUBE; NYLON (A)	8-98091-307-0	01	1	0710-0808	●	●
98	TUBE; NYLON (A)	8-98091-307-0	01	1	0809-	●
98	TUBE; NYLON CAB SUSPENSION FULL FLOATING<W16> (A)	8-98091-307-0	01	1	0809-		●
98	TUBE; NYLON (B) SERVICED BY L=4000 OD=6	1-87411-002-0	AR	1	0710-	●	●
98	TUBE; NYLON (B) SERVICED BY L=2000 OD=8	1-87411-006-0	AR	1	0710-	●	●
98	TUBE; NYLON (B) SERVICED BY L=6000 OD=8	1-87411-008-0	AR	1	0809-	●	●
98	TUBE; NYLON (B) SERVICED BY L=8000 OD=8	1-87411-009-0	AR	1	0710-	●	●
98	TUBE; NYLON (B) SERVICED BY L=12000 OD=8	1-87411-010-0	AR	1	0710-	●	●
98	TUBE; NYLON (B) SERVICED BY L=2000 OD=12	1-87411-011-0	AR	1	0710-	●	●
98	TUBE; NYLON (B) SERVICED BY L=6000 OD=12	1-87411-013-0	AR	1	0710-	●	●
98	TUBE; NYLON (B) SERVICED BY L=4000 OD=8	1-87411-007-0	AR	1	1111-	●	●
106	NUT; FLEX HOSE M16	0-91111-516-0	02	1	0710-	●	●
107	WASHER; LK,FLEX HOSE ID=16.2	0-91510-516-0	02	1	0710-1009	●	●
107	WASHER; LK,FLEX HOSE ID=16.2	0-91510-816-0	02	1	1010-	●	●
122	CONNECTOR; FLEX HOSE M16 & PT3/8 ELBOW	1-09650-438-0	01	1	0710-	●
122	CONNECTOR; FLEX HOSE M16 & PT3/8 ELBOW	1-09656-724-0	01	1	0710-	●
122	CONNECTOR; FLEX HOSE M16 & PT3/8 STRAIGHT	1-09650-179-1	01	1	0710-0808		●
122	CONNECTOR; FLEX HOSE M16 & PT3/8 STRAIGHT	1-09650-179-1	01	1	0809-		●
122	CONNECTOR; FLEX HOSE EXC. BRAKE REGULATION ADR(TDU) M16 & PT3/8 STRAIGHT	1-09650-179-1	01	1	0809-		●
122	CONNECTOR; FLEX HOSE M16 & PT3/8 STRAIGHT	1-09656-643-1	01	1	0710-0808		●
122	CONNECTOR; FLEX HOSE BRAKE REGULATION ADR(TDU) M16 & PT3/8 STRAIGHT	1-09656-643-1	01	1	0809-		●
141	CONNECTOR; TEST R1/4 & M16 TEST CONNECTOR	1-47459-013-0	01	1	0710-0808	●	●
141	CONNECTOR; TEST R1/4 & M16 TEST CONNECTOR	1-47459-013-1	01	1	0809-	●
141	CONNECTOR; TEST BRAKE REGULATION ADR(TDU) R1/4 & M16 TEST CONNECTOR	1-47459-013-1	01	1	0809-		●
144	ADAPTER NPTF3/8 & RC3/8	1-09660-548-0	02	1	0710-	●
159	CLIP; NYLON TUBE EXC. ANTI LOCK BRAKE<JE5> L=350	1-09707-183-0	01	1	0812-		●
159	CLIP; NYLON TUBE L=350	1-09707-183-0	01	1	0710-0811	●	●
159	CLIP; NYLON TUBE L=350	1-09707-183-0	02	1	0812-	●
159	CLIP; NYLON TUBE ANTI LOCK BRAKE<JE5> L=350	1-09707-183-0	02	1	0812-		●

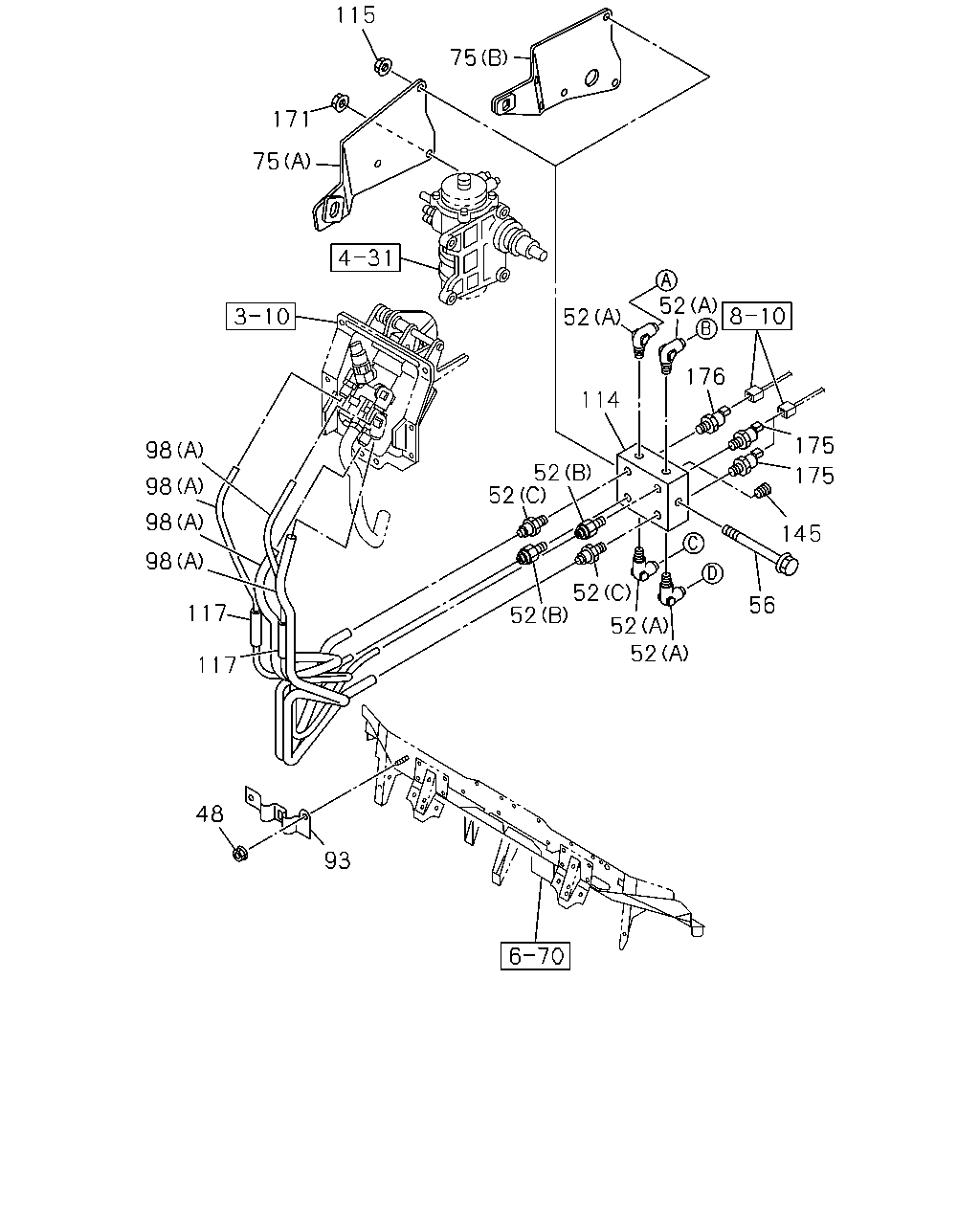

115 75 171 75 52 52 176 114 175 98 52 52 175 98 98 145 98 52 52 56 117 52 52 117 48 93

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
48	NUT; UNION BRKT M6 FLANGE	0-91180-106-0	02	1	0710-	●	●
52	CONNECTOR; NYLON TUBE (A) DIN8 & R1/4 ELBOW	1-09660-956-0	04	1	0710-	●	●
52	CONNECTOR; NYLON TUBE (B) DIN8 R1/4 STRAIGHT	1-09660-963-0	02	1	0710-	●	●
52	CONNECTOR; NYLON TUBE (C) DIN12 & R1/4 STRAIGHT	1-09660-967-0	02	1	0710-	●	●
56	BOLT; UNION BRKT M8X100 FLANGE	0-28050-800-0	01	1	0710-	●	●
75	BRACKET; UNION (A)	8-98075-871-1	01	1	0710-0803	●	●
75	BRACKET; UNION (B)	8-98099-485-1	01	1	0804-	●	●
93	BRACKET; UNION,TUBE	8-98044-013-0	01	1	0710-	●	●
98	TUBE; NYLON CAB SUSPENSION SEMI FLOATING<SDK>,CAB SUSPENSION RIGID<W71> (A)	8-98091-308-0	01	1	0809-		●
98	TUBE; NYLON (A)	8-98091-307-0	01	1	0710-0808	●	●
98	TUBE; NYLON (A)	8-98091-307-0	01	1	0809-	●
98	TUBE; NYLON CAB SUSPENSION FULL FLOATING<W16> (A)	8-98091-307-0	01	1	0809-		●
98	TUBE; NYLON (B) SERVICED BY L=4000 OD=6	1-87411-002-0	AR	1	0710-	●	●
98	TUBE; NYLON (B) SERVICED BY L=2000 OD=8	1-87411-006-0	AR	1	0710-	●	●
98	TUBE; NYLON (B) SERVICED BY L=6000 OD=8	1-87411-008-0	AR	1	0809-	●	●
98	TUBE; NYLON (B) SERVICED BY L=8000 OD=8	1-87411-009-0	AR	1	0710-	●	●
98	TUBE; NYLON (B) SERVICED BY L=12000 OD=8	1-87411-010-0	AR	1	0710-	●	●
98	TUBE; NYLON (B) SERVICED BY L=2000 OD=12	1-87411-011-0	AR	1	0710-	●	●
98	TUBE; NYLON (B) SERVICED BY L=6000 OD=12	1-87411-013-0	AR	1	0710-	●	●
98	TUBE; NYLON (B) SERVICED BY L=4000 OD=8	1-87411-007-0	AR	1	1111-	●	●
114	UNION; NYLON TUBE	8-98057-394-1	01	1	0710-	●	●
115	NUT; TUBE UNION M8 FLANGE	0-91180-108-0	01	1	0710-	●	●
117	TUBE; CORRUGATE SERVICED BY L=8000 OD=8	1-87411-009-0	AR	1	0710-	●	●
117	TUBE; CORRUGATE SERVICED BY L=12000 OD=8	1-87411-010-0	AR	1	0710-	●	●
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=7	1-87411-016-0	AR	1	0807-	●	●
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=10	1-87411-019-0	AR	1	0710-	●	●
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=13	1-87411-022-0	AR	1	0710-	●	●
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=15	1-87411-025-0	AR	1	0710-	●	●
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=22	1-87411-029-0	AR	1	0710-	●	●
117	TUBE; CORRUGATE SERVICED BY L=4000 ID=28	1-87411-034-0	AR	1	0710-	●	●
117	TUBE; CORRUGATE SERVICED BY L=4000 ID=19	1-87411-028-0	AR	1	0801-	●	●
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=19	1-87411-027-0	AR	1	0712-	●	●
145	PLUG PT1/4	9-99204-513-0	01	1	0710-	●	●
171	NUT; BRACKET M10 FLANGE	0-91180-210-0	02	1	0710-	●	●
175	SENSOR; AIR PRESS THREAD R1/4	1-80220-023-1	02	1	0710-	●	●
176	SWITCH; AIR PRESS STAMP 0.3	8-98010-857-0	01	1	0710-	●	●
