◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CXM ▶ 10669 - CXM/CXZ LHD ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-50 - FRONT SUSPENSION ▶
4-50 — FRONT SUSPENSION (#3399) — 78 parça

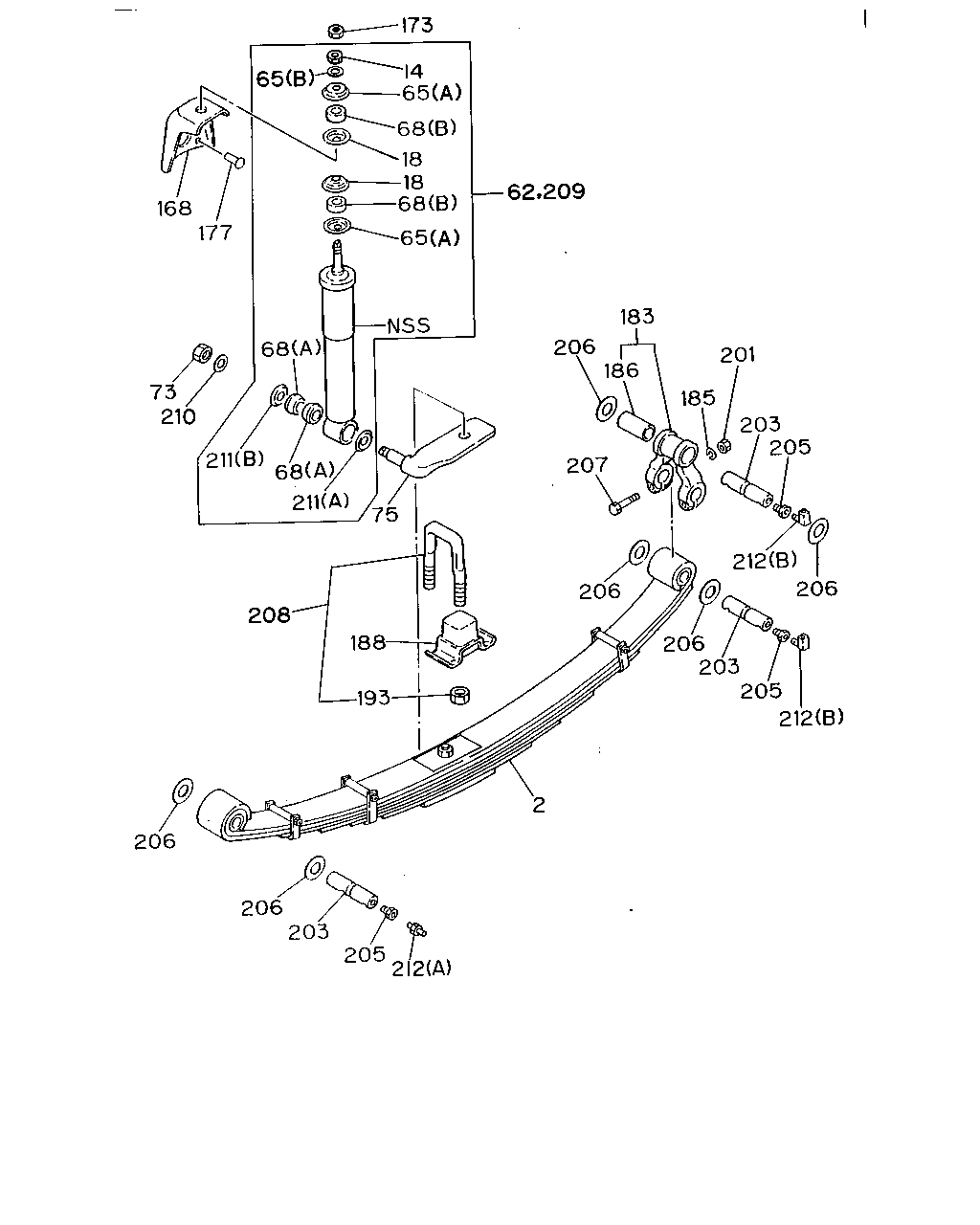

çizim 5348
212 205 203 206 206 2 193 188 208 75 211 68 211 210 73 68 177 168 65 173 65 14 68 18 18 62 209 68 65 206 183 186 201 203 205 185 212 206 207 206 206 203 205 212
BalonParca AdiParca NoAdetTipApplied Date A B C
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. FRONT SPRING HEAVY DUTY VAR1(F60) 		1-51110-514-1 02 1 9002-9306 ●
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. EXC. CHINA EQUIPMENT(YT2) 		1-51110-514-1 02 1 9002-9306 ● ●
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. FRONT SPRING HEAVY DUTY VAR1(F60) 		1-51130-245-0 02 1 9307- ●
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. EXC. CHINA EQUIPMENT(YT2) 		1-51130-245-0 02 1 9307- ● ●
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. EXC. FRONT SPRING HEAVY DUTY VAR1(F60) 		1-51110-513-1 02 1 9002-9306 ●
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. EXC. FRONT SPRING HEAVY DUTY VAR1(F60) 		1-51130-207-0 02 1 9307- ●
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. CHINA EQUIPMENT(YT2) 		1-51110-745-1 02 1 9002-9306 ● ●
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. CHINA EQUIPMENT(YT2) 		1-51130-247-0 02 1 9307- ● ●
14 NUT; S/ABS,UPR
M14 		9-99111-414-0 02 1 9002- ● ● ●
18 WASHER; CENTERING,S/ABS
ID=20.8 		9-51631-041-0 04 1 9002- ● ● ●
62 ABSORBER ASM; SHOCK,FRT 1-51630-378-0 02 1 9307- ●
62 ABSORBER ASM; SHOCK,FRT
EXC. CHINA EQUIPMENT(YT2) 		1-51630-378-0 02 1 9307- ● ●
62 ABSORBER ASM; SHOCK,FRT
FRONT SPRING HEAVY DUTY VAR1(F60) 		1-51630-228-0 02 1 9002-9011 ●
62 ABSORBER ASM; SHOCK,FRT
EXC. CHINA EQUIPMENT(YT2) 		1-51630-228-0 02 1 9002-9011 ● ●
62 ABSORBER ASM; SHOCK,FRT
FRONT SPRING HEAVY DUTY VAR1(F60) 		1-51630-228-1 01 1 9012-9306 ●
62 ABSORBER ASM; SHOCK,FRT
EXC. CHINA EQUIPMENT(YT2) 		1-51630-228-1 01 1 9012-9306 ● ●
62 ABSORBER ASM; SHOCK,FRT
EXC. FRONT SPRING HEAVY DUTY VAR1(F60) 		1-51630-053-3 02 1 9002-9011 ●
62 ABSORBER ASM; SHOCK,FRT
EXC. FRONT SPRING HEAVY DUTY VAR1(F60) 		1-51630-053-3 01 1 9012-9306 ●
62 ABSORBER ASM; SHOCK,FRT
CHINA EQUIPMENT(YT2) 		1-51630-187-0 02 1 9002-9011 ● ●
62 ABSORBER ASM; SHOCK,FRT
CHINA EQUIPMENT(YT2) 		1-51630-228-1 02 1 9012-9306 ● ●
62 ABSORBER ASM; SHOCK,FRT
CHINA EQUIPMENT(YT2) 		1-51630-308-1 02 1 9307- ● ●
65 WASHER; S/ABS
(A) 		9-51631-040-0 04 1 9002- ● ● ●
65 WASHER; S/ABS
(B) ID=16.5 		1-09503-228-0 02 1 9307- ● ● ●
68 BUSHING; S/ABS
(A) 		9-51631-026-0 04 1 9002- ● ● ●
68 BUSHING; S/ABS
(B) 		9-51631-039-0 04 1 9002- ● ● ●
73 NUT; BRKT,SHOCK
M20 		9-99110-420-0 02 1 9002- ● ● ●
75 BRACKET; FRT S/ABS 1-51681-551-0 01 1 9002-9306 ●
75 BRACKET; FRT S/ABS
EXC. CHINA EQUIPMENT(YT2) 		1-51681-551-0 01 1 9002-9306 ● ●
75 BRACKET; FRT S/ABS 1-51681-550-0 01 1 9002-9306 ●
75 BRACKET; FRT S/ABS
EXC. CHINA EQUIPMENT(YT2) 		1-51681-550-0 01 1 9002-9306 ● ●
75 BRACKET; FRT S/ABS 1-51681-598-1 01 1 9307- ● ● ●
75 BRACKET; FRT S/ABS 1-51681-597-1 01 1 9307- ● ● ●
75 BRACKET; FRT S/ABS
CHINA EQUIPMENT(YT2) 		1-51681-281-0 01 1 9002-9306 ● ●
75 BRACKET; FRT S/ABS
CHINA EQUIPMENT(YT2) 		1-51681-280-0 01 1 9002-9306 ● ●
168 BRACKET; S/ABS,FRT SUSP 1-51681-130-1 02 1 9002-9306 ● ● ●
168 BRACKET; S/ABS,FRT SUSP 1-51681-616-0 02 1 9307- ● ● ●
173 NUT; S/ABS
M14 		9-99111-414-0 02 1 9002- ● ● ●
177 RIVET; BRKT,S/ABS
D13X36 		1-09730-107-0 08 1 9002-9212 ●
177 RIVET; BRKT,S/ABS
D13X36 PLATED TAPER END 		1-09730-087-0 08 1 9301- ●
177 RIVET; BRKT,S/ABS
D13X36 		1-09730-107-0 04 1 9002-9212 ● ●
177 RIVET; BRKT,S/ABS
D13X36 PLATED TAPER END 		1-09730-087-0 04 1 9301- ● ●
177 RIVET; BRKT,S/ABS
D13X45 		1-09730-111-0 04 1 9002-9212 ● ●
177 RIVET; BRKT,S/ABS
D13X45 		1-09730-091-0 04 1 9301- ● ●
183 SHACKLE; FRT SUSP 1-51162-029-4 02 1 9002- ● ● ●
185 WASHER; LK,PIN
ID=12.2 		9-09150-512-0 12 1 9002-9512 ● ● ●
185 WASHER; LK,PIN
ID=12.2 		9-09150-612-0 12 1 9601- ● ● ●
186 BUSHING; SHACKLE
OD=38 		1-51351-009-0 02 1 9002- ● ● ●
188 RUBBER; CLAMP,U-BOLT,FRT SPR
FRONT SPRING HEAVY DUTY VAR1(F60) 		1-51172-033-1 02 1 9002-9306 ●
188 RUBBER; CLAMP,U-BOLT,FRT SPR
EXC. CHINA EQUIPMENT(YT2) 		1-51172-033-1 02 1 9002-9306 ● ●
188 RUBBER; CLAMP,U-BOLT,FRT SPR
FRONT SPRING HEAVY DUTY VAR1(F60) 		1-51172-086-0 02 1 9307- ●
188 RUBBER; CLAMP,U-BOLT,FRT SPR
EXC. CHINA EQUIPMENT(YT2) 		1-51172-086-0 02 1 9307- ● ●
188 RUBBER; CLAMP,U-BOLT,FRT SPR
EXC. FRONT SPRING HEAVY DUTY VAR1(F60) 		1-51172-025-1 02 1 9002-9306 ●
188 RUBBER; CLAMP,U-BOLT,FRT SPR
CHINA EQUIPMENT(YT2) 		1-51172-025-1 02 1 9002-9306 ● ●
188 RUBBER; CLAMP,U-BOLT,FRT SPR
EXC. FRONT SPRING HEAVY DUTY VAR1(F60) 		1-51172-081-0 02 1 9307- ●
188 RUBBER; CLAMP,U-BOLT,FRT SPR
CHINA EQUIPMENT(YT2) 		1-51172-081-0 02 1 9307- ● ●
193 NUT; U BOLT
M22 		9-09112-822-0 08 1 9002- ● ● ●
201 NUT; PIN LK
M12 		9-99110-412-0 12 1 9002-9304 ● ● ●
201 NUT; PIN LK
M12 		9-99110-512-0 12 1 9305- ● ● ●
203 PIN; SPR TO SHACKLE 1-51161-031-0 06 1 9002- ● ● ●
205 ATTACHMENT; GREASE NIPPLE 9-43165-001-0 06 1 9002- ● ● ●
206 WASHER; LK,SPRING PIN
ID=32.4 		1-51169-018-0 12 1 9002- ● ● ●
207 BOLT; SPR TO SHACKLE
M12X80 		9-91056-280-0 12 1 9002-9005 ● ● ●
207 BOLT; SPR TO SHACKLE
M12X80 		0-10806-280-0 12 1 9006- ● ● ●
208 U-BOLT SET; FRT SPRING
L=230 		1-87870-269-1 04 1 9307- ●
208 U-BOLT SET; FRT SPRING
EXC. CHINA EQUIPMENT(YT2) L=230 		1-87870-269-1 04 1 9307- ● ●
208 U-BOLT SET; FRT SPRING
FRONT SPRING HEAVY DUTY VAR1(F60) L=210 		1-87870-118-3 04 1 9002-9306 ●
208 U-BOLT SET; FRT SPRING
EXC. CHINA EQUIPMENT(YT2) L=210 		1-87870-118-3 04 1 9002-9306 ● ●
208 U-BOLT SET; FRT SPRING
EXC. FRONT SPRING HEAVY DUTY VAR1(F60) L=190 		1-87870-163-2 04 1 9002-9306 ●
208 U-BOLT SET; FRT SPRING
CHINA EQUIPMENT(YT2) L=230 		1-87870-269-1 04 1 9002-9306 ● ●
208 U-BOLT SET; FRT SPRING
CHINA EQUIPMENT(YT2) L=270 		1-87870-327-0 04 1 9307- ● ●
209 ABSORBER ASM; SHOCK
FRONT SPRING HEAVY DUTY VAR1(F60) 		1-51630-228-1 01 1 9012-9306 ●
209 ABSORBER ASM; SHOCK
EXC. CHINA EQUIPMENT(YT2) 		1-51630-228-1 01 1 9012-9306 ● ●
209 ABSORBER ASM; SHOCK
EXC. FRONT SPRING HEAVY DUTY VAR1(F60) 		1-51630-053-3 01 1 9012-9306 ●
210 WASHER; S/ABS,OUTER
ID=21 		9-09160-520-0 02 1 9002- ● ● ●
211 WASHER; BRKT,SHOCK
(A) ID=27 		9-51631-027-0 02 1 9002- ● ● ●
211 WASHER; BRKT,SHOCK
(B) ID=21 		9-51631-028-0 02 1 9002- ● ● ●
212 NIPPLE; GREASE,ELBOW
(A) PT1/8 STRAIGHT 		9-09031-010-0 01 1 9002- ● ● ●
212 NIPPLE; GREASE,ELBOW
(B) PT1/8 ELBOW 		9-09031-210-0 05 1 9002- ● ● ●
