Sayfa 3-46 - Isuzu EPC

3-46 — AIR DRYER (#33989) — 475 parça

2 3 104 68 104 104 104 104 70 104 70 65 4

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	REPAIR KIT; AIR DRYER EURO2 SPECIFICATION<NT2> AIR DRYER<PS7> (B)	1-85576-226-0	01	1	0809-1008	●
2	REPAIR KIT; AIR DRYER AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> (B)	1-85576-226-0	01	1	1009-	●
2	REPAIR KIT; AIR DRYER (A)	1-85576-448-0	01	1	0710-0808	●	●
2	REPAIR KIT; AIR DRYER (A)	1-85576-448-0	01	1	0809-1107		●
2	REPAIR KIT; AIR DRYER EURO4 SPECIFICATION<NT4> AIR DRYER<PS7> (A)	1-85576-448-0	01	1	0809-1107	●
2	REPAIR KIT; AIR DRYER (A)	1-85576-448-0	01	1	1108-1211		●
2	REPAIR KIT; AIR DRYER AIR DRYER<PS7> EXC. TURBO - CONVENTIONAL<Q5T> (A)	1-85576-448-0	01	1	1108-1211	●
2	REPAIR KIT; AIR DRYER (A)	8-98226-328-0	01	1	1212-		●
2	REPAIR KIT; AIR DRYER AIR DRYER<PS7> EXC. TURBO - CONVENTIONAL<Q5T> (A)	8-98226-328-0	01	1	1212-	●
3	PISTON KIT; AIR DRYER EURO2 SPECIFICATION<NT2> AIR DRYER<PS7> (B)	1-85576-057-1	01	1	0809-1008	●
3	PISTON KIT; AIR DRYER AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> (B)	1-85576-057-1	01	1	1009-	●
3	PISTON KIT; AIR DRYER (A)	1-85576-383-0	01	1	0710-0808	●	●
3	PISTON KIT; AIR DRYER (A)	1-85576-383-0	01	1	0809-1107		●
3	PISTON KIT; AIR DRYER EURO4 SPECIFICATION<NT4> AIR DRYER<PS7> (A)	1-85576-383-0	01	1	0809-1107	●
3	PISTON KIT; AIR DRYER (A)	1-85576-383-0	01	1	1108-1211		●
3	PISTON KIT; AIR DRYER AIR DRYER<PS7> EXC. TURBO - CONVENTIONAL<Q5T> (A)	1-85576-383-0	01	1	1108-1211	●
3	PISTON KIT; AIR DRYER (A)	8-98226-322-0	01	1	1212-		●
3	PISTON KIT; AIR DRYER AIR DRYER<PS7> EXC. TURBO - CONVENTIONAL<Q5T> (A)	8-98226-322-0	01	1	1212-	●
4	THERMOSTAT KIT; AIR DRYER EURO2 SPECIFICATION<NT2> AIR DRYER<PS7> (B)	1-85576-254-0	01	1	0809-1008	●
4	THERMOSTAT KIT; AIR DRYER AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> (B)	1-85576-254-0	01	1	1009-	●
4	THERMOSTAT KIT; AIR DRYER (A)	1-85576-444-0	01	1	0710-0808	●	●
4	THERMOSTAT KIT; AIR DRYER (A)	1-85576-444-0	01	1	0809-1107		●
4	THERMOSTAT KIT; AIR DRYER EURO4 SPECIFICATION<NT4> AIR DRYER<PS7> (A)	1-85576-444-0	01	1	0809-1107	●
4	THERMOSTAT KIT; AIR DRYER (A)	1-85576-444-0	01	1	1108-		●
4	THERMOSTAT KIT; AIR DRYER AIR DRYER<PS7> EXC. TURBO - CONVENTIONAL<Q5T> (A)	1-85576-444-0	01	1	1108-	●
65	BOLT; PURGE VLV EURO2 SPECIFICATION<NT2> AIR DRYER<PS7> (B)	1-48199-393-0	01	1	0809-1008	●
65	BOLT; PURGE VLV AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> (B)	1-48199-393-0	01	1	1009-	●
65	BOLT; PURGE VLV (A)	1-48199-517-0	01	1	0710-0808	●	●
65	BOLT; PURGE VLV (A)	1-48199-517-0	01	1	0809-1107		●
65	BOLT; PURGE VLV EURO4 SPECIFICATION<NT4> AIR DRYER<PS7> (A)	1-48199-517-0	01	1	0809-1107	●
65	BOLT; PURGE VLV (A)	1-48199-517-0	01	1	1108-		●
65	BOLT; PURGE VLV AIR DRYER<PS7> EXC. TURBO - CONVENTIONAL<Q5T> (A)	1-48199-517-0	01	1	1108-	●
68	BODY; VALVE EURO2 SPECIFICATION<NT2> AIR DRYER<PS7> (B)	1-48199-216-0	01	1	0809-1008	●
68	BODY; VALVE AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> (B)	1-48199-216-0	01	1	1009-	●
68	BODY; VALVE (A)	1-48199-515-0	01	1	0710-0808	●	●
68	BODY; VALVE (A)	1-48199-515-0	01	1	0809-1107		●
68	BODY; VALVE EURO4 SPECIFICATION<NT4> AIR DRYER<PS7> (A)	1-48199-515-0	01	1	0809-1107	●
68	BODY; VALVE (A)	1-48199-515-0	01	1	1108-		●
68	BODY; VALVE AIR DRYER<PS7> EXC. TURBO - CONVENTIONAL<Q5T> (A)	1-48199-515-0	01	1	1108-	●
70	VALVE; AIR DRYER EURO2 SPECIFICATION<NT2> AIR DRYER<PS7> (B)	1-48199-105-0	01	1	0809-1008	●
70	VALVE; AIR DRYER AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> (B)	1-48199-105-0	01	1	1009-	●
70	VALVE; AIR DRYER (A)	1-48199-504-0	01	1	0710-0808	●	●
70	VALVE; AIR DRYER (A)	1-48199-504-0	01	1	0809-1107		●
70	VALVE; AIR DRYER EURO4 SPECIFICATION<NT4> AIR DRYER<PS7> (A)	1-48199-504-0	01	1	0809-1107	●
70	VALVE; AIR DRYER (A)	1-48199-504-0	01	1	1108-		●
70	VALVE; AIR DRYER AIR DRYER<PS7> EXC. TURBO - CONVENTIONAL<Q5T> (A)	1-48199-504-0	01	1	1108-	●
104	GASKET (A)	1-48199-495-0	01	1	0710-0808	●	●
104	GASKET (A)	1-48199-495-0	01	1	0809-1107		●
104	GASKET EURO4 SPECIFICATION<NT4> AIR DRYER<PS7> (A)	1-48199-495-0	01	1	0809-1107	●
104	GASKET (A)	1-48199-495-0	01	1	1108-1211		●
104	GASKET AIR DRYER<PS7> EXC. TURBO - CONVENTIONAL<Q5T> (A)	1-48199-495-0	01	1	1108-1211	●
104	GASKET (A)	8-98226-321-0	01	1	1212-		●
104	GASKET AIR DRYER<PS7> EXC. TURBO - CONVENTIONAL<Q5T> (A)	8-98226-321-0	01	1	1212-	●
104	GASKET (B)	1-48199-496-0	02	1	0710-0808	●	●
104	GASKET (B)	1-48199-496-0	02	1	0809-1107		●
104	GASKET EURO4 SPECIFICATION<NT4> AIR DRYER<PS7> (B)	1-48199-496-0	02	1	0809-1107	●
104	GASKET (B)	1-48199-496-0	02	1	1108-1211		●
104	GASKET AIR DRYER<PS7> EXC. TURBO - CONVENTIONAL<Q5T> (B)	1-48199-496-0	02	1	1108-1211	●
104	GASKET (B)	1-48199-496-0	01	1	1212-		●
104	GASKET AIR DRYER<PS7> EXC. TURBO - CONVENTIONAL<Q5T> (B)	1-48199-496-0	01	1	1212-	●

13 1 9 54 10 8

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	DRYER; AIR EURO2 SPECIFICATION<NT2> AIR DRYER<PS7> (B)	1-48190-277-1	01	1	0809-1008	●
1	DRYER; AIR AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> (B)	1-48190-277-1	01	1	1009-	●
1	DRYER; AIR (A)	1-48190-371-2	01	1	0710-0808	●	●
1	DRYER; AIR (A)	1-48190-371-2	01	1	0809-1107		●
1	DRYER; AIR EURO4 SPECIFICATION<NT4> AIR DRYER<PS7> (A)	1-48190-371-2	01	1	0809-1107	●
1	DRYER; AIR (A)	1-48190-371-2	01	1	1108-1211		●
1	DRYER; AIR AIR DRYER<PS7> EXC. TURBO - CONVENTIONAL<Q5T> (A)	1-48190-371-2	01	1	1108-1211	●
1	DRYER; AIR (A)	8-98225-292-0	01	1	1212-		●
1	DRYER; AIR AIR DRYER<PS7> EXC. TURBO - CONVENTIONAL<Q5T> (A)	8-98225-292-0	01	1	1212-	●
8	CONNECTOR; OUT,AIR DRYER EURO2 SPECIFICATION<NT2> AIR DRYER<PS7> (B) M20 & PT1/2 ELBOW	1-09650-443-0	01	1	0809-1008	●
8	CONNECTOR; OUT,AIR DRYER AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> (B) M20 & PT1/2 ELBOW	1-09650-443-0	01	1	1009-	●
8	CONNECTOR; OUT,AIR DRYER (A) DIN12 & R1/2 STRAIGHT	1-09660-966-0	01	1	0710-0808	●	●
8	CONNECTOR; OUT,AIR DRYER (A) DIN12 & R1/2 STRAIGHT	1-09660-966-0	01	1	0809-1107		●
8	CONNECTOR; OUT,AIR DRYER EURO4 SPECIFICATION<NT4> AIR DRYER<PS7> (A) DIN12 & R1/2 STRAIGHT	1-09660-966-0	01	1	0809-1107	●
8	CONNECTOR; OUT,AIR DRYER (A) DIN12 & R1/2 STRAIGHT	1-09660-966-0	01	1	1108-		●
8	CONNECTOR; OUT,AIR DRYER AIR DRYER<PS7> EXC. TURBO - CONVENTIONAL<Q5T> (A) DIN12 & R1/2 STRAIGHT	1-09660-966-0	01	1	1108-	●
9	CONNECTOR; PIPE,AIR DRYER EURO2 SPECIFICATION<NT2> AIR DRYER<PS7> (B) M22 & R1/2 W/VALVE	1-48320-026-2	01	1	0809-1008	●
9	CONNECTOR; PIPE,AIR DRYER AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> (B) M22 & R1/2 W/VALVE	1-48320-026-2	01	1	1009-	●
9	CONNECTOR; PIPE,AIR DRYER (A) M22 & PT1/2 FLARE	0-92121-815-0	01	1	0710-0808	●	●
9	CONNECTOR; PIPE,AIR DRYER (A) M22 & PT1/2 FLARE	0-92121-815-0	01	1	0809-1107		●
9	CONNECTOR; PIPE,AIR DRYER EURO4 SPECIFICATION<NT4> AIR DRYER<PS7> (A) M22 & PT1/2 FLARE	0-92121-815-0	01	1	0809-1107	●
9	CONNECTOR; PIPE,AIR DRYER (A) M22 & PT1/2 FLARE	0-92121-815-0	01	1	1108-		●
9	CONNECTOR; PIPE,AIR DRYER AIR DRYER<PS7> EXC. TURBO - CONVENTIONAL<Q5T> (A) M22 & PT1/2 FLARE	0-92121-815-0	01	1	1108-	●
10	BOLT; AIR DRYER EURO2 SPECIFICATION<NT2> AIR DRYER<PS7> (C) M10X25 FLANGE	0-28651-025-0	04	1	0809-1008	●
10	BOLT; AIR DRYER AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> (C) M10X25 FLANGE	0-28651-025-0	04	1	1009-	●
10	BOLT; AIR DRYER (A) M8X20 FLANGE	0-28650-820-0	02	1	0710-0808	●	●
10	BOLT; AIR DRYER (A) M8X20 FLANGE	0-28650-820-0	02	1	0809-		●
10	BOLT; AIR DRYER EURO4 SPECIFICATION<NT4> (A) M8X20 FLANGE	0-28650-820-0	02	1	0809-	●
10	BOLT; AIR DRYER (B) M12X25 FLANGE	0-28651-225-0	03	1	0710-0808	●	●
10	BOLT; AIR DRYER (B) M12X25 FLANGE	0-28651-225-0	03	1	0809-0906		●
10	BOLT; AIR DRYER EURO4 SPECIFICATION<NT4> AIR DRYER<PS7> (B) M12X25 FLANGE	0-28651-225-0	03	1	0809-0906	●
10	BOLT; AIR DRYER (B) M12X25 FLANGE	0-28051-225-0	03	1	0907-1008		●
10	BOLT; AIR DRYER EURO4 SPECIFICATION<NT4> AIR DRYER<PS7> (B) M12X25 FLANGE	0-28051-225-0	03	1	0907-1008	●
10	BOLT; AIR DRYER (B) M12X25 FLANGE	0-28051-225-0	03	1	1009-		●
10	BOLT; AIR DRYER AIR DRYER<PS7> EXC. TURBO - CONVENTIONAL<Q5T> (B) M12X25 FLANGE	0-28051-225-0	03	1	1009-	●
13	NUT; AIR DRYER EURO2 SPECIFICATION<NT2> AIR DRYER<PS7> M10 FLANGE	0-91180-210-0	04	1	0809-1009	●
13	NUT; AIR DRYER AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> M10 FLANGE	0-91180-210-0	04	1	1010-	●
54	CONNECTOR EURO2 SPECIFICATION<NT2> AIR DRYER<PS7> M12X2 & PT1/4 3WAY	1-09656-229-1	01	1	0809-1008	●
54	CONNECTOR AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> M12X2 & PT1/4 3WAY	1-09656-229-1	01	1	1009-	●

10 1 10 10 10 9 8 72 124 93 72 7

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	DRYER; AIR EURO2 SPECIFICATION<NT2> AIR DRYER<PS7> (B)	1-48190-277-1	01	1	0809-1008	●
1	DRYER; AIR AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> (B)	1-48190-277-1	01	1	1009-	●
1	DRYER; AIR (A)	1-48190-371-2	01	1	0710-0808	●	●
1	DRYER; AIR (A)	1-48190-371-2	01	1	0809-1107		●
1	DRYER; AIR EURO4 SPECIFICATION<NT4> AIR DRYER<PS7> (A)	1-48190-371-2	01	1	0809-1107	●
1	DRYER; AIR (A)	1-48190-371-2	01	1	1108-1211		●
1	DRYER; AIR AIR DRYER<PS7> EXC. TURBO - CONVENTIONAL<Q5T> (A)	1-48190-371-2	01	1	1108-1211	●
1	DRYER; AIR (A)	8-98225-292-0	01	1	1212-		●
1	DRYER; AIR AIR DRYER<PS7> EXC. TURBO - CONVENTIONAL<Q5T> (A)	8-98225-292-0	01	1	1212-	●
7	RING; SNAP,AIR DRYER EURO2 SPECIFICATION<NT2> AIR DRYER<PS7> (E)	1-48199-154-0	01	1	0809-1008	●
7	RING; SNAP,AIR DRYER AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> (E)	1-48199-154-0	01	1	1009-	●
7	RING; SNAP,AIR DRYER (D)	1-47769-017-0	01	1	0710-0808	●	●
7	RING; SNAP,AIR DRYER (D)	1-47769-017-0	01	1	0809-1107		●
7	RING; SNAP,AIR DRYER EURO4 SPECIFICATION<NT4> AIR DRYER<PS7> (D)	1-47769-017-0	01	1	0809-1107	●
7	RING; SNAP,AIR DRYER (D)	1-47769-017-0	01	1	1108-		●
7	RING; SNAP,AIR DRYER AIR DRYER<PS7> EXC. TURBO - CONVENTIONAL<Q5T> (D)	1-47769-017-0	01	1	1108-	●
7	RING; SNAP,AIR DRYER (C)	1-48199-520-0	02	1	0710-0808	●	●
7	RING; SNAP,AIR DRYER (C)	1-48199-520-0	02	1	0809-1107		●
7	RING; SNAP,AIR DRYER EURO4 SPECIFICATION<NT4> AIR DRYER<PS7> (C)	1-48199-520-0	02	1	0809-1107	●
7	RING; SNAP,AIR DRYER (C)	1-48199-520-0	02	1	1108-		●
7	RING; SNAP,AIR DRYER AIR DRYER<PS7> EXC. TURBO - CONVENTIONAL<Q5T> (C)	1-48199-520-0	02	1	1108-	●
7	RING; SNAP,AIR DRYER (B)	1-48199-529-0	01	1	0710-0808	●	●
7	RING; SNAP,AIR DRYER (B)	1-48199-529-0	01	1	0809-1107		●
7	RING; SNAP,AIR DRYER EURO4 SPECIFICATION<NT4> AIR DRYER<PS7> (B)	1-48199-529-0	01	1	0809-1107	●
7	RING; SNAP,AIR DRYER (B)	1-48199-529-0	01	1	1108-		●
7	RING; SNAP,AIR DRYER AIR DRYER<PS7> EXC. TURBO - CONVENTIONAL<Q5T> (B)	1-48199-529-0	01	1	1108-	●
7	RING; SNAP,AIR DRYER (A)	1-48199-579-0	01	1	0710-0808	●	●
7	RING; SNAP,AIR DRYER (A)	1-48199-579-0	01	1	0809-1107		●
7	RING; SNAP,AIR DRYER EURO4 SPECIFICATION<NT4> AIR DRYER<PS7> (A)	1-48199-579-0	01	1	0809-1107	●
7	RING; SNAP,AIR DRYER (A)	1-48199-579-0	01	1	1108-		●
7	RING; SNAP,AIR DRYER AIR DRYER<PS7> EXC. TURBO - CONVENTIONAL<Q5T> (A)	1-48199-579-0	01	1	1108-	●
8	CONNECTOR; OUT,AIR DRYER EURO2 SPECIFICATION<NT2> AIR DRYER<PS7> (B) M20 & PT1/2 ELBOW	1-09650-443-0	01	1	0809-1008	●
8	CONNECTOR; OUT,AIR DRYER AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> (B) M20 & PT1/2 ELBOW	1-09650-443-0	01	1	1009-	●
8	CONNECTOR; OUT,AIR DRYER (A) DIN12 & R1/2 STRAIGHT	1-09660-966-0	01	1	0710-0808	●	●
8	CONNECTOR; OUT,AIR DRYER (A) DIN12 & R1/2 STRAIGHT	1-09660-966-0	01	1	0809-1107		●
8	CONNECTOR; OUT,AIR DRYER EURO4 SPECIFICATION<NT4> AIR DRYER<PS7> (A) DIN12 & R1/2 STRAIGHT	1-09660-966-0	01	1	0809-1107	●
8	CONNECTOR; OUT,AIR DRYER (A) DIN12 & R1/2 STRAIGHT	1-09660-966-0	01	1	1108-		●
8	CONNECTOR; OUT,AIR DRYER AIR DRYER<PS7> EXC. TURBO - CONVENTIONAL<Q5T> (A) DIN12 & R1/2 STRAIGHT	1-09660-966-0	01	1	1108-	●
9	CONNECTOR; PIPE,AIR DRYER EURO2 SPECIFICATION<NT2> AIR DRYER<PS7> (B) M22 & R1/2 W/VALVE	1-48320-026-2	01	1	0809-1008	●
9	CONNECTOR; PIPE,AIR DRYER AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> (B) M22 & R1/2 W/VALVE	1-48320-026-2	01	1	1009-	●
9	CONNECTOR; PIPE,AIR DRYER (A) M22 & PT1/2 FLARE	0-92121-815-0	01	1	0710-0808	●	●
9	CONNECTOR; PIPE,AIR DRYER (A) M22 & PT1/2 FLARE	0-92121-815-0	01	1	0809-1107		●
9	CONNECTOR; PIPE,AIR DRYER EURO4 SPECIFICATION<NT4> AIR DRYER<PS7> (A) M22 & PT1/2 FLARE	0-92121-815-0	01	1	0809-1107	●
9	CONNECTOR; PIPE,AIR DRYER (A) M22 & PT1/2 FLARE	0-92121-815-0	01	1	1108-		●
9	CONNECTOR; PIPE,AIR DRYER AIR DRYER<PS7> EXC. TURBO - CONVENTIONAL<Q5T> (A) M22 & PT1/2 FLARE	0-92121-815-0	01	1	1108-	●
10	BOLT; AIR DRYER EURO2 SPECIFICATION<NT2> AIR DRYER<PS7> (C) M10X25 FLANGE	0-28651-025-0	04	1	0809-1008	●
10	BOLT; AIR DRYER AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> (C) M10X25 FLANGE	0-28651-025-0	04	1	1009-	●
10	BOLT; AIR DRYER (A) M8X20 FLANGE	0-28650-820-0	02	1	0710-0808	●	●
10	BOLT; AIR DRYER (A) M8X20 FLANGE	0-28650-820-0	02	1	0809-		●
10	BOLT; AIR DRYER EURO4 SPECIFICATION<NT4> (A) M8X20 FLANGE	0-28650-820-0	02	1	0809-	●
10	BOLT; AIR DRYER (B) M12X25 FLANGE	0-28651-225-0	03	1	0710-0808	●	●
10	BOLT; AIR DRYER (B) M12X25 FLANGE	0-28651-225-0	03	1	0809-0906		●
10	BOLT; AIR DRYER EURO4 SPECIFICATION<NT4> AIR DRYER<PS7> (B) M12X25 FLANGE	0-28651-225-0	03	1	0809-0906	●
10	BOLT; AIR DRYER (B) M12X25 FLANGE	0-28051-225-0	03	1	0907-1008		●
10	BOLT; AIR DRYER EURO4 SPECIFICATION<NT4> AIR DRYER<PS7> (B) M12X25 FLANGE	0-28051-225-0	03	1	0907-1008	●
10	BOLT; AIR DRYER (B) M12X25 FLANGE	0-28051-225-0	03	1	1009-		●
10	BOLT; AIR DRYER AIR DRYER<PS7> EXC. TURBO - CONVENTIONAL<Q5T> (B) M12X25 FLANGE	0-28051-225-0	03	1	1009-	●
72	PLATE; FILTER,AIR DRYER (A)	1-48199-585-0	01	1	0710-0808	●	●
72	PLATE; FILTER,AIR DRYER (A)	1-48199-585-0	01	1	0809-1107		●
72	PLATE; FILTER,AIR DRYER EURO4 SPECIFICATION<NT4> AIR DRYER<PS7> (A)	1-48199-585-0	01	1	0809-1107	●
72	PLATE; FILTER,AIR DRYER (A)	1-48199-585-0	01	1	1108-		●
72	PLATE; FILTER,AIR DRYER AIR DRYER<PS7> EXC. TURBO - CONVENTIONAL<Q5T> (A)	1-48199-585-0	01	1	1108-	●
72	PLATE; FILTER,AIR DRYER (B)	1-48199-602-0	01	1	0710-0808	●	●
72	PLATE; FILTER,AIR DRYER (B)	1-48199-602-0	01	1	0809-1107		●
72	PLATE; FILTER,AIR DRYER EURO4 SPECIFICATION<NT4> AIR DRYER<PS7> (B)	1-48199-602-0	01	1	0809-1107	●
72	PLATE; FILTER,AIR DRYER (B)	1-48199-602-0	01	1	1108-		●
72	PLATE; FILTER,AIR DRYER AIR DRYER<PS7> EXC. TURBO - CONVENTIONAL<Q5T> (B)	1-48199-602-0	01	1	1108-	●
93	SILENCER; AIR DRYER (A)	1-48199-619-0	01	1	0710-0808	●	●
93	SILENCER; AIR DRYER (A)	1-48199-619-0	01	1	0809-1107		●
93	SILENCER; AIR DRYER EURO4 SPECIFICATION<NT4> AIR DRYER<PS7> (A)	1-48199-619-0	01	1	0809-1107	●
93	SILENCER; AIR DRYER (A)	1-48199-619-0	01	1	1108-		●
93	SILENCER; AIR DRYER AIR DRYER<PS7> EXC. TURBO - CONVENTIONAL<Q5T> (A)	1-48199-619-0	01	1	1108-	●
93	SILENCER; AIR DRYER (B)	1-48199-581-0	01	1	0710-0808	●	●
93	SILENCER; AIR DRYER (B)	1-48199-581-0	01	1	0809-1107		●
93	SILENCER; AIR DRYER EURO4 SPECIFICATION<NT4> AIR DRYER<PS7> (B)	1-48199-581-0	01	1	0809-1107	●
93	SILENCER; AIR DRYER (B)	1-48199-581-0	01	1	1108-		●
93	SILENCER; AIR DRYER AIR DRYER<PS7> EXC. TURBO - CONVENTIONAL<Q5T> (B)	1-48199-581-0	01	1	1108-	●
124	FILTER; SILENCER	1-48199-465-0	01	1	0710-0808	●	●
124	FILTER; SILENCER	1-48199-465-0	01	1	0809-1107		●
124	FILTER; SILENCER EURO4 SPECIFICATION<NT4> AIR DRYER<PS7>	1-48199-465-0	01	1	0809-1107	●
124	FILTER; SILENCER	1-48199-465-0	01	1	1108-		●
124	FILTER; SILENCER AIR DRYER<PS7> EXC. TURBO - CONVENTIONAL<Q5T>	1-48199-465-0	01	1	1108-	●

1 1 81 75 76 5 84 104 109 84 7 68 114 113 112 104 104 70 65 7 78 7 111 110 93 7

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B

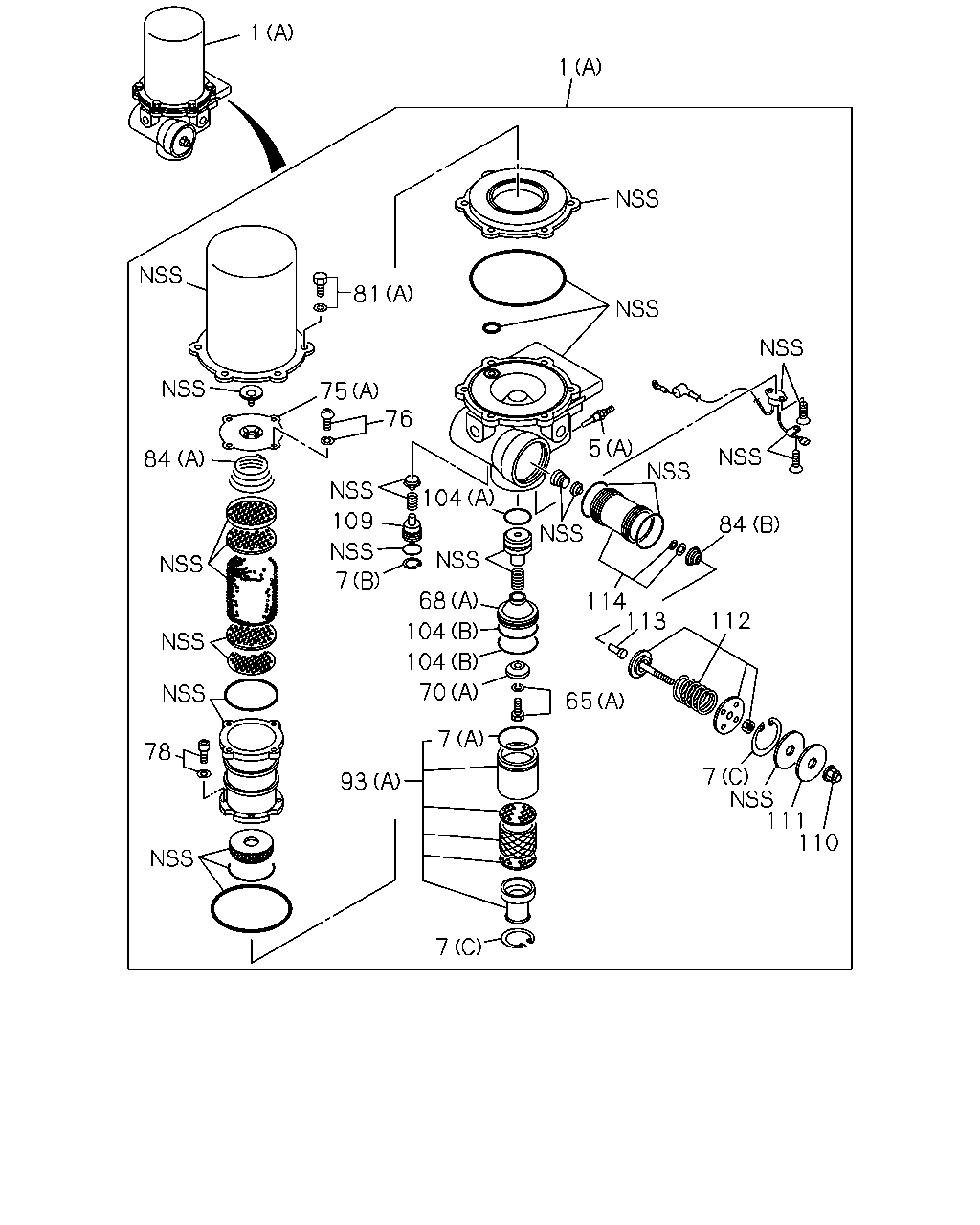

1	DRYER; AIR EURO2 SPECIFICATION<NT2> AIR DRYER<PS7> (B)	1-48190-277-1	01	1	0809-1008	●
1	DRYER; AIR AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> (B)	1-48190-277-1	01	1	1009-	●
1	DRYER; AIR (A)	1-48190-371-2	01	1	0710-0808	●	●
1	DRYER; AIR (A)	1-48190-371-2	01	1	0809-1107		●
1	DRYER; AIR EURO4 SPECIFICATION<NT4> AIR DRYER<PS7> (A)	1-48190-371-2	01	1	0809-1107	●
1	DRYER; AIR (A)	1-48190-371-2	01	1	1108-1211		●
1	DRYER; AIR AIR DRYER<PS7> EXC. TURBO - CONVENTIONAL<Q5T> (A)	1-48190-371-2	01	1	1108-1211	●
1	DRYER; AIR (A)	8-98225-292-0	01	1	1212-		●
1	DRYER; AIR AIR DRYER<PS7> EXC. TURBO - CONVENTIONAL<Q5T> (A)	8-98225-292-0	01	1	1212-	●
5	HEATER ASM; AIR DRYER (A)	1-48199-530-0	01	1	0710-0808	●	●
5	HEATER ASM; AIR DRYER (A)	1-48199-530-0	01	1	0809-1107		●
5	HEATER ASM; AIR DRYER EURO4 SPECIFICATION<NT4> AIR DRYER<PS7> (A)	1-48199-530-0	01	1	0809-1107	●
5	HEATER ASM; AIR DRYER (A)	1-48199-530-0	01	1	1108-		●
5	HEATER ASM; AIR DRYER AIR DRYER<PS7> EXC. TURBO - CONVENTIONAL<Q5T> (A)	1-48199-530-0	01	1	1108-	●
5	HEATER ASM; AIR DRYER EURO2 SPECIFICATION<NT2> AIR DRYER<PS7> (B)	1-48199-085-0	02	1	0809-1008	●
5	HEATER ASM; AIR DRYER AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> (B)	1-48199-085-0	02	1	1009-	●
7	RING; SNAP,AIR DRYER EURO2 SPECIFICATION<NT2> AIR DRYER<PS7> (E)	1-48199-154-0	01	1	0809-1008	●
7	RING; SNAP,AIR DRYER AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> (E)	1-48199-154-0	01	1	1009-	●
7	RING; SNAP,AIR DRYER (D)	1-47769-017-0	01	1	0710-0808	●	●
7	RING; SNAP,AIR DRYER (D)	1-47769-017-0	01	1	0809-1107		●
7	RING; SNAP,AIR DRYER EURO4 SPECIFICATION<NT4> AIR DRYER<PS7> (D)	1-47769-017-0	01	1	0809-1107	●
7	RING; SNAP,AIR DRYER (D)	1-47769-017-0	01	1	1108-		●
7	RING; SNAP,AIR DRYER AIR DRYER<PS7> EXC. TURBO - CONVENTIONAL<Q5T> (D)	1-47769-017-0	01	1	1108-	●
7	RING; SNAP,AIR DRYER (C)	1-48199-520-0	02	1	0710-0808	●	●
7	RING; SNAP,AIR DRYER (C)	1-48199-520-0	02	1	0809-1107		●
7	RING; SNAP,AIR DRYER EURO4 SPECIFICATION<NT4> AIR DRYER<PS7> (C)	1-48199-520-0	02	1	0809-1107	●
7	RING; SNAP,AIR DRYER (C)	1-48199-520-0	02	1	1108-		●
7	RING; SNAP,AIR DRYER AIR DRYER<PS7> EXC. TURBO - CONVENTIONAL<Q5T> (C)	1-48199-520-0	02	1	1108-	●
7	RING; SNAP,AIR DRYER (B)	1-48199-529-0	01	1	0710-0808	●	●
7	RING; SNAP,AIR DRYER (B)	1-48199-529-0	01	1	0809-1107		●
7	RING; SNAP,AIR DRYER EURO4 SPECIFICATION<NT4> AIR DRYER<PS7> (B)	1-48199-529-0	01	1	0809-1107	●
7	RING; SNAP,AIR DRYER (B)	1-48199-529-0	01	1	1108-		●
7	RING; SNAP,AIR DRYER AIR DRYER<PS7> EXC. TURBO - CONVENTIONAL<Q5T> (B)	1-48199-529-0	01	1	1108-	●
7	RING; SNAP,AIR DRYER (A)	1-48199-579-0	01	1	0710-0808	●	●
7	RING; SNAP,AIR DRYER (A)	1-48199-579-0	01	1	0809-1107		●
7	RING; SNAP,AIR DRYER EURO4 SPECIFICATION<NT4> AIR DRYER<PS7> (A)	1-48199-579-0	01	1	0809-1107	●
7	RING; SNAP,AIR DRYER (A)	1-48199-579-0	01	1	1108-		●
7	RING; SNAP,AIR DRYER AIR DRYER<PS7> EXC. TURBO - CONVENTIONAL<Q5T> (A)	1-48199-579-0	01	1	1108-	●
65	BOLT; PURGE VLV EURO2 SPECIFICATION<NT2> AIR DRYER<PS7> (B)	1-48199-393-0	01	1	0809-1008	●
65	BOLT; PURGE VLV AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> (B)	1-48199-393-0	01	1	1009-	●
65	BOLT; PURGE VLV (A)	1-48199-517-0	01	1	0710-0808	●	●
65	BOLT; PURGE VLV (A)	1-48199-517-0	01	1	0809-1107		●
65	BOLT; PURGE VLV EURO4 SPECIFICATION<NT4> AIR DRYER<PS7> (A)	1-48199-517-0	01	1	0809-1107	●
65	BOLT; PURGE VLV (A)	1-48199-517-0	01	1	1108-		●
65	BOLT; PURGE VLV AIR DRYER<PS7> EXC. TURBO - CONVENTIONAL<Q5T> (A)	1-48199-517-0	01	1	1108-	●
68	BODY; VALVE EURO2 SPECIFICATION<NT2> AIR DRYER<PS7> (B)	1-48199-216-0	01	1	0809-1008	●
68	BODY; VALVE AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> (B)	1-48199-216-0	01	1	1009-	●
68	BODY; VALVE (A)	1-48199-515-0	01	1	0710-0808	●	●
68	BODY; VALVE (A)	1-48199-515-0	01	1	0809-1107		●
68	BODY; VALVE EURO4 SPECIFICATION<NT4> AIR DRYER<PS7> (A)	1-48199-515-0	01	1	0809-1107	●
68	BODY; VALVE (A)	1-48199-515-0	01	1	1108-		●
68	BODY; VALVE AIR DRYER<PS7> EXC. TURBO - CONVENTIONAL<Q5T> (A)	1-48199-515-0	01	1	1108-	●
70	VALVE; AIR DRYER EURO2 SPECIFICATION<NT2> AIR DRYER<PS7> (B)	1-48199-105-0	01	1	0809-1008	●
70	VALVE; AIR DRYER AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> (B)	1-48199-105-0	01	1	1009-	●
70	VALVE; AIR DRYER (A)	1-48199-504-0	01	1	0710-0808	●	●
70	VALVE; AIR DRYER (A)	1-48199-504-0	01	1	0809-1107		●
70	VALVE; AIR DRYER EURO4 SPECIFICATION<NT4> AIR DRYER<PS7> (A)	1-48199-504-0	01	1	0809-1107	●
70	VALVE; AIR DRYER (A)	1-48199-504-0	01	1	1108-		●
70	VALVE; AIR DRYER AIR DRYER<PS7> EXC. TURBO - CONVENTIONAL<Q5T> (A)	1-48199-504-0	01	1	1108-	●
75	COVER; CASE,AIR DRYER EURO2 SPECIFICATION<NT2> AIR DRYER<PS7> (B)	1-48199-167-0	01	1	0809-1008	●
75	COVER; CASE,AIR DRYER AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> (B)	1-48199-167-0	01	1	1009-	●
75	COVER; CASE,AIR DRYER (A)	1-48199-562-0	01	1	0710-0808	●	●
75	COVER; CASE,AIR DRYER (A)	1-48199-562-0	01	1	0809-1107		●
75	COVER; CASE,AIR DRYER EURO4 SPECIFICATION<NT4> AIR DRYER<PS7> (A)	1-48199-562-0	01	1	0809-1107	●
75	COVER; CASE,AIR DRYER (A)	1-48199-562-0	01	1	1108-		●
75	COVER; CASE,AIR DRYER AIR DRYER<PS7> EXC. TURBO - CONVENTIONAL<Q5T> (A)	1-48199-562-0	01	1	1108-	●
76	BOLT; COVER,AIR DRYER	1-48199-561-0	06	1	0710-0808	●	●
76	BOLT; COVER,AIR DRYER	1-48199-561-0	06	1	0809-1107		●
76	BOLT; COVER,AIR DRYER EURO4 SPECIFICATION<NT4> AIR DRYER<PS7>	1-48199-561-0	06	1	0809-1107	●
76	BOLT; COVER,AIR DRYER	1-48199-561-0	06	1	1108-		●
76	BOLT; COVER,AIR DRYER AIR DRYER<PS7> EXC. TURBO - CONVENTIONAL<Q5T>	1-48199-561-0	06	1	1108-	●
78	BOLT; OIL FILTER,AIR DRYER	1-48199-557-0	04	1	0710-0808	●	●
78	BOLT; OIL FILTER,AIR DRYER	1-48199-557-0	04	1	0809-1107		●
78	BOLT; OIL FILTER,AIR DRYER EURO4 SPECIFICATION<NT4> AIR DRYER<PS7>	1-48199-557-0	04	1	0809-1107	●
78	BOLT; OIL FILTER,AIR DRYER	1-48199-557-0	04	1	1108-		●
78	BOLT; OIL FILTER,AIR DRYER AIR DRYER<PS7> EXC. TURBO - CONVENTIONAL<Q5T>	1-48199-557-0	04	1	1108-	●
81	BOLT; CASE,AIR DRYER EURO2 SPECIFICATION<NT2> AIR DRYER<PS7> (B)	1-48199-177-0	02	1	0809-1008	●
81	BOLT; CASE,AIR DRYER AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> (B)	1-48199-177-0	02	1	1009-	●
81	BOLT; CASE,AIR DRYER (A)	1-48199-436-0	08	1	0710-0808	●	●
81	BOLT; CASE,AIR DRYER (A)	1-48199-436-0	08	1	0809-1107		●
81	BOLT; CASE,AIR DRYER EURO4 SPECIFICATION<NT4> AIR DRYER<PS7> (A)	1-48199-436-0	08	1	0809-1107	●
81	BOLT; CASE,AIR DRYER (A)	1-48199-436-0	08	1	1108-		●
81	BOLT; CASE,AIR DRYER AIR DRYER<PS7> EXC. TURBO - CONVENTIONAL<Q5T> (A)	1-48199-436-0	08	1	1108-	●
84	SPRING; AIR DRYER EURO2 SPECIFICATION<NT2> AIR DRYER<PS7> (C)	1-48199-166-0	01	1	0809-1008	●
84	SPRING; AIR DRYER AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> (C)	1-48199-166-0	01	1	1009-	●
84	SPRING; AIR DRYER (B)	1-48199-523-0	01	1	0710-0808	●	●
84	SPRING; AIR DRYER (B)	1-48199-523-0	01	1	0809-1107		●
84	SPRING; AIR DRYER EURO4 SPECIFICATION<NT4> AIR DRYER<PS7> (B)	1-48199-523-0	01	1	0809-1107	●
84	SPRING; AIR DRYER (B)	1-48199-523-0	01	1	1108-		●
84	SPRING; AIR DRYER AIR DRYER<PS7> EXC. TURBO - CONVENTIONAL<Q5T> (B)	1-48199-523-0	01	1	1108-	●
84	SPRING; AIR DRYER (A)	1-48199-564-0	01	1	0710-0808	●	●
84	SPRING; AIR DRYER (A)	1-48199-564-0	01	1	0809-1107		●
84	SPRING; AIR DRYER EURO4 SPECIFICATION<NT4> AIR DRYER<PS7> (A)	1-48199-564-0	01	1	0809-1107	●
84	SPRING; AIR DRYER (A)	1-48199-564-0	01	1	1108-		●
84	SPRING; AIR DRYER AIR DRYER<PS7> EXC. TURBO - CONVENTIONAL<Q5T> (A)	1-48199-564-0	01	1	1108-	●
93	SILENCER; AIR DRYER (A)	1-48199-619-0	01	1	0710-0808	●	●
93	SILENCER; AIR DRYER (A)	1-48199-619-0	01	1	0809-1107		●
93	SILENCER; AIR DRYER EURO4 SPECIFICATION<NT4> AIR DRYER<PS7> (A)	1-48199-619-0	01	1	0809-1107	●
93	SILENCER; AIR DRYER (A)	1-48199-619-0	01	1	1108-		●
93	SILENCER; AIR DRYER AIR DRYER<PS7> EXC. TURBO - CONVENTIONAL<Q5T> (A)	1-48199-619-0	01	1	1108-	●
93	SILENCER; AIR DRYER (B)	1-48199-581-0	01	1	0710-0808	●	●
93	SILENCER; AIR DRYER (B)	1-48199-581-0	01	1	0809-1107		●
93	SILENCER; AIR DRYER EURO4 SPECIFICATION<NT4> AIR DRYER<PS7> (B)	1-48199-581-0	01	1	0809-1107	●
93	SILENCER; AIR DRYER (B)	1-48199-581-0	01	1	1108-		●
93	SILENCER; AIR DRYER AIR DRYER<PS7> EXC. TURBO - CONVENTIONAL<Q5T> (B)	1-48199-581-0	01	1	1108-	●
104	GASKET (A)	1-48199-495-0	01	1	0710-0808	●	●
104	GASKET (A)	1-48199-495-0	01	1	0809-1107		●
104	GASKET EURO4 SPECIFICATION<NT4> AIR DRYER<PS7> (A)	1-48199-495-0	01	1	0809-1107	●
104	GASKET (A)	1-48199-495-0	01	1	1108-1211		●
104	GASKET AIR DRYER<PS7> EXC. TURBO - CONVENTIONAL<Q5T> (A)	1-48199-495-0	01	1	1108-1211	●
104	GASKET (A)	8-98226-321-0	01	1	1212-		●
104	GASKET AIR DRYER<PS7> EXC. TURBO - CONVENTIONAL<Q5T> (A)	8-98226-321-0	01	1	1212-	●
104	GASKET (B)	1-48199-496-0	02	1	0710-0808	●	●
104	GASKET (B)	1-48199-496-0	02	1	0809-1107		●
104	GASKET EURO4 SPECIFICATION<NT4> AIR DRYER<PS7> (B)	1-48199-496-0	02	1	0809-1107	●
104	GASKET (B)	1-48199-496-0	02	1	1108-1211		●
104	GASKET AIR DRYER<PS7> EXC. TURBO - CONVENTIONAL<Q5T> (B)	1-48199-496-0	02	1	1108-1211	●
104	GASKET (B)	1-48199-496-0	01	1	1212-		●
104	GASKET AIR DRYER<PS7> EXC. TURBO - CONVENTIONAL<Q5T> (B)	1-48199-496-0	01	1	1212-	●
109	STOPPER; CHECK VALVE	1-48199-539-0	01	1	0710-0808	●	●
109	STOPPER; CHECK VALVE	1-48199-539-0	01	1	0809-1107		●
109	STOPPER; CHECK VALVE EURO4 SPECIFICATION<NT4> AIR DRYER<PS7>	1-48199-539-0	01	1	0809-1107	●
109	STOPPER; CHECK VALVE	1-48199-539-0	01	1	1108-		●
109	STOPPER; CHECK VALVE AIR DRYER<PS7> EXC. TURBO - CONVENTIONAL<Q5T>	1-48199-539-0	01	1	1108-	●
110	NUT; CAP	1-48199-527-0	01	1	0710-0808	●	●
110	NUT; CAP	1-48199-527-0	01	1	0809-1107		●
110	NUT; CAP EURO4 SPECIFICATION<NT4> AIR DRYER<PS7>	1-48199-527-0	01	1	0809-1107	●
110	NUT; CAP	1-48199-527-0	01	1	1108-		●
110	NUT; CAP AIR DRYER<PS7> EXC. TURBO - CONVENTIONAL<Q5T>	1-48199-527-0	01	1	1108-	●
111	PLATE; GOVERNOR	1-48199-526-0	01	1	0710-0808	●	●
111	PLATE; GOVERNOR	1-48199-526-0	01	1	0809-1107		●
111	PLATE; GOVERNOR EURO4 SPECIFICATION<NT4> AIR DRYER<PS7>	1-48199-526-0	01	1	0809-1107	●
111	PLATE; GOVERNOR	1-48199-526-0	01	1	1108-		●
111	PLATE; GOVERNOR AIR DRYER<PS7> EXC. TURBO - CONVENTIONAL<Q5T>	1-48199-526-0	01	1	1108-	●
112	SCREW & SPRING ASM; AIR DRYER	1-48199-524-0	01	1	0710-0808	●	●
112	SCREW & SPRING ASM; AIR DRYER	1-48199-524-0	01	1	0809-1107		●
112	SCREW & SPRING ASM; AIR DRYER EURO4 SPECIFICATION<NT4> AIR DRYER<PS7>	1-48199-524-0	01	1	0809-1107	●
112	SCREW & SPRING ASM; AIR DRYER	1-48199-524-0	01	1	1108-		●
112	SCREW & SPRING ASM; AIR DRYER AIR DRYER<PS7> EXC. TURBO - CONVENTIONAL<Q5T>	1-48199-524-0	01	1	1108-	●
113	STEM; EXHAUST	1-48199-522-0	01	1	0710-0808	●	●
113	STEM; EXHAUST	1-48199-522-0	01	1	0809-1107		●
113	STEM; EXHAUST EURO4 SPECIFICATION<NT4> AIR DRYER<PS7>	1-48199-522-0	01	1	0809-1107	●
113	STEM; EXHAUST	1-48199-522-0	01	1	1108-		●
113	STEM; EXHAUST AIR DRYER<PS7> EXC. TURBO - CONVENTIONAL<Q5T>	1-48199-522-0	01	1	1108-	●
114	PISTON ASM; GOVERNOR	1-48199-521-0	01	1	0710-0808	●	●
114	PISTON ASM; GOVERNOR	1-48199-521-0	01	1	0809-1107		●
114	PISTON ASM; GOVERNOR EURO4 SPECIFICATION<NT4> AIR DRYER<PS7>	1-48199-521-0	01	1	0809-1107	●
114	PISTON ASM; GOVERNOR	1-48199-521-0	01	1	1108-		●
114	PISTON ASM; GOVERNOR AIR DRYER<PS7> EXC. TURBO - CONVENTIONAL<Q5T>	1-48199-521-0	01	1	1108-	●

1 1 86 86 80 80 79 71 68 70 79 65 6 88 75 7 81 88 5 81 84

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B

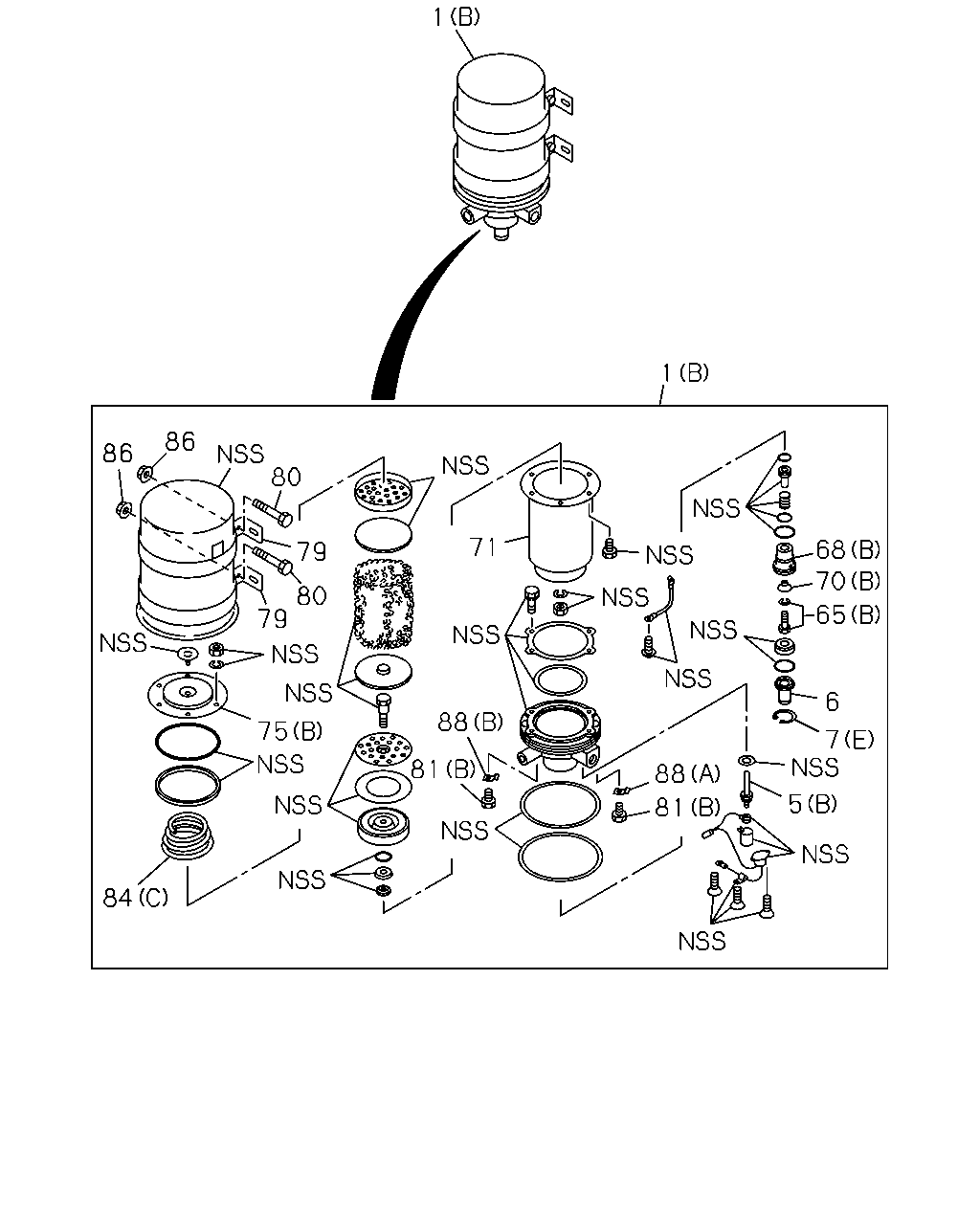

1	DRYER; AIR EURO2 SPECIFICATION<NT2> AIR DRYER<PS7> (B)	1-48190-277-1	01	1	0809-1008	●
1	DRYER; AIR AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> (B)	1-48190-277-1	01	1	1009-	●
1	DRYER; AIR (A)	1-48190-371-2	01	1	0710-0808	●	●
1	DRYER; AIR (A)	1-48190-371-2	01	1	0809-1107		●
1	DRYER; AIR EURO4 SPECIFICATION<NT4> AIR DRYER<PS7> (A)	1-48190-371-2	01	1	0809-1107	●
1	DRYER; AIR (A)	1-48190-371-2	01	1	1108-1211		●
1	DRYER; AIR AIR DRYER<PS7> EXC. TURBO - CONVENTIONAL<Q5T> (A)	1-48190-371-2	01	1	1108-1211	●
1	DRYER; AIR (A)	8-98225-292-0	01	1	1212-		●
1	DRYER; AIR AIR DRYER<PS7> EXC. TURBO - CONVENTIONAL<Q5T> (A)	8-98225-292-0	01	1	1212-	●
5	HEATER ASM; AIR DRYER (A)	1-48199-530-0	01	1	0710-0808	●	●
5	HEATER ASM; AIR DRYER (A)	1-48199-530-0	01	1	0809-1107		●
5	HEATER ASM; AIR DRYER EURO4 SPECIFICATION<NT4> AIR DRYER<PS7> (A)	1-48199-530-0	01	1	0809-1107	●
5	HEATER ASM; AIR DRYER (A)	1-48199-530-0	01	1	1108-		●
5	HEATER ASM; AIR DRYER AIR DRYER<PS7> EXC. TURBO - CONVENTIONAL<Q5T> (A)	1-48199-530-0	01	1	1108-	●
5	HEATER ASM; AIR DRYER EURO2 SPECIFICATION<NT2> AIR DRYER<PS7> (B)	1-48199-085-0	02	1	0809-1008	●
5	HEATER ASM; AIR DRYER AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> (B)	1-48199-085-0	02	1	1009-	●
6	COVER; EXH,AIR DRYER EURO2 SPECIFICATION<NT2> AIR DRYER<PS7>	1-48199-101-0	01	1	0809-1008	●
6	COVER; EXH,AIR DRYER AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T>	1-48199-101-0	01	1	1009-	●
7	RING; SNAP,AIR DRYER EURO2 SPECIFICATION<NT2> AIR DRYER<PS7> (E)	1-48199-154-0	01	1	0809-1008	●
7	RING; SNAP,AIR DRYER AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> (E)	1-48199-154-0	01	1	1009-	●
7	RING; SNAP,AIR DRYER (D)	1-47769-017-0	01	1	0710-0808	●	●
7	RING; SNAP,AIR DRYER (D)	1-47769-017-0	01	1	0809-1107		●
7	RING; SNAP,AIR DRYER EURO4 SPECIFICATION<NT4> AIR DRYER<PS7> (D)	1-47769-017-0	01	1	0809-1107	●
7	RING; SNAP,AIR DRYER (D)	1-47769-017-0	01	1	1108-		●
7	RING; SNAP,AIR DRYER AIR DRYER<PS7> EXC. TURBO - CONVENTIONAL<Q5T> (D)	1-47769-017-0	01	1	1108-	●
7	RING; SNAP,AIR DRYER (C)	1-48199-520-0	02	1	0710-0808	●	●
7	RING; SNAP,AIR DRYER (C)	1-48199-520-0	02	1	0809-1107		●
7	RING; SNAP,AIR DRYER EURO4 SPECIFICATION<NT4> AIR DRYER<PS7> (C)	1-48199-520-0	02	1	0809-1107	●
7	RING; SNAP,AIR DRYER (C)	1-48199-520-0	02	1	1108-		●
7	RING; SNAP,AIR DRYER AIR DRYER<PS7> EXC. TURBO - CONVENTIONAL<Q5T> (C)	1-48199-520-0	02	1	1108-	●
7	RING; SNAP,AIR DRYER (B)	1-48199-529-0	01	1	0710-0808	●	●
7	RING; SNAP,AIR DRYER (B)	1-48199-529-0	01	1	0809-1107		●
7	RING; SNAP,AIR DRYER EURO4 SPECIFICATION<NT4> AIR DRYER<PS7> (B)	1-48199-529-0	01	1	0809-1107	●
7	RING; SNAP,AIR DRYER (B)	1-48199-529-0	01	1	1108-		●
7	RING; SNAP,AIR DRYER AIR DRYER<PS7> EXC. TURBO - CONVENTIONAL<Q5T> (B)	1-48199-529-0	01	1	1108-	●
7	RING; SNAP,AIR DRYER (A)	1-48199-579-0	01	1	0710-0808	●	●
7	RING; SNAP,AIR DRYER (A)	1-48199-579-0	01	1	0809-1107		●
7	RING; SNAP,AIR DRYER EURO4 SPECIFICATION<NT4> AIR DRYER<PS7> (A)	1-48199-579-0	01	1	0809-1107	●
7	RING; SNAP,AIR DRYER (A)	1-48199-579-0	01	1	1108-		●
7	RING; SNAP,AIR DRYER AIR DRYER<PS7> EXC. TURBO - CONVENTIONAL<Q5T> (A)	1-48199-579-0	01	1	1108-	●
65	BOLT; PURGE VLV EURO2 SPECIFICATION<NT2> AIR DRYER<PS7> (B)	1-48199-393-0	01	1	0809-1008	●
65	BOLT; PURGE VLV AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> (B)	1-48199-393-0	01	1	1009-	●
65	BOLT; PURGE VLV (A)	1-48199-517-0	01	1	0710-0808	●	●
65	BOLT; PURGE VLV (A)	1-48199-517-0	01	1	0809-1107		●
65	BOLT; PURGE VLV EURO4 SPECIFICATION<NT4> AIR DRYER<PS7> (A)	1-48199-517-0	01	1	0809-1107	●
65	BOLT; PURGE VLV (A)	1-48199-517-0	01	1	1108-		●
65	BOLT; PURGE VLV AIR DRYER<PS7> EXC. TURBO - CONVENTIONAL<Q5T> (A)	1-48199-517-0	01	1	1108-	●
68	BODY; VALVE EURO2 SPECIFICATION<NT2> AIR DRYER<PS7> (B)	1-48199-216-0	01	1	0809-1008	●
68	BODY; VALVE AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> (B)	1-48199-216-0	01	1	1009-	●
68	BODY; VALVE (A)	1-48199-515-0	01	1	0710-0808	●	●
68	BODY; VALVE (A)	1-48199-515-0	01	1	0809-1107		●
68	BODY; VALVE EURO4 SPECIFICATION<NT4> AIR DRYER<PS7> (A)	1-48199-515-0	01	1	0809-1107	●
68	BODY; VALVE (A)	1-48199-515-0	01	1	1108-		●
68	BODY; VALVE AIR DRYER<PS7> EXC. TURBO - CONVENTIONAL<Q5T> (A)	1-48199-515-0	01	1	1108-	●
70	VALVE; AIR DRYER EURO2 SPECIFICATION<NT2> AIR DRYER<PS7> (B)	1-48199-105-0	01	1	0809-1008	●
70	VALVE; AIR DRYER AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> (B)	1-48199-105-0	01	1	1009-	●
70	VALVE; AIR DRYER (A)	1-48199-504-0	01	1	0710-0808	●	●
70	VALVE; AIR DRYER (A)	1-48199-504-0	01	1	0809-1107		●
70	VALVE; AIR DRYER EURO4 SPECIFICATION<NT4> AIR DRYER<PS7> (A)	1-48199-504-0	01	1	0809-1107	●
70	VALVE; AIR DRYER (A)	1-48199-504-0	01	1	1108-		●
70	VALVE; AIR DRYER AIR DRYER<PS7> EXC. TURBO - CONVENTIONAL<Q5T> (A)	1-48199-504-0	01	1	1108-	●
71	CASE; INNER,AIR DRYER EURO2 SPECIFICATION<NT2> AIR DRYER<PS7>	1-48199-156-1	01	1	0809-1008	●
71	CASE; INNER,AIR DRYER AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T>	1-48199-156-1	01	1	1009-	●
75	COVER; CASE,AIR DRYER EURO2 SPECIFICATION<NT2> AIR DRYER<PS7> (B)	1-48199-167-0	01	1	0809-1008	●
75	COVER; CASE,AIR DRYER AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> (B)	1-48199-167-0	01	1	1009-	●
75	COVER; CASE,AIR DRYER (A)	1-48199-562-0	01	1	0710-0808	●	●
75	COVER; CASE,AIR DRYER (A)	1-48199-562-0	01	1	0809-1107		●
75	COVER; CASE,AIR DRYER EURO4 SPECIFICATION<NT4> AIR DRYER<PS7> (A)	1-48199-562-0	01	1	0809-1107	●
75	COVER; CASE,AIR DRYER (A)	1-48199-562-0	01	1	1108-		●
75	COVER; CASE,AIR DRYER AIR DRYER<PS7> EXC. TURBO - CONVENTIONAL<Q5T> (A)	1-48199-562-0	01	1	1108-	●
79	BRACKET; AIR DRYER EURO2 SPECIFICATION<NT2> AIR DRYER<PS7>	1-48199-189-0	02	1	0809-1008	●
79	BRACKET; AIR DRYER AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T>	1-48199-189-0	02	1	1009-	●
80	BOLT; BRKT EURO2 SPECIFICATION<NT2> AIR DRYER<PS7>	1-48199-190-0	02	1	0809-1008	●
80	BOLT; BRKT AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T>	1-48199-190-0	02	1	1009-	●
81	BOLT; CASE,AIR DRYER EURO2 SPECIFICATION<NT2> AIR DRYER<PS7> (B)	1-48199-177-0	02	1	0809-1008	●
81	BOLT; CASE,AIR DRYER AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> (B)	1-48199-177-0	02	1	1009-	●
81	BOLT; CASE,AIR DRYER (A)	1-48199-436-0	08	1	0710-0808	●	●
81	BOLT; CASE,AIR DRYER (A)	1-48199-436-0	08	1	0809-1107		●
81	BOLT; CASE,AIR DRYER EURO4 SPECIFICATION<NT4> AIR DRYER<PS7> (A)	1-48199-436-0	08	1	0809-1107	●
81	BOLT; CASE,AIR DRYER (A)	1-48199-436-0	08	1	1108-		●
81	BOLT; CASE,AIR DRYER AIR DRYER<PS7> EXC. TURBO - CONVENTIONAL<Q5T> (A)	1-48199-436-0	08	1	1108-	●
84	SPRING; AIR DRYER EURO2 SPECIFICATION<NT2> AIR DRYER<PS7> (C)	1-48199-166-0	01	1	0809-1008	●
84	SPRING; AIR DRYER AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> (C)	1-48199-166-0	01	1	1009-	●
84	SPRING; AIR DRYER (B)	1-48199-523-0	01	1	0710-0808	●	●
84	SPRING; AIR DRYER (B)	1-48199-523-0	01	1	0809-1107		●
84	SPRING; AIR DRYER EURO4 SPECIFICATION<NT4> AIR DRYER<PS7> (B)	1-48199-523-0	01	1	0809-1107	●
84	SPRING; AIR DRYER (B)	1-48199-523-0	01	1	1108-		●
84	SPRING; AIR DRYER AIR DRYER<PS7> EXC. TURBO - CONVENTIONAL<Q5T> (B)	1-48199-523-0	01	1	1108-	●
84	SPRING; AIR DRYER (A)	1-48199-564-0	01	1	0710-0808	●	●
84	SPRING; AIR DRYER (A)	1-48199-564-0	01	1	0809-1107		●
84	SPRING; AIR DRYER EURO4 SPECIFICATION<NT4> AIR DRYER<PS7> (A)	1-48199-564-0	01	1	0809-1107	●
84	SPRING; AIR DRYER (A)	1-48199-564-0	01	1	1108-		●
84	SPRING; AIR DRYER AIR DRYER<PS7> EXC. TURBO - CONVENTIONAL<Q5T> (A)	1-48199-564-0	01	1	1108-	●
86	NUT; BRKT EURO2 SPECIFICATION<NT2> AIR DRYER<PS7>	1-48199-320-0	02	1	0809-1008	●
86	NUT; BRKT AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T>	1-48199-320-0	02	1	1009-	●
88	PLATE; STOPPER EURO2 SPECIFICATION<NT2> AIR DRYER<PS7> (A)	1-48199-178-0	01	1	0809-1008	●
88	PLATE; STOPPER AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> (A)	1-48199-178-0	01	1	1009-	●
88	PLATE; STOPPER EURO2 SPECIFICATION<NT2> AIR DRYER<PS7> (B)	1-48199-179-0	01	1	0809-1008	●
88	PLATE; STOPPER AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> (B)	1-48199-179-0	01	1	1009-	●

2 3 4 68 70 65

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B

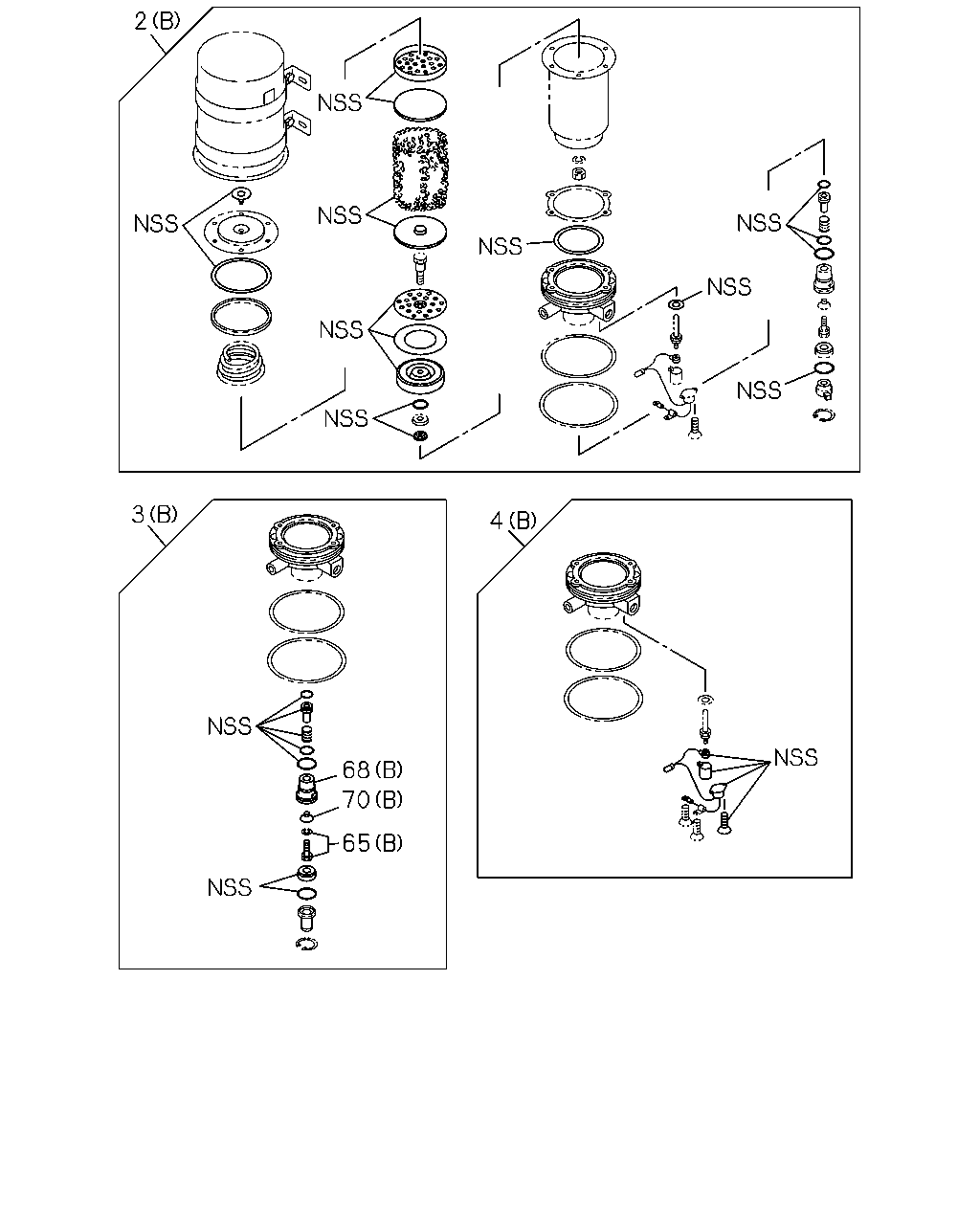

2	REPAIR KIT; AIR DRYER EURO2 SPECIFICATION<NT2> AIR DRYER<PS7> (B)	1-85576-226-0	01	1	0809-1008	●
2	REPAIR KIT; AIR DRYER AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> (B)	1-85576-226-0	01	1	1009-	●

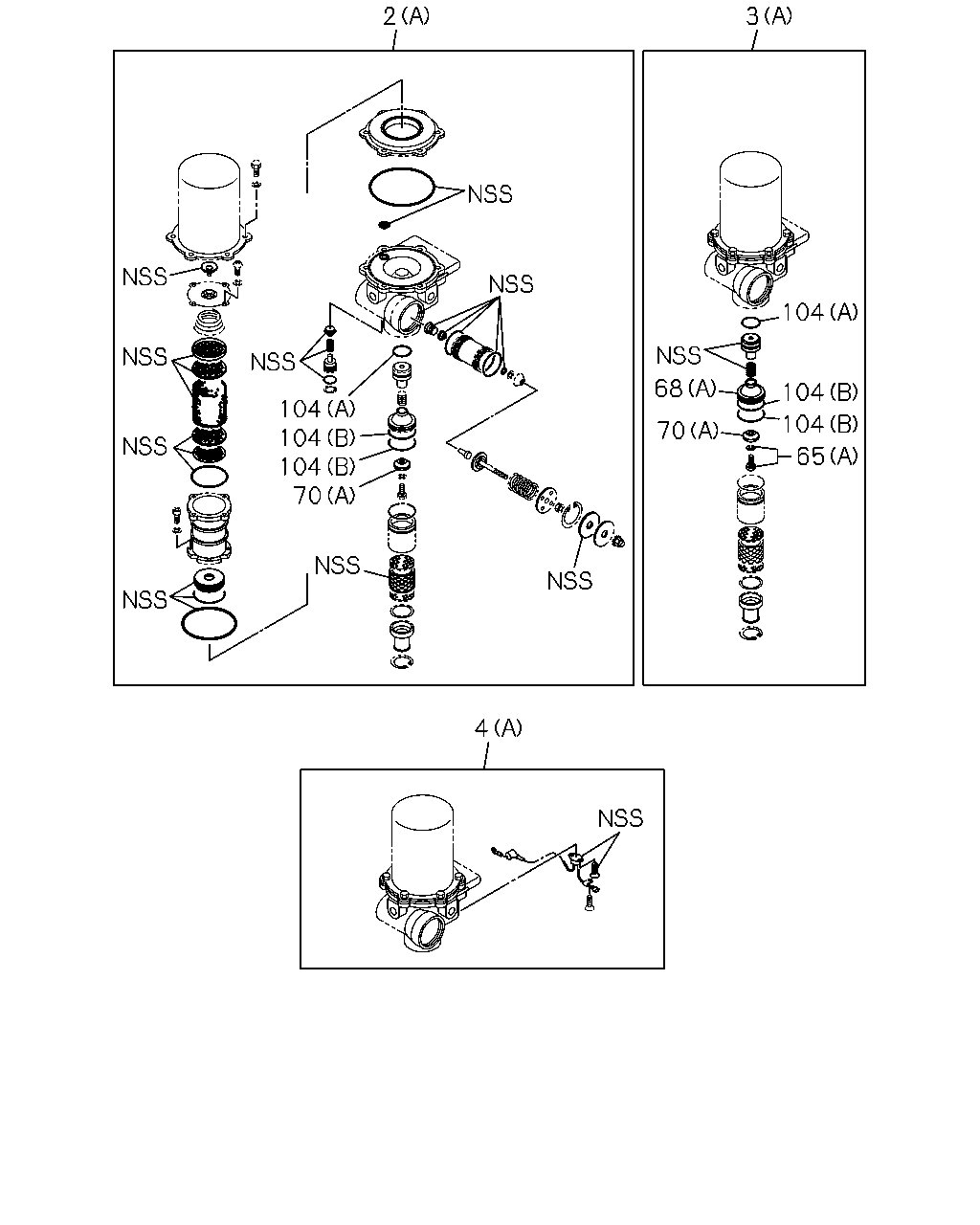

2	REPAIR KIT; AIR DRYER (A)	1-85576-448-0	01	1	0710-0808	●	●
2	REPAIR KIT; AIR DRYER (A)	1-85576-448-0	01	1	0809-1107		●
2	REPAIR KIT; AIR DRYER EURO4 SPECIFICATION<NT4> AIR DRYER<PS7> (A)	1-85576-448-0	01	1	0809-1107	●
2	REPAIR KIT; AIR DRYER (A)	1-85576-448-0	01	1	1108-1211		●
2	REPAIR KIT; AIR DRYER AIR DRYER<PS7> EXC. TURBO - CONVENTIONAL<Q5T> (A)	1-85576-448-0	01	1	1108-1211	●
2	REPAIR KIT; AIR DRYER (A)	8-98226-328-0	01	1	1212-		●
2	REPAIR KIT; AIR DRYER AIR DRYER<PS7> EXC. TURBO - CONVENTIONAL<Q5T> (A)	8-98226-328-0	01	1	1212-	●
3	PISTON KIT; AIR DRYER EURO2 SPECIFICATION<NT2> AIR DRYER<PS7> (B)	1-85576-057-1	01	1	0809-1008	●
3	PISTON KIT; AIR DRYER AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> (B)	1-85576-057-1	01	1	1009-	●
3	PISTON KIT; AIR DRYER (A)	1-85576-383-0	01	1	0710-0808	●	●
3	PISTON KIT; AIR DRYER (A)	1-85576-383-0	01	1	0809-1107		●
3	PISTON KIT; AIR DRYER EURO4 SPECIFICATION<NT4> AIR DRYER<PS7> (A)	1-85576-383-0	01	1	0809-1107	●
3	PISTON KIT; AIR DRYER (A)	1-85576-383-0	01	1	1108-1211		●
3	PISTON KIT; AIR DRYER AIR DRYER<PS7> EXC. TURBO - CONVENTIONAL<Q5T> (A)	1-85576-383-0	01	1	1108-1211	●
3	PISTON KIT; AIR DRYER (A)	8-98226-322-0	01	1	1212-		●
3	PISTON KIT; AIR DRYER AIR DRYER<PS7> EXC. TURBO - CONVENTIONAL<Q5T> (A)	8-98226-322-0	01	1	1212-	●
4	THERMOSTAT KIT; AIR DRYER EURO2 SPECIFICATION<NT2> AIR DRYER<PS7> (B)	1-85576-254-0	01	1	0809-1008	●
4	THERMOSTAT KIT; AIR DRYER AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> (B)	1-85576-254-0	01	1	1009-	●
4	THERMOSTAT KIT; AIR DRYER (A)	1-85576-444-0	01	1	0710-0808	●	●
4	THERMOSTAT KIT; AIR DRYER (A)	1-85576-444-0	01	1	0809-1107		●
4	THERMOSTAT KIT; AIR DRYER EURO4 SPECIFICATION<NT4> AIR DRYER<PS7> (A)	1-85576-444-0	01	1	0809-1107	●
4	THERMOSTAT KIT; AIR DRYER (A)	1-85576-444-0	01	1	1108-		●
4	THERMOSTAT KIT; AIR DRYER AIR DRYER<PS7> EXC. TURBO - CONVENTIONAL<Q5T> (A)	1-85576-444-0	01	1	1108-	●
65	BOLT; PURGE VLV EURO2 SPECIFICATION<NT2> AIR DRYER<PS7> (B)	1-48199-393-0	01	1	0809-1008	●
65	BOLT; PURGE VLV AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> (B)	1-48199-393-0	01	1	1009-	●
65	BOLT; PURGE VLV (A)	1-48199-517-0	01	1	0710-0808	●	●
65	BOLT; PURGE VLV (A)	1-48199-517-0	01	1	0809-1107		●
65	BOLT; PURGE VLV EURO4 SPECIFICATION<NT4> AIR DRYER<PS7> (A)	1-48199-517-0	01	1	0809-1107	●
65	BOLT; PURGE VLV (A)	1-48199-517-0	01	1	1108-		●
65	BOLT; PURGE VLV AIR DRYER<PS7> EXC. TURBO - CONVENTIONAL<Q5T> (A)	1-48199-517-0	01	1	1108-	●
68	BODY; VALVE EURO2 SPECIFICATION<NT2> AIR DRYER<PS7> (B)	1-48199-216-0	01	1	0809-1008	●
68	BODY; VALVE AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> (B)	1-48199-216-0	01	1	1009-	●
68	BODY; VALVE (A)	1-48199-515-0	01	1	0710-0808	●	●
68	BODY; VALVE (A)	1-48199-515-0	01	1	0809-1107		●
68	BODY; VALVE EURO4 SPECIFICATION<NT4> AIR DRYER<PS7> (A)	1-48199-515-0	01	1	0809-1107	●
68	BODY; VALVE (A)	1-48199-515-0	01	1	1108-		●
68	BODY; VALVE AIR DRYER<PS7> EXC. TURBO - CONVENTIONAL<Q5T> (A)	1-48199-515-0	01	1	1108-	●
70	VALVE; AIR DRYER EURO2 SPECIFICATION<NT2> AIR DRYER<PS7> (B)	1-48199-105-0	01	1	0809-1008	●
70	VALVE; AIR DRYER AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> (B)	1-48199-105-0	01	1	1009-	●
70	VALVE; AIR DRYER (A)	1-48199-504-0	01	1	0710-0808	●	●
70	VALVE; AIR DRYER (A)	1-48199-504-0	01	1	0809-1107		●
70	VALVE; AIR DRYER EURO4 SPECIFICATION<NT4> AIR DRYER<PS7> (A)	1-48199-504-0	01	1	0809-1107	●
70	VALVE; AIR DRYER (A)	1-48199-504-0	01	1	1108-		●
70	VALVE; AIR DRYER AIR DRYER<PS7> EXC. TURBO - CONVENTIONAL<Q5T> (A)	1-48199-504-0	01	1	1108-	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
