◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVM ▶ 11105 - FVM(RHD) ▶ 3 - Brakes, Brake System ▶ 3-40 - FRONT BRAKE POWER CHAMBER ▶
3-40 — FRONT BRAKE POWER CHAMBER (#33987) — 51 parça

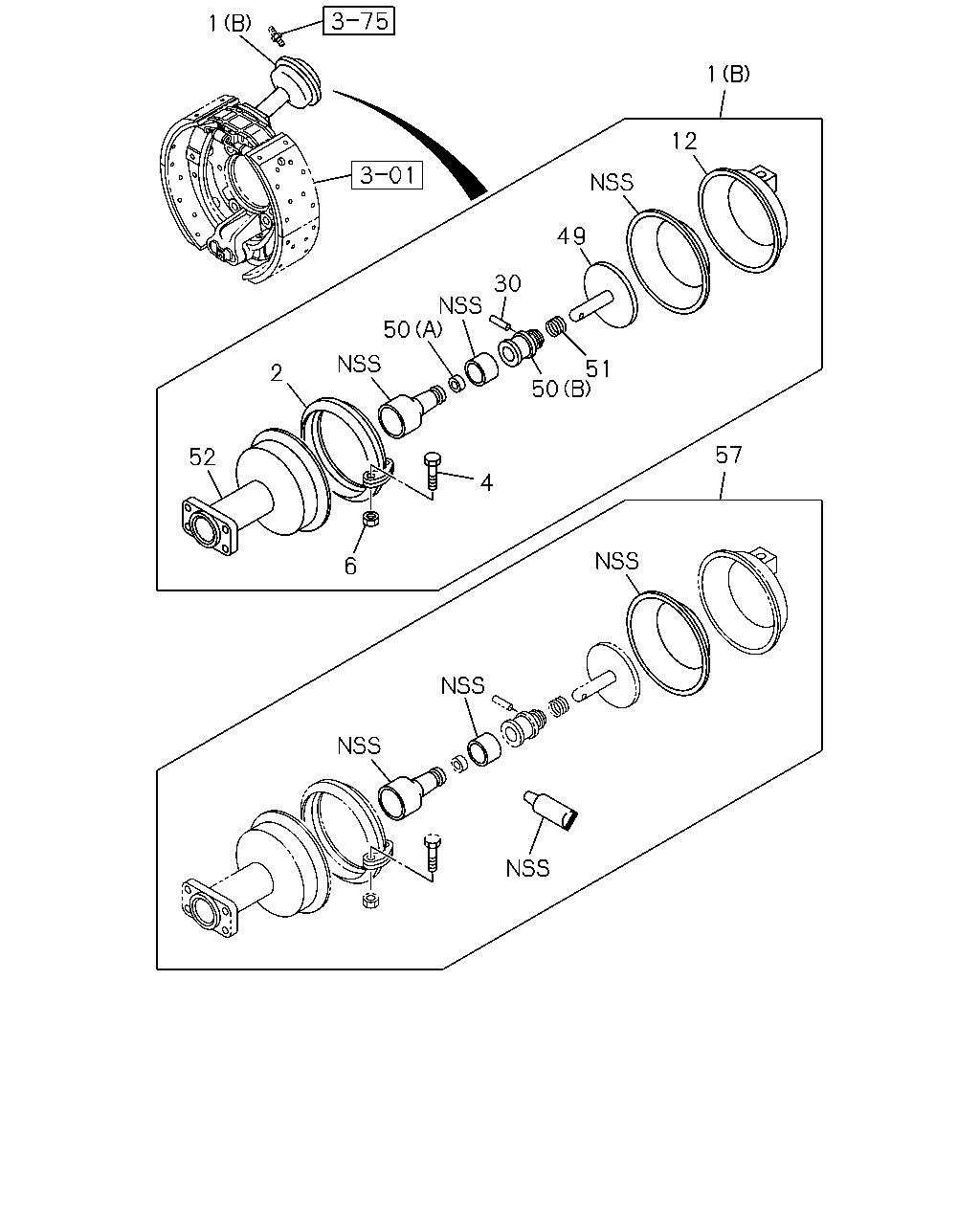

çizim 179294
1 1 12 49 30 50 51 50 2 57 52 4 6
BalonParca AdiParca NoAdetTipApplied Date A B
1 CHAMBER ASM; POWER,FRT BRK
(A) 		1-48250-938-0 02 1 0710- ●
1 CHAMBER ASM; POWER,FRT BRK
(B) 		1-48250-837-0 02 1 0710-0910 ●
1 CHAMBER ASM; POWER,FRT BRK
(C) 		8-98145-680-1 02 1 0911- ●
2 RING; CLAMP,SPR CHAMBER 1-48269-149-0 02 1 0710-0910 ●
2 RING; CLAMP,SPR CHAMBER 1-48269-256-0 02 1 0911- ●
4 BOLT; CLAMP RING 1-48269-146-0 04 1 0710-0910 ●
4 BOLT; CLAMP RING 1-48269-257-0 02 1 0911- ●
6 NUT; CLAMP RING 1-48269-147-0 04 1 0710-0910 ●
6 NUT; CLAMP RING 1-48269-147-0 02 1 0911- ●
12 COVER ASM; LWR,SPR CHAMBER 1-48251-103-0 02 1 0710- ●
30 PIN; STRAIGHT,SPR CHAMBER 1-48269-153-0 02 1 0710-0910 ●
49 ROD; PUSH,SPR CHAMBER 1-48263-020-0 02 1 0710-0910 ●
49 ROD; PUSH,SPR CHAMBER 8-98146-969-1 02 1 0911- ●
50 GUIDE; SPR CHAMBER
(A) 		1-48269-152-0 02 1 0710-0910 ●
50 GUIDE; SPR CHAMBER
(C) 		8-98146-963-1 02 1 0911- ●
50 GUIDE; SPR CHAMBER
(B) 		1-48269-154-0 02 1 0710-0910 ●
51 RING; SPR CHAMBER 1-48269-155-0 02 1 0710-0910 ●
51 RING; SPR CHAMBER 8-98146-966-0 02 1 0911- ●
52 HOUSING; SPR CHAMBER 1-48251-153-0 02 1 0710-0910 ●
52 HOUSING; SPR CHAMBER 1-48251-195-1 02 1 0911-1403 ●
52 HOUSING; SPR CHAMBER 8-98248-793-0 02 1 1404- ●
57 REPAIR KIT; SPR CHAMBER 1-85576-326-0 02 1 0710-0910 ●
57 REPAIR KIT; SPR CHAMBER 8-98146-978-0 02 1 0911- ●
çizim 179338
1 43 44
BalonParca AdiParca NoAdetTipApplied Date A B
1 CHAMBER ASM; POWER,FRT BRK
(A) 		1-48250-938-0 02 1 0710- ●
1 CHAMBER ASM; POWER,FRT BRK
(B) 		1-48250-837-0 02 1 0710-0910 ●
1 CHAMBER ASM; POWER,FRT BRK
(C) 		8-98145-680-1 02 1 0911- ●
43 WASHER; LK,POWER CHAMBER 1-41519-038-0 04 1 0710- ●
44 NUT; POWER CHAMBER 1-87050-052-0 04 1 0710- ●
çizim 179454
1 1 12 49 2 50 51 66 57 52 4 6
BalonParca AdiParca NoAdetTipApplied Date A B
1 CHAMBER ASM; POWER,FRT BRK
(A) 		1-48250-938-0 02 1 0710- ●
1 CHAMBER ASM; POWER,FRT BRK
(B) 		1-48250-837-0 02 1 0710-0910 ●
1 CHAMBER ASM; POWER,FRT BRK
(C) 		8-98145-680-1 02 1 0911- ●
2 RING; CLAMP,SPR CHAMBER 1-48269-149-0 02 1 0710-0910 ●
2 RING; CLAMP,SPR CHAMBER 1-48269-256-0 02 1 0911- ●
4 BOLT; CLAMP RING 1-48269-146-0 04 1 0710-0910 ●
4 BOLT; CLAMP RING 1-48269-257-0 02 1 0911- ●
6 NUT; CLAMP RING 1-48269-147-0 04 1 0710-0910 ●
6 NUT; CLAMP RING 1-48269-147-0 02 1 0911- ●
12 COVER ASM; LWR,SPR CHAMBER 1-48251-103-0 02 1 0710- ●
49 ROD; PUSH,SPR CHAMBER 1-48263-020-0 02 1 0710-0910 ●
49 ROD; PUSH,SPR CHAMBER 8-98146-969-1 02 1 0911- ●
50 GUIDE; SPR CHAMBER
(A) 		1-48269-152-0 02 1 0710-0910 ●
50 GUIDE; SPR CHAMBER
(C) 		8-98146-963-1 02 1 0911- ●
50 GUIDE; SPR CHAMBER
(B) 		1-48269-154-0 02 1 0710-0910 ●
51 RING; SPR CHAMBER 1-48269-155-0 02 1 0710-0910 ●
51 RING; SPR CHAMBER 8-98146-966-0 02 1 0911- ●
52 HOUSING; SPR CHAMBER 1-48251-153-0 02 1 0710-0910 ●
52 HOUSING; SPR CHAMBER 1-48251-195-1 02 1 0911-1403 ●
52 HOUSING; SPR CHAMBER 8-98248-793-0 02 1 1404- ●
57 REPAIR KIT; SPR CHAMBER 1-85576-326-0 02 1 0710-0910 ●
57 REPAIR KIT; SPR CHAMBER 8-98146-978-0 02 1 0911- ●
66 SHIM 8-98146-965-0 AR 1 0911- ●
