◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVM ▶ 11105 - FVM(RHD) ▶ 3 - Brakes, Brake System ▶ 3-22 - AIR CONTROL PARTS ▶
3-22 — AIR CONTROL PARTS (#33984) — 768 parça

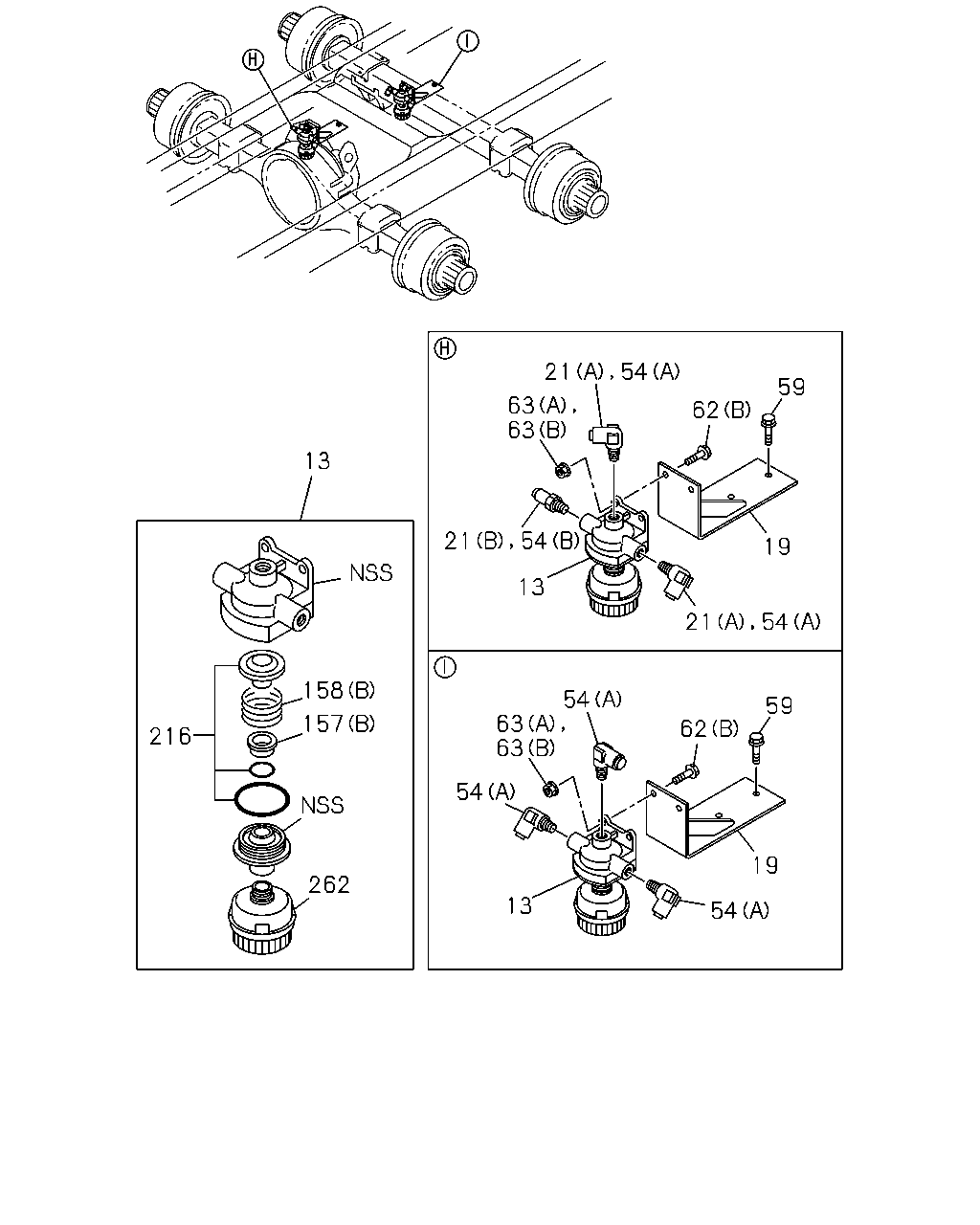

çizim 179162
21 54 59 63 63 62 13 19 13 21 54 158 54 63 63 59 157 62 216 54 19 262 13 54
BalonParca AdiParca NoAdetTipApplied Date A B
13 VALVE ASM; QUICK RELEASE 1-48410-733-0 01 1 0710-0803 ●
13 VALVE ASM; QUICK RELEASE 1-48410-733-0 01 1 0710-0803 ●
13 VALVE ASM; QUICK RELEASE 1-48410-733-0 02 1 0804-1008 ●
13 VALVE ASM; QUICK RELEASE 8-98170-207-0 02 1 1009- ●
19 BRACKET; QUICK RELEASE VLV
FORWARD 		8-98179-172-0 01 1 1108- ●
19 BRACKET; QUICK RELEASE VLV 8-98033-795-0 01 1 0710-0803 ●
19 BRACKET; QUICK RELEASE VLV 8-98033-795-0 01 1 0710-0803 ●
19 BRACKET; QUICK RELEASE VLV 8-98033-795-0 02 1 0804-1107 ●
19 BRACKET; QUICK RELEASE VLV
REARWARD 		8-98033-795-0 01 1 1108- ●
21 CONNECTOR; QUICK RELEASE VLV
(A) DIN12 & R3/8 ELBOW 		1-09660-959-0 02 1 1108- ●
21 CONNECTOR; QUICK RELEASE VLV
(B) DIN12 & R3/8 STRAIGHT 		1-09660-965-0 01 1 1108- ●
54 CONNECTOR; QUICK RELEASE VLV
(A) DIN12 & R3/8 ELBOW 		1-09660-959-0 02 1 0710-0803 ●
54 CONNECTOR; QUICK RELEASE VLV
(A) DIN12 & R3/8 ELBOW 		1-09660-959-0 05 1 0804-1107 ●
54 CONNECTOR; QUICK RELEASE VLV
(A) DIN12 & R3/8 ELBOW 		1-09660-959-0 03 1 1108- ●
54 CONNECTOR; QUICK RELEASE VLV
(A) DIN12 & R3/8 ELBOW 		1-09660-959-0 03 1 0710-0803 ●
54 CONNECTOR; QUICK RELEASE VLV
(B) DIN12 & R3/8 STRAIGHT 		1-09660-965-0 01 1 0710-1107 ●
59 BOLT; RELEASE VALVE FIX
M8X16 FLANGE 		0-28050-816-0 04 1 0710- ●
62 BOLT; BRKT FIX
(B) M8X20 FLANGE 		0-28050-820-0 02 1 0710-0711 ●
62 BOLT; BRKT FIX
(B) M8X20 FLANGE 		0-28050-820-0 02 1 0710-0711 ●
62 BOLT; BRKT FIX
(B) M8X25 FLANGE 		0-28650-825-0 02 1 0712-0803 ●
62 BOLT; BRKT FIX
(B) M8X25 FLANGE 		0-28650-825-0 02 1 0712-0803 ●
62 BOLT; BRKT FIX
(B) M8X25 FLANGE 		0-28650-825-0 04 1 0804- ●
62 BOLT; BRKT FIX
(A) M8X30 FLANGE 		0-28650-830-0 02 1 0710- ● ●
63 NUT; BRKT FIX
(A) M8 FLANGE 		0-91180-108-0 02 1 0804- ● ●
63 NUT; BRKT FIX
(B) M8 		0-91110-508-0 02 1 0710-0711 ●
63 NUT; BRKT FIX
(B) M8 		0-91110-508-0 02 1 0710-0711 ●
63 NUT; BRKT FIX
(A) M8 FLANGE 		0-91180-108-0 02 1 0710-0711 ● ●
63 NUT; BRKT FIX
(A) M8 FLANGE 		0-91180-108-0 02 1 0712-0803 ● ●
63 NUT; BRKT FIX
(A) M8 FLANGE 		0-91180-108-0 02 1 0712-0803 ●
63 NUT; BRKT FIX
(A) M8 FLANGE 		0-91180-108-0 02 1 0712-0803 ●
63 NUT; BRKT FIX
(A) M8 FLANGE 		0-91180-108-0 04 1 0804- ●
157 RETAINER; VALVE
(B) 		1-48419-036-0 01 1 0710-0803 ●
157 RETAINER; VALVE
(B) 		1-48419-036-0 01 1 0710-0803 ●
157 RETAINER; VALVE
(B) 		1-48419-036-0 02 1 0804-1008 ●
157 RETAINER; VALVE
(B) 		1-48419-020-0 02 1 1009- ●
157 RETAINER; VALVE
(A) 		1-48213-002-0 01 1 0710- ● ●
157 RETAINER; VALVE
(A) 		1-48213-002-0 02 1 0710- ● ●
158 SPRING; VALVE
(B) 		9-48419-003-0 01 1 0710-0803 ●
158 SPRING; VALVE
(B) 		9-48419-003-0 01 1 0710-0803 ●
158 SPRING; VALVE
(B) 		9-48419-003-0 02 1 0804- ●
158 SPRING; VALVE
(A) 		1-47819-089-0 01 1 0710- ● ●
158 SPRING; VALVE
(A) 		1-47819-089-0 02 1 0710- ● ●
216 REPAIR KIT; QUICK RELEASE VLV 1-85579-062-0 01 1 0710-0803 ●
216 REPAIR KIT; QUICK RELEASE VLV 1-85579-062-0 01 1 0710-0803 ●
216 REPAIR KIT; QUICK RELEASE VLV 1-85579-062-0 02 1 0804-1008 ●
216 REPAIR KIT; QUICK RELEASE VLV 8-98171-596-0 02 1 1009- ●
262 SILENCER; RELAY VALVE 1-48219-149-0 02 1 0801-0808 ●
262 SILENCER; RELAY VALVE
EURO4 SPECIFICATION<NT4> 		1-48219-149-0 02 1 0809- ●
262 SILENCER; RELAY VALVE 1-48219-149-0 02 1 0710-0712 ● ●
262 SILENCER; RELAY VALVE 1-48219-149-0 01 1 0801-0808 ● ●
262 SILENCER; RELAY VALVE 1-48219-149-0 01 1 0809- ●
262 SILENCER; RELAY VALVE
ANTI LOCK BRAKE<JE5> AUSTRALIA EQUIPMENT(B13) 		1-48219-149-0 01 1 0809- ●
262 SILENCER; RELAY VALVE 1-48219-149-0 01 1 0710-0712 ● ●
262 SILENCER; RELAY VALVE 1-48219-149-0 01 1 0710-0712 ●
262 SILENCER; RELAY VALVE 1-48219-149-0 03 1 0801-0803 ●
262 SILENCER; RELAY VALVE 1-48219-149-0 04 1 0804- ●
çizim 179200
188 204
BalonParca AdiParca NoAdetTipApplied Date A B
188 REPAIR KIT; HSA VLV
H.S.A SYSTEM<6EP> 		1-85576-304-1 01 1 0710- ● ●
204 PIPE ASM; HSA VLV
H.S.A SYSTEM<6EP> 		1-46366-194-0 01 1 0710- ● ●

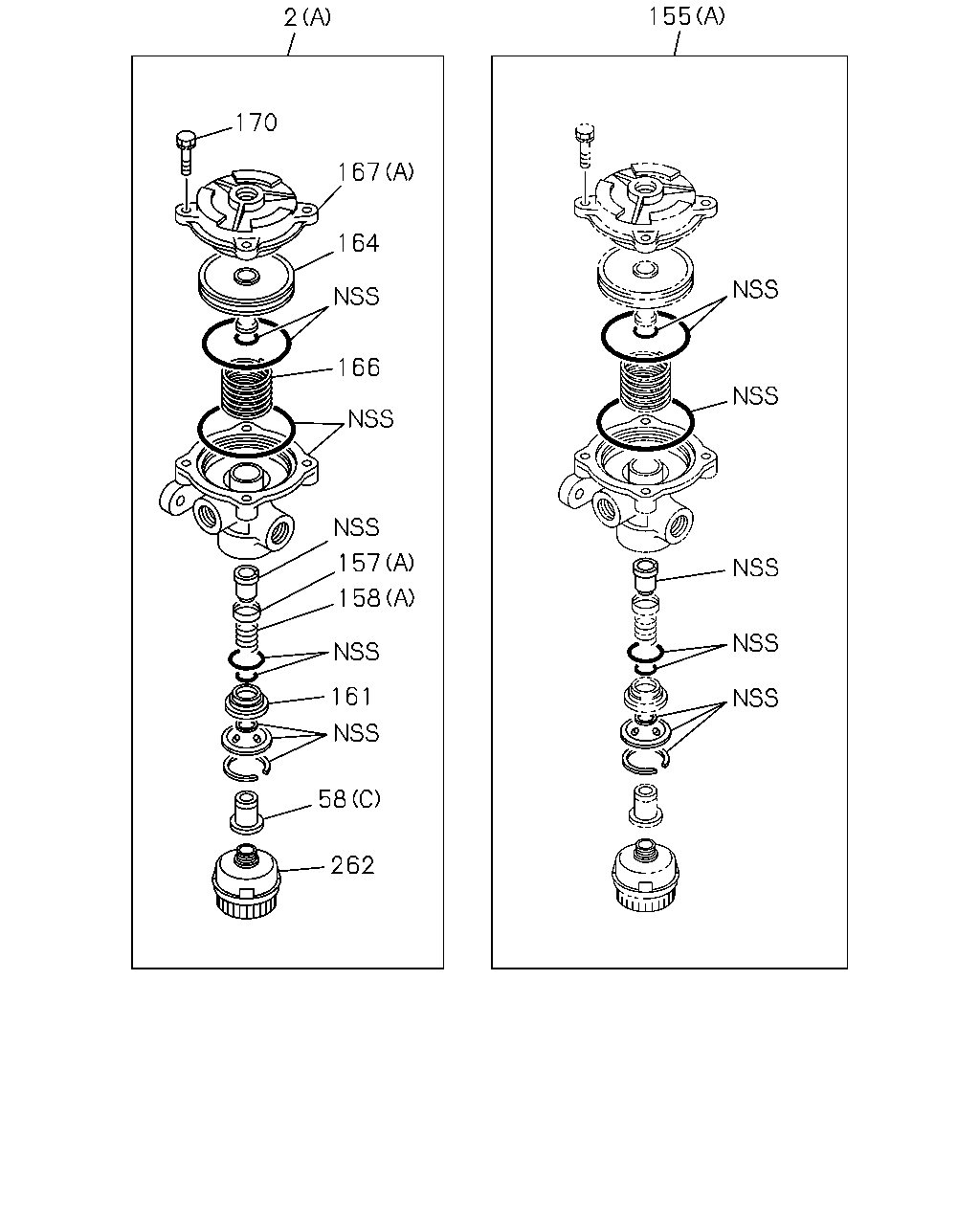

çizim 179303
155 2 170 167 164 166 157 158 161 58 262
BalonParca AdiParca NoAdetTipApplied Date A B
2 VALVE; RELAY
EURO2 SPECIFICATION<NT2> (B) 		1-48210-875-0 02 1 0809- ●
2 VALVE; RELAY
EXC. AUSTRALIA EQUIPMENT(B13) (B) 		1-48210-875-0 01 1 0809- ●
2 VALVE; RELAY
(A) 		1-48210-997-0 01 1 0710-0808 ● ●
2 VALVE; RELAY
(A) 		1-48210-997-0 01 1 0809- ●
2 VALVE; RELAY
ANTI LOCK BRAKE<JE5> AUSTRALIA EQUIPMENT(B13) (A) 		1-48210-997-0 01 1 0809- ●
2 VALVE; RELAY
(A) 		1-48210-997-0 02 1 0710-0808 ● ●
2 VALVE; RELAY
(A) 		1-48210-997-0 02 1 0809- ●
2 VALVE; RELAY
EURO4 SPECIFICATION<NT4> (A) 		1-48210-997-0 02 1 0809- ●
58 ADAPTER
EURO2 SPECIFICATION<NT2> VIN MODEL YEAR 2011<VZB> (D) DIN12 & R3/8 STRAIGHT 		1-09660-965-0 01 1 1012- ●
58 ADAPTER
EURO2 SPECIFICATION<NT2> VIN MODEL YEAR 2011<VZB> (E) 		8-98031-238-0 01 1 1012- ●
58 ADAPTER
EURO2 SPECIFICATION<NT2> VIN MODEL YEAR 2011<VZB> (F) 		8-98148-475-0 01 1 1012- ●
58 ADAPTER
ZF6S1000 M/T(Y5D) EURO2 SPECIFICATION<NT2> VIN MODEL YEAR 2011<VZB> ASSISTOR SHIFT CONTROL<WX8> (G) M12 & PT1/4 3WAY 		1-09656-586-1 01 1 1012- ●
58 ADAPTER
ZF9S1110 M/T(Y5E) EURO2 SPECIFICATION<NT2> VIN MODEL YEAR 2011<VZB> (G) M12 & PT1/4 3WAY 		1-09656-586-1 01 1 1012- ●
58 ADAPTER
ZF6S1000 M/T(Y5D) EURO2 SPECIFICATION<NT2> VIN MODEL YEAR 2011<VZB> ASSISTOR SHIFT CONTROL<WX8> (H) DIN8 & M12 STRAIGHT 		1-09660-873-0 01 1 1012- ●
58 ADAPTER
ZF9S1110 M/T(Y5E) EURO2 SPECIFICATION<NT2> VIN MODEL YEAR 2011<VZB> (H) DIN8 & M12 STRAIGHT 		1-09660-873-0 01 1 1012- ●
58 ADAPTER
(B) INNER PT3/8,OUTER M22 		1-09650-494-1 04 1 0710- ● ●
58 ADAPTER
(A) M20 & RC3/8 STRAIGHT 		1-09660-883-0 01 1 0710-0808 ● ●
58 ADAPTER
(A) M20 & RC3/8 STRAIGHT 		1-09660-883-0 01 1 0809-1011 ●
58 ADAPTER
BRAKE REGULATION ADR(TDU) (A) M20 & RC3/8 STRAIGHT 		1-09660-883-0 01 1 0809-1011 ●
58 ADAPTER
EURO2 SPECIFICATION<NT2> (A) M20 & RC3/8 STRAIGHT 		1-09660-883-0 01 1 0809-1011 ●
58 ADAPTER
EURO4 SPECIFICATION<NT4> EXC. BRAKE REGULATION ADR(TDU) (A) M20 & RC3/8 STRAIGHT 		1-09660-883-0 01 1 0809-1011 ●
58 ADAPTER
(A) M20 & RC3/8 STRAIGHT 		1-09660-883-0 01 1 1012- ●
58 ADAPTER
BRAKE REGULATION ADR(TDU) (A) M20 & RC3/8 STRAIGHT 		1-09660-883-0 01 1 1012- ●
58 ADAPTER
EURO2 SPECIFICATION<NT2> EXC. VIN MODEL YEAR 2011<VZB> (A) M20 & RC3/8 STRAIGHT 		1-09660-883-0 01 1 1012- ●
58 ADAPTER
EURO4 SPECIFICATION<NT4> EXC. BRAKE REGULATION ADR(TDU) (A) M20 & RC3/8 STRAIGHT 		1-09660-883-0 01 1 1012- ●
58 ADAPTER
EURO2 SPECIFICATION<NT2> VIN MODEL YEAR 2011<VZB> (A) M20 & RC3/8 STRAIGHT 		1-09660-883-0 01 1 1012- ●
58 ADAPTER
(C) 		1-48219-154-0 01 1 0710-0808 ● ●
58 ADAPTER
(C) 		1-48219-154-0 01 1 0809- ●
58 ADAPTER
ANTI LOCK BRAKE<JE5> AUSTRALIA EQUIPMENT(B13) (C) 		1-48219-154-0 01 1 0809- ●
58 ADAPTER
(C) 		1-48219-154-0 02 1 0710-0808 ● ●
58 ADAPTER
(C) 		1-48219-154-0 02 1 0809- ●
58 ADAPTER
EURO4 SPECIFICATION<NT4> (C) 		1-48219-154-0 02 1 0809- ●
155 REPAIR KIT; RELAY VALVE
EURO2 SPECIFICATION<NT2> (C) 		1-85576-033-0 02 1 0809- ●
155 REPAIR KIT; RELAY VALVE
EXC. AUSTRALIA EQUIPMENT(B13) (C) 		1-85576-033-0 01 1 0809- ●
155 REPAIR KIT; RELAY VALVE
(A) 		1-85576-294-0 01 1 0710-0808 ● ●
155 REPAIR KIT; RELAY VALVE
(A) 		1-85576-294-0 01 1 0809- ●
155 REPAIR KIT; RELAY VALVE
ANTI LOCK BRAKE<JE5> AUSTRALIA EQUIPMENT(B13) (A) 		1-85576-294-0 01 1 0809- ●
155 REPAIR KIT; RELAY VALVE
(A) 		1-85576-294-0 02 1 0710-0808 ● ●
155 REPAIR KIT; RELAY VALVE
(A) 		1-85576-294-0 02 1 0809- ●
155 REPAIR KIT; RELAY VALVE
EURO4 SPECIFICATION<NT4> (A) 		1-85576-294-0 02 1 0809- ●
155 REPAIR KIT; RELAY VALVE
(B) 		1-85576-408-0 01 1 0710- ● ●
157 RETAINER; VALVE
(B) 		1-48419-036-0 01 1 0710-0803 ●
157 RETAINER; VALVE
(B) 		1-48419-036-0 01 1 0710-0803 ●
157 RETAINER; VALVE
(B) 		1-48419-036-0 02 1 0804-1008 ●
157 RETAINER; VALVE
(B) 		1-48419-020-0 02 1 1009- ●
157 RETAINER; VALVE
(A) 		1-48213-002-0 01 1 0710- ● ●
157 RETAINER; VALVE
(A) 		1-48213-002-0 02 1 0710- ● ●
158 SPRING; VALVE
(B) 		9-48419-003-0 01 1 0710-0803 ●
158 SPRING; VALVE
(B) 		9-48419-003-0 01 1 0710-0803 ●
158 SPRING; VALVE
(B) 		9-48419-003-0 02 1 0804- ●
158 SPRING; VALVE
(A) 		1-47819-089-0 01 1 0710- ● ●
158 SPRING; VALVE
(A) 		1-47819-089-0 02 1 0710- ● ●
161 GUIDE; VALVE 1-48129-014-0 01 1 0710- ● ●
161 GUIDE; VALVE 1-48129-014-0 02 1 0710- ● ●
164 PISTON; RELAY VALVE 1-48219-071-0 01 1 0710- ● ●
164 PISTON; RELAY VALVE 1-48219-071-0 02 1 0710- ● ●
166 SPRING; PISTON 1-47819-090-0 01 1 0710- ● ●
166 SPRING; PISTON 1-47819-090-0 02 1 0710- ● ●
167 COVER; VALVE
(B) 		1-48119-625-0 04 1 0710-0808 ● ●
167 COVER; VALVE
(B) 		1-48119-625-0 04 1 0809-1011 ●
167 COVER; VALVE
BRAKE REGULATION ADR(TDU) (B) 		1-48119-625-0 04 1 0809-1011 ●
167 COVER; VALVE
EURO2 SPECIFICATION<NT2> (B) 		1-48119-625-0 04 1 0809-1011 ●
167 COVER; VALVE
EURO4 SPECIFICATION<NT4> EXC. BRAKE REGULATION ADR(TDU) (B) 		1-48119-625-0 04 1 0809-1011 ●
167 COVER; VALVE
(B) 		1-48119-625-0 04 1 1012-1506 ●
167 COVER; VALVE
BRAKE REGULATION ADR(TDU) (B) 		1-48119-625-0 04 1 1012-1506 ●
167 COVER; VALVE
EURO2 SPECIFICATION<NT2> EXC. VIN MODEL YEAR 2011<VZB> (B) 		1-48119-625-0 04 1 1012-1506 ●
167 COVER; VALVE
EURO4 SPECIFICATION<NT4> EXC. BRAKE REGULATION ADR(TDU) (B) 		1-48119-625-0 04 1 1012-1506 ●
167 COVER; VALVE
EURO2 SPECIFICATION<NT2> VIN MODEL YEAR 2011<VZB> (B) 		1-48119-625-0 04 1 1012-1506 ●
167 COVER; VALVE
(B) 		1-48119-625-0 04 1 1507- ●
167 COVER; VALVE
BRAKE REGULATION ADR(TDU) (B) 		1-48119-625-0 04 1 1507- ●
167 COVER; VALVE
(A) 		1-48219-070-0 01 1 0710- ● ●
167 COVER; VALVE
(A) 		1-48219-070-0 02 1 0710- ● ●
170 SCREW; COVER TO BODY 1-48219-039-0 04 1 0710- ● ●
170 SCREW; COVER TO BODY 1-48219-039-0 08 1 0710- ● ●
262 SILENCER; RELAY VALVE 1-48219-149-0 02 1 0801-0808 ●
262 SILENCER; RELAY VALVE
EURO4 SPECIFICATION<NT4> 		1-48219-149-0 02 1 0809- ●
262 SILENCER; RELAY VALVE 1-48219-149-0 02 1 0710-0712 ● ●
262 SILENCER; RELAY VALVE 1-48219-149-0 01 1 0801-0808 ● ●
262 SILENCER; RELAY VALVE 1-48219-149-0 01 1 0809- ●
262 SILENCER; RELAY VALVE
ANTI LOCK BRAKE<JE5> AUSTRALIA EQUIPMENT(B13) 		1-48219-149-0 01 1 0809- ●
262 SILENCER; RELAY VALVE 1-48219-149-0 01 1 0710-0712 ● ●
262 SILENCER; RELAY VALVE 1-48219-149-0 01 1 0710-0712 ●
262 SILENCER; RELAY VALVE 1-48219-149-0 03 1 0801-0803 ●
262 SILENCER; RELAY VALVE 1-48219-149-0 04 1 0804- ●

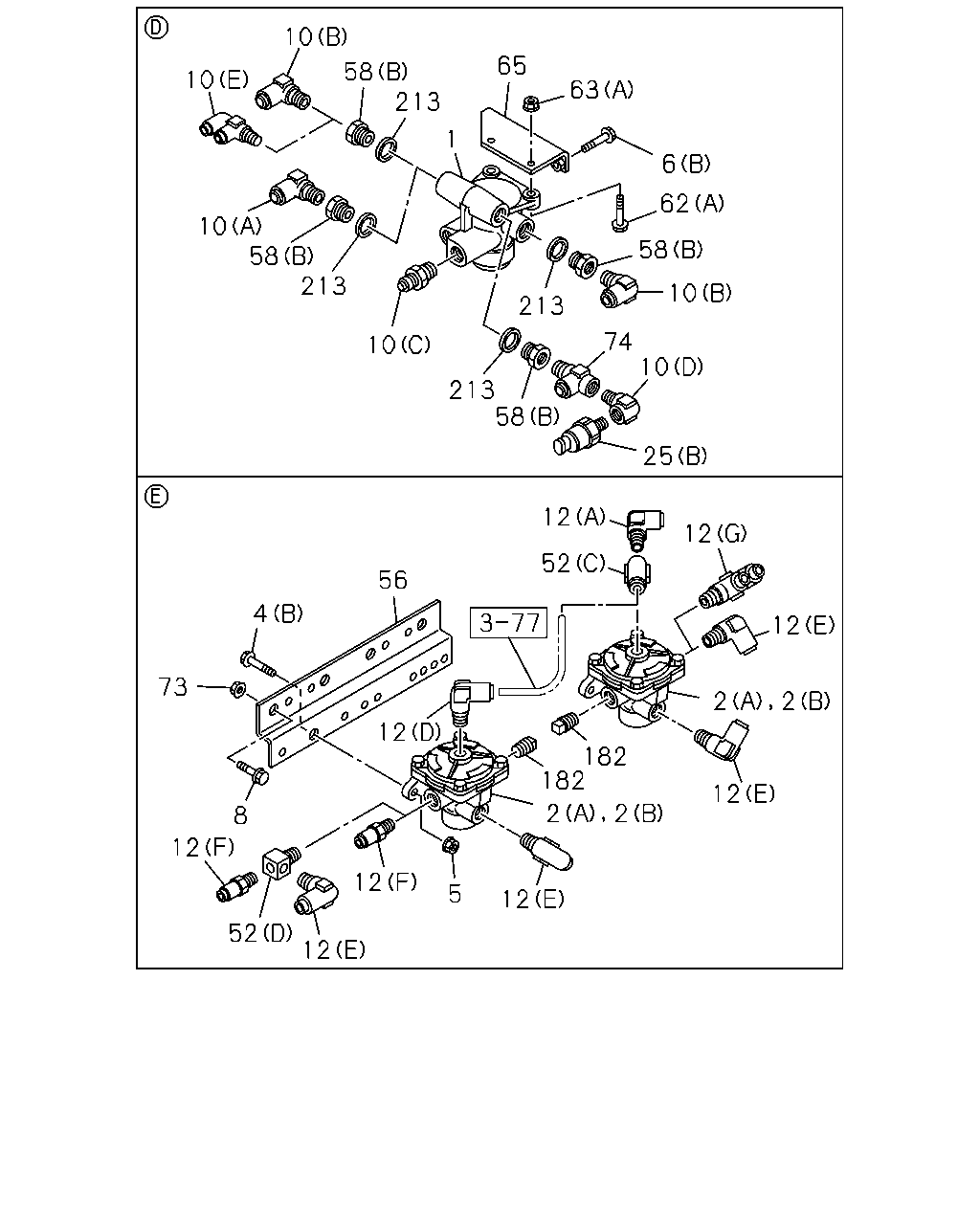

çizim 179315
10 65 58 213 10 63 1 6 62 10 58 213 58 10 213 74 10 10 213 58 25 12 12 52 56 4 12 73 2 2 12 182 182 12 2 2 8 12 12 5 12 52 12
BalonParca AdiParca NoAdetTipApplied Date A B
1 VALVE; RELAY RWD RR 1-48240-354-1 01 1 0710- ● ●
2 VALVE; RELAY
EURO2 SPECIFICATION<NT2> (B) 		1-48210-875-0 02 1 0809- ●
2 VALVE; RELAY
EXC. AUSTRALIA EQUIPMENT(B13) (B) 		1-48210-875-0 01 1 0809- ●
2 VALVE; RELAY
(A) 		1-48210-997-0 01 1 0710-0808 ● ●
2 VALVE; RELAY
(A) 		1-48210-997-0 01 1 0809- ●
2 VALVE; RELAY
ANTI LOCK BRAKE<JE5> AUSTRALIA EQUIPMENT(B13) (A) 		1-48210-997-0 01 1 0809- ●
2 VALVE; RELAY
(A) 		1-48210-997-0 02 1 0710-0808 ● ●
2 VALVE; RELAY
(A) 		1-48210-997-0 02 1 0809- ●
2 VALVE; RELAY
EURO4 SPECIFICATION<NT4> (A) 		1-48210-997-0 02 1 0809- ●
4 BOLT; RELAY VLV TO BRKT
(B) M10X35 FLANGE 		0-28651-035-0 02 1 0710- ● ●
4 BOLT; RELAY VLV TO BRKT
(A) M10X30 FLANGE 		0-28651-030-0 04 1 0710-0805 ●
4 BOLT; RELAY VLV TO BRKT
(B) M10X35 FLANGE 		0-28651-035-0 04 1 0806-0808 ●
4 BOLT; RELAY VLV TO BRKT
(B) M10X35 FLANGE 		0-28651-035-0 04 1 0809- ●
5 NUT
M10 FLANGE 		0-91180-210-0 02 1 0710- ● ●
5 NUT
M10 FLANGE 		0-91180-210-0 04 1 0710- ●
6 BOLT; VLV
(B) M8X35 FLANGE 		0-28650-835-0 02 1 0710- ● ●
6 BOLT; VLV
(A) M8X80 FLANGE 		0-28050-880-0 04 1 0710-0808 ● ●
6 BOLT; VLV
(A) M8X80 FLANGE 		0-28050-880-0 04 1 0809-1410 ●
6 BOLT; VLV
ANTI LOCK BRAKE<JE5> (A) M8X80 FLANGE 		0-28050-880-0 04 1 0809-1410 ●
6 BOLT; VLV
(A) M8X85 		1-09044-074-0 04 1 1411- ●
6 BOLT; VLV
ANTI LOCK BRAKE<JE5> (A) M8X85 		1-09044-074-0 04 1 1411- ●
8 BOLT; BRKT
M10X40 FLANGE 		0-28051-040-0 04 1 0710- ●
8 BOLT; BRKT
M8X35 FLANGE 		0-28650-835-0 03 1 0710- ●
10 CONNECTOR
EURO2 SPECIFICATION<NT2> VIN MODEL YEAR 2011<VZB> (F) M12 & PT1/4 3WAY 		1-09656-586-1 01 1 1012- ●
10 CONNECTOR
(E) DIN12X2 & PT3/8 DOUBLE ELBOW 		1-09661-026-0 02 1 0712- ●
10 CONNECTOR
(A) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0710- ● ●
10 CONNECTOR
(C) DIN12 & M22 STRAIGHT 		1-09661-050-0 01 1 0710- ● ●
10 CONNECTOR
(D) PT1/4 2WAY 		1-09660-693-0 01 1 0710- ● ●
10 CONNECTOR
(B) DIN12 & R3/8 ELBOW 		1-09660-959-0 02 1 0710-0711 ● ●
10 CONNECTOR
(B) DIN12 & R3/8 ELBOW 		1-09660-959-0 02 1 0712- ●
12 CONNECTOR; RELAY VLV
EURO2 SPECIFICATION<NT2> EXC. ANTI LOCK BRAKE<JE5> (G) DIN12X2 & PT3/8 DOUBLE ELBOW 		1-09661-026-0 01 1 0809- ●
12 CONNECTOR; RELAY VLV
(E) DIN12 & R3/8 ELBOW 		1-09660-959-0 04 1 0710- ●
12 CONNECTOR; RELAY VLV
(A) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 0710- ● ●
12 CONNECTOR; RELAY VLV
(D) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0710- ● ●
12 CONNECTOR; RELAY VLV
(C) DIN12 & R3/8 ELBOW 		1-09660-959-0 02 1 0710- ● ●
12 CONNECTOR; RELAY VLV
(F) DIN12 & R3/8 STRAIGHT 		1-09660-965-0 01 1 0710- ● ●
12 CONNECTOR; RELAY VLV
(B) 		1-09661-207-0 01 1 0710- ● ●
12 CONNECTOR; RELAY VLV
(E) DIN12 & R3/8 ELBOW 		1-09660-959-0 03 1 0710- ●
25 SWITCH; PRESSURE
(A) STAMP 5.5 		8-97609-249-0 01 1 0710-0808 ● ●
25 SWITCH; PRESSURE
(A) STAMP 5.5 		8-97609-249-0 01 1 0809-1011 ●
25 SWITCH; PRESSURE
BRAKE REGULATION ADR(TDU) (A) STAMP 5.5 		8-97609-249-0 01 1 0809-1011 ●
25 SWITCH; PRESSURE
EURO2 SPECIFICATION<NT2> (A) STAMP 5.5 		8-97609-249-0 01 1 0809-1011 ●
25 SWITCH; PRESSURE
EURO4 SPECIFICATION<NT4> EXC. BRAKE REGULATION ADR(TDU) (A) STAMP 5.5 		8-97609-249-0 01 1 0809-1011 ●
25 SWITCH; PRESSURE
(A) STAMP 5.5 		8-97609-249-0 01 1 1012- ●
25 SWITCH; PRESSURE
BRAKE REGULATION ADR(TDU) (A) STAMP 5.5 		8-97609-249-0 01 1 1012- ●
25 SWITCH; PRESSURE
EURO2 SPECIFICATION<NT2> EXC. VIN MODEL YEAR 2011<VZB> (A) STAMP 5.5 		8-97609-249-0 01 1 1012- ●
25 SWITCH; PRESSURE
EURO4 SPECIFICATION<NT4> EXC. BRAKE REGULATION ADR(TDU) (A) STAMP 5.5 		8-97609-249-0 01 1 1012- ●
25 SWITCH; PRESSURE
EURO2 SPECIFICATION<NT2> VIN MODEL YEAR 2011<VZB> (A) STAMP 5.5 		8-97609-249-0 01 1 1012- ●
25 SWITCH; PRESSURE
(B) STAMP 2.0 		8-98010-856-2 01 1 0710- ● ●
52 CONNECTOR; RELAY VLV
EURO2 SPECIFICATION<NT2> EXC. ANTI LOCK BRAKE<JE5> (D) PT3/8 3WAY 		1-09661-300-0 01 1 0809-1111 ●
52 CONNECTOR; RELAY VLV
EURO2 SPECIFICATION<NT2> EXC. ANTI LOCK BRAKE<JE5> (D) DIN9 & RC3/8 ELBOW 		8-98203-578-0 01 1 1112- ●
52 CONNECTOR; RELAY VLV
H.S.A SYSTEM<6EP> (A) DIN8 & R3/8 STRAIGHT 		1-09660-964-0 01 1 0710-0808 ● ●
52 CONNECTOR; RELAY VLV
H.S.A SYSTEM<6EP> (A) DIN8 & R3/8 STRAIGHT 		1-09660-964-0 01 1 0809- ●
52 CONNECTOR; RELAY VLV
H.S.A SYSTEM<6EP> EXC. AUSTRALIA EQUIPMENT(B13),ANTI LOCK BRAKE<JE5> (A) DIN8 & R3/8 STRAIGHT 		1-09660-964-0 01 1 0809- ●
52 CONNECTOR; RELAY VLV
ANTI LOCK BRAKE<JE5> H.S.A SYSTEM<6EP> (A) DIN8 & R3/8 STRAIGHT 		1-09660-964-0 01 1 0809- ●
52 CONNECTOR; RELAY VLV
(C) 		1-09661-537-0 01 1 0710-0811 ● ●
52 CONNECTOR; RELAY VLV
(C) DIN8 & RC1/4 & R3/8 3WAY 		8-97620-116-0 01 1 0812- ● ●
52 CONNECTOR; RELAY VLV
EXC. H.S.A SYSTEM<6EP> (B) DIN8X2 & R3/8 3WAY 		1-09660-997-0 01 1 0710-0808 ● ●
52 CONNECTOR; RELAY VLV
EXC. H.S.A SYSTEM<6EP> (B) DIN8X2 & R3/8 3WAY 		1-09660-997-0 01 1 0809- ●
52 CONNECTOR; RELAY VLV
EXC. AUSTRALIA EQUIPMENT(B13),ANTI LOCK BRAKE<JE5> ,H.S.A SYSTEM<6EP> (B) DIN8X2 & R3/8 3WAY 		1-09660-997-0 01 1 0809- ●
52 CONNECTOR; RELAY VLV
ANTI LOCK BRAKE<JE5> EXC. H.S.A SYSTEM<6EP> (B) DIN8X2 & R3/8 3WAY 		1-09660-997-0 01 1 0809- ●
56 BRACKET; RELAY VLV 1-47479-937-0 01 1 0710- ●
58 ADAPTER
EURO2 SPECIFICATION<NT2> VIN MODEL YEAR 2011<VZB> (D) DIN12 & R3/8 STRAIGHT 		1-09660-965-0 01 1 1012- ●
58 ADAPTER
EURO2 SPECIFICATION<NT2> VIN MODEL YEAR 2011<VZB> (E) 		8-98031-238-0 01 1 1012- ●
58 ADAPTER
EURO2 SPECIFICATION<NT2> VIN MODEL YEAR 2011<VZB> (F) 		8-98148-475-0 01 1 1012- ●
58 ADAPTER
ZF6S1000 M/T(Y5D) EURO2 SPECIFICATION<NT2> VIN MODEL YEAR 2011<VZB> ASSISTOR SHIFT CONTROL<WX8> (G) M12 & PT1/4 3WAY 		1-09656-586-1 01 1 1012- ●
58 ADAPTER
ZF9S1110 M/T(Y5E) EURO2 SPECIFICATION<NT2> VIN MODEL YEAR 2011<VZB> (G) M12 & PT1/4 3WAY 		1-09656-586-1 01 1 1012- ●
58 ADAPTER
ZF6S1000 M/T(Y5D) EURO2 SPECIFICATION<NT2> VIN MODEL YEAR 2011<VZB> ASSISTOR SHIFT CONTROL<WX8> (H) DIN8 & M12 STRAIGHT 		1-09660-873-0 01 1 1012- ●
58 ADAPTER
ZF9S1110 M/T(Y5E) EURO2 SPECIFICATION<NT2> VIN MODEL YEAR 2011<VZB> (H) DIN8 & M12 STRAIGHT 		1-09660-873-0 01 1 1012- ●
58 ADAPTER
(B) INNER PT3/8,OUTER M22 		1-09650-494-1 04 1 0710- ● ●
58 ADAPTER
(A) M20 & RC3/8 STRAIGHT 		1-09660-883-0 01 1 0710-0808 ● ●
58 ADAPTER
(A) M20 & RC3/8 STRAIGHT 		1-09660-883-0 01 1 0809-1011 ●
58 ADAPTER
BRAKE REGULATION ADR(TDU) (A) M20 & RC3/8 STRAIGHT 		1-09660-883-0 01 1 0809-1011 ●
58 ADAPTER
EURO2 SPECIFICATION<NT2> (A) M20 & RC3/8 STRAIGHT 		1-09660-883-0 01 1 0809-1011 ●
58 ADAPTER
EURO4 SPECIFICATION<NT4> EXC. BRAKE REGULATION ADR(TDU) (A) M20 & RC3/8 STRAIGHT 		1-09660-883-0 01 1 0809-1011 ●
58 ADAPTER
(A) M20 & RC3/8 STRAIGHT 		1-09660-883-0 01 1 1012- ●
58 ADAPTER
BRAKE REGULATION ADR(TDU) (A) M20 & RC3/8 STRAIGHT 		1-09660-883-0 01 1 1012- ●
58 ADAPTER
EURO2 SPECIFICATION<NT2> EXC. VIN MODEL YEAR 2011<VZB> (A) M20 & RC3/8 STRAIGHT 		1-09660-883-0 01 1 1012- ●
58 ADAPTER
EURO4 SPECIFICATION<NT4> EXC. BRAKE REGULATION ADR(TDU) (A) M20 & RC3/8 STRAIGHT 		1-09660-883-0 01 1 1012- ●
58 ADAPTER
EURO2 SPECIFICATION<NT2> VIN MODEL YEAR 2011<VZB> (A) M20 & RC3/8 STRAIGHT 		1-09660-883-0 01 1 1012- ●
58 ADAPTER
(C) 		1-48219-154-0 01 1 0710-0808 ● ●
58 ADAPTER
(C) 		1-48219-154-0 01 1 0809- ●
58 ADAPTER
ANTI LOCK BRAKE<JE5> AUSTRALIA EQUIPMENT(B13) (C) 		1-48219-154-0 01 1 0809- ●
58 ADAPTER
(C) 		1-48219-154-0 02 1 0710-0808 ● ●
58 ADAPTER
(C) 		1-48219-154-0 02 1 0809- ●
58 ADAPTER
EURO4 SPECIFICATION<NT4> (C) 		1-48219-154-0 02 1 0809- ●
62 BOLT; BRKT FIX
(B) M8X20 FLANGE 		0-28050-820-0 02 1 0710-0711 ●
62 BOLT; BRKT FIX
(B) M8X20 FLANGE 		0-28050-820-0 02 1 0710-0711 ●
62 BOLT; BRKT FIX
(B) M8X25 FLANGE 		0-28650-825-0 02 1 0712-0803 ●
62 BOLT; BRKT FIX
(B) M8X25 FLANGE 		0-28650-825-0 02 1 0712-0803 ●
62 BOLT; BRKT FIX
(B) M8X25 FLANGE 		0-28650-825-0 04 1 0804- ●
62 BOLT; BRKT FIX
(A) M8X30 FLANGE 		0-28650-830-0 02 1 0710- ● ●
63 NUT; BRKT FIX
(A) M8 FLANGE 		0-91180-108-0 02 1 0804- ● ●
63 NUT; BRKT FIX
(B) M8 		0-91110-508-0 02 1 0710-0711 ●
63 NUT; BRKT FIX
(B) M8 		0-91110-508-0 02 1 0710-0711 ●
63 NUT; BRKT FIX
(A) M8 FLANGE 		0-91180-108-0 02 1 0710-0711 ● ●
63 NUT; BRKT FIX
(A) M8 FLANGE 		0-91180-108-0 02 1 0712-0803 ● ●
63 NUT; BRKT FIX
(A) M8 FLANGE 		0-91180-108-0 02 1 0712-0803 ●
63 NUT; BRKT FIX
(A) M8 FLANGE 		0-91180-108-0 02 1 0712-0803 ●
63 NUT; BRKT FIX
(A) M8 FLANGE 		0-91180-108-0 04 1 0804- ●
65 BRACKET; RELAY VLV RR 1-47471-032-0 01 1 0710- ● ●
73 NUT; BRKT
M10 FLANGE 		0-91180-210-0 04 1 0710- ●
73 NUT; BRKT
M8 FLANGE 		0-91180-108-0 03 1 0710- ●
74 CONNECTOR; 3WAY
DIN8 & RC1/4 & R3/8 3WAY 		1-09661-536-0 01 1 0710- ● ●
182 PLUG; RELAY VLV
PT3/8 		9-09204-517-0 03 1 0710- ●
182 PLUG; RELAY VLV
PT3/8 		9-09204-517-0 02 1 0710- ●
213 GASKET
ID=22.5 		9-09571-422-0 04 1 0710- ● ●

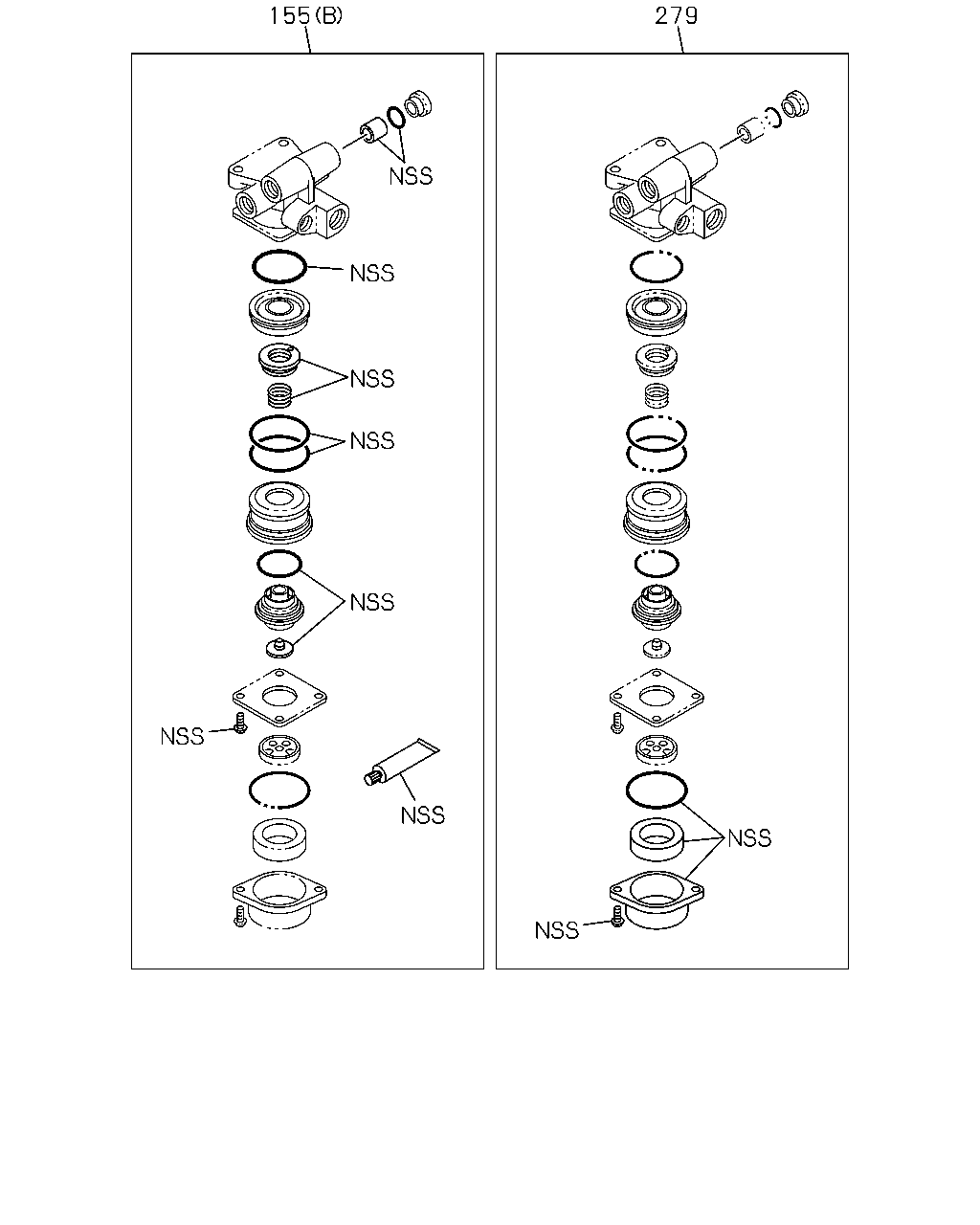

çizim 179334
155 279
BalonParca AdiParca NoAdetTipApplied Date A B
155 REPAIR KIT; RELAY VALVE
EURO2 SPECIFICATION<NT2> (C) 		1-85576-033-0 02 1 0809- ●
155 REPAIR KIT; RELAY VALVE
EXC. AUSTRALIA EQUIPMENT(B13) (C) 		1-85576-033-0 01 1 0809- ●
155 REPAIR KIT; RELAY VALVE
(A) 		1-85576-294-0 01 1 0710-0808 ● ●
155 REPAIR KIT; RELAY VALVE
(A) 		1-85576-294-0 01 1 0809- ●
155 REPAIR KIT; RELAY VALVE
ANTI LOCK BRAKE<JE5> AUSTRALIA EQUIPMENT(B13) (A) 		1-85576-294-0 01 1 0809- ●
155 REPAIR KIT; RELAY VALVE
(A) 		1-85576-294-0 02 1 0710-0808 ● ●
155 REPAIR KIT; RELAY VALVE
(A) 		1-85576-294-0 02 1 0809- ●
155 REPAIR KIT; RELAY VALVE
EURO4 SPECIFICATION<NT4> (A) 		1-85576-294-0 02 1 0809- ●
155 REPAIR KIT; RELAY VALVE
(B) 		1-85576-408-0 01 1 0710- ● ●
279 REPAIR KIT; SILENCER 1-85576-409-0 01 1 0710- ● ●

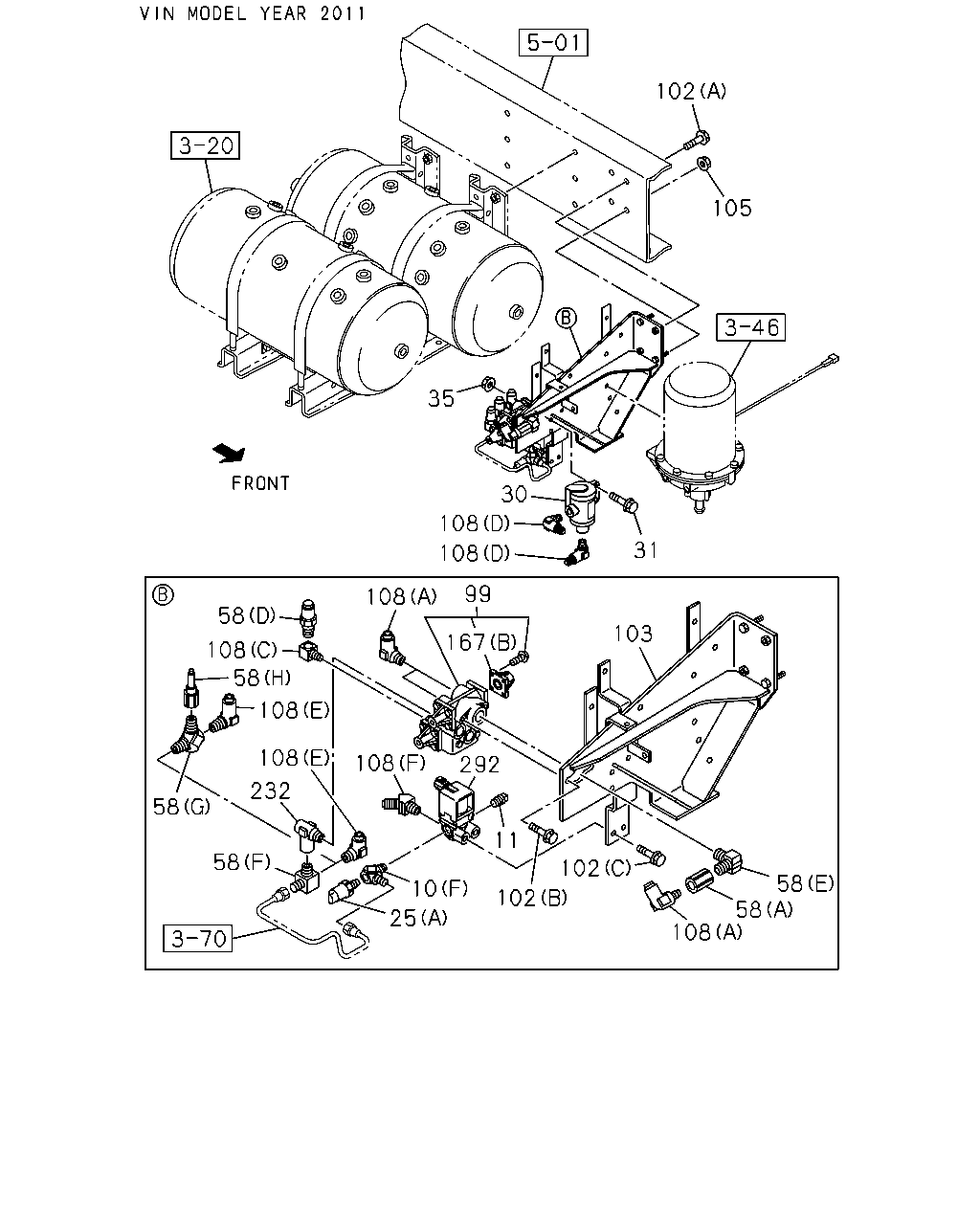

çizim 179342
102 105 35 30 31 108 108 108 99 167 103 108 292 102 58 8 108 102 11 10 25 58 58 58 108 58 108 108 232
BalonParca AdiParca NoAdetTipApplied Date A B
8 BOLT; BRKT
M10X40 FLANGE 		0-28051-040-0 04 1 0710- ●
8 BOLT; BRKT
M8X35 FLANGE 		0-28650-835-0 03 1 0710- ●
10 CONNECTOR
EURO2 SPECIFICATION<NT2> VIN MODEL YEAR 2011<VZB> (F) M12 & PT1/4 3WAY 		1-09656-586-1 01 1 1012- ●
10 CONNECTOR
(E) DIN12X2 & PT3/8 DOUBLE ELBOW 		1-09661-026-0 02 1 0712- ●
10 CONNECTOR
(A) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0710- ● ●
10 CONNECTOR
(C) DIN12 & M22 STRAIGHT 		1-09661-050-0 01 1 0710- ● ●
10 CONNECTOR
(D) PT1/4 2WAY 		1-09660-693-0 01 1 0710- ● ●
10 CONNECTOR
(B) DIN12 & R3/8 ELBOW 		1-09660-959-0 02 1 0710-0711 ● ●
10 CONNECTOR
(B) DIN12 & R3/8 ELBOW 		1-09660-959-0 02 1 0712- ●
11 PLUG
EURO2 SPECIFICATION<NT2> VIN MODEL YEAR 2011<VZB> PT1/4 		9-99204-513-0 01 1 1012- ●
25 SWITCH; PRESSURE
(A) STAMP 5.5 		8-97609-249-0 01 1 0710-0808 ● ●
25 SWITCH; PRESSURE
(A) STAMP 5.5 		8-97609-249-0 01 1 0809-1011 ●
25 SWITCH; PRESSURE
BRAKE REGULATION ADR(TDU) (A) STAMP 5.5 		8-97609-249-0 01 1 0809-1011 ●
25 SWITCH; PRESSURE
EURO2 SPECIFICATION<NT2> (A) STAMP 5.5 		8-97609-249-0 01 1 0809-1011 ●
25 SWITCH; PRESSURE
EURO4 SPECIFICATION<NT4> EXC. BRAKE REGULATION ADR(TDU) (A) STAMP 5.5 		8-97609-249-0 01 1 0809-1011 ●
25 SWITCH; PRESSURE
(A) STAMP 5.5 		8-97609-249-0 01 1 1012- ●
25 SWITCH; PRESSURE
BRAKE REGULATION ADR(TDU) (A) STAMP 5.5 		8-97609-249-0 01 1 1012- ●
25 SWITCH; PRESSURE
EURO2 SPECIFICATION<NT2> EXC. VIN MODEL YEAR 2011<VZB> (A) STAMP 5.5 		8-97609-249-0 01 1 1012- ●
25 SWITCH; PRESSURE
EURO4 SPECIFICATION<NT4> EXC. BRAKE REGULATION ADR(TDU) (A) STAMP 5.5 		8-97609-249-0 01 1 1012- ●
25 SWITCH; PRESSURE
EURO2 SPECIFICATION<NT2> VIN MODEL YEAR 2011<VZB> (A) STAMP 5.5 		8-97609-249-0 01 1 1012- ●
25 SWITCH; PRESSURE
(B) STAMP 2.0 		8-98010-856-2 01 1 0710- ● ●
30 GOVERNOR; AIR CONT
EURO2 SPECIFICATION<NT2> 		1-48350-093-2 01 1 0809-1008 ●
30 GOVERNOR; AIR CONT
TURBO - CONVENTIONAL<Q5T> 		1-48350-093-2 01 1 1009- ●
31 BOLT; GOV TO FRAME
EURO2 SPECIFICATION<NT2> M8X30 FLANGE 		0-28650-830-0 02 1 0809-1008 ●
31 BOLT; GOV TO FRAME
TURBO - CONVENTIONAL<Q5T> M8X30 FLANGE 		0-28650-830-0 02 1 1009- ●
35 NUT; GOV TO FRAME
EURO2 SPECIFICATION<NT2> M8 FLANGE 		0-91180-108-0 02 1 0809-1008 ●
35 NUT; GOV TO FRAME
TURBO - CONVENTIONAL<Q5T> M8 FLANGE 		0-91180-108-0 02 1 1009- ●
58 ADAPTER
EURO2 SPECIFICATION<NT2> VIN MODEL YEAR 2011<VZB> (D) DIN12 & R3/8 STRAIGHT 		1-09660-965-0 01 1 1012- ●
58 ADAPTER
EURO2 SPECIFICATION<NT2> VIN MODEL YEAR 2011<VZB> (E) 		8-98031-238-0 01 1 1012- ●
58 ADAPTER
EURO2 SPECIFICATION<NT2> VIN MODEL YEAR 2011<VZB> (F) 		8-98148-475-0 01 1 1012- ●
58 ADAPTER
ZF6S1000 M/T(Y5D) EURO2 SPECIFICATION<NT2> VIN MODEL YEAR 2011<VZB> ASSISTOR SHIFT CONTROL<WX8> (G) M12 & PT1/4 3WAY 		1-09656-586-1 01 1 1012- ●
58 ADAPTER
ZF9S1110 M/T(Y5E) EURO2 SPECIFICATION<NT2> VIN MODEL YEAR 2011<VZB> (G) M12 & PT1/4 3WAY 		1-09656-586-1 01 1 1012- ●
58 ADAPTER
ZF6S1000 M/T(Y5D) EURO2 SPECIFICATION<NT2> VIN MODEL YEAR 2011<VZB> ASSISTOR SHIFT CONTROL<WX8> (H) DIN8 & M12 STRAIGHT 		1-09660-873-0 01 1 1012- ●
58 ADAPTER
ZF9S1110 M/T(Y5E) EURO2 SPECIFICATION<NT2> VIN MODEL YEAR 2011<VZB> (H) DIN8 & M12 STRAIGHT 		1-09660-873-0 01 1 1012- ●
58 ADAPTER
(B) INNER PT3/8,OUTER M22 		1-09650-494-1 04 1 0710- ● ●
58 ADAPTER
(A) M20 & RC3/8 STRAIGHT 		1-09660-883-0 01 1 0710-0808 ● ●
58 ADAPTER
(A) M20 & RC3/8 STRAIGHT 		1-09660-883-0 01 1 0809-1011 ●
58 ADAPTER
BRAKE REGULATION ADR(TDU) (A) M20 & RC3/8 STRAIGHT 		1-09660-883-0 01 1 0809-1011 ●
58 ADAPTER
EURO2 SPECIFICATION<NT2> (A) M20 & RC3/8 STRAIGHT 		1-09660-883-0 01 1 0809-1011 ●
58 ADAPTER
EURO4 SPECIFICATION<NT4> EXC. BRAKE REGULATION ADR(TDU) (A) M20 & RC3/8 STRAIGHT 		1-09660-883-0 01 1 0809-1011 ●
58 ADAPTER
(A) M20 & RC3/8 STRAIGHT 		1-09660-883-0 01 1 1012- ●
58 ADAPTER
BRAKE REGULATION ADR(TDU) (A) M20 & RC3/8 STRAIGHT 		1-09660-883-0 01 1 1012- ●

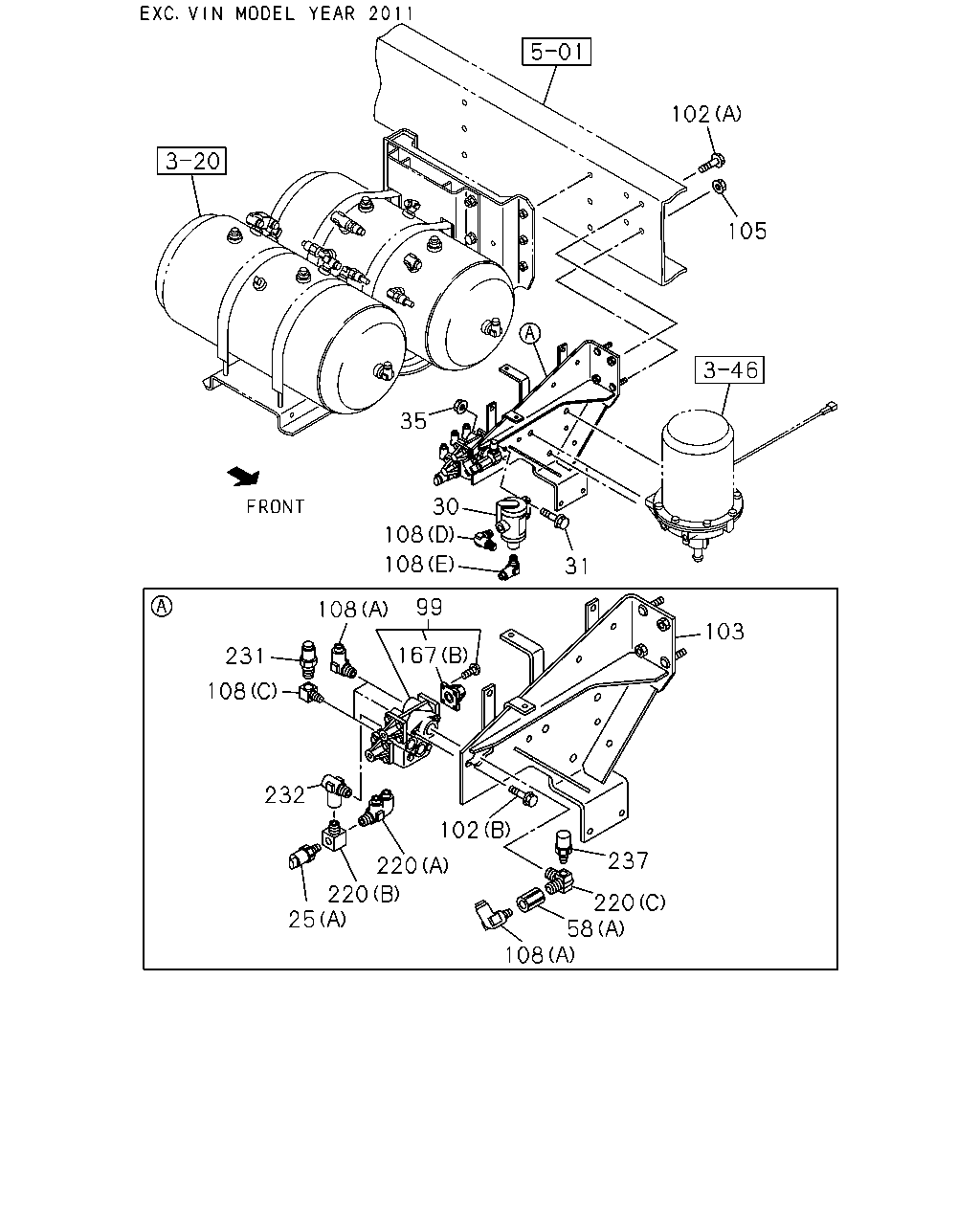

58 ADAPTER
EURO2 SPECIFICATION<NT2> EXC. VIN MODEL YEAR 2011<VZB> (A) M20 & RC3/8 STRAIGHT 		1-09660-883-0 01 1 1012- ●
58 ADAPTER
EURO4 SPECIFICATION<NT4> EXC. BRAKE REGULATION ADR(TDU) (A) M20 & RC3/8 STRAIGHT 		1-09660-883-0 01 1 1012- ●
58 ADAPTER
EURO2 SPECIFICATION<NT2> VIN MODEL YEAR 2011<VZB> (A) M20 & RC3/8 STRAIGHT 		1-09660-883-0 01 1 1012- ●
58 ADAPTER
(C) 		1-48219-154-0 01 1 0710-0808 ● ●
58 ADAPTER
(C) 		1-48219-154-0 01 1 0809- ●
58 ADAPTER
ANTI LOCK BRAKE<JE5> AUSTRALIA EQUIPMENT(B13) (C) 		1-48219-154-0 01 1 0809- ●
58 ADAPTER
(C) 		1-48219-154-0 02 1 0710-0808 ● ●
58 ADAPTER
(C) 		1-48219-154-0 02 1 0809- ●
58 ADAPTER
EURO4 SPECIFICATION<NT4> (C) 		1-48219-154-0 02 1 0809- ●
99 VALVE; PROTECTION 1-48110-288-3 01 1 0809- ●
99 VALVE; PROTECTION 1-48110-294-3 01 1 0710-0808 ● ●
99 VALVE; PROTECTION 1-48110-294-3 01 1 0809- ●
99 VALVE; PROTECTION
BRAKE REGULATION ADR(TDU) 		1-48110-294-3 01 1 0809- ●
102 BOLT; PROTECTION VALVE
EURO2 SPECIFICATION<NT2> VIN MODEL YEAR 2011<VZB> (C) M8X20 FLANGE 		0-28650-820-0 02 1 1012- ●
102 BOLT; PROTECTION VALVE
(B) M8X16 FLANGE 		0-28050-816-0 02 1 0710-0808 ● ●
102 BOLT; PROTECTION VALVE
(B) M8X16 FLANGE 		0-28050-816-0 02 1 0809-1011 ●
102 BOLT; PROTECTION VALVE
BRAKE REGULATION ADR(TDU) (B) M8X16 FLANGE 		0-28050-816-0 02 1 0809-1011 ●
102 BOLT; PROTECTION VALVE
EURO2 SPECIFICATION<NT2> (B) M8X16 FLANGE 		0-28050-816-0 02 1 0809-1011 ●
102 BOLT; PROTECTION VALVE
EURO4 SPECIFICATION<NT4> EXC. BRAKE REGULATION ADR(TDU) (B) M8X16 FLANGE 		0-28050-816-0 02 1 0809-1011 ●
102 BOLT; PROTECTION VALVE
(B) M8X16 FLANGE 		0-28050-816-0 02 1 1012- ●
102 BOLT; PROTECTION VALVE
BRAKE REGULATION ADR(TDU) (B) M8X16 FLANGE 		0-28050-816-0 02 1 1012- ●
102 BOLT; PROTECTION VALVE
EURO2 SPECIFICATION<NT2> EXC. VIN MODEL YEAR 2011<VZB> (B) M8X16 FLANGE 		0-28050-816-0 02 1 1012- ●
102 BOLT; PROTECTION VALVE
EURO4 SPECIFICATION<NT4> EXC. BRAKE REGULATION ADR(TDU) (B) M8X16 FLANGE 		0-28050-816-0 02 1 1012- ●
102 BOLT; PROTECTION VALVE
EURO2 SPECIFICATION<NT2> VIN MODEL YEAR 2011<VZB> (B) M8X16 FLANGE 		0-28050-816-0 02 1 1012- ●
102 BOLT; PROTECTION VALVE
(A) M10X40 FLANGE 		0-28051-040-0 02 1 0710-0711 ● ●
102 BOLT; PROTECTION VALVE
(A) M10X35 FLANGE 		0-28651-035-0 02 1 0712-0808 ● ●
102 BOLT; PROTECTION VALVE
(A) M10X35 FLANGE 		0-28651-035-0 02 1 0809- ●
102 BOLT; PROTECTION VALVE
AUSTRALIA EQUIPMENT(B13) (A) M10X35 FLANGE 		0-28651-035-0 02 1 0809- ●
102 BOLT; PROTECTION VALVE
EURO2 SPECIFICATION<NT2> EXC. AUSTRALIA EQUIPMENT(B13) (A) M10X35 FLANGE 		0-28651-035-0 02 1 0809- ●
103 BRACKET; PROTECTION VALVE
ZF6S1000 M/T(Y5D) EURO2 SPECIFICATION<NT2> VIN MODEL YEAR 2011<VZB> ASSISTOR SHIFT CONTROL<WX8> EXC. TURBO - CONVENTIONAL<Q5T> 		8-98177-510-0 01 1 1111- ●
103 BRACKET; PROTECTION VALVE
ZF9S1110 M/T(Y5E) EURO2 SPECIFICATION<NT2> VIN MODEL YEAR 2011<VZB> EXC. TURBO - CONVENTIONAL<Q5T> 		8-98177-510-0 01 1 1111- ●
103 BRACKET; PROTECTION VALVE
EURO2 SPECIFICATION<NT2> VIN MODEL YEAR 2011<VZB> 		8-98173-454-0 01 1 1012-1110 ●
103 BRACKET; PROTECTION VALVE
ZF6S1000 M/T(Y5D) EURO2 SPECIFICATION<NT2> VIN MODEL YEAR 2011<VZB> EXC. ASSISTOR SHIFT CONTROL<WX8> 		8-98173-454-0 01 1 1111- ●
103 BRACKET; PROTECTION VALVE
ZF6S1000 M/T(Y5D) EURO2 SPECIFICATION<NT2> TURBO - CONVENTIONAL<Q5T> VIN MODEL YEAR 2011<VZB> ASSISTOR SHIFT CONTROL<WX8> 		8-98173-454-0 01 1 1111- ●
103 BRACKET; PROTECTION VALVE
ZF9S1110 M/T(Y5E) EURO2 SPECIFICATION<NT2> TURBO - CONVENTIONAL<Q5T> VIN MODEL YEAR 2011<VZB> 		8-98173-454-0 01 1 1111- ●
103 BRACKET; PROTECTION VALVE
EURO2 SPECIFICATION<NT2> 		8-98116-826-0 01 1 0809-1011 ●
103 BRACKET; PROTECTION VALVE
EURO2 SPECIFICATION<NT2> EXC. VIN MODEL YEAR 2011<VZB> 		8-98116-826-0 01 1 1012- ●
103 BRACKET; PROTECTION VALVE 8-98073-219-1 01 1 0710-0710 ● ●
103 BRACKET; PROTECTION VALVE 8-98100-094-0 01 1 0711-0801 ● ●
103 BRACKET; PROTECTION VALVE 8-98073-219-1 01 1 0802-0805 ● ●
103 BRACKET; PROTECTION VALVE 8-98119-704-0 01 1 0806-0808 ● ●
103 BRACKET; PROTECTION VALVE 8-98119-704-0 01 1 0809- ●
103 BRACKET; PROTECTION VALVE
BRAKE REGULATION ADR(TDU) 		8-98119-704-0 01 1 0809- ●
103 BRACKET; PROTECTION VALVE
EURO4 SPECIFICATION<NT4> EXC. BRAKE REGULATION ADR(TDU) 		8-98119-704-0 01 1 0809- ●
105 NUT; BRKT,VALVE
M10 FLANGE 		0-91180-210-0 02 1 0710-0808 ● ●
105 NUT; BRKT,VALVE
M10 FLANGE 		0-91180-210-0 02 1 0809- ●
105 NUT; BRKT,VALVE
AUSTRALIA EQUIPMENT(B13) M10 FLANGE 		0-91180-210-0 02 1 0809- ●
105 NUT; BRKT,VALVE
EURO2 SPECIFICATION<NT2> EXC. AUSTRALIA EQUIPMENT(B13) M10 FLANGE 		0-91180-210-0 02 1 0809- ●
108 CONNECTOR; ELBOW
EURO2 SPECIFICATION<NT2> VIN MODEL YEAR 2011<VZB> (F) M12 & PT1/4 ELBOW 		1-48629-258-0 01 1 1012-1503 ●
108 CONNECTOR; ELBOW
EURO2 SPECIFICATION<NT2> VIN MODEL YEAR 2011<VZB> (F) M12 & PT1/4 ELBOW 		8-98299-777-0 01 1 1504- ●
108 CONNECTOR; ELBOW
TURBO - CONVENTIONAL<Q5T> VIN MODEL YEAR 2011<VZB> (D) M12 & PT1/4 ELBOW 		1-09650-430-0 02 1 1012-1012 ●
108 CONNECTOR; ELBOW
TURBO - CONVENTIONAL<Q5T> (D) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 1012- ●
108 CONNECTOR; ELBOW
EURO2 SPECIFICATION<NT2> (E) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 0809-1008 ●
108 CONNECTOR; ELBOW
TURBO - CONVENTIONAL<Q5T> (E) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 1009-1011 ●
108 CONNECTOR; ELBOW
TURBO - CONVENTIONAL<Q5T> EXC. VIN MODEL YEAR 2011<VZB> (E) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 1012-1012 ●
108 CONNECTOR; ELBOW
EURO2 SPECIFICATION<NT2> VIN MODEL YEAR 2011<VZB> (E) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 1012-1012 ●
108 CONNECTOR; ELBOW
TURBO - CONVENTIONAL<Q5T> (E) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 1012- ●
108 CONNECTOR; ELBOW
EURO2 SPECIFICATION<NT2> VIN MODEL YEAR 2011<VZB> (E) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 1012- ●
108 CONNECTOR; ELBOW
EURO2 SPECIFICATION<NT2> (D) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 0809-1008 ●
108 CONNECTOR; ELBOW
TURBO - CONVENTIONAL<Q5T> (D) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 1009-1011 ●
108 CONNECTOR; ELBOW
TURBO - CONVENTIONAL<Q5T> EXC. VIN MODEL YEAR 2011<VZB> (D) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 1012-1012 ●
108 CONNECTOR; ELBOW
(C) PT3/8 ELBOW 		1-09660-696-0 01 1 0710-0808 ● ●
108 CONNECTOR; ELBOW
(C) PT3/8 ELBOW 		1-09660-696-0 01 1 0809-1011 ●
108 CONNECTOR; ELBOW
BRAKE REGULATION ADR(TDU) (C) PT3/8 ELBOW 		1-09660-696-0 01 1 0809-1011 ●
108 CONNECTOR; ELBOW
EURO2 SPECIFICATION<NT2> (C) PT3/8 ELBOW 		1-09660-696-0 01 1 0809-1011 ●
108 CONNECTOR; ELBOW
EURO4 SPECIFICATION<NT4> EXC. BRAKE REGULATION ADR(TDU) (C) PT3/8 ELBOW 		1-09660-696-0 01 1 0809-1011 ●
108 CONNECTOR; ELBOW
(C) PT3/8 ELBOW 		1-09660-696-0 01 1 1012- ●
108 CONNECTOR; ELBOW
BRAKE REGULATION ADR(TDU) (C) PT3/8 ELBOW 		1-09660-696-0 01 1 1012- ●
108 CONNECTOR; ELBOW
EURO2 SPECIFICATION<NT2> EXC. VIN MODEL YEAR 2011<VZB> (C) PT3/8 ELBOW 		1-09660-696-0 01 1 1012- ●
108 CONNECTOR; ELBOW
EURO4 SPECIFICATION<NT4> EXC. BRAKE REGULATION ADR(TDU) (C) PT3/8 ELBOW 		1-09660-696-0 01 1 1012- ●
108 CONNECTOR; ELBOW
EURO2 SPECIFICATION<NT2> VIN MODEL YEAR 2011<VZB> (C) PT3/8 ELBOW 		1-09660-696-0 01 1 1012- ●
108 CONNECTOR; ELBOW
(A) DIN12 & R3/8 ELBOW 		1-09660-959-0 03 1 0710-0808 ● ●
108 CONNECTOR; ELBOW
(A) DIN12 & R3/8 ELBOW 		1-09660-959-0 03 1 0809-1011 ●
108 CONNECTOR; ELBOW
BRAKE REGULATION ADR(TDU) (A) DIN12 & R3/8 ELBOW 		1-09660-959-0 03 1 0809-1011 ●
108 CONNECTOR; ELBOW
EURO2 SPECIFICATION<NT2> (A) DIN12 & R3/8 ELBOW 		1-09660-959-0 03 1 0809-1011 ●
108 CONNECTOR; ELBOW
EURO4 SPECIFICATION<NT4> EXC. BRAKE REGULATION ADR(TDU) (A) DIN12 & R3/8 ELBOW 		1-09660-959-0 03 1 0809-1011 ●
108 CONNECTOR; ELBOW
(A) DIN12 & R3/8 ELBOW 		1-09660-959-0 03 1 1012- ●
108 CONNECTOR; ELBOW
BRAKE REGULATION ADR(TDU) (A) DIN12 & R3/8 ELBOW 		1-09660-959-0 03 1 1012- ●
108 CONNECTOR; ELBOW
EURO2 SPECIFICATION<NT2> EXC. VIN MODEL YEAR 2011<VZB> (A) DIN12 & R3/8 ELBOW 		1-09660-959-0 03 1 1012- ●
108 CONNECTOR; ELBOW
EURO4 SPECIFICATION<NT4> EXC. BRAKE REGULATION ADR(TDU) (A) DIN12 & R3/8 ELBOW 		1-09660-959-0 03 1 1012- ●
108 CONNECTOR; ELBOW
EURO2 SPECIFICATION<NT2> VIN MODEL YEAR 2011<VZB> (A) DIN12 & R3/8 ELBOW 		1-09660-959-0 03 1 1012- ●
108 CONNECTOR; ELBOW
(B) DIN12 & M22 ELBOW 		1-09661-497-0 04 1 0710-0808 ● ●
108 CONNECTOR; ELBOW
(B) DIN12 & M22 ELBOW 		1-09661-497-0 04 1 0809- ●
108 CONNECTOR; ELBOW
ANTI LOCK BRAKE<JE5> (B) DIN12 & M22 ELBOW 		1-09661-497-0 04 1 0809- ●
167 COVER; VALVE
(B) 		1-48119-625-0 04 1 0710-0808 ● ●
167 COVER; VALVE
(B) 		1-48119-625-0 04 1 0809-1011 ●
167 COVER; VALVE
BRAKE REGULATION ADR(TDU) (B) 		1-48119-625-0 04 1 0809-1011 ●
167 COVER; VALVE
EURO2 SPECIFICATION<NT2> (B) 		1-48119-625-0 04 1 0809-1011 ●
167 COVER; VALVE
EURO4 SPECIFICATION<NT4> EXC. BRAKE REGULATION ADR(TDU) (B) 		1-48119-625-0 04 1 0809-1011 ●
167 COVER; VALVE
(B) 		1-48119-625-0 04 1 1012-1506 ●
167 COVER; VALVE
BRAKE REGULATION ADR(TDU) (B) 		1-48119-625-0 04 1 1012-1506 ●
167 COVER; VALVE
EURO2 SPECIFICATION<NT2> EXC. VIN MODEL YEAR 2011<VZB> (B) 		1-48119-625-0 04 1 1012-1506 ●
167 COVER; VALVE
EURO4 SPECIFICATION<NT4> EXC. BRAKE REGULATION ADR(TDU) (B) 		1-48119-625-0 04 1 1012-1506 ●
167 COVER; VALVE
EURO2 SPECIFICATION<NT2> VIN MODEL YEAR 2011<VZB> (B) 		1-48119-625-0 04 1 1012-1506 ●
167 COVER; VALVE
(B) 		1-48119-625-0 04 1 1507- ●
167 COVER; VALVE
BRAKE REGULATION ADR(TDU) (B) 		1-48119-625-0 04 1 1507- ●
167 COVER; VALVE
(A) 		1-48219-070-0 01 1 0710- ● ●
167 COVER; VALVE
(A) 		1-48219-070-0 02 1 0710- ● ●
232 VALVE; CHECK
DIN18 & R3/8 & RC3/8 3WAY 		8-98032-527-0 01 1 0710-0808 ● ●
232 VALVE; CHECK
DIN18 & R3/8 & RC3/8 3WAY 		8-98032-527-0 01 1 0809-1011 ●
232 VALVE; CHECK
BRAKE REGULATION ADR(TDU) DIN18 & R3/8 & RC3/8 3WAY 		8-98032-527-0 01 1 0809-1011 ●
232 VALVE; CHECK
EURO2 SPECIFICATION<NT2> DIN18 & R3/8 & RC3/8 3WAY 		8-98032-527-0 01 1 0809-1011 ●
232 VALVE; CHECK
EURO4 SPECIFICATION<NT4> EXC. BRAKE REGULATION ADR(TDU) DIN18 & R3/8 & RC3/8 3WAY 		8-98032-527-0 01 1 0809-1011 ●
232 VALVE; CHECK
DIN18 & R3/8 & RC3/8 3WAY 		8-98032-527-0 01 1 1012- ●
232 VALVE; CHECK
BRAKE REGULATION ADR(TDU) DIN18 & R3/8 & RC3/8 3WAY 		8-98032-527-0 01 1 1012- ●
232 VALVE; CHECK
EURO2 SPECIFICATION<NT2> EXC. VIN MODEL YEAR 2011<VZB> DIN18 & R3/8 & RC3/8 3WAY 		8-98032-527-0 01 1 1012- ●
232 VALVE; CHECK
EURO4 SPECIFICATION<NT4> EXC. BRAKE REGULATION ADR(TDU) DIN18 & R3/8 & RC3/8 3WAY 		8-98032-527-0 01 1 1012- ●
232 VALVE; CHECK
EURO2 SPECIFICATION<NT2> VIN MODEL YEAR 2011<VZB> DIN18 & R3/8 & RC3/8 3WAY 		8-98032-527-0 01 1 1012- ●
292 VALVE ASM; MAGNETIC
EURO2 SPECIFICATION<NT2> VIN MODEL YEAR 2011<VZB> 		1-82563-871-2 01 1 1012- ●
çizim 179347
195 201 106 189 192 204 202 190 198 203 205 196 199 200 198 205 197 201 199 201 196 203 197 200
BalonParca AdiParca NoAdetTipApplied Date A B
106 VALVE; HSA
H.S.A SYSTEM<6EP> 		1-46362-123-1 01 1 0710- ● ●
189 VALVE ASM; SOLENOID,HSA VLV
H.S.A SYSTEM<6EP> 		1-46366-247-0 01 1 0710- ● ●
190 BODY; SOLENOID VLV,HSA VLV
H.S.A SYSTEM<6EP> 		1-46366-234-0 01 1 0710- ● ●
192 SPRING; SOLENOID VLV,HSA VLV
H.S.A SYSTEM<6EP> 		1-46366-181-0 01 1 0710- ● ●
195 SCREW; SOLENOID VLV,HSA VLV
H.S.A SYSTEM<6EP> 		1-46366-191-0 04 1 0710- ● ●
196 PISTON; HSA VLV
H.S.A SYSTEM<6EP> 		1-46366-232-0 02 1 0710- ● ●
197 SPRING; INNER,HSA VLV
H.S.A SYSTEM<6EP> 		1-46366-161-0 02 1 0710- ● ●
198 PIN; STRAIGHT,HSA VLV
H.S.A SYSTEM<6EP> 		1-46366-122-0 02 1 0710- ● ●
199 RETAINER; HSA VLV
H.S.A SYSTEM<6EP> 		1-46366-121-0 02 1 0710- ● ●
200 SPRING; OUTER,HSA VLV
H.S.A SYSTEM<6EP> 		1-46366-120-0 02 1 0710- ● ●
201 COVER; HSA VLV
H.S.A SYSTEM<6EP> (A) 		1-46366-118-1 02 1 0710- ● ●
201 COVER; HSA VLV
H.S.A SYSTEM<6EP> (B) 		1-46366-241-0 01 1 0710- ● ●
202 FILTER; HSA VLV
H.S.A SYSTEM<6EP> 		1-46366-117-1 02 1 0710- ● ●
203 SCREW; HSA VLV
H.S.A SYSTEM<6EP> 		1-46366-116-1 06 1 0710- ● ●
204 PIPE ASM; HSA VLV
H.S.A SYSTEM<6EP> 		1-46366-194-0 01 1 0710- ● ●
205 BRACKET; HSA VLV
H.S.A SYSTEM<6EP> (A) 		1-46366-149-0 01 1 0710- ● ●
205 BRACKET; HSA VLV
H.S.A SYSTEM<6EP> (B) 		1-46366-150-0 01 1 0710- ● ●

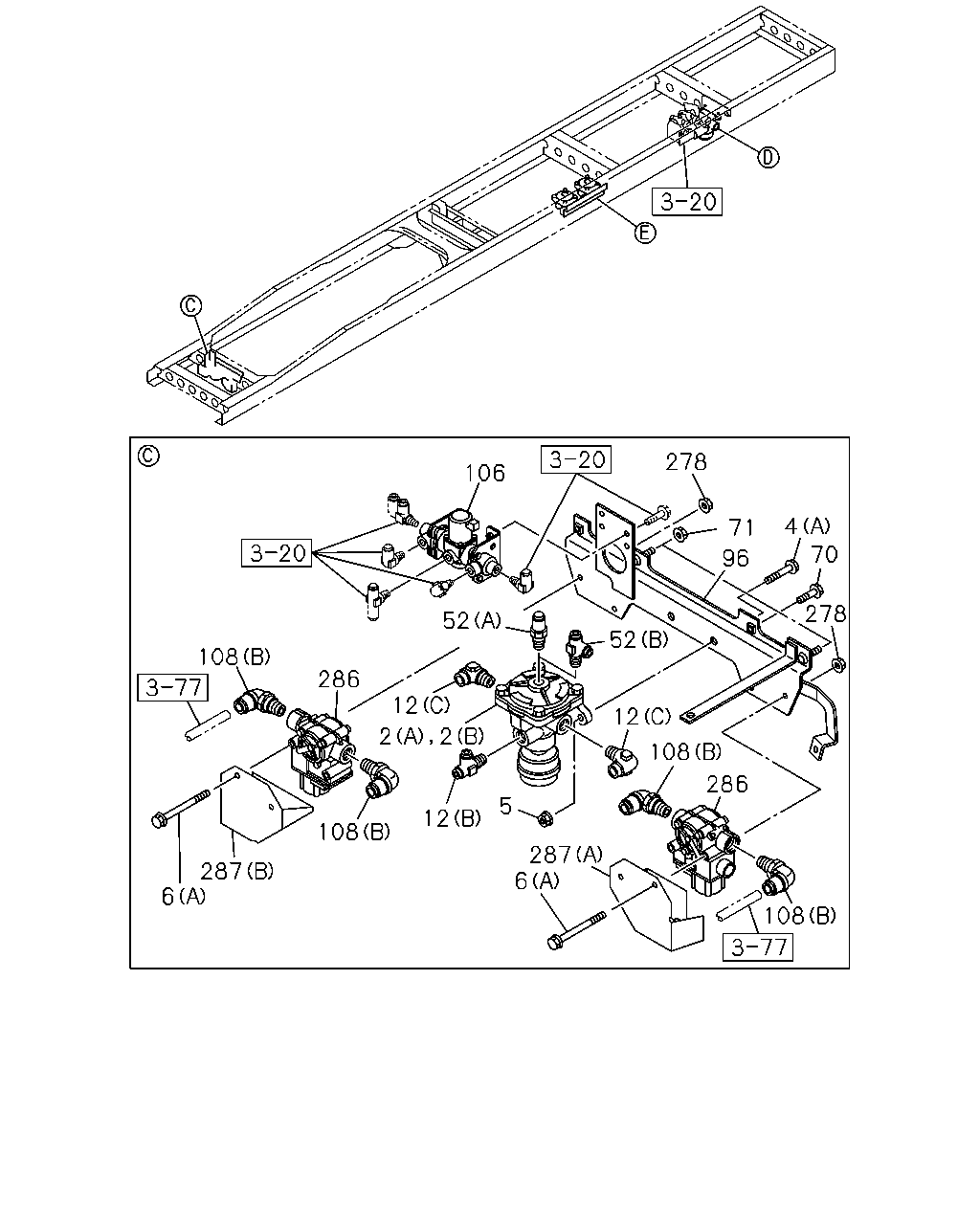

çizim 179363
278 106 4 70 71 96 278 52 52 108 286 12 12 2 2 108 286 5 12 108 287 6 287 6 108
BalonParca AdiParca NoAdetTipApplied Date A B
2 VALVE; RELAY
EURO2 SPECIFICATION<NT2> (B) 		1-48210-875-0 02 1 0809- ●
2 VALVE; RELAY
EXC. AUSTRALIA EQUIPMENT(B13) (B) 		1-48210-875-0 01 1 0809- ●
2 VALVE; RELAY
(A) 		1-48210-997-0 01 1 0710-0808 ● ●
2 VALVE; RELAY
(A) 		1-48210-997-0 01 1 0809- ●
2 VALVE; RELAY
ANTI LOCK BRAKE<JE5> AUSTRALIA EQUIPMENT(B13) (A) 		1-48210-997-0 01 1 0809- ●
2 VALVE; RELAY
(A) 		1-48210-997-0 02 1 0710-0808 ● ●
2 VALVE; RELAY
(A) 		1-48210-997-0 02 1 0809- ●
2 VALVE; RELAY
EURO4 SPECIFICATION<NT4> (A) 		1-48210-997-0 02 1 0809- ●
4 BOLT; RELAY VLV TO BRKT
(B) M10X35 FLANGE 		0-28651-035-0 02 1 0710- ● ●
4 BOLT; RELAY VLV TO BRKT
(A) M10X30 FLANGE 		0-28651-030-0 04 1 0710-0805 ●
4 BOLT; RELAY VLV TO BRKT
(B) M10X35 FLANGE 		0-28651-035-0 04 1 0806-0808 ●
4 BOLT; RELAY VLV TO BRKT
(B) M10X35 FLANGE 		0-28651-035-0 04 1 0809- ●
5 NUT
M10 FLANGE 		0-91180-210-0 02 1 0710- ● ●
5 NUT
M10 FLANGE 		0-91180-210-0 04 1 0710- ●
6 BOLT; VLV
(B) M8X35 FLANGE 		0-28650-835-0 02 1 0710- ● ●
6 BOLT; VLV
(A) M8X80 FLANGE 		0-28050-880-0 04 1 0710-0808 ● ●
6 BOLT; VLV
(A) M8X80 FLANGE 		0-28050-880-0 04 1 0809-1410 ●
6 BOLT; VLV
ANTI LOCK BRAKE<JE5> (A) M8X80 FLANGE 		0-28050-880-0 04 1 0809-1410 ●
6 BOLT; VLV
(A) M8X85 		1-09044-074-0 04 1 1411- ●
6 BOLT; VLV
ANTI LOCK BRAKE<JE5> (A) M8X85 		1-09044-074-0 04 1 1411- ●
12 CONNECTOR; RELAY VLV
EURO2 SPECIFICATION<NT2> EXC. ANTI LOCK BRAKE<JE5> (G) DIN12X2 & PT3/8 DOUBLE ELBOW 		1-09661-026-0 01 1 0809- ●
12 CONNECTOR; RELAY VLV
(E) DIN12 & R3/8 ELBOW 		1-09660-959-0 04 1 0710- ●
12 CONNECTOR; RELAY VLV
(A) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 0710- ● ●
12 CONNECTOR; RELAY VLV
(D) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0710- ● ●
12 CONNECTOR; RELAY VLV
(C) DIN12 & R3/8 ELBOW 		1-09660-959-0 02 1 0710- ● ●
12 CONNECTOR; RELAY VLV
(F) DIN12 & R3/8 STRAIGHT 		1-09660-965-0 01 1 0710- ● ●
12 CONNECTOR; RELAY VLV
(B) 		1-09661-207-0 01 1 0710- ● ●
12 CONNECTOR; RELAY VLV
(E) DIN12 & R3/8 ELBOW 		1-09660-959-0 03 1 0710- ●
52 CONNECTOR; RELAY VLV
EURO2 SPECIFICATION<NT2> EXC. ANTI LOCK BRAKE<JE5> (D) PT3/8 3WAY 		1-09661-300-0 01 1 0809-1111 ●
52 CONNECTOR; RELAY VLV
EURO2 SPECIFICATION<NT2> EXC. ANTI LOCK BRAKE<JE5> (D) DIN9 & RC3/8 ELBOW 		8-98203-578-0 01 1 1112- ●
52 CONNECTOR; RELAY VLV
H.S.A SYSTEM<6EP> (A) DIN8 & R3/8 STRAIGHT 		1-09660-964-0 01 1 0710-0808 ● ●
52 CONNECTOR; RELAY VLV
H.S.A SYSTEM<6EP> (A) DIN8 & R3/8 STRAIGHT 		1-09660-964-0 01 1 0809- ●
52 CONNECTOR; RELAY VLV
H.S.A SYSTEM<6EP> EXC. AUSTRALIA EQUIPMENT(B13),ANTI LOCK BRAKE<JE5> (A) DIN8 & R3/8 STRAIGHT 		1-09660-964-0 01 1 0809- ●
52 CONNECTOR; RELAY VLV
ANTI LOCK BRAKE<JE5> H.S.A SYSTEM<6EP> (A) DIN8 & R3/8 STRAIGHT 		1-09660-964-0 01 1 0809- ●
52 CONNECTOR; RELAY VLV
(C) 		1-09661-537-0 01 1 0710-0811 ● ●
52 CONNECTOR; RELAY VLV
(C) DIN8 & RC1/4 & R3/8 3WAY 		8-97620-116-0 01 1 0812- ● ●
52 CONNECTOR; RELAY VLV
EXC. H.S.A SYSTEM<6EP> (B) DIN8X2 & R3/8 3WAY 		1-09660-997-0 01 1 0710-0808 ● ●
52 CONNECTOR; RELAY VLV
EXC. H.S.A SYSTEM<6EP> (B) DIN8X2 & R3/8 3WAY 		1-09660-997-0 01 1 0809- ●
52 CONNECTOR; RELAY VLV
EXC. AUSTRALIA EQUIPMENT(B13),ANTI LOCK BRAKE<JE5> ,H.S.A SYSTEM<6EP> (B) DIN8X2 & R3/8 3WAY 		1-09660-997-0 01 1 0809- ●
52 CONNECTOR; RELAY VLV
ANTI LOCK BRAKE<JE5> EXC. H.S.A SYSTEM<6EP> (B) DIN8X2 & R3/8 3WAY 		1-09660-997-0 01 1 0809- ●
70 BOLT; AIR VLV
M8X25 FLANGE 		0-28650-825-0 02 1 0710- ● ●
71 NUT; AIR VLV
M8 FLANGE 		0-91180-108-0 02 1 0710- ● ●
96 BRACKET 8-98273-496-0 01 1 1411- ●
96 BRACKET
ANTI LOCK BRAKE<JE5> 		8-98273-496-0 01 1 1411- ●
96 BRACKET 8-98074-613-3 01 1 0710-1410 ● ●
96 BRACKET
EXC. ANTI LOCK BRAKE<JE5> 		8-98074-613-3 01 1 1411- ●
106 VALVE; HSA
H.S.A SYSTEM<6EP> 		1-46362-123-1 01 1 0710- ● ●
108 CONNECTOR; ELBOW
EURO2 SPECIFICATION<NT2> VIN MODEL YEAR 2011<VZB> (F) M12 & PT1/4 ELBOW 		1-48629-258-0 01 1 1012-1503 ●
108 CONNECTOR; ELBOW
EURO2 SPECIFICATION<NT2> VIN MODEL YEAR 2011<VZB> (F) M12 & PT1/4 ELBOW 		8-98299-777-0 01 1 1504- ●
108 CONNECTOR; ELBOW
TURBO - CONVENTIONAL<Q5T> VIN MODEL YEAR 2011<VZB> (D) M12 & PT1/4 ELBOW 		1-09650-430-0 02 1 1012-1012 ●
108 CONNECTOR; ELBOW
TURBO - CONVENTIONAL<Q5T> (D) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 1012- ●
108 CONNECTOR; ELBOW
EURO2 SPECIFICATION<NT2> (E) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 0809-1008 ●
108 CONNECTOR; ELBOW
TURBO - CONVENTIONAL<Q5T> (E) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 1009-1011 ●
108 CONNECTOR; ELBOW
TURBO - CONVENTIONAL<Q5T> EXC. VIN MODEL YEAR 2011<VZB> (E) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 1012-1012 ●
108 CONNECTOR; ELBOW
EURO2 SPECIFICATION<NT2> VIN MODEL YEAR 2011<VZB> (E) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 1012-1012 ●
108 CONNECTOR; ELBOW
TURBO - CONVENTIONAL<Q5T> (E) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 1012- ●
108 CONNECTOR; ELBOW
EURO2 SPECIFICATION<NT2> VIN MODEL YEAR 2011<VZB> (E) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 1012- ●
108 CONNECTOR; ELBOW
EURO2 SPECIFICATION<NT2> (D) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 0809-1008 ●
108 CONNECTOR; ELBOW
TURBO - CONVENTIONAL<Q5T> (D) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 1009-1011 ●
108 CONNECTOR; ELBOW
TURBO - CONVENTIONAL<Q5T> EXC. VIN MODEL YEAR 2011<VZB> (D) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 1012-1012 ●
108 CONNECTOR; ELBOW
(C) PT3/8 ELBOW 		1-09660-696-0 01 1 0710-0808 ● ●
108 CONNECTOR; ELBOW
(C) PT3/8 ELBOW 		1-09660-696-0 01 1 0809-1011 ●
108 CONNECTOR; ELBOW
BRAKE REGULATION ADR(TDU) (C) PT3/8 ELBOW 		1-09660-696-0 01 1 0809-1011 ●
108 CONNECTOR; ELBOW
EURO2 SPECIFICATION<NT2> (C) PT3/8 ELBOW 		1-09660-696-0 01 1 0809-1011 ●
108 CONNECTOR; ELBOW
EURO4 SPECIFICATION<NT4> EXC. BRAKE REGULATION ADR(TDU) (C) PT3/8 ELBOW 		1-09660-696-0 01 1 0809-1011 ●
108 CONNECTOR; ELBOW
(C) PT3/8 ELBOW 		1-09660-696-0 01 1 1012- ●
108 CONNECTOR; ELBOW
BRAKE REGULATION ADR(TDU) (C) PT3/8 ELBOW 		1-09660-696-0 01 1 1012- ●
108 CONNECTOR; ELBOW
EURO2 SPECIFICATION<NT2> EXC. VIN MODEL YEAR 2011<VZB> (C) PT3/8 ELBOW 		1-09660-696-0 01 1 1012- ●
108 CONNECTOR; ELBOW
EURO4 SPECIFICATION<NT4> EXC. BRAKE REGULATION ADR(TDU) (C) PT3/8 ELBOW 		1-09660-696-0 01 1 1012- ●
108 CONNECTOR; ELBOW
EURO2 SPECIFICATION<NT2> VIN MODEL YEAR 2011<VZB> (C) PT3/8 ELBOW 		1-09660-696-0 01 1 1012- ●
108 CONNECTOR; ELBOW
(A) DIN12 & R3/8 ELBOW 		1-09660-959-0 03 1 0710-0808 ● ●
108 CONNECTOR; ELBOW
(A) DIN12 & R3/8 ELBOW 		1-09660-959-0 03 1 0809-1011 ●
108 CONNECTOR; ELBOW
BRAKE REGULATION ADR(TDU) (A) DIN12 & R3/8 ELBOW 		1-09660-959-0 03 1 0809-1011 ●
108 CONNECTOR; ELBOW
EURO2 SPECIFICATION<NT2> (A) DIN12 & R3/8 ELBOW 		1-09660-959-0 03 1 0809-1011 ●
108 CONNECTOR; ELBOW
EURO4 SPECIFICATION<NT4> EXC. BRAKE REGULATION ADR(TDU) (A) DIN12 & R3/8 ELBOW 		1-09660-959-0 03 1 0809-1011 ●
108 CONNECTOR; ELBOW
(A) DIN12 & R3/8 ELBOW 		1-09660-959-0 03 1 1012- ●
108 CONNECTOR; ELBOW
BRAKE REGULATION ADR(TDU) (A) DIN12 & R3/8 ELBOW 		1-09660-959-0 03 1 1012- ●
108 CONNECTOR; ELBOW
EURO2 SPECIFICATION<NT2> EXC. VIN MODEL YEAR 2011<VZB> (A) DIN12 & R3/8 ELBOW 		1-09660-959-0 03 1 1012- ●
108 CONNECTOR; ELBOW
EURO4 SPECIFICATION<NT4> EXC. BRAKE REGULATION ADR(TDU) (A) DIN12 & R3/8 ELBOW 		1-09660-959-0 03 1 1012- ●
108 CONNECTOR; ELBOW
EURO2 SPECIFICATION<NT2> VIN MODEL YEAR 2011<VZB> (A) DIN12 & R3/8 ELBOW 		1-09660-959-0 03 1 1012- ●
108 CONNECTOR; ELBOW
(B) DIN12 & M22 ELBOW 		1-09661-497-0 04 1 0710-0808 ● ●
108 CONNECTOR; ELBOW
(B) DIN12 & M22 ELBOW 		1-09661-497-0 04 1 0809- ●
108 CONNECTOR; ELBOW
ANTI LOCK BRAKE<JE5> (B) DIN12 & M22 ELBOW 		1-09661-497-0 04 1 0809- ●
278 NUT; MODULATOR
M8 FLANGE 		0-91180-108-0 04 1 0710-0712 ● ●
286 MODULATOR; FRT 1-48240-115-0 02 1 0710-0808 ● ●
286 MODULATOR; FRT 1-48240-115-0 02 1 0809-1410 ●
286 MODULATOR; FRT
ANTI LOCK BRAKE<JE5> 		1-48240-115-0 02 1 0809-1410 ●
286 MODULATOR; FRT 8-98215-454-0 02 1 1411- ●
286 MODULATOR; FRT
ANTI LOCK BRAKE<JE5> 		8-98215-454-0 02 1 1411- ●
287 COVER; MODULATOR
(A) 		1-47479-611-1 01 1 0710-0808 ● ●
287 COVER; MODULATOR
(A) 		1-47479-611-1 01 1 0809-1410 ●
287 COVER; MODULATOR
ANTI LOCK BRAKE<JE5> (A) 		1-47479-611-1 01 1 0809-1410 ●
287 COVER; MODULATOR
(B) 		8-98273-493-0 01 1 1411- ●
287 COVER; MODULATOR
ANTI LOCK BRAKE<JE5> (B) 		8-98273-493-0 01 1 1411- ●
287 COVER; MODULATOR
(B) 		8-98073-401-0 01 1 0710-0808 ● ●
287 COVER; MODULATOR
(B) 		8-98073-401-0 01 1 0809-1410 ●
287 COVER; MODULATOR
ANTI LOCK BRAKE<JE5> (B) 		8-98073-401-0 01 1 0809-1410 ●
287 COVER; MODULATOR
(A) 		8-98273-494-0 01 1 1411- ●
287 COVER; MODULATOR
ANTI LOCK BRAKE<JE5> (A) 		8-98273-494-0 01 1 1411- ●
çizim 179364
102 105 35 30 108 31 108 103 237 220 58 108 102 220 220 25 232 108 108 231 99 167
BalonParca AdiParca NoAdetTipApplied Date A B
25 SWITCH; PRESSURE
(A) STAMP 5.5 		8-97609-249-0 01 1 0710-0808 ● ●
25 SWITCH; PRESSURE
(A) STAMP 5.5 		8-97609-249-0 01 1 0809-1011 ●
25 SWITCH; PRESSURE
BRAKE REGULATION ADR(TDU) (A) STAMP 5.5 		8-97609-249-0 01 1 0809-1011 ●
25 SWITCH; PRESSURE
EURO2 SPECIFICATION<NT2> (A) STAMP 5.5 		8-97609-249-0 01 1 0809-1011 ●
25 SWITCH; PRESSURE
EURO4 SPECIFICATION<NT4> EXC. BRAKE REGULATION ADR(TDU) (A) STAMP 5.5 		8-97609-249-0 01 1 0809-1011 ●
25 SWITCH; PRESSURE
(A) STAMP 5.5 		8-97609-249-0 01 1 1012- ●
25 SWITCH; PRESSURE
BRAKE REGULATION ADR(TDU) (A) STAMP 5.5 		8-97609-249-0 01 1 1012- ●
25 SWITCH; PRESSURE
EURO2 SPECIFICATION<NT2> EXC. VIN MODEL YEAR 2011<VZB> (A) STAMP 5.5 		8-97609-249-0 01 1 1012- ●
25 SWITCH; PRESSURE
EURO4 SPECIFICATION<NT4> EXC. BRAKE REGULATION ADR(TDU) (A) STAMP 5.5 		8-97609-249-0 01 1 1012- ●
25 SWITCH; PRESSURE
EURO2 SPECIFICATION<NT2> VIN MODEL YEAR 2011<VZB> (A) STAMP 5.5 		8-97609-249-0 01 1 1012- ●
25 SWITCH; PRESSURE
(B) STAMP 2.0 		8-98010-856-2 01 1 0710- ● ●
30 GOVERNOR; AIR CONT
EURO2 SPECIFICATION<NT2> 		1-48350-093-2 01 1 0809-1008 ●
30 GOVERNOR; AIR CONT
TURBO - CONVENTIONAL<Q5T> 		1-48350-093-2 01 1 1009- ●
31 BOLT; GOV TO FRAME
EURO2 SPECIFICATION<NT2> M8X30 FLANGE 		0-28650-830-0 02 1 0809-1008 ●
31 BOLT; GOV TO FRAME
TURBO - CONVENTIONAL<Q5T> M8X30 FLANGE 		0-28650-830-0 02 1 1009- ●
35 NUT; GOV TO FRAME
EURO2 SPECIFICATION<NT2> M8 FLANGE 		0-91180-108-0 02 1 0809-1008 ●
35 NUT; GOV TO FRAME
TURBO - CONVENTIONAL<Q5T> M8 FLANGE 		0-91180-108-0 02 1 1009- ●
58 ADAPTER
EURO2 SPECIFICATION<NT2> VIN MODEL YEAR 2011<VZB> (D) DIN12 & R3/8 STRAIGHT 		1-09660-965-0 01 1 1012- ●
58 ADAPTER
EURO2 SPECIFICATION<NT2> VIN MODEL YEAR 2011<VZB> (E) 		8-98031-238-0 01 1 1012- ●
58 ADAPTER
EURO2 SPECIFICATION<NT2> VIN MODEL YEAR 2011<VZB> (F) 		8-98148-475-0 01 1 1012- ●
58 ADAPTER
ZF6S1000 M/T(Y5D) EURO2 SPECIFICATION<NT2> VIN MODEL YEAR 2011<VZB> ASSISTOR SHIFT CONTROL<WX8> (G) M12 & PT1/4 3WAY 		1-09656-586-1 01 1 1012- ●
58 ADAPTER
ZF9S1110 M/T(Y5E) EURO2 SPECIFICATION<NT2> VIN MODEL YEAR 2011<VZB> (G) M12 & PT1/4 3WAY 		1-09656-586-1 01 1 1012- ●
58 ADAPTER
ZF6S1000 M/T(Y5D) EURO2 SPECIFICATION<NT2> VIN MODEL YEAR 2011<VZB> ASSISTOR SHIFT CONTROL<WX8> (H) DIN8 & M12 STRAIGHT 		1-09660-873-0 01 1 1012- ●
58 ADAPTER
ZF9S1110 M/T(Y5E) EURO2 SPECIFICATION<NT2> VIN MODEL YEAR 2011<VZB> (H) DIN8 & M12 STRAIGHT 		1-09660-873-0 01 1 1012- ●
58 ADAPTER
(B) INNER PT3/8,OUTER M22 		1-09650-494-1 04 1 0710- ● ●
58 ADAPTER
(A) M20 & RC3/8 STRAIGHT 		1-09660-883-0 01 1 0710-0808 ● ●
58 ADAPTER
(A) M20 & RC3/8 STRAIGHT 		1-09660-883-0 01 1 0809-1011 ●
58 ADAPTER
BRAKE REGULATION ADR(TDU) (A) M20 & RC3/8 STRAIGHT 		1-09660-883-0 01 1 0809-1011 ●
58 ADAPTER
EURO2 SPECIFICATION<NT2> (A) M20 & RC3/8 STRAIGHT 		1-09660-883-0 01 1 0809-1011 ●
58 ADAPTER
EURO4 SPECIFICATION<NT4> EXC. BRAKE REGULATION ADR(TDU) (A) M20 & RC3/8 STRAIGHT 		1-09660-883-0 01 1 0809-1011 ●
58 ADAPTER
(A) M20 & RC3/8 STRAIGHT 		1-09660-883-0 01 1 1012- ●
58 ADAPTER
BRAKE REGULATION ADR(TDU) (A) M20 & RC3/8 STRAIGHT 		1-09660-883-0 01 1 1012- ●
58 ADAPTER
EURO2 SPECIFICATION<NT2> EXC. VIN MODEL YEAR 2011<VZB> (A) M20 & RC3/8 STRAIGHT 		1-09660-883-0 01 1 1012- ●
58 ADAPTER
EURO4 SPECIFICATION<NT4> EXC. BRAKE REGULATION ADR(TDU) (A) M20 & RC3/8 STRAIGHT 		1-09660-883-0 01 1 1012- ●
58 ADAPTER
EURO2 SPECIFICATION<NT2> VIN MODEL YEAR 2011<VZB> (A) M20 & RC3/8 STRAIGHT 		1-09660-883-0 01 1 1012- ●
58 ADAPTER
(C) 		1-48219-154-0 01 1 0710-0808 ● ●
58 ADAPTER
(C) 		1-48219-154-0 01 1 0809- ●
58 ADAPTER
ANTI LOCK BRAKE<JE5> AUSTRALIA EQUIPMENT(B13) (C) 		1-48219-154-0 01 1 0809- ●
58 ADAPTER
(C) 		1-48219-154-0 02 1 0710-0808 ● ●
58 ADAPTER
(C) 		1-48219-154-0 02 1 0809- ●
58 ADAPTER
EURO4 SPECIFICATION<NT4> (C) 		1-48219-154-0 02 1 0809- ●
99 VALVE; PROTECTION 1-48110-288-3 01 1 0809- ●
99 VALVE; PROTECTION 1-48110-294-3 01 1 0710-0808 ● ●
99 VALVE; PROTECTION 1-48110-294-3 01 1 0809- ●
99 VALVE; PROTECTION
BRAKE REGULATION ADR(TDU) 		1-48110-294-3 01 1 0809- ●
102 BOLT; PROTECTION VALVE
EURO2 SPECIFICATION<NT2> VIN MODEL YEAR 2011<VZB> (C) M8X20 FLANGE 		0-28650-820-0 02 1 1012- ●
102 BOLT; PROTECTION VALVE
(B) M8X16 FLANGE 		0-28050-816-0 02 1 0710-0808 ● ●
102 BOLT; PROTECTION VALVE
(B) M8X16 FLANGE 		0-28050-816-0 02 1 0809-1011 ●
102 BOLT; PROTECTION VALVE
BRAKE REGULATION ADR(TDU) (B) M8X16 FLANGE 		0-28050-816-0 02 1 0809-1011 ●
102 BOLT; PROTECTION VALVE
EURO2 SPECIFICATION<NT2> (B) M8X16 FLANGE 		0-28050-816-0 02 1 0809-1011 ●
102 BOLT; PROTECTION VALVE
EURO4 SPECIFICATION<NT4> EXC. BRAKE REGULATION ADR(TDU) (B) M8X16 FLANGE 		0-28050-816-0 02 1 0809-1011 ●
102 BOLT; PROTECTION VALVE
(B) M8X16 FLANGE 		0-28050-816-0 02 1 1012- ●
102 BOLT; PROTECTION VALVE
BRAKE REGULATION ADR(TDU) (B) M8X16 FLANGE 		0-28050-816-0 02 1 1012- ●
102 BOLT; PROTECTION VALVE
EURO2 SPECIFICATION<NT2> EXC. VIN MODEL YEAR 2011<VZB> (B) M8X16 FLANGE 		0-28050-816-0 02 1 1012- ●
102 BOLT; PROTECTION VALVE
EURO4 SPECIFICATION<NT4> EXC. BRAKE REGULATION ADR(TDU) (B) M8X16 FLANGE 		0-28050-816-0 02 1 1012- ●
102 BOLT; PROTECTION VALVE
EURO2 SPECIFICATION<NT2> VIN MODEL YEAR 2011<VZB> (B) M8X16 FLANGE 		0-28050-816-0 02 1 1012- ●
102 BOLT; PROTECTION VALVE
(A) M10X40 FLANGE 		0-28051-040-0 02 1 0710-0711 ● ●
102 BOLT; PROTECTION VALVE
(A) M10X35 FLANGE 		0-28651-035-0 02 1 0712-0808 ● ●
102 BOLT; PROTECTION VALVE
(A) M10X35 FLANGE 		0-28651-035-0 02 1 0809- ●
102 BOLT; PROTECTION VALVE
AUSTRALIA EQUIPMENT(B13) (A) M10X35 FLANGE 		0-28651-035-0 02 1 0809- ●
102 BOLT; PROTECTION VALVE
EURO2 SPECIFICATION<NT2> EXC. AUSTRALIA EQUIPMENT(B13) (A) M10X35 FLANGE 		0-28651-035-0 02 1 0809- ●
103 BRACKET; PROTECTION VALVE
ZF6S1000 M/T(Y5D) EURO2 SPECIFICATION<NT2> VIN MODEL YEAR 2011<VZB> ASSISTOR SHIFT CONTROL<WX8> EXC. TURBO - CONVENTIONAL<Q5T> 		8-98177-510-0 01 1 1111- ●
103 BRACKET; PROTECTION VALVE
ZF9S1110 M/T(Y5E) EURO2 SPECIFICATION<NT2> VIN MODEL YEAR 2011<VZB> EXC. TURBO - CONVENTIONAL<Q5T> 		8-98177-510-0 01 1 1111- ●
103 BRACKET; PROTECTION VALVE
EURO2 SPECIFICATION<NT2> VIN MODEL YEAR 2011<VZB> 		8-98173-454-0 01 1 1012-1110 ●
103 BRACKET; PROTECTION VALVE
ZF6S1000 M/T(Y5D) EURO2 SPECIFICATION<NT2> VIN MODEL YEAR 2011<VZB> EXC. ASSISTOR SHIFT CONTROL<WX8> 		8-98173-454-0 01 1 1111- ●
103 BRACKET; PROTECTION VALVE
ZF6S1000 M/T(Y5D) EURO2 SPECIFICATION<NT2> TURBO - CONVENTIONAL<Q5T> VIN MODEL YEAR 2011<VZB> ASSISTOR SHIFT CONTROL<WX8> 		8-98173-454-0 01 1 1111- ●
103 BRACKET; PROTECTION VALVE
ZF9S1110 M/T(Y5E) EURO2 SPECIFICATION<NT2> TURBO - CONVENTIONAL<Q5T> VIN MODEL YEAR 2011<VZB> 		8-98173-454-0 01 1 1111- ●
103 BRACKET; PROTECTION VALVE
EURO2 SPECIFICATION<NT2> 		8-98116-826-0 01 1 0809-1011 ●
103 BRACKET; PROTECTION VALVE
EURO2 SPECIFICATION<NT2> EXC. VIN MODEL YEAR 2011<VZB> 		8-98116-826-0 01 1 1012- ●
103 BRACKET; PROTECTION VALVE 8-98073-219-1 01 1 0710-0710 ● ●
103 BRACKET; PROTECTION VALVE 8-98100-094-0 01 1 0711-0801 ● ●
103 BRACKET; PROTECTION VALVE 8-98073-219-1 01 1 0802-0805 ● ●
103 BRACKET; PROTECTION VALVE 8-98119-704-0 01 1 0806-0808 ● ●
103 BRACKET; PROTECTION VALVE 8-98119-704-0 01 1 0809- ●
103 BRACKET; PROTECTION VALVE
BRAKE REGULATION ADR(TDU) 		8-98119-704-0 01 1 0809- ●
103 BRACKET; PROTECTION VALVE
EURO4 SPECIFICATION<NT4> EXC. BRAKE REGULATION ADR(TDU) 		8-98119-704-0 01 1 0809- ●
105 NUT; BRKT,VALVE
M10 FLANGE 		0-91180-210-0 02 1 0710-0808 ● ●
105 NUT; BRKT,VALVE
M10 FLANGE 		0-91180-210-0 02 1 0809- ●
105 NUT; BRKT,VALVE
AUSTRALIA EQUIPMENT(B13) M10 FLANGE 		0-91180-210-0 02 1 0809- ●
105 NUT; BRKT,VALVE
EURO2 SPECIFICATION<NT2> EXC. AUSTRALIA EQUIPMENT(B13) M10 FLANGE 		0-91180-210-0 02 1 0809- ●
108 CONNECTOR; ELBOW
EURO2 SPECIFICATION<NT2> VIN MODEL YEAR 2011<VZB> (F) M12 & PT1/4 ELBOW 		1-48629-258-0 01 1 1012-1503 ●
108 CONNECTOR; ELBOW
EURO2 SPECIFICATION<NT2> VIN MODEL YEAR 2011<VZB> (F) M12 & PT1/4 ELBOW 		8-98299-777-0 01 1 1504- ●
108 CONNECTOR; ELBOW
TURBO - CONVENTIONAL<Q5T> VIN MODEL YEAR 2011<VZB> (D) M12 & PT1/4 ELBOW 		1-09650-430-0 02 1 1012-1012 ●
108 CONNECTOR; ELBOW
TURBO - CONVENTIONAL<Q5T> (D) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 1012- ●
108 CONNECTOR; ELBOW
EURO2 SPECIFICATION<NT2> (E) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 0809-1008 ●
108 CONNECTOR; ELBOW
TURBO - CONVENTIONAL<Q5T> (E) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 1009-1011 ●
108 CONNECTOR; ELBOW
TURBO - CONVENTIONAL<Q5T> EXC. VIN MODEL YEAR 2011<VZB> (E) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 1012-1012 ●
108 CONNECTOR; ELBOW
EURO2 SPECIFICATION<NT2> VIN MODEL YEAR 2011<VZB> (E) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 1012-1012 ●
108 CONNECTOR; ELBOW
TURBO - CONVENTIONAL<Q5T> (E) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 1012- ●
108 CONNECTOR; ELBOW
EURO2 SPECIFICATION<NT2> VIN MODEL YEAR 2011<VZB> (E) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 1012- ●
108 CONNECTOR; ELBOW
EURO2 SPECIFICATION<NT2> (D) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 0809-1008 ●
108 CONNECTOR; ELBOW
TURBO - CONVENTIONAL<Q5T> (D) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 1009-1011 ●
108 CONNECTOR; ELBOW
TURBO - CONVENTIONAL<Q5T> EXC. VIN MODEL YEAR 2011<VZB> (D) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 1012-1012 ●
108 CONNECTOR; ELBOW
(C) PT3/8 ELBOW 		1-09660-696-0 01 1 0710-0808 ● ●
108 CONNECTOR; ELBOW
(C) PT3/8 ELBOW 		1-09660-696-0 01 1 0809-1011 ●
108 CONNECTOR; ELBOW
BRAKE REGULATION ADR(TDU) (C) PT3/8 ELBOW 		1-09660-696-0 01 1 0809-1011 ●
108 CONNECTOR; ELBOW
EURO2 SPECIFICATION<NT2> (C) PT3/8 ELBOW 		1-09660-696-0 01 1 0809-1011 ●
108 CONNECTOR; ELBOW
EURO4 SPECIFICATION<NT4> EXC. BRAKE REGULATION ADR(TDU) (C) PT3/8 ELBOW 		1-09660-696-0 01 1 0809-1011 ●
108 CONNECTOR; ELBOW
(C) PT3/8 ELBOW 		1-09660-696-0 01 1 1012- ●
108 CONNECTOR; ELBOW
BRAKE REGULATION ADR(TDU) (C) PT3/8 ELBOW 		1-09660-696-0 01 1 1012- ●
108 CONNECTOR; ELBOW
EURO2 SPECIFICATION<NT2> EXC. VIN MODEL YEAR 2011<VZB> (C) PT3/8 ELBOW 		1-09660-696-0 01 1 1012- ●
108 CONNECTOR; ELBOW
EURO4 SPECIFICATION<NT4> EXC. BRAKE REGULATION ADR(TDU) (C) PT3/8 ELBOW 		1-09660-696-0 01 1 1012- ●
108 CONNECTOR; ELBOW
EURO2 SPECIFICATION<NT2> VIN MODEL YEAR 2011<VZB> (C) PT3/8 ELBOW 		1-09660-696-0 01 1 1012- ●
108 CONNECTOR; ELBOW
(A) DIN12 & R3/8 ELBOW 		1-09660-959-0 03 1 0710-0808 ● ●
108 CONNECTOR; ELBOW
(A) DIN12 & R3/8 ELBOW 		1-09660-959-0 03 1 0809-1011 ●
108 CONNECTOR; ELBOW
BRAKE REGULATION ADR(TDU) (A) DIN12 & R3/8 ELBOW 		1-09660-959-0 03 1 0809-1011 ●
108 CONNECTOR; ELBOW
EURO2 SPECIFICATION<NT2> (A) DIN12 & R3/8 ELBOW 		1-09660-959-0 03 1 0809-1011 ●
108 CONNECTOR; ELBOW
EURO4 SPECIFICATION<NT4> EXC. BRAKE REGULATION ADR(TDU) (A) DIN12 & R3/8 ELBOW 		1-09660-959-0 03 1 0809-1011 ●
108 CONNECTOR; ELBOW
(A) DIN12 & R3/8 ELBOW 		1-09660-959-0 03 1 1012- ●
108 CONNECTOR; ELBOW
BRAKE REGULATION ADR(TDU) (A) DIN12 & R3/8 ELBOW 		1-09660-959-0 03 1 1012- ●
108 CONNECTOR; ELBOW
EURO2 SPECIFICATION<NT2> EXC. VIN MODEL YEAR 2011<VZB> (A) DIN12 & R3/8 ELBOW 		1-09660-959-0 03 1 1012- ●
108 CONNECTOR; ELBOW
EURO4 SPECIFICATION<NT4> EXC. BRAKE REGULATION ADR(TDU) (A) DIN12 & R3/8 ELBOW 		1-09660-959-0 03 1 1012- ●
108 CONNECTOR; ELBOW
EURO2 SPECIFICATION<NT2> VIN MODEL YEAR 2011<VZB> (A) DIN12 & R3/8 ELBOW 		1-09660-959-0 03 1 1012- ●
108 CONNECTOR; ELBOW
(B) DIN12 & M22 ELBOW 		1-09661-497-0 04 1 0710-0808 ● ●
108 CONNECTOR; ELBOW
(B) DIN12 & M22 ELBOW 		1-09661-497-0 04 1 0809- ●
108 CONNECTOR; ELBOW
ANTI LOCK BRAKE<JE5> (B) DIN12 & M22 ELBOW 		1-09661-497-0 04 1 0809- ●
167 COVER; VALVE
(B) 		1-48119-625-0 04 1 0710-0808 ● ●
167 COVER; VALVE
(B) 		1-48119-625-0 04 1 0809-1011 ●
167 COVER; VALVE
BRAKE REGULATION ADR(TDU) (B) 		1-48119-625-0 04 1 0809-1011 ●
167 COVER; VALVE
EURO2 SPECIFICATION<NT2> (B) 		1-48119-625-0 04 1 0809-1011 ●
167 COVER; VALVE
EURO4 SPECIFICATION<NT4> EXC. BRAKE REGULATION ADR(TDU) (B) 		1-48119-625-0 04 1 0809-1011 ●
167 COVER; VALVE
(B) 		1-48119-625-0 04 1 1012-1506 ●
167 COVER; VALVE
BRAKE REGULATION ADR(TDU) (B) 		1-48119-625-0 04 1 1012-1506 ●
167 COVER; VALVE
EURO2 SPECIFICATION<NT2> EXC. VIN MODEL YEAR 2011<VZB> (B) 		1-48119-625-0 04 1 1012-1506 ●
167 COVER; VALVE
EURO4 SPECIFICATION<NT4> EXC. BRAKE REGULATION ADR(TDU) (B) 		1-48119-625-0 04 1 1012-1506 ●
167 COVER; VALVE
EURO2 SPECIFICATION<NT2> VIN MODEL YEAR 2011<VZB> (B) 		1-48119-625-0 04 1 1012-1506 ●
167 COVER; VALVE
(B) 		1-48119-625-0 04 1 1507- ●
167 COVER; VALVE
BRAKE REGULATION ADR(TDU) (B) 		1-48119-625-0 04 1 1507- ●
167 COVER; VALVE
(A) 		1-48219-070-0 01 1 0710- ● ●
167 COVER; VALVE
(A) 		1-48219-070-0 02 1 0710- ● ●
220 CONNECTOR; 3WAY
(A) DIN8X2 & PT3/8 DOUBLE ELBOW 		1-09661-025-0 01 1 0809-1011 ●
220 CONNECTOR; 3WAY
EURO2 SPECIFICATION<NT2> EXC. VIN MODEL YEAR 2011<VZB> (A) DIN8X2 & PT3/8 DOUBLE ELBOW 		1-09661-025-0 01 1 1012- ●
220 CONNECTOR; 3WAY
EURO4 SPECIFICATION<NT4> EXC. BRAKE REGULATION ADR(TDU) (A) DIN8X2 & PT3/8 DOUBLE ELBOW 		1-09661-025-0 01 1 1012- ●
220 CONNECTOR; 3WAY
(A) DIN12X2 & PT3/8 DOUBLE ELBOW 		1-09661-026-0 01 1 0710-0808 ● ●
220 CONNECTOR; 3WAY
(A) DIN12X2 & PT3/8 DOUBLE ELBOW 		1-09661-026-0 01 1 0809- ●
220 CONNECTOR; 3WAY
BRAKE REGULATION ADR(TDU) (A) DIN12X2 & PT3/8 DOUBLE ELBOW 		1-09661-026-0 01 1 0809- ●
220 CONNECTOR; 3WAY
(B) 		1-09656-708-0 01 1 0710-0808 ● ●
220 CONNECTOR; 3WAY
(B) 		1-09656-708-0 01 1 0809-1011 ●
220 CONNECTOR; 3WAY
BRAKE REGULATION ADR(TDU) (B) 		1-09656-708-0 01 1 0809-1011 ●
220 CONNECTOR; 3WAY
EURO2 SPECIFICATION<NT2> (B) 		1-09656-708-0 01 1 0809-1011 ●
220 CONNECTOR; 3WAY
EURO4 SPECIFICATION<NT4> EXC. BRAKE REGULATION ADR(TDU) (B) 		1-09656-708-0 01 1 0809-1011 ●
220 CONNECTOR; 3WAY
(B) 		1-09656-708-0 01 1 1012-1101 ●
220 CONNECTOR; 3WAY
BRAKE REGULATION ADR(TDU) (B) 		1-09656-708-0 01 1 1012-1101 ●
220 CONNECTOR; 3WAY
EURO2 SPECIFICATION<NT2> EXC. VIN MODEL YEAR 2011<VZB> (B) 		1-09656-708-0 01 1 1012-1101 ●
220 CONNECTOR; 3WAY
EURO4 SPECIFICATION<NT4> EXC. BRAKE REGULATION ADR(TDU) (B) 		1-09656-708-0 01 1 1012-1101 ●
220 CONNECTOR; 3WAY
(B) 		8-98166-127-0 01 1 1102- ●
220 CONNECTOR; 3WAY
BRAKE REGULATION ADR(TDU) (B) 		8-98166-127-0 01 1 1102- ●
220 CONNECTOR; 3WAY
EURO2 SPECIFICATION<NT2> EXC. VIN MODEL YEAR 2011<VZB> (B) 		8-98166-127-0 01 1 1102- ●
220 CONNECTOR; 3WAY
EURO4 SPECIFICATION<NT4> EXC. BRAKE REGULATION ADR(TDU) (B) 		8-98166-127-0 01 1 1102- ●
220 CONNECTOR; 3WAY
(C) 		8-98031-238-0 01 1 0710-0808 ● ●
220 CONNECTOR; 3WAY
(C) 		8-98031-238-0 01 1 0809-1011 ●
220 CONNECTOR; 3WAY
BRAKE REGULATION ADR(TDU) (C) 		8-98031-238-0 01 1 0809-1011 ●
220 CONNECTOR; 3WAY
EURO2 SPECIFICATION<NT2> (C) 		8-98031-238-0 01 1 0809-1011 ●
220 CONNECTOR; 3WAY
EURO4 SPECIFICATION<NT4> EXC. BRAKE REGULATION ADR(TDU) (C) 		8-98031-238-0 01 1 0809-1011 ●
220 CONNECTOR; 3WAY
(C) 		8-98031-238-0 01 1 1012- ●
220 CONNECTOR; 3WAY
BRAKE REGULATION ADR(TDU) (C) 		8-98031-238-0 01 1 1012- ●
220 CONNECTOR; 3WAY
EURO2 SPECIFICATION<NT2> EXC. VIN MODEL YEAR 2011<VZB> (C) 		8-98031-238-0 01 1 1012- ●
220 CONNECTOR; 3WAY
EURO4 SPECIFICATION<NT4> EXC. BRAKE REGULATION ADR(TDU) (C) 		8-98031-238-0 01 1 1012- ●
231 CONNECTOR; NYLON TUBE
DIN12 & R3/8 STRAIGHT 		1-09660-965-0 01 1 0710-0808 ● ●
231 CONNECTOR; NYLON TUBE
DIN12 & R3/8 STRAIGHT 		1-09660-965-0 01 1 0809-1011 ●
231 CONNECTOR; NYLON TUBE
BRAKE REGULATION ADR(TDU) DIN12 & R3/8 STRAIGHT 		1-09660-965-0 01 1 0809-1011 ●
231 CONNECTOR; NYLON TUBE
EURO2 SPECIFICATION<NT2> DIN12 & R3/8 STRAIGHT 		1-09660-965-0 01 1 0809-1011 ●
231 CONNECTOR; NYLON TUBE
EURO4 SPECIFICATION<NT4> EXC. BRAKE REGULATION ADR(TDU) DIN12 & R3/8 STRAIGHT 		1-09660-965-0 01 1 0809-1011 ●
231 CONNECTOR; NYLON TUBE
DIN12 & R3/8 STRAIGHT 		1-09660-965-0 01 1 1012- ●
231 CONNECTOR; NYLON TUBE
BRAKE REGULATION ADR(TDU) DIN12 & R3/8 STRAIGHT 		1-09660-965-0 01 1 1012- ●
231 CONNECTOR; NYLON TUBE
EURO2 SPECIFICATION<NT2> EXC. VIN MODEL YEAR 2011<VZB> DIN12 & R3/8 STRAIGHT 		1-09660-965-0 01 1 1012- ●
231 CONNECTOR; NYLON TUBE
EURO4 SPECIFICATION<NT4> EXC. BRAKE REGULATION ADR(TDU) DIN12 & R3/8 STRAIGHT 		1-09660-965-0 01 1 1012- ●
232 VALVE; CHECK
DIN18 & R3/8 & RC3/8 3WAY 		8-98032-527-0 01 1 0710-0808 ● ●
232 VALVE; CHECK
DIN18 & R3/8 & RC3/8 3WAY 		8-98032-527-0 01 1 0809-1011 ●
232 VALVE; CHECK
BRAKE REGULATION ADR(TDU) DIN18 & R3/8 & RC3/8 3WAY 		8-98032-527-0 01 1 0809-1011 ●
232 VALVE; CHECK
EURO2 SPECIFICATION<NT2> DIN18 & R3/8 & RC3/8 3WAY 		8-98032-527-0 01 1 0809-1011 ●
232 VALVE; CHECK
EURO4 SPECIFICATION<NT4> EXC. BRAKE REGULATION ADR(TDU) DIN18 & R3/8 & RC3/8 3WAY 		8-98032-527-0 01 1 0809-1011 ●
232 VALVE; CHECK
DIN18 & R3/8 & RC3/8 3WAY 		8-98032-527-0 01 1 1012- ●
232 VALVE; CHECK
BRAKE REGULATION ADR(TDU) DIN18 & R3/8 & RC3/8 3WAY 		8-98032-527-0 01 1 1012- ●
232 VALVE; CHECK
EURO2 SPECIFICATION<NT2> EXC. VIN MODEL YEAR 2011<VZB> DIN18 & R3/8 & RC3/8 3WAY 		8-98032-527-0 01 1 1012- ●
232 VALVE; CHECK
EURO4 SPECIFICATION<NT4> EXC. BRAKE REGULATION ADR(TDU) DIN18 & R3/8 & RC3/8 3WAY 		8-98032-527-0 01 1 1012- ●
232 VALVE; CHECK
EURO2 SPECIFICATION<NT2> VIN MODEL YEAR 2011<VZB> DIN18 & R3/8 & RC3/8 3WAY 		8-98032-527-0 01 1 1012- ●
237 VALVE; SAFETY 1-48320-012-2 01 1 0710- ● ●
çizim 179377
155 2 170 167 164 166 157 158 161
BalonParca AdiParca NoAdetTipApplied Date A B
2 VALVE; RELAY
EURO2 SPECIFICATION<NT2> (B) 		1-48210-875-0 02 1 0809- ●
2 VALVE; RELAY
EXC. AUSTRALIA EQUIPMENT(B13) (B) 		1-48210-875-0 01 1 0809- ●
2 VALVE; RELAY
(A) 		1-48210-997-0 01 1 0710-0808 ● ●
2 VALVE; RELAY
(A) 		1-48210-997-0 01 1 0809- ●
2 VALVE; RELAY
ANTI LOCK BRAKE<JE5> AUSTRALIA EQUIPMENT(B13) (A) 		1-48210-997-0 01 1 0809- ●
2 VALVE; RELAY
(A) 		1-48210-997-0 02 1 0710-0808 ● ●
2 VALVE; RELAY
(A) 		1-48210-997-0 02 1 0809- ●
2 VALVE; RELAY
EURO4 SPECIFICATION<NT4> (A) 		1-48210-997-0 02 1 0809- ●
155 REPAIR KIT; RELAY VALVE
EURO2 SPECIFICATION<NT2> (C) 		1-85576-033-0 02 1 0809- ●
155 REPAIR KIT; RELAY VALVE
EXC. AUSTRALIA EQUIPMENT(B13) (C) 		1-85576-033-0 01 1 0809- ●
155 REPAIR KIT; RELAY VALVE
(A) 		1-85576-294-0 01 1 0710-0808 ● ●
155 REPAIR KIT; RELAY VALVE
(A) 		1-85576-294-0 01 1 0809- ●
155 REPAIR KIT; RELAY VALVE
ANTI LOCK BRAKE<JE5> AUSTRALIA EQUIPMENT(B13) (A) 		1-85576-294-0 01 1 0809- ●
155 REPAIR KIT; RELAY VALVE
(A) 		1-85576-294-0 02 1 0710-0808 ● ●
155 REPAIR KIT; RELAY VALVE
(A) 		1-85576-294-0 02 1 0809- ●
155 REPAIR KIT; RELAY VALVE
EURO4 SPECIFICATION<NT4> (A) 		1-85576-294-0 02 1 0809- ●
155 REPAIR KIT; RELAY VALVE
(B) 		1-85576-408-0 01 1 0710- ● ●
157 RETAINER; VALVE
(B) 		1-48419-036-0 01 1 0710-0803 ●
157 RETAINER; VALVE
(B) 		1-48419-036-0 01 1 0710-0803 ●
157 RETAINER; VALVE
(B) 		1-48419-036-0 02 1 0804-1008 ●
157 RETAINER; VALVE
(B) 		1-48419-020-0 02 1 1009- ●
157 RETAINER; VALVE
(A) 		1-48213-002-0 01 1 0710- ● ●
157 RETAINER; VALVE
(A) 		1-48213-002-0 02 1 0710- ● ●
158 SPRING; VALVE
(B) 		9-48419-003-0 01 1 0710-0803 ●
158 SPRING; VALVE
(B) 		9-48419-003-0 01 1 0710-0803 ●
158 SPRING; VALVE
(B) 		9-48419-003-0 02 1 0804- ●
158 SPRING; VALVE
(A) 		1-47819-089-0 01 1 0710- ● ●
158 SPRING; VALVE
(A) 		1-47819-089-0 02 1 0710- ● ●
161 GUIDE; VALVE 1-48129-014-0 01 1 0710- ● ●
161 GUIDE; VALVE 1-48129-014-0 02 1 0710- ● ●
164 PISTON; RELAY VALVE 1-48219-071-0 01 1 0710- ● ●
164 PISTON; RELAY VALVE 1-48219-071-0 02 1 0710- ● ●
166 SPRING; PISTON 1-47819-090-0 01 1 0710- ● ●
166 SPRING; PISTON 1-47819-090-0 02 1 0710- ● ●
167 COVER; VALVE
(B) 		1-48119-625-0 04 1 0710-0808 ● ●
167 COVER; VALVE
(B) 		1-48119-625-0 04 1 0809-1011 ●
167 COVER; VALVE
BRAKE REGULATION ADR(TDU) (B) 		1-48119-625-0 04 1 0809-1011 ●
167 COVER; VALVE
EURO2 SPECIFICATION<NT2> (B) 		1-48119-625-0 04 1 0809-1011 ●
167 COVER; VALVE
EURO4 SPECIFICATION<NT4> EXC. BRAKE REGULATION ADR(TDU) (B) 		1-48119-625-0 04 1 0809-1011 ●
167 COVER; VALVE
(B) 		1-48119-625-0 04 1 1012-1506 ●
167 COVER; VALVE
BRAKE REGULATION ADR(TDU) (B) 		1-48119-625-0 04 1 1012-1506 ●
167 COVER; VALVE
EURO2 SPECIFICATION<NT2> EXC. VIN MODEL YEAR 2011<VZB> (B) 		1-48119-625-0 04 1 1012-1506 ●
167 COVER; VALVE
EURO4 SPECIFICATION<NT4> EXC. BRAKE REGULATION ADR(TDU) (B) 		1-48119-625-0 04 1 1012-1506 ●
167 COVER; VALVE
EURO2 SPECIFICATION<NT2> VIN MODEL YEAR 2011<VZB> (B) 		1-48119-625-0 04 1 1012-1506 ●
167 COVER; VALVE
(B) 		1-48119-625-0 04 1 1507- ●
167 COVER; VALVE
BRAKE REGULATION ADR(TDU) (B) 		1-48119-625-0 04 1 1507- ●
167 COVER; VALVE
(A) 		1-48219-070-0 01 1 0710- ● ●
167 COVER; VALVE
(A) 		1-48219-070-0 02 1 0710- ● ●
170 SCREW; COVER TO BODY 1-48219-039-0 04 1 0710- ● ●
170 SCREW; COVER TO BODY 1-48219-039-0 08 1 0710- ● ●
çizim 179482
240
BalonParca AdiParca NoAdetTipApplied Date A B
240 REPAIR KIT; AIR CONT GOV
EURO2 SPECIFICATION<NT2> 		1-85576-467-0 01 1 0809-1008 ●
240 REPAIR KIT; AIR CONT GOV
TURBO - CONVENTIONAL<Q5T> 		1-85576-467-0 01 1 1009- ●
çizim 431783
241
BalonParca AdiParca NoAdetTipApplied Date A B
241 REPAIR KIT; PROTECTION VALVE 1-85576-451-1 01 1 0710-0808 ● ●
241 REPAIR KIT; PROTECTION VALVE 1-85576-451-1 01 1 0809-1011 ●
241 REPAIR KIT; PROTECTION VALVE
BRAKE REGULATION ADR(TDU) 		1-85576-451-1 01 1 0809-1011 ●
241 REPAIR KIT; PROTECTION VALVE
EURO2 SPECIFICATION<NT2> 		1-85576-451-1 01 1 0809-1011 ●
241 REPAIR KIT; PROTECTION VALVE
EURO4 SPECIFICATION<NT4> EXC. BRAKE REGULATION ADR(TDU) 		1-85576-451-1 01 1 0809-1011 ●
241 REPAIR KIT; PROTECTION VALVE 1-85576-451-1 01 1 1012-1506 ●
241 REPAIR KIT; PROTECTION VALVE
BRAKE REGULATION ADR(TDU) 		1-85576-451-1 01 1 1012-1506 ●
241 REPAIR KIT; PROTECTION VALVE
EURO2 SPECIFICATION<NT2> EXC. VIN MODEL YEAR 2011<VZB> 		1-85576-451-1 01 1 1012-1506 ●
241 REPAIR KIT; PROTECTION VALVE
EURO4 SPECIFICATION<NT4> EXC. BRAKE REGULATION ADR(TDU) 		1-85576-451-1 01 1 1012-1506 ●
241 REPAIR KIT; PROTECTION VALVE
EURO2 SPECIFICATION<NT2> VIN MODEL YEAR 2011<VZB> 		1-85576-451-1 01 1 1012-1506 ●
241 REPAIR KIT; PROTECTION VALVE 1-85576-451-2 01 1 1507- ●
241 REPAIR KIT; PROTECTION VALVE
BRAKE REGULATION ADR(TDU) 		1-85576-451-2 01 1 1507- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
