◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVM ▶ 11105 - FVM(RHD) ▶ 3 - Brakes, Brake System ▶ 3-05 - REAR WHEEL BRAKE ▶
3-05 — REAR WHEEL BRAKE (#33980) — 356 parça
çizim 179288
346 301 328 327 319 334 297 297 335 311 348 329 319 327 328 301 347 301 301
BalonParca AdiParca NoAdetTipApplied Date A B
297 RING; SNAP
(A) 		1-47649-031-0 02 1 0710- ●
297 RING; SNAP
(A) 		1-47649-031-0 02 1 0710- ●
297 RING; SNAP
(B) 		1-47649-034-1 02 1 0710- ●
297 RING; SNAP
(B) 		1-47649-034-1 02 1 0710- ●
301 CLIP; ANTI LOTATION 1-47621-017-0 04 1 0710- ●
301 CLIP; ANTI LOTATION 1-47621-017-0 04 1 0710- ●
311 BOOT; WEDGE 1-47649-042-0 02 1 0710- ●
311 BOOT; WEDGE 1-47649-042-0 02 1 0710- ●
319 RING; DRIVE 1-47629-200-0 04 1 0710- ●
319 RING; DRIVE 1-47629-200-0 04 1 0710- ●
327 SPRING; ADJ 1-47629-196-0 04 1 0710- ●
327 SPRING; ADJ 1-47629-196-0 04 1 0710- ●
328 CAGE; SPRING 1-47629-192-0 04 1 0710- ●
328 CAGE; SPRING 1-47629-192-0 04 1 0710- ●
329 SCREW; LOCATING 1-47619-149-1 04 1 0710- ●
329 SCREW; LOCATING 1-47619-149-1 04 1 0710- ●
334 SPRING; ROD 1-47649-041-0 02 1 0710- ●
334 SPRING; ROD 1-47649-041-0 02 1 0710- ●
335 RETAINER; SPRING 1-47649-020-0 02 1 0710- ●
335 RETAINER; SPRING 1-47649-020-0 02 1 0710- ●
346 REPAIR KIT; EXPANDER 1-85576-403-0 02 1 0710- ●
346 REPAIR KIT; EXPANDER 1-85576-403-0 02 1 0710- ●
347 REPAIR KIT; BOOT,EXPANDER 1-85576-404-0 02 1 0710- ●
347 REPAIR KIT; BOOT,EXPANDER 1-85576-404-0 02 1 0710- ●
348 CAP; EXPANDER 1-47649-044-0 02 1 0710- ●
348 CAP; EXPANDER 1-47649-044-0 02 1 0710- ●

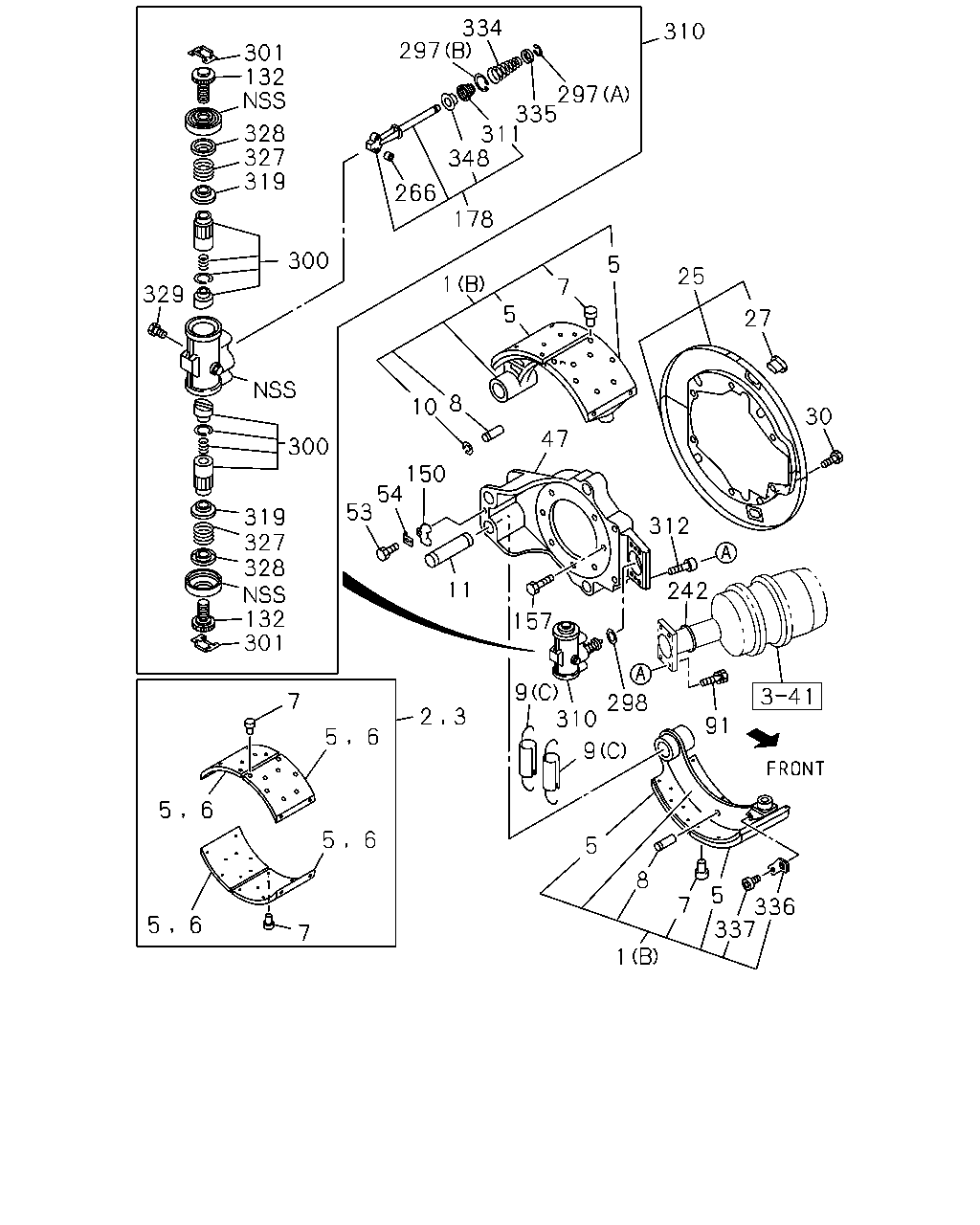

çizim 179327
334 297 310 301 132 297 335 311 348 328 327 319 266 178 300 5 25 1 7 329 5 27 8 10 30 47 300 150 54 53 319 327 328 132 301 312 11 242 157 9 310 7 298 2 91 5 6 9 5 6 5 6 5 8 336 337 5 7 5 6 7 1 3
BalonParca AdiParca NoAdetTipApplied Date A B
1 SHOE; BRK,RR
EXC. AUSTRALIA EQUIPMENT(B13) (B) LEADING 		1-47170-324-0 01 1 0809- ●
1 SHOE; BRK,RR
EXC. AUSTRALIA EQUIPMENT(B13) (B) LEADING 		1-47170-324-0 01 1 0809- ●
1 SHOE; BRK,RR
EXC. AUSTRALIA EQUIPMENT(B13) (B) TRAILING 		1-47170-325-0 01 1 0809- ●
1 SHOE; BRK,RR
EXC. AUSTRALIA EQUIPMENT(B13) (B) TRAILING 		1-47170-325-0 01 1 0809- ●
1 SHOE; BRK,RR
EXC. AUSTRALIA EQUIPMENT(B13) (B) LEADING 		1-47170-326-0 01 1 0809- ●
1 SHOE; BRK,RR
EXC. AUSTRALIA EQUIPMENT(B13) (B) LEADING 		1-47170-326-0 01 1 0809- ●
1 SHOE; BRK,RR
EXC. AUSTRALIA EQUIPMENT(B13) (B) TRAILING 		1-47170-327-0 01 1 0809- ●
1 SHOE; BRK,RR
EXC. AUSTRALIA EQUIPMENT(B13) (B) TRAILING 		1-47170-327-0 01 1 0809- ●
1 SHOE; BRK,RR
(A) 		1-47120-734-0 04 1 0710- ●
1 SHOE; BRK,RR
(A) 		1-47120-734-0 04 1 0710- ●
1 SHOE; BRK,RR
(B) LEADING 		1-47170-504-0 01 1 0710-0808 ●
1 SHOE; BRK,RR
(B) LEADING 		1-47170-504-0 01 1 0710-0808 ●
1 SHOE; BRK,RR
AUSTRALIA EQUIPMENT(B13) (B) LEADING 		1-47170-504-0 01 1 0809- ●
1 SHOE; BRK,RR
AUSTRALIA EQUIPMENT(B13) (B) LEADING 		1-47170-504-0 01 1 0809- ●
1 SHOE; BRK,RR
(B) LEADING 		1-47170-506-0 01 1 0710-0808 ●
1 SHOE; BRK,RR
(B) LEADING 		1-47170-506-0 01 1 0710-0808 ●
1 SHOE; BRK,RR
AUSTRALIA EQUIPMENT(B13) (B) LEADING 		1-47170-506-0 01 1 0809- ●
1 SHOE; BRK,RR
AUSTRALIA EQUIPMENT(B13) (B) LEADING 		1-47170-506-0 01 1 0809- ●
1 SHOE; BRK,RR
(B) TRAILING 		1-47170-505-0 01 1 0710-0808 ●
1 SHOE; BRK,RR
(B) TRAILING 		1-47170-505-0 01 1 0710-0808 ●
1 SHOE; BRK,RR
AUSTRALIA EQUIPMENT(B13) (B) TRAILING 		1-47170-505-0 01 1 0809- ●
1 SHOE; BRK,RR
AUSTRALIA EQUIPMENT(B13) (B) TRAILING 		1-47170-505-0 01 1 0809- ●
1 SHOE; BRK,RR
(B) TRAILING 		1-47170-507-0 01 1 0710-0808 ●
1 SHOE; BRK,RR
(B) TRAILING 		1-47170-507-0 01 1 0710-0808 ●
1 SHOE; BRK,RR
AUSTRALIA EQUIPMENT(B13) (B) TRAILING 		1-47170-507-0 01 1 0809- ●
1 SHOE; BRK,RR
AUSTRALIA EQUIPMENT(B13) (B) TRAILING 		1-47170-507-0 01 1 0809- ●
2 LINING SET; RR BRK,STANDARD 1-88310-773-1 02 1 0710-0808 ●
2 LINING SET; RR BRK,STANDARD 1-88310-773-1 02 1 0710-0808 ●
2 LINING SET; RR BRK,STANDARD
AUSTRALIA EQUIPMENT(B13) 		1-88310-773-1 02 1 0809- ●
2 LINING SET; RR BRK,STANDARD
AUSTRALIA EQUIPMENT(B13) 		1-88310-773-1 02 1 0809- ●
2 LINING SET; RR BRK,STANDARD
EXC. AUSTRALIA EQUIPMENT(B13) 		1-88310-775-1 02 1 0809- ●
2 LINING SET; RR BRK,STANDARD
EXC. AUSTRALIA EQUIPMENT(B13) 		1-88310-775-1 02 1 0809- ●
2 LINING SET; RR BRK,STANDARD
EXC. AUSTRALIA EQUIPMENT(B13) BEST VALUE PARTS 		1-87610-132-0 01 1 0809- ●
2 LINING SET; RR BRK,STANDARD
EXC. AUSTRALIA EQUIPMENT(B13) BEST VALUE PARTS 		1-87610-132-0 01 1 0809- ●
3 LINING SET; RR BRK,OVER SIZE 1-88310-774-1 02 1 0710-0808 ●
3 LINING SET; RR BRK,OVER SIZE 1-88310-774-1 02 1 0710-0808 ●
3 LINING SET; RR BRK,OVER SIZE
AUSTRALIA EQUIPMENT(B13) 		1-88310-774-1 02 1 0809- ●
3 LINING SET; RR BRK,OVER SIZE
AUSTRALIA EQUIPMENT(B13) 		1-88310-774-1 02 1 0809- ●
3 LINING SET; RR BRK,OVER SIZE
EXC. AUSTRALIA EQUIPMENT(B13) 		1-88310-776-1 02 1 0809- ●
3 LINING SET; RR BRK,OVER SIZE
EXC. AUSTRALIA EQUIPMENT(B13) 		1-88310-776-1 02 1 0809- ●
5 LINING; RR BRK SHOE,STANDARD
EXC. AUSTRALIA EQUIPMENT(B13) 		1-47126-093-0 08 1 0809- ●
5 LINING; RR BRK SHOE,STANDARD
EXC. AUSTRALIA EQUIPMENT(B13) 		1-47126-093-0 08 1 0809- ●
5 LINING; RR BRK SHOE,STANDARD 1-47126-816-0 08 1 0710-0711 ●
5 LINING; RR BRK SHOE,STANDARD 1-47126-091-0 08 1 0712-0808 ●
5 LINING; RR BRK SHOE,STANDARD 1-47126-091-0 08 1 0712-0808 ●
5 LINING; RR BRK SHOE,STANDARD
AUSTRALIA EQUIPMENT(B13) 		1-47126-091-0 08 1 0809- ●
5 LINING; RR BRK SHOE,STANDARD
AUSTRALIA EQUIPMENT(B13) 		1-47126-091-0 08 1 0809- ●
5 LINING; RR BRK SHOE,STANDARD 1-47126-816-0 08 1 0710-0711 ●
6 LINING; RR BRK SHOE,OVER SIZE
EXC. AUSTRALIA EQUIPMENT(B13) 		1-47126-094-0 08 1 0809- ●
6 LINING; RR BRK SHOE,OVER SIZE
EXC. AUSTRALIA EQUIPMENT(B13) 		1-47126-094-0 08 1 0809- ●
6 LINING; RR BRK SHOE,OVER SIZE 1-47126-817-0 08 1 0710-0711 ●
6 LINING; RR BRK SHOE,OVER SIZE 1-47126-092-0 08 1 0712-0808 ●
6 LINING; RR BRK SHOE,OVER SIZE 1-47126-092-0 08 1 0712-0808 ●
6 LINING; RR BRK SHOE,OVER SIZE
AUSTRALIA EQUIPMENT(B13) 		1-47126-092-0 08 1 0809- ●
6 LINING; RR BRK SHOE,OVER SIZE
AUSTRALIA EQUIPMENT(B13) 		1-47126-092-0 08 1 0809- ●
6 LINING; RR BRK SHOE,OVER SIZE 1-47126-817-0 08 1 0710-0711 ●
7 RIVET; LINING,RR BRK
L=15.5 		1-09732-053-0 AR 1 0710- ●
7 RIVET; LINING,RR BRK
L=15.5 		1-09732-053-0 AR 1 0710- ●
8 PIN; RETURN SPRING,RR BRK SHOE
EXC. AUSTRALIA EQUIPMENT(B13) TRAILING 		1-47119-136-0 02 1 0809- ●
8 PIN; RETURN SPRING,RR BRK SHOE
EXC. AUSTRALIA EQUIPMENT(B13) TRAILING 		1-47119-136-0 02 1 0809- ●
8 PIN; RETURN SPRING,RR BRK SHOE
EXC. AUSTRALIA EQUIPMENT(B13) LEADING 		1-47119-172-0 02 1 0809- ●
8 PIN; RETURN SPRING,RR BRK SHOE
EXC. AUSTRALIA EQUIPMENT(B13) LEADING 		1-47119-172-0 02 1 0809- ●
8 PIN; RETURN SPRING,RR BRK SHOE 1-47119-116-0 04 1 0710- ●
8 PIN; RETURN SPRING,RR BRK SHOE 1-47119-116-0 04 1 0710- ●
8 PIN; RETURN SPRING,RR BRK SHOE 1-47119-175-0 04 1 0710-0808 ●
8 PIN; RETURN SPRING,RR BRK SHOE 1-47119-175-0 04 1 0710-0808 ●
8 PIN; RETURN SPRING,RR BRK SHOE
AUSTRALIA EQUIPMENT(B13) 		1-47119-175-0 04 1 0809- ●
8 PIN; RETURN SPRING,RR BRK SHOE
AUSTRALIA EQUIPMENT(B13) 		1-47119-175-0 04 1 0809- ●
9 SPRING; RETURN,BRK SHOE
EXC. AUSTRALIA EQUIPMENT(B13) (C) 		1-09583-365-1 02 1 0809- ●
9 SPRING; RETURN,BRK SHOE
EXC. AUSTRALIA EQUIPMENT(B13) (C) 		1-09583-365-1 02 1 0809- ●
9 SPRING; RETURN,BRK SHOE
(A) 		1-47119-114-0 04 1 0710- ●
9 SPRING; RETURN,BRK SHOE
(A) 		1-47119-114-0 04 1 0710- ●
9 SPRING; RETURN,BRK SHOE
(B) 		1-47119-115-0 02 1 0710- ●
9 SPRING; RETURN,BRK SHOE
(B) 		1-47119-115-0 02 1 0710- ●
9 SPRING; RETURN,BRK SHOE
(C) 		1-09583-376-0 02 1 0710-0808 ●
9 SPRING; RETURN,BRK SHOE
(C) 		1-09583-376-0 02 1 0710-0808 ●
9 SPRING; RETURN,BRK SHOE
AUSTRALIA EQUIPMENT(B13) (C) 		1-09583-376-0 02 1 0809- ●
9 SPRING; RETURN,BRK SHOE
AUSTRALIA EQUIPMENT(B13) (C) 		1-09583-376-0 02 1 0809- ●
10 RING; SNAP,SPR PIN
EXC. AUSTRALIA EQUIPMENT(B13) ID=10 		0-91805-510-0 02 1 0809- ●
10 RING; SNAP,SPR PIN
EXC. AUSTRALIA EQUIPMENT(B13) ID=10 		0-91805-510-0 02 1 0809- ●
10 RING; SNAP,SPR PIN
ID=10 		0-91805-510-0 04 1 0710-0808 ●
10 RING; SNAP,SPR PIN
ID=10 		0-91805-510-0 04 1 0710-0808 ●
10 RING; SNAP,SPR PIN
AUSTRALIA EQUIPMENT(B13) ID=10 		0-91805-510-0 04 1 0809- ●
10 RING; SNAP,SPR PIN
AUSTRALIA EQUIPMENT(B13) ID=10 		0-91805-510-0 04 1 0809- ●
11 PIN; ANCHOR,RR WHEEL BRK 1-47131-040-0 04 1 0710- ●
11 PIN; ANCHOR,RR WHEEL BRK 1-47131-040-0 04 1 0710- ●
11 PIN; ANCHOR,RR WHEEL BRK
L=138.5 		1-47131-045-0 04 1 0710- ●
11 PIN; ANCHOR,RR WHEEL BRK
L=138.5 		1-47131-045-0 04 1 0710- ●
25 COVER SET; RR BRK DRUM 1-47151-774-0 02 1 0710- ●
25 COVER SET; RR BRK DRUM 1-47151-774-0 02 1 0710- ●
25 COVER SET; RR BRK DRUM
EXC. AUSTRALIA EQUIPMENT(B13) FORWARD RH,REARWARD LH 		1-47151-808-0 01 1 0809-1309 ●
25 COVER SET; RR BRK DRUM
EXC. AUSTRALIA EQUIPMENT(B13) FORWARD RH,REARWARD LH 		1-47151-808-0 01 1 0809-1309 ●
25 COVER SET; RR BRK DRUM
EXC. AUSTRALIA EQUIPMENT(B13) 		1-47151-878-0 02 1 1310- ●
25 COVER SET; RR BRK DRUM
EXC. AUSTRALIA EQUIPMENT(B13) 		1-47151-878-0 02 1 1310- ●
25 COVER SET; RR BRK DRUM
EXC. AUSTRALIA EQUIPMENT(B13) FORWARD LH,REARWARD RH 		1-47151-809-0 01 1 0809-1309 ●
25 COVER SET; RR BRK DRUM
EXC. AUSTRALIA EQUIPMENT(B13) FORWARD LH,REARWARD RH 		1-47151-809-0 01 1 0809-1309 ●
25 COVER SET; RR BRK DRUM
FORWARD RH,REARWARD LH 		1-47151-806-0 01 1 0710-0808 ●
25 COVER SET; RR BRK DRUM
FORWARD RH,REARWARD LH 		1-47151-806-0 01 1 0710-0808 ●
25 COVER SET; RR BRK DRUM
AUSTRALIA EQUIPMENT(B13) FORWARD RH,REARWARD LH 		1-47151-806-0 01 1 0809- ●
25 COVER SET; RR BRK DRUM
AUSTRALIA EQUIPMENT(B13) FORWARD RH,REARWARD LH 		1-47151-806-0 01 1 0809- ●
25 COVER SET; RR BRK DRUM
FORWARD LH,REARWARD RH 		1-47151-807-0 01 1 0710-0808 ●
25 COVER SET; RR BRK DRUM
FORWARD LH,REARWARD RH 		1-47151-807-0 01 1 0710-0808 ●
25 COVER SET; RR BRK DRUM
AUSTRALIA EQUIPMENT(B13) FORWARD LH,REARWARD RH 		1-47151-807-0 01 1 0809- ●
25 COVER SET; RR BRK DRUM
AUSTRALIA EQUIPMENT(B13) FORWARD LH,REARWARD RH 		1-47151-807-0 01 1 0809- ●
27 COVER; CHECK HOLE,DRUM COVER 1-87050-011-0 04 1 0710- ●
27 COVER; CHECK HOLE,DRUM COVER 1-87050-011-0 04 1 0710- ●
27 COVER; CHECK HOLE,DRUM COVER 1-09333-151-0 04 1 0710- ●
27 COVER; CHECK HOLE,DRUM COVER 1-09333-151-0 04 1 0710- ●
30 BOLT; DRUM COVER 1-47159-176-0 12 1 0710- ●
30 BOLT; DRUM COVER 1-47159-176-0 12 1 0710- ●
30 BOLT; DRUM COVER
M10X12 		1-47159-187-0 12 1 0710- ●
30 BOLT; DRUM COVER
M10X12 		1-47159-187-0 12 1 0710- ●
47 BRACKET; ANCHOR PIN,RR WHEEL BRK 1-47137-374-0 02 1 0710- ●
47 BRACKET; ANCHOR PIN,RR WHEEL BRK 1-47137-374-0 02 1 0710- ●
47 BRACKET; ANCHOR PIN,RR WHEEL BRK
REARWARD 		1-47137-472-0 02 1 0710-0808 ●
47 BRACKET; ANCHOR PIN,RR WHEEL BRK
EXC. ANTI LOCK BRAKE<JE5> REARWARD 		1-47137-472-0 02 1 0809-1306 ●
47 BRACKET; ANCHOR PIN,RR WHEEL BRK
REARWARD 		1-47137-472-0 02 1 0809-1306 ●
47 BRACKET; ANCHOR PIN,RR WHEEL BRK
EXC. ANTI LOCK BRAKE<JE5> 		8-98091-253-1 02 1 1307- ●
47 BRACKET; ANCHOR PIN,RR WHEEL BRK 8-98091-253-1 02 1 1307- ●
47 BRACKET; ANCHOR PIN,RR WHEEL BRK
FORWARD 		1-47137-549-0 01 1 0710-0808 ●
47 BRACKET; ANCHOR PIN,RR WHEEL BRK
ANTI LOCK BRAKE<JE5> FORWARD 		1-47137-549-0 01 1 0809-1306 ●
47 BRACKET; ANCHOR PIN,RR WHEEL BRK
ANTI LOCK BRAKE<JE5> FORWARD 		8-98091-254-1 01 1 1307- ●
47 BRACKET; ANCHOR PIN,RR WHEEL BRK
FORWARD 		1-47137-550-0 01 1 0710-0808 ●
47 BRACKET; ANCHOR PIN,RR WHEEL BRK
ANTI LOCK BRAKE<JE5> FORWARD 		1-47137-550-0 01 1 0809-1306 ●
47 BRACKET; ANCHOR PIN,RR WHEEL BRK
ANTI LOCK BRAKE<JE5> FORWARD 		8-98091-255-1 01 1 1307- ●
53 BOLT; LOCK PLATE
M10X16 		0-20851-016-0 02 1 0710-0910 ●
53 BOLT; LOCK PLATE
M10X16 		0-20851-016-0 02 1 0710-0910 ●
53 BOLT; LOCK PLATE
M10X16 		1-47139-173-0 02 1 0911- ●
53 BOLT; LOCK PLATE
M10X16 		1-47139-173-0 02 1 0911- ●
54 WASHER; LK,ANCHOR PIN,RR BRK 1-47133-011-0 02 1 0710- ●
54 WASHER; LK,ANCHOR PIN,RR BRK 1-47133-011-0 02 1 0710- ●
91 BOLT; CHAMBER
EXC. AUSTRALIA EQUIPMENT(B13) M10X53 		1-47139-148-0 08 1 0809- ●
91 BOLT; CHAMBER
M10X45 W/LK WASHER 		0-50051-045-0 08 1 0710-0808 ●
91 BOLT; CHAMBER
M10X45 W/LK WASHER 		0-50051-045-0 08 1 0710-0808 ●
91 BOLT; CHAMBER
M10X45 W/LK WASHER 		0-50051-045-0 08 1 0809-0809 ●
91 BOLT; CHAMBER
ANTI LOCK BRAKE<JE5> M10X45 W/LK WASHER 		0-50051-045-0 08 1 0809-0809 ●
91 BOLT; CHAMBER
M10X45 W/LK WASHER 		0-50051-045-0 08 1 0810-0906 ●
91 BOLT; CHAMBER
AUSTRALIA EQUIPMENT(B13) M10X45 W/LK WASHER 		0-50051-045-0 08 1 0810-0906 ●
91 BOLT; CHAMBER
M10X45 W/LK WASHER 		0-50551-045-0 08 1 0907-0910 ●
91 BOLT; CHAMBER
AUSTRALIA EQUIPMENT(B13) M10X45 W/LK WASHER 		0-50551-045-0 08 1 0907-0910 ●
91 BOLT; CHAMBER
M10X45 		1-47139-174-0 08 1 0911- ●
91 BOLT; CHAMBER
AUSTRALIA EQUIPMENT(B13) M10X45 		1-47139-174-0 08 1 0911- ●
132 SCREW; ADJ,RR BRK 1-47623-035-2 04 1 0710- ●
132 SCREW; ADJ,RR BRK 1-47623-035-2 04 1 0710- ●
150 PLATE; LK,ANCHOR PIN 1-47133-010-0 02 1 0710- ●
150 PLATE; LK,ANCHOR PIN 1-47133-010-0 02 1 0710- ●
157 BOLT; RR BRK SET
EXC. ANTI LOCK BRAKE<JE5> M14X50 		1-09040-066-0 02 1 0809- ●
157 BOLT; RR BRK SET
EXC. AUSTRALIA EQUIPMENT(B13) M14X50 		1-09040-066-0 02 1 0809- ●
178 WEDGE; RR WHEEL CYL 1-47640-012-0 02 1 0710- ●
178 WEDGE; RR WHEEL CYL 1-47640-012-0 02 1 0710- ●
242 SEAL 1-47159-186-0 04 1 0710- ●
242 SEAL 1-47159-186-0 04 1 0710- ●
266 ROLLER; WEDGE 1-47643-007-0 04 1 0710- ●
266 ROLLER; WEDGE 1-47643-007-0 04 1 0710- ●
297 RING; SNAP
(A) 		1-47649-031-0 02 1 0710- ●
297 RING; SNAP
(A) 		1-47649-031-0 02 1 0710- ●
297 RING; SNAP
(B) 		1-47649-034-1 02 1 0710- ●
297 RING; SNAP
(B) 		1-47649-034-1 02 1 0710- ●
298 GASKET 1-48259-231-0 02 1 0710- ●
298 GASKET 1-48259-231-0 02 1 0710- ●
300 SLEEVE 1-47629-247-1 04 1 0710- ●
300 SLEEVE 1-47629-247-1 04 1 0710- ●
301 CLIP; ANTI LOTATION 1-47621-017-0 04 1 0710- ●
301 CLIP; ANTI LOTATION 1-47621-017-0 04 1 0710- ●
310 EXPANDER 1-47601-087-0 02 1 0710- ●
310 EXPANDER 1-47601-087-0 02 1 0710- ●
311 BOOT; WEDGE 1-47649-042-0 02 1 0710- ●
311 BOOT; WEDGE 1-47649-042-0 02 1 0710- ●
312 BOLT; EXPANDER
M8X16 HEXALOBULAR SOCKET 		1-47634-008-0 04 1 0710- ●
312 BOLT; EXPANDER
M8X16 HEXALOBULAR SOCKET 		1-47634-008-0 04 1 0710- ●
319 RING; DRIVE 1-47629-200-0 04 1 0710- ●
319 RING; DRIVE 1-47629-200-0 04 1 0710- ●
327 SPRING; ADJ 1-47629-196-0 04 1 0710- ●
327 SPRING; ADJ 1-47629-196-0 04 1 0710- ●
328 CAGE; SPRING 1-47629-192-0 04 1 0710- ●
328 CAGE; SPRING 1-47629-192-0 04 1 0710- ●
329 SCREW; LOCATING 1-47619-149-1 04 1 0710- ●
329 SCREW; LOCATING 1-47619-149-1 04 1 0710- ●
334 SPRING; ROD 1-47649-041-0 02 1 0710- ●
334 SPRING; ROD 1-47649-041-0 02 1 0710- ●
335 RETAINER; SPRING 1-47649-020-0 02 1 0710- ●
335 RETAINER; SPRING 1-47649-020-0 02 1 0710- ●
336 PLATE; PIVOT 1-47119-152-0 04 1 0710- ●
336 PLATE; PIVOT 1-47119-152-0 04 1 0710- ●
337 BOLT; PLATE 1-47119-153-0 04 1 0710- ●
337 BOLT; PLATE 1-47119-153-0 04 1 0710- ●
348 CAP; EXPANDER 1-47649-044-0 02 1 0710- ●
348 CAP; EXPANDER 1-47649-044-0 02 1 0710- ●

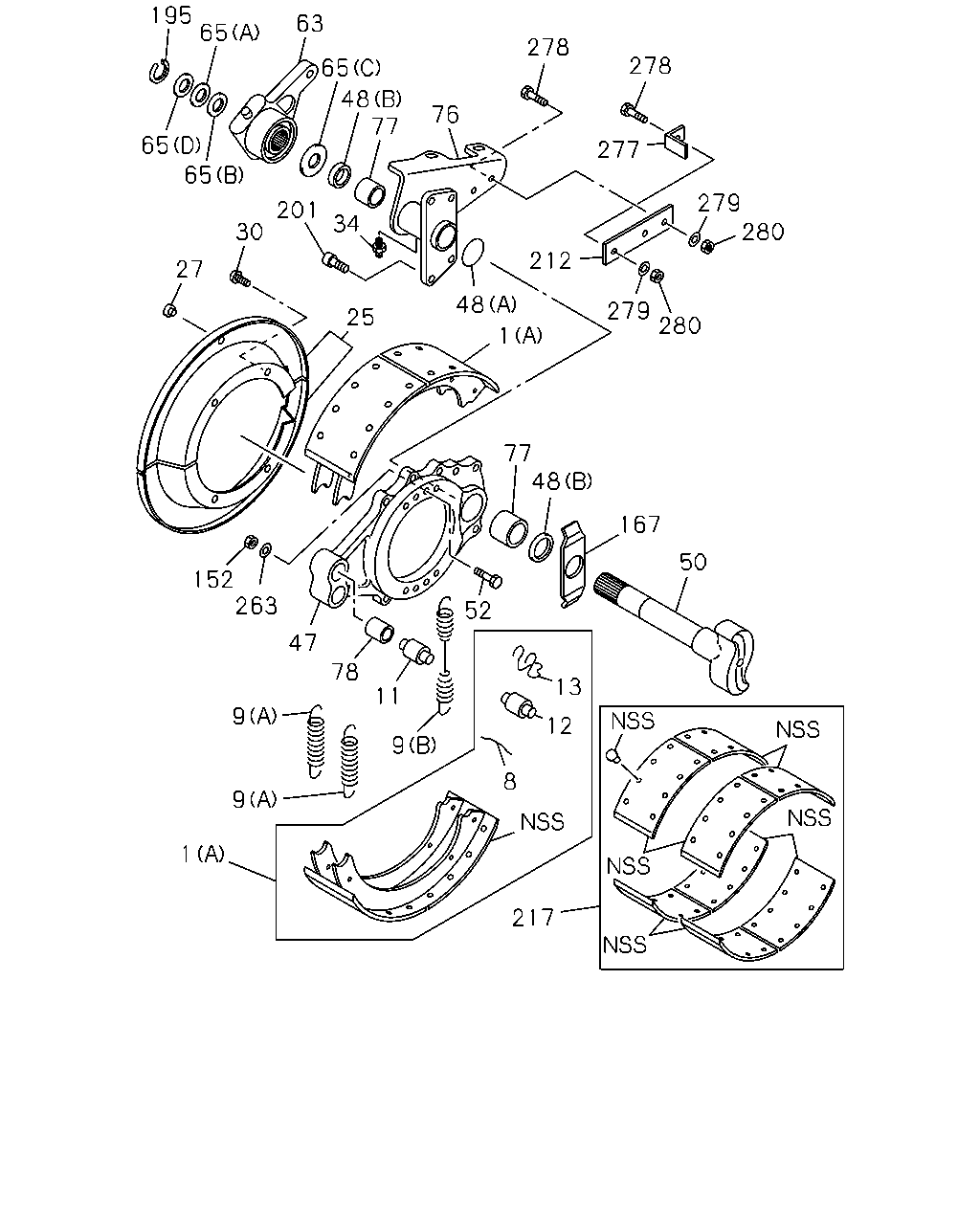

çizim 179370
195 65 63 278 278 65 48 77 76 65 277 65 279 280 201 34 30 212 27 48 279 280 25 1 77 48 167 50 152 263 52 47 78 13 11 9 12 9 8 9 1 217
BalonParca AdiParca NoAdetTipApplied Date A B
1 SHOE; BRK,RR
EXC. AUSTRALIA EQUIPMENT(B13) (B) LEADING 		1-47170-324-0 01 1 0809- ●
1 SHOE; BRK,RR
EXC. AUSTRALIA EQUIPMENT(B13) (B) LEADING 		1-47170-324-0 01 1 0809- ●
1 SHOE; BRK,RR
EXC. AUSTRALIA EQUIPMENT(B13) (B) TRAILING 		1-47170-325-0 01 1 0809- ●
1 SHOE; BRK,RR
EXC. AUSTRALIA EQUIPMENT(B13) (B) TRAILING 		1-47170-325-0 01 1 0809- ●
1 SHOE; BRK,RR
EXC. AUSTRALIA EQUIPMENT(B13) (B) LEADING 		1-47170-326-0 01 1 0809- ●
1 SHOE; BRK,RR
EXC. AUSTRALIA EQUIPMENT(B13) (B) LEADING 		1-47170-326-0 01 1 0809- ●
1 SHOE; BRK,RR
EXC. AUSTRALIA EQUIPMENT(B13) (B) TRAILING 		1-47170-327-0 01 1 0809- ●
1 SHOE; BRK,RR
EXC. AUSTRALIA EQUIPMENT(B13) (B) TRAILING 		1-47170-327-0 01 1 0809- ●
1 SHOE; BRK,RR
(A) 		1-47120-734-0 04 1 0710- ●
1 SHOE; BRK,RR
(A) 		1-47120-734-0 04 1 0710- ●
1 SHOE; BRK,RR
(B) LEADING 		1-47170-504-0 01 1 0710-0808 ●
1 SHOE; BRK,RR
(B) LEADING 		1-47170-504-0 01 1 0710-0808 ●
1 SHOE; BRK,RR
AUSTRALIA EQUIPMENT(B13) (B) LEADING 		1-47170-504-0 01 1 0809- ●
1 SHOE; BRK,RR
AUSTRALIA EQUIPMENT(B13) (B) LEADING 		1-47170-504-0 01 1 0809- ●
1 SHOE; BRK,RR
(B) LEADING 		1-47170-506-0 01 1 0710-0808 ●
1 SHOE; BRK,RR
(B) LEADING 		1-47170-506-0 01 1 0710-0808 ●
1 SHOE; BRK,RR
AUSTRALIA EQUIPMENT(B13) (B) LEADING 		1-47170-506-0 01 1 0809- ●
1 SHOE; BRK,RR
AUSTRALIA EQUIPMENT(B13) (B) LEADING 		1-47170-506-0 01 1 0809- ●
1 SHOE; BRK,RR
(B) TRAILING 		1-47170-505-0 01 1 0710-0808 ●
1 SHOE; BRK,RR
(B) TRAILING 		1-47170-505-0 01 1 0710-0808 ●
1 SHOE; BRK,RR
AUSTRALIA EQUIPMENT(B13) (B) TRAILING 		1-47170-505-0 01 1 0809- ●
1 SHOE; BRK,RR
AUSTRALIA EQUIPMENT(B13) (B) TRAILING 		1-47170-505-0 01 1 0809- ●
1 SHOE; BRK,RR
(B) TRAILING 		1-47170-507-0 01 1 0710-0808 ●
1 SHOE; BRK,RR
(B) TRAILING 		1-47170-507-0 01 1 0710-0808 ●
1 SHOE; BRK,RR
AUSTRALIA EQUIPMENT(B13) (B) TRAILING 		1-47170-507-0 01 1 0809- ●
1 SHOE; BRK,RR
AUSTRALIA EQUIPMENT(B13) (B) TRAILING 		1-47170-507-0 01 1 0809- ●
8 PIN; RETURN SPRING,RR BRK SHOE
EXC. AUSTRALIA EQUIPMENT(B13) TRAILING 		1-47119-136-0 02 1 0809- ●
8 PIN; RETURN SPRING,RR BRK SHOE
EXC. AUSTRALIA EQUIPMENT(B13) TRAILING 		1-47119-136-0 02 1 0809- ●
8 PIN; RETURN SPRING,RR BRK SHOE
EXC. AUSTRALIA EQUIPMENT(B13) LEADING 		1-47119-172-0 02 1 0809- ●
8 PIN; RETURN SPRING,RR BRK SHOE
EXC. AUSTRALIA EQUIPMENT(B13) LEADING 		1-47119-172-0 02 1 0809- ●
8 PIN; RETURN SPRING,RR BRK SHOE 1-47119-116-0 04 1 0710- ●
8 PIN; RETURN SPRING,RR BRK SHOE 1-47119-116-0 04 1 0710- ●
8 PIN; RETURN SPRING,RR BRK SHOE 1-47119-175-0 04 1 0710-0808 ●
8 PIN; RETURN SPRING,RR BRK SHOE 1-47119-175-0 04 1 0710-0808 ●
8 PIN; RETURN SPRING,RR BRK SHOE
AUSTRALIA EQUIPMENT(B13) 		1-47119-175-0 04 1 0809- ●
8 PIN; RETURN SPRING,RR BRK SHOE
AUSTRALIA EQUIPMENT(B13) 		1-47119-175-0 04 1 0809- ●
9 SPRING; RETURN,BRK SHOE
EXC. AUSTRALIA EQUIPMENT(B13) (C) 		1-09583-365-1 02 1 0809- ●
9 SPRING; RETURN,BRK SHOE
EXC. AUSTRALIA EQUIPMENT(B13) (C) 		1-09583-365-1 02 1 0809- ●
9 SPRING; RETURN,BRK SHOE
(A) 		1-47119-114-0 04 1 0710- ●
9 SPRING; RETURN,BRK SHOE
(A) 		1-47119-114-0 04 1 0710- ●
9 SPRING; RETURN,BRK SHOE
(B) 		1-47119-115-0 02 1 0710- ●
9 SPRING; RETURN,BRK SHOE
(B) 		1-47119-115-0 02 1 0710- ●
9 SPRING; RETURN,BRK SHOE
(C) 		1-09583-376-0 02 1 0710-0808 ●
9 SPRING; RETURN,BRK SHOE
(C) 		1-09583-376-0 02 1 0710-0808 ●
9 SPRING; RETURN,BRK SHOE
AUSTRALIA EQUIPMENT(B13) (C) 		1-09583-376-0 02 1 0809- ●
9 SPRING; RETURN,BRK SHOE
AUSTRALIA EQUIPMENT(B13) (C) 		1-09583-376-0 02 1 0809- ●
11 PIN; ANCHOR,RR WHEEL BRK 1-47131-040-0 04 1 0710- ●
11 PIN; ANCHOR,RR WHEEL BRK 1-47131-040-0 04 1 0710- ●
11 PIN; ANCHOR,RR WHEEL BRK
L=138.5 		1-47131-045-0 04 1 0710- ●
11 PIN; ANCHOR,RR WHEEL BRK
L=138.5 		1-47131-045-0 04 1 0710- ●
12 ROLLER; CAM,BRK SHOE 1-47119-141-0 04 1 0710- ●
12 ROLLER; CAM,BRK SHOE 1-47119-141-0 04 1 0710- ●
13 CLIP; ROLLER PIN,BRK SHOE 1-47119-118-0 04 1 0710- ●
13 CLIP; ROLLER PIN,BRK SHOE 1-47119-118-0 04 1 0710- ●
25 COVER SET; RR BRK DRUM 1-47151-774-0 02 1 0710- ●
25 COVER SET; RR BRK DRUM 1-47151-774-0 02 1 0710- ●
25 COVER SET; RR BRK DRUM
EXC. AUSTRALIA EQUIPMENT(B13) FORWARD RH,REARWARD LH 		1-47151-808-0 01 1 0809-1309 ●
25 COVER SET; RR BRK DRUM
EXC. AUSTRALIA EQUIPMENT(B13) FORWARD RH,REARWARD LH 		1-47151-808-0 01 1 0809-1309 ●
25 COVER SET; RR BRK DRUM
EXC. AUSTRALIA EQUIPMENT(B13) 		1-47151-878-0 02 1 1310- ●
25 COVER SET; RR BRK DRUM
EXC. AUSTRALIA EQUIPMENT(B13) 		1-47151-878-0 02 1 1310- ●
25 COVER SET; RR BRK DRUM
EXC. AUSTRALIA EQUIPMENT(B13) FORWARD LH,REARWARD RH 		1-47151-809-0 01 1 0809-1309 ●
25 COVER SET; RR BRK DRUM
EXC. AUSTRALIA EQUIPMENT(B13) FORWARD LH,REARWARD RH 		1-47151-809-0 01 1 0809-1309 ●
25 COVER SET; RR BRK DRUM
FORWARD RH,REARWARD LH 		1-47151-806-0 01 1 0710-0808 ●
25 COVER SET; RR BRK DRUM
FORWARD RH,REARWARD LH 		1-47151-806-0 01 1 0710-0808 ●
25 COVER SET; RR BRK DRUM
AUSTRALIA EQUIPMENT(B13) FORWARD RH,REARWARD LH 		1-47151-806-0 01 1 0809- ●
25 COVER SET; RR BRK DRUM
AUSTRALIA EQUIPMENT(B13) FORWARD RH,REARWARD LH 		1-47151-806-0 01 1 0809- ●
25 COVER SET; RR BRK DRUM
FORWARD LH,REARWARD RH 		1-47151-807-0 01 1 0710-0808 ●
25 COVER SET; RR BRK DRUM
FORWARD LH,REARWARD RH 		1-47151-807-0 01 1 0710-0808 ●
25 COVER SET; RR BRK DRUM
AUSTRALIA EQUIPMENT(B13) FORWARD LH,REARWARD RH 		1-47151-807-0 01 1 0809- ●
25 COVER SET; RR BRK DRUM
AUSTRALIA EQUIPMENT(B13) FORWARD LH,REARWARD RH 		1-47151-807-0 01 1 0809- ●
27 COVER; CHECK HOLE,DRUM COVER 1-87050-011-0 04 1 0710- ●
27 COVER; CHECK HOLE,DRUM COVER 1-87050-011-0 04 1 0710- ●
27 COVER; CHECK HOLE,DRUM COVER 1-09333-151-0 04 1 0710- ●
27 COVER; CHECK HOLE,DRUM COVER 1-09333-151-0 04 1 0710- ●
30 BOLT; DRUM COVER 1-47159-176-0 12 1 0710- ●
30 BOLT; DRUM COVER 1-47159-176-0 12 1 0710- ●
30 BOLT; DRUM COVER
M10X12 		1-47159-187-0 12 1 0710- ●
30 BOLT; DRUM COVER
M10X12 		1-47159-187-0 12 1 0710- ●
34 NIPPLE; GREASE,CHAMBER BRKT 1-48259-253-0 02 1 0710- ●
34 NIPPLE; GREASE,CHAMBER BRKT 1-48259-253-0 02 1 0710- ●
47 BRACKET; ANCHOR PIN,RR WHEEL BRK 1-47137-374-0 02 1 0710- ●
47 BRACKET; ANCHOR PIN,RR WHEEL BRK 1-47137-374-0 02 1 0710- ●
47 BRACKET; ANCHOR PIN,RR WHEEL BRK
REARWARD 		1-47137-472-0 02 1 0710-0808 ●
47 BRACKET; ANCHOR PIN,RR WHEEL BRK
EXC. ANTI LOCK BRAKE<JE5> REARWARD 		1-47137-472-0 02 1 0809-1306 ●
47 BRACKET; ANCHOR PIN,RR WHEEL BRK
REARWARD 		1-47137-472-0 02 1 0809-1306 ●
47 BRACKET; ANCHOR PIN,RR WHEEL BRK
EXC. ANTI LOCK BRAKE<JE5> 		8-98091-253-1 02 1 1307- ●
47 BRACKET; ANCHOR PIN,RR WHEEL BRK 8-98091-253-1 02 1 1307- ●
47 BRACKET; ANCHOR PIN,RR WHEEL BRK
FORWARD 		1-47137-549-0 01 1 0710-0808 ●
47 BRACKET; ANCHOR PIN,RR WHEEL BRK
ANTI LOCK BRAKE<JE5> FORWARD 		1-47137-549-0 01 1 0809-1306 ●
47 BRACKET; ANCHOR PIN,RR WHEEL BRK
ANTI LOCK BRAKE<JE5> FORWARD 		8-98091-254-1 01 1 1307- ●
47 BRACKET; ANCHOR PIN,RR WHEEL BRK
FORWARD 		1-47137-550-0 01 1 0710-0808 ●
47 BRACKET; ANCHOR PIN,RR WHEEL BRK
ANTI LOCK BRAKE<JE5> FORWARD 		1-47137-550-0 01 1 0809-1306 ●
47 BRACKET; ANCHOR PIN,RR WHEEL BRK
ANTI LOCK BRAKE<JE5> FORWARD 		8-98091-255-1 01 1 1307- ●
48 SEAL; OIL,CM/SHF,RR BRK
(A) 		1-47149-056-0 02 1 0710- ●
48 SEAL; OIL,CM/SHF,RR BRK
(A) 		1-47149-056-0 02 1 0710- ●
48 SEAL; OIL,CM/SHF,RR BRK
(B) 		1-47149-057-0 04 1 0710- ●
48 SEAL; OIL,CM/SHF,RR BRK
(B) 		1-47149-057-0 04 1 0710- ●
50 CAMSHAFT; BRK,RR BRK 1-47141-124-0 01 1 0710- ●
50 CAMSHAFT; BRK,RR BRK 1-47141-124-0 01 1 0710- ●
50 CAMSHAFT; BRK,RR BRK 1-47141-125-0 01 1 0710- ●
50 CAMSHAFT; BRK,RR BRK 1-47141-125-0 01 1 0710- ●
52 BOLT; ANCHOR BRKT 1-47139-122-0 16 1 0710- ●
52 BOLT; ANCHOR BRKT 1-47139-122-0 16 1 0710- ●
63 ADJUSTER ASM; SLACK,RR BRK 1-48270-106-0 02 1 0710- ●
63 ADJUSTER ASM; SLACK,RR BRK 1-48270-106-0 02 1 0710- ●
65 SPACER; SLACK ADJ,BRK
(A) T=0.06" 		1-47139-121-0 02 1 0710- ●
65 SPACER; SLACK ADJ,BRK
(A) T=0.06" 		1-47139-121-0 02 1 0710- ●
65 SPACER; SLACK ADJ,BRK
(B) 		1-47149-059-0 02 1 0710- ●
65 SPACER; SLACK ADJ,BRK
(B) 		1-47149-059-0 02 1 0710- ●
65 SPACER; SLACK ADJ,BRK
(D) T=0.03" 		1-47149-060-0 02 1 0710- ●
65 SPACER; SLACK ADJ,BRK
(D) T=0.03" 		1-47149-060-0 02 1 0710- ●
65 SPACER; SLACK ADJ,BRK
(C) 		1-47149-065-0 02 1 0710- ●
65 SPACER; SLACK ADJ,BRK
(C) 		1-47149-065-0 02 1 0710- ●
76 BRACKET; POWER CHAMBER,RR,W/BUSHING
FORWARD 		1-47145-022-0 01 1 0710- ●
76 BRACKET; POWER CHAMBER,RR,W/BUSHING
FORWARD 		1-47145-023-0 01 1 0710- ●
76 BRACKET; POWER CHAMBER,RR,W/BUSHING
REARWARD 		1-47145-024-0 01 1 0710- ●
76 BRACKET; POWER CHAMBER,RR,W/BUSHING
REARWARD 		1-47145-025-0 01 1 0710- ●
77 BUSHING 1-47146-012-0 04 1 0710- ●
77 BUSHING 1-47146-012-0 04 1 0710- ●
78 BUSHING; BRKT 1-47139-117-0 04 1 0710- ●
78 BUSHING; BRKT 1-47139-117-0 04 1 0710- ●
152 NUT; ANCHOR BRKT 1-41229-169-0 16 1 0710- ●
152 NUT; ANCHOR BRKT 1-41229-169-0 16 1 0710- ●
167 WASHER; ADJ CAM 1-47149-077-0 02 1 0710- ●
167 WASHER; ADJ CAM 1-47149-077-0 02 1 0710- ●
195 RING; SNAP,CM/SHF 1-87050-005-0 02 1 0710- ●
195 RING; SNAP,CM/SHF 1-87050-005-0 02 1 0710- ●
201 BOLT; BRKT,POWER CHAMBER 1-47139-119-0 08 1 0710- ●
201 BOLT; BRKT,POWER CHAMBER 1-47139-119-0 08 1 0710- ●
212 STAY 1-47149-081-0 02 1 0710- ●
212 STAY 1-47149-081-0 02 1 0710- ●
217 LINING KIT; RR BRK 1-87050-157-0 01 1 0710- ●
217 LINING KIT; RR BRK 1-87050-157-0 01 1 0710- ●
263 WASHER; PL,ANCHOR BRKT 1-41519-038-0 16 1 0710- ●
263 WASHER; PL,ANCHOR BRKT 1-41519-038-0 16 1 0710- ●
277 SUPPORT; BRKT 1-47149-099-0 02 1 1205- ●
278 BOLT; SUPPORT 1-41329-038-0 06 1 0710- ●
278 BOLT; SUPPORT 1-41329-038-0 06 1 0710- ●
279 WASHER; SUPPORT 1-47149-083-0 06 1 0710- ●
279 WASHER; SUPPORT 1-47149-083-0 06 1 0710- ●
280 NUT; SUPPORT 1-47149-082-0 06 1 0710- ●
280 NUT; SUPPORT 1-47149-082-0 06 1 0710- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
