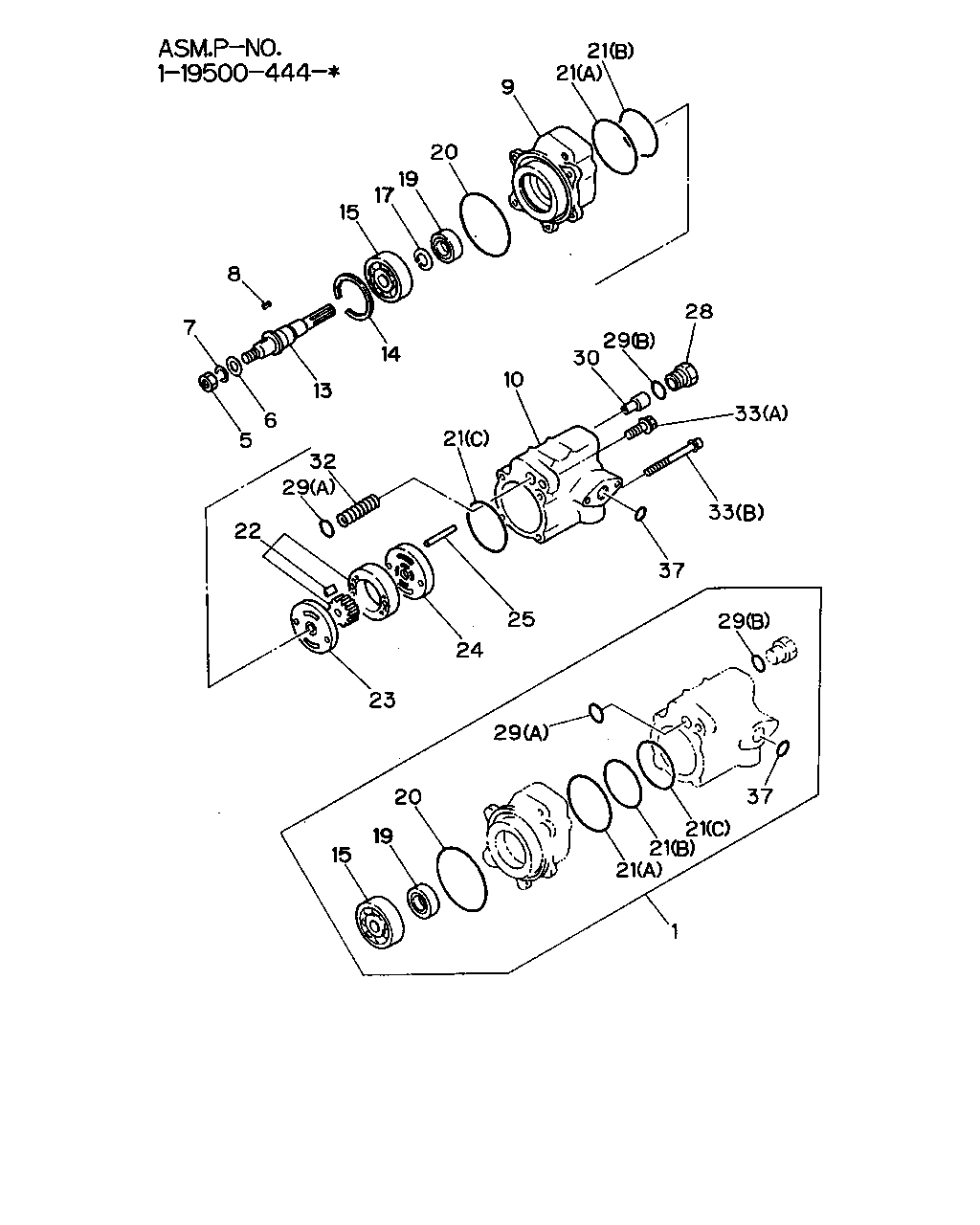

4-42 — POWER STEERING OIL PUMP (#3398) — 151 parça

1 21 21 21 37 15 20 19 29 29 23 24 25 37 33 33 28 30 29 10 21 22 32 29 5 6 13 14 7 8 15 17 19 20 9 21 21

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	REPAIR KIT; OIL PUMP ASM PART: A = 1-19500-310-4, B = 1-19500-344-4	1-85574-006-0	01	1	-
1	REPAIR KIT; OIL PUMP ASM PART: C = 1-19500-345-5	1-85574-007-0	01	1	-9110
1	REPAIR KIT; OIL PUMP ASM PART: D = 1-19500-444-1	1-85574-039-0	01	1	-
1	REPAIR KIT; OIL PUMP ASM PART: C = 1-19500-345-5	1-85574-049-0	01	1	9505-
1	REPAIR KIT; OIL PUMP ASM PART: C = 1-19500-345-5	1-87520-184-0	01	1	9111-9504
5	NUT; SHAFT,P/S PUMP ASM PART: A = 1-19500-310-4, B = 1-19500-344-4	1-19519-003-0	01	1	-
5	NUT; SHAFT,P/S PUMP M16 ASM PART: C = 1-19500-345-5	9-19519-112-0	01	1	-9110
5	NUT; SHAFT,P/S PUMP ASM PART: D = 1-19500-444-1	9-88510-424-0	01	1	-
5	NUT; SHAFT,P/S PUMP ASM PART: C = 1-19500-345-5	9-88510-424-0	01	1	9111-
6	WASHER; PL,OIL PUMP ASM PART: A = 1-19500-310-4, B = 1-19500-344-4	1-19519-001-0	01	1	-
6	WASHER; PL,OIL PUMP ASM PART: D = 1-19500-444-1	1-19519-293-0	01	1	-
6	WASHER; PL,OIL PUMP ASM PART: C = 1-19500-345-5	1-19519-293-0	01	1	9111-
6	WASHER; PL,OIL PUMP ASM PART: C = 1-19500-345-5	9-19519-088-0	01	1	-9110
7	WASHER; SHAFT ASM PART: A = 1-19500-310-4, B = 1-19500-344-4	1-19519-002-0	01	1	-
7	WASHER; SHAFT ASM PART: C = 1-19500-345-5	9-09150-016-0	01	1	-9110
7	WASHER; SHAFT ASM PART: C = 1-19500-345-5	9-88510-425-0	01	1	9111-
7	WASHER; SHAFT ASM PART: D = 1-19500-444-1	9-88510-425-0	01	1	-
8	KEY; SHAFT,OIL PUMP ASM PART: A = 1-19500-310-4, B = 1-19500-344-4, C = 1-19500-345-5, D = 1-19500-444-1	9-19519-036-0	01	1	-
9	BODY ASM; FRT,OIL PUMP ASM PART: A = 1-19500-310-4, B = 1-19500-344-4	1-19511-080-0	01	1	-
9	BODY ASM; FRT,OIL PUMP ASM PART: C = 1-19500-345-5	1-19511-081-0	01	1	-9110
9	BODY ASM; FRT,OIL PUMP ASM PART: D = 1-19500-444-1	1-19511-126-1	01	1	-
9	BODY ASM; FRT,OIL PUMP ASM PART: C = 1-19500-345-5	1-19511-130-0	01	1	9111-
10	BODY ASM; RR,OIL PUMP ASM PART: A = 1-19500-310-4, B = 1-19500-344-4	1-19511-063-0	01	1	-
10	BODY ASM; RR,OIL PUMP ASM PART: C = 1-19500-345-5	1-19511-082-0	01	1	-
10	BODY ASM; RR,OIL PUMP ASM PART: D = 1-19500-444-1	1-19511-127-0	01	1	-
13	SHAFT KIT; RET ASM PART: C = 1-19500-345-5	1-19521-018-0	01	1	-
13	SHAFT KIT; RET ASM PART: A = 1-19500-310-4, B = 1-19500-344-4	1-19521-026-0	01	1	-
13	SHAFT KIT; RET ASM PART: D = 1-19500-444-1	1-19521-032-0	01	1	-
14	RING; RET,OIL PUMP ASM PART: A = 1-19500-310-4	1-19519-135-0	01	1	-9106
14	RING; RET,OIL PUMP ASM PART: C = 1-19500-345-5	1-19519-135-0	01	1	-
14	RING; RET,OIL PUMP ASM PART: B = 1-19500-344-4, D = 1-19500-444-1	1-19519-172-0	01	1	-
14	RING; RET,OIL PUMP ASM PART: A = 1-19500-310-4	1-19519-172-0	01	1	9107-
15	BEARING; BALL,OIL PUMP ASM PART: A = 1-19500-310-4, B = 1-19500-344-4, C = 1-19500-345-5, D = 1-19500-444-1	1-19515-004-0	01	1	-
17	RING; RET ASM PART: A = 1-19500-310-4, B = 1-19500-344-4, D = 1-19500-444-1	1-19519-094-0	01	1	-
17	RING; RET ASM PART: C = 1-19500-345-5	1-19519-177-0	01	1	-
19	SEAL; OIL,OIL PUMP ASM PART: A = 1-19500-310-4, B = 1-19500-344-4, C = 1-19500-345-5, D = 1-19500-444-1	1-19519-252-0	01	1	-
20	GASKET; FRT,OIL PUMP ID=96.4 ASM PART: A = 1-19500-310-4, B = 1-19500-344-4, D = 1-19500-444-1	1-09623-178-0	01	1	-
20	GASKET; FRT,OIL PUMP ID=79.6 ASM PART: C = 1-19500-345-5	1-09623-421-0	01	1	-
21	GASKET; FRT COVER TO BODY (A) ASM PART: D = 1-19500-444-1	1-19519-290-0	01	1	-
21	GASKET; FRT COVER TO BODY (B) ASM PART: D = 1-19500-444-1	1-19519-295-0	01	1	-
21	GASKET; FRT COVER TO BODY (C) ASM PART: D = 1-19500-444-1	1-19519-296-0	01	1	-
21	GASKET; FRT COVER TO BODY ASM PART: C = 1-19500-345-5	1-19519-314-0	01	1	9505-
21	GASKET; FRT COVER TO BODY ASM PART: C = 1-19500-345-5	9-88510-234-0	01	1	-9504
21	GASKET; FRT COVER TO BODY ASM PART: A = 1-19500-310-4, B = 1-19500-344-4	9-88510-234-0	01	1	-
22	CARTRIDGE ASM; OIL PUMP ASM PART: A = 1-19500-310-4, B = 1-19500-344-4	1-19519-132-0	01	1	-
22	CARTRIDGE ASM; OIL PUMP ASM PART: C = 1-19500-345-5	1-19519-132-0	01	1	-9110
22	CARTRIDGE ASM; OIL PUMP ASM PART: D = 1-19500-444-1	1-19519-280-0	02	1	-
22	CARTRIDGE ASM; OIL PUMP ASM PART: C = 1-19500-345-5	1-19519-325-0	01	1	9111-
23	PLATE; SIDE,OIL PUMP ASM PART: A = 1-19500-310-4, B = 1-19500-344-4, C = 1-19500-345-5	1-19519-234-0	01	1	-
23	PLATE; SIDE,OIL PUMP ASM PART: D = 1-19500-444-1	1-19519-282-1	01	1	-
24	PLATE ASM; THRUST ASM PART: D = 1-19500-444-1	1-19519-145-0	01	1	-
24	PLATE ASM; THRUST ASM PART: A = 1-19500-310-4	1-19519-233-0	01	1	-
24	PLATE ASM; THRUST ASM PART: B = 1-19500-344-4	1-19519-237-0	01	1	-
24	PLATE ASM; THRUST ASM PART: C = 1-19500-345-5	1-19519-237-0	01	1	-9110
24	PLATE ASM; THRUST ASM PART: C = 1-19500-345-5	1-19519-312-0	01	1	9111-
25	PIN; HSG,P/S ASM PART: A = 1-19500-310-4, B = 1-19500-344-4, C = 1-19500-345-5	9-88510-408-0	02	1	-
25	PIN; HSG,P/S ASM PART: D = 1-19500-444-1	9-88510-421-0	02	1	-
28	PLUG; DRAIN,OIL PUMP ASM PART: A = 1-19500-310-4, B = 1-19500-344-4, C = 1-19500-345-5	1-19519-230-0	01	1	-
28	PLUG; DRAIN,OIL PUMP ASM PART: D = 1-19500-444-1	1-19519-297-0	01	1	-
29	GASKET; PLUG TO VLV (A) ASM PART: D = 1-19500-444-1	1-19519-289-0	01	1	-
29	GASKET; PLUG TO VLV (B) ASM PART: D = 1-19500-444-1	1-19519-298-0	01	1	-
29	GASKET; PLUG TO VLV ASM PART: A = 1-19500-310-4, B = 1-19500-344-4, C = 1-19500-345-5	9-88510-248-0	01	1	-
30	VALVE; OIL PUMP ASM PART: D = 1-19500-444-1	1-19519-225-0	01	1	-
32	SPRING; OIL PUMP ASM PART: D = 1-19500-444-1	1-19519-288-0	01	1	-
32	SPRING; OIL PUMP ASM PART: A = 1-19500-310-4, B = 1-19500-344-4, C = 1-19500-345-5	9-19529-013-0	01	1	-
33	BOLT; COVER (A) ASM PART: D = 1-19500-444-1	1-19519-243-0	01	1	-
33	BOLT; COVER ASM PART: A = 1-19500-310-4, B = 1-19500-344-4, C = 1-19500-345-5	1-19519-244-0	04	1	-
33	BOLT; COVER (B) ASM PART: D = 1-19500-444-1	1-19519-291-0	03	1	-
37	GASKET; PIPE CONN,OIL PUMP ASM PART: C = 1-19500-345-5	1-19519-292-0	01	1	9505-
37	GASKET; PIPE CONN,OIL PUMP ASM PART: D = 1-19500-444-1	1-19519-292-0	01	1	-
37	GASKET; PIPE CONN,OIL PUMP ASM PART: A = 1-19500-310-4, B = 1-19500-344-4	9-48429-028-0	01	1	-
37	GASKET; PIPE CONN,OIL PUMP ASM PART: C = 1-19500-345-5	9-48429-028-0	01	1	-9504

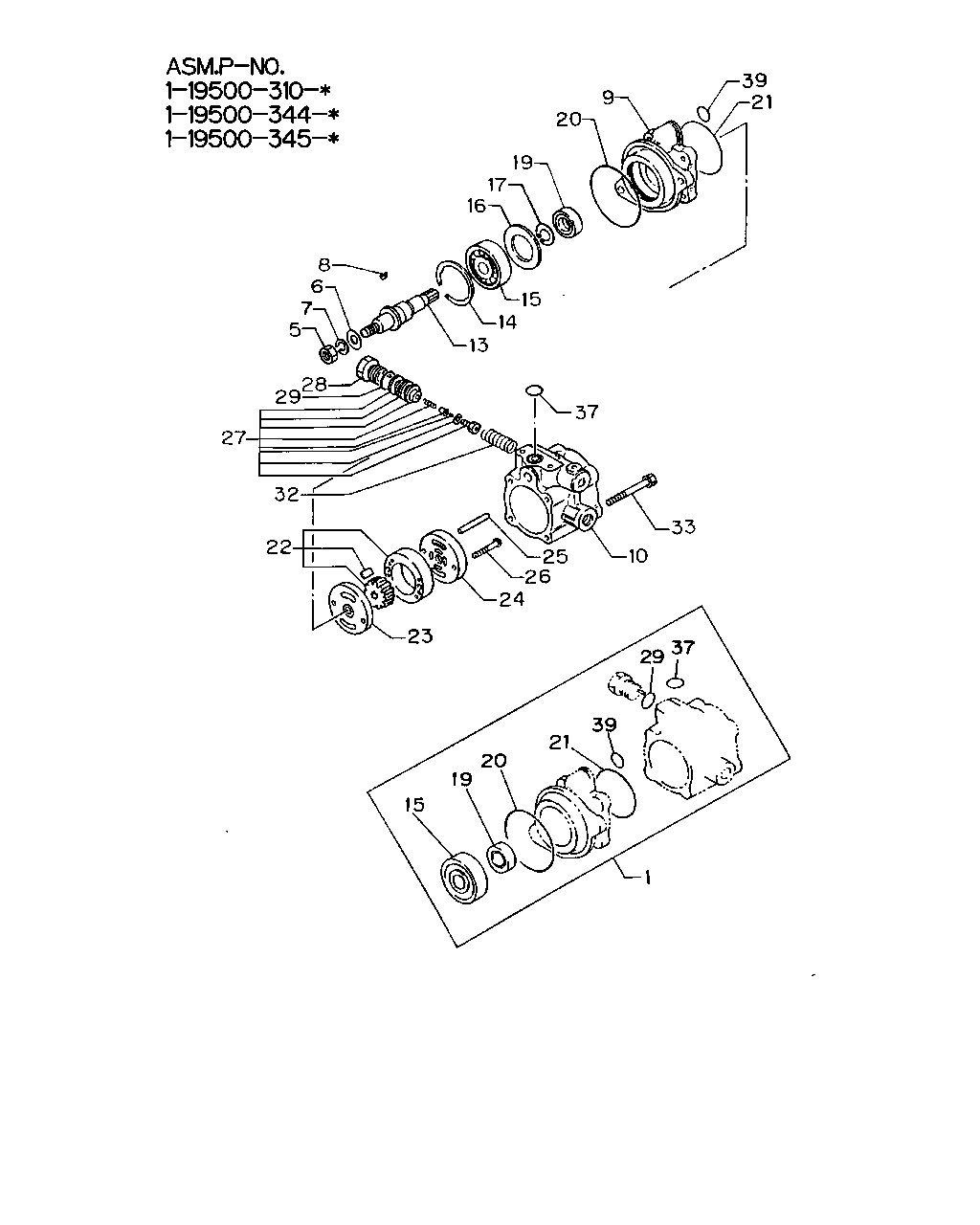

1 15 21 19 20 39 29 37 33 10 25 26 24 23 22 27 32 29 28 37 13 14 15 5 7 6 8 16 17 19 20 9 21 39

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	REPAIR KIT; OIL PUMP ASM PART: A = 1-19500-310-4, B = 1-19500-344-4	1-85574-006-0	01	1	-
1	REPAIR KIT; OIL PUMP ASM PART: C = 1-19500-345-5	1-85574-007-0	01	1	-9110
1	REPAIR KIT; OIL PUMP ASM PART: D = 1-19500-444-1	1-85574-039-0	01	1	-
1	REPAIR KIT; OIL PUMP ASM PART: C = 1-19500-345-5	1-85574-049-0	01	1	9505-
1	REPAIR KIT; OIL PUMP ASM PART: C = 1-19500-345-5	1-87520-184-0	01	1	9111-9504
5	NUT; SHAFT,P/S PUMP ASM PART: A = 1-19500-310-4, B = 1-19500-344-4	1-19519-003-0	01	1	-
5	NUT; SHAFT,P/S PUMP M16 ASM PART: C = 1-19500-345-5	9-19519-112-0	01	1	-9110
5	NUT; SHAFT,P/S PUMP ASM PART: D = 1-19500-444-1	9-88510-424-0	01	1	-
5	NUT; SHAFT,P/S PUMP ASM PART: C = 1-19500-345-5	9-88510-424-0	01	1	9111-
6	WASHER; PL,OIL PUMP ASM PART: A = 1-19500-310-4, B = 1-19500-344-4	1-19519-001-0	01	1	-
6	WASHER; PL,OIL PUMP ASM PART: D = 1-19500-444-1	1-19519-293-0	01	1	-
6	WASHER; PL,OIL PUMP ASM PART: C = 1-19500-345-5	1-19519-293-0	01	1	9111-
6	WASHER; PL,OIL PUMP ASM PART: C = 1-19500-345-5	9-19519-088-0	01	1	-9110
7	WASHER; SHAFT ASM PART: A = 1-19500-310-4, B = 1-19500-344-4	1-19519-002-0	01	1	-
7	WASHER; SHAFT ASM PART: C = 1-19500-345-5	9-09150-016-0	01	1	-9110
7	WASHER; SHAFT ASM PART: C = 1-19500-345-5	9-88510-425-0	01	1	9111-
7	WASHER; SHAFT ASM PART: D = 1-19500-444-1	9-88510-425-0	01	1	-
8	KEY; SHAFT,OIL PUMP ASM PART: A = 1-19500-310-4, B = 1-19500-344-4, C = 1-19500-345-5, D = 1-19500-444-1	9-19519-036-0	01	1	-
9	BODY ASM; FRT,OIL PUMP ASM PART: A = 1-19500-310-4, B = 1-19500-344-4	1-19511-080-0	01	1	-
9	BODY ASM; FRT,OIL PUMP ASM PART: C = 1-19500-345-5	1-19511-081-0	01	1	-9110
9	BODY ASM; FRT,OIL PUMP ASM PART: D = 1-19500-444-1	1-19511-126-1	01	1	-
9	BODY ASM; FRT,OIL PUMP ASM PART: C = 1-19500-345-5	1-19511-130-0	01	1	9111-
10	BODY ASM; RR,OIL PUMP ASM PART: A = 1-19500-310-4, B = 1-19500-344-4	1-19511-063-0	01	1	-
10	BODY ASM; RR,OIL PUMP ASM PART: C = 1-19500-345-5	1-19511-082-0	01	1	-
10	BODY ASM; RR,OIL PUMP ASM PART: D = 1-19500-444-1	1-19511-127-0	01	1	-
13	SHAFT KIT; RET ASM PART: C = 1-19500-345-5	1-19521-018-0	01	1	-
13	SHAFT KIT; RET ASM PART: A = 1-19500-310-4, B = 1-19500-344-4	1-19521-026-0	01	1	-
13	SHAFT KIT; RET ASM PART: D = 1-19500-444-1	1-19521-032-0	01	1	-
14	RING; RET,OIL PUMP ASM PART: A = 1-19500-310-4	1-19519-135-0	01	1	-9106
14	RING; RET,OIL PUMP ASM PART: C = 1-19500-345-5	1-19519-135-0	01	1	-
14	RING; RET,OIL PUMP ASM PART: B = 1-19500-344-4, D = 1-19500-444-1	1-19519-172-0	01	1	-
14	RING; RET,OIL PUMP ASM PART: A = 1-19500-310-4	1-19519-172-0	01	1	9107-
15	BEARING; BALL,OIL PUMP ASM PART: A = 1-19500-310-4, B = 1-19500-344-4, C = 1-19500-345-5, D = 1-19500-444-1	1-19515-004-0	01	1	-
16	RING; RET,OIL PUMP ASM PART: A = 1-19500-310-4, B = 1-19500-344-4	1-19519-095-0	01	1	-
16	RING; RET,OIL PUMP ASM PART: C = 1-19500-345-5	9-19519-078-0	01	1	-
17	RING; RET ASM PART: A = 1-19500-310-4, B = 1-19500-344-4, D = 1-19500-444-1	1-19519-094-0	01	1	-
17	RING; RET ASM PART: C = 1-19500-345-5	1-19519-177-0	01	1	-
19	SEAL; OIL,OIL PUMP ASM PART: A = 1-19500-310-4, B = 1-19500-344-4, C = 1-19500-345-5, D = 1-19500-444-1	1-19519-252-0	01	1	-
20	GASKET; FRT,OIL PUMP ID=96.4 ASM PART: A = 1-19500-310-4, B = 1-19500-344-4, D = 1-19500-444-1	1-09623-178-0	01	1	-
20	GASKET; FRT,OIL PUMP ID=79.6 ASM PART: C = 1-19500-345-5	1-09623-421-0	01	1	-
21	GASKET; FRT COVER TO BODY (A) ASM PART: D = 1-19500-444-1	1-19519-290-0	01	1	-
21	GASKET; FRT COVER TO BODY (B) ASM PART: D = 1-19500-444-1	1-19519-295-0	01	1	-
21	GASKET; FRT COVER TO BODY (C) ASM PART: D = 1-19500-444-1	1-19519-296-0	01	1	-
21	GASKET; FRT COVER TO BODY ASM PART: C = 1-19500-345-5	1-19519-314-0	01	1	9505-
21	GASKET; FRT COVER TO BODY ASM PART: C = 1-19500-345-5	9-88510-234-0	01	1	-9504
21	GASKET; FRT COVER TO BODY ASM PART: A = 1-19500-310-4, B = 1-19500-344-4	9-88510-234-0	01	1	-
22	CARTRIDGE ASM; OIL PUMP ASM PART: A = 1-19500-310-4, B = 1-19500-344-4	1-19519-132-0	01	1	-
22	CARTRIDGE ASM; OIL PUMP ASM PART: C = 1-19500-345-5	1-19519-132-0	01	1	-9110
22	CARTRIDGE ASM; OIL PUMP ASM PART: D = 1-19500-444-1	1-19519-280-0	02	1	-
22	CARTRIDGE ASM; OIL PUMP ASM PART: C = 1-19500-345-5	1-19519-325-0	01	1	9111-
23	PLATE; SIDE,OIL PUMP ASM PART: A = 1-19500-310-4, B = 1-19500-344-4, C = 1-19500-345-5	1-19519-234-0	01	1	-
23	PLATE; SIDE,OIL PUMP ASM PART: D = 1-19500-444-1	1-19519-282-1	01	1	-
24	PLATE ASM; THRUST ASM PART: D = 1-19500-444-1	1-19519-145-0	01	1	-
24	PLATE ASM; THRUST ASM PART: A = 1-19500-310-4	1-19519-233-0	01	1	-
24	PLATE ASM; THRUST ASM PART: B = 1-19500-344-4	1-19519-237-0	01	1	-
24	PLATE ASM; THRUST ASM PART: C = 1-19500-345-5	1-19519-237-0	01	1	-9110
24	PLATE ASM; THRUST ASM PART: C = 1-19500-345-5	1-19519-312-0	01	1	9111-
25	PIN; HSG,P/S ASM PART: A = 1-19500-310-4, B = 1-19500-344-4, C = 1-19500-345-5	9-88510-408-0	02	1	-
25	PIN; HSG,P/S ASM PART: D = 1-19500-444-1	9-88510-421-0	02	1	-
26	SCREW; PLATE ASM PART: A = 1-19500-310-4, B = 1-19500-344-4, C = 1-19500-345-5	1-19519-106-0	02	1	-
27	VALVE ASM; OIL PUMP ASM PART: A = 1-19500-310-4	1-19519-178-0	01	1	-
27	VALVE ASM; OIL PUMP ASM PART: B = 1-19500-344-4, C = 1-19500-345-5	1-19519-183-1	01	1	-
28	PLUG; DRAIN,OIL PUMP ASM PART: A = 1-19500-310-4, B = 1-19500-344-4, C = 1-19500-345-5	1-19519-230-0	01	1	-
28	PLUG; DRAIN,OIL PUMP ASM PART: D = 1-19500-444-1	1-19519-297-0	01	1	-
29	GASKET; PLUG TO VLV (A) ASM PART: D = 1-19500-444-1	1-19519-289-0	01	1	-
29	GASKET; PLUG TO VLV (B) ASM PART: D = 1-19500-444-1	1-19519-298-0	01	1	-
29	GASKET; PLUG TO VLV ASM PART: A = 1-19500-310-4, B = 1-19500-344-4, C = 1-19500-345-5	9-88510-248-0	01	1	-
32	SPRING; OIL PUMP ASM PART: D = 1-19500-444-1	1-19519-288-0	01	1	-
32	SPRING; OIL PUMP ASM PART: A = 1-19500-310-4, B = 1-19500-344-4, C = 1-19500-345-5	9-19529-013-0	01	1	-
33	BOLT; COVER (A) ASM PART: D = 1-19500-444-1	1-19519-243-0	01	1	-
33	BOLT; COVER ASM PART: A = 1-19500-310-4, B = 1-19500-344-4, C = 1-19500-345-5	1-19519-244-0	04	1	-
33	BOLT; COVER (B) ASM PART: D = 1-19500-444-1	1-19519-291-0	03	1	-
37	GASKET; PIPE CONN,OIL PUMP ASM PART: C = 1-19500-345-5	1-19519-292-0	01	1	9505-
37	GASKET; PIPE CONN,OIL PUMP ASM PART: D = 1-19500-444-1	1-19519-292-0	01	1	-
37	GASKET; PIPE CONN,OIL PUMP ASM PART: A = 1-19500-310-4, B = 1-19500-344-4	9-48429-028-0	01	1	-
37	GASKET; PIPE CONN,OIL PUMP ASM PART: C = 1-19500-345-5	9-48429-028-0	01	1	-9504
39	GASKET; OIL PUMP ASM PART: C = 1-19500-345-5	1-19519-100-0	01	1	-9504
39	GASKET; OIL PUMP ASM PART: A = 1-19500-310-4, B = 1-19500-344-4	1-19519-100-0	01	1	-
39	GASKET; OIL PUMP ASM PART: C = 1-19500-345-5	1-19519-313-0	01	1	9505-
