Isuzu WW
▶
TRUCKS
▶
FVM
▶
11105 - FVM(RHD)
▶
2 - Clutch, Transmission, Trans Axle
▶
2-38 - SHIFT CONTROL
▶
2-38 — SHIFT CONTROL
(#33976) — 20 parça
Tümü
A - ZF6S1000 M/T
B - ZF9S1110 M/T
◀

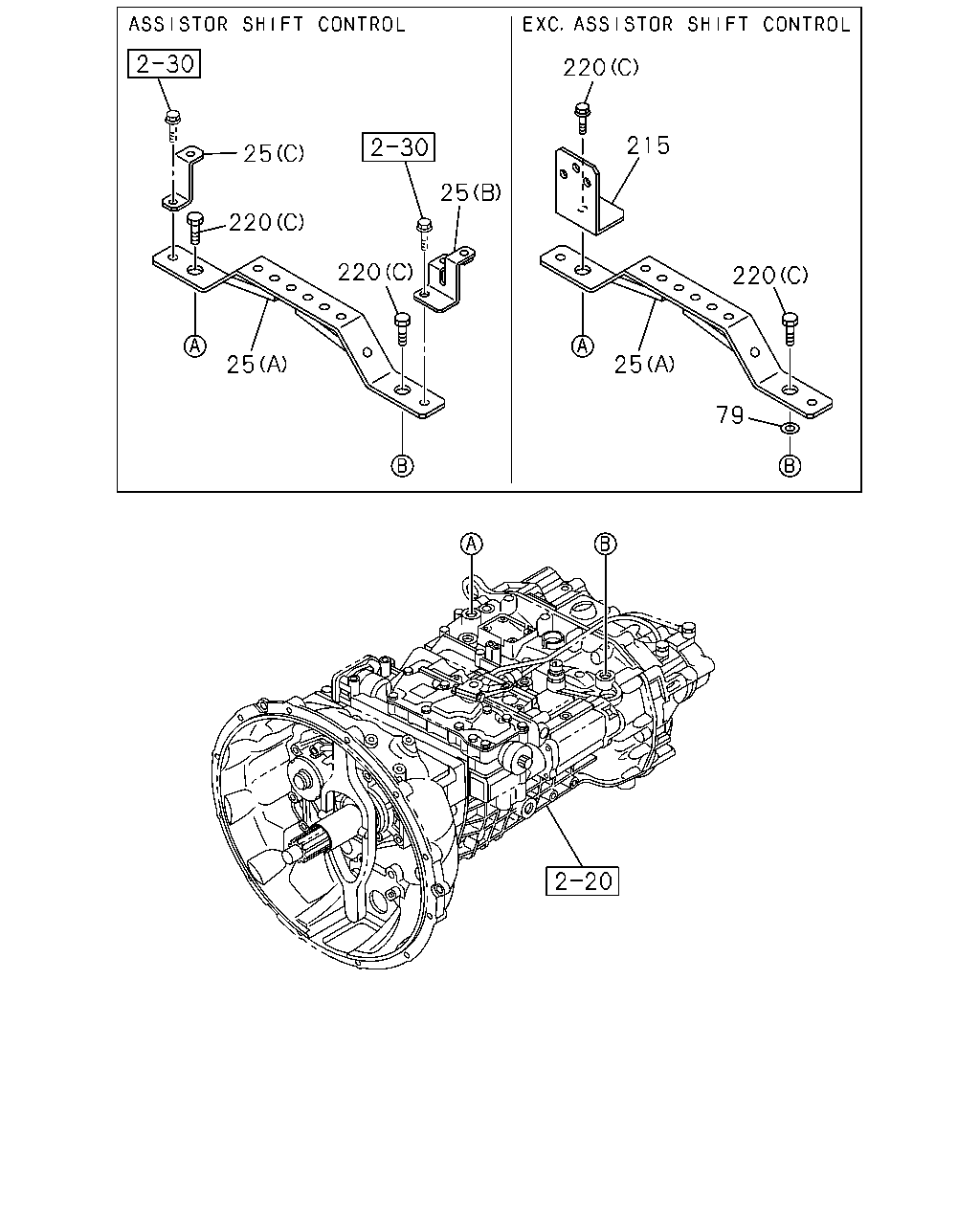

[238A] ZF9S1110 (11 parça)

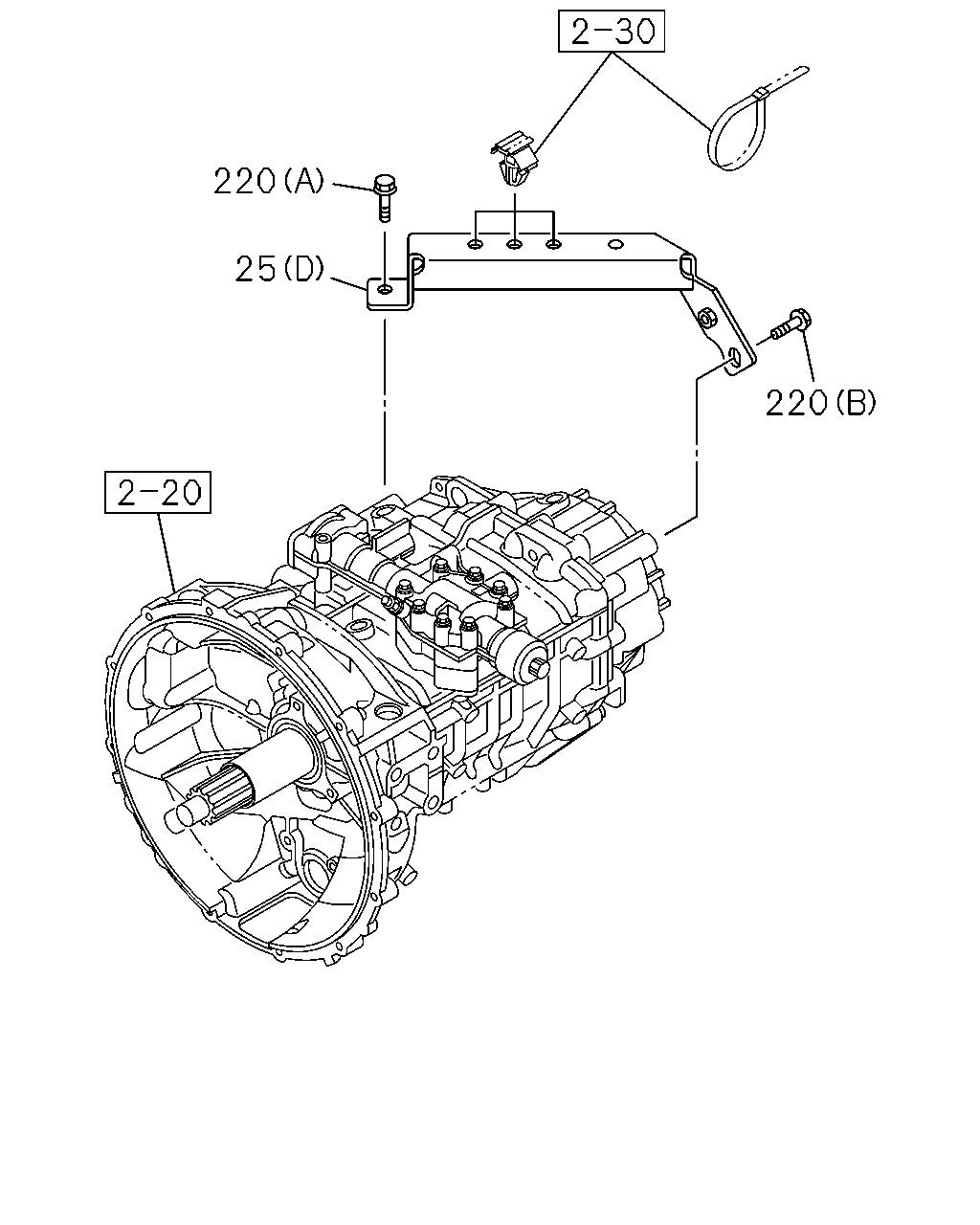

[238A] ZF6S1000 (9 parça)
▶
220
215
25
25
220
220
220
25
25
79
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
25
BRACKET; CLIP
(D)
8-98080-312-0
01
1
0809-
●
25
BRACKET; CLIP
(A)
8-98084-565-0
01
1
0710-
●
25
BRACKET; CLIP
(C)
1-82698-659-1
01
1
0710-0808
●
25
BRACKET; CLIP
ASSISTOR SHIFT CONTROL<WX8> (C)
1-82698-659-1
01
1
0809-
●
25
BRACKET; CLIP
(B)
8-98085-342-0
01
1
0710-0808
●
25
BRACKET; CLIP
ASSISTOR SHIFT CONTROL<WX8> (B)
8-98085-342-0
01
1
0809-
●
79
WASHER; LK
EXC. ASSISTOR SHIFT CONTROL<WX8> ID=17 OD=32
9-09160-616-0
01
1
0809-
●
215
BRACKET; CLIP
EXC. ASSISTOR SHIFT CONTROL<WX8>
1-82699-869-1
01
1
0809-0906
●
220
BOLT; BRKT
(A) M10X20 FLANGE
0-28151-020-0
01
1
0809-
●
220
BOLT; BRKT
(B) M12X25 FLANGE
0-28151-225-0
01
1
0809-
●
220
BOLT; BRKT
(C) M16X25 FLANGE
0-28851-625-0
02
1
0710-
●
220
25
220
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
25
BRACKET; CLIP
(D)
8-98080-312-0
01
1
0809-
●
25
BRACKET; CLIP
(A)
8-98084-565-0
01
1
0710-
●
25
BRACKET; CLIP
(C)
1-82698-659-1
01
1
0710-0808
●
25
BRACKET; CLIP
ASSISTOR SHIFT CONTROL<WX8> (C)
1-82698-659-1
01
1
0809-
●
25
BRACKET; CLIP
(B)
8-98085-342-0
01
1
0710-0808
●
25
BRACKET; CLIP
ASSISTOR SHIFT CONTROL<WX8> (B)
8-98085-342-0
01
1
0809-
●
220
BOLT; BRKT
(A) M10X20 FLANGE
0-28151-020-0
01
1
0809-
●
220
BOLT; BRKT
(B) M12X25 FLANGE
0-28151-225-0
01
1
0809-
●
220
BOLT; BRKT
(C) M16X25 FLANGE
0-28851-625-0
02
1
0710-
●
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
