◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVM ▶ 11105 - FVM(RHD) ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-30 - GEAR SHIFTER AND QUADRANT BOX ▶
2-30 — GEAR SHIFTER AND QUADRANT BOX (#33972) — 1404 parça

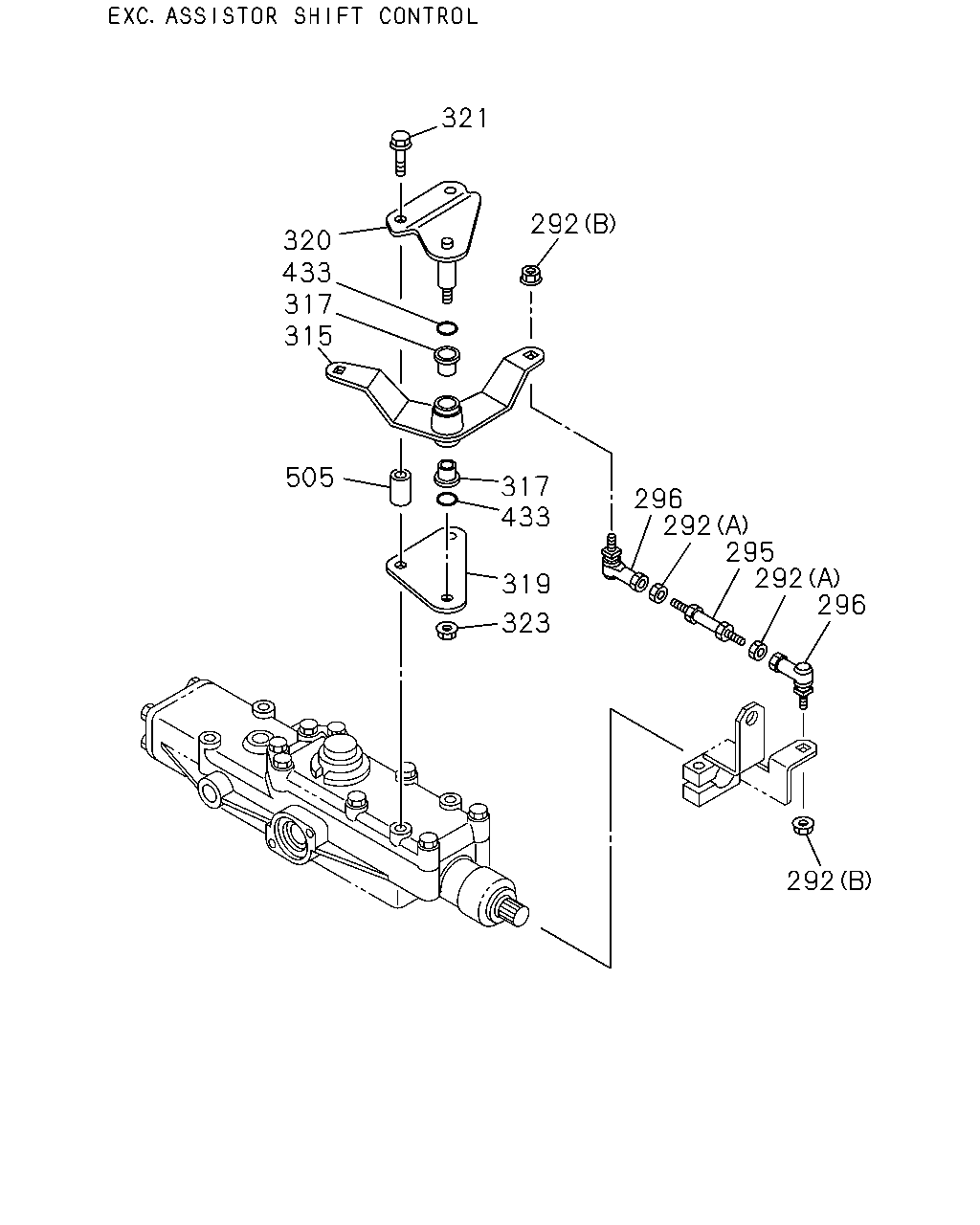

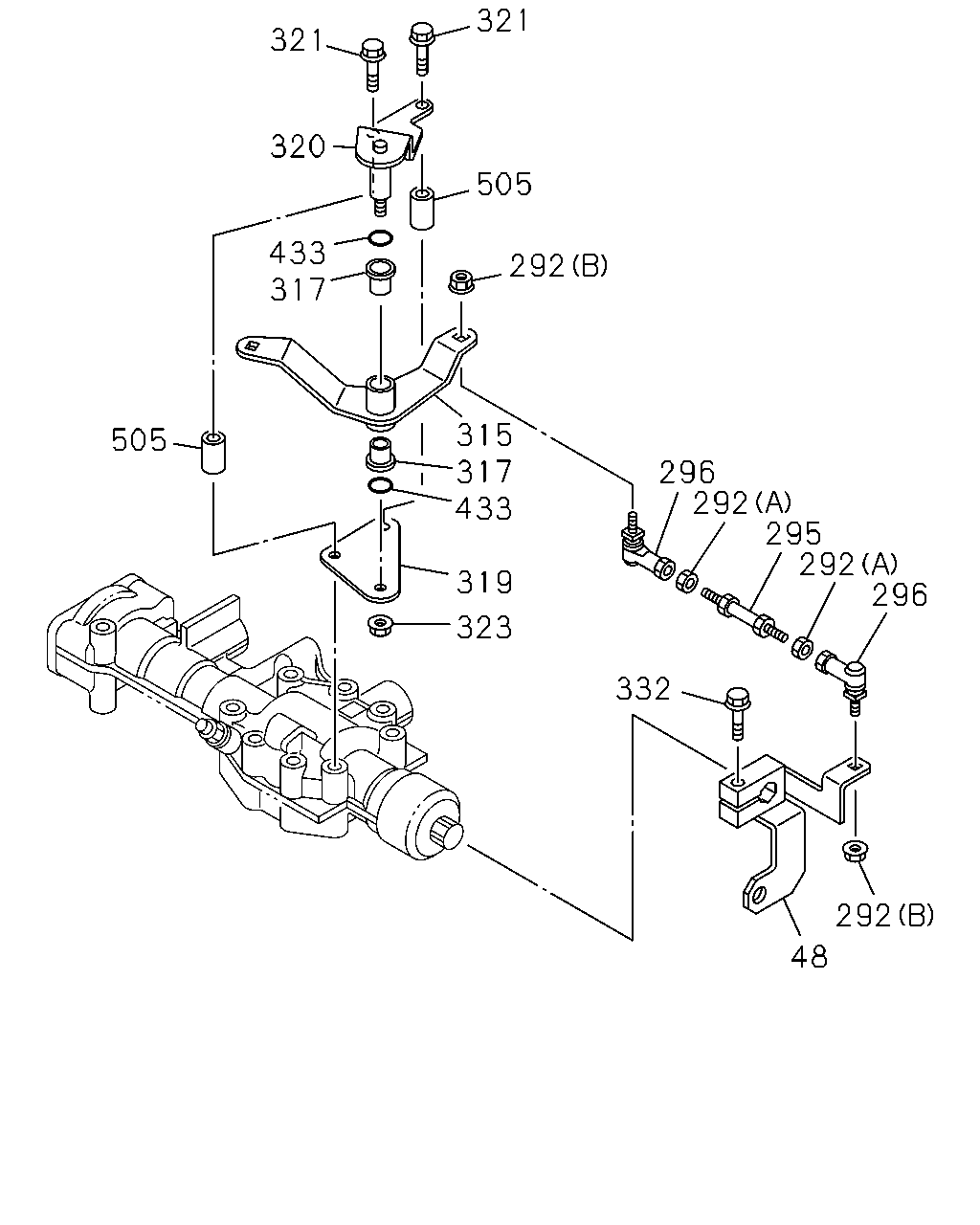

çizim 179157
321 292 320 433 317 315 505 317 433 296 292 295 292 296 319 323 292
BalonParca AdiParca NoAdetTipApplied Date A B
292 NUT; LINK ROD
EXC. ASSISTOR SHIFT CONTROL<WX8> (A) M8 		0-91111-508-0 02 1 0809- ●
292 NUT; LINK ROD
(A) M8 		0-91111-508-0 02 1 0809- ●
292 NUT; LINK ROD
EXC. ASSISTOR SHIFT CONTROL<WX8> (B) M8 FLANGE 		1-09440-062-1 02 1 0809- ●
292 NUT; LINK ROD
(B) M8 FLANGE 		1-09440-062-1 02 1 0809- ●
295 ROD; LINK,RELAY LEVER
EXC. ASSISTOR SHIFT CONTROL<WX8> M8 L=50 		9-08400-805-0 01 1 0809- ●
295 ROD; LINK,RELAY LEVER
M8 L=50 		9-08400-805-0 01 1 0809- ●
296 ROD END
EXC. ASSISTOR SHIFT CONTROL<WX8> 		1-09760-108-0 02 1 0809- ●
296 ROD END 1-09760-108-0 02 1 0809- ●
315 LEVER; SELECT 8-98071-417-0 01 1 0809- ●
315 LEVER; SELECT
EXC. ASSISTOR SHIFT CONTROL<WX8> 		8-98085-738-0 01 1 0809- ●
315 LEVER; SELECT 1-33549-458-0 01 1 0710-0808 ●
315 LEVER; SELECT
ASSISTOR SHIFT CONTROL<WX8> 		1-33549-458-0 01 1 0809- ●
317 BUSHING; LEVER
EXC. ASSISTOR SHIFT CONTROL<WX8> 		1-09330-119-0 02 1 0809- ●
317 BUSHING; LEVER 1-09330-119-0 02 1 0809- ●
317 BUSHING; LEVER 1-33549-322-0 01 1 0710-0808 ●
317 BUSHING; LEVER
ASSISTOR SHIFT CONTROL<WX8> 		1-33549-322-0 01 1 0809- ●
319 BRACKET; SELECT LEVER 8-98071-419-0 01 1 0809- ●
319 BRACKET; SELECT LEVER
EXC. ASSISTOR SHIFT CONTROL<WX8> 		8-98085-740-0 01 1 0809- ●
320 SHAFT; LEVER 8-98071-418-0 01 1 0809- ●
320 SHAFT; LEVER
EXC. ASSISTOR SHIFT CONTROL<WX8> 		8-98085-739-0 01 1 0809- ●
320 SHAFT; LEVER 1-33549-447-0 01 1 0710-0808 ●
320 SHAFT; LEVER
ASSISTOR SHIFT CONTROL<WX8> 		1-33549-447-0 01 1 0809- ●
321 BOLT; BRKT,RELAY LEVER 1-09040-100-0 02 1 0809- ●
321 BOLT; BRKT,RELAY LEVER
EXC. ASSISTOR SHIFT CONTROL<WX8> M8X130 FLANGE 		0-28065-813-0 02 1 0809- ●
323 NUT; LK,SELECT LEVER
EXC. ASSISTOR SHIFT CONTROL<WX8> M10 FLANGE 		0-91180-110-0 01 1 0809- ●
323 NUT; LK,SELECT LEVER
M10 FLANGE 		0-91180-110-0 01 1 0809- ●
433 GASKET; BUSHING
EXC. ASSISTOR SHIFT CONTROL<WX8> 		1-09623-594-0 02 1 0809- ●
433 GASKET; BUSHING 1-09623-594-0 02 1 0809- ●
505 SPACER; BRKT 1-11349-149-0 02 1 0809- ●
505 SPACER; BRKT
EXC. ASSISTOR SHIFT CONTROL<WX8> L=24.5 		1-33659-186-1 02 1 0809- ●

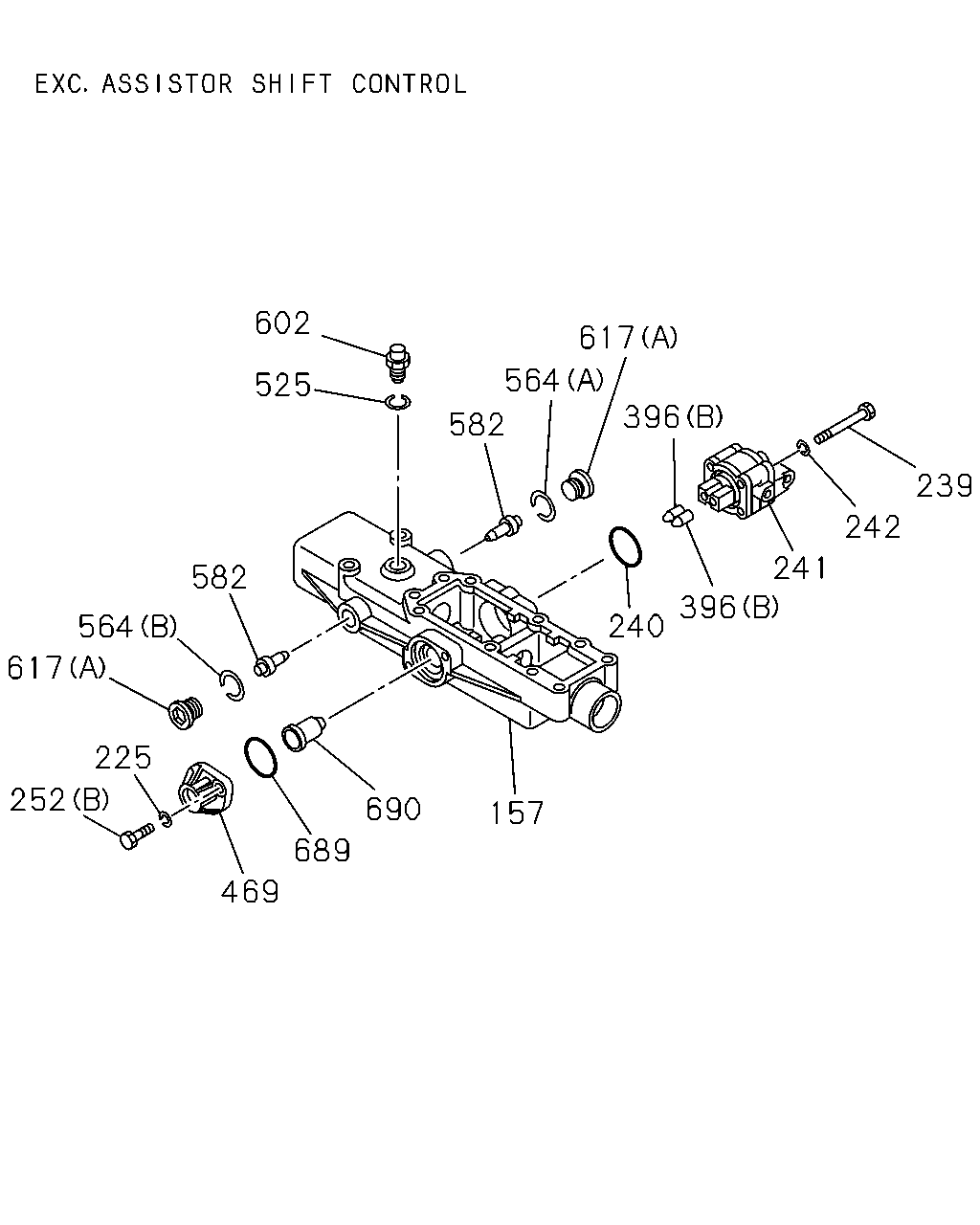

çizim 179166
602 617 564 525 396 582 239 242 241 396 582 240 564 617 225 252 690 157 689 469
BalonParca AdiParca NoAdetTipApplied Date A B
157 BOX; QUAD,TRANS
PTO ZF TRANS RR(BDM) EXC. ASSISTOR SHIFT CONTROL<WX8> 		1-33549-570-0 01 1 0904-0912 ●
157 BOX; QUAD,TRANS
EXC. ASSISTOR SHIFT CONTROL<WX8> 		1-33549-570-0 01 1 1001- ●
157 BOX; QUAD,TRANS 1-33541-543-0 01 1 0809-1311 ●
157 BOX; QUAD,TRANS 1-33541-548-0 01 1 1312- ●
157 BOX; QUAD,TRANS
EXC. ASSISTOR SHIFT CONTROL<WX8> 		1-33549-485-0 01 1 0809-0903 ●
157 BOX; QUAD,TRANS
EXC. PTO ZF TRANS RR(BDM),ASSISTOR SHIFT CONTROL<WX8> 		1-33549-485-0 01 1 0904-0912 ●
157 BOX; QUAD,TRANS 1-33549-445-0 01 1 0710-0808 ●
157 BOX; QUAD,TRANS
ASSISTOR SHIFT CONTROL<WX8> 		1-33549-445-0 01 1 0809- ●
225 WASHER; LK,QUAD BOX 1-33549-159-0 01 1 0809-1311 ●
225 WASHER; LK,QUAD BOX 1-33549-583-0 01 1 1312- ●
225 WASHER; LK,QUAD BOX
EXC. ASSISTOR SHIFT CONTROL<WX8> 		1-33549-159-0 14 1 0809-1305 ●
225 WASHER; LK,QUAD BOX
EXC. ASSISTOR SHIFT CONTROL<WX8> 		1-33549-583-0 14 1 1306- ●
239 BOLT; CUT OFF VALVE
EXC. ASSISTOR SHIFT CONTROL<WX8> 		1-33549-302-0 04 1 0809-1305 ●
239 BOLT; CUT OFF VALVE
EXC. ASSISTOR SHIFT CONTROL<WX8> 		1-33549-585-0 04 1 1306- ●
240 GASKET; CUT OFF VALVE
EXC. ASSISTOR SHIFT CONTROL<WX8> 		1-33549-198-0 01 1 0809- ●
241 VALVE; CUT OFF
EXC. ASSISTOR SHIFT CONTROL<WX8> 		1-33549-495-0 01 1 0809- ●
242 WASHER; CUT OFF VALVE
EXC. ASSISTOR SHIFT CONTROL<WX8> 		1-33549-159-0 04 1 0809-1305 ●
242 WASHER; CUT OFF VALVE
EXC. ASSISTOR SHIFT CONTROL<WX8> 		1-33549-583-0 04 1 1306- ●
252 BOLT; SIDE COVER
(A) 		1-33119-296-0 04 1 0809-1305 ● ●
252 BOLT; SIDE COVER
(A) 		1-33119-296-0 04 1 1306-1311 ●
252 BOLT; SIDE COVER
(A) 		1-33119-296-0 04 1 0710-0808 ●
252 BOLT; SIDE COVER
EXC. ASSISTOR SHIFT CONTROL<WX8> (B) M8X30 		1-33549-172-0 02 1 0809-1305 ●
252 BOLT; SIDE COVER
EXC. ASSISTOR SHIFT CONTROL<WX8> (B) M8X30 		1-33549-581-0 02 1 1306- ●
252 BOLT; SIDE COVER
(A) M8X20 		1-33549-591-0 04 1 1306-1311 ●
252 BOLT; SIDE COVER
(A) M8X20 		1-33549-591-0 04 1 1312- ● ●
396 PLUNGER; SHIFT ROD
EXC. ASSISTOR SHIFT CONTROL<WX8> (B) 		1-33529-085-0 02 1 0809- ●
396 PLUNGER; SHIFT ROD
(A) 		1-33519-073-0 01 1 0710-1305 ●
396 PLUNGER; SHIFT ROD
(A) 		1-33519-189-0 01 1 1306- ●
469 COVER; SPRING,QUAD BOX
EXC. ASSISTOR SHIFT CONTROL<WX8> 		1-33549-216-0 01 1 0809- ●
525 RING; DETENT
PTO ZF TRANS RR(BDM) EXC. ASSISTOR SHIFT CONTROL<WX8> 		1-33119-286-0 01 1 0904-0912 ●
525 RING; DETENT
EXC. ASSISTOR SHIFT CONTROL<WX8> 		1-33119-286-0 01 1 1001- ●
525 RING; DETENT
EXC. ASSISTOR SHIFT CONTROL<WX8> 		1-33549-497-0 01 1 0809-0903 ●
525 RING; DETENT
EXC. PTO ZF TRANS RR(BDM),ASSISTOR SHIFT CONTROL<WX8> 		1-33549-497-0 01 1 0904-0912 ●
564 SEAL; RING
EXC. ASSISTOR SHIFT CONTROL<WX8> (A) 		1-33119-249-0 02 1 0809- ●
564 SEAL; RING
(B) 		1-33549-444-0 01 1 0710-1305 ●
564 SEAL; RING
(B) 		1-33549-578-0 01 1 1306- ●
564 SEAL; RING
(A) T=2.0 		1-82449-010-0 01 1 0710-0808 ●
564 SEAL; RING
ASSISTOR SHIFT CONTROL<WX8> (A) T=2.0 		1-82449-010-0 01 1 0809- ●
582 BOLT; SPRING GUIDE
EXC. ASSISTOR SHIFT CONTROL<WX8> 		1-33549-487-0 02 1 0809- ●
582 BOLT; SPRING GUIDE 1-33549-471-0 01 1 0710-0808 ●
582 BOLT; SPRING GUIDE
ASSISTOR SHIFT CONTROL<WX8> 		1-33549-471-0 01 1 0809- ●
602 PLUNGER; DETENT
PTO ZF TRANS RR(BDM) EXC. ASSISTOR SHIFT CONTROL<WX8> 		1-33119-285-0 01 1 0904-0912 ●
602 PLUNGER; DETENT
EXC. ASSISTOR SHIFT CONTROL<WX8> 		1-33119-285-0 01 1 1001-1305 ●
602 PLUNGER; DETENT
EXC. ASSISTOR SHIFT CONTROL<WX8> 		1-33119-618-0 01 1 1306- ●
602 PLUNGER; DETENT
EXC. ASSISTOR SHIFT CONTROL<WX8> 		1-33549-498-0 01 1 0809-0903 ●
602 PLUNGER; DETENT
EXC. PTO ZF TRANS RR(BDM),ASSISTOR SHIFT CONTROL<WX8> 		1-33549-498-0 01 1 0904-0912 ●
617 PLUG
EXC. ASSISTOR SHIFT CONTROL<WX8> (A) 		1-33119-171-0 02 1 0809-1305 ●
617 PLUG
EXC. ASSISTOR SHIFT CONTROL<WX8> (A) 		1-33119-619-0 02 1 1306- ●
617 PLUG
(A) 		1-33119-171-0 01 1 0710-0808 ●
617 PLUG
ASSISTOR SHIFT CONTROL<WX8> (A) 		1-33119-171-0 01 1 0809-1305 ●
617 PLUG
ASSISTOR SHIFT CONTROL<WX8> (A) 		1-33119-619-0 01 1 1306- ●
617 PLUG
(B) 		1-34129-061-0 01 1 0710-1305 ●
617 PLUG
(B) 		1-33539-109-0 01 1 1306- ●
689 GASKET; COVER
EXC. ASSISTOR SHIFT CONTROL<WX8> 		1-33542-063-0 01 1 0809- ●
690 PIN; STOP
EXC. ASSISTOR SHIFT CONTROL<WX8> 		1-33549-496-0 01 1 0809- ●

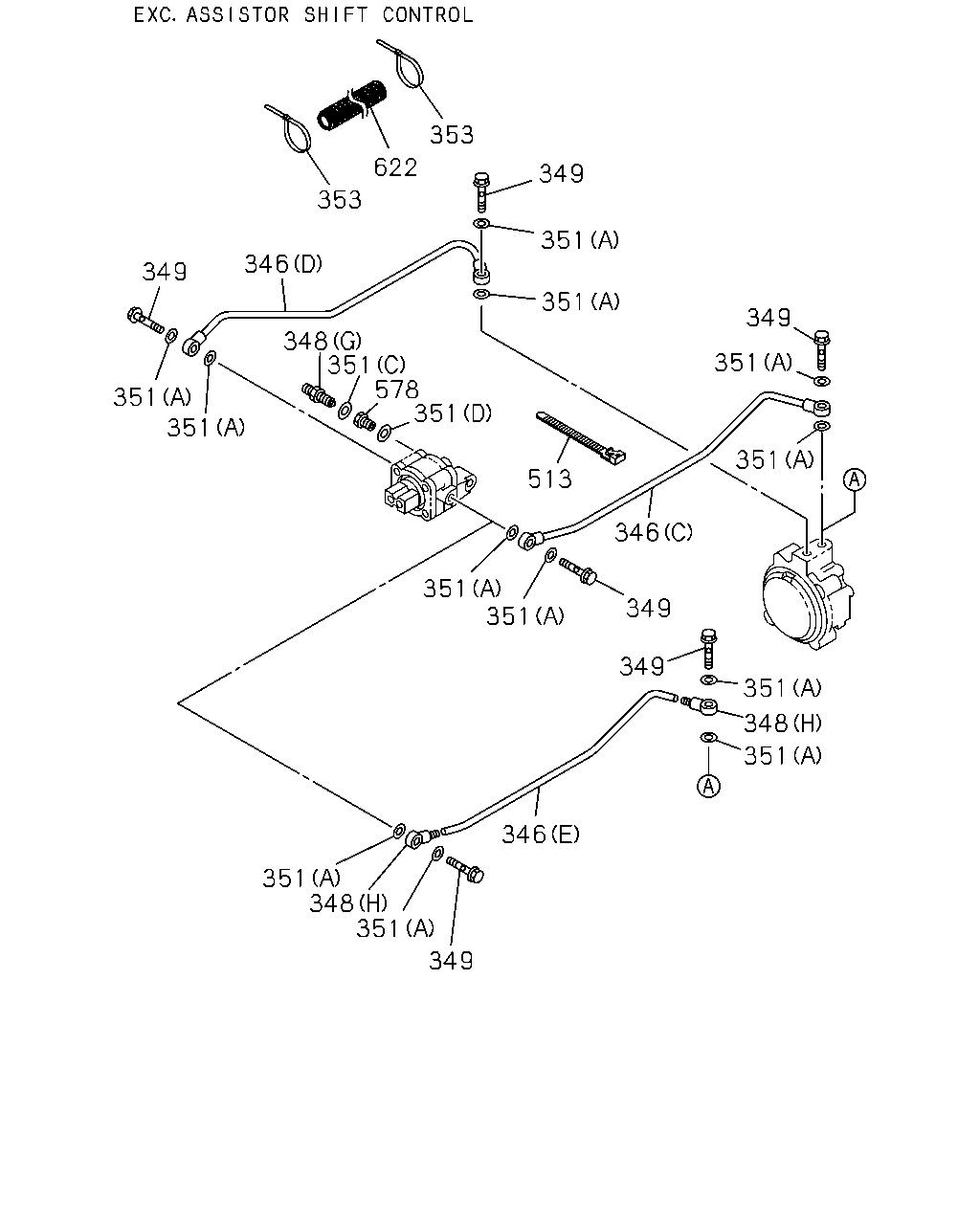

çizim 179172
353 622 349 353 351 346 349 351 349 348 351 578 351 351 351 351 351 513 346 351 351 349 349 351 348 351 346 351 348 351 349
BalonParca AdiParca NoAdetTipApplied Date A B
346 HOSE; AIR
PTO ZF TRANS RR(BDM) EXC. ASSISTOR SHIFT CONTROL<WX8> (E) 		1-33549-400-0 01 1 0904-0912 ●
346 HOSE; AIR
EXC. ASSISTOR SHIFT CONTROL<WX8> (E) 		1-33549-400-0 01 1 1001-1305 ●
346 HOSE; AIR
EXC. ASSISTOR SHIFT CONTROL<WX8> (E) 		1-33549-618-0 01 1 1306- ●
346 HOSE; AIR
EXC. ASSISTOR SHIFT CONTROL<WX8> (C) 		1-33549-403-0 01 1 0809-0903 ●
346 HOSE; AIR
EXC. PTO ZF TRANS RR(BDM),ASSISTOR SHIFT CONTROL<WX8> (C) 		1-33549-403-0 01 1 0904-0912 ●
346 HOSE; AIR
EXC. ASSISTOR SHIFT CONTROL<WX8> (D) 		1-33549-443-0 01 1 0809-1305 ●
346 HOSE; AIR
EXC. ASSISTOR SHIFT CONTROL<WX8> (D) 		1-33549-598-0 01 1 1306- ●
346 HOSE; AIR
(A) 		1-33549-473-0 01 1 0710-0808 ●
346 HOSE; AIR
ASSISTOR SHIFT CONTROL<WX8> (A) 		1-33549-473-0 01 1 0809- ●
346 HOSE; AIR
(B) 		1-33549-474-0 01 1 0710-0808 ●
346 HOSE; AIR
ASSISTOR SHIFT CONTROL<WX8> (B) 		1-33549-474-0 01 1 0809- ●
348 CONNECTOR; AIR HOSE
PTO ZF TRANS RR(BDM) EXC. ASSISTOR SHIFT CONTROL<WX8> (H) 		1-33549-139-0 02 1 0904-1305 ●
348 CONNECTOR; AIR HOSE
EXC. ASSISTOR SHIFT CONTROL<WX8> (H) 		1-33549-593-0 04 1 1306- ●
348 CONNECTOR; AIR HOSE
EXC. PTO ZF TRANS RR(BDM),ASSISTOR SHIFT CONTROL<WX8> (H) 		1-33549-139-0 04 1 1001-1305 ●
348 CONNECTOR; AIR HOSE
EXC. ASSISTOR SHIFT CONTROL<WX8> (G) M12 STRAIGHT 		1-09654-246-0 01 1 0809- ●
348 CONNECTOR; AIR HOSE
(A) PT1/4 		1-09654-396-0 01 1 0710-0808 ●
348 CONNECTOR; AIR HOSE
ASSISTOR SHIFT CONTROL<WX8> (A) PT1/4 		1-09654-396-0 01 1 0809- ●
348 CONNECTOR; AIR HOSE
(B) 		1-09660-466-0 01 1 0710-0808 ●
348 CONNECTOR; AIR HOSE
ASSISTOR SHIFT CONTROL<WX8> (B) 		1-09660-466-0 01 1 0809- ●
348 CONNECTOR; AIR HOSE
(C) 		1-09661-174-0 01 1 0710-0808 ●
348 CONNECTOR; AIR HOSE
ASSISTOR SHIFT CONTROL<WX8> (C) 		1-09661-174-0 01 1 0809- ●
348 CONNECTOR; AIR HOSE
(D) 		1-09661-481-0 01 1 0710-0808 ●
348 CONNECTOR; AIR HOSE
ASSISTOR SHIFT CONTROL<WX8> (D) 		1-09661-481-0 01 1 0809- ●
348 CONNECTOR; AIR HOSE
(E) 		8-94338-417-0 01 1 0710-0808 ●
348 CONNECTOR; AIR HOSE
ASSISTOR SHIFT CONTROL<WX8> (E) 		8-94338-417-0 01 1 0809- ●
348 CONNECTOR; AIR HOSE
(F) 		8-98068-125-0 01 1 0710-0808 ●
348 CONNECTOR; AIR HOSE
ASSISTOR SHIFT CONTROL<WX8> (F) 		8-98068-125-0 01 1 0809- ●
349 BOLT; EYE,AIR HOSE
PTO ZF TRANS RR(BDM) EXC. ASSISTOR SHIFT CONTROL<WX8> 		1-33549-573-0 04 1 0904-0912 ●
349 BOLT; EYE,AIR HOSE
EXC. ASSISTOR SHIFT CONTROL<WX8> 		1-33549-573-0 04 1 1001-1305 ●
349 BOLT; EYE,AIR HOSE
ASSISTOR SHIFT CONTROL<WX8> M14 		1-33549-592-0 02 1 1306- ●
349 BOLT; EYE,AIR HOSE
EXC. ASSISTOR SHIFT CONTROL<WX8> 		1-33549-155-0 04 1 0809-0903 ●
349 BOLT; EYE,AIR HOSE
EXC. PTO ZF TRANS RR(BDM),ASSISTOR SHIFT CONTROL<WX8> 		1-33549-155-0 04 1 0904-0912 ●
349 BOLT; EYE,AIR HOSE 1-33549-155-0 02 1 0710-0808 ●
349 BOLT; EYE,AIR HOSE
ASSISTOR SHIFT CONTROL<WX8> 		1-33549-155-0 02 1 0809-1305 ●
349 BOLT; EYE,AIR HOSE
EXC. ASSISTOR SHIFT CONTROL<WX8> M14 		1-33549-592-0 04 1 1306- ●
351 GASKET; CONNECTOR
PTO ZF TRANS RR(BDM) EXC. ASSISTOR SHIFT CONTROL<WX8> (D) 		1-33549-554-0 01 1 0904-0912 ●
351 GASKET; CONNECTOR
EXC. ASSISTOR SHIFT CONTROL<WX8> (D) 		1-33549-554-0 01 1 1001- ●
351 GASKET; CONNECTOR
EXC. ASSISTOR SHIFT CONTROL<WX8> (A) 		1-33549-444-0 08 1 0809-1305 ●
351 GASKET; CONNECTOR
EXC. ASSISTOR SHIFT CONTROL<WX8> (A) 		1-33549-578-0 08 1 1306- ●
351 GASKET; CONNECTOR
(B) ID=10.2 OD=15.2 		1-09630-083-0 01 1 0710-0808 ●
351 GASKET; CONNECTOR
ASSISTOR SHIFT CONTROL<WX8> (B) ID=10.2 OD=15.2 		1-09630-083-0 01 1 0809- ●
351 GASKET; CONNECTOR
(C) ID=12.2 		1-09630-084-0 02 1 0710-0808 ●
351 GASKET; CONNECTOR
ASSISTOR SHIFT CONTROL<WX8> (C) ID=12.2 		1-09630-084-0 01 1 0809-1312 ●
351 GASKET; CONNECTOR
(C) ID=12.2 		1-09630-084-0 01 1 0809-1312 ●
351 GASKET; CONNECTOR
ASSISTOR SHIFT CONTROL<WX8> (C) ID=12.2 		8-98251-344-0 01 1 1401- ●
351 GASKET; CONNECTOR
(C) ID=12.2 		8-98251-344-0 01 1 1401- ●
351 GASKET; CONNECTOR
(A) 		1-33549-444-0 04 1 0710-0808 ●
351 GASKET; CONNECTOR
ASSISTOR SHIFT CONTROL<WX8> (A) 		1-33549-444-0 04 1 0809-1305 ●
351 GASKET; CONNECTOR
ASSISTOR SHIFT CONTROL<WX8> (A) 		1-33549-578-0 04 1 1306- ●
353 CLIP; AIR HOSE
ASSISTOR SHIFT CONTROL<WX8> 		1-33549-530-0 02 1 1306- ●
353 CLIP; AIR HOSE 1-33549-475-0 02 1 0710-1305 ●
353 CLIP; AIR HOSE
EXC. ASSISTOR SHIFT CONTROL<WX8> 		1-33549-475-0 02 1 1306- ●
513 CLIP; BAND
EXC. ASSISTOR SHIFT CONTROL<WX8> L=250 		5-09707-030-1 06 1 1105- ●
513 CLIP; BAND
L=250 		5-09707-030-1 02 1 0809- ●
513 CLIP; BAND
EXC. ASSISTOR SHIFT CONTROL<WX8> L=140 		5-09707-031-1 01 1 0809- ●
513 CLIP; BAND
L=250 		5-09707-030-1 05 1 0710-1104 ●
513 CLIP; BAND
ASSISTOR SHIFT CONTROL<WX8> L=250 		5-09707-030-1 05 1 1105- ●
578 CONNECTOR
PTO ZF TRANS RR(BDM) EXC. ASSISTOR SHIFT CONTROL<WX8> 		1-33549-553-0 01 1 0904-0912 ●
578 CONNECTOR
EXC. ASSISTOR SHIFT CONTROL<WX8> 		1-33549-553-0 01 1 1001- ●
578 CONNECTOR
DIN8 & R1/4 ELBOW 		1-09660-649-1 01 1 0710-0808 ●
578 CONNECTOR
ASSISTOR SHIFT CONTROL<WX8> DIN8 & R1/4 ELBOW 		1-09660-649-1 01 1 0809- ●
622 TUBE; CORRUGATE 1-83129-021-0 01 1 0710-1004 ●
622 TUBE; CORRUGATE
L=100 ID=22 L=350 		1-83129-017-0 01 1 1005- ●

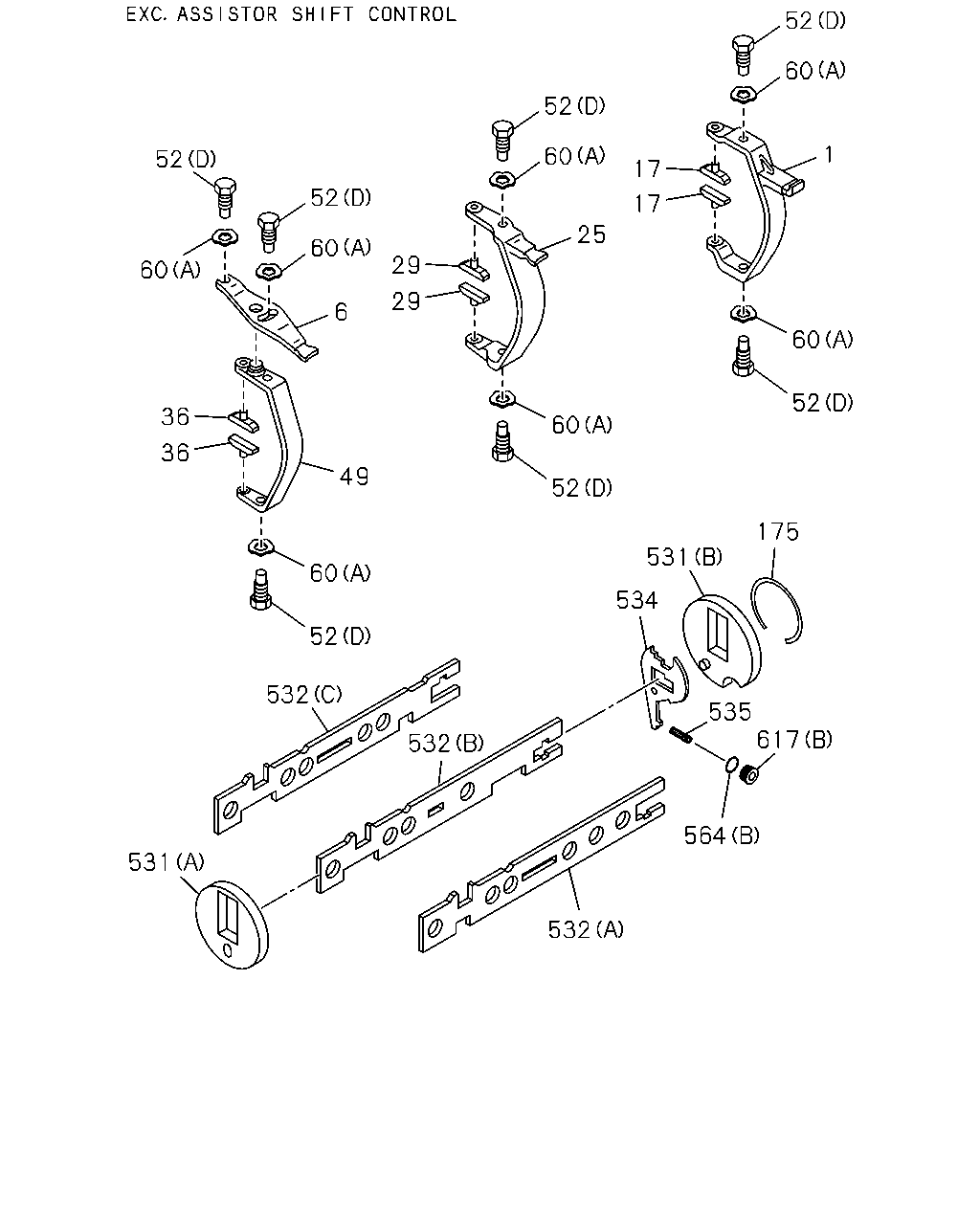

çizim 179173
52 52 1 52 17 52 17 25 29 60 29 6 60 52 36 60 36 49 52 175 531 60 534 52 532 535 617 532 564 531 532 60 60 60
BalonParca AdiParca NoAdetTipApplied Date A B
1 ARM; SHIFT,1ST & REV
PTO ZF TRANS RR(BDM) EXC. ASSISTOR SHIFT CONTROL<WX8> 		1-33511-657-0 01 1 0904-0912 ●
1 ARM; SHIFT,1ST & REV
EXC. ASSISTOR SHIFT CONTROL<WX8> 		1-33511-657-0 01 1 1001-1305 ●
1 ARM; SHIFT,1ST & REV 1-33511-657-0 01 1 1306- ●
1 ARM; SHIFT,1ST & REV 1-33511-647-0 01 1 0809-1311 ●
1 ARM; SHIFT,1ST & REV 1-33511-670-0 01 1 1312- ●
1 ARM; SHIFT,1ST & REV
PTO ZF TRANS RR(BDM) 		1-33511-645-0 01 1 0710-0808 ●
1 ARM; SHIFT,1ST & REV
PTO ZF TRANS RR(BDM) 		1-33511-645-0 01 1 0809-0903 ●
1 ARM; SHIFT,1ST & REV
EXC. PTO ZF TRANS RR(BDM),ASSISTOR SHIFT CONTROL<WX8> 		1-33511-645-0 01 1 0809-0903 ●
1 ARM; SHIFT,1ST & REV
PTO ZF TRANS RR(BDM) ASSISTOR SHIFT CONTROL<WX8> 		1-33511-645-0 01 1 0904-0912 ●
1 ARM; SHIFT,1ST & REV
EXC. PTO ZF TRANS RR(BDM),ASSISTOR SHIFT CONTROL<WX8> 		1-33511-645-0 01 1 0904-0912 ●
1 ARM; SHIFT,1ST & REV
PTO ZF TRANS RR(BDM) ASSISTOR SHIFT CONTROL<WX8> 		1-33511-645-0 01 1 1001-1305 ●
1 ARM; SHIFT,1ST & REV
EXC. PTO ZF TRANS RR(BDM) 		1-33511-643-0 01 1 0710-0808 ●
1 ARM; SHIFT,1ST & REV
ASSISTOR SHIFT CONTROL<WX8> EXC. PTO ZF TRANS RR(BDM) 		1-33511-643-0 01 1 0809-1305 ●
6 LEVER; RELAY
PTO ZF TRANS RR(BDM) EXC. ASSISTOR SHIFT CONTROL<WX8> 		1-33511-658-0 01 1 0904-0912 ●
6 LEVER; RELAY
EXC. ASSISTOR SHIFT CONTROL<WX8> 		1-33511-658-0 01 1 1001-1305 ●
6 LEVER; RELAY 1-33511-658-0 01 1 1306- ●
6 LEVER; RELAY 1-33511-641-0 01 1 0710-0903 ●
6 LEVER; RELAY
PTO ZF TRANS RR(BDM) ASSISTOR SHIFT CONTROL<WX8> 		1-33511-641-0 01 1 0904-0912 ●
6 LEVER; RELAY
EXC. PTO ZF TRANS RR(BDM) 		1-33511-641-0 01 1 0904-0912 ●
6 LEVER; RELAY
ASSISTOR SHIFT CONTROL<WX8> 		1-33511-641-0 01 1 1001-1305 ●
17 BLOCK; SHIFT,1ST & REV
PTO ZF TRANS RR(BDM) 		1-33519-172-0 02 1 0710-0808 ●
17 BLOCK; SHIFT,1ST & REV
PTO ZF TRANS RR(BDM) 		1-33519-172-0 02 1 0809-1305 ●
17 BLOCK; SHIFT,1ST & REV
EXC. PTO ZF TRANS RR(BDM),ASSISTOR SHIFT CONTROL<WX8> 		1-33519-172-0 02 1 0809-1305 ●
17 BLOCK; SHIFT,1ST & REV 1-33519-172-0 02 1 1306- ●
17 BLOCK; SHIFT,1ST & REV
EXC. PTO ZF TRANS RR(BDM) 		1-33519-081-0 02 1 0710-0808 ●
17 BLOCK; SHIFT,1ST & REV
ASSISTOR SHIFT CONTROL<WX8> EXC. PTO ZF TRANS RR(BDM) 		1-33519-081-0 02 1 0809-1305 ●
17 BLOCK; SHIFT,1ST & REV 1-33519-081-0 02 1 0809-1305 ●
17 BLOCK; SHIFT,1ST & REV 1-33519-081-0 02 1 1306- ●
25 ARM; SHIFT,2ND & 3RD 1-33511-648-0 01 1 0809-1311 ●
25 ARM; SHIFT,2ND & 3RD 1-33511-666-0 01 1 1312- ●
25 ARM; SHIFT,2ND & 3RD 1-33511-642-0 01 1 0710- ●
29 BLOCK; SHIFT,2ND & 3RD 1-33519-081-0 02 1 0710-0808 ●
29 BLOCK; SHIFT,2ND & 3RD 1-33519-081-0 02 1 0809- ● ●
36 BLOCK; SHIFT,4TH & 5TH 1-33519-173-0 02 1 0809- ●
36 BLOCK; SHIFT,4TH & 5TH 1-33519-170-0 02 1 0710- ●
49 ARM; SHIFT,4TH & 5TH 1-33511-649-0 01 1 0809-1311 ●
49 ARM; SHIFT,4TH & 5TH 1-33511-667-0 01 1 1312- ●
49 ARM; SHIFT,4TH & 5TH 1-33511-640-0 01 1 0710- ●
52 BOLT; SHIFT ARM
(A) 		1-33519-174-0 02 1 0809-1311 ●
52 BOLT; SHIFT ARM
(A) 		1-33519-199-0 02 1 1312- ●
52 BOLT; SHIFT ARM
(B) 		1-33519-058-0 02 1 0710-1305 ●
52 BOLT; SHIFT ARM
(B) 		1-33519-196-0 02 1 1306- ●
52 BOLT; SHIFT ARM
(C) 		1-33519-175-0 06 1 0809-1311 ●
52 BOLT; SHIFT ARM
(C) 		1-33519-200-0 06 1 1312- ●
52 BOLT; SHIFT ARM
(D) 		1-33519-084-0 07 1 0710-1305 ●
52 BOLT; SHIFT ARM
(D) 		1-33519-190-0 07 1 1306- ●
60 WASHER; LK
(A) 		1-33519-085-0 08 1 0809-1311 ●
60 WASHER; LK
(B) 		1-33519-059-0 02 1 0710-1305 ●
60 WASHER; LK
(A) 		1-33519-085-0 07 1 0710-1305 ●
175 RING; STOPPER,SHIFT LEVER
PTO ZF TRANS RR(BDM) EXC. ASSISTOR SHIFT CONTROL<WX8> 		1-33539-103-0 01 1 0904-0912 ●
175 RING; STOPPER,SHIFT LEVER
EXC. ASSISTOR SHIFT CONTROL<WX8> 		1-33539-103-0 01 1 1001-1305 ●
175 RING; STOPPER,SHIFT LEVER 1-33539-103-0 01 1 1306- ●
175 RING; STOPPER,SHIFT LEVER 1-33539-088-0 01 1 0710-0903 ●
175 RING; STOPPER,SHIFT LEVER
PTO ZF TRANS RR(BDM) ASSISTOR SHIFT CONTROL<WX8> 		1-33539-088-0 01 1 0904-0912 ●
175 RING; STOPPER,SHIFT LEVER
EXC. PTO ZF TRANS RR(BDM) 		1-33539-088-0 01 1 0904-0912 ●
175 RING; STOPPER,SHIFT LEVER
ASSISTOR SHIFT CONTROL<WX8> 		1-33539-088-0 01 1 1001-1305 ●
531 PLATE; BEARING
(A) 		1-33539-044-0 01 1 0710- ●
531 PLATE; BEARING
(B) 		1-33539-047-0 01 1 0710- ●
532 PLATE; SHIFT FORK
(D) 		1-33519-177-0 01 1 0809-1311 ●
532 PLATE; SHIFT FORK
(D) 		1-33519-193-0 01 1 1312- ●
532 PLATE; SHIFT FORK
(A) 		1-33531-492-0 01 1 0710- ●
532 PLATE; SHIFT FORK
(B) 		1-33531-493-0 01 1 0710- ●
532 PLATE; SHIFT FORK
(C) 		1-33531-494-0 01 1 0710- ●
534 LEVER; LOCK,SHIFT PLATE 1-33539-087-0 01 1 0710- ●
535 SPRING; LEVER 1-33539-049-0 01 1 0710- ●
564 SEAL; RING
EXC. ASSISTOR SHIFT CONTROL<WX8> (A) 		1-33119-249-0 02 1 0809- ●
564 SEAL; RING
(B) 		1-33549-444-0 01 1 0710-1305 ●
564 SEAL; RING
(B) 		1-33549-578-0 01 1 1306- ●
564 SEAL; RING
(A) T=2.0 		1-82449-010-0 01 1 0710-0808 ●
564 SEAL; RING
ASSISTOR SHIFT CONTROL<WX8> (A) T=2.0 		1-82449-010-0 01 1 0809- ●
617 PLUG
EXC. ASSISTOR SHIFT CONTROL<WX8> (A) 		1-33119-171-0 02 1 0809-1305 ●
617 PLUG
EXC. ASSISTOR SHIFT CONTROL<WX8> (A) 		1-33119-619-0 02 1 1306- ●
617 PLUG
(A) 		1-33119-171-0 01 1 0710-0808 ●
617 PLUG
ASSISTOR SHIFT CONTROL<WX8> (A) 		1-33119-171-0 01 1 0809-1305 ●
617 PLUG
ASSISTOR SHIFT CONTROL<WX8> (A) 		1-33119-619-0 01 1 1306- ●
617 PLUG
(B) 		1-34129-061-0 01 1 0710-1305 ●
617 PLUG
(B) 		1-33539-109-0 01 1 1306- ●

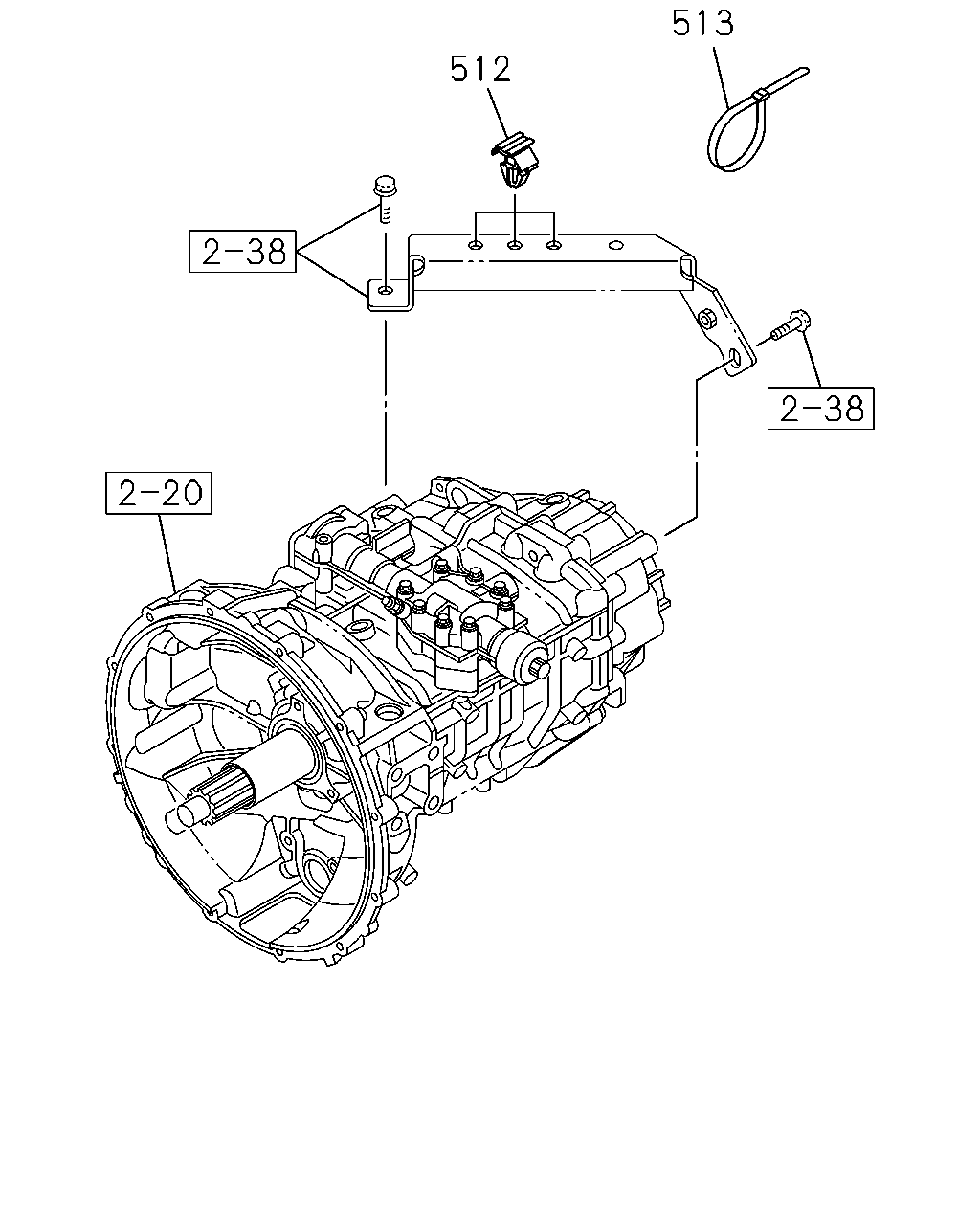

çizim 179176
513 512
BalonParca AdiParca NoAdetTipApplied Date A B
512 CLIP; PIPE
OD=9 H=6 		1-09709-178-0 03 1 0809- ●
512 CLIP; PIPE
EXC. ASSISTOR SHIFT CONTROL<WX8> OD=9 H=6 		1-09709-178-0 04 1 0809- ●
512 CLIP; PIPE
OD=9 H=6 		1-09709-178-0 05 1 0710-0808 ●
512 CLIP; PIPE
ASSISTOR SHIFT CONTROL<WX8> OD=9 H=6 		1-09709-178-0 05 1 0809- ●
513 CLIP; BAND
EXC. ASSISTOR SHIFT CONTROL<WX8> L=250 		5-09707-030-1 06 1 1105- ●
513 CLIP; BAND
L=250 		5-09707-030-1 02 1 0809- ●
513 CLIP; BAND
EXC. ASSISTOR SHIFT CONTROL<WX8> L=140 		5-09707-031-1 01 1 0809- ●
513 CLIP; BAND
L=250 		5-09707-030-1 05 1 0710-1104 ●
513 CLIP; BAND
ASSISTOR SHIFT CONTROL<WX8> L=250 		5-09707-030-1 05 1 1105- ●
çizim 179184
165 289 165 165 271 90 430 298 569 304 90 332 265 264 42 48
BalonParca AdiParca NoAdetTipApplied Date A B
42 CAP; QUAD BOX
(C) 		1-33549-509-0 01 1 0809-1311 ●
42 CAP; QUAD BOX
(C) 		1-33549-613-0 01 1 1312- ●
42 CAP; QUAD BOX
EXC. ASSISTOR SHIFT CONTROL<WX8> (D) 		1-33549-111-0 01 1 0809-1305 ●
42 CAP; QUAD BOX
EXC. ASSISTOR SHIFT CONTROL<WX8> (D) 		1-33549-589-0 01 1 1306- ●
42 CAP; QUAD BOX
(A) 		1-33549-456-0 01 1 0710-0808 ●
42 CAP; QUAD BOX
ASSISTOR SHIFT CONTROL<WX8> (A) 		1-33549-456-0 01 1 0809-1305 ●
42 CAP; QUAD BOX
ASSISTOR SHIFT CONTROL<WX8> (A) 		1-33549-548-0 01 1 1306- ●
42 CAP; QUAD BOX
(B) 		1-33549-463-0 01 1 0710-0808 ●
42 CAP; QUAD BOX
ASSISTOR SHIFT CONTROL<WX8> (B) 		1-33549-463-0 01 1 0809-1305 ●
42 CAP; QUAD BOX
ASSISTOR SHIFT CONTROL<WX8> (B) 		1-33549-619-0 01 1 1306- ●
48 LEVER; 4TH,SHIFT 8-98081-304-1 01 1 0809- ●
48 LEVER; 4TH,SHIFT
EXC. ASSISTOR SHIFT CONTROL<WX8> 		8-98085-725-0 01 1 0809- ●
48 LEVER; 4TH,SHIFT 1-33651-827-1 01 1 0710-0808 ●
48 LEVER; 4TH,SHIFT
ASSISTOR SHIFT CONTROL<WX8> 		1-33651-827-1 01 1 0809- ●
90 RING; SNAP,SHIFT ROD 1-33549-511-0 01 1 0809- ●
90 RING; SNAP,SHIFT ROD
EXC. ASSISTOR SHIFT CONTROL<WX8> 		1-33549-494-0 02 1 0809- ●
90 RING; SNAP,SHIFT ROD 1-33529-109-0 01 1 0710-0808 ●
90 RING; SNAP,SHIFT ROD
ASSISTOR SHIFT CONTROL<WX8> 		1-33529-109-0 01 1 0809- ●
165 LEVER; SHIFT
EXC. ASSISTOR SHIFT CONTROL<WX8> (C) 		1-33549-488-0 01 1 0809- ●
165 LEVER; SHIFT
EXC. ASSISTOR SHIFT CONTROL<WX8> (D) 		1-33549-489-0 01 1 0809- ●
165 LEVER; SHIFT
EXC. ASSISTOR SHIFT CONTROL<WX8> (E) 		1-33549-490-0 01 1 0809-1305 ●
165 LEVER; SHIFT
EXC. ASSISTOR SHIFT CONTROL<WX8> (E) 		1-33549-603-0 01 1 1306- ●
165 LEVER; SHIFT
(B) 		1-33549-325-0 01 1 0710-0808 ●
165 LEVER; SHIFT
ASSISTOR SHIFT CONTROL<WX8> (B) 		1-33549-325-0 01 1 0809- ●
165 LEVER; SHIFT
(A) 		1-33549-450-0 01 1 0710-0808 ●
165 LEVER; SHIFT
ASSISTOR SHIFT CONTROL<WX8> (A) 		1-33549-450-0 01 1 0809- ●
264 SEAL; DUST,SHAFT
EXC. ASSISTOR SHIFT CONTROL<WX8> 		1-33549-119-0 01 1 0809- ●
265 SEAL; OIL,SHIFT 1-33549-544-0 01 1 0809-1305 ●
265 SEAL; OIL,SHIFT
ASSISTOR SHIFT CONTROL<WX8>. 		1-33549-544-0 01 1 1306- ●
265 SEAL; OIL,SHIFT
ALSO INCLUDED IN GASKET SET(M/T). 		1-33549-544-0 01 1 1306- ●
265 SEAL; OIL,SHIFT
EXC. ASSISTOR SHIFT CONTROL<WX8> 		1-33549-118-0 01 1 0809- ●
265 SEAL; OIL,SHIFT 1-33549-446-0 01 1 0710-0808 ●
265 SEAL; OIL,SHIFT
ASSISTOR SHIFT CONTROL<WX8> 		1-33549-446-0 01 1 0809-1305 ●
271 BUSHING; QUAD BOX
AUSTRALIA EQUIPMENT(B13) ASSISTOR SHIFT CONTROL<WX8> EXC. COUNTRY NEW ZEALAND(CX6) 		1-33539-113-0 01 1 1306- ●
271 BUSHING; QUAD BOX
ASSISTOR SHIFT CONTROL<WX8> 		1-33549-318-0 01 1 0809- ●
271 BUSHING; QUAD BOX 1-33549-318-0 01 1 0809- ●
271 BUSHING; QUAD BOX 1-33549-318-0 01 1 0710-0808 ●
271 BUSHING; QUAD BOX
EXC. ASSISTOR SHIFT CONTROL<WX8> 		1-33549-124-0 01 1 0809- ●
289 SEAL; OIL,CONT SHAFT,QUAD BOX
EXC. ASSISTOR SHIFT CONTROL<WX8> 		1-33549-491-0 01 1 0809- ●
298 SHAFT; SHIFT LEVER 1-33522-206-0 01 1 0809- ●
298 SHAFT; SHIFT LEVER
EXC. ASSISTOR SHIFT CONTROL<WX8> 		1-33522-205-0 01 1 0809- ●
298 SHAFT; SHIFT LEVER
PTO ZF TRANS RR(BDM) 		1-33522-204-0 01 1 0710-0808 ●
298 SHAFT; SHIFT LEVER
PTO ZF TRANS RR(BDM) ASSISTOR SHIFT CONTROL<WX8> 		1-33522-204-0 01 1 0809-1305 ●
298 SHAFT; SHIFT LEVER
ASSISTOR SHIFT CONTROL<WX8> 		1-33522-204-0 01 1 1306- ●
298 SHAFT; SHIFT LEVER
EXC. PTO ZF TRANS RR(BDM) 		1-33522-203-0 01 1 0710-0808 ●
298 SHAFT; SHIFT LEVER
ASSISTOR SHIFT CONTROL<WX8> EXC. PTO ZF TRANS RR(BDM) 		1-33522-203-0 01 1 0809-1305 ●
304 BLOCK; SHIFT SHAFT 1-33549-546-0 01 1 0809- ●
304 BLOCK; SHIFT SHAFT
EXC. ASSISTOR SHIFT CONTROL<WX8> 		1-33549-492-0 01 1 0809- ●
304 BLOCK; SHIFT SHAFT 1-33549-448-0 01 1 0710-0808 ●
304 BLOCK; SHIFT SHAFT
ASSISTOR SHIFT CONTROL<WX8> 		1-33549-448-0 01 1 0809- ●
332 BOLT; 4TH,SHIFT LEVER
M10X45 W/PL WASHER 		8-98038-710-0 01 1 0809- ●
332 BOLT; 4TH,SHIFT LEVER
EXC. ASSISTOR SHIFT CONTROL<WX8> M8X40 FLANGE 		0-28650-840-0 01 1 0809- ●
332 BOLT; 4TH,SHIFT LEVER
M8X40 FLANGE 		0-28650-840-0 02 1 0710-0808 ●
332 BOLT; 4TH,SHIFT LEVER
ASSISTOR SHIFT CONTROL<WX8> M8X40 FLANGE 		0-28650-840-0 02 1 0809- ●
430 PIN; SPR,SHIFT ROD 1-33529-130-0 01 1 0809- ●
430 PIN; SPR,SHIFT ROD
EXC. ASSISTOR SHIFT CONTROL<WX8> 		1-33549-493-0 01 1 0809- ●
430 PIN; SPR,SHIFT ROD 1-33549-449-0 01 1 0710-0808 ●
430 PIN; SPR,SHIFT ROD
ASSISTOR SHIFT CONTROL<WX8> 		1-33549-449-0 01 1 0809- ●
569 PIN; QUADRANT BOX
EXC. ASSISTOR SHIFT CONTROL<WX8> (D) 		1-33529-128-0 02 1 0809- ●
569 PIN; QUADRANT BOX
(A) 		1-33529-106-0 01 1 0710-0808 ●
569 PIN; QUADRANT BOX
ASSISTOR SHIFT CONTROL<WX8> (A) 		1-33529-106-0 01 1 0809- ●
569 PIN; QUADRANT BOX
(B) 		1-33549-452-0 01 1 0710-0808 ●
569 PIN; QUADRANT BOX
ASSISTOR SHIFT CONTROL<WX8> (B) 		1-33549-452-0 01 1 0809- ●
569 PIN; QUADRANT BOX
(C) 		1-33549-468-0 01 1 0710-0808 ●
569 PIN; QUADRANT BOX
ASSISTOR SHIFT CONTROL<WX8> (C) 		1-33549-468-0 01 1 0809- ●

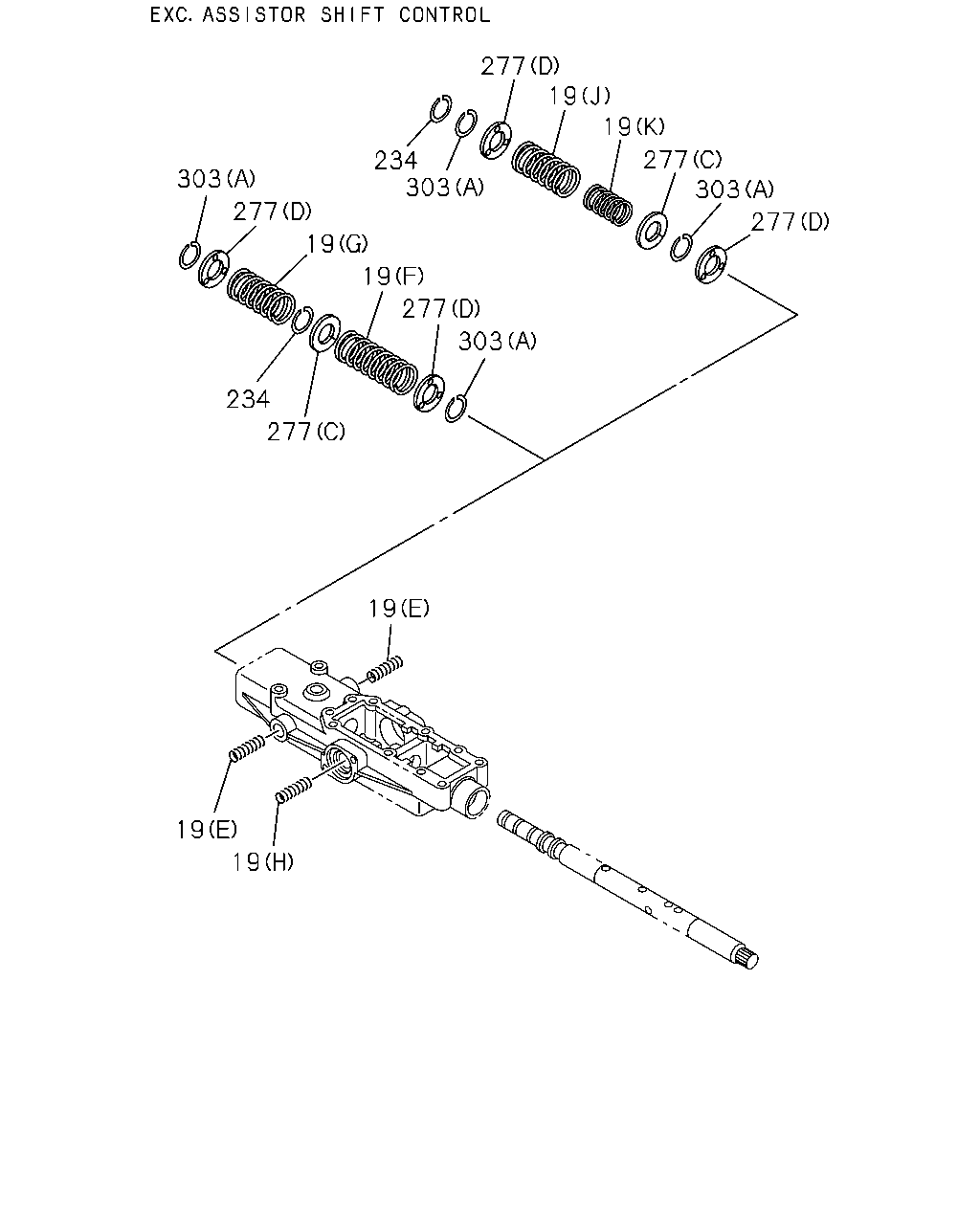

çizim 179189
277 19 19 277 303 234 303 303 277 277 19 19 277 303 234 277 19 19 19
BalonParca AdiParca NoAdetTipApplied Date A B
19 SPRING; COIL COMP
PTO ZF TRANS RR(BDM) EXC. ASSISTOR SHIFT CONTROL<WX8> (J) 		1-33539-027-0 01 1 0904-0912 ●
19 SPRING; COIL COMP
EXC. ASSISTOR SHIFT CONTROL<WX8> (J) 		1-33539-027-0 01 1 1001- ●
19 SPRING; COIL COMP
PTO ZF TRANS RR(BDM) EXC. ASSISTOR SHIFT CONTROL<WX8> (K) 		1-33539-104-0 01 1 0904-0912 ●
19 SPRING; COIL COMP
EXC. ASSISTOR SHIFT CONTROL<WX8> (K) 		1-33539-104-0 01 1 1001- ●
19 SPRING; COIL COMP
PTO ZF TRANS RR(BDM) EXC. ASSISTOR SHIFT CONTROL<WX8> (H) 		1-33549-221-0 01 1 0904-0912 ●
19 SPRING; COIL COMP
EXC. ASSISTOR SHIFT CONTROL<WX8> (H) 		1-33549-221-0 01 1 1001- ●
19 SPRING; COIL COMP
(C) 		1-33539-031-0 01 1 0809- ●
19 SPRING; COIL COMP
(I) 		1-33539-096-0 01 1 0809- ●
19 SPRING; COIL COMP
(D) 		1-33549-520-0 01 1 0809- ●
19 SPRING; COIL COMP
EXC. ASSISTOR SHIFT CONTROL<WX8> (E) 		1-33539-030-0 02 1 0809- ●
19 SPRING; COIL COMP
EXC. ASSISTOR SHIFT CONTROL<WX8> (F) 		1-33539-092-0 01 1 0809-0903 ●
19 SPRING; COIL COMP
EXC. PTO ZF TRANS RR(BDM),ASSISTOR SHIFT CONTROL<WX8> (F) 		1-33539-092-0 01 1 0904-0912 ●
19 SPRING; COIL COMP
AUSTRALIA EQUIPMENT(B13) ASSISTOR SHIFT CONTROL<WX8> EXC. COUNTRY NEW ZEALAND(CX6) (F) 		1-33539-092-0 01 1 1306- ●
19 SPRING; COIL COMP
EXC. ASSISTOR SHIFT CONTROL<WX8> (G) 		1-33539-093-0 01 1 0809-0903 ●
19 SPRING; COIL COMP
EXC. PTO ZF TRANS RR(BDM),ASSISTOR SHIFT CONTROL<WX8> (G) 		1-33539-093-0 01 1 0904-0912 ●
19 SPRING; COIL COMP
AUSTRALIA EQUIPMENT(B13) ASSISTOR SHIFT CONTROL<WX8> EXC. COUNTRY NEW ZEALAND(CX6) (G) 		1-33539-093-0 01 1 1306- ●
19 SPRING; COIL COMP
EXC. ASSISTOR SHIFT CONTROL<WX8> (H) 		1-33539-094-0 01 1 0809-0903 ●
19 SPRING; COIL COMP
EXC. PTO ZF TRANS RR(BDM),ASSISTOR SHIFT CONTROL<WX8> (H) 		1-33539-094-0 01 1 0904-0912 ●
19 SPRING; COIL COMP
PTO ZF TRANS RR(BDM) (B) 		1-33539-090-0 01 1 0710-0808 ●
19 SPRING; COIL COMP
PTO ZF TRANS RR(BDM) ASSISTOR SHIFT CONTROL<WX8> (B) 		1-33539-090-0 01 1 0809-1305 ●
19 SPRING; COIL COMP
ASSISTOR SHIFT CONTROL<WX8> (B) 		1-33539-090-0 01 1 1306- ●
19 SPRING; COIL COMP
EXC. PTO ZF TRANS RR(BDM) (B) 		1-33539-022-0 01 1 0710-0808 ●
19 SPRING; COIL COMP
ASSISTOR SHIFT CONTROL<WX8> EXC. PTO ZF TRANS RR(BDM) (B) 		1-33539-022-0 01 1 0809-1305 ●
19 SPRING; COIL COMP
(B) 		1-33539-022-0 01 1 0809-1305 ●
19 SPRING; COIL COMP
(B) 		1-33539-022-0 01 1 1306- ●
19 SPRING; COIL COMP
(A) 		1-33539-089-0 01 1 0710-0808 ●
19 SPRING; COIL COMP
ASSISTOR SHIFT CONTROL<WX8> (A) 		1-33539-089-0 01 1 0809-1305 ●
19 SPRING; COIL COMP
AUSTRALIA EQUIPMENT(B13) COUNTRY NEW ZEALAND(CX6) ASSISTOR SHIFT CONTROL<WX8> (A) 		1-33539-089-0 01 1 1306- ●
19 SPRING; COIL COMP
ASSISTOR SHIFT CONTROL<WX8> EXC. AUSTRALIA EQUIPMENT(B13) (A) 		1-33539-089-0 01 1 1306- ●
234 RING; SNAP 1-44519-224-0 01 1 0710- ●
277 PLATE; SPRING SEAT
AUSTRALIA EQUIPMENT(B13) ASSISTOR SHIFT CONTROL<WX8> EXC. COUNTRY NEW ZEALAND(CX6) (A) 		1-33539-110-0 01 1 1306- ●
277 PLATE; SPRING SEAT
(A) 		1-33539-039-0 01 1 0809-1311 ●
277 PLATE; SPRING SEAT
(B) 		1-33539-095-0 01 1 0809-1311 ●
277 PLATE; SPRING SEAT
(B) 		1-33539-111-0 01 1 1312- ●
277 PLATE; SPRING SEAT
EXC. ASSISTOR SHIFT CONTROL<WX8> (C) 		1-33539-042-0 01 1 0809-1305 ●
277 PLATE; SPRING SEAT
(C) 		1-33539-042-0 01 1 0809-1305 ●
277 PLATE; SPRING SEAT
(C) 		1-33539-042-0 01 1 1306-1311 ●
277 PLATE; SPRING SEAT
(C) 		1-33539-108-0 01 1 1312- ●
277 PLATE; SPRING SEAT
(D) 		1-33539-039-0 02 1 0710-1305 ●
277 PLATE; SPRING SEAT
AUSTRALIA EQUIPMENT(B13) COUNTRY NEW ZEALAND(CX6) ASSISTOR SHIFT CONTROL<WX8> (D) 		1-33539-107-0 02 1 1306- ●
277 PLATE; SPRING SEAT
ASSISTOR SHIFT CONTROL<WX8> EXC. AUSTRALIA EQUIPMENT(B13) (D) 		1-33539-107-0 02 1 1306- ●
277 PLATE; SPRING SEAT
EXC. ASSISTOR SHIFT CONTROL<WX8> (D) 		1-33539-107-0 02 1 1306- ●
277 PLATE; SPRING SEAT
AUSTRALIA EQUIPMENT(B13) ASSISTOR SHIFT CONTROL<WX8> EXC. COUNTRY NEW ZEALAND(CX6) (D) 		1-33539-107-0 01 1 1306-1311 ●
277 PLATE; SPRING SEAT
AUSTRALIA EQUIPMENT(B13) ASSISTOR SHIFT CONTROL<WX8> EXC. COUNTRY NEW ZEALAND(CX6) (D) 		1-33539-107-0 01 1 1312- ●
277 PLATE; SPRING SEAT
(D) 		1-33539-107-0 01 1 1312- ●
303 RING; SNAP,SHAFT
ASSISTOR SHIFT CONTROL<WX8> (A) 		1-33539-040-0 01 1 0809- ●
303 RING; SNAP,SHAFT
(A) 		1-33539-040-0 01 1 0809- ●
303 RING; SNAP,SHAFT
(C) 		1-44519-224-0 01 1 0809- ●
303 RING; SNAP,SHAFT
(A) 		1-33539-040-0 01 1 0710-0808 ●
303 RING; SNAP,SHAFT
EXC. ASSISTOR SHIFT CONTROL<WX8> (A) 		1-33539-040-0 02 1 0809- ●
303 RING; SNAP,SHAFT
(B) 		1-33549-461-0 01 1 0710-0808 ●
303 RING; SNAP,SHAFT
ASSISTOR SHIFT CONTROL<WX8> (B) 		1-33549-461-0 01 1 0809- ●

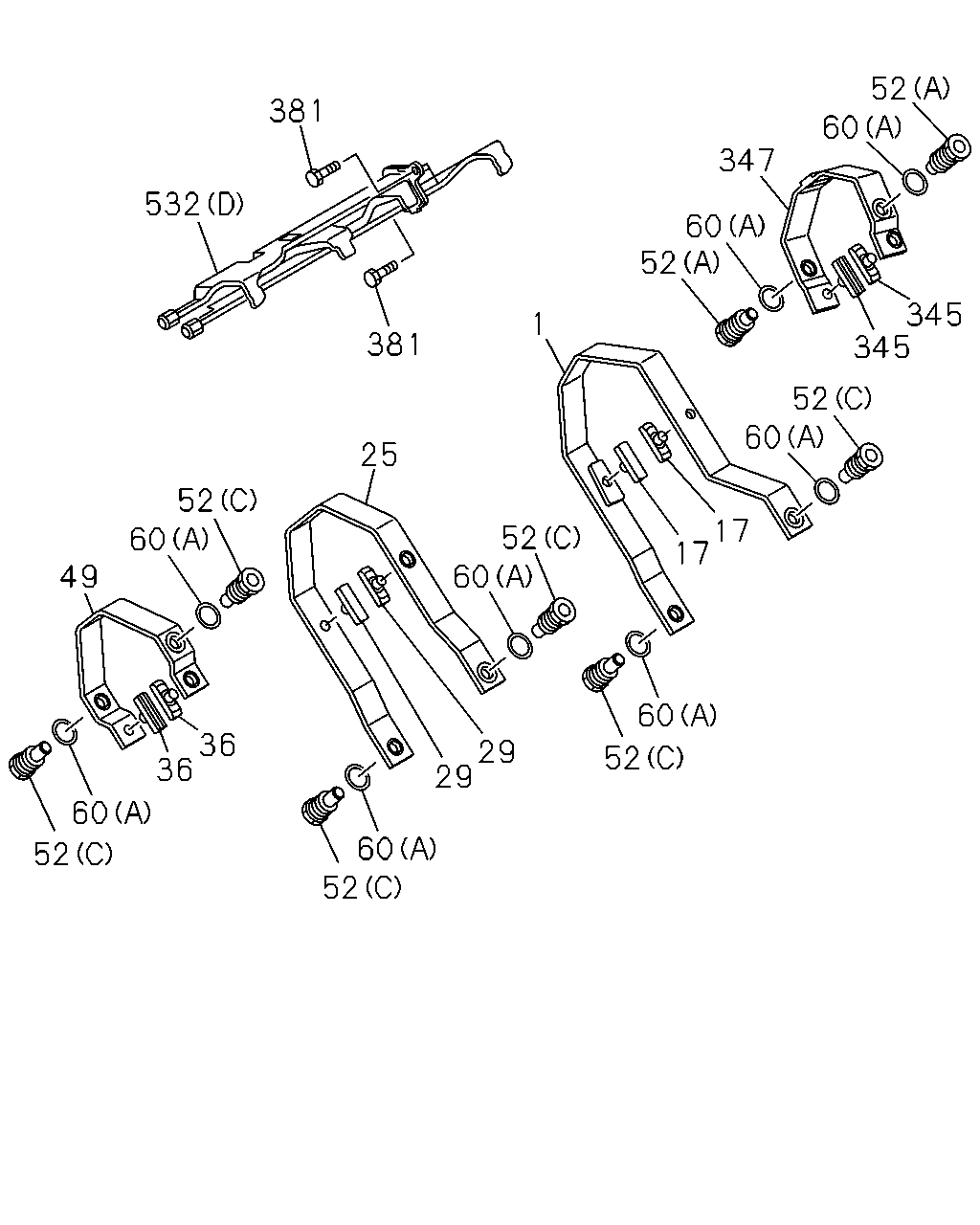

çizim 179193
52 60 381 347 532 60 52 345 345 1 381 52 60 25 52 60 17 17 52 60 49 60 36 36 29 29 52 60 60 52 52
BalonParca AdiParca NoAdetTipApplied Date A B
1 ARM; SHIFT,1ST & REV
PTO ZF TRANS RR(BDM) EXC. ASSISTOR SHIFT CONTROL<WX8> 		1-33511-657-0 01 1 0904-0912 ●
1 ARM; SHIFT,1ST & REV
EXC. ASSISTOR SHIFT CONTROL<WX8> 		1-33511-657-0 01 1 1001-1305 ●
1 ARM; SHIFT,1ST & REV 1-33511-657-0 01 1 1306- ●
1 ARM; SHIFT,1ST & REV 1-33511-647-0 01 1 0809-1311 ●
1 ARM; SHIFT,1ST & REV 1-33511-670-0 01 1 1312- ●
1 ARM; SHIFT,1ST & REV
PTO ZF TRANS RR(BDM) 		1-33511-645-0 01 1 0710-0808 ●
1 ARM; SHIFT,1ST & REV
PTO ZF TRANS RR(BDM) 		1-33511-645-0 01 1 0809-0903 ●
1 ARM; SHIFT,1ST & REV
EXC. PTO ZF TRANS RR(BDM),ASSISTOR SHIFT CONTROL<WX8> 		1-33511-645-0 01 1 0809-0903 ●
1 ARM; SHIFT,1ST & REV
PTO ZF TRANS RR(BDM) ASSISTOR SHIFT CONTROL<WX8> 		1-33511-645-0 01 1 0904-0912 ●
1 ARM; SHIFT,1ST & REV
EXC. PTO ZF TRANS RR(BDM),ASSISTOR SHIFT CONTROL<WX8> 		1-33511-645-0 01 1 0904-0912 ●
1 ARM; SHIFT,1ST & REV
PTO ZF TRANS RR(BDM) ASSISTOR SHIFT CONTROL<WX8> 		1-33511-645-0 01 1 1001-1305 ●
1 ARM; SHIFT,1ST & REV
EXC. PTO ZF TRANS RR(BDM) 		1-33511-643-0 01 1 0710-0808 ●
1 ARM; SHIFT,1ST & REV
ASSISTOR SHIFT CONTROL<WX8> EXC. PTO ZF TRANS RR(BDM) 		1-33511-643-0 01 1 0809-1305 ●
17 BLOCK; SHIFT,1ST & REV
PTO ZF TRANS RR(BDM) 		1-33519-172-0 02 1 0710-0808 ●
17 BLOCK; SHIFT,1ST & REV
PTO ZF TRANS RR(BDM) 		1-33519-172-0 02 1 0809-1305 ●
17 BLOCK; SHIFT,1ST & REV
EXC. PTO ZF TRANS RR(BDM),ASSISTOR SHIFT CONTROL<WX8> 		1-33519-172-0 02 1 0809-1305 ●
17 BLOCK; SHIFT,1ST & REV 1-33519-172-0 02 1 1306- ●
17 BLOCK; SHIFT,1ST & REV
EXC. PTO ZF TRANS RR(BDM) 		1-33519-081-0 02 1 0710-0808 ●
17 BLOCK; SHIFT,1ST & REV
ASSISTOR SHIFT CONTROL<WX8> EXC. PTO ZF TRANS RR(BDM) 		1-33519-081-0 02 1 0809-1305 ●
17 BLOCK; SHIFT,1ST & REV 1-33519-081-0 02 1 0809-1305 ●
17 BLOCK; SHIFT,1ST & REV 1-33519-081-0 02 1 1306- ●
25 ARM; SHIFT,2ND & 3RD 1-33511-648-0 01 1 0809-1311 ●
25 ARM; SHIFT,2ND & 3RD 1-33511-666-0 01 1 1312- ●
25 ARM; SHIFT,2ND & 3RD 1-33511-642-0 01 1 0710- ●
29 BLOCK; SHIFT,2ND & 3RD 1-33519-081-0 02 1 0710-0808 ●
29 BLOCK; SHIFT,2ND & 3RD 1-33519-081-0 02 1 0809- ● ●
36 BLOCK; SHIFT,4TH & 5TH 1-33519-173-0 02 1 0809- ●
36 BLOCK; SHIFT,4TH & 5TH 1-33519-170-0 02 1 0710- ●
49 ARM; SHIFT,4TH & 5TH 1-33511-649-0 01 1 0809-1311 ●
49 ARM; SHIFT,4TH & 5TH 1-33511-667-0 01 1 1312- ●
49 ARM; SHIFT,4TH & 5TH 1-33511-640-0 01 1 0710- ●
52 BOLT; SHIFT ARM
(A) 		1-33519-174-0 02 1 0809-1311 ●
52 BOLT; SHIFT ARM
(A) 		1-33519-199-0 02 1 1312- ●
52 BOLT; SHIFT ARM
(B) 		1-33519-058-0 02 1 0710-1305 ●
52 BOLT; SHIFT ARM
(B) 		1-33519-196-0 02 1 1306- ●
52 BOLT; SHIFT ARM
(C) 		1-33519-175-0 06 1 0809-1311 ●
52 BOLT; SHIFT ARM
(C) 		1-33519-200-0 06 1 1312- ●
52 BOLT; SHIFT ARM
(D) 		1-33519-084-0 07 1 0710-1305 ●
52 BOLT; SHIFT ARM
(D) 		1-33519-190-0 07 1 1306- ●
60 WASHER; LK
(A) 		1-33519-085-0 08 1 0809-1311 ●
60 WASHER; LK
(B) 		1-33519-059-0 02 1 0710-1305 ●
60 WASHER; LK
(A) 		1-33519-085-0 07 1 0710-1305 ●
345 BLOCK; SHIFT,RANGE CHANGE 1-33519-173-0 02 1 0809- ●
345 BLOCK; SHIFT,RANGE CHANGE 1-33519-095-0 02 1 0710- ●
347 ARM; SHIFT,RANGE CHANGE 1-33511-646-0 01 1 0809-1311 ●
347 ARM; SHIFT,RANGE CHANGE 1-33511-668-0 01 1 1312- ●
347 ARM; SHIFT,RANGE CHANGE 1-33511-529-0 01 1 0710- ●
381 BOLT 1-33519-178-0 02 1 0809-1311 ●
381 BOLT 1-33519-201-0 02 1 1312- ●
532 PLATE; SHIFT FORK
(D) 		1-33519-177-0 01 1 0809-1311 ●
532 PLATE; SHIFT FORK
(D) 		1-33519-193-0 01 1 1312- ●
532 PLATE; SHIFT FORK
(A) 		1-33531-492-0 01 1 0710- ●
532 PLATE; SHIFT FORK
(B) 		1-33531-493-0 01 1 0710- ●
532 PLATE; SHIFT FORK
(C) 		1-33531-494-0 01 1 0710- ●

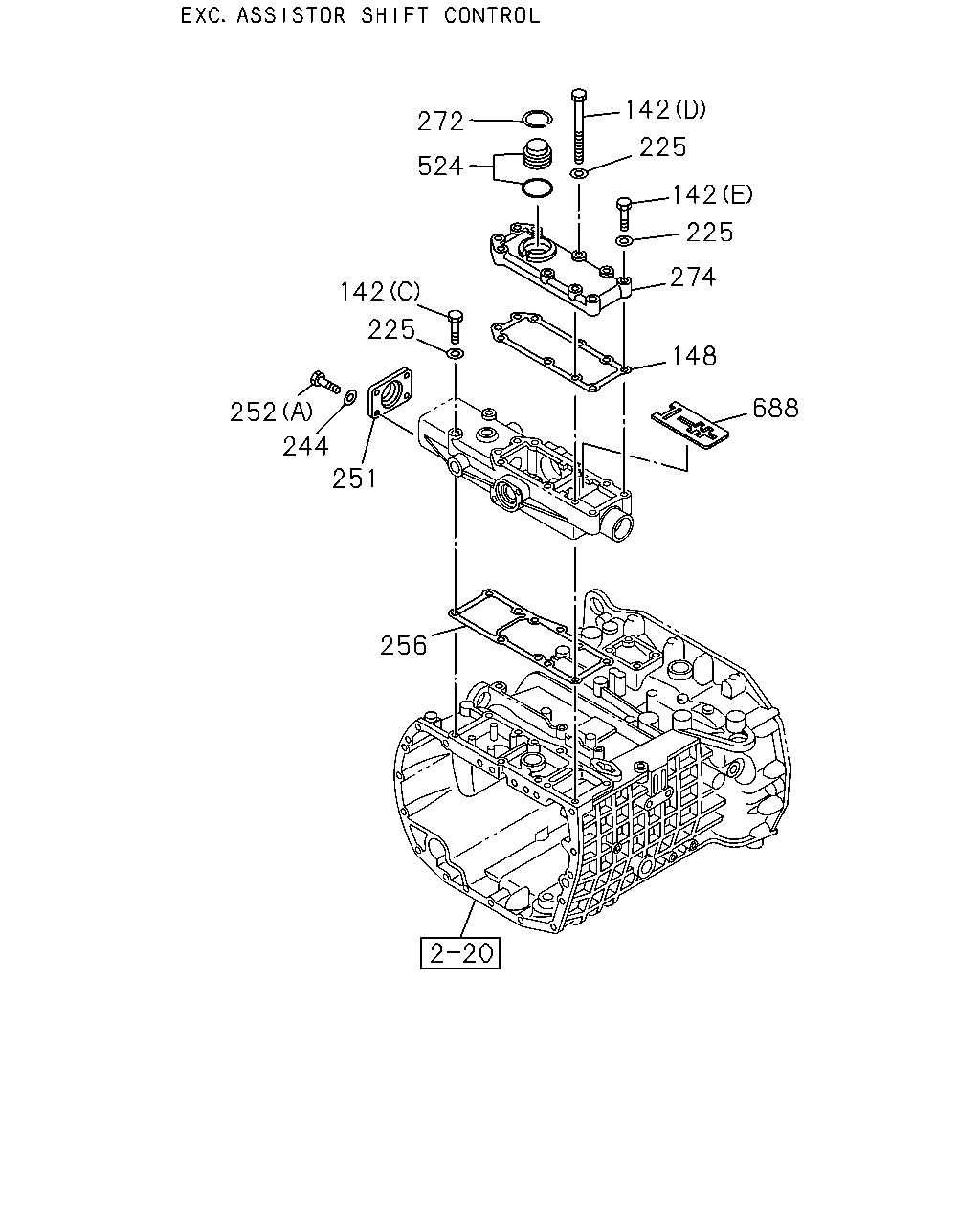

çizim 179194
142 272 225 524 142 225 274 142 225 148 688 252 244 251 256
BalonParca AdiParca NoAdetTipApplied Date A B

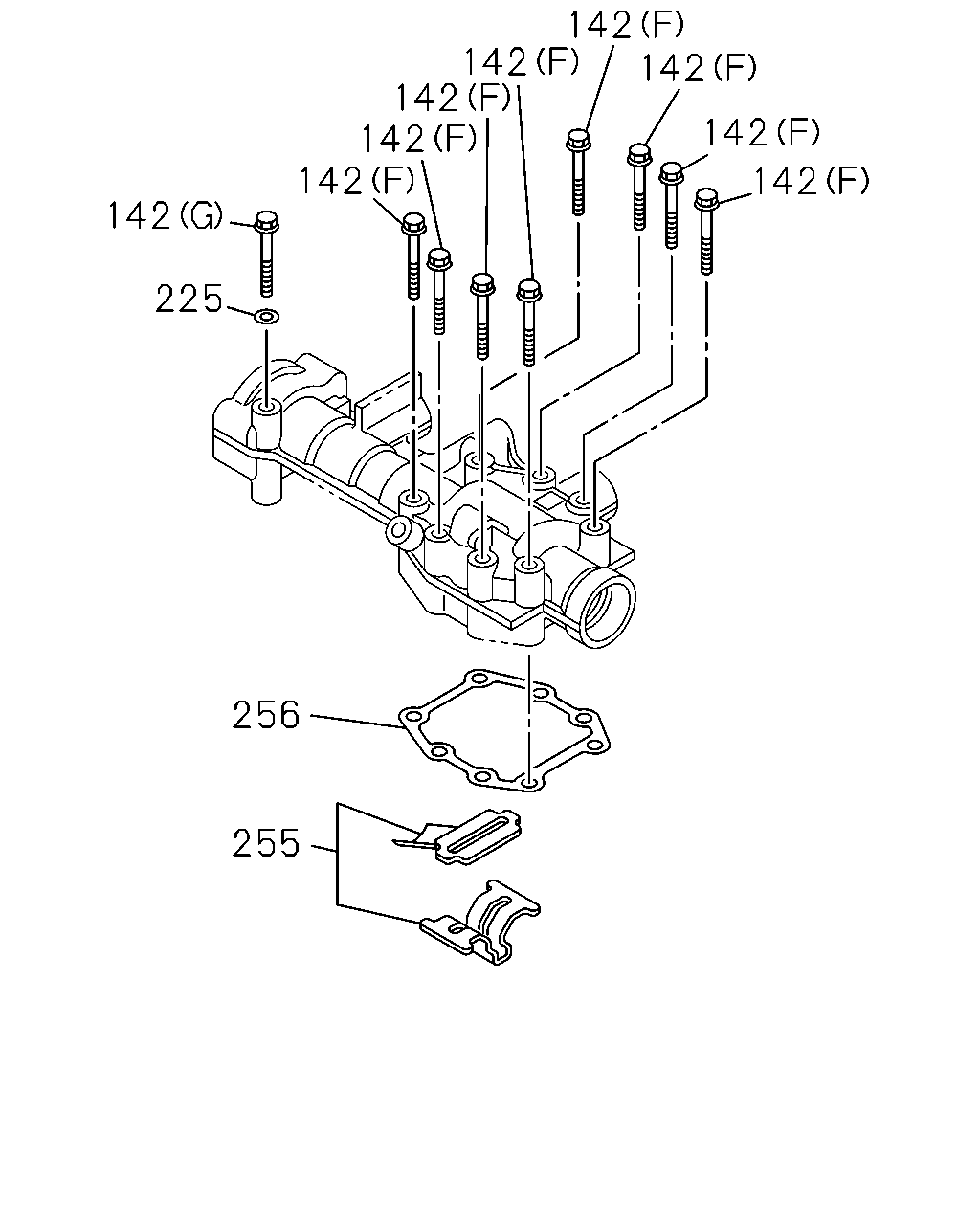

142 BOLT; QUAD BOX
(F) M8X80 		1-33549-256-0 08 1 0809-1311 ●
142 BOLT; QUAD BOX
(F) M8X80 		1-33549-614-0 08 1 1312- ●
142 BOLT; QUAD BOX
(G) 		1-33549-290-0 01 1 0809-1311 ●
142 BOLT; QUAD BOX
(G) M8X100 		1-33549-622-0 01 1 1312- ●
142 BOLT; QUAD BOX
EXC. ASSISTOR SHIFT CONTROL<WX8> (C) M8X75 		1-09089-015-0 02 1 0809-1305 ●
142 BOLT; QUAD BOX
EXC. ASSISTOR SHIFT CONTROL<WX8> (C) M8X100 		1-33549-582-0 06 1 1306- ●
142 BOLT; QUAD BOX
EXC. ASSISTOR SHIFT CONTROL<WX8> (D) 		1-33549-486-0 06 1 0809-1305 ●
142 BOLT; QUAD BOX
EXC. ASSISTOR SHIFT CONTROL<WX8> (D) M8X75 		1-33549-584-0 02 1 1306- ●
142 BOLT; QUAD BOX
EXC. ASSISTOR SHIFT CONTROL<WX8> (E) 		1-34129-116-0 04 1 0809-1305 ●
142 BOLT; QUAD BOX
EXC. ASSISTOR SHIFT CONTROL<WX8> (E) M8X40 		1-33549-587-0 04 1 1306- ●
142 BOLT; QUAD BOX
PTO ZF TRANS RR(BDM) (A) 		1-33549-476-0 13 1 0710-0808 ●
142 BOLT; QUAD BOX
PTO ZF TRANS RR(BDM) ASSISTOR SHIFT CONTROL<WX8> (A) 		1-33549-476-0 13 1 0809-1305 ●
142 BOLT; QUAD BOX
ASSISTOR SHIFT CONTROL<WX8> (A) M8X80 		1-33549-614-0 13 1 1306- ●
142 BOLT; QUAD BOX
EXC. PTO ZF TRANS RR(BDM) (A) 		1-33549-455-0 13 1 0710-0808 ●
142 BOLT; QUAD BOX
ASSISTOR SHIFT CONTROL<WX8> EXC. PTO ZF TRANS RR(BDM) (A) 		1-33549-455-0 13 1 0809-1305 ●
142 BOLT; QUAD BOX
(B) 		1-33549-467-0 05 1 0710-0808 ●
142 BOLT; QUAD BOX
ASSISTOR SHIFT CONTROL<WX8> (B) 		1-33549-467-0 05 1 0809-1305 ●
142 BOLT; QUAD BOX
ASSISTOR SHIFT CONTROL<WX8> (B) M8X70 		1-33549-616-0 05 1 1306- ●
148 GASKET; QUAD BOX
EXC. ASSISTOR SHIFT CONTROL<WX8> 		1-33542-064-0 01 1 0809- ●
148 GASKET; QUAD BOX 1-33544-056-0 01 1 0710-0808 ●
148 GASKET; QUAD BOX
ASSISTOR SHIFT CONTROL<WX8> 		1-33544-056-0 01 1 0809- ●
225 WASHER; LK,QUAD BOX 1-33549-159-0 01 1 0809-1311 ●
225 WASHER; LK,QUAD BOX 1-33549-583-0 01 1 1312- ●
225 WASHER; LK,QUAD BOX
EXC. ASSISTOR SHIFT CONTROL<WX8> 		1-33549-159-0 14 1 0809-1305 ●
225 WASHER; LK,QUAD BOX
EXC. ASSISTOR SHIFT CONTROL<WX8> 		1-33549-583-0 14 1 1306- ●
244 WASHER; LK,COVER 1-33549-583-0 04 1 1306-1311 ●
244 WASHER; LK,COVER 1-33549-583-0 04 1 1312- ● ●
244 WASHER; LK,COVER 1-33549-159-0 04 1 0710-0808 ●
244 WASHER; LK,COVER 1-33549-159-0 04 1 0809-1305 ● ●
244 WASHER; LK,COVER 1-33549-159-0 04 1 1306-1311 ●
251 COVER; SIDE
PTO ZF TRANS RR(BDM) 		1-33549-478-0 01 1 0710-0808 ●
251 COVER; SIDE
EXC. ASSISTOR SHIFT CONTROL<WX8> 		1-33549-478-0 01 1 0809-1305 ●
251 COVER; SIDE
PTO ZF TRANS RR(BDM) ASSISTOR SHIFT CONTROL<WX8> 		1-33549-478-0 01 1 0809-1305 ●
251 COVER; SIDE 1-33549-478-0 01 1 0809-1305 ●
251 COVER; SIDE 1-33549-478-0 01 1 1306-1311 ●
251 COVER; SIDE
EXC. PTO ZF TRANS RR(BDM) 		1-33549-472-0 01 1 0710-0808 ●
251 COVER; SIDE
ASSISTOR SHIFT CONTROL<WX8> EXC. PTO ZF TRANS RR(BDM) 		1-33549-472-0 01 1 0809-1305 ●
251 COVER; SIDE 1-33549-590-0 01 1 1306-1311 ●
251 COVER; SIDE 1-33549-590-0 01 1 1312- ● ●
252 BOLT; SIDE COVER
(A) 		1-33119-296-0 04 1 0809-1305 ● ●
252 BOLT; SIDE COVER
(A) 		1-33119-296-0 04 1 1306-1311 ●
252 BOLT; SIDE COVER
(A) 		1-33119-296-0 04 1 0710-0808 ●
252 BOLT; SIDE COVER
EXC. ASSISTOR SHIFT CONTROL<WX8> (B) M8X30 		1-33549-172-0 02 1 0809-1305 ●
252 BOLT; SIDE COVER
EXC. ASSISTOR SHIFT CONTROL<WX8> (B) M8X30 		1-33549-581-0 02 1 1306- ●
252 BOLT; SIDE COVER
(A) M8X20 		1-33549-591-0 04 1 1306-1311 ●
252 BOLT; SIDE COVER
(A) M8X20 		1-33549-591-0 04 1 1312- ● ●
256 GASKET; QUAD BOX TO TRANS CASE
PTO ZF TRANS RR(BDM) EXC. ASSISTOR SHIFT CONTROL<WX8> 		1-33542-065-0 01 1 0904-0912 ●
256 GASKET; QUAD BOX TO TRANS CASE
EXC. ASSISTOR SHIFT CONTROL<WX8> 		1-33542-065-0 01 1 1001- ●
256 GASKET; QUAD BOX TO TRANS CASE 1-33549-504-0 01 1 0809- ●
256 GASKET; QUAD BOX TO TRANS CASE 1-33542-062-0 01 1 0710-0903 ●
256 GASKET; QUAD BOX TO TRANS CASE
PTO ZF TRANS RR(BDM) ASSISTOR SHIFT CONTROL<WX8> 		1-33542-062-0 01 1 0904-0912 ●
256 GASKET; QUAD BOX TO TRANS CASE
EXC. PTO ZF TRANS RR(BDM) 		1-33542-062-0 01 1 0904-0912 ●
256 GASKET; QUAD BOX TO TRANS CASE
ASSISTOR SHIFT CONTROL<WX8> 		1-33542-062-0 01 1 1001- ●
272 RING; SNAP,QUAD BOX
T=1.85 		1-33549-514-0 01 1 0809- ●
272 RING; SNAP,QUAD BOX
T=1.35 		1-33549-515-0 01 1 0809- ●
272 RING; SNAP,QUAD BOX
T=1.75 		1-33549-516-0 01 1 0809- ●
272 RING; SNAP,QUAD BOX
T=1.45 		1-33549-517-0 01 1 0809- ●
272 RING; SNAP,QUAD BOX
T=1.65 		1-33549-518-0 01 1 0809- ●
272 RING; SNAP,QUAD BOX
T=1.55 		1-33549-519-0 01 1 0809- ●
272 RING; SNAP,QUAD BOX
EXC. ASSISTOR SHIFT CONTROL<WX8> 		1-44519-217-0 01 1 0809- ●
274 COVER; SHAFT,QUAD BOX
PTO ZF TRANS RR(BDM) EXC. ASSISTOR SHIFT CONTROL<WX8> 		1-33549-571-0 01 1 0904-0912 ●
274 COVER; SHAFT,QUAD BOX
EXC. ASSISTOR SHIFT CONTROL<WX8> 		1-33549-571-0 01 1 1001-1305 ●
274 COVER; SHAFT,QUAD BOX
EXC. ASSISTOR SHIFT CONTROL<WX8> 		1-33549-579-0 01 1 1306- ●
274 COVER; SHAFT,QUAD BOX
EXC. ASSISTOR SHIFT CONTROL<WX8> 		1-33549-499-0 01 1 0809-0903 ●
274 COVER; SHAFT,QUAD BOX
EXC. PTO ZF TRANS RR(BDM),ASSISTOR SHIFT CONTROL<WX8> 		1-33549-499-0 01 1 0904-0912 ●
274 COVER; SHAFT,QUAD BOX
PTO ZF TRANS RR(BDM) 		1-33549-477-0 01 1 0710-0808 ●
274 COVER; SHAFT,QUAD BOX
PTO ZF TRANS RR(BDM) ASSISTOR SHIFT CONTROL<WX8> 		1-33549-477-0 01 1 0809-1305 ●
274 COVER; SHAFT,QUAD BOX
ASSISTOR SHIFT CONTROL<WX8> 		1-33549-477-0 01 1 1306- ●
274 COVER; SHAFT,QUAD BOX
EXC. PTO ZF TRANS RR(BDM) 		1-33549-457-0 01 1 0710-0808 ●
274 COVER; SHAFT,QUAD BOX
ASSISTOR SHIFT CONTROL<WX8> EXC. PTO ZF TRANS RR(BDM) 		1-33549-457-0 01 1 0809-1305 ●
524 DETENT; QUAD BOX
EXC. ASSISTOR SHIFT CONTROL<WX8> 		1-33549-501-0 01 1 0809- ●
688 SHIFT; INTERLOCK
PTO ZF TRANS RR(BDM) EXC. ASSISTOR SHIFT CONTROL<WX8> 		1-33549-572-0 01 1 0904-0912 ●
688 SHIFT; INTERLOCK
EXC. ASSISTOR SHIFT CONTROL<WX8> 		1-33549-572-0 01 1 1001- ●
688 SHIFT; INTERLOCK
EXC. ASSISTOR SHIFT CONTROL<WX8> 		1-33549-500-0 01 1 0809-0903 ●
688 SHIFT; INTERLOCK
EXC. PTO ZF TRANS RR(BDM),ASSISTOR SHIFT CONTROL<WX8> 		1-33549-500-0 01 1 0904-0912 ●

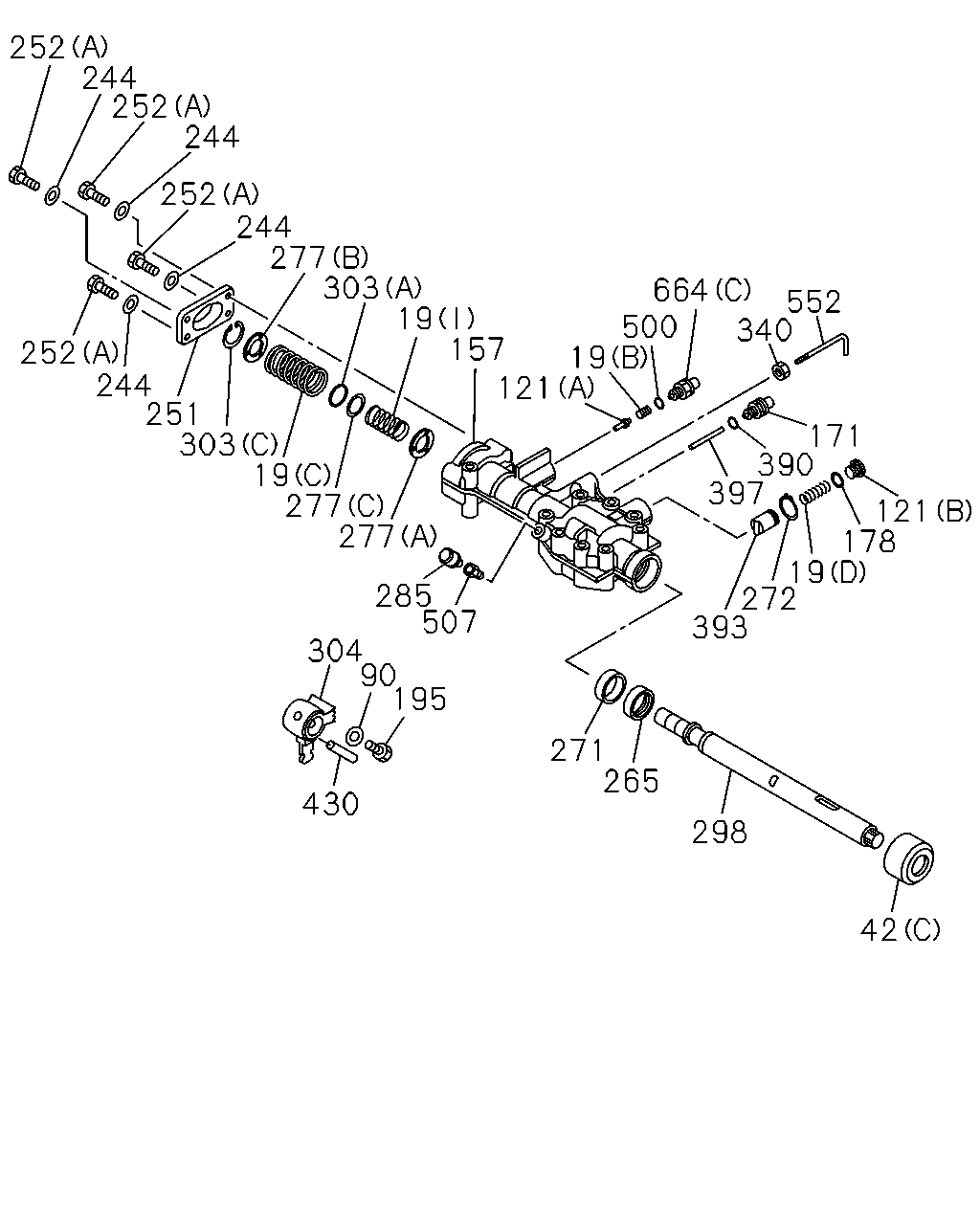

çizim 179196
252 244 252 244 252 244 277 303 664 19 500 157 19 121 552 340 252 244 251 303 19 277 277 171 390 397 121 178 19 272 393 285 507 304 90 195 271 265 430 298 42
BalonParca AdiParca NoAdetTipApplied Date A B
19 SPRING; COIL COMP
PTO ZF TRANS RR(BDM) EXC. ASSISTOR SHIFT CONTROL<WX8> (J) 		1-33539-027-0 01 1 0904-0912 ●
19 SPRING; COIL COMP
EXC. ASSISTOR SHIFT CONTROL<WX8> (J) 		1-33539-027-0 01 1 1001- ●
19 SPRING; COIL COMP
PTO ZF TRANS RR(BDM) EXC. ASSISTOR SHIFT CONTROL<WX8> (K) 		1-33539-104-0 01 1 0904-0912 ●
19 SPRING; COIL COMP
EXC. ASSISTOR SHIFT CONTROL<WX8> (K) 		1-33539-104-0 01 1 1001- ●
19 SPRING; COIL COMP
PTO ZF TRANS RR(BDM) EXC. ASSISTOR SHIFT CONTROL<WX8> (H) 		1-33549-221-0 01 1 0904-0912 ●
19 SPRING; COIL COMP
EXC. ASSISTOR SHIFT CONTROL<WX8> (H) 		1-33549-221-0 01 1 1001- ●
19 SPRING; COIL COMP
(C) 		1-33539-031-0 01 1 0809- ●
19 SPRING; COIL COMP
(I) 		1-33539-096-0 01 1 0809- ●
19 SPRING; COIL COMP
(D) 		1-33549-520-0 01 1 0809- ●
19 SPRING; COIL COMP
EXC. ASSISTOR SHIFT CONTROL<WX8> (E) 		1-33539-030-0 02 1 0809- ●
19 SPRING; COIL COMP
EXC. ASSISTOR SHIFT CONTROL<WX8> (F) 		1-33539-092-0 01 1 0809-0903 ●
19 SPRING; COIL COMP
EXC. PTO ZF TRANS RR(BDM),ASSISTOR SHIFT CONTROL<WX8> (F) 		1-33539-092-0 01 1 0904-0912 ●
19 SPRING; COIL COMP
AUSTRALIA EQUIPMENT(B13) ASSISTOR SHIFT CONTROL<WX8> EXC. COUNTRY NEW ZEALAND(CX6) (F) 		1-33539-092-0 01 1 1306- ●
19 SPRING; COIL COMP
EXC. ASSISTOR SHIFT CONTROL<WX8> (G) 		1-33539-093-0 01 1 0809-0903 ●
19 SPRING; COIL COMP
EXC. PTO ZF TRANS RR(BDM),ASSISTOR SHIFT CONTROL<WX8> (G) 		1-33539-093-0 01 1 0904-0912 ●
19 SPRING; COIL COMP
AUSTRALIA EQUIPMENT(B13) ASSISTOR SHIFT CONTROL<WX8> EXC. COUNTRY NEW ZEALAND(CX6) (G) 		1-33539-093-0 01 1 1306- ●
19 SPRING; COIL COMP
EXC. ASSISTOR SHIFT CONTROL<WX8> (H) 		1-33539-094-0 01 1 0809-0903 ●
19 SPRING; COIL COMP
EXC. PTO ZF TRANS RR(BDM),ASSISTOR SHIFT CONTROL<WX8> (H) 		1-33539-094-0 01 1 0904-0912 ●
19 SPRING; COIL COMP
PTO ZF TRANS RR(BDM) (B) 		1-33539-090-0 01 1 0710-0808 ●
19 SPRING; COIL COMP
PTO ZF TRANS RR(BDM) ASSISTOR SHIFT CONTROL<WX8> (B) 		1-33539-090-0 01 1 0809-1305 ●
19 SPRING; COIL COMP
ASSISTOR SHIFT CONTROL<WX8> (B) 		1-33539-090-0 01 1 1306- ●
19 SPRING; COIL COMP
EXC. PTO ZF TRANS RR(BDM) (B) 		1-33539-022-0 01 1 0710-0808 ●
19 SPRING; COIL COMP
ASSISTOR SHIFT CONTROL<WX8> EXC. PTO ZF TRANS RR(BDM) (B) 		1-33539-022-0 01 1 0809-1305 ●
19 SPRING; COIL COMP
(B) 		1-33539-022-0 01 1 0809-1305 ●
19 SPRING; COIL COMP
(B) 		1-33539-022-0 01 1 1306- ●
19 SPRING; COIL COMP
(A) 		1-33539-089-0 01 1 0710-0808 ●
19 SPRING; COIL COMP
ASSISTOR SHIFT CONTROL<WX8> (A) 		1-33539-089-0 01 1 0809-1305 ●
19 SPRING; COIL COMP
AUSTRALIA EQUIPMENT(B13) COUNTRY NEW ZEALAND(CX6) ASSISTOR SHIFT CONTROL<WX8> (A) 		1-33539-089-0 01 1 1306- ●
19 SPRING; COIL COMP
ASSISTOR SHIFT CONTROL<WX8> EXC. AUSTRALIA EQUIPMENT(B13) (A) 		1-33539-089-0 01 1 1306- ●
42 CAP; QUAD BOX
(C) 		1-33549-509-0 01 1 0809-1311 ●
42 CAP; QUAD BOX
(C) 		1-33549-613-0 01 1 1312- ●
42 CAP; QUAD BOX
EXC. ASSISTOR SHIFT CONTROL<WX8> (D) 		1-33549-111-0 01 1 0809-1305 ●
42 CAP; QUAD BOX
EXC. ASSISTOR SHIFT CONTROL<WX8> (D) 		1-33549-589-0 01 1 1306- ●
42 CAP; QUAD BOX
(A) 		1-33549-456-0 01 1 0710-0808 ●
42 CAP; QUAD BOX
ASSISTOR SHIFT CONTROL<WX8> (A) 		1-33549-456-0 01 1 0809-1305 ●
42 CAP; QUAD BOX
ASSISTOR SHIFT CONTROL<WX8> (A) 		1-33549-548-0 01 1 1306- ●
42 CAP; QUAD BOX
(B) 		1-33549-463-0 01 1 0710-0808 ●
42 CAP; QUAD BOX
ASSISTOR SHIFT CONTROL<WX8> (B) 		1-33549-463-0 01 1 0809-1305 ●
42 CAP; QUAD BOX
ASSISTOR SHIFT CONTROL<WX8> (B) 		1-33549-619-0 01 1 1306- ●
90 RING; SNAP,SHIFT ROD 1-33549-511-0 01 1 0809- ●
90 RING; SNAP,SHIFT ROD
EXC. ASSISTOR SHIFT CONTROL<WX8> 		1-33549-494-0 02 1 0809- ●
90 RING; SNAP,SHIFT ROD 1-33529-109-0 01 1 0710-0808 ●
90 RING; SNAP,SHIFT ROD
ASSISTOR SHIFT CONTROL<WX8> 		1-33529-109-0 01 1 0809- ●
121 PLUG; DETENT SPR
(A) 		1-33549-487-0 01 1 0809- ●
121 PLUG; DETENT SPR
(B) 		1-33549-521-0 01 1 0809-1311 ●
121 PLUG; DETENT SPR
(B) 		1-33549-594-0 01 1 1312- ●
157 BOX; QUAD,TRANS
PTO ZF TRANS RR(BDM) EXC. ASSISTOR SHIFT CONTROL<WX8> 		1-33549-570-0 01 1 0904-0912 ●
157 BOX; QUAD,TRANS
EXC. ASSISTOR SHIFT CONTROL<WX8> 		1-33549-570-0 01 1 1001- ●
157 BOX; QUAD,TRANS 1-33541-543-0 01 1 0809-1311 ●
157 BOX; QUAD,TRANS 1-33541-548-0 01 1 1312- ●
157 BOX; QUAD,TRANS
EXC. ASSISTOR SHIFT CONTROL<WX8> 		1-33549-485-0 01 1 0809-0903 ●
157 BOX; QUAD,TRANS
EXC. PTO ZF TRANS RR(BDM),ASSISTOR SHIFT CONTROL<WX8> 		1-33549-485-0 01 1 0904-0912 ●
157 BOX; QUAD,TRANS 1-33549-445-0 01 1 0710-0808 ●
157 BOX; QUAD,TRANS
ASSISTOR SHIFT CONTROL<WX8> 		1-33549-445-0 01 1 0809- ●
171 SWITCH; NEUTRAL
PTO ZF TRANS RR(BDM) EXC. ASSISTOR SHIFT CONTROL<WX8> 		1-33119-587-0 01 1 0904-0912 ●
171 SWITCH; NEUTRAL
EXC. ASSISTOR SHIFT CONTROL<WX8> 		1-33119-587-0 01 1 1001-1305 ●
171 SWITCH; NEUTRAL
EXC. ASSISTOR SHIFT CONTROL<WX8> 		1-33119-627-0 01 1 1306-1311 ●
171 SWITCH; NEUTRAL
EXC. ASSISTOR SHIFT CONTROL<WX8> 		1-33119-627-0 01 1 1312- ●
171 SWITCH; NEUTRAL 1-33119-627-0 01 1 1312- ●
171 SWITCH; NEUTRAL 1-33549-469-0 01 1 0809-1311 ●
171 SWITCH; NEUTRAL
EXC. ASSISTOR SHIFT CONTROL<WX8> 		1-82440-095-0 01 1 0809-0903 ●
171 SWITCH; NEUTRAL
EXC. PTO ZF TRANS RR(BDM),ASSISTOR SHIFT CONTROL<WX8> 		1-82440-095-0 01 1 0904-0912 ●
171 SWITCH; NEUTRAL
EXC. PTO ZF TRANS RR(BDM) 		1-33549-338-0 01 1 0710-0808 ●
171 SWITCH; NEUTRAL
ASSISTOR SHIFT CONTROL<WX8> EXC. PTO ZF TRANS RR(BDM) 		1-33549-338-0 01 1 0809-1305 ●
178 GASKET; PLUG 1-33379-007-0 01 1 0809- ●
195 BOLT 1-33549-512-0 01 1 0809- ●
195 BOLT
EXC. ASSISTOR SHIFT CONTROL<WX8> 		1-33119-301-0 02 1 0809-1305 ●
195 BOLT
EXC. ASSISTOR SHIFT CONTROL<WX8> 		1-33119-593-0 02 1 1306- ●
244 WASHER; LK,COVER 1-33549-583-0 04 1 1306-1311 ●
244 WASHER; LK,COVER 1-33549-583-0 04 1 1312- ● ●
244 WASHER; LK,COVER 1-33549-159-0 04 1 0710-0808 ●
244 WASHER; LK,COVER 1-33549-159-0 04 1 0809-1305 ● ●
244 WASHER; LK,COVER 1-33549-159-0 04 1 1306-1311 ●
251 COVER; SIDE
PTO ZF TRANS RR(BDM) 		1-33549-478-0 01 1 0710-0808 ●
251 COVER; SIDE
EXC. ASSISTOR SHIFT CONTROL<WX8> 		1-33549-478-0 01 1 0809-1305 ●
251 COVER; SIDE
PTO ZF TRANS RR(BDM) ASSISTOR SHIFT CONTROL<WX8> 		1-33549-478-0 01 1 0809-1305 ●
251 COVER; SIDE 1-33549-478-0 01 1 0809-1305 ●
251 COVER; SIDE 1-33549-478-0 01 1 1306-1311 ●
251 COVER; SIDE
EXC. PTO ZF TRANS RR(BDM) 		1-33549-472-0 01 1 0710-0808 ●
251 COVER; SIDE
ASSISTOR SHIFT CONTROL<WX8> EXC. PTO ZF TRANS RR(BDM) 		1-33549-472-0 01 1 0809-1305 ●
251 COVER; SIDE 1-33549-590-0 01 1 1306-1311 ●
251 COVER; SIDE 1-33549-590-0 01 1 1312- ● ●
252 BOLT; SIDE COVER
(A) 		1-33119-296-0 04 1 0809-1305 ● ●
252 BOLT; SIDE COVER
(A) 		1-33119-296-0 04 1 1306-1311 ●
252 BOLT; SIDE COVER
(A) 		1-33119-296-0 04 1 0710-0808 ●
252 BOLT; SIDE COVER
EXC. ASSISTOR SHIFT CONTROL<WX8> (B) M8X30 		1-33549-172-0 02 1 0809-1305 ●
252 BOLT; SIDE COVER
EXC. ASSISTOR SHIFT CONTROL<WX8> (B) M8X30 		1-33549-581-0 02 1 1306- ●
252 BOLT; SIDE COVER
(A) M8X20 		1-33549-591-0 04 1 1306-1311 ●
252 BOLT; SIDE COVER
(A) M8X20 		1-33549-591-0 04 1 1312- ● ●
265 SEAL; OIL,SHIFT 1-33549-544-0 01 1 0809-1305 ●
265 SEAL; OIL,SHIFT
ASSISTOR SHIFT CONTROL<WX8>. 		1-33549-544-0 01 1 1306- ●
265 SEAL; OIL,SHIFT
ALSO INCLUDED IN GASKET SET(M/T). 		1-33549-544-0 01 1 1306- ●
265 SEAL; OIL,SHIFT
EXC. ASSISTOR SHIFT CONTROL<WX8> 		1-33549-118-0 01 1 0809- ●
265 SEAL; OIL,SHIFT 1-33549-446-0 01 1 0710-0808 ●
265 SEAL; OIL,SHIFT
ASSISTOR SHIFT CONTROL<WX8> 		1-33549-446-0 01 1 0809-1305 ●
271 BUSHING; QUAD BOX
AUSTRALIA EQUIPMENT(B13) ASSISTOR SHIFT CONTROL<WX8> EXC. COUNTRY NEW ZEALAND(CX6) 		1-33539-113-0 01 1 1306- ●
271 BUSHING; QUAD BOX
ASSISTOR SHIFT CONTROL<WX8> 		1-33549-318-0 01 1 0809- ●
271 BUSHING; QUAD BOX 1-33549-318-0 01 1 0809- ●
271 BUSHING; QUAD BOX 1-33549-318-0 01 1 0710-0808 ●
271 BUSHING; QUAD BOX
EXC. ASSISTOR SHIFT CONTROL<WX8> 		1-33549-124-0 01 1 0809- ●
272 RING; SNAP,QUAD BOX
T=1.85 		1-33549-514-0 01 1 0809- ●
272 RING; SNAP,QUAD BOX
T=1.35 		1-33549-515-0 01 1 0809- ●
272 RING; SNAP,QUAD BOX
T=1.75 		1-33549-516-0 01 1 0809- ●
272 RING; SNAP,QUAD BOX
T=1.45 		1-33549-517-0 01 1 0809- ●
272 RING; SNAP,QUAD BOX
T=1.65 		1-33549-518-0 01 1 0809- ●
272 RING; SNAP,QUAD BOX
T=1.55 		1-33549-519-0 01 1 0809- ●
272 RING; SNAP,QUAD BOX
EXC. ASSISTOR SHIFT CONTROL<WX8> 		1-44519-217-0 01 1 0809- ●
277 PLATE; SPRING SEAT
AUSTRALIA EQUIPMENT(B13) ASSISTOR SHIFT CONTROL<WX8> EXC. COUNTRY NEW ZEALAND(CX6) (A) 		1-33539-110-0 01 1 1306- ●
277 PLATE; SPRING SEAT
(A) 		1-33539-039-0 01 1 0809-1311 ●
277 PLATE; SPRING SEAT
(B) 		1-33539-095-0 01 1 0809-1311 ●
277 PLATE; SPRING SEAT
(B) 		1-33539-111-0 01 1 1312- ●
277 PLATE; SPRING SEAT
EXC. ASSISTOR SHIFT CONTROL<WX8> (C) 		1-33539-042-0 01 1 0809-1305 ●
277 PLATE; SPRING SEAT
(C) 		1-33539-042-0 01 1 0809-1305 ●
277 PLATE; SPRING SEAT
(C) 		1-33539-042-0 01 1 1306-1311 ●
277 PLATE; SPRING SEAT
(C) 		1-33539-108-0 01 1 1312- ●
277 PLATE; SPRING SEAT
(D) 		1-33539-039-0 02 1 0710-1305 ●
277 PLATE; SPRING SEAT
AUSTRALIA EQUIPMENT(B13) COUNTRY NEW ZEALAND(CX6) ASSISTOR SHIFT CONTROL<WX8> (D) 		1-33539-107-0 02 1 1306- ●
277 PLATE; SPRING SEAT
ASSISTOR SHIFT CONTROL<WX8> EXC. AUSTRALIA EQUIPMENT(B13) (D) 		1-33539-107-0 02 1 1306- ●
277 PLATE; SPRING SEAT
EXC. ASSISTOR SHIFT CONTROL<WX8> (D) 		1-33539-107-0 02 1 1306- ●
277 PLATE; SPRING SEAT
AUSTRALIA EQUIPMENT(B13) ASSISTOR SHIFT CONTROL<WX8> EXC. COUNTRY NEW ZEALAND(CX6) (D) 		1-33539-107-0 01 1 1306-1311 ●
277 PLATE; SPRING SEAT
AUSTRALIA EQUIPMENT(B13) ASSISTOR SHIFT CONTROL<WX8> EXC. COUNTRY NEW ZEALAND(CX6) (D) 		1-33539-107-0 01 1 1312- ●
277 PLATE; SPRING SEAT
(D) 		1-33539-107-0 01 1 1312- ●
285 BREATHER; AIR,QUAD BOX 1-36122-004-0 01 1 0809-1311 ●
285 BREATHER; AIR,QUAD BOX 1-36122-006-0 01 1 1312- ●
298 SHAFT; SHIFT LEVER 1-33522-206-0 01 1 0809- ●
298 SHAFT; SHIFT LEVER
EXC. ASSISTOR SHIFT CONTROL<WX8> 		1-33522-205-0 01 1 0809- ●
298 SHAFT; SHIFT LEVER
PTO ZF TRANS RR(BDM) 		1-33522-204-0 01 1 0710-0808 ●
298 SHAFT; SHIFT LEVER
PTO ZF TRANS RR(BDM) ASSISTOR SHIFT CONTROL<WX8> 		1-33522-204-0 01 1 0809-1305 ●
298 SHAFT; SHIFT LEVER
ASSISTOR SHIFT CONTROL<WX8> 		1-33522-204-0 01 1 1306- ●
298 SHAFT; SHIFT LEVER
EXC. PTO ZF TRANS RR(BDM) 		1-33522-203-0 01 1 0710-0808 ●
298 SHAFT; SHIFT LEVER
ASSISTOR SHIFT CONTROL<WX8> EXC. PTO ZF TRANS RR(BDM) 		1-33522-203-0 01 1 0809-1305 ●
303 RING; SNAP,SHAFT
ASSISTOR SHIFT CONTROL<WX8> (A) 		1-33539-040-0 01 1 0809- ●
303 RING; SNAP,SHAFT
(A) 		1-33539-040-0 01 1 0809- ●
303 RING; SNAP,SHAFT
(C) 		1-44519-224-0 01 1 0809- ●
303 RING; SNAP,SHAFT
(A) 		1-33539-040-0 01 1 0710-0808 ●
303 RING; SNAP,SHAFT
EXC. ASSISTOR SHIFT CONTROL<WX8> (A) 		1-33539-040-0 02 1 0809- ●
303 RING; SNAP,SHAFT
(B) 		1-33549-461-0 01 1 0710-0808 ●
303 RING; SNAP,SHAFT
ASSISTOR SHIFT CONTROL<WX8> (B) 		1-33549-461-0 01 1 0809- ●
304 BLOCK; SHIFT SHAFT 1-33549-546-0 01 1 0809- ●
304 BLOCK; SHIFT SHAFT
EXC. ASSISTOR SHIFT CONTROL<WX8> 		1-33549-492-0 01 1 0809- ●
304 BLOCK; SHIFT SHAFT 1-33549-448-0 01 1 0710-0808 ●
304 BLOCK; SHIFT SHAFT
ASSISTOR SHIFT CONTROL<WX8> 		1-33549-448-0 01 1 0809- ●
340 NUT; BRKT
M8 		1-21719-024-0 01 1 0809-1311 ●
340 NUT; BRKT 1-33549-607-0 01 1 1312- ●
390 GASKET; NEUTRAL SW
EXC. PTO ZF TRANS RR(BDM) 		1-33119-249-0 01 1 0710-0808 ●
390 GASKET; NEUTRAL SW
ASSISTOR SHIFT CONTROL<WX8> EXC. PTO ZF TRANS RR(BDM) 		1-33119-249-0 01 1 0809-1305 ●
390 GASKET; NEUTRAL SW 1-33119-249-0 01 1 0809-1305 ●
390 GASKET; NEUTRAL SW
ALSO INCLUDED IN GASKET SET(M/T). 		1-33119-249-0 01 1 1306- ●
393 PIN; SW 1-33549-513-0 01 1 0809- ●
393 PIN; SW
EXC. ASSISTOR SHIFT CONTROL<WX8> 		1-33119-298-0 01 1 0809- ●
397 BUSHING; PLUNGER 1-33549-522-0 01 1 0809- ●
430 PIN; SPR,SHIFT ROD 1-33529-130-0 01 1 0809- ●
430 PIN; SPR,SHIFT ROD
EXC. ASSISTOR SHIFT CONTROL<WX8> 		1-33549-493-0 01 1 0809- ●
430 PIN; SPR,SHIFT ROD 1-33549-449-0 01 1 0710-0808 ●
430 PIN; SPR,SHIFT ROD
ASSISTOR SHIFT CONTROL<WX8> 		1-33549-449-0 01 1 0809- ●
500 GASKET; SW
ALSO INCLUDED IN GASKET SET(M/T). ASSISTOR SHIFT CONTROL<WX8>. 		1-33119-249-0 01 1 0809- ●
500 GASKET; SW
ALSO INCLUDED IN GASKET SET(M/T). 		1-33119-249-0 01 1 0809- ●
500 GASKET; SW
ALSO INCLUDED IN GASKET SET(M/T). 		1-33119-249-0 01 1 0710-0808 ●
500 GASKET; SW
ALSO INCLUDED IN GASKET SET(M/T). EXC. ASSISTOR SHIFT CONTROL<WX8> 		1-33119-299-0 01 1 0809- ●
507 ADAPTER; BREATHER 1-33549-545-0 01 1 0809-1311 ●
507 ADAPTER; BREATHER 1-33549-621-0 01 1 1312- ●
552 BRACKET 1-33549-523-0 01 1 0809-1311 ●
552 BRACKET 1-33549-623-0 01 1 1312- ●
664 SWITCH
(C) 		1-38119-062-0 01 1 0809- ●
664 SWITCH
(A) 		1-33549-469-0 01 1 0710-0808 ●
664 SWITCH
ASSISTOR SHIFT CONTROL<WX8> (A) 		1-33549-469-0 01 1 0809-1305 ●
664 SWITCH
ASSISTOR SHIFT CONTROL<WX8> (A) 		1-33119-627-0 01 1 1306- ●
664 SWITCH
(B) 		1-33549-470-0 01 1 0710-0808 ●
664 SWITCH
ASSISTOR SHIFT CONTROL<WX8> (B) 		1-33549-470-0 01 1 0809- ●
çizim 179264
443 443 512
BalonParca AdiParca NoAdetTipApplied Date A B
443 BOLT; CLIP
M8X20 FLANGE 		0-28650-820-0 02 1 0710-0808 ●
443 BOLT; CLIP
ASSISTOR SHIFT CONTROL<WX8> M8X20 FLANGE 		0-28650-820-0 02 1 0809- ●
512 CLIP; PIPE
OD=9 H=6 		1-09709-178-0 03 1 0809- ●
512 CLIP; PIPE
EXC. ASSISTOR SHIFT CONTROL<WX8> OD=9 H=6 		1-09709-178-0 04 1 0809- ●
512 CLIP; PIPE
OD=9 H=6 		1-09709-178-0 05 1 0710-0808 ●
512 CLIP; PIPE
ASSISTOR SHIFT CONTROL<WX8> OD=9 H=6 		1-09709-178-0 05 1 0809- ●
çizim 179269
622 346 349 351 349 513 351 513 351 346 353 351
BalonParca AdiParca NoAdetTipApplied Date A B
346 HOSE; AIR
PTO ZF TRANS RR(BDM) EXC. ASSISTOR SHIFT CONTROL<WX8> (E) 		1-33549-400-0 01 1 0904-0912 ●
346 HOSE; AIR
EXC. ASSISTOR SHIFT CONTROL<WX8> (E) 		1-33549-400-0 01 1 1001-1305 ●
346 HOSE; AIR
EXC. ASSISTOR SHIFT CONTROL<WX8> (E) 		1-33549-618-0 01 1 1306- ●
346 HOSE; AIR
EXC. ASSISTOR SHIFT CONTROL<WX8> (C) 		1-33549-403-0 01 1 0809-0903 ●
346 HOSE; AIR
EXC. PTO ZF TRANS RR(BDM),ASSISTOR SHIFT CONTROL<WX8> (C) 		1-33549-403-0 01 1 0904-0912 ●
346 HOSE; AIR
EXC. ASSISTOR SHIFT CONTROL<WX8> (D) 		1-33549-443-0 01 1 0809-1305 ●
346 HOSE; AIR
EXC. ASSISTOR SHIFT CONTROL<WX8> (D) 		1-33549-598-0 01 1 1306- ●
346 HOSE; AIR
(A) 		1-33549-473-0 01 1 0710-0808 ●
346 HOSE; AIR
ASSISTOR SHIFT CONTROL<WX8> (A) 		1-33549-473-0 01 1 0809- ●
346 HOSE; AIR
(B) 		1-33549-474-0 01 1 0710-0808 ●
346 HOSE; AIR
ASSISTOR SHIFT CONTROL<WX8> (B) 		1-33549-474-0 01 1 0809- ●
349 BOLT; EYE,AIR HOSE
PTO ZF TRANS RR(BDM) EXC. ASSISTOR SHIFT CONTROL<WX8> 		1-33549-573-0 04 1 0904-0912 ●
349 BOLT; EYE,AIR HOSE
EXC. ASSISTOR SHIFT CONTROL<WX8> 		1-33549-573-0 04 1 1001-1305 ●
349 BOLT; EYE,AIR HOSE
ASSISTOR SHIFT CONTROL<WX8> M14 		1-33549-592-0 02 1 1306- ●
349 BOLT; EYE,AIR HOSE
EXC. ASSISTOR SHIFT CONTROL<WX8> 		1-33549-155-0 04 1 0809-0903 ●
349 BOLT; EYE,AIR HOSE
EXC. PTO ZF TRANS RR(BDM),ASSISTOR SHIFT CONTROL<WX8> 		1-33549-155-0 04 1 0904-0912 ●
349 BOLT; EYE,AIR HOSE 1-33549-155-0 02 1 0710-0808 ●
349 BOLT; EYE,AIR HOSE
ASSISTOR SHIFT CONTROL<WX8> 		1-33549-155-0 02 1 0809-1305 ●
349 BOLT; EYE,AIR HOSE
EXC. ASSISTOR SHIFT CONTROL<WX8> M14 		1-33549-592-0 04 1 1306- ●
351 GASKET; CONNECTOR
PTO ZF TRANS RR(BDM) EXC. ASSISTOR SHIFT CONTROL<WX8> (D) 		1-33549-554-0 01 1 0904-0912 ●
351 GASKET; CONNECTOR
EXC. ASSISTOR SHIFT CONTROL<WX8> (D) 		1-33549-554-0 01 1 1001- ●
351 GASKET; CONNECTOR
EXC. ASSISTOR SHIFT CONTROL<WX8> (A) 		1-33549-444-0 08 1 0809-1305 ●
351 GASKET; CONNECTOR
EXC. ASSISTOR SHIFT CONTROL<WX8> (A) 		1-33549-578-0 08 1 1306- ●
351 GASKET; CONNECTOR
(B) ID=10.2 OD=15.2 		1-09630-083-0 01 1 0710-0808 ●
351 GASKET; CONNECTOR
ASSISTOR SHIFT CONTROL<WX8> (B) ID=10.2 OD=15.2 		1-09630-083-0 01 1 0809- ●
351 GASKET; CONNECTOR
(C) ID=12.2 		1-09630-084-0 02 1 0710-0808 ●
351 GASKET; CONNECTOR
ASSISTOR SHIFT CONTROL<WX8> (C) ID=12.2 		1-09630-084-0 01 1 0809-1312 ●
351 GASKET; CONNECTOR
(C) ID=12.2 		1-09630-084-0 01 1 0809-1312 ●
351 GASKET; CONNECTOR
ASSISTOR SHIFT CONTROL<WX8> (C) ID=12.2 		8-98251-344-0 01 1 1401- ●
351 GASKET; CONNECTOR
(C) ID=12.2 		8-98251-344-0 01 1 1401- ●
351 GASKET; CONNECTOR
(A) 		1-33549-444-0 04 1 0710-0808 ●
351 GASKET; CONNECTOR
ASSISTOR SHIFT CONTROL<WX8> (A) 		1-33549-444-0 04 1 0809-1305 ●
351 GASKET; CONNECTOR
ASSISTOR SHIFT CONTROL<WX8> (A) 		1-33549-578-0 04 1 1306- ●
353 CLIP; AIR HOSE
ASSISTOR SHIFT CONTROL<WX8> 		1-33549-530-0 02 1 1306- ●
353 CLIP; AIR HOSE 1-33549-475-0 02 1 0710-1305 ●
353 CLIP; AIR HOSE
EXC. ASSISTOR SHIFT CONTROL<WX8> 		1-33549-475-0 02 1 1306- ●
513 CLIP; BAND
EXC. ASSISTOR SHIFT CONTROL<WX8> L=250 		5-09707-030-1 06 1 1105- ●
513 CLIP; BAND
L=250 		5-09707-030-1 02 1 0809- ●
513 CLIP; BAND
EXC. ASSISTOR SHIFT CONTROL<WX8> L=140 		5-09707-031-1 01 1 0809- ●
513 CLIP; BAND
L=250 		5-09707-030-1 05 1 0710-1104 ●
513 CLIP; BAND
ASSISTOR SHIFT CONTROL<WX8> L=250 		5-09707-030-1 05 1 1105- ●
622 TUBE; CORRUGATE 1-83129-021-0 01 1 0710-1004 ●
622 TUBE; CORRUGATE
L=100 ID=22 L=350 		1-83129-017-0 01 1 1005- ●
çizim 179282
52 52 1 52 17 52 17 25 29 60 29 6 60 52 36 60 36 49 52 175 60 531 534 52 535 532 564 532 617 531 532 60 60 60
BalonParca AdiParca NoAdetTipApplied Date A B
1 ARM; SHIFT,1ST & REV
PTO ZF TRANS RR(BDM) EXC. ASSISTOR SHIFT CONTROL<WX8> 		1-33511-657-0 01 1 0904-0912 ●
1 ARM; SHIFT,1ST & REV
EXC. ASSISTOR SHIFT CONTROL<WX8> 		1-33511-657-0 01 1 1001-1305 ●
1 ARM; SHIFT,1ST & REV 1-33511-657-0 01 1 1306- ●
1 ARM; SHIFT,1ST & REV 1-33511-647-0 01 1 0809-1311 ●
1 ARM; SHIFT,1ST & REV 1-33511-670-0 01 1 1312- ●
1 ARM; SHIFT,1ST & REV
PTO ZF TRANS RR(BDM) 		1-33511-645-0 01 1 0710-0808 ●
1 ARM; SHIFT,1ST & REV
PTO ZF TRANS RR(BDM) 		1-33511-645-0 01 1 0809-0903 ●
1 ARM; SHIFT,1ST & REV
EXC. PTO ZF TRANS RR(BDM),ASSISTOR SHIFT CONTROL<WX8> 		1-33511-645-0 01 1 0809-0903 ●
1 ARM; SHIFT,1ST & REV
PTO ZF TRANS RR(BDM) ASSISTOR SHIFT CONTROL<WX8> 		1-33511-645-0 01 1 0904-0912 ●
1 ARM; SHIFT,1ST & REV
EXC. PTO ZF TRANS RR(BDM),ASSISTOR SHIFT CONTROL<WX8> 		1-33511-645-0 01 1 0904-0912 ●
1 ARM; SHIFT,1ST & REV
PTO ZF TRANS RR(BDM) ASSISTOR SHIFT CONTROL<WX8> 		1-33511-645-0 01 1 1001-1305 ●
1 ARM; SHIFT,1ST & REV
EXC. PTO ZF TRANS RR(BDM) 		1-33511-643-0 01 1 0710-0808 ●
1 ARM; SHIFT,1ST & REV
ASSISTOR SHIFT CONTROL<WX8> EXC. PTO ZF TRANS RR(BDM) 		1-33511-643-0 01 1 0809-1305 ●
6 LEVER; RELAY
PTO ZF TRANS RR(BDM) EXC. ASSISTOR SHIFT CONTROL<WX8> 		1-33511-658-0 01 1 0904-0912 ●
6 LEVER; RELAY
EXC. ASSISTOR SHIFT CONTROL<WX8> 		1-33511-658-0 01 1 1001-1305 ●
6 LEVER; RELAY 1-33511-658-0 01 1 1306- ●
6 LEVER; RELAY 1-33511-641-0 01 1 0710-0903 ●
6 LEVER; RELAY
PTO ZF TRANS RR(BDM) ASSISTOR SHIFT CONTROL<WX8> 		1-33511-641-0 01 1 0904-0912 ●
6 LEVER; RELAY
EXC. PTO ZF TRANS RR(BDM) 		1-33511-641-0 01 1 0904-0912 ●
6 LEVER; RELAY
ASSISTOR SHIFT CONTROL<WX8> 		1-33511-641-0 01 1 1001-1305 ●
17 BLOCK; SHIFT,1ST & REV
PTO ZF TRANS RR(BDM) 		1-33519-172-0 02 1 0710-0808 ●
17 BLOCK; SHIFT,1ST & REV
PTO ZF TRANS RR(BDM) 		1-33519-172-0 02 1 0809-1305 ●
17 BLOCK; SHIFT,1ST & REV
EXC. PTO ZF TRANS RR(BDM),ASSISTOR SHIFT CONTROL<WX8> 		1-33519-172-0 02 1 0809-1305 ●
17 BLOCK; SHIFT,1ST & REV 1-33519-172-0 02 1 1306- ●
17 BLOCK; SHIFT,1ST & REV
EXC. PTO ZF TRANS RR(BDM) 		1-33519-081-0 02 1 0710-0808 ●
17 BLOCK; SHIFT,1ST & REV
ASSISTOR SHIFT CONTROL<WX8> EXC. PTO ZF TRANS RR(BDM) 		1-33519-081-0 02 1 0809-1305 ●
17 BLOCK; SHIFT,1ST & REV 1-33519-081-0 02 1 0809-1305 ●
17 BLOCK; SHIFT,1ST & REV 1-33519-081-0 02 1 1306- ●
25 ARM; SHIFT,2ND & 3RD 1-33511-648-0 01 1 0809-1311 ●
25 ARM; SHIFT,2ND & 3RD 1-33511-666-0 01 1 1312- ●
25 ARM; SHIFT,2ND & 3RD 1-33511-642-0 01 1 0710- ●
29 BLOCK; SHIFT,2ND & 3RD 1-33519-081-0 02 1 0710-0808 ●
29 BLOCK; SHIFT,2ND & 3RD 1-33519-081-0 02 1 0809- ● ●
36 BLOCK; SHIFT,4TH & 5TH 1-33519-173-0 02 1 0809- ●
36 BLOCK; SHIFT,4TH & 5TH 1-33519-170-0 02 1 0710- ●
49 ARM; SHIFT,4TH & 5TH 1-33511-649-0 01 1 0809-1311 ●
49 ARM; SHIFT,4TH & 5TH 1-33511-667-0 01 1 1312- ●
49 ARM; SHIFT,4TH & 5TH 1-33511-640-0 01 1 0710- ●
52 BOLT; SHIFT ARM
(A) 		1-33519-174-0 02 1 0809-1311 ●
52 BOLT; SHIFT ARM
(A) 		1-33519-199-0 02 1 1312- ●
52 BOLT; SHIFT ARM
(B) 		1-33519-058-0 02 1 0710-1305 ●
52 BOLT; SHIFT ARM
(B) 		1-33519-196-0 02 1 1306- ●
52 BOLT; SHIFT ARM
(C) 		1-33519-175-0 06 1 0809-1311 ●
52 BOLT; SHIFT ARM
(C) 		1-33519-200-0 06 1 1312- ●
52 BOLT; SHIFT ARM
(D) 		1-33519-084-0 07 1 0710-1305 ●
52 BOLT; SHIFT ARM
(D) 		1-33519-190-0 07 1 1306- ●
60 WASHER; LK
(A) 		1-33519-085-0 08 1 0809-1311 ●
60 WASHER; LK
(B) 		1-33519-059-0 02 1 0710-1305 ●
60 WASHER; LK
(A) 		1-33519-085-0 07 1 0710-1305 ●
175 RING; STOPPER,SHIFT LEVER
PTO ZF TRANS RR(BDM) EXC. ASSISTOR SHIFT CONTROL<WX8> 		1-33539-103-0 01 1 0904-0912 ●
175 RING; STOPPER,SHIFT LEVER
EXC. ASSISTOR SHIFT CONTROL<WX8> 		1-33539-103-0 01 1 1001-1305 ●
175 RING; STOPPER,SHIFT LEVER 1-33539-103-0 01 1 1306- ●
175 RING; STOPPER,SHIFT LEVER 1-33539-088-0 01 1 0710-0903 ●
175 RING; STOPPER,SHIFT LEVER
PTO ZF TRANS RR(BDM) ASSISTOR SHIFT CONTROL<WX8> 		1-33539-088-0 01 1 0904-0912 ●
175 RING; STOPPER,SHIFT LEVER
EXC. PTO ZF TRANS RR(BDM) 		1-33539-088-0 01 1 0904-0912 ●
175 RING; STOPPER,SHIFT LEVER
ASSISTOR SHIFT CONTROL<WX8> 		1-33539-088-0 01 1 1001-1305 ●
531 PLATE; BEARING
(A) 		1-33539-044-0 01 1 0710- ●
531 PLATE; BEARING
(B) 		1-33539-047-0 01 1 0710- ●
532 PLATE; SHIFT FORK
(D) 		1-33519-177-0 01 1 0809-1311 ●
532 PLATE; SHIFT FORK
(D) 		1-33519-193-0 01 1 1312- ●
532 PLATE; SHIFT FORK
(A) 		1-33531-492-0 01 1 0710- ●
532 PLATE; SHIFT FORK
(B) 		1-33531-493-0 01 1 0710- ●
532 PLATE; SHIFT FORK
(C) 		1-33531-494-0 01 1 0710- ●
534 LEVER; LOCK,SHIFT PLATE 1-33539-087-0 01 1 0710- ●
535 SPRING; LEVER 1-33539-049-0 01 1 0710- ●
564 SEAL; RING
EXC. ASSISTOR SHIFT CONTROL<WX8> (A) 		1-33119-249-0 02 1 0809- ●
564 SEAL; RING
(B) 		1-33549-444-0 01 1 0710-1305 ●
564 SEAL; RING
(B) 		1-33549-578-0 01 1 1306- ●
564 SEAL; RING
(A) T=2.0 		1-82449-010-0 01 1 0710-0808 ●
564 SEAL; RING
ASSISTOR SHIFT CONTROL<WX8> (A) T=2.0 		1-82449-010-0 01 1 0809- ●
617 PLUG
EXC. ASSISTOR SHIFT CONTROL<WX8> (A) 		1-33119-171-0 02 1 0809-1305 ●
617 PLUG
EXC. ASSISTOR SHIFT CONTROL<WX8> (A) 		1-33119-619-0 02 1 1306- ●
617 PLUG
(A) 		1-33119-171-0 01 1 0710-0808 ●
617 PLUG
ASSISTOR SHIFT CONTROL<WX8> (A) 		1-33119-171-0 01 1 0809-1305 ●
617 PLUG
ASSISTOR SHIFT CONTROL<WX8> (A) 		1-33119-619-0 01 1 1306- ●
617 PLUG
(B) 		1-34129-061-0 01 1 0710-1305 ●
617 PLUG
(B) 		1-33539-109-0 01 1 1306- ●
çizim 179289
42 376 270 274 530 315 303 639 564 19 582 569 678 614 733 348 348 348 348 664 500 664 142 617
BalonParca AdiParca NoAdetTipApplied Date A B
19 SPRING; COIL COMP
PTO ZF TRANS RR(BDM) EXC. ASSISTOR SHIFT CONTROL<WX8> (J) 		1-33539-027-0 01 1 0904-0912 ●
19 SPRING; COIL COMP
EXC. ASSISTOR SHIFT CONTROL<WX8> (J) 		1-33539-027-0 01 1 1001- ●
19 SPRING; COIL COMP
PTO ZF TRANS RR(BDM) EXC. ASSISTOR SHIFT CONTROL<WX8> (K) 		1-33539-104-0 01 1 0904-0912 ●
19 SPRING; COIL COMP
EXC. ASSISTOR SHIFT CONTROL<WX8> (K) 		1-33539-104-0 01 1 1001- ●
19 SPRING; COIL COMP
PTO ZF TRANS RR(BDM) EXC. ASSISTOR SHIFT CONTROL<WX8> (H) 		1-33549-221-0 01 1 0904-0912 ●
19 SPRING; COIL COMP
EXC. ASSISTOR SHIFT CONTROL<WX8> (H) 		1-33549-221-0 01 1 1001- ●
19 SPRING; COIL COMP
(C) 		1-33539-031-0 01 1 0809- ●
19 SPRING; COIL COMP
(I) 		1-33539-096-0 01 1 0809- ●
19 SPRING; COIL COMP
(D) 		1-33549-520-0 01 1 0809- ●
19 SPRING; COIL COMP
EXC. ASSISTOR SHIFT CONTROL<WX8> (E) 		1-33539-030-0 02 1 0809- ●
19 SPRING; COIL COMP
EXC. ASSISTOR SHIFT CONTROL<WX8> (F) 		1-33539-092-0 01 1 0809-0903 ●
19 SPRING; COIL COMP
EXC. PTO ZF TRANS RR(BDM),ASSISTOR SHIFT CONTROL<WX8> (F) 		1-33539-092-0 01 1 0904-0912 ●
19 SPRING; COIL COMP
AUSTRALIA EQUIPMENT(B13) ASSISTOR SHIFT CONTROL<WX8> EXC. COUNTRY NEW ZEALAND(CX6) (F) 		1-33539-092-0 01 1 1306- ●
19 SPRING; COIL COMP
EXC. ASSISTOR SHIFT CONTROL<WX8> (G) 		1-33539-093-0 01 1 0809-0903 ●
19 SPRING; COIL COMP
EXC. PTO ZF TRANS RR(BDM),ASSISTOR SHIFT CONTROL<WX8> (G) 		1-33539-093-0 01 1 0904-0912 ●
19 SPRING; COIL COMP
AUSTRALIA EQUIPMENT(B13) ASSISTOR SHIFT CONTROL<WX8> EXC. COUNTRY NEW ZEALAND(CX6) (G) 		1-33539-093-0 01 1 1306- ●
19 SPRING; COIL COMP
EXC. ASSISTOR SHIFT CONTROL<WX8> (H) 		1-33539-094-0 01 1 0809-0903 ●
19 SPRING; COIL COMP
EXC. PTO ZF TRANS RR(BDM),ASSISTOR SHIFT CONTROL<WX8> (H) 		1-33539-094-0 01 1 0904-0912 ●
19 SPRING; COIL COMP
PTO ZF TRANS RR(BDM) (B) 		1-33539-090-0 01 1 0710-0808 ●
19 SPRING; COIL COMP
PTO ZF TRANS RR(BDM) ASSISTOR SHIFT CONTROL<WX8> (B) 		1-33539-090-0 01 1 0809-1305 ●
19 SPRING; COIL COMP
ASSISTOR SHIFT CONTROL<WX8> (B) 		1-33539-090-0 01 1 1306- ●
19 SPRING; COIL COMP
EXC. PTO ZF TRANS RR(BDM) (B) 		1-33539-022-0 01 1 0710-0808 ●
19 SPRING; COIL COMP
ASSISTOR SHIFT CONTROL<WX8> EXC. PTO ZF TRANS RR(BDM) (B) 		1-33539-022-0 01 1 0809-1305 ●
19 SPRING; COIL COMP
(B) 		1-33539-022-0 01 1 0809-1305 ●
19 SPRING; COIL COMP
(B) 		1-33539-022-0 01 1 1306- ●
19 SPRING; COIL COMP
(A) 		1-33539-089-0 01 1 0710-0808 ●
19 SPRING; COIL COMP
ASSISTOR SHIFT CONTROL<WX8> (A) 		1-33539-089-0 01 1 0809-1305 ●
19 SPRING; COIL COMP
AUSTRALIA EQUIPMENT(B13) COUNTRY NEW ZEALAND(CX6) ASSISTOR SHIFT CONTROL<WX8> (A) 		1-33539-089-0 01 1 1306- ●
19 SPRING; COIL COMP
ASSISTOR SHIFT CONTROL<WX8> EXC. AUSTRALIA EQUIPMENT(B13) (A) 		1-33539-089-0 01 1 1306- ●
42 CAP; QUAD BOX
(C) 		1-33549-509-0 01 1 0809-1311 ●
42 CAP; QUAD BOX
(C) 		1-33549-613-0 01 1 1312- ●
42 CAP; QUAD BOX
EXC. ASSISTOR SHIFT CONTROL<WX8> (D) 		1-33549-111-0 01 1 0809-1305 ●
42 CAP; QUAD BOX
EXC. ASSISTOR SHIFT CONTROL<WX8> (D) 		1-33549-589-0 01 1 1306- ●
42 CAP; QUAD BOX
(A) 		1-33549-456-0 01 1 0710-0808 ●
42 CAP; QUAD BOX
ASSISTOR SHIFT CONTROL<WX8> (A) 		1-33549-456-0 01 1 0809-1305 ●
42 CAP; QUAD BOX
ASSISTOR SHIFT CONTROL<WX8> (A) 		1-33549-548-0 01 1 1306- ●
42 CAP; QUAD BOX
(B) 		1-33549-463-0 01 1 0710-0808 ●
42 CAP; QUAD BOX
ASSISTOR SHIFT CONTROL<WX8> (B) 		1-33549-463-0 01 1 0809-1305 ●
42 CAP; QUAD BOX
ASSISTOR SHIFT CONTROL<WX8> (B) 		1-33549-619-0 01 1 1306- ●
142 BOLT; QUAD BOX
(F) M8X80 		1-33549-256-0 08 1 0809-1311 ●
142 BOLT; QUAD BOX
(F) M8X80 		1-33549-614-0 08 1 1312- ●
142 BOLT; QUAD BOX
(G) 		1-33549-290-0 01 1 0809-1311 ●
142 BOLT; QUAD BOX
(G) M8X100 		1-33549-622-0 01 1 1312- ●
142 BOLT; QUAD BOX
EXC. ASSISTOR SHIFT CONTROL<WX8> (C) M8X75 		1-09089-015-0 02 1 0809-1305 ●
142 BOLT; QUAD BOX
EXC. ASSISTOR SHIFT CONTROL<WX8> (C) M8X100 		1-33549-582-0 06 1 1306- ●
142 BOLT; QUAD BOX
EXC. ASSISTOR SHIFT CONTROL<WX8> (D) 		1-33549-486-0 06 1 0809-1305 ●
142 BOLT; QUAD BOX
EXC. ASSISTOR SHIFT CONTROL<WX8> (D) M8X75 		1-33549-584-0 02 1 1306- ●
142 BOLT; QUAD BOX
EXC. ASSISTOR SHIFT CONTROL<WX8> (E) 		1-34129-116-0 04 1 0809-1305 ●
142 BOLT; QUAD BOX
EXC. ASSISTOR SHIFT CONTROL<WX8> (E) M8X40 		1-33549-587-0 04 1 1306- ●
142 BOLT; QUAD BOX
PTO ZF TRANS RR(BDM) (A) 		1-33549-476-0 13 1 0710-0808 ●
142 BOLT; QUAD BOX
PTO ZF TRANS RR(BDM) ASSISTOR SHIFT CONTROL<WX8> (A) 		1-33549-476-0 13 1 0809-1305 ●
142 BOLT; QUAD BOX
ASSISTOR SHIFT CONTROL<WX8> (A) M8X80 		1-33549-614-0 13 1 1306- ●
142 BOLT; QUAD BOX
EXC. PTO ZF TRANS RR(BDM) (A) 		1-33549-455-0 13 1 0710-0808 ●
142 BOLT; QUAD BOX
ASSISTOR SHIFT CONTROL<WX8> EXC. PTO ZF TRANS RR(BDM) (A) 		1-33549-455-0 13 1 0809-1305 ●
142 BOLT; QUAD BOX
(B) 		1-33549-467-0 05 1 0710-0808 ●
142 BOLT; QUAD BOX
ASSISTOR SHIFT CONTROL<WX8> (B) 		1-33549-467-0 05 1 0809-1305 ●
142 BOLT; QUAD BOX
ASSISTOR SHIFT CONTROL<WX8> (B) M8X70 		1-33549-616-0 05 1 1306- ●
270 BEARING; NEEDLE,QUAD BOX 1-33549-459-0 01 1 0710-0808 ●
270 BEARING; NEEDLE,QUAD BOX
ASSISTOR SHIFT CONTROL<WX8> 		1-33549-459-0 01 1 0809- ●
274 COVER; SHAFT,QUAD BOX
PTO ZF TRANS RR(BDM) EXC. ASSISTOR SHIFT CONTROL<WX8> 		1-33549-571-0 01 1 0904-0912 ●
274 COVER; SHAFT,QUAD BOX
EXC. ASSISTOR SHIFT CONTROL<WX8> 		1-33549-571-0 01 1 1001-1305 ●
274 COVER; SHAFT,QUAD BOX
EXC. ASSISTOR SHIFT CONTROL<WX8> 		1-33549-579-0 01 1 1306- ●
274 COVER; SHAFT,QUAD BOX
EXC. ASSISTOR SHIFT CONTROL<WX8> 		1-33549-499-0 01 1 0809-0903 ●
274 COVER; SHAFT,QUAD BOX
EXC. PTO ZF TRANS RR(BDM),ASSISTOR SHIFT CONTROL<WX8> 		1-33549-499-0 01 1 0904-0912 ●
274 COVER; SHAFT,QUAD BOX
PTO ZF TRANS RR(BDM) 		1-33549-477-0 01 1 0710-0808 ●
274 COVER; SHAFT,QUAD BOX
PTO ZF TRANS RR(BDM) ASSISTOR SHIFT CONTROL<WX8> 		1-33549-477-0 01 1 0809-1305 ●
274 COVER; SHAFT,QUAD BOX
ASSISTOR SHIFT CONTROL<WX8> 		1-33549-477-0 01 1 1306- ●
274 COVER; SHAFT,QUAD BOX
EXC. PTO ZF TRANS RR(BDM) 		1-33549-457-0 01 1 0710-0808 ●
274 COVER; SHAFT,QUAD BOX
ASSISTOR SHIFT CONTROL<WX8> EXC. PTO ZF TRANS RR(BDM) 		1-33549-457-0 01 1 0809-1305 ●
303 RING; SNAP,SHAFT
ASSISTOR SHIFT CONTROL<WX8> (A) 		1-33539-040-0 01 1 0809- ●
303 RING; SNAP,SHAFT
(A) 		1-33539-040-0 01 1 0809- ●
303 RING; SNAP,SHAFT
(C) 		1-44519-224-0 01 1 0809- ●
303 RING; SNAP,SHAFT
(A) 		1-33539-040-0 01 1 0710-0808 ●
303 RING; SNAP,SHAFT
EXC. ASSISTOR SHIFT CONTROL<WX8> (A) 		1-33539-040-0 02 1 0809- ●
303 RING; SNAP,SHAFT
(B) 		1-33549-461-0 01 1 0710-0808 ●
303 RING; SNAP,SHAFT
ASSISTOR SHIFT CONTROL<WX8> (B) 		1-33549-461-0 01 1 0809- ●
315 LEVER; SELECT 8-98071-417-0 01 1 0809- ●
315 LEVER; SELECT
EXC. ASSISTOR SHIFT CONTROL<WX8> 		8-98085-738-0 01 1 0809- ●
315 LEVER; SELECT 1-33549-458-0 01 1 0710-0808 ●
315 LEVER; SELECT
ASSISTOR SHIFT CONTROL<WX8> 		1-33549-458-0 01 1 0809- ●
348 CONNECTOR; AIR HOSE
PTO ZF TRANS RR(BDM) EXC. ASSISTOR SHIFT CONTROL<WX8> (H) 		1-33549-139-0 02 1 0904-1305 ●
348 CONNECTOR; AIR HOSE
EXC. ASSISTOR SHIFT CONTROL<WX8> (H) 		1-33549-593-0 04 1 1306- ●
348 CONNECTOR; AIR HOSE
EXC. PTO ZF TRANS RR(BDM),ASSISTOR SHIFT CONTROL<WX8> (H) 		1-33549-139-0 04 1 1001-1305 ●
348 CONNECTOR; AIR HOSE
EXC. ASSISTOR SHIFT CONTROL<WX8> (G) M12 STRAIGHT 		1-09654-246-0 01 1 0809- ●
348 CONNECTOR; AIR HOSE
(A) PT1/4 		1-09654-396-0 01 1 0710-0808 ●
348 CONNECTOR; AIR HOSE
ASSISTOR SHIFT CONTROL<WX8> (A) PT1/4 		1-09654-396-0 01 1 0809- ●
348 CONNECTOR; AIR HOSE
(B) 		1-09660-466-0 01 1 0710-0808 ●
348 CONNECTOR; AIR HOSE
ASSISTOR SHIFT CONTROL<WX8> (B) 		1-09660-466-0 01 1 0809- ●
348 CONNECTOR; AIR HOSE
(C) 		1-09661-174-0 01 1 0710-0808 ●
348 CONNECTOR; AIR HOSE
ASSISTOR SHIFT CONTROL<WX8> (C) 		1-09661-174-0 01 1 0809- ●
348 CONNECTOR; AIR HOSE
(D) 		1-09661-481-0 01 1 0710-0808 ●
348 CONNECTOR; AIR HOSE
ASSISTOR SHIFT CONTROL<WX8> (D) 		1-09661-481-0 01 1 0809- ●
348 CONNECTOR; AIR HOSE
(E) 		8-94338-417-0 01 1 0710-0808 ●
348 CONNECTOR; AIR HOSE
ASSISTOR SHIFT CONTROL<WX8> (E) 		8-94338-417-0 01 1 0809- ●
348 CONNECTOR; AIR HOSE
(F) 		8-98068-125-0 01 1 0710-0808 ●
348 CONNECTOR; AIR HOSE
ASSISTOR SHIFT CONTROL<WX8> (F) 		8-98068-125-0 01 1 0809- ●
376 SEAL; OIL 1-33549-462-0 01 1 0710-0808 ●
376 SEAL; OIL
ASSISTOR SHIFT CONTROL<WX8> 		1-33549-462-0 01 1 0809- ●
500 GASKET; SW
ALSO INCLUDED IN GASKET SET(M/T). ASSISTOR SHIFT CONTROL<WX8>. 		1-33119-249-0 01 1 0809- ●
500 GASKET; SW
ALSO INCLUDED IN GASKET SET(M/T). 		1-33119-249-0 01 1 0809- ●
500 GASKET; SW
ALSO INCLUDED IN GASKET SET(M/T). 		1-33119-249-0 01 1 0710-0808 ●
500 GASKET; SW
ALSO INCLUDED IN GASKET SET(M/T). EXC. ASSISTOR SHIFT CONTROL<WX8> 		1-33119-299-0 01 1 0809- ●
530 SHAFT; SELECT 1-33549-460-0 01 1 0710-0808 ●
530 SHAFT; SELECT
ASSISTOR SHIFT CONTROL<WX8> 		1-33549-460-0 01 1 0809- ●
564 SEAL; RING
EXC. ASSISTOR SHIFT CONTROL<WX8> (A) 		1-33119-249-0 02 1 0809- ●
564 SEAL; RING
(B) 		1-33549-444-0 01 1 0710-1305 ●
564 SEAL; RING
(B) 		1-33549-578-0 01 1 1306- ●
564 SEAL; RING
(A) T=2.0 		1-82449-010-0 01 1 0710-0808 ●
564 SEAL; RING
ASSISTOR SHIFT CONTROL<WX8> (A) T=2.0 		1-82449-010-0 01 1 0809- ●
569 PIN; QUADRANT BOX
EXC. ASSISTOR SHIFT CONTROL<WX8> (D) 		1-33529-128-0 02 1 0809- ●
569 PIN; QUADRANT BOX
(A) 		1-33529-106-0 01 1 0710-0808 ●
569 PIN; QUADRANT BOX
ASSISTOR SHIFT CONTROL<WX8> (A) 		1-33529-106-0 01 1 0809- ●
569 PIN; QUADRANT BOX
(B) 		1-33549-452-0 01 1 0710-0808 ●
569 PIN; QUADRANT BOX
ASSISTOR SHIFT CONTROL<WX8> (B) 		1-33549-452-0 01 1 0809- ●
569 PIN; QUADRANT BOX
(C) 		1-33549-468-0 01 1 0710-0808 ●
569 PIN; QUADRANT BOX
ASSISTOR SHIFT CONTROL<WX8> (C) 		1-33549-468-0 01 1 0809- ●
582 BOLT; SPRING GUIDE
EXC. ASSISTOR SHIFT CONTROL<WX8> 		1-33549-487-0 02 1 0809- ●
582 BOLT; SPRING GUIDE 1-33549-471-0 01 1 0710-0808 ●
582 BOLT; SPRING GUIDE
ASSISTOR SHIFT CONTROL<WX8> 		1-33549-471-0 01 1 0809- ●
614 VALVE ASM 1-33549-464-0 01 1 0710-0808 ●
614 VALVE ASM
ASSISTOR SHIFT CONTROL<WX8> 		1-33549-464-0 01 1 0809-1305 ●
614 VALVE ASM
ASSISTOR SHIFT CONTROL<WX8> 		1-33549-549-0 01 1 1306- ●
617 PLUG
EXC. ASSISTOR SHIFT CONTROL<WX8> (A) 		1-33119-171-0 02 1 0809-1305 ●
617 PLUG
EXC. ASSISTOR SHIFT CONTROL<WX8> (A) 		1-33119-619-0 02 1 1306- ●
617 PLUG
(A) 		1-33119-171-0 01 1 0710-0808 ●
617 PLUG
ASSISTOR SHIFT CONTROL<WX8> (A) 		1-33119-171-0 01 1 0809-1305 ●
617 PLUG
ASSISTOR SHIFT CONTROL<WX8> (A) 		1-33119-619-0 01 1 1306- ●
617 PLUG
(B) 		1-34129-061-0 01 1 0710-1305 ●
617 PLUG
(B) 		1-33539-109-0 01 1 1306- ●
639 CAP 1-33549-465-0 01 1 0710-0808 ●
639 CAP
ASSISTOR SHIFT CONTROL<WX8> 		1-33549-465-0 01 1 0809-1305 ●
639 CAP
ASSISTOR SHIFT CONTROL<WX8> 		1-33549-576-0 01 1 1306- ●
664 SWITCH
(C) 		1-38119-062-0 01 1 0809- ●
664 SWITCH
(A) 		1-33549-469-0 01 1 0710-0808 ●
664 SWITCH
ASSISTOR SHIFT CONTROL<WX8> (A) 		1-33549-469-0 01 1 0809-1305 ●
664 SWITCH
ASSISTOR SHIFT CONTROL<WX8> (A) 		1-33119-627-0 01 1 1306- ●
664 SWITCH
(B) 		1-33549-470-0 01 1 0710-0808 ●
664 SWITCH
ASSISTOR SHIFT CONTROL<WX8> (B) 		1-33549-470-0 01 1 0809- ●
678 TAPPET 1-33549-466-0 01 1 0710-0808 ●
678 TAPPET
ASSISTOR SHIFT CONTROL<WX8> 		1-33549-466-0 01 1 0809- ●
733 REPAIR KIT
ASSISTOR SHIFT CONTROL<WX8> 		1-33549-617-0 01 1 1306- ●
çizim 179299
234 303 148 277 157 317 19 570 277 90 430 320 271 304 265 90 570 569 165 571 165 298
BalonParca AdiParca NoAdetTipApplied Date A B
19 SPRING; COIL COMP
PTO ZF TRANS RR(BDM) EXC. ASSISTOR SHIFT CONTROL<WX8> (J) 		1-33539-027-0 01 1 0904-0912 ●
19 SPRING; COIL COMP
EXC. ASSISTOR SHIFT CONTROL<WX8> (J) 		1-33539-027-0 01 1 1001- ●
19 SPRING; COIL COMP
PTO ZF TRANS RR(BDM) EXC. ASSISTOR SHIFT CONTROL<WX8> (K) 		1-33539-104-0 01 1 0904-0912 ●
19 SPRING; COIL COMP
EXC. ASSISTOR SHIFT CONTROL<WX8> (K) 		1-33539-104-0 01 1 1001- ●
19 SPRING; COIL COMP
PTO ZF TRANS RR(BDM) EXC. ASSISTOR SHIFT CONTROL<WX8> (H) 		1-33549-221-0 01 1 0904-0912 ●
19 SPRING; COIL COMP
EXC. ASSISTOR SHIFT CONTROL<WX8> (H) 		1-33549-221-0 01 1 1001- ●
19 SPRING; COIL COMP
(C) 		1-33539-031-0 01 1 0809- ●
19 SPRING; COIL COMP
(I) 		1-33539-096-0 01 1 0809- ●
19 SPRING; COIL COMP
(D) 		1-33549-520-0 01 1 0809- ●
19 SPRING; COIL COMP
EXC. ASSISTOR SHIFT CONTROL<WX8> (E) 		1-33539-030-0 02 1 0809- ●
19 SPRING; COIL COMP
EXC. ASSISTOR SHIFT CONTROL<WX8> (F) 		1-33539-092-0 01 1 0809-0903 ●
19 SPRING; COIL COMP
EXC. PTO ZF TRANS RR(BDM),ASSISTOR SHIFT CONTROL<WX8> (F) 		1-33539-092-0 01 1 0904-0912 ●
19 SPRING; COIL COMP
AUSTRALIA EQUIPMENT(B13) ASSISTOR SHIFT CONTROL<WX8> EXC. COUNTRY NEW ZEALAND(CX6) (F) 		1-33539-092-0 01 1 1306- ●
19 SPRING; COIL COMP
EXC. ASSISTOR SHIFT CONTROL<WX8> (G) 		1-33539-093-0 01 1 0809-0903 ●
19 SPRING; COIL COMP
EXC. PTO ZF TRANS RR(BDM),ASSISTOR SHIFT CONTROL<WX8> (G) 		1-33539-093-0 01 1 0904-0912 ●
19 SPRING; COIL COMP
AUSTRALIA EQUIPMENT(B13) ASSISTOR SHIFT CONTROL<WX8> EXC. COUNTRY NEW ZEALAND(CX6) (G) 		1-33539-093-0 01 1 1306- ●
19 SPRING; COIL COMP
EXC. ASSISTOR SHIFT CONTROL<WX8> (H) 		1-33539-094-0 01 1 0809-0903 ●
19 SPRING; COIL COMP
EXC. PTO ZF TRANS RR(BDM),ASSISTOR SHIFT CONTROL<WX8> (H) 		1-33539-094-0 01 1 0904-0912 ●
19 SPRING; COIL COMP
PTO ZF TRANS RR(BDM) (B) 		1-33539-090-0 01 1 0710-0808 ●
19 SPRING; COIL COMP
PTO ZF TRANS RR(BDM) ASSISTOR SHIFT CONTROL<WX8> (B) 		1-33539-090-0 01 1 0809-1305 ●
19 SPRING; COIL COMP
ASSISTOR SHIFT CONTROL<WX8> (B) 		1-33539-090-0 01 1 1306- ●
19 SPRING; COIL COMP
EXC. PTO ZF TRANS RR(BDM) (B) 		1-33539-022-0 01 1 0710-0808 ●
19 SPRING; COIL COMP
ASSISTOR SHIFT CONTROL<WX8> EXC. PTO ZF TRANS RR(BDM) (B) 		1-33539-022-0 01 1 0809-1305 ●
19 SPRING; COIL COMP
(B) 		1-33539-022-0 01 1 0809-1305 ●
19 SPRING; COIL COMP
(B) 		1-33539-022-0 01 1 1306- ●
19 SPRING; COIL COMP
(A) 		1-33539-089-0 01 1 0710-0808 ●
19 SPRING; COIL COMP
ASSISTOR SHIFT CONTROL<WX8> (A) 		1-33539-089-0 01 1 0809-1305 ●
19 SPRING; COIL COMP
AUSTRALIA EQUIPMENT(B13) COUNTRY NEW ZEALAND(CX6) ASSISTOR SHIFT CONTROL<WX8> (A) 		1-33539-089-0 01 1 1306- ●
19 SPRING; COIL COMP
ASSISTOR SHIFT CONTROL<WX8> EXC. AUSTRALIA EQUIPMENT(B13) (A) 		1-33539-089-0 01 1 1306- ●
90 RING; SNAP,SHIFT ROD 1-33549-511-0 01 1 0809- ●
90 RING; SNAP,SHIFT ROD
EXC. ASSISTOR SHIFT CONTROL<WX8> 		1-33549-494-0 02 1 0809- ●
90 RING; SNAP,SHIFT ROD 1-33529-109-0 01 1 0710-0808 ●
90 RING; SNAP,SHIFT ROD
ASSISTOR SHIFT CONTROL<WX8> 		1-33529-109-0 01 1 0809- ●
148 GASKET; QUAD BOX
EXC. ASSISTOR SHIFT CONTROL<WX8> 		1-33542-064-0 01 1 0809- ●
148 GASKET; QUAD BOX 1-33544-056-0 01 1 0710-0808 ●
148 GASKET; QUAD BOX
ASSISTOR SHIFT CONTROL<WX8> 		1-33544-056-0 01 1 0809- ●
157 BOX; QUAD,TRANS
PTO ZF TRANS RR(BDM) EXC. ASSISTOR SHIFT CONTROL<WX8> 		1-33549-570-0 01 1 0904-0912 ●
157 BOX; QUAD,TRANS
EXC. ASSISTOR SHIFT CONTROL<WX8> 		1-33549-570-0 01 1 1001- ●
157 BOX; QUAD,TRANS 1-33541-543-0 01 1 0809-1311 ●
157 BOX; QUAD,TRANS 1-33541-548-0 01 1 1312- ●
157 BOX; QUAD,TRANS
EXC. ASSISTOR SHIFT CONTROL<WX8> 		1-33549-485-0 01 1 0809-0903 ●
157 BOX; QUAD,TRANS
EXC. PTO ZF TRANS RR(BDM),ASSISTOR SHIFT CONTROL<WX8> 		1-33549-485-0 01 1 0904-0912 ●
157 BOX; QUAD,TRANS 1-33549-445-0 01 1 0710-0808 ●
157 BOX; QUAD,TRANS
ASSISTOR SHIFT CONTROL<WX8> 		1-33549-445-0 01 1 0809- ●
165 LEVER; SHIFT
EXC. ASSISTOR SHIFT CONTROL<WX8> (C) 		1-33549-488-0 01 1 0809- ●
165 LEVER; SHIFT
EXC. ASSISTOR SHIFT CONTROL<WX8> (D) 		1-33549-489-0 01 1 0809- ●
165 LEVER; SHIFT
EXC. ASSISTOR SHIFT CONTROL<WX8> (E) 		1-33549-490-0 01 1 0809-1305 ●
165 LEVER; SHIFT
EXC. ASSISTOR SHIFT CONTROL<WX8> (E) 		1-33549-603-0 01 1 1306- ●
165 LEVER; SHIFT
(B) 		1-33549-325-0 01 1 0710-0808 ●
165 LEVER; SHIFT
ASSISTOR SHIFT CONTROL<WX8> (B) 		1-33549-325-0 01 1 0809- ●
165 LEVER; SHIFT
(A) 		1-33549-450-0 01 1 0710-0808 ●
165 LEVER; SHIFT
ASSISTOR SHIFT CONTROL<WX8> (A) 		1-33549-450-0 01 1 0809- ●
234 RING; SNAP 1-44519-224-0 01 1 0710- ●
265 SEAL; OIL,SHIFT 1-33549-544-0 01 1 0809-1305 ●
265 SEAL; OIL,SHIFT
ASSISTOR SHIFT CONTROL<WX8>. 		1-33549-544-0 01 1 1306- ●
265 SEAL; OIL,SHIFT
ALSO INCLUDED IN GASKET SET(M/T). 		1-33549-544-0 01 1 1306- ●
265 SEAL; OIL,SHIFT
EXC. ASSISTOR SHIFT CONTROL<WX8> 		1-33549-118-0 01 1 0809- ●
265 SEAL; OIL,SHIFT 1-33549-446-0 01 1 0710-0808 ●
265 SEAL; OIL,SHIFT
ASSISTOR SHIFT CONTROL<WX8> 		1-33549-446-0 01 1 0809-1305 ●
271 BUSHING; QUAD BOX
AUSTRALIA EQUIPMENT(B13) ASSISTOR SHIFT CONTROL<WX8> EXC. COUNTRY NEW ZEALAND(CX6) 		1-33539-113-0 01 1 1306- ●
271 BUSHING; QUAD BOX
ASSISTOR SHIFT CONTROL<WX8> 		1-33549-318-0 01 1 0809- ●
271 BUSHING; QUAD BOX 1-33549-318-0 01 1 0809- ●
271 BUSHING; QUAD BOX 1-33549-318-0 01 1 0710-0808 ●
271 BUSHING; QUAD BOX
EXC. ASSISTOR SHIFT CONTROL<WX8> 		1-33549-124-0 01 1 0809- ●
277 PLATE; SPRING SEAT
AUSTRALIA EQUIPMENT(B13) ASSISTOR SHIFT CONTROL<WX8> EXC. COUNTRY NEW ZEALAND(CX6) (A) 		1-33539-110-0 01 1 1306- ●
277 PLATE; SPRING SEAT
(A) 		1-33539-039-0 01 1 0809-1311 ●
277 PLATE; SPRING SEAT
(B) 		1-33539-095-0 01 1 0809-1311 ●
277 PLATE; SPRING SEAT
(B) 		1-33539-111-0 01 1 1312- ●
277 PLATE; SPRING SEAT
EXC. ASSISTOR SHIFT CONTROL<WX8> (C) 		1-33539-042-0 01 1 0809-1305 ●
277 PLATE; SPRING SEAT
(C) 		1-33539-042-0 01 1 0809-1305 ●
277 PLATE; SPRING SEAT
(C) 		1-33539-042-0 01 1 1306-1311 ●
277 PLATE; SPRING SEAT
(C) 		1-33539-108-0 01 1 1312- ●
277 PLATE; SPRING SEAT
(D) 		1-33539-039-0 02 1 0710-1305 ●
277 PLATE; SPRING SEAT
AUSTRALIA EQUIPMENT(B13) COUNTRY NEW ZEALAND(CX6) ASSISTOR SHIFT CONTROL<WX8> (D) 		1-33539-107-0 02 1 1306- ●
277 PLATE; SPRING SEAT
ASSISTOR SHIFT CONTROL<WX8> EXC. AUSTRALIA EQUIPMENT(B13) (D) 		1-33539-107-0 02 1 1306- ●
277 PLATE; SPRING SEAT
EXC. ASSISTOR SHIFT CONTROL<WX8> (D) 		1-33539-107-0 02 1 1306- ●
277 PLATE; SPRING SEAT
AUSTRALIA EQUIPMENT(B13) ASSISTOR SHIFT CONTROL<WX8> EXC. COUNTRY NEW ZEALAND(CX6) (D) 		1-33539-107-0 01 1 1306-1311 ●
277 PLATE; SPRING SEAT
AUSTRALIA EQUIPMENT(B13) ASSISTOR SHIFT CONTROL<WX8> EXC. COUNTRY NEW ZEALAND(CX6) (D) 		1-33539-107-0 01 1 1312- ●
277 PLATE; SPRING SEAT
(D) 		1-33539-107-0 01 1 1312- ●
298 SHAFT; SHIFT LEVER 1-33522-206-0 01 1 0809- ●
298 SHAFT; SHIFT LEVER
EXC. ASSISTOR SHIFT CONTROL<WX8> 		1-33522-205-0 01 1 0809- ●
298 SHAFT; SHIFT LEVER
PTO ZF TRANS RR(BDM) 		1-33522-204-0 01 1 0710-0808 ●
298 SHAFT; SHIFT LEVER
PTO ZF TRANS RR(BDM) ASSISTOR SHIFT CONTROL<WX8> 		1-33522-204-0 01 1 0809-1305 ●
298 SHAFT; SHIFT LEVER
ASSISTOR SHIFT CONTROL<WX8> 		1-33522-204-0 01 1 1306- ●
298 SHAFT; SHIFT LEVER
EXC. PTO ZF TRANS RR(BDM) 		1-33522-203-0 01 1 0710-0808 ●
298 SHAFT; SHIFT LEVER
ASSISTOR SHIFT CONTROL<WX8> EXC. PTO ZF TRANS RR(BDM) 		1-33522-203-0 01 1 0809-1305 ●
303 RING; SNAP,SHAFT
ASSISTOR SHIFT CONTROL<WX8> (A) 		1-33539-040-0 01 1 0809- ●
303 RING; SNAP,SHAFT
(A) 		1-33539-040-0 01 1 0809- ●
303 RING; SNAP,SHAFT
(C) 		1-44519-224-0 01 1 0809- ●
303 RING; SNAP,SHAFT
(A) 		1-33539-040-0 01 1 0710-0808 ●
303 RING; SNAP,SHAFT
EXC. ASSISTOR SHIFT CONTROL<WX8> (A) 		1-33539-040-0 02 1 0809- ●
303 RING; SNAP,SHAFT
(B) 		1-33549-461-0 01 1 0710-0808 ●
303 RING; SNAP,SHAFT
ASSISTOR SHIFT CONTROL<WX8> (B) 		1-33549-461-0 01 1 0809- ●
304 BLOCK; SHIFT SHAFT 1-33549-546-0 01 1 0809- ●
304 BLOCK; SHIFT SHAFT
EXC. ASSISTOR SHIFT CONTROL<WX8> 		1-33549-492-0 01 1 0809- ●
304 BLOCK; SHIFT SHAFT 1-33549-448-0 01 1 0710-0808 ●
304 BLOCK; SHIFT SHAFT
ASSISTOR SHIFT CONTROL<WX8> 		1-33549-448-0 01 1 0809- ●
317 BUSHING; LEVER
EXC. ASSISTOR SHIFT CONTROL<WX8> 		1-09330-119-0 02 1 0809- ●
317 BUSHING; LEVER 1-09330-119-0 02 1 0809- ●
317 BUSHING; LEVER 1-33549-322-0 01 1 0710-0808 ●
317 BUSHING; LEVER
ASSISTOR SHIFT CONTROL<WX8> 		1-33549-322-0 01 1 0809- ●
320 SHAFT; LEVER 8-98071-418-0 01 1 0809- ●
320 SHAFT; LEVER
EXC. ASSISTOR SHIFT CONTROL<WX8> 		8-98085-739-0 01 1 0809- ●
320 SHAFT; LEVER 1-33549-447-0 01 1 0710-0808 ●
320 SHAFT; LEVER
ASSISTOR SHIFT CONTROL<WX8> 		1-33549-447-0 01 1 0809- ●
430 PIN; SPR,SHIFT ROD 1-33529-130-0 01 1 0809- ●
430 PIN; SPR,SHIFT ROD
EXC. ASSISTOR SHIFT CONTROL<WX8> 		1-33549-493-0 01 1 0809- ●
430 PIN; SPR,SHIFT ROD 1-33549-449-0 01 1 0710-0808 ●
430 PIN; SPR,SHIFT ROD
ASSISTOR SHIFT CONTROL<WX8> 		1-33549-449-0 01 1 0809- ●
569 PIN; QUADRANT BOX
EXC. ASSISTOR SHIFT CONTROL<WX8> (D) 		1-33529-128-0 02 1 0809- ●
569 PIN; QUADRANT BOX
(A) 		1-33529-106-0 01 1 0710-0808 ●
569 PIN; QUADRANT BOX
ASSISTOR SHIFT CONTROL<WX8> (A) 		1-33529-106-0 01 1 0809- ●
569 PIN; QUADRANT BOX
(B) 		1-33549-452-0 01 1 0710-0808 ●
569 PIN; QUADRANT BOX
ASSISTOR SHIFT CONTROL<WX8> (B) 		1-33549-452-0 01 1 0809- ●
569 PIN; QUADRANT BOX
(C) 		1-33549-468-0 01 1 0710-0808 ●
569 PIN; QUADRANT BOX
ASSISTOR SHIFT CONTROL<WX8> (C) 		1-33549-468-0 01 1 0809- ●
570 PIN; SHIFT LEVER 1-33549-451-0 02 1 0710-0808 ●
570 PIN; SHIFT LEVER
ASSISTOR SHIFT CONTROL<WX8> 		1-33549-451-0 02 1 0809-1305 ●
570 PIN; SHIFT LEVER
ASSISTOR SHIFT CONTROL<WX8> 		1-33529-117-0 02 1 1306- ●
571 ROLLER; LEVER 1-33549-324-0 01 1 0710-0808 ●
571 ROLLER; LEVER
ASSISTOR SHIFT CONTROL<WX8> 		1-33549-324-0 01 1 0809- ●
çizim 179308
361 359 358 355 357 356 355 354 363 398 411 52 497 60 347 345 352 60 345 395 396 52 390 392 360 171 394
BalonParca AdiParca NoAdetTipApplied Date A B
52 BOLT; SHIFT ARM
(A) 		1-33519-174-0 02 1 0809-1311 ●
52 BOLT; SHIFT ARM
(A) 		1-33519-199-0 02 1 1312- ●
52 BOLT; SHIFT ARM
(B) 		1-33519-058-0 02 1 0710-1305 ●
52 BOLT; SHIFT ARM
(B) 		1-33519-196-0 02 1 1306- ●
52 BOLT; SHIFT ARM
(C) 		1-33519-175-0 06 1 0809-1311 ●
52 BOLT; SHIFT ARM
(C) 		1-33519-200-0 06 1 1312- ●
52 BOLT; SHIFT ARM
(D) 		1-33519-084-0 07 1 0710-1305 ●
52 BOLT; SHIFT ARM
(D) 		1-33519-190-0 07 1 1306- ●
60 WASHER; LK
(A) 		1-33519-085-0 08 1 0809-1311 ●
60 WASHER; LK
(B) 		1-33519-059-0 02 1 0710-1305 ●
60 WASHER; LK
(A) 		1-33519-085-0 07 1 0710-1305 ●
171 SWITCH; NEUTRAL
PTO ZF TRANS RR(BDM) EXC. ASSISTOR SHIFT CONTROL<WX8> 		1-33119-587-0 01 1 0904-0912 ●
171 SWITCH; NEUTRAL
EXC. ASSISTOR SHIFT CONTROL<WX8> 		1-33119-587-0 01 1 1001-1305 ●
171 SWITCH; NEUTRAL
EXC. ASSISTOR SHIFT CONTROL<WX8> 		1-33119-627-0 01 1 1306-1311 ●
171 SWITCH; NEUTRAL
EXC. ASSISTOR SHIFT CONTROL<WX8> 		1-33119-627-0 01 1 1312- ●
171 SWITCH; NEUTRAL 1-33119-627-0 01 1 1312- ●
171 SWITCH; NEUTRAL 1-33549-469-0 01 1 0809-1311 ●
171 SWITCH; NEUTRAL
EXC. ASSISTOR SHIFT CONTROL<WX8> 		1-82440-095-0 01 1 0809-0903 ●
171 SWITCH; NEUTRAL
EXC. PTO ZF TRANS RR(BDM),ASSISTOR SHIFT CONTROL<WX8> 		1-82440-095-0 01 1 0904-0912 ●
171 SWITCH; NEUTRAL
EXC. PTO ZF TRANS RR(BDM) 		1-33549-338-0 01 1 0710-0808 ●
171 SWITCH; NEUTRAL
ASSISTOR SHIFT CONTROL<WX8> EXC. PTO ZF TRANS RR(BDM) 		1-33549-338-0 01 1 0809-1305 ●
345 BLOCK; SHIFT,RANGE CHANGE 1-33519-173-0 02 1 0809- ●
345 BLOCK; SHIFT,RANGE CHANGE 1-33519-095-0 02 1 0710- ●
347 ARM; SHIFT,RANGE CHANGE 1-33511-646-0 01 1 0809-1311 ●
347 ARM; SHIFT,RANGE CHANGE 1-33511-668-0 01 1 1312- ●
347 ARM; SHIFT,RANGE CHANGE 1-33511-529-0 01 1 0710- ●
352 ROD; SHIFT,RANGE CHANGE
ASSISTOR SHIFT CONTROL<WX8> 		1-33531-497-0 01 1 1306- ●
352 ROD; SHIFT,RANGE CHANGE
EXC. PTO ZF TRANS RR(BDM),ASSISTOR SHIFT CONTROL<WX8> 		1-33531-047-0 01 1 1306- ●
352 ROD; SHIFT,RANGE CHANGE 1-33531-495-0 01 1 0710-1305 ●
352 ROD; SHIFT,RANGE CHANGE
PTO ZF TRANS RR(BDM) EXC. ASSISTOR SHIFT CONTROL<WX8> 		1-33531-495-0 01 1 1306- ●
354 SEAL; AIR CYL 1-33519-045-0 01 1 0710- ●
355 CUP; PISTON,AIR CYL 1-33519-088-0 02 1 0710-1305 ●
356 PISTON; AIR CYL 1-33519-087-0 01 1 0710-1305 ●
356 PISTON; AIR CYL 1-33519-197-0 01 1 1306- ●
357 RING; GUIDE,AIR CYL 1-33519-090-0 01 1 0710-1305 ●
358 NUT; SHIFT ROD 1-33519-049-0 01 1 0710-1305 ●
358 NUT; SHIFT ROD 1-33519-188-0 01 1 1306- ●
359 GASKET; AIR CYL 1-33519-093-0 01 1 0710- ●
360 BALL; AIR CYL 1-33119-252-0 01 1 0710- ●
361 CYLINDER; AIR,SHIFT 1-33519-092-0 01 1 0710- ●
363 BOLT; AIR CYL
PTO ZF TRANS RR(BDM) M10X70 		1-33119-522-0 03 1 0710-0808 ●
363 BOLT; AIR CYL
PTO ZF TRANS RR(BDM) M10X70 		1-33119-522-0 03 1 0809-1305 ●
363 BOLT; AIR CYL
EXC. PTO ZF TRANS RR(BDM),ASSISTOR SHIFT CONTROL<WX8> M10X70 		1-33119-522-0 03 1 0809-1305 ●
363 BOLT; AIR CYL
M10X70 		1-33119-616-0 03 1 1306- ●
363 BOLT; AIR CYL
EXC. PTO ZF TRANS RR(BDM) M10X70 		1-33119-518-0 03 1 0710-0808 ●
363 BOLT; AIR CYL
ASSISTOR SHIFT CONTROL<WX8> EXC. PTO ZF TRANS RR(BDM) M10X70 		1-33119-518-0 03 1 0809-1305 ●
390 GASKET; NEUTRAL SW
EXC. PTO ZF TRANS RR(BDM) 		1-33119-249-0 01 1 0710-0808 ●
390 GASKET; NEUTRAL SW
ASSISTOR SHIFT CONTROL<WX8> EXC. PTO ZF TRANS RR(BDM) 		1-33119-249-0 01 1 0809-1305 ●
390 GASKET; NEUTRAL SW 1-33119-249-0 01 1 0809-1305 ●
390 GASKET; NEUTRAL SW
ALSO INCLUDED IN GASKET SET(M/T). 		1-33119-249-0 01 1 1306- ●
392 GASKET; PLUG & SW 1-33119-249-0 01 1 0710- ●
394 SWITCH; RANGE CHANGE
PTO ZF TRANS RR(BDM) EXC. ASSISTOR SHIFT CONTROL<WX8> 		1-33119-587-0 01 1 0904-0912 ●
394 SWITCH; RANGE CHANGE
EXC. ASSISTOR SHIFT CONTROL<WX8> 		1-33119-587-0 01 1 1001-1305 ●
394 SWITCH; RANGE CHANGE 1-33119-627-0 01 1 1306- ●
394 SWITCH; RANGE CHANGE
EXC. ASSISTOR SHIFT CONTROL<WX8> 		1-82440-095-0 01 1 0809-0903 ●
394 SWITCH; RANGE CHANGE
EXC. PTO ZF TRANS RR(BDM),ASSISTOR SHIFT CONTROL<WX8> 		1-82440-095-0 01 1 0904-0912 ●
394 SWITCH; RANGE CHANGE 1-33549-469-0 01 1 0710-0808 ●
394 SWITCH; RANGE CHANGE
ASSISTOR SHIFT CONTROL<WX8> 		1-33549-469-0 01 1 0809-1305 ●
395 GASKET; PLUNGER
ASSISTOR SHIFT CONTROL<WX8> 		1-33549-497-0 01 1 1306- ●
395 GASKET; PLUNGER 1-33519-171-0 01 1 0710-1305 ●
395 GASKET; PLUNGER
EXC. ASSISTOR SHIFT CONTROL<WX8> 		1-33519-171-0 01 1 1306- ●
396 PLUNGER; SHIFT ROD
EXC. ASSISTOR SHIFT CONTROL<WX8> (B) 		1-33529-085-0 02 1 0809- ●
396 PLUNGER; SHIFT ROD
(A) 		1-33519-073-0 01 1 0710-1305 ●
396 PLUNGER; SHIFT ROD
(A) 		1-33519-189-0 01 1 1306- ●
398 SWITCH; REV LAMP
EXC. ASSISTOR SHIFT CONTROL<WX8> 		1-82440-080-1 01 1 0809-0903 ●
398 SWITCH; REV LAMP
EXC. PTO ZF TRANS RR(BDM),ASSISTOR SHIFT CONTROL<WX8> 		1-82440-080-1 01 1 0904-0912 ●
398 SWITCH; REV LAMP 1-38119-062-0 01 1 0710-0808 ●
398 SWITCH; REV LAMP
ASSISTOR SHIFT CONTROL<WX8> 		1-38119-062-0 01 1 0809-0903 ●
398 SWITCH; REV LAMP
ASSISTOR SHIFT CONTROL<WX8> 		1-38119-062-0 01 1 0904-0912 ●
398 SWITCH; REV LAMP
PTO ZF TRANS RR(BDM) EXC. ASSISTOR SHIFT CONTROL<WX8> 		1-38119-062-0 01 1 0904-0912 ●
398 SWITCH; REV LAMP 1-38119-062-0 01 1 1001- ●
411 GASKET; REV LAMP SW 1-33119-249-0 01 1 0710- ●
497 BALL; SWITCH 1-33119-252-0 01 1 0710- ●
çizim 179332
142 142 167 348 332 450 252 351 244 251 332 48 351 578 348 573 572
BalonParca AdiParca NoAdetTipApplied Date A B
48 LEVER; 4TH,SHIFT 8-98081-304-1 01 1 0809- ●
48 LEVER; 4TH,SHIFT
EXC. ASSISTOR SHIFT CONTROL<WX8> 		8-98085-725-0 01 1 0809- ●
48 LEVER; 4TH,SHIFT 1-33651-827-1 01 1 0710-0808 ●
48 LEVER; 4TH,SHIFT
ASSISTOR SHIFT CONTROL<WX8> 		1-33651-827-1 01 1 0809- ●
142 BOLT; QUAD BOX
(F) M8X80 		1-33549-256-0 08 1 0809-1311 ●
142 BOLT; QUAD BOX
(F) M8X80 		1-33549-614-0 08 1 1312- ●
142 BOLT; QUAD BOX
(G) 		1-33549-290-0 01 1 0809-1311 ●
142 BOLT; QUAD BOX
(G) M8X100 		1-33549-622-0 01 1 1312- ●
142 BOLT; QUAD BOX
EXC. ASSISTOR SHIFT CONTROL<WX8> (C) M8X75 		1-09089-015-0 02 1 0809-1305 ●
142 BOLT; QUAD BOX
EXC. ASSISTOR SHIFT CONTROL<WX8> (C) M8X100 		1-33549-582-0 06 1 1306- ●
142 BOLT; QUAD BOX
EXC. ASSISTOR SHIFT CONTROL<WX8> (D) 		1-33549-486-0 06 1 0809-1305 ●
142 BOLT; QUAD BOX
EXC. ASSISTOR SHIFT CONTROL<WX8> (D) M8X75 		1-33549-584-0 02 1 1306- ●
142 BOLT; QUAD BOX
EXC. ASSISTOR SHIFT CONTROL<WX8> (E) 		1-34129-116-0 04 1 0809-1305 ●
142 BOLT; QUAD BOX
EXC. ASSISTOR SHIFT CONTROL<WX8> (E) M8X40 		1-33549-587-0 04 1 1306- ●
142 BOLT; QUAD BOX
PTO ZF TRANS RR(BDM) (A) 		1-33549-476-0 13 1 0710-0808 ●
142 BOLT; QUAD BOX
PTO ZF TRANS RR(BDM) ASSISTOR SHIFT CONTROL<WX8> (A) 		1-33549-476-0 13 1 0809-1305 ●
142 BOLT; QUAD BOX
ASSISTOR SHIFT CONTROL<WX8> (A) M8X80 		1-33549-614-0 13 1 1306- ●
142 BOLT; QUAD BOX
EXC. PTO ZF TRANS RR(BDM) (A) 		1-33549-455-0 13 1 0710-0808 ●
142 BOLT; QUAD BOX
ASSISTOR SHIFT CONTROL<WX8> EXC. PTO ZF TRANS RR(BDM) (A) 		1-33549-455-0 13 1 0809-1305 ●
142 BOLT; QUAD BOX
(B) 		1-33549-467-0 05 1 0710-0808 ●
142 BOLT; QUAD BOX
ASSISTOR SHIFT CONTROL<WX8> (B) 		1-33549-467-0 05 1 0809-1305 ●
142 BOLT; QUAD BOX
ASSISTOR SHIFT CONTROL<WX8> (B) M8X70 		1-33549-616-0 05 1 1306- ●
167 LEVER; SELECT,EXTERNAL 1-33651-831-1 01 1 0710-0808 ●
167 LEVER; SELECT,EXTERNAL
ASSISTOR SHIFT CONTROL<WX8> 		1-33651-831-1 01 1 0809- ●
244 WASHER; LK,COVER 1-33549-583-0 04 1 1306-1311 ●
244 WASHER; LK,COVER 1-33549-583-0 04 1 1312- ● ●
244 WASHER; LK,COVER 1-33549-159-0 04 1 0710-0808 ●
244 WASHER; LK,COVER 1-33549-159-0 04 1 0809-1305 ● ●
244 WASHER; LK,COVER 1-33549-159-0 04 1 1306-1311 ●
251 COVER; SIDE
PTO ZF TRANS RR(BDM) 		1-33549-478-0 01 1 0710-0808 ●
251 COVER; SIDE
EXC. ASSISTOR SHIFT CONTROL<WX8> 		1-33549-478-0 01 1 0809-1305 ●
251 COVER; SIDE
PTO ZF TRANS RR(BDM) ASSISTOR SHIFT CONTROL<WX8> 		1-33549-478-0 01 1 0809-1305 ●
251 COVER; SIDE 1-33549-478-0 01 1 0809-1305 ●
251 COVER; SIDE 1-33549-478-0 01 1 1306-1311 ●
251 COVER; SIDE
EXC. PTO ZF TRANS RR(BDM) 		1-33549-472-0 01 1 0710-0808 ●
251 COVER; SIDE
ASSISTOR SHIFT CONTROL<WX8> EXC. PTO ZF TRANS RR(BDM) 		1-33549-472-0 01 1 0809-1305 ●
251 COVER; SIDE 1-33549-590-0 01 1 1306-1311 ●
251 COVER; SIDE 1-33549-590-0 01 1 1312- ● ●
252 BOLT; SIDE COVER
(A) 		1-33119-296-0 04 1 0809-1305 ● ●
252 BOLT; SIDE COVER
(A) 		1-33119-296-0 04 1 1306-1311 ●
252 BOLT; SIDE COVER
(A) 		1-33119-296-0 04 1 0710-0808 ●
252 BOLT; SIDE COVER
EXC. ASSISTOR SHIFT CONTROL<WX8> (B) M8X30 		1-33549-172-0 02 1 0809-1305 ●
252 BOLT; SIDE COVER
EXC. ASSISTOR SHIFT CONTROL<WX8> (B) M8X30 		1-33549-581-0 02 1 1306- ●
252 BOLT; SIDE COVER
(A) M8X20 		1-33549-591-0 04 1 1306-1311 ●
252 BOLT; SIDE COVER
(A) M8X20 		1-33549-591-0 04 1 1312- ● ●
332 BOLT; 4TH,SHIFT LEVER
M10X45 W/PL WASHER 		8-98038-710-0 01 1 0809- ●
332 BOLT; 4TH,SHIFT LEVER
EXC. ASSISTOR SHIFT CONTROL<WX8> M8X40 FLANGE 		0-28650-840-0 01 1 0809- ●
332 BOLT; 4TH,SHIFT LEVER
M8X40 FLANGE 		0-28650-840-0 02 1 0710-0808 ●
332 BOLT; 4TH,SHIFT LEVER
ASSISTOR SHIFT CONTROL<WX8> M8X40 FLANGE 		0-28650-840-0 02 1 0809- ●
348 CONNECTOR; AIR HOSE
PTO ZF TRANS RR(BDM) EXC. ASSISTOR SHIFT CONTROL<WX8> (H) 		1-33549-139-0 02 1 0904-1305 ●
348 CONNECTOR; AIR HOSE
EXC. ASSISTOR SHIFT CONTROL<WX8> (H) 		1-33549-593-0 04 1 1306- ●
348 CONNECTOR; AIR HOSE
EXC. PTO ZF TRANS RR(BDM),ASSISTOR SHIFT CONTROL<WX8> (H) 		1-33549-139-0 04 1 1001-1305 ●
348 CONNECTOR; AIR HOSE
EXC. ASSISTOR SHIFT CONTROL<WX8> (G) M12 STRAIGHT 		1-09654-246-0 01 1 0809- ●
348 CONNECTOR; AIR HOSE
(A) PT1/4 		1-09654-396-0 01 1 0710-0808 ●
348 CONNECTOR; AIR HOSE
ASSISTOR SHIFT CONTROL<WX8> (A) PT1/4 		1-09654-396-0 01 1 0809- ●
348 CONNECTOR; AIR HOSE
(B) 		1-09660-466-0 01 1 0710-0808 ●
348 CONNECTOR; AIR HOSE
ASSISTOR SHIFT CONTROL<WX8> (B) 		1-09660-466-0 01 1 0809- ●
348 CONNECTOR; AIR HOSE
(C) 		1-09661-174-0 01 1 0710-0808 ●
348 CONNECTOR; AIR HOSE
ASSISTOR SHIFT CONTROL<WX8> (C) 		1-09661-174-0 01 1 0809- ●
348 CONNECTOR; AIR HOSE
(D) 		1-09661-481-0 01 1 0710-0808 ●
348 CONNECTOR; AIR HOSE
ASSISTOR SHIFT CONTROL<WX8> (D) 		1-09661-481-0 01 1 0809- ●
348 CONNECTOR; AIR HOSE
(E) 		8-94338-417-0 01 1 0710-0808 ●
348 CONNECTOR; AIR HOSE
ASSISTOR SHIFT CONTROL<WX8> (E) 		8-94338-417-0 01 1 0809- ●
348 CONNECTOR; AIR HOSE
(F) 		8-98068-125-0 01 1 0710-0808 ●
348 CONNECTOR; AIR HOSE
ASSISTOR SHIFT CONTROL<WX8> (F) 		8-98068-125-0 01 1 0809- ●
351 GASKET; CONNECTOR
PTO ZF TRANS RR(BDM) EXC. ASSISTOR SHIFT CONTROL<WX8> (D) 		1-33549-554-0 01 1 0904-0912 ●
351 GASKET; CONNECTOR
EXC. ASSISTOR SHIFT CONTROL<WX8> (D) 		1-33549-554-0 01 1 1001- ●
351 GASKET; CONNECTOR
EXC. ASSISTOR SHIFT CONTROL<WX8> (A) 		1-33549-444-0 08 1 0809-1305 ●
351 GASKET; CONNECTOR
EXC. ASSISTOR SHIFT CONTROL<WX8> (A) 		1-33549-578-0 08 1 1306- ●
351 GASKET; CONNECTOR
(B) ID=10.2 OD=15.2 		1-09630-083-0 01 1 0710-0808 ●
351 GASKET; CONNECTOR
ASSISTOR SHIFT CONTROL<WX8> (B) ID=10.2 OD=15.2 		1-09630-083-0 01 1 0809- ●
351 GASKET; CONNECTOR
(C) ID=12.2 		1-09630-084-0 02 1 0710-0808 ●
351 GASKET; CONNECTOR
ASSISTOR SHIFT CONTROL<WX8> (C) ID=12.2 		1-09630-084-0 01 1 0809-1312 ●
351 GASKET; CONNECTOR
(C) ID=12.2 		1-09630-084-0 01 1 0809-1312 ●
351 GASKET; CONNECTOR
ASSISTOR SHIFT CONTROL<WX8> (C) ID=12.2 		8-98251-344-0 01 1 1401- ●
351 GASKET; CONNECTOR
(C) ID=12.2 		8-98251-344-0 01 1 1401- ●
351 GASKET; CONNECTOR
(A) 		1-33549-444-0 04 1 0710-0808 ●
351 GASKET; CONNECTOR
ASSISTOR SHIFT CONTROL<WX8> (A) 		1-33549-444-0 04 1 0809-1305 ●
351 GASKET; CONNECTOR
ASSISTOR SHIFT CONTROL<WX8> (A) 		1-33549-578-0 04 1 1306- ●
450 INSERT; SHIFT ARM
ID=1.4 OD=2.0 L=18 		1-09669-100-0 01 1 0710-0808 ●
450 INSERT; SHIFT ARM
ASSISTOR SHIFT CONTROL<WX8> ID=1.4 OD=2.0 L=18 		1-09669-100-0 01 1 0809- ●
572 SERVO UNIT; GEAR SHIFT 1-33549-331-0 01 1 0710-0808 ●
572 SERVO UNIT; GEAR SHIFT
ASSISTOR SHIFT CONTROL<WX8> 		1-33549-331-0 01 1 0809- ●
573 GASKET; SERVO UNIT 1-33549-332-0 01 1 0710-0808 ●
573 GASKET; SERVO UNIT
ASSISTOR SHIFT CONTROL<WX8> 		1-33549-332-0 01 1 0809- ●
578 CONNECTOR
PTO ZF TRANS RR(BDM) EXC. ASSISTOR SHIFT CONTROL<WX8> 		1-33549-553-0 01 1 0904-0912 ●
578 CONNECTOR
EXC. ASSISTOR SHIFT CONTROL<WX8> 		1-33549-553-0 01 1 1001- ●
578 CONNECTOR
DIN8 & R1/4 ELBOW 		1-09660-649-1 01 1 0710-0808 ●
578 CONNECTOR
ASSISTOR SHIFT CONTROL<WX8> DIN8 & R1/4 ELBOW 		1-09660-649-1 01 1 0809- ●
çizim 179344
142 677 310 569 42 256 418
BalonParca AdiParca NoAdetTipApplied Date A B
42 CAP; QUAD BOX
(C) 		1-33549-509-0 01 1 0809-1311 ●
42 CAP; QUAD BOX
(C) 		1-33549-613-0 01 1 1312- ●
42 CAP; QUAD BOX
EXC. ASSISTOR SHIFT CONTROL<WX8> (D) 		1-33549-111-0 01 1 0809-1305 ●
42 CAP; QUAD BOX
EXC. ASSISTOR SHIFT CONTROL<WX8> (D) 		1-33549-589-0 01 1 1306- ●
42 CAP; QUAD BOX
(A) 		1-33549-456-0 01 1 0710-0808 ●
42 CAP; QUAD BOX
ASSISTOR SHIFT CONTROL<WX8> (A) 		1-33549-456-0 01 1 0809-1305 ●
42 CAP; QUAD BOX
ASSISTOR SHIFT CONTROL<WX8> (A) 		1-33549-548-0 01 1 1306- ●
42 CAP; QUAD BOX
(B) 		1-33549-463-0 01 1 0710-0808 ●
42 CAP; QUAD BOX
ASSISTOR SHIFT CONTROL<WX8> (B) 		1-33549-463-0 01 1 0809-1305 ●
42 CAP; QUAD BOX
ASSISTOR SHIFT CONTROL<WX8> (B) 		1-33549-619-0 01 1 1306- ●
142 BOLT; QUAD BOX
(F) M8X80 		1-33549-256-0 08 1 0809-1311 ●
142 BOLT; QUAD BOX
(F) M8X80 		1-33549-614-0 08 1 1312- ●
142 BOLT; QUAD BOX
(G) 		1-33549-290-0 01 1 0809-1311 ●
142 BOLT; QUAD BOX
(G) M8X100 		1-33549-622-0 01 1 1312- ●
142 BOLT; QUAD BOX
EXC. ASSISTOR SHIFT CONTROL<WX8> (C) M8X75 		1-09089-015-0 02 1 0809-1305 ●
142 BOLT; QUAD BOX
EXC. ASSISTOR SHIFT CONTROL<WX8> (C) M8X100 		1-33549-582-0 06 1 1306- ●
142 BOLT; QUAD BOX
EXC. ASSISTOR SHIFT CONTROL<WX8> (D) 		1-33549-486-0 06 1 0809-1305 ●
142 BOLT; QUAD BOX
EXC. ASSISTOR SHIFT CONTROL<WX8> (D) M8X75 		1-33549-584-0 02 1 1306- ●
142 BOLT; QUAD BOX
EXC. ASSISTOR SHIFT CONTROL<WX8> (E) 		1-34129-116-0 04 1 0809-1305 ●
142 BOLT; QUAD BOX
EXC. ASSISTOR SHIFT CONTROL<WX8> (E) M8X40 		1-33549-587-0 04 1 1306- ●
142 BOLT; QUAD BOX
PTO ZF TRANS RR(BDM) (A) 		1-33549-476-0 13 1 0710-0808 ●
142 BOLT; QUAD BOX
PTO ZF TRANS RR(BDM) ASSISTOR SHIFT CONTROL<WX8> (A) 		1-33549-476-0 13 1 0809-1305 ●
142 BOLT; QUAD BOX
ASSISTOR SHIFT CONTROL<WX8> (A) M8X80 		1-33549-614-0 13 1 1306- ●
142 BOLT; QUAD BOX
EXC. PTO ZF TRANS RR(BDM) (A) 		1-33549-455-0 13 1 0710-0808 ●
142 BOLT; QUAD BOX
ASSISTOR SHIFT CONTROL<WX8> EXC. PTO ZF TRANS RR(BDM) (A) 		1-33549-455-0 13 1 0809-1305 ●
142 BOLT; QUAD BOX
(B) 		1-33549-467-0 05 1 0710-0808 ●
142 BOLT; QUAD BOX
ASSISTOR SHIFT CONTROL<WX8> (B) 		1-33549-467-0 05 1 0809-1305 ●
142 BOLT; QUAD BOX
ASSISTOR SHIFT CONTROL<WX8> (B) M8X70 		1-33549-616-0 05 1 1306- ●
256 GASKET; QUAD BOX TO TRANS CASE
PTO ZF TRANS RR(BDM) EXC. ASSISTOR SHIFT CONTROL<WX8> 		1-33542-065-0 01 1 0904-0912 ●
256 GASKET; QUAD BOX TO TRANS CASE
EXC. ASSISTOR SHIFT CONTROL<WX8> 		1-33542-065-0 01 1 1001- ●
256 GASKET; QUAD BOX TO TRANS CASE 1-33549-504-0 01 1 0809- ●
256 GASKET; QUAD BOX TO TRANS CASE 1-33542-062-0 01 1 0710-0903 ●
256 GASKET; QUAD BOX TO TRANS CASE
PTO ZF TRANS RR(BDM) ASSISTOR SHIFT CONTROL<WX8> 		1-33542-062-0 01 1 0904-0912 ●
256 GASKET; QUAD BOX TO TRANS CASE
EXC. PTO ZF TRANS RR(BDM) 		1-33542-062-0 01 1 0904-0912 ●
256 GASKET; QUAD BOX TO TRANS CASE
ASSISTOR SHIFT CONTROL<WX8> 		1-33542-062-0 01 1 1001- ●
310 PLATE; LOCK,SHIFT LEVER 1-33549-453-0 01 1 0710-0808 ●
310 PLATE; LOCK,SHIFT LEVER
ASSISTOR SHIFT CONTROL<WX8> 		1-33549-453-0 01 1 0809- ●
418 PIECE; DIST,QUAD BOX 1-33549-454-0 01 1 0710-0808 ●
418 PIECE; DIST,QUAD BOX
ASSISTOR SHIFT CONTROL<WX8> 		1-33549-454-0 01 1 0809- ●
569 PIN; QUADRANT BOX
EXC. ASSISTOR SHIFT CONTROL<WX8> (D) 		1-33529-128-0 02 1 0809- ●
569 PIN; QUADRANT BOX
(A) 		1-33529-106-0 01 1 0710-0808 ●
569 PIN; QUADRANT BOX
ASSISTOR SHIFT CONTROL<WX8> (A) 		1-33529-106-0 01 1 0809- ●
569 PIN; QUADRANT BOX
(B) 		1-33549-452-0 01 1 0710-0808 ●
569 PIN; QUADRANT BOX
ASSISTOR SHIFT CONTROL<WX8> (B) 		1-33549-452-0 01 1 0809- ●
569 PIN; QUADRANT BOX
(C) 		1-33549-468-0 01 1 0710-0808 ●
569 PIN; QUADRANT BOX
ASSISTOR SHIFT CONTROL<WX8> (C) 		1-33549-468-0 01 1 0809- ●
677 PIN; PLATE 1-33549-452-0 01 1 0710-0808 ●
677 PIN; PLATE
ASSISTOR SHIFT CONTROL<WX8> 		1-33549-452-0 01 1 0809- ●
çizim 179444
195 191 171 172 541 500 393 361 359 358 355 357 356 355 354 363 398 411 52 497 60 347 352 345 60 345 395 396 52 392 360 394 449
BalonParca AdiParca NoAdetTipApplied Date A B
52 BOLT; SHIFT ARM
(A) 		1-33519-174-0 02 1 0809-1311 ●
52 BOLT; SHIFT ARM
(A) 		1-33519-199-0 02 1 1312- ●
52 BOLT; SHIFT ARM
(B) 		1-33519-058-0 02 1 0710-1305 ●
52 BOLT; SHIFT ARM
(B) 		1-33519-196-0 02 1 1306- ●
52 BOLT; SHIFT ARM
(C) 		1-33519-175-0 06 1 0809-1311 ●
52 BOLT; SHIFT ARM
(C) 		1-33519-200-0 06 1 1312- ●
52 BOLT; SHIFT ARM
(D) 		1-33519-084-0 07 1 0710-1305 ●
52 BOLT; SHIFT ARM
(D) 		1-33519-190-0 07 1 1306- ●
60 WASHER; LK
(A) 		1-33519-085-0 08 1 0809-1311 ●
60 WASHER; LK
(B) 		1-33519-059-0 02 1 0710-1305 ●
60 WASHER; LK
(A) 		1-33519-085-0 07 1 0710-1305 ●
171 SWITCH; NEUTRAL
PTO ZF TRANS RR(BDM) EXC. ASSISTOR SHIFT CONTROL<WX8> 		1-33119-587-0 01 1 0904-0912 ●
171 SWITCH; NEUTRAL
EXC. ASSISTOR SHIFT CONTROL<WX8> 		1-33119-587-0 01 1 1001-1305 ●
171 SWITCH; NEUTRAL
EXC. ASSISTOR SHIFT CONTROL<WX8> 		1-33119-627-0 01 1 1306-1311 ●
171 SWITCH; NEUTRAL
EXC. ASSISTOR SHIFT CONTROL<WX8> 		1-33119-627-0 01 1 1312- ●
171 SWITCH; NEUTRAL 1-33119-627-0 01 1 1312- ●
171 SWITCH; NEUTRAL 1-33549-469-0 01 1 0809-1311 ●
171 SWITCH; NEUTRAL
EXC. ASSISTOR SHIFT CONTROL<WX8> 		1-82440-095-0 01 1 0809-0903 ●
171 SWITCH; NEUTRAL
EXC. PTO ZF TRANS RR(BDM),ASSISTOR SHIFT CONTROL<WX8> 		1-82440-095-0 01 1 0904-0912 ●
171 SWITCH; NEUTRAL
EXC. PTO ZF TRANS RR(BDM) 		1-33549-338-0 01 1 0710-0808 ●
171 SWITCH; NEUTRAL
ASSISTOR SHIFT CONTROL<WX8> EXC. PTO ZF TRANS RR(BDM) 		1-33549-338-0 01 1 0809-1305 ●
172 GASKET; NEUTRAL SW
EXC. ASSISTOR SHIFT CONTROL<WX8> 		1-33119-249-0 01 1 0809- ●
191 WASHER; LK
EXC. ASSISTOR SHIFT CONTROL<WX8> 		1-36129-007-0 02 1 0809-1305 ●
191 WASHER; LK
EXC. ASSISTOR SHIFT CONTROL<WX8> 		1-33549-583-0 02 1 1306- ●
195 BOLT 1-33549-512-0 01 1 0809- ●
195 BOLT
EXC. ASSISTOR SHIFT CONTROL<WX8> 		1-33119-301-0 02 1 0809-1305 ●
195 BOLT
EXC. ASSISTOR SHIFT CONTROL<WX8> 		1-33119-593-0 02 1 1306- ●
345 BLOCK; SHIFT,RANGE CHANGE 1-33519-173-0 02 1 0809- ●
345 BLOCK; SHIFT,RANGE CHANGE 1-33519-095-0 02 1 0710- ●
347 ARM; SHIFT,RANGE CHANGE 1-33511-646-0 01 1 0809-1311 ●
347 ARM; SHIFT,RANGE CHANGE 1-33511-668-0 01 1 1312- ●
347 ARM; SHIFT,RANGE CHANGE 1-33511-529-0 01 1 0710- ●
352 ROD; SHIFT,RANGE CHANGE
ASSISTOR SHIFT CONTROL<WX8> 		1-33531-497-0 01 1 1306- ●
352 ROD; SHIFT,RANGE CHANGE
EXC. PTO ZF TRANS RR(BDM),ASSISTOR SHIFT CONTROL<WX8> 		1-33531-047-0 01 1 1306- ●
352 ROD; SHIFT,RANGE CHANGE 1-33531-495-0 01 1 0710-1305 ●
352 ROD; SHIFT,RANGE CHANGE
PTO ZF TRANS RR(BDM) EXC. ASSISTOR SHIFT CONTROL<WX8> 		1-33531-495-0 01 1 1306- ●
354 SEAL; AIR CYL 1-33519-045-0 01 1 0710- ●
355 CUP; PISTON,AIR CYL 1-33519-088-0 02 1 0710-1305 ●
356 PISTON; AIR CYL 1-33519-087-0 01 1 0710-1305 ●
356 PISTON; AIR CYL 1-33519-197-0 01 1 1306- ●
357 RING; GUIDE,AIR CYL 1-33519-090-0 01 1 0710-1305 ●
358 NUT; SHIFT ROD 1-33519-049-0 01 1 0710-1305 ●
358 NUT; SHIFT ROD 1-33519-188-0 01 1 1306- ●
359 GASKET; AIR CYL 1-33519-093-0 01 1 0710- ●
360 BALL; AIR CYL 1-33119-252-0 01 1 0710- ●
361 CYLINDER; AIR,SHIFT 1-33519-092-0 01 1 0710- ●
363 BOLT; AIR CYL
PTO ZF TRANS RR(BDM) M10X70 		1-33119-522-0 03 1 0710-0808 ●
363 BOLT; AIR CYL
PTO ZF TRANS RR(BDM) M10X70 		1-33119-522-0 03 1 0809-1305 ●
363 BOLT; AIR CYL
EXC. PTO ZF TRANS RR(BDM),ASSISTOR SHIFT CONTROL<WX8> M10X70 		1-33119-522-0 03 1 0809-1305 ●
363 BOLT; AIR CYL
M10X70 		1-33119-616-0 03 1 1306- ●
363 BOLT; AIR CYL
EXC. PTO ZF TRANS RR(BDM) M10X70 		1-33119-518-0 03 1 0710-0808 ●
363 BOLT; AIR CYL
ASSISTOR SHIFT CONTROL<WX8> EXC. PTO ZF TRANS RR(BDM) M10X70 		1-33119-518-0 03 1 0809-1305 ●
392 GASKET; PLUG & SW 1-33119-249-0 01 1 0710- ●
393 PIN; SW 1-33549-513-0 01 1 0809- ●
393 PIN; SW
EXC. ASSISTOR SHIFT CONTROL<WX8> 		1-33119-298-0 01 1 0809- ●
394 SWITCH; RANGE CHANGE
PTO ZF TRANS RR(BDM) EXC. ASSISTOR SHIFT CONTROL<WX8> 		1-33119-587-0 01 1 0904-0912 ●
394 SWITCH; RANGE CHANGE
EXC. ASSISTOR SHIFT CONTROL<WX8> 		1-33119-587-0 01 1 1001-1305 ●
394 SWITCH; RANGE CHANGE 1-33119-627-0 01 1 1306- ●
394 SWITCH; RANGE CHANGE
EXC. ASSISTOR SHIFT CONTROL<WX8> 		1-82440-095-0 01 1 0809-0903 ●
394 SWITCH; RANGE CHANGE
EXC. PTO ZF TRANS RR(BDM),ASSISTOR SHIFT CONTROL<WX8> 		1-82440-095-0 01 1 0904-0912 ●
394 SWITCH; RANGE CHANGE 1-33549-469-0 01 1 0710-0808 ●
394 SWITCH; RANGE CHANGE
ASSISTOR SHIFT CONTROL<WX8> 		1-33549-469-0 01 1 0809-1305 ●
395 GASKET; PLUNGER
ASSISTOR SHIFT CONTROL<WX8> 		1-33549-497-0 01 1 1306- ●
395 GASKET; PLUNGER 1-33519-171-0 01 1 0710-1305 ●
395 GASKET; PLUNGER
EXC. ASSISTOR SHIFT CONTROL<WX8> 		1-33519-171-0 01 1 1306- ●
396 PLUNGER; SHIFT ROD
EXC. ASSISTOR SHIFT CONTROL<WX8> (B) 		1-33529-085-0 02 1 0809- ●
396 PLUNGER; SHIFT ROD
(A) 		1-33519-073-0 01 1 0710-1305 ●
396 PLUNGER; SHIFT ROD
(A) 		1-33519-189-0 01 1 1306- ●
398 SWITCH; REV LAMP
EXC. ASSISTOR SHIFT CONTROL<WX8> 		1-82440-080-1 01 1 0809-0903 ●
398 SWITCH; REV LAMP
EXC. PTO ZF TRANS RR(BDM),ASSISTOR SHIFT CONTROL<WX8> 		1-82440-080-1 01 1 0904-0912 ●
398 SWITCH; REV LAMP 1-38119-062-0 01 1 0710-0808 ●
398 SWITCH; REV LAMP
ASSISTOR SHIFT CONTROL<WX8> 		1-38119-062-0 01 1 0809-0903 ●
398 SWITCH; REV LAMP
ASSISTOR SHIFT CONTROL<WX8> 		1-38119-062-0 01 1 0904-0912 ●
398 SWITCH; REV LAMP
PTO ZF TRANS RR(BDM) EXC. ASSISTOR SHIFT CONTROL<WX8> 		1-38119-062-0 01 1 0904-0912 ●
398 SWITCH; REV LAMP 1-38119-062-0 01 1 1001- ●
411 GASKET; REV LAMP SW 1-33119-249-0 01 1 0710- ●
449 HARNESS; NEUTRAL SW
EXC. ASSISTOR SHIFT CONTROL<WX8> 		1-82659-152-0 01 1 0809-0903 ●
449 HARNESS; NEUTRAL SW
EXC. PTO ZF TRANS RR(BDM),ASSISTOR SHIFT CONTROL<WX8> 		1-82659-152-0 01 1 0904-0912 ●
497 BALL; SWITCH 1-33119-252-0 01 1 0710- ●
500 GASKET; SW
ALSO INCLUDED IN GASKET SET(M/T). ASSISTOR SHIFT CONTROL<WX8>. 		1-33119-249-0 01 1 0809- ●
500 GASKET; SW
ALSO INCLUDED IN GASKET SET(M/T). 		1-33119-249-0 01 1 0809- ●
500 GASKET; SW
ALSO INCLUDED IN GASKET SET(M/T). 		1-33119-249-0 01 1 0710-0808 ●
500 GASKET; SW
ALSO INCLUDED IN GASKET SET(M/T). EXC. ASSISTOR SHIFT CONTROL<WX8> 		1-33119-299-0 01 1 0809- ●
541 PLATE; SWITCH
EXC. ASSISTOR SHIFT CONTROL<WX8> 		1-33119-300-0 01 1 0809- ●
çizim 179463
321 321 320 505 433 317 292 315 317 433 505 296 292 295 292 296 319 323 332 292 48
BalonParca AdiParca NoAdetTipApplied Date A B
48 LEVER; 4TH,SHIFT 8-98081-304-1 01 1 0809- ●
48 LEVER; 4TH,SHIFT
EXC. ASSISTOR SHIFT CONTROL<WX8> 		8-98085-725-0 01 1 0809- ●
48 LEVER; 4TH,SHIFT 1-33651-827-1 01 1 0710-0808 ●
48 LEVER; 4TH,SHIFT
ASSISTOR SHIFT CONTROL<WX8> 		1-33651-827-1 01 1 0809- ●
292 NUT; LINK ROD
EXC. ASSISTOR SHIFT CONTROL<WX8> (A) M8 		0-91111-508-0 02 1 0809- ●
292 NUT; LINK ROD
(A) M8 		0-91111-508-0 02 1 0809- ●
292 NUT; LINK ROD
EXC. ASSISTOR SHIFT CONTROL<WX8> (B) M8 FLANGE 		1-09440-062-1 02 1 0809- ●
292 NUT; LINK ROD
(B) M8 FLANGE 		1-09440-062-1 02 1 0809- ●
295 ROD; LINK,RELAY LEVER
EXC. ASSISTOR SHIFT CONTROL<WX8> M8 L=50 		9-08400-805-0 01 1 0809- ●
295 ROD; LINK,RELAY LEVER
M8 L=50 		9-08400-805-0 01 1 0809- ●
296 ROD END
EXC. ASSISTOR SHIFT CONTROL<WX8> 		1-09760-108-0 02 1 0809- ●
296 ROD END 1-09760-108-0 02 1 0809- ●
315 LEVER; SELECT 8-98071-417-0 01 1 0809- ●
315 LEVER; SELECT
EXC. ASSISTOR SHIFT CONTROL<WX8> 		8-98085-738-0 01 1 0809- ●
315 LEVER; SELECT 1-33549-458-0 01 1 0710-0808 ●
315 LEVER; SELECT
ASSISTOR SHIFT CONTROL<WX8> 		1-33549-458-0 01 1 0809- ●
317 BUSHING; LEVER
EXC. ASSISTOR SHIFT CONTROL<WX8> 		1-09330-119-0 02 1 0809- ●
317 BUSHING; LEVER 1-09330-119-0 02 1 0809- ●
317 BUSHING; LEVER 1-33549-322-0 01 1 0710-0808 ●
317 BUSHING; LEVER
ASSISTOR SHIFT CONTROL<WX8> 		1-33549-322-0 01 1 0809- ●
319 BRACKET; SELECT LEVER 8-98071-419-0 01 1 0809- ●
319 BRACKET; SELECT LEVER
EXC. ASSISTOR SHIFT CONTROL<WX8> 		8-98085-740-0 01 1 0809- ●
320 SHAFT; LEVER 8-98071-418-0 01 1 0809- ●
320 SHAFT; LEVER
EXC. ASSISTOR SHIFT CONTROL<WX8> 		8-98085-739-0 01 1 0809- ●
320 SHAFT; LEVER 1-33549-447-0 01 1 0710-0808 ●
320 SHAFT; LEVER
ASSISTOR SHIFT CONTROL<WX8> 		1-33549-447-0 01 1 0809- ●
321 BOLT; BRKT,RELAY LEVER 1-09040-100-0 02 1 0809- ●
321 BOLT; BRKT,RELAY LEVER
EXC. ASSISTOR SHIFT CONTROL<WX8> M8X130 FLANGE 		0-28065-813-0 02 1 0809- ●
323 NUT; LK,SELECT LEVER
EXC. ASSISTOR SHIFT CONTROL<WX8> M10 FLANGE 		0-91180-110-0 01 1 0809- ●
323 NUT; LK,SELECT LEVER
M10 FLANGE 		0-91180-110-0 01 1 0809- ●
332 BOLT; 4TH,SHIFT LEVER
M10X45 W/PL WASHER 		8-98038-710-0 01 1 0809- ●
332 BOLT; 4TH,SHIFT LEVER
EXC. ASSISTOR SHIFT CONTROL<WX8> M8X40 FLANGE 		0-28650-840-0 01 1 0809- ●
332 BOLT; 4TH,SHIFT LEVER
M8X40 FLANGE 		0-28650-840-0 02 1 0710-0808 ●
332 BOLT; 4TH,SHIFT LEVER
ASSISTOR SHIFT CONTROL<WX8> M8X40 FLANGE 		0-28650-840-0 02 1 0809- ●
433 GASKET; BUSHING
EXC. ASSISTOR SHIFT CONTROL<WX8> 		1-09623-594-0 02 1 0809- ●
433 GASKET; BUSHING 1-09623-594-0 02 1 0809- ●
505 SPACER; BRKT 1-11349-149-0 02 1 0809- ●
505 SPACER; BRKT
EXC. ASSISTOR SHIFT CONTROL<WX8> L=24.5 		1-33659-186-1 02 1 0809- ●
çizim 179469
142 142 142 142 142 142 142 142 142 225 256 255
BalonParca AdiParca NoAdetTipApplied Date A B
142 BOLT; QUAD BOX
(F) M8X80 		1-33549-256-0 08 1 0809-1311 ●
142 BOLT; QUAD BOX
(F) M8X80 		1-33549-614-0 08 1 1312- ●
142 BOLT; QUAD BOX
(G) 		1-33549-290-0 01 1 0809-1311 ●
142 BOLT; QUAD BOX
(G) M8X100 		1-33549-622-0 01 1 1312- ●
142 BOLT; QUAD BOX
EXC. ASSISTOR SHIFT CONTROL<WX8> (C) M8X75 		1-09089-015-0 02 1 0809-1305 ●
142 BOLT; QUAD BOX
EXC. ASSISTOR SHIFT CONTROL<WX8> (C) M8X100 		1-33549-582-0 06 1 1306- ●
142 BOLT; QUAD BOX
EXC. ASSISTOR SHIFT CONTROL<WX8> (D) 		1-33549-486-0 06 1 0809-1305 ●
142 BOLT; QUAD BOX
EXC. ASSISTOR SHIFT CONTROL<WX8> (D) M8X75 		1-33549-584-0 02 1 1306- ●
142 BOLT; QUAD BOX
EXC. ASSISTOR SHIFT CONTROL<WX8> (E) 		1-34129-116-0 04 1 0809-1305 ●
142 BOLT; QUAD BOX
EXC. ASSISTOR SHIFT CONTROL<WX8> (E) M8X40 		1-33549-587-0 04 1 1306- ●
142 BOLT; QUAD BOX
PTO ZF TRANS RR(BDM) (A) 		1-33549-476-0 13 1 0710-0808 ●
142 BOLT; QUAD BOX
PTO ZF TRANS RR(BDM) ASSISTOR SHIFT CONTROL<WX8> (A) 		1-33549-476-0 13 1 0809-1305 ●
142 BOLT; QUAD BOX
ASSISTOR SHIFT CONTROL<WX8> (A) M8X80 		1-33549-614-0 13 1 1306- ●
142 BOLT; QUAD BOX
EXC. PTO ZF TRANS RR(BDM) (A) 		1-33549-455-0 13 1 0710-0808 ●
142 BOLT; QUAD BOX
ASSISTOR SHIFT CONTROL<WX8> EXC. PTO ZF TRANS RR(BDM) (A) 		1-33549-455-0 13 1 0809-1305 ●
142 BOLT; QUAD BOX
(B) 		1-33549-467-0 05 1 0710-0808 ●
142 BOLT; QUAD BOX
ASSISTOR SHIFT CONTROL<WX8> (B) 		1-33549-467-0 05 1 0809-1305 ●
142 BOLT; QUAD BOX
ASSISTOR SHIFT CONTROL<WX8> (B) M8X70 		1-33549-616-0 05 1 1306- ●
225 WASHER; LK,QUAD BOX 1-33549-159-0 01 1 0809-1311 ●
225 WASHER; LK,QUAD BOX 1-33549-583-0 01 1 1312- ●
225 WASHER; LK,QUAD BOX
EXC. ASSISTOR SHIFT CONTROL<WX8> 		1-33549-159-0 14 1 0809-1305 ●
225 WASHER; LK,QUAD BOX
EXC. ASSISTOR SHIFT CONTROL<WX8> 		1-33549-583-0 14 1 1306- ●
255 PLATE; DIST,QUAD BOX 1-33549-505-0 01 1 0809- ●
256 GASKET; QUAD BOX TO TRANS CASE
PTO ZF TRANS RR(BDM) EXC. ASSISTOR SHIFT CONTROL<WX8> 		1-33542-065-0 01 1 0904-0912 ●
256 GASKET; QUAD BOX TO TRANS CASE
EXC. ASSISTOR SHIFT CONTROL<WX8> 		1-33542-065-0 01 1 1001- ●
256 GASKET; QUAD BOX TO TRANS CASE 1-33549-504-0 01 1 0809- ●
256 GASKET; QUAD BOX TO TRANS CASE 1-33542-062-0 01 1 0710-0903 ●
256 GASKET; QUAD BOX TO TRANS CASE
PTO ZF TRANS RR(BDM) ASSISTOR SHIFT CONTROL<WX8> 		1-33542-062-0 01 1 0904-0912 ●
256 GASKET; QUAD BOX TO TRANS CASE
EXC. PTO ZF TRANS RR(BDM) 		1-33542-062-0 01 1 0904-0912 ●
256 GASKET; QUAD BOX TO TRANS CASE
ASSISTOR SHIFT CONTROL<WX8> 		1-33542-062-0 01 1 1001- ●
çizim 179487
287 512
BalonParca AdiParca NoAdetTipApplied Date A B
287 COVER; AIR BREATHER
EXC. ASSISTOR SHIFT CONTROL<WX8> 		1-34141-026-0 01 1 0809- ●
512 CLIP; PIPE
OD=9 H=6 		1-09709-178-0 03 1 0809- ●
512 CLIP; PIPE
EXC. ASSISTOR SHIFT CONTROL<WX8> OD=9 H=6 		1-09709-178-0 04 1 0809- ●
512 CLIP; PIPE
OD=9 H=6 		1-09709-178-0 05 1 0710-0808 ●
512 CLIP; PIPE
ASSISTOR SHIFT CONTROL<WX8> OD=9 H=6 		1-09709-178-0 05 1 0809- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
