◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVM ▶ 11105 - FVM(RHD) ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-26 - MANUAL TRANSMISSION GEAR ▶
2-26 — MANUAL TRANSMISSION GEAR (#33971) — 889 parça

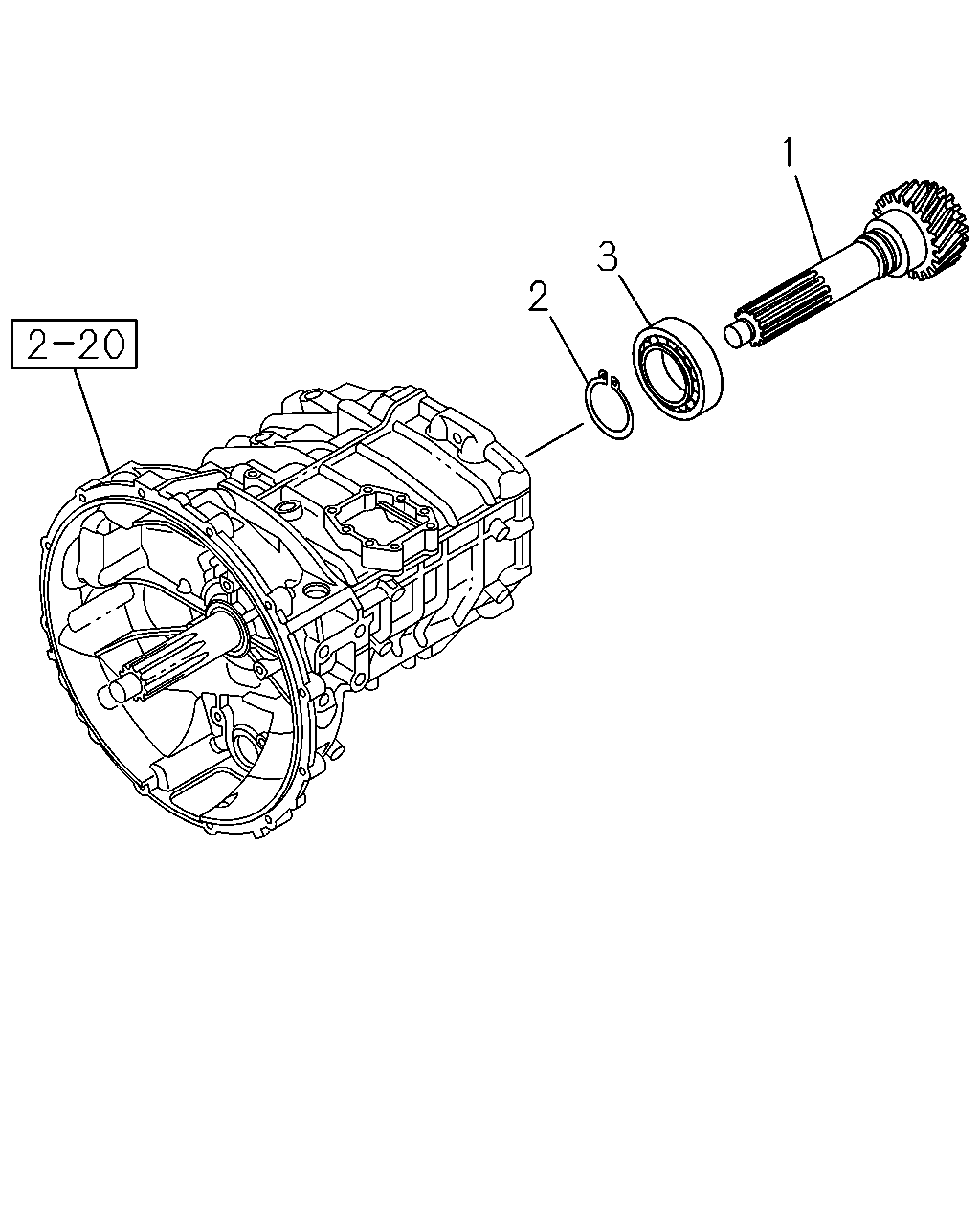

çizim 179169
1 3 2
BalonParca AdiParca NoAdetTipApplied Date A B
1 SHAFT; TOP GEAR,TRANS 1-33215-037-0 01 1 0809- ●
1 SHAFT; TOP GEAR,TRANS 1-33215-036-0 01 1 0710- ●
2 RING; SNAP,TOP GEAR SHAFT 1-33219-325-0 01 1 0809- ●
3 BEARING; TOP GEAR SHAFT 1-33219-324-0 01 1 0809- ●
3 BEARING; TOP GEAR SHAFT 1-33219-320-0 01 1 0710- ●

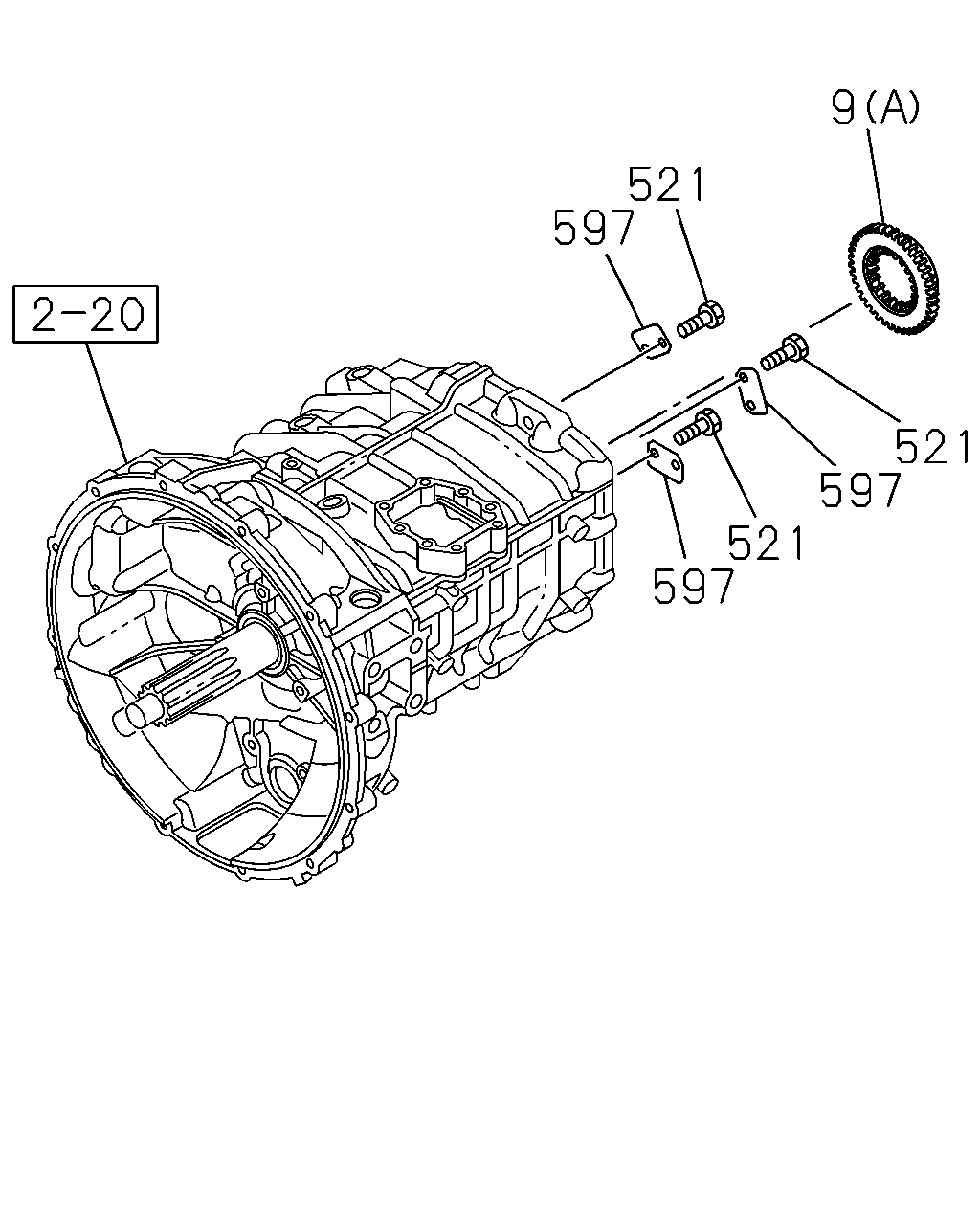

çizim 179179
9 521 597 521 597 521 597
BalonParca AdiParca NoAdetTipApplied Date A B
9 CLUTCH; DOG,TOP GEAR
(A) 		1-33219-326-0 01 1 0809- ●
9 CLUTCH; DOG,TOP GEAR
(B) 		1-33265-326-0 01 1 0809- ●
9 CLUTCH; DOG,TOP GEAR
(C) 		1-33265-631-0 01 1 0710- ●
521 BOLT 1-33129-003-0 06 1 0809-1311 ●
521 BOLT 1-34129-134-0 06 1 1312- ●
597 WASHER; TAB 1-33219-329-0 03 1 0809- ●

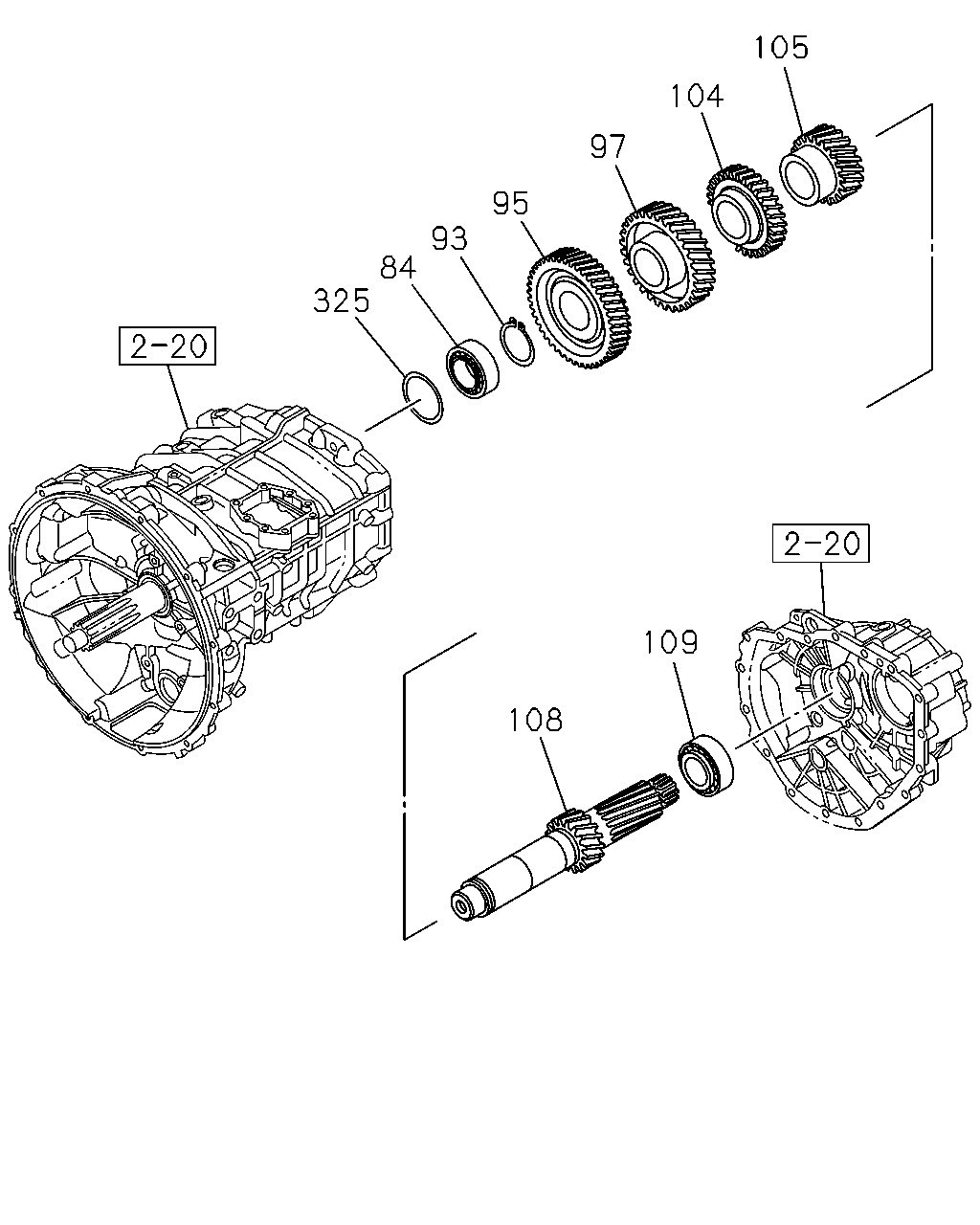

çizim 179199
105 104 97 95 93 84 325 109 108
BalonParca AdiParca NoAdetTipApplied Date A B
84 BEARING; COUNTER SHAFT,FRT 1-33239-360-0 01 1 0809- ●
84 BEARING; COUNTER SHAFT,FRT
PTO ZF TRANS RR(BDM) 		1-33312-016-0 01 1 0710-0808 ●
84 BEARING; COUNTER SHAFT,FRT
PTO ZF TRANS RR(BDM) 		1-33312-016-0 01 1 0809-1305 ●
84 BEARING; COUNTER SHAFT,FRT
EXC. PTO ZF TRANS RR(BDM),ASSISTOR SHIFT CONTROL<WX8> 		1-33312-016-0 01 1 0809-1305 ●
84 BEARING; COUNTER SHAFT,FRT 1-33312-016-0 01 1 1306- ●
84 BEARING; COUNTER SHAFT,FRT
EXC. PTO ZF TRANS RR(BDM) 		1-33312-015-0 01 1 0710-0808 ●
84 BEARING; COUNTER SHAFT,FRT
ASSISTOR SHIFT CONTROL<WX8> EXC. PTO ZF TRANS RR(BDM) 		1-33312-015-0 01 1 0809-1305 ●
93 RING; SNAP,COUNTER FRT BRG
T=2.6 		1-33319-264-0 01 1 1306- ●
93 RING; SNAP,COUNTER FRT BRG 1-33319-257-0 01 1 0809- ●
93 RING; SNAP,COUNTER FRT BRG
T=2.0 		1-33319-251-0 01 1 0710- ●
93 RING; SNAP,COUNTER FRT BRG
T=2.5 		1-33319-252-0 01 1 0710- ●
93 RING; SNAP,COUNTER FRT BRG
T=2.4 		1-33319-253-0 01 1 0710- ●
93 RING; SNAP,COUNTER FRT BRG
T=2.3 		1-33319-254-0 01 1 0710- ●
93 RING; SNAP,COUNTER FRT BRG
T=2.2 		1-33319-255-0 01 1 0710- ●
93 RING; SNAP,COUNTER FRT BRG
T=2.1 		1-33319-256-0 01 1 0710- ●
95 GEAR; REV,COUNTER 1-33338-404-0 01 1 0809- ●
97 GEAR; 5TH,COUNTER 1-33338-403-0 01 1 0809- ●
97 GEAR; 5TH,COUNTER 1-33338-398-0 01 1 0710- ●
104 GEAR; 4TH,COUNTER 1-33338-401-0 01 1 0809- ●
104 GEAR; 4TH,COUNTER 1-33338-397-0 01 1 0710- ●
105 GEAR; 3RD,COUNTER 1-33338-399-0 01 1 0809- ●
108 SHAFT; COUNTER 1-33311-349-0 01 1 0809- ●
108 SHAFT; COUNTER 1-33311-347-0 01 1 0710- ●
109 BEARING; COUNTER SHAFT,RR 1-33239-361-0 01 1 0809- ●
109 BEARING; COUNTER SHAFT,RR 1-33312-006-0 01 1 0710- ●
325 SHIM; COUNTER SHAFT BRG
ASSISTOR SHIFT CONTROL<WX8> T=1.50 		8-98080-571-0 01 1 1306- ●
325 SHIM; COUNTER SHAFT BRG
EXC. PTO ZF TRANS RR(BDM),ASSISTOR SHIFT CONTROL<WX8> T=1.50 		8-98080-571-0 01 1 1306- ●
325 SHIM; COUNTER SHAFT BRG
ASSISTOR SHIFT CONTROL<WX8> T=1.60 		8-98080-572-0 01 1 1306- ●
325 SHIM; COUNTER SHAFT BRG
EXC. PTO ZF TRANS RR(BDM),ASSISTOR SHIFT CONTROL<WX8> T=1.60 		8-98080-572-0 01 1 1306- ●
325 SHIM; COUNTER SHAFT BRG
PTO ZF TRANS RR(BDM) EXC. ASSISTOR SHIFT CONTROL<WX8> T=2.40 		1-33389-086-0 01 1 0904-0912 ●
325 SHIM; COUNTER SHAFT BRG
EXC. ASSISTOR SHIFT CONTROL<WX8> T=2.40 		1-33389-086-0 01 1 1001-1305 ●
325 SHIM; COUNTER SHAFT BRG
T=2.40 		1-33389-086-0 01 1 1306- ●
325 SHIM; COUNTER SHAFT BRG
PTO ZF TRANS RR(BDM) EXC. ASSISTOR SHIFT CONTROL<WX8> T=2.35 		1-33389-087-0 01 1 0904-0912 ●
325 SHIM; COUNTER SHAFT BRG
EXC. ASSISTOR SHIFT CONTROL<WX8> T=2.35 		1-33389-087-0 01 1 1001-1305 ●
325 SHIM; COUNTER SHAFT BRG
T=2.35 		1-33389-087-0 01 1 1306- ●
325 SHIM; COUNTER SHAFT BRG
PTO ZF TRANS RR(BDM) EXC. ASSISTOR SHIFT CONTROL<WX8> T=2.30 		1-33389-088-0 01 1 0904-0912 ●
325 SHIM; COUNTER SHAFT BRG
EXC. ASSISTOR SHIFT CONTROL<WX8> T=2.30 		1-33389-088-0 01 1 1001-1305 ●
325 SHIM; COUNTER SHAFT BRG
T=2.30 		1-33389-088-0 01 1 1306- ●
325 SHIM; COUNTER SHAFT BRG
PTO ZF TRANS RR(BDM) EXC. ASSISTOR SHIFT CONTROL<WX8> T=2.25 		1-33389-089-0 01 1 0904-0912 ●
325 SHIM; COUNTER SHAFT BRG
EXC. ASSISTOR SHIFT CONTROL<WX8> T=2.25 		1-33389-089-0 01 1 1001-1305 ●
325 SHIM; COUNTER SHAFT BRG
T=2.25 		1-33389-089-0 01 1 1306- ●
325 SHIM; COUNTER SHAFT BRG
EXC. PTO ZF TRANS RR(BDM) T=1.35 		1-33389-052-0 01 1 0809-1311 ●
325 SHIM; COUNTER SHAFT BRG
T=1.35 		1-33389-052-0 01 1 1312- ●
325 SHIM; COUNTER SHAFT BRG
EXC. PTO ZF TRANS RR(BDM) T=1.25 		1-33389-055-0 01 1 0809-1311 ●
325 SHIM; COUNTER SHAFT BRG
T=1.25 		1-33389-055-0 01 1 1312- ●
325 SHIM; COUNTER SHAFT BRG
EXC. PTO ZF TRANS RR(BDM) T=1.15 		1-33389-057-0 01 1 0809-1311 ●
325 SHIM; COUNTER SHAFT BRG
T=1.15 		1-33389-057-0 01 1 1312- ●
325 SHIM; COUNTER SHAFT BRG
T=1.30 		1-33389-053-0 01 1 0809- ●
325 SHIM; COUNTER SHAFT BRG
T=1.20 		1-33389-056-0 01 1 0809- ●
325 SHIM; COUNTER SHAFT BRG
T=1.10 		1-33389-058-0 01 1 0809- ●
325 SHIM; COUNTER SHAFT BRG
T=1.60 		1-33389-047-0 01 1 0710-0808 ●
325 SHIM; COUNTER SHAFT BRG
T=1.60 		1-33389-047-0 01 1 0809-1305 ● ●
325 SHIM; COUNTER SHAFT BRG
PTO ZF TRANS RR(BDM) EXC. ASSISTOR SHIFT CONTROL<WX8> T=1.60 		1-33389-047-0 01 1 1306- ●
325 SHIM; COUNTER SHAFT BRG
T=1.60 		1-33389-047-0 01 1 1306- ●
325 SHIM; COUNTER SHAFT BRG
T=1.55 		1-33389-048-0 01 1 0710-0808 ●
325 SHIM; COUNTER SHAFT BRG
T=1.55 		1-33389-048-0 01 1 0809-1311 ●
325 SHIM; COUNTER SHAFT BRG
EXC. PTO ZF TRANS RR(BDM) T=1.55 		1-33389-048-0 01 1 0809-1311 ●
325 SHIM; COUNTER SHAFT BRG
T=1.55 		1-33389-048-0 01 1 1312- ● ●
325 SHIM; COUNTER SHAFT BRG
T=1.50 		1-33389-049-0 01 1 0710-0808 ●
325 SHIM; COUNTER SHAFT BRG
T=1.50 		1-33389-049-0 01 1 0809-1305 ● ●
325 SHIM; COUNTER SHAFT BRG
PTO ZF TRANS RR(BDM) EXC. ASSISTOR SHIFT CONTROL<WX8> T=1.50 		1-33389-049-0 01 1 1306- ●
325 SHIM; COUNTER SHAFT BRG
T=1.50 		1-33389-049-0 01 1 1306- ●
325 SHIM; COUNTER SHAFT BRG
T=1.45 		1-33389-050-0 01 1 0710-0808 ●
325 SHIM; COUNTER SHAFT BRG
T=1.45 		1-33389-050-0 01 1 0809-0903 ●
325 SHIM; COUNTER SHAFT BRG
EXC. PTO ZF TRANS RR(BDM) T=1.45 		1-33389-050-0 01 1 0809-0903 ●
325 SHIM; COUNTER SHAFT BRG
EXC. PTO ZF TRANS RR(BDM) T=1.45 		1-33389-050-0 01 1 0904-0912 ● ●
325 SHIM; COUNTER SHAFT BRG
PTO ZF TRANS RR(BDM) ASSISTOR SHIFT CONTROL<WX8> T=1.45 		1-33389-050-0 01 1 0904-0912 ●
325 SHIM; COUNTER SHAFT BRG
ASSISTOR SHIFT CONTROL<WX8> T=1.45 		1-33389-050-0 01 1 1001-1305 ●
325 SHIM; COUNTER SHAFT BRG
EXC. PTO ZF TRANS RR(BDM) T=1.45 		1-33389-050-0 01 1 1001-1305 ●
325 SHIM; COUNTER SHAFT BRG
EXC. PTO ZF TRANS RR(BDM) T=1.45 		1-33389-050-0 01 1 1306-1311 ●
325 SHIM; COUNTER SHAFT BRG
T=1.45 		1-33389-050-0 01 1 1312- ●
325 SHIM; COUNTER SHAFT BRG
T=1.40 		1-33389-051-0 01 1 0710-0808 ●
325 SHIM; COUNTER SHAFT BRG
T=1.40 		1-33389-051-0 01 1 0809-0903 ● ●
325 SHIM; COUNTER SHAFT BRG
PTO ZF TRANS RR(BDM) ASSISTOR SHIFT CONTROL<WX8> T=1.40 		1-33389-051-0 01 1 0904-0912 ●
325 SHIM; COUNTER SHAFT BRG
EXC. PTO ZF TRANS RR(BDM) T=1.40 		1-33389-051-0 01 1 0904-0912 ●
325 SHIM; COUNTER SHAFT BRG
T=1.40 		1-33389-051-0 01 1 0904-0912 ●
325 SHIM; COUNTER SHAFT BRG
ASSISTOR SHIFT CONTROL<WX8> T=1.40 		1-33389-051-0 01 1 1001-1305 ●
325 SHIM; COUNTER SHAFT BRG
T=1.40 		1-33389-051-0 01 1 1001-1305 ●
325 SHIM; COUNTER SHAFT BRG
T=1.40 		1-33389-051-0 01 1 1306- ●
325 SHIM; COUNTER SHAFT BRG
T=2.00 		1-33389-073-0 01 1 0710-0808 ●
325 SHIM; COUNTER SHAFT BRG
T=2.00 		1-33389-073-0 01 1 0809- ● ●
325 SHIM; COUNTER SHAFT BRG
T=1.90 		1-33389-074-0 01 1 0710-0808 ●
325 SHIM; COUNTER SHAFT BRG
T=1.90 		1-33389-074-0 01 1 0809- ● ●
325 SHIM; COUNTER SHAFT BRG
T=1.80 		1-33389-075-0 01 1 0710-0808 ●
325 SHIM; COUNTER SHAFT BRG
T=1.80 		1-33389-075-0 01 1 0809- ● ●
325 SHIM; COUNTER SHAFT BRG
T=1.70 		1-33389-076-0 01 1 0710-0808 ●
325 SHIM; COUNTER SHAFT BRG
T=1.70 		1-33389-076-0 01 1 0809- ● ●
325 SHIM; COUNTER SHAFT BRG
T=1.65 		1-33389-077-0 01 1 0710-0808 ●
325 SHIM; COUNTER SHAFT BRG
T=1.65 		1-33389-077-0 01 1 0809-1311 ●
325 SHIM; COUNTER SHAFT BRG
EXC. PTO ZF TRANS RR(BDM) T=1.65 		1-33389-077-0 01 1 0809-1311 ●
325 SHIM; COUNTER SHAFT BRG
T=1.65 		1-33389-077-0 01 1 1312- ● ●
325 SHIM; COUNTER SHAFT BRG
T=1.75 		1-33389-078-0 01 1 0710-0808 ●
325 SHIM; COUNTER SHAFT BRG
T=1.75 		1-33389-078-0 01 1 0809-1311 ●
325 SHIM; COUNTER SHAFT BRG
EXC. PTO ZF TRANS RR(BDM) T=1.75 		1-33389-078-0 01 1 0809-1311 ●
325 SHIM; COUNTER SHAFT BRG
T=1.75 		1-33389-078-0 01 1 1312- ● ●
325 SHIM; COUNTER SHAFT BRG
T=1.85 		1-33389-079-0 01 1 0710-0808 ●
325 SHIM; COUNTER SHAFT BRG
T=1.85 		1-33389-079-0 01 1 0809-1311 ●
325 SHIM; COUNTER SHAFT BRG
EXC. PTO ZF TRANS RR(BDM) T=1.85 		1-33389-079-0 01 1 0809-1311 ●
325 SHIM; COUNTER SHAFT BRG
T=1.85 		1-33389-079-0 01 1 1312- ● ●
325 SHIM; COUNTER SHAFT BRG
T=1.95 		1-33389-080-0 01 1 0710-0808 ●
325 SHIM; COUNTER SHAFT BRG
T=1.95 		1-33389-080-0 01 1 0809-1311 ●
325 SHIM; COUNTER SHAFT BRG
EXC. PTO ZF TRANS RR(BDM) T=1.95 		1-33389-080-0 01 1 0809-1311 ●
325 SHIM; COUNTER SHAFT BRG
T=1.95 		1-33389-080-0 01 1 1312- ● ●
325 SHIM; COUNTER SHAFT BRG
T=2.05 		1-33389-081-0 01 1 0710-0808 ●
325 SHIM; COUNTER SHAFT BRG
T=2.05 		1-33389-081-0 01 1 0809-1311 ●
325 SHIM; COUNTER SHAFT BRG
EXC. PTO ZF TRANS RR(BDM) T=2.05 		1-33389-081-0 01 1 0809-1311 ●
325 SHIM; COUNTER SHAFT BRG
T=2.05 		1-33389-081-0 01 1 1312- ● ●
325 SHIM; COUNTER SHAFT BRG
T=2.10 		1-33389-082-0 01 1 0710- ●
325 SHIM; COUNTER SHAFT BRG
T=2.15 		1-33389-083-0 01 1 0710- ●
325 SHIM; COUNTER SHAFT BRG
T=2.20 		1-33389-084-0 01 1 0710- ●

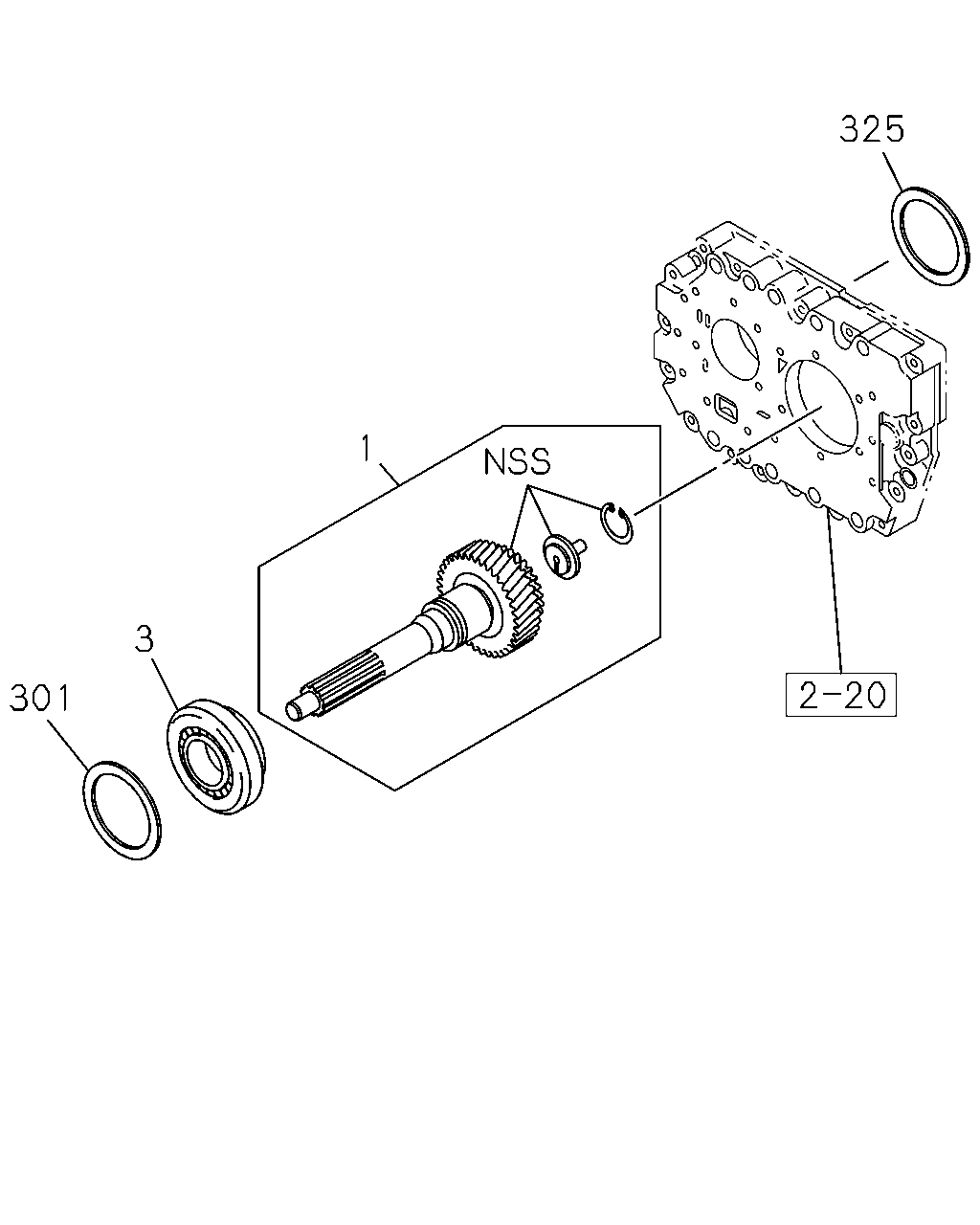

çizim 179239
325 1 3 301
BalonParca AdiParca NoAdetTipApplied Date A B
1 SHAFT; TOP GEAR,TRANS 1-33215-037-0 01 1 0809- ●
1 SHAFT; TOP GEAR,TRANS 1-33215-036-0 01 1 0710- ●
3 BEARING; TOP GEAR SHAFT 1-33219-324-0 01 1 0809- ●
3 BEARING; TOP GEAR SHAFT 1-33219-320-0 01 1 0710- ●
301 SHIM; TOP GEAR SHAFT
PTO ZF TRANS RR(BDM) EXC. ASSISTOR SHIFT CONTROL<WX8> T=1.80 		1-33139-039-0 01 1 0904-0912 ●
301 SHIM; TOP GEAR SHAFT
EXC. ASSISTOR SHIFT CONTROL<WX8> T=1.80 		1-33139-039-0 01 1 1001-1305 ●
301 SHIM; TOP GEAR SHAFT
T=1.80 		1-33139-039-0 01 1 1306- ●
301 SHIM; TOP GEAR SHAFT
PTO ZF TRANS RR(BDM) EXC. ASSISTOR SHIFT CONTROL<WX8> T=1.70 		1-33139-041-0 01 1 0904-0912 ●
301 SHIM; TOP GEAR SHAFT
EXC. ASSISTOR SHIFT CONTROL<WX8> T=1.70 		1-33139-041-0 01 1 1001-1305 ●
301 SHIM; TOP GEAR SHAFT
T=1.70 		1-33139-041-0 01 1 1306- ●
301 SHIM; TOP GEAR SHAFT
PTO ZF TRANS RR(BDM) EXC. ASSISTOR SHIFT CONTROL<WX8> T=2.30 		1-33139-223-0 01 1 0904-0912 ●
301 SHIM; TOP GEAR SHAFT
EXC. ASSISTOR SHIFT CONTROL<WX8> T=2.30 		1-33139-223-0 01 1 1001-1305 ●
301 SHIM; TOP GEAR SHAFT
T=2.30 		1-33139-223-0 01 1 1306- ●
301 SHIM; TOP GEAR SHAFT
PTO ZF TRANS RR(BDM) EXC. ASSISTOR SHIFT CONTROL<WX8> T=2.25 		1-33139-224-0 01 1 0904-0912 ●
301 SHIM; TOP GEAR SHAFT
EXC. ASSISTOR SHIFT CONTROL<WX8> T=2.25 		1-33139-224-0 01 1 1001-1305 ●
301 SHIM; TOP GEAR SHAFT
T=2.25 		1-33139-224-0 01 1 1306- ●
301 SHIM; TOP GEAR SHAFT
PTO ZF TRANS RR(BDM) EXC. ASSISTOR SHIFT CONTROL<WX8> T=2.20 		1-33139-225-0 01 1 0904-0912 ●
301 SHIM; TOP GEAR SHAFT
EXC. ASSISTOR SHIFT CONTROL<WX8> T=2.20 		1-33139-225-0 01 1 1001-1305 ●
301 SHIM; TOP GEAR SHAFT
T=2.20 		1-33139-225-0 01 1 1306- ●
301 SHIM; TOP GEAR SHAFT
PTO ZF TRANS RR(BDM) EXC. ASSISTOR SHIFT CONTROL<WX8> T=2.15 		1-33139-226-0 01 1 0904-0912 ●
301 SHIM; TOP GEAR SHAFT
EXC. ASSISTOR SHIFT CONTROL<WX8> T=2.15 		1-33139-226-0 01 1 1001-1305 ●
301 SHIM; TOP GEAR SHAFT
T=2.15 		1-33139-226-0 01 1 1306- ●
301 SHIM; TOP GEAR SHAFT
PTO ZF TRANS RR(BDM) EXC. ASSISTOR SHIFT CONTROL<WX8> T=2.10 		1-33139-227-0 01 1 0904-0912 ●
301 SHIM; TOP GEAR SHAFT
EXC. ASSISTOR SHIFT CONTROL<WX8> T=2.10 		1-33139-227-0 01 1 1001-1305 ●
301 SHIM; TOP GEAR SHAFT
T=2.10 		1-33139-227-0 01 1 1306- ●
301 SHIM; TOP GEAR SHAFT
PTO ZF TRANS RR(BDM) EXC. ASSISTOR SHIFT CONTROL<WX8> T=2.05 		1-33139-228-0 01 1 0904-0912 ●
301 SHIM; TOP GEAR SHAFT
EXC. ASSISTOR SHIFT CONTROL<WX8> T=2.05 		1-33139-228-0 01 1 1001-1305 ●
301 SHIM; TOP GEAR SHAFT
T=2.05 		1-33139-228-0 01 1 1306- ●
301 SHIM; TOP GEAR SHAFT
PTO ZF TRANS RR(BDM) EXC. ASSISTOR SHIFT CONTROL<WX8> T=2.00 		1-33139-229-0 01 1 0904-0912 ●
301 SHIM; TOP GEAR SHAFT
EXC. ASSISTOR SHIFT CONTROL<WX8> T=2.00 		1-33139-229-0 01 1 1001-1305 ●
301 SHIM; TOP GEAR SHAFT
T=2.00 		1-33139-229-0 01 1 1306- ●
301 SHIM; TOP GEAR SHAFT
PTO ZF TRANS RR(BDM) EXC. ASSISTOR SHIFT CONTROL<WX8> T=1.95 		1-33139-230-0 01 1 0904-0912 ●
301 SHIM; TOP GEAR SHAFT
EXC. ASSISTOR SHIFT CONTROL<WX8> T=1.95 		1-33139-230-0 01 1 1001-1305 ●
301 SHIM; TOP GEAR SHAFT
T=1.95 		1-33139-230-0 01 1 1306- ●
301 SHIM; TOP GEAR SHAFT
PTO ZF TRANS RR(BDM) EXC. ASSISTOR SHIFT CONTROL<WX8> T=1.90 		1-33139-231-0 01 1 0904-0912 ●
301 SHIM; TOP GEAR SHAFT
EXC. ASSISTOR SHIFT CONTROL<WX8> T=1.90 		1-33139-231-0 01 1 1001-1305 ●
301 SHIM; TOP GEAR SHAFT
T=1.90 		1-33139-231-0 01 1 1306- ●
301 SHIM; TOP GEAR SHAFT
PTO ZF TRANS RR(BDM) EXC. ASSISTOR SHIFT CONTROL<WX8> T=1.85 		1-33139-232-0 01 1 0904-0912 ●
301 SHIM; TOP GEAR SHAFT
EXC. ASSISTOR SHIFT CONTROL<WX8> T=1.85 		1-33139-232-0 01 1 1001-1305 ●
301 SHIM; TOP GEAR SHAFT
T=1.85 		1-33139-232-0 01 1 1306- ●
301 SHIM; TOP GEAR SHAFT
PTO ZF TRANS RR(BDM) EXC. ASSISTOR SHIFT CONTROL<WX8> T=1.75 		1-33139-233-0 01 1 0904-0912 ●
301 SHIM; TOP GEAR SHAFT
EXC. ASSISTOR SHIFT CONTROL<WX8> T=1.75 		1-33139-233-0 01 1 1001-1305 ●
301 SHIM; TOP GEAR SHAFT
T=1.75 		1-33139-233-0 01 1 1306- ●
301 SHIM; TOP GEAR SHAFT
PTO ZF TRANS RR(BDM) EXC. ASSISTOR SHIFT CONTROL<WX8> T=1.65 		1-33139-234-0 01 1 0904-0912 ●
301 SHIM; TOP GEAR SHAFT
EXC. ASSISTOR SHIFT CONTROL<WX8> T=1.65 		1-33139-234-0 01 1 1001-1305 ●
301 SHIM; TOP GEAR SHAFT
T=1.65 		1-33139-234-0 01 1 1306- ●
301 SHIM; TOP GEAR SHAFT
T=1.60 		1-33139-042-0 01 1 0710- ●
301 SHIM; TOP GEAR SHAFT
T=1.50 		1-33139-043-0 01 1 0710- ●
301 SHIM; TOP GEAR SHAFT
T=1.40 		1-33139-045-0 01 1 0710- ●
301 SHIM; TOP GEAR SHAFT
T=1.30 		1-33139-046-0 01 1 0710- ●
301 SHIM; TOP GEAR SHAFT
T=1.20 		1-33139-047-0 01 1 0710-0903 ●
301 SHIM; TOP GEAR SHAFT
PTO ZF TRANS RR(BDM) ASSISTOR SHIFT CONTROL<WX8> T=1.20 		1-33139-047-0 01 1 0904-0912 ●
301 SHIM; TOP GEAR SHAFT
EXC. PTO ZF TRANS RR(BDM) T=1.20 		1-33139-047-0 01 1 0904-0912 ●
301 SHIM; TOP GEAR SHAFT
ASSISTOR SHIFT CONTROL<WX8> T=1.20 		1-33139-047-0 01 1 1001-1305 ●
301 SHIM; TOP GEAR SHAFT
T=1.20 		1-33139-047-0 01 1 1306- ●
301 SHIM; TOP GEAR SHAFT
T=1.10 		1-33139-050-0 01 1 0710-0903 ●
301 SHIM; TOP GEAR SHAFT
PTO ZF TRANS RR(BDM) ASSISTOR SHIFT CONTROL<WX8> T=1.10 		1-33139-050-0 01 1 0904-0912 ●
301 SHIM; TOP GEAR SHAFT
EXC. PTO ZF TRANS RR(BDM) T=1.10 		1-33139-050-0 01 1 0904-0912 ●
301 SHIM; TOP GEAR SHAFT
ASSISTOR SHIFT CONTROL<WX8> T=1.10 		1-33139-050-0 01 1 1001-1305 ●
301 SHIM; TOP GEAR SHAFT
T=1.10 		1-33139-050-0 01 1 1306- ●
301 SHIM; TOP GEAR SHAFT
T=1.45 		1-33139-201-0 01 1 0710- ●
301 SHIM; TOP GEAR SHAFT
T=1.55 		1-33139-202-0 01 1 0710- ●
301 SHIM; TOP GEAR SHAFT
T=1.05 		1-33139-203-0 01 1 0710-0903 ●
301 SHIM; TOP GEAR SHAFT
PTO ZF TRANS RR(BDM) ASSISTOR SHIFT CONTROL<WX8> T=1.05 		1-33139-203-0 01 1 0904-0912 ●
301 SHIM; TOP GEAR SHAFT
EXC. PTO ZF TRANS RR(BDM) T=1.05 		1-33139-203-0 01 1 0904-0912 ●
301 SHIM; TOP GEAR SHAFT
ASSISTOR SHIFT CONTROL<WX8> T=1.05 		1-33139-203-0 01 1 1001-1305 ●
301 SHIM; TOP GEAR SHAFT
T=1.15 		1-33139-204-0 01 1 0710-0903 ●
301 SHIM; TOP GEAR SHAFT
PTO ZF TRANS RR(BDM) ASSISTOR SHIFT CONTROL<WX8> T=1.15 		1-33139-204-0 01 1 0904-0912 ●
301 SHIM; TOP GEAR SHAFT
EXC. PTO ZF TRANS RR(BDM) T=1.15 		1-33139-204-0 01 1 0904-0912 ●
301 SHIM; TOP GEAR SHAFT
ASSISTOR SHIFT CONTROL<WX8> T=1.15 		1-33139-204-0 01 1 1001-1305 ●
301 SHIM; TOP GEAR SHAFT
T=1.15 		1-33139-204-0 01 1 1306- ●
301 SHIM; TOP GEAR SHAFT
T=1.25 		1-33139-205-0 01 1 0710-0903 ●
301 SHIM; TOP GEAR SHAFT
PTO ZF TRANS RR(BDM) ASSISTOR SHIFT CONTROL<WX8> T=1.25 		1-33139-205-0 01 1 0904-0912 ●
301 SHIM; TOP GEAR SHAFT
EXC. PTO ZF TRANS RR(BDM) T=1.25 		1-33139-205-0 01 1 0904-0912 ●
301 SHIM; TOP GEAR SHAFT
ASSISTOR SHIFT CONTROL<WX8> T=1.25 		1-33139-205-0 01 1 1001-1305 ●
301 SHIM; TOP GEAR SHAFT
T=1.25 		1-33139-205-0 01 1 1306- ●
301 SHIM; TOP GEAR SHAFT
T=1.35 		1-33139-206-0 01 1 0710- ●
301 SHIM; TOP GEAR SHAFT
T=0.90 		1-33139-207-0 01 1 0710-0903 ●
301 SHIM; TOP GEAR SHAFT
PTO ZF TRANS RR(BDM) ASSISTOR SHIFT CONTROL<WX8> T=0.90 		1-33139-207-0 01 1 0904-0912 ●
301 SHIM; TOP GEAR SHAFT
EXC. PTO ZF TRANS RR(BDM) T=0.90 		1-33139-207-0 01 1 0904-0912 ●
301 SHIM; TOP GEAR SHAFT
ASSISTOR SHIFT CONTROL<WX8> T=0.90 		1-33139-207-0 01 1 1001-1305 ●
301 SHIM; TOP GEAR SHAFT
T=0.95 		1-33139-208-0 01 1 0710-0903 ●
301 SHIM; TOP GEAR SHAFT
PTO ZF TRANS RR(BDM) ASSISTOR SHIFT CONTROL<WX8> T=0.95 		1-33139-208-0 01 1 0904-0912 ●
301 SHIM; TOP GEAR SHAFT
EXC. PTO ZF TRANS RR(BDM) T=0.95 		1-33139-208-0 01 1 0904-0912 ●
301 SHIM; TOP GEAR SHAFT
ASSISTOR SHIFT CONTROL<WX8> T=0.95 		1-33139-208-0 01 1 1001-1305 ●
301 SHIM; TOP GEAR SHAFT
T=1.00 		1-33139-209-0 01 1 0710-0903 ●
301 SHIM; TOP GEAR SHAFT
PTO ZF TRANS RR(BDM) ASSISTOR SHIFT CONTROL<WX8> T=1.00 		1-33139-209-0 01 1 0904-0912 ●
301 SHIM; TOP GEAR SHAFT
EXC. PTO ZF TRANS RR(BDM) T=1.00 		1-33139-209-0 01 1 0904-0912 ●
301 SHIM; TOP GEAR SHAFT
ASSISTOR SHIFT CONTROL<WX8> T=1.00 		1-33139-209-0 01 1 1001-1305 ●

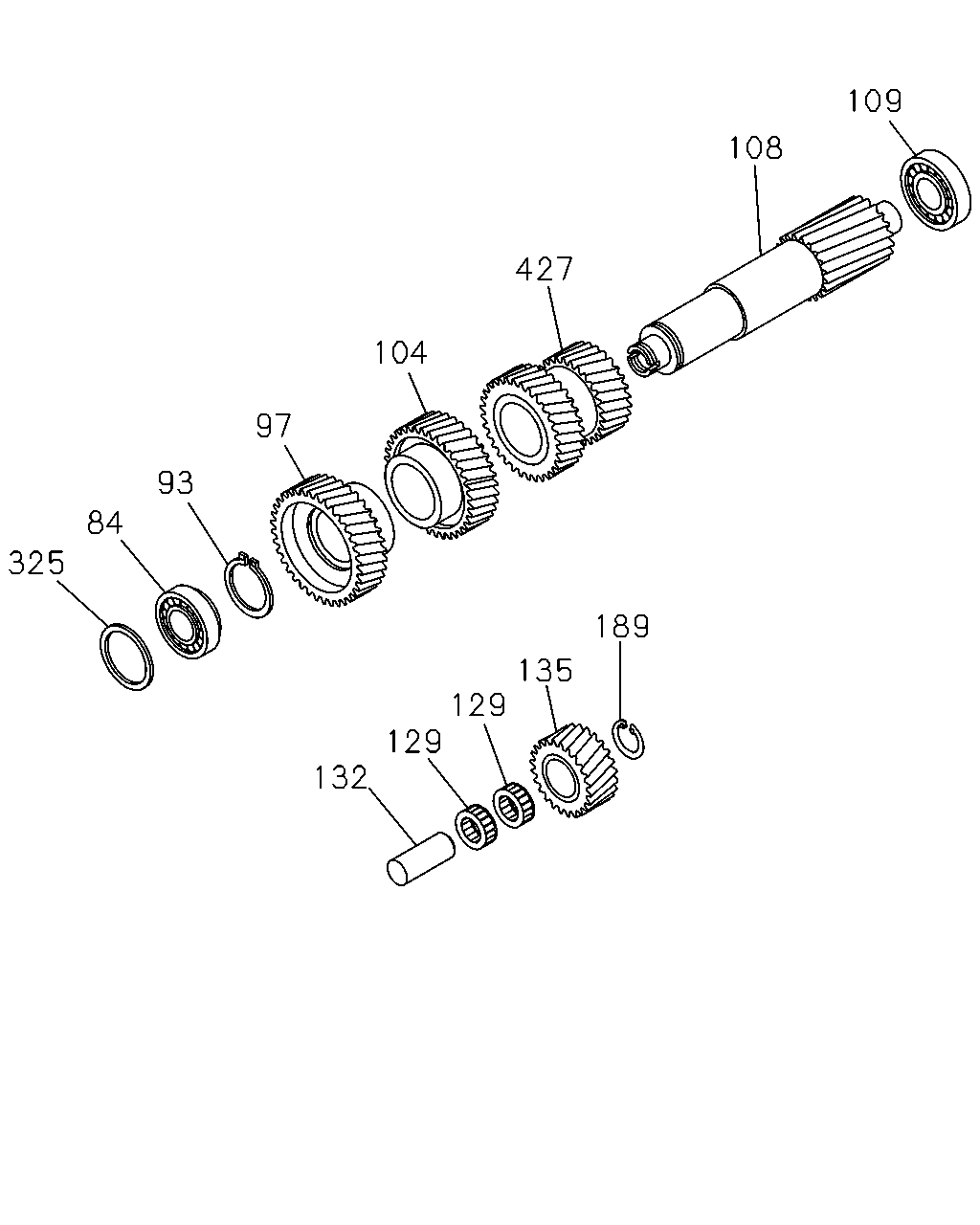

325 SHIM; COUNTER SHAFT BRG
ASSISTOR SHIFT CONTROL<WX8> T=1.50 		8-98080-571-0 01 1 1306- ●
325 SHIM; COUNTER SHAFT BRG
EXC. PTO ZF TRANS RR(BDM),ASSISTOR SHIFT CONTROL<WX8> T=1.50 		8-98080-571-0 01 1 1306- ●
325 SHIM; COUNTER SHAFT BRG
ASSISTOR SHIFT CONTROL<WX8> T=1.60 		8-98080-572-0 01 1 1306- ●
325 SHIM; COUNTER SHAFT BRG
EXC. PTO ZF TRANS RR(BDM),ASSISTOR SHIFT CONTROL<WX8> T=1.60 		8-98080-572-0 01 1 1306- ●
325 SHIM; COUNTER SHAFT BRG
PTO ZF TRANS RR(BDM) EXC. ASSISTOR SHIFT CONTROL<WX8> T=2.40 		1-33389-086-0 01 1 0904-0912 ●
325 SHIM; COUNTER SHAFT BRG
EXC. ASSISTOR SHIFT CONTROL<WX8> T=2.40 		1-33389-086-0 01 1 1001-1305 ●
325 SHIM; COUNTER SHAFT BRG
T=2.40 		1-33389-086-0 01 1 1306- ●
325 SHIM; COUNTER SHAFT BRG
PTO ZF TRANS RR(BDM) EXC. ASSISTOR SHIFT CONTROL<WX8> T=2.35 		1-33389-087-0 01 1 0904-0912 ●
325 SHIM; COUNTER SHAFT BRG
EXC. ASSISTOR SHIFT CONTROL<WX8> T=2.35 		1-33389-087-0 01 1 1001-1305 ●
325 SHIM; COUNTER SHAFT BRG
T=2.35 		1-33389-087-0 01 1 1306- ●
325 SHIM; COUNTER SHAFT BRG
PTO ZF TRANS RR(BDM) EXC. ASSISTOR SHIFT CONTROL<WX8> T=2.30 		1-33389-088-0 01 1 0904-0912 ●
325 SHIM; COUNTER SHAFT BRG
EXC. ASSISTOR SHIFT CONTROL<WX8> T=2.30 		1-33389-088-0 01 1 1001-1305 ●
325 SHIM; COUNTER SHAFT BRG
T=2.30 		1-33389-088-0 01 1 1306- ●
325 SHIM; COUNTER SHAFT BRG
PTO ZF TRANS RR(BDM) EXC. ASSISTOR SHIFT CONTROL<WX8> T=2.25 		1-33389-089-0 01 1 0904-0912 ●
325 SHIM; COUNTER SHAFT BRG
EXC. ASSISTOR SHIFT CONTROL<WX8> T=2.25 		1-33389-089-0 01 1 1001-1305 ●
325 SHIM; COUNTER SHAFT BRG
T=2.25 		1-33389-089-0 01 1 1306- ●
325 SHIM; COUNTER SHAFT BRG
EXC. PTO ZF TRANS RR(BDM) T=1.35 		1-33389-052-0 01 1 0809-1311 ●
325 SHIM; COUNTER SHAFT BRG
T=1.35 		1-33389-052-0 01 1 1312- ●
325 SHIM; COUNTER SHAFT BRG
EXC. PTO ZF TRANS RR(BDM) T=1.25 		1-33389-055-0 01 1 0809-1311 ●
325 SHIM; COUNTER SHAFT BRG
T=1.25 		1-33389-055-0 01 1 1312- ●
325 SHIM; COUNTER SHAFT BRG
EXC. PTO ZF TRANS RR(BDM) T=1.15 		1-33389-057-0 01 1 0809-1311 ●
325 SHIM; COUNTER SHAFT BRG
T=1.15 		1-33389-057-0 01 1 1312- ●
325 SHIM; COUNTER SHAFT BRG
T=1.30 		1-33389-053-0 01 1 0809- ●
325 SHIM; COUNTER SHAFT BRG
T=1.20 		1-33389-056-0 01 1 0809- ●
325 SHIM; COUNTER SHAFT BRG
T=1.10 		1-33389-058-0 01 1 0809- ●
325 SHIM; COUNTER SHAFT BRG
T=1.60 		1-33389-047-0 01 1 0710-0808 ●
325 SHIM; COUNTER SHAFT BRG
T=1.60 		1-33389-047-0 01 1 0809-1305 ● ●
325 SHIM; COUNTER SHAFT BRG
PTO ZF TRANS RR(BDM) EXC. ASSISTOR SHIFT CONTROL<WX8> T=1.60 		1-33389-047-0 01 1 1306- ●
325 SHIM; COUNTER SHAFT BRG
T=1.60 		1-33389-047-0 01 1 1306- ●
325 SHIM; COUNTER SHAFT BRG
T=1.55 		1-33389-048-0 01 1 0710-0808 ●
325 SHIM; COUNTER SHAFT BRG
T=1.55 		1-33389-048-0 01 1 0809-1311 ●
325 SHIM; COUNTER SHAFT BRG
EXC. PTO ZF TRANS RR(BDM) T=1.55 		1-33389-048-0 01 1 0809-1311 ●
325 SHIM; COUNTER SHAFT BRG
T=1.55 		1-33389-048-0 01 1 1312- ● ●
325 SHIM; COUNTER SHAFT BRG
T=1.50 		1-33389-049-0 01 1 0710-0808 ●
325 SHIM; COUNTER SHAFT BRG
T=1.50 		1-33389-049-0 01 1 0809-1305 ● ●
325 SHIM; COUNTER SHAFT BRG
PTO ZF TRANS RR(BDM) EXC. ASSISTOR SHIFT CONTROL<WX8> T=1.50 		1-33389-049-0 01 1 1306- ●
325 SHIM; COUNTER SHAFT BRG
T=1.50 		1-33389-049-0 01 1 1306- ●
325 SHIM; COUNTER SHAFT BRG
T=1.45 		1-33389-050-0 01 1 0710-0808 ●
325 SHIM; COUNTER SHAFT BRG
T=1.45 		1-33389-050-0 01 1 0809-0903 ●
325 SHIM; COUNTER SHAFT BRG
EXC. PTO ZF TRANS RR(BDM) T=1.45 		1-33389-050-0 01 1 0809-0903 ●
325 SHIM; COUNTER SHAFT BRG
EXC. PTO ZF TRANS RR(BDM) T=1.45 		1-33389-050-0 01 1 0904-0912 ● ●
325 SHIM; COUNTER SHAFT BRG
PTO ZF TRANS RR(BDM) ASSISTOR SHIFT CONTROL<WX8> T=1.45 		1-33389-050-0 01 1 0904-0912 ●
325 SHIM; COUNTER SHAFT BRG
ASSISTOR SHIFT CONTROL<WX8> T=1.45 		1-33389-050-0 01 1 1001-1305 ●
325 SHIM; COUNTER SHAFT BRG
EXC. PTO ZF TRANS RR(BDM) T=1.45 		1-33389-050-0 01 1 1001-1305 ●
325 SHIM; COUNTER SHAFT BRG
EXC. PTO ZF TRANS RR(BDM) T=1.45 		1-33389-050-0 01 1 1306-1311 ●
325 SHIM; COUNTER SHAFT BRG
T=1.45 		1-33389-050-0 01 1 1312- ●
325 SHIM; COUNTER SHAFT BRG
T=1.40 		1-33389-051-0 01 1 0710-0808 ●
325 SHIM; COUNTER SHAFT BRG
T=1.40 		1-33389-051-0 01 1 0809-0903 ● ●
325 SHIM; COUNTER SHAFT BRG
PTO ZF TRANS RR(BDM) ASSISTOR SHIFT CONTROL<WX8> T=1.40 		1-33389-051-0 01 1 0904-0912 ●
325 SHIM; COUNTER SHAFT BRG
EXC. PTO ZF TRANS RR(BDM) T=1.40 		1-33389-051-0 01 1 0904-0912 ●
325 SHIM; COUNTER SHAFT BRG
T=1.40 		1-33389-051-0 01 1 0904-0912 ●
325 SHIM; COUNTER SHAFT BRG
ASSISTOR SHIFT CONTROL<WX8> T=1.40 		1-33389-051-0 01 1 1001-1305 ●
325 SHIM; COUNTER SHAFT BRG
T=1.40 		1-33389-051-0 01 1 1001-1305 ●
325 SHIM; COUNTER SHAFT BRG
T=1.40 		1-33389-051-0 01 1 1306- ●
325 SHIM; COUNTER SHAFT BRG
T=2.00 		1-33389-073-0 01 1 0710-0808 ●
325 SHIM; COUNTER SHAFT BRG
T=2.00 		1-33389-073-0 01 1 0809- ● ●
325 SHIM; COUNTER SHAFT BRG
T=1.90 		1-33389-074-0 01 1 0710-0808 ●
325 SHIM; COUNTER SHAFT BRG
T=1.90 		1-33389-074-0 01 1 0809- ● ●
325 SHIM; COUNTER SHAFT BRG
T=1.80 		1-33389-075-0 01 1 0710-0808 ●
325 SHIM; COUNTER SHAFT BRG
T=1.80 		1-33389-075-0 01 1 0809- ● ●
325 SHIM; COUNTER SHAFT BRG
T=1.70 		1-33389-076-0 01 1 0710-0808 ●
325 SHIM; COUNTER SHAFT BRG
T=1.70 		1-33389-076-0 01 1 0809- ● ●
325 SHIM; COUNTER SHAFT BRG
T=1.65 		1-33389-077-0 01 1 0710-0808 ●
325 SHIM; COUNTER SHAFT BRG
T=1.65 		1-33389-077-0 01 1 0809-1311 ●
325 SHIM; COUNTER SHAFT BRG
EXC. PTO ZF TRANS RR(BDM) T=1.65 		1-33389-077-0 01 1 0809-1311 ●
325 SHIM; COUNTER SHAFT BRG
T=1.65 		1-33389-077-0 01 1 1312- ● ●
325 SHIM; COUNTER SHAFT BRG
T=1.75 		1-33389-078-0 01 1 0710-0808 ●
325 SHIM; COUNTER SHAFT BRG
T=1.75 		1-33389-078-0 01 1 0809-1311 ●
325 SHIM; COUNTER SHAFT BRG
EXC. PTO ZF TRANS RR(BDM) T=1.75 		1-33389-078-0 01 1 0809-1311 ●
325 SHIM; COUNTER SHAFT BRG
T=1.75 		1-33389-078-0 01 1 1312- ● ●
325 SHIM; COUNTER SHAFT BRG
T=1.85 		1-33389-079-0 01 1 0710-0808 ●
325 SHIM; COUNTER SHAFT BRG
T=1.85 		1-33389-079-0 01 1 0809-1311 ●
325 SHIM; COUNTER SHAFT BRG
EXC. PTO ZF TRANS RR(BDM) T=1.85 		1-33389-079-0 01 1 0809-1311 ●
325 SHIM; COUNTER SHAFT BRG
T=1.85 		1-33389-079-0 01 1 1312- ● ●
325 SHIM; COUNTER SHAFT BRG
T=1.95 		1-33389-080-0 01 1 0710-0808 ●
325 SHIM; COUNTER SHAFT BRG
T=1.95 		1-33389-080-0 01 1 0809-1311 ●
325 SHIM; COUNTER SHAFT BRG
EXC. PTO ZF TRANS RR(BDM) T=1.95 		1-33389-080-0 01 1 0809-1311 ●
325 SHIM; COUNTER SHAFT BRG
T=1.95 		1-33389-080-0 01 1 1312- ● ●
325 SHIM; COUNTER SHAFT BRG
T=2.05 		1-33389-081-0 01 1 0710-0808 ●
325 SHIM; COUNTER SHAFT BRG
T=2.05 		1-33389-081-0 01 1 0809-1311 ●
325 SHIM; COUNTER SHAFT BRG
EXC. PTO ZF TRANS RR(BDM) T=2.05 		1-33389-081-0 01 1 0809-1311 ●
325 SHIM; COUNTER SHAFT BRG
T=2.05 		1-33389-081-0 01 1 1312- ● ●
325 SHIM; COUNTER SHAFT BRG
T=2.10 		1-33389-082-0 01 1 0710- ●
325 SHIM; COUNTER SHAFT BRG
T=2.15 		1-33389-083-0 01 1 0710- ●
325 SHIM; COUNTER SHAFT BRG
T=2.20 		1-33389-084-0 01 1 0710- ●
çizim 179248
109 108 427 104 97 93 84 325 189 135 129 129 132
BalonParca AdiParca NoAdetTipApplied Date A B
84 BEARING; COUNTER SHAFT,FRT 1-33239-360-0 01 1 0809- ●
84 BEARING; COUNTER SHAFT,FRT
PTO ZF TRANS RR(BDM) 		1-33312-016-0 01 1 0710-0808 ●
84 BEARING; COUNTER SHAFT,FRT
PTO ZF TRANS RR(BDM) 		1-33312-016-0 01 1 0809-1305 ●
84 BEARING; COUNTER SHAFT,FRT
EXC. PTO ZF TRANS RR(BDM),ASSISTOR SHIFT CONTROL<WX8> 		1-33312-016-0 01 1 0809-1305 ●
84 BEARING; COUNTER SHAFT,FRT 1-33312-016-0 01 1 1306- ●
84 BEARING; COUNTER SHAFT,FRT
EXC. PTO ZF TRANS RR(BDM) 		1-33312-015-0 01 1 0710-0808 ●
84 BEARING; COUNTER SHAFT,FRT
ASSISTOR SHIFT CONTROL<WX8> EXC. PTO ZF TRANS RR(BDM) 		1-33312-015-0 01 1 0809-1305 ●
93 RING; SNAP,COUNTER FRT BRG
T=2.6 		1-33319-264-0 01 1 1306- ●
93 RING; SNAP,COUNTER FRT BRG 1-33319-257-0 01 1 0809- ●
93 RING; SNAP,COUNTER FRT BRG
T=2.0 		1-33319-251-0 01 1 0710- ●
93 RING; SNAP,COUNTER FRT BRG
T=2.5 		1-33319-252-0 01 1 0710- ●
93 RING; SNAP,COUNTER FRT BRG
T=2.4 		1-33319-253-0 01 1 0710- ●
93 RING; SNAP,COUNTER FRT BRG
T=2.3 		1-33319-254-0 01 1 0710- ●
93 RING; SNAP,COUNTER FRT BRG
T=2.2 		1-33319-255-0 01 1 0710- ●
93 RING; SNAP,COUNTER FRT BRG
T=2.1 		1-33319-256-0 01 1 0710- ●
97 GEAR; 5TH,COUNTER 1-33338-403-0 01 1 0809- ●
97 GEAR; 5TH,COUNTER 1-33338-398-0 01 1 0710- ●
104 GEAR; 4TH,COUNTER 1-33338-401-0 01 1 0809- ●
104 GEAR; 4TH,COUNTER 1-33338-397-0 01 1 0710- ●
108 SHAFT; COUNTER 1-33311-349-0 01 1 0809- ●
108 SHAFT; COUNTER 1-33311-347-0 01 1 0710- ●
109 BEARING; COUNTER SHAFT,RR 1-33239-361-0 01 1 0809- ●
109 BEARING; COUNTER SHAFT,RR 1-33312-006-0 01 1 0710- ●
129 BEARING; NEEDLE,IDLER
PTO ZF TRANS RR(BDM) EXC. ASSISTOR SHIFT CONTROL<WX8> 		1-33369-026-0 02 1 0904-0912 ●
129 BEARING; NEEDLE,IDLER
EXC. ASSISTOR SHIFT CONTROL<WX8> 		1-33369-026-0 02 1 1001-1305 ●
129 BEARING; NEEDLE,IDLER 1-33369-026-0 02 1 1306- ●
129 BEARING; NEEDLE,IDLER 1-33369-025-0 02 1 0809- ●
129 BEARING; NEEDLE,IDLER 1-33369-013-0 02 1 0710-0903 ●
129 BEARING; NEEDLE,IDLER
PTO ZF TRANS RR(BDM) ASSISTOR SHIFT CONTROL<WX8> 		1-33369-013-0 02 1 0904-0912 ●
129 BEARING; NEEDLE,IDLER
EXC. PTO ZF TRANS RR(BDM) 		1-33369-013-0 02 1 0904-0912 ●
129 BEARING; NEEDLE,IDLER
ASSISTOR SHIFT CONTROL<WX8> 		1-33369-013-0 02 1 1001-1305 ●
132 SHAFT; REV 1-33351-043-0 01 1 0809- ●
132 SHAFT; REV 1-33351-024-0 01 1 0710- ●
135 GEAR; REV IDLER
EXC. PTO ZF TRANS RR(BDM) 		1-33361-094-0 01 1 0809-1311 ●
135 GEAR; REV IDLER 1-33361-095-0 01 1 1312- ●
135 GEAR; REV IDLER
PTO ZF TRANS RR(BDM) 		1-33361-093-0 01 1 0809-1311 ●
135 GEAR; REV IDLER 1-33361-092-0 01 1 0710-1305 ●
135 GEAR; REV IDLER 1-33361-096-0 01 1 1306- ●
189 RING; SNAP,REV,GEAR 1-44519-224-0 01 1 0710- ●
325 SHIM; COUNTER SHAFT BRG
ASSISTOR SHIFT CONTROL<WX8> T=1.50 		8-98080-571-0 01 1 1306- ●
325 SHIM; COUNTER SHAFT BRG
EXC. PTO ZF TRANS RR(BDM),ASSISTOR SHIFT CONTROL<WX8> T=1.50 		8-98080-571-0 01 1 1306- ●
325 SHIM; COUNTER SHAFT BRG
ASSISTOR SHIFT CONTROL<WX8> T=1.60 		8-98080-572-0 01 1 1306- ●
325 SHIM; COUNTER SHAFT BRG
EXC. PTO ZF TRANS RR(BDM),ASSISTOR SHIFT CONTROL<WX8> T=1.60 		8-98080-572-0 01 1 1306- ●
325 SHIM; COUNTER SHAFT BRG
PTO ZF TRANS RR(BDM) EXC. ASSISTOR SHIFT CONTROL<WX8> T=2.40 		1-33389-086-0 01 1 0904-0912 ●
325 SHIM; COUNTER SHAFT BRG
EXC. ASSISTOR SHIFT CONTROL<WX8> T=2.40 		1-33389-086-0 01 1 1001-1305 ●
325 SHIM; COUNTER SHAFT BRG
T=2.40 		1-33389-086-0 01 1 1306- ●
325 SHIM; COUNTER SHAFT BRG
PTO ZF TRANS RR(BDM) EXC. ASSISTOR SHIFT CONTROL<WX8> T=2.35 		1-33389-087-0 01 1 0904-0912 ●
325 SHIM; COUNTER SHAFT BRG
EXC. ASSISTOR SHIFT CONTROL<WX8> T=2.35 		1-33389-087-0 01 1 1001-1305 ●
325 SHIM; COUNTER SHAFT BRG
T=2.35 		1-33389-087-0 01 1 1306- ●
325 SHIM; COUNTER SHAFT BRG
PTO ZF TRANS RR(BDM) EXC. ASSISTOR SHIFT CONTROL<WX8> T=2.30 		1-33389-088-0 01 1 0904-0912 ●
325 SHIM; COUNTER SHAFT BRG
EXC. ASSISTOR SHIFT CONTROL<WX8> T=2.30 		1-33389-088-0 01 1 1001-1305 ●
325 SHIM; COUNTER SHAFT BRG
T=2.30 		1-33389-088-0 01 1 1306- ●
325 SHIM; COUNTER SHAFT BRG
PTO ZF TRANS RR(BDM) EXC. ASSISTOR SHIFT CONTROL<WX8> T=2.25 		1-33389-089-0 01 1 0904-0912 ●
325 SHIM; COUNTER SHAFT BRG
EXC. ASSISTOR SHIFT CONTROL<WX8> T=2.25 		1-33389-089-0 01 1 1001-1305 ●
325 SHIM; COUNTER SHAFT BRG
T=2.25 		1-33389-089-0 01 1 1306- ●
325 SHIM; COUNTER SHAFT BRG
EXC. PTO ZF TRANS RR(BDM) T=1.35 		1-33389-052-0 01 1 0809-1311 ●
325 SHIM; COUNTER SHAFT BRG
T=1.35 		1-33389-052-0 01 1 1312- ●
325 SHIM; COUNTER SHAFT BRG
EXC. PTO ZF TRANS RR(BDM) T=1.25 		1-33389-055-0 01 1 0809-1311 ●
325 SHIM; COUNTER SHAFT BRG
T=1.25 		1-33389-055-0 01 1 1312- ●
325 SHIM; COUNTER SHAFT BRG
EXC. PTO ZF TRANS RR(BDM) T=1.15 		1-33389-057-0 01 1 0809-1311 ●
325 SHIM; COUNTER SHAFT BRG
T=1.15 		1-33389-057-0 01 1 1312- ●
325 SHIM; COUNTER SHAFT BRG
T=1.30 		1-33389-053-0 01 1 0809- ●
325 SHIM; COUNTER SHAFT BRG
T=1.20 		1-33389-056-0 01 1 0809- ●
325 SHIM; COUNTER SHAFT BRG
T=1.10 		1-33389-058-0 01 1 0809- ●
325 SHIM; COUNTER SHAFT BRG
T=1.60 		1-33389-047-0 01 1 0710-0808 ●
325 SHIM; COUNTER SHAFT BRG
T=1.60 		1-33389-047-0 01 1 0809-1305 ● ●
325 SHIM; COUNTER SHAFT BRG
PTO ZF TRANS RR(BDM) EXC. ASSISTOR SHIFT CONTROL<WX8> T=1.60 		1-33389-047-0 01 1 1306- ●
325 SHIM; COUNTER SHAFT BRG
T=1.60 		1-33389-047-0 01 1 1306- ●
325 SHIM; COUNTER SHAFT BRG
T=1.55 		1-33389-048-0 01 1 0710-0808 ●
325 SHIM; COUNTER SHAFT BRG
T=1.55 		1-33389-048-0 01 1 0809-1311 ●
325 SHIM; COUNTER SHAFT BRG
EXC. PTO ZF TRANS RR(BDM) T=1.55 		1-33389-048-0 01 1 0809-1311 ●
325 SHIM; COUNTER SHAFT BRG
T=1.55 		1-33389-048-0 01 1 1312- ● ●
325 SHIM; COUNTER SHAFT BRG
T=1.50 		1-33389-049-0 01 1 0710-0808 ●
325 SHIM; COUNTER SHAFT BRG
T=1.50 		1-33389-049-0 01 1 0809-1305 ● ●
325 SHIM; COUNTER SHAFT BRG
PTO ZF TRANS RR(BDM) EXC. ASSISTOR SHIFT CONTROL<WX8> T=1.50 		1-33389-049-0 01 1 1306- ●
325 SHIM; COUNTER SHAFT BRG
T=1.50 		1-33389-049-0 01 1 1306- ●
325 SHIM; COUNTER SHAFT BRG
T=1.45 		1-33389-050-0 01 1 0710-0808 ●
325 SHIM; COUNTER SHAFT BRG
T=1.45 		1-33389-050-0 01 1 0809-0903 ●
325 SHIM; COUNTER SHAFT BRG
EXC. PTO ZF TRANS RR(BDM) T=1.45 		1-33389-050-0 01 1 0809-0903 ●
325 SHIM; COUNTER SHAFT BRG
EXC. PTO ZF TRANS RR(BDM) T=1.45 		1-33389-050-0 01 1 0904-0912 ● ●
325 SHIM; COUNTER SHAFT BRG
PTO ZF TRANS RR(BDM) ASSISTOR SHIFT CONTROL<WX8> T=1.45 		1-33389-050-0 01 1 0904-0912 ●
325 SHIM; COUNTER SHAFT BRG
ASSISTOR SHIFT CONTROL<WX8> T=1.45 		1-33389-050-0 01 1 1001-1305 ●
325 SHIM; COUNTER SHAFT BRG
EXC. PTO ZF TRANS RR(BDM) T=1.45 		1-33389-050-0 01 1 1001-1305 ●
325 SHIM; COUNTER SHAFT BRG
EXC. PTO ZF TRANS RR(BDM) T=1.45 		1-33389-050-0 01 1 1306-1311 ●
325 SHIM; COUNTER SHAFT BRG
T=1.45 		1-33389-050-0 01 1 1312- ●
325 SHIM; COUNTER SHAFT BRG
T=1.40 		1-33389-051-0 01 1 0710-0808 ●
325 SHIM; COUNTER SHAFT BRG
T=1.40 		1-33389-051-0 01 1 0809-0903 ● ●
325 SHIM; COUNTER SHAFT BRG
PTO ZF TRANS RR(BDM) ASSISTOR SHIFT CONTROL<WX8> T=1.40 		1-33389-051-0 01 1 0904-0912 ●
325 SHIM; COUNTER SHAFT BRG
EXC. PTO ZF TRANS RR(BDM) T=1.40 		1-33389-051-0 01 1 0904-0912 ●
325 SHIM; COUNTER SHAFT BRG
T=1.40 		1-33389-051-0 01 1 0904-0912 ●
325 SHIM; COUNTER SHAFT BRG
ASSISTOR SHIFT CONTROL<WX8> T=1.40 		1-33389-051-0 01 1 1001-1305 ●
325 SHIM; COUNTER SHAFT BRG
T=1.40 		1-33389-051-0 01 1 1001-1305 ●
325 SHIM; COUNTER SHAFT BRG
T=1.40 		1-33389-051-0 01 1 1306- ●
325 SHIM; COUNTER SHAFT BRG
T=2.00 		1-33389-073-0 01 1 0710-0808 ●
325 SHIM; COUNTER SHAFT BRG
T=2.00 		1-33389-073-0 01 1 0809- ● ●
325 SHIM; COUNTER SHAFT BRG
T=1.90 		1-33389-074-0 01 1 0710-0808 ●
325 SHIM; COUNTER SHAFT BRG
T=1.90 		1-33389-074-0 01 1 0809- ● ●
325 SHIM; COUNTER SHAFT BRG
T=1.80 		1-33389-075-0 01 1 0710-0808 ●
325 SHIM; COUNTER SHAFT BRG
T=1.80 		1-33389-075-0 01 1 0809- ● ●
325 SHIM; COUNTER SHAFT BRG
T=1.70 		1-33389-076-0 01 1 0710-0808 ●
325 SHIM; COUNTER SHAFT BRG
T=1.70 		1-33389-076-0 01 1 0809- ● ●
325 SHIM; COUNTER SHAFT BRG
T=1.65 		1-33389-077-0 01 1 0710-0808 ●
325 SHIM; COUNTER SHAFT BRG
T=1.65 		1-33389-077-0 01 1 0809-1311 ●
325 SHIM; COUNTER SHAFT BRG
EXC. PTO ZF TRANS RR(BDM) T=1.65 		1-33389-077-0 01 1 0809-1311 ●
325 SHIM; COUNTER SHAFT BRG
T=1.65 		1-33389-077-0 01 1 1312- ● ●
325 SHIM; COUNTER SHAFT BRG
T=1.75 		1-33389-078-0 01 1 0710-0808 ●
325 SHIM; COUNTER SHAFT BRG
T=1.75 		1-33389-078-0 01 1 0809-1311 ●
325 SHIM; COUNTER SHAFT BRG
EXC. PTO ZF TRANS RR(BDM) T=1.75 		1-33389-078-0 01 1 0809-1311 ●
325 SHIM; COUNTER SHAFT BRG
T=1.75 		1-33389-078-0 01 1 1312- ● ●
325 SHIM; COUNTER SHAFT BRG
T=1.85 		1-33389-079-0 01 1 0710-0808 ●
325 SHIM; COUNTER SHAFT BRG
T=1.85 		1-33389-079-0 01 1 0809-1311 ●
325 SHIM; COUNTER SHAFT BRG
EXC. PTO ZF TRANS RR(BDM) T=1.85 		1-33389-079-0 01 1 0809-1311 ●
325 SHIM; COUNTER SHAFT BRG
T=1.85 		1-33389-079-0 01 1 1312- ● ●
325 SHIM; COUNTER SHAFT BRG
T=1.95 		1-33389-080-0 01 1 0710-0808 ●
325 SHIM; COUNTER SHAFT BRG
T=1.95 		1-33389-080-0 01 1 0809-1311 ●
325 SHIM; COUNTER SHAFT BRG
EXC. PTO ZF TRANS RR(BDM) T=1.95 		1-33389-080-0 01 1 0809-1311 ●
325 SHIM; COUNTER SHAFT BRG
T=1.95 		1-33389-080-0 01 1 1312- ● ●
325 SHIM; COUNTER SHAFT BRG
T=2.05 		1-33389-081-0 01 1 0710-0808 ●
325 SHIM; COUNTER SHAFT BRG
T=2.05 		1-33389-081-0 01 1 0809-1311 ●
325 SHIM; COUNTER SHAFT BRG
EXC. PTO ZF TRANS RR(BDM) T=2.05 		1-33389-081-0 01 1 0809-1311 ●
325 SHIM; COUNTER SHAFT BRG
T=2.05 		1-33389-081-0 01 1 1312- ● ●
325 SHIM; COUNTER SHAFT BRG
T=2.10 		1-33389-082-0 01 1 0710- ●
325 SHIM; COUNTER SHAFT BRG
T=2.15 		1-33389-083-0 01 1 0710- ●
325 SHIM; COUNTER SHAFT BRG
T=2.20 		1-33389-084-0 01 1 0710- ●
427 GEAR; 2ND & 3RD,COUNTER
PTO ZF TRANS RR(BDM) 		1-33332-131-0 01 1 0710-0808 ●
427 GEAR; 2ND & 3RD,COUNTER
PTO ZF TRANS RR(BDM) 		1-33332-131-0 01 1 0809-1305 ●
427 GEAR; 2ND & 3RD,COUNTER
EXC. PTO ZF TRANS RR(BDM),ASSISTOR SHIFT CONTROL<WX8> 		1-33332-131-0 01 1 0809-1305 ●
427 GEAR; 2ND & 3RD,COUNTER
EXC. PTO ZF TRANS RR(BDM) 		1-33332-130-0 01 1 0710-0808 ●
427 GEAR; 2ND & 3RD,COUNTER
ASSISTOR SHIFT CONTROL<WX8> EXC. PTO ZF TRANS RR(BDM) 		1-33332-130-0 01 1 0809-1305 ●
427 GEAR; 2ND & 3RD,COUNTER 1-33332-132-0 01 1 1306- ●

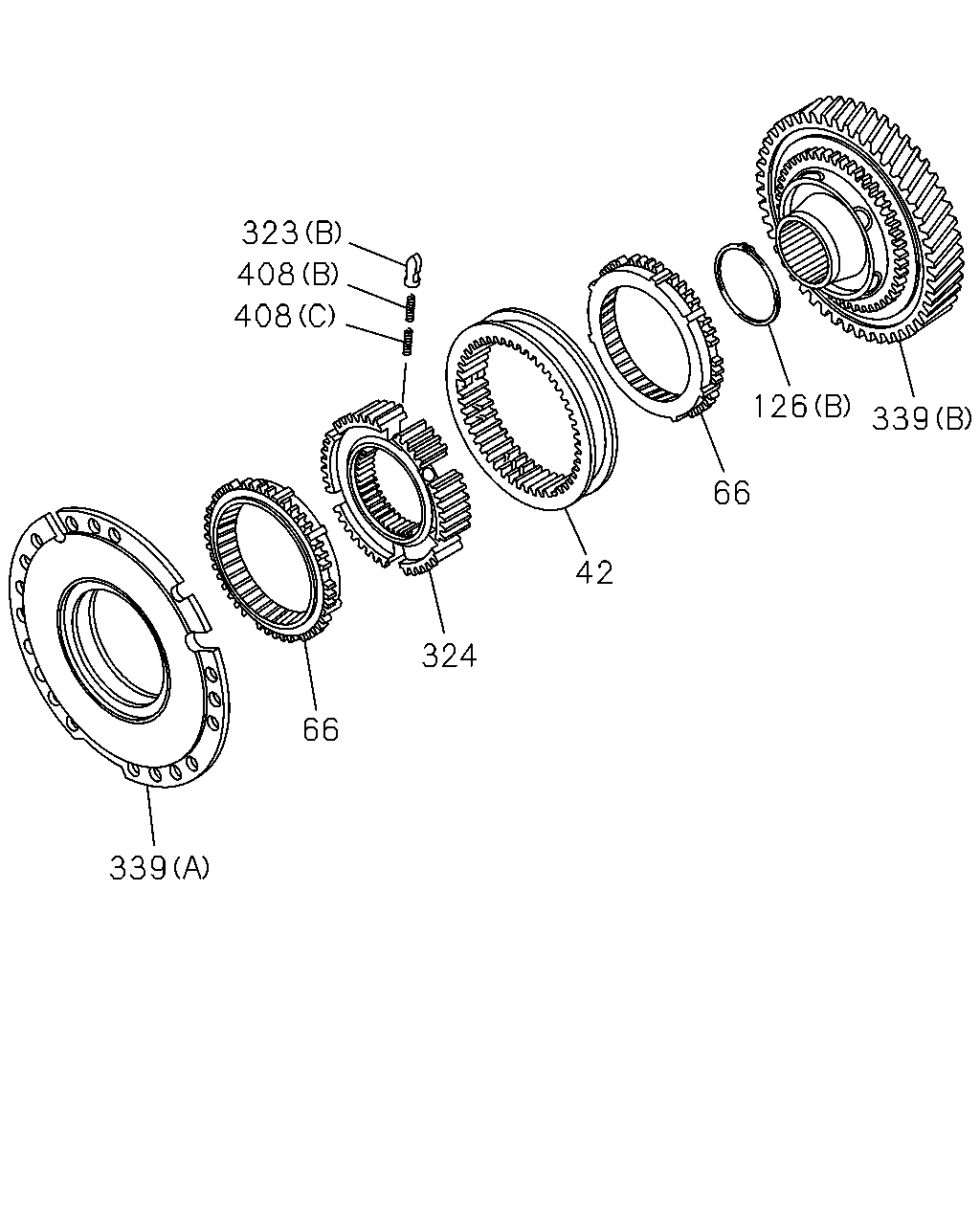

çizim 179259
323 408 408 126 339 66 42 324 66 339
BalonParca AdiParca NoAdetTipApplied Date A B
42 SLEEVE 1-33262-195-0 01 1 0710- ●
66 RING; BLOCK,SYN 1-33339-069-0 02 1 0710- ●
126 RING; SNAP,CLU HUB
(A) T=2.8 		1-33259-050-0 01 1 0710- ●
126 RING; SNAP,CLU HUB
(A) T=2.7 		1-33259-051-0 01 1 0710- ●
126 RING; SNAP,CLU HUB
(A) T=2.6 		1-33259-052-0 01 1 0710- ●
126 RING; SNAP,CLU HUB
(A) T=2.5 		1-33259-053-0 01 1 0710- ●
126 RING; SNAP,CLU HUB
(A) T=2.4 		1-33259-054-0 01 1 0710- ●
126 RING; SNAP,CLU HUB
(B) T=4.0 		1-33269-047-0 01 1 0710- ●
126 RING; SNAP,CLU HUB
(B) T=3.9 		1-33269-048-0 01 1 0710- ●
126 RING; SNAP,CLU HUB
(B) T=3.8 		1-33269-049-0 01 1 0710- ●
126 RING; SNAP,CLU HUB
(B) T=3.7 		1-33269-050-0 01 1 0710- ●
323 INSERT
(C) 		1-33263-043-0 03 1 0809- ●
323 INSERT
(A) 		1-33263-030-0 06 1 0710-0808 ●
323 INSERT
(A) 		1-33263-030-0 06 1 0809- ● ●
323 INSERT
(B) 		1-33263-027-0 09 1 0710- ●
324 HUB; CLU 1-33261-230-0 01 1 0710- ●
339 CLUTCH; PLANETARY GEAR
(A) 		1-33265-453-0 01 1 0710-1305 ●
339 CLUTCH; PLANETARY GEAR
ASSISTOR SHIFT CONTROL<WX8> (A) 		1-33265-649-0 01 1 1306- ●
339 CLUTCH; PLANETARY GEAR
(B) 		1-33265-632-0 01 1 0710- ●
408 SPRING
(D) 		1-33269-099-0 03 1 0809- ●
408 SPRING
(B) 		1-33269-038-0 09 1 0710- ●
408 SPRING
(C) 		1-33269-039-0 09 1 0710- ●
408 SPRING
(A) 		1-33269-042-0 06 1 0710-0808 ●
408 SPRING
(A) 		1-33269-042-0 06 1 0809- ● ●

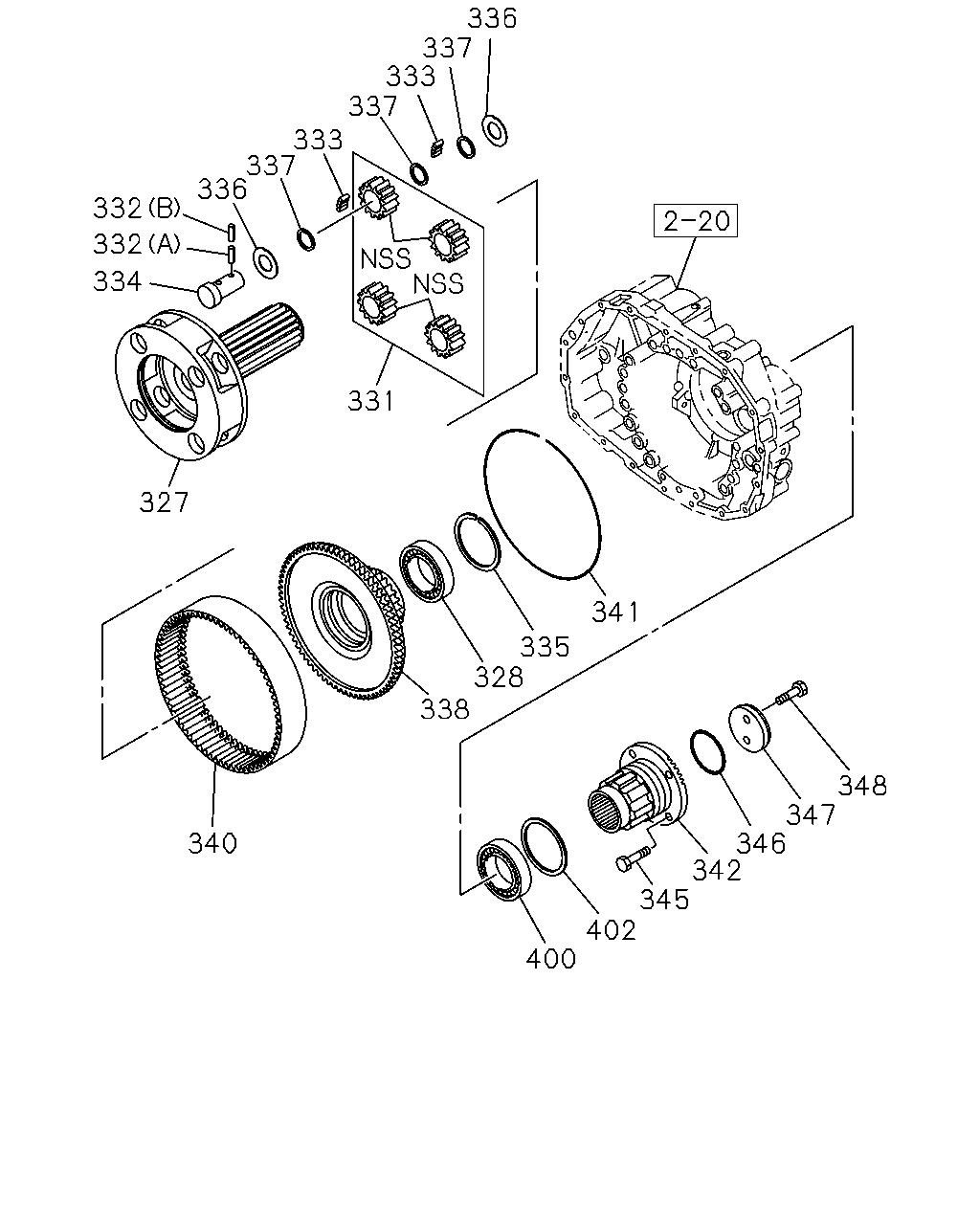

çizim 179320
336 337 333 337 333 337 336 332 332 334 331 327 341 335 328 338 348 347 346 342 345 402 400 340
BalonParca AdiParca NoAdetTipApplied Date A B
327 CARRIER; PLANETARY GEAR 1-33231-338-0 01 1 0710- ●
328 BEARING; CARRIER 1-33339-094-0 01 1 0710- ●
331 GEAR SET; PLANETARY 1-33239-350-0 01 1 0710- ●
332 PIN; LOCK,SHAFT
(A) 		1-33239-178-0 04 1 0710- ●
332 PIN; LOCK,SHAFT
(B) 		1-33239-179-0 04 1 0710- ●
333 ROLLER; PLANETARY GEAR 1-33239-232-0 AR 1 0710- ●
334 SHAFT; PLANETARY GEAR
EXC. ASSISTOR SHIFT CONTROL<WX8> 		1-33239-359-0 04 1 0809-1305 ●
334 SHAFT; PLANETARY GEAR 1-33239-359-0 04 1 1306- ●
334 SHAFT; PLANETARY GEAR 1-33239-351-0 04 1 0710-0808 ●
334 SHAFT; PLANETARY GEAR
ASSISTOR SHIFT CONTROL<WX8> 		1-33239-351-0 04 1 0809-1305 ●
335 RING; SNAP,BEARING
T=2.50 		1-33339-075-0 01 1 0710- ●
335 RING; SNAP,BEARING
T=2.40 		1-33339-076-0 01 1 0710- ●
335 RING; SNAP,BEARING
T=2.30 		1-33339-077-0 01 1 0710- ●
335 RING; SNAP,BEARING
T=2.20 		1-33339-078-0 01 1 0710- ●
335 RING; SNAP,BEARING
T=2.10 		1-33339-079-0 01 1 0710- ●
335 RING; SNAP,BEARING
T=2.00 		1-33339-080-0 01 1 0710- ●
336 WASHER; THRUST,PLANETARY GEAR 1-33239-174-0 08 1 0710- ●
337 WASHER; PLANETARY GEAR,INNER 1-33239-176-0 12 1 0710- ●
338 CARRIER; RING GEAR 1-33331-275-0 01 1 0710- ●
340 GEAR; RING
PTO ZF TRANS RR(BDM) EXC. ASSISTOR SHIFT CONTROL<WX8> 		1-33339-099-0 01 1 0904-0912 ●
340 GEAR; RING
EXC. ASSISTOR SHIFT CONTROL<WX8> 		1-33339-099-0 01 1 1001-1305 ●
340 GEAR; RING 1-33339-099-0 01 1 1306- ●
340 GEAR; RING 1-33339-095-0 01 1 0710-0903 ●
340 GEAR; RING
PTO ZF TRANS RR(BDM) ASSISTOR SHIFT CONTROL<WX8> 		1-33339-095-0 01 1 0904-0912 ●
340 GEAR; RING
EXC. PTO ZF TRANS RR(BDM) 		1-33339-095-0 01 1 0904-0912 ●
340 GEAR; RING
ASSISTOR SHIFT CONTROL<WX8> 		1-33339-095-0 01 1 1001-1305 ●
341 WIRE; LOCK,CARRIER 1-33339-096-0 01 1 0710- ●
342 FLANGE; OUTPUT 1-37243-432-0 01 1 0809-1311 ●
342 FLANGE; OUTPUT 1-37243-434-0 01 1 1312- ●
342 FLANGE; OUTPUT 1-37243-429-0 01 1 0710- ●
345 BOLT; FLANGE TO YOKE 1-37249-210-0 04 1 0809- ●
345 BOLT; FLANGE TO YOKE 1-37249-147-0 04 1 0710- ●
346 GASKET; FLANGE 1-37249-156-0 01 1 0710- ●
347 WASHER; FLANGE
EXC. PTO ZF TRANS RR(BDM) 		1-37249-211-0 01 1 0809-1311 ●
347 WASHER; FLANGE 1-37249-211-0 01 1 1312- ●
347 WASHER; FLANGE
PTO ZF TRANS RR(BDM) 		1-37249-208-0 01 1 0809-1311 ●
347 WASHER; FLANGE 1-09509-060-0 01 1 0710- ●
348 BOLT; SHAFT 1-36139-024-0 01 1 0809-1311 ●
348 BOLT; SHAFT 1-36139-025-0 01 1 1312- ●
348 BOLT; SHAFT 1-37249-207-0 02 1 0710-1305 ●
348 BOLT; SHAFT 1-37249-215-0 02 1 1306- ●
400 BEARING; OUTPUT SHAFT RR 1-33139-212-0 01 1 0710- ●
402 SHIM
T=2.20 		1-33139-064-0 01 1 0710-0903 ●
402 SHIM
PTO ZF TRANS RR(BDM) ASSISTOR SHIFT CONTROL<WX8> T=2.20 		1-33139-064-0 01 1 0904-0912 ●
402 SHIM
EXC. PTO ZF TRANS RR(BDM) T=2.20 		1-33139-064-0 01 1 0904-0912 ●
402 SHIM
ASSISTOR SHIFT CONTROL<WX8> T=2.20 		1-33139-064-0 01 1 1001-1305 ●
402 SHIM
T=2.10 		1-33139-065-0 01 1 0710-0903 ●
402 SHIM
PTO ZF TRANS RR(BDM) ASSISTOR SHIFT CONTROL<WX8> T=2.10 		1-33139-065-0 01 1 0904-0912 ●
402 SHIM
EXC. PTO ZF TRANS RR(BDM) T=2.10 		1-33139-065-0 01 1 0904-0912 ●
402 SHIM
ASSISTOR SHIFT CONTROL<WX8> T=2.10 		1-33139-065-0 01 1 1001-1305 ●
402 SHIM
T=2.00 		1-33139-066-0 01 1 0710-0903 ●
402 SHIM
PTO ZF TRANS RR(BDM) ASSISTOR SHIFT CONTROL<WX8> T=2.00 		1-33139-066-0 01 1 0904-0912 ●
402 SHIM
EXC. PTO ZF TRANS RR(BDM) T=2.00 		1-33139-066-0 01 1 0904-0912 ●
402 SHIM
ASSISTOR SHIFT CONTROL<WX8> T=2.00 		1-33139-066-0 01 1 1001-1305 ●
402 SHIM
T=1.90 		1-33139-067-0 01 1 0710-0903 ●
402 SHIM
PTO ZF TRANS RR(BDM) ASSISTOR SHIFT CONTROL<WX8> T=1.90 		1-33139-067-0 01 1 0904-0912 ●
402 SHIM
EXC. PTO ZF TRANS RR(BDM) T=1.90 		1-33139-067-0 01 1 0904-0912 ●
402 SHIM
ASSISTOR SHIFT CONTROL<WX8> T=1.90 		1-33139-067-0 01 1 1001-1305 ●
402 SHIM
T=1.80 		1-33139-068-0 01 1 0710-0903 ●
402 SHIM
PTO ZF TRANS RR(BDM) ASSISTOR SHIFT CONTROL<WX8> T=1.80 		1-33139-068-0 01 1 0904-0912 ●
402 SHIM
EXC. PTO ZF TRANS RR(BDM) T=1.80 		1-33139-068-0 01 1 0904-0912 ●
402 SHIM
ASSISTOR SHIFT CONTROL<WX8> T=1.80 		1-33139-068-0 01 1 1001-1305 ●
402 SHIM
T=1.70 		1-33139-069-0 01 1 0710-0903 ●
402 SHIM
PTO ZF TRANS RR(BDM) ASSISTOR SHIFT CONTROL<WX8> T=1.70 		1-33139-069-0 01 1 0904-0912 ●
402 SHIM
EXC. PTO ZF TRANS RR(BDM) T=1.70 		1-33139-069-0 01 1 0904-0912 ●
402 SHIM
ASSISTOR SHIFT CONTROL<WX8> T=1.70 		1-33139-069-0 01 1 1001-1305 ●
402 SHIM
T=1.60 		1-33139-070-0 01 1 0710-0903 ●
402 SHIM
PTO ZF TRANS RR(BDM) ASSISTOR SHIFT CONTROL<WX8> T=1.60 		1-33139-070-0 01 1 0904-0912 ●
402 SHIM
EXC. PTO ZF TRANS RR(BDM) T=1.60 		1-33139-070-0 01 1 0904-0912 ●
402 SHIM
ASSISTOR SHIFT CONTROL<WX8> T=1.60 		1-33139-070-0 01 1 1001-1305 ●
402 SHIM
T=1.50 		1-33139-071-0 01 1 0710-0903 ●
402 SHIM
PTO ZF TRANS RR(BDM) ASSISTOR SHIFT CONTROL<WX8> T=1.50 		1-33139-071-0 01 1 0904-0912 ●
402 SHIM
EXC. PTO ZF TRANS RR(BDM) T=1.50 		1-33139-071-0 01 1 0904-0912 ●
402 SHIM
ASSISTOR SHIFT CONTROL<WX8> T=1.50 		1-33139-071-0 01 1 1001-1305 ●
402 SHIM
T=1.40 		1-33139-072-0 01 1 0710-0903 ●
402 SHIM
PTO ZF TRANS RR(BDM) ASSISTOR SHIFT CONTROL<WX8> T=1.40 		1-33139-072-0 01 1 0904-0912 ●
402 SHIM
EXC. PTO ZF TRANS RR(BDM) T=1.40 		1-33139-072-0 01 1 0904-0912 ●
402 SHIM
ASSISTOR SHIFT CONTROL<WX8> T=1.40 		1-33139-072-0 01 1 1001-1305 ●
402 SHIM
T=1.30 		1-33139-073-0 01 1 0710-0903 ●
402 SHIM
PTO ZF TRANS RR(BDM) ASSISTOR SHIFT CONTROL<WX8> T=1.30 		1-33139-073-0 01 1 0904-0912 ●
402 SHIM
EXC. PTO ZF TRANS RR(BDM) T=1.30 		1-33139-073-0 01 1 0904-0912 ●
402 SHIM
ASSISTOR SHIFT CONTROL<WX8> T=1.30 		1-33139-073-0 01 1 1001-1305 ●

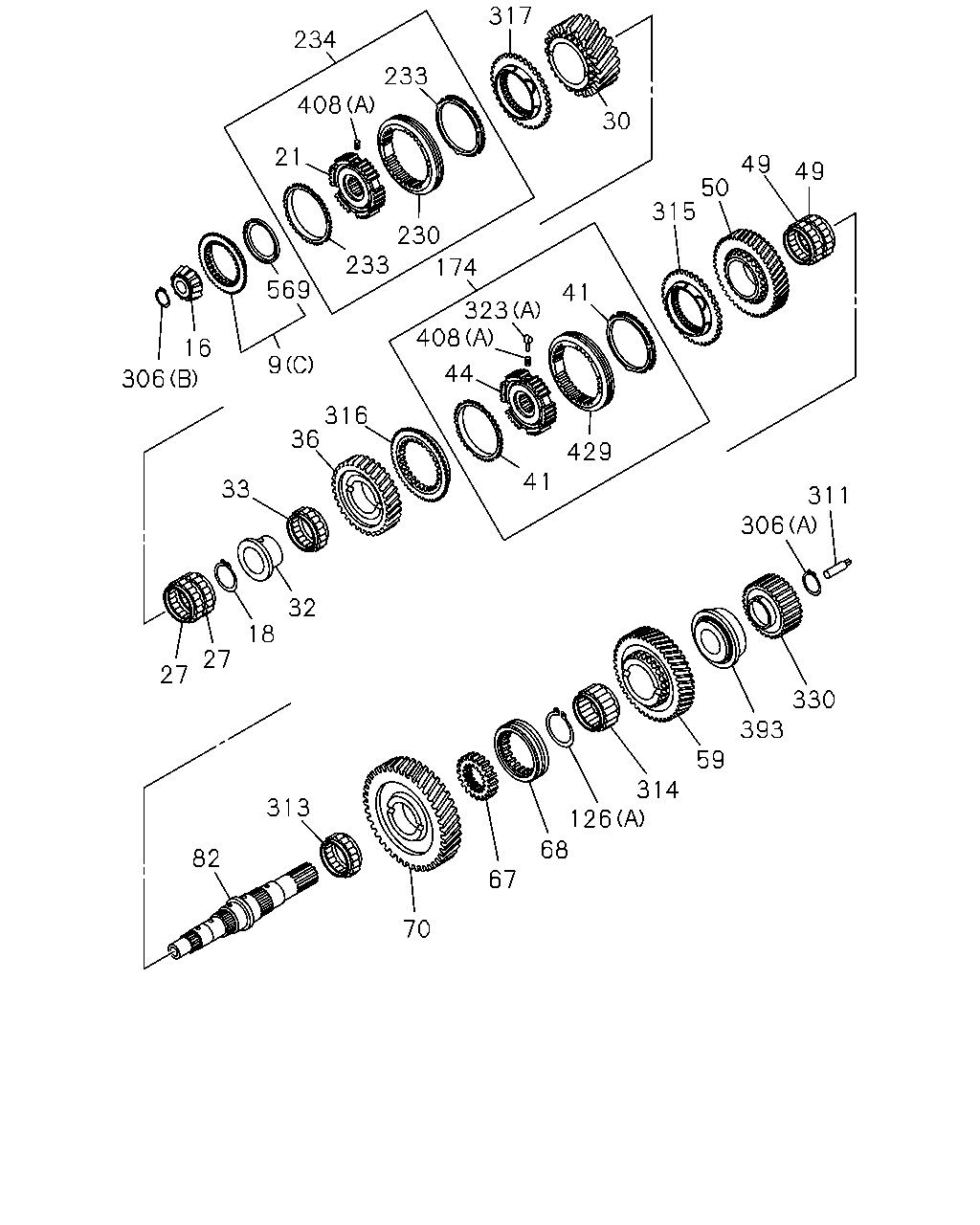

çizim 179369
317 234 233 408 30 21 49 49 50 315 230 233 174 569 41 323 408 16 9 44 306 316 36 429 41 33 311 306 32 18 27 27 330 393 59 314 313 126 68 82 67 70
BalonParca AdiParca NoAdetTipApplied Date A B
9 CLUTCH; DOG,TOP GEAR
(A) 		1-33219-326-0 01 1 0809- ●
9 CLUTCH; DOG,TOP GEAR
(B) 		1-33265-326-0 01 1 0809- ●
9 CLUTCH; DOG,TOP GEAR
(C) 		1-33265-631-0 01 1 0710- ●
16 BEARING; PILOT,MAINSHAFT 1-33239-362-0 01 1 0809- ●
16 BEARING; PILOT,MAINSHAFT 1-33239-212-0 01 1 0710- ●
18 RING; SNAP,CLU HUB
T=2.4 		1-33259-054-0 01 1 0710- ●
18 RING; SNAP,CLU HUB
T=2.3 		1-33259-060-0 01 1 0710- ●
18 RING; SNAP,CLU HUB
T=2.2 		1-33259-061-0 01 1 0710- ●
18 RING; SNAP,CLU HUB
T=2.1 		1-33259-062-0 01 1 0710- ●
18 RING; SNAP,CLU HUB
T=2.0 		1-33259-063-0 01 1 0710- ●
18 RING; SNAP,CLU HUB
T=1.9 		1-33259-064-0 01 1 0710- ●
21 HUB; CLU,4TH & 5TH 1-33261-295-0 01 1 0710- ●
27 BEARING; 4TH GEAR
PTO ZF TRANS RR(BDM) EXC. ASSISTOR SHIFT CONTROL<WX8> 		1-33259-128-0 02 1 0904-0912 ●
27 BEARING; 4TH GEAR
EXC. ASSISTOR SHIFT CONTROL<WX8> 		1-33259-128-0 02 1 1001-1305 ●
27 BEARING; 4TH GEAR 1-33259-128-0 02 1 1306- ●
27 BEARING; 4TH GEAR 1-33259-116-0 01 1 0809-1311 ●
27 BEARING; 4TH GEAR 1-33259-142-0 01 1 1312- ●
27 BEARING; 4TH GEAR 1-33259-106-0 02 1 0710-0903 ●
27 BEARING; 4TH GEAR
PTO ZF TRANS RR(BDM) ASSISTOR SHIFT CONTROL<WX8> 		1-33259-106-0 02 1 0904-0912 ●
27 BEARING; 4TH GEAR
EXC. PTO ZF TRANS RR(BDM) 		1-33259-106-0 02 1 0904-0912 ●
27 BEARING; 4TH GEAR
ASSISTOR SHIFT CONTROL<WX8> 		1-33259-106-0 02 1 1001-1305 ●
30 GEAR; 4TH,MAINSHAFT 1-33251-440-0 01 1 0809- ●
30 GEAR; 4TH,MAINSHAFT 1-33251-436-0 01 1 0710- ●
32 COLLAR; 3RD GEAR 1-33259-059-0 01 1 0710-1305 ●
32 COLLAR; 3RD GEAR 1-33259-140-0 01 1 1306- ●
33 BEARING; NEEDLE,3RD GEAR
PTO ZF TRANS RR(BDM) EXC. ASSISTOR SHIFT CONTROL<WX8> 		1-33259-127-0 01 1 0904-0912 ●
33 BEARING; NEEDLE,3RD GEAR
EXC. ASSISTOR SHIFT CONTROL<WX8> 		1-33259-127-0 01 1 1001-1305 ●
33 BEARING; NEEDLE,3RD GEAR 1-33259-127-0 01 1 1306- ●
33 BEARING; NEEDLE,3RD GEAR 1-33259-107-0 01 1 0809-1311 ●
33 BEARING; NEEDLE,3RD GEAR 1-33259-136-0 01 1 1312- ●
33 BEARING; NEEDLE,3RD GEAR 1-33259-065-0 01 1 0710-0903 ●
33 BEARING; NEEDLE,3RD GEAR
PTO ZF TRANS RR(BDM) ASSISTOR SHIFT CONTROL<WX8> 		1-33259-065-0 01 1 0904-0912 ●
33 BEARING; NEEDLE,3RD GEAR
EXC. PTO ZF TRANS RR(BDM) 		1-33259-065-0 01 1 0904-0912 ●
33 BEARING; NEEDLE,3RD GEAR
ASSISTOR SHIFT CONTROL<WX8> 		1-33259-065-0 01 1 1001-1305 ●
36 GEAR; 3RD,MAINSHAFT 1-33251-445-0 01 1 0809- ●
36 GEAR; 3RD,MAINSHAFT 1-33252-478-0 01 1 0710- ●
41 RING; BLOCK,2ND & 3RD 1-33265-498-0 02 1 0710- ●
44 HUB; CLU,2ND & 3RD,MAIN 1-33261-231-0 01 1 0710-1305 ●
44 HUB; CLU,2ND & 3RD,MAIN 1-33261-303-0 01 1 1306- ●
49 BEARING; NEEDLE,2ND GEAR
PTO ZF TRANS RR(BDM) EXC. ASSISTOR SHIFT CONTROL<WX8> 		1-33259-126-0 02 1 0904-0912 ●
49 BEARING; NEEDLE,2ND GEAR
EXC. ASSISTOR SHIFT CONTROL<WX8> 		1-33259-126-0 02 1 1001-1305 ●
49 BEARING; NEEDLE,2ND GEAR 1-33259-126-0 02 1 1306- ●
49 BEARING; NEEDLE,2ND GEAR 1-33259-107-0 01 1 0809-1311 ●
49 BEARING; NEEDLE,2ND GEAR 1-33259-136-0 01 1 1312- ●
49 BEARING; NEEDLE,2ND GEAR 1-33259-058-0 02 1 0710-0903 ●
49 BEARING; NEEDLE,2ND GEAR
PTO ZF TRANS RR(BDM) ASSISTOR SHIFT CONTROL<WX8> 		1-33259-058-0 02 1 0904-0912 ●
49 BEARING; NEEDLE,2ND GEAR
EXC. PTO ZF TRANS RR(BDM) 		1-33259-058-0 02 1 0904-0912 ●
49 BEARING; NEEDLE,2ND GEAR
ASSISTOR SHIFT CONTROL<WX8> 		1-33259-058-0 02 1 1001-1305 ●
50 GEAR; 2ND,MAINSHAFT 1-33251-437-0 01 1 0809- ●
50 GEAR; 2ND,MAINSHAFT 1-33251-435-0 01 1 0710-1305 ●
50 GEAR; 2ND,MAINSHAFT 1-33251-448-0 01 1 1306- ●
59 GEAR; REV MAINSHAFT
EXC. PTO ZF TRANS RR(BDM) 		1-33252-484-0 01 1 0809-1311 ●
59 GEAR; REV MAINSHAFT 1-33252-484-0 01 1 1312- ●
59 GEAR; REV MAINSHAFT
PTO ZF TRANS RR(BDM) 		1-33252-482-0 01 1 0809-1311 ●
59 GEAR; REV MAINSHAFT 1-33257-100-0 01 1 0710-1305 ●
59 GEAR; REV MAINSHAFT 1-33257-101-0 01 1 1306- ●
67 HUB; CLU,1ST TO REV
PTO ZF TRANS RR(BDM) EXC. ASSISTOR SHIFT CONTROL<WX8> 		1-33259-135-0 01 1 0904-0912 ●
67 HUB; CLU,1ST TO REV
EXC. ASSISTOR SHIFT CONTROL<WX8> 		1-33259-135-0 01 1 1001-1305 ●
67 HUB; CLU,1ST TO REV 1-33259-135-0 01 1 1306- ●
67 HUB; CLU,1ST TO REV 1-33259-048-0 01 1 0710-0903 ●
67 HUB; CLU,1ST TO REV
PTO ZF TRANS RR(BDM) ASSISTOR SHIFT CONTROL<WX8> 		1-33259-048-0 01 1 0904-0912 ●
67 HUB; CLU,1ST TO REV
EXC. PTO ZF TRANS RR(BDM) 		1-33259-048-0 01 1 0904-0912 ●
67 HUB; CLU,1ST TO REV
ASSISTOR SHIFT CONTROL<WX8> 		1-33259-048-0 01 1 1001-1305 ●
68 SLEEVE; 1ST TO REV 1-33259-075-0 01 1 0809- ●
68 SLEEVE; 1ST TO REV 1-33259-049-0 01 1 0710- ●
70 GEAR; 1ST,MAINSHAFT 1-33252-481-0 01 1 0809- ●
70 GEAR; 1ST,MAINSHAFT 1-33251-434-0 01 1 0710- ●
82 SHAFT; MAIN,TRANS 1-33231-341-0 01 1 0809- ●
82 SHAFT; MAIN,TRANS 1-33231-337-0 01 1 0710- ●
126 RING; SNAP,CLU HUB
(A) T=2.8 		1-33259-050-0 01 1 0710- ●
126 RING; SNAP,CLU HUB
(A) T=2.7 		1-33259-051-0 01 1 0710- ●
126 RING; SNAP,CLU HUB
(A) T=2.6 		1-33259-052-0 01 1 0710- ●
126 RING; SNAP,CLU HUB
(A) T=2.5 		1-33259-053-0 01 1 0710- ●
126 RING; SNAP,CLU HUB
(A) T=2.4 		1-33259-054-0 01 1 0710- ●
126 RING; SNAP,CLU HUB
(B) T=4.0 		1-33269-047-0 01 1 0710- ●
126 RING; SNAP,CLU HUB
(B) T=3.9 		1-33269-048-0 01 1 0710- ●
126 RING; SNAP,CLU HUB
(B) T=3.8 		1-33269-049-0 01 1 0710- ●
126 RING; SNAP,CLU HUB
(B) T=3.7 		1-33269-050-0 01 1 0710- ●
174 SYNCHRONIZER ASM; 2ND-3RD 1-33260-169-0 01 1 0710-0808 ●
174 SYNCHRONIZER ASM; 2ND-3RD
ASSISTOR SHIFT CONTROL<WX8> 		1-33260-169-0 01 1 0809-1305 ●
230 SLEEVE; 4TH TO 5TH 1-33262-239-0 01 1 0710- ●
233 RING; BLOCK 4TH TO 5TH 1-33269-096-0 02 1 0710- ●
234 SYNCHRONIZER ASM; 4TH TO 5TH 1-33260-170-0 01 1 0710-0808 ●
234 SYNCHRONIZER ASM; 4TH TO 5TH
ASSISTOR SHIFT CONTROL<WX8> 		1-33260-170-0 01 1 0809-1305 ●
306 RING; SNAP,MAINSHAFT
(C) 		1-33259-111-0 01 1 0809-1311 ●
306 RING; SNAP,MAINSHAFT
(C) 		1-33259-141-0 01 1 1312- ●
306 RING; SNAP,MAINSHAFT
(D) 		1-38249-037-0 01 1 0809- ●
306 RING; SNAP,MAINSHAFT
(A) T=3.20 		1-33319-061-0 01 1 0710-1305 ●
306 RING; SNAP,MAINSHAFT
(A) T=3.15 		1-33319-062-0 01 1 0710-1305 ●
306 RING; SNAP,MAINSHAFT
(A) T=3.10 		1-33319-063-0 01 1 0710-1305 ●
306 RING; SNAP,MAINSHAFT
(A) T=3.05 		1-33319-064-0 01 1 0710-1305 ●
306 RING; SNAP,MAINSHAFT
(A) T=3.00 		1-33319-065-0 01 1 0710-1305 ●
306 RING; SNAP,MAINSHAFT
(A) T=2.95 		1-33319-066-0 01 1 0710- ●
306 RING; SNAP,MAINSHAFT
(A) T=2.90 		1-33319-067-0 01 1 0710- ●
306 RING; SNAP,MAINSHAFT
(A) T=2.85 		1-33319-068-0 01 1 0710- ●
306 RING; SNAP,MAINSHAFT
(A) T=2.80 		1-33319-069-0 01 1 0710- ●
306 RING; SNAP,MAINSHAFT
(A) T=2.75 		1-33319-070-0 01 1 0710- ●
306 RING; SNAP,MAINSHAFT
(A) T=2.70 		1-33319-071-0 01 1 0710- ●
306 RING; SNAP,MAINSHAFT
(A) T=2.65 		1-33319-072-0 01 1 0710- ●
306 RING; SNAP,MAINSHAFT
(A) T=2.60 		1-33319-073-0 01 1 0710- ●
306 RING; SNAP,MAINSHAFT
(A) T=2.55 		1-33319-074-0 01 1 0710- ●
306 RING; SNAP,MAINSHAFT
(A) T=2.50 		1-33319-075-0 01 1 0710- ●
306 RING; SNAP,MAINSHAFT
(A) T=2.45 		1-33319-076-0 01 1 0710- ●
306 RING; SNAP,MAINSHAFT
(A) T=2.40 		1-33319-077-0 01 1 0710-1305 ●
306 RING; SNAP,MAINSHAFT
(A) T=2.35 		1-33319-078-0 01 1 0710-1305 ●
306 RING; SNAP,MAINSHAFT
(A) T=2.30 		1-33319-079-0 01 1 0710-1305 ●
306 RING; SNAP,MAINSHAFT
(A) T=2.25 		1-33319-080-0 01 1 0710-1305 ●
306 RING; SNAP,MAINSHAFT
(A) T=2.20 		1-33319-081-0 01 1 0710-1305 ●
306 RING; SNAP,MAINSHAFT
(A) T=2.15 		1-33319-082-0 01 1 0710-1305 ●
306 RING; SNAP,MAINSHAFT
(A) T=2.10 		1-33319-083-0 01 1 0710-1305 ●
306 RING; SNAP,MAINSHAFT
(B) T=2.5 		1-43319-021-0 01 1 0710- ●
306 RING; SNAP,MAINSHAFT
(B) T=2.4 		1-43319-101-0 01 1 0710- ●
306 RING; SNAP,MAINSHAFT
(B) T=2.3 		1-43319-102-0 01 1 0710- ●
306 RING; SNAP,MAINSHAFT
(B) T=2.0 		1-43319-103-0 01 1 0710- ●
306 RING; SNAP,MAINSHAFT
(B) T=2.1 		1-43319-104-0 01 1 0710- ●
306 RING; SNAP,MAINSHAFT
(B) T=2.2 		1-43319-105-0 01 1 0710- ●
311 PIPE; MAINSHAFT 1-33239-349-0 01 1 0710- ●
313 BEARING; NEEDLE,LOW GEAR
PTO ZF TRANS RR(BDM) EXC. ASSISTOR SHIFT CONTROL<WX8> 		1-33259-124-0 01 1 0904-0912 ●
313 BEARING; NEEDLE,LOW GEAR
EXC. ASSISTOR SHIFT CONTROL<WX8> 		1-33259-124-0 01 1 1001-1305 ●
313 BEARING; NEEDLE,LOW GEAR 1-33259-124-0 01 1 1306- ●
313 BEARING; NEEDLE,LOW GEAR 1-33259-112-0 02 1 0809- ●
313 BEARING; NEEDLE,LOW GEAR 1-33259-047-0 01 1 0710-0903 ●
313 BEARING; NEEDLE,LOW GEAR
PTO ZF TRANS RR(BDM) ASSISTOR SHIFT CONTROL<WX8> 		1-33259-047-0 01 1 0904-0912 ●
313 BEARING; NEEDLE,LOW GEAR
EXC. PTO ZF TRANS RR(BDM) 		1-33259-047-0 01 1 0904-0912 ●
313 BEARING; NEEDLE,LOW GEAR
ASSISTOR SHIFT CONTROL<WX8> 		1-33259-047-0 01 1 1001-1305 ●
314 BEARING; NEEDLE,REV GEAR
PTO ZF TRANS RR(BDM) EXC. ASSISTOR SHIFT CONTROL<WX8> 		1-33259-125-0 01 1 0904-0912 ●
314 BEARING; NEEDLE,REV GEAR
EXC. ASSISTOR SHIFT CONTROL<WX8> 		1-33259-125-0 01 1 1001-1305 ●
314 BEARING; NEEDLE,REV GEAR 1-33259-125-0 01 1 1306- ●
314 BEARING; NEEDLE,REV GEAR 1-33259-055-0 01 1 0710-0903 ●
314 BEARING; NEEDLE,REV GEAR
PTO ZF TRANS RR(BDM) ASSISTOR SHIFT CONTROL<WX8> 		1-33259-055-0 01 1 0904-0912 ●
314 BEARING; NEEDLE,REV GEAR
EXC. PTO ZF TRANS RR(BDM) 		1-33259-055-0 01 1 0904-0912 ●
314 BEARING; NEEDLE,REV GEAR
ASSISTOR SHIFT CONTROL<WX8> 		1-33259-055-0 01 1 1001-1305 ●
315 CLUTCH; DOG,2ND GEAR 1-33265-629-0 01 1 0710- ●
316 CLUTCH; DOG,3RD GEAR 1-33265-636-0 01 1 0809- ●
316 CLUTCH; DOG,3RD GEAR 1-33265-629-0 01 1 0710- ●
317 CLUTCH; DOG,4TH GEAR 1-33265-637-0 01 1 0809- ●
317 CLUTCH; DOG,4TH GEAR 1-33265-630-0 01 1 0710- ●
323 INSERT
(C) 		1-33263-043-0 03 1 0809- ●
323 INSERT
(A) 		1-33263-030-0 06 1 0710-0808 ●
323 INSERT
(A) 		1-33263-030-0 06 1 0809- ● ●
323 INSERT
(B) 		1-33263-027-0 09 1 0710- ●
330 GEAR; SUN 1-33259-105-0 01 1 0710-1305 ●
330 GEAR; SUN 1-33259-134-0 01 1 1306- ●
393 BEARING; MAINSHAFT END 1-33219-330-0 01 1 0809- ●
393 BEARING; MAINSHAFT END 1-33259-104-0 01 1 0710- ●
408 SPRING
(D) 		1-33269-099-0 03 1 0809- ●
408 SPRING
(B) 		1-33269-038-0 09 1 0710- ●
408 SPRING
(C) 		1-33269-039-0 09 1 0710- ●
408 SPRING
(A) 		1-33269-042-0 06 1 0710-0808 ●
408 SPRING
(A) 		1-33269-042-0 06 1 0809- ● ●
429 SLEEVE; 2ND & 3RD 1-33262-192-0 01 1 0710-1305 ●
429 SLEEVE; 2ND & 3RD 1-33262-244-0 01 1 1306- ●
569 DAM; OIL 1-33269-097-0 01 1 0710- ●
çizim 179449
50 49 82 306 312 391 391 392 322 323 408 39 436 392 391 393 319 391 312 68 59 313 318 74 70 313
BalonParca AdiParca NoAdetTipApplied Date A B
39 HUB; CLU,LOW & 2ND 1-33261-296-0 01 1 0809- ●
49 BEARING; NEEDLE,2ND GEAR
PTO ZF TRANS RR(BDM) EXC. ASSISTOR SHIFT CONTROL<WX8> 		1-33259-126-0 02 1 0904-0912 ●
49 BEARING; NEEDLE,2ND GEAR
EXC. ASSISTOR SHIFT CONTROL<WX8> 		1-33259-126-0 02 1 1001-1305 ●
49 BEARING; NEEDLE,2ND GEAR 1-33259-126-0 02 1 1306- ●
49 BEARING; NEEDLE,2ND GEAR 1-33259-107-0 01 1 0809-1311 ●
49 BEARING; NEEDLE,2ND GEAR 1-33259-136-0 01 1 1312- ●
49 BEARING; NEEDLE,2ND GEAR 1-33259-058-0 02 1 0710-0903 ●
49 BEARING; NEEDLE,2ND GEAR
PTO ZF TRANS RR(BDM) ASSISTOR SHIFT CONTROL<WX8> 		1-33259-058-0 02 1 0904-0912 ●
49 BEARING; NEEDLE,2ND GEAR
EXC. PTO ZF TRANS RR(BDM) 		1-33259-058-0 02 1 0904-0912 ●
49 BEARING; NEEDLE,2ND GEAR
ASSISTOR SHIFT CONTROL<WX8> 		1-33259-058-0 02 1 1001-1305 ●
50 GEAR; 2ND,MAINSHAFT 1-33251-437-0 01 1 0809- ●
50 GEAR; 2ND,MAINSHAFT 1-33251-435-0 01 1 0710-1305 ●
50 GEAR; 2ND,MAINSHAFT 1-33251-448-0 01 1 1306- ●
59 GEAR; REV MAINSHAFT
EXC. PTO ZF TRANS RR(BDM) 		1-33252-484-0 01 1 0809-1311 ●
59 GEAR; REV MAINSHAFT 1-33252-484-0 01 1 1312- ●
59 GEAR; REV MAINSHAFT
PTO ZF TRANS RR(BDM) 		1-33252-482-0 01 1 0809-1311 ●
59 GEAR; REV MAINSHAFT 1-33257-100-0 01 1 0710-1305 ●
59 GEAR; REV MAINSHAFT 1-33257-101-0 01 1 1306- ●
68 SLEEVE; 1ST TO REV 1-33259-075-0 01 1 0809- ●
68 SLEEVE; 1ST TO REV 1-33259-049-0 01 1 0710- ●
70 GEAR; 1ST,MAINSHAFT 1-33252-481-0 01 1 0809- ●
70 GEAR; 1ST,MAINSHAFT 1-33251-434-0 01 1 0710- ●
74 WASHER; THRUST,REV GEAR 1-33259-113-0 01 1 0809- ●
82 SHAFT; MAIN,TRANS 1-33231-341-0 01 1 0809- ●
82 SHAFT; MAIN,TRANS 1-33231-337-0 01 1 0710- ●
306 RING; SNAP,MAINSHAFT
(C) 		1-33259-111-0 01 1 0809-1311 ●
306 RING; SNAP,MAINSHAFT
(C) 		1-33259-141-0 01 1 1312- ●
306 RING; SNAP,MAINSHAFT
(D) 		1-38249-037-0 01 1 0809- ●
306 RING; SNAP,MAINSHAFT
(A) T=3.20 		1-33319-061-0 01 1 0710-1305 ●
306 RING; SNAP,MAINSHAFT
(A) T=3.15 		1-33319-062-0 01 1 0710-1305 ●
306 RING; SNAP,MAINSHAFT
(A) T=3.10 		1-33319-063-0 01 1 0710-1305 ●
306 RING; SNAP,MAINSHAFT
(A) T=3.05 		1-33319-064-0 01 1 0710-1305 ●
306 RING; SNAP,MAINSHAFT
(A) T=3.00 		1-33319-065-0 01 1 0710-1305 ●
306 RING; SNAP,MAINSHAFT
(A) T=2.95 		1-33319-066-0 01 1 0710- ●
306 RING; SNAP,MAINSHAFT
(A) T=2.90 		1-33319-067-0 01 1 0710- ●
306 RING; SNAP,MAINSHAFT
(A) T=2.85 		1-33319-068-0 01 1 0710- ●
306 RING; SNAP,MAINSHAFT
(A) T=2.80 		1-33319-069-0 01 1 0710- ●
306 RING; SNAP,MAINSHAFT
(A) T=2.75 		1-33319-070-0 01 1 0710- ●
306 RING; SNAP,MAINSHAFT
(A) T=2.70 		1-33319-071-0 01 1 0710- ●
306 RING; SNAP,MAINSHAFT
(A) T=2.65 		1-33319-072-0 01 1 0710- ●
306 RING; SNAP,MAINSHAFT
(A) T=2.60 		1-33319-073-0 01 1 0710- ●
306 RING; SNAP,MAINSHAFT
(A) T=2.55 		1-33319-074-0 01 1 0710- ●
306 RING; SNAP,MAINSHAFT
(A) T=2.50 		1-33319-075-0 01 1 0710- ●
306 RING; SNAP,MAINSHAFT
(A) T=2.45 		1-33319-076-0 01 1 0710- ●
306 RING; SNAP,MAINSHAFT
(A) T=2.40 		1-33319-077-0 01 1 0710-1305 ●
306 RING; SNAP,MAINSHAFT
(A) T=2.35 		1-33319-078-0 01 1 0710-1305 ●
306 RING; SNAP,MAINSHAFT
(A) T=2.30 		1-33319-079-0 01 1 0710-1305 ●
306 RING; SNAP,MAINSHAFT
(A) T=2.25 		1-33319-080-0 01 1 0710-1305 ●
306 RING; SNAP,MAINSHAFT
(A) T=2.20 		1-33319-081-0 01 1 0710-1305 ●
306 RING; SNAP,MAINSHAFT
(A) T=2.15 		1-33319-082-0 01 1 0710-1305 ●
306 RING; SNAP,MAINSHAFT
(A) T=2.10 		1-33319-083-0 01 1 0710-1305 ●
306 RING; SNAP,MAINSHAFT
(B) T=2.5 		1-43319-021-0 01 1 0710- ●
306 RING; SNAP,MAINSHAFT
(B) T=2.4 		1-43319-101-0 01 1 0710- ●
306 RING; SNAP,MAINSHAFT
(B) T=2.3 		1-43319-102-0 01 1 0710- ●
306 RING; SNAP,MAINSHAFT
(B) T=2.0 		1-43319-103-0 01 1 0710- ●
306 RING; SNAP,MAINSHAFT
(B) T=2.1 		1-43319-104-0 01 1 0710- ●
306 RING; SNAP,MAINSHAFT
(B) T=2.2 		1-43319-105-0 01 1 0710- ●
312 CLUTCH; DOG,1ST GEAR 1-33265-634-0 02 1 0809- ●
313 BEARING; NEEDLE,LOW GEAR
PTO ZF TRANS RR(BDM) EXC. ASSISTOR SHIFT CONTROL<WX8> 		1-33259-124-0 01 1 0904-0912 ●
313 BEARING; NEEDLE,LOW GEAR
EXC. ASSISTOR SHIFT CONTROL<WX8> 		1-33259-124-0 01 1 1001-1305 ●
313 BEARING; NEEDLE,LOW GEAR 1-33259-124-0 01 1 1306- ●
313 BEARING; NEEDLE,LOW GEAR 1-33259-112-0 02 1 0809- ●
313 BEARING; NEEDLE,LOW GEAR 1-33259-047-0 01 1 0710-0903 ●
313 BEARING; NEEDLE,LOW GEAR
PTO ZF TRANS RR(BDM) ASSISTOR SHIFT CONTROL<WX8> 		1-33259-047-0 01 1 0904-0912 ●
313 BEARING; NEEDLE,LOW GEAR
EXC. PTO ZF TRANS RR(BDM) 		1-33259-047-0 01 1 0904-0912 ●
313 BEARING; NEEDLE,LOW GEAR
ASSISTOR SHIFT CONTROL<WX8> 		1-33259-047-0 01 1 1001-1305 ●
318 COLLAR; DIST,REV GEAR 1-33259-114-0 01 1 0809- ●
319 CLUTCH; SLIDING 1-33265-635-0 01 1 0809-1311 ●
319 CLUTCH; SLIDING 1-33265-648-0 01 1 1312- ●
322 SLEEVE; SYN,LOW & 2ND 1-33262-240-0 01 1 0809- ●
323 INSERT
(C) 		1-33263-043-0 03 1 0809- ●
323 INSERT
(A) 		1-33263-030-0 06 1 0710-0808 ●
323 INSERT
(A) 		1-33263-030-0 06 1 0809- ● ●
323 INSERT
(B) 		1-33263-027-0 09 1 0710- ●
391 RING; INSIDE,SYN
(B) 		1-33259-109-0 02 1 0809- ●
391 RING; INSIDE,SYN
(C) 		1-33259-122-0 01 1 0809- ●
391 RING; INSIDE,SYN
(A) 		1-33259-132-0 02 1 0809- ●
392 RING; OUTSIDE,SYN 1-33259-110-0 02 1 0809- ●
393 BEARING; MAINSHAFT END 1-33219-330-0 01 1 0809- ●
393 BEARING; MAINSHAFT END 1-33259-104-0 01 1 0710- ●
408 SPRING
(D) 		1-33269-099-0 03 1 0809- ●
408 SPRING
(B) 		1-33269-038-0 09 1 0710- ●
408 SPRING
(C) 		1-33269-039-0 09 1 0710- ●
408 SPRING
(A) 		1-33269-042-0 06 1 0710-0808 ●
408 SPRING
(A) 		1-33269-042-0 06 1 0809- ● ●
436 KEY; LOW & 2ND 1-33269-046-0 03 1 0809- ●
çizim 179466
17 432 77 9 538 537 323 408 121 538 16 251 316 35 321 306 391 323 408 320 35 317 17 30 296 27 33 36
BalonParca AdiParca NoAdetTipApplied Date A B
9 CLUTCH; DOG,TOP GEAR
(A) 		1-33219-326-0 01 1 0809- ●
9 CLUTCH; DOG,TOP GEAR
(B) 		1-33265-326-0 01 1 0809- ●
9 CLUTCH; DOG,TOP GEAR
(C) 		1-33265-631-0 01 1 0710- ●
16 BEARING; PILOT,MAINSHAFT 1-33239-362-0 01 1 0809- ●
16 BEARING; PILOT,MAINSHAFT 1-33239-212-0 01 1 0710- ●
17 RING; SNAP,4TH GEAR
(A) 		1-33259-115-0 01 1 0809- ●
17 RING; SNAP,4TH GEAR
(B) 		1-33259-118-0 01 1 0809-1311 ●
17 RING; SNAP,4TH GEAR
(B) 		1-33259-143-0 01 1 1312- ●
27 BEARING; 4TH GEAR
PTO ZF TRANS RR(BDM) EXC. ASSISTOR SHIFT CONTROL<WX8> 		1-33259-128-0 02 1 0904-0912 ●
27 BEARING; 4TH GEAR
EXC. ASSISTOR SHIFT CONTROL<WX8> 		1-33259-128-0 02 1 1001-1305 ●
27 BEARING; 4TH GEAR 1-33259-128-0 02 1 1306- ●
27 BEARING; 4TH GEAR 1-33259-116-0 01 1 0809-1311 ●
27 BEARING; 4TH GEAR 1-33259-142-0 01 1 1312- ●
27 BEARING; 4TH GEAR 1-33259-106-0 02 1 0710-0903 ●
27 BEARING; 4TH GEAR
PTO ZF TRANS RR(BDM) ASSISTOR SHIFT CONTROL<WX8> 		1-33259-106-0 02 1 0904-0912 ●
27 BEARING; 4TH GEAR
EXC. PTO ZF TRANS RR(BDM) 		1-33259-106-0 02 1 0904-0912 ●
27 BEARING; 4TH GEAR
ASSISTOR SHIFT CONTROL<WX8> 		1-33259-106-0 02 1 1001-1305 ●
30 GEAR; 4TH,MAINSHAFT 1-33251-440-0 01 1 0809- ●
30 GEAR; 4TH,MAINSHAFT 1-33251-436-0 01 1 0710- ●
33 BEARING; NEEDLE,3RD GEAR
PTO ZF TRANS RR(BDM) EXC. ASSISTOR SHIFT CONTROL<WX8> 		1-33259-127-0 01 1 0904-0912 ●
33 BEARING; NEEDLE,3RD GEAR
EXC. ASSISTOR SHIFT CONTROL<WX8> 		1-33259-127-0 01 1 1001-1305 ●
33 BEARING; NEEDLE,3RD GEAR 1-33259-127-0 01 1 1306- ●
33 BEARING; NEEDLE,3RD GEAR 1-33259-107-0 01 1 0809-1311 ●
33 BEARING; NEEDLE,3RD GEAR 1-33259-136-0 01 1 1312- ●
33 BEARING; NEEDLE,3RD GEAR 1-33259-065-0 01 1 0710-0903 ●
33 BEARING; NEEDLE,3RD GEAR
PTO ZF TRANS RR(BDM) ASSISTOR SHIFT CONTROL<WX8> 		1-33259-065-0 01 1 0904-0912 ●
33 BEARING; NEEDLE,3RD GEAR
EXC. PTO ZF TRANS RR(BDM) 		1-33259-065-0 01 1 0904-0912 ●
33 BEARING; NEEDLE,3RD GEAR
ASSISTOR SHIFT CONTROL<WX8> 		1-33259-065-0 01 1 1001-1305 ●
35 RING; BLOCK,4TH & 3RD 1-33265-498-0 02 1 0809- ●
36 GEAR; 3RD,MAINSHAFT 1-33251-445-0 01 1 0809- ●
36 GEAR; 3RD,MAINSHAFT 1-33252-478-0 01 1 0710- ●
77 GEAR; 6TH,MAINSHAFT 1-33252-483-0 01 1 0809- ●
121 HUB; CLU,6TH 1-33261-299-0 01 1 0809- ●
251 RING; SNAP 1-33239-363-0 01 1 0809- ●
296 WASHER; THRUST 1-33259-117-0 01 1 0809- ●
306 RING; SNAP,MAINSHAFT
(C) 		1-33259-111-0 01 1 0809-1311 ●
306 RING; SNAP,MAINSHAFT
(C) 		1-33259-141-0 01 1 1312- ●
306 RING; SNAP,MAINSHAFT
(D) 		1-38249-037-0 01 1 0809- ●
306 RING; SNAP,MAINSHAFT
(A) T=3.20 		1-33319-061-0 01 1 0710-1305 ●
306 RING; SNAP,MAINSHAFT
(A) T=3.15 		1-33319-062-0 01 1 0710-1305 ●
306 RING; SNAP,MAINSHAFT
(A) T=3.10 		1-33319-063-0 01 1 0710-1305 ●
306 RING; SNAP,MAINSHAFT
(A) T=3.05 		1-33319-064-0 01 1 0710-1305 ●
306 RING; SNAP,MAINSHAFT
(A) T=3.00 		1-33319-065-0 01 1 0710-1305 ●
306 RING; SNAP,MAINSHAFT
(A) T=2.95 		1-33319-066-0 01 1 0710- ●
306 RING; SNAP,MAINSHAFT
(A) T=2.90 		1-33319-067-0 01 1 0710- ●
306 RING; SNAP,MAINSHAFT
(A) T=2.85 		1-33319-068-0 01 1 0710- ●
306 RING; SNAP,MAINSHAFT
(A) T=2.80 		1-33319-069-0 01 1 0710- ●
306 RING; SNAP,MAINSHAFT
(A) T=2.75 		1-33319-070-0 01 1 0710- ●
306 RING; SNAP,MAINSHAFT
(A) T=2.70 		1-33319-071-0 01 1 0710- ●
306 RING; SNAP,MAINSHAFT
(A) T=2.65 		1-33319-072-0 01 1 0710- ●
306 RING; SNAP,MAINSHAFT
(A) T=2.60 		1-33319-073-0 01 1 0710- ●
306 RING; SNAP,MAINSHAFT
(A) T=2.55 		1-33319-074-0 01 1 0710- ●
306 RING; SNAP,MAINSHAFT
(A) T=2.50 		1-33319-075-0 01 1 0710- ●
306 RING; SNAP,MAINSHAFT
(A) T=2.45 		1-33319-076-0 01 1 0710- ●
306 RING; SNAP,MAINSHAFT
(A) T=2.40 		1-33319-077-0 01 1 0710-1305 ●
306 RING; SNAP,MAINSHAFT
(A) T=2.35 		1-33319-078-0 01 1 0710-1305 ●
306 RING; SNAP,MAINSHAFT
(A) T=2.30 		1-33319-079-0 01 1 0710-1305 ●
306 RING; SNAP,MAINSHAFT
(A) T=2.25 		1-33319-080-0 01 1 0710-1305 ●
306 RING; SNAP,MAINSHAFT
(A) T=2.20 		1-33319-081-0 01 1 0710-1305 ●
306 RING; SNAP,MAINSHAFT
(A) T=2.15 		1-33319-082-0 01 1 0710-1305 ●
306 RING; SNAP,MAINSHAFT
(A) T=2.10 		1-33319-083-0 01 1 0710-1305 ●
306 RING; SNAP,MAINSHAFT
(B) T=2.5 		1-43319-021-0 01 1 0710- ●
306 RING; SNAP,MAINSHAFT
(B) T=2.4 		1-43319-101-0 01 1 0710- ●
306 RING; SNAP,MAINSHAFT
(B) T=2.3 		1-43319-102-0 01 1 0710- ●
306 RING; SNAP,MAINSHAFT
(B) T=2.0 		1-43319-103-0 01 1 0710- ●
306 RING; SNAP,MAINSHAFT
(B) T=2.1 		1-43319-104-0 01 1 0710- ●
306 RING; SNAP,MAINSHAFT
(B) T=2.2 		1-43319-105-0 01 1 0710- ●
316 CLUTCH; DOG,3RD GEAR 1-33265-636-0 01 1 0809- ●
316 CLUTCH; DOG,3RD GEAR 1-33265-629-0 01 1 0710- ●
317 CLUTCH; DOG,4TH GEAR 1-33265-637-0 01 1 0809- ●
317 CLUTCH; DOG,4TH GEAR 1-33265-630-0 01 1 0710- ●
320 HUB; CLU,4TH & 3RD 1-33261-297-0 01 1 0809- ●
321 SLEEVE; SYN,4TH & 3RD 1-33262-241-0 01 1 0809- ●
323 INSERT
(C) 		1-33263-043-0 03 1 0809- ●
323 INSERT
(A) 		1-33263-030-0 06 1 0710-0808 ●
323 INSERT
(A) 		1-33263-030-0 06 1 0809- ● ●
323 INSERT
(B) 		1-33263-027-0 09 1 0710- ●
391 RING; INSIDE,SYN
(B) 		1-33259-109-0 02 1 0809- ●
391 RING; INSIDE,SYN
(C) 		1-33259-122-0 01 1 0809- ●
391 RING; INSIDE,SYN
(A) 		1-33259-132-0 02 1 0809- ●
408 SPRING
(D) 		1-33269-099-0 03 1 0809- ●
408 SPRING
(B) 		1-33269-038-0 09 1 0710- ●
408 SPRING
(C) 		1-33269-039-0 09 1 0710- ●
408 SPRING
(A) 		1-33269-042-0 06 1 0710-0808 ●
408 SPRING
(A) 		1-33269-042-0 06 1 0809- ● ●
432 BEARING; NEEDLE,4TH 1-33259-119-0 01 1 0809-1311 ●
432 BEARING; NEEDLE,4TH 1-33259-138-0 01 1 1312- ●
537 SLEEVE; SYN,5TH & 6TH 1-33259-120-0 01 1 0809-1311 ●
537 SLEEVE; SYN,5TH & 6TH 1-33259-139-0 01 1 1312- ●
538 RING; BLOCK,5TH & 6TH 1-33259-121-0 02 1 0809- ●
çizim 179470
129 135 129 132 460
BalonParca AdiParca NoAdetTipApplied Date A B
129 BEARING; NEEDLE,IDLER
PTO ZF TRANS RR(BDM) EXC. ASSISTOR SHIFT CONTROL<WX8> 		1-33369-026-0 02 1 0904-0912 ●
129 BEARING; NEEDLE,IDLER
EXC. ASSISTOR SHIFT CONTROL<WX8> 		1-33369-026-0 02 1 1001-1305 ●
129 BEARING; NEEDLE,IDLER 1-33369-026-0 02 1 1306- ●
129 BEARING; NEEDLE,IDLER 1-33369-025-0 02 1 0809- ●
129 BEARING; NEEDLE,IDLER 1-33369-013-0 02 1 0710-0903 ●
129 BEARING; NEEDLE,IDLER
PTO ZF TRANS RR(BDM) ASSISTOR SHIFT CONTROL<WX8> 		1-33369-013-0 02 1 0904-0912 ●
129 BEARING; NEEDLE,IDLER
EXC. PTO ZF TRANS RR(BDM) 		1-33369-013-0 02 1 0904-0912 ●
129 BEARING; NEEDLE,IDLER
ASSISTOR SHIFT CONTROL<WX8> 		1-33369-013-0 02 1 1001-1305 ●
132 SHAFT; REV 1-33351-043-0 01 1 0809- ●
132 SHAFT; REV 1-33351-024-0 01 1 0710- ●
135 GEAR; REV IDLER
EXC. PTO ZF TRANS RR(BDM) 		1-33361-094-0 01 1 0809-1311 ●
135 GEAR; REV IDLER 1-33361-095-0 01 1 1312- ●
135 GEAR; REV IDLER
PTO ZF TRANS RR(BDM) 		1-33361-093-0 01 1 0809-1311 ●
135 GEAR; REV IDLER 1-33361-092-0 01 1 0710-1305 ●
135 GEAR; REV IDLER 1-33361-096-0 01 1 1306- ●
460 RING; SNAP,REV SHAFT 1-34119-044-0 01 1 0809- ●
çizim 179478
348 347 342 345
BalonParca AdiParca NoAdetTipApplied Date A B
342 FLANGE; OUTPUT 1-37243-432-0 01 1 0809-1311 ●
342 FLANGE; OUTPUT 1-37243-434-0 01 1 1312- ●
342 FLANGE; OUTPUT 1-37243-429-0 01 1 0710- ●
345 BOLT; FLANGE TO YOKE 1-37249-210-0 04 1 0809- ●
345 BOLT; FLANGE TO YOKE 1-37249-147-0 04 1 0710- ●
347 WASHER; FLANGE
EXC. PTO ZF TRANS RR(BDM) 		1-37249-211-0 01 1 0809-1311 ●
347 WASHER; FLANGE 1-37249-211-0 01 1 1312- ●
347 WASHER; FLANGE
PTO ZF TRANS RR(BDM) 		1-37249-208-0 01 1 0809-1311 ●
347 WASHER; FLANGE 1-09509-060-0 01 1 0710- ●
348 BOLT; SHAFT 1-36139-024-0 01 1 0809-1311 ●
348 BOLT; SHAFT 1-36139-025-0 01 1 1312- ●
348 BOLT; SHAFT 1-37249-207-0 02 1 0710-1305 ●
348 BOLT; SHAFT 1-37249-215-0 02 1 1306- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
