Sayfa 2-25 - Isuzu EPC

◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVM ▶ 11105 - FVM(RHD) ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-25 - SPEEDOMETER DRIVEN GEAR ▶

2-25 — SPEEDOMETER DRIVEN GEAR (#33970) — 37 parça

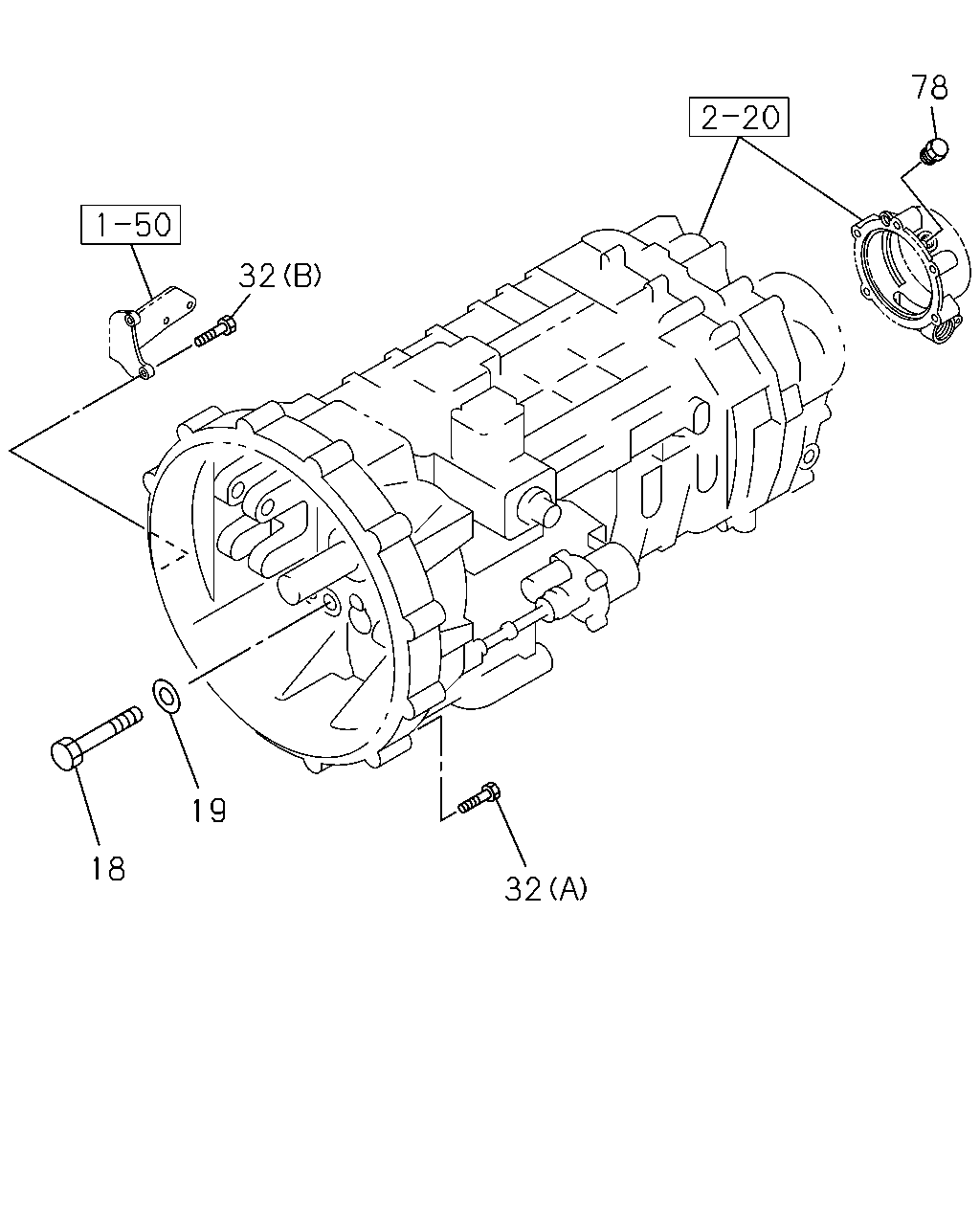

78 32 19 18 32

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
18	BOLT; CLU HSG TO TRANS M18X85	1-31119-048-0	10	1	0710-1305	●
18	BOLT; CLU HSG TO TRANS M18X85	1-31119-057-0	10	1	1306-	●
19	WASHER; PL,CLU HSG TO TRANS	1-31119-012-0	10	1	0710-	●
32	BOLT; CLU HSG TO FLYWHEEL HSG EURO2 SPECIFICATION<NT2> 15" CLUTCH(RE9) (B) M10X80 FLANGE	0-28151-080-0	02	1	0809-1209		●
32	BOLT; CLU HSG TO FLYWHEEL HSG (B) M10X80 FLANGE	0-28151-080-0	02	1	1210-		●
32	BOLT; CLU HSG TO FLYWHEEL HSG EURO2 SPECIFICATION<NT2> 15" CLUTCH(RE9) (B) BLACK M10X80 FLANGE	8-98116-726-0	02	1	0809-1209		●
32	BOLT; CLU HSG TO FLYWHEEL HSG (B) BLACK M10X80 FLANGE	8-98116-726-0	02	1	1210-1211		●
32	BOLT; CLU HSG TO FLYWHEEL HSG (B) M10X80 FLANGE	8-98234-151-0	02	1	1212-		●
32	BOLT; CLU HSG TO FLYWHEEL HSG LEAF SUS(FGM***) EURO2 SPECIFICATION<NT2> 15" CLUTCH(RE9) (B) M10X90 FLANGE	0-28151-090-0	02	1	0809-1209	●
32	BOLT; CLU HSG TO FLYWHEEL HSG LEAF SUS(FGM***) EURO2 SPECIFICATION<NT2> 15" CLUTCH(RE9) (B) M10X92 FLANGE	8-98131-010-0	02	1	0809-1209	●
32	BOLT; CLU HSG TO FLYWHEEL HSG (B) M10X92 FLANGE	8-98131-010-0	02	1	1210-1211	●
32	BOLT; CLU HSG TO FLYWHEEL HSG (B) M10X92 FLANGE	8-98234-153-0	02	1	1212-	●
32	BOLT; CLU HSG TO FLYWHEEL HSG EURO2 SPECIFICATION<NT2> EXC. 15" CLUTCH(RE9) (B) M10X80 FLANGE	0-28151-080-0	04	1	0809-1209		●
32	BOLT; CLU HSG TO FLYWHEEL HSG (A) M10X65 FLANGE	8-94344-540-1	08	1	0809-		●
32	BOLT; CLU HSG TO FLYWHEEL HSG (B) M10X90 FLANGE	0-28151-090-0	04	1	0710-0808	●
32	BOLT; CLU HSG TO FLYWHEEL HSG AIR SUS(FGL***) (B) M10X90 FLANGE	0-28151-090-0	04	1	0809-1209	●
32	BOLT; CLU HSG TO FLYWHEEL HSG LEAF SUS(FGM***) 15" CLUTCH(RE9) EXC. EURO2 SPECIFICATION<NT2> (B) M10X90 FLANGE	0-28151-090-0	04	1	0809-1209	●
32	BOLT; CLU HSG TO FLYWHEEL HSG (B) M10X90 FLANGE	0-28151-090-0	02	1	1210-	●
32	BOLT; CLU HSG TO FLYWHEEL HSG (A) M10X75 FLANGE	8-94399-669-1	07	1	0710-	●
78	SENSOR; SPD	1-83227-018-0	01	1	0710-	●

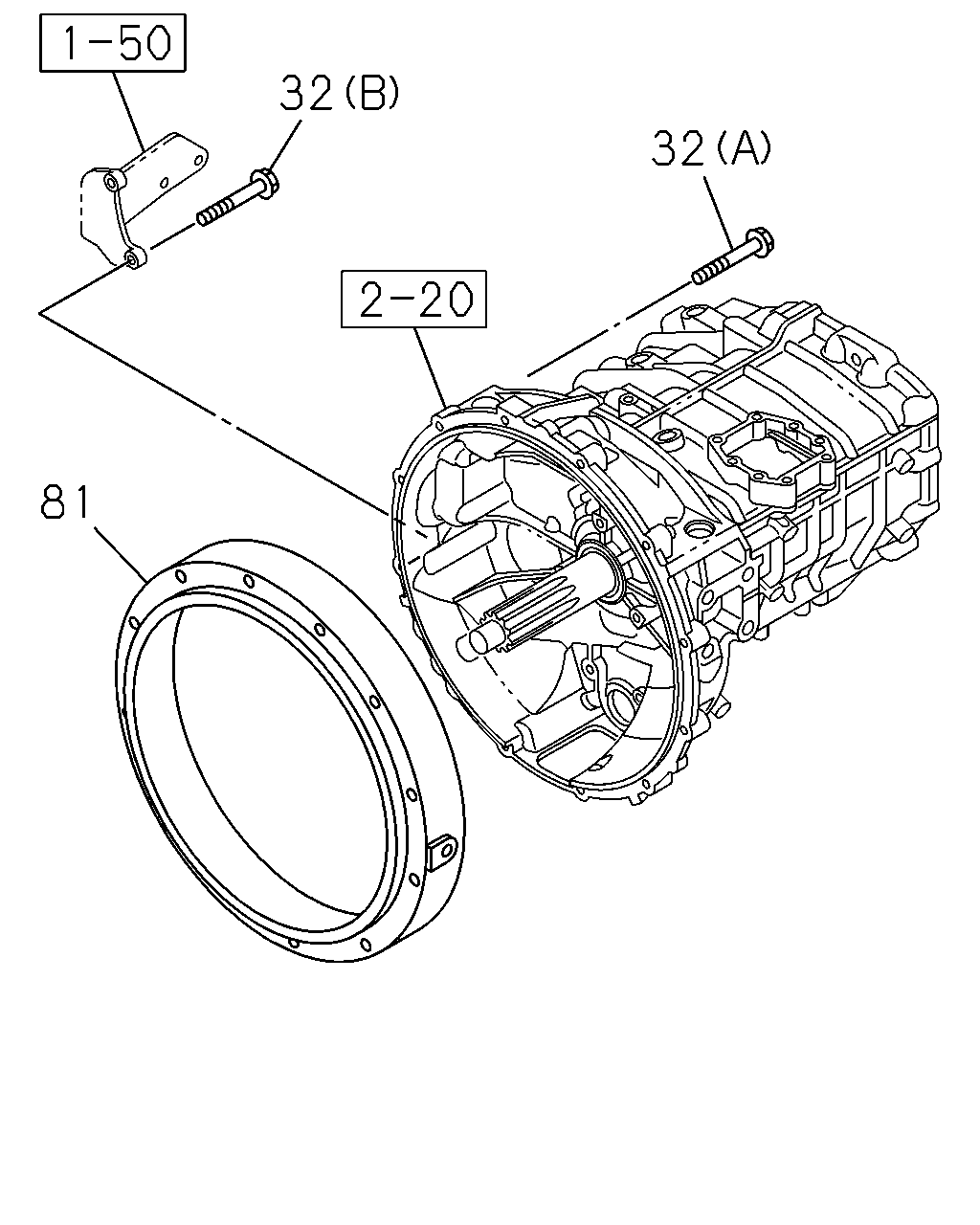

32 32 81

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
32	BOLT; CLU HSG TO FLYWHEEL HSG EURO2 SPECIFICATION<NT2> 15" CLUTCH(RE9) (B) M10X80 FLANGE	0-28151-080-0	02	1	0809-1209		●
32	BOLT; CLU HSG TO FLYWHEEL HSG (B) M10X80 FLANGE	0-28151-080-0	02	1	1210-		●
32	BOLT; CLU HSG TO FLYWHEEL HSG EURO2 SPECIFICATION<NT2> 15" CLUTCH(RE9) (B) BLACK M10X80 FLANGE	8-98116-726-0	02	1	0809-1209		●
32	BOLT; CLU HSG TO FLYWHEEL HSG (B) BLACK M10X80 FLANGE	8-98116-726-0	02	1	1210-1211		●
32	BOLT; CLU HSG TO FLYWHEEL HSG (B) M10X80 FLANGE	8-98234-151-0	02	1	1212-		●
32	BOLT; CLU HSG TO FLYWHEEL HSG LEAF SUS(FGM***) EURO2 SPECIFICATION<NT2> 15" CLUTCH(RE9) (B) M10X90 FLANGE	0-28151-090-0	02	1	0809-1209	●
32	BOLT; CLU HSG TO FLYWHEEL HSG LEAF SUS(FGM***) EURO2 SPECIFICATION<NT2> 15" CLUTCH(RE9) (B) M10X92 FLANGE	8-98131-010-0	02	1	0809-1209	●
32	BOLT; CLU HSG TO FLYWHEEL HSG (B) M10X92 FLANGE	8-98131-010-0	02	1	1210-1211	●
32	BOLT; CLU HSG TO FLYWHEEL HSG (B) M10X92 FLANGE	8-98234-153-0	02	1	1212-	●
32	BOLT; CLU HSG TO FLYWHEEL HSG EURO2 SPECIFICATION<NT2> EXC. 15" CLUTCH(RE9) (B) M10X80 FLANGE	0-28151-080-0	04	1	0809-1209		●
32	BOLT; CLU HSG TO FLYWHEEL HSG (A) M10X65 FLANGE	8-94344-540-1	08	1	0809-		●
32	BOLT; CLU HSG TO FLYWHEEL HSG (B) M10X90 FLANGE	0-28151-090-0	04	1	0710-0808	●
32	BOLT; CLU HSG TO FLYWHEEL HSG AIR SUS(FGL***) (B) M10X90 FLANGE	0-28151-090-0	04	1	0809-1209	●
32	BOLT; CLU HSG TO FLYWHEEL HSG LEAF SUS(FGM***) 15" CLUTCH(RE9) EXC. EURO2 SPECIFICATION<NT2> (B) M10X90 FLANGE	0-28151-090-0	04	1	0809-1209	●
32	BOLT; CLU HSG TO FLYWHEEL HSG (B) M10X90 FLANGE	0-28151-090-0	02	1	1210-	●
32	BOLT; CLU HSG TO FLYWHEEL HSG (A) M10X75 FLANGE	8-94399-669-1	07	1	0710-	●
81	SPACER	1-31119-043-1	01	1	0809-		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
