◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CXM ▶ 10669 - CXM/CXZ LHD ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-40 - STEERING UNIT ▶
4-40 — STEERING UNIT (#3397) — 65 parça

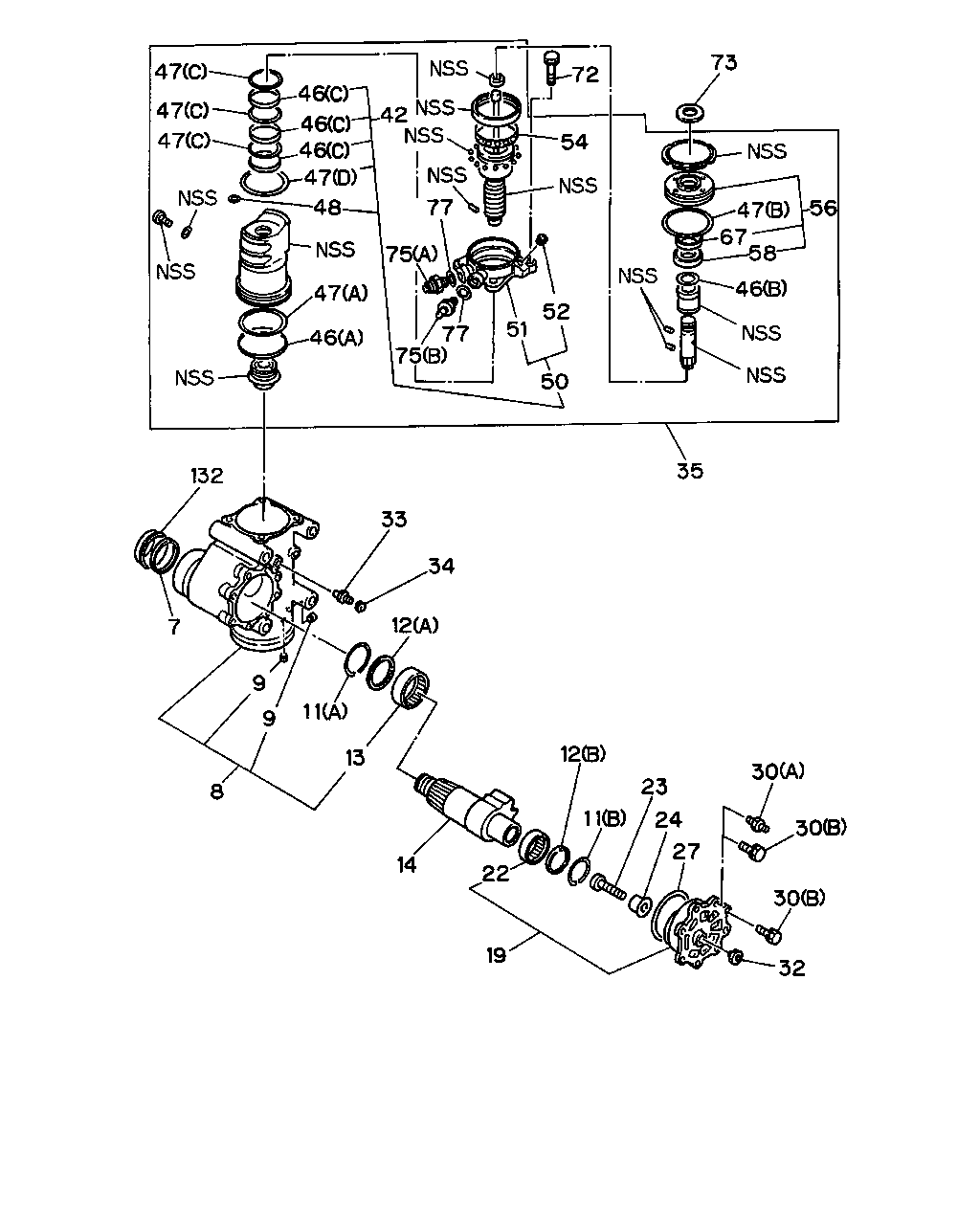

çizim 4364
47 47 47 46 47 48 47 46 46 46 75 77 75 77 42 50 51 52 54 72 35 46 58 67 47 56 73 132 7 33 34 12 11 13 9 9 8 14 19 22 12 11 23 24 27 32 30 30 30
BalonParca AdiParca NoAdetTipApplied Date
7 SEAL; SECTOR SHAFT,STRG UNIT
ASM PART: A = 1-44000-765-3, B = 1-44000-826-0 		1-44249-041-0 01 1 -
8 BOX ASM; STRG UNIT
ASM PART: A = 1-44000-765-3, B = 1-44000-826-0 		1-44240-041-0 01 1 -
9 PLUG; FILLER,STRG UNIT
ASM PART: A = 1-44000-765-3, B = 1-44000-826-0 		1-44519-071-0 02 1 -
11 RING; BACKUP,STRG UNIT
(A) ASM PART: A = 1-44000-765-3, B = 1-44000-826-0 		1-44249-040-0 01 1 -
11 RING; BACKUP,STRG UNIT
(B) ASM PART: A = 1-44000-765-3, B = 1-44000-826-0 		1-44519-103-0 01 1 -
12 GASKET; SHAFT,STRG UNIT
(A) ASM PART: A = 1-44000-765-3, B = 1-44000-826-0 		1-44249-071-0 01 1 -
12 GASKET; SHAFT,STRG UNIT
(B) ASM PART: A = 1-44000-765-3, B = 1-44000-826-0 		1-44519-226-0 01 1 -
13 BEARING; SHAFT,BOX SIDE,STRG UNIT
ASM PART: A = 1-44000-765-3, B = 1-44000-826-0 		1-44249-038-0 01 1 -
14 SHAFT; SECTOR,STRG UNIT
ASM PART: A = 1-44000-765-3, B = 1-44000-826-0 		1-44321-022-0 01 1 -
19 COVER; SIDE STRG UNIT
ASM PART: A = 1-44000-765-3, B = 1-44000-826-0 		1-44260-006-0 01 1 -
22 BEARING; SHAFT,COVER SIDE,STRG UNIT
ASM PART: A = 1-44000-765-3, B = 1-44000-826-0 		1-44519-105-0 01 1 -
23 SCREW; ADJ,SECTOR SHAFT,STRG UNIT
ASM PART: A = 1-44000-765-3, B = 1-44000-826-0 		1-44277-003-1 01 1 -
24 RETAINER; STRG UNIT
ASM PART: A = 1-44000-765-3, B = 1-44000-826-0 		1-44279-011-0 01 1 -
27 GASKET; SIDE COVER,STRG UNIT
ASM PART: A = 1-44000-765-3, B = 1-44000-826-0 		1-44269-016-0 01 1 -
30 BOLT; COVER STRG UNIT
(A) ASM PART: A = 1-44000-765-3, B = 1-44000-826-0 		1-19519-121-0 03 1 -
30 BOLT; COVER STRG UNIT
(B) ASM PART: A = 1-44000-765-3, B = 1-44000-826-0 		1-44279-012-0 05 1 -
32 NUT; ADJ SCREW,STRG UNIT
ASM PART: A = 1-44000-765-3, B = 1-44000-826-0 		1-44269-007-0 01 1 -
33 PLUG; DRAIN,STRG UNIT
ASM PART: A = 1-44000-765-3, B = 1-44000-826-0 		9-83331-704-0 01 1 -
34 PROTECTOR; STRG UNIT
ASM PART: A = 1-44000-765-3, B = 1-44000-826-0 		9-83335-044-0 01 1 -
35 HOUSING & SCREW ASM; STRG UNIT
ASM PART: A = 1-44000-765-3 		1-44150-029-1 01 1 -
35 HOUSING & SCREW ASM; STRG UNIT
ASM PART: B = 1-44000-826-0 		1-44150-051-0 01 1 -
42 HOUSING & SEAL ASM; STRG UNIT
ASM PART: A = 1-44000-765-3 		1-44560-039-0 01 1 -
42 HOUSING & SEAL ASM; STRG UNIT
ASM PART: B = 1-44000-826-0 		1-44560-073-0 01 1 -
46 SEAL; RING,HSG STRG UNIT
(A) ASM PART: A = 1-44000-765-3, B = 1-44000-826-0 		1-44159-037-0 01 1 -
46 SEAL; RING,HSG STRG UNIT
(B) ASM PART: A = 1-44000-765-3, B = 1-44000-826-0 		1-44519-096-0 01 1 -
46 SEAL; RING,HSG STRG UNIT
(C) ASM PART: A = 1-44000-765-3, B = 1-44000-826-0 		1-44519-100-0 03 1 -
47 GASKET; HSG,STRG UNIT
(A) ASM PART: A = 1-44000-765-3, B = 1-44000-826-0 		1-44159-036-0 01 1 -
47 GASKET; HSG,STRG UNIT
(B) ASM PART: A = 1-44000-765-3, B = 1-44000-826-0 		1-44519-099-0 01 1 -
47 GASKET; HSG,STRG UNIT
(C) ASM PART: A = 1-44000-765-3, B = 1-44000-826-0 		1-44519-101-0 03 1 -
47 GASKET; HSG,STRG UNIT
(D) ASM PART: A = 1-44000-765-3, B = 1-44000-826-0 		1-44519-116-0 01 1 -
48 GASKET; HSG,STRG UNIT
ASM PART: A = 1-44000-765-3, B = 1-44000-826-0 		1-44519-097-0 01 1 -
50 HOUSING ASM; VALVE STRG UNIT
ASM PART: A = 1-44000-765-3 		1-44560-040-0 01 1 -
50 HOUSING ASM; VALVE STRG UNIT
ASM PART: B = 1-44000-826-0 		1-44560-072-0 01 1 -
52 PLUG; HSG STRG UNIT
ASM PART: A = 1-44000-765-3, B = 1-44000-826-0 		1-44519-071-0 01 1 -
54 CASE; BEARING STRG UNIT
ASM PART: A = 1-44000-765-3, B = 1-44000-826-0 		1-44241-088-0 01 1 -
56 PLUG & SEAL ASM; STRG UNIT
ASM PART: A = 1-44000-765-3, B = 1-44000-826-0 		1-44250-006-0 01 1 -
58 BEARING; HSG STRG UNIT
ASM PART: A = 1-44000-765-3, B = 1-44000-826-0 		1-44259-029-0 01 1 -
67 SEAL; OIL,PLUG,STRG UNIT
ASM PART: A = 1-44000-765-3, B = 1-44000-826-0 		1-44259-036-0 01 1 -
72 BOLT; HSG FIX STRG UNIT
ASM PART: A = 1-44000-765-3, B = 1-44000-826-0 		1-44259-017-0 04 1 -
73 COVER; DUST,STRG UNIT
ASM PART: A = 1-44000-765-3 		1-44159-039-0 01 1 -
73 COVER; DUST,STRG UNIT
ASM PART: B = 1-44000-826-0 		1-44519-114-0 01 1 -
75 CONNECTOR; HSG STRG UNIT
(A), M20X1.5 ASM PART: A = 1-44000-765-3, B = 1-44000-826-0 		1-44259-034-1 01 1 -
75 CONNECTOR; HSG STRG UNIT
(B), M22X1.5 ASM PART: A = 1-44000-765-3, B = 1-44000-826-0 		1-44259-035-1 01 1 -
77 GASKET; CONNECTOR,STRG UNIT
ASM PART: A = 1-44000-765-3, B = 1-44000-826-0 		9-89970-787-0 02 1 -
132 COVER; DUST,STRG UNIT
ASM PART: B = 1-44000-826-0 		1-44519-227-0 01 1 -

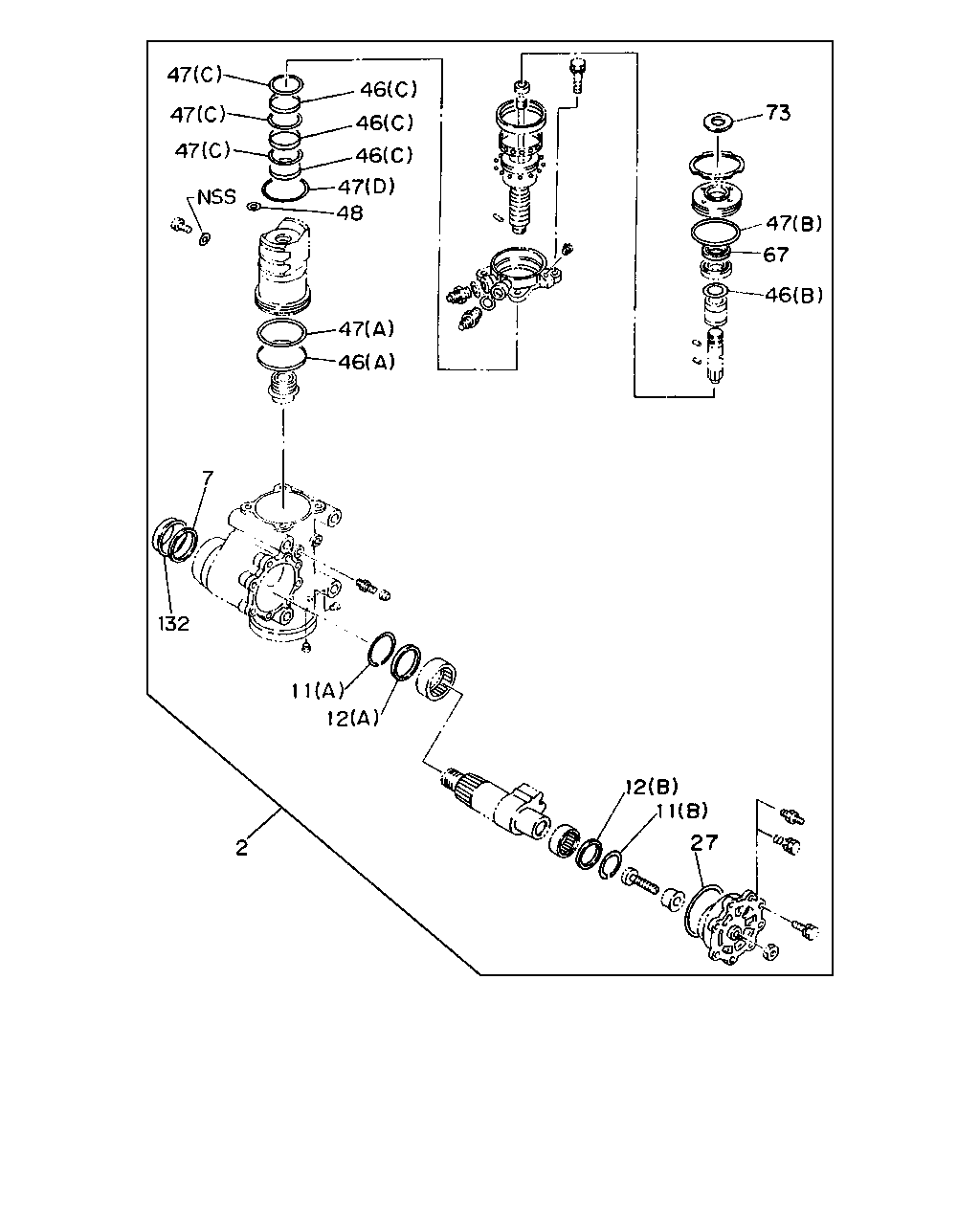

çizim 36084
47 47 47 46 46 46 47 48 47 46 73 47 46 67 7 132 2 11 12 12 11 27
BalonParca AdiParca NoAdetTipApplied Date
2 REPAIR KIT; STRG UNIT,2 YEAR
2 YEAR ASM PART: A = 1-44000-765-3 		1-85574-005-1 01 1 -
2 REPAIR KIT; STRG UNIT,2 YEAR
2 YEAR ASM PART: B = 1-44000-826-0 		1-85574-030-0 01 1 -
7 SEAL; SECTOR SHAFT,STRG UNIT
ASM PART: A = 1-44000-765-3, B = 1-44000-826-0 		1-44249-041-0 01 1 -
11 RING; BACKUP,STRG UNIT
(A) ASM PART: A = 1-44000-765-3, B = 1-44000-826-0 		1-44249-040-0 01 1 -
11 RING; BACKUP,STRG UNIT
(B) ASM PART: A = 1-44000-765-3, B = 1-44000-826-0 		1-44519-103-0 01 1 -
12 GASKET; SHAFT,STRG UNIT
(A) ASM PART: A = 1-44000-765-3, B = 1-44000-826-0 		1-44249-071-0 01 1 -
12 GASKET; SHAFT,STRG UNIT
(B) ASM PART: A = 1-44000-765-3, B = 1-44000-826-0 		1-44519-226-0 01 1 -
27 GASKET; SIDE COVER,STRG UNIT
ASM PART: A = 1-44000-765-3, B = 1-44000-826-0 		1-44269-016-0 01 1 -
46 SEAL; RING,HSG STRG UNIT
(A) ASM PART: A = 1-44000-765-3, B = 1-44000-826-0 		1-44159-037-0 01 1 -
46 SEAL; RING,HSG STRG UNIT
(B) ASM PART: A = 1-44000-765-3, B = 1-44000-826-0 		1-44519-096-0 01 1 -
46 SEAL; RING,HSG STRG UNIT
(C) ASM PART: A = 1-44000-765-3, B = 1-44000-826-0 		1-44519-100-0 03 1 -
47 GASKET; HSG,STRG UNIT
(A) ASM PART: A = 1-44000-765-3, B = 1-44000-826-0 		1-44159-036-0 01 1 -
47 GASKET; HSG,STRG UNIT
(B) ASM PART: A = 1-44000-765-3, B = 1-44000-826-0 		1-44519-099-0 01 1 -
47 GASKET; HSG,STRG UNIT
(C) ASM PART: A = 1-44000-765-3, B = 1-44000-826-0 		1-44519-101-0 03 1 -
47 GASKET; HSG,STRG UNIT
(D) ASM PART: A = 1-44000-765-3, B = 1-44000-826-0 		1-44519-116-0 01 1 -
48 GASKET; HSG,STRG UNIT
ASM PART: A = 1-44000-765-3, B = 1-44000-826-0 		1-44519-097-0 01 1 -
67 SEAL; OIL,PLUG,STRG UNIT
ASM PART: A = 1-44000-765-3, B = 1-44000-826-0 		1-44259-036-0 01 1 -
73 COVER; DUST,STRG UNIT
ASM PART: A = 1-44000-765-3 		1-44159-039-0 01 1 -
73 COVER; DUST,STRG UNIT
ASM PART: B = 1-44000-826-0 		1-44519-114-0 01 1 -
132 COVER; DUST,STRG UNIT
ASM PART: B = 1-44000-826-0 		1-44519-227-0 01 1 -
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
