2-08 — CLUTCH MASTER CYLINDER (#33968) — 21 parça

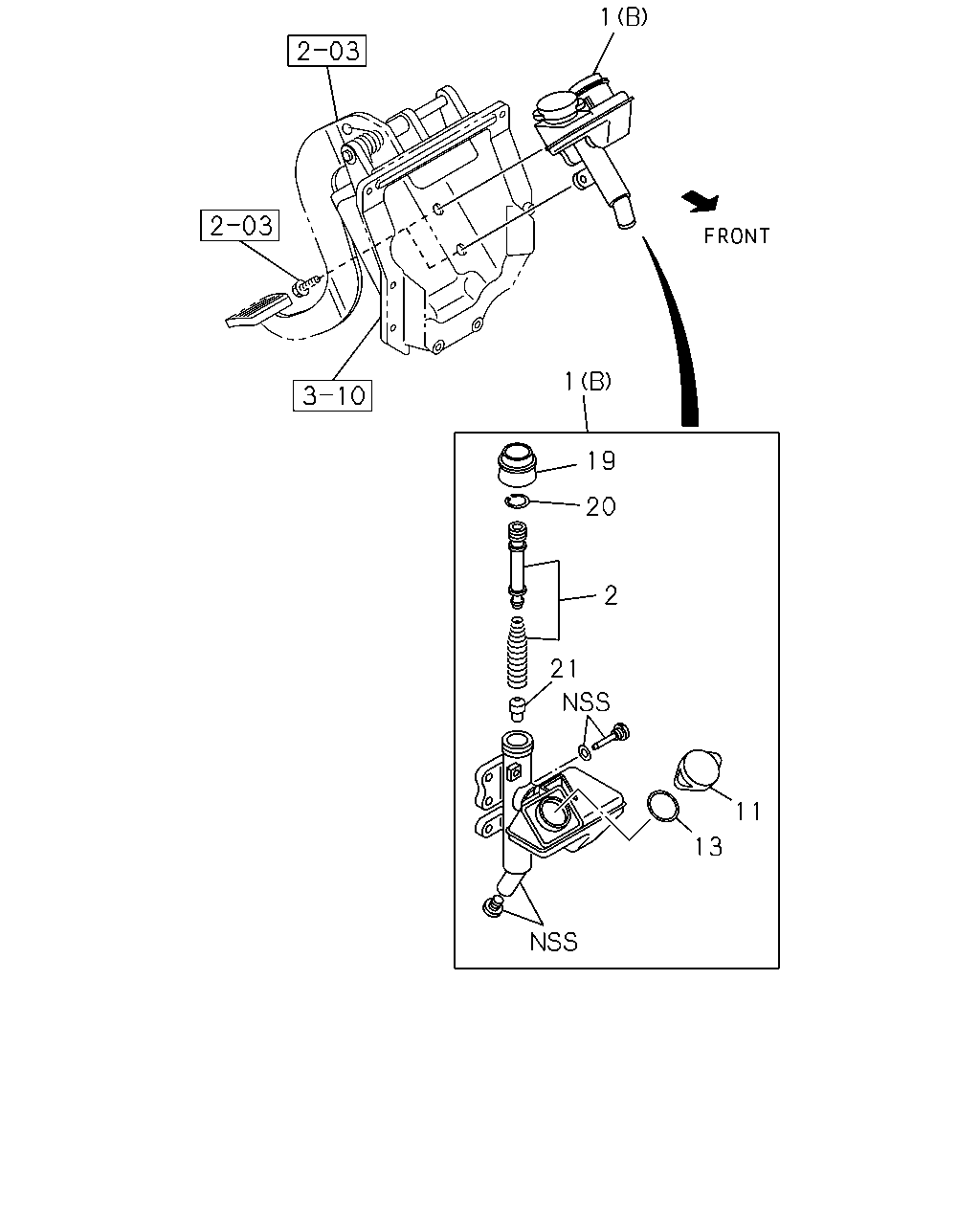

1 1 19 20 2 21 11 13

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	CYLINDER ASM; CLUTCH MASTER ZF6S1000 M/T(Y5D) (B)	1-47500-357-3	01	1	0809-	●
1	CYLINDER ASM; CLUTCH MASTER ZF9S1110 M/T(Y5E) (A)	1-47500-250-2	01	1	0710-	●	●
2	REPAIR KIT; CLU M/CYL ZF6S1000 M/T(Y5D)	1-47550-052-1	01	1	0809-	●
2	REPAIR KIT; CLU M/CYL ZF9S1110 M/T(Y5E)	1-85576-461-0	01	1	0710-	●	●
11	CAP; OUTER,CLU M/CYL ZF6S1000 M/T(Y5D)	1-47519-017-0	01	1	0809-	●
13	GASKET; OIL TANK ZF6S1000 M/T(Y5D)	1-47519-016-0	01	1	0809-	●
19	BOOT; CLU M/CYL ZF6S1000 M/T(Y5D)	1-47519-018-0	01	1	0809-	●
20	RING; SNAP,BODY ZF6S1000 M/T(Y5D)	1-47515-009-0	01	1	0809-	●
20	RING; SNAP,BODY ZF9S1110 M/T(Y5E)	1-47519-013-0	01	1	0710-	●	●
21	VALVE; CHECK ZF6S1000 M/T(Y5D)	1-47565-004-0	01	1	0809-	●

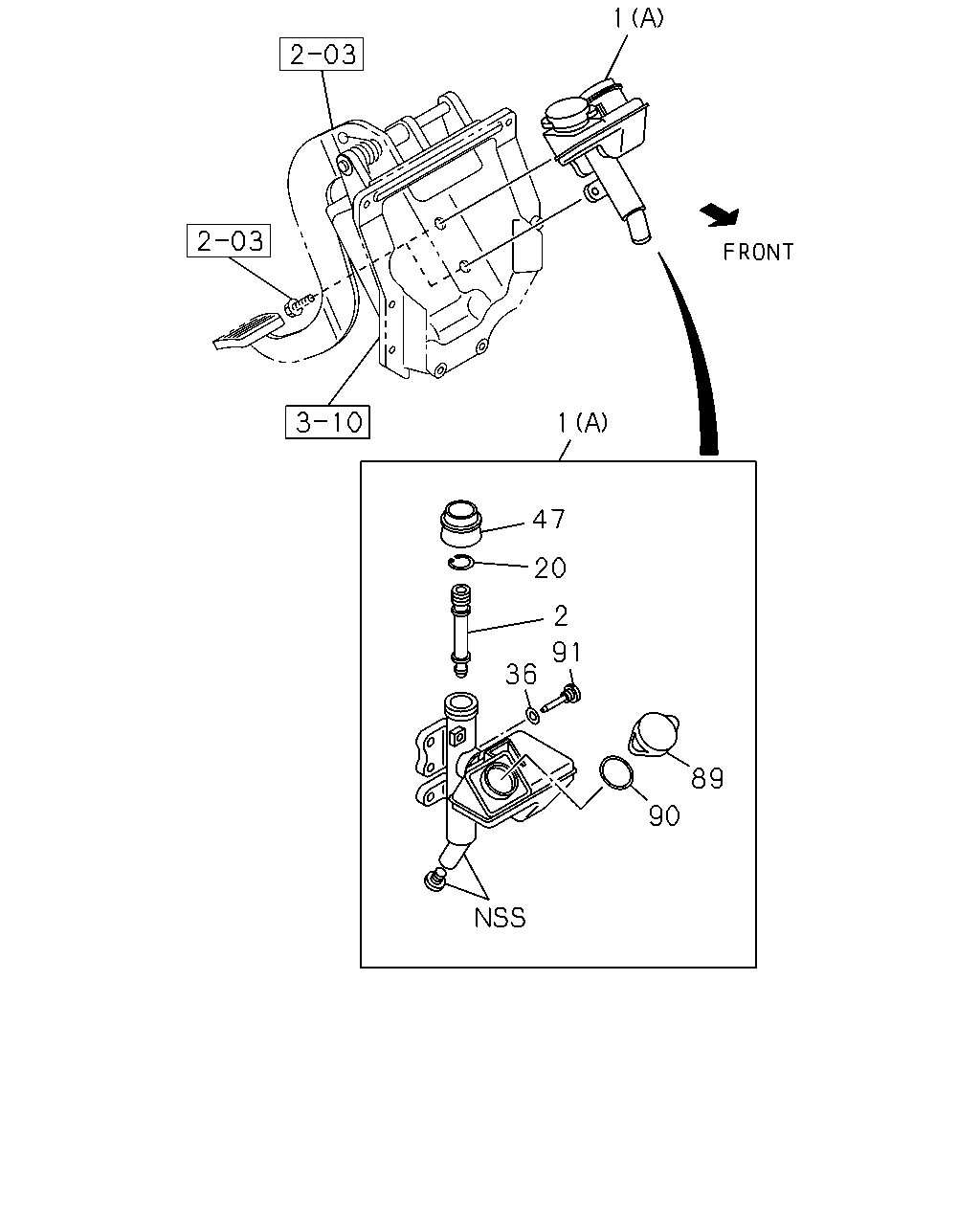

1 1 47 20 2 91 36 89 90

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	CYLINDER ASM; CLUTCH MASTER ZF6S1000 M/T(Y5D) (B)	1-47500-357-3	01	1	0809-	●
1	CYLINDER ASM; CLUTCH MASTER ZF9S1110 M/T(Y5E) (A)	1-47500-250-2	01	1	0710-	●	●
2	REPAIR KIT; CLU M/CYL ZF6S1000 M/T(Y5D)	1-47550-052-1	01	1	0809-	●
2	REPAIR KIT; CLU M/CYL ZF9S1110 M/T(Y5E)	1-85576-461-0	01	1	0710-	●	●
20	RING; SNAP,BODY ZF6S1000 M/T(Y5D)	1-47515-009-0	01	1	0809-	●
20	RING; SNAP,BODY ZF9S1110 M/T(Y5E)	1-47519-013-0	01	1	0710-	●	●
36	GASKET; CLU M/CYL ZF9S1110 M/T(Y5E)	1-47519-014-0	01	1	0710-	●	●
47	COVER; DUST,PUSH ROD ZF9S1110 M/T(Y5E)	1-47519-018-0	01	1	0710-	●	●
89	CAP; OIL FILLER,CLU M/CYL ZF9S1110 M/T(Y5E)	1-47519-017-0	01	1	0710-	●	●
90	GASKET; OIL FILLER,CLU M/CYL ZF9S1110 M/T(Y5E)	1-47519-016-0	01	1	0710-	●	●
91	BOLT; STOPPER ZF9S1110 M/T(Y5E)	1-47519-015-0	01	1	0710-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
