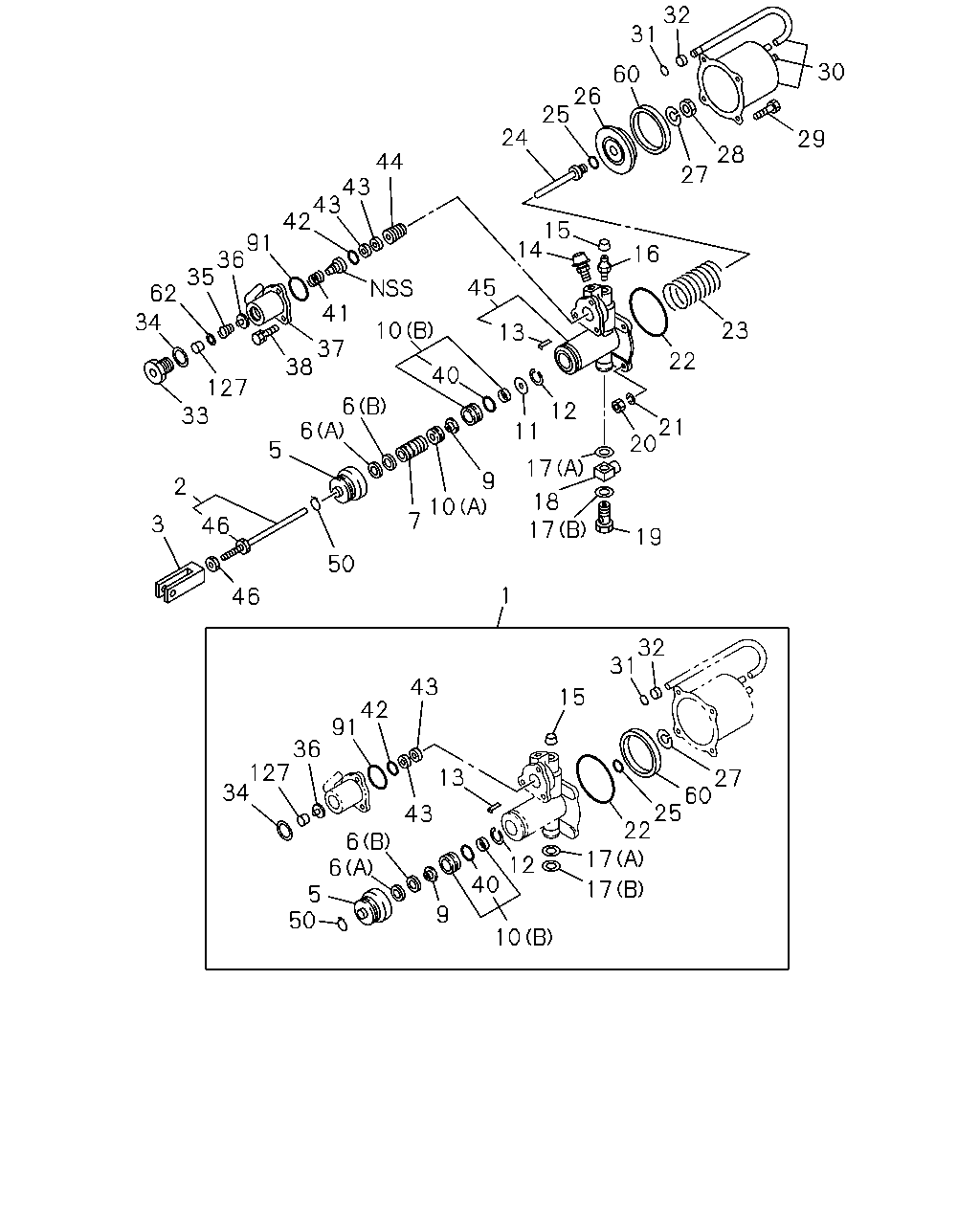

2-07 — CLUTCH BOOSTER; MINIPACK (#33967) — 54 parça

32 31 30 60 26 25 24 29 28 27 44 43 43 42 15 14 91 36 35 62 16 45 41 34 10 23 13 37 38 22 40 127 33 6 12 21 20 6 11 5 17 9 2 18 17 10 7 3 46 19 50 1 46 32 31 43 15 42 91 36 127 34 13 27 60 25 22 43 6 6 5 50 17 12 40 17 9 10

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	REPAIR KIT; CLU BOOSTER	1-31829-611-0	01	1	0710-1412
1	REPAIR KIT; CLU BOOSTER	1-31829-606-0	01	1	1501-
2	ROD; PUSH,CLU BOOSTER	1-31824-248-0	01	1	0710-1412
2	ROD; PUSH,CLU BOOSTER	1-31824-240-0	01	1	1501-
3	CLEVIS; PUSH ROD,CLU BOOSTER	1-31829-186-1	01	1	0710-
5	GUARD; PISTON,CLU BOOSTER	1-31829-503-0	01	1	0710-
6	GASKET; PISTON CUP,CLU BOOSTER (A)	1-31829-032-0	01	1	0710-
6	GASKET; PISTON CUP,CLU BOOSTER (B)	1-31829-033-0	01	1	0710-
7	PISTON; CLU BOOSTER	1-31821-064-0	01	1	0710-
9	GASKET; PISTON CUP,CLU BOOSTER	1-31829-003-0	01	1	0710-
10	RETAINER; PISTON,CLU BOOSTER (B)	1-31829-107-0	01	1	0710-
10	RETAINER; PISTON,CLU BOOSTER (A)	1-31829-108-0	01	1	0710-
11	WASHER; PISTON,CLU BOOSTER	1-31829-105-0	01	1	0710-
12	RING; RET,CLU BOOSTER	1-31829-142-0	01	1	0710-
13	PIN; SPR	1-31829-109-0	01	1	0710-
14	COVER; EXH,CLU BOOSTER	1-31829-564-0	01	1	0710-
15	PROTECTOR; END PLATE,CLU BOOSTER	9-83335-044-0	01	1	0710-
16	PLUG; END PLATE,CLU BOOSTER	9-83331-704-0	01	1	0710-
17	GASKET; CONN,CLU BOOSTER (A)	9-09920-267-0	01	1	0710-
17	GASKET; CONN,CLU BOOSTER (B)	9-09920-268-0	01	1	0710-
18	CONNECTOR; END PLATE,CLU BOOSTER	1-31829-248-0	01	1	0710-
19	BOLT; EYE,END PLATE,CLU BOOSTER	9-83315-047-0	01	1	0710-
20	NUT; END PLATE TO SHELL,CLU BOOSTER M10	9-09111-410-0	04	1	0710-
21	WASHER; END PLATE TO SHELL,CLU BOOSTER ID=10.2	9-09150-510-0	04	1	0710-
22	GASKET; END PLATE TO SHELL,CLU BOOSTER	1-09623-322-0	01	1	0710-
23	SPRING; SHELL,CLU BOOSTER	1-31829-358-0	01	1	0710-
24	ROD; PUSH,CLU BOOSTER	1-31829-112-0	01	1	0710-
25	GASKET; PUSH ROD,CLU BOOSTER	1-09623-321-0	01	1	0710-
26	PISTON; SHELL,CLU BOOSTER	1-31821-084-0	01	1	0710-
27	SPRING; CLU BOOSTER	1-31829-111-0	01	1	0710-
28	NUT; PUSH ROD,CLU BOOSTER	9-88510-365-0	01	1	0710-
29	BOLT; END PLATE TO SHELL,CLU BOOSTER	9-83315-099-0	04	1	0710-
30	SHELL; CYL,CLU BOOSTER	1-31811-124-0	01	1	0710-
31	GASKET; SHELL,CLU BOOSTER	1-31829-279-0	01	1	0710-
32	BUSHING; SHELL,CLU BOOSTER	1-31829-280-0	01	1	0710-
33	CONNECTOR; UPR,VLV,CLU BOOSTER	1-31829-214-0	01	1	0710-
34	GASKET; CONN,CLU BOOSTER	1-31829-053-0	01	1	0710-
35	SPRING; POPPET VLV,CLU BOOSTER	1-31829-537-0	01	1	0710-
36	VALVE; POPPET,CLU BOOSTER	1-31829-536-0	01	1	0710-
37	BODY; UPR,VLV,CLU BOOSTER	1-31811-085-0	01	1	0710-
38	SCREW; UPR VLV TO END PLATE,CLU BOOSTE	9-83315-113-0	03	1	0710-
40	GASKET; PISTON,CLU BOOSTER	1-31829-037-0	01	1	0710-1412
41	SPRING; DIAPH,CLU BOOSTER	1-31829-545-0	01	1	0710-
42	GASKET; FITTING,CLU BOOSTER	1-31829-143-0	01	1	0710-
43	GASKET; UPR VLV,CLU BOOSTER	1-31829-060-0	02	1	0710-
44	PISTON; UPR VLV,CLU BOOSTER	1-31821-087-0	01	1	0710-
45	PLATE; END,CLU BOOSTER	1-31811-150-0	01	1	0710-1412
45	PLATE; END,CLU BOOSTER	1-31811-149-0	01	1	1501-
46	NUT; PUSH ROD,CLU BOOSTER M10	9-09111-410-0	02	1	0710-
50	CLAMP; PISTON GUARD,CLU BOOSTER	1-31829-504-0	01	1	0710-
60	GASKET; SHELL,CLU BOOSTER	1-31829-544-0	01	1	0710-
62	RETAINER; POPPET	1-31829-489-0	01	1	0710-
91	GASKET; CLU BOOSTER	1-31829-103-0	01	1	0710-
127	FILTER; POPPET	1-31829-495-0	01	1	0710-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
