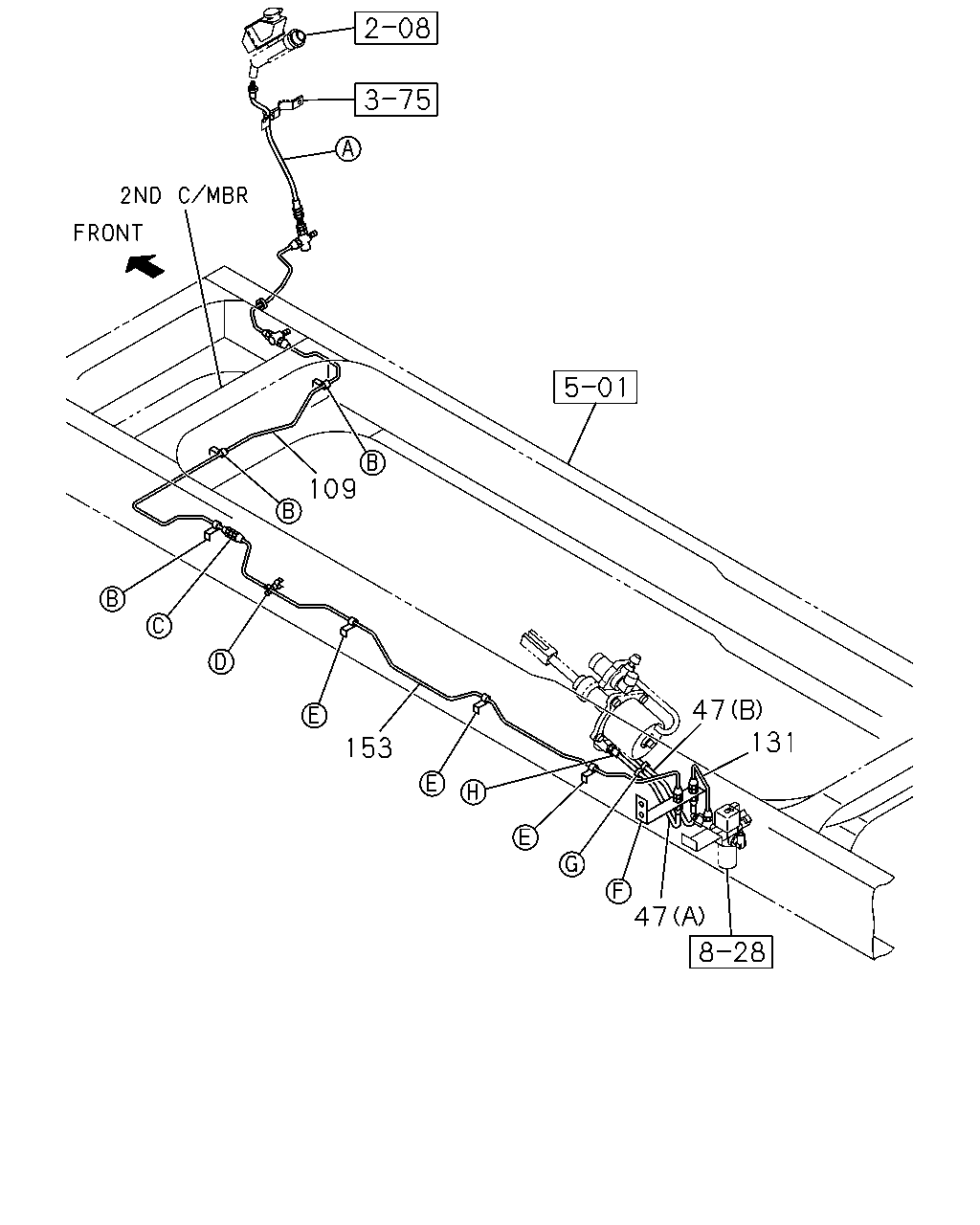

2-05 — CLUTCH PIPING (#33966) — 132 parça

109 47 131 153 47

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
47	HOSE; FLEX,CLU CONT ZF6S1000 M/T(Y5D) (B) L=280	1-09363-610-0	01	1	0809-	●
47	HOSE; FLEX,CLU CONT ZF6S1000 M/T(Y5D) (A) L=520	8-98072-340-0	01	1	0809-0809	●
47	HOSE; FLEX,CLU CONT ZF6S1000 M/T(Y5D) (A) L=520	8-98130-713-0	01	1	0809-	●
47	HOSE; FLEX,CLU CONT ZF9S1110 M/T(Y5E) (B) L=500	1-09363-720-0	01	1	0710-	●	●
47	HOSE; FLEX,CLU CONT ZF9S1110 M/T(Y5E) (A) L=500	1-09364-329-0	01	1	0710-	●	●
109	PIPE; AIR,UNION TO UNION L=1408 SERVICED BY L=1550	1-47428-766-0	01	1	0710-0710	●	●
109	PIPE; AIR,UNION TO UNION L=1412 SERVICED BY L=1550	1-47428-766-0	01	1	0710-0711	●	●
109	PIPE; AIR,UNION TO UNION L=1405 SERVICED BY L=1550	1-47428-766-0	01	1	0712-0802	●	●
109	PIPE; AIR,UNION TO UNION L=1413 SERVICED BY L=1550	1-47428-766-0	01	1	0803-	●	●
131	PIPE; AIR,UNION TO FLEX HOSE EURO2 SPECIFICATION<NT2> RIGID SEAT WO/ARM REST<TAZ> EXC. H.S.A SYSTEM<6EP> L=262	8-98108-925-0	01	1	0809-	●
131	PIPE; AIR,UNION TO FLEX HOSE EURO4 SPECIFICATION<NT4> RIGID SEAT WO/ARM REST<TAZ> EXC. PTO CONTROL<SV6>,H.S.A SYSTEM<6EP> L=262	8-98108-925-0	01	1	0809-	●
131	PIPE; AIR,UNION TO FLEX HOSE EURO4 SPECIFICATION<NT4> PTO CONTROL<SV6> RIGID SEAT WO/ARM REST<TAZ> EXC. H.S.A SYSTEM<6EP> L=218	8-98108-924-0	01	1	0809-	●
131	PIPE; AIR,UNION TO FLEX HOSE ZF9S1110 M/T(Y5E) PTO CONTROL<SV6> L=203	8-98100-103-0	01	1	0710-0801	●	●
131	PIPE; AIR,UNION TO FLEX HOSE ZF9S1110 M/T(Y5E) PTO CONTROL<SV6> EXC. H.S.A SYSTEM<6EP> L=203	8-98100-103-0	01	1	0802-0802	●	●
131	PIPE; AIR,UNION TO FLEX HOSE ZF9S1110 M/T(Y5E) PTO CONTROL<SV6> L=203	8-98100-103-0	01	1	0803-0808	●	●
131	PIPE; AIR,UNION TO FLEX HOSE ZF9S1110 M/T(Y5E) PTO CONTROL<SV6> L=203	8-98100-103-0	01	1	0809-		●
131	PIPE; AIR,UNION TO FLEX HOSE H.S.A SYSTEM<6EP> EURO4 SPECIFICATION<NT4> PTO CONTROL<SV6> L=203	8-98100-103-0	01	1	0809-	●
131	PIPE; AIR,UNION TO FLEX HOSE EURO4 SPECIFICATION<NT4> PTO CONTROL<SV6> EXC. RIGID SEAT WO/ARM REST<TAZ>,H.S.A SYSTEM<6EP> L=203	8-98100-103-0	01	1	0809-	●
131	PIPE; AIR,UNION TO FLEX HOSE L=244	8-98092-621-0	01	1	0710-0710	●	●
131	PIPE; AIR,UNION TO FLEX HOSE ZF9S1110 M/T(Y5E) EXC. PTO CONTROL<SV6> L=244	8-98092-621-0	01	1	0710-0801	●	●
131	PIPE; AIR,UNION TO FLEX HOSE ZF9S1110 M/T(Y5E) EXC. PTO CONTROL<SV6>,H.S.A SYSTEM<6EP> L=244	8-98092-621-0	01	1	0802-0802	●	●
131	PIPE; AIR,UNION TO FLEX HOSE ZF9S1110 M/T(Y5E) EXC. PTO CONTROL<SV6> L=244	8-98092-621-0	01	1	0803-0803	●	●
131	PIPE; AIR,UNION TO FLEX HOSE ZF9S1110 M/T(Y5E) EXC. H.S.A SYSTEM<6EP> L=244	8-98092-621-0	01	1	0804-0804	●	●
131	PIPE; AIR,UNION TO FLEX HOSE ZF9S1110 M/T(Y5E) EXC. PTO CONTROL<SV6> L=244	8-98092-621-0	01	1	0804-0804	●	●
131	PIPE; AIR,UNION TO FLEX HOSE ZF9S1110 M/T(Y5E) EXC. PTO CONTROL<SV6> L=244	8-98092-621-0	01	1	0805-0808	●	●
131	PIPE; AIR,UNION TO FLEX HOSE ZF9S1110 M/T(Y5E) EXC. PTO CONTROL<SV6> L=244	8-98092-621-0	01	1	0809-		●
131	PIPE; AIR,UNION TO FLEX HOSE H.S.A SYSTEM<6EP> EURO2 SPECIFICATION<NT2> L=244	8-98092-621-0	01	1	0809-	●
131	PIPE; AIR,UNION TO FLEX HOSE H.S.A SYSTEM<6EP> EURO4 SPECIFICATION<NT4> EXC. PTO CONTROL<SV6> L=244	8-98092-621-0	01	1	0809-	●
131	PIPE; AIR,UNION TO FLEX HOSE EURO2 SPECIFICATION<NT2> EXC. RIGID SEAT WO/ARM REST<TAZ>,H.S.A SYSTEM<6EP> L=244	8-98092-621-0	01	1	0809-	●
131	PIPE; AIR,UNION TO FLEX HOSE EURO4 SPECIFICATION<NT4> EXC. PTO CONTROL<SV6>,RIGID SEAT WO/ARM REST<TAZ>, H.S.A SYSTEM<6EP> L=244	8-98092-621-0	01	1	0809-	●
153	PIPE ASM; CLU,UNION TO FLEX L=2142 SERVICED BY L=2150	1-47428-770-0	01	1	0710-0710	●	●
153	PIPE ASM; CLU,UNION TO FLEX	8-98100-292-0	01	1	0710-0710	●	●
153	PIPE ASM; CLU,UNION TO FLEX L=2127 SERVICED BY L=2150	1-47428-770-0	01	1	0711-0711	●	●
153	PIPE ASM; CLU,UNION TO FLEX L=2129 SERVICED BY L=2150	1-47428-770-0	01	1	0712-0712	●	●
153	PIPE ASM; CLU,UNION TO FLEX ZF9S1110 M/T(Y5E) L=2150 SERVICED BY L=2150	1-47428-770-0	01	1	0801-0802	●	●
153	PIPE ASM; CLU,UNION TO FLEX L=2150 SERVICED BY L=2150	1-47428-770-0	01	1	0803-	●	●

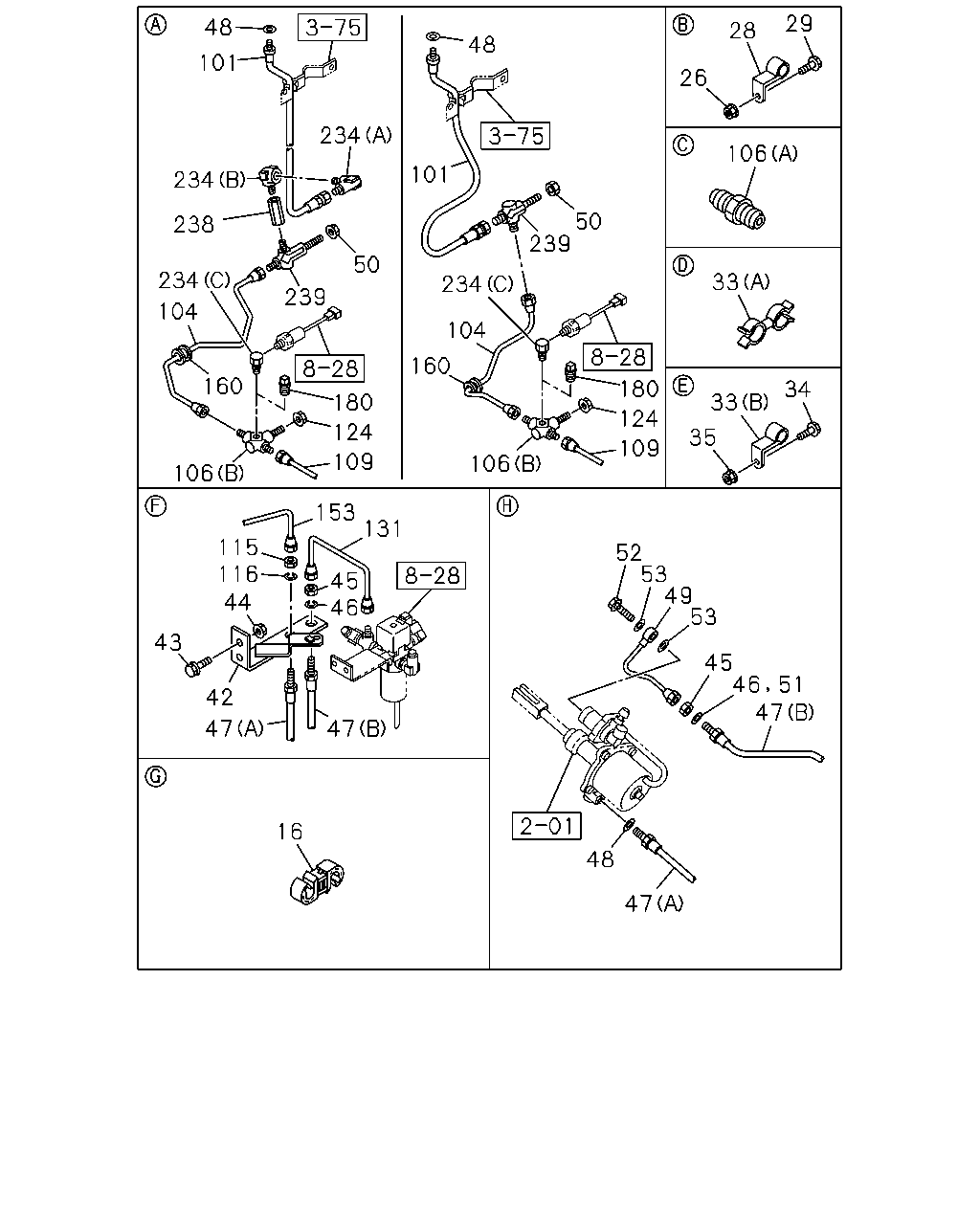

29 48 28 48 101 26 234 106 101 234 50 239 238 50 234 33 234 239 104 104 160 160 180 34 33 180 124 124 35 109 109 106 106 153 131 115 116 44 52 53 49 53 45 46 43 45 47 42 47 47 16 48 47 46 51

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
16	CLIP; FLEX HOSE ID=10 & 12	1-09709-278-1	01	1	0710-	●	●
26	NUT; CLIP,OIL PIPE M8 FLANGE	0-91180-108-0	03	1	0710-	●	●
28	CLIP; OIL PIPE ID=8 H=20 L=20	1-09700-604-0	03	1	0710-	●	●
29	BOLT; CLIP,OIL PIPE M8X30 FLANGE	0-28650-830-0	01	1	0812-	●	●
29	BOLT; CLIP,OIL PIPE M8X25 FLANGE	0-28650-825-0	03	1	0710-0811	●	●
29	BOLT; CLIP,OIL PIPE M8X25 FLANGE	0-28650-825-0	02	1	0812-	●	●
33	CLIP; OIL PIPE (B) ID=8 H=20 L=20	1-09700-604-0	03	1	0710-	●	●
33	CLIP; OIL PIPE (A) ID=8.3 & 10	8-94176-792-0	01	1	0710-	●	●
34	BOLT; PIPE CLIP M8X30 FLANGE	0-28650-830-0	03	1	0710-	●	●
35	NUT; PIPE CLIP M8 FLANGE	0-91180-108-0	03	1	0710-	●	●
42	BRACKET; FLEX HOSE,CLU CONT ZF6S1000 M/T(Y5D)	8-98185-051-0	01	1	1012-	●
42	BRACKET; FLEX HOSE,CLU CONT	8-98077-571-0	01	1	0710-0710	●	●
42	BRACKET; FLEX HOSE,CLU CONT	8-98099-521-1	01	1	0711-	●	●
43	BOLT; BRKT,FLEX HOSE,CLU BOOSTER M8X30 FLANGE	0-28650-830-0	02	1	0710-	●	●
44	NUT; BRKT,FLEX HOSE,CLU BOOSTER M8 FLANGE	0-91180-108-0	02	1	0710-	●	●
45	NUT; FLEX HOSE,CLU CONT ZF6S1000 M/T(Y5D) M12	9-09840-280-0	01	1	0809-	●
45	NUT; FLEX HOSE,CLU CONT M12	9-09840-280-0	01	1	0710-0802	●	●
45	NUT; FLEX HOSE,CLU CONT ZF9S1110 M/T(Y5E) M12	9-09840-280-0	02	1	0803-	●	●
46	WASHER; LK,FLEX HOSE,CLU CONT ZF6S1000 M/T(Y5D) ID=12.2	0-91510-512-0	01	1	0809-1009	●
46	WASHER; LK,FLEX HOSE,CLU CONT ZF6S1000 M/T(Y5D) ID=12.2	0-91510-812-0	01	1	1010-1011	●
46	WASHER; LK,FLEX HOSE,CLU CONT ID=12.2	0-91510-512-0	01	1	0710-0802	●	●
46	WASHER; LK,FLEX HOSE,CLU CONT ZF9S1110 M/T(Y5E) ID=12.2	0-91510-512-0	02	1	0803-1009	●	●
46	WASHER; LK,FLEX HOSE,CLU CONT ID=12.2	0-91510-812-0	02	1	1010-1011	●	●
47	HOSE; FLEX,CLU CONT ZF6S1000 M/T(Y5D) (B) L=280	1-09363-610-0	01	1	0809-	●
47	HOSE; FLEX,CLU CONT ZF6S1000 M/T(Y5D) (A) L=520	8-98072-340-0	01	1	0809-0809	●
47	HOSE; FLEX,CLU CONT ZF6S1000 M/T(Y5D) (A) L=520	8-98130-713-0	01	1	0809-	●
47	HOSE; FLEX,CLU CONT ZF9S1110 M/T(Y5E) (B) L=500	1-09363-720-0	01	1	0710-	●	●
47	HOSE; FLEX,CLU CONT ZF9S1110 M/T(Y5E) (A) L=500	1-09364-329-0	01	1	0710-	●	●
48	GASKET; FLEX HOSE,CLU CONT ID=10.2 OD=16.0	9-09571-410-0	02	1	0710-	●	●
49	PIPE; AIR,FLEX HOSE TO CLU BOOSTER L=232	1-49124-795-0	01	1	0710-0808	●	●
49	PIPE; AIR,FLEX HOSE TO CLU BOOSTER L=232	1-49124-795-0	01	1	0809-		●
49	PIPE; AIR,FLEX HOSE TO CLU BOOSTER ZF9S1110 M/T(Y5E) L=232	1-49124-795-0	01	1	0809-	●
50	NUT; UNION M12	0-91111-512-0	01	1	0710-	●	●
51	WASHER; LK ID=12.2	0-91510-812-0	01	1	1012-	●	●
52	BOLT; EYE,AIR PIPE M14X27 FLANGE	1-09675-086-0	01	1	0710-0808	●	●
52	BOLT; EYE,AIR PIPE M14X27 FLANGE	1-09675-086-0	01	1	0809-		●
52	BOLT; EYE,AIR PIPE ZF9S1110 M/T(Y5E) M14X27 FLANGE	1-09675-086-0	01	1	0809-	●
53	GASKET; JOINT BOLT ID=14.2 OD=19.2	1-09630-085-0	02	1	0710-0808	●	●
53	GASKET; JOINT BOLT ID=14.2 OD=19.2	1-09630-085-0	02	1	0809-1312		●
53	GASKET; JOINT BOLT ZF9S1110 M/T(Y5E) ID=14.2 OD=19.2	1-09630-085-0	02	1	0809-1312	●
53	GASKET; JOINT BOLT ID=14.2 OD=19.2	8-98251-345-0	02	1	1401-		●
53	GASKET; JOINT BOLT ZF9S1110 M/T(Y5E) ID=14.2 OD=19.2	8-98251-345-0	02	1	1401-	●
101	HOSE; FLEX,OIL PIPE TO OIL PIPE CAB SUSPENSION SEMI FLOATING<SDK>,CAB SUSPENSION RIGID<W71> MANUAL TRANSMISSION<X9C> L=440	8-98072-346-0	01	1	0809-	●
101	HOSE; FLEX,OIL PIPE TO OIL PIPE L=510	8-98059-811-0	01	1	0710-0802	●	●
101	HOSE; FLEX,OIL PIPE TO OIL PIPE L=500	8-98072-350-0	01	1	0803-0808	●	●
101	HOSE; FLEX,OIL PIPE TO OIL PIPE L=500	8-98072-350-0	01	1	0809-		●
101	HOSE; FLEX,OIL PIPE TO OIL PIPE CAB SUSPENSION FULL FLOATING<W16> MANUAL TRANSMISSION<X9C> L=500	8-98072-350-0	01	1	0809-	●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR ZF9S1110 M/T(Y5E) L=381	8-98079-771-0	01	1	0710-0803	●	●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR ZF9S1110 M/T(Y5E) L=533 SERVICED BY L=550	1-47428-753-0	01	1	0804-0808	●	●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR L=533 SERVICED BY L=550	1-47428-753-0	01	1	0809-	●	●
106	UNION; OIL PIPE (A) M14 STRAIGHT	0-92113-008-0	01	1	0710-	●	●
106	UNION; OIL PIPE (B) M12 & M14 & PT1/4 3WAY	1-09656-286-2	01	1	0710-	●	●
109	PIPE; AIR,UNION TO UNION L=1408 SERVICED BY L=1550	1-47428-766-0	01	1	0710-0710	●	●
109	PIPE; AIR,UNION TO UNION L=1412 SERVICED BY L=1550	1-47428-766-0	01	1	0710-0711	●	●
109	PIPE; AIR,UNION TO UNION L=1405 SERVICED BY L=1550	1-47428-766-0	01	1	0712-0802	●	●
109	PIPE; AIR,UNION TO UNION L=1413 SERVICED BY L=1550	1-47428-766-0	01	1	0803-	●	●
115	NUT; FLEX HOSE,CLU CONT ZF9S1110 M/T(Y5E) M14	0-91111-514-0	01	1	0710-0808	●	●
115	NUT; FLEX HOSE,CLU CONT M14	0-91111-514-0	01	1	0809-	●	●
116	WASHER; FLEX HOSE,CLU CONT ZF9S1110 M/T(Y5E) ID=14.2	0-91510-814-0	01	1	0710-0808	●	●
116	WASHER; FLEX HOSE,CLU CONT ID=14.2	0-91510-814-0	01	1	0809-1011	●	●
124	NUT; PIPE UNION M12	0-91111-512-0	01	1	0710-	●	●
131	PIPE; AIR,UNION TO FLEX HOSE EURO2 SPECIFICATION<NT2> RIGID SEAT WO/ARM REST<TAZ> EXC. H.S.A SYSTEM<6EP> L=262	8-98108-925-0	01	1	0809-	●
131	PIPE; AIR,UNION TO FLEX HOSE EURO4 SPECIFICATION<NT4> RIGID SEAT WO/ARM REST<TAZ> EXC. PTO CONTROL<SV6>,H.S.A SYSTEM<6EP> L=262	8-98108-925-0	01	1	0809-	●
131	PIPE; AIR,UNION TO FLEX HOSE EURO4 SPECIFICATION<NT4> PTO CONTROL<SV6> RIGID SEAT WO/ARM REST<TAZ> EXC. H.S.A SYSTEM<6EP> L=218	8-98108-924-0	01	1	0809-	●
131	PIPE; AIR,UNION TO FLEX HOSE ZF9S1110 M/T(Y5E) PTO CONTROL<SV6> L=203	8-98100-103-0	01	1	0710-0801	●	●
131	PIPE; AIR,UNION TO FLEX HOSE ZF9S1110 M/T(Y5E) PTO CONTROL<SV6> EXC. H.S.A SYSTEM<6EP> L=203	8-98100-103-0	01	1	0802-0802	●	●
131	PIPE; AIR,UNION TO FLEX HOSE ZF9S1110 M/T(Y5E) PTO CONTROL<SV6> L=203	8-98100-103-0	01	1	0803-0808	●	●
131	PIPE; AIR,UNION TO FLEX HOSE ZF9S1110 M/T(Y5E) PTO CONTROL<SV6> L=203	8-98100-103-0	01	1	0809-		●
131	PIPE; AIR,UNION TO FLEX HOSE H.S.A SYSTEM<6EP> EURO4 SPECIFICATION<NT4> PTO CONTROL<SV6> L=203	8-98100-103-0	01	1	0809-	●
131	PIPE; AIR,UNION TO FLEX HOSE EURO4 SPECIFICATION<NT4> PTO CONTROL<SV6> EXC. RIGID SEAT WO/ARM REST<TAZ>,H.S.A SYSTEM<6EP> L=203	8-98100-103-0	01	1	0809-	●
131	PIPE; AIR,UNION TO FLEX HOSE L=244	8-98092-621-0	01	1	0710-0710	●	●
131	PIPE; AIR,UNION TO FLEX HOSE ZF9S1110 M/T(Y5E) EXC. PTO CONTROL<SV6> L=244	8-98092-621-0	01	1	0710-0801	●	●
131	PIPE; AIR,UNION TO FLEX HOSE ZF9S1110 M/T(Y5E) EXC. PTO CONTROL<SV6>,H.S.A SYSTEM<6EP> L=244	8-98092-621-0	01	1	0802-0802	●	●
131	PIPE; AIR,UNION TO FLEX HOSE ZF9S1110 M/T(Y5E) EXC. PTO CONTROL<SV6> L=244	8-98092-621-0	01	1	0803-0803	●	●
131	PIPE; AIR,UNION TO FLEX HOSE ZF9S1110 M/T(Y5E) EXC. H.S.A SYSTEM<6EP> L=244	8-98092-621-0	01	1	0804-0804	●	●
131	PIPE; AIR,UNION TO FLEX HOSE ZF9S1110 M/T(Y5E) EXC. PTO CONTROL<SV6> L=244	8-98092-621-0	01	1	0804-0804	●	●
131	PIPE; AIR,UNION TO FLEX HOSE ZF9S1110 M/T(Y5E) EXC. PTO CONTROL<SV6> L=244	8-98092-621-0	01	1	0805-0808	●	●
131	PIPE; AIR,UNION TO FLEX HOSE ZF9S1110 M/T(Y5E) EXC. PTO CONTROL<SV6> L=244	8-98092-621-0	01	1	0809-		●
131	PIPE; AIR,UNION TO FLEX HOSE H.S.A SYSTEM<6EP> EURO2 SPECIFICATION<NT2> L=244	8-98092-621-0	01	1	0809-	●
131	PIPE; AIR,UNION TO FLEX HOSE H.S.A SYSTEM<6EP> EURO4 SPECIFICATION<NT4> EXC. PTO CONTROL<SV6> L=244	8-98092-621-0	01	1	0809-	●
131	PIPE; AIR,UNION TO FLEX HOSE EURO2 SPECIFICATION<NT2> EXC. RIGID SEAT WO/ARM REST<TAZ>,H.S.A SYSTEM<6EP> L=244	8-98092-621-0	01	1	0809-	●
131	PIPE; AIR,UNION TO FLEX HOSE EURO4 SPECIFICATION<NT4> EXC. PTO CONTROL<SV6>,RIGID SEAT WO/ARM REST<TAZ>, H.S.A SYSTEM<6EP> L=244	8-98092-621-0	01	1	0809-	●
153	PIPE ASM; CLU,UNION TO FLEX L=2142 SERVICED BY L=2150	1-47428-770-0	01	1	0710-0710	●	●
153	PIPE ASM; CLU,UNION TO FLEX	8-98100-292-0	01	1	0710-0710	●	●
153	PIPE ASM; CLU,UNION TO FLEX L=2127 SERVICED BY L=2150	1-47428-770-0	01	1	0711-0711	●	●
153	PIPE ASM; CLU,UNION TO FLEX L=2129 SERVICED BY L=2150	1-47428-770-0	01	1	0712-0712	●	●
153	PIPE ASM; CLU,UNION TO FLEX ZF9S1110 M/T(Y5E) L=2150 SERVICED BY L=2150	1-47428-770-0	01	1	0801-0802	●	●
153	PIPE ASM; CLU,UNION TO FLEX L=2150 SERVICED BY L=2150	1-47428-770-0	01	1	0803-	●	●
160	GROMMET; OIL PIPE ID=28 OD=35 T=17	9-09956-256-2	01	1	0710-	●	●
180	PLUG; PIPE EXC. H.S.A SYSTEM<6EP> PT1/4	9-99204-513-0	01	1	0710-	●	●
234	CONNECTOR; ELBOW (A) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	0711-0802	●	●
234	CONNECTOR; ELBOW (B) PT1/4 2WAY	1-09660-693-0	01	1	0711-0802	●	●
234	CONNECTOR; ELBOW H.S.A SYSTEM<6EP> (C)	1-09660-012-0	01	1	0710-	●	●
238	ADAPTER; UNION M12 & RC1/4 STRAIGHT	1-09660-885-0	01	1	0711-0802	●	●
239	UNION; CLU HOSE M12 & M14 2WAY	1-09654-141-2	01	1	0710-0803	●	●
239	UNION; CLU HOSE	8-98107-850-0	01	1	0804-	●	●
