◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVM ▶ 11105 - FVM(RHD) ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-03 - CLUTCH PEDAL AND CONTROL ▶
2-03 — CLUTCH PEDAL AND CONTROL (#33965) — 40 parça

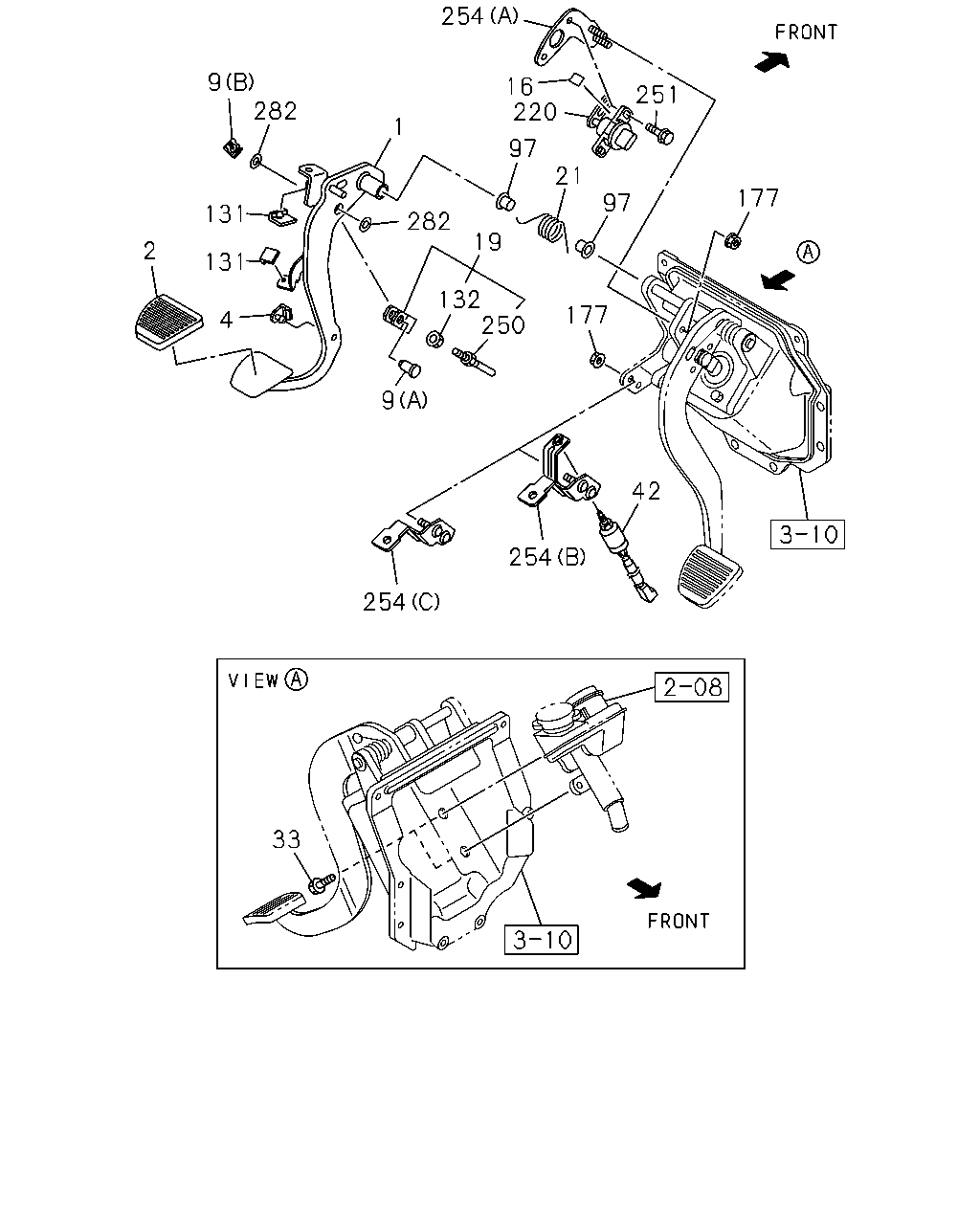

çizim 179305
254 9 282 16 220 251 1 97 21 177 97 131 282 19 2 131 132 250 177 4 9 42 254 254 33
BalonParca AdiParca NoAdetTipApplied Date A B
1 PEDAL; CLU
EXC. ASSISTOR SHIFT CONTROL<WX8>,H.S.A SYSTEM<6EP> 		8-97613-941-1 01 1 0809- ●
1 PEDAL; CLU
H.S.A SYSTEM<6EP> EXC. ASSISTOR SHIFT CONTROL<WX8> 		8-98021-375-1 01 1 0809- ●
1 PEDAL; CLU
H.S.A SYSTEM<6EP> 		8-98057-122-0 01 1 0710-0808 ● ●
1 PEDAL; CLU
H.S.A SYSTEM<6EP> 		8-98057-122-0 01 1 0809- ●
1 PEDAL; CLU
H.S.A SYSTEM<6EP> ASSISTOR SHIFT CONTROL<WX8> 		8-98057-122-0 01 1 0809- ●
1 PEDAL; CLU
EXC. H.S.A SYSTEM<6EP> 		8-98057-123-0 01 1 0710-0808 ● ●
1 PEDAL; CLU
EXC. H.S.A SYSTEM<6EP> 		8-98057-123-0 01 1 0809- ●
1 PEDAL; CLU
ASSISTOR SHIFT CONTROL<WX8> EXC. H.S.A SYSTEM<6EP> 		8-98057-123-0 01 1 0809- ●
2 COVER; CLU PEDAL 8-98056-865-0 01 1 0710- ● ●
4 STOPPER; CLU PEDAL 8-98079-251-0 01 1 0710- ● ●
9 PIN; CLU PEDAL
(A) 		8-97387-230-0 01 1 0710-1007 ● ●
9 PIN; CLU PEDAL
(A) 		8-98147-657-0 01 1 1008- ● ●
9 PIN; CLU PEDAL
(B) 		8-98007-161-0 01 1 0710- ● ●
16 SEAL; CLU PEDAL
H.S.A SYSTEM<6EP> 30X30 		8-98142-344-0 01 1 1204- ● ●
19 ROD ASM; PUSH,CLU 8-98021-406-1 01 1 0710- ● ●
21 SPRING; RETURN,CLU PEDAL 8-98021-560-0 01 1 0710- ● ●
33 BOLT; CLU M/CYL TO BRKT
M12X20 FLANGE 		0-28051-220-0 02 1 0710- ● ●
42 SWITCH; CLU 8-97620-841-0 01 1 0710-0808 ● ●
42 SWITCH; CLU 8-97620-841-0 01 1 0809- ●
42 SWITCH; CLU
ASSISTOR SHIFT CONTROL<WX8> 		8-97620-841-0 01 1 0809- ●
97 BUSHING; CLU PEDAL SHAFT 8-94238-596-0 02 1 0710- ● ●
131 STOPPER; CLU SW
EXC. ASSISTOR SHIFT CONTROL<WX8> 		8-97302-305-0 01 1 0809- ●
131 STOPPER; CLU SW 8-97302-305-0 02 1 0710-0808 ● ●
131 STOPPER; CLU SW 8-97302-305-0 02 1 0809- ●
131 STOPPER; CLU SW
ASSISTOR SHIFT CONTROL<WX8> 		8-97302-305-0 02 1 0809- ●
132 NUT; LK,PUSH ROD
M8 FLANGE 		0-91180-108-0 01 1 0710- ● ●
177 NUT; BRKT
H.S.A SYSTEM<6EP> M8 FLANGE 		0-91180-108-0 04 1 0710- ● ●
177 NUT; BRKT
EXC. H.S.A SYSTEM<6EP> M8 FLANGE 		0-91180-108-0 02 1 0710- ● ●
220 SENSOR; CLUTCH
H.S.A SYSTEM<6EP> 		1-80250-014-0 01 1 0710-0802 ● ●
220 SENSOR; CLUTCH
ZF9S1110 M/T(Y5E) H.S.A SYSTEM<6EP> 		1-80250-014-0 01 1 0710-0802 ● ●
220 SENSOR; CLUTCH
H.S.A SYSTEM<6EP> 		1-80250-014-0 01 1 0803- ● ●
250 ROD; PUSH,CLU 8-97615-589-0 01 1 0710- ● ●
251 BOLT; SENSOR
H.S.A SYSTEM<6EP> M6X16 		0-52000-616-0 02 1 0710- ● ●
251 BOLT; SENSOR
H.S.A SYSTEM<6EP> M6X19.5 W/LK&PL WASHER 		8-97360-226-0 02 1 0710-0802 ● ●
254 BRACKET; CLU SENSOR
EXC. ASSISTOR SHIFT CONTROL<WX8> (C) 		8-98021-377-1 01 1 0809- ●
254 BRACKET; CLU SENSOR
H.S.A SYSTEM<6EP> (A) 		8-98021-376-1 01 1 0710- ● ●
254 BRACKET; CLU SENSOR
(B) 		8-98057-131-1 01 1 0710-0808 ● ●
254 BRACKET; CLU SENSOR
(B) 		8-98057-131-1 01 1 0809- ●
254 BRACKET; CLU SENSOR
ASSISTOR SHIFT CONTROL<WX8> (B) 		8-98057-131-1 01 1 0809- ●
282 SPACER; CLU PEDAL 8-98070-329-0 02 1 0710- ● ●
