4-36 — POWER STEERING CONTROL; ENGINE SIDE (#3396) — 61 parça

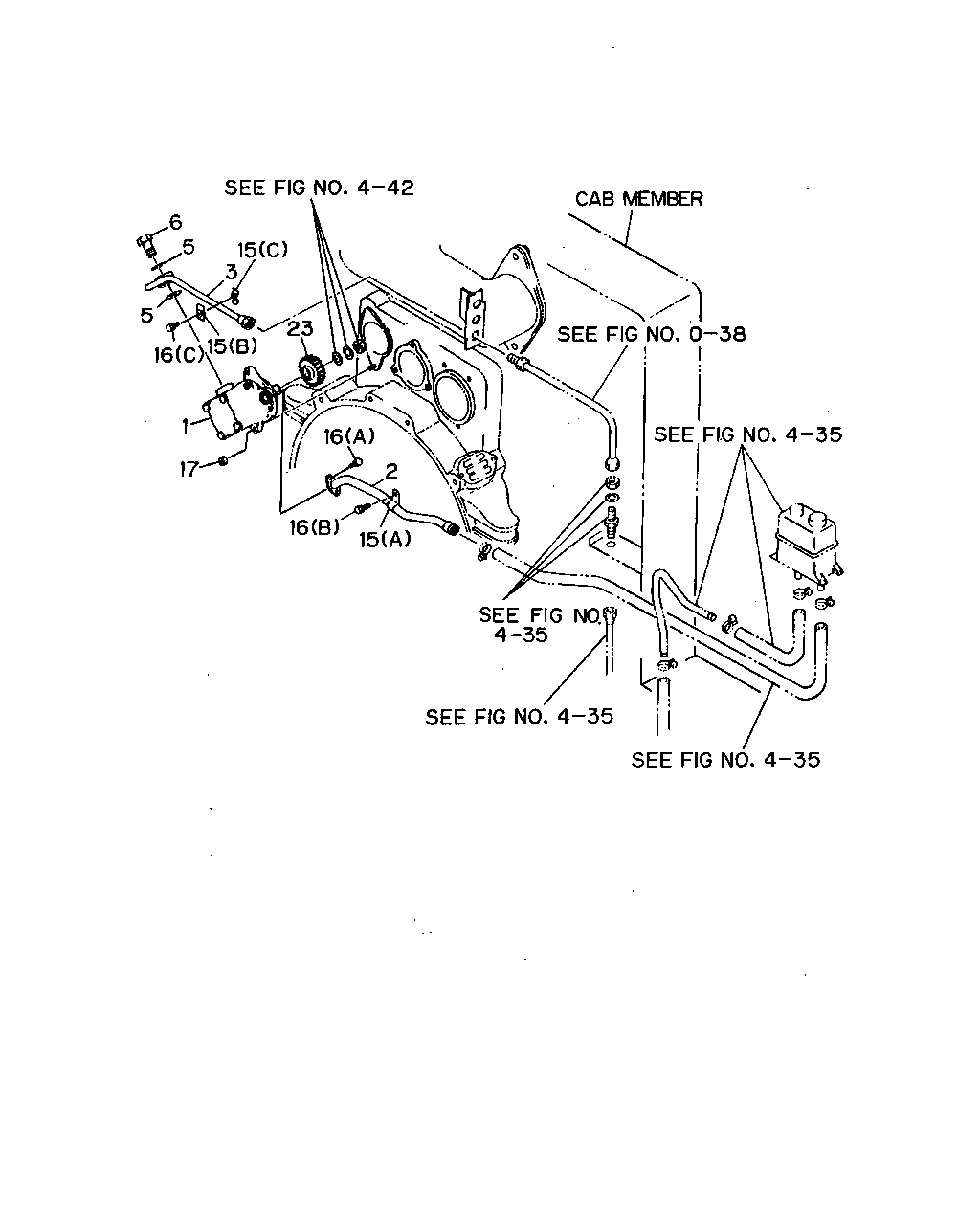

6 5 5 23 3 15 1 17 16 16 15

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	PUMP ASM; OIL,P/S SEE FIG-NO 4-42 FOR COMPONENT. 10PD1 STD ENG(40L),12PD1 C ENG(43L)	1-19500-345-5	01	1	9002-	●	●	●
1	PUMP ASM; OIL,P/S SEE FIG-NO 4-42 FOR COMPONENT. 6RB1 STD ENG(07L)	1-19500-310-4	01	1	9002-9306		●	●
1	PUMP ASM; OIL,P/S SEE FIG-NO 4-42 FOR COMPONENT. 6RB1 STD ENG(07L)	1-19500-444-1	01	1	9307-9401		●	●
1	PUMP ASM; OIL,P/S SEE FIG-NO 4-42 FOR COMPONENT. 6RB1 STD ENG(07L)	1-19500-344-4	01	1	9402-		●	●
3	PIPE; OIL,CHARGE,P/S 10PD1 STD ENG(40L)	1-13312-035-0	01	1	9002-9212	●	●	●
3	PIPE; OIL,CHARGE,P/S 10PD1 STD ENG(40L),12PD1 C ENG(43L)	1-13313-341-0	01	1	9301-	●	●	●
5	GASKET; EYE BOLT,POWER STRG PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 10PD1 STD ENG(40L),12PD1 C ENG(43L) ID=18.2 OD=24.4	1-09630-087-0	02	1	9002-	●	●	●
6	BOLT; EYE,P/S PIPE 10PD1 STD ENG(40L),12PD1 C ENG(43L) M18X36	1-09675-174-0	01	1	9002-	●	●	●
15	CLIP; OIL PIPE SUCTION 10PD1 STD ENG(40L),12PD1 C ENG(43L) (A) ID=19 L=32	9-09525-866-0	01	1	9002-	●	●	●
15	CLIP; OIL PIPE SUCTION 10PD1 STD ENG(40L),12PD1 C ENG(43L) (B)	9-09917-385-0	01	1	9002-	●	●	●
15	CLIP; OIL PIPE SUCTION 10PD1 STD ENG(40L),12PD1 C ENG(43L) (C)	9-09917-386-0	01	1	9002-	●	●	●
15	CLIP; OIL PIPE SUCTION 6RB1 STD ENG(07L) (D) ID=23.6 L=35	1-09700-634-0	04	1	9002-		●	●
15	CLIP; OIL PIPE SUCTION 6RB1 STD ENG(07L) (E) W/NUT	9-09917-564-0	01	1	9002-		●	●
15	CLIP; OIL PIPE SUCTION 6RB1 STD ENG(07L) (F) WO/NUT	9-09917-565-0	01	1	9002-		●	●
16	BOLT; STAY,P/S OIL PUMP 10PD1 STD ENG(40L) (C) M6X25	0-28020-625-0	01	1	9002-9005	●	●	●
16	BOLT; STAY,P/S OIL PUMP 10PD1 STD ENG(40L),12PD1 C ENG(43L) (C) M6X25 FLANGE	0-28080-625-0	01	1	9006-	●	●	●
16	BOLT; STAY,P/S OIL PUMP 10PD1 STD ENG(40L) (A) M8X12	0-28020-812-0	02	1	9002-9005	●	●	●
16	BOLT; STAY,P/S OIL PUMP 10PD1 STD ENG(40L),12PD1 C ENG(43L) (A) M8X12 FLANGE	0-28080-812-0	02	1	9006-	●	●	●
16	BOLT; STAY,P/S OIL PUMP 10PD1 STD ENG(40L) (B) M8X14	0-28020-814-0	01	1	9002-9005	●	●	●
16	BOLT; STAY,P/S OIL PUMP 10PD1 STD ENG(40L),12PD1 C ENG(43L) (B) M8X14 FLANGE	0-28080-814-0	01	1	9006-	●	●	●
16	BOLT; STAY,P/S OIL PUMP 6RB1 STD ENG(07L) (A) M8X22	9-01910-822-0	01	1	9002-9005		●	●
16	BOLT; STAY,P/S OIL PUMP 6RB1 STD ENG(07L) (B) M10X20 W/LK WASHER	0-50041-020-0	04	1	9003-		●	●
16	BOLT; STAY,P/S OIL PUMP 6RB1 STD ENG(07L) (A) M8X22 W/LK WASHER	0-50040-822-0	01	1	9006-		●	●
17	NUT; POWER STRG PUMP 10PD1 STD ENG(40L),12PD1 C ENG(43L) M10 FLANGE	0-91150-110-0	02	1	9002-	●	●	●
17	NUT; POWER STRG PUMP 6RB1 STD ENG(07L) M8	9-09110-408-0	05	1	9002-		●	●
23	GEAR; OIL PUMP 10PD1 STD ENG(40L),12PD1 C ENG(43L) Z=20	1-19581-011-1	01	1	9002-	●	●	●
23	GEAR; OIL PUMP 6RB1 STD ENG(07L)	1-19581-006-3	01	1	9002-		●	●

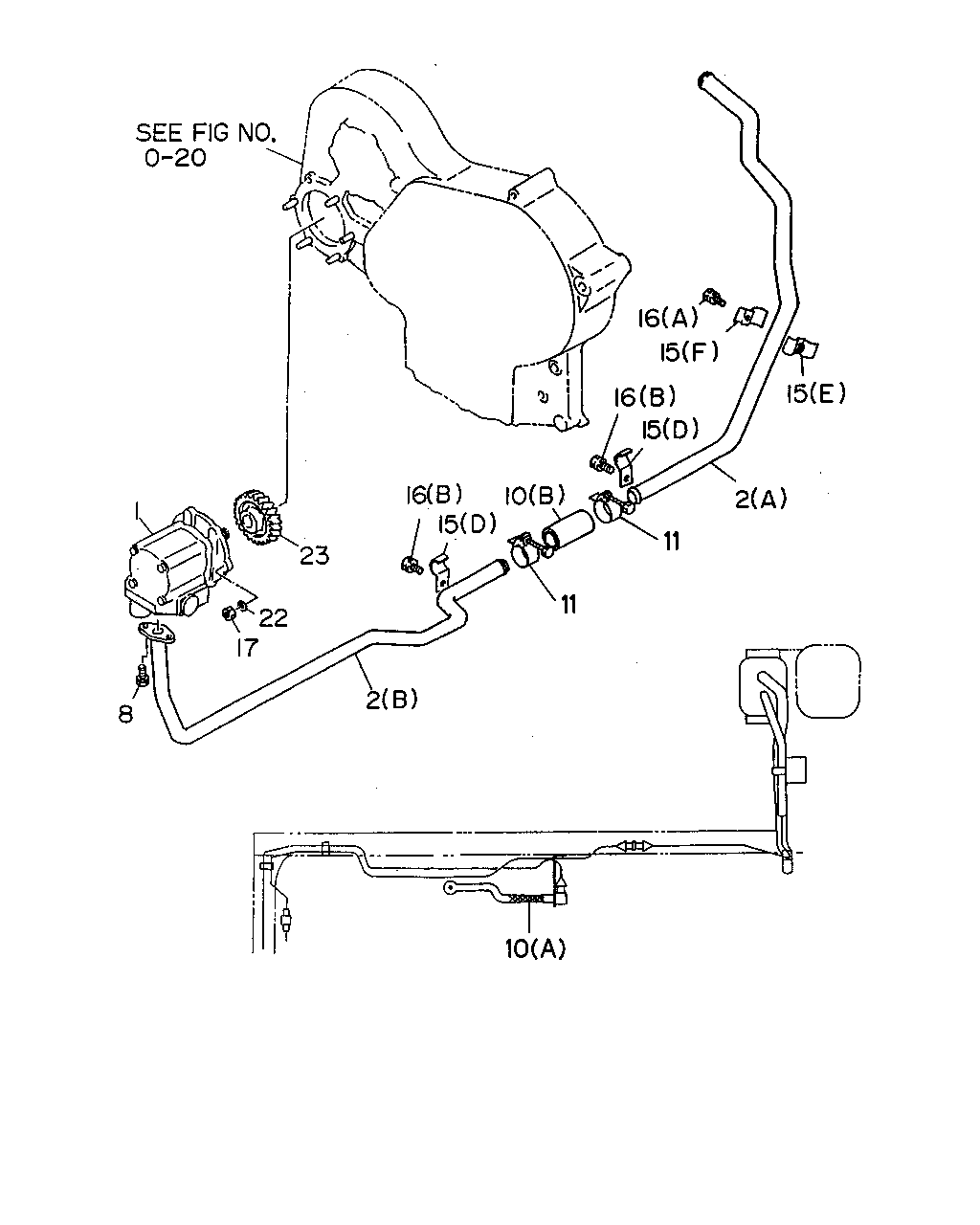

16 15 15 16 15 2 11 11 10 16 2 15 23 22 17 8 1 10

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	PUMP ASM; OIL,P/S SEE FIG-NO 4-42 FOR COMPONENT. 10PD1 STD ENG(40L),12PD1 C ENG(43L)	1-19500-345-5	01	1	9002-	●	●	●
1	PUMP ASM; OIL,P/S SEE FIG-NO 4-42 FOR COMPONENT. 6RB1 STD ENG(07L)	1-19500-310-4	01	1	9002-9306		●	●
1	PUMP ASM; OIL,P/S SEE FIG-NO 4-42 FOR COMPONENT. 6RB1 STD ENG(07L)	1-19500-444-1	01	1	9307-9401		●	●
1	PUMP ASM; OIL,P/S SEE FIG-NO 4-42 FOR COMPONENT. 6RB1 STD ENG(07L)	1-19500-344-4	01	1	9402-		●	●
2	PIPE ASM; OIL,SUCTION 10PD1 STD ENG(40L) AIR COMPRESSOR HEAVY DUTY(E1Q)	1-13312-655-0	01	1	9002-	●	●	●
2	PIPE ASM; OIL,SUCTION 12PD1 C ENG(43L)	1-13312-655-0	01	1	9002-		●
2	PIPE ASM; OIL,SUCTION 10PD1 STD ENG(40L) EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-13311-904-1	01	1	9002-	●	●	●
2	PIPE ASM; OIL,SUCTION 6RB1 STD ENG(07L) (A)	1-21112-048-0	01	1	9002-		●	●
2	PIPE ASM; OIL,SUCTION 6RB1 STD ENG(07L) (B)	1-21112-581-1	01	1	9002-		●	●
8	BOLT; OIL PIPE 6RB1 STD ENG(07L) M8X18 W/LK WASHER	9-01910-818-0	02	1	9002-9005		●	●
8	BOLT; OIL PIPE 6RB1 STD ENG(07L) M8X18 W/LK WASHER	0-50040-818-0	02	1	9006-		●	●
10	HOSE; FLEX,P/S OIL PUMP,INL 6RB1 STD ENG(07L) (B) L=75	1-09360-524-0	01	1	9002-		●	●
10	HOSE; FLEX,P/S OIL PUMP,INL 6RB1 STD ENG(07L) (A) L=380	1-09364-459-0	01	1	9002-		●	●
11	CLIP; FLEX HOSE 6RB1 STD ENG(07L) ID=38	9-09915-666-1	02	1	9002-		●	●
15	CLIP; OIL PIPE SUCTION 10PD1 STD ENG(40L),12PD1 C ENG(43L) (A) ID=19 L=32	9-09525-866-0	01	1	9002-	●	●	●
15	CLIP; OIL PIPE SUCTION 10PD1 STD ENG(40L),12PD1 C ENG(43L) (B)	9-09917-385-0	01	1	9002-	●	●	●
15	CLIP; OIL PIPE SUCTION 10PD1 STD ENG(40L),12PD1 C ENG(43L) (C)	9-09917-386-0	01	1	9002-	●	●	●
15	CLIP; OIL PIPE SUCTION 6RB1 STD ENG(07L) (D) ID=23.6 L=35	1-09700-634-0	04	1	9002-		●	●
15	CLIP; OIL PIPE SUCTION 6RB1 STD ENG(07L) (E) W/NUT	9-09917-564-0	01	1	9002-		●	●
15	CLIP; OIL PIPE SUCTION 6RB1 STD ENG(07L) (F) WO/NUT	9-09917-565-0	01	1	9002-		●	●
16	BOLT; STAY,P/S OIL PUMP 10PD1 STD ENG(40L) (C) M6X25	0-28020-625-0	01	1	9002-9005	●	●	●
16	BOLT; STAY,P/S OIL PUMP 10PD1 STD ENG(40L),12PD1 C ENG(43L) (C) M6X25 FLANGE	0-28080-625-0	01	1	9006-	●	●	●
16	BOLT; STAY,P/S OIL PUMP 10PD1 STD ENG(40L) (A) M8X12	0-28020-812-0	02	1	9002-9005	●	●	●
16	BOLT; STAY,P/S OIL PUMP 10PD1 STD ENG(40L),12PD1 C ENG(43L) (A) M8X12 FLANGE	0-28080-812-0	02	1	9006-	●	●	●
16	BOLT; STAY,P/S OIL PUMP 10PD1 STD ENG(40L) (B) M8X14	0-28020-814-0	01	1	9002-9005	●	●	●
16	BOLT; STAY,P/S OIL PUMP 10PD1 STD ENG(40L),12PD1 C ENG(43L) (B) M8X14 FLANGE	0-28080-814-0	01	1	9006-	●	●	●
16	BOLT; STAY,P/S OIL PUMP 6RB1 STD ENG(07L) (A) M8X22	9-01910-822-0	01	1	9002-9005		●	●
16	BOLT; STAY,P/S OIL PUMP 6RB1 STD ENG(07L) (B) M10X20 W/LK WASHER	0-50041-020-0	04	1	9003-		●	●
16	BOLT; STAY,P/S OIL PUMP 6RB1 STD ENG(07L) (A) M8X22 W/LK WASHER	0-50040-822-0	01	1	9006-		●	●
17	NUT; POWER STRG PUMP 10PD1 STD ENG(40L),12PD1 C ENG(43L) M10 FLANGE	0-91150-110-0	02	1	9002-	●	●	●
17	NUT; POWER STRG PUMP 6RB1 STD ENG(07L) M8	9-09110-408-0	05	1	9002-		●	●
22	WASHER; LK,OIL PUMP,P/S 6RB1 STD ENG(07L) ID=8.2	9-09150-508-0	05	1	9002-		●	●
23	GEAR; OIL PUMP 10PD1 STD ENG(40L),12PD1 C ENG(43L) Z=20	1-19581-011-1	01	1	9002-	●	●	●
23	GEAR; OIL PUMP 6RB1 STD ENG(07L)	1-19581-006-3	01	1	9002-		●	●
