Sayfa 1-41 - Isuzu EPC

1-41 — FUEL PIPING; CHASSIS (#33959) — 366 parça

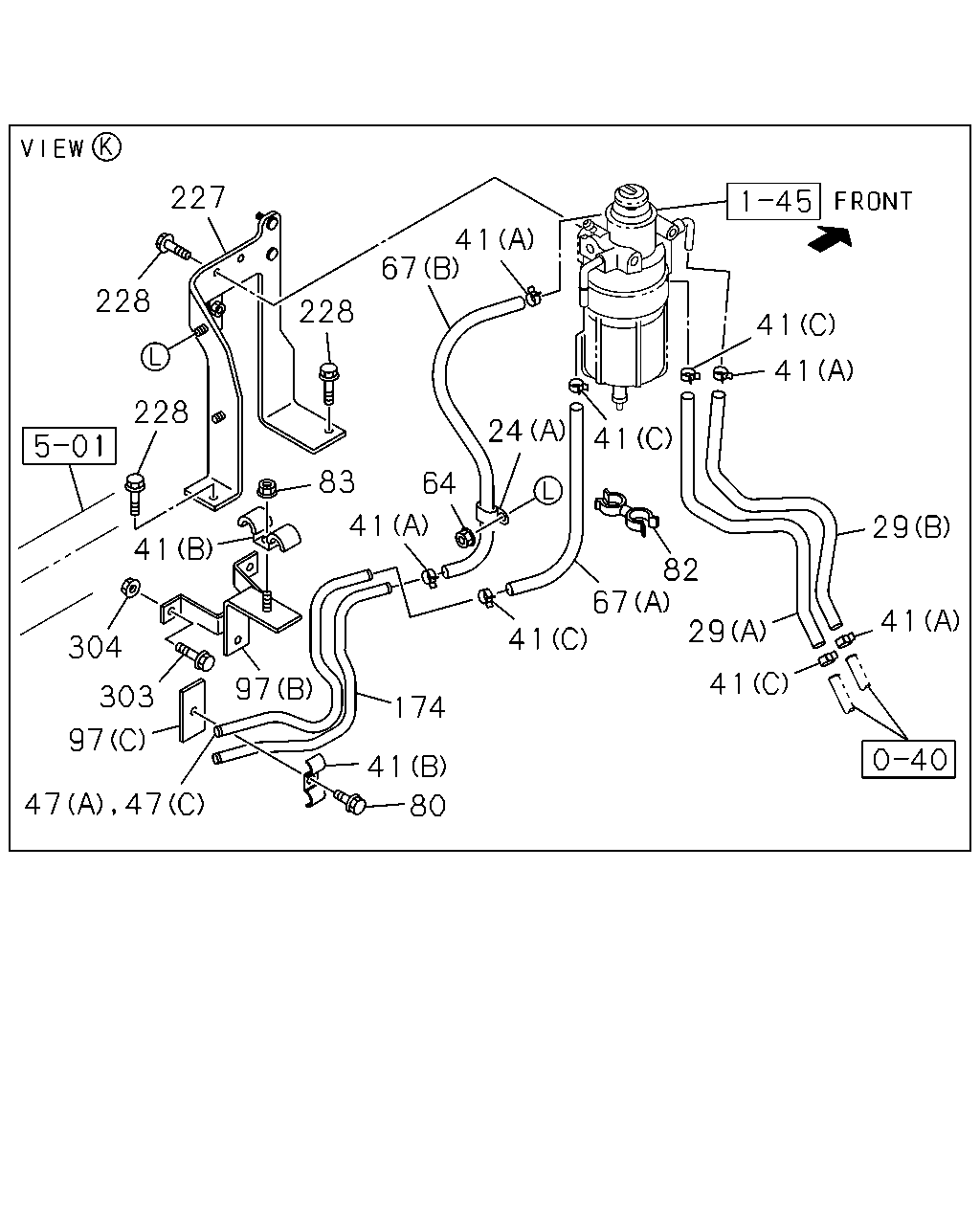

227 228 228 41 304 303 97 47 47 97 174 41 80 41 67 82 29 41 41 29 41 41 41 67 228 83 41 64 24 41

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
24	CLIP; FUEL HOSE 6HK1-TCN ENG(82L) EURO4 SPECIFICATION<NT4> FUEL TANK 400L<SDH> (B) ID=14X29 H=30 L=25	1-09701-101-0	01	1	0809-0809	●
24	CLIP; FUEL HOSE 6HK1-TCN ENG(82L) EURO4 SPECIFICATION<NT4> FUEL TANK 400L<SDH> (A) ID=20 L=70	1-09701-033-0	01	1	0809-0905	●
24	CLIP; FUEL HOSE 6HK1-TCN ENG(82L) EURO4 SPECIFICATION<NT4> FUEL TANK 400L<SDH> (A) ID=20 L=70	1-09701-033-0	01	1	0906-	●
24	CLIP; FUEL HOSE EURO2 SPECIFICATION<NT2> FUEL TANK 400L<SDH> (A) ID=20 L=70	1-09701-033-0	01	1	0906-	●
24	CLIP; FUEL HOSE (A) ID=20 L=70	1-09701-033-0	01	1	0801-0808	●	●
24	CLIP; FUEL HOSE 6HK1-TCS ENG(80L) (A) ID=20 L=70	1-09701-033-0	01	1	0809-0809		●
24	CLIP; FUEL HOSE 6HK1-TCS ENG(80L) EURO4 SPECIFICATION<NT4> FUEL TANK 400L<SDH> (A) ID=20 L=70	1-09701-033-0	01	1	0809-0809	●
29	HOSE; FUEL (C) L=60 SERVICED BY L=3000	0-01259-300-0	01	1	0710-0808	●	●
29	HOSE; FUEL (C) L=60 SERVICED BY L=3000	0-01259-300-0	01	1	0809-		●
29	HOSE; FUEL FUEL TANK 400L<SDH> (C) L=60 SERVICED BY L=3000	0-01259-300-0	01	1	0809-	●
29	HOSE; FUEL (A)	8-98078-196-2	01	1	0710-	●	●
29	HOSE; FUEL (B)	8-98078-197-1	01	1	0710-	●	●
41	CLIP; FUEL PIPE,FUEL TANK EURO2 SPECIFICATION<NT2> (E) L=250	5-09707-030-1	01	1	0809-	●
41	CLIP; FUEL PIPE,FUEL TANK EURO2 SPECIFICATION<NT2> (B) ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	02	1	0809-	●
41	CLIP; FUEL PIPE,FUEL TANK EURO2 SPECIFICATION<NT2> (C) ID=14	1-09704-102-0	06	1	0809-	●
41	CLIP; FUEL PIPE,FUEL TANK EURO4 SPECIFICATION<NT4> FUEL TANK 200L FRAME SIDE<N20> (E) L=250	5-09707-030-1	03	1	0809-	●
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCN ENG(82L) EURO4 SPECIFICATION<NT4> (A) ID=13	8-94238-571-0	06	1	0809-	●
41	CLIP; FUEL PIPE,FUEL TANK EURO2 SPECIFICATION<NT2> (A) ID=13	8-94238-571-0	06	1	0809-	●
41	CLIP; FUEL PIPE,FUEL TANK (D) ID=16	8-94238-568-0	02	1	0710-0803	●	●
41	CLIP; FUEL PIPE,FUEL TANK (D) ID=16	8-94238-568-0	02	1	0710-0803	●	●
41	CLIP; FUEL PIPE,FUEL TANK (E) L=250	5-09707-030-1	02	1	0710-0808	●	●
41	CLIP; FUEL PIPE,FUEL TANK (E) L=250	5-09707-030-1	02	1	0809-		●
41	CLIP; FUEL PIPE,FUEL TANK EURO2 SPECIFICATION<NT2> (E) L=250	5-09707-030-1	02	1	0809-	●
41	CLIP; FUEL PIPE,FUEL TANK EURO4 SPECIFICATION<NT4> FUEL TANK 400L<SDH> (E) L=250	5-09707-030-1	02	1	0809-	●
41	CLIP; FUEL PIPE,FUEL TANK (F) ID=9 & 9 L=17 & 17	1-09700-651-0	02	1	0710-0808	●	●
41	CLIP; FUEL PIPE,FUEL TANK (F) ID=9 & 9 L=17 & 17	1-09700-651-0	02	1	0809-		●
41	CLIP; FUEL PIPE,FUEL TANK EURO4 SPECIFICATION<NT4> (F) ID=9 & 9 L=17 & 17	1-09700-651-0	02	1	0809-	●
41	CLIP; FUEL PIPE,FUEL TANK (B) ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	03	1	0710-0808	●	●
41	CLIP; FUEL PIPE,FUEL TANK (B) ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	03	1	0809-		●
41	CLIP; FUEL PIPE,FUEL TANK EURO4 SPECIFICATION<NT4> (B) ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	03	1	0809-	●
41	CLIP; FUEL PIPE,FUEL TANK (C) ID=14	1-09704-102-0	04	1	0710-0808	●	●
41	CLIP; FUEL PIPE,FUEL TANK (C) ID=14	1-09704-102-0	04	1	0809-		●
41	CLIP; FUEL PIPE,FUEL TANK EURO4 SPECIFICATION<NT4> (C) ID=14	1-09704-102-0	04	1	0809-	●
41	CLIP; FUEL PIPE,FUEL TANK (D) ID=16	8-94238-568-0	02	1	0710-0710	●	●
41	CLIP; FUEL PIPE,FUEL TANK (A) ID=13	8-94238-571-0	01	1	0710-0803	●	●
41	CLIP; FUEL PIPE,FUEL TANK (D) ID=16	8-94238-568-0	02	1	0804-	●	●
41	CLIP; FUEL PIPE,FUEL TANK (A) ID=13	8-94238-571-0	08	1	0710-0808	●	●
41	CLIP; FUEL PIPE,FUEL TANK (A) ID=13	8-94238-571-0	08	1	0809-		●
41	CLIP; FUEL PIPE,FUEL TANK EURO4 SPECIFICATION<NT4> (A) ID=13	8-94238-571-0	08	1	0809-	●
47	PIPE; FUEL,RETURN EURO2 SPECIFICATION<NT2> (C) L=539	8-98117-709-0	01	1	0809-	●
47	PIPE; FUEL,RETURN (B)	8-98097-500-0	01	1	0710-0807	●	●
47	PIPE; FUEL,RETURN (B)	8-98127-647-0	01	1	0808-0808	●	●
47	PIPE; FUEL,RETURN (B)	8-98127-647-0	01	1	0809-		●
47	PIPE; FUEL,RETURN EURO4 SPECIFICATION<NT4> (B)	8-98127-647-0	01	1	0809-	●
47	PIPE; FUEL,RETURN (A) L=717	8-98086-241-0	01	1	0710-0808	●	●
47	PIPE; FUEL,RETURN (A) L=717	8-98086-241-0	01	1	0809-		●
47	PIPE; FUEL,RETURN EURO4 SPECIFICATION<NT4> (A) L=717	8-98086-241-0	01	1	0809-	●
64	NUT; CLIP 6HK1-TCN ENG(82L) EURO4 SPECIFICATION<NT4> FUEL TANK 400L<SDH> M8 FLANGE	0-91180-108-0	01	1	0809-0905	●
64	NUT; CLIP 6HK1-TCN ENG(82L) EURO4 SPECIFICATION<NT4> FUEL TANK 400L<SDH> M8 FLANGE	0-91180-108-0	01	1	0906-	●
64	NUT; CLIP EURO2 SPECIFICATION<NT2> FUEL TANK 400L<SDH> M8 FLANGE	0-91180-108-0	01	1	0906-	●
67	HOSE; FUEL,DELIVERY (A) L=110 SERVICED BY L=3000	0-01260-300-0	01	1	0710-	●	●
67	HOSE; FUEL,DELIVERY (B) L=210 SERVICED BY L=3000	0-01558-300-0	01	1	0710-	●	●
67	HOSE; FUEL,DELIVERY EURO2 SPECIFICATION<NT2> (C) L=300	8-98128-210-0	01	1	0809-0910	●
67	HOSE; FUEL,DELIVERY EURO2 SPECIFICATION<NT2> (C) L=300	8-98157-878-0	01	1	0911-	●
67	HOSE; FUEL,DELIVERY EURO2 SPECIFICATION<NT2> FUEL TANK 400L<SDH> (D) L=960	8-98128-785-0	01	1	0809-0910	●
67	HOSE; FUEL,DELIVERY EURO2 SPECIFICATION<NT2> FUEL TANK 400L<SDH> (D) L=960	8-98157-880-0	01	1	0911-	●
67	HOSE; FUEL,DELIVERY FUEL TANK 200L FRAME SIDE<N20> EURO2 SPECIFICATION<NT2> (D) L=900	8-98128-211-0	01	1	0809-0910	●
67	HOSE; FUEL,DELIVERY FUEL TANK 200L FRAME SIDE<N20> EURO2 SPECIFICATION<NT2> (D) L=900	8-98157-879-0	01	1	0911-	●
80	BOLT; CLIP,FUEL TANK M8X20 FLANGE	0-28650-820-0	02	1	0710-0808	●	●
80	BOLT; CLIP,FUEL TANK 6HK1-TCS ENG(80L) M8X20 FLANGE	0-28650-820-0	02	1	0710-0808	●	●
80	BOLT; CLIP,FUEL TANK M8X20 FLANGE	0-28650-820-0	02	1	0809-	●	●
80	BOLT; CLIP,FUEL TANK 6HK1-TCS ENG(80L) M8X20 FLANGE	0-28650-820-0	02	1	0809-		●
80	BOLT; CLIP,FUEL TANK 6HK1-TCS ENG(80L) EURO4 SPECIFICATION<NT4> M8X20 FLANGE	0-28650-820-0	02	1	0809-	●
82	CLIP; FUEL HOSE EURO2 SPECIFICATION<NT2> ID=13 & 16.5	8-94169-028-0	01	1	0809-	●
83	NUT; CLIP,FUEL TANK M8 FLANGE	0-91180-108-0	02	1	0710-0808	●	●
83	NUT; CLIP,FUEL TANK 6HK1-TCS ENG(80L) M8 FLANGE	0-91180-108-0	02	1	0809-		●
83	NUT; CLIP,FUEL TANK 6HK1-TCS ENG(80L) EURO4 SPECIFICATION<NT4> M8 FLANGE	0-91180-108-0	02	1	0809-	●
83	NUT; CLIP,FUEL TANK EURO2 SPECIFICATION<NT2> M8 FLANGE	0-91180-108-0	02	1	0809-	●
83	NUT; CLIP,FUEL TANK M8 FLANGE	0-91180-108-0	03	1	0710-0808	●	●
83	NUT; CLIP,FUEL TANK M8 FLANGE	0-91180-108-0	03	1	0809-		●
83	NUT; CLIP,FUEL TANK EURO4 SPECIFICATION<NT4> M8 FLANGE	0-91180-108-0	03	1	0809-	●
97	BRACKET; CLIP EURO2 SPECIFICATION<NT2> (D)	8-98126-612-0	01	1	0809-	●
97	BRACKET; CLIP (C) L=50	1-47475-299-2	01	1	0710-0808	●	●
97	BRACKET; CLIP (C) L=50	1-47475-299-2	01	1	0809-		●
97	BRACKET; CLIP EURO4 SPECIFICATION<NT4> (C) L=50	1-47475-299-2	01	1	0809-	●
97	BRACKET; CLIP (B)	8-98076-024-0	01	1	0710-0808	●	●
97	BRACKET; CLIP (B)	8-98076-024-0	01	1	0809-		●
97	BRACKET; CLIP EURO4 SPECIFICATION<NT4> (B)	8-98076-024-0	01	1	0809-	●
97	BRACKET; CLIP (A)	8-98053-654-0	01	1	0710-	●	●
174	PIPE; FUEL,FEED,FRT EURO2 SPECIFICATION<NT2> L=548	8-98117-708-0	01	1	0809-	●
174	PIPE; FUEL,FEED,FRT L=724	8-98086-240-0	01	1	0710-0808	●	●
174	PIPE; FUEL,FEED,FRT L=724	8-98086-240-0	01	1	0809-		●
174	PIPE; FUEL,FEED,FRT EURO4 SPECIFICATION<NT4> L=724	8-98086-240-0	01	1	0809-	●
227	BRACKET; FUEL SEDIMENTER	8-98044-366-3	01	1	0710-	●	●
228	BOLT; BRKT,SEDIMENTER EURO2 SPECIFICATION<NT2> M10X50 FLANGE	0-28051-050-0	02	1	0809-	●
228	BOLT; BRKT,SEDIMENTER M8X25 FLANGE	0-28050-825-0	02	1	0710-	●	●
228	BOLT; BRKT,SEDIMENTER M8X20 FLANGE	0-28650-820-0	02	1	0710-	●	●
303	BOLT; BRKT EURO2 SPECIFICATION<NT2> M10X35 FLANGE	0-28651-035-0	02	1	0809-	●
303	BOLT; BRKT M8X30 FLANGE	0-28650-830-0	03	1	0710-0710	●	●
303	BOLT; BRKT M8X30 FLANGE	0-28650-830-0	02	1	0711-0808	●	●
303	BOLT; BRKT M8X30 FLANGE	0-28650-830-0	02	1	0809-1008		●
303	BOLT; BRKT EURO4 SPECIFICATION<NT4> M8X30 FLANGE	0-28650-830-0	02	1	0809-1008	●
303	BOLT; BRKT M8X35 FLANGE	0-28650-835-0	02	1	1009-		●
303	BOLT; BRKT EURO4 SPECIFICATION<NT4> M8X35 FLANGE	0-28650-835-0	02	1	1009-	●
304	NUT; BRKT EURO2 SPECIFICATION<NT2> M10 FLANGE	0-91180-210-0	02	1	1010-	●
304	NUT; BRKT EURO2 SPECIFICATION<NT2> M10 FLANGE	0-91180-210-0	03	1	0809-1009	●
304	NUT; BRKT EURO2 SPECIFICATION<NT2> M10 FLANGE	0-91180-210-0	01	1	1010-	●
304	NUT; BRKT M8 FLANGE	0-91180-108-0	03	1	0710-	●	●

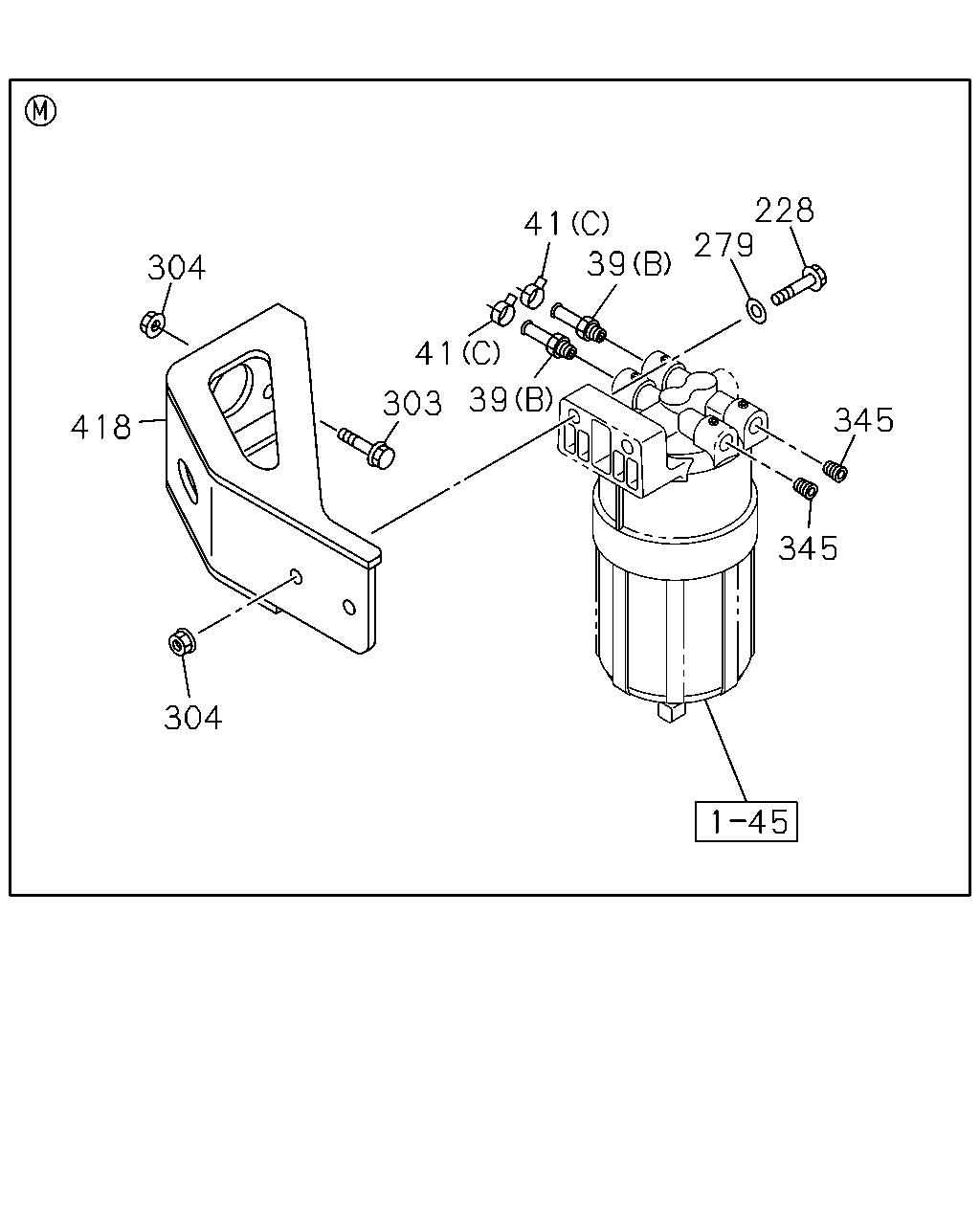

228 279 41 39 304 41 39 303 345 418 345 304

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
39	PIPE; FUEL EURO2 SPECIFICATION<NT2> (B)	8-97358-699-0	02	1	0809-0903	●
39	PIPE; FUEL EURO2 SPECIFICATION<NT2> (B) NPTF3/8-18 OD=10	8-98122-953-0	02	1	0904-	●
39	PIPE; FUEL (A)	8-98009-438-1	01	1	0710-0808	●	●
39	PIPE; FUEL (A)	8-98009-438-1	01	1	0809-		●
39	PIPE; FUEL FUEL TANK 400L<SDH> (A)	8-98009-438-1	01	1	0809-	●
41	CLIP; FUEL PIPE,FUEL TANK EURO2 SPECIFICATION<NT2> (E) L=250	5-09707-030-1	01	1	0809-	●
41	CLIP; FUEL PIPE,FUEL TANK EURO2 SPECIFICATION<NT2> (B) ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	02	1	0809-	●
41	CLIP; FUEL PIPE,FUEL TANK EURO2 SPECIFICATION<NT2> (C) ID=14	1-09704-102-0	06	1	0809-	●
41	CLIP; FUEL PIPE,FUEL TANK EURO4 SPECIFICATION<NT4> FUEL TANK 200L FRAME SIDE<N20> (E) L=250	5-09707-030-1	03	1	0809-	●
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCN ENG(82L) EURO4 SPECIFICATION<NT4> (A) ID=13	8-94238-571-0	06	1	0809-	●
41	CLIP; FUEL PIPE,FUEL TANK EURO2 SPECIFICATION<NT2> (A) ID=13	8-94238-571-0	06	1	0809-	●
41	CLIP; FUEL PIPE,FUEL TANK (D) ID=16	8-94238-568-0	02	1	0710-0803	●	●
41	CLIP; FUEL PIPE,FUEL TANK (D) ID=16	8-94238-568-0	02	1	0710-0803	●	●
41	CLIP; FUEL PIPE,FUEL TANK (E) L=250	5-09707-030-1	02	1	0710-0808	●	●
41	CLIP; FUEL PIPE,FUEL TANK (E) L=250	5-09707-030-1	02	1	0809-		●
41	CLIP; FUEL PIPE,FUEL TANK EURO2 SPECIFICATION<NT2> (E) L=250	5-09707-030-1	02	1	0809-	●
41	CLIP; FUEL PIPE,FUEL TANK EURO4 SPECIFICATION<NT4> FUEL TANK 400L<SDH> (E) L=250	5-09707-030-1	02	1	0809-	●
41	CLIP; FUEL PIPE,FUEL TANK (F) ID=9 & 9 L=17 & 17	1-09700-651-0	02	1	0710-0808	●	●
41	CLIP; FUEL PIPE,FUEL TANK (F) ID=9 & 9 L=17 & 17	1-09700-651-0	02	1	0809-		●
41	CLIP; FUEL PIPE,FUEL TANK EURO4 SPECIFICATION<NT4> (F) ID=9 & 9 L=17 & 17	1-09700-651-0	02	1	0809-	●
41	CLIP; FUEL PIPE,FUEL TANK (B) ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	03	1	0710-0808	●	●
41	CLIP; FUEL PIPE,FUEL TANK (B) ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	03	1	0809-		●
41	CLIP; FUEL PIPE,FUEL TANK EURO4 SPECIFICATION<NT4> (B) ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	03	1	0809-	●
41	CLIP; FUEL PIPE,FUEL TANK (C) ID=14	1-09704-102-0	04	1	0710-0808	●	●
41	CLIP; FUEL PIPE,FUEL TANK (C) ID=14	1-09704-102-0	04	1	0809-		●
41	CLIP; FUEL PIPE,FUEL TANK EURO4 SPECIFICATION<NT4> (C) ID=14	1-09704-102-0	04	1	0809-	●
41	CLIP; FUEL PIPE,FUEL TANK (D) ID=16	8-94238-568-0	02	1	0710-0710	●	●
41	CLIP; FUEL PIPE,FUEL TANK (A) ID=13	8-94238-571-0	01	1	0710-0803	●	●
41	CLIP; FUEL PIPE,FUEL TANK (D) ID=16	8-94238-568-0	02	1	0804-	●	●
41	CLIP; FUEL PIPE,FUEL TANK (A) ID=13	8-94238-571-0	08	1	0710-0808	●	●
41	CLIP; FUEL PIPE,FUEL TANK (A) ID=13	8-94238-571-0	08	1	0809-		●
41	CLIP; FUEL PIPE,FUEL TANK EURO4 SPECIFICATION<NT4> (A) ID=13	8-94238-571-0	08	1	0809-	●
228	BOLT; BRKT,SEDIMENTER EURO2 SPECIFICATION<NT2> M10X50 FLANGE	0-28051-050-0	02	1	0809-	●
228	BOLT; BRKT,SEDIMENTER M8X25 FLANGE	0-28050-825-0	02	1	0710-	●	●
228	BOLT; BRKT,SEDIMENTER M8X20 FLANGE	0-28650-820-0	02	1	0710-	●	●
279	WASHER EURO2 SPECIFICATION<NT2> ID=10.5 OD=26	0-91614-710-0	02	1	0809-	●
303	BOLT; BRKT EURO2 SPECIFICATION<NT2> M10X35 FLANGE	0-28651-035-0	02	1	0809-	●
303	BOLT; BRKT M8X30 FLANGE	0-28650-830-0	03	1	0710-0710	●	●
303	BOLT; BRKT M8X30 FLANGE	0-28650-830-0	02	1	0711-0808	●	●
303	BOLT; BRKT M8X30 FLANGE	0-28650-830-0	02	1	0809-1008		●
303	BOLT; BRKT EURO4 SPECIFICATION<NT4> M8X30 FLANGE	0-28650-830-0	02	1	0809-1008	●
303	BOLT; BRKT M8X35 FLANGE	0-28650-835-0	02	1	1009-		●
303	BOLT; BRKT EURO4 SPECIFICATION<NT4> M8X35 FLANGE	0-28650-835-0	02	1	1009-	●
304	NUT; BRKT EURO2 SPECIFICATION<NT2> M10 FLANGE	0-91180-210-0	02	1	1010-	●
304	NUT; BRKT EURO2 SPECIFICATION<NT2> M10 FLANGE	0-91180-210-0	03	1	0809-1009	●
304	NUT; BRKT EURO2 SPECIFICATION<NT2> M10 FLANGE	0-91180-210-0	01	1	1010-	●
304	NUT; BRKT M8 FLANGE	0-91180-108-0	03	1	0710-	●	●
345	PLUG EURO2 SPECIFICATION<NT2> NPTF3/8-18	8-97329-623-0	02	1	0809-	●
418	BRACKET; PRE FUEL FILTER EURO2 SPECIFICATION<NT2>	8-98128-254-0	01	1	0809-	●

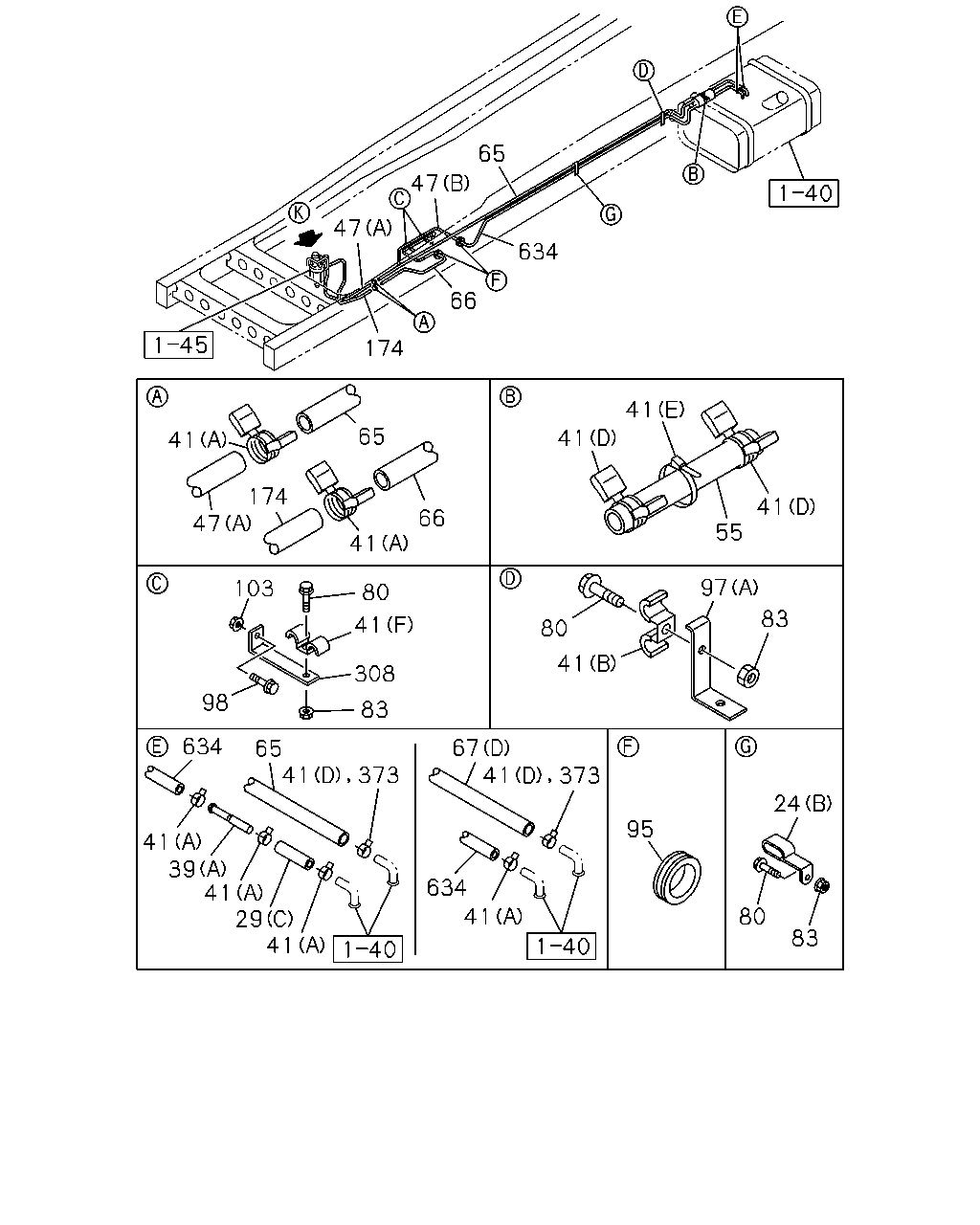

65 47 634 66 174 47 41 41 41 55 97 83 41 80 66 65 174 47 41 103 41 80 41 308 83 98 65 634 41 373 41 39 41 29 41 634 67 41 373 41 95 24 80 83

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
24	CLIP; FUEL HOSE 6HK1-TCN ENG(82L) EURO4 SPECIFICATION<NT4> FUEL TANK 400L<SDH> (B) ID=14X29 H=30 L=25	1-09701-101-0	01	1	0809-0809	●
24	CLIP; FUEL HOSE 6HK1-TCN ENG(82L) EURO4 SPECIFICATION<NT4> FUEL TANK 400L<SDH> (A) ID=20 L=70	1-09701-033-0	01	1	0809-0905	●
24	CLIP; FUEL HOSE 6HK1-TCN ENG(82L) EURO4 SPECIFICATION<NT4> FUEL TANK 400L<SDH> (A) ID=20 L=70	1-09701-033-0	01	1	0906-	●
24	CLIP; FUEL HOSE EURO2 SPECIFICATION<NT2> FUEL TANK 400L<SDH> (A) ID=20 L=70	1-09701-033-0	01	1	0906-	●
24	CLIP; FUEL HOSE (A) ID=20 L=70	1-09701-033-0	01	1	0801-0808	●	●
24	CLIP; FUEL HOSE 6HK1-TCS ENG(80L) (A) ID=20 L=70	1-09701-033-0	01	1	0809-0809		●
24	CLIP; FUEL HOSE 6HK1-TCS ENG(80L) EURO4 SPECIFICATION<NT4> FUEL TANK 400L<SDH> (A) ID=20 L=70	1-09701-033-0	01	1	0809-0809	●
29	HOSE; FUEL (C) L=60 SERVICED BY L=3000	0-01259-300-0	01	1	0710-0808	●	●
29	HOSE; FUEL (C) L=60 SERVICED BY L=3000	0-01259-300-0	01	1	0809-		●
29	HOSE; FUEL FUEL TANK 400L<SDH> (C) L=60 SERVICED BY L=3000	0-01259-300-0	01	1	0809-	●
29	HOSE; FUEL (A)	8-98078-196-2	01	1	0710-	●	●
29	HOSE; FUEL (B)	8-98078-197-1	01	1	0710-	●	●
39	PIPE; FUEL EURO2 SPECIFICATION<NT2> (B)	8-97358-699-0	02	1	0809-0903	●
39	PIPE; FUEL EURO2 SPECIFICATION<NT2> (B) NPTF3/8-18 OD=10	8-98122-953-0	02	1	0904-	●
39	PIPE; FUEL (A)	8-98009-438-1	01	1	0710-0808	●	●
39	PIPE; FUEL (A)	8-98009-438-1	01	1	0809-		●
39	PIPE; FUEL FUEL TANK 400L<SDH> (A)	8-98009-438-1	01	1	0809-	●
41	CLIP; FUEL PIPE,FUEL TANK EURO2 SPECIFICATION<NT2> (E) L=250	5-09707-030-1	01	1	0809-	●
41	CLIP; FUEL PIPE,FUEL TANK EURO2 SPECIFICATION<NT2> (B) ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	02	1	0809-	●
41	CLIP; FUEL PIPE,FUEL TANK EURO2 SPECIFICATION<NT2> (C) ID=14	1-09704-102-0	06	1	0809-	●
41	CLIP; FUEL PIPE,FUEL TANK EURO4 SPECIFICATION<NT4> FUEL TANK 200L FRAME SIDE<N20> (E) L=250	5-09707-030-1	03	1	0809-	●
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCN ENG(82L) EURO4 SPECIFICATION<NT4> (A) ID=13	8-94238-571-0	06	1	0809-	●
41	CLIP; FUEL PIPE,FUEL TANK EURO2 SPECIFICATION<NT2> (A) ID=13	8-94238-571-0	06	1	0809-	●
41	CLIP; FUEL PIPE,FUEL TANK (D) ID=16	8-94238-568-0	02	1	0710-0803	●	●
41	CLIP; FUEL PIPE,FUEL TANK (D) ID=16	8-94238-568-0	02	1	0710-0803	●	●
41	CLIP; FUEL PIPE,FUEL TANK (E) L=250	5-09707-030-1	02	1	0710-0808	●	●
41	CLIP; FUEL PIPE,FUEL TANK (E) L=250	5-09707-030-1	02	1	0809-		●
41	CLIP; FUEL PIPE,FUEL TANK EURO2 SPECIFICATION<NT2> (E) L=250	5-09707-030-1	02	1	0809-	●
41	CLIP; FUEL PIPE,FUEL TANK EURO4 SPECIFICATION<NT4> FUEL TANK 400L<SDH> (E) L=250	5-09707-030-1	02	1	0809-	●
41	CLIP; FUEL PIPE,FUEL TANK (F) ID=9 & 9 L=17 & 17	1-09700-651-0	02	1	0710-0808	●	●
41	CLIP; FUEL PIPE,FUEL TANK (F) ID=9 & 9 L=17 & 17	1-09700-651-0	02	1	0809-		●
41	CLIP; FUEL PIPE,FUEL TANK EURO4 SPECIFICATION<NT4> (F) ID=9 & 9 L=17 & 17	1-09700-651-0	02	1	0809-	●
41	CLIP; FUEL PIPE,FUEL TANK (B) ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	03	1	0710-0808	●	●
41	CLIP; FUEL PIPE,FUEL TANK (B) ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	03	1	0809-		●
41	CLIP; FUEL PIPE,FUEL TANK EURO4 SPECIFICATION<NT4> (B) ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	03	1	0809-	●
41	CLIP; FUEL PIPE,FUEL TANK (C) ID=14	1-09704-102-0	04	1	0710-0808	●	●
41	CLIP; FUEL PIPE,FUEL TANK (C) ID=14	1-09704-102-0	04	1	0809-		●
41	CLIP; FUEL PIPE,FUEL TANK EURO4 SPECIFICATION<NT4> (C) ID=14	1-09704-102-0	04	1	0809-	●
41	CLIP; FUEL PIPE,FUEL TANK (D) ID=16	8-94238-568-0	02	1	0710-0710	●	●
41	CLIP; FUEL PIPE,FUEL TANK (A) ID=13	8-94238-571-0	01	1	0710-0803	●	●
41	CLIP; FUEL PIPE,FUEL TANK (D) ID=16	8-94238-568-0	02	1	0804-	●	●
41	CLIP; FUEL PIPE,FUEL TANK (A) ID=13	8-94238-571-0	08	1	0710-0808	●	●
41	CLIP; FUEL PIPE,FUEL TANK (A) ID=13	8-94238-571-0	08	1	0809-		●
41	CLIP; FUEL PIPE,FUEL TANK EURO4 SPECIFICATION<NT4> (A) ID=13	8-94238-571-0	08	1	0809-	●
47	PIPE; FUEL,RETURN EURO2 SPECIFICATION<NT2> (C) L=539	8-98117-709-0	01	1	0809-	●
47	PIPE; FUEL,RETURN (B)	8-98097-500-0	01	1	0710-0807	●	●
47	PIPE; FUEL,RETURN (B)	8-98127-647-0	01	1	0808-0808	●	●
47	PIPE; FUEL,RETURN (B)	8-98127-647-0	01	1	0809-		●
47	PIPE; FUEL,RETURN EURO4 SPECIFICATION<NT4> (B)	8-98127-647-0	01	1	0809-	●
47	PIPE; FUEL,RETURN (A) L=717	8-98086-241-0	01	1	0710-0808	●	●
47	PIPE; FUEL,RETURN (A) L=717	8-98086-241-0	01	1	0809-		●
47	PIPE; FUEL,RETURN EURO4 SPECIFICATION<NT4> (A) L=717	8-98086-241-0	01	1	0809-	●
55	COVER; PIPE,FUEL TANK EURO4 SPECIFICATION<NT4> FUEL TANK 200L FRAME SIDE<N20> L=150 SERVICED BY L=1300	1-09360-677-1	03	1	0809-	●
55	COVER; PIPE,FUEL TANK L=150 SERVICED BY L=1300	1-09360-677-1	02	1	0710-0808	●	●
55	COVER; PIPE,FUEL TANK L=150 SERVICED BY L=1300	1-09360-677-1	02	1	0809-		●
55	COVER; PIPE,FUEL TANK EURO2 SPECIFICATION<NT2> L=150 SERVICED BY L=1300	1-09360-677-1	02	1	0809-	●
55	COVER; PIPE,FUEL TANK EURO4 SPECIFICATION<NT4> FUEL TANK 400L<SDH> L=150 SERVICED BY L=1300	1-09360-677-1	02	1	0809-	●
65	HOSE; FUEL,DELIVERY PIPE EURO4 SPECIFICATION<NT4> FUEL TANK 200L FRAME SIDE<N20> L=860 SERVICED BY L=3000	0-01260-300-0	01	1	0809-	●
65	HOSE; FUEL,DELIVERY PIPE L=1050 SERVICED BY L=3000	0-01260-300-0	01	1	0710-0808	●	●
65	HOSE; FUEL,DELIVERY PIPE L=1050 SERVICED BY L=3000	0-01260-300-0	01	1	0809-		●
65	HOSE; FUEL,DELIVERY PIPE EURO4 SPECIFICATION<NT4> FUEL TANK 400L<SDH> L=1050 SERVICED BY L=3000	0-01260-300-0	01	1	0809-	●
66	HOSE; FUEL,RETURN PIPE L=150 SERVICED BY L=3000	0-01558-300-0	01	1	0710-0808	●	●
66	HOSE; FUEL,RETURN PIPE 6HK1-TCS ENG(80L) L=150 SERVICED BY L=3000	0-01558-300-0	01	1	0809-		●
66	HOSE; FUEL,RETURN PIPE 6HK1-TCS ENG(80L) EURO4 SPECIFICATION<NT4> L=150 SERVICED BY L=3000	0-01558-300-0	01	1	0809-	●
67	HOSE; FUEL,DELIVERY (A) L=110 SERVICED BY L=3000	0-01260-300-0	01	1	0710-	●	●
67	HOSE; FUEL,DELIVERY (B) L=210 SERVICED BY L=3000	0-01558-300-0	01	1	0710-	●	●
67	HOSE; FUEL,DELIVERY EURO2 SPECIFICATION<NT2> (C) L=300	8-98128-210-0	01	1	0809-0910	●
67	HOSE; FUEL,DELIVERY EURO2 SPECIFICATION<NT2> (C) L=300	8-98157-878-0	01	1	0911-	●
67	HOSE; FUEL,DELIVERY EURO2 SPECIFICATION<NT2> FUEL TANK 400L<SDH> (D) L=960	8-98128-785-0	01	1	0809-0910	●
67	HOSE; FUEL,DELIVERY EURO2 SPECIFICATION<NT2> FUEL TANK 400L<SDH> (D) L=960	8-98157-880-0	01	1	0911-	●
67	HOSE; FUEL,DELIVERY FUEL TANK 200L FRAME SIDE<N20> EURO2 SPECIFICATION<NT2> (D) L=900	8-98128-211-0	01	1	0809-0910	●
67	HOSE; FUEL,DELIVERY FUEL TANK 200L FRAME SIDE<N20> EURO2 SPECIFICATION<NT2> (D) L=900	8-98157-879-0	01	1	0911-	●
80	BOLT; CLIP,FUEL TANK M8X20 FLANGE	0-28650-820-0	02	1	0710-0808	●	●
80	BOLT; CLIP,FUEL TANK 6HK1-TCS ENG(80L) M8X20 FLANGE	0-28650-820-0	02	1	0710-0808	●	●
80	BOLT; CLIP,FUEL TANK M8X20 FLANGE	0-28650-820-0	02	1	0809-	●	●
80	BOLT; CLIP,FUEL TANK 6HK1-TCS ENG(80L) M8X20 FLANGE	0-28650-820-0	02	1	0809-		●
80	BOLT; CLIP,FUEL TANK 6HK1-TCS ENG(80L) EURO4 SPECIFICATION<NT4> M8X20 FLANGE	0-28650-820-0	02	1	0809-	●
83	NUT; CLIP,FUEL TANK M8 FLANGE	0-91180-108-0	02	1	0710-0808	●	●
83	NUT; CLIP,FUEL TANK 6HK1-TCS ENG(80L) M8 FLANGE	0-91180-108-0	02	1	0809-		●
83	NUT; CLIP,FUEL TANK 6HK1-TCS ENG(80L) EURO4 SPECIFICATION<NT4> M8 FLANGE	0-91180-108-0	02	1	0809-	●
83	NUT; CLIP,FUEL TANK EURO2 SPECIFICATION<NT2> M8 FLANGE	0-91180-108-0	02	1	0809-	●
83	NUT; CLIP,FUEL TANK M8 FLANGE	0-91180-108-0	03	1	0710-0808	●	●
83	NUT; CLIP,FUEL TANK M8 FLANGE	0-91180-108-0	03	1	0809-		●
83	NUT; CLIP,FUEL TANK EURO4 SPECIFICATION<NT4> M8 FLANGE	0-91180-108-0	03	1	0809-	●
95	BUSHING; PIPE,FUEL TANK ID=28 OD=35 T=17	9-09956-256-2	02	1	0710-0808	●	●
95	BUSHING; PIPE,FUEL TANK 6HK1-TCS ENG(80L) ID=28 OD=35 T=17	9-09956-256-2	02	1	0809-		●
95	BUSHING; PIPE,FUEL TANK 6HK1-TCS ENG(80L) EURO4 SPECIFICATION<NT4> ID=28 OD=35 T=17	9-09956-256-2	02	1	0809-	●
97	BRACKET; CLIP EURO2 SPECIFICATION<NT2> (D)	8-98126-612-0	01	1	0809-	●
97	BRACKET; CLIP (C) L=50	1-47475-299-2	01	1	0710-0808	●	●
97	BRACKET; CLIP (C) L=50	1-47475-299-2	01	1	0809-		●
97	BRACKET; CLIP EURO4 SPECIFICATION<NT4> (C) L=50	1-47475-299-2	01	1	0809-	●
97	BRACKET; CLIP (B)	8-98076-024-0	01	1	0710-0808	●	●
97	BRACKET; CLIP (B)	8-98076-024-0	01	1	0809-		●
97	BRACKET; CLIP EURO4 SPECIFICATION<NT4> (B)	8-98076-024-0	01	1	0809-	●
97	BRACKET; CLIP (A)	8-98053-654-0	01	1	0710-	●	●
98	BOLT; BRKT,FUEL PIPE M8X30 FLANGE	0-28650-830-0	02	1	0710-0808	●	●
98	BOLT; BRKT,FUEL PIPE M8X30 FLANGE	0-28650-830-0	02	1	0809-		●
98	BOLT; BRKT,FUEL PIPE EURO4 SPECIFICATION<NT4> M8X30 FLANGE	0-28650-830-0	02	1	0809-	●
103	NUT; BRKT M8 FLANGE	0-91180-108-0	02	1	0710-0808	●	●
103	NUT; BRKT M8 FLANGE	0-91180-108-0	02	1	0809-		●
103	NUT; BRKT EURO4 SPECIFICATION<NT4> M8 FLANGE	0-91180-108-0	02	1	0809-	●
174	PIPE; FUEL,FEED,FRT EURO2 SPECIFICATION<NT2> L=548	8-98117-708-0	01	1	0809-	●
174	PIPE; FUEL,FEED,FRT L=724	8-98086-240-0	01	1	0710-0808	●	●
174	PIPE; FUEL,FEED,FRT L=724	8-98086-240-0	01	1	0809-		●
174	PIPE; FUEL,FEED,FRT EURO4 SPECIFICATION<NT4> L=724	8-98086-240-0	01	1	0809-	●
308	BRACKET; FUEL PIPE L=75	1-47478-323-0	02	1	0710-0808	●	●
308	BRACKET; FUEL PIPE L=75	1-47478-323-0	02	1	0809-		●
308	BRACKET; FUEL PIPE EURO4 SPECIFICATION<NT4> L=75	1-47478-323-0	02	1	0809-	●
373	CLAMP; HOSE,FUEL ID=16	8-94238-568-0	02	1	0804-0808	●	●
373	CLAMP; HOSE,FUEL ID=16	8-94238-568-0	02	1	0809-		●
373	CLAMP; HOSE,FUEL FUEL TANK 400L<SDH> ID=16	8-94238-568-0	02	1	0809-	●
634	HOSE; RUBBER RETURN EURO2 SPECIFICATION<NT2> L=1050	8-98128-212-0	01	1	0809-	●
634	HOSE; RUBBER RETURN 6HK1-TCN ENG(82L) EURO4 SPECIFICATION<NT4> FUEL TANK 400L<SDH> L=1200 SERVICED BY L=3000	0-01558-300-0	01	1	0809-	●
634	HOSE; RUBBER RETURN 6HK1-TCS ENG(80L) L=900 SERVICED BY L=3000	0-01558-300-0	01	1	0710-0808	●	●
634	HOSE; RUBBER RETURN 6HK1-TCS ENG(80L) L=900 SERVICED BY L=3000	0-01558-300-0	01	1	0809-0809		●
634	HOSE; RUBBER RETURN 6HK1-TCS ENG(80L) EURO4 SPECIFICATION<NT4> FUEL TANK 400L<SDH> L=900 SERVICED BY L=3000	0-01558-300-0	01	1	0809-0809	●
634	HOSE; RUBBER RETURN EURO4 SPECIFICATION<NT4> FUEL TANK 200L FRAME SIDE<N20> L=900 SERVICED BY L=3000	0-01558-300-0	01	1	0809-0809	●
634	HOSE; RUBBER RETURN 6HK1-TCS ENG(80L) L=900 SERVICED BY L=3000	0-01558-300-0	01	1	0810-		●
634	HOSE; RUBBER RETURN 6HK1-TCS ENG(80L) EURO4 SPECIFICATION<NT4> FUEL TANK 400L<SDH> L=900 SERVICED BY L=3000	0-01558-300-0	01	1	0810-	●
634	HOSE; RUBBER RETURN EURO4 SPECIFICATION<NT4> FUEL TANK 200L FRAME SIDE<N20> L=900 SERVICED BY L=3000	0-01558-300-0	01	1	0810-	●

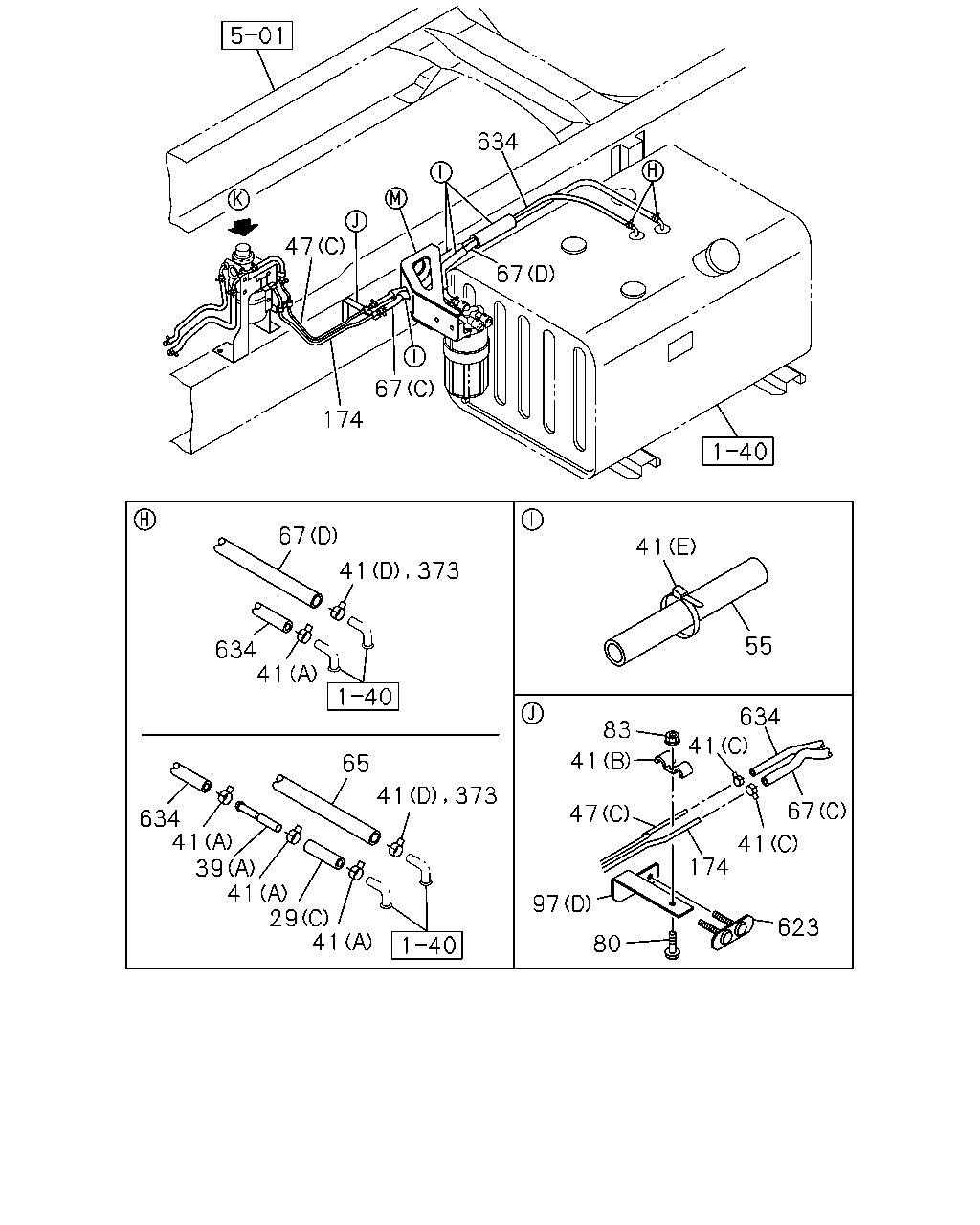

47 67 634 67 174 373 41 67 41 634 65 41 373 41 29 41 39 41 634 41 55 634 67 41 83 41 47 97 80 174 41 623

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
29	HOSE; FUEL (C) L=60 SERVICED BY L=3000	0-01259-300-0	01	1	0710-0808	●	●
29	HOSE; FUEL (C) L=60 SERVICED BY L=3000	0-01259-300-0	01	1	0809-		●
29	HOSE; FUEL FUEL TANK 400L<SDH> (C) L=60 SERVICED BY L=3000	0-01259-300-0	01	1	0809-	●
29	HOSE; FUEL (A)	8-98078-196-2	01	1	0710-	●	●
29	HOSE; FUEL (B)	8-98078-197-1	01	1	0710-	●	●
39	PIPE; FUEL EURO2 SPECIFICATION<NT2> (B)	8-97358-699-0	02	1	0809-0903	●
39	PIPE; FUEL EURO2 SPECIFICATION<NT2> (B) NPTF3/8-18 OD=10	8-98122-953-0	02	1	0904-	●
39	PIPE; FUEL (A)	8-98009-438-1	01	1	0710-0808	●	●
39	PIPE; FUEL (A)	8-98009-438-1	01	1	0809-		●
39	PIPE; FUEL FUEL TANK 400L<SDH> (A)	8-98009-438-1	01	1	0809-	●
41	CLIP; FUEL PIPE,FUEL TANK EURO2 SPECIFICATION<NT2> (E) L=250	5-09707-030-1	01	1	0809-	●
41	CLIP; FUEL PIPE,FUEL TANK EURO2 SPECIFICATION<NT2> (B) ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	02	1	0809-	●
41	CLIP; FUEL PIPE,FUEL TANK EURO2 SPECIFICATION<NT2> (C) ID=14	1-09704-102-0	06	1	0809-	●
41	CLIP; FUEL PIPE,FUEL TANK EURO4 SPECIFICATION<NT4> FUEL TANK 200L FRAME SIDE<N20> (E) L=250	5-09707-030-1	03	1	0809-	●
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCN ENG(82L) EURO4 SPECIFICATION<NT4> (A) ID=13	8-94238-571-0	06	1	0809-	●
41	CLIP; FUEL PIPE,FUEL TANK EURO2 SPECIFICATION<NT2> (A) ID=13	8-94238-571-0	06	1	0809-	●
41	CLIP; FUEL PIPE,FUEL TANK (D) ID=16	8-94238-568-0	02	1	0710-0803	●	●
41	CLIP; FUEL PIPE,FUEL TANK (D) ID=16	8-94238-568-0	02	1	0710-0803	●	●
41	CLIP; FUEL PIPE,FUEL TANK (E) L=250	5-09707-030-1	02	1	0710-0808	●	●
41	CLIP; FUEL PIPE,FUEL TANK (E) L=250	5-09707-030-1	02	1	0809-		●
41	CLIP; FUEL PIPE,FUEL TANK EURO2 SPECIFICATION<NT2> (E) L=250	5-09707-030-1	02	1	0809-	●
41	CLIP; FUEL PIPE,FUEL TANK EURO4 SPECIFICATION<NT4> FUEL TANK 400L<SDH> (E) L=250	5-09707-030-1	02	1	0809-	●
41	CLIP; FUEL PIPE,FUEL TANK (F) ID=9 & 9 L=17 & 17	1-09700-651-0	02	1	0710-0808	●	●
41	CLIP; FUEL PIPE,FUEL TANK (F) ID=9 & 9 L=17 & 17	1-09700-651-0	02	1	0809-		●
41	CLIP; FUEL PIPE,FUEL TANK EURO4 SPECIFICATION<NT4> (F) ID=9 & 9 L=17 & 17	1-09700-651-0	02	1	0809-	●
41	CLIP; FUEL PIPE,FUEL TANK (B) ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	03	1	0710-0808	●	●
41	CLIP; FUEL PIPE,FUEL TANK (B) ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	03	1	0809-		●
41	CLIP; FUEL PIPE,FUEL TANK EURO4 SPECIFICATION<NT4> (B) ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	03	1	0809-	●
41	CLIP; FUEL PIPE,FUEL TANK (C) ID=14	1-09704-102-0	04	1	0710-0808	●	●
41	CLIP; FUEL PIPE,FUEL TANK (C) ID=14	1-09704-102-0	04	1	0809-		●
41	CLIP; FUEL PIPE,FUEL TANK EURO4 SPECIFICATION<NT4> (C) ID=14	1-09704-102-0	04	1	0809-	●
41	CLIP; FUEL PIPE,FUEL TANK (D) ID=16	8-94238-568-0	02	1	0710-0710	●	●
41	CLIP; FUEL PIPE,FUEL TANK (A) ID=13	8-94238-571-0	01	1	0710-0803	●	●
41	CLIP; FUEL PIPE,FUEL TANK (D) ID=16	8-94238-568-0	02	1	0804-	●	●
41	CLIP; FUEL PIPE,FUEL TANK (A) ID=13	8-94238-571-0	08	1	0710-0808	●	●
41	CLIP; FUEL PIPE,FUEL TANK (A) ID=13	8-94238-571-0	08	1	0809-		●
41	CLIP; FUEL PIPE,FUEL TANK EURO4 SPECIFICATION<NT4> (A) ID=13	8-94238-571-0	08	1	0809-	●
47	PIPE; FUEL,RETURN EURO2 SPECIFICATION<NT2> (C) L=539	8-98117-709-0	01	1	0809-	●
47	PIPE; FUEL,RETURN (B)	8-98097-500-0	01	1	0710-0807	●	●
47	PIPE; FUEL,RETURN (B)	8-98127-647-0	01	1	0808-0808	●	●
47	PIPE; FUEL,RETURN (B)	8-98127-647-0	01	1	0809-		●
47	PIPE; FUEL,RETURN EURO4 SPECIFICATION<NT4> (B)	8-98127-647-0	01	1	0809-	●
47	PIPE; FUEL,RETURN (A) L=717	8-98086-241-0	01	1	0710-0808	●	●
47	PIPE; FUEL,RETURN (A) L=717	8-98086-241-0	01	1	0809-		●
47	PIPE; FUEL,RETURN EURO4 SPECIFICATION<NT4> (A) L=717	8-98086-241-0	01	1	0809-	●
55	COVER; PIPE,FUEL TANK EURO4 SPECIFICATION<NT4> FUEL TANK 200L FRAME SIDE<N20> L=150 SERVICED BY L=1300	1-09360-677-1	03	1	0809-	●
55	COVER; PIPE,FUEL TANK L=150 SERVICED BY L=1300	1-09360-677-1	02	1	0710-0808	●	●
55	COVER; PIPE,FUEL TANK L=150 SERVICED BY L=1300	1-09360-677-1	02	1	0809-		●
55	COVER; PIPE,FUEL TANK EURO2 SPECIFICATION<NT2> L=150 SERVICED BY L=1300	1-09360-677-1	02	1	0809-	●
55	COVER; PIPE,FUEL TANK EURO4 SPECIFICATION<NT4> FUEL TANK 400L<SDH> L=150 SERVICED BY L=1300	1-09360-677-1	02	1	0809-	●
65	HOSE; FUEL,DELIVERY PIPE EURO4 SPECIFICATION<NT4> FUEL TANK 200L FRAME SIDE<N20> L=860 SERVICED BY L=3000	0-01260-300-0	01	1	0809-	●
65	HOSE; FUEL,DELIVERY PIPE L=1050 SERVICED BY L=3000	0-01260-300-0	01	1	0710-0808	●	●
65	HOSE; FUEL,DELIVERY PIPE L=1050 SERVICED BY L=3000	0-01260-300-0	01	1	0809-		●
65	HOSE; FUEL,DELIVERY PIPE EURO4 SPECIFICATION<NT4> FUEL TANK 400L<SDH> L=1050 SERVICED BY L=3000	0-01260-300-0	01	1	0809-	●
67	HOSE; FUEL,DELIVERY (A) L=110 SERVICED BY L=3000	0-01260-300-0	01	1	0710-	●	●
67	HOSE; FUEL,DELIVERY (B) L=210 SERVICED BY L=3000	0-01558-300-0	01	1	0710-	●	●
67	HOSE; FUEL,DELIVERY EURO2 SPECIFICATION<NT2> (C) L=300	8-98128-210-0	01	1	0809-0910	●
67	HOSE; FUEL,DELIVERY EURO2 SPECIFICATION<NT2> (C) L=300	8-98157-878-0	01	1	0911-	●
67	HOSE; FUEL,DELIVERY EURO2 SPECIFICATION<NT2> FUEL TANK 400L<SDH> (D) L=960	8-98128-785-0	01	1	0809-0910	●
67	HOSE; FUEL,DELIVERY EURO2 SPECIFICATION<NT2> FUEL TANK 400L<SDH> (D) L=960	8-98157-880-0	01	1	0911-	●
67	HOSE; FUEL,DELIVERY FUEL TANK 200L FRAME SIDE<N20> EURO2 SPECIFICATION<NT2> (D) L=900	8-98128-211-0	01	1	0809-0910	●
67	HOSE; FUEL,DELIVERY FUEL TANK 200L FRAME SIDE<N20> EURO2 SPECIFICATION<NT2> (D) L=900	8-98157-879-0	01	1	0911-	●
80	BOLT; CLIP,FUEL TANK M8X20 FLANGE	0-28650-820-0	02	1	0710-0808	●	●
80	BOLT; CLIP,FUEL TANK 6HK1-TCS ENG(80L) M8X20 FLANGE	0-28650-820-0	02	1	0710-0808	●	●
80	BOLT; CLIP,FUEL TANK M8X20 FLANGE	0-28650-820-0	02	1	0809-	●	●
80	BOLT; CLIP,FUEL TANK 6HK1-TCS ENG(80L) M8X20 FLANGE	0-28650-820-0	02	1	0809-		●
80	BOLT; CLIP,FUEL TANK 6HK1-TCS ENG(80L) EURO4 SPECIFICATION<NT4> M8X20 FLANGE	0-28650-820-0	02	1	0809-	●
83	NUT; CLIP,FUEL TANK M8 FLANGE	0-91180-108-0	02	1	0710-0808	●	●
83	NUT; CLIP,FUEL TANK 6HK1-TCS ENG(80L) M8 FLANGE	0-91180-108-0	02	1	0809-		●
83	NUT; CLIP,FUEL TANK 6HK1-TCS ENG(80L) EURO4 SPECIFICATION<NT4> M8 FLANGE	0-91180-108-0	02	1	0809-	●
83	NUT; CLIP,FUEL TANK EURO2 SPECIFICATION<NT2> M8 FLANGE	0-91180-108-0	02	1	0809-	●
83	NUT; CLIP,FUEL TANK M8 FLANGE	0-91180-108-0	03	1	0710-0808	●	●
83	NUT; CLIP,FUEL TANK M8 FLANGE	0-91180-108-0	03	1	0809-		●
83	NUT; CLIP,FUEL TANK EURO4 SPECIFICATION<NT4> M8 FLANGE	0-91180-108-0	03	1	0809-	●
97	BRACKET; CLIP EURO2 SPECIFICATION<NT2> (D)	8-98126-612-0	01	1	0809-	●
97	BRACKET; CLIP (C) L=50	1-47475-299-2	01	1	0710-0808	●	●
97	BRACKET; CLIP (C) L=50	1-47475-299-2	01	1	0809-		●
97	BRACKET; CLIP EURO4 SPECIFICATION<NT4> (C) L=50	1-47475-299-2	01	1	0809-	●
97	BRACKET; CLIP (B)	8-98076-024-0	01	1	0710-0808	●	●
97	BRACKET; CLIP (B)	8-98076-024-0	01	1	0809-		●
97	BRACKET; CLIP EURO4 SPECIFICATION<NT4> (B)	8-98076-024-0	01	1	0809-	●
97	BRACKET; CLIP (A)	8-98053-654-0	01	1	0710-	●	●
174	PIPE; FUEL,FEED,FRT EURO2 SPECIFICATION<NT2> L=548	8-98117-708-0	01	1	0809-	●
174	PIPE; FUEL,FEED,FRT L=724	8-98086-240-0	01	1	0710-0808	●	●
174	PIPE; FUEL,FEED,FRT L=724	8-98086-240-0	01	1	0809-		●
174	PIPE; FUEL,FEED,FRT EURO4 SPECIFICATION<NT4> L=724	8-98086-240-0	01	1	0809-	●
373	CLAMP; HOSE,FUEL ID=16	8-94238-568-0	02	1	0804-0808	●	●
373	CLAMP; HOSE,FUEL ID=16	8-94238-568-0	02	1	0809-		●
373	CLAMP; HOSE,FUEL FUEL TANK 400L<SDH> ID=16	8-94238-568-0	02	1	0809-	●
623	PLATE; STUD BOLT EURO2 SPECIFICATION<NT2>	8-98126-633-0	01	1	0809-	●
634	HOSE; RUBBER RETURN EURO2 SPECIFICATION<NT2> L=1050	8-98128-212-0	01	1	0809-	●
634	HOSE; RUBBER RETURN 6HK1-TCN ENG(82L) EURO4 SPECIFICATION<NT4> FUEL TANK 400L<SDH> L=1200 SERVICED BY L=3000	0-01558-300-0	01	1	0809-	●
634	HOSE; RUBBER RETURN 6HK1-TCS ENG(80L) L=900 SERVICED BY L=3000	0-01558-300-0	01	1	0710-0808	●	●
634	HOSE; RUBBER RETURN 6HK1-TCS ENG(80L) L=900 SERVICED BY L=3000	0-01558-300-0	01	1	0809-0809		●
634	HOSE; RUBBER RETURN 6HK1-TCS ENG(80L) EURO4 SPECIFICATION<NT4> FUEL TANK 400L<SDH> L=900 SERVICED BY L=3000	0-01558-300-0	01	1	0809-0809	●
634	HOSE; RUBBER RETURN EURO4 SPECIFICATION<NT4> FUEL TANK 200L FRAME SIDE<N20> L=900 SERVICED BY L=3000	0-01558-300-0	01	1	0809-0809	●
634	HOSE; RUBBER RETURN 6HK1-TCS ENG(80L) L=900 SERVICED BY L=3000	0-01558-300-0	01	1	0810-		●
634	HOSE; RUBBER RETURN 6HK1-TCS ENG(80L) EURO4 SPECIFICATION<NT4> FUEL TANK 400L<SDH> L=900 SERVICED BY L=3000	0-01558-300-0	01	1	0810-	●
634	HOSE; RUBBER RETURN EURO4 SPECIFICATION<NT4> FUEL TANK 200L FRAME SIDE<N20> L=900 SERVICED BY L=3000	0-01558-300-0	01	1	0810-	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
