◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVM ▶ 11105 - FVM(RHD) ▶ 1 - Fuel Tank, Cooling, Air Intake, Exhaust System ▶ 1-10 - RADIATOR ▶
1-10 — RADIATOR (#33953) — 111 parça

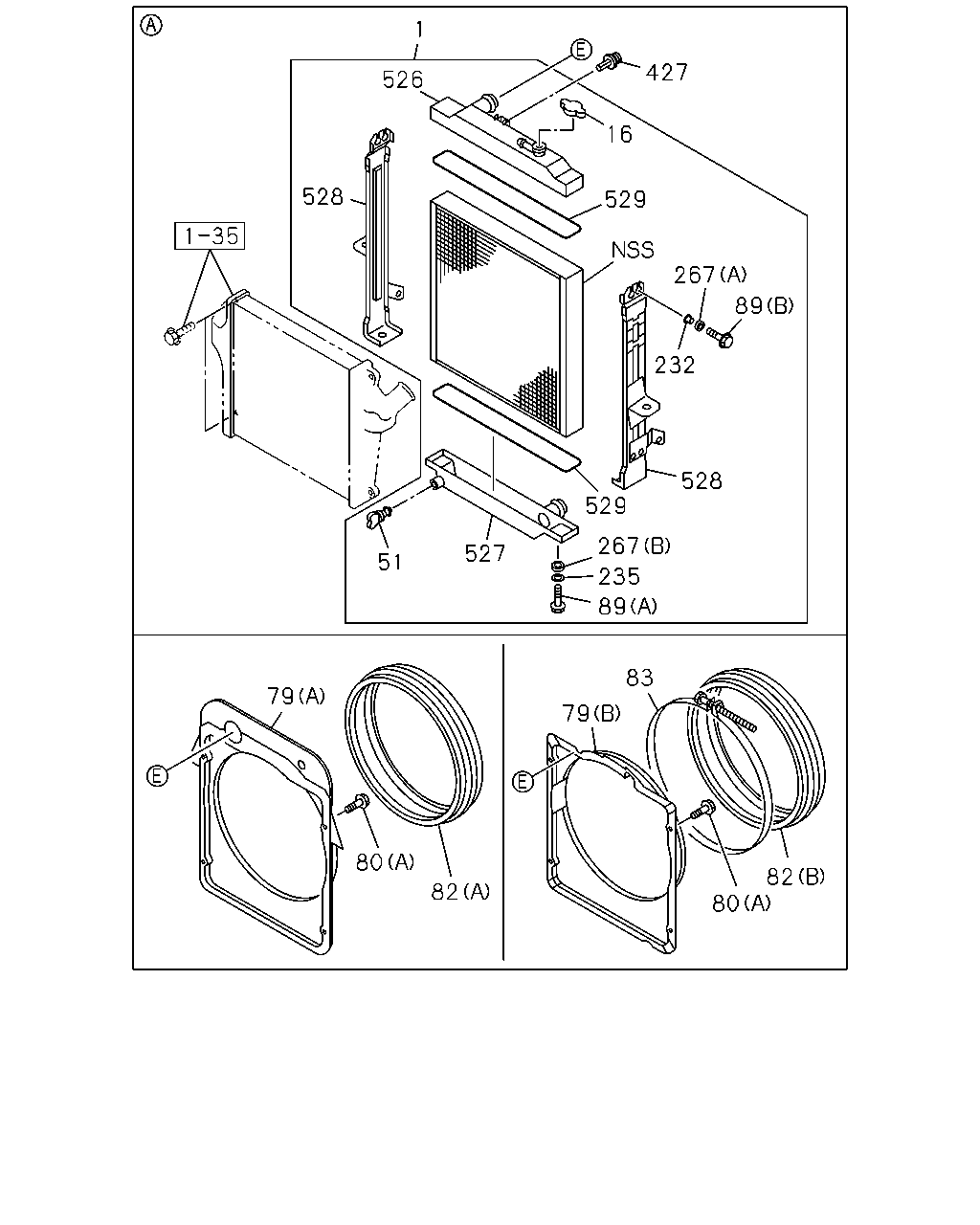

çizim 179212
528 526 427 16 529 267 232 528 529 267 235 89 527 51 83 79 79 80 82 80 82 89 1
BalonParca AdiParca NoAdetTipApplied Date A B
1 RADIATOR ASM 8-98042-837-3 01 1 0809-1505 ●
1 RADIATOR ASM 8-98299-728-0 01 1 1506- ●
1 RADIATOR ASM 8-98010-360-4 01 1 0710-1501 ●
1 RADIATOR ASM 8-98299-734-0 01 1 1502- ●
16 CAP; RAD 8-97239-187-0 01 1 0710-0808 ●
16 CAP; RAD 8-97239-187-0 01 1 0809- ● ●
51 PLUG; DRAIN
W/GASKET 		8-97171-437-0 01 1 0710-0808 ●
51 PLUG; DRAIN
W/GASKET 		8-97171-437-0 01 1 0809- ● ●
79 GUIDE; FAN,RAD
(A) 		8-98004-207-0 01 1 0809-1505 ●
79 GUIDE; FAN,RAD
(B) 		8-98286-937-0 01 1 1506- ●
79 GUIDE; FAN,RAD
(A) 		8-98010-384-0 01 1 0710-1501 ●
79 GUIDE; FAN,RAD
(B) 		8-98273-634-0 01 1 1502- ●
80 BOLT; FAN GUIDE
(A) M8X12 FLANGE 		0-28050-812-0 04 1 1502-1505 ●
80 BOLT; FAN GUIDE
(A) M8X12 FLANGE 		0-28050-812-0 04 1 1506- ● ●
80 BOLT; FAN GUIDE
(A) M8X14 		8-98046-222-0 04 1 0710-0808 ●
80 BOLT; FAN GUIDE
(A) M8X14 		8-98046-222-0 04 1 0809-1501 ● ●
80 BOLT; FAN GUIDE
(A) M8X14 		8-98046-222-0 04 1 1502-1505 ●
80 BOLT; FAN GUIDE
(B) M8X30 FLANGE 		0-28650-830-0 03 1 0710-0808 ●
80 BOLT; FAN GUIDE
(B) M8X30 FLANGE 		0-28650-830-0 03 1 0809- ● ●
82 COVER; FAN,RAD
(B) 		8-98293-253-0 01 1 1502-1505 ●
82 COVER; FAN,RAD
(B) 		8-98293-253-0 01 1 1506- ● ●
82 COVER; FAN,RAD
(A) 		8-98004-211-0 01 1 0710-0808 ●
82 COVER; FAN,RAD
(A) 		8-98004-211-0 01 1 0809-1501 ● ●
82 COVER; FAN,RAD
(A) 		8-98004-211-0 01 1 1502-1505 ●
83 CLIP; FAN COVER 1-09707-177-2 01 1 1502-1505 ●
83 CLIP; FAN COVER 1-09707-177-2 01 1 1506- ● ●
89 BOLT
(A) M6X12 FLANGE 		0-28050-612-0 02 1 0710-0808 ●
89 BOLT
(A) M6X12 FLANGE 		0-28050-612-0 02 1 0809- ● ●
89 BOLT
(B) M8X25 W/PL WASHER 		1-21469-153-0 04 1 0710-0808 ●
89 BOLT
(B) M8X25 W/PL WASHER 		1-21469-153-0 04 1 0809- ● ●
232 COLLAR; DIST,CUSHION RUBBER 8-98141-232-0 04 1 0710-0808 ●
232 COLLAR; DIST,CUSHION RUBBER 8-98141-232-0 04 1 0809- ● ●
235 WASHER; CUSHION RUBBER 1-21469-133-0 02 1 0710-0808 ●
235 WASHER; CUSHION RUBBER 1-21469-133-0 02 1 0809- ● ●
267 RUBBER; CUSHION
(A) 		1-21469-130-0 04 1 0710-0808 ●
267 RUBBER; CUSHION
(A) 		1-21469-130-0 04 1 0809- ● ●
267 RUBBER; CUSHION
(B) 		1-21469-131-0 02 1 0710-0808 ●
267 RUBBER; CUSHION
(B) 		1-21469-131-0 02 1 0809- ● ●
427 CLIP; FAN GUIDE 1-09470-009-0 01 1 0710-0808 ●
427 CLIP; FAN GUIDE 1-09470-009-0 01 1 0809-1501 ● ●
427 CLIP; FAN GUIDE 1-09470-009-0 01 1 1502-1505 ●
526 TANK; UPR,RADIATOR CORE 8-98004-202-2 01 1 0710-0808 ●
526 TANK; UPR,RADIATOR CORE 8-98004-202-2 01 1 0809- ● ●
527 TANK; LWR,RADIATOR CORE 8-98004-203-0 01 1 0710-0808 ●
527 TANK; LWR,RADIATOR CORE 8-98004-203-0 01 1 0809- ● ●
528 PLATE; SIDE,RADIATOR CORE 8-98042-838-3 01 1 0809- ●
528 PLATE; SIDE,RADIATOR CORE 8-98042-839-2 01 1 0809- ●
528 PLATE; SIDE,RADIATOR CORE 8-98010-371-3 01 1 0710- ●
528 PLATE; SIDE,RADIATOR CORE 8-98010-372-4 01 1 0710- ●
529 GASKET; CORE,RADIATOR 8-98004-206-0 02 1 0710-0808 ●
529 GASKET; CORE,RADIATOR 8-98004-206-0 02 1 0809- ● ●

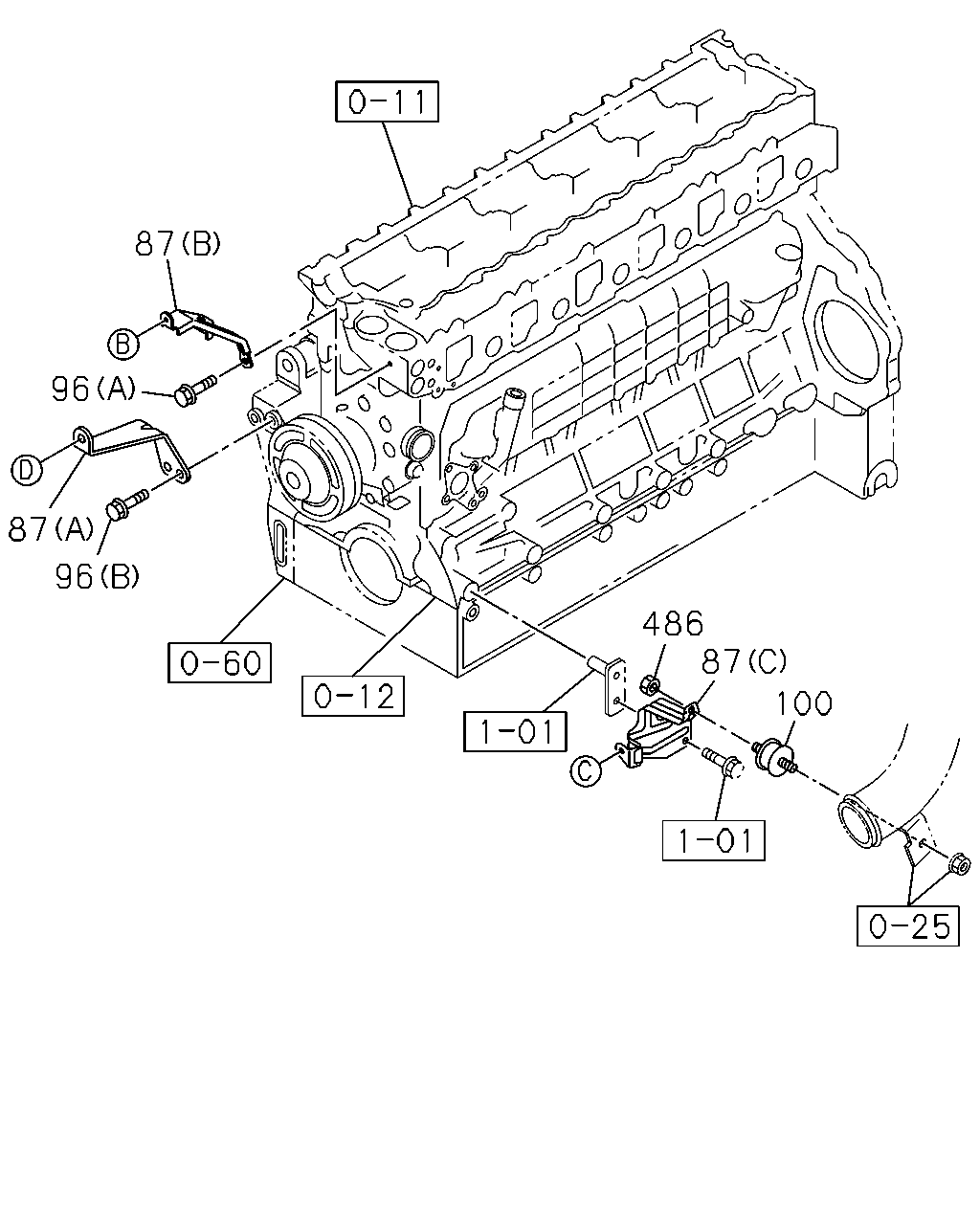

çizim 179237
87 96 87 96 486 87 100
BalonParca AdiParca NoAdetTipApplied Date A B
87 STAY; FAN GUIDE
(B) 		8-94393-776-1 01 1 0710-0808 ●
87 STAY; FAN GUIDE
(B) 		8-94393-776-1 01 1 0809- ● ●
87 STAY; FAN GUIDE
(C) 		8-94393-778-2 01 1 0710-0808 ●
87 STAY; FAN GUIDE
(C) 		8-94393-778-2 01 1 0809- ● ●
87 STAY; FAN GUIDE
(A) 		8-97602-988-0 01 1 0710-0808 ●
87 STAY; FAN GUIDE
(A) 		8-97602-988-0 01 1 0809- ● ●
96 BOLT; STAY FIX
(B) M8X16 FLANGE 		0-28050-816-0 02 1 0710-0808 ●
96 BOLT; STAY FIX
(B) M8X16 FLANGE 		0-28050-816-0 02 1 0809- ● ●
96 BOLT; STAY FIX
(A) M10X16 FLANGE 		0-28151-016-0 02 1 0710-0808 ●
96 BOLT; STAY FIX
(A) M10X16 FLANGE 		0-28151-016-0 02 1 0809- ● ●
100 RUBBER; MTG 8-94394-268-1 01 1 0710-0808 ●
100 RUBBER; MTG 8-94394-268-1 01 1 0809-0910 ● ●
100 RUBBER; MTG 8-98148-109-0 01 1 0911- ● ●
486 NUT; MTG RUBBER
M8 FLANGE 		0-91180-108-0 01 1 0710-0808 ●
486 NUT; MTG RUBBER
M8 FLANGE 		0-91180-108-0 01 1 0809- ● ●

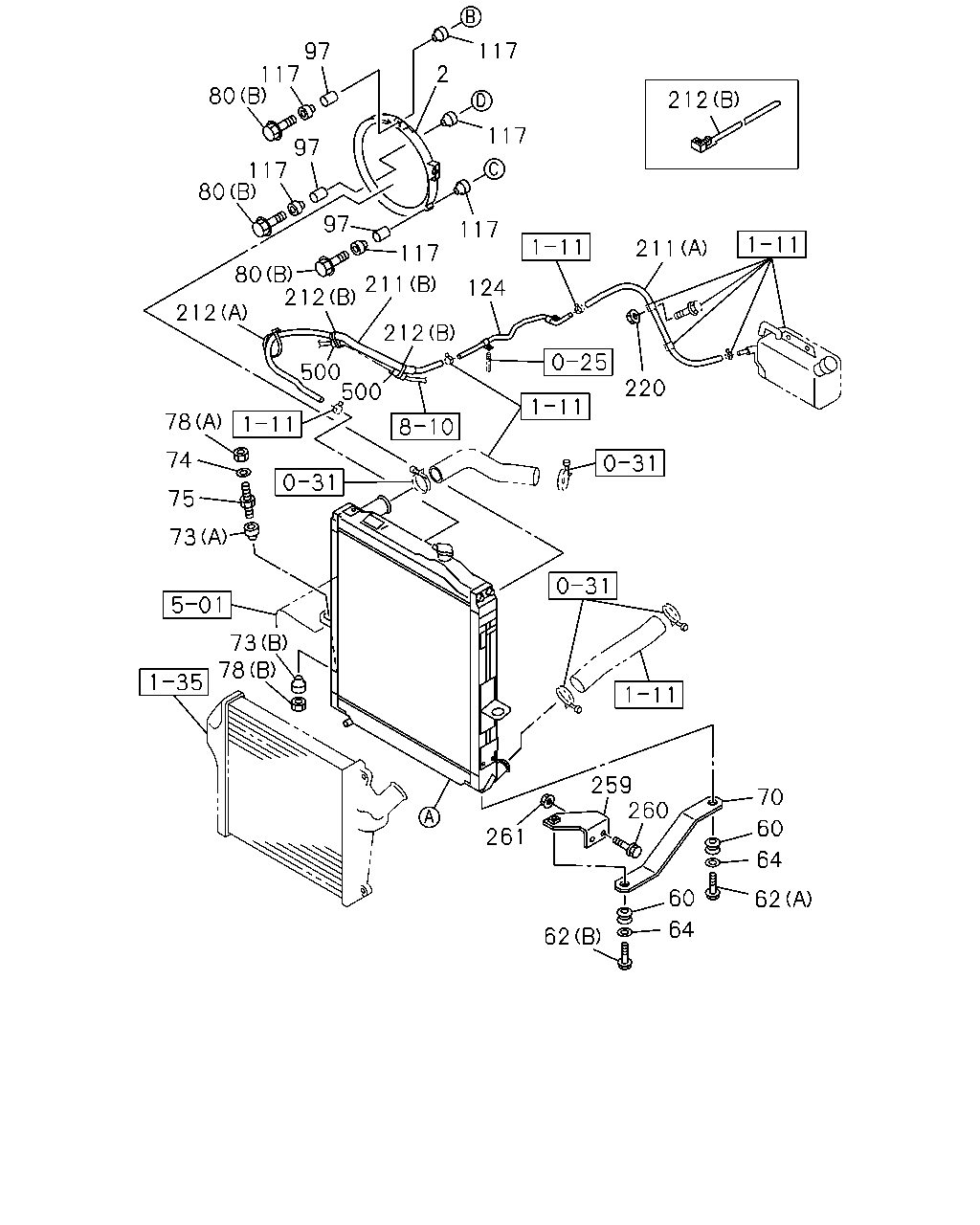

çizim 179260
117 97 117 80 2 212 117 97 117 80 97 117 211 117 80 211 212 124 212 212 500 500 220 78 74 75 73 73 78 259 260 70 60 261 64 60 62 64 62
BalonParca AdiParca NoAdetTipApplied Date A B
2 GUIDE; FAN 8-94393-779-1 01 1 0710-0808 ●
2 GUIDE; FAN 8-94393-779-1 01 1 0809- ● ●
60 GROMMET 1-09332-117-0 04 1 0710- ● ●
62 BOLT; STAY
(A) M8X30 		1-09009-020-1 02 1 0710- ● ●
62 BOLT; STAY
(B) M8X26 		1-09009-175-0 02 1 0710- ● ●
64 WASHER; STAY TO RAD
ID=12.5 OD=26 		0-91610-612-0 04 1 0710- ● ●
70 STAY; RAD 8-98004-132-2 02 1 0710- ● ●
73 RUBBER; CUSHION,RAD MTG
(A) T=14 		1-21467-004-0 02 1 0710- ● ●
73 RUBBER; CUSHION,RAD MTG
(B) T=24 		1-21467-011-1 02 1 0710- ● ●
74 WASHER; PL,CUSHION RUBBER
ID=11 OD=54 		1-09503-154-2 02 1 0710- ● ●
75 BOLT; CUSHION RUBBER,RAD MTG
M12X26.5,M10X19 L=86.5 		1-21466-007-3 02 1 0710- ● ●
78 NUT; CUSHION RUBBER
(A) M10 FLANGE 		0-91180-210-0 02 1 0710- ● ●
78 NUT; CUSHION RUBBER
(B) M12 FLANGE 		0-91180-212-0 02 1 0710- ● ●
80 BOLT; FAN GUIDE
(A) M8X12 FLANGE 		0-28050-812-0 04 1 1502-1505 ●
80 BOLT; FAN GUIDE
(A) M8X12 FLANGE 		0-28050-812-0 04 1 1506- ● ●
80 BOLT; FAN GUIDE
(A) M8X14 		8-98046-222-0 04 1 0710-0808 ●
80 BOLT; FAN GUIDE
(A) M8X14 		8-98046-222-0 04 1 0809-1501 ● ●
80 BOLT; FAN GUIDE
(A) M8X14 		8-98046-222-0 04 1 1502-1505 ●
80 BOLT; FAN GUIDE
(B) M8X30 FLANGE 		0-28650-830-0 03 1 0710-0808 ●
80 BOLT; FAN GUIDE
(B) M8X30 FLANGE 		0-28650-830-0 03 1 0809- ● ●
97 TUBE; DIST,FAN GUIDE 9-09651-072-0 03 1 0710-0808 ●
97 TUBE; DIST,FAN GUIDE 9-09651-072-0 03 1 0809- ● ●
117 RUBBER; MTG,FAN GUIDE
OD=32 		8-94395-766-0 06 1 0710-0808 ●
117 RUBBER; MTG,FAN GUIDE
OD=32 		8-94395-766-0 06 1 0809- ● ●
124 PIPE; WATER,TANK TO RAD 8-97611-022-1 01 1 0710-0808 ●
124 PIPE; WATER,TANK TO RAD 8-97611-022-1 01 1 0809- ● ●
211 HOSE; RAD TO PIPE
(B) L=940 		8-98073-544-0 01 1 0809- ●
211 HOSE; RAD TO PIPE
(A) 		8-98067-261-2 01 1 0710-0805 ● ●
211 HOSE; RAD TO PIPE
(A) L=560 		8-98119-375-0 01 1 0806- ● ●
211 HOSE; RAD TO PIPE
(B) L=970 		8-98073-545-0 01 1 0710- ●
212 CLIP; HOSE
EURO2 SPECIFICATION<NT2> (A) L=250 		5-09707-030-1 02 1 0809- ●
212 CLIP; HOSE
(A) L=250 		5-09707-030-1 02 1 0809- ●
212 CLIP; HOSE
EURO2 SPECIFICATION<NT2> (B) L=140 		5-09707-031-1 01 1 0809- ●
212 CLIP; HOSE
(B) L=140 		5-09707-031-1 01 1 0809- ●
212 CLIP; HOSE
(A) L=250 		5-09707-030-1 01 1 0710-0808 ●
212 CLIP; HOSE
EURO4 SPECIFICATION<NT4> (A) L=250 		5-09707-030-1 01 1 0809- ●
212 CLIP; HOSE
(B) L=140 		5-09707-031-1 02 1 0710-0808 ●
212 CLIP; HOSE
EURO4 SPECIFICATION<NT4> (B) L=140 		5-09707-031-1 02 1 0809- ●
220 NUT; CLIP
M8 FLANGE 		0-91180-108-0 01 1 0710- ● ●
259 BRACKET; RAD STAY 8-98071-821-0 01 1 0710- ● ●
259 BRACKET; RAD STAY 8-98071-822-0 01 1 0710- ● ●
260 BOLT; BRKT
M8X20 FLANGE 		0-28650-820-0 04 1 0710- ● ●
261 NUT; BRKT
M8 FLANGE 		0-91180-108-0 04 1 0710- ● ●
500 SLEEVE; RUBBER
ID=17 OD=21 L=40 		1-09337-012-0 02 1 0710-0808 ●
500 SLEEVE; RUBBER
EURO4 SPECIFICATION<NT4> ID=17 OD=21 L=40 		1-09337-012-0 02 1 0809- ●
