◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVM ▶ 11105 - FVM(RHD) ▶ 1 - Fuel Tank, Cooling, Air Intake, Exhaust System ▶ 1-01 - ACCELERATOR PEDAL AND CONTROL ▶
1-01 — ACCELERATOR PEDAL AND CONTROL (#33952) — 34 parça

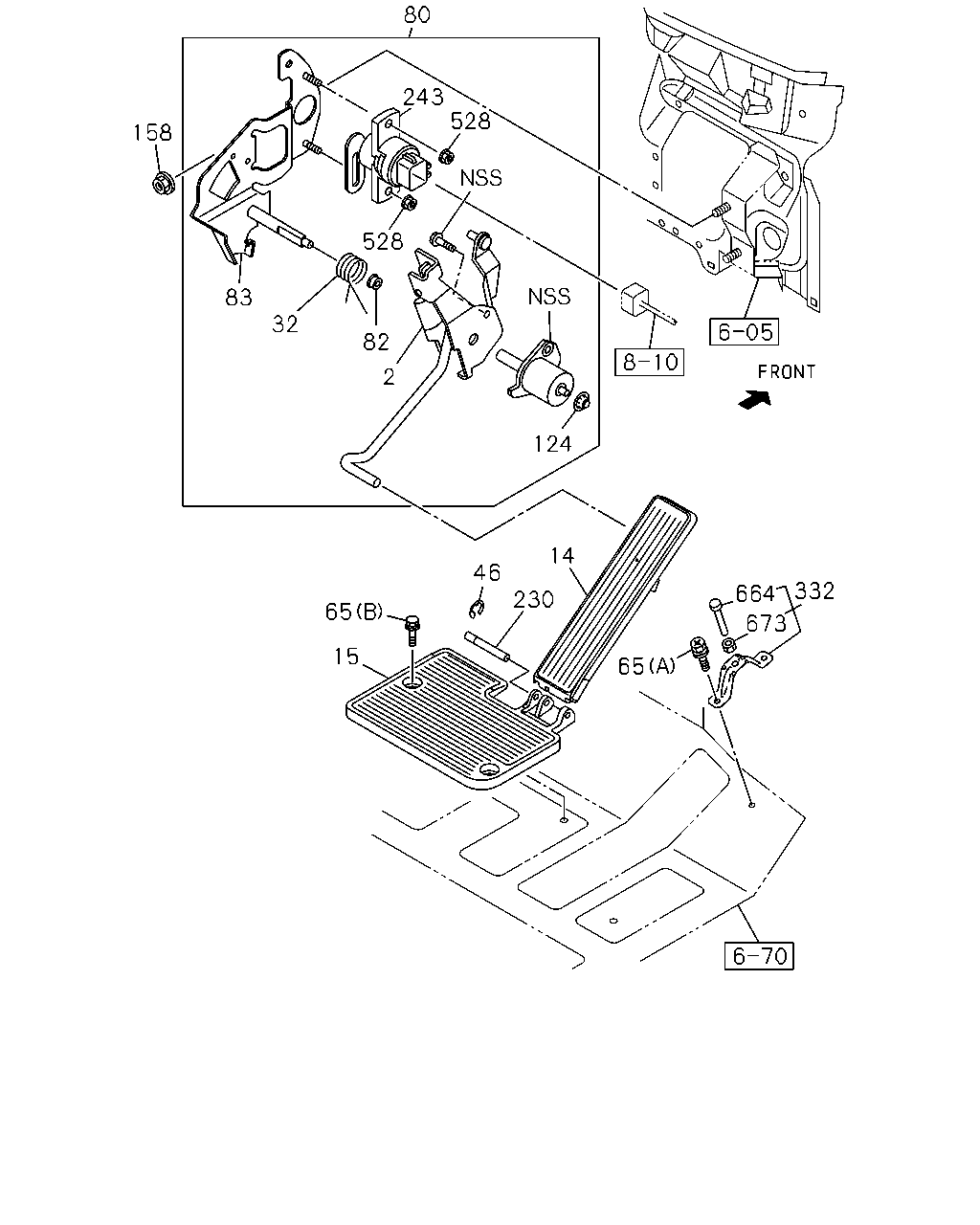

çizim 179213
80 243 528 528 82 2 32 83 158 124 14 46 230 65 15 65 664 332 673
BalonParca AdiParca NoAdetTipApplied Date A B
2 LEVER; ENG CONT 8-98049-120-1 01 1 0710- ● ●
14 PAD; PEDAL,ACCEL 8-97859-101-0 01 1 0710- ● ●
15 STAND; HEEL,ACCEL PEDAL 8-98022-259-2 01 1 0710- ● ●
32 SPRING; RETURN,ACCEL PEDAL 8-98031-665-0 01 1 0710- ● ●
46 RING; SNAP,ACCEL CONT PEDAL
ID=4 		0-91805-504-0 01 1 0710- ● ●
65 BOLT
(D) M10X60 		0-16861-060-0 01 1 0710-0808 ●
65 BOLT
(D) M10X60 		0-16861-060-0 01 1 0809- ● ●
65 BOLT
(C) M10X20 FLANGE 		0-28151-020-0 01 1 0710-0808 ●
65 BOLT
(C) M10X20 FLANGE 		0-28151-020-0 01 1 0809- ● ●
65 BOLT
(B) M6X28 W/LK&PL WASHER 		1-09980-543-0 02 1 0710- ● ●
65 BOLT
(A) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 0710- ● ●
80 LINK ASM; ENG CONT 8-98038-418-4 01 1 0710- ● ●
82 BUSHING; ENG CONT LVR 8-97581-053-0 01 1 0710- ● ●
83 BRACKET; CONT LINK 8-98020-217-0 01 1 0710- ● ●
124 NUT; LEVER
ID=7.9 PUSH NUT 		8-94368-617-0 01 1 0710- ● ●
158 NUT; BRKT
M8 FLANGE 		0-91180-108-0 02 1 0710- ● ●
230 PIN; JOINT,ACCEL PEDAL TO BRKT 8-98026-806-0 01 1 0710- ● ●
243 SENSOR; ACCEL 8-97602-416-0 01 1 0710-0908 ● ●
243 SENSOR; ACCEL 8-98131-263-0 01 1 0909- ● ●
332 BRACKET; ACCEL PEDAL STOPPER 8-98011-468-2 01 1 0710- ● ●
528 NUT; ACCEL SENSOR
M5 		8-94169-022-0 02 1 0710- ● ●
664 BOLT; STOPPER
M8X40 		0-20850-840-0 01 1 0710- ● ●
673 NUT; STOPPER
M8 		0-91110-508-0 01 1 0710- ● ●

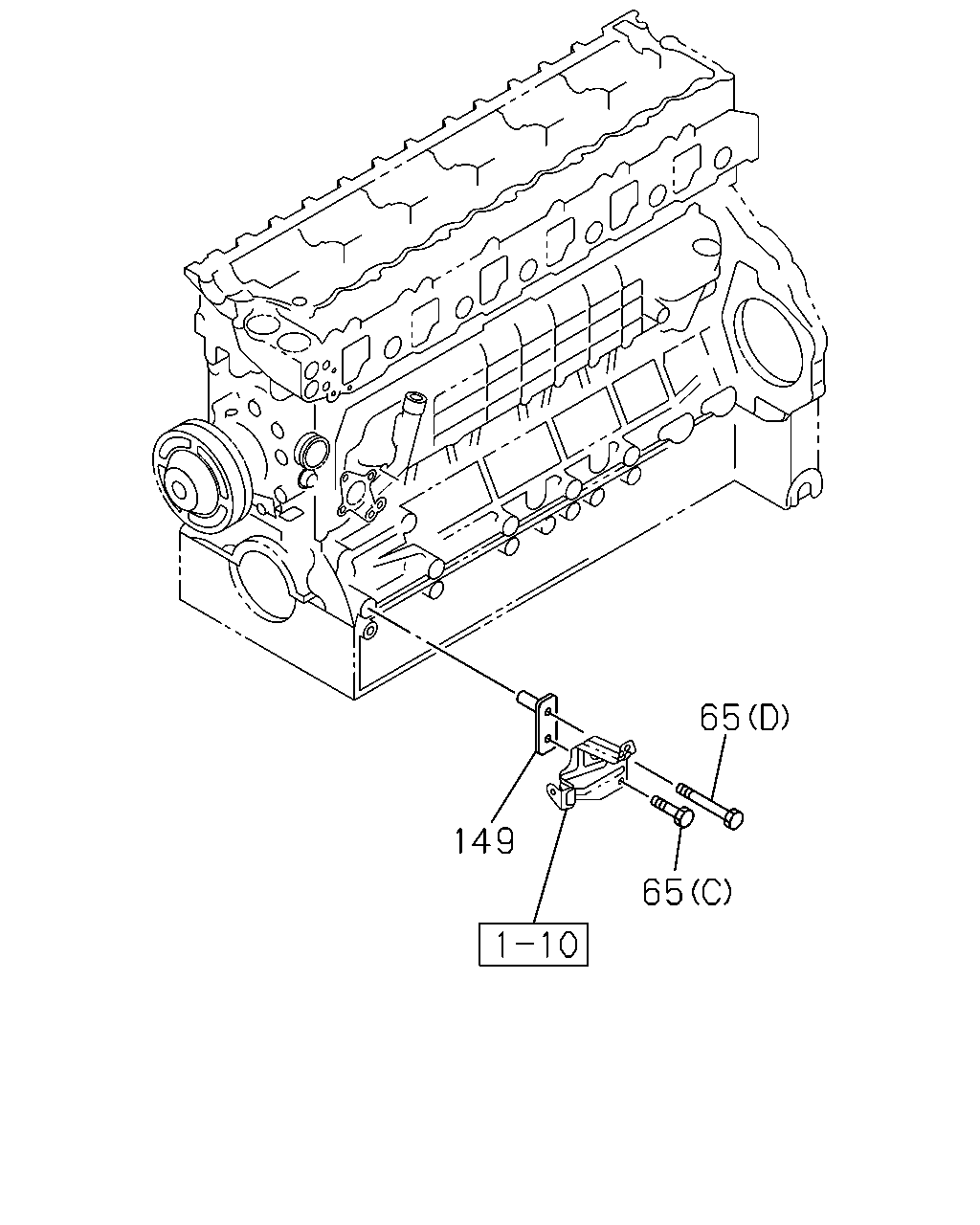

çizim 179313
65 149 65
BalonParca AdiParca NoAdetTipApplied Date A B
65 BOLT
(D) M10X60 		0-16861-060-0 01 1 0710-0808 ●
65 BOLT
(D) M10X60 		0-16861-060-0 01 1 0809- ● ●
65 BOLT
(C) M10X20 FLANGE 		0-28151-020-0 01 1 0710-0808 ●
65 BOLT
(C) M10X20 FLANGE 		0-28151-020-0 01 1 0809- ● ●
65 BOLT
(B) M6X28 W/LK&PL WASHER 		1-09980-543-0 02 1 0710- ● ●
65 BOLT
(A) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 0710- ● ●
149 BRACKET; ENG CONT 8-98045-009-0 01 1 0710-0808 ●
149 BRACKET; ENG CONT 8-98045-009-0 01 1 0809- ● ●

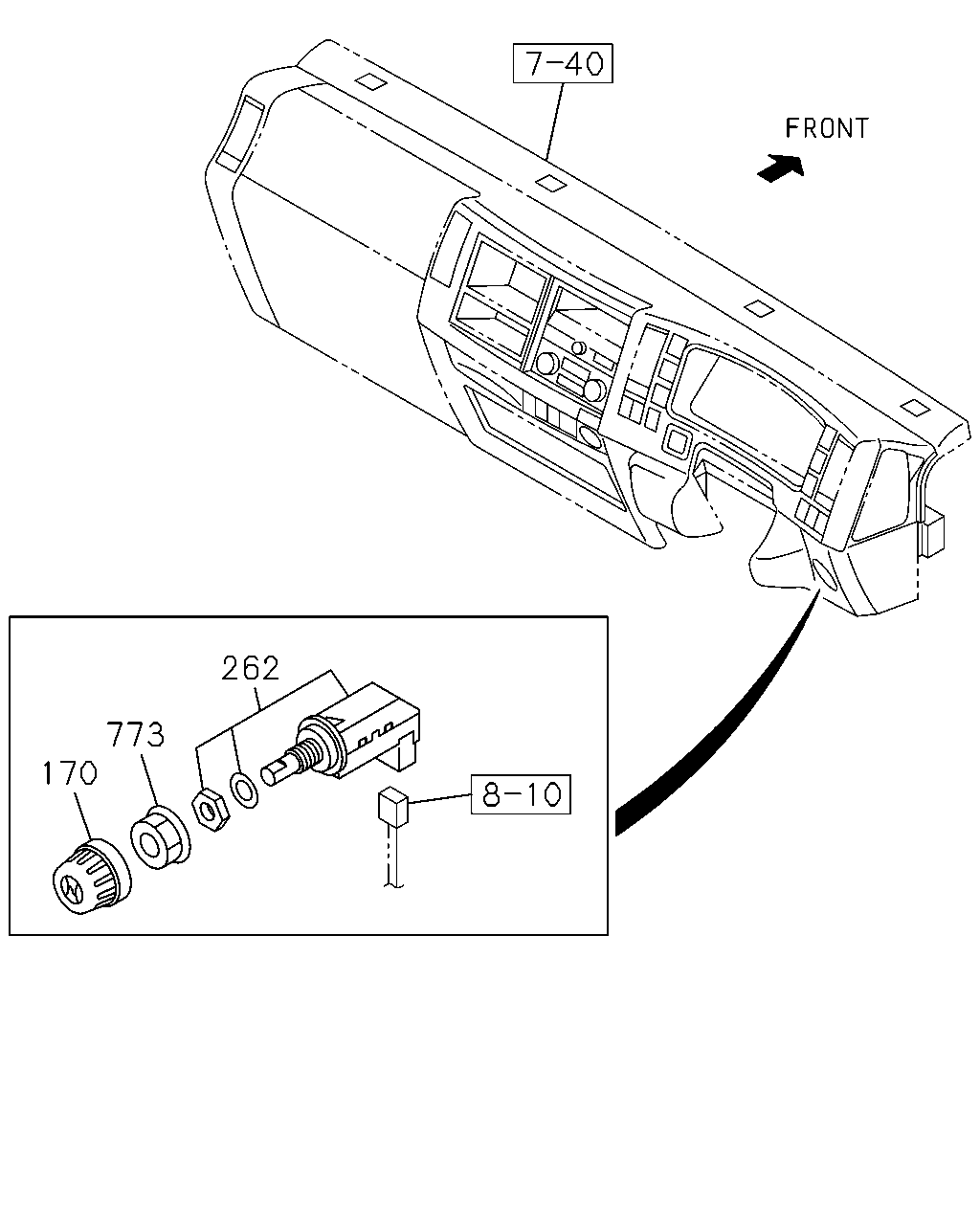

çizim 179350
262 773 170
BalonParca AdiParca NoAdetTipApplied Date A B
170 KNOB 8-98013-420-0 01 1 0710- ● ●
262 SWITCH; ACCEL,IDLE 8-98013-418-0 01 1 0710- ● ●
773 HOLDER; ACCEL PEDAL 8-97352-127-0 01 1 0710- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
