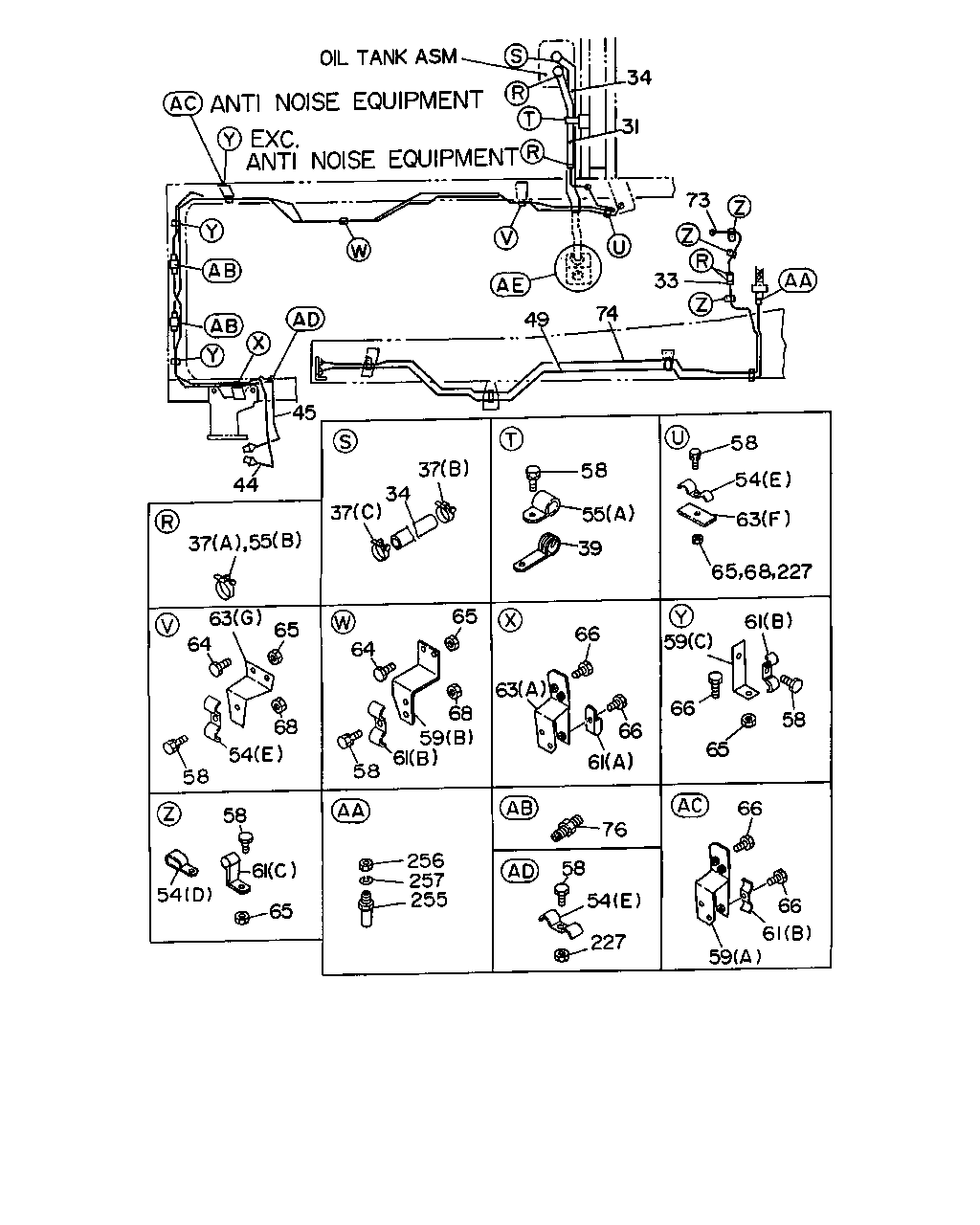

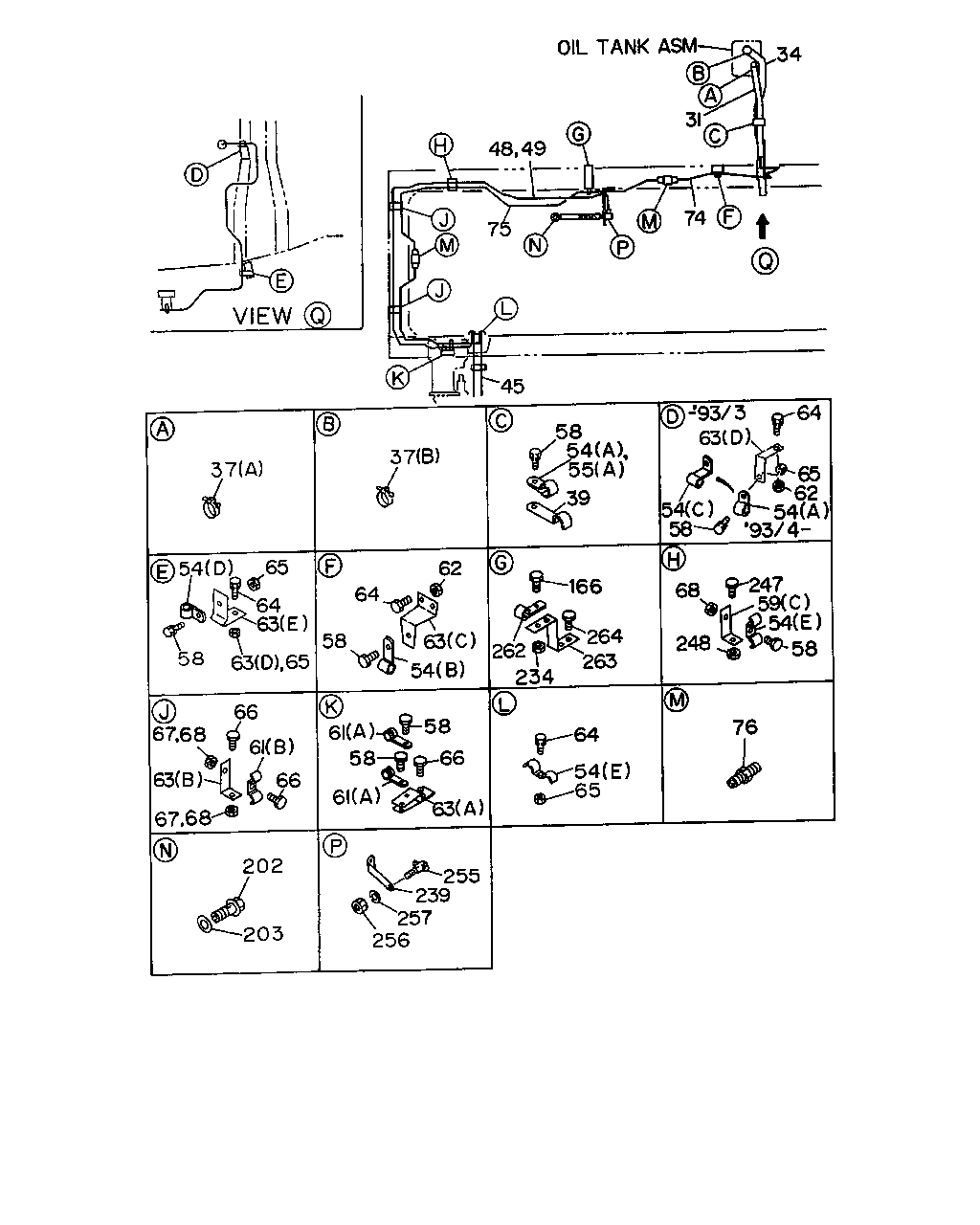

4-35 — POWER STEERING CONTROL; CHASSIS SIDE (#3395) — 359 parça

34 31 74 49 48 75 45 37 37 39 55 54 58 58 54 54 62 65 64 247 68 59 54 248 58 76 65 64 54 234 263 262 264 62 166 63 54 58 66 63 255 239 257 256 203 202 61 61 58 68 67 66 63 66 61 68 67 58 63 65 63 54 64 58 65 64 63

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
31	HOSE; P/S OIL TANK,INL	1-21111-924-0	01	1	9002-	●	●	●
34	HOSE; P/S OIL TANK,OUTLET	1-21112-084-1	01	1	9002-9306	●
34	HOSE; P/S OIL TANK,OUTLET 10PD1 STD ENG(40L)	1-21112-084-1	01	1	9002-9306		●	●
34	HOSE; P/S OIL TANK,OUTLET AIR COMPRESSOR HEAVY DUTY(E1Q)	1-21113-001-0	01	1	9307-	●
34	HOSE; P/S OIL TANK,OUTLET 10PD1 STD ENG(40L) AIR COMPRESSOR HEAVY DUTY(E1Q)	1-21113-001-0	01	1	9307-		●	●
34	HOSE; P/S OIL TANK,OUTLET EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-21112-084-1	01	1	9307-	●
34	HOSE; P/S OIL TANK,OUTLET 10PD1 STD ENG(40L) EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-21112-084-1	01	1	9307-		●	●
34	HOSE; P/S OIL TANK,OUTLET 12PD1 C ENG(43L) AIR COMPRESSOR HEAVY DUTY(E1Q)	1-21113-002-0	01	1	9307-		●
34	HOSE; P/S OIL TANK,OUTLET 12PD1 C ENG(43L) EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-21112-085-1	01	1	9307-		●
34	HOSE; P/S OIL TANK,OUTLET 6RB1 STD ENG(07L) D=32	1-21112-037-2	01	1	9002-		●	●
37	CLIP; HOSE,P/S (B) ID=32	1-09704-085-0	01	1	9002-	●
37	CLIP; HOSE,P/S 10PD1 STD ENG(40L),12PD1 C ENG(43L) (B) ID=32	1-09704-085-0	01	1	9002-		●	●
37	CLIP; HOSE,P/S (C) ID=38	9-09915-666-1	01	1	9002-	●
37	CLIP; HOSE,P/S 10PD1 STD ENG(40L),12PD1 C ENG(43L) (C) ID=38	9-09915-666-1	01	1	9002-		●	●
37	CLIP; HOSE,P/S (A) ID=28	9-09915-672-1	02	1	9002-	●	●	●
37	CLIP; HOSE,P/S 6RB1 STD ENG(07L) (B) ID=38	9-09915-666-1	02	1	9002-		●	●
39	CLIP; FLEX HOSE ID=32 L=75	1-09700-704-1	01	1	9002-9409	●
39	CLIP; FLEX HOSE 10PD1 STD ENG(40L),12PD1 C ENG(43L) ID=32 L=75	1-09700-704-1	01	1	9002-9409		●	●
39	CLIP; FLEX HOSE 6RB1 STD ENG(07L) ID=32 L=75	1-09700-702-0	01	1	9002-9409		●	●
39	CLIP; FLEX HOSE ID=32 L=75	1-09700-702-0	01	1	9410-	●	●	●
45	PIPE; OIL,P/S UNIT TO UNION ANTI NOISE EQUIPMENT<SV9>	1-21114-821-0	01	1	9307-	●
45	PIPE; OIL,P/S UNIT TO UNION 10PD1 STD ENG(40L) ANTI NOISE EQUIPMENT<SV9>	1-21114-821-0	01	1	9307-		●	●
45	PIPE; OIL,P/S UNIT TO UNION EXC. ANTI NOISE EQUIPMENT<SV9>	1-21113-686-0	01	1	9307-	●
45	PIPE; OIL,P/S UNIT TO UNION 6RB1 STD ENG(07L),10PD1 STD ENG(40L) EXC. ANTI NOISE EQUIPMENT<SV9>	1-21113-686-0	01	1	9307-		●	●
45	PIPE; OIL,P/S UNIT TO UNION	1-21113-686-0	01	1	9002-9306	●	●	●
45	PIPE; OIL,P/S UNIT TO UNION 12PD1 C ENG(43L)	1-21114-822-0	01	1	9307-		●
48	PIPE; OIL,FLEX HOSE TO STRG UNIT 6RB1 STD ENG(07L)	1-21115-021-0	01	1	9307-		●	●
49	PIPE; OIL,FLEX HOSE TO UNION	1-21113-529-0	01	1	9002-9306	●
49	PIPE; OIL,FLEX HOSE TO UNION EXC. ANTI NOISE EQUIPMENT<SV9>	1-21114-435-0	01	1	9307-	●
49	PIPE; OIL,FLEX HOSE TO UNION ANTI NOISE EQUIPMENT<SV9>	1-21114-950-0	01	1	9307-	●
49	PIPE; OIL,FLEX HOSE TO UNION 10PD1 STD ENG(40L) ANTI NOISE EQUIPMENT<SV9>	1-21114-950-0	01	1	9307-		●	●
49	PIPE; OIL,FLEX HOSE TO UNION 12PD1 C ENG(43L)	1-21114-870-0	01	1	9307-		●
49	PIPE; OIL,FLEX HOSE TO UNION 10PD1 STD ENG(40L)	1-21113-530-0	01	1	9002-9306		●	●
49	PIPE; OIL,FLEX HOSE TO UNION 10PD1 STD ENG(40L) EXC. ANTI NOISE EQUIPMENT<SV9>	1-21114-436-0	01	1	9307-		●	●
49	PIPE; OIL,FLEX HOSE TO UNION 6RB1 STD ENG(07L)	1-21113-479-0	01	1	9002-9306		●	●
54	CLIP; OIL PIPE (E) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	01	1	9002-9306	●	●	●
54	CLIP; OIL PIPE 10PD1 STD ENG(40L) (E) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	01	1	9002-9306	●	●	●
54	CLIP; OIL PIPE (D) ID=13 L=28	9-09525-256-0	01	1	9002-9306	●	●	●
54	CLIP; OIL PIPE (E) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	01	1	9307-	●	●	●
54	CLIP; OIL PIPE EXC. ANTI NOISE EQUIPMENT<SV9> (E) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	01	1	9307-	●	●	●
54	CLIP; OIL PIPE 10PD1 STD ENG(40L),12PD1 C ENG(43L) (E) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	01	1	9307-	●	●	●
54	CLIP; OIL PIPE 10PD1 STD ENG(40L),12PD1 C ENG(43L) (E) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	01	1	9307-	●	●	●
54	CLIP; OIL PIPE (D) ID=16 L=50	9-09525-586-0	01	1	9307-	●	●	●
54	CLIP; OIL PIPE 10PD1 STD ENG(40L),12PD1 C ENG(43L) (E) ID=16 & 13 L=18 & 17	1-09700-658-0	01	1	9307-	●	●	●
54	CLIP; OIL PIPE 6RB1 STD ENG(07L) (C) ID=15 H=24 L=20	1-09700-606-0	01	1	9002-9303		●	●
54	CLIP; OIL PIPE 6RB1 STD ENG(07L) (A) ID=16 L=50	9-09525-586-0	01	1	9304-9306		●	●
54	CLIP; OIL PIPE 6RB1 STD ENG(07L) (A) ID=16	9-09525-525-0	01	1	9002-		●	●
54	CLIP; OIL PIPE 6RB1 STD ENG(07L) (B) ID=16 L=20	9-09525-535-0	01	1	9002-		●	●
55	CLIP; P/S RUBBER HOSE (A) ID=28 L=30	1-09700-607-1	01	1	9002-	●	●	●
55	CLIP; P/S RUBBER HOSE 10PD1 STD ENG(40L),12PD1 C ENG(43L) (B) ID=28	9-09915-672-1	02	1	9002-	●	●	●
58	BOLT; CLIP M10X25 W/LK WASHER	0-50041-025-0	01	1	9002-9506	●	●	●
58	BOLT; CLIP M10X20 FLANGE	0-28081-020-0	01	1	9507-	●	●	●
58	BOLT; CLIP M8X16 W/LK WASHER	9-01900-816-0	01	1	9002-9204	●	●	●
58	BOLT; CLIP M8X16 W/LK WASHER	0-50040-816-0	01	1	9205-9302	●	●	●
58	BOLT; CLIP M8X16 FLANGE	0-28080-816-0	01	1	9303-9306	●	●	●
58	BOLT; CLIP EXC. ANTI NOISE EQUIPMENT<SV9> M8X16 FLANGE	0-28080-816-0	01	1	9307-	●	●	●
58	BOLT; CLIP M8X16 FLANGE	0-28080-816-0	01	1	9307-	●	●	●
58	BOLT; CLIP M8X16 FLANGE	0-28080-816-0	01	1	9307-	●	●	●
58	BOLT; CLIP M8X20 W/LK WASHER	9-01900-820-0	05	1	9002-9204	●	●	●
58	BOLT; CLIP M8X20 W/LK WASHER	0-50040-820-0	05	1	9205-9302	●	●	●
58	BOLT; CLIP M8X20 FLANGE	0-28080-820-0	05	1	9303-9306	●	●	●
58	BOLT; CLIP M8X20 FLANGE	0-28080-820-0	03	1	9307-	●	●	●
58	BOLT; CLIP 10PD1 STD ENG(40L) M8X18	0-28010-818-0	01	1	9002-9204	●	●	●
58	BOLT; CLIP 10PD1 STD ENG(40L) M8X18 FLANGE	0-28080-818-0	01	1	9205-9306	●	●	●
58	BOLT; CLIP 10PD1 STD ENG(40L) M8X16 FLANGE	0-28080-816-0	02	1	9307-	●	●	●
58	BOLT; CLIP 10PD1 STD ENG(40L) M8X25 FLANGE	0-28010-825-0	02	1	9002-9204	●	●	●
58	BOLT; CLIP 10PD1 STD ENG(40L) M8X25 FLANGE	0-28080-825-0	02	1	9205-9306	●	●	●
58	BOLT; CLIP 6RB1 STD ENG(07L) M8X20 FLANGE	0-28080-820-0	02	1	9307-		●	●
58	BOLT; CLIP 10PD1 STD ENG(40L) M8X20 W/LK WASHER	9-01900-820-0	02	1	9002-9204	●	●	●
58	BOLT; CLIP 10PD1 STD ENG(40L) M8X20 W/LK WASHER	0-50040-820-0	02	1	9205-9302	●	●	●
58	BOLT; CLIP 10PD1 STD ENG(40L) M8X20 FLANGE	0-28080-820-0	02	1	9303-9306	●	●	●
58	BOLT; CLIP 10PD1 STD ENG(40L),12PD1 C ENG(43L) M8X16 W/LK WASHER	0-50040-816-0	01	1	9307-	●	●	●
58	BOLT; CLIP 6RB1 STD ENG(07L) M8X20 W/LK WASHER	9-01900-820-0	04	1	9002-9204		●	●
58	BOLT; CLIP 6RB1 STD ENG(07L) M8X20 W/LK WASHER	0-50040-820-0	04	1	9205-9302		●	●
58	BOLT; CLIP 6RB1 STD ENG(07L) M8X20 FLANGE	0-28080-820-0	04	1	9303-9306		●	●
58	BOLT; CLIP M8X20 FLANGE	0-28080-820-0	04	1	9307-	●	●	●
59	BRACKET; CLIP,OIL PIPE EXC. ANTI NOISE EQUIPMENT<SV9> (B)	1-47475-993-1	01	1	9307-	●
59	BRACKET; CLIP,OIL PIPE 10PD1 STD ENG(40L) EXC. ANTI NOISE EQUIPMENT<SV9> (B)	1-47475-993-1	01	1	9307-		●	●
59	BRACKET; CLIP,OIL PIPE (C)	1-47475-519-0	03	1	9002-9306	●	●	●
59	BRACKET; CLIP,OIL PIPE TAIWAN EQUIPMENT(WW5) (A)	1-47476-031-1	01	1	9307-	●	●	●
59	BRACKET; CLIP,OIL PIPE 10PD1 STD ENG(40L) (B)	1-47475-993-1	01	1	9002-9306	●	●	●
59	BRACKET; CLIP,OIL PIPE 10PD1 STD ENG(40L) (C)	1-47475-519-0	02	1	9307-	●	●	●
59	BRACKET; CLIP,OIL PIPE 10PD1 STD ENG(40L),12PD1 C ENG(43L) EXC. ANTI NOISE EQUIPMENT<SV9> (C)	1-47475-519-0	01	1	9307-	●	●	●
59	BRACKET; CLIP,OIL PIPE 6RB1 STD ENG(07L) (C)	1-47475-519-0	01	1	9307-		●
61	CLIP; OIL PIPE (B) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	01	1	9002-9308	●	●	●
61	CLIP; OIL PIPE 10PD1 STD ENG(40L) (B) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	01	1	9002-9308	●	●	●
61	CLIP; OIL PIPE (B) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	01	1	9309-	●	●	●
61	CLIP; OIL PIPE ANTI NOISE EQUIPMENT<SV9> (B) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	01	1	9309-	●	●	●
61	CLIP; OIL PIPE (B) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	02	1	9002-	●	●	●
61	CLIP; OIL PIPE (A) ID=16 L=28	9-09525-556-0	01	1	9002-	●	●	●
61	CLIP; OIL PIPE ANTI NOISE EQUIPMENT<SV9> (A) ID=13 L=20	9-09525-235-0	01	1	9307-	●	●	●
61	CLIP; OIL PIPE EXC. ANTI NOISE EQUIPMENT<SV9> (A) ID=13	9-09525-255-0	01	1	9307-	●	●	●
61	CLIP; OIL PIPE 10PD1 STD ENG(40L) (C) ID=15 H=24 L=20	1-09700-606-0	03	1	9002-9306	●	●	●
61	CLIP; OIL PIPE 10PD1 STD ENG(40L),12PD1 C ENG(43L) (C) ID=15 H=24 L=20	1-09700-606-0	02	1	9307-	●	●	●
61	CLIP; OIL PIPE 10PD1 STD ENG(40L) EXC. ANTI NOISE EQUIPMENT<SV9> (B) ID=16 & 13 L=18 & 17	1-09700-658-0	01	1	9309-		●	●
62	NUT; CLIP FIX 6RB1 STD ENG(07L) M8	9-09110-508-0	02	1	9002-9009		●	●
62	NUT; CLIP FIX 6RB1 STD ENG(07L) M8	9-09110-408-0	03	1	9010-		●	●
63	BRACKET; CLIP,P/S (A)	1-47476-031-1	01	1	9002-	●	●	●
63	BRACKET; CLIP,P/S 10PD1 STD ENG(40L),12PD1 C ENG(43L) (G)	1-21119-100-1	01	1	9002-	●	●	●
63	BRACKET; CLIP,P/S 10PD1 STD ENG(40L),12PD1 C ENG(43L) (F)	1-47475-299-2	01	1	9307-	●	●	●
63	BRACKET; CLIP,P/S 6RB1 STD ENG(07L) (E)	1-34656-004-0	01	1	9002-9303		●	●
63	BRACKET; CLIP,P/S 6RB1 STD ENG(07L) (C)	1-47475-298-0	01	1	9002-		●	●
63	BRACKET; CLIP,P/S 6RB1 STD ENG(07L) (D)	1-47475-369-0	01	1	9002-9303		●	●
63	BRACKET; CLIP,P/S 6RB1 STD ENG(07L) (D)	1-47475-369-0	02	1	9304-		●	●
63	BRACKET; CLIP,P/S 6RB1 STD ENG(07L) (B)	1-47475-519-0	02	1	9307-		●	●
64	BOLT; CLIP BRKT M8X25 W/LK WASHER	9-01900-825-0	02	1	9002-9204	●
64	BOLT; CLIP BRKT 6RB1 STD ENG(07L) M8X25 W/LK WASHER	9-01900-825-0	02	1	9002-9204		●	●
64	BOLT; CLIP BRKT M8X25 W/LK WASHER	0-50040-825-0	02	1	9205-9302	●
64	BOLT; CLIP BRKT 6RB1 STD ENG(07L) M8X25 W/LK WASHER	0-50040-825-0	02	1	9205-9302		●	●
64	BOLT; CLIP BRKT M8X25 FLANGE	0-28080-825-0	02	1	9303-	●
64	BOLT; CLIP BRKT 6RB1 STD ENG(07L) M8X25 FLANGE	0-28080-825-0	02	1	9303-		●	●
64	BOLT; CLIP BRKT M8X20 W/LK WASHER	0-50040-820-0	01	1	9307-	●	●	●
64	BOLT; CLIP BRKT M8X30 W/LK WASHER	9-01900-830-0	02	1	9002-9204		●	●
64	BOLT; CLIP BRKT M8X30 W/LK WASHER	0-50040-830-0	02	1	9205-9302		●	●
64	BOLT; CLIP BRKT M8X30 FLANGE	0-28080-830-0	02	1	9303-		●	●
65	NUT; BRKT M8	9-09110-408-0	01	1	9002-9009	●	●	●
65	NUT; BRKT M8	9-09110-408-0	03	1	9002-9306	●	●	●
65	NUT; BRKT EXC. ANTI NOISE EQUIPMENT<SV9> M8	9-09110-408-0	01	1	9307-	●
65	NUT; BRKT 10PD1 STD ENG(40L),12PD1 C ENG(43L) EXC. ANTI NOISE EQUIPMENT<SV9> M8	9-09110-408-0	01	1	9307-		●	●
65	NUT; BRKT 10PD1 STD ENG(40L),12PD1 C ENG(43L) M8	9-09110-408-0	04	1	9002-	●	●	●
65	NUT; BRKT 6RB1 STD ENG(07L) M8	9-09110-408-0	04	1	9002-		●	●
66	BOLT; BRKT,OIL PIPE EXC. ANTI NOISE EQUIPMENT<SV9> M8X30 FLANGE	0-28080-830-0	01	1	9307-	●
66	BOLT; BRKT,OIL PIPE V TYPE ENG<91L> EXC. ANTI NOISE EQUIPMENT<SV9> M8X30 FLANGE	0-28080-830-0	01	1	9307-		●	●
66	BOLT; BRKT,OIL PIPE M8X30 W/LK WASHER	9-01900-830-0	02	1	9002-9204	●	●	●
66	BOLT; BRKT,OIL PIPE M8X30 W/LK WASHER	0-50040-830-0	02	1	9205-9302	●	●	●
66	BOLT; BRKT,OIL PIPE M8X30 FLANGE	0-28080-830-0	02	1	9303-9306	●	●	●
66	BOLT; BRKT,OIL PIPE M8X30 W/LK WASHER	9-01900-830-0	05	1	9002-9204	●	●	●
66	BOLT; BRKT,OIL PIPE M8X30 W/LK WASHER	0-50040-830-0	05	1	9205-9302	●	●	●
66	BOLT; BRKT,OIL PIPE M8X30 FLANGE	0-28080-830-0	05	1	9303-9306	●	●	●
66	BOLT; BRKT,OIL PIPE M8X30 FLANGE	0-28080-830-0	02	1	9307-	●	●	●
66	BOLT; BRKT,OIL PIPE M8X30 FLANGE	0-28080-830-0	02	1	9307-	●	●	●
66	BOLT; BRKT,OIL PIPE 10PD1 STD ENG(40L),12PD1 C ENG(43L) M8X30 FLANGE	0-28080-830-0	02	1	9307-		●	●
67	NUT; BRKT 6RB1 STD ENG(07L) M8	9-09110-408-0	02	1	9307-		●	●
68	NUT; CLIP,OIL PIPE M8	9-09110-408-0	05	1	9002-9306	●	●	●
68	NUT; CLIP,OIL PIPE M8	9-09110-408-0	01	1	9307-	●	●	●
68	NUT; CLIP,OIL PIPE 10PD1 STD ENG(40L),12PD1 C ENG(43L) M8	9-09110-408-0	04	1	9002-	●	●	●
74	PIPE; OIL,P/S,UNION TO FLEX HOSE	1-21113-538-0	01	1	9002-9306	●
74	PIPE; OIL,P/S,UNION TO FLEX HOSE EXC. ANTI NOISE EQUIPMENT<SV9>	1-21113-538-0	01	1	9307-	●
74	PIPE; OIL,P/S,UNION TO FLEX HOSE ANTI NOISE EQUIPMENT<SV9>	1-21114-951-0	01	1	9307-	●
74	PIPE; OIL,P/S,UNION TO FLEX HOSE 10PD1 STD ENG(40L) ANTI NOISE EQUIPMENT<SV9>	1-21114-951-0	01	1	9307-		●	●
74	PIPE; OIL,P/S,UNION TO FLEX HOSE 12PD1 C ENG(43L)	1-21114-871-0	01	1	9307-		●
74	PIPE; OIL,P/S,UNION TO FLEX HOSE 10PD1 STD ENG(40L)	1-21113-696-0	01	1	9002-9306		●	●
74	PIPE; OIL,P/S,UNION TO FLEX HOSE 10PD1 STD ENG(40L) EXC. ANTI NOISE EQUIPMENT<SV9>	1-21113-696-0	01	1	9307-		●	●
74	PIPE; OIL,P/S,UNION TO FLEX HOSE 6RB1 STD ENG(07L)	1-21113-536-0	01	1	9002-		●	●
75	PIPE; OIL,P/S,UNION TO UNION 6RB1 STD ENG(07L)	1-21112-904-0	01	1	9002-		●	●
76	UNION; OIL PIPE M22	9-09233-015-1	01	1	9002-	●	●	●
76	UNION; OIL PIPE 6RB1 STD ENG(07L) M22	9-09233-015-1	01	1	9002-		●	●
76	UNION; OIL PIPE 10PD1 STD ENG(40L),12PD1 C ENG(43L) M20	9-09233-012-1	01	1	9002-	●	●	●
166	BOLT; CLIP 6RB1 STD ENG(07L) M8X20 FLANGE	0-28080-820-0	03	1	9307-		●	●
202	BOLT; EYE,OIL PIPE 6RB1 STD ENG(07L) M18X39	1-09675-114-0	01	1	9101-9310		●	●
202	BOLT; EYE,OIL PIPE 6RB1 STD ENG(07L) M18X36	1-09675-205-0	01	1	9311-		●	●
203	GASKET; EYE BOLT 6RB1 STD ENG(07L) ID=18.2 OD=24.4	1-09630-087-0	02	1	9101-		●	●
234	NUT; PIPE CLIP,P/S 6RB1 STD ENG(07L) M8	9-09110-408-0	03	1	9307-		●	●
239	BRACKET; FLEX HOSE 6RB1 STD ENG(07L)	1-47475-412-0	01	1	9002-		●	●
247	BOLT; BRKT,CLIP 6RB1 STD ENG(07L) M8X30 FLANGE	0-28080-830-0	01	1	9307-		●
248	NUT; BRKT,CLIP 6RB1 STD ENG(07L) M8	9-09110-408-0	01	1	9307-		●
255	UNION; FLEX HOSE 10PD1 STD ENG(40L),12PD1 C ENG(43L) M20 & M22 STRAIGHT	1-09654-167-1	01	1	9002-	●	●	●
255	UNION; FLEX HOSE 6RB1 STD ENG(07L) M20 & M22 ELBOW	1-09654-154-1	01	1	9002-		●	●
256	NUT; UNION M22	9-09111-422-0	01	1	9002-	●	●	●
257	WASHER; LK,UNION ID=22.5	9-09150-522-0	01	1	9002-	●	●	●
262	CLIP; P/S PIPE 6RB1 STD ENG(07L) ID=16	9-09525-525-0	01	1	9002-		●	●
263	BRACKET; P/S PIPE 6RB1 STD ENG(07L)	1-47475-963-1	01	1	9002-		●	●
264	BOLT; PIPE BRKT 6RB1 STD ENG(07L) M8X30 FLANGE	0-28080-830-0	02	1	9002-		●	●

157

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
	157	GASKET; P/S PUMP ALSO INCLUDED IN GASKET SET(ENGINE). 10PD1 STD ENG(40L),12PD1 C ENG(43L) ID=79.6	1-09623-421-0	01	1	9002-	●	●	●

65 58 61 54 255 257 227 256 54 76 58 59 61 66 66 58 65 61 66 59 61 66 63 66 68 59 61 58 58 65 68 54 63 64 37 55 37 34 37 64 65 39 55 58 65 68 227 54 58 63 33 49 74 45 44 73 31 34

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
31	HOSE; P/S OIL TANK,INL	1-21111-924-0	01	1	9002-	●	●	●
33	HOSE; RUBBER,POWER STRG 10PD1 STD ENG(40L),12PD1 C ENG(43L) L=80	1-09360-570-0	01	1	9002-	●	●	●
34	HOSE; P/S OIL TANK,OUTLET	1-21112-084-1	01	1	9002-9306	●
34	HOSE; P/S OIL TANK,OUTLET 10PD1 STD ENG(40L)	1-21112-084-1	01	1	9002-9306		●	●
34	HOSE; P/S OIL TANK,OUTLET AIR COMPRESSOR HEAVY DUTY(E1Q)	1-21113-001-0	01	1	9307-	●
34	HOSE; P/S OIL TANK,OUTLET 10PD1 STD ENG(40L) AIR COMPRESSOR HEAVY DUTY(E1Q)	1-21113-001-0	01	1	9307-		●	●
34	HOSE; P/S OIL TANK,OUTLET EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-21112-084-1	01	1	9307-	●
34	HOSE; P/S OIL TANK,OUTLET 10PD1 STD ENG(40L) EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-21112-084-1	01	1	9307-		●	●
34	HOSE; P/S OIL TANK,OUTLET 12PD1 C ENG(43L) AIR COMPRESSOR HEAVY DUTY(E1Q)	1-21113-002-0	01	1	9307-		●
34	HOSE; P/S OIL TANK,OUTLET 12PD1 C ENG(43L) EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-21112-085-1	01	1	9307-		●
34	HOSE; P/S OIL TANK,OUTLET 6RB1 STD ENG(07L) D=32	1-21112-037-2	01	1	9002-		●	●
37	CLIP; HOSE,P/S (B) ID=32	1-09704-085-0	01	1	9002-	●
37	CLIP; HOSE,P/S 10PD1 STD ENG(40L),12PD1 C ENG(43L) (B) ID=32	1-09704-085-0	01	1	9002-		●	●
37	CLIP; HOSE,P/S (C) ID=38	9-09915-666-1	01	1	9002-	●
37	CLIP; HOSE,P/S 10PD1 STD ENG(40L),12PD1 C ENG(43L) (C) ID=38	9-09915-666-1	01	1	9002-		●	●
37	CLIP; HOSE,P/S (A) ID=28	9-09915-672-1	02	1	9002-	●	●	●
37	CLIP; HOSE,P/S 6RB1 STD ENG(07L) (B) ID=38	9-09915-666-1	02	1	9002-		●	●
39	CLIP; FLEX HOSE ID=32 L=75	1-09700-704-1	01	1	9002-9409	●
39	CLIP; FLEX HOSE 10PD1 STD ENG(40L),12PD1 C ENG(43L) ID=32 L=75	1-09700-704-1	01	1	9002-9409		●	●
39	CLIP; FLEX HOSE 6RB1 STD ENG(07L) ID=32 L=75	1-09700-702-0	01	1	9002-9409		●	●
39	CLIP; FLEX HOSE ID=32 L=75	1-09700-702-0	01	1	9410-	●	●	●
44	PIPE; OIL,P/S UNIT TO NIPPLE	1-21113-355-0	01	1	9002-9306	●
44	PIPE; OIL,P/S UNIT TO NIPPLE 10PD1 STD ENG(40L)	1-21113-355-0	01	1	9002-9306		●	●
44	PIPE; OIL,P/S UNIT TO NIPPLE ANTI NOISE EQUIPMENT<SV9>	1-21115-024-0	01	1	9307-	●
44	PIPE; OIL,P/S UNIT TO NIPPLE 10PD1 STD ENG(40L) ANTI NOISE EQUIPMENT<SV9>	1-21115-024-0	01	1	9307-		●	●
44	PIPE; OIL,P/S UNIT TO NIPPLE EXC. ANTI NOISE EQUIPMENT<SV9>	1-21115-023-0	01	1	9307-	●
44	PIPE; OIL,P/S UNIT TO NIPPLE 10PD1 STD ENG(40L) EXC. ANTI NOISE EQUIPMENT<SV9>	1-21115-023-0	01	1	9307-		●	●
44	PIPE; OIL,P/S UNIT TO NIPPLE 12PD1 C ENG(43L)	1-21115-025-0	01	1	9307-		●
45	PIPE; OIL,P/S UNIT TO UNION ANTI NOISE EQUIPMENT<SV9>	1-21114-821-0	01	1	9307-	●
45	PIPE; OIL,P/S UNIT TO UNION 10PD1 STD ENG(40L) ANTI NOISE EQUIPMENT<SV9>	1-21114-821-0	01	1	9307-		●	●
45	PIPE; OIL,P/S UNIT TO UNION EXC. ANTI NOISE EQUIPMENT<SV9>	1-21113-686-0	01	1	9307-	●
45	PIPE; OIL,P/S UNIT TO UNION 6RB1 STD ENG(07L),10PD1 STD ENG(40L) EXC. ANTI NOISE EQUIPMENT<SV9>	1-21113-686-0	01	1	9307-		●	●
45	PIPE; OIL,P/S UNIT TO UNION	1-21113-686-0	01	1	9002-9306	●	●	●
45	PIPE; OIL,P/S UNIT TO UNION 12PD1 C ENG(43L)	1-21114-822-0	01	1	9307-		●
49	PIPE; OIL,FLEX HOSE TO UNION	1-21113-529-0	01	1	9002-9306	●
49	PIPE; OIL,FLEX HOSE TO UNION EXC. ANTI NOISE EQUIPMENT<SV9>	1-21114-435-0	01	1	9307-	●
49	PIPE; OIL,FLEX HOSE TO UNION ANTI NOISE EQUIPMENT<SV9>	1-21114-950-0	01	1	9307-	●
49	PIPE; OIL,FLEX HOSE TO UNION 10PD1 STD ENG(40L) ANTI NOISE EQUIPMENT<SV9>	1-21114-950-0	01	1	9307-		●	●
49	PIPE; OIL,FLEX HOSE TO UNION 12PD1 C ENG(43L)	1-21114-870-0	01	1	9307-		●
49	PIPE; OIL,FLEX HOSE TO UNION 10PD1 STD ENG(40L)	1-21113-530-0	01	1	9002-9306		●	●
49	PIPE; OIL,FLEX HOSE TO UNION 10PD1 STD ENG(40L) EXC. ANTI NOISE EQUIPMENT<SV9>	1-21114-436-0	01	1	9307-		●	●
49	PIPE; OIL,FLEX HOSE TO UNION 6RB1 STD ENG(07L)	1-21113-479-0	01	1	9002-9306		●	●
54	CLIP; OIL PIPE (E) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	01	1	9002-9306	●	●	●
54	CLIP; OIL PIPE 10PD1 STD ENG(40L) (E) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	01	1	9002-9306	●	●	●
54	CLIP; OIL PIPE (D) ID=13 L=28	9-09525-256-0	01	1	9002-9306	●	●	●
54	CLIP; OIL PIPE (E) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	01	1	9307-	●	●	●
54	CLIP; OIL PIPE EXC. ANTI NOISE EQUIPMENT<SV9> (E) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	01	1	9307-	●	●	●
54	CLIP; OIL PIPE 10PD1 STD ENG(40L),12PD1 C ENG(43L) (E) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	01	1	9307-	●	●	●
54	CLIP; OIL PIPE 10PD1 STD ENG(40L),12PD1 C ENG(43L) (E) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	01	1	9307-	●	●	●
54	CLIP; OIL PIPE (D) ID=16 L=50	9-09525-586-0	01	1	9307-	●	●	●
54	CLIP; OIL PIPE 10PD1 STD ENG(40L),12PD1 C ENG(43L) (E) ID=16 & 13 L=18 & 17	1-09700-658-0	01	1	9307-	●	●	●
54	CLIP; OIL PIPE 6RB1 STD ENG(07L) (C) ID=15 H=24 L=20	1-09700-606-0	01	1	9002-9303		●	●
54	CLIP; OIL PIPE 6RB1 STD ENG(07L) (A) ID=16 L=50	9-09525-586-0	01	1	9304-9306		●	●
54	CLIP; OIL PIPE 6RB1 STD ENG(07L) (A) ID=16	9-09525-525-0	01	1	9002-		●	●
54	CLIP; OIL PIPE 6RB1 STD ENG(07L) (B) ID=16 L=20	9-09525-535-0	01	1	9002-		●	●
55	CLIP; P/S RUBBER HOSE (A) ID=28 L=30	1-09700-607-1	01	1	9002-	●	●	●
55	CLIP; P/S RUBBER HOSE 10PD1 STD ENG(40L),12PD1 C ENG(43L) (B) ID=28	9-09915-672-1	02	1	9002-	●	●	●
58	BOLT; CLIP M10X25 W/LK WASHER	0-50041-025-0	01	1	9002-9506	●	●	●
58	BOLT; CLIP M10X20 FLANGE	0-28081-020-0	01	1	9507-	●	●	●
58	BOLT; CLIP M8X16 W/LK WASHER	9-01900-816-0	01	1	9002-9204	●	●	●
58	BOLT; CLIP M8X16 W/LK WASHER	0-50040-816-0	01	1	9205-9302	●	●	●
58	BOLT; CLIP M8X16 FLANGE	0-28080-816-0	01	1	9303-9306	●	●	●
58	BOLT; CLIP EXC. ANTI NOISE EQUIPMENT<SV9> M8X16 FLANGE	0-28080-816-0	01	1	9307-	●	●	●
58	BOLT; CLIP M8X16 FLANGE	0-28080-816-0	01	1	9307-	●	●	●
58	BOLT; CLIP M8X16 FLANGE	0-28080-816-0	01	1	9307-	●	●	●
58	BOLT; CLIP M8X20 W/LK WASHER	9-01900-820-0	05	1	9002-9204	●	●	●
58	BOLT; CLIP M8X20 W/LK WASHER	0-50040-820-0	05	1	9205-9302	●	●	●
58	BOLT; CLIP M8X20 FLANGE	0-28080-820-0	05	1	9303-9306	●	●	●
58	BOLT; CLIP M8X20 FLANGE	0-28080-820-0	03	1	9307-	●	●	●
58	BOLT; CLIP 10PD1 STD ENG(40L) M8X18	0-28010-818-0	01	1	9002-9204	●	●	●
58	BOLT; CLIP 10PD1 STD ENG(40L) M8X18 FLANGE	0-28080-818-0	01	1	9205-9306	●	●	●
58	BOLT; CLIP 10PD1 STD ENG(40L) M8X16 FLANGE	0-28080-816-0	02	1	9307-	●	●	●
58	BOLT; CLIP 10PD1 STD ENG(40L) M8X25 FLANGE	0-28010-825-0	02	1	9002-9204	●	●	●
58	BOLT; CLIP 10PD1 STD ENG(40L) M8X25 FLANGE	0-28080-825-0	02	1	9205-9306	●	●	●
58	BOLT; CLIP 6RB1 STD ENG(07L) M8X20 FLANGE	0-28080-820-0	02	1	9307-		●	●
58	BOLT; CLIP 10PD1 STD ENG(40L) M8X20 W/LK WASHER	9-01900-820-0	02	1	9002-9204	●	●	●
58	BOLT; CLIP 10PD1 STD ENG(40L) M8X20 W/LK WASHER	0-50040-820-0	02	1	9205-9302	●	●	●
58	BOLT; CLIP 10PD1 STD ENG(40L) M8X20 FLANGE	0-28080-820-0	02	1	9303-9306	●	●	●
58	BOLT; CLIP 10PD1 STD ENG(40L),12PD1 C ENG(43L) M8X16 W/LK WASHER	0-50040-816-0	01	1	9307-	●	●	●
58	BOLT; CLIP 6RB1 STD ENG(07L) M8X20 W/LK WASHER	9-01900-820-0	04	1	9002-9204		●	●
58	BOLT; CLIP 6RB1 STD ENG(07L) M8X20 W/LK WASHER	0-50040-820-0	04	1	9205-9302		●	●
58	BOLT; CLIP 6RB1 STD ENG(07L) M8X20 FLANGE	0-28080-820-0	04	1	9303-9306		●	●
58	BOLT; CLIP M8X20 FLANGE	0-28080-820-0	04	1	9307-	●	●	●
59	BRACKET; CLIP,OIL PIPE EXC. ANTI NOISE EQUIPMENT<SV9> (B)	1-47475-993-1	01	1	9307-	●
59	BRACKET; CLIP,OIL PIPE 10PD1 STD ENG(40L) EXC. ANTI NOISE EQUIPMENT<SV9> (B)	1-47475-993-1	01	1	9307-		●	●
59	BRACKET; CLIP,OIL PIPE (C)	1-47475-519-0	03	1	9002-9306	●	●	●
59	BRACKET; CLIP,OIL PIPE TAIWAN EQUIPMENT(WW5) (A)	1-47476-031-1	01	1	9307-	●	●	●
59	BRACKET; CLIP,OIL PIPE 10PD1 STD ENG(40L) (B)	1-47475-993-1	01	1	9002-9306	●	●	●
59	BRACKET; CLIP,OIL PIPE 10PD1 STD ENG(40L) (C)	1-47475-519-0	02	1	9307-	●	●	●
59	BRACKET; CLIP,OIL PIPE 10PD1 STD ENG(40L),12PD1 C ENG(43L) EXC. ANTI NOISE EQUIPMENT<SV9> (C)	1-47475-519-0	01	1	9307-	●	●	●
59	BRACKET; CLIP,OIL PIPE 6RB1 STD ENG(07L) (C)	1-47475-519-0	01	1	9307-		●
61	CLIP; OIL PIPE (B) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	01	1	9002-9308	●	●	●
61	CLIP; OIL PIPE 10PD1 STD ENG(40L) (B) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	01	1	9002-9308	●	●	●
61	CLIP; OIL PIPE (B) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	01	1	9309-	●	●	●
61	CLIP; OIL PIPE ANTI NOISE EQUIPMENT<SV9> (B) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	01	1	9309-	●	●	●
61	CLIP; OIL PIPE (B) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	02	1	9002-	●	●	●
61	CLIP; OIL PIPE (A) ID=16 L=28	9-09525-556-0	01	1	9002-	●	●	●
61	CLIP; OIL PIPE ANTI NOISE EQUIPMENT<SV9> (A) ID=13 L=20	9-09525-235-0	01	1	9307-	●	●	●
61	CLIP; OIL PIPE EXC. ANTI NOISE EQUIPMENT<SV9> (A) ID=13	9-09525-255-0	01	1	9307-	●	●	●
61	CLIP; OIL PIPE 10PD1 STD ENG(40L) (C) ID=15 H=24 L=20	1-09700-606-0	03	1	9002-9306	●	●	●
61	CLIP; OIL PIPE 10PD1 STD ENG(40L),12PD1 C ENG(43L) (C) ID=15 H=24 L=20	1-09700-606-0	02	1	9307-	●	●	●
61	CLIP; OIL PIPE 10PD1 STD ENG(40L) EXC. ANTI NOISE EQUIPMENT<SV9> (B) ID=16 & 13 L=18 & 17	1-09700-658-0	01	1	9309-		●	●
63	BRACKET; CLIP,P/S (A)	1-47476-031-1	01	1	9002-	●	●	●
63	BRACKET; CLIP,P/S 10PD1 STD ENG(40L),12PD1 C ENG(43L) (G)	1-21119-100-1	01	1	9002-	●	●	●
63	BRACKET; CLIP,P/S 10PD1 STD ENG(40L),12PD1 C ENG(43L) (F)	1-47475-299-2	01	1	9307-	●	●	●
63	BRACKET; CLIP,P/S 6RB1 STD ENG(07L) (E)	1-34656-004-0	01	1	9002-9303		●	●
63	BRACKET; CLIP,P/S 6RB1 STD ENG(07L) (C)	1-47475-298-0	01	1	9002-		●	●
63	BRACKET; CLIP,P/S 6RB1 STD ENG(07L) (D)	1-47475-369-0	01	1	9002-9303		●	●
63	BRACKET; CLIP,P/S 6RB1 STD ENG(07L) (D)	1-47475-369-0	02	1	9304-		●	●
63	BRACKET; CLIP,P/S 6RB1 STD ENG(07L) (B)	1-47475-519-0	02	1	9307-		●	●
64	BOLT; CLIP BRKT M8X25 W/LK WASHER	9-01900-825-0	02	1	9002-9204	●
64	BOLT; CLIP BRKT 6RB1 STD ENG(07L) M8X25 W/LK WASHER	9-01900-825-0	02	1	9002-9204		●	●
64	BOLT; CLIP BRKT M8X25 W/LK WASHER	0-50040-825-0	02	1	9205-9302	●
64	BOLT; CLIP BRKT 6RB1 STD ENG(07L) M8X25 W/LK WASHER	0-50040-825-0	02	1	9205-9302		●	●
64	BOLT; CLIP BRKT M8X25 FLANGE	0-28080-825-0	02	1	9303-	●
64	BOLT; CLIP BRKT 6RB1 STD ENG(07L) M8X25 FLANGE	0-28080-825-0	02	1	9303-		●	●
64	BOLT; CLIP BRKT M8X20 W/LK WASHER	0-50040-820-0	01	1	9307-	●	●	●
64	BOLT; CLIP BRKT M8X30 W/LK WASHER	9-01900-830-0	02	1	9002-9204		●	●
64	BOLT; CLIP BRKT M8X30 W/LK WASHER	0-50040-830-0	02	1	9205-9302		●	●
64	BOLT; CLIP BRKT M8X30 FLANGE	0-28080-830-0	02	1	9303-		●	●
65	NUT; BRKT M8	9-09110-408-0	01	1	9002-9009	●	●	●
65	NUT; BRKT M8	9-09110-408-0	03	1	9002-9306	●	●	●
65	NUT; BRKT EXC. ANTI NOISE EQUIPMENT<SV9> M8	9-09110-408-0	01	1	9307-	●
65	NUT; BRKT 10PD1 STD ENG(40L),12PD1 C ENG(43L) EXC. ANTI NOISE EQUIPMENT<SV9> M8	9-09110-408-0	01	1	9307-		●	●
65	NUT; BRKT 10PD1 STD ENG(40L),12PD1 C ENG(43L) M8	9-09110-408-0	04	1	9002-	●	●	●
65	NUT; BRKT 6RB1 STD ENG(07L) M8	9-09110-408-0	04	1	9002-		●	●
66	BOLT; BRKT,OIL PIPE EXC. ANTI NOISE EQUIPMENT<SV9> M8X30 FLANGE	0-28080-830-0	01	1	9307-	●
66	BOLT; BRKT,OIL PIPE V TYPE ENG<91L> EXC. ANTI NOISE EQUIPMENT<SV9> M8X30 FLANGE	0-28080-830-0	01	1	9307-		●	●
66	BOLT; BRKT,OIL PIPE M8X30 W/LK WASHER	9-01900-830-0	02	1	9002-9204	●	●	●
66	BOLT; BRKT,OIL PIPE M8X30 W/LK WASHER	0-50040-830-0	02	1	9205-9302	●	●	●
66	BOLT; BRKT,OIL PIPE M8X30 FLANGE	0-28080-830-0	02	1	9303-9306	●	●	●
66	BOLT; BRKT,OIL PIPE M8X30 W/LK WASHER	9-01900-830-0	05	1	9002-9204	●	●	●
66	BOLT; BRKT,OIL PIPE M8X30 W/LK WASHER	0-50040-830-0	05	1	9205-9302	●	●	●
66	BOLT; BRKT,OIL PIPE M8X30 FLANGE	0-28080-830-0	05	1	9303-9306	●	●	●
66	BOLT; BRKT,OIL PIPE M8X30 FLANGE	0-28080-830-0	02	1	9307-	●	●	●
66	BOLT; BRKT,OIL PIPE M8X30 FLANGE	0-28080-830-0	02	1	9307-	●	●	●
66	BOLT; BRKT,OIL PIPE 10PD1 STD ENG(40L),12PD1 C ENG(43L) M8X30 FLANGE	0-28080-830-0	02	1	9307-		●	●
68	NUT; CLIP,OIL PIPE M8	9-09110-408-0	05	1	9002-9306	●	●	●
68	NUT; CLIP,OIL PIPE M8	9-09110-408-0	01	1	9307-	●	●	●
68	NUT; CLIP,OIL PIPE 10PD1 STD ENG(40L),12PD1 C ENG(43L) M8	9-09110-408-0	04	1	9002-	●	●	●
73	PIPE; OIL,FLEX HOSE TO RUBBER HOSE 10PD1 STD ENG(40L),12PD1 C ENG(43L) L=390	1-21111-975-1	01	1	9002-	●	●	●
74	PIPE; OIL,P/S,UNION TO FLEX HOSE	1-21113-538-0	01	1	9002-9306	●
74	PIPE; OIL,P/S,UNION TO FLEX HOSE EXC. ANTI NOISE EQUIPMENT<SV9>	1-21113-538-0	01	1	9307-	●
74	PIPE; OIL,P/S,UNION TO FLEX HOSE ANTI NOISE EQUIPMENT<SV9>	1-21114-951-0	01	1	9307-	●
74	PIPE; OIL,P/S,UNION TO FLEX HOSE 10PD1 STD ENG(40L) ANTI NOISE EQUIPMENT<SV9>	1-21114-951-0	01	1	9307-		●	●
74	PIPE; OIL,P/S,UNION TO FLEX HOSE 12PD1 C ENG(43L)	1-21114-871-0	01	1	9307-		●
74	PIPE; OIL,P/S,UNION TO FLEX HOSE 10PD1 STD ENG(40L)	1-21113-696-0	01	1	9002-9306		●	●
74	PIPE; OIL,P/S,UNION TO FLEX HOSE 10PD1 STD ENG(40L) EXC. ANTI NOISE EQUIPMENT<SV9>	1-21113-696-0	01	1	9307-		●	●
74	PIPE; OIL,P/S,UNION TO FLEX HOSE 6RB1 STD ENG(07L)	1-21113-536-0	01	1	9002-		●	●
76	UNION; OIL PIPE M22	9-09233-015-1	01	1	9002-	●	●	●
76	UNION; OIL PIPE 6RB1 STD ENG(07L) M22	9-09233-015-1	01	1	9002-		●	●
76	UNION; OIL PIPE 10PD1 STD ENG(40L),12PD1 C ENG(43L) M20	9-09233-012-1	01	1	9002-	●	●	●
227	NUT; PIPE CLIP 10PD1 STD ENG(40L),12PD1 C ENG(43L) M8	9-09110-408-0	01	1	9307-	●	●	●
255	UNION; FLEX HOSE 10PD1 STD ENG(40L),12PD1 C ENG(43L) M20 & M22 STRAIGHT	1-09654-167-1	01	1	9002-	●	●	●
255	UNION; FLEX HOSE 6RB1 STD ENG(07L) M20 & M22 ELBOW	1-09654-154-1	01	1	9002-		●	●
256	NUT; UNION M22	9-09111-422-0	01	1	9002-	●	●	●
257	WASHER; LK,UNION ID=22.5	9-09150-522-0	01	1	9002-	●	●	●

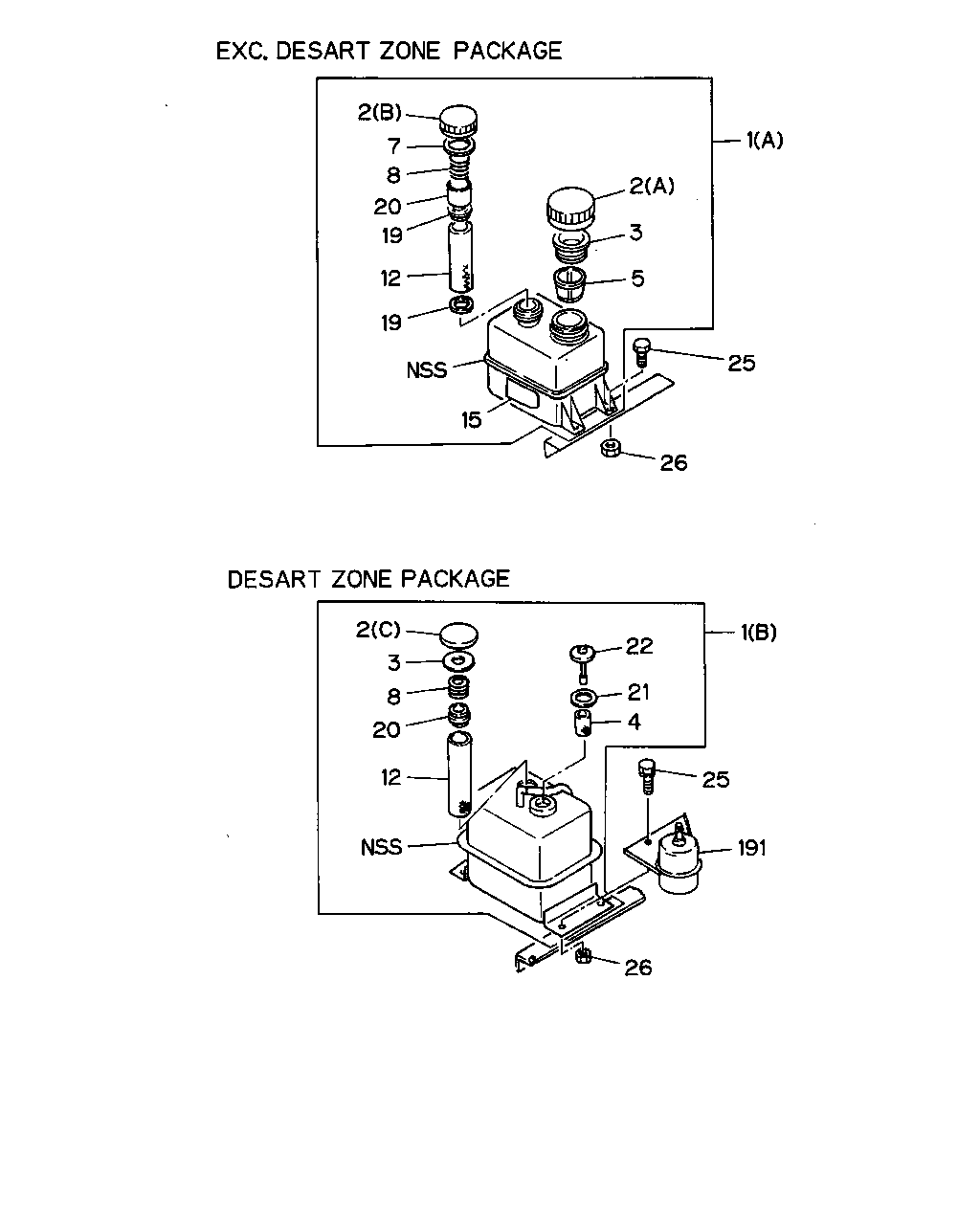

1 2 5 3 2 8 7 20 12 19 19 15 25 26 1 25 191 26 4 22 21 12 20 3 8 2

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	TANK ASM; OIL,P/S (A)	1-21210-127-5	01	1	9002-9202	●
1	TANK ASM; OIL,P/S EXC. DESERT ZONE PACKAGE(W01) (A)	1-21210-127-5	01	1	9002-9202		●	●
1	TANK ASM; OIL,P/S (A)	1-21210-195-2	01	1	9203-	●
1	TANK ASM; OIL,P/S EXC. DESERT ZONE PACKAGE(W01) (A)	1-21210-195-2	01	1	9203-		●	●
1	TANK ASM; OIL,P/S DESERT ZONE PACKAGE(W01) (B)	1-21210-203-0	01	1	9002-		●	●
2	CAP; OIL TANK,P/S (A) WO/GAUGE	1-21241-003-5	01	1	9002-	●
2	CAP; OIL TANK,P/S EXC. DESERT ZONE PACKAGE(W01) (A) WO/GAUGE	1-21241-003-5	01	1	9002-		●	●
2	CAP; OIL TANK,P/S (B) W/GAUGE	1-21241-006-3	01	1	9002-	●
2	CAP; OIL TANK,P/S EXC. DESERT ZONE PACKAGE(W01) (B) W/GAUGE	1-21241-006-3	01	1	9002-		●	●
2	CAP; OIL TANK,P/S DESERT ZONE PACKAGE(W01) (C)	1-21241-009-0	01	1	9002-		●	●
3	GASKET; OIL TANK,P/S	1-21249-006-2	01	1	9002-	●
3	GASKET; OIL TANK,P/S EXC. DESERT ZONE PACKAGE(W01)	1-21249-006-2	01	1	9002-		●	●
3	GASKET; OIL TANK,P/S DESERT ZONE PACKAGE(W01)	1-09630-106-0	01	1	9002-		●	●
4	FILTER; OIL TANK,P/S DESERT ZONE PACKAGE(W01)	1-21231-002-0	01	1	9002-		●	●
5	STRAINER; OIL TANK,P/S	1-21235-006-1	01	1	9002-	●
5	STRAINER; OIL TANK,P/S EXC. DESERT ZONE PACKAGE(W01)	1-21235-006-1	01	1	9002-		●	●
7	RING; GASKET,OIL TANK,P/S	1-21249-005-0	01	1	9002-	●
7	RING; GASKET,OIL TANK,P/S EXC. DESERT ZONE PACKAGE(W01)	1-21249-005-0	01	1	9002-		●	●
8	SPRING; OIL TANK,P/S	1-09580-319-1	01	1	9002-	●
8	SPRING; OIL TANK,P/S EXC. DESERT ZONE PACKAGE(W01)	1-09580-319-1	01	1	9002-		●	●
8	SPRING; OIL TANK,P/S DESERT ZONE PACKAGE(W01)	1-09580-365-0	01	1	9002-		●	●
12	FILTER; MICROBON,OIL TANK,P/S	1-21235-004-1	01	1	9002-	●
12	FILTER; MICROBON,OIL TANK,P/S EXC. DESERT ZONE PACKAGE(W01)	1-21235-004-1	01	1	9002-		●	●
12	FILTER; MICROBON,OIL TANK,P/S DESERT ZONE PACKAGE(W01)	1-21235-005-0	01	1	9002-		●	●
15	PLATE; FILTER,OIL TANK	1-21249-007-1	04	1	9002-	●
15	PLATE; FILTER,OIL TANK EXC. DESERT ZONE PACKAGE(W01)	1-21249-007-1	04	1	9002-		●	●
19	SEAT; OIL TANK	1-21262-001-0	02	1	9002-	●
19	SEAT; OIL TANK EXC. DESERT ZONE PACKAGE(W01)	1-21262-001-0	02	1	9002-		●	●
20	HOLDER; FILTER,OIL TANK,P/S	1-21239-001-2	01	1	9002-	●
20	HOLDER; FILTER,OIL TANK,P/S EXC. DESERT ZONE PACKAGE(W01)	1-21239-001-2	01	1	9002-		●	●
20	HOLDER; FILTER,OIL TANK,P/S DESERT ZONE PACKAGE(W01)	1-21239-005-0	01	1	9002-		●	●
21	GASKET; OIL GAUGE,P/S TANK DESERT ZONE PACKAGE(W01)	1-09630-095-1	01	1	9002-		●	●
22	GAUGE; OIL TANK,P/S DESERT ZONE PACKAGE(W01)	1-21240-001-1	01	1	9002-		●	●
25	BOLT; OIL TANK BRKT M8X20 W/LK WASHER	9-01910-820-0	04	1	9002-9005	●	●	●
25	BOLT; OIL TANK BRKT M8X20 W/LK WASHER	0-50040-820-0	04	1	9006-9302	●	●	●
25	BOLT; OIL TANK BRKT M8X20 FLANGE	0-28080-820-0	04	1	9303-	●	●	●
26	NUT; OIL TANK TO BRKT M8	9-09110-408-0	04	1	9002-	●	●	●
191	FILTER; BREATHER,P/S TANK DESERT ZONE PACKAGE(W01)	1-21219-076-1	01	1	9002-		●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
